3D pose estimation, especially for humans, is a classic computer vision problem, with applications in imitation learning, robotic interaction, and activity understanding. Pose estimation is extremely challenging with objects that are articulated, deformable, or have wide intra-class variation, as is the case with humans. Therefore, state-of-the-art approaches rely on neural networks and learning. However, learning-based methods are extremely data hungry, and acquiring sufficient data in the real world is difficult. First, there is no straightforward way for people to annotate 3D ground truth poses. Worse, in settings like industrial warehouses or homes, hundreds of thousands of different object types may appear, and new objects may arrive at random. Here, even simple labeling will generally be impractical, much less 3D poses. And any time data involves real humans, issues with privacy, intellectual property, and bias can become serious obstaclesjordan2015machine; kay2015unequal; zhao2017men.
Synthetic data, however, provides an answer to all these problems, providing a potentially infinite dataset where ground-truth properties are easily accessible. In domains with many objects where labeling is impractical, scanning and simulating objects may not be hinterstoisser2018pre; hinterstoisser2019annotation. Furthermore, synthetic humans do not have any privacy or intellectual property concerns jordan2015machine, and datasets can be balanced exactly with respect to sensitive attributes like race, gender, and other physical characteristics, minimizing the problems algorithms currently have with bias kay2015unequal; zhao2017men. Even better, simulations can be made interactive for training robotic policies.
Considering all the advantages, why isn’t simulation the dominant approach in computer vision? One problem is that neural networks trained on synthetic data do not necessarily work on real data as well as methods trained directly on real data. Thus, even though such “sim2real” transfer has performed well in some domains, such as hand tracking mueller2018ganerated or text detection gupta2016synthetic, it is rare on the most popular benchmarks like human pose estimation, object classification, or object detection. Curiously, the community’s gold standard for popular vision algorithms is generally quantitative performance on large evaluation datasets. In practice, this kind of evaluation is limited to tasks where labels are easy to obtain, and for such tasks, it is equally straightforward to create large training sets with matching statistics. In contrast, vision problems like robotic manipulation—where simulation has been influential—are less popular not because they are unimportant, but because they exist in a sort of “evaluation blind spot,” due to the lack of standard benchmarks that can boil real-world performance down to a number. 3D human pose estimation is a rare exception to this trend: manual annotation is almost impossible, yet a small dataset of in-the-wild data is available for evaluation due to clever use of external sensors von_marcard_eccv_2018, called 3D Poses in the Wild (3DPW). Thus, we set our sights specifically on this problem, as a testbed for understanding how to design algorithms that can learn real-world pose estimation from simulation.
To train a 3D human pose estimation network, we must first confront the domain gap posed by standard datasets. SURREAL varol17_surreal, for example, lacks deformable clothing meshes, realistic lighting, and environmental interaction. While these aspects could be improved via better simulators, the problems with SURREAL are representative of the problems that rapidly-scanned real-world objects have: small-scale deformations may be lost, and physical properties will be approximate. Humans have little difficulty understanding the 3D structure of SURREAL humans despite having no experience with them, giving hope that computers can transfer between the domains as well. Disappointingly, however, we find that naïve transfer for computers is poor from SURREAL to 3DPW.
Our key insight is that motion, extracted from video sequences, can be a better cue for enabling transfer. Our intuition is grounded in psychology literature, where humans have been shown to extract remarkably detailed 3D interpretations when only simple point-light motion is visible johansson1973visual; kozlowski1977recognizing; cutting1977recognizing. Modern simulations (including SURREAL) explicitly use 3D models which match the 3D geometry of real humans, and therefore hypothetically match well in terms of plausible motion.

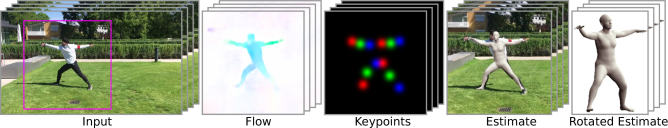

Armed with this intuition, we build a system to estimate 3D human poses in real videos. Our core contributions are relatively simple modifications to a standard 3D human pose estimation algorithm—Human Mesh Recovery (HMR) kanazawa_cvpr_2018—which greatly improve transfer from simulation to reality. Specifically, we first modify SURREAL to contain more realistic overall motion, for example, by compositing SURREAL humans onto real backgrounds from videos collected in-the-wild. Then we add explicit motion cues, including optical flow from FlowNet dosovitskiy2015flownet (also trained with synthetic data), and 2D keypoint tracks obtained from an off-the-shelf 2D detector (such as papandreou2017towards, for which no sim2real model is assumed to be available). We find that both modifications substantially improve performance on 3DPW, while ordinary RGB inputs can actually harm performance. We also compare to the standard Domain Adversarial Neural Network approach to domain transfer ganin2016domain, and find relatively marginal benefits compared to motion cues.
2 Related Work
Our work is part of a long line of research that has attempted to use simulation for human 3D pose estimation. Principal among these is work on using datasets of synthetic humans for human pose estimation varol17_surreal; sminchisescu2006learning; zhou2016sparseness; rogez2016mocap; okada2008relevant; ghezelghieh2016learning; du2016marker; chen2016synthesizing; tung2017self. These works generally note that transfer is a challenge, and therefore the majority train on real data as well as synthetic using a variety of strategies. For instance, some work constructs 3D datasets entirely by stitching together 2D images rogez2016mocap
; other works use feature selectionokada2008relevant and stage-wise training du2016marker to improve transfer. Algorithms trained entirely on synthetic data often underperform those trained entirely on real data, even when the real datasets are small varol17_surreal. An interesting exception is work that uses depth images shotton2011real, where sim2real 3D human pose estimation is effective, although depth cameras are required.
Numerous other areas of computer vision have made use of synthetic humans with varying success. Among work on 2D pose estimation romero2015flowcap; qiu2016generating; pishchulin2012articulated, FlowCap pishchulin2012articulated is particularly relevant due to its reliance on flow, although its model-based optimization renders the algorithm somewhat brittle. Other works consider pedestrian detection romero2015flowcap; qiu2016generating; pishchulin2011learning and action recognition rahmani2015learning; rahmani20163d. 3D hand pose estimation zimmermann2017learning; mueller2018ganerated is particularly promising, as neural networks trained on purely synthetic data are effective, perhaps because the lack of clothing makes appearance easier to model. Again, depth has proven useful mueller2017real; taylor2016efficient; sridhar2015fast, where state-of-the-art algorithms typically incorporate some form of generative model in-the-loop at test time.
Robotics is a particularly inspiring domain for sim2real research, and here it has been again found that more abstract representations than RGB, such as segmentations muller2018driving; zhou2019does, can improve performance. In some cases, these abstractions can be obtained automatically from a simulator alone james2018sim. Other works use generative models that make simulation look more like reality bousmalis2017unsupervised; bousmalis2018using, or randomize the simulator to increase the distribution overlap tobin2017domain; sadeghi2016cad2rl. These works emphasize that sim2real is essential: real-world data is impossible to annotate at the level of desired robot commands, and even unlabeled data is expensive since a robot can break itself or its environment. These sim2real works in robotics build on a long tradition of domain adaptation for visual data, which can involve learning maps between feature spaces gong2012geodesic, invariant feature extractors ganin2016domainzhu2017unpaired; for a review, see patel2015visual; csurka2017domain.
We are also not the first to note that optical flow can be useful preprocessing for human pose estimation: optical flow has been used for 2D keypoint estimation pishchulin2012articulated; romero2015flowcap, part segmentation kim2016human, and even 3D pose alldieck2017optical, although the latter work involves fitting a 3D model to optical flow, which is potentially slow, is sensitive to initialization, and limits robustness. Similarly, some works have noted that 2D keypoints can be useful in 3D interpretation of humans martinez_iccv_2017 and objects wu2016single.
Finally, our work is related to a long tradition of 3D human pose estimation, where learning-based methods have grown recently due to the emergence of motion-capture datasets. One straightforward approach is to ‘lift’ 2D poses into 3D, using either dictionaries or direct regression ramakrishna_eccv_2012; akhter_cvpr_2015; wang_cvpr_2014; martinez_iccv_2017; zhao_pami_2017; moreno_cvpr_2017; taylor_cviu_2000; valmadre_eccv_2010. Other works regress poses directly from pixels pavlakos_cvpr_2017; sarandi_arxiv_2018; pavlakos_cvpr_2018b; zhou_iccv_2017; rogez_cvpr_2017; mehta_3dv_2017; sun_iccv_2017; sun_eccv_2018, which generally relies on having a good match between training and testing. Similar to our work, state-of-the-art approaches often rely on parametric body models to incorporate strong priors on 3D poses anguelov_tog_2005; guan_iccv_2009; sigal_nips_2008; balan_cvpr_2007; hasler_cvpr_2010; loper_tog_2015; lassner_cvpr_2017; pavlakos_cvpr_2018; kanazawa_cvpr_2018; bogo_eccv_2016; omran_3dv_2018. Among these, we are particularly related to recent works which leverage temporal cues from videos to gain extra information about depth huang_3dv_2017; zhang_uist_2018; zanfir_cvpr_2018; peng_tog_2018; hossain_eccv_2018; dabral_eccv_2018; arnab_cvpr_2019; kanazawa_cvpr_2019; li2019learning.
Our goal is to train a network which can predict poses given a sequence of video frames. This means we first require a synthetic dataset of reasonably realistic sequences of synthetic poses, which we obtain by compositing SURREAL renders onto real, unlabeled scenes. We also require a pose estimation model which can properly exploit motion information and, importantly, propagate this information across frames where no motion is available. For this purpose, we augment the Human Mesh Recovery (HMR) algorithm to operate on motion, and add memory in the form of a LSTM.
3.1 Dataset Construction
We require a dataset which captures complex human motion, provides ground-truth 3D poses for each frame, and also has all the distractors that are likely to cause problems in real data. Distractors can include background motion, occluders covering the person, and frames where the person is completely missing. While it is straightforward to get complex human motion following previous datasets such as SURREAL varol17_surreal, which take pose sequences from the CMU motion capture dataset cmumocap and render them using the SMPL mesh loper_tog_2015, real videos are harder than this. SURREAL people are composited on static backgrounds, which means that the video version allows for a shortcut for pose estimation: it’s straightforward to segment the person from the background by identifying moving pixels. There are also no occlusions or missing frames in this dataset.
Therefore, to construct our dataset, we take humans from the SURREAL dataset and re-composite them onto a background from the large-scale Kinetics dataset kay2017kinetics. Kinetics videos and SURREAL videos are sampled independently at training time: thus, SURREAL videos may be composited on roughly
kinetics videos for around 20 billion possible combinations. Howeve, naïve compositing following SURREAL—i.e., simply removing the static background and replacing it with a kinetics video—still makes the task too easy, both because there are no occlusions or missing frames, and also because the motion of the person won’t match the motion of the camera. Therefore, we modify the SURREAL video before compositing. To solve the motion discrepancy problem, our first step is to estimate the camera motion, using off-the-shelf procedures. We then translate the person to follow the camera motion, by offsetting each frame of the SURREAL video by a vector equal to the estimated camera motion of the corresponding Kinetics frame.

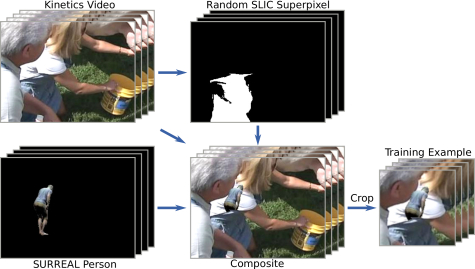

We then follow the procedure shown in Figure 2 to actually construct the video. Our first challenge is to simulate occlusions. One approach might be to take occluders from standard segmentation datasets like COCO lin2014microsoft, but this approach has some of the same problems as the SURREAL static backgrounds did. Specifically, COCO consists of static images, and so they don’t have any associated motion information. We might apply random, smooth trajectories to get some motion, but occlusions in real video often have internal motion on top of global translation: i.e., the occluding objects may be deformable and have 3D structure. Furthermore, occluders in real videos tend to move with the scene. Missing either of these properties will lead to occlusions that are artificially easily identified in synthetic data, which may lead to detectors which generalize poorly on real videos. Therefore, our approach is to extract occluders from the Kinetics video itself. We use standard superpixel segmentation (specifically SLIC achanta2012slic) to rapidly extract segments from the video, which are generally blobs of roughly uniform color tracked throughout the video, resulting in binary masks as shown in Figure 2. One superpixel is chosen at random, and then all pixels that overlap with the SURREAL person are removed from the person, resulting in a synthetic occlusion.
As a final step, for some videos we randomly occlude the entire person for a small number of frames, which we call a ‘total’ occlusion. This simulates a detector failure, which is common in real-world datasets like 3DPW where the person may move out of the frame or be otherwise totally hidden. To do this, we select a continuous chunk of frames and set all feature channels to 0. We add an extra channel to the input which is 1 if the frame is totally occluded in this way, and 0 for un-occluded frames. Further implementation details on the dataset construction are given in appendix A.
3.2 Network Architecture

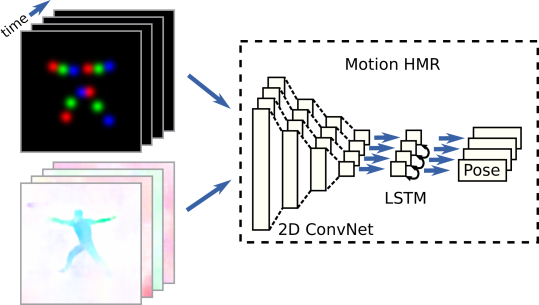

Our hypothesis is that easily-accessible motion information will be useful for bridging the sim2real gap in 3D pose estimation. Therefore, we seek a method to provide motion information to a pose estimation model, while otherwise staying close to existing pipelines for comparability. Our starting point is the Human Mesh Recovery (HMR) pipeline kanazawa_cvpr_2018. This recent algorithm directly regresses 3D SMPL poses from pixels, using first a ConvNet (ResNet-50) to obtain a feature vector, and then applying an iterative refinement algorithm on top of that feature vector to infer the pose.
A first modification is required to extend HMR to video. Our input, both at training and test time, is short clips (31 frames in most of our experiments). These may be the raw RGB videos, or the videos may be preprocessed to include other features like 2D keypoints or optical flow as described below. We assume that a person detector has already been run, meaning that the sequence tracks a single person whose pose needs to be estimated. A scalable memory architecture is important, because not every frame will be equally discriminative, especially when using motion features on frames that contain little motion. Thus, we need an architecture which can update its beliefs when the pose is easily identified, and otherwise leave them unchanged. We use an LSTM for this purpose (in a similar manner to tokmakov2017learning). Our architecture, which we call Motion HMR, is shown on the right hand side of Figure 3
. This architecture applies a CNN, which is a standard ResNet-50, independently on each frame, average-pooling at the end to obtain a single feature vector per frame. We then pass these features into a bi-directional LSTM that operates in time over the short clips. Finally, we apply HMR’s iterative pose refinement on the output feature vectors from the LSTM for each frame independently. The result is a pose estimate for each frame in the sequence. At training time, we the simplified version of the HMR loss function that was proposed for training from Kinetics pseudo ground trutharnab_cvpr_2019. That is, we train directly for Procrustes-aligned 3D keypoint location error (rather than SMPL joint angles and absolute 3D keypoint positions), as well as 2D reprojection error of the 3D pose.
Providing motion inputs.
Given a video-based architecture, we next add motion information. Our first strategy is to use optical flow. Optical flow is already known to transfer well across domains, because it relies more on similarities between frames than on recognizing specific patterns dosovitskiy2015flownet; ranjan2017optical; ilg2017flownet; gaidon2016virtual; mayer2016large; ranjan2018learning. Furthermore, optical flow can have strong cues for depth: for example, if one end of a rigid body is stationary, but the other end is moving toward the first, then this indicates an out-of-plane rotation. We implement this as a simple preprocessing step. That is, we use an off-the-shelf optical flow algorithm FlowNet dosovitskiy2015flownet as a frozen module, which produces an estimate of optical flow at the full resolution of the input sequence.
One disadvantage of optical flow is that it can become difficult to distinguish body parts from background. Especially for frames with little motion, the movement of individual limbs will be simply blobs of smooth motion, much like blobs of background. We hypothesize that this is mostly a problem of 2D part detection, and we note that 2D keypoint detection is a well-studied field. 2D keypoint detection is far easier to annotate than 3D, and even when 2D keypoints are not available, some recent works have argued that 2D correspondence and keypoints can even be obtained in a self-supervised manner jakab2018unsupervised; zhou2016learning. 2D keypoints alone do contain some information about 3D pose martinez_iccv_2017, although follow-up work has suggested that this approach to using 2D keypoints by itself performs poorly for 3D pose estimation on 3DPW kanazawa_cvpr_2019. This leads to an interesting research question: if neither flow information nor 2D keypoints are enough to perform 3D pose estimation, then is it sufficient to identify the 2D keypoints, and then use the flow and keypoint motion to estimate 3D structure?

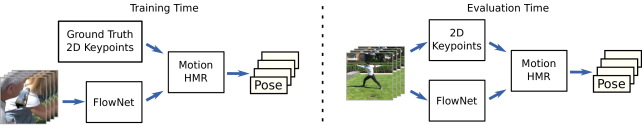

To answer this question, we provide 2D keypoints as another input to Motion HMR. At training time, these are obtained automatically from the known synthetic pose; at test time, these are the detections from an automatic 2D keypoint detector (for reproducibility, we use the automatic 2D keypoints provided with the 3DPW dataset). After computing optical flow, we concatenate an additional set of 12 channels to the input image which are keypoint heatmaps. That is, each channel contains zeros everywhere except near the keypoint associated with the channel; they are 1 at the keypoint location and fall off with a Gaussian distribution with a standard deviation of 10 pixels. The 12 keypoints we use are the ankles, knees, hips, shoulders, elbows, and wrists, which are standard in most pose datasets. For more details on the architecture and training, see appendixB.
We apply our trained models to the 3D Poses in the Wild dataset. This dataset is challenging because it is shot in real-world environments using handheld cameras, rather than the motion-capture rigs of prior 3D pose estimation work. There is non-trivial camera motion, strong lighting variations (indoor and outdoor scenes), and substantial clutter, including objects moving in the background and occlusions by both objects and humans.
Following prior work arnab_cvpr_2019, we evaluate only on sequences in the test set, and among these, only on frames where at least 7 keypoints are visible (although all frames are visible to the algorithm). We pass 31-frame clips to the algorithm, the same as at training time, and evaluate the predicted poses using the 14 joints that are common to the SMPL and COCO models. We use the standard performance metric PA-MPJPE, which uses the procrustes algorithm to align the poses in 3D before computing squared error, and we average across each individual person before finally averaging across the entire dataset.
|Martinez et al. martinez_iccv_2017 (from kanazawa_cvpr_2019)||157.0|
|RGB + DANN ganin2016domain||103.0 (107.5)|
|Flow Only (proposed)||100.1|
|RGB + Keypoints (proposed)||82.4|
|Keypoints Only (proposed)||77.6|
|Flow + Keypoints (proposed)||74.7|
|HMR kanazawa_cvpr_2018 (from arnab_cvpr_2019)||77.2|
|Temporal HMR kanazawa_cvpr_2019||80.1|
|Temporal HMR + InstaVariety kanazawa_cvpr_2019||72.4|
|HMR + Kinetics arnab_cvpr_2019||72.2|
As a baseline, we also ran Domain Adversarial Neural Networks (DANN) ganin2016domain, a mainstay of domain adaptation, which uses an adversarial network trained to distinguish between the representations of real and synthetic images. The trunk of the network is then trained with the negative of this discriminator loss, resulting in representations that are indistinguishable across domains. While straightforward to implement, DANN is challenging to tune: synthetic images and real ones are mapped to overlapping distributions, there is no way to guarantee that the mapping preserves semantics. We apply DANN to the per-frame representations directly before the LSTM.
Table 1 shows our results, comparing training with and without motion information as input to the network. RGB alone performs poorly: a network trained only on short RGB video clips fares worse than one trained on flow, despite the relatively uninformative flow images. This relationship holds even when the RGB-only model is trained with DANN. One possible explanation is that neural networks tend to rely heavily on texture cues geirhos2018imagenet. Synthetic textures are not similar to real ones; therefore the network can localize a synthetic person by distinguishing between sim and real textures. At test time this is impossible, and failures to identify parts early on can amplify at later layers which do detailed depth estimation.
Keypoints, on the other hand, perform surprisingly well, validating the intuitions from psychology that 2D motion encapsulates substantial information about 3D activities johansson1973visual. It is interesting to compare our keypoints-only results to Martinez et al. martinez_iccv_2017, which is a comparable algorithm in that it only uses 2D keypoints. There are a number of factors which may explain the relatively poor results of martinez_iccv_2017. Primarily, martinez_iccv_2017 is trained on single frames, whereas we use sequences. Furthermore, Martinez et al. gives relatively little attention to occlusions, resulting in a domain gap relative to 3DPW.
Another interesting result is that the network which incorporates RGB on top of keypoints actually performs worse than one that uses only keypoints, further emphasizing the size of the domain gap. It’s likely the simple presence of synthetic textures causes the network to rely on them, and ignore 2D motion cues that are more reliable out-of-domain, but harder to learn. On the other hand, adding flow to keypoints yields substantial improvements. This suggests that optical flow contains information about motion and silhouettes that pure 2D keypoints do not, and furthermore, that the optical flow estimated on synthetic and real images are a reasonably good match. We conjecture that the flow features lose low-level texture information that neural networks can easily overfit to, replacing it with simple piecewise-smooth regions that capture only shape and motion.
Our final result, of 74.7, is comparable to state-of-the-art works that use similar training pipelines. We outperform HMR kanazawa_cvpr_2018, which trains on real-world motion capture datasets as well as real-world 2D images as a regularizer (ensuring that 3D poses are consistent with 2D annotations). In contrast, our network is trained only on annotated synthetic images from SURREAL. Even more interesting is extensions to HMR that use temporal sequences kanazawa_cvpr_2019. While kanazawa_cvpr_2019 reports pose sequences that are substantially more coherent, they find that adding temporal information harms the method’s absolute pose accuracy. While counter-intuitive, we hypothesize that this is due to another form of domain gap: specifically, the 3D datasets that this algorithm was trained on all contain static backgrounds. Thus, in the training set, motion is a very strong cue for the person’s location. At test time, however, 3DPW contains substantial background motion, which can confuse the algorithm. Our synthetic pipeline, on the other hand, allows us to provide realistic background motion. Overall, the only algorithms which currently outperform us are trained on large, weakly-labeled video datasets arnab_cvpr_2019; kanazawa_cvpr_2019
. This sort of semi-supervised learning on real videos is an interesting avenue for future research, since it would allow us to add real videos to our synthetic training set without any manual annotation, and therefore potentially boost the performance of our algorithm even further.

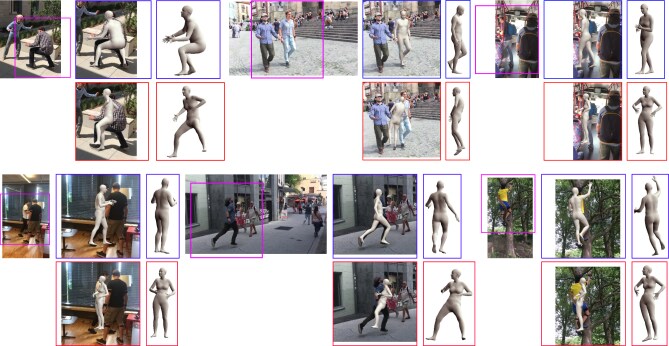

Figure 5 shows qualitative results of the performance of our algorithm on 3DPW scenes. Our algorithm is often robust to both unusual poses and to occlusion, even when the occluders are other people (bottom left). The baseline, however, fails badly, even missing the 2D limb positions for relatively simple poses. This again confirms our suspicion that the RGB-only algorithm cannot identify the 2D locations of joints. Interestingly, there are similarities between the wrongly-estimated pose (note the elbow angles), suggesting some similarity in the way that real human textures are misinterpreted by the network.
The ablation results for the dataset preprocessing steps are given in Table 3. In all cases, we train a model from scratch using both optical flow and 2D keypoints as input. We begin with a model that is composited as SURREAL was: we select a single Kinetics frame as background, and composite all of the SURREAL images from a sequence onto it. Replacing static backgrounds with moving ones gives a substantial boost, confirming that networks which segment a moving person from a static background may fail to generalize to dynamic backgrounds. Tracking the background also helps, suggesting that camera motion is a non-trivial artifact in 3DPW. Finally, the boost from using occlusions validates that superpixels are a good approximation to the occlusions seen in real videos.
|Dataset construction approach||PA-MPJPE|
|No background tracking, no occlusions||80.3|
|Static background, no occlusions||88.9|
Finally, we consider the importance of long-term versus short-term motion for our network by varying the length of the clips that were fed into the network and retraining from scratch. Table 3 shows the results. We can see that performance improves until 31 frames, corresponding to roughly 1 second of video. This isn’t surprising because 3DPW contains clips where people are occasionally standing still. However, we don’t see any improvement moving to 2 seconds of video. One possible explanation is that errors are accumulating in the LSTM as the sequence length increases, indicating a potential area for future research in architectures. Furthermore, with a batch size of 2, we could only fit 2 clips in GPU memory simultaneously, which reduces the stability of the Batch Norm required by HMR (31 frames uses batch size 3; 8 and 16 used batch size 6).
Our results show that motion information can help neural networks learn 3D human pose estimation from synthetic images. Human pose estimation is challenging because humans are articulated and deformable, with wide appearance variation, yet they are far from the only thing in the visual world like this. Our results may have wide-ranging applications in, for example, robotics, where both camera motion and object motion (via manipulation) can provide strong cues for object pose. While it is somewhat disappointing that neural networks overfit to the RGB appearance of synthetic images, and therefore our final model loses out on cues like shading, it is possible that the advantages of RGB might be recovered through self-supervised learning. That is, we can weakly-label poses using video and then train a single-frame model on real data. Overall, we believe motion information, and the sim2real transfer that it enables, may become an essential component of pose estimation systems whenever video is available.
Appendix A Implementation details for dataset generation
We randomly crop the Kinetics videos to be , to match the SURREAL resolution, potentially resizing so that one dimension exactly matches the SURREAL resolution, and then randomly extract a 31-frame clip from both Kinetics and SURREAL. For every frame, we compute optical flow of the Kinetics, using TVL1 zach2007duality, computed offline. Then we compute the median x and y flow for each frame. Finally, we translate the person according to the median flow at each frame, using the center frame of the clip as a reference.
We generate SLIC superpixels directly in the 4-D video tensor. Recall that SLIC is a clustering in RGB/XYZ space. This is sub-optimal under large camera motions, as the clusters are artificially encouraged to remain in the same place relative to the image frame. Therefore, we modify the standard SLIC algorithm by first integrating the median flow vector that we used initially in order to get an estimate of global camera motion throughout the video, and then subtracting the integrated value from the X/Y coordinates used by SLIC. The result is SLIC superpixels of color blobs in the video that roughly follow camera motion, which are computationally cheap to compute. Given these superpixels, we choose a random superpixel, and mask out any part of the synthetic human covered by it. Note that, if the superpixel does not occlude the person, or if it occludes so much of the person that there are an average of less than 7 keypoints (out of the 14 standard COCO joints) per frame remaining, then we simply discard the superpixel and do no masking. This means that only roughly 30% of videos have occlusions generated in this way. When computing the superpixel, we use between 10 and 30 superpixels per image. We implement SLIC using an off-the-shelf implementation from skimage, where we add extra channels containing the (x,y) pixel coordinates which have been modified to account for camera motion, and then set a very low compactness for the SLIC computation (0.01). The concatenated (x,y) coordinates are multiplied by a random scalar between 4e-4 and 6e-4. To compute the final composite, we use hard binary masks derived from the ground-truth segmentation in SURREAL.
Bounding boxes are cropped at a resolution, following the procedure from HMR which uses the keypoints to ensure that the person is centered and roughly 150 pixels tall. The ‘total occlusions’ are up to 15 frames long in our training set. Such ‘total occlusions’ are also used at evaluation time for any frame where fewer than 7 keypoints are visible; note that such frames are not counted in the evaluation.
Appendix B Implementation details for network training
We compute FlowNet-based optical flow at the level of bounding boxes to avoid wasting computation on the background. To compute the flow, then, we need two frames for each bounding box. We obtain these by extending the bounding box at each frame into the future to create a set of ‘paired boxes’ for optical flow. One drawback of this approach is that there is no ‘paired box’ for the final frame of a clip. To deal with this problem, we predict two poses from each pair of frames: one for the present frame and one for the frame in the future. In this way, a 31-frame clip becomes 30 bounding box pairs, and then 60 total predictions. While we compute a loss for all 60 predictions at training time, at test time, we throw out all ‘future’ predictions except the final one, in order to get 31 predictions.
Our LSTM contains 1024 hidden units, and we add another layer of 1024 units on top of this for each of the prediction heads for the 2 predictions (current and future) that must be made for each frame.
Because keypoint detectors do not reliably detect all keypoints, we find that domain randomization tobin2017domain; sadeghi2016cad2rl
is useful for generating hidden keypoints at training time. That is, we randomly hide keypoints with some probability. All keypoints outside the frame of the kinetics video are considered hidden. All keypoints occluded by the SLIC mask are also considered hidden, as well as keypoints on frames that are totally occluded. Finally, any keypoints that are at least 20cm behind the depth map of the mesh in 3D are considered hidden, because they likely indicate that a limb is occluded behind the body. We then unhide all leg keypoints with a 50% probability, as we find that the 3DPW keypoint detector often produces estimates for leg keypoints even when they are occluded. We then randomly unhide hidden keypoints and hide un-hidden keypoints with a 5% probability. We initialize HMR using a standard ImageNet-pretrained ResNet-50 model for all experiments (as was done in the original HMR); when using optical flow, we expand 2 channels to 3 by adding an extra channel which is the flow magnitude, and pass this to the ResNet. Optical flow estimates are divided by 20 to put them in the same range as RGB pixels (roughly -1 to 1). When training with keypoint channels, these are concatenated alongside the other inputs, and extra weights in conv1 are initialized randomly.
Our implementation of DANN uses a 2-layer (1024 hidden units) adversary on the ConvNet output (right before the LSTM). We performed a hyperparameter sweep with 5 seeds, using a DANN loss weight between 0.2 and 5 (we found values outside this range performed worse) and report the best, with the mean in parentheses. This is the only experiment for which we performed any hyperparemter sweep.
