Living organisms endowed with a neural system constantly receive sensory information and perform actions. Occasionally, actions lead to rewards or punishments in the near future, e.g. tasting food after following a scent (Staubli et al, 1987). The exploration of the stimulusaction patterns, and the exploitation of those patterns that lead to rewards, was observed in animal behavior and named operant conditioning (Thorndike, 1911; Skinner, 1953)
. Mathematical abstractions of operant conditioning are formalized in algorithms that maximize a reward function in the field of reinforcement learning(Sutton and Barto, 1998)
. The maximization of reward functions was also implemented in a variety of neural network models(Lin, 1993; Pennartz, 1997; Schultz et al, 1997; Bosman et al, 2004; Xie and Seung, 2004; Florian, 2007; Farries and Fairhall, 2007; Baras and Meir, 2007; Legenstein et al, 2010; Frémaux et al, 2010; Friedrich et al, 2010), and is inspired and justified by solid biological evidence on the role of neuromodulation in associative and reward learning (Wise and Rompre, 1989; Schultz et al, 1993; Swartzentruber, 1995; Pennartz, 1996; Schultz, 1998; Nitz et al, 2007; Berridge, 2007; Redgrave et al, 2008). The utility of modulatory dynamics in models of reward learning and behavior is also validated by closed-loop robotic neural controllers (Ziemke and Thieme, 2002; Sporns and Alexander, 2002; Alexander and Sporns, 2002; Sporns and Alexander, 2003; Soltoggio et al, 2008; Cox and Krichmar, 2009).
Neural models encounter difficulties when delays occur between perception, actions, and rewards. A first issue is that a neural network needs a memory, or a trace, of previous events in order to associate them to later rewards. But a second even trickier problem lies in the environment: if there is a continuous flow of stimuli and actions, unrelated stimuli and actions intervene between causes and rewards. The environment is thus ambiguous as to which stimulusaction pairs lead to a later reward. Concomitant stimuli and actions also introduce ambiguity. In other words, any learning algorithm faces a condition in which one single reward episode does not suffice to understand which of the many preceding stimuli and actions are responsible for the delivery of the reward. This problem was called the distal reward problem (Hull, 1943), or credit assignment problem (Sutton, 1984; Sutton and Barto, 1998)
. Credit assignment is a general machine learning problem. Neural models that solve it may help clarify which computation is employed by animals to deal with asynchronous and deceiving information. Learning in ambiguous conditions is in fact an ubiquitous type of neural learning observed in mammals as well as in simpler neural systems(Brembs, 2003) as that of the invertebrate Aplysia (Brembs et al, 2002) or the honey bee (Hammer and Menzel, 1995; Menzel and Müller, 1996; Gil et al, 2007).
When environments are ambiguous due to delayed rewards, or due to concomitant stimuli and actions, the only possibility of finding true causeeffect relationships is to observe repeated occurrences of a reward. By doing that, it is possible to assess the probability of certain stimuli and actions to be the cause of the observed reward. Previous neural models, e.g.(Izhikevich, 2007; Frémaux et al, 2010; Friedrich et al, 2011; Soltoggio and Steil, 2013)
, solve the distal reward problem applying small weight changes whenever an event indicates an increased or decreased probability of particular pathways to be associated with a reward. With a sufficiently low learning rate, and after repeated reward episodes, the rewardinducing synapses grow large, while all other synapses sometimes increase and sometimes decrease their weights. Those approaches may perform well in reward maximization tasks, but they also cause deterioration of synaptic values because the whole modulated network constantly undergoes synaptic changes across nonrewardinducing synapses. For this reason, only limited information, i.e. those stimulusaction pairs that are frequently rewarded, can be retained even in large networks because the connectivity is constantly rewritten. Interestingly, the degradation of synapses occurs also as a consequence of spontaneous activity as described inFusi et al (2005). In general, continuous learning, or synapses that are always plastic, pose a treat to previously acquired memory (Senn and Fusi, 2005; Fusi and Senn, 2006; Leibold and Kempter, 2008). Delayed rewards worsen the problem because they amplify synaptic changes caused by reward-unrelated activity. While learning with delayed rewards, current models suffer particularly from the so called plasticitystability dilemma, and catastrophic forgetting (Grossberg, 1988; Robins, 1995; Abraham and Robins, 2005).
Synapses may be either coincidentally or causally active before reward deliveries, but which of the two cases applies is unknown due to the ambiguity introduced by delays. How can a system solve this apparent dilemma, and correctly update rewardinducing weights and leaving the others unchanged? The novel idea in this study is a distinction between two components of a synaptic weight—a volatile component and a consolidated component. Such as distinction is not new in connectionist models (Hinton and Plaut, 1987; Schmidhuber, 1992; Levy and Bairaktaris, 1995; Tieleman and Hinton, 2009; Bullinaria, 2009), however, in the proposed study the idea is extended to model hypothesis testing and memory consolidation with distal rewards. The volatile (or transient) component of the weight may increase or decrease at each reward delivery without immediately affecting the longterm component. It decays over time, and for this reason may be seen as a particular form of shortterm plasticity. In the rest of the paper, the terms volatile, transient and shortterm are used as synonyms to indicate the component of the weight that decays over time. In contrast, consolidated, long-term, or stable are adjectives used to refer to the component of the weight that does not decay over time.
Shortterm volatile weights are hypotheses of how likely stimulusaction pairs lead to future rewards. If not confirmed by repeated disambiguating instances, shortterm weights decay without affecting the longterm configuration of the network. Shortterm synaptic weights and the plasticity that regulates them can be interpreted as implementing Bayesian belief (Howson and Urbach, 1989)
, and the proposed model interpreted as a special case of a learning Bayesian network(Heckerman et al, 1995; Ben-Gal, 2007). Shortterm weights that grow large are therefore those that consistently trigger a reward. The idea in this study is to perform a parsimonious consolidation of weights that have grown large due to repeated and consistent rewarddriven potentiation. Such dynamics lead to a consolidation of weights representing established hypotheses.
The novelty of the model consists in implementing dynamics to test temporal causal hypotheses with a transient component of the synaptic weight. Transient weights are increased when the evidence suggests an increased probability of being associated with a future reward. As opposed to Izhikevich (2007)
, in which a baseline modulation results in a weak Hebbian plasticity in absence of reward, in the current model an anti-Hebbian mechanism leads transient weights to be depressed when the evidence suggests no causal relations to future rewards. The distinction between short and longterm components of a weight allows for an implicit estimation of the probability of a weight to be associated with a reward without changing its long-term consolidated value. When coincidental firing leads to an association, which is however not followed by validating future episodes, long-term weight components remain unchanged. The novel plasticity suggests a nonlinear mechanism of consolidation of a hypothesis in established knowledge during distal reward learning. Thus, the proposed plasticity rule is named Hypothesis Testing Plasticity (HTP).
The current model uses eligibility traces with a decay in the order of seconds to bridge stimuli, actions, and rewards. As it will be clarified later, the decay of transient weights acts instead in the order of hours, thereby representing the forgetting of coincidental eventreward sequences that are not confirmed by consistent occurrences. It is important to note that HTP does not replace previous plasticity models of reward learning, it rather complements them with the additional idea of decomposing the weight in two components, one for hypothesis testing, and one for longterm storage of established associations.
In short, HTP enacts two main principles. The first is monitoring correlations by means of shortterm weights and actively pursuing exploration of probably rewarding stimulusaction pairs; the monitoring (or hypothesis evaluation) is done without affecting the longterm state of the network. The second principle is that of selecting few established relationships to be consolidated in longterm stable memory.
HTP is a metaplasticity scheme and is general to both spiking and rate-based codes. The rule expresses a new theory to cope with multiple rewards, to learn faster and preserve memories of one task in the long term also while learning or performing in other tasks.
This section describes the learning problem, overviews existing plasticity models that solve the distal reward problem, and introduces the novel metaplasticity rule called Hypothesis Testing Plasticity (HTP).
2.1 Operant learning with asynchronous and distal rewards
A newly born learning agent, when it starts to experience a flow of stimuli and to perform actions, has no knowledge of the meaning of inputs, nor of the consequences of actions. The learning process considered here aims at understanding what reward relationships exist between stimuli and actions.
The overlapping of stimuli and actions represents the coexistence of a flow of stimuli with a flow of actions. Stimuli and actions are asynchronous and initially unrelated. The execution of actions is initially driven by internal dynamics, e.g. driven by noise, because the agent’s knowledge is a tabula rasa, i.e. is unbiased and agnostic of the world. Spontaneous action generation is a form of exploration. A graphical representation of the inputoutput flow is given in Fig. 1.
In the setup of the current experiments, at any moment there might be between zero and three stimuli. Stimuli and actions have a random duration betweenand s. Some actions, if performed when particular stimuli are present, cause the delivery of a global noisy signal later in time (between 1 and 4 s later), which can be seen as a reward, or simply as an unconditioned stimulus. The global reward signal is highly stochastic in the sense that both the delay and the intensity are variable. In the present setting, 300 different stimuli may be perceived at random times. The agent can perform 30 different actions, and the total number of stimulusaction pairs is 9000. The task is to learn which action to perform when particular stimuli are present to obtain a reward.
It is important to note that the ambiguity as to which pairs cause a reward emerges from both the simultaneous presence of more stimuli, and from the delay of a following reward. From a qualitative point of view, whether distinct stimulusaction pairs occurred simultaneously or in sequence has no consequence: a learning mechanism must take into consideration that a set of pairs were active in the recent past. Accordingly, the word ambiguity in this study refers to the fact that, at the moment of a reward delivery, several stimulusaction pairs were active in the recent past, and all of them may potentially be the cause of the reward.
2.2 Previous models with synaptic eligibility traces
In simple neural models, the neural activity that triggers an action, either randomly or elicited by a particular stimulus, is gone when a reward is delivered seconds later. For this reason, standard modulated plasticity rules, e.g. (Montague et al, 1995; Soltoggio and Stanley, 2012), fail unless reward is simultaneous with the stimuli. If the reward is not simultaneous with its causes, eligibility traces or synaptic tags have been proposed as means to bridge the temporal gap (Frey and Morris, 1997; Wang et al, 2000; Sarkisov and Wang, 2008; Päpper et al, 2011).
Previous models with rewardmodulated Hebbian plasticity and eligibility traces were shown to associate past events with following rewards, both in spiking models with spiketimingdependent plasticity (STDP) (Izhikevich, 2007) and in ratebased models with Rarely Correlating Hebbian Plasticity (RCHP) (Soltoggio and Steil, 2013; Soltoggio et al, 2013a). RCHP is a filtered Hebbian rule that detects only highly correlating and highly decorrelating activity by means of two thresholds (see Appendix 2): the effect is that of representing sparse (or rare) spiking coincidence also in ratebased models. RCHP was shown in Soltoggio and Steil (2013) to have computationally equivalent learning to the spiking rule (R-STDP) in Izhikevich (2007).
, increase synapsespecific eligibility traces. Even with fast network activity (in the millisecond time scale), eligibility traces can last several seconds: when a reward occurs seconds later, it multiplies those traces and reinforces synapses that were active in a recent time window. Given a presynaptic neuronand a postsynaptic neuron , the changes of weights , modulation , and eligibility traces , are governed by
where the modulatory signal is a leaky integrator of the global reward signal with a bias ; and are the time constants of the eligibility traces and modulatory signal; is a learning rate. The signal is the reward determined by the environment. The modulatory signal , loosely representing dopaminergic activity, decays relatively quickly with a time constant s as measured in Wighmann and Zimmerman (1990); Garris et al (1994). In effect, Eq. (1) is a rapidly decaying leaky integrator of instantaneous reward signals received from the environment. The synaptic trace is a leaky integrator of correlation episodes . In Izhikevich (2007), is the STDP(t) function; in Soltoggio and Steil (2013), is implemented by the rate-based Rarely Correlating Hebbian Plasticity (RCHP) that was shown to lead to the same neural learning dynamics of the spiking model in Izhikevich (2007). RCHP is a thresholded Hebbian rule expressed as
where and are two positive learning rates for correlating and decorrelating synapses respectively, is the neural output, is the propagation time of the signal from the presynaptic to the postsynaptic neuron, and and
are the thresholds that detect highly correlating and highly decorrelating activities. RCHP is a nonlinear filter on the basic Hebbian rule that ignores most correlations. Note that the propagation timein the Hebbian term implies that the product is not between simultaneous presynaptic and postsynaptic activity, but between presynaptic activity and postsynaptic activity when the signal has reached the postsynaptic neuron. This type of computation attempts to capture the effect of a presynaptic neuron on the postsynaptic neuron, i.e. the causal pre-before-post situation (Gerstner, 2010), considered to be the link between the Hebb’s postulate and STDP (Kempter et al, 1999). The regulation of the adaptive threshold is described in the Appendix 2s. A baseline modulation can be set to a small value and has the function of maintaining a small level of plasticity.
The idea behind RCHP, which reproduces with rate-based models the dynamics of R-STDP, is that eligibility traces must be created parsimoniously (with rare correlations). When this criterion is respected, both spiking and rate-based models display similar learning dynamics.
In the current model, the neural state and output of a neuron are computed with a standard rate-based model expressed by
where is the connection weight from a presynaptic neuron to a postsynaptic neuron ; is a gain parameter set to 0.5;
is a Gaussian noise source with standard deviation 0.02. The input current I is set to 10 when an input is delivered to a neuron. The sampling time is set toms, which is also assumed to be the propagation time (Eq. (4)) of signals among neurons.
2.3 Hypothesis Testing Plasticity (HTP)
The dynamics of Eqs. (23) erode existing synapses because the spontaneous network activity during reward episodes causes synaptic correlations and weightchanges. The deterioration is not only caused by endogenous network activity, but it is also caused by the ambiguous information flow (Fig. 1). In fact, many synapses are often increased or decreased because the corresponding stimulus-action pair is coincidentally active shortly before a reward delivery. Therefore, even if the network was internally silent, i.e. there was no spontaneous activity, the continuous flow of inputs and outputs generates correlations that are transformed in weight changes when rewards occur. Such changes are important because they test hypotheses. Unfortunately, if applied directly to the weights, they will eventually wear out existing topologies.
To avoid this problem, the algorithm proposed in this study explicitly assigns the fluctuating dynamics of Eq. (2) to a transient component of the weight. As opposed to the longterm component, the transient component decays over time. Assume, e.g., that one particular synapse had pre and postsynaptic correlating activity just before a reward delivery, but it is not known whether there is a causal relation to the delivery of such a reward, or whether such a correlation was only coincidental. Eq. (2) increases correctly the weight of that synapse because there is no way at this stage to know whether the relation is causal or coincidental. In the variation proposed here, such a weight increase has a shortterm nature because it does not represent the acquisition of established knowledge, but it rather represents the increase of probability that such a synapse is related to a reward delivery. Accordingly, weight changes in Eq. (2) are newly interpreted as changes with shortterm dynamics
where is now a transient component of the weight, and is the corresponding decay time constant. The time constant of shortterm memory is set to 8 h. In biological studies, short-term plasticity is considered only for potentiation lasting up to minutes (Zucker, 1989; Fisher et al, 1997; Zucker and Regehr, 2002). However, in the idea of this study, the duration of volatile weights represents the duration of an hypothesis rather than a specific biological decay. Thus, the value of can be chosen in a large range. A brief time constant ensures that weights decay quickly if rewards are not delivered. This helps maintain low weights but, if rewards are sparse in time, hypotheses are forgotten too quickly. With sporadic rewards, a longer decay may help preserve hypotheses longer in time. If is set to large values, hypotheses remain valid for an arbitrary long time. This point indicates that, in the current model, shortterm weights are intended primarily as probabilities of relationships to be true, rather than simply short time spans of certain information.
If a stimulusaction pair is active at a particular point in time, but no reward follows within a given interval (1 to 4 s), it would make sense to infer that such a stimulusaction pair is unlikely to cause a reward. This idea is implemented in HTP by setting the baseline modulation value in Eq. (2) to a small negative value. The effect is that of establishing weak anti-Hebbian dynamics across the network in absence of rewards. Such a setting is in contrast to Izhikevich (2007) in which the baseline modulation is positive. By introducing a small negative baseline modulation, the activation of a stimulus-action pair, and the consequent increase of , results in a net weight decrement if no reward follows. In other words, high eligibility traces that are not followed by a reward cause a small weight decrease. This modification that decreases a weight if reward does not follow is a core principle in the hypothesis testing mechanism introduced by HTP. By introducing this idea, weights do not need to be randomly depressed by decorrelations, which therefore are not included in the current model.
Finally, the principles of HTP illustrated above can be applied to a rewardmodulated plasticity rule such as R-STDP, RCHP, or any rule capable of computing sparse correlations in the neural activity, and consequently , in Eq. 3. In the current study, a ratebased model plus RCHP are employed. In particular, a simplified version of the RCHP, without decorrelations, is expressed as
and 0 otherwise (compare with Eq. (4)). Decorrelations may be nevertheless modelled to introduce weight competition111In that case, is essential that the traces are bound to positive values: negative traces that multiply with the negative baseline modulation would lead to unwanted weight increase..
The overall HTP synaptic weight W is the sum of the short-term and long-term components
As the transient component is also contributing to the overall weight, shortterm changes also influences how presynaptic neurons affect postsynaptic neurons, thereby biasing exploration policies as it will be explained in the result section.
The proposed model consolidates transient weights in longterm weights when the transient values grow large. Such a growth indicates a high probability that the activity across that synapse is involved in triggering following rewards. In other words, after sufficient trials have disambiguated the uncertainty introduced by the delayed rewards, a nonlinear mechanism convert hypotheses to certainties. Previous models (Izhikevich, 2007; O’Brien and Srinivasan, 2013; Soltoggio and Steil, 2013) show a separation the of weight values between rewardinducing synapses (high values) and other synapses (low values). In the current model, such a separation is exploited and identified by a threshold loosely set to a high value, in this particular setting to 0.95 (with weights ranging in [0, 1]). The conversion is formally expressed as
where is the Heaviside function and is a consolidation rate, here set to 1/1800 s. Note that in this formulation, can only be positive, i.e. longterm weights can only increase: a variation of the model is discussed later and proposed in the Appendix 1. The consolidation rate means that shortterm components are consolidated in longterm components in half an hour when they are larger than the threshold . A onestep instantaneous consolidation (less biologically plausible) was also tested and gave similar results, indicating that the consolidation rate is not crucial.
The threshold represents the point at which an hypothesis is considered true, and therefore consolidated in longterm weight. The idea is that, if a particular stimulusaction pair has been active many times consistently before a reward, such stimulusaction pair is indeed causing the reward. Interestingly, because the learning problem is inductive and processes are stochastic, certainty can never be reached from a purely theoretical view point. Assume for example that, on average, every second one reward episode occurs with probability and leads shortterm weights that were active shortly before the delivery to grow of 0.05222The exact increment depends on the learning rate, on the exact circumstantial delay between activity and reward, and on the intensity of the stochastic reward.. To grow to saturation, a null weight needs 1) to be active approximately times before reward deliveries and 2) not to be active when rewards are not delivered. If a synapse is not involved in reward delivery, the probability of such a synapse to reach might be very low in the oder of , i.e. . The complex and nonstationary nature of the problem does not allow for a precise mathematical derivation. Such a probability is in fact affected by a variety of environmental and network factors such as the frequency and amount of reward, the total number of stimulusaction pairs, the firing rate of a given connection, the number of intervening events between cause and effect (reward), and the contribution of the weight itself to a more frequent firing. Nevertheless, previous mathematical and neural models that solve the distal reward problem rely on the fact that consistent relationships occurs indeed consistently and more frequently than random events. As a consequence, after a number of reward episodes, the weight that is the true cause of reward has been accredited (increased) more than any other weight. The emergence of a separation between rewardinducing weights and other weights is observed in Izhikevich (2007); O’Brien and Srinivasan (2013); Soltoggio and Steil (2013). The proposed rule exploits this separation between rewardinducing and nonrewardinducing synapses to consolidate established relationship in longterm memory. The dynamics of Eqs. (7-10) are referred to as Hypothesis Testing Plasticity (HTP).
The long-term component, once is consolidated, cannot be undone in the present model. However, reversal learning can be easily implemented by adding complementary dynamics that undo long-term weights if shortterm weights become heavily depressed. Such an extension is proposed in the Appendix 1.
The role of shortterm plasticity in improving rewardmodulated STDP is also analyzed in a recent study by O’Brien and Srinivasan (2013). With respect to O’Brien and Srinivasan (2013), the idea in the current model is general both to spiking and rate-based coding and is intended to suggest a role of short-term plasticity rather than to model precise biological dynamics. Moreover, it does not employ reward predictors, it focuses on the functional roles of longterm and shortterm plasticity, and does not necessitate the Attenuated Reward Gating (ARG).
Building on models such as Izhikevich (2007); Florian (2007); Friedrich et al (2011); Soltoggio and Steil (2013), the current model introduces the concept of testing hypotheses with ambiguous information flow. The novel metaplasticity model illustrates how the careful promotion of weights to a longterm state allows for retention of memory also while learning new tasks.
2.4 Action selection
Action selection is performed by initiating the action corresponding to the output neuron with the highest activity. Initially, selection is mainly driven by neural noise, but as weights increase, the synaptic strengths bias action selection towards output neurons with strong incoming connections. One action has a random duration between 1 and 2 s. During this time, the action feeds back to the output neuron a signal . Such a signal is important to make the winning output neuron “aware” that it has triggered an action. Computationally, the feedback to the output neuron increases its activity, thereby inducing correlations on that particular inputoutput pair, and causing the creation of a trace on that particular synapse. Feedback signals to output neurons are demonstrated to help learning also in Urbanczik and Senn (2009); Soltoggio et al (2013a). The overall structure of the network is graphically represented in Fig. 2.
Further implementation details are in the Appendix. The Matlab code used to produce the results is made available as support material.
In this section, simulation results present the computational properties of HTP. A first test is a computational assessment of the extent of weight unwanted change due to distal rewards when one single weight component is used. The learning and memory dynamics of the novel plasticity are tested with the network of Fig. 2 on a set of learning scenarios. The dynamics of HTP are illustrated in comparison to those of the single weight component implemented by the basic RCHP.
3.1 Weight deterioration and stochasticity with distal rewards
Algorithms that solve the distal reward problem have so far focused on reward maximization (Urbanczik and Senn, 2009; Frémaux et al, 2010; Friedrich et al, 2011). Little attention was given to nonrewardinducing weights. However, nonrewardinducing weights are often the large majority of weights in a network. Their changes are relevant to understand how the whole network evolves over time, and how memory is preserved (Senn and Fusi, 2005). The test in this section analyzes the side effects of distal rewards on nonrewardinducing weights.
Assume that a correlating event between two neurons across one synapse represents a stimulusaction pair that is not causing a reward. Due to distal rewards, the synapse might occasionally register correlation episodes in the time between the real cause and a delayed reward: that is in the nature of the distal reward problem. All synapses that were active shortly before a reward might be potentially the cause, and the assumption is that the network does not know which synapse (or set of synapses) are responsible for the reward (thus the whole network is modulated).
The simulation of this section is a basic evaluation of a weight updating process. The term , which affects Eqs. (2) and (7), and expresses a credit assignment, is predetermined according to different stochastic regimes. The purpose is to evaluate the difference between singleweightcomponent and two weightcomponent dynamics illustrated by Eqs. (9) and (10), independently of specific reward-learning plasticity rule.
The value of a weight is monitored each time an update occurs. Let us assume arbitrarily that a correlation across and a following unrelated reward occurs coincidentally every five minutes. Three cases are considered. In phase one, the weight is active coincidentally before reward episodes (i.e. no correlation with the reward). For this reason, modulation causes sometimes increments and sometimes decrements. Such setting represents algorithms that do not have an “unsupervised bias”, e.g. Urbanczik and Senn (2009); Frémaux et al (2010), which guarantee that the reward maximization function has a null gradient if the weight does not cause a reward. To reproduce this condition here, the stochastic updates in phase 1 have an expected value of zero. In a second phase, weight updates cease to occur, representing the fact that the weight is never active before rewards (no ambiguity in the information flow). In a third phase, the weight is active before rewards more often than not, i.e. it is now mildly correlated to reward episodes, but in a highly stochastic regime.

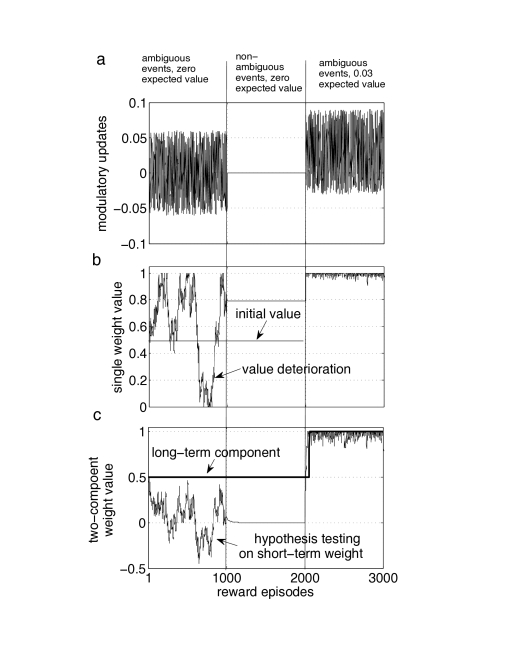

Fig. 3a illustrates weight updates that were randomly generated and draw from the distributions U(-0.06,0.06) for the reward episodes 1 to 1000, U(0,0) for the reward episodes from 1001 to 2000, and U(-0.03,0.09) for the reward episodes 2001 to 3000. The distribution in the first 1000 reward episodes represents a random signal with an expected value of zero, i.e. the weight is not associated with the reward. Figs. 3bc show respectively the behaviors of a singleweightcomponent rule and of a twoweightcomponent rule with weight decay on the shortterm component. In the singleweightcomponent case (Fig. 3b), despite the updates have an expected value of zero, the weight loses its original value of . The initial value of is chosen arbitrarily to be in between and to observe both positive and negative variations from its original value. The forgetting of the original value of is logical because even if the expected value of the updates is zero, there is no mechanism to “remember” its initial value. The weight undergoes a random walk, or diffusion, that leads to information loss. The example in Fig. 3b shows that the weight change is not negligible, ranging from to saturation. Note that the rate of change, and the difference between the original value and the final value in this example is only illustrative. In a neural network, updates are a function of more variables including the strength of the synapse itself and the neural activity. However, the current example captures an important aspects of learning with delayed rewards: regardless of the plasticity rule, coincidental events in a neural network may lead to unwanted changes. The example is useful to show that a plasticity rule with a single weight-component, even if not affected by the “unsupervised bias”, disrupts existing weights that are not related to rewards but are active before rewards. Fig. 3c instead shows that a twoweightcomponent rule preserves its longterm component, while the shortterm component is affected by the random updates. However, due to its decay, the shortterm component tends to return to low values if the updates have limited amplitude and an expected value of zero. If rewards and activity across never occur together (reward episodes from 1001 to 2000), there is no ambiguity and is clearly not related to rewards: the singleweightcomponent rule maintains the value of , while the twoweightcomponent rule has a decay to zero of the shortterm component. Finally, in the phase from reward episode 2001 to 3000, the updates have a positive average sign, but are highly stochastic: both rules bring the weight to its saturation value 1. In particular, the twoweightcomponent rule brings the longterm component to saturation as a consequence of the shortterm component being above the threshold level.
This simple computational example, which does not yet involve a neural model, shows that distal reward learning with a singleweight component leads to weight deterioration of currently nonrewardinducing weights. A twoweightcomponent rule instead has the potential of preserving the values of weights in the longterm component, while simultaneously monitoring the correlation to reward signals by means of the shortterm component. The principle illustrated in this section is used by HTP on a neural model with the results presented in the following sections.
3.2 Learning without forgetting
Three different learning scenarios are devised to test the neural learning with the network in Fig. 2. Each learning scenario lasts 24 h of simulated time and rewards 10 particular stimulus-action pairs (out of a total of 9000 pairs). A scenario may be seen as a learning task composed of 10 subtasks (i.e. 10 stimulusaction pairs). The aim is to show the capability of the plasticity rule to learn and memorize stimulusaction pairs across multiple scenarios. Note that the plasticity rule is expected to bring to a maximum value all synapses that represent reward-inducing pairs (Fig. 2).
The network was simulated in scenario 1 (for 24 h), then in scenario 2 (additional 24 h), and finally in scenario 3 (again 24h). During the first 24 h (scenario 1), the rewarding inputoutput pairs are chosen arbitrarily to be those with indices with . When a rewarding pair occurs, the input (normally 0) is set to at time with
drawn from a uniform distribution.
represents the delay of the reward. With this setting, not only is a reward occurring with a random variable delay, but its intensity is also random, making the solution of the problem even more challenging. In the second scenario, the rewarding inputoutput pairs arewith . No reward is delivered when other stimulusaction pairs are active. A third scenario has again different rewarding pairs as summarized in Table 1. The arbitrary stimulus-action rewarding pairs were chosen to be easily seen on the weight matrix as diagonal patterns. While stimuli in the interval 31 to 300 occur in all scenarios, stimuli 1 to 10 occur only scenario 1, stimuli 11 to 20 in scenario 2 and stimuli 21 to 30 in scenario 3. This setting is meant to represents the fact that the stimuli that characterize rewards in one scenario are not present in other scenarios, otherwise all scenarios would be effectively just one. While in theory it would be possible to learn all relationships simultaneously, such a division in tasks (or scenarios) is intended to test learning, memory and forgetting when performing different tasks at different times. It is also possible to interpret a task as a focused learning session in which only a subset of all relationships are observed.
|Scenario||Rewarding stimulus-action pairs||Perceived stimuli|
|1||(1,1);(2,2)…(10,10)||1 to 10 and 31 to 300|
|2||(11,6);(12,7)…(20,15)||11 to 20 and 31 to 300|
|3||(21,1);(22,2)…(30,10)||21 to 300|

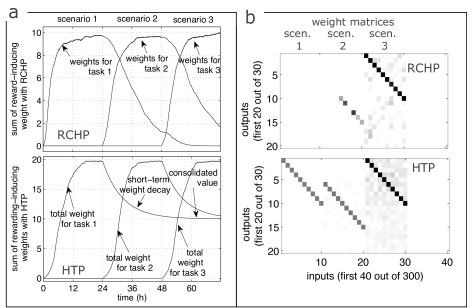

Fig. 4a shows the cumulative weights of the reward-causing synapses throughout the 72 h of simulation, i.e. scenario 1, followed by scenario 2, followed by scenario 3. RCHP, while learning in the second scenario, causes a progressive forgetting of the knowledge acquired during the first scenario. HTP, when learning in scenario 2, also experiences a partial decay of the weights learned during scenario 1. The partial decay corresponds to the shortterm weight components. While learning in scenario 2, which represents effectively a different environment, the stimuli of scenario 1 are absent, and the shortterm components of the relative weights decay to zero. In other words, while learning in scenario 2, the hypotheses on stimulusaction pairs in scenario 1 are forgotten, as in fact hypotheses cannot be tested in the absence of stimuli. However, the longterm components, which were consolidated during learning in scenario 1, are not forgotten while learning in scenario 2. Similarly it happens in scenario 3. These dynamics lead to a final state of the networks shown in Fig. 4b. The weight matrices show that, at the end of the 72 h simulation, RCHP encodes in the weights the rewardinducing synapses of scenario 3, but has forgotten the rewardinducing synapses of scenario 1 and 2. Even with a slower learning rate, RCHP would deteriorate weights that are not currently causing a reward because coincidental correlations and decorrelations alter all weights in the network. In contrast, the long-term component in HTP is immune to single correlation or decorrelation episodes, and thus it is preserved.
Learning without forgetting with distal rewards is for the first time modeled in the current study by introducing the assumption that established relationships in the environments, i.e. longterm weights, are stable and no longer subject to hypothesis evaluation.
3.3 The benefit of memory and the preservation of weights
The distinction between short and longterm weight components was shown in the previous simulation to maintain the memory of scenario 1 while learning in scenario 2, and both scenarios 1 and 2 while learning in scenario 3. One question is whether the preservation of longterm weights is effectively useful when revisiting a previously learned scenario. A second fundamental question in this study is whether all weights, rewardinducing and nonrewardinducing, are effectively preserved. To investigate these two points, the simulation was continued for additional 24 h in which the previously seen scenario 1 was revisited.

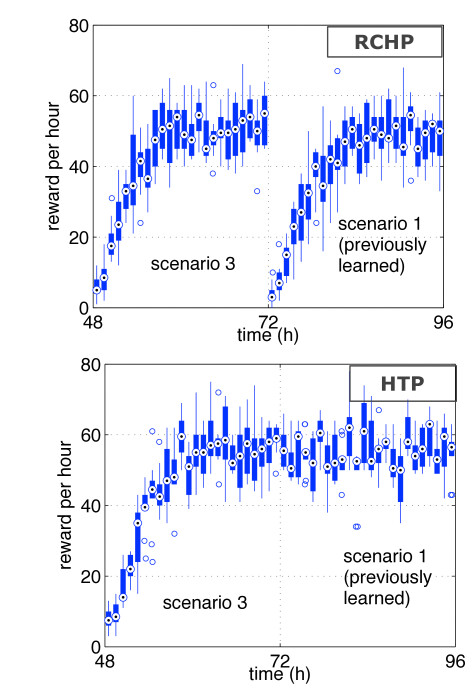

The utility of memory is shown with the rate of reward per hour as shown in Fig. 5. RCHP performs poorly when scenario 1 is revisited: it re-learns it as if it had never seen it before. HTP instead performs immediately well because the network remembers the stimulus-response pairs in scenario 1 that were learned 72 hours before. Under the present conditions, longterm weights are preserved indefinitely, so that further learning scenarios can be presented to the network without compromising the knowledge acquired previously.
Eq. (10) allows longterm weights to increase, but not to decrease. Therefore, the analysis of weight changes is simplified in the sense that null longterm components at the end of the run are guaranteed not to have experienced any change. Fig. 6 shows the histogram of the longterm synaptic weights after 96 h of simulation with HTP. After hundreds of thousand of stimulus-action pairs, and thousands of reward episodes, none of the 8970 synapses representing nonrewardinducing stimulusaction pairs was modified. Those weights were initially set to zero, and remained so, demonstrating that the stable configuration of the network was not altered during distal reward learning. This fact is remarkable considering that the probability of activation of all 9000 pairs is initially equal, and that many disturbing stimuli and nonrewarding pairs are active each time a delayed reward is delivered. This accuracy and robustness is a direct consequence of the hypothesis testing dynamics in the current model: shortterm weights can reach high values, and therefore can be consolidated in longterm weights, only if correlations across those weights are consistently followed by a reward. If not, the longterm component of weights is immune to deterioration and preserves its original value.
3.4 Improved disambiguating capabilities and consequences for learning speed and reliability
An interesting aspect of HTP is that the change of shortterm weights also affects the overall weight W in Eq. (9). Thus, an update of also changes (although only in the short term) how input signals affect output neurons, thereby also changing the decision policy of the network. Initially, when all weights are low, actions are mainly determined by noise in the neural system (introduced in Eq. (6)). The noise provides an unbiased mechanism to explore the stimulus-action space. As more rewards are delivered, and hypotheses are formed (i.e. weights increase), exploration is biased towards stimulus-action pairs that were active in the past before reward delivery. Those pairs include also nonrewardinducing pairs that were active coincidentally, but they certainly include the rewardtriggering ones. Such dynamics have two consequences according to whether a reward occurs or not. In the case a reward occurs again, the network will strengthen even more particular weights which are indeed even more likely to be associated with rewards. To the observer, who does not know at which point shortterm weights are consolidated in longterm, i.e. when hypotheses are consolidated in certainties, the network acts as if it knows already, although in reality is guessing (and guessing correctly). By doing so, the network actively explores certain stimulus-action pairs that appear “promising” given the past evidence.
The active exploration of a subset of stimulus-action pairs is particularly effective also when a reward fails to occur, i.e. when one hypothesis is false. The negative baseline modulation (term in Eq. (2)) implies that stimulus-action pairs with high eligibility traces (i.e. that were active in the recent past) but are not followed by rewards decrease their shortterm weight components. In a way, the network acts as if trying out potentially reward-causing pairs (pairs whose weight was increased previously), and when rewards do not occur, drops their values, effectively updating the belief by lowering the shortterm components of those weights.
What are the consequences of these dynamics? An answer is provided by the weight distribution at the end of learning. The histograms in Fig. 7 show that, in contrast to the single-weight rule (upper histograms), HTP separates clearly the rewardinducing synapses from the others (lower histograms). Such a clear separation is then exploited by HTP by means of the threshold to consolidate rewardinducing weights. The clear separation also provides an insight onto why HTP appeared so reliable in the present experiments. In contrast, RCHP alone cannot separate synapses very distinctly. Such a lack of separation between rewardinducing and nonrewardinducing weights can also be observed in Izhikevich (2007); O’Brien and Srinivasan (2013). Large synapses in the run with RCHP represent, like for HTP, hypotheses on inputoutputreward temporal patterns. However, weights representing false hypotheses are not easily depressed under RCHP or RSTDP that rely only on decorrelations to depress weights. In fact, a large weight causes that synapse to correlate even more frequently, biasing the exploration policy, and making the probability of such an event to occur coincidentally before a reward even higher. Such a limitation in the models in Izhikevich (2007); Florian (2007); O’Brien and Srinivasan (2013); Soltoggio and Steil (2013) is removed in the current model that instead explicitly depresses synapses that are active but fail to trigger rewards. Note that HTP pushes also some shortterm weights below zero. Those are synapses that were active often but no reward followed. In turn, these lower weights are unlikely to trigger actions.

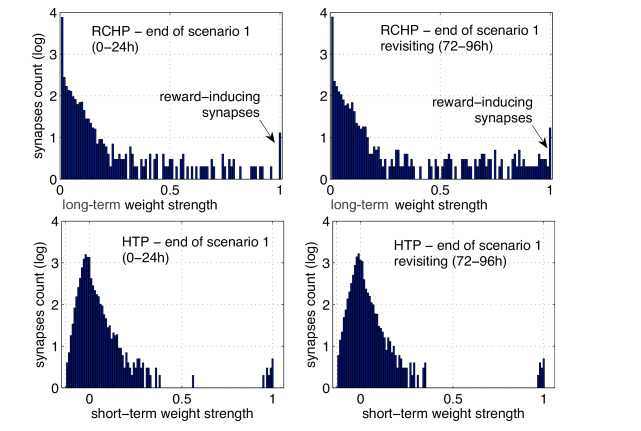

Fig. 7 shows the weight distribution and the separation between rewardinducing and nonrewardinducing synapses at the end of a -day simulated time. One might ask whether this separation and distribution is stable throughout the simulation and over a longer simulation time. One additional experiment was performed by running the learning process in scenario 1 for 12 days of simulated time, i.e. an extended amount of time beyond the initial few hours of learning. Fig. 8a

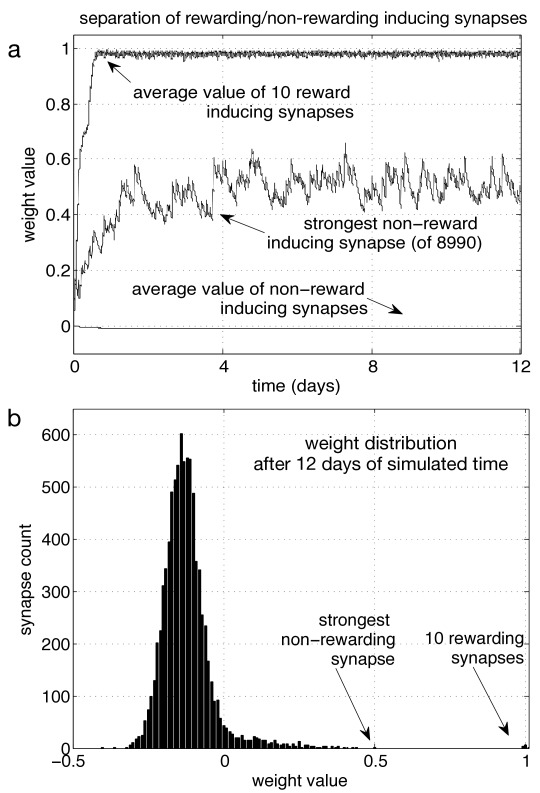

shows the average value of the rewardinducing synapses, the average value of nonrewardinducing synapses and the strongest synapse among the nonrewardinducing ones. The consistent separation in weight between synapses that do or do not induce a delayed reward indicates that the value of , set to in all experiments of this study, is not a critical parameter. If the plasticity rule is capable of separating clearly the rewardinducing synapses from the nonrewardinducing synapses, the parameter can be set to any high value that is unlikely to be reached by nonrewardinducing synapses. Fig. 8b plots the histogram of weight distribution at the end of the simulation (after 12 days of simulated time). The histogram shows clearly that although the strongest nonrewardinducing synapses throughout the run oscillates approximately around , the percentage of nonrewardinducing synapses that are potentiated is very small (only 2% of synapses exceed in strength).
The fact that HTP separates more clearly rewarding from nonrewarding weights has a fundamental consequence on the potential speed of learning. In fact, high learning rates in ambiguous environments are often the cause of erroneous learning. If a stimulusaction pair appears coincidentally a few times before a reward, a fast learning rate will increase the weight of this pair to high values, leading to what can be compared to superstitious learning (Skinner, 1948; Ono, 1987). However, if HTP, for the reasons explained above, is capable of better separation between rewardinducing and nonrewardinducing weights, and in particular is capable of depressing false hypotheses, the consequence is that HTP can adopt a faster learning rate with a decreased risk of superstitious learning.
This section showed that the hypothesis testing rule can improve the quality of learning by (a) biasing the exploration towards stimulusaction pairs that were active before rewards and (b) avoiding the repetition of stimulusaction pairs that in the past did not lead to a reward. In turn, such dynamics cause a clearer separation between rewardinducing synapses and the others, implementing an efficient and potentially faster mechanism to extract causeeffect relationships in a deceiving environment.
3.5 Discovering arbitrary reward patterns
When multiple stimulusaction pairs cause a reward, three cases may occur: 1) each stimulus and each action may be associated to one and only one reward-inducing pair; 2) one action may be activated by more stimuli to obtain a reward; 3) one stimulus may activate different actions to obtain a reward. The cases 1) and 2) were presented in the previous experiments. The case 3) is particular: if more than one action can be activated to obtain a reward, given a certain stimulus, the network may discover one of those actions, and then exploit such pair without learning which other actions also lead to rewards. These dynamics represent an agent who exploits one rewarding action but performs poor exploration, and therefore fails to discover all possible rewarding actions. However, if exploration is enforced occasionally even during exploitation, in the long term the network may discover all actions that lead to a reward given one particular stimulus. To test the capability of the network in this particular case, two new scenarios are devised to reward all pairs identified by a checker board pattern on the weight matrix in a 6 by 12 rectangle, in which each scenario rewards the network that discovers the connectivity pattern of a single 6 by 6 checker board. Each stimulus in the range 1 to 6 in a first scenario, and 7 to 12 in a second scenario, can trigger three different actions to obtain a reward. The two tasks were performed sequentially and lasted each 48 h of simulated time.
A first preliminary test (data not shown), both with RCHP and HTP, revealed that, unsurprisingly, the network discovers one rewarding action for each stimulus and consistently exploits that action to achieve a reward, thereby failing to discover other rewarding actions. Interestingly, such a behavior might be optimal for a reward maximization policy. Nevertheless, a variation of the experiment was attempted to encourage exploration by reducing the neural gain in Eq. (6) from to . The neural gain expresses the effect of inputs on output neurons: by reducing it, internal noise might occasionally lead to exploration even when a stimulus is known to lead to a reward with a given action. Because exploration is performed occasionally while the network exploits the already discovered rewardinducing pairs, hypotheses are also tested sporadically, and therefore need to remain alive for a longer time. The time constant of the shortterm weight was set in this particular simulation to 24 h. For the same reason, the number of actions was limited to 10, i.e. only 10 output neurons, so that exploration is performed on a slightly reduced search space.

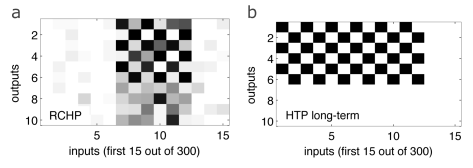

Fig. 9 shows the matrixes of the longterm weights after 96 h of simulated time with RCHP (panel a) and with HTP (panel b). RCHP, as already seen in previous experiments, forgets scenario 1 to learn scenario 2. From the matrix in Fig. 9a it is also evident that RCHP did not increase correctly all weights. Some weights that are nonrewardinducing are nevertheless high. It is remarkable instead that HTP (Fig. 9b) discovers the correct connectivity pattern that not only maximizes the reward, but it also represents all rewarding stimulus-action pairs over the two scenarios. The test shows that HTP remains robust even in conditions in which exploration and exploitation are performed simultaneously. The test demonstrates that if the timeconstant of transient weights is sufficiently slow, HTP leads to the discovery of rewardinducing weights even if their exploration is performed sporadically.
The neural model in this study processes inputoutput streams characterized by ambiguous stimulusactionreward relationships. Over many repetitions, it distinguishes between coincidentally and causally related events. The flow is ambiguous because the observation of one single reward does not allow for the unique identification of the stimulus-action pair that caused it. The level of ambiguity can vary according to the environment and can make the problem more difficult to solve. Ambiguity increases typically with the delay of the reward, with the frequency of the reward, with the simultaneous occurrence of stimuli and actions, and with the paucity of stimulusaction pairs. The parameters in the neural model are set to cope with the level of ambiguity of the given inputoutput flow. For more ambiguous environments, the learning rate can be reduced, resulting in a slower but more reliable learning.
HTP proposes a model in which shortterm plasticity does not implement only a duration of a memory (Sandberg et al, 2003), but it rather represents the uncertain nature of hypotheses with respect to established facts. Computationally, the advantages of HTP with respect to previous models derive from two features. A first feature is that HTP introduces longterm and shortterm components of the weight with different functions: the shortterm component tests hypotheses by monitoring correlations; the longterm component consolidates established hypotheses in longterm memory. A second feature is that HTP implements a better exploration: transient weights mean that stimulus-action pairs are hypotheses to be tested by means of a targeted exploration of the stimulusresponse space.
Previous models, e.g. Izhikevich (2007); Friedrich et al (2011); Soltoggio and Steil (2013), that solved the distal reward problem with one single weight component, cannot store information in the long term unless those weights are frequently rewarded. In contrast, HTP consolidates established associations to longterm weights. In this respect, any R-STDP-like learning rule can learn current reward-inducing relationships, but will forget those associations if the network is occupied in learning other tasks. HTP can build up knowledge incrementally by preserving neural weights that have been established to represent correct associations. HTP is the first rule to model incremental acquisition of knowledge with highly uncertain cause-effect relationships due to delayed rewards.
As opposed to most reward modulated plasticity models, e.g. (Legenstein et al, 2010; O’Brien and Srinivasan, 2013), the current network is modulated with raw reward signals. There is not an external value storing expected rewards for a given stimulusaction pair. Such reward predictors are often additional computational or memory units outside the network that help plasticity to work. The current model instead performs all computation within the network. In effect, expected rewards are computed implicitly, and at the end very accurately, by the synaptic weights themselves. In fact, the synaptic weights, representing an indication of the probability of a future reward, do also implicitly represent the expected reward of a given stimulusaction pair. For example, a synaptic weight that was consolidated in longterm weight represents the high expectation of a future reward. The weight matrix in Fig. 4b (bottom matrix) is an accurate predictor of all rewarding pairs (30) across three different scenarios.
The last experiment showed that the novel plasticity rule can perform well under highly explorative regimes. As opposed to rules with a single weight component, HTP is capable of both maintaining strong weights for exploiting reward conditions, and exploring new stimulusaction pairs. By imposing an arbitrary set of rewardinducing pairs, e.g. the environmental reward conditions are expressed by a checker board on the weight matrix, the last experiment showed that HTP can use very effectively the memory capacity of the network.
The model can also be seen as a high-level abstraction of memory consolidation (McGaugh, 2000; Bailey et al, 2000; Lamprecht and LeDoux, 2004; Dudai, 2004; Mayford et al, 2012) under the effect of delayed dopaminergic activity (Jay, 2003), particularly at the synaptic level as the transition from early-phase to late-phase LTP (Lynch, 2004; Clopath et al, 2008). The consolidation process, in particular, expresses a metaplasticity mechanism (Abraham and Bear, 1996; Abraham and Robins, 2005; Abraham, 2008), with similarities to the cascade model in Fusi et al (2005), because frequent shortterm updates are preconditions for further longterm potentiation (Goelet et al, 1986; Nguyen et al, 1994). By exploiting synaptic plasticity with two different timescales (short and longterm), the current model also contributes to validating the growing view that multiple timescale plasticity is beneficial in a number of learning and memory models (Abbott and Regehr, 2004; Fusi et al, 2005, 2007). The dynamics presented in this study do not reproduce or model biological phenomena (Zucker and Regehr, 2002). Nevertheless, this computational model proposes a link between shortterm plasticity and shortterm memory, suggesting the utility of fading short-term memories (Jonides et al, 2008), which may not be a shortcoming of neural systems, but rather a useful computational tool to distinguish between coincidental and reoccurring events.
It is interesting to ask which conditions may lead HTP to fail. HTP focuses on and exploits dynamics of previously proposed reward learning rules that aim at separating rewarding pathways from other nonrewarding pathways. Such a separation is not always easy to achieve. For example, in a plot in Izhikevich (2007) (Fig. 1d), a histogram of all weights shows that the separation between the rewarding synapse and all other synapses is visible but not large. The original RCHP, as reproduced in this study, may also encounter difficulties in creating clear separations as shown in Fig. 7. In short, HTP prescribes mechanisms to create a clear separation between rewardinducing and nonrewardinducing synapses: if this cannot be achieved, HTP cannot be used to consolidate longterm weights. This may be the case when the network is flooded with high levels of reward signals. As a general rule, whenever the inputoutput flow is ambiguous, plasticity rules require time to separate rewarding weights from nonrewarding weights. A fast learning rate is often the cause of failure. Interestingly, a fast learning rate with distal rewards can be imagined as a form of superstitious type of learning, in which conclusions are drawn from few occurrences of rewards (Skinner, 1948; Ono, 1987).
If learning rates are small (or similarly if rewards are small in magnitude), would not the decay of transient weights in HTP prevent learning? The answer is that the decay of the transient weights, in this study set to 8h (or 24h for the last experiment), represents the time of one learning scenario. Stimuli, actions and rewards occur in the order of seconds and minutes, so that transient weights do hold their values during a learning phase. In effect, HTP suggests the intuitive notion that learning sessions may need to have a minimum duration or intensity of reward to be effective in the long term. Interestingly, experiments in human learning such as that described in Hamilton and Pascual-Leone (1998), seem to suggest that learning modifies synapses initially only in their shortterm components, which decay within days if learning is suspended. A long lasting modification was registered only after months of training (Hamilton and Pascual-Leone, 1998). An intriguing possibility is that the consolidation of weights does not require months only because of biological limitations (e.g. growth of new synapses): the present model suggests that consolidation may require time in order to extract consistent and invariable relationships. So if shortterm changes are consistently occurring across the same pathways every week for many weeks, longterm changes will also take place.
The model shows how neural structures may be preserved when learning. From this perspective, it emerges that the mechanism for learning is the same that preserves memory, effectively highlighting a strong coupling of learning and memory as it also suggested in biology (Bouton, 1994)
. It is nevertheless important to point out that the evidence of associative learning in animals(Grossberg, 1971; Bouton and Moody, 2004) depicts yet more complex dynamics that are not captured by current models.
Despite its simplified dynamics with respect to biological systems, the neural learning described by HTP offers a new tool to study learning and cognition both in animals and in neural artificial agents or neurorobots (Krichmar and Roehrbein, 2013). The proposed dynamics allow for biological and robotics modelling of extended and realistic learning scenarios which were previously too complex for neural models. Examples are learning in interaction where overlapping stimuli, actions, and highly stochastic feedback occur at uncertain times (Soltoggio et al, 2013b). The acquisition of knowledge with HTP can integrate different tasks and scenarios, thereby opening the possibility of studying integrated cognition in unified neural models. This property may in turn result in models for the acquisition of incrementally complex behaviors at different stages of learning (Weng et al, 2001; Lungarella et al, 2003; Asada et al, 2009).
In the current model, longterm weights do not decay, i.e. they preserve their values indefinitely. This assumption reflects the fact that, if a certain relationship was established, i.e. if it was converted from hypothesis to certainty, it represents a fact in the world. To confirm that, the plot in Fig. 8a proved that, with a frequency of 1.5 Hz of the stimuli and a 100 ms sampling time, no wrong connection was consolidated in the extended experiment over 288 h of simulated time. The lack of reversal learning (longterm weights cannot decrease) works in this particular case because the environment and tasks in the current study are static, i.e. the stimulusresponse pairs that induce rewards do not change. Under such conditions, the learning requires no unlearning. However, environments may be indeed changeable, and the rewarding conditions may change over time. In such cases, one simple extension for adaptation is necessary. Assume that one rewarding pair ceases at one point to cause rewards. HTP will correctly detect the case by depressing the shortterm weight, i.e. the hypothesis becomes negative. In the current algorithm, depression of shortterm weights does not affect longterm weights. However, the consolidation described by Eq. (10) can be complemented by a symmetrical mechanism that depresses longterm weights when hypotheses are negative. With such an extension, the model can perform reversal of learning (Van Hemmen, 1997; Deco and Rolls, 2005; O’Doherty et al, 2001), thereby removing longterm connections when they do not represent anymore correct relationships in the world. The extension to unlearning is shown in the Appendix 1.
The proposed model introduces the concept of hypothesis testing of causeeffect relationships when learning with delayed rewards. The model describes a conceptual distinction between shortterm and longterm plasticity, which is not focused on the duration of a memory, but it is rather related to the confidence with which causeeffect relationships are considered consistent (Abraham and Robins, 2005), and therefore preserved as memory.
The metaplasticity rule, named Hypothesis Testing Plasticity (HTP), models how cause-effect relationships can be extracted from ambiguous information flows, first by validation and then by consolidation to longterm memory. The shortterm dynamics boost exploration and discriminate more clearly true causeeffect relationships in a deceiving environment. The targeted conversion of shortterm to longterm weights models the consolidation process of hypotheses in established facts, thereby addressing the plasticitystability dilemma (Abraham and Robins, 2005). HTP suggests new cognitive models of biological and machine learning that explain dynamics of learning in complex and rich environments. This study proposes a theoretical motivation for shortterm plasticity, which helps hypothesis testing, or learning in deceiving environments, and the following memorization and consolidation process.
The author thanks John Bullinaria, William Land, Albert Mukovskiy, Kenichi Narioka, Felix Reinhart, Walter Senn, Kenneth Stanley, and Paul Tonelli for constructive discussions and valuable comments on early drafts of the manuscript. A large part of this work was carried out while the author was with the CoR-Lab at Bielefeld University, funded by the European Community’s Seventh Framework Programme FP7/20072013, Challenge 2 Cognitive Systems, Interaction, Robotics under grant agreement No 248311 - AMARSi.
Appendix 1: Unlearning
Unlearning of the longterm components of the weights can be effectively implemented as symmetrical to learning. I.e., when the transient weights are very negative (lower than ), the long-term component of a weight is decreased. This process represents the validation of the hypothesis that a certain stimulus-action pair is not associated with a reward anymore, or that is possibly associated with punishment. In such a case, the neural weight that represents this stimulusaction pair is decreased, and so is the probability of occurring. The conversion of negative transient weights to decrements of longterm weights, similarly to Eq. (10), can be formally expressed as
No other changes are required to the algorithm described in the paper.
shows that, when modulatory updates become negative on average (from reward 4000 to reward 5000), the transient weight detects it by becoming negative. The use of Eq. (11) then causes the longterm component to reduce its value, thereby reversing the previous learning.
Preliminary experiments with unlearning on the complete neural model of this study show that the rate of negative modulation drops drastically as unlearning proceed. In other words, as the network experiences negative modulation, and consequently reduces the frequencies of punishing stimulusaction pairs, it also reduces the rate of unlearning because punishing episodes become sporadic. It appears that unlearning from negative experiences might be slower that learning from positive experiences. Evidence from biology indicates that extinction does not remove completely the previous association (Bouton, 2000, 2004), suggesting that more complex dynamics as those proposed here may regulate this process in animals.
Appendix 2: Implementation
All implementation details are also available as part of the open source Matlab code provided as support material. The code can be used to reproduce the results in this work, or modified to perform further experiments. The source code can be downloaded fromhttp://andrea.soltoggio.net/HTP.
Network, inputs, outputs, and rewards
The network is a feedforward single layer neural network with 300 inputs, 30 outputs, 9000 weights, and sampling time of 0.1 s. Three hundred stimuli are delivered to the network by means of 300 input neurons. Thirty actions are performed by the network by means of 30 output neurons.
The flow of stimuli consists of a random sequence of stimuli each of duration between 1 and 2 s. The probability of 0, 1, 2 or 3 stimuli to be shown to the network simultaneously is described in Table 2.
The agent continuously performs actions chosen form a pool of 30 possibilities. Thirty output neurons may be interpreted as single neurons, or populations. When one action terminates, the output neuron with the highest activity initiates the next action. Once the response action is started, it lasts a variable time between 1 and 2 s. During this time, the neuron that initiated the action receives a feedback signal I of 0.5. The feedback current enables the output neuron responsible for one action to correlate correctly with the stimulus that is simultaneously active. A feedback signal is also used in Urbanczik and Senn (2009) to improve the reinforcement learning performance of a neural network.
The rewarding stimulusaction pairs are with during scenario 1, with in scenario 2, and with in scenario 3. When a rewarding stimulus-action pair is performed, a reward is delivered to the network with a random delay in the interval [1, 4] s. Given the delay of the reward, and the frequency of stimuli and actions, a number of stimulusaction pairs could be responsible for triggering the reward. The parameters are listed in Table 2.
|Stimulus/input duration||[1, 2] s|
|Max number of active inputs||3|
|Probability of no stimuli||1/8|
|Probability of 1 active stimulus||3/8|
|Probability of 2 active stimuli||3/8|
|Probability of 3 active stimuli||1/8|
|Action/output duration||[1, 2] s|
|Rewarding stimulus-action pairs||30|
|Delay of the reward||[1, 4] s|
|Nr of scenarios||3|
|Duration of one learning phase||24 h|
The same integration method is used for all leaky integrators used in this study. Given that is a signal from the environment, it might be a one-step signal as in the present study, which is high for one step when reward is delivered, or any other function representing a reward: in a test of RCHP on the real robot iCub (Soltoggio et al, 2013a, b), r(t) was determined by the human teacher by pressing skin sensors on the robot s arms.
|Number of neurons|
|Number of synapses|
|Noise on neural transmission (, Eq. (6))||std|
|Sampling time step (, Eq. (6))||ms|
|Baseline modulation ( in Eq. (2))||-0.03 / s|
|Neural gain (, Eq. (6))|
|Shortterm learning rate ( in Eqs. (2) and (13))||0.1|
|Time constant of modulation ()||0.1 s|
|Time constant of traces ()||4 s|
Rarely Correlating Hebbian Plasticity
Rarely Correlating Hebbian Plasticity (RCHP) (Soltoggio and Steil, 2013) is a type of Hebbian plasticity that filters out the majority of correlations and produces nonzero values only for a small percentage of synapses. Ratebased neurons can use a Hebbian rule augmented with two thresholds to extract low percentages of correlations and decorrelations. RCHP expressed by Eq. (4) is simulated with the parameters in Table 4.
|Rare correlations ( in Eqs. (16) and (17))|
|Update rate of ( in Eqs. (16) and (17))||0.001 / s|
|Correlation sliding window (Eq. (15))||5 s|
|Shortterm time constant ( in Eq. (7))||8 h|
|Consolidation rate ( in Eq. (10))||s|
|Consolidation threshold ( in Eq. (10))||0.95|
The rate of correlations can be expressed by a global concentration . This measure represents how much the activity of the network correlates, i.e. how much the network activity is deterministically driven by connections or is instead noisedriven. The instantaneous matrix of correlations (i.e. the first row in Eq. (4) computed for all synapses) can be low filtered as
to estimate the level of correlations in the recent past, where is the index of input neurons, and the index of the output neurons. In the current settings, was chosen equal to 5 s. Alternatively, a similar measure of recent correlations can be computed in discrete time over a sliding time window of 5 s summing all correlations
, the target rate of rare correlations, set to 0.1%/s. If correlations are lower than half of the target or are greater than twice the target, the thresholds are adapted to the new increased or reduced activity. This heuristic has the purpose of maintaining the thresholds relatively constant and perform adaptation only when correlations are too high or too low for a long period of time.
- Abbott and Regehr (2004) Abbott LF, Regehr WG (2004) Synaptic computation. Nature 431:796–803
- Abraham (2008) Abraham WC (2008) Metaplasticity: tuning synapses and networks for plasticity. Nature Reviews Neuroscience 9:387–399
- Abraham and Bear (1996) Abraham WC, Bear MF (1996) Metaplasticity: the plasticity of synaptic plasticity. Trends in Neuroscience 19:126–130
- Abraham and Robins (2005) Abraham WC, Robins A (2005) Memory retention–the synaptic stability versus plasticity dilemma. Trends in Neuroscience 28:73–78
- Alexander and Sporns (2002) Alexander WH, Sporns O (2002) An Embodied Model of Learning, Plasticity, and Reward. Adaptive Behavior 10(3-4):143–159
- Asada et al (2009) Asada M, Hosoda K, Kuniyoshi Y, Ishiguro H, Inui T, Yoshikawa Y, Ogino M, Yoshida C (2009) Cognitive developmental robotics: a survey. Autonomous Mental Development, IEEE Transactions on 1(1):12–34
- Bailey et al (2000) Bailey CH, Giustetto M, Huang YY, Hawkins RD, Kandel ER (2000) Is heterosynaptic modulation essential for stabilizing Hebbian plasticity and memory? Nature Reviews Neuroscience 1(1):11–20
- Baras and Meir (2007) Baras D, Meir R (2007) Reinforcement Learning, Spike-Time-Dependent plasticity, and the BCM Rule. Neural Computation 19(8):2245–2279
- Ben-Gal (2007) Ben-Gal I (2007) Bayesian Networks, in: Encyclopedia of Statistics in Quality and Reliability, Wiley & Sons
- Berridge (2007) Berridge KC (2007) The debate over dopamine’s role in reward: the case for incentive salience. Psychopharmacology 191:391–431
- Bosman et al (2004) Bosman R, van Leeuwen W, Wemmenhove B (2004) Combining Hebbian and reinforcement learning in a minibrain model. Neural Networks 17:29–36
- Bouton (1994) Bouton ME (1994) Conditioning, remembering, and forgetting. Journal of Experimental Psychology: Animal Behavior Processes 20(3):219
- Bouton (2000) Bouton ME (2000) A learning theory perspective on lapse, relapse, and the maintenance of behavior change. Health Psychology 19(1S):57
- Bouton (2004) Bouton ME (2004) Context and behavioral processes in extinction. Learning & memory 11(5):485–494
- Bouton and Moody (2004) Bouton ME, Moody EW (2004) Memory processes in classical conditioning. Neuroscience & Biobehavioral Reviews 28(7):663–674
- Brembs (2003) Brembs B (2003) Operant conditioning in invertebrates. Current opinion in neurobiology 13(6):710–717
- Brembs et al (2002) Brembs B, Lorenzetti FD, Reyes FD, Baxter DA, Byrne JH (2002) Operant Reward Learning in Aplysia: Neuronal Correlates and Mechanisms. Science 296(5573):1706–1709
- Bullinaria (2009) Bullinaria JA (2009) Evolved dual weight neural architectures to facilitate incremental learning. In: Proceedings of the International Joint Conference on Computational Intelligence (IJCCI 2009), pp 427–434
- Clopath et al (2008) Clopath C, Ziegler L, Vasilaki E, Büsing L, Gerstner W (2008) Tag-trigger-consolidation: A model of early and late long-term-potentiation and depression. PLoS Computational Biology 4(12):335.347
- Cox and Krichmar (2009) Cox RB, Krichmar JL (2009) Neuromodulation as a robot controller: A brain inspired strategy for controlling autonomous robots. IEEE Robotics & Automation Magazine 16(3):72–80
- Deco and Rolls (2005) Deco G, Rolls ET (2005) Synaptic and spiking dynamics underlying reward reversal in the orbitofrontal cortex. Cerebral Cortex 15:15–30
- Dudai (2004) Dudai Y (2004) The neurobiology of consolidations, or, how stable is the engram? Annual Review of Psychology 55:51–86
- Farries and Fairhall (2007) Farries MA, Fairhall AL (2007) Reinforcement Learning With Modulated Spike Timing-Dependent Synaptic Plasticity. Journal of Neurophysiology 98:3648–3665
- Fisher et al (1997) Fisher SA, Fischer TM, Carew TJ (1997) Multiple overlapping processes underlying short-term synaptic enhancement. Trends in neurosciences 20(4):170–177
- Florian (2007) Florian RV (2007) Reinforcement learning through modulation of spike-timing-dependent synaptic plasticity. Neural Computation 19:1468–1502
- Frémaux et al (2010) Frémaux N, Sprekeler H, Gerstner W (2010) Functional requirements for reward-modulated spike-timing-dependent plasticity. The Journal of Neuroscience 30(40):13,326–13,337
- Frey and Morris (1997) Frey U, Morris RGM (1997) Synaptic tagging and long-term potentiation. Nature 385(533-536)
- Friedrich et al (2010) Friedrich J, Urbanczik R, Senn W (2010) Learning spike-based population codes by reward and population feedback. Neural Computation 22:1698–1717
- Friedrich et al (2011) Friedrich J, Urbanczik R, Senn W (2011) Spatio-temporal credit assignment in neuronal population learning. PLoS Comput Biol 7(6):1–13
- Fusi and Senn (2006) Fusi S, Senn W (2006) Eluding oblivion with smart stochastic selection of synaptic updates. Chaos: An Interdisciplinary Journal of Nonlinear Science 16(2):026,112
- Fusi et al (2005) Fusi S, Drew PJ, Abbott L (2005) Cascade models of synaptically stored memories. Neuron 45(4):599–611
- Fusi et al (2007) Fusi S, Asaad WF, Miller EK, Wang XJ (2007) A neural circuit model of flexible sensorimotor mapping: learning and forgetting on multiple timescales. Neuron 54(2):319–333
- Garris et al (1994) Garris P, Ciolkowski E, Pastore P, Wighmann R (1994) Efflux of dopamine from the synaptic cleft in the nucleus accumbens of the rat brain. The Journal of Neuroscience 14(10):6084–6093
- Gerstner (2010) Gerstner W (2010) From Hebb rules to spike-timing-dependent plasticity: a personal account. Frontiers in Synaptic Neuroscience 2:1–3
- Gil et al (2007) Gil M, DeMarco RJ, Menzel R (2007) Learning reward expectations in honeybees. Learning and Memory 14:291–496
- Goelet et al (1986) Goelet P, Castellucci VF, Schacher S, Kandel ER (1986) The long and the short of long-term memory: A molecular framework. Nature 322:419–422
- Grossberg (1971) Grossberg S (1971) On the dynamics of operant conditioning. Journal of Theoretical Biology 33(2):225–255
- Grossberg (1988) Grossberg S (1988) Nonlinear neural networks: principles, mechanisms, and architectures. Neural Networks 1:17–61
- Hamilton and Pascual-Leone (1998) Hamilton RH, Pascual-Leone A (1998) Cortical plasticity associated with braille learning. Trends in cognitive sciences 2(5):168–174
- Hammer and Menzel (1995) Hammer M, Menzel R (1995) Learning and memory in the honeybee. The Journal of Neuroscience 15(3):1617–1630
- Heckerman et al (1995) Heckerman D, Geiger D, Chickering DM (1995) Learning bayesian networks: The combination of knowledge and statistical data. Machine Learning 20:197–243
- Hinton and Plaut (1987) Hinton GE, Plaut DC (1987) Using fast weights to deblur old memories. In: Proceedings of the ninth annual conference of the Cognitive Science Society, Erlbaum, pp 177–186
- Howson and Urbach (1989) Howson C, Urbach P (1989) Scientific reasoning: The Bayesian approach. Open Court Publishing Co, Chicago, USA
- Hull (1943) Hull CL (1943) Principles of behavior. New-Your: Appleton Century
- Izhikevich (2007) Izhikevich EM (2007) Solving the Distal Reward Problem through Linkage of STDP and Dopamine Signaling. Cerebral Cortex 17:2443–2452
- Jay (2003) Jay MT (2003) Dopamine: a potential substrate for synaptic plasticity and memory mechanisms. Progress in Neurobiology 69(6):375–390
- Jonides et al (2008) Jonides J, Lewis RL, Nee DE, Lustig CA, Berman MG, Moore KS (2008) The mind and brain of short-term memory. Annual review of psychology 59:193
- Kempter et al (1999) Kempter R, Gerstner W, Van Hemmen JL (1999) Hebbian learning and spiking neurons. Physical Review E 59(4):4498–4514
- Krichmar and Roehrbein (2013) Krichmar JL, Roehrbein F (2013) Value and reward based learning in neurorobots. Frontiers in Neurorobotics 7(13)
- Lamprecht and LeDoux (2004) Lamprecht R, LeDoux J (2004) Structural plasticity and memory. Nature Reviews Neuroscience 5(1):45–54
- Legenstein et al (2010) Legenstein R, Chase SM, Schwartz A, Maass W (2010) A Reward-Modulated Hebbian Learning Rule Can Explain Experimentally Observed Network Reorganization in a Brain Control Task. The Journal of Neuroscience 30(25):8400–8401
- Leibold and Kempter (2008) Leibold C, Kempter R (2008) Sparseness constrains the prolongation of memory lifetime via synaptic metaplasticity. Cerebral Cortex 18(1):67–77
- Levy and Bairaktaris (1995) Levy JP, Bairaktaris D (1995) Connectionist dual-weight architectures. Language and Cognitive Processes 10(3-4):265–283
- Lin (1993) Lin LJ (1993) Reinforcement learning for robots using neural networks. PhD thesis, School of Computer Science, Carnegie Mellon University
- Lungarella et al (2003) Lungarella M, Metta G, Pfeifer R, Sandini G (2003) Developmental robotics: a survey. Connection Science 15(4):151–190
- Lynch (2004) Lynch MA (2004) Long-term potentiation and memory. Physiological Reviews 84(1):87–136
- Mayford et al (2012) Mayford M, Siegelbaum SA, Kandel ER (2012) Synapses and memory storage. Cold Spring Harbor perspectives in biology 4(6):a005,751
- McGaugh (2000) McGaugh JL (2000) Memory–a century of consolidation. Science 287:248–251
- Menzel and Müller (1996) Menzel R, Müller U (1996) Learning and Memory in Honeybees: From Behavior to Natural Substrates. Annual Review of Neuroscience 19:179–404
- Montague et al (1995) Montague PR, Dayan P, Person C, Sejnowski TJ (1995) Bee foraging in uncertain environments using predictive Hebbian learning. Nature 377:725–728
- Nguyen et al (1994) Nguyen PV, Abel T, Kandel ER (1994) Requirement of a critical period of transcription for induction of a late phase of ltp. Science 265(5175):1104–1107
- Nitz et al (2007) Nitz DA, Kargo WJ, Fleisher J (2007) Dopamine signaling and the distal reward problem. Learning and Memory 18(17):1833–1836
- O’Brien and Srinivasan (2013) O’Brien MJ, Srinivasan N (2013) A Spiking Neural Model for Stable Reinforcement of Synapses Based on Multiple Distal Rewards. Neural Computation 25(1):123–156
- O’Doherty et al (2001) O’Doherty JP, Kringelbach ML, Rolls ET, Andrews C (2001) Abstract reward and punishment representations in the human orbitofrontal cortex. Nature Neuroscience 4(1):95–102
- Ono (1987) Ono K (1987) Superstitious behavior in humans. Journal of the Experimental Analysis of Behavior 47(3):261–271
- Päpper et al (2011) Päpper M, Kempter R, Leibold C (2011) Synaptic tagging, evaluation of memories, and the distal reward problem. Learning & Memory 18:58–70
- Pennartz (1996) Pennartz CMA (1996) The ascending neuromodulatory systems in learning by reinforcement: comparing computational conjectures with experimental findings. Brain Research Reviews 21:219–245
- Pennartz (1997) Pennartz CMA (1997) Reinforcement Learning by Hebbian Synapses with Adaptive Threshold. Neuroscience 81(2):303–319
- Redgrave et al (2008) Redgrave P, Gurney K, Reynolds J (2008) What is reinforced by phasic dopamine signals? Brain Research Reviews 58:322–339
Robins A (1995) Catastrophic forgetting, rehearsal, and pseudorehearsal. Connection Science: Journal of Neural Computing, Artificial Intelligence and Cognitive Research 7(123-146)
- Sandberg et al (2003) Sandberg A, Tegnér J, Lansner A (2003) A working memory model based on fast hebbian learning. Network: Computation in Neural Systems 14(4):789–802
- Sarkisov and Wang (2008) Sarkisov DV, Wang SSH (2008) Order-Dependent Coincidence Detection in Cerebellar Purkinje Neurons at the Inositol Trisphosphate Receptor. The Journal of Neuroscience 28(1):133–142
- Schmidhuber (1992) Schmidhuber J (1992) Learning to Control Fast-Weight Memories: An Alternative to Dynamic Recurrent Networks. Neural Computation 4:131–139
- Schultz (1998) Schultz W (1998) Predictive Reward Signal of Dopamine Neurons. Journal of Neurophysiology 80:1–27
- Schultz et al (1993) Schultz W, Apicella P, Ljungberg T (1993) Responses of Monkey Dopamine Neurons to Reward and Conditioned Stimuli during Successive Steps of Learning a Delayed Response Task. The Journal of Neuroscience 13:900–913
- Schultz et al (1997) Schultz W, Dayan P, Montague PR (1997) A Neural Substrate for Prediction and Reward. Science 275:1593–1598
- Senn and Fusi (2005) Senn W, Fusi S (2005) Learning only when necessary: better memories of correlated patterns in networks with bounded synapses. Neural Computation 17(10):2106–2138
- Skinner (1948) Skinner BF (1948) “Superstition” in the pigeon. Journal of Experimental Psychology 38:168–172
- Skinner (1953) Skinner BF (1953) Science and Human Behavior. New York, MacMillan
- Soltoggio and Stanley (2012) Soltoggio A, Stanley KO (2012) From Modulated Hebbian Plasticity to Simple Behavior Learning through Noise and Weight Saturation. Neural Networks 34:28–41
- Soltoggio and Steil (2013) Soltoggio A, Steil JJ (2013) Solving the Distal Reward Problem with Rare Correlations. Neural Computation 25(4):940–978
- Soltoggio et al (2008) Soltoggio A, Bullinaria JA, Mattiussi C, Dürr P, Floreano D (2008) Evolutionary Advantages of Neuromodulated Plasticity in Dynamic, Reward-based Scenarios. In: Artificial Life XI: Proceedings of the Eleventh International Conference on the Simulation and Synthesis of Living Systems, MIT Press
- Soltoggio et al (2013a) Soltoggio A, Lemme A, Reinhart FR, Steil JJ (2013a) Rare neural correlations implement robotic conditioning with reward delays and disturbances. Frontiers in Neurorobotics 7(Research Topic: Value and Reward Based Learning in Neurobots)
- Soltoggio et al (2013b) Soltoggio A, Reinhart FR, Lemme A, Steil JJ (2013b) Learning the rules of a game: neural conditioning in human-robot interaction with delayed rewards. In: Proceedings of the Third Joint IEEE International Conference on Development and Learning and on Epigenetic Robotics - Osaka, Japan - August 2013
- Sporns and Alexander (2002) Sporns O, Alexander WH (2002) Neuromodulation and plasticity in an autonomous robot. Neural Networks 15:761–774
- Sporns and Alexander (2003) Sporns O, Alexander WH (2003) Neuromodulation in a learning robot: interactions between neural plasticity and behavior. In: Proceedings of the International Joint Conference on Neural Networks, vol 4, pp 2789–2794
- Staubli et al (1987) Staubli U, Fraser D, Faraday R, Lynch G (1987) Olfaction and the ”data” memory system in rats. Behavioral Neuroscience 101(6):757–765
- Sutton (1984) Sutton RS (1984) Temporal credit assignment in reinforcement learning. PhD thesis, Department of Computer Science, University of Massachusetts, Amherst, MA 01003
- Sutton and Barto (1998) Sutton RS, Barto AG (1998) Reinforcement Learning: An Introduction. MIT Press, Cambridge, MA, USA
- Swartzentruber (1995) Swartzentruber D (1995) Modulatory mechanisms in pavlovian conditioning. Animal Learning & Behavior 23(2):123–143
- Thorndike (1911) Thorndike EL (1911) Animal Intelligence. New York: Macmillan
Tieleman and Hinton (2009)
Tieleman T, Hinton G (2009) Using fast weights to improve persistent contrastive divergence. In: Proceedings of the 26th Annual International Conference on Machine Learning, ACM, pp 1033–1040
- Urbanczik and Senn (2009) Urbanczik R, Senn W (2009) Reinforcement learning in populations of spiking neurons. Nature Neuroscience 12:250–252
- Van Hemmen (1997) Van Hemmen J (1997) Hebbian learning, its correlation catastrophe, and unlearning. Network: Computation in Neural Systems 8(3):V1–V17
- Wang et al (2000) Wang SSH, Denk W, Häusser M (2000) Coincidence detection in single dendritic spines mediated by calcium release. Nature Neuroscience 3(12):1266–1273
- Weng et al (2001) Weng J, McClelland J, Pentland A, Sporns O, Stockman I, Sur M, Thelen E (2001) Autonomous mental development by robots and animals. Science 291(5504):599–600
- Wighmann and Zimmerman (1990) Wighmann R, Zimmerman J (1990) Control of dopamine extracellular concentration in rat striatum by impulse flow and uptake. Brain Res Brain Res Rev 15(2):135–144
- Wise and Rompre (1989) Wise RA, Rompre PP (1989) Brain dopamine and reward. Annual Review of Psychology 40:191–225
- Xie and Seung (2004) Xie X, Seung HS (2004) Learning in neural networks by reinforcement of irregular spiking. Physical Review E 69:1–10
- Ziemke and Thieme (2002) Ziemke T, Thieme M (2002) Neuromodulation of Reactive Sensorimotor Mappings as Short-Term Memory Mechanism in Delayed Response Tasks. Adaptive Behavior 10:185–199
- Zucker (1989) Zucker RS (1989) Short-term synaptic plasticity. Annual review of neuroscience 12(1):13–31
- Zucker and Regehr (2002) Zucker RS, Regehr WG (2002) Short-term synaptic plasticity. Annual review of physiology 64(1):355–405
