Shape Constrained Tensor Decompositions using Sparse Representations in Over-Complete Libraries

by   Bethany Lusch, et al.
NC State University

We consider N-way data arrays and low-rank tensor factorizations where the time mode is coded as a sparse linear combination of temporal elements from an over-complete library. Our method, Shape Constrained Tensor Decomposition (SCTD) is based upon the CANDECOMP/PARAFAC (CP) decomposition which produces r-rank approximations of data tensors via outer products of vectors in each dimension of the data. By constraining the vector in the temporal dimension to known analytic forms which are selected from a large set of candidate functions, more readily interpretable decompositions are achieved and analytic time dependencies discovered. The SCTD method circumvents traditional flattening techniques where an N-way array is reshaped into a matrix in order to perform a singular value decomposition. A clear advantage of the SCTD algorithm is its ability to extract transient and intermittent phenomena which is often difficult for SVD-based methods. We motivate the SCTD method using several intuitively appealing results before applying it on a number of high-dimensional, real-world data sets in order to illustrate the efficiency of the algorithm in extracting interpretable spatio-temporal modes. With the rise of data-driven discovery methods, the decomposition proposed provides a viable technique for analyzing multitudes of data in a more comprehensible fashion.



There are no comments yet.


page 4

page 6

page 8


Faster Tensor Train Decomposition for Sparse Data

In recent years, the application of tensors has become more widespread i...

Guaranteed Functional Tensor Singular Value Decomposition

This paper introduces the functional tensor singular value decomposition...

Tensor N-tubal rank and its convex relaxation for low-rank tensor recovery

As low-rank modeling has achieved great success in tensor recovery, many...

Smoothed Analysis of Tensor Decompositions

Low rank tensor decompositions are a powerful tool for learning generati...

Decoupling multivariate functions using second-order information and tensors

The power of multivariate functions is their ability to model a wide var...

Provable Online CP/PARAFAC Decomposition of a Structured Tensor via Dictionary Learning

We consider the problem of factorizing a structured 3-way tensor into it...

Dynamic Mode Decomposition: Theory and Data Reconstruction

Dynamic Mode Decomposition (DMD) is a data-driven decomposition techniqu...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Matrix decompositions are critically enabling algorithms for scientific computing and data analysis applications across every field of the engineering, social, biological, and physical sciences. Of particular importance is the singular value decomposition (SVD), which provides a principled method for dimensionality reduction and computation of interpretable subspaces within which the data reside. So widespread is the usage of the algorithm, and minor modifications thereof, that it has generated a myriad of names across various communities, including Principal Component Analysis (PCA)

[1], the Karhunen-Loève (KL) decomposition, Hotelling transform [2, 3], Empirical Orthogonal Functions (EOFs) [4] and Proper Orthogonal Decomposition (POD) [5, 6]. However, in order to use the SVD, data, which generally may be of distinct dimensions, must be flattened into a matrix form, potentially compromising the statistical accuracy of the subspaces computed. Tensor decompositions are a generalization of the SVD concept to higher dimensions, allowing for -way arrays () of data to be decomposed into their constitutive, low-rank subspaces without flattening, which is especially advantageous for categorical data types. It is often the case that one of the dimensions considered in the tensor is the time variable. In this paper, we develop a version of a tensor decomposition algorithm that restricts the time dynamics to analytically tractable solutions sparsely selected from a large, over-complete library of candidate functions. In so doing, we provide a more interpretable framework for the tensor modes in the decomposition process and analytic expressions for their associated time dynamics.

With the rise of data science and data-driven discovery, tensor decompositions are of increasing value and importance for characterizing underlying structure and dimensionality of data


. Indeed, finding low-rank structure in high-dimensional data is at the core of many machine learning architectures

[8, 9]. In applications, one of the important dimensions of the data set is a time variable which measures how the other quantities of interest evolve over a prescribed time course. A tensor decomposition produces the low-rank time variable evolution. However, the low-rank time modes often are complicated and noisy due to the form of the data itself. In contrast, we often expect simple and highly structured temporal signatures, whether it be oscillations of a prescribed frequency or exponential growth/decay of a signal, for instance. The natural remedy is to constrain the form of the temporal modes extracted from the tensor decomposition. By specifying an over-complete library of temporal functions, we are able to extract analytic forms for the best fit temporal evolution of the data. The appropriate time behavior in our over-complete library is selected through sparse regression techniques so as to select a minimal, but most informative, set of time dynamics. This is highly advantageous for characterizing the structure of the data and for data-driven discovery of underlying processes responsible for producing the dynamics observed.


Fig. 1: CP tensor decompositions. This type of decomposition approximates a data set with a tensor consisting of components. Each component is an outer product of three vectors and is of the form .

Unlike the SVD for matrices, tensor decompositions are not unique, and there are a variety of decompositions that can be applied to -way arrays () of data. We consider the CANDECOMP/PARAFAC (CP) decomposition [10, 11] illustrated in Fig. 1, which arranges -rank data into a series of outer products of vectors. There are other decompositions available, including the Tucker tensor decomposition [7] and the recently developed tensor-based method [12] for Dynamic Mode Decomposition (DMD) [13]. The former method is widely used in the tensor community while the latter method provides a regression that enforces Fourier mode behavior in the time mode. All three methods fall short of our primary goal, which is to provide a tensor decomposition with analytically tractable time dynamics capable of modeling transient phenomena. The DMD algorithm solves the first part of this objective but fails in modeling transient phenomena. Although a multi-resolution DMD method has been proposed to handle transients [14], it has a multiple pass architecture that sometimes struggles to extract spatio-temporal structures in a completely unsupervised manner. In this work, we demonstrate that the CP tensor decomposition can be modified to constrain the time dynamic mode to a broad range of analytic solutions that are selected from a large and over-complete library of candidate functions. By using sparse regression techniques, the best candidate functions are selected for representing the temporal dynamics. We call this technique Shape Constrained Tensor Decomposition (SCTD). The clear advantage of the SCTD over standard CP decompositions is that it gives analytic results which are readily interpretable. We demonstrate the method on a number of examples, including high-dimensional data generated from Houston crime data and global temperature measurements.

[width=3.5in]Figure4SparseSelection2.pdf (a) Library of time functions(b) Sparse linear combination(c) Restricted dimension

Fig. 2: Sparse selection from an over-complete library. We restrict the third dimension of our CP tensor decomposition (the set of vectors) to be a sparse linear combination of time dynamics functions from a library that we create. (a) We create a library with a variety of functions in time. (b) The algorithm then selects a small (sparse) subset of the library to linearly combine into a vector fitting the time dynamics in the data. (c) This is a restriction on the third dimension of each component.

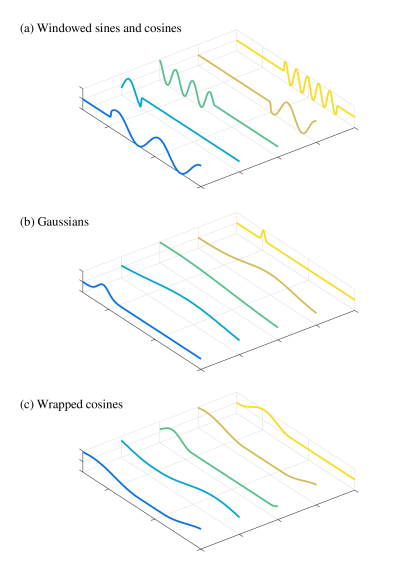

Fig. 3: Constructing a library. Based on the application, we choose a library of possible time dynamics functions. Options include: (a) Windowed Sines and Cosines. We generate a range of sines and cosines, varying the frequency, width of the window, and center of the window. (b) Gaussians. We fill the library with Gaussian functions, varying the and parameters. (c) Wrapped Cosines. One way to generate a library that is Gaussian-like but has a period that is the length of the interval is to use one period of a shifted cosine. The frequency and shift can be varied.

The rest of the paper is organized as follows: Sec. II develops the basic mathematical architecture of the CP tensor decomposition and our refinement, the SCTD algorithm. This is followed by Sec. III in which we discuss practical details such as how to select tuning parameters and how to construct an appropriate over-complete library. Sec. IV tests the algorithm on simulated data, and Sec. V provides examples demonstrating the effectiveness of the algorithm on real-world data sets. Conclusions and an outlook for the SCTD algorithm are discussed in Sec. VI. For full details, all MATLAB and R codes used for this paper are available online at

Ii Methodology

In this manuscript, we present a number of modifications to the standard CP tensor decomposition that are intuitively appealing and improve interpretability of the low-rank modes extracted from data. Specifically, we introduce an over-complete library of temporal responses that constrains the time mode dynamics. A sparsity-promoting algorithm further selects a small number of these modes to represent the data. Thus the procedure can be thought of as a sparsity-promoting, constrained optimization problem.

The SCTD method is illustrated at a high level in Figs. 2 and 3. Fig. 2 shows the selection process whereby a small number of modes from an over-complete library of temporal functions are selected to best represent the temporal evolution of the data. We rely on an optimization procedure so as to obtain a sparse representation of the temporal dynamics. The algorithm thus restricts the temporal mode in the decomposition. While the temporal functions populating the library may be arbitrary, the power of the SCTD relies on the fact that temporal dynamics are typically far from arbitrary. Fig. 3 illustrates some temporal functions that serve as prototypes that characterize real-world temporal dynamics. Note that some of these functions are ideally suited for handling transient dynamics. Indeed, the success of the method is directly related to the temporal library functions included in the regression procedure.

A specific demonstration of the SCTD is shown in Fig. 4. In this example, three different spatial mode structures are combined with three specific time dynamics. The imposed time dynamics are representative of simple functional forms that are often difficult for the standard CP or DMD methods to model or resolve, i.e. temporal responses that have finite time windows of activity. In this example, the sequence of data snapshots are gathered into a 3-way data tensor . Different snapshots of the dynamics depict the spatial structure arising from the combination of the different modal structures. The objective of the SCTD is to solve the inverse problem: Given the data tensor , find the low-rank decomposition that correctly reconstructs the spatial modes and their time dynamics. The algorithm proposed here, which is based on the CP decomposition, can indeed recover the three modes and their time dynamics as shown in Fig. 4.

In the subsections that follow, the technical details of the CP tensor decomposition algorithm are considered along with strategies for building an over-complete library and enforcing a parsimonious combination of temporal dynamics prototypes.

Ii-a CP Tensor Decompositions

We begin by first reviewing some useful notation. We denote the th column of a matrix by . Given matrices and , their Khatri-Rao product is denoted by and is defined to be the matrix of column-wise Kronecker products, namely

For an -way tensor of size , we denote its entry by . The inner product between two -way tensors and of compatible dimensions is given by

The Frobenius norm of a tensor , denoted by , is the square root of the inner product of with itself, namely . Finally, the mode- matricization or unfolding of a tensor is denoted by .


Fig. 4: Extracting patterns from spatio-temporal data. (a) We begin with a data set where spatial information is collected over time. If we collect two-dimensional data at each time step, we may informally think of the data as a sequence of “frames.” (b) The sequence of frames can be saved as a tensor (one data cube) where the third dimension is time. (c) Our goal is to decompose that tensor into a sum of important frame components where each frame component has its own time dynamics. In this example, we see the three components coming in and out of the frames as time passes. The color coding demonstrates how the sample frames in part (a) are combinations of the components shown in part (c).

Let represent an -way data tensor of size . We are interested in an -component CANDECOMP/PARAFAC (CP) [10, 11] factor model


where represents outer product and represents the th column of the factor matrix of size . We refer to each summand as a component. Assuming each factor matrix has been column-normalized to have unit Euclidean length, we refer to the ’s as weights. We will use the shorthand notation , where [15]. A tensor that has a CP decomposition is sometimes referred to as a Kruskal tensor.

For the rest of this article, we consider a -way tensor where two modes index state variation and the third mode indexes time variation.

Let and denote the factor matrices corresponding to the two state modes and denote the factor matrix corresponding to the time mode. This -way decomposition is illustrated in Fig. 1.

Ii-B Sparse Representations in Over-Complete Libraries

We can further impose structure on the factors of the low-rank decomposition. For example, we could impose sparsity and smoothness on factors [16, 17]. Here we assume that the time mode can be coded as a sparse linear combination from a known over-complete library , namely

where the elements of are predominantly zero, i.e. , and . This set up can be thought of as a sparse version of CANDELINC (canonical decomposition with linear constraints) [18]. Figs. 2 and 3 show both the constrained decomposition and some example library functions used.

We seek the CP model that maximizes a penalized correlation with the data tensor


such that

The matrix norm is the sum of all the absolute values of and not the induced matrix 1-norm. Thus, the non-negative parameter trades off the degree of correlation of the model to the data and the sparsity level in the loadings . The inequality constraints are added to ensure that the feasible set of the optimization problem is compact. The Bolzano-Weierstrass theorem ensures that a solution to the problem exists. Without these constraints, the optimization problem is not well posed as there is no global maximum.

We pause to clarify the relationship between the above problem and the sparse coding or dictionary learning problem [19]. Note that we can rewrite the optimization problem in (2) as

such that

If we add the additional constraint for some constant , then maximizing the penalized correlation is equivalent to minimizing the penalized squared error

where . Thus, we see that the optimization problem given in (2) is closely related to a special case of the sparse coding problem where we seek to learn sparse coefficients as well as a dictionary matrix which must obey rather strong structural constraints.

Ii-C Algorithm

We now describe an algorithm for computing our structured low-rank approximation . Note that the CP constraint renders the optimization problem in (2) non-convex. Note, however, that if we fix all but one of the block variables or , the optimization problem involves a straightforward concave optimization whose solutions can be written in closed form. Thus, we propose a block coordinate ascent (BCA) algorithm.

One complication of adopting a BCA algorithm is that the updates for and each separate into identical optimization problems. To be explicit, consider the problem of updating when and are fixed.


such that

Consequently, solving for the entire factor matrix at once will yield identical columns, namely . To deal with this degeneracy, we construct via deflation. The idea is to find the most correlated rank-1 tensor and then subtract it from the data tensor. We then repeat the procedure on the residual tensor.

We are now ready to summarize at a high level the BCA algorithm. Suppose we have completed rounds so far and let denote the residual, namely . At the th round, we solve the following optimization problem.


such that

We again solve the above maximization problem with block coordinate ascent. Once BCA has converged, we determine by solving the problem:

The solution to the above scalar optimization problem is given by

We now detail the updates for the factors and .

Updating :


where . The update simply requires normalizing .

Updating :


where . The update simply requires normalizing .

Updating :


where .

The optimization problem posed in (7) is a modified lasso problem and has appeared in similar settings [17, 16, 20]. The update is given by

The derivation of this update rule is given in the Appendix. We then update , followed by calculating the next residual .

Iii Details of SCTD Algorithm

Now that we are familiar with the basic procedure, we next discuss important details in the SCTD. We first describe how the sparsity-inducing parameter is chosen. We then describe how the over-complete library is constructed.

Iii-a Picking The Regularization Parameter

At each iteration, we use the Bayesian Information Criterion (BIC) [21] to pick regularization parameter . The BIC is a quantitative score that balances how well the model fits the data against how complicated the model is. In the context of the SCTD, a constrained rank-1 Kruskal tensor with low BIC corresponds to a rank-1 Kruskal tensor which fits the data well in light of how many free parameters were used in fitting it. As defined in [17], for this problem, the BIC criterion is

where is the number of non-zero elements of . This can be derived from each update being an -norm penalized regularization problem.

We use the BIC criterion to pick the best from a range of options. We further refine the value of by checking the neighborhood of the current best option until the neighborhood is sufficiently small or the BIC curve is sufficiently constant on that neighborhood. An upper limit of is the point at which all entries of are zero. Since we accumulate small amounts of error on each iteration, we wish to encourage increasing levels of sparsity as increases. We thus use as a lower bound for , unless is greater than the current upper bound.

Iii-B Constructing the Over-Complete Library

We can choose an over-complete library based on knowledge of the application area or data set. Some natural candidates are displayed in Fig. 3

. If we expect periodic but transient dynamics, we may choose to populate the library with windowed sines and cosines, varying the frequencies of the sines and cosines and the widths and shifts of the windows. If we anticipate transient phenomena that are non-periodic, it may be appropriate to include Gaussians with a range of means and variances. If the time domain itself is periodic, such as hour of the day, then we might improve the results by including dynamics that have this period. For example, to allow a Gaussian-like mode to vary smoothly through the night, we could generate cosines with varying frequencies and shifts, but only include one period of the cosine (see “wrapped cosines” in Fig.



Fig. 5: Comparing methods on a simulated data set. The data set, a 3-way tensor, is generated as described in Fig. 4, except that noise is added. We hope that a method can decompose the tensor into its three noiseless components. A traditional CP tensor decomposition sometimes falls into a good local minimum and decomposes the data correctly. Clean spatial modes are found, but some noise in the time dynamics is maintained. The time dynamics are not fit to analytic expressions. The Dynamic Mode Decomposition tries to fit clean time dynamics functions to the spatial modes. However, it is restricted to Fourier modes and cannot handle the windowed behavior in this data set. It also does not correctly separate the third spatial mode. The SCTD finds clean spatial modes and fits smooth time dynamics to each component. The output includes the exact functions that were fit to the time dynamics.

[width=3.5in]Figure6ReconError2.pdf # of components

Fig. 6: Reconstruction error curve. We can choose the number of components to keep in the SCTD by considering the trade-off between error and complexity. Here we see diminishing returns in reconstruction error after the inclusion of the first three components, suggesting that a rank-3 approximation sufficiently captures the majority of systematic variation in the data. We calculate the error in two ways—by comparing the reconstruction to the original clean data and to the noisy data.

Iv Simulation Experiments

We begin by testing the SCTD on a simulated data set similar to Fig. 4. Recall that this data set is composed of three spatio-temporal modes (specifically, it is a Kruskal tensor with rank three). We can think of this data set as a video or sequence of frames. Our goal is to decompose it into three modes (a rank-three Kruskal tensor) with an analytical description for the temporal dimension. Although the SCTD is exceptional for the data in Fig. 4, the example is limited since no noise was included in the data.

We next consider a more realistic example shown in Fig. 5

. In this experiment, we added white Gaussian noise with standard deviation

in the frequency domain to the data . In this case, we used , resulting in a signal-to-noise ratio of 0.1374, where signal-to-noise ratio is defined as the ratio of the summed squared magnitude of the signal to the summed squared magnitude of the noise. The algorithm outlined in Sec. II can now be applied to the data and a direct comparison can be made to a CP decomposition and a DMD reduction. In particular, for the CP decomposition, we use the CP_ALS function in the Matlab Tensor Toolbox [22], [23], which uses an alternating least squares algorithm. Fig. 5 shows that despite the inclusion of noise, the modes and temporal dynamics can be cleanly extracted using the SCTD. Indeed, analytic forms for the time dynamics can be discovered. In comparison, the CP algorithm gives a decomposition with noisy time modes which lack analytic description. The DMD algorithm (using data flattening) can give analytic expressions for the time dynamics, but the temporal expressions are significantly flawed due to the fact that DMD cannot handle such transient and/or intermittent time dynamics, i.e. only time dynamics of the form are allowed.

The SCTD also provides a diagnostic for performing an -rank truncation. For an SVD decomposition, the singular values provide the requisite metric for truncation. Similarly, Fig. 6 shows the decay of reconstruction error as a function of the number of tensor modes. We can choose the rank, or number of components to keep in the SCTD, by considering the trade-off between error and complexity. Here we see diminishing returns in reconstruction error after the inclusion of the first three components, suggesting that a rank-3 approximation sufficiently captures the majority of the systematic variation in the data.

To further explore the example shown in Fig. 5, we consider a number of different cases which highlight the use of the algorithm and the choice of library prototypes. Thus we consider the following:

  • Case (a): Library contains true modes. We start with an easy case. We construct a library with 3000 prototypes, including the true temporal modes, and we do not add noise to the data. We see in Fig. 7 and Table I that in two iterations, the SCTD picks exactly one prototype, and in one iteration, the SCTD picks 299 from the 3000 and accumulates a small amount of error.

  • Case (b): Library does not contain true modes. Next, we want to assess how robust the SCTD is to “model misspecification”: We construct another library of 3000 prototypes but do not “cheat” by including the true time dynamics. As we can see in Fig. 7 and Tab. I, in this experiment, the method uses extra prototypes (about of the library) and accumulates more error. However, the factor accuracy only reduces from 0.989 to 0.948.

  • Case (c): Library does not contain true modes and the data is noisy. Finally, we increase the difficulty by adding white Gaussian noise to the data (). The results are very similar to Case (b) without noise (see Fig. 7 and Tab. I). Note that although the resulting analytic expression of hundreds of modes is not simple, if you want a simple analytical expression, you can pick the mode with the largest coefficient and still maintain accuracy. The top mode is plotted in green on top of the linear combination (blue) and the true mode (black) in Fig. 7.

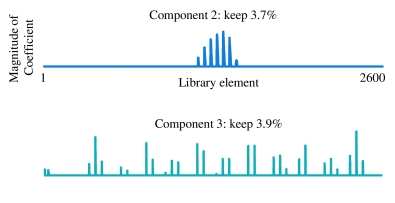

Fig. 7: Results on simulated data set. We repeat for reference the three true components that compose the data set. (a) When the library contains the correct time dynamics functions, the SCTD does a good job of recovering them. (b) When the library does not contain the exact right modes, the SCTD uses more prototypes to fit the data, but still chooses a sparse number. (c) When we additionally make the data noisy, the SCTD is robust. It chooses more prototypes, but if an especially simple output is desired, using just the prototype with the highest coefficient is accurate. See more detail in Tab. I.
case # prototypes relative factor frequency of
chosen error accuracy top mode
(a) 301 (3.6%) .1144 .988924 .0982
(b) 1132 (13.5%) .2329 .948130 .1026
(c) 857 (10.2%) .6947 .937874 .1026
TABLE I: Details to accompany Fig. 7

Next, we consider Case (c) in more detail. So far, we have seen two examples of this case. In Fig. 5

, the library contains 40,000 prototypes and the white noise has standard deviation

. In Fig. 7 (and Tab. I), the library contains 3,000 prototypes and the white noise has standard deviation . We now consider the effect of (Fig. 8) and the effect of the library size (Fig. 9).

In Fig. 8, we fix the library size to 50,000 and vary . As the magnitude of the noise increases, so does the error. However, this growth in error is slow when the error is measured against the original (noiseless) data. For context, see Fig. 5 for a visualization of data with .

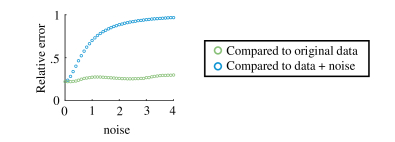

Fig. 8: Varying the noise. In Figs. 5 and 7 and Tab. I, we displayed results on noisy data. Here we vary the amount of noise to display the robustness of the SCTD. The value of ranges while the SNR ranges . As the noise increases, the error in the reconstruction of the original data increases. Note that the cases of and are displayed in Figs. 5 and 7, respectively. The increase in error is slow when the error is in terms of the noiseless data.

In Fig. 9, we consider data that has no noise and vary the library size. Once the library is sufficiently large, the relative error does not improve. However, the number of prototypes chosen grows.

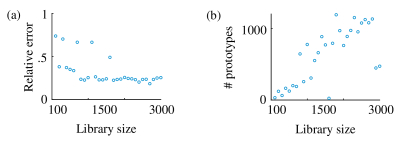

Fig. 9: Varying the library size. In Fig. 7 and Tab. I, we displayed results on a library with 3,000 prototypes. Here we vary the size of the library to consider the tradeoffs. Once we have a reasonably large library, the relative error is consistent. However, the number of selected prototypes roughly grows with the library size. Thus to limit complexity, we may wish to pick a library size that is sufficient for low error reconstructions but is not larger than necessary.

V Real Data Examples

We now apply the SCTD to two real-world data sets exhibiting complex spatio-temporal dynamics with intermittency. These examples illustrate the power of the SCTD to produce interpretable results, especially in the constrained time dynamics. Figures were rendered with the ggmap and ggplot2 R packages [24, 25].

V-a Houston Crime

Data mining is beginning to be applied to a myriad of law enforcement problems [26]. These techniques can be used to help agencies deploy their employees more efficiently, predict the outcomes of new initiatives, and identify trends in crime in order to take preventative measures.

We apply the SCTD to a data set, collected by the Houston Police Department, with 85,622 crimes occurring in Houston from January to August 2010. We use a preprocessed version of the data included in the ggmap R package [24]. We create a 3-way tensor of counts of these crimes. The dimensions are type of crime (aggravated assault, auto theft, burglary, robbery, or theft), crime beat (118 options), and hour of day (0–23). We then apply the SCTD to this data set using a mix of the three types of functions displayed in Fig. 3—windowed sines and cosines, Gaussians, and wrapped cosines.

The first three components of the SCTD are displayed in Fig. 10. In the first component, most beats are at least lightly included, although some are more intense. Theft in the evening is especially emphasized. The second component adds non-theft crimes to a different set of hot spots and subtracts non-theft crime from some of the beats that were important in the first component. The third component re-emphasizes some of the same beats, this time adding burglary and subtracting theft in the morning and conversely adding theft and subtracting burglary in the evening.

In Fig. 11, we compare our results to the first three components from CP_APR (the non-negative CP tensor decomposition with alternating Poisson regression [27] as implemented in the Matlab Tensor Toolbox [22]). The results using the SCTD are much smoother and more interpretable in the time dimension, but many of the same beats are considered important. Again, the ability to produce analytically tractable time functions helps our ability to both interpret and predict the dynamics associated with this complex, socially-inspired network.

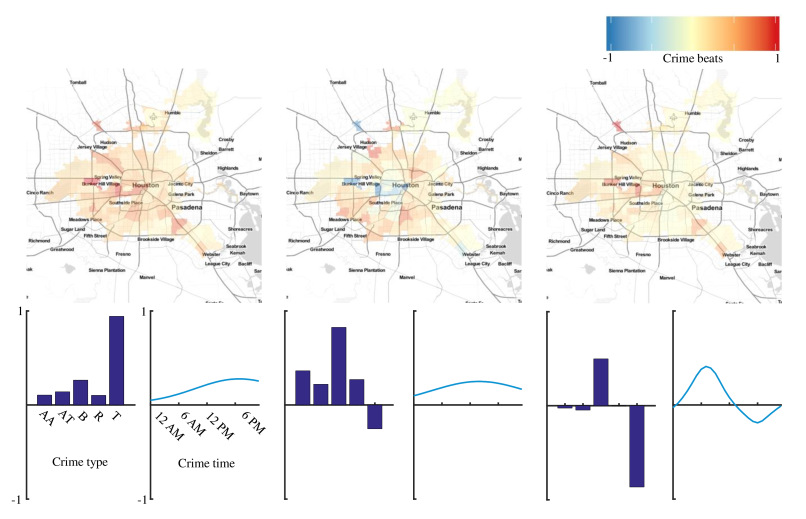

Fig. 10: Results on Houston crime data set using SCTD. We start with a data set of Houston crime where the first dimension is type of crime, the second is crime beat, and the third is hour of the day (0–23). The five crimes considered are aggravated assault (AA), auto theft (AT), burglary (B), robbery (R), and theft (T). We decompose the data set with the SCTD and display the first three modes here. Our method finds sets of beats behaving similarly and assigns smooth, interpretable time dynamics.

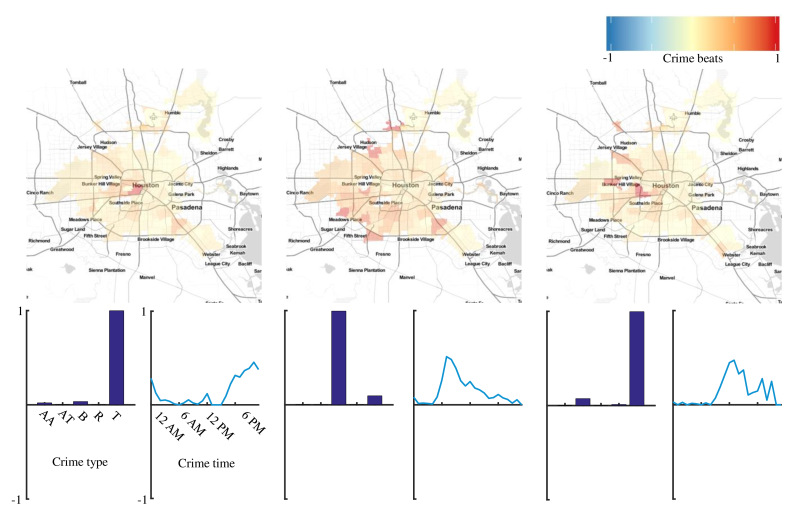

Fig. 11: Results on Houston crime data set using CP_APR. We decompose the Houston crime data set again, but this time with the with the CP_APR tensor decomposition for comparison. We display the first three modes here. Note that the time dynamics are noisy.

V-B El Niño

Sensor and imaging technologies (oceanic, terrestial and satelite) have led to a significant increases in climate data and a limited but growing understanding of how to extract meaningful information from it. Interest in this interdisciplinary field has spawned, for example, the annual International Workshop on Climate Informatics [28].

We demonstrate the SCTD on a data set of sea surface temperatures. The data are freely available from the NOAA/OAR/ESRL PSD, Boulder, Colorado, USA. We used the weekly sea surface temperature from the NOAA_OI_SST_V2 data set, which can be downloaded from In particular, we consider the Pacific Ocean from 1995 through the end of 2000. We subtracted the background from the data using DMD [29], and then we created a library with a combination of Gaussians and windowed sines and cosines. Two of the first twelve modes that the SCTD extracted are shown in Fig. 12. The second component finds one-time phenomena related to the El Niño event of 1997–1998. In particular, we see unusually warm temperatures in the eastern Pacific ocean, especially near Peru, but almost stretching to New Guinea. By mid-to-late 1997, unusually cool waters occurred near the coast of Australia. The third component finds annual variation in temperature, split over the equator.

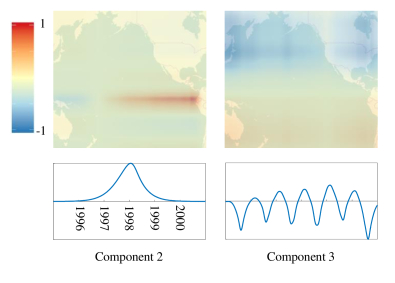

Fig. 12: Results on ocean surface temperature data set. We start with a data set of ocean surface temperature over time. The dimensions are longitude, latitude, and time. Here we display a sample of the components found by the SCTD. The second component finds the El Niño event of 1997–1998, a warm band in the central and east-central equatorial Pacific. The third contain annual variation, split over the equator.
