Shape and Time Distortion Loss for Training Deep Time Series Forecasting Models

09/19/2019
by   Vincent Le Guen, et al.
EDF
CNAM
0

This paper addresses the problem of time series forecasting for non-stationary signals and multiple future steps prediction. To handle this challenging task, we introduce the Shape and Time Distortion Loss (STDL), a new objective function dedicated to training deep neural networks. STDL aims at accurately predicting sudden changes, and explicitly incorporates two terms supporting precise shape and temporal change detection. We introduce a differentiable loss function suitable for training deep neural nets, and provide a custom back-prop implementation for speeding up optimization. We also introduce a variant of STDL, which provides a smooth generalization of temporally-constrained Dynamic Time Warping (DTW). Experiments carried out on various non-stationary datasets reveal the very good behaviour of STDL compared to models trained with the standard Mean Squared Error (MSE) loss function, and also to DTW and variants. STDL is also agnostic to the choice of the model, and we highlight its benefit for training fully connected networks as well as specialized recurrent architectures, showing its capacity to improve over state-of-the-art trajectory forecasting approaches.

READ FULL TEXT VIEW PDF

page 1

page 2

page 3

page 4

04/09/2021

Deep Time Series Forecasting with Shape and Temporal Criteria

This paper addresses the problem of multi-step time series forecasting f...
10/26/2022

TILDE-Q: A Transformation Invariant Loss Function for Time-Series Forecasting

Time-series forecasting has caught increasing attention in the AI resear...
10/14/2020

Probabilistic Time Series Forecasting with Structured Shape and Temporal Diversity

Probabilistic forecasting consists in predicting a distribution of possi...
12/05/2019

Warped Input Gaussian Processes for Time Series Forecasting

We introduce a Gaussian process-based model for handling of non-stationa...
02/23/2022

Learning Fast and Slow for Online Time Series Forecasting

The fast adaptation capability of deep neural networks in non-stationary...
02/14/2019

Generalisation in fully-connected neural networks for time series forecasting

In this paper we study the generalisation capabilities of fully-connecte...

1 Introduction

Time series forecasting [6] consists in analyzing the dynamics and correlations between historical data for predicting future behavior. In one-step prediction problems [39, 30], future prediction reduces to a single scalar value. This is in sharp contrast with multi-step time series prediction [49, 2, 48], which consists in predicting a complete trajectory of future data at a rather long temporal extent. Multi-step forecasting thus requires to accurately describe time series evolution.

This work focuses on multi-step forecasting problems for non-stationary signals, i.e. when future data cannot only be inferred from the past periodicity, and when abrupt changes of regime can occur. This includes important and diverse application fields, e.g. regulating electricity consumption [63, 36], predicting sharp discontinuities in renewable energy production [23] or in traffic flow [35, 34], electrocardiogram (ECG) analysis [9], stock markets prediction [14], etc.

Deep learning is an appealing solution for this multi-step and non-stationary prediction problem, due to the ability of deep neural networks to model complex nonlinear time dependencies. Many approaches have recently been proposed, mostly relying on the design of specific one-step ahead architectures recursively applied for multi-step [24, 26, 7, 5], on direct multi-step models [3] such as Sequence To Sequence [34, 60, 57, 61] or State Space Models for probabilistic forecasts [44, 40].

Regarding training, the huge majority of methods use the Mean Squared Error (MSE) or its variants (MAE, etc) as loss functions. However, relying on MSE may arguably be inadequate in our context, as illustrated in Fig 1. Here, the target ground truth prediction is a step function (in blue), and we present three predictions, shown in Fig 1(a), (b), and (c), which have a similar MSE loss compared to the target, but very different forecasting skills. Prediction (a) is not adequate for regulation purposes since it doesn’t capture the sharp drop to come. Predictions (b) and (c) much better reflect the change of regime since the sharp drop is indeed anticipated, although with a slight delay (b) or with a slight inaccurate amplitude (c).

This paper introduces the Shape and Time Distortion Loss (STDL), a new objective function for training deep neural networks in the context of multi-step and non-stationary time series forecasting. STDL explicitly disentangles into two terms the penalization related to the shape and the temporal localization errors of change detection (section 3). The behaviour of STDL is shown in Fig 1: whereas the values of our proposed shape and temporal losses are large in Fig 1(a), the shape (resp. temporal) term is small in Fig 1(b) (resp. Fig 1(c)). STDL combines shape and temporal terms, and is consequently able to output a much smaller loss for predictions (b) and (c) than for (a), as expected.

To train deep neural nets with STDL, we derive a differentiable loss function for both shape and temporal terms (section 3.1), and an efficient and custom back-prop implementation for speeding up optimization (section 3.2). We also introduce a variant of STDL, which provides a smooth generalization of temporally-constrained Dynamic Time Warping (DTW) metrics [43, 28]. Experiments carried out on several synthetic and real non-stationary datasets reveal that models trained with STDL significantly outperform models trained with the MSE loss function when evaluated with shape and temporal distortion metrics, while SDTL maintains very good performance when evaluated with MSE. Finally, we show that STDL can be used with various network architectures and can outperform on shape and time metrics state-of-the-art models specifically designed for multi-step and non-stationary forecasting.

(a) Non informative prediction (b) Correct shape, time delay (c) Correct time, inaccurate shape
Figure 1: Limitation of the euclidean (MSE) loss: when predicting a sudden change (target blue step function), the 3 predictions (a), (b) and (c) have similar MSE but very different forecasting skills. In contrast, the STDL loss proposed in this work, which disentangles shape and temporal decay terms, supports predictions (b) and (c) over prediction (a) that does not capture the sharp change of regime.

2 Related work

Time series forecasting

Traditional methods for time series forecasting include linear auto-regressive models, such as the ARIMA model [6], and Exponential Smoothing [27], which both fall into the broad category of linear State Space Models (SSMs) [17]

. These methods handle linear dynamics and stationary time series (or made stationary by temporal differences). However the stationarity assumption is not satisfied for many real world time series that can present abrupt changes of distribution. Since, Recurrent Neural Networks (RNNs) and variants such as Long Short Term Memory Networks (LSTMs)

[25]

have become popular due to their automatic feature extraction abilities, complex patterns and long term dependencies modeling. In the era of deep learning, much effort has been recently devoted to tackle multivariate time series forecasting with a huge number of input series

[31], by leveraging attention mechanisms [30, 39, 50, 12]

or tensor factorizations

[60, 58, 46] for capturing shared information between series. Another current trend is to combine deep learning and State Space Models for modeling uncertainty [45, 44, 40, 56]. In this paper we focus on deterministic multi-step forecasting. To this end, the most common approach is to apply recursively a one-step ahead trained model. Although mono-step learned models can be adapted and improved for the multi-step setting [55], a thorough comparison of the different multi-step strategies [48] has recommended the direct multi-horizon strategy. Of particular interest in this category are Sequence To Sequence (Seq2Seq) RNNs models 111A Seq2Seq architecture was the winner of a 2017 Kaggle competition on multi-step time series forecasting (https://www.kaggle.com/c/web-traffic-time-series-forecasting) [44, 31, 60, 57, 19] which achieved great success in machine translation. Theoretical generalization bounds for Seq2Seq forecasting were derived with an additional discrepancy term quantifying the non-stationarity of time series [29]. Following the success of WaveNet for audio generation [53]

, Convolutional Neural Networks with dilation have become a popular alternative for time series forecasting

[5]. The self-attention Transformer architecture [54] was also lately investigated for accessing long-range context regardless of distance [32]. We highlight that our proposed loss function can be used for training any direct multi-step deep architecture.

Evaluation and training metrics

The largely dominant loss function to train and evaluate deep models is the MAE, MSE and its variants (SMAPE, etc). Metrics reflecting shape and temporal localization exist: Dynamic Time Warping [43]

for shape ; timing errors can be casted as a detection problem by computing Precision and Recall scores after segmenting series by Change Point Detection

[8, 33], or by computing the Hausdorff distance between two sets of change points [22, 51]. For assessing the detection of ramps in wind and solar energy forecasting, specific algorithms were designed: for shape, the ramp score [18, 52]

based on a piecewise linear approximation of the derivatives of time series; for temporal error estimation, the Temporal Distortion Index (TDI)

[20, 52]

. However, these evaluation metrics are not differentiable, making them unusable as loss functions for training deep neural networks. The impossibility to directly optimize the appropriate (often non-differentiable) evaluation metric for a given task has bolstered efforts to design good surrogate losses in various domains, for example in ranking

[15, 62]

or computer vision

[38, 59].

Recently, some attempts have been made to train deep neural networks based on alternatives to MSE, especially based on a smooth approximation of the Dynamic time warping (DTW) [13, 37, 1]. Training DNNs with a DTW loss enables to focus on the shape error between two signals. However, since DTW is by design invariant to elastic distortions, it completely ignores the temporal localization of the change. In our context of sharp change detection, both shape and temporal distortions are crucial to provide an adequate forecast. A differentiable timing error loss function based on DTW on the event (binary) space was proposed in [41] ; however it is only applicable for predicting binary time series. This paper specifically focuses on designing a loss function able to disentangle shape and temporal delay terms for training deep neural networks on real world time series.

3 Training Deep Neural Networks with the Shape and Time Distortion Loss

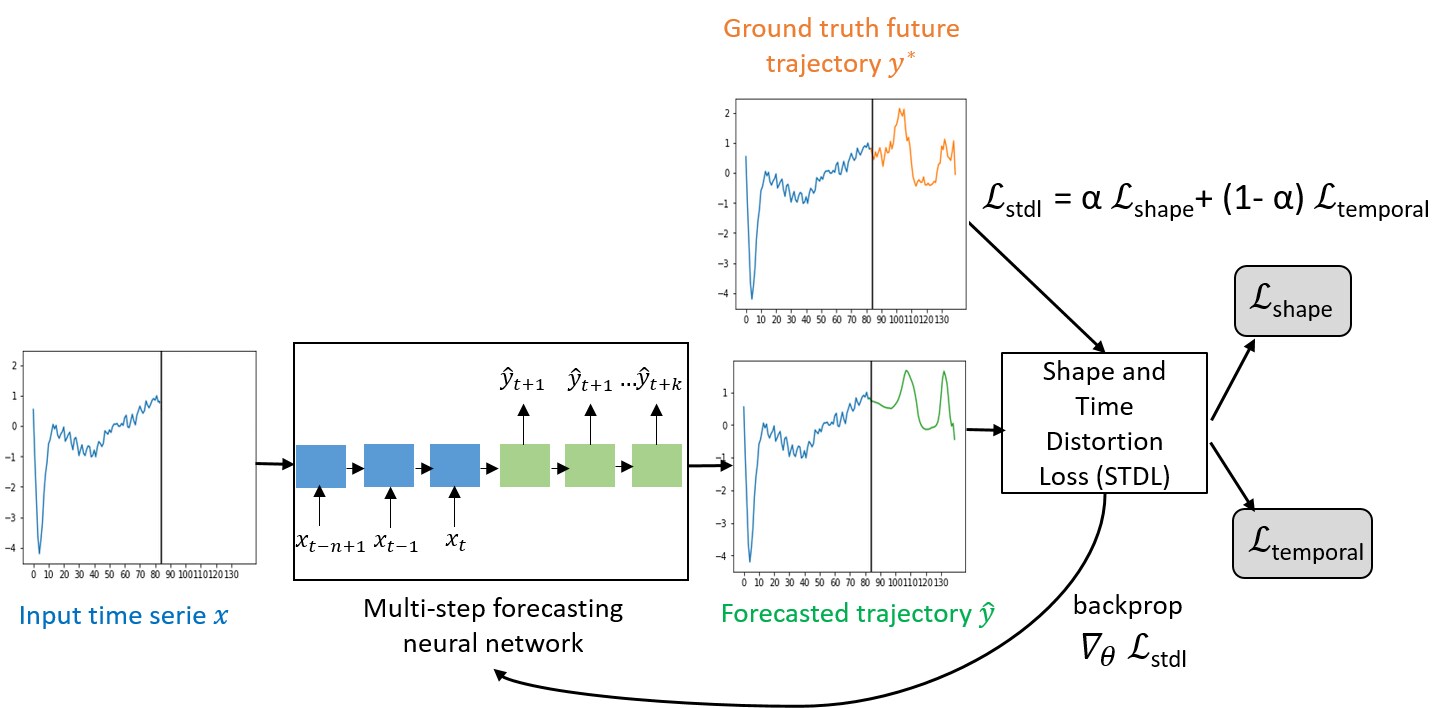

Figure 2: Our proposed framework for training deep forecasting models.

Our proposed framework for multi-step forecasting is depicted in Figure 2. During training, we consider a set of input time series . For each input example of length , i.e. , a forecasting model such as a neural network predicts the future -step ahead trajectory . Our Shape and Time Distortion Loss (STDL), which compares this prediction with the actual ground truth future trajectory of length

, is composed of two terms balanced by the hyperparameter

:

(1)

Notations and definitions

Both our shape and temporal distortions terms are based on the alignment between predicted and ground truth time series. We define a warping path as a binary matrix with if is associated to , and otherwise. The set of all valid warping paths connecting the endpoints to with the authorized moves (step condition) is noted . Let be the pairwise cost matrix, where is a given dissimilarity between and , e.g. the euclidean distance.

3.1 Shape and temporal terms

Shape term

Our shape loss function is based on the Dynamic Time Warping (DTW) [43], which corresponds to the following optimization problem: . is the optimal association (path) between and . By temporally aligning the predicted and ground truth time series, the DTW loss focuses on the structural shape dissimilarity between signals. The DTW, however, is known to be non-differentiable. We use the smooth min operator with proposed in [13] to define our differentiable shape term :

(2)

Temporal term

Our second term in Eq (1) aims at penalizing temporal distortions between and . Our analysis is based on the optimal DTW path between and . is used to register both time series when computing DTW and provide a time-distortion invariant loss. Here, we analyze the form of to compute the temporal distortions between and . More precisely, our loss function is inspired from computing the Time Distortion Index (TDI) for temporal misalignment estimation [20, 52], which basically consists in computing the deviation between the optimal DTW path and the first diagonal. We first rewrite a generalized TDI loss function with our notations:

(3)

where is a square matrix of size penalizing each element being associated to an , for . In our experiments we choose a squared penalization, e.g. , but other variants could be used. Note that prior knowledge can also be incorporated in the matrix structure, e.g. to penalize more heavily late than early predictions (and vice versa).

The TDI loss function in Eq (3) is still non-differentiable. Here, we cannot directly use the same smoothing technique that for defining in Eq (2), since the minimization involves two different quantities and . Since the optimal path is itself non-differentiable, we use the fact that to define a smooth approximation of the operator, i.e. :
, with being the partition function. Based on , we obtain our smoothed temporal loss from Eq (3):

(4)

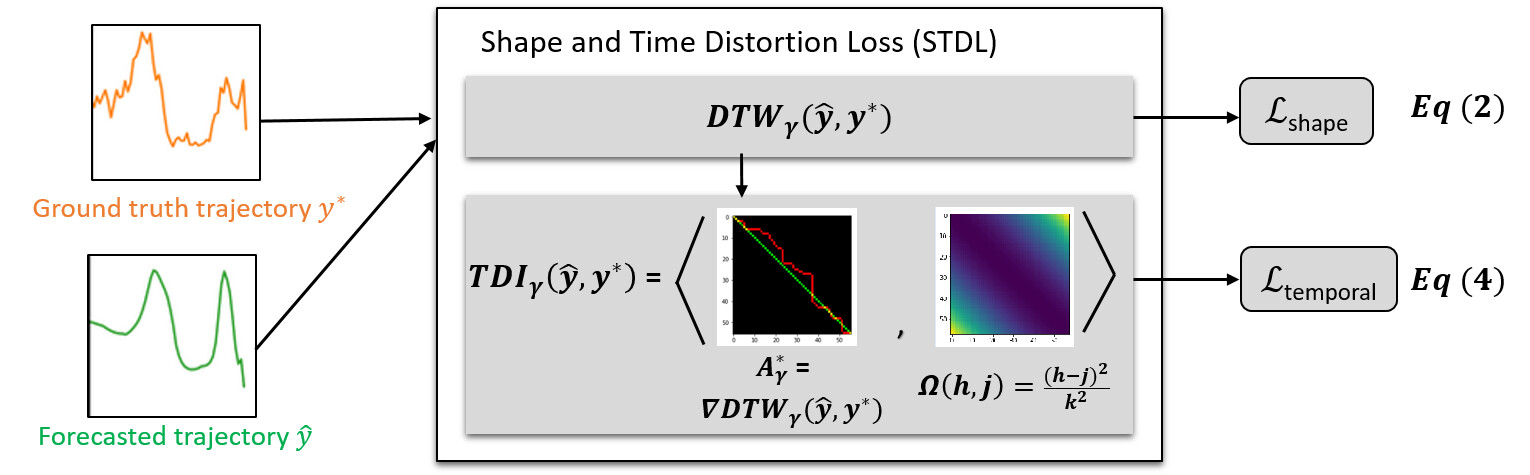

Figure 3: Shape and Time Distortion Loss computation for separating the shape and temporal errors.

3.2 STDL Efficient Forward and Backward Implementation

The direct computation of our shape and temporal losses in Eq (2) and Eq (4) is intractable, due to the cardinal of , which exponentially grows with . We provide a careful implementation of the forward and backward passes in order to make learning efficient.

Shape loss

Regarding , we rely on [13] to efficiently compute the forward pass with a variant of the Bellmann dynamic programming approach [4]. For the backward pass, we implement the recursion proposed in [13]

in a custom Pytorch loss. This implementation is much more efficient than relying on vanilla auto-differentiation, since it reuses intermediate results from the forward pass.

Temporal loss

For , note that the bottleneck for the forward pass in Eq (4) is to compute , which we implement as explained for the backward pass. Regarding backward pass, we need to compute the Hessian . We use the method proposed in [37], based on a dynamic programming implementation that we embed in a custom Pytorch loss. Again, our back-prop implementation allows a significant speed-up compared to standard auto-differentiation (see section 4.4).

The resulting time complexity of both shape and temporal losses for forward and backward is .

Discussion

A variant of our approach to combine shape and temporal penalization would be to incorporate a temporal term inside our smooth function in Eq (2), i.e. :

(5)

We can notice that Eq (5) reduces to minimizing when . In this case, can recover DTW variants studied in the literature to bias the computation based on penalizing sequence misalignment, by designing specific matrices:

Sakoe-Chiba DTW hard band constraint [43] if , otherwise
Weighted DTW [28] , increasing function

in Eq (5) enables to train deep neural networks with a smooth loss combining shape and temporal criteria. However, presents limited capacities for disentangling the shape and temporal errors, since the optimal path is computed from both shape and temporal terms. In contrast, our loss in Eq (1) separates the loss into two shape and temporal misalignment components, the temporal penalization being applied to the optimal unconstrained DTW path. We verify experimentally that our loss outperforms its "tangled" version (section 4.3).

4 Experiments

4.1 Experimental setup

Datasets:

To illustrate the relevance of our STDL approach, we carry out experiments on 3 non-stationary time series datasets from different domains (see examples in Fig 4). The multi-step evaluation consists in forecasting the future trajectory on future time steps.
Synthetic () dataset consists in predicting sudden changes (step functions) based on an input signal composed of two peaks. This controlled setup was designed to measure precisely the shape and time errors of predictions. We generate 500 times series for train, 500 for validation and 500 for test, with 40 time steps: the first 20 are the inputs, the last 20 are the targets to forecast. In each series, the input range is composed of 2 peaks of random temporal position and and random amplitude and between 0 and 1, and the target range is composed of a step of amplitude and stochastic position

. All time series are corrupted by an additive gaussian white noise of variance 0.01.

ECG5000 () dataset comes from the UCR Time Series Classification Archive [10], and is composed of 5000 electrocardiograms (ECG) (500 for training, 4500 for testing) of length 140. We take the first 84 time steps (60 %) as input and predict the last 56 steps (40 %) of each time series (same setup as in [13]).
Traffic () dataset corresponds to road occupancy rates (between 0 and 1) from the California Department of Transportation (48 months from 2015-2016) measured every 1h. We work on the first univariate series of length 17544 (with the same 60/20/20 train/valid/test split as in [30]), and we train models to predict the 24 future points given the past 168 points (past week).

Network architectures and training:

We perform multi-step forecasting with two kinds of neural network architectures: a fully connected network (1 layer of 128 neurons), which does not make any assumption on data structure, and a more specialized Seq2Seq model

[47]

with Gated Recurrent Units (GRU)

[11]

with 1 layer of 128 units. Each model is trained with PyTorch for a max number of 1000 epochs with Early Stopping with the ADAM optimizer. The smoothing parameter

of DTW and TDI is set to . The hyperparameter balancing and is determined on a validation set to get comparable DTW shape performance than the trained model: for Synthetic and ECG5000, and 0.8 for Traffic. Our code implementing the STDL is available on line from https://github.com/vincent-leguen/STDL.

4.2 STDL forecasting performances

We evaluate the performances of our STDL loss function, and compare it against two strong baselines: the widely used Euclidean (MSE) loss, and the smooth DTW introduced in [13, 37]. For each experiment, we use the same neural network architecture (section 4.1

), in order to isolate the impact of the training loss and to enable fair comparisons. The results are evaluated using three metrics: MSE, DTW (shape) and TDI (temporal). We perform a Student t-test with significance level 0.05 to highlight the best(s) method(s) in each experiment (averaged over 10 runs).

Overall results are presented in Table 1.

max width=

Fully connected network (MLP) Recurrent neural network (Seq2Seq)
Dataset Eval MSE  [13] STDL (ours) MSE  [13] STDL (ours)
MSE   1.65 0.14   4.82 0.40   1.67 0.184   1.10 0.17   2.31 0.45   1.21 0.13
Synth DTW   38.6 1.28   27.3 1.37   32.1 5.33   24.6 1.20   22.7 3.55   23.1 2.44
TDI   15.3 1.39   26.9 4.16   13.8 0.712   17.2 1.22   20.0 3.72   14.8 1.29
MSE   31.5 1.39   70.9 37.2   37.2 3.59   21.2 2.24   75.1 6.30   30.3 4.10
ECG DTW   19.5 0.159   18.4 0.749   17.7 0.427   17.8 1.62   17.1 0.650   16.1 0.156
TDI   7.58 0.192   38.9 8.76   7.21 0.886   8.27 1.03)   27.2 11.1   6.59 0.786
MSE   0.620 0.010   2.52 0.230   1.93 0.080   0.890 0.11   2.22 0.26   1.00 0.260
Traffic DTW   24.6 0.180   23.4 5.40   23.1 0.41   24.6 1.85   22.6 1.34   23.0 1.62
TDI   16.8 0.799   27.4 5.01   16.7 0.508   15.4 2.25   22.3 3.66   14.4 1.58
Table 1: Forecasting results evaluated with MSE, Shape and Time metrics, averaged over 10 runs (mean standard deviation). For each experiment, best method(s) (Student t-test) in bold.

MSE comparison: STDL outperforms MSE when evaluated on shape (DTW) in all experiments, with significant differences on 5/6 experiments. When evaluated on time (TDI), STDL also performs better in all experiments (significant differences on 3/6 tests). Finally, STDL is equivalent to MSE when evaluated on MSE on 3/6 experiments.

 [13, 37] comparison: When evaluated on shape (DTW), SDTL performs similarly to (2 significant improvements, 1 significant drop and 3 equivalent performances). Regarding time (TDI) and MSE evaluations, STDL is significantly better than in all experiments, as expected.

We display a few qualitative examples for Synthetic, ECG5000 and Traffic datasets on Fig 4 (other examples are provided in supplementary 2). We see that MSE training leads to predictions that are non-sharp, making them inadequate in presence of drops or sharp spikes. leads to very sharp predictions in shape, but with a possibly large temporal misalignment. In contrast, our STDL predicts series that have both a correct shape and precise temporal localization.

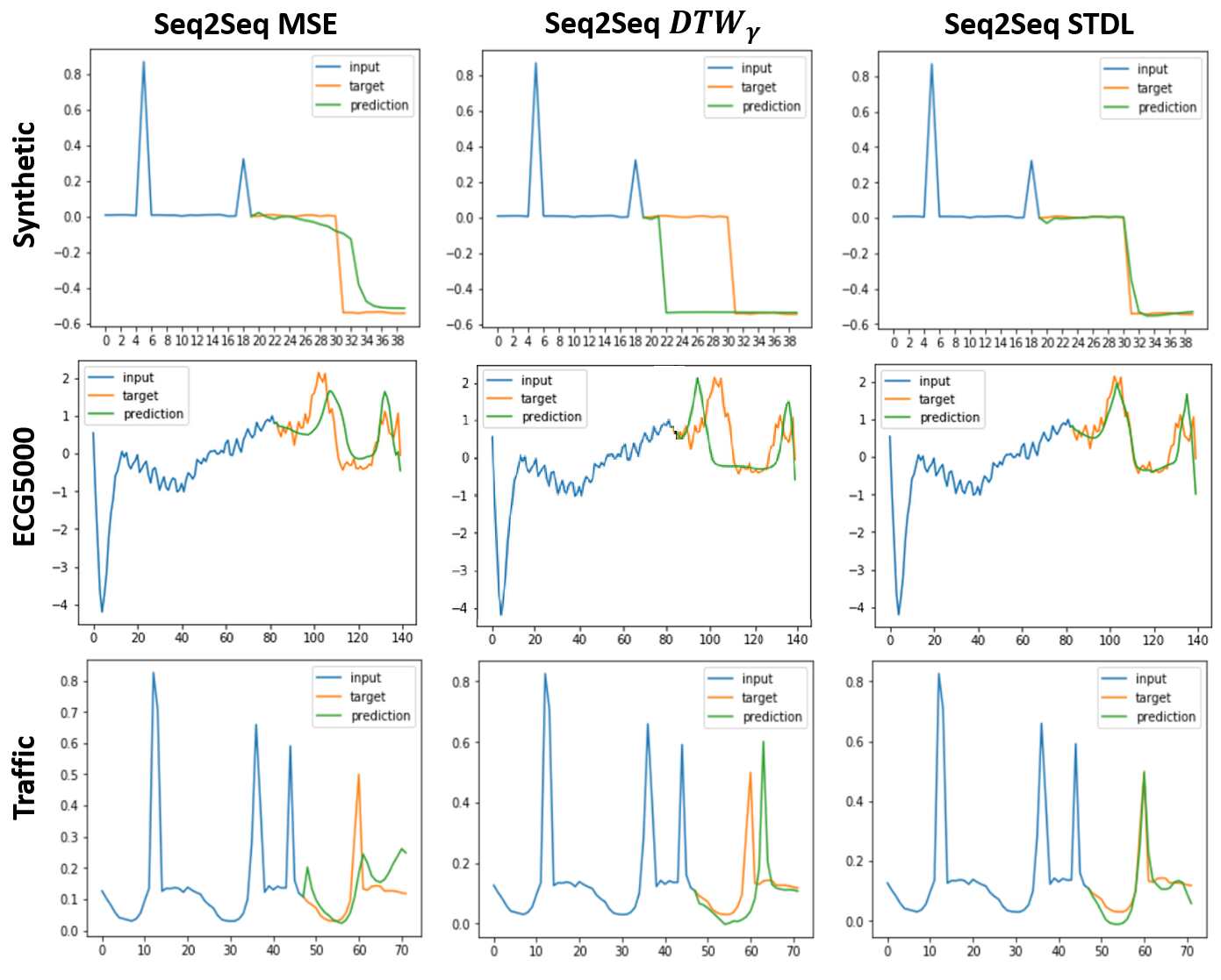

Figure 4: Qualitative forecasting results.

Evaluation with external metrics

To consolidate the good behaviour of our loss function seen in Table 1, we extend the comparison using two additional (non differentiable) metrics for assessing shape and time. For shape, we compute the ramp score [52]. For time, we perform change point detection on both series and compute the Hausdorff measure between the sets of detected change points (in the target signal) and (in the predicted signal):

(6)

We provide more details about these external metrics in supplementary 1.1.
In Table 2, we report the comparison between Seq2Seq models trained with STDL, and MSE. We see that STDL is always better than MSE in shape (Ramp score) and equivalent to in 2/3 experiments. In time (Hausdorff metric), STDL is always better or equivalent compared to MSE (and always better than , as expected).

max width= MSE [13] STDL (ours) Hausdorff 2.87 0.127   3.45 0.318   2.70 0.166 Synthetic Ramp score (x10)   5.80 0.104   4.27 0.800   4.99 0.460 Hausdorff   4.32 0.505   6.16 0.854   4.23 0.414 ECG5000 Ramp score 4.84 0.240   4.79 0.365   4.80 0.249 Hausdorff   2.16 0.378   2.29 0.329   2.13 0.514 Traffic Ramp score (x10) 6.29 0.319   5.78 0.404   5.93 0.235

Table 2: Forecasting results of Seq2Seq evaluated with Hausdorff and Ramp Score, averaged over 10 runs (mean standard deviation). For each experiment, best method(s) (Student t-test) in bold.

4.3 Comparison to temporally constrained versions of DTW

In Table 3, we compare the Seq2Seq STDL to its tangled variants Weighted DTW (-W) [28] and Band Constraint (-BC) [43] on the Synthetic dataset. We observe that STDL performances are similar in shape for both the DTW and ramp metrics and better in time than both variants. This shows that our STDL leads a finer disentanglement of shape and time components. Results for ECG5000 and Traffic are consistent and given in supplementary 3. We also analyze the gradient of STDL vs -W in supplementary 3, showing that -W gradients are smaller at low temporal shifts, certainly explaining the superiority of our approach when evaluated with temporal metrics. Qualitative predictions are also provided in supplementary 3.

max width= Eval loss STDL (ours) -W [28] -BC [43] Euclidian MSE (x100) 1.21 0.130 1.36 0.107 1.83 0.163 Shape DTW (x100) 23.1 2.44 20.5 2.49 21.6 1.74 Ramp 4.99 0.460 5.56 0.87 5.23 0.439 Time TDI (x10) 14.8 1.29 17.8 1.72 19.6 1.72 Hausdorff 2.70 0.166 2.85 0.210 3.30 0.273

Table 3: Comparison to the tangled variants of STDL for the Seq2Seq model on the Synthetic dataset, averaged over 10 runs (mean standard deviation).

4.4 STDL Analysis

Custom backward implementation speedup: We compare in Fig 5(a) the computational time between the standard Pytorch auto-differentiation mechanism and our custom backward pass implementation (section 3.2). We plot the speedup of our implementation with respect to the prediction length (averaged over 10 random target/prediction tuples). We notice the increasing speedup with respect to : speedup of 20 for 20 steps ahead and up to 35 for 100 steps ahead predictions.

Impact of (Fig 5(b)): When , reduces to , with a good shape but large temporal error. When , we only minimize without any shape constraint. Both MSE and shape errors explode in this case, illustrating the fact that is only meaningful in conjunction with .

Figure 5(a): Speedup of STDL Figure 5(b): Influence of

4.5 Comparison to state of the art time series forecasting models

Finally, we compare our Seq2Seq model trained with STDL with two recent state-of-the-art deep architectures for time series forecasting trained with MSE: LSTNet [30] trained for one-step prediction that we apply recursively for multi-step (LSTNet-rec) ; and Tensor-Train RNN (TT-RNN) [60] trained for multi-step222We use the available Github code for both methods.. Results in Table 4 for the traffic dataset reveal the superiority of TT-RNN over LSTNet-rec, which shows that dedicated multi-step prediction approaches are better suited for this task. More importantly, we can observe that our Seq2Seq STDL outperforms TT-RNN in all shape and time metrics, although it is inferior on MSE. This highlights the relevance of our STDL loss function, which enables to reach better performances with simpler architectures.

max width= Eval loss LSTNet-rec [30] TT-RNN [60, 61] Seq2Seq STDL Euclidian MSE (x100) 1.74 0.11   0.837 0.106   1.00 0.260 Shape DTW (x100) 42.0 2.2   25.9 1.99   23.0 1.62 Ramp (x10) 9.00 0.577   6.71 0.546   5.93 0.235 Time TDI (x10) 25.7 4.75   17.8 1.73   14.4 1.58 Hausdorff 2.34 1.41 2.19 0.125   2.13 0.514

Table 4: Comparison with state-of-the-art forecasting architectures trained with MSE on Traffic, averaged over 10 runs (mean standard deviation).

5 Conclusion and future work

In this paper, we have introduced the Shape and Time Distortion Loss (STDL), a new differentiable loss function for training deep multi-step time series forecasting models. The STDL combines two terms for precise shape and temporal localization of non-stationary signals with sudden changes. We showed that the STDL is comparable to the standard MSE loss when evaluated on MSE, and far better when evaluated on several shape and timing metrics. STDL compares favourably on shape and timing to state-of-the-art forecasting algorithms trained with the MSE.

For future work we intend to explore the extension of these ideas to probabilistic forecasting, for example by using bayesian deep learning [21] to compute the predictive distribution of trajectories, or by embedding the STDL loss in a deep State Space Model architecture suited for probabilistic forecasting. Another interesting direction is to adapt our training scheme to relaxed supervision contexts, e.g. semi-supervised [42] or weakly supervised [16], in order to perform full trajectory forecasting using only categorical labels at training time (e.g. presence or absence of change points).
