1 Introduction
Improving model quality is a race that never ends. In order to accomplish the goal, machine learning practitioners often train with more and more data, use more and more features, or innovate on the model architecture to capture more meaningful interactions among the features. However, both increasing data and increasing model complexity have direct impact on the training speed. As a result, to finish the training job in a reasonable amount of time, distributed training becomes inevitable for training complicated models on large dataset. Unfortunately, distributed training is extremely challenging. In practice, most of the training algorithms are based on stochastic gradient descent (SGD)
[3]. However, SGD is a sequential algorithm. When we express parallelism on SGD, often times we are breaking the sequential update assumption and maintaining good model convergence is difficult. With that, there are many works that propose various ideas to improve training speed while preserving model convergence quality. These ideas are based on different synchronization strategies, to define how different workers synchronize with each other and update the parameters. To the best of our knowledge, all the existing synchronization algorithms have incorporated synchronization in the training loop. Section 2 summarizes the stateoftheart synchronization algorithms in more details. However, having synchronization as part of the training loop tends to make it an overhead in training. Usually to ensure good training convergence, we need to synchronize often. The more often we synchronize, the more time we spend on synchronization and hence it increases the endtoend training time. This can be manifested by the fact that there are much active research attention on quantizations and gradient sparsification in order to reduce the synchronization overhead. For example, the ternary gradient [20], deep compression [10] and onebit quantization [19] works claim 3x, 4x and 10x training speedup by reducing the communication cost. In this work, we propose the ShadowSync framework to perform synchronization in the background, so that the synchronization does not interfere the foreground training process. With that, we are able to achieve linear scalability in terms of EPS (Definition 1). We have also empirically validated that the model quality is on par with or better than the case when we sync in the foreground.Definition 1 (Examples Per Second).
We define Examples Per Second (EPS) as the number of examples per second processed by the distributed training system. This is the primary metric we will use to measure the training performance.
Even though the ShadowSync idea is widely applicable to any model architectures, our research focuses on clickthroughrate prediction [16] models that are similar to the DLRM [17] architecture. So in this paper we will focus on illustrating how to integrate the ShadowSync framework to the distributed training system that can train DLRMlike models. In our distributed training system, we express both model parallelism and data parallelism for training, and hogwild parallelism [18] and replication parallelism for optimization. With that, we are able to get the highest ELP (Definition 2) number among all the prior arts to the best of our knowledge.
Definition 2 (Example Level Parallelism).
We define Example Level Parallelism (ELP) as the maximum number of examples processed by the distributed training system concurrently at any point of training time.
The main contributions of this paper are in the following:

We introduce a new framework called ShadowSync to synchronize parameters in the background. The framework is generic to host various synchronization algorithms. In essence, it splits the duty of synchronization and training and thus is flexible to accommodate new algorithms in the future.

We propose the ShadowSync EASGD, ShadowSync BMUF, and ShadowSync MA algorithms which all sync parameters in the background. This shows how simple it is to develop new synchronization algorithms in the ShadowSync framework.

We empirically demonstrate that the ShadowSync idea enables us to scale training EPS linearly because training is not interrupted by syncing. When we increase the scale of training, we see the ShadowSync algorithms outperform the foreground variants in both the relative error changes and the absolute error metrics.

We compare the ShadowSync algorithms, and conclude that all of them have the same training EPS , while ShadowSync EASGD has slightly better quality, and ShadowSync BMUF/MA consume fewer compute resources because they do not need the extra sync parameter servers.

We compare the ELP for our distributed training system with other stateoftheart works, and claim that we can accomplish the highest ELP among all the distributed training works to the best of our knowledge.
2 Related Work
Synchronization strategy is one of the most important factors affecting model convergence in distributed training. Therefore, this is an area that the researchers are actively innovating on. We can classify the existing synchronization algorithms into two primary variants – synchronous SGD algorithms and asynchronous SGD algorithms. Synchronous SGD algorithms
[2, 9, 21] have become one of the most popular optimizer for training neural network models in a distributed training system. One big batch of examples are partitioned into many minibatches, with one worker works on one or more minibatches. Gradients computed using the local minibatch of data on each worker are aggregated using allreduce collectives and then applied to the parameters in each worker. This procedure is equivalent to performing a singlemachine SGD update on the parameter based on the original big batch. The parallelism is expressed at batch level, in which we allow multiple workers to train on one big batch cooperatively. There are no parallel updates to the parameters. This strategy honors the sequential update assumption in the SGD algorithm and in general has better convergence guarantee. Various methods have been proposed to further optimize the collectives or the scheduling of the minibatches. However, there are still fundamental limitations of the synchronous SGD algorithms: stragglers in the workers will slow down the synchronization, the barriers forced at the synchronization stage introduce extra overhead, and any failures in any workers will affect the other normal workers. On the other hand, asynchronous SGD algorithms increase the parallelism by removing the dependency among the nodes. It allows training the model with different data shards and updating the parameters in parallel. In a standard asynchronous SGD algorithm, the parameter servers maintain the global parameters. Each worker sends requests to the parameter servers to pull the global parameters, processes a batch of examples to calculate gradients, and sends the gradients back to the parameter servers which update the global parameters accordingly. Famous works in this class include Hogwild! [18] which is a lockfree implementation of asynchronous SGD that can achieve a nearly optimal rate of convergence for certain problems, and the DistBelief [7] framework that utilizes the parameter server and worker architecture. The study of convergence behavior of asynchronous SGD can be found in [4, 23, 24, 6]. As the parameter servers in the asynchronous SGD algorithms can easily become a bottleneck, researchers have proposed new algorithms that replicate the model parameters in each worker and allow the workers to train on their local parameter replicas independently, and insert a synchronization layer to perform parameter averaging to sync the parameter replicas in the workers. The EASGD algorithm [22] uses parameter servers to host the central parameters. Each worker will sync their local parameter replica with the central parameters every iterations. Instead of using parameter servers, the model averaging algorithm (MA) [25] utilizes the AllReduce primitive to aggregate the submodels every iterations. Contrasted with the EASGD algorithm, the network topology of MA is decentralized. Another example in this category is the blockwise modelupdate filtering (BMUF) algorithm [5] which first calculates the averaged model parameters, computes the difference between the averaged parameters and the local parameters, and then uses the difference as a gradient to update the local parameters. The AllReduce primitive introduces huge synchronization overhead though. The asynchronous decentralized parallel SGD [15] and the stochastic gradient push [1] algorithm rely on peertopeer communications among the workers, and will perform the gossipingstyle synchronization. These methods require less communication as nodes are designed to not rely on the same parameter and instead periodically pull towards each other. Among all these different algorithms, the synchronization always happens in the foreground. It either is incorporated in the backward pass, or is added every training iterations.3 ShadowSync
3.1 System Overview
Our system is designed to support models in a similar architecture as the Deep Learning Recommendation Model (DLRM) [17]. It is capable of expressing model parallelism and/or data parallelism simultaneously, depending on the specific design of the particular model.

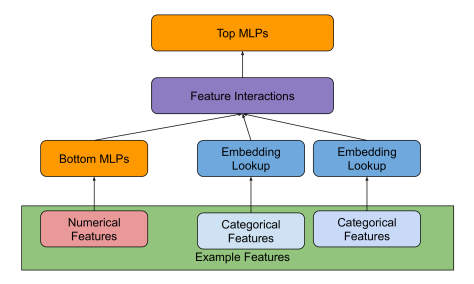

Architecture and Parallelism. The DLRM is composed of three layers of architectures. See Figure 1
as an illustration. The bottom layer contains embedding look up table, in which the categorical features are transformed into embeddings, and MLP that transfers numerical features to embeddings for the next layer. The middle layer is feature interactions, in which the interactions among the embeddings are defined. The top layer is primarily the multilayer perceptrons (MLPs). We refer readers to
Naumov et al. [17] for details. We can have hundreds of embedding tables, and each table can be gigantic. Depending on the category index space and the embedding dimension, one embedding table can range from a few gigabytes to a few terabytes. There is no guarantee that one embedding fits in the memory of one machine. Therefore, we have to express model parallelism and partition the embeddings into smaller shards to fit the shards into the memory of physical machines. The computation in the interaction layers is communication heavy. We need to collect the embedding lookups from different categorical features and the remaining numerical features into one place so that we can perform the interaction operations among all of them. The size of the returned embeddings, the numerical features, and the interaction operations usually do not consume a lot of memory. So we can express data parallelism among them to improve training EPS . For the bottm MLPs and top MLPs, they are usually small in size, in the magnitude of megabytes. So it is perfectly fine to express data parallelism among them.Execution. The system architecture is summarized in Figure 2

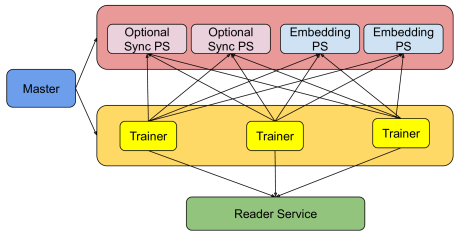

. A master coordinates the workers to train a model jointly. Given a pool of workers, it partitions the computation based on the model parallelism and data parallelism strategies, and then sends different execution plans to different workers. The trainers are the workers who control the training loop. Each trainer connects to a shared reader service. It has a local queue that fetches new batch of examples from the reader service. The reader service is a distributed system which consumes the raw data in the distributed storage, and then convert the raw data to feature tensors after the feature engineering step so that the trainers can focus on training without being bottlenecked on the data reading. The trainers are multithreaded and are training multiple batches of examples concurrently. The connection between the trainers and the parameter servers (PS) forms a bipartite graph. Each trainer can connect to each parameter server. Given a batch of examples, one trainer thread sends the embedding lookup requests to the corresponding embedding PSs who host the embedding tables. If one embedding is partitioned into multiple shards and placed on multiple embedding PSs, we will perform local embedding pooling on each PS for the embedding shard, then the partial pooling from the shards will be returned to the trainer to perform the overall embedding pooling to get the final embedding lookup results. Another optimization we have performed on the embedding PSs is to ensure that the workload are distributed evenly among the embedding PSs. We accomplish this goal by profiling the cost of embedding lookup in advance, and then solve a bin packing problem to distribute the workload (the embedding lookup cost) among the embedding PSs (the available bins) evenly. With this optimization, we are able to ensure that the trainers are not bottlenecked by the shared embedding PSs. The sync PSs are optional and only exist if we use centralized algorithm, e.g. EASGD, as the synchronization algorithm. To balance the load for the sync PSs, we applied the similar optimizations to profile the costs and then solve the bin packing problem to shard and distribute the parameters to the available Sync PSs. Details are explained in Section
3.2. In brief, the embedding lookup is expressed as model parallelism and is executed in the embedding PSs. After all the embedding lookups are returned, the trainer has all the embeddings and the numerical features needed for current minibatch. The interaction layers and the MLP layers are thus executed in the trainers. This part is expressed as data parallelism in which each trainer thread is processing its own batch of examples in parallel. Similarly, for the backward pass, the gradient calculation and parameter updates for the MLP and the interaction layers are performed in the trainers. Then the trainers send the gradients to the embedding PSs to update the embeddings. Even though the system is designed with the DLRM [17] in mind, it is a generic architecture. Basically, we express data parallelism in the trainers, and model parallelism in the PSs. More than that, there can be additional PSs for special purposes (like the sync PSs). This architecture is very similar to the DistBelief architecture [7] and the parameter server architecture [14]. The parameter servers are capable of executing arbitrary operations that are defined by the master. The most common use case is to perform partial embedding pooling. But if more complicated model is expressed, such as adding attention layer to the embedding lookup, we can also perform the required MLP layers on the embedding PSs as well.3.2 Optimization Strategies
Within a trainer, we have created multiple worker threads to process the example batches in parallel. The simplest idea is to let one thread process one batch of examples. A more complicated parallelism is to explore intraop parallelism, so that we can use multiple threads for executing the layers for one example batch. But this is beyond the scope of this paper. In this work we will assume that we use one thread to process one example batch. That is, if we have 24 threads, we will process 24 example batches concurrently. Given that we have performed different parallelization strategies for different parts of the model, the optimization strategies for different parts are also different.
The embedding tables are big and thus partitioned into many shards and hosted in different embedding PSs. Therefore, there is only one copy of the embedding tables in the whole system. With that, we are using the Hogwild [18] algorithm to optimize the embedding tables. See Figure 3. There is no lock involved in the accesses of the tables. When an embedding PS receives one request from a trainer, it is either doing the embedding lookup or the embedding update in a lockfree way. Every embedding PS has multiple threads so that it can handle many requests in parallel. Different optimization techniques can be used when updating the embeddings, such as Adagrad [8], Adam [13]
, Rmsprop
[12] or other algorithms. All the auxiliary parameters for the optimizers (for example, the accumulation of the squared gradient for the Adagrad optimizer) collocate with the actual embeddings on the embedding PSs. For the interaction and MLP layers, we express data parallelism on them. The parameters for these layers are replicated across all the trainers. Locally, all the worker threads within one trainer access the intratrainer shared parameter memory space, and also the shared auxiliary parameters for the optimizer of choice. These accesses are performed in a Hogwild [18] manner as well. So the reads and the updates to the local parameters are lockfree. This strategy has broken the Hogwild assumption that the parameter accesses are sparse. In our case, all the threads are accessing the same parameters in parallel. In practice, this strategy works pretty well and still provides very good model convergence. See Section 4 for the experimental results.In the model parallelism regime, the worker threads access the shared parameters in the embedding PSs. In contrast, for the interaction and MLP layers, i.e., data parallelism regime, the scope of worker threads is restricted to the local parameter space on individual trainer. In order to synchronize among the trainers, we create one shadow thread, who is independent to the worker threads, to carry out the synchronization without interrupting the foreground training. We call this background synchronization framework ShadowSync. See Figure 4 for an illustration. Depending on the specific sync algorithm of choice, the shadow threads could either communicate with each other or just with the sync PSs. This framework has a number of appealing properties. First, as we have separated the duty of training and synchronization into different threads, training is never stalled by the synchronization need. For the computational time and network communication cost, the huge overhead of syncing the parameters is removed from the training loop. As illustrated in experiments in Section 4, when using two sync PSs, syncing in the foreground becomes a bottleneck and the training speed plateaued with more than 14 trainers. On the other hand, we are able to scale linearly with the ShadowSync framework on the same setting. Second, our system is capable of expressing different sync algorithms. For the centralized algorithms like EASGD [22], we need a place to host the central parameters. In our architecture, we have chosen to allocate dedicated sync PSs for this purpose. The central parameters are hosted on the sync PSs, and then the trainers will sync their local replication of the parameters to the sync PSs. The synchronization is a network heavy operation, so we allow partitioning the parameters into shards, and use multiple sync PSs to sync the parameters. We can also support decentralized algorithms like model averaging [25] or BMUF [5], for which we do not need central sync PSs. So we apply the allreduce collectives to sync among the trainers directly. Last but important, in the practical realization of our system, the development of sync algorithms can be completely separated from training code. This makes the system easy to modify and experiment, without much engineering effort.
Algorithm  Batch Size  # Hog.  # Rep.  ELP

ShadowSync  200  24  20  96000
EASGD [22]  128  1  16  2048
DCASGD [24]  128  16  1  2048
BMUF [5]  N.A.  1  64  64 B
DownpourSGD [7]  N.A.  1  200  200 B
ADPSGD [15]  128  1  128  16384
LARS [21]  32000  1  1  32000
SGP [1]  256  1  256  65536
The twolevel data parallelism (Hogwild within a trainer and replication across trainers) we have expressed in training helps us to accomplish very high ELP numbers. In Table 1, we have compared the ELP we have accomplished with other stateoftheart optimization algorithms. In the experimental Section 4, the maximum number of trainers we have used is 20, which seems to be a moderate number. But when we include batch size and the concurrent Hogwild updates, the ELP we are able to accomplish is very high. We have accomplished 96000 ELP with 20 trainers. The batch sizes of the BMUF [5] and the DownpourSGD [7] work are not disclosed in the papers, so their ELP should be the amount of data parallelism they have expressed times B, which is the batch size of training. To the best of our knowledge, the Stochastic Gradient Push [1] work is the best reported distributed training so far. It can scale to 256 GPUs, with each GPU training on a batch of 256 examples. But even with that, the ELP that is accomplished in the paper is 65536. We understand that the model and the datasets are different in all these works, so that the ELP comparisons might not be very representative. We plan to evaluate all these different algorithms on the same model and the same datasets as future work.
3.3 ShadowSync Algorithms
In this section we present the formal algorithmic description of the ShadowSync concept. Three representative algorithms under this framework are introduced, which incorporate the synchronization strategy of EASGD [22], model averaging [25], and BMUF [5] into the execution plan of shadow threads respectively. We call these algorithms Shadow EASGD, Shadow MA and Shadow BMUF. Let denote the embedding of categorical features and denote the weights on MLP and interaction layers. The goal is to minimize the objective function defined by the model architecture and training data . In our framework, assume there are trainers. Recall there is only one copy of on the embedding PSs and replications of on trainers. Let denote the replica on trainer , and denote the dataset consumed by trainer . Our system is solving the following optimization problem
(1)
subject to

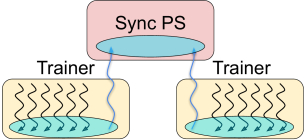

The constraint in Equation 1 is used to promote the consistency across the weight replicas, and different algorithms use different strategies to derive the sync updates. For example, depending on the topology of the chosen algorithm, the shadow thread on trainer will sync with replicas on other trainers directly, or indirectly, through a hub copy on the sync PS. When the training ends, one can either output the average of s, select the best replica on a validation dataset, or even simply pick an arbitrary replica.
Algorithm 1 summarizes the ShadowSync idea. We first initialize the embedding tables by . The initialization of MLP and interaction layers are fed to all the trainers. If we use centralized algorithms, the Sync PSs need to be present and be initialized by too. The worker threads on each trainer will optimize their own local weight and the embedding table in the lockfree manner. In other words, if there are worker threads spawned per trainer, the embedding will be updated using Hogwild threads across the trainers, and the local copy will be updated by Hogwild threads within trainer . For decentralized algorithms, the update of will involve copies on other trainers, whereas for centralized algorithms, will just sync with .
Algorithm 2, 3, 4 describe the synchronization updates of Shadow EASGD, Shadow MA and Shadow BMUF. Contents of worker threads and initialization that are repeating Algorithm 1 are omitted. For MA, each trainer will host an extra copy of weights , which is used to aggregate the training results via AllReduce. Similarly we have and for BMUF, where hosts the global model in sync and is used for AllReduce. To sync, BMUF defines the difference between the latest averaged model and current as the descent direction, then make a step along it. Considering the descent direction as a surrogate gradient, one can incorporate techniques like momentum update and Nesterov acceleration into the updates. The sync update of Shadow EASGD is essentially the same as original EASGD. Given elastic parameter
, it will do convex interpolation between
and . Note that the interpolation is asymmetric: and are not equal after this update. Intuitively, the PS is in sync with other trainers, and the worker threads didn’t stop training, so that both of them would like to trust their copy of weights. Similar interpolation is happening for both Shadow MA and Shadow BMUF. This is a major modification from the original methods. Our experiments have verified it is essential to improve the model quality in the ShadowSync setting. Take MA for example, the AllReduce primitive is timeconsuming and the worker threads would have consumed a fair amount of data in the AllReduce period. If we directly copy the averaged weight back, we will lose the updates to the local parameter replicas when the background synchronization is happening in parallel.4 Experiments
We conducted numerical experiments on training a variety of machine learning models for clickthroughrate prediction tasks. All the algorithms were applied to training production models using real data. Due to privacy issues, the detailed description of specific datasets, tasks and model architectures will be omitted in this paper, yet we will report the sizes of datasets when presenting the experiments. For readers interested in recommendation models and systems, we refer them to [11, 17] for details. In the sequel, we name the internal models and datasets ModelA to ModelC, and Dataset1 to Dataset3, respectively. For simplicity, we refer to the ShadowSync algorithms (see Section 3.3) as SEASGD, SBMUF and, SMA, and refer to the original fixed rate algorithms as FREASGD, FRBMUF, and FRMA. To prevent overfitting, we use onepass training. After the training ends, the embedding and the weights replica on the first trainer are returned as the output model (this is for simplicity, an alternative is to return the average of all the weight replicas). The hardware configurations are identical and consistent across all the experiments. All the trainers and PSs use Intel 20core 2GHz processor, with hyperthreading enabled (40 hyperthreads in total). For network, we use 25Gbit Ethernet. We set 24 worker threads per trainer. Section 4.1 compares ShadowSync scheme to fixed rate scheme in the aspects of the model quality and scalability. As the typical pair of competitors, SEASGD and FREASGD are first picked for this set of experiments. We are interested in answering the following questions:(1) What is the best sync rate of FREASGD? What is the average sync rate of SEASGD, and how does the quality of the model obtained by SEASGD compare to FREASGD? (2) What is the scaling behavior of SEASGD and FREASGD? Could they achieve linear EPS scaling while maintaining model quality? Similar comparison for BMUF and MA algorithms are presented in Section 4.2. Section 4.3 focuses on the comparison of SEASGD, SBMUF and SMA within the ShadowSync framework. SBMUF and SMA are typical decentralized algorithms – the usage of sync PSs is eliminated. Those lightweight optimizers are suitable for scenarios where the computation resource is on a tight budget. We are thus curious about whether the performance of SBMUF and SMA are on par with SEASGD. Finally, in Section 4.4 we provide a justification for the choice of 24 Hogwild worker threads in the setup.
4.1 Shadow EASGD vs Fixed Rate EASGD
4.1.1 Model Quality
The very first thing we are interested is to compare the qualities of models returned by
SEASGD and FREASGD. We studied their performance on training
ModelA on Dataset1. This dataset comprises
training examples and
testing examples.
The performance of FREASGD might be sensitive to the hyperparameter
sync gap, which is the number of iterations between two synchronizations.
We tested 4 values for it: 5, 10, 30, and 100.
We shall use FREASGD5 to denote FREASGD with sync gap 5, and similarly for
other numbers. To be fair in comparison, all the other hyperparameters such as
elastic parameter, learning rate were set the same as
in the production setting, for both SEASGD and FREASGD.
Sync Gap  Train Loss  Eval loss

SEASGD  5.21  0.78926  0.78451
FREASGD  5  0.78942  0.78483
10  0.78937  0.78508
30  0.78942  0.78523
100  0.78969  0.78531
(a) 11 trainers Sync Gap Train Loss Eval loss SEASGD 1.008 0.78958 0.78565 FREASGD 5 0.78971 0.78565 10 0.78977 0.78589 30 0.7899 0.78491 100 0.79008 0.78557 (b) 20 trainers
The experiment was first carried out in 11 trainers, 12 embedding PSs and 1 sync PS. Table 2(a) reports the training and evaluation losses obtained. The reported loss is an internal metric used as the objective value in recommendation models. It is similar to the normalized entropy introduced in [11]. We also report the average sync gap for SEASGD, calculated using metrics measured during training:
(2)
Table 2(a) shows that the evaluation loss of FREASGD kept increasing as the sync gap goes up, the smallest gap 5 achieves the lowest evaluation error. The training loss of FREASGD does not show any pattern correlated with sync gap. The average sync gap of SEASGD is 5.21, very close to 5. For both training and evaluation loss, SEASGD outperforms FREASGD over all tested sync gaps. In practice, a common pain point for distributed optimization is that training at scale could degrade the model convergence and thus hurt the model quality. While 11 trainers is at moderate scale, we compare the performance of SEASGD to FREASGD for the same task using 20 trainers, 29 embedding PSs and 6 sync PSs. The results are reported in Table 2(b). The best sync gap for FREASGD was 30. This suggested that the optimal sync rate would vary over different system configurations; one would need to carefully tune this hyperparameter for FREASGD. The average sync gap for SEASGD is 1.008. The sync gap was extremely low due to we underspecified the compute resources of the reader service. The data reading becomes the bottleneck and the training slows done. The evaluation performance of SEASGD is slightly worse than the best FREASGD, but comparable to FREASGD5. Our interpretation is that, the hyper parameters we use in this experiment favors the case when sync gap is about 30. When we reduce the sync gap, the workers are tightly synced, and the amount of exploration is reduced. Thus the final evaluation results are slightly worse for both the SEASGD and the FREASGD5 cases. One interesting phenomenon is that FREASGD5 and FREASGD100 has comparable evaluation performance. Our experiments suggested that small sync gap could slow down the convergence in the early stage of training, yet it is beneficial when the training moves towards the end. We conjecture that a timevarying sync gap would be favorable for FREASGD under our setting.
4.1.2 Scalability
Another important property of distributed optimization algorithms is the scalability. Ideally, as we increase the training scale, we would like to see the EPS to grow linearly as the number of trainers, while the model quality drop is small and tolerable. To explore the scaling behavior, we apply SEASGD and FREASGD to train ModelB on Dataset2. Dataset2 is a smaller dataset that contains 3,762,344,639 training examples and 2,369,568,296 testing examples. We vary the number of trainers from 5 to 20. To ensure enough computing resource, we overspecify the number of embedding PSs to be the same as trainers. The number of sync PSs is fixed to be 2. We tested both FREASGD5 and FREASGD30, since sync gap 5 and 30 are the best results obtained in the previous section. As before, we use the same hyperparameters for both FREASGD and SEASGD for the sake of fairness. Figure 5 illustrated how SEASGD and FREASGD trade model quality for data processing speed. Starting from the left, the 1st panel plots EPS as a function of number of trainers. Both SEASGD and FREASGD30 achieve linear EPS growth. Yet for FREASGD5, its EPS barely increases after the number of trainers goes up to 14. To explain the reason why FREASGD5 reached this plateau, we investigated the hardware utilization of all the machines and identified the sync PSs as the bottleneck. When more trainers are added into training, the network bandwidths of the sync PSs will be saturated at certain point. For FREASGD, the synchronization is foreground and integrated into the training loop, hence the network bandwidth needs grow as 24x (the number of worker threads) compared to SEASGD. When the sync gap is small, the sync PSs can easily get saturated. Increasing the number of sync PSs to 4 solves the problem. See the last panel of Figure 5. We also calculated the average sync gap of SEASGD as before. For runs with 15  20 trainers, the gaps are 8.60, 8.76, 10.43, 10.93, 11.95, and 12.48. This also suggests another strength of SEASGD comparing to FREASGD: it is less demanding for computing resource even for high frequency synchronization. The 2nd and 3rd panels plot the training and evaluation loss for all the methods. For SEASGD and FREASGD30, both training and evaluation loss gently increases in comparable speed, with small fluctuations. FREASGD5 is not stable in terms of evaluation loss, and has some spikes in the curve. In addition, SEASGD demonstrated the best generalization property. Its evaluation losses are the lowest everywhere. For each method, we also calculate the relative increase ^{1}^{1}1The relative increase of loss is defined as . of losses when the number of trainers is 10 and 20, comparing with the 5trainer case. The results are summarized in Table 3. Clearly, SEASGD enjoys the mildest loss increase, especially for evaluation.
SEASGD  FREASGD5  FREASGD30

10 Trainer  Train  0.084%  0.099%  0.096%
Eval  0.062%  0.093%  0.112%
20 Trainer  Train  0.230%  0.249%  0.210%
Eval  0.177%  0.333%  0.250%
4.2 ShadowSync vs Fix Rate: BMUF & MA
We present a similar but simplified experiment for BMUF and MA type of algorithms. We apply the fixed rate and ShadowSync versions of those algorithm to training ModelB on Dataset2, where the number of trainers are 5, 10, 15, and 20 respectively. We inspected the average sync rate of SBMUF, which was 2 syncs per minute for 5 trainers and 0.8 for 20 trainers. For SMA, the numbers were 2.9 and 1.0. We then set the sync rate of FRBMUF and FRMA to be 1 per minute. The losses are reported in Figure 5(a). The performance of ShadowSync algorithms are comparable and even superior to the fixed rate versions. The EPS plot is deferred to Figure 5(b). Here the synchronization is not a bottleneck for all the experiments, and all the algorithms can scale linearly.

4.3 ShadowSync Algorithms
SEASGD is a representative centralized algorithm, where the parameter exchange happens in a single location. One shortcoming of SEASGD is it requires extra machines for synchronization purpose only, and the number of sync PSs need to increase if we want to further reduce the sync gap. In contrast, for decentralized algorithms the synchronization happens across trainers directly. SBMUF and SMA are two instances under ShadowSync framework. We are thus interested in comparing SBMUF and SMA to SEASGD. We applied those methods to training ModelB on Dataset2, using 5, 10, 15 and 20 trainers. The setup is the same as in Section 4.1. The number of embedding PSs are the same as the number of trainers, and we use 2 sync PSs for SEASGD. The same hyperparameters are deployed to all 3 methods. One exception we made is the elastic parameter for SBMUF. SBMUF tends to update the model more conservatively than SMA: it would make a step towards to average model rather than taking it directly. In light of this, we hypothesized SBMUF will converge slower than SMA. Hence, in addition to the standard used before, we tested a larger value for it to make more aggressive parameter sharing. See Figure 7 for the results. Increasing does improve the performance of SBMUF. SEASGD has best training performance, followed by SBMUF with larger elastic parameter. However, the evaluation performance is mixed. None of those algorithm stands at the leading place. To summarize, our experiments suggest that SBMUF and SMA are capable to perform comparably good as SEASGD. This is heartstirring message for users with limited computation budget.
4.4 Hogwild vs Single Thread
Finally, we justify the usage of 24 worker threads with Hogwild update throughout our experiments. We shall train ModelC on Dataset3 using SEASGD. This dataset contains 1,967,190,757 training samples and 4,709,234,620 evaluation samples. The baseline of our experiment is SEASGD using singlethread training. For Hogwild, we tried 12, 24, 32 and 64 worker threads. All hyperparameters are set to be the same. We run this experiment under 5 trainers and 10 trainers setup, respectively. For 5trainer training, we use 1 sync PS, and 4 embedding PSs. For 10trainer training, we use 1 sync PS and 6 embedding PSs. Results are shown in Figure 8.
The left panel plots training and evaluation losses versus the number of worker threads. We do observe an increasing pattern, however the quality drop is mild compared to the EPS gain, plotted in the right panel. The right panel also shows the EPS almost stops growing when 24 or more threads are used, for both 5trainer and 10trainer cases. We find that the trainers became the bottleneck in those cases, as the memory bandwidth is saturated (the interaction layers are memory bandwidth demanding). With 12 worker threads, the memory bandwidth utilization is around 50%. After we double the number of worker threads to be 24, we already saturate the memory bandwidth: the average utilization is around 70%, while some hot trainers have 89% utilization.
5 Conclusion
In this paper, we described a new ShadowSync framework that synchronizes parameters in the background. This framework isolates training from synchronization. We described the ShadowSync EASGD, ShadowSync BMUF, and ShadowSync MA algorithms under this framework, and have shown that these algorithms can scale linearly with similar or better model quality compared to their foreground variants. We also described how we integrate the ShadowSync framework into our distributed training system, which expresses both model parallelism and data parallelism (with both Hogwild parallelism and replication parallelism) to accomplish the extremely high ELP numbers.
Acknowledgement
We would like to thank Mohamed Fawzy, Ozgur Ozkan, Mike Rabbat, Chonglin Sun, Chenguang Xi and Tommy Yu for helpful discussions and consistent support.
References
