Researchers have made tremendous efforts towards the multi-speaker ASR for handling overlapped speech. One of the early works with DNN-based ASR is to train two ASR models, one of which recognizes a speech with higher instantaneous energy and another one of which recognizes a speech with lower instantaneous energy . This method has a limitation that the model can handle only two speakers. A more sophisticated method for multi-speaker ASR is the permutation invariant training (PIT) in which the model has multiple output layers corresponding to different speakers, and the model is trained by considering all possible permutations of speakers. PIT was proposed for speech separation  and multi-speaker ASR , and worked well for both of them. Despite this, PIT has several limitations. Firstly, the number of the output layers in the model constrains the maximum number of speakers that the model can output. Secondly, it cannot handle the dependency among utterances of multiple speakers because the output layers are independent from each other. Because of this, it is possible that the duplicated hypotheses are generated from different output layers, and extra treatment is necessary to reduce such errors . Thirdly, the computational complexity of PIT is at the order of , where represents the number of speakers. Because of these limitations, most previous works using PIT [13, 14, 15, 16, 17] only addressed the two-speaker case although real recordings often contain even more speakers.
In this paper, we propose a novel framework for overlapped speech recognition, named Serialized Output Training (SOT), based on an attention-based encoder-decoder (AED) approach [18, 19, 20, 21]. Instead of having multiple output layers as with the PIT-based ASR, our proposed model has only one output layer that generates the transcriptions of multiple speakers one after another. By using the single output layer for the modeling, we avoid having the maximum speaker number constraint. In addition, the proposed method can naturally model the dependency among the outputs for multiple speakers, which could help avoid duplicate hypotheses from being generated. We also propose a simple trick to reduce the model training complexity from to by using the start times of the constituent source utterances. We show that the proposed method can better transcribe utterances of multiple speakers from monaural overlapped speech than PIT, and can count the number of speakers with good accuracy.
2 Related Work
The most relevant work we are aware of would be the joint speech recognition and diarization with a recurrent neural network transduer (RNN-T). In the paper, the authors proposed to generate transcriptions of different speakers interleaved by speaker role tags to recognize two-speaker conversations. Another related piece of work is the AED-based multilingual ASR for mixed-language speech [23, 24]. They used language tags as additional output symbols to transcribe the mixed-language speech with a single model. These methods are similar to ours in that both approaches decode multiple utterances that are separated by a special symbol. However, all the aforementioned methods did not deal with speech overlaps.
It should be noted that, although AED was originally proposed for machine translation to cope with word order differences between the source and target languages
, the previous studies on the AED-based ASR attempted to incorporate a monotonic alignment constraint to reduce errors in attention estimation. For example, used a penalty for encouraging monotonic alignment, and
proposed jointly training connectionist temporal classification (CTC) and AED models. Other popular ASR frameworks, such as the hybrid of DNN and hidden Markov model (HMM), CTC, and RNN-T, also impose the monotonic alignment assumption. By contrast, our attention module scans the encoder embedding sequence back and forth along the time dimension to transcribe utterances of multiple speakers, which is the key difference from the previous studies.
3 Review: Multi-Speaker ASR Based on AED with PIT
3.1 AED-based single-speaker ASR

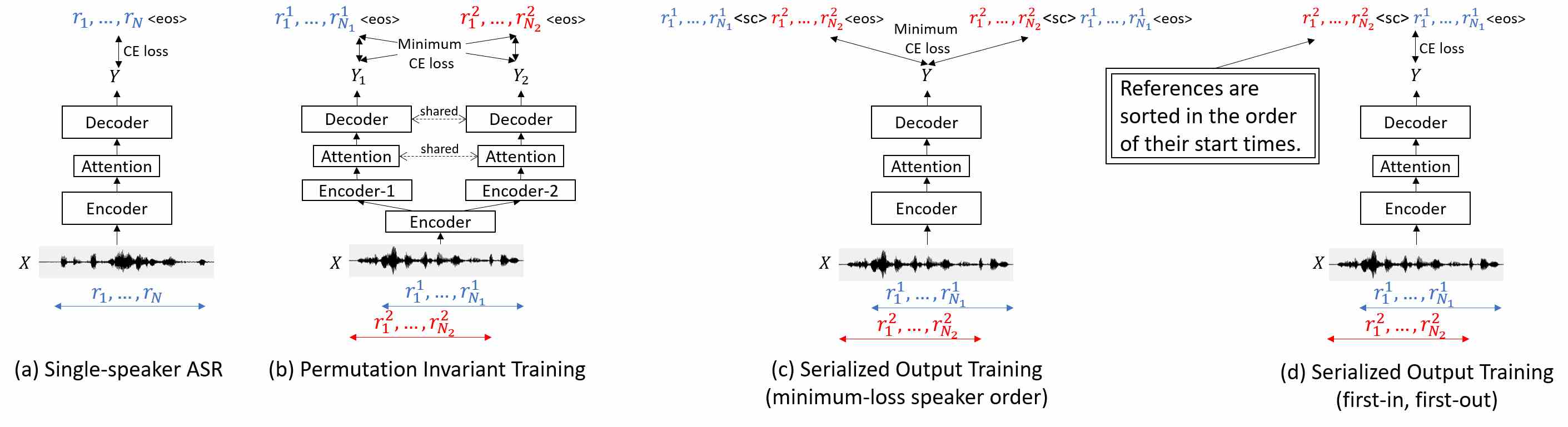

The AED-based ASR consists of encoder, attention, and decoder modules as shown in Fig. 1 (a). Given input , the AED produces the output sequence as follows. Firstly, the encoder converts the input sequence into a sequence, , of embeddings, i.e.,
Then, for every decoder step
, the attention module outputs context vectorwith attention weight given decoder state vector , the previous attention weight , and the encoder embeddings as
Finally, the output distribution is estimated given the context vector and the decoder state vector as follows:
Here, consists of multiple RNN layers while consists of an affine transform with a softmax output layer. The model is trained to minimize the cross entropy loss given and reference label
. Specifically, the loss function is defined as
where represents the cross entropy given the output distribution and the reference label, and is the number of symbols in the reference . is the special symbol that represents the end of the sentence.
3.2 PIT-based ASR with multiple output layers
With the conventional multi-speaker ASR with PIT, the model has multiple output branches as shown in Fig. 1 (b). Thus, we have
Here, is the index of each output branch, where with being the number of speakers. Parameters for the attention and decoder modules are shared across . Given the set of the outputs, , and the set of the references, , where denotes the th reference defined as , the PIT-CE loss is calculated by considering all possible speaker permutations as
Here, is the function that generates all possible permutations of a given sequence.
There are three theoretical limitations in PIT. Firstly, the number of the output layers in the model constrains the maximum number of speakers that the model can handle. Secondly, it cannot represent the dependency between the utterances of multiple speakers because each output has no direct dependency on the other outputs. Because of this, it might be possible that the duplicated hypotheses are generated from each output layer. Thirdly, it requires a training cost of , which hinders application to a large number of speakers.
4 Serialized Output Training
Instead of having multiple output layers as with PIT, we propose to use the original form of AED (Eq. (1)-(4)), which has only one output branch, for the multi-speaker ASR. To recognize multiple utterances, we serialize multiple references into a single token sequence. Specifically, we introduce a special symbol to represent the speaker change and simply concatenate the reference labels by inserting between utterances. For example, for a three-speaker case, the reference label will be given as . Note that is used only at the end of the entire sequence. We call our proposed approach serialized output training (SOT).
Because there are multiple permutations in the order of reference labels to form , some trick is needed to calculate the loss between the output and the concatenated reference label . For example, in the case of two speakers, the reference label can be either or . One possible way to determine the order is to calculate the loss for all possible concatenation patterns to form and select the best one, similarly to PIT, as (Fig. 1 (c))
where , and is the -th token in the concatenated reference given permutation . We call this method as SOT with minimum-loss speaker order. This method has the same problem as the conventional PIT-based ASR, requiring training cost.
To reduce the computational cost to , we alternatively propose to sort the reference labels by their start times (Fig. 1 (d)) as follows:
Here, is the function that outputs the sorted index of according to the start time of each speaker. The term is the -th token in the concatenated reference given . As a result, the AED is trained to recognize the utterances of multiple speakers in the order of their start times, separated by a special symbol . We call this method as SOT based on first-in, first-out order. The only assumption to perform this first-in, first-out training is that the two utterances do not start at exactly the same time. If that is the case, we randomly determine the utterance order. That said, it rarely happens in real recordings, and thus its impact should be marginal.
4.2 Separation after attention (SAA)
With PIT, speech separation is explicitly modeled by the multiple encoder branches. In the proposed SOT framework, the attention module operates on the encoder embeddings that could be contaminated by overlapped speech. Thus, the context vector generated by the attention module may also be contaminated, resulting in potential degracation in accuracy.
We found that simply inserting one unidirectional LSTM layer in DecoderOut() in Eq (4) could solve the problem effectively. Unlike PIT, where the speech separation is performed before the attention module, this additional LSTM works as a separation module, taking place after the attention module. In our experiment, we removed one encoder layer when we applied this “Separation after Attention (SAA)” method for the sake of fairness in terms of the model size.
4.3 Advantages of the proposed method
There are two key advantages of using single output branch instead of multiple branches as with PIT. Firstly, there is no longer a limitation on the maximum number of speakers that the model can handle. Secondly, the proposed model can represent the dependency among multiple utterances, which prevents duplicated hypotheses from being generated.
Furthermore, the proposed model can even predict the number of speakers if the model is trained on a data set including various numbers of speakers. At the inference time, the decoder module will not stop until is predicted. Therefore, it can automatically count the number of speakers in the recording just by counting the occurrences of and .
5.1 Evaluation settings
5.1.1 Evaluation data
In this work, we used the LibriSpeech corpus  to simulate multi-speaker signals and evaluate the proposed method. LibriSpeech consists of about 1,000 hours of audio book data. We followed the Kaldi  recipe to generate the dataset, and used the 960 hours of training data (”train_960”) for training the ASR models, and used ”dev_clean” and ”test_clean” for the evaluation.
Our training data were generated as follows. For each training example, we firstly determined the number of speakers to be included in the sample. For each utterance in ”train_960”, utterances were randomly picked up from ”train_960” and added with random delays. When mixing the audio signals, the original volume of each utterance was kept unchanged, resulting in an average signal-to-interference ratio of about 0 dB. As for the delay applied to each utterance, the delay values were randomly chosen under the constraints that (1) the start times of the individual utterances differ by 0.5 s or longer and that (2) every utterance in each mixed audio sample has at least one speaker-overlapped region with other utterances.
The evaluation set was generated from ”dev_clean” or ”test_clean” in the same way except that Constraint (1) mentioned above was not imposed. Therefore, multiple utterances were allowed to start at the same time in the evaluation data.
5.1.2 Evaluation metric
Our trained models were evaluated with respect to WER. In multi-talker ASR, a system may produce a different number of hypotheses than references (i.e., speakers). To cope with this, all possible permutations of the hypothesis order were examined, and the one that yielded the lowest WER was picked.
|SOT (minimum loss speaker order)||17.4||17.1|
|SOT (first-in, first-out)||17.0||16.5|
5.1.3 Model settings
In our experiments, we used 6 layers of
-dim bidirectional long short-term memory (BLSTM) for the encoder, wherewas set to 512, 724 or 1024. Layer normalization  was applied after every BLSTM. For PIT-based baseline systems, the first 5 encoder layers were shared across the output branches, and each branch had its own last encoder layer. The decoder module consists of 2 layers of -dim unidirectional LSTM without layer normalization. We used a conventional location-aware content-based attention  with a single head.
As for the input feature, we used an 80-dim log mel filterbank extracted every 10 msec. We stacked 3 frames of features and applied the encoder on top of the stacked features. We used 16k subwords based on a unigram language model  as a recognition unit. We applied the speed and volume perturbation  to the mixed audio to enhance the model training.
We used the Adam optimizer with a learning rate schedule similar to that described in . We firstly linearly increased the learning rate from 0 to 0.0002 by using the initial 1k iterations and kept the learning rate until the 160k-th iteration. We then started decaying the learning rate exponentially at a rate of 1/10 per 240k iterations. In this paper, we report the results of the“dev_clean”-based best models found after 320k of training iterations. We used minibatch consists of 9k, 7.5k, and 6k frames of input for =512, 724, 1024, respectively. 8 GPUs were used for all training.
Note that we applied neither an additional language model nor feature-domain data augmentation [9, 31] for simplicity. Our results for the standard LibriSpeech “test_clean” (4.6% of WER in Table 4) was on par with recently reported results without these techniques (eg, 4.1%–4.6% of WER was reported in [8, 9, 32, 33, 34]).
|Model||# of Speakers||# of Speakers in Test Data|
|(all 512-dim)||in Training Data||1||2||3|
|Model||SAA||# of||# of Speakers in Test Data|
5.2 Evaluation results
5.2.1 Evaluation on two-speaker mixed speech
First, we evaluated the SOT model for two-speaker overlapped speech. In this experiment, both the training and evaluation data consisted only of two-speaker overlapped utterances. We used a 512-dim AED model without SAA.
As shown in Table 1, the SOT model significantly outperformed a normal single-speaker ASR. Surprisingly, the “first-in, first-out” training achieved a better WER than the “minimum loss speaker order” training although the former approach can be executed with a computational cost of with respect to the number of speakers. Based on this finding, we used the “first-in, first-out” training for the rest of the experiments.
5.2.2 Evaluation on variable numbers of overlapped speakers
We then evaluated the same 512-dim model with a training set consisting of various numbers of speakers. The results are shown in Table 2, where the SOT model is shown to be able to recognize overlapped speech with variable numbers of speakers very well. It should be emphasized that the SOT model did not show any degradation for the single-speaker case, sometimes even outperformed the single-speaker ASR model. This might be because of the data augmentation effect resulting from mixing training utterances.
We also investigated the impact of the number of parameters, the results of which are shown in Table 3. We found that the large model size was essential for SOT to achieve good results. This is because the attention and decoder modules in the SOT framework are required to work on contaminated embeddings as we discussed in Sec 4.2. Applying SAA further improved the performance as shown in the last row of Table 3. Note that the SOT model size of with SAA is smaller than the naive SOT because we removed one 1024-dim bidirectional LSTM layer from the encoder instead of simply inserting one 1024-dim unidirectional LSTM after the attention module.
|Model||# of Speakers||# of||# of Speakers in Test Data|
|(1024-dim)||in Training Data||Params.||1||2||3|
|Actual # of Speakers||Estimated # of Speakers (%)|
|in Test Data||1||2||3||4|
5.2.3 Comparison with PIT
Table 4 compares SOT with PIT. In this experiment, we used 1024-dim model for both PIT and SOT. As shown in the table, PIT showed severe WER degradation for the 1-speaker case even when the training data contained many 1-speaker examples. SOT achieved significantly better results than the PIT model trained on 1- and 2-speaker mixtures for both 1- and 2-speaker evaluation data while recognizing 3-speaker evaluation data, with fewer parameters. For reference, the training speed for the 3-speaker SOT was roughly 30% faster (including I/O) than the 2-output PIT. The difference of the training speed would become much larger if we use PIT with more output branches.
5.2.4 Speaker counting accuracy
Finally, we analyzed the speaker counting accuracy of the 1024-dim SOT. As shown in Table 5, we found that the model could count the number of speakers very accurately especially for 1-speaker (99.8%) and 2-speaker cases (97.0%) while it sometimes underestimated the speakers for the 3-speaker mixtures.
In this paper, we proposed SOT that can recognize overlapped speech consisting of any number of speakers. We also proposed a simple trick to reduce the model training complexity from to by using the start time of each utterance. Our experiments on LibriSpeech showed that the proposed model could transcribe utterances from monaural overlapped speech significantly more effectively than PIT while being able to accurately count the number of speakers as well.
