1 Introduction
Neural sequence to sequence (Seq2Seq) models have been remarkably effective machine translation (MT) Sutskever et al. (2014); Bahdanau et al. (2015). They have revolutionized MT by providing a unified endtoend framework, as opposed to the traditional approaches requiring several submodels and long pipelines. The neural approach is superior or onpar with statistical MT in terms of translation quality on various MT tasks and domains e.g. Wu et al. (2016); Hassan et al. (2018).
A well recognized issue with Seq2Seq models is the lack of diversity in the generated translations. This issue is mostly attributed to the decoding algorithm Li et al. (2016), and recently to the model Zhang et al. (2016); Schulz et al. (2018a). The former direction has attempted to design diversity encouraging decoding algorithm, particularly beam search, as it generates translations sharing the majority of their tokens except a few trailing ones. The latter direction has investigated modeling enhancements, particularly the introduction of continuous latent variables, in order to capture lexical and syntactic variations in training corpora, resulted from the inherent ambiguity of the human translation process.^{1}^{1}1For a given source sentence, usually there exist several valid translations. However, improving the translation diversity and quality with Seq2Seq models is still an open problem, as the results of the aforementioned previous work are not fully satisfactory.
In this paper, we develop a novel sequence to sequence mixture (S2SMix) model that improves both translation quality and diversity by adopting a committee of specialized translation models rather than a single translation model. Each mixture component selects its own training dataset via optimization of the marginal loglikelihood, which leads to a soft clustering of the parallel corpus. As such, our mixture model introduces a conditioning global discrete latent variable for each sentence, which leads to grouping together and capturing variations in the training corpus. We design the architecture of S2SMix such that the mixture components share almost all of their parameters and computation.
We provide experiments on four translation tasks, translating from English to German/French/Vietnamese/Spanish. The experiments show that our S2SMix model consistently outperforms strong baselines, including Seq2Seq model with the standard and diversity encouraged beam search, in terms of both translation diversity and quality. The benefits of our mixture model comes with negligible additional parameters and no extra computation at inference time, compared to the vanilla Seq2Seq model.
2 Attentional Sequence to Sequence
An attentional sequence to sequence (Seq2Seq) model Sutskever et al. (2014); Bahdanau et al. (2015) aims to directly model the conditional distribution of an output sequence given an input , denoted . This family of autoregressive probabilistic models decomposes the output distribution in terms of a product of distributions over individual tokens, often ordered from left to right as,
(1)
where denotes a prefix of the sequence , and denotes the tunable parameters of the model.
Given a training dataset of inputoutput pairs, denoted by , the conditional loglikelihood objective, predominantly used to train Seq2Seq models, is expressed as,
(2)
A standard implementation of the Seq2Seq model is composed of an encoder followed by a decoder. The encoder transforms a sequence of source tokens denoted , into a sequence of hidden states denoted
via a recurrent neural network (RNN). Attention provides an effective mechanism to represent a soft alignment between the tokens of the input and output sequences
Bahdanau et al. (2015), and more recently to model the dependency among the output variables Vaswani et al. (2017).In our model, we adopt a bidirectional RNN with LSTM units Hochreiter and Schmidhuber (1997). Each hidden state is the concatenation of the states produced by the forward and backward RNNs, . Then, we use a twolayer RNN decoder to iteratively emit individual distributions over target tokens . At time step
, we compute the hidden representations of an output prefix
denoted and based on an embedding of denoted , previous representations ,, and a context vector
as,(3)
(4)
(5)
where is the embedding table, and and are learnable parameters. The context vector is computed based on the input and attention,
(6)
(7)
(8)
where , , , and are learnable parameters, and is the attention distribution over the input tokens at time step . The decoder utilizes the attention information to decide which input tokens should influence the next output token .
3 Sequence to Sequence Mixture Model
We develop a novel sequence to sequence mixture (S2SMix) model that improves both translation quality and diversity by adopting a committee of specialized translation models rather than a single translation model. Each mixture component selects its own training dataset via optimization of the marginal loglikelihood, which leads to a soft clustering of the parallel corpus. We design the architecture of S2SMix such that the mixture components share almost all of their parameters except a few conditioning parameters. This enables a direct comparison against a Seq2Seq baseline with the same number of parameters.
Improving translation diversity within Seq2Seq models has received considerable recent attention (e.g., Vijayakumar et al. (2016); Li et al. (2016)). Given a source sentence, human translators are able to produce a set of diverse and reasonable translations. However, although beam search for Seq2Seq models is able to generate various candidates, the final candidates often share majority of their tokens, except a few trailing ones. The lack of diversity within beam search raises an issue for possible reranking systems and for scenarios where one is willing to show multiple translation candidates to the user. Prior work attempts to improve translation diversity by incorporating a diversity penalty during beam search Vijayakumar et al. (2016); Li et al. (2016). By contrast, our S2SMix model naturally incorporates diversity both during training and inference.
The key difference between the Seq2Seq and S2SMix
models lies in the formulation of the conditional probability of an output sequence
given an input . The S2SMix model represents by marginalizing out a discrete latent variable , which indicates the selection of the mixture component, i.e.,(9)
where
is the number of mixture components. For simplicity and to promote diversity, we assume that the mixing coefficients follow a uniform distribution such that for all
,(10)
For the family of S2SMix models with uniform mixing coefficients (10), the conditional loglikelihood objective (2) can be reexpressed as:
(11)
where terms were excluded because they offset the objective by a constant value. Such a constant has no impact on learning the parameters . One can easily implement the objective in (11
) using automatic differentiation software such as tensorflow
Abadi et al. (2016), by adopting a operator to aggregate the loss of the individual mixture components. When the number of components is large, computing the terms for all values of can require a lot of GPU memory. To mitigate this issue, we will propose a memory efficient formulation in Section 3.3 inspired by the EM algorithm.3.1 S2SMix Architecture
We design the architecture of the S2SMix model such that individual mixture components can share as many parameters and as much computation as possible. Accordingly, all of the mixture components share the same encoder, which requires processing the input sentence only once. We consider different ways of injecting the conditioning signal into the decoder. As depicted in Figure 1, we consider different ways of injecting the conditioning on into our twolayer decoder. These different variants require additional lookup tables denoted , or .
When we incorporate the conditioning on into the LSTM layers, each lookup table (e.g., and ) has rows and columns, where denotes the number of dimensions of the LSTM states ( in our case). We combine the state of the LSTM with the conditioning signal via simple addition. Then the LSTM update equations take the form,
(12)
for . We refer to the addition of the conditioning signal to the bottom and top LSTM layers of the decoder as bt and tp respectively. Note that in the bt configuration, the attention mask depends on the indicator variable , whereas in the tp configuration that attention mask is shared across different mixture components.
We also consider incorporating the conditioning signal into the softmax layer to bias the selection of individual words in each mixture component. Accordingly, the embedding table
has rows andentries, and the logits from (
5) are added to the corresponding row of as,(13)
We refer to this configuration as sf and to the configuration that includes all of the conditioning signals as all.
3.2 Separate Beam Search per Component
At the inference stage, we conduct a separate beam search per mixture component. Performing beam search independently for each component encourages diversity among the translation candidates as different mixture components often prefer certain phrases and linguistic structures over each other. Let denote the result of the beam search for a mixture component . The final output of our model, denoted is computed by selecting the translation candidate with the highest probability under the corresponding mixture component, i.e.,
(14)
In order to accurately estimate the conditional probability of each translation candidate based on (
9), one needs to evaluate each candidate using all of the mixture components. However, this process considerably increases the inference time and latency. Instead, we approximate the probability of each candidate by only considering the mixture component based on which the candidate translation has been decoded, as outlined in (14). This approximation also encourages the diversity as we emphasized in this work.Note that we have mixture components and a beam search of per component. Overall, this requires processing candidates. Accordingly, we compare our model with a Seq2Seq model using the same beam size of .
3.3 Memory Efficient Formulation
In this paper, we adopt a relatively small number of mixture components (up to ), but to encompass various clusters of linguistic content and style, one may benefit from a large number of components. Based on our experiments, the memory footprint of a S2SMix with components increases by about folds, partly because the softmax layers take a big fraction of the memory. To reduce the memory requirement for training our model, inspired by prior work on EM algorithm Neal and Hinton (1998), we reexpress the gradient of the conditional loglikelihood objective in (11) exactly as,
(15)
where with uniform mixing coefficients, the posterior distribution takes the form,
(16)
where .
Based on this formulation, one can compute the posterior distribution in a few forward passes, which require much less memory. Then, one can draw one or a few Monte Carlo (MC) samples from the posterior to obtain an unbiased estimate of the gradient in (
15). As shown in algorithm 1, the training procedure is divided into two parts. For each minibatch we compute the componentspecific logloss for different mixture components in the first stage. Then, we exponentiate and normalize the losses as in (16) to obtain the posterior distribution. Finally, we draw one sample from the posterior distribution per inputoutput example, and optimize the parameters according to the loss of such a component. These two stages are alternated until the model converges. We note that this algorithm follows an unbiased stochastic gradient of the marginal log likelihood.4 Experiments
Dataset.
To assess the effectiveness of the S2SMix model, we conduct a set of translation experiments on TEDtalks on four language pairs: EnglishFrench (enfr), EnglishGerman (ende), EnglishVietnamese (envi), and EnglishSpanish (enes).
We use IWSLT14 dataset^{2}^{2}2https://sites.google.com/site/iwsltevaluation2014/home for enes, IWSLT15 dataset for envi, and IWSLT16 dataset^{3}^{3}3https://sites.google.com/site/iwsltevaluation2016 for enfr and ende. We preprocess the corpora by Moses tokenizer^{4}^{4}4https://github.com/mosessmt/mosesdecoder, and preserve the true case of the text. For envi, we use the preprocessed corpus distributed by Luong and Manning (2015)^{5}^{5}5https://nlp.stanford.edu/projects/nmt. For training and dev sets, we discard all of the sentence pairs where the length of either side exceeds tokens. The number of sentence pairs of different language pairs after preprocessing are shown in Table 1. We apply byte pair encoding (BPE) Sennrich et al. (2016) to handle rare words on enfr, ende and enes, and share the BPE vocabularies between the encoder and decoder for each language pair.
Data  enfr  ende  envi  enes

Train  208,719  189,600  133,317  173,601
Dev  5,685  6,775  1,553  5,401
Test  2,762  2,762  1,268  2,504
Implementation details.
All of the models use a onelayer bidirectional LSTM encoder and a twolayer LSTM decoder. Each LSTM layer in the encoder and decoder has a dimensional hidden state. Each input word embeddings is dimensional as well. We adopt the Adam optimizer Kingma and Ba (2014). We adopt dropout with a dropout rate. The minibatch size is sentence pairs. We train each model epochs, and select the best model in terms of the perplexity on the dev set.
Diversity metrics.
Having more diversity in the candidate translations is one of the major advantages of the S2SMix model. To quantify diversity within a set of translation candidates, we propose to evaluate average pairwise BLEU between pairs of sentences according to
(17)
As an alternative metric of diversity within a set
of translations, we propose a metric based on the fraction of the ngrams that are not shared among the translations,
i.e.,(18)
where returns the set of unique ngrams in a sequence . We report average div_bleu and average div_ngram across the test set for the translation candidates found by beam search. We measure and report bigram diversity in the paper and report unigram diversity in the supplementary material.
4.1 Experimental results
S2SMix configuration.

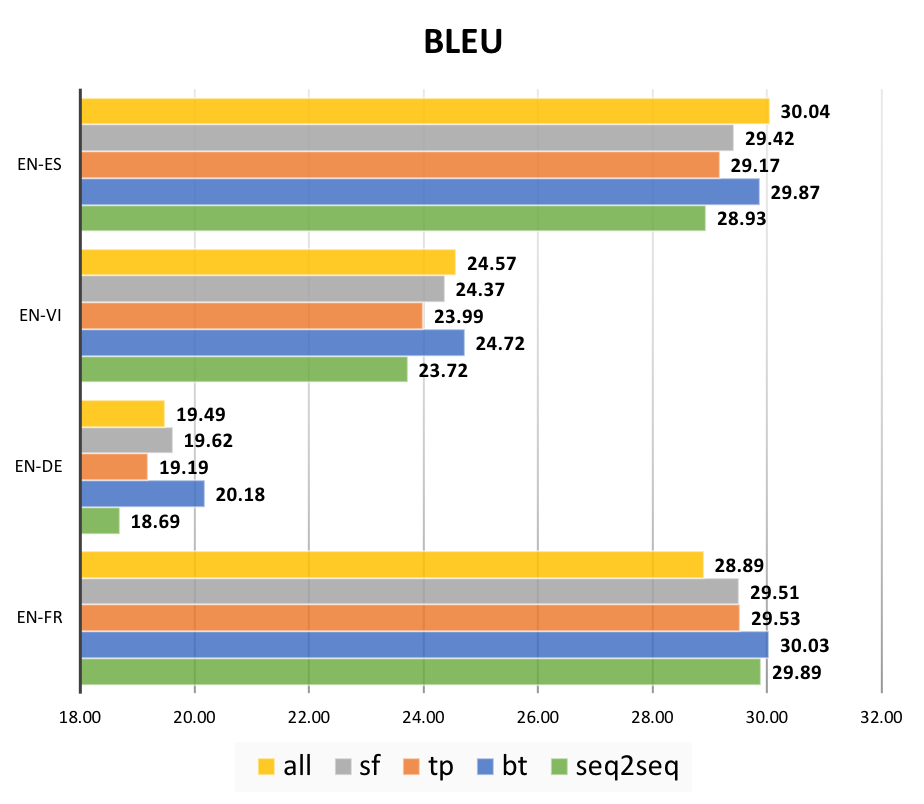

We start by investigating which of the ways of injecting the conditioning signal into the S2SMix model is most effective. As seen in Section 3, the mixture components can be built by adding componentspecific vectors to the logits (sf), the top LSTM layer (tp) or the bottom LSTM layer (bt) in the decoder, or all of them (all). Figure 2 shows the BLEU score of these variants on the translation tasks across four different language pairs. We observe that adding a componentspecific vector to the recurrent cells in the bottom layer of the decoder is the most effective, and results in BLEU scores superior or onpar with the other variants across the four language pairs.
Therefore, we use this model variant in all experiments for the rest of the paper.
Furthermore, Table 2 shows the number of parameters in each of the variants as well as the base Seq2Seq model. We confirm that the mixture model variants introduce negligible number of new parameters compared to the base Seq2Seq model. Specifically, only up to increase in the parameter size are introduced, across all of the language pairs and mixture model variants.
enfr  ende  envi  enes

Seq2Seq  173.22  173.78  112.76  173.21
S2SMix4
bt  173.23  173.79  112.77  173.22
tp  173.23  173.79  112.77  173.22
sf  173.70  174.27  112.88  173.70
all  173.72  174.29  112.90  173.72
S2SMix vs. Seq2Seq.
We compare our mixture model against a vanilla Seq2Seq model both in terms of translation quality and diversity. To be fair, we compare models with the same number of beams during inference, e.g., we compare vanilla Seq2Seq using a beam size of with S2SMix4 with component and a beam size of per component.
beam  enfr  ende  envi  enes

Seq2Seq  4  30.26  19.52  24.82  29.40
8  30.18  19.77  23.55  29.76
16  27.63  19.13  19.05  28.19
S2SMix4  1  30.61  20.18  25.16  31.17
2  31.22  20.71  25.28  31.47
4  31.97  21.08  25.36  31.21

As an effective regularization strategy, we adopt label smoothing to strengthen generalisation performance Szegedy et al. (2016); Pereyra et al. (2017); Edunov et al. (2018). Unlike conventional crossentropy loss, where the probability mass for the ground truth word is set to 1 and for , we smooth this distribution as:
(19)
(20)
where is a smoothing parameter, and is the vocabulary size. In our experiments, is set to 0.1.
Table 3 shows the results across four language pairs. Each row in the top part should be compared with the corresponding row in the bottom part for a fair comparison in terms of the effective beam size. Firstly, we observe that increasing the beam size deteriorates the BLEU score for the Seq2Seq model. Similar observations have been made in the previous work Tu et al. (2017). This behavior is in contrast to our S2SMix model where increasing the beam size improves the BLEU score, except enes, which demonstrates a decreasing trend when beam size increases from 2 to 4. Secondly, our S2SMix models outperform their Seq2Seq counterparts in all settings with the same number of bins.
Figure 4 shows the diversity comparison between the S2SMix model and the vanilla Seq2Seq model where the number of decoding beams is 8. The diversity metrics are bigram and BLEU diversity as defined earlier in the section. Our S2SMix models significantly dominate the Seq2Seq model across language pairs in terms of the diversity metrics, while keeping the translation quality high (c.f. the BLEU scores in Table 3).
We further compare against the Seq2Seq model endowed with the beamdiverse decoder Li et al. (2016). This decoder penalizes sibling hypotheses generated from the same parent in the search tree, according to their ranks in each decoding step. Hence, it tends to rank high those hypotheses from different parents, hence encouraging diversity in the beam.
Table 4 presents the BLEU scores as well as the diversity measures. As seen, the mixture model significantly outperforms the Seq2Seq endowed with the beamdiverse decoder, in terms of the diversity in the generated translations. Furthermore, the mixture model achieves up to 1.7 BLEU score improvements across three language pairs.
enfr  ende  envi  enes

BLEU
Seq2Seqd  29.85  19.18  24.62  29.72
S2SMix4  30.61  20.18  25.16  31.17
DIV_BLEU
Seq2Seqd  20.43  22.66  14.51  18.83
S2SMix4  34.85  47.85  37.40  38.31
enfr  ende  envi  enes

BLEU  time  BLEU  time  BLEU  time  BLEU  time
S2SMix4  30.61  1.25  20.18  1.33  25.16  1.14  31.17  1.30
MC sampling:
S2SMix4  30.43  1.67  19.74  1.67  24.93  1.58  31.27  1.67
S2SMix8  30.66  2.08  20.41  2.05  24.86  2.00  31.44  2.06
S2SMix16  30.74  3.10  20.43  2.88  24.90  2.83  30.82  3.02
Large mixture models.
Memory limitations of the GPU may make it difficult to increase the number of mixture components beyond a certain amount. One approach is to decrease the number of sentence pairs in a minibatch, however, this results in a substantial increase in the training time. Another approach is to resort to MC gradient estimation as discussed in Section 3.3.
The toppart of Table 5 compares the models trained by online EM vs the original loglikelihood objective, in terms of the BLEU score and the training time. As seen, the BLEU score of the EMtrained models are onpar with those trained on the loglikelihood objective. However, online EM leads to up to 35% increase in the training time for S2SMix4 across four different language pairs, as we first need to do a forward pass on the minibatch in order to form the lower bound on the loglikelihood training objective.
The bottompart of Table 5 shows the effect of online EM coupled with sampling only one mixture component to form a stochastic approximation to the loglikelihood lower bound. For each minibatch, we first run a forward pass to compute the probability of each mixture component given each sentence pair in the minibatch. We then sample a mixture component for each sentencepair to form the approximation of the loglikelihood lower bound for the minibatch, which is then optimized using backpropagation. As we increase the number of mixture components from 4 to 8, we see about 0.7 BLEU score increase for ende; while there is no significant change in the BLEU score for enfr, envi and enes.
Increasing the number of mixture components further to 16 does not produce gains on these datasets. Timewise, training with online EM coupled with 1candidate sampling should be significantly faster that the vanilla online EM and the original likelihood objective in principle, as we need to perform the backpropagation only for the selected mixture component (as opposed to all mixture components). Nonetheless, the additional computation due to increasing the number of mixtures from 4 to 8 is about 26%, which increases to about 55% when going from 8 to 16 mixture components.
Source  And this information is stored for at least six months in Europe , up to two years .

Reference  Và những thông tin này được lưu trữ trong ít nhất sáu tháng ở châu Âu , cho tới tận hai năm .
Seq2Seq
Và thông tin này được lưu trữ trong ít sáu tháng ở Châu Âu , hai năm tới .
Và thông tin này được lưu trữ trong ít sáu tháng ở Châu Âu , trong hai năm tới .
Và thông tin này được lưu trữ trong ít sáu tháng ở Châu Âu , hai năm tới
Và thông tin này được lưu trữ trong ít sáu tháng ở Châu Âu , trong hai năm tới
S2SMix

Và thông tin này được lưu trữ trong ít nhất 6 tháng ở châu Âu , đến 2 năm .
Và thông tin này được lưu trữ trong ít nhất 6 tháng ở châu Âu , lên tới hai năm .
Và thông tin này được lưu trữ trong ít nhất 6 tháng ở châu Âu , trong vòng hai năm .
Và thông tin này được lưu trữ trong ít nhất 6 tháng ở châu Âu , lên tới hai năm
4.2 Qualitative Analysis
Finally, we would like to demonstrate that our S2SMix does indeed encourage diversity and improve the translation quality. As shown in Table 6, compared with Seq2Seq, which mistranslates the second clause, our S2SMix is not only capable of generating a group of correct translation, but also emitting synonyms for different mixture components. We provide more examples in the supplementary material.
5 Related Work
Obviously, different domains aim at different readers, thus they exhibit distinctive genres compared to other domains. A welltuned MT system cannot directly apply to new domains; otherwise, translation quality will degrade. Based on this factor, outdomain adaptation has been widely studied for MT, ranging from data selection Li et al. (2010); Wang et al. (2017), tuning Luong and Manning (2015); Farajian et al. (2017) to domain tags Chu et al. (2017). Similarly, indomain adaptation is also a compelling direction. Normally, to train an universal MT system, the training data consist of gigantic corpora covering numerous and various domains.This training data is naturally so diverse that Mima et al. (1997) incorporated extralinguistic information to enhance translation quality. Michel and Neubig (2018) argue even without explicit signals (gender, politeness etc.), they can handle domainspecific information via annotation of speakers, and easily gain quality improvement from a larger number of domains. Our approach is considerably different from the previous work. We remove any extra annotation, and treat domainrelated information as latent variables, which are learned from corpus.
Prior to our work, diverse generation has been studied in image captioning, as some of the training set are comprised of images paired with multiple reference captions. Some work puts their efforts on decoding stages, and form a group of beam search to encourage diversity Vijayakumar et al. (2016), while others pay more attention to adversarial training Shetty et al. (2017); Li et al. (2018). Within translation, our method is similar to Schulz et al. (2018b), where they propose a MT system armed with variational inference to account for translation variations. Like us, their diversified generation is driven by latent variables. Albeit the simplicity of our model, it is effective and able to accommodate variation or diversity. Meanwhile, we propose several diversity metrics to perform quantitative analysis.
Finally, Yang et al. (2018) proposes a mixture of softmaxes to enhance the expressiveness of language model, which demonstrate the effectiveness of our S2SMix model under the matrix factorization framework.
6 Conclusions and Future Work
In this paper, we propose a sequence to sequence mixture (S2SMix
) model to improve translation diversity within neural machine translation via incorporating a set of discrete latent variables. We propose a model architecture that requires negligible additional parameters and no extra computation at inference time. In order to address prohibitive memory requirement associated with large mixture models, we augment the training procedure by computing the posterior distribution followed by Monte Carlo sampling to estimate the gradients. We observe significant gains both in terms of BLEU scores and translation diversity with a mixture of
components. In the future, we intend to replace the uniform mixing coefficients with learnable parameters, since different components should not necessarily make an equal contribution to a given sentence pair. Moreover, we will consider applying our S2SMix model to other NLP problems in which diversity plays an important role.7 Acknowledgements
We would like to thank Quan Tran, Trang Vu and three anonymous reviewers for their valuable comments and suggestions. This work was supported by the Multimodal Australian ScienceS Imaging and Visualisation Environment (MASSIVE)^{6}^{6}6https://www.massive.org.au/, and in part by an Australian Research Council grant (DP160102686).
References
 Abadi et al. (2016) Martín Abadi, Ashish Agarwal, Paul Barham, Eugene Brevdo, Zhifeng Chen, Craig Citro, Gregory S. Corrado, Andy Davis, Jeffrey Dean, Matthieu Devin, Sanjay Ghemawat, Ian J. Goodfellow, Andrew Harp, Geoffrey Irving, Michael Isard, Yangqing Jia, Rafal Józefowicz, Lukasz Kaiser, Manjunath Kudlur, Josh Levenberg, Dan Mané, Rajat Monga, Sherry Moore, Derek Gordon Murray, Chris Olah, Mike Schuster, Jonathon Shlens, Benoit Steiner, Ilya Sutskever, Kunal Talwar, Paul A. Tucker, Vincent Vanhoucke, Vijay Vasudevan, Fernanda B. Viégas, Oriol Vinyals, Pete Warden, Martin Wattenberg, Martin Wicke, Yuan Yu, and Xiaoqiang Zheng. 2016. Tensorflow: Largescale machine learning on heterogeneous distributed systems. arXiv:1603.04467.
 Bahdanau et al. (2015) Dzmitry Bahdanau, Kyunghyun Cho, and Yoshua Bengio. 2015. Neural machine translation by jointly learning to align and translate. ICLR.
 Chu et al. (2017) Chenhui Chu, Raj Dabre, and Sadao Kurohashi. 2017. An empirical comparison of simple domain adaptation methods for neural machine translation. CoRR, abs/1701.03214.
 Edunov et al. (2018) Sergey Edunov, Myle Ott, Michael Auli, David Grangier, and Marc’Aurelio Ranzato. 2018. Classical structured prediction losses for sequence to sequence learning. In Proceedings of NAACLHLT 2018.
 Farajian et al. (2017) M Amin Farajian, Marco Turchi, Matteo Negri, and Marcello Federico. 2017. Multidomain neural machine translation through unsupervised adaptation. In Proceedings of the Second Conference on Machine Translation, pages 127–137.
 Hassan et al. (2018) Hany Hassan, Anthony Aue, Chang Chen, Vishal Chowdhary, Jonathan Clark, Christian Federmann, Xuedong Huang, Marcin JunczysDowmunt, William Lewis, Mu Li, et al. 2018. Achieving human parity on automatic chinese to english news translation. arXiv:1803.05567.
 Hochreiter and Schmidhuber (1997) Sepp Hochreiter and Jürgen Schmidhuber. 1997. Long shortterm memory. Neural computation, 9(8):1735–1780.
 Kingma and Ba (2014) Diederik P. Kingma and Jimmy Ba. 2014. Adam: A method for stochastic optimization. CoRR, abs/1412.6980.
 Li et al. (2018) Dianqi Li, Xiaodong He, Qiuyuan Huang, MingTing Sun, and Lei Zhang. 2018. Generating diverse and accurate visual captions by comparative adversarial learning. arXiv preprint arXiv:1804.00861.
 Li et al. (2016) Jiwei Li, Will Monroe, and Dan Jurafsky. 2016. A simple, fast diverse decoding algorithm for neural generation. CoRR, abs/1611.08562.
 Li et al. (2010) Mu Li, Yinggong Zhao, Dongdong Zhang, and Ming Zhou. 2010. Adaptive development data selection for loglinear model in statistical machine translation. In Proceedings of the 23rd International Conference on Computational Linguistics, pages 662–670. Association for Computational Linguistics.
 Luong and Manning (2015) MinhThang Luong and Christopher D Manning. 2015. Stanford neural machine translation systems for spoken language domains. In IWSLT.
 Michel and Neubig (2018) Paul Michel and Graham Neubig. 2018. Extreme adaptation for personalized neural machine translation. In In Proceedings of the 56th Annual Meeting of the Association for Computational Linguistics (ACL), Melbourne, Australia.
 Mima et al. (1997) Hideki Mima, Osamu Furuse, and Hitoshi Iida. 1997. Improving performance of transferdriven machine translation with extralinguistic informatioon from context, situation and environment. In IJCAI (2), pages 983–989.
 Neal and Hinton (1998) Radford M Neal and Geoffrey E Hinton. 1998. A view of the em algorithm that justifies incremental, sparse, and other variants. Learning in graphical models.
 Pereyra et al. (2017) Gabriel Pereyra, George Tucker, Jan Chorowski, Łukasz Kaiser, and Geoffrey Hinton. 2017. Regularizing neural networks by penalizing confident output distributions. arXiv preprint arXiv:1701.06548.
 Schulz et al. (2018a) Philip Schulz, Wilker Aziz, and Trevor Cohn. 2018a. A stochastic decoder for neural machine translation. CoRR, arXiv:1805.10844.
 Schulz et al. (2018b) Philip Schulz, Wilker Aziz, and Trevor Cohn. 2018b. A stochastic decoder for neural machine translation. In In Proceedings of the 56th Annual Meeting of the Association for Computational Linguistics (ACL), Melbourne, Australia.
 Sennrich et al. (2016) Rico Sennrich, Barry Haddow, and Alexandra Birch. 2016. Neural machine translation of rare words with subword units. In Proceedings of the 54th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), volume 1, pages 1715–1725.

Shetty et al. (2017)
Rakshith Shetty, Marcus Rohrbach, Lisa Anne Hendricks, Mario Fritz, and Bernt
Schiele. 2017.
Speaking the same language: Matching machine to human captions by
adversarial training.
In
In Proceedings of the IEEE International Conference on Computer Vision (ICCV)
.  Sutskever et al. (2014) Ilya Sutskever, Oriol Vinyals, and Quoc V. Le. 2014. Sequence to sequence learning with neural networks. NIPS.

Szegedy et al. (2016)
Christian Szegedy, Vincent Vanhoucke, Sergey Ioffe, Jon Shlens, and Zbigniew
Wojna. 2016.
Rethinking the inception architecture for computer vision.
In
Proceedings of the IEEE conference on computer vision and pattern recognition
, pages 2818–2826.  Tu et al. (2017) Zhaopeng Tu, Yang Liu, Lifeng Shang, Xiaohua Liu, and Hang Li. 2017. Neural machine translation with reconstruction. AAAI.
 Vaswani et al. (2017) Ashish Vaswani, Noam Shazeer, Niki Parmar, Jakob Uszkoreit, Llion Jones, Aidan N Gomez, Łukasz Kaiser, and Illia Polosukhin. 2017. Attention is all you need. NIPS.
 Vijayakumar et al. (2016) Ashwin K Vijayakumar, Michael Cogswell, Ramprasath R Selvaraju, Qing Sun, Stefan Lee, David Crandall, and Dhruv Batra. 2016. Diverse beam search: Decoding diverse solutions from neural sequence models. arXiv preprint arXiv:1610.02424.

Wang et al. (2017)
Rui Wang, Masao Utiyama, Lemao Liu, Kehai Chen, and Eiichiro Sumita. 2017.
Instance weighting for neural machine translation domain adaptation.
In
Proceedings of the 2017 Conference on Empirical Methods in Natural Language Processing
, pages 1482–1488.  Wu et al. (2016) Yonghui Wu, Mike Schuster, Zhifeng Chen, Quoc V Le, Mohammad Norouzi, Wolfgang Macherey, Maxim Krikun, Yuan Cao, Qin Gao, Klaus Macherey, et al. 2016. Google’s neural machine translation system: Bridging the gap between human and machine translation. arXiv:1609.08144.
 Yang et al. (2018) Zhilin Yang, Zihang Dai, Ruslan Salakhutdinov, and William W. Cohen. 2018. Breaking the softmax bottleneck: A highrank RNN language model. In International Conference on Learning Representations.
 Zhang et al. (2016) Biao Zhang, Deyi Xiong, Jinsong Su, Hong Duan, and Min Zhang. 2016. Variational neural machine translation. CoRR, arXiv:1605.07869.
Appendix A gram Diversity Measures
Figure 4 shows the unigram and bigram diversity comparison between the S2SMix model and the vanilla Seq2Seq model where the number of decoding beams is 8. Our S2SMix models significantly dominate the Seq2Seq model across language pairs in terms of these diversity metrics as well.
Appendix B Distribution Among Mixture Copmonents
Due to the limitation of memory, we adopt Monte Carlo sampling to approximate
. We plot the average probability distribution across training corpora to visualize this approximation. According to Figure
5, our approximation is not biased towards any mixture component, which is able to encourage diversity as we emphasized in the main paper.Appendix C Qualitative Examples
Table 7 show examples where S2SMix helped improve translation and demonstrate diversity, when compared with Seq2Seq.
Source  Talk about what you heard here .  I lost all hope .
Reference  Hãy kể về những gì bạn được nghe ở đây .  Tôi hoàn toàn tuyệt vọng .
Seq2Seq
Nói về những gì bạn vừa nghe .  Tôi mất hết hy vọng .
Nói về những gì bạn nghe thấy ở đây  Tôi mất tất cả hy vọng
Nói về những gì bạn nghe được ở đây  Tôi mất hết hy vọng
Nói về những gì bạn vừa nghe ở đây  Tôi đã mất hết hy vọng
S2SMix

Hãy nghe về những gì bạn nghe được ở đây .  Tôi mất tất cả hy vọng .
Hãy ban về những gì bạn đã nghe ở đây .  Tôi mất tất cả hy vọng .
Hãy bàn về những gì bạn đã nghe ở đây .  Tôi đã mất tất cả hy vọng .
Hãy bàn về những gì bạn nghe được ở đây .  Tôi mất tất cả hy vọng .
