I Introduction
A large number of data recipients (e.g., mobile apps, and other cloudbased bigdata analytics) rely on the collection of personal sensory data from devices such as smartphones, wearables, and home IoT devices to provide services such as remote health monitoring [1], location tracking [2], automatic indoor map construction and navigation [3] and so on. However, the prospect of sharing sensitive personal data, often prohibits largescale user adoption and therefore the success of such systems. To circumvent these issues and increase data sharing, synthetic data generation has been used as an alternative to real data sharing. The generated data preserves only the required statistics of the real data (used by the apps to provide service) and nothing else and are used as a substitute for selective real data segments — that are sensitive to the user — thus protecting privacy and resulting in improved analytics.
However, increasingly adversarial roles taken by the data recipients mandate that the synthetic data, in addition to preserving statistical properties, should also be “difficult” to distinguish from the real data. Even in nonadversarial settings, analytics services can behave in unexpected ways if the input data is different from the expected data, thereby requiring the synthesized and real datasets to exhibit “similarity”. Typically, visual inspection has been used as a test to distinguish between datasets. But more recently, sophisticated classifier models (discriminators), corresponding to a set of events, have also been employed to distinguish between synthesized and real data. The model operates on both datasets and the respective event outputs are compared for consistency. In fact, prior work on data synthesis have often focussed on classifiers that are built for features explicitly preserved by the synthetic data. This suggests that an adversary can build classifiers that can exploit a potentially disjoint set of features for differentiating between the two datasets.
In this paper, we present SenseGen – a deep learning based generative model for synthesizing sensory data. While deep learning methods are known to be capable of generating realistic data samples, training them was considered to be difficult requiring large amounts of data. However, recent work on generative models such as Generative Adversarial Networks [4, 5] (GAN) and variational autoencoders [6, 7] have shown that it is possible to train these models with moderate sized datasets. GANs have proven successful in generating different types of data including photorealistic high resolution images [8], realistic images from text description [9], and even for new text and music composition [10], [11]. Furthermore, inspired by the architecture of GANs, we also use a deep learning based discriminator model. The goal of the generator model is to synthesize data that can pass the discriminator test that is designed to distinguish between synthesized and real data. Note, unlike prior work on data synthesis, a deep learning based discriminator is not trained on a predetermined set of features. Instead, it continuously learns the best set of features that can be used to differentiate between the real and synthesized data — making it hard for the generator to pass the discriminator test.
To summarize, we make two contributions. First, we present a deep learning based architecture for synthesizing sensory data. This architecture comprises of a generator model, which is a stack of multiple LongShortTermMemory (LSTM) networks and a Mixture Density Network (MDN). Second, we use another LSTM network based discriminator model for distinguishing between the true and the synthesized data. Using a dataset of accelerometer traces, collected using smartphones of users doing their daily activities, we show that the deep learning based discriminator model can only distinguish between the real and synthesized traces with an accuracy in the neighborhood of 50%.
Ii Model Design
Sensors data, e.g. accelerometer, gyroscope, barometer, etc., are represented as a sequence of values where , for where is the dimensionality of the time series (i.e. in case of 3axis accelerometer ) and is the number of time steps for which the data has been collected.
SenseGen consists of two deep learning models:

Generator (): The generator is capable of generating new synthetic time series data from random noise input.

Discriminator (): The goal of the discriminator is to assess the quality of the examples generated by the generator .
Both and
are based on recurrent neural network models which have shown a lot of success in sequential data modeling. We describe the model details below.
Iia Generative Model
Recurrent neural networks (RNN) are a class of neural networks which are distinguished by having units with feedback cycles which allows the units to maintain a memory of state about the previous inputs. This makes them suitable for handling tasks dealing with sequential timeseries inputs. The input timeseries is applied to the neural network units one step at time. Each RNN artificial neuron (often called RNN unit or RNN cell) maintains a hidden internal state memory
which is updated at each timestep according to the new input and previous internal state memory valuewhere
is the sigmoid activation function
Also each unit generates another timeseries of outputs as a function of the internal memory state which is computed according to the following equation:
The set represents the RNN cell parameters. The RNN training algorithm picks the values of
that minimizes the defined loss function.
In order to handle complex timeseries sequences, Multiple RNN units can be used at the same layer and also multiple RNN units can be stacked on top of each other such that the time series of outputs from the RNN units at one layer are used as inputs to the RNN units on top of them. This way, we can design more powerful recurrent neural networks which are both deep and wide. Like other neural networks, we train a recurrent neural networks possible by using a modified version of backpropagation known as backpropagation through time (BPTT) algorithm [12]. However, RNN units suffer from two major problems during training deep models over long timeseries inputs. First, it is the vanishing gradient problem, where the error gradient goes to zero during propagation presenting difficulty while learning the weights of early layers or capturing longterm depedencies. Second, it is the exploding gradient
problem, where the gradient value might grow exponentially causing numerical errors in the training algorithm. These two problems present a major hurdle in training RNNs. To solve the exploding gradient problem, the gradient value is clipped at each unit, while modified architectures of RNN units such as the Long Short Term Memory (LSTM)
[13]and Gated Recurrent Units (GRU)
[14]have been introduced to come over the vanishing gradient problem.
LSTM units are modified version of the standard RNN units that add three additional gates inside the RNN unit : input gate , forget gate and output gate . The values of these gates are computed as functions of the unit’s internal cell state and current input . These gates are used to control what information being stored in the unit’s internal memory to avoid vanishing gradient problem and become better in remembering sequence dependencies for longer range. The gates, internal memory and LSTM unit output at each time step are computed according to the following equations:
where is the elementwise multiplication. In the rest of the paper, we define the function that maps the current input and current LSTM unit output to new output as an abstraction of the previous LSTM update equations.
Like the standard RNN units, LSTM units can also be stacked on top of each other in order to model complex timeseries data. We use LSTMs in our model because they are successful in modeling sequences with longterm dependencies.
Recurrent Neural networks can be used for the generation of a sequence with any length by predicting the sequence one step at a time. At each time step, the network output
is used to define a probability distribution for the next step
value.The value is then fed back into the model as a new input to predict another time step. By repeatedly doing this, it is theoretically possible to generate a sequence of any length. However, the choice of output distribution becomes critical and must be chosen carefully to represent the type of data we are generating. The simplest choice that we consider the output as the next step sample . and then we define the loss as the root mean squared difference between the sequence of inputs and the sequence of predictions.
Then we train the whole model by using gradient descent to minimize the loss value. However, we find this setup to be incapable of generating good sensory data sequences for the following reasons:

Since all RNN update equations are deterministic, this means that if you try generating sequences from a given start input value (usually starting by zero) the model will generate the same sequence again at everytime.

Assigning the model output as the next sample means that the next sample distribution is a unimodel distribution with zero variance. Because for sensory data at a given step more than one value can be a good choice for the next step a unimodal prediction is not enough. A more flexible generation of sensory data requires probabilistic sampling from a multimodal distribution on top of the RNN.
As a solution for these issues, we use Mixture Density Network (MDN) [15]. Mixture density network is a combination of a neural network and mixture distribution. The outputs of neural network are used to specify the weights of the mixtures and the parameters of each distribution. [16]
shows how MDN with Gaussian mixture model (GMM) defined on top of a recurrent neural network is successful in learning how to generate highly realistic handwriting by predicting the pen location one point at a time.

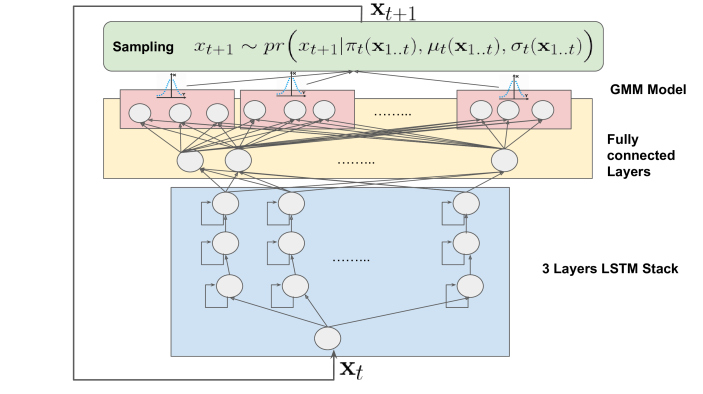

Our generative model architecture is shown in Figure 1. At the bottom we have a stack of 3 layers of LSTM units. Each layer has 256 units.
The output from the last LSTM layer is feed into a fully connected layer with 128 units with sigmoid activations.
where The final layer is another fully connected layer with output units.
where . The outputs from the last layer are used as the weights and parameters of the output Gaussian mixture model (GMM).
where the softmax function:
is used to ensure that weights defined by are normalized (i.e
), and the exponential function while computing the standard deviation of the Gaussians
is meant to ensure that the is positive. The mixture weights , guassian means , and standard deviations are used to define to a probability distribution for the next outputfrom which we can sample the predicted next step value.
The whole model is trained endtoend by RMSProp
[17] and truncated backpropagation through time with a cost function defined to increase the likelihood of generating the next timestep value. This is the equivalent to minimizing the negative log likelihood with respect to the set of generative model parameters .IiB Discriminative Model
In order to quantify the similarity between the generated timeseries and the real sensor timeseries collected from users. We build another model whose goal is to distinguish between samples generated by . The discriminative model is trained to distinguish between the samples coming from the dataset for real sensor traces and others samples from the dataset which is generated by the model .
The architecture of model consists of a layer of 64 LSTM units followed by a fully connected layers with 16 hidden units using sigmoid activation function and an output layer with a single unit with sigmoid activation function. The output value this discriminative model when a given an input sensor values timeseries is interpreted as the probability that the given input timeseries is coming from the real dataset .
We train the model in a supervised way by using a training data consists from minibatchs of samples from the real data dataset
with their target output = 1, and other minibatchs of
samples generated from the the model with their target output = 0. Each samples is a time series of 400 steps. The training aims to minimize the crossentropy loss with respect to the set of discriminitive model parameters.Iii Results and Analysis
For our experiments and evaluation studies, We use the Human Activity Recognition database [18] as our training data. The HAR database contains accelerometer and gyroscope recordings of 30 individuals while performing activities of daily living (ADL) (Walking, walking upstairs, walking downstairs, sitting, standing, and laying). Accelerometer and gyroscope were collected at 50Hz from a Samsung Galaxy SII phone attached to the user’s the waist. The accelerometer and gyroscope values were preprocessed to compute the linear acceleration (by removing the gravity component).
We train the deep learning model using Google TensorFlow
[19] deep learning framework on Nvidia GTX Titan X GPU with 3,584 CUDA cores running 11 TFLOPS with 12 GB Memory. The training takes about 5 hours until the generative model converges after 20,000 epochs when trained on a timeseries of 7000 time steps.Evaluating a generative model is challenging because it is hard to find one metric that quantifies how realistic the output looks and also how novel is it compared to the training data (to avoid the trap of having a model that just remembers the input training data and outputs it again). These metrics should be specific according to the type of the data the model is trained on. Prior work on generative models for images resort to human judgment of output samples quality. In our work, we use the following methods for qualification:

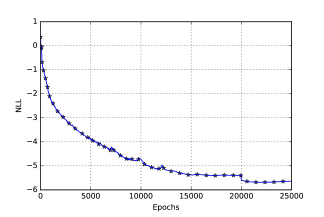

Generative loss during training We show how the loss of the generative model goes down while training. Figure 3 shows the negative log likelihood cost of the generative model during training. This means that the model is becoming better in assigning higher probability for the true nextstep values during prediction.

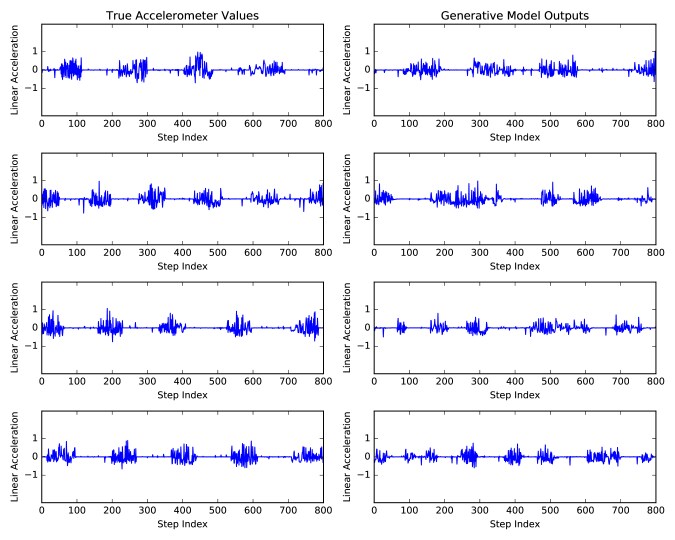

Generative loss during training Figure 2 shows a visual comparison between 4 random samples generated by generative model and 4 random subset of real accelerometer timeseries values from the HAR dataset.

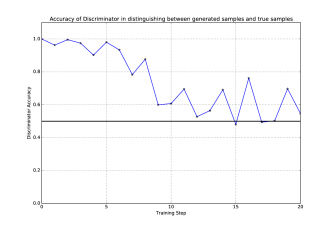

Indistinguishability between synthesized and real data samples We use another deep learning model whose is training to quantify the differences between the real samples and the synthesized samples. Figure 4 shows how the accuracy of this model goes down as training continues. At the beginning the accuracy in deciding whether input samples are synthesized is almost 100% However, as we train the models for more epochs, the accuracy of model in identifying the synthetic samples reduces to around .
Iv Conclusion
In this paper, we outlined our initial experiences of using a deep learning based architecture for synthesizing time series of sensory data. We identified that the synthesized data should be able to pass a deep learning based discriminator test designed to distinguish between the synthesized and true data. We then demonstrated that our generator can be successfully used to beat such a discriminator by restricting its accuracy to around .
Our generatordiscriminator model pair is a GANsimilar architecture. However, due to the difficulties of doing backpropagation through the MDNbased stochastic network, we do not yet incorporate adversarial training by feeding back the discriminator output into the generator training. we hope to close the feedback loop between the discriminator and the generator model for synthesizing even more effective data samples.
Acknowledgement
This research was sponsored by the U.S. Army Research Laboratory and the U.K. Ministry of Defence under Agreement Number W911NF1630001. The views and conclusions contained in this document are those of the authors and should not be interpreted as representing the official policies, either expressed or implied, of the U.S. Army Research Laboratory, the U.S. Government, the U.K. Ministry of Defence or the U.K. Government. The U.S. and U.K. Governments are authorized to reproduce and distribute reprints for Government purposes notwithstanding any copyright notation hereon.
References
 [1] K. M. Diaz, D. J. Krupka, M. J. Chang, J. Peacock, Y. Ma, J. Goldsmith, J. E. Schwartz, and K. W. Davidson, “Fitbit®: An accurate and reliable device for wireless physical activity tracking.” International journal of cardiology, vol. 185, pp. 138–140, 2015.
 [2] H. Wang, S. Sen, A. Elgohary, M. Farid, M. Youssef, and R. R. Choudhury, “No need to wardrive: unsupervised indoor localization,” in Proceedings of the 10th international conference on Mobile systems, applications, and services. ACM, 2012, pp. 197–210.
 [3] M. Alzantot and M. Youssef, “Crowdinside: automatic construction of indoor floorplans,” in Proceedings of the 20th International Conference on Advances in Geographic Information Systems. ACM, 2012, pp. 99–108.
 [4] I. Goodfellow, J. PougetAbadie, M. Mirza, B. Xu, D. WardeFarley, S. Ozair, A. Courville, and Y. Bengio, “Generative adversarial nets,” in Advances in Neural Information Processing Systems, 2014, pp. 2672–2680.
 [5] I. Goodfellow, “Nips 2016 tutorial: Generative adversarial networks,” arXiv preprint arXiv:1701.00160, 2016.
 [6] D. P. Kingma and M. Welling, “Autoencoding variational bayes,” arXiv preprint arXiv:1312.6114, 2013.
 [7] T. Salimans, I. Goodfellow, W. Zaremba, V. Cheung, A. Radford, and X. Chen, “Improved techniques for training gans,” in Advances in Neural Information Processing Systems, 2016, pp. 2226–2234.
 [8] C. Ledig, L. Theis, F. Huszár, J. Caballero, A. Cunningham, A. Acosta, A. Aitken, A. Tejani, J. Totz, Z. Wang et al., “Photorealistic single image superresolution using a generative adversarial network,” arXiv preprint arXiv:1609.04802, 2016.
 [9] S. Reed, Z. Akata, X. Yan, L. Logeswaran, B. Schiele, and H. Lee, “Generative adversarial text to image synthesis,” arXiv preprint arXiv:1605.05396, 2016.
 [10] L. Yu, W. Zhang, J. Wang, and Y. Yu, “Seqgan: sequence generative adversarial nets with policy gradient,” arXiv preprint arXiv:1609.05473, 2016.
 [11] S. R. Bowman, L. Vilnis, O. Vinyals, A. M. Dai, R. Jozefowicz, and S. Bengio, “Generating sentences from a continuous space,” arXiv preprint arXiv:1511.06349, 2015.

[12]
P. J. Werbos, “Backpropagation through time: what it does and how to do it,”
Proceedings of the IEEE, vol. 78, no. 10, pp. 1550–1560, 1990.  [13] S. Hochreiter and J. Schmidhuber, “Long shortterm memory,” Neural computation, vol. 9, no. 8, pp. 1735–1780, 1997.
 [14] J. Chung, C. Gülçehre, K. Cho, and Y. Bengio, “Gated feedback recurrent neural networks,” CoRR, abs/1502.02367, 2015.
 [15] C. M. Bishop, “Mixture density networks,” 1994.
 [16] A. Graves, “Generating sequences with recurrent neural networks,” arXiv preprint arXiv:1308.0850, 2013.

[17]
T. Tieleman and G. Hinton, “Lecture 6.5rmsprop: Divide the gradient by a
running average of its recent magnitude,”
COURSERA: Neural Networks for Machine Learning
, vol. 4, no. 2, 2012.
[18]
D. Anguita, A. Ghio, L. Oneto, X. Parra, and J. L. ReyesOrtiz, “Human activity recognition on smartphones using a multiclass hardwarefriendly support vector machine,” in
International Workshop on Ambient Assisted Living. Springer, 2012, pp. 216–223.  [19] M. Abadi, A. Agarwal, P. Barham, E. Brevdo, Z. Chen, C. Citro, G. S. Corrado, A. Davis, J. Dean, M. Devin et al., “Tensorflow: Largescale machine learning on heterogeneous distributed systems,” arXiv preprint arXiv:1603.04467, 2016.
