1 Introduction
The relation extraction (RE) task can be defined as follows: given a sentence with a pair of nominals and , we aim to identify the relationship between and . RE is typically investigated in a classification style, where many features have been proposed, e.g., hendrickx designed 16 types of features including POS, WordNet, FrameNet, dependency parse features, etc. Among them, syntactic features are considered to bring significant improvements in extraction accuracy [Bunescu and Mooney2005a]. Earlier attempts to encode syntactic information are mainly kernelbased methods, such as the convolution tree kernel [Qian et al.2008], subsequence kernel [Bunescu and Mooney2005b], and dependency tree kernel [Bunescu and Mooney2005a].
With the recent success of neural networks in NLP, different neural network models are proposed to learn syntactic features from raw sequences of words or constituent parse trees[Zeng et al.2014, Socher et al.2012], which have been proved effective, but, often suffer from irrelevant subsequences or clauses, especially when subjects and objects are in a longer distance. For example, in the sentence, “The [singer] , who performed three of the nominated songs, also caused a [commotion] on the red carpet”, the who clause is used to modify subject , but is unrelated to the CauseEffect relationship between singer and commotion. Incorporating such information into the model will hurt the extraction performance. We therefore propose to learn a more robust relation representation from a convolution neural network model that works on the simple dependency path between subjects and objects, which naturally characterizes the relationship between two nominals and avoids negative effects from other irrelevant chunks or clauses.
Our second contribution is the introduction of a negative sampling strategy into the CNN models to address the relation directionality, i.e., properly assigning the subject and object within a relationship. In the above singer example, (singer, commotion) hold the CauseEffect relation, while (commotion, singer) not. Previous works do not fully investigate the differences between subjects and objects in the utterance, and simply transform a (K+1)relation task into a (2K+1) classification task, where 1 is the other relation. Interestingly, we find that dependency paths naturally offer the relative positions of subjects and objects through the path directions. In this paper, we propose to model the relation directionality by exploiting the dependency path to learn the assignments of subjects and objects using a straightforward negative sampling method, which adopts the shortest dependency path from the object to the subject as a negative sample. Experimental results show that the negative sampling method significantly improves the performance, and our model outperforms thestateoftheart methods on the SemEval2010 Task 8 dataset.
2 The Shortest Path Hypothesis
If and are two nominals mentioned in the same sentence, we assume that the shortest path between and describes their relationship. This is because (1) if and are arguments of the same predicate, then their shortest path should pass through that predicate; (2) if and belong to different predicateargument structures, their shortest path will pass through a sequence of predicates, and any consecutive predicates will share a common argument. Note that, the order of the predicates on the path indicates the proper assignments of subjects and objects for that relation. For example, in Figure 1, the dependency path consecutively passes through carried and receives, which together implies that in the InstrumentAgency relation, the subject and object play a sender and receiver role, respectively.
3 A Convolutional Neural Network Model

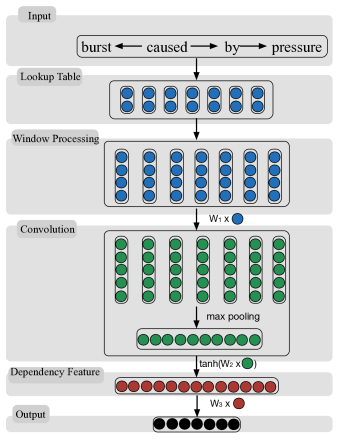

Our model successively takes the shortest dependency path (i.e, the words, dependency edge directions, and dependency labels) from the subject to the object as input, passes it through the lookup table layer, produces local features around each node on the dependency path, and combines these features into a global feature vector that are then fed to a softmax classifier. Each dimension of the output vector indicates the confidence score of the corresponding relation.
In the lookup table step, each node (i.e. word, label or arrow) in the dependency path is transformed into a vector by looking up the embedding matrix , where is the dimension of a vector and is a set of all nodes we consider.
Convolution
To capture the local features around each node of the dependency path, we consider a fixed size window of nodes around each node in the window processing component, producing a matrix of node features of fixed size , where and is the window size. This matrix can be built by concatenating the vectors of nodes within the window.
In the convolutional layer, we use a linear transformation
to extract local features around each window of the given sequence, where is the size of hidden layer 1. The resulting matrix has size of , where is the number of nodes in the input dependency path.We can see that
captures local contextual information in the dependency path. Therefore, we perform a max pooling over
to produce a global feature vector in order to capture the most useful local features produced by the convolutional layer [Collobert et al.2011], which has a fixed size of , independent of the dependency path length.Dependency based Relation Representation
To extract more meaningful features, we choose hyperbolic tanh as the nonlinearity function in the second hidden layer, which has the advantage of being slightly cheaper to compute, while leaving the generalization performance unchanged. is the linear transformation matrix, where is the size of hidden layer 2. The output vector can be considered as higher level syntactic features, which is then fed to a softmax classifier.
Objective Function and Learning
The softmax classifier is used to predict a class distribution , where is the size of all possible relation types, and the transformation matrix is . We denote as the target distribution vector^{1}^{1}1Note that, there may be more than one relation existing between two nominals. A dependency path thus may correspond to multiple relations.: the entry
is the probability that the dependency path describes the
kth relation. We compute the cross entropy error between and , and further define the objective function over all training data:where is the set of model parameters to be learned, and is a vector of regularization parameters. The model parameters
can be efficiently computed via backpropagation through network structures. To minimize
, we apply stochastic gradient descent (SGD) with AdaGrad
[Duchi et al.2011] in our experiments^{2}^{2}2We omit detailed formulas for the limitation of space..Train Strategy  Test Strategy  F1(%)

Blind  Blind  79.3
Sighted  Blind  81.3
Sighted  Sighted  89.2
4 Negative Sampling
We start by presenting three pilot experiments on the development set. In the first one, we assume that the assignment of the subject and object for a relation is not given (blind), we simply extract features from to , and test it in a blind setting as well. In the second one, we assume that the assignment is given (sighted) during training, but still blind in the test phase. The last one is assumed to give the assignment during both training and test steps. The results are listed in Table 1.
The third experiment can be seen as an upper bound, where we do not need to worry about the assignments of subjects and objects. By comparing the first and the second one, we can see that when adding assignment information during training, our model can be significantly improved, indicating that our dependency based representation can be used to learn the assignments of subjects/objects, and injecting better understandings of such assignments during training is crucial to the performance. We admit that models with more complex structures can better handle these considerations. However, we find that this can be achieved by simply feeding typical negative samples to the model and let the model learn from such negative examples to correctly choose the right assignments of subjects and objects. In practice, we can treat the opposite assignments of subjects and the objects as negative examples. Note that, the dependency path of the wrong assignment is different from that of the correct assignment, which essentially offers the information for the model to learn to distinguish the subject and the object.
5 Experimental Evaluation
We evaluate our model on the SemEval2010 Task 8 [Hendrickx et al.2010], which contains 10,717 annotated examples, including 8,000 instances for training and 2,717 for test. We randomly sampled 2,182 samples from the training data for validation.
Given a sentence, we first find the shortest dependency path connecting two marked nominals, resulting in two dependency paths corresponding to two opposite subject/object directions, and then make predictions for the two paths, respectively. We choose the relation other if and only if both predictions are other. And for the rest cases, we choose the nonother relation with highest confidence as the output, since ideally, for a nonother instance, our model will output the correct label for the right subject/object direction and an other label for the wrong direction. We evaluate our models by macroaveraged F1 using the official evaluation script.
We initialized with 50dimensional word vectors trained by DBLP:conf/acl/TurianRB10. We tuned the hyper parameters using the development set for each experimental setting. The hyper parameters include , , , and regularization parameters for , , and . The best setting was obtained with the values: 3, 200, 100, , , and , respectively.
Results and Discussion
Method  Feature Sets  F1

SVM  16 types of features  82.2
RNN    74.8
+POS, NER, WordNet  77.6
MVRNN    79.1
+POS, NER, WordNet  82.4
CNN    78.9
[Zeng et al.2014]  +WordNet,words around nominals  82.7
depCNN    81.3
depLCNN    81.9
depLCNN  +WordNet,words around nominals  83.7
depLCNN+NS    84.0
+WordNet,words around nominals  85.6
Negative sampling schemes  F1

No negative examples  81.3
Randomly sampled negative examples from NYT  83.5
Dependency paths from the object to subject  85.4
Table 2 summarizes the performances of our model, depLCNN+NS(+), and stateoftheart models, SVM[Hendrickx et al.2010], RNN, MVRNN[Socher et al.2012], and CNN[Zeng et al.2014]. For fair comparisons, we also add two types of lexical features, WordNet hypernyms and words around nominals, as part of input vector to the final softmax layer.
We can see that our vanilla depLCNN+NS, without extra lexical features, still outperforms, by a large margin, previously reported best systems, MVRNN+ and CNN+, both of which have taken extra lexical features into account, showing that our treatment to dependency path can learn a robust and effective relation representation. When augmented with similar lexical features, our depLCNN+NS further improves by 1.6%, significantly better than any other systems.
Let us first see the comparisons among plain versions of depLCNN (taking both dependency directions and labels into account), depCNN (considering the directions of dependency edges only), MVRNN and CNN, which all work in a 2K+1 fashion. We can see that the both of our depCNN and depLCNN outperforms MVRNN and CNN by at least 2.2%, indicating that our treatment is better than previous conventions in capturing syntactic structures for relation extraction. And note that depLCNN, with extra considerations for dependency labels, performs even better than depCNN, showing that dependency labels offer more discriminative information that benefits the relation extraction task.
And when we compare plain depLCNN and depLCNN+NS (without lexical features), we can see that our Negative Sampling strategy brings an improvement of 2.1% in F1. When both of the two models are augmented with extra lexical features, our NS strategy still gives an improvement of 1.9%. These comparisons further show that our NS strategy can drive our model to learn proper assignments of subjects/objects for a relation.
Next, we will have a close look at the effect of our Negative Sampling method. We conduct additional experiments on the development set to compare two different negative sampling methods. As a baseline, we randomly sampled 8,000 negative examples from the NYT dataset [Chen et al.2014]. For our proposed NS, we create a negative example from each nonother instance in the training set, 6,586 in total. As shown in Table 2, it is no doubt that introducing more negative examples improves the performances. We can see that our model still benefits from the randomly sampled negative examples, which may help our model learn to refine the margin between the positive and negative examples. However, with similar amount of negative examples, treating the reversed dependency paths from objects to subjects as negative examples can achieve a better performance (85.4% F1), improving random samples by 1.9%. This again proves that dependency paths provide useful clues to reveal the assignments of subjects and objects, and a model can learn from such reversed paths as negative examples to make correct assignments. Beyond the relation extraction task, we believed the proposed Negative Sampling method has the potential to benefit other NLP tasks, which we leave for future work.
6 Conclusion
In this paper, we exploit a convolution neural network to learn more robust and effective relation representations from shortest dependency paths for relation extraction. We further propose a simple negative sampling method to help make correct assignments for subjects and objects within a relationship. Experimental results show that our model significantly outperforms stateoftheart systems and our treatment to dependency paths can well capture the syntactic features for relation extraction.
