1 Introduction

The goal of image inpainting methods is to recover missing information of occluded, missing or corrupted areas of an image in a realistic way, in the sense that the resulting image appears as of a real scene. Its applications are numerous and range from the automatization of cinema post-production tasks enabling, e.g., the deletion of annoying objects, to new view synthesis generation for, e.g., broadcasting of sport events.

Interestingly, it is a pervasive and easy task for a human to infer hidden areas of an image. Given an incomplete image, our brain unconsciously reconstructs the captured real scene by completing the gaps (called holes or inpainting masks in the inpainting literature). On the one hand, it is acknowledged that local geometric processes and global ones (such as the ones associated to geometry-oriented and exemplar-based models, respectively) are leveraged in the humans’ completion phenomenon. On the other hand, humans use the experience and previous knowledge of the surrounding world to infer from memory what fits the context of a missing area. Figure 1 displays two examples of it; looking at the image in Figure 1(a), our experience indicates that one or more central doors would be expected in such an incomplete building and, thus, a plausible completion would be the one of (b). Also, our trained brain automatically completes Figure 1(c) with the missing parts of a face such as the one shown in (d).

(a) (b)
(c) (d)
Figure 1: Qualitative illustration of the task. Given the visible content in (a), our experience indicates that one or more central doors would be expected in such incomplete building. Thus, a plausible completion would be the one of (b). Also, our brain automatically completes the image in (c) with a face such as (d).

Mostly due to its inherent ambiguity and to the complexity of natural images, the inpainting problem remains theoretically and computationally challenging, specially if large regions are missing. Classical methods use redundancy of the incomplete input image: smoothness priors in the case of geometry-oriented approaches and self-similarity principles in the non-local or exemplar-based ones. Instead, using the terminology of [Pathak et al., 2016, Yeh et al., 2017]

, semantic inpainting refers to the task of inferring arbitrary large missing regions in images based on image semantics. Applications such as the identification of different objects which were jointly occluded in the captured scene, 2D to 3D conversion, or image editing (in order to, e.g., removing or adding objects and changing the object category) could benefit from accurate semantic inpainting methods. Our work fits in this context. We capitalize on the understanding of more abstract and high level information that unsupervised learning strategies may provide.

Generative methods that produce novel samples from high-dimensional data distributions, such as images, are finding widespread use, for instance in image-to-image translation

[Zhu et al., 2017a, Liu et al., 2017], image synthesis and semantic manipulation [Wang et al., 2018]

, to mention but a few. Currently the most prominent approaches include autoregressive models

[van den Oord et al., 2016]

, variational autoencoders (VAE)

[Kingma and Welling, 2013], and generative adversarial networks [Goodfellow et al., 2014]

. Generative Adversarial Networks (GANs) are often credited for producing less burry outputs when used for image generation. It consists of a framework for training generative parametric models based on a game between two networks: a generator network that produces synthetic data from a noise source and a discriminator network that differentiates between the output of the genererator and true data. The approach has been shown to produce high quality images and even videos

[Zhu et al., 2017b, Pumarola et al., 2018, Chan et al., 2018].

We present a new method for semantic image inpainting with an improved version of the Wasserstein GAN [Arjovsky et al., 2017] including a new generator and discriminator architectures and a novel optimization loss in the context of semantic inpainting that outperforms related approaches. More precisely, our contributions are summarized as follows:

  • We propose several improvements to the architecture based on an improved WGAN such as the introduction of the residual learning framework in both the generator and discriminator, the removal of the fully connected layers on top of convolutional features and the replacement of the widely used batch normalization by a layer normalization. These improvements ease the training of the networks making them to be deeper and stable.

  • We define a new optimization loss that takes into account, on the one side, the semantic information inherent in the image, and, on the other side, contextual information that capitalizes on the image values and gradients.

  • We quantitatively and qualitatively show that our proposal achieves top-tier results on two datasets: CelebA and Street View House Numbers.

The remainder of the paper is organized as follows. In Section 2, we review the related state-of-the-art work focusing first on generative adversarial networks and then on inpainting methods. Section 3 details our whole method. In Section 4, we present both quantitative and qualitative assessments of all parts of the proposed method. Section 5 concludes the paper.

(a)
(b)
(c)
(d)
Figure 2: Image inpainting results using three different approaches. (a) Input images, each with a big hole or mask. (b) Results obtained with the non-local method [Fedorov et al., 2015]. (c) Results with the local method [Getreuer, 2012]. (d) Our semantic inpainting method.

2 Related Work

Generative Adversarial Networks.

GAN learning strategy [Goodfellow et al., 2014]

is based on a game theory scenario between two networks, the generator’s network and the discriminator’s network, having adversarial objectives. The generator maps a source of noise from the latent space to the input space and the discriminator receives either a generated or a real image and must distinguish between both. The goal of this training procedure is to learn the parameters of the generator so that its probability distribution is as closer as possible to the one of the real data. To do so, the discriminator

is trained to maximize the probability of assigning the correct label to both real examples and samples from the generator , while is trained to fool the discriminator and to minimize by generating realistic examples. In other words, and play the following min-max game with value function defined as follows:

(1)

The authors of [Radford et al., 2015]

introduced convolutional layers to the GANs architecture, and proposed the so-called Deep Convolutional Generative Adversarial Network (DCGAN). GANs have been applied with success to many specific tasks such as image colorization

[Cao, 2017], text to image synthesis [Reed et al., 2016]

, super-resolution

[Ledig et al., 2016], image inpainting [Yeh et al., 2017, Burlin et al., 2017, Demir and Ünal, 2018], and image generation [Radford et al., 2015, Mao et al., 2017, Gulrajani et al., 2017, Nguyen et al., 2016], to name a few. However, three difficulties still persist as challenges. One of them is the quality of the generated images and the remaining two are related to the well-known instability problem in the training procedure. Indeed, two problems can appear: vanishing gradients and mode collapse. Vanishing gradients are specially problematic when comparing probability distributions with non-overlapping supports. If the discriminator is able to perfectly distinguish between real and generated images, it reaches its optimum and thus the generator no longer improves the generated data. On the other hand, mode collapse happens when the generator only encapsulates the major nodes of the real distribution, and not the entire distribution. As a consequence, the generator keeps producing similar outputs to fool the discriminator.

Aiming a stable training of GANs, several authors have promoted the use of the Wasserstein GAN (WGAN). WGAN minimizes an approximation of the Earth-Mover (EM) distance or Wasserstein-1 metric between two probability distributions. The EM distance intuitively provides a measure of how much mass needs to be transported to transform one distribution into the other distribution. The authors of [Arjovsky et al., 2017]

analyzed the properties of this distance. They showed that one of the main benefits of the Wasserstein distance is that it is continuous. This property allows to robustly learn a probability distribution by smoothly modifying the parameters through gradient descend. Moreover, the Wasserstein or EM distance is known to be a powerful tool to compare probability distributions with non-overlapping supports, in contrast to other distances such as the Kullback-Leibler divergence and the Jensen-Shannon divergence (used in the DCGAN and other GAN approaches) which produce the vanishing gradients problem, as mentioned above. Using the Kantorovich-Rubinstein duality, the Wasserstein distance between two distributions, say a

real distribution

and an estimated distribution

, can be computed as

(2)

where the supremum is taken over all the 1-Lipschitz functions (notice that, if is differentiable, it implies that ). Let us notice that in Equation (2) can be thought to take the role of the discriminator in the GAN terminology. In [Arjovsky et al., 2017], the Wasserstein GAN is defined as the network whose parameters are learned through optimization of

(3)

where denotes the set of 1-Lipschitz functions. Under an optimal discriminator (called a critic in [Arjovsky et al., 2017]), minimizing the value function with respect to the generator parameters minimizes . To enforce the Lipschitz constraint, the authors proposed to use an appropriate weight clipping. The resulting WGAN solves the vanishing problem, but several authors [Gulrajani et al., 2017, Adler and Lunz, 2018] have noticed that weight clipping is not the best solution to enforce the Lipschitz constraint and it causes optimization difficulties. For instance, the WGAN discriminator ends up learning an extremely simple function and not the real distribution. Also, the clipping threshold must be properly adjusted. Since a differentiable function is 1-Lipschitz if it has gradient with norm at most 1 everywhere, [Gulrajani et al., 2017] proposed an alternative to weight clipping: To add a gradient penalty term constraining the norm of the gradient while optimizing the original WGAN during training. Recently, the Banach Wasserstein GAN (BWGAN) [Adler and Lunz, 2018] has been proposed extending WGAN implemented via a gradient penalty term to any separable complete normed space. In this work we leverage the mentioned WGAN [Gulrajani et al., 2017] improved with a new design of the generator and discriminator architectures.

Image Inpainting.

Most inpainting methods found in the literature can be classified into two groups: model-based approaches and deep learning approaches. In the former, two main groups can be distinguished: local and non-local methods. In local methods, also denoted as geometry-oriented methods, images are modeled as functions with some degree of smoothness.

[Masnou and Morel, 1998, Chan and Shen, 2001, Ballester et al., 2001, Getreuer, 2012, Cao et al., 2011]. These methods show good performance in propagating smooth level lines or gradients, but fail in the presence of texture or for large missing regions. Non-local methods (also called exemplar- or patch-based) exploit the self-similarity prior by directly sampling the desired texture to perform the synthesis [Efros and Leung, 1999, Demanet et al., 2003, Criminisi et al., 2004, Wang, 2008, Kawai et al., 2009, Aujol et al., 2010, Arias et al., 2011, Huang et al., 2014, Fedorov et al., 2016]. They provide impressive results in inpainting textures and repetitive structures even in the case of large holes. However, both type of methods use redundancy of the incomplete input image: smoothness priors in the case of geometry-based and self-similarity principles in the non-local or patch-based ones. Figures 2(b) and (c) illustrate the inpainting results (the inpaining hole is shown in (a)) using a local method (in particular [Getreuer, 2012]) and the non-local method [Fedorov et al., 2015], respectively. As expected, the use of image semantics improve the results, as shown in (d).

Current state-of-the-art is based on deep learning approaches [Yeh et al., 2017, Demir and Ünal, 2018, Pathak et al., 2016, Yang et al., 2017, Yu et al., ]. [Pathak et al., 2016] modifies the original GAN architecture by inputting the image context instead of random noise to predict the missing patch. They proposed an encoder-decoder network using the combination of the loss and the adversarial loss and applied adversarial training to learn features while regressing the missing part of the image. [Yeh et al., 2017] proposes a method for semantic image inpainting, which generates the missing content by conditioning on the available data given a trained generative model. In [Yang et al., 2017], a method is proposed to tackle inpainting of large parts on large images. They adapt multi-scale techniques to generate high-frequency details on top of the reconstructed object to achieve high resolution results. Two recent works [Li et al., 2017, Iizuka et al., 2017] add a discriminator network that considers only the filled region to emphasize the adversarial loss on top of the global GAN discriminator (G-GAN). This additional network, which is called the local discriminator (L-GAN), facilitates exposing the local structural details. Also, [Demir and Ünal, 2018] designs a discriminator that aggregates the local and global information by combining a G-GAN and a Patch-GAN that first shares network layers and later uses split paths with two separate adversarial losses in order to capture both local continuity and holistic features in the inpainted images.

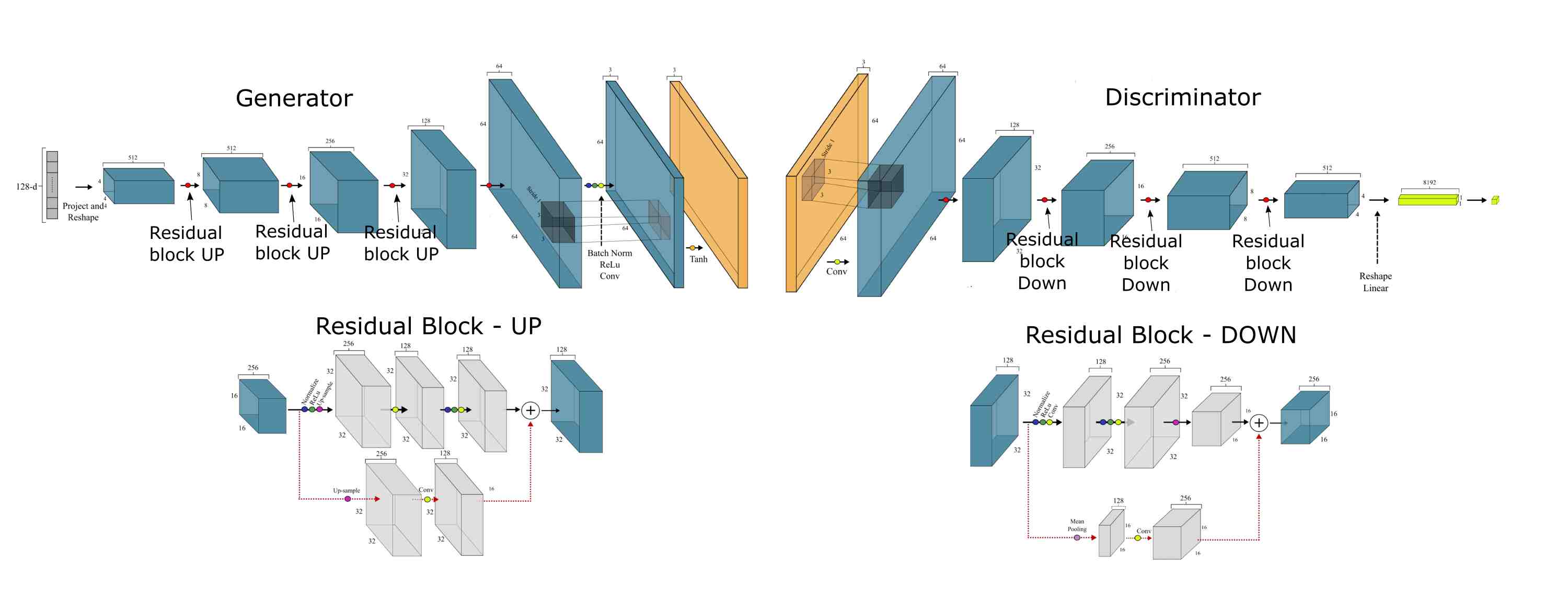

Figure 3: Overview of the architecture of our improved WGAN. Top: generator and discriminator architectures (left and right, respectively). Bottom: corresponding residual block strategies

3 Proposed Method

Our semantic inpainting method is built on two main blocks: First, given a dataset of (non-corrupted) images, we train an improved version of the Wasserstein GAN to implicitly learn a data latent space to subsequently generate new samples from it. Then, given an incomplete image and the previously trained generative model, we perform an iterative minimization procedure to infer the missing content of the incomplete image by conditioning on the known parts of the image. This procedure consists of the search of the closed encoding of the corrupted data in the latent manifold by minimization of a new loss which is made of a combination of contextual, through image values and image gradients, and prior losses.

3.1 Improved Wasserstein Generative Adversarial Network

Our improved WGAN is built on the WGAN by [Gulrajani et al., 2017], on top of which we propose several improvements. As mentioned above, the big counterpart of the generative models is their training instability which is very sensible not only to the architecture but also to the training procedure. In order to improve the stability of the network we propose several changes in its architecture. In the following we explain them in detail:

  • First, network depth is of crucial importance in neural network architectures; using deeper networks more complex, non-linear functions can be learned, but deeper networks are more difficult to train. In contrast to the usual model architectures of GANs, we have introduced in both the generator and discriminator the residual learning framework which eases the training of these networks, and enables them to be substantially deeper and stable. The degradation problem occurs when as the network depth increases, the accuracy saturates (which might be unsurprising) and then degrades rapidly. Unexpectedly, such degradation is not caused by overfitting, and adding more layers to a suitably deep model leads to higher training errors

    [He et al., 2016]. For that reason we have introduced residual blocks in our model. Instead of hoping each sequence of layers to directly fit a desired mapping, we explicitly let these layers fit a residual mapping. Therefore, the input of the residual block is recast into at the output. At the bottom of Figure 3, the layers that make up a residual block in our model are displayed.

  • Second, to eliminate fully connected layers on top of convolutional features is a widely used approach. Instead of using fully connected layers we directly connect the highest convolutional features to the input and the output, respectively, of the generator and discriminator. The first layer of our GAN generator, which takes as input a sample

    of a normalized Gaussian distribution, could be called fully connected as it is just a matrix multiplication, but the result is reshaped into a four by four 512-dimensional tensor and used as the start of the convolution stack. In the case of the discriminator, the last convolution layer is flattened into a single scalar. Figure

    3 displays a visualization of the architecture of the generator (top left) and of the discriminator (top right).

  • Third, most previous GAN implementations use batch normalization in both the generator and the discriminator to help stabilize training. However, batch normalization changes the form of the discriminator’s problem from mapping a single input to a single output to mapping from an entire batch of inputs to a batch of outputs [Salimans et al., 2016]. Since we penalize the norm of the gradient of the critic (or discriminator) with respect to each input independently, and not the entire batch, we omit batch normalization in the critic. To not introduce correlation between samples, we use layer normalization [Ba et al., 2016] as a drop-in replacement for batch normalization in the critic.

  • Finally, the ReLU activation is used in the generator with the exception of the output layer which uses the Tanh function. Within the discriminator we also use ReLu activation. This is in contrast to the DCGAN, which makes use of the LeakyReLu.

3.2 Semantic Image Completion

Once we have trained our generative model until the data latent space has been properly estimated from uncorrupted data, we perform semantic image completion. After training the generator and the discriminator (or critic) ,

is able to take a random vector

drawn from and generate an image mimicking samples from . The intuitive idea is that if is efficient in its representation, then, an image that does not come from , such as a corrupted image, should not lie on the learned encoding manifold of . Therefore, our aim is to recover the encoding that is closest to the corrupted image while being constrained to the manifold. Then, when is found, we can restore the damaged areas of the image by using our trained generative model on .

We formulate the process of finding as an optimization problem. Let be a damaged image and a binary mask of the same spatial size as the image, where the white pixels () determine the uncorrupted areas of . Figure 5(c) shows two different masks corresponding to different corrupted regions (the black pixels): A central square on the left and three rectangular areas on the right. We define the closest encoding as the optimum of following optimization problem with the new loss:

(4)

where , and are contextual losses constraining the generated image by the input corrupted image on the regions with available data given by , and denotes the prior loss. In particular, the contextual loss constrains the image values and the gradient loss is designed to constraint the image gradients. More precisely, the contextual loss is defined as the norm between the generated samples and the uncorrupted parts of the input image weighted in such a way that the optimization loss pays more attention to the pixels that are close to the corrupted area when searching for the optimum encoding . To do so, for each uncorrupted pixel in the image domain, we define its weight as

(5)

where denotes a local neighborhood or window centered at , and denotes its cardinality, i.e., the area (or number of pixels) of . This weighting term was also used by [Yeh et al., 2017]. In order to provide a comparison with them, we use the same window size of 7x7 in all the experiments. Finally, we define the contextual loss as

(6)

Our gradient loss represents also a contextual term and it is defined as the -norm of the difference between the gradient of the uncorrupted portion and the gradient of the recovered image, that is,

(7)

where denotes the gradient operator. The idea behind the proposed gradient loss is to constrain the structure of the generated image given the structure of the input corrupted image. The benefits are specially noticeable for a sharp and detailed inpainting of large missing regions which typically contain some kind of structure (e.g. nose, mouth, eyes, texture, etc, in the case of faces). In contrast, the contextual loss gives the same importance to the homogeneous zones and structured zones and it is in the latter where the differences are more important and easily appreciated. In practice, the image gradient computation is approximated by central finite differences. In the boundary of the inpainting hole, we use either forward or backward differences depending on whether the non-corrupted information is available.

Finally, the prior loss is defined such as it favours realistic images, similar to the samples that are used to train our generative model, that is,

(8)

where is the output of the discriminator with parameters given the image generated by the generator with parameters and input vector . In other words, the prior loss is defined as our second WGAN loss term in (3) penalizing unrealistic images. Without the mapping from to may converge to a perceptually implausible result. Therefore is updated to fool the discriminator and make the corresponding generated image more realistic.


(a) (b) (c) (d)

Figure 4: (b) and (d) show the results obtained after applying Poisson editing (equation (9) in the text) to the inpainting results shown in (a) and (c), respectively.

The parameters , and in equation (4) allow to balance among the three losses. The selected parameters are , and but for the sake of a thorough analysis we present in Tables 1 and 2 an ablation study of our contributions. With the defined contextual, gradient and prior losses, the corrupted image can be mapped to the closest in the latent representation space, denoted by .

is randomly initialized with Gaussian noise of zero mean and unit standard deviation and updated using back-propagation on the total loss given in the equation (

4). Once is generated, the inpainting result can be obtained by overlaying the uncorrupted pixels of the original damaged image to the generated image. Even so, the reconstructed pixels may not exactly preserve the same intensities of the surrounding pixels although the content and structure is correctly well aligned. To solve this problem, a Poisson editing step [Pérez et al., 2003] is added at the end of the pipeline in order to reserve the gradients of without mismatching intensities of the input image . Thus, the final reconstructed image is equal to:

(9)

Figure 4 shows an example where visible seams are appreciated in (a) and (c), but less in (b) and (d) after applying (9).

(a)
(b)
(c)
Figure 5: (a) Samples from CelebA training dataset. (b) Samples from SVHN training dataset. (c) Two masks used in our experiments corresponding to different corrupted regions (the black pixels): A central square on the left and three rectangular areas on the right.

4 Experimental Results

In this section we evaluate the proposed method both qualitatively and quantitatively by using different evaluation metrics. We compare our results with the results obtained by

[Yeh et al., 2017] as both algorithms use first a GAN procedure to learn semantic information from a dataset and, second, combine it with an optimization loss for inpainting in order to infer the missing content. In order to perform an ablation study of all our contributions, we present the results obtained not only by using the original algorithm by [Yeh et al., 2017] but also the results obtained by adding our new gradient-based term to their original inpainting loss, and varying the trade-off between the different loss terms (weights ).

In the training step of our algorithm, we use the proposed architecture (see Section 3.1

) where the generative model takes a random vector, of dimension 128, drawn from a normal distribution. In contrast,

[Yeh et al., 2017]

uses the DCGAN architecture where the generative model takes a random 100 dimensional vector following a uniform distribution between

. For all the experiments we use: A fixed number of iterations equal to 50000, batch size equal to 64, learning rate equal to 0.0001 and exponential decay rate for the first and second moment estimates in the Adam update technique,

and , respectively. To increase the amount of training data we also performed data augmentation by randomly applying a horizontal flipping on the training set. Training the generative model required three days using an NVIDIA TITAN X GPU.

In the inpainting step, the window size used to compute in (5) is fixed to 7x7 pixels. In our algorithm, we use back-propagation to compute in the latent space. We make use of an Adam optimizer and restrict to

in each iteration, which we found it produces more stable results. In that stage we used the Adam hyperparameters learning rate,

, equal to 0.03 and the exponential decay rate for the first and second moment estimates, and , respectively. After initializing with a random 128 dimensional vector drawn from a normal distribution, we perform 1000 iterations.

Figure 6: Some images generated by our generative model using the CelebA and the SVHN dataset as training set, respectively. The CelebA dataset contains around 200k training images which are aligned and preprocessed to reduce the diversity between samples. The SVHN dataset contains 73.257 training images. In this case, no pre-processing to reduce the diversity between samples has been applied. Notice that both datasets have been down-sampled to 64x64 pixel size before training.

The assessment is given on two different datasets in order to check the robustness of our method: the CelebFaces Attributes Datases [Liu et al., 2015] and the Street View House Numbers (SVHN) [Netzer et al., 2011]. CelebA dataset contains a total of 202.599 celebrity images covering large pose variations and background clutter. We split them into two groups: 201,599 for training and 1,000 for testing. In contrast, SVHN contains only 73,257 training images and 26,032 testing images. SVHN images are not aligned and have different shapes, sizes and backgrounds. The images of both datasets have been cropped with the provided bounding boxes and resized to only 64x64 pixel size. Figure 5(a)-(b) displays some samples from these datasets.

Let us remark that we have trained the proposed improved WGAN by using directly the images from the datasets without any mask application. Afterwards, our semanting inpainting method is evaluated on both datasets using the inpainting masks illustrated in Figure 5(c). Notice that our algorithm can be applied to any type of inpainting mask.

Original Masked Ours SIMDGM Masked Ours SIMDGM
Figure 7: Inpainting results on the CelebA dataset: Qualitative comparison with the method [Yeh et al., 2017] (fourth and seventh columns, referenced as SIMDGM), using the two masks shown in the second and fifth columns, is also displayed.
Original Masked Ours SIMDGM Masked Ours SIMDGM
Figure 8: Inpainting results on the SVHN dataset: Qualitative comparison with the method [Yeh et al., 2017] (fourth and seventh columns, referenced as SIMDGM), using the two masks shown in the second and fifth columns, is also displayed.

Qualitative Assessment

We separately analyze each step of our algorithm: The training of the generative model and the minimization procedure to infer the missing content. Since the inpainting optimum of the latter strongly depends on what the generative model is able to produce, a good estimation of the data latent space is crucial for our task. Figure 6

shows some images generated by our generative model trained with the CelebA and SVHN, respectively. Notice that the CelebA dataset is better estimated due to the fact that the number of images as well as the diversity of the dataset directly affects the prediction of the latent space and the estimated underlying probability density function (pdf). In contrast, as bigger the variability of the dataset, more spread is the pdf which difficult its estimation.

To evaluate our inpainting method we compare it with the semantic inpainting method of [Yeh et al., 2017]. Some qualitative results are displayed in Figures 7 and 8. Focusing on the CelebA results (Figure 7), obviously [Yeh et al., 2017] performs much better than local and non-local methods (Figure 2) since it also makes use of generative models. However, although that method is able to recover the semantic information of the image and infer the content of the missing areas, in some cases it keeps producing results with lack of structure and detail which can be caused either by the generative model or by the procedure to search the closest encoding in the latent space. We will further analyze it in the next section within the ablation study of our contributions. Since our method takes into account not only the pixel values but also the structure of the image this kind of problems are solved. In many cases, our results are as realistic as the real images. Notice that challenging examples, such as the fifth image from Figure 7, which image structures are not well defined, are not properly recovered with our method nor with [Yeh et al., 2017]. Some failure examples are shown in Figure 9.

Regarding the results on SVHN dataset (Figure 8), although they are not as realistic as the CelebA ones, the missing content is well recovered even when different numbers may semantically fit the context. As mentioned before, the lack of detail is probably caused by the training stage, due to the large variability of the dataset (and the small number of examples). Despite of this, let us notice that our qualitative results outperform the ones of [Yeh et al., 2017]. This may indicate that our algorithm is more robust in the case of smaller datasets than [Yeh et al., 2017].

Quantitative Analysis and Evaluation Metrics

The goal of semantic inpainting is to fill-in the missing information with realistic content. However, with this purpose, there are many correct possibilities to semantically fill the missing information. In other words, a reconstructed image equal to the ground truth would be only one of the several potential solutions. Thus, in order to quantify the quality of our method in comparison with other methods, we use different evaluation metrics: First, metrics based on a distance with respect to the ground truth and, second, a perceptual quality measure that is acknowledged to agree with similarity perception in the human visual system.

CelebA dataset SVHN dataset
Loss formulation MSE PSNR SSIM MSE PSNR SSIM
[Yeh et al., 2017] 872.8672 18.7213 0.9071 1535.8693 16.2673 0.4925
[Yeh et al., 2017] adding gradient loss with , and 832.9295 18.9247 0.9087 1566.8592 16.1805 0.4775
[Yeh et al., 2017] adding gradient loss with , and 862.9393 18.7710 0.9117 1635.2378 15.9950 0.4931
[Yeh et al., 2017] adding gradient loss with , and 794.3374 19.1308 0.9130 1472.6770 16.4438 0.5041
[Yeh et al., 2017] adding gradient loss with , and 876.9104 18.7013 0.9063 1587.2998 16.1242 0.4818
Our proposed loss with , and 855.3476 18.8094 0.9158 631.0078 20.1305 0.8169
Our proposed loss with , and 785.2562 19.1807 0.9196 743.8718 19.4158 0.8030
Our proposed loss with , and 862.4890 18.7733 0.9135 622.9391 20.1863 0.8005
Our proposed loss with , and 833.9951 18.9192 0.9146 703.8026 19.6563 0.8000
Table 1: Quantitative inpainting results for the central square mask (shown in Fig. 5(c)-left), including an ablation study of our contributions in comparison with [Yeh et al., 2017]. The best results for each dataset are marked in bold and the best results for each method are underlined.
CelebA dataset SVHN dataset
Method MSE PSNR SSIM MSE PSNR SSIM
[Yeh et al., 2017] 622.1092 20.1921 0.9087 1531.4601 16.2797 0.4791
[Yeh et al., 2017] adding gradient loss with , and 584.3051 20.4644 0.9067 1413.7107 16.6272 0.4875
[Yeh et al., 2017] adding gradient loss with , and 600.9579 20.3424 0.9080 1427.5251 16.5850 0.4889
[Yeh et al., 2017] adding gradient loss with , and 580.8126 20.4904 0.9115 1446.3560 16.5281 0.5120
[Yeh et al., 2017] adding gradient loss with , and 563.4620 20.6222 0.9103 1329.8546 16.8928 0.4974
Our proposed loss with , and 424.7942 21.8490 0.9281 168.9121 25.8542 0.8960
Our proposed loss with , and 380.4035 22.3284 0.9314 221.7906 24.6714 0.9018
Our proposed loss with , and 321.3023 23.0617 0.9341 154.5582 26.2399 0.8969
Our proposed loss with , and 411.8664 21.9832 0.9292 171.7974 25.7806 0.8939
Table 2: Quantitative inpainting results for the three squares mask (shown in Fig. 5(c)-right), including an ablation study of our contributions and a complete comparison with [Yeh et al., 2017]. The best results for each dataset are marked in bold and the best results for each method are underlined.

In the first case, considering the real images from the database as the ground truth reference, the most used evaluation metrics are the Peak Signal-to-Noise Ratio (PSNR) and the Mean Square Error (MSE). Notice, that both MSE and PSNR, will choose as best results the ones with pixel values closer to the ground truth. In the second case, in order to evaluate perceived quality, we use the Structural Similarity index (SSIM) [Wang et al., 2004] used to measure the similarity between two images. It is considered to be correlated with the quality perception of the human visual system and is defined as:

(10)

The first term in (10) is the luminance comparison function which measures the closeness of the two images mean luminance ( and ). The second term is the contrast comparison function which measures the closeness of the contrast of the two images, where denote the standard deviations. The third term is the structure comparison function which measures the correlation between and . and are small positive constants avoiding dividing by zero. Finally, denotes the covariance between and . The SSIM is maximal when is equal to one.

Given these metrics we compare our results with the one proposed by [Yeh et al., 2017] as it is the method more similar to ours. Tables 1 and 2 show the numerical performance of our method and [Yeh et al., 2017] using both the right and left inpainting masks shown in Figure 5(c), respectively, named from now on, central square and three squares mask, respectively. To perform an ablation study of all our contributions and a complete comparison with [Yeh et al., 2017], Tables 1 and 2 not only show the results obtained by their original algorithm and our proposed algorithm, but also the results obtained by adding our new gradient-based term to their original inpainting loss. We present the results varying the trade-off effect between the different loss terms.

Original Masked Ours SIMDGM
Figure 9: Some examples of failure cases

Our algorithm always performs better than the semantic inpainting method by [Yeh et al., 2017]. For the case of the CelebA dataset, the average MSE obtained by [Yeh et al., 2017] is equal to 872.8672 and 622.1092, respectively, compared to our results that are equal to 785.2562 and 321.3023, respectively. It is highly reflected in the results obtained using the SVHN dataset, where the original version of [Yeh et al., 2017] obtains an MSE equal to 1535.8693 and 1531.4601, using the central and three squares mask respectively, and our method 622.9391 and 154.5582. On the one side, the proposed WGAN structure is able to create a more realistic latent space and, on the other side, the proposed loss takes into account essential information in order to recover the missing areas.

Regarding the accuracy results obtained with the SSIM measure, we can see that ours results always have a better perceived quality than the ones obtained by [Yeh et al., 2017]. In some cases, the values are close to the double, for example, in the case of using the dataset SVHN.

In general, we can also conclude that our method is more stable in smaller datasets such in the case of SVHN. In our case, decreasing the number of samples in the dataset does not mean to reduce the quality of the inpainted images. Contrary with what is happening in the case of [Yeh et al., 2017]. Finally, in the cases where we add the proposed loss to the algorithm proposed by [Yeh et al., 2017], in most of the cases the MSE, PSNR and SSIM improves. This fact clarifies the big importance of the gradient loss in order to perform semantic inpainting.

5 Conclusions

In this work we propose a new method that takes advantage of generative adversarial networks to perform semantic inpainting in order to recover large missing areas of an image. This is possible thanks to, first, an improved version of the Wasserstein Generative Adversarial Network which is trained to learn the latent data manifold. Our proposal includes a new generator and discriminator architectures having stabilizing properties. Second, we propose a new optimization loss in the context of semantic inpainting which is able to properly infer the missing content by conditioning to the available data on the image, through both the pixel values and the image structure, while taking into account the perceptual realism of the complete image. Our qualitative and quantitative experiments demostrate that the proposed method can infer more meaningful content for incomplete images than local, non-local and semantic inpainting methods. In particular, our method qualitatively and quantitatively outperforms the related semantic inpainting method [Yeh et al., 2017] obtaining images with sharper edges, which looks like more natural and perceptually similar to the ground truth.

Unsupervised learning needs enough training data to learn the distribution of the data and generate realistic images to eventually succeed in semantic inpainting. A huge dabaset with higher resolution images would be needed to apply our method to more complex and diverse world scenes. The presented results are based on low resolution images (64x64 pixel size) and thus the inpainting method is limited to images of that resolution. Also, more complex features needed to represent such complex and diverse world scenes would require a deeper architecture. Future work will follow these guidelines.

Acknowledgements

The authors acknowledge partial support by MINECO/FEDER UE project, reference TIN2015-70410-C2-1 and by H2020-MSCA-RISE-2017 project, reference 777826 NoMADS.

References

  • [Adler and Lunz, 2018] Adler, J. and Lunz, S. (2018). Banach wasserstein gan. arXiv preprint arXiv:1806.06621.
  • [Arias et al., 2011] Arias, P., Facciolo, G., Caselles, V., and Sapiro, G. (2011). A variational framework for exemplar-based image inpainting. IJCV, 93:319–347.
  • [Arjovsky et al., 2017] Arjovsky, M., Chintala, S., and Bottou, L. (2017). Wasserstein gan. arXiv preprint arXiv:1701.07875.
  • [Aujol et al., 2010] Aujol, J.-F., Ladjal, S., and Masnou, S. (2010). Exemplar-based inpainting from a variational point of view. SIAM Journal on Mathematical Analysis, 42(3):1246–1285.
  • [Ba et al., 2016] Ba, J. L., Kiros, J. R., and Hinton, G. E. (2016). Layer normalization. arXiv preprint arXiv:1607.06450.
  • [Ballester et al., 2001] Ballester, C., Bertalmío, M., Caselles, V., Sapiro, G., and Verdera, J. (2001).

    Filling-in by joint interpolation of vector fields and gray levels.

    IEEE Trans. on IP, 10(8):1200–1211.
  • [Burlin et al., 2017] Burlin, C., Le Calonnec, Y., and Duperier, L. (2017). Deep image inpainting.
  • [Cao et al., 2011] Cao, F., Gousseau, Y., Masnou, S., and Pérez, P. (2011). Geometrically guided exemplar-based inpainting. SIAM Journal on Imaging Sciences, 4(4):1143–1179.
  • [Cao, 2017] Cao, Y. e. a. (2017). Unsupervised diverse colorization via generative adversarial networks. In Machine Learning and Knowledge Discovery in Databases. Springer.
  • [Chan et al., 2018] Chan, C., Ginosar, S., Zhou, T., and Efros, A. A. (2018). Everybody dance now. arXiv preprint arXiv:1808.07371.
  • [Chan and Shen, 2001] Chan, T. and Shen, J. H. (2001). Mathematical models for local nontexture inpaintings. SIAM Journal of Applied Mathematics, 62(3):1019–1043.
  • [Criminisi et al., 2004] Criminisi, A., Pérez, P., and Toyama, K. (2004). Region filling and object removal by exemplar-based inpainting. IEEE Trans. on IP, 13(9):1200–1212.
  • [Demanet et al., 2003] Demanet, L., Song, B., and Chan, T. (2003). Image inpainting by correspondence maps: a deterministic approach. Applied and Computational Mathematics, 1100:217–50.
  • [Demir and Ünal, 2018] Demir, U. and Ünal, G. B. (2018). Patch-based image inpainting with generative adversarial networks. CoRR, abs/1803.07422.
  • [Efros and Leung, 1999] Efros, A. A. and Leung, T. K. (1999). Texture synthesis by non-parametric sampling. In ICCV, page 1033.
  • [Fedorov et al., 2016] Fedorov, V., Arias, P., Facciolo, G., and Ballester, C. (2016). Affine invariant self-similarity for exemplar-based inpainting. In

    Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications

    , pages 48–58.
  • [Fedorov et al., 2015] Fedorov, V., Facciolo, G., and Arias, P. (2015). Variational Framework for Non-Local Inpainting. Image Processing On Line, 5:362–386.
  • [Getreuer, 2012] Getreuer, P. (2012). Total Variation Inpainting using Split Bregman. Image Processing On Line, 2:147–157.
  • [Goodfellow et al., 2014] Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B., Warde-Farley, D., Ozair, S., Courville, A., and Bengio, Y. (2014). Generative adversarial nets. In Advances in neural information processing systems, pages 2672–2680.
  • [Gulrajani et al., 2017] Gulrajani, I., Ahmed, F., Arjovsky, M., Dumoulin, V., and Courville, A. C. (2017). Improved training of wasserstein gans. In Advances in Neural Information Processing Systems, pages 5769–5779.
  • [He et al., 2016] He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep residual learning for image recognition. In CVPR.
  • [Huang et al., 2014] Huang, J. B., Kang, S. B., Ahuja, N., and Kopf, J. (2014). Image completion using planar structure guidance. ACM SIGGRAPH 2014, 33(4):129:1–129:10.
  • [Iizuka et al., 2017] Iizuka, S., Simo-Serra, E., and Ishikawa, H. (2017). Globally and locally consistent image completion. ACM Trans. Graph., 36(4):107:1–107:14.
  • [Kawai et al., 2009] Kawai, N., Sato, T., and Yokoya, N. (2009). Image inpainting considering brightness change and spatial locality of textures and its evaluation. In Advances in Image and Video Technology, pages 271–282.
  • [Kingma and Welling, 2013] Kingma, D. P. and Welling, M. (2013). Auto-encoding variational bayes. arXiv preprint arXiv:1312.6114.
  • [Ledig et al., 2016] Ledig, C., Theis, L., Huszár, F., Caballero, J., Cunningham, A., Acosta, A., Aitken, A., Tejani, A., Totz, J., Wang, Z., et al. (2016). Photo-realistic single image super-resolution using a generative adversarial network. arXiv preprint.
  • [Li et al., 2017] Li, Y., Liu, S., Yang, J., and Yang, M.-H. (2017). Generative face completion. In CVPR, volume 1, page 3.
  • [Liu et al., 2017] Liu, M.-Y., Breuel, T., and Kautz, J. (2017). Unsupervised image-to-image translation networks. In Advances in Neural Information Processing Systems, pages 700–708.
  • [Liu et al., 2015] Liu, Z., Luo, P., Wang, X., and Tang, X. (2015). Deep learning face attributes in the wild. In ICCV.
  • [Mao et al., 2017] Mao, X., Li, Q., Xie, H., Lau, R. Y., Wang, Z., and Smolley, S. P. (2017). Least squares generative adversarial networks. In ICCV, pages 2813–2821. IEEE.
  • [Masnou and Morel, 1998] Masnou, S. and Morel, J.-M. (1998). Level lines based disocclusion. In Proc. of IEEE ICIP.
  • [Netzer et al., 2011] Netzer, Y., Wang, T., Coates, A., Bissacco, A., Wu, B., and Ng, A. Y. (2011). Reading digits in natural images with unsupervised feature learning. In NIPS workshop on deep learning and unsupervised feature learning, volume 2011, page 5.
  • [Nguyen et al., 2016] Nguyen, A., Yosinski, J., Bengio, Y., Dosovitskiy, A., and Clune, J. (2016). Plug & play generative networks: Conditional iterative generation of images in latent space. arXiv preprint arXiv:1612.00005.
  • [Pathak et al., 2016] Pathak, D., Krahenbuhl, P., Donahue, J., Darrell, T., and Efros, A. A. (2016). Context encoders: Feature learning by inpainting. In CVPR.
  • [Pérez et al., 2003] Pérez, P., Gangnet, M., and Blake, A. (2003). Poisson image editing. In ACM SIGGRAPH 2003 Papers, SIGGRAPH ’03, pages 313–318, New York, NY, USA. ACM.
  • [Pumarola et al., 2018] Pumarola, A., Agudo, A., Sanfeliu, A., and Moreno-Noguer, F. (2018). Unsupervised Person Image Synthesis in Arbitrary Poses. In CVPR.
  • [Radford et al., 2015] Radford, A., Metz, L., and Chintala, S. (2015). Unsupervised representation learning with deep convolutional generative adversarial networks. CoRR, abs/1511.06434.
  • [Reed et al., 2016] Reed, S., Akata, Z., Yan, X., Logeswaran, L., Schiele, B., and Lee, H. (2016). Generative adversarial text to image synthesis. In Proceedings of The 33rd Intern. Conf. Machine Learning, volume 48 of Proceedings of Machine Learning Research, pages 1060–1069, New York, New York, USA. PMLR.
  • [Salimans et al., 2016] Salimans, T., Goodfellow, I., Zaremba, W., Cheung, V., Radford, A., Chen, X., and Chen, X. (2016). Improved techniques for training gans. In Lee, D. D., Sugiyama, M., Luxburg, U. V., Guyon, I., and Garnett, R., editors, Advances in Neural Information Processing Systems 29, pages 2234–2242. Curran Associates, Inc.
  • [van den Oord et al., 2016] van den Oord, A., Kalchbrenner, N., Espeholt, L., kavukcuoglu, k., Vinyals, O., and Graves, A. (2016). Conditional image generation with pixelcnn decoders. In Advances in Neural Information Processing Systems 29, pages 4790–4798. Curran Associates, Inc.
  • [Wang et al., 2018] Wang, T.-C., Liu, M.-Y., Zhu, J.-Y., Tao, A., Kautz, J., and Catanzaro, B. (2018). High-resolution image synthesis and semantic manipulation with conditional gans. In CVPR, volume 1, page 5.
  • [Wang, 2008] Wang, Z. (2008). Image affine inpainting. In Image Analysis and Recognition, volume 5112 of Lecture Notes in Computer Science, pages 1061–1070.
  • [Wang et al., 2004] Wang, Z., Bovik, A. C., Sheikh, H. R., and Simoncelli, E. P. (2004). Image quality assessment: from error visibility to structural similarity. IEEE Trans. on IP, 13(4):600–612.
  • [Yang et al., 2017] Yang, C., Lu, X., Lin, Z., Shechtman, E., Wang, O., and Li, H. (2017). High-resolution image inpainting using multi-scale neural patch synthesis. In CVPR, volume 1, page 3.
  • [Yeh et al., 2017] Yeh, R. A., Chen, C., Lim, T.-Y., Schwing, A. G., Hasegawa-Johnson, M., and Do, M. N. (2017). Semantic image inpainting with deep generative models. In CVPR, volume 2, page 4.
  • [Yu et al., ] Yu, J., Lin, Z., Yang, J., Shen, X., Lu, X., and Huang, T. S. Generative image inpainting with contextual attention.
  • [Zhu et al., 2017a] Zhu, J.-Y., Park, T., Isola, P., and Efros, A. A. (2017a). Unpaired image-to-image translation using cycle-consistent adversarial networks. arXiv preprint.
  • [Zhu et al., 2017b] Zhu, J.-Y., Park, T., Isola, P., and Efros, A. A. (2017b). Unpaired image-to-image translation using cycle-consistent adversarial networks. In ICCV.
