1 Introduction

Cyber-Physical Systems (CPS) are a combination of physics with cyber components potentially networked and tightly interconnected. The physics components are Plants, Processes, and Systems, while the cyber components are Computation, Software, and Code. These systems are networked and interconnected thanks to interfaces that convert analog to a digital signal and vice-versa. In this way, each physic component has its digital twins that work in symbiosis to perform efficiently, enabling knowledge sharing and fast decision making.

Recently, the 4th Industrial Revolution and the relevance of the CPS inside the manufacturing plan lead to the definition of a niche of CPS applied to smart manufacturing, named Cyber-Physical Production Systems (CPPS).

Due to the heterogeneity of integrated components, the interoperability inside the CPPS begins a crucial requirement. It enables the system to reach and exploit data produced by other systems, and so on. However, a system of systems built with interoperability in mind would be difficult to manage in the long run and will slow the business processes over time. In other words, it becomes an obstacle to shareable knowledge opportunities for the systems and the stakeholders of the business.

Since a continuous flow of time-sensitive information is necessary for the plant activities, another relevant requirement of the CPPs is the ability to manage streams of data points. These data points are characterized by a time dimension that certifies the state of the producing source in a specific time window. It follows that procedures and analytics should be time-aware in terms of the processed stream. They should produce reports that resume the state in a time window.

In this paper, we propose a semantic component for the Cognition level of the usual 5C architecture (see Section 4.1). The semantic component is used to model the entire business, from the production floor to the management level. Each system models specific data points leveraging internal and external knowledge (i.e., produced by other systems). The idea is using the SOSA ontology to represent the different levels of the business to enable reasoning and unlock actionable knowledge of heterogeneous information sources Vermesan et al. (2014). The use of ontologies constitutes a powerful solution to capture and to share collective knowledge between stakeholders Liandong and Qifeng (2009)Hoppe et al. (2017). Furthermore, by applying a stream reasoning (i.e., C-SPARQL222http://streamreasoning.org/resources/c-sparql), we enable a mechanism of continuous queries in order to retrieve specific knowledge inside the time windows.

The remaining of the document is structured as follows. The next section discusses related works that apply semantic models to CPPS. Section 3 describes the available semantic technologies, while Section 4 details our approach. A sample scenario is presented in Section 5 that proves the usefulness of the proposed component applied to the manufacturing domain. Finally, Section 6 ends the paper.

2 Related Works

This work proposes a 5C architecture adopting Semantic Web technologies and standards for unlocking the knowledge usually isolated in silos built and managed by different systems, for instance, like MES (Manufacturing Execution System), ERP (Enterprise Resource Planning), and so forth. The example scenario (see Section 5) focuses on the provisioning of useful KPIs to monitor the Overall Equipment Effectiveness using semantic data stream collected in a smart manufacturing environment.

Several systems integrating Semantic Web with Web of Things there exist. Some of them are focused on the modeling of CPS’ capabilities with Semantic Web technologies Kumar et al. (2019); Willner et al. (2017); Larsen et al. (2016), and some others use them to approach CPS’ security aspects Bou-Harb et al. (2017); Hatzivasilis et al. (2017).

A research work most related to ours is Ansari et al. (2019), it introduces a model called PriMa that uses a semantic layer to learn and reason about data that comes from stations and sensors of the CPPS and to produce feedback to a Decision Support Dashboard used by the maintenance manager. Shcherbakov et al. Shcherbakov et al. (2020) exploit the real-time requirements by describing a concept model for a proactive decision support system design specifically for the maintenance of CPS to optimize downtime.

Different from state of the art, our approach proposes a model aiming to support integration at different levels and for different purposes in the CPS context. As also demonstrated by the application scenario, we construct a knowledge base shareable by systems and subsystems.

3 Semantic Technologies for Web of Things

In this section, the description focuses on the identification of semantic technologies for the web of things that are naturally applicable to the smart manufacturing and Industry 4.0.

Devices should be able to describe themselves and the data that they yield in a way that is understandable from both machines and humans. This may be done by equipping the devices and data with Semantic Web standards (or standard de-facto), ontological models, enabling to converge in the meaning of various concepts that describe data and devices, and fully interoperability among them. The formalization of the knowledge graph takes place through the construction of ontologies that allow us to share common meanings applied to a domain of interest and describe concepts semantically, in our case, IoT devices in the industrial field.

Semantic technologies substantially lie on the use of meta-models as: Resource Description Framework (RDF)333https://www.w3.org/RDF/, Resource Description Framework Schema (RDFS)444https://www.w3.org/TR/2000/CR-rdf-schema-20000327/, Web Ontology Language (OWL)555https://www.w3.org/OWL/. Defined by the World Wide Web Consortium (W3C), they allow to construct ontologies and populate them.

Populated ontologies can then be queried by the RDF query language Simple Protocol and RDF Query Language (SPARQL)666https://www.w3.org/TR/rdf-sparql-query/.

During the design and modeling of an ontology for the IoT domain, it is necessary to know relevant aspects about devices such as the function to be performed, the environment in which they operate, the role and privileges within the operating context. Furthermore, it is relevant to reuse existing solutions and, eventually, extend them. In 2009, a W3C’s research selected and reviewed 17 existing ontologies related to the IoT domain. As a result, the consortium creates the Semantic Sensor Network (SSN)777https://www.w3.org/TR/vocab-ssn/ ontology Compton et al. (2012).

The following sections will describe SSN and its evolution to model IoT streams and sensor data.

3.1 Semantic Sensor Network Ontology

The Semantic Sensor Networks (SSN)888https://www.w3.org/2005/Incubator/ssn/ssnx/ssn ontology is an OWL ontology that aims to describe the capacities and properties of the sensors, the act of detection, and the following observations. It was introduced by the W3C Semantic Sensor Networks Incubator group (the SSN-XG) held from March 2009 to September 2010.

As a choice of the working group, the ontology contains only the relevant concepts and relationships for the sensors, leaving the concepts related to other domains to be imported from other ontologies, where necessary. It can describe the sensors, their accuracy, observations, and the methods used for detection. The SSN ontology can be viewed from four main perspectives:

The sensor perspective, with a focus on what to capture and how;

Data or observation perspective, with a focus on observations and related metadata;

The system perspective, with a focus on sensor systems and deployment;

The perspective of features and properties, which focuses on what property to detect, or what observations have been made about a particular property.

3.2 Sensor-Observation-Sampling-Actuator Ontology

During the standardization of the Semantic Sensor Network by the W3C and OGC working groups, Spatial Data had the task of revisioning the SSN by using the experiences obtained during the development of the prior version. Due to scope and audience changes, and to overcome the lack of interoperability with other ontologies, SSN was rewritten entirely by using a modular design that enables horizontal and vertical segmentation.

The new SSN, published as W3C Recommendation and OGC Standard, is the SOSA framework999https://www.w3.org/2015/spatial/wiki/SOSA_Ontology. This framework is composed of main concepts that enable interoperability with the entities, relationships, and activities involved in sensing, sampling, and actuation. Another relevant aspect of the SOSA ontology is the event-centric approach that enables interoperability with Schema.org and Prov-O models and, most importantly, with standard business processes procedures.

The sensor represents an entity that reacts to changes in the environment (e.g., black-out of a production line, temperature changes in a department). This detection produces the value of a property thanks to the (observation) procedure that was observing the specific property. Subsequent action performed due to the generated value is triggered thanks to an actuator. The last primary entity is the platform that hosts sensors and actuators.

4 Our Approach

A usual smart manufacturing environment is highly automated and networked. Each station is strictly interlinked with a digital twin to collaborate for performing reliably and being aware of the context in which they are placed. In this section, it will be provided a brief description of the 5C architecture that represents the fundamentals stone on which our approach (discussed in the next section) has been developed.

4.1 5C Architecture

In the area of Industrial Internet, 5C architecture provides a step-by-step guide for developing and deploying a CPS Li et al. (2017). The Industrial Internet, viewed as the application of CPS Drath and Horch (2014), is composed of five layers: smart connection level, data-to-information conversion level, cyber level, cognition level, and configuration level (see Figure 1).

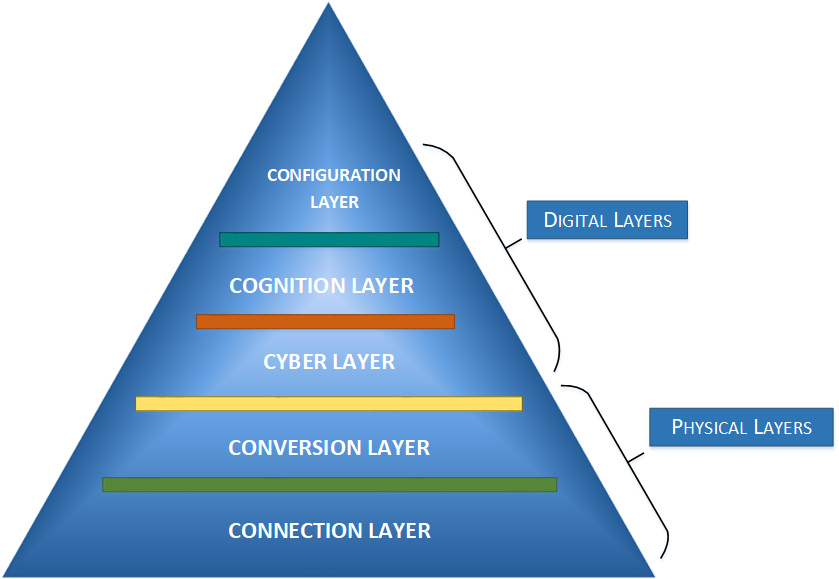

Figure 1: 5C architecture of a Cyber-Physical System.

The Connection layer has the goal of managing data acquisition from the sensors and controllers based on heterogeneous hardware and software platforms. This complex task can be achieved thanks to the use of the protocols capable of handling different hardware and software.

The Conversion layer uses the previous layer’s output and transforms data into information thanks to the support of external data sources. This component is crucial to realize self-aware physical components.

The Cyber layer is the information hub for data processing. It groups the output of the previous layer represented by individual information to support decision making done on the upper layer. It analyzes and compares the current performance of the group of stations and predicts future performances.

The Cognition layer collects and integrates machinery information to provide knowledge of the whole production. In this layer, big data analytic pipelines and knowledge representation are predominant and helps the upper layer (the Configuration one) in managing the entire system and in providing relevant KPI related to the environment.

Then the last layer (i.e., Configuration) supports the managers and shows the decision taken by the Cognition layer with respect to the production floor. It acts as a smart control system to provide self-configuration and self-adaptiveness.

4.2 Semantic Approach and Cognition Layer

Micro, small, medium, and large systems have to be conceptualized with interoperability in mind: the entire ecosystem has to be able to reach data produced by other systems, and so on. This work emphasizes the need for a highly interoperable component enabling integration among different systems in the industrial asset, like Enterprise Resource Planning (ERP) and Manufacturing Execution System (MES).

The solution proposes the adoption of semantic technologies inside the Cognitive Layer of 5C architecture. The idea is to use the SOSA Ontology to model both static RDF data that represents the described companies’ assets and streaming part that is the on-line information that crosses the shop floor. Using the SOSA Ontology allows us to: (1) exploiting an ontology that already models fundamental concepts about sensors, samplings, procedures, and so on. (2) Reusing existing ontology models. One of the main benefits of this abstraction is the integration of, for instance, ERP and MES data allowing to support decision-making processes.

Through SOSA’s classes and properties, we represent the entire environment and annotate raw data that came from the Cyber Layer. Then, by adopting a reasoner, it is also possible to infer new facts based on the forwarded rules. In that way, the component creates knowledge that is the sum of facts, forward rules, backward rules, and goals. Annotated data are stored in a triplestore (e.g., RDF4J101010https://rdf4j.org/, AllegroGraph111111https://franz.com/agraph/allegrograph/, and so on.), offering a SPARQL endpoint for submitting queries. Such knowledge, inside the Configuration Layer, supports managers in supervising the business processes.

Sensors produce a rapidly evolving huge amount of data whose annotated version grows in turn. So, the semantic component must develop reliable production status in an online and proactive manner. To satisfy this requirement, the semantic component leverages C-SPARQL to do continuous queries over sensors’ streams. By designing suitable queries, the component can support managers’ decisions giving them focused knowledge for each specific time-frame.

5 Sample Scenario: Overall Equipment Effectiveness

This section aims to describe an application scenario in which the defined semantic component could result useful. The objective is to support managers by generating up-to-date KPIs related to the production line showed in Figure 2.

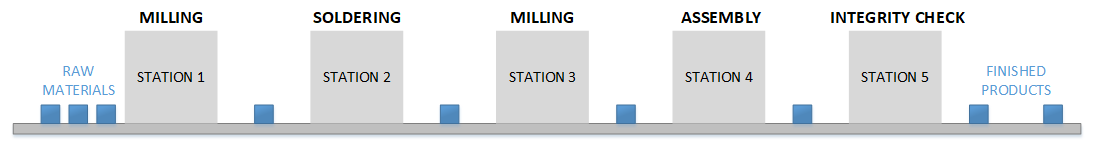

Figure 2: Basic production line with five stations.

The semantic component intends to provide a fast and accurate Synthetic Production Rate that measures the efficiency of a facility. In particular, we will define the C-SPARQL queries able to evaluate: Availability, Efficiency of Performance, and Product Quality Rate of the factory. The starting point is the subset of SOSA ontology entities shown in Fig. 3 that presents a basic model related to a production plan. Blue boxes indicate SOSA classes, and white boxes indicate class instances, while solid lines represent RDF:type relations, and dashed lines, properties between entities.

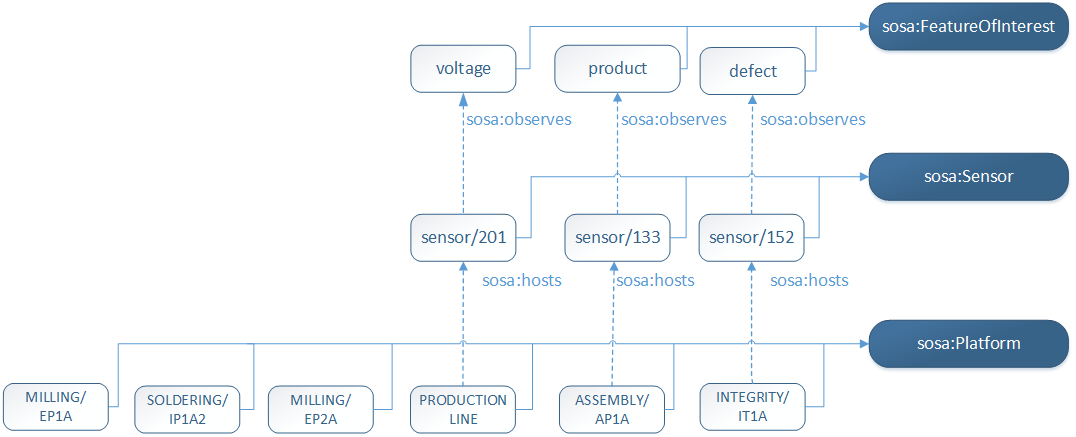

Figure 3: Basic production line modeled with SOSA ontology.

In particular, Fig. 3 shows the five stations that are instances of the SOSA class Platform, with an additional Platform instance for the production line. These platforms host sensors observing features of interest. Following we will discuss some sampling C-SPARQL queries related to this ontology schema.

5.1 Availability

Availability is one of the three OEE factors, and its score takes into consideration any event (planned and unplanned) that stops the production. Planned stops refer to changes over time, while unplanned stops refer to equipment failures and material shortage. A lower availability score indicates problems or faults during the production; it leads to higher cycle-time that can influence the ability to satisfy demand. It is computed by recording the planned and unplanned stops. In particular, it is defined by Equation 1, where represents the full-time window (e.g., one day) while is the sum of the planned and unplanned stops.

(1)

In the following code blocks, two streams that register and compute the and values, respectively, are defined.

REGISTER STREAM DownTime COMPUTED EVERY 24h AS
  PREFIX sosa: <http://www.w3.org/ns/sosa/>
  SELECT ?downTime
  FROM STREAM <http://../production> [RANGE 24h STEP 1m]
  WHERE {?sensor sosa:observes ?voltage.
         ?voltage rdf:type sosa:FeatureOfInterest.
         ?productionLine sosa:hosts ?sensor}
  AGGREGATE {(?downTime, COUNT, {?voltage})
    FILTER (?voltage < 5 && ?productionLine = <http://.../ProductionLine>)}
Listing 1: DownTime evaluation stream
REGISTER STREAM Availability COMPUTED EVERY 24h AS
  PREFIX sosa: <http://www.w3.org/ns/sosa/>
  SELECT (1440-?downTime)/1440 AS ?availability
  FROM STREAM <http://../DownTime> [RANGE 24h STEP 1m]
Listing 2: Availability evaluation stream

In Listing 1, we read voltage value from the specific sensor. We assume if such value is less then , the production line is down. So, the query counts the ”down” triples and returns the total value. Successively, as expressed in Listing 2, assuming that the is (i.e., ), the query returns the resulting availability.

5.2 Efficiency Of Performance

The Efficiency of Performance (or simply performance) is a KPI that indicates how fast the process is running. It takes into consideration the ideal cycle time, the total production, and the operating time and is calculated as expressed in Equation 2.

(2)

The is specific for each production. It indicates the type of process, task sequence, technological dependencies, and duration of each task. The regards the number of final products for the production line while the is the inverse of the defined previously.

The evaluation of this KPI needs two different queries. The first one (see Listing 3) computes by counting products passing through the assembly sensor. The second one evaluates the by exploiting both and determined previously. For simplicity, the is supposed to be a constant (i.e., minutes). The corresponding query is described in Listing 4.

REGISTER STREAM TotalProduction COMPUTED EVERY 24h AS
  PREFIX sosa: <http://www.w3.org/ns/sosa/>
  SELECT ?total
  FROM STREAM <http://../production> [RANGE 24h STEP 1m]
  WHERE {
         ?assemblySensor sosa:observes ?product.
         ?product rdf:type sosa:FeatureOfInterest.
         ?platform sosa:hosts ?assemblySensor
         }
  AGGREGATE {(?total, COUNT, {?product})
    FILTER (?platform = <http://.../ASSEMBLY/AP1A>)}
Listing 3: TotalProduction evaluation stream
REGISTER STREAM Performance COMPUTED EVERY 24h AS
  PREFIX sosa: <http://www.w3.org/ns/sosa/>
  SELECT (25 * ?total)/(1440-?downTime) AS ?performance
  FROM STREAM <http://../TotalProduction> [RANGE 24h STEP 1m]
  FROM STREAM <http://../DownTime> [RANGE 24h STEP 1m]
Listing 4: Performance evaluation stream

5.3 Product Quality Rate

The quality score indicates how many products (or components) have been produced without flaws, and it is computed by Equation 3. The is the same as the previous equation, while the is the number of defective pieces.

(3)

In this case, as expressed in Listing 5, it is necessary to read the value from the previously generated stream (i.e., ”TotalProduction”) and count the number of defective products passing through the integrity sensor.

REGISTER STREAM Quality COMPUTED EVERY 24h AS
  PREFIX sosa: <http://www.w3.org/ns/sosa/>
  SELECT ((?total - ?defectTotal)/?total) AS ?quality
  FROM STREAM <http://../TotalProduction> [RANGE 24h STEP 1m]
  FROM STREAM <http://../production> [RANGE 24h STEP 1m]
  WHERE {
         ?integritySensor sosa:observes ?defect.
         ?defect rdf:type sosa:FeatureOfInterest.
         ?platform sosa:hosts ?integritySensor
         }
  AGGREGATE {(?defectTotal, COUNT, {?defect})
        FILTER (?platform = <http://.../INTEGRITY/IT1A>)}
Listing 5: Quality evaluation stream

5.4 Overall Equipment Effectiveness (OEE)

The Overall Equipment Effectiveness (OEE) resumes the overall production state by considering the three evaluated factors: Availability, Performance, and Quality, through Equation 4. A 100% score indicates that the plant is manufacturing perfect parts and in the fastest way possible without stops. To compute the final OEE value, it is necessary to read from the three streams and compute the product of the values in the specific time-window (see Listing 6).

(4)
REGISTER QUERY OEE COMPUTED EVERY 24h AS
    SELECT (?availability * ?performance * ?quality) AS ?oee
    FROM STREAM <http://../Availability> [RANGE 24h STEP 1m]
    FROM STREAM <http://../Performance> [RANGE 24h STEP 1m]
    FROM STREAM <http://../Quality> [RANGE 24h STEP 1m]
Listing 6: OEE evaluation query

6 Conclusion

CPPS enables high efficiency and dynamics that are transversal through the manufacturing plants and the business units of a firm. To unlock this potentiality is required higher interoperability that sometimes can occur in a complex system in resource and maintenance needs. By taking into consideration these issues, this work proposes a semantic-based approach. We demonstrate how a semantic component could be beneficial to CPPS by providing interoperability and shareable knowledge. In particular, an analysis of the key industrial ontologies and semantic technologies is provided, and a common scenario is analyzed to show how powerful can be the proposed solution. Examples of queries relative to OEE show how effective is the use of a semantic component inside the Cognitive layer. In fact, the model supports the business and manufacturing processes and improves awareness about the overall manufacturing plant. In conclusion, the semantic component has resulted useful for:

  • Internal interoperability: integration between the static knowledge represented by the industrial assets and the dynamic knowledge produced by the IoT sensors;

  • External interoperability: integration between multiple business and industrial assets;

  • Time-sensitive KPIs: computation of relevant and on-time KPIs useful during the decision-making process.
