Self-supervised Sparse-to-Dense: Self-supervised Depth Completion from LiDAR and Monocular Camera

07/01/2018
by   Fangchang Ma, et al.
MIT
0

Depth completion, the technique of estimating a dense depth image from sparse depth measurements, has a variety of applications in robotics and autonomous driving. However, depth completion faces 3 main challenges: the irregularly spaced pattern in the sparse depth input, the difficulty in handling multiple sensor modalities (when color images are available), as well as the lack of dense, pixel-level ground truth depth labels. In this work, we address all these challenges. Specifically, we develop a deep regression model to learn a direct mapping from sparse depth (and color images) to dense depth. We also propose a self-supervised training framework that requires only sequences of color and sparse depth images, without the need for dense depth labels. Our experiments demonstrate that our network, when trained with semi-dense annotations, attains state-of-the- art accuracy and is the winning approach on the KITTI depth completion benchmark at the time of submission. Furthermore, the self-supervised framework outperforms a number of existing solutions trained with semi- dense annotations.

READ FULL TEXT VIEW PDF

page 2

page 7

page 8

11/10/2020

SelfDeco: Self-Supervised Monocular Depth Completion in Challenging Indoor Environments

We present a novel algorithm for self-supervised monocular depth complet...
08/03/2020

Project to Adapt: Domain Adaptation for Depth Completion from Noisy and Sparse Sensor Data

Depth completion aims to predict a dense depth map from a sparse depth i...
08/12/2020

Balanced Depth Completion between Dense Depth Inference and Sparse Range Measurements via KISS-GP

Estimating a dense and accurate depth map is the key requirement for aut...
02/19/2021

SLPC: a VRNN-based approach for stochastic lidar prediction and completion in autonomous driving

Predicting future 3D LiDAR pointclouds is a challenging task that is use...
12/21/2019

Depth Completion via Deep Basis Fitting

In this paper we consider the task of image-guided depth completion wher...
10/07/2021

Estimating Image Depth in the Comics Domain

Estimating the depth of comics images is challenging as such images a) a...
06/06/2021

An Adaptive Framework for Learning Unsupervised Depth Completion

We present a method to infer a dense depth map from a color image and as...

1 Introduction

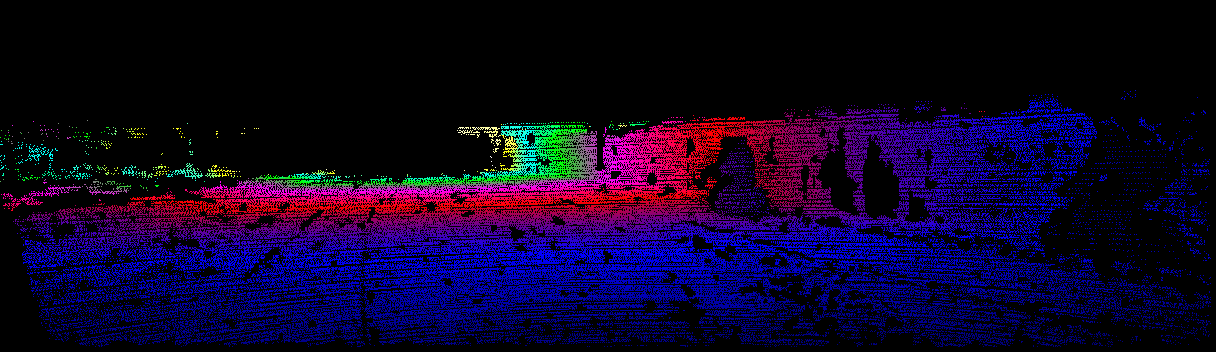

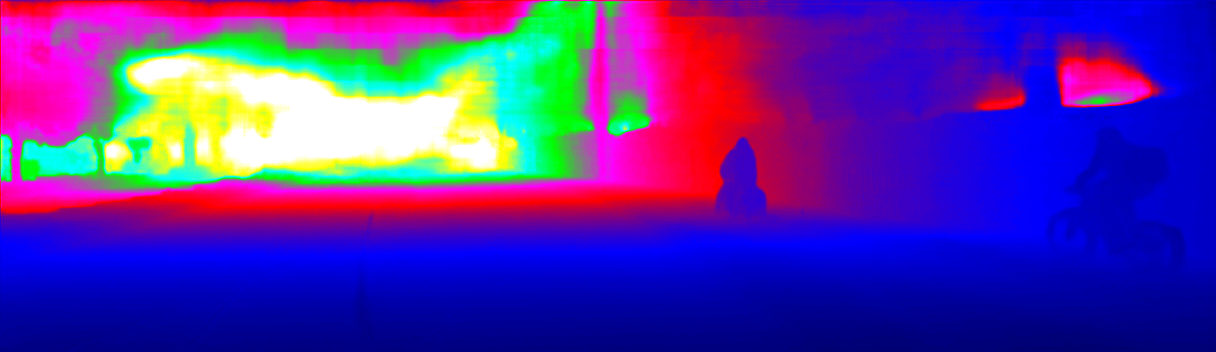

(a) raw scans (b) RGB (c) semi-dense annotation (d) dense prediction as depth image (e) dense prediction as point cloud
Figure 1: We develop a deep regressional network for depth completion: given (a) sparse scans, and possibly (b) a color image, estimate (d) a dense depth image. Semi-dense depth labels, illustrated in (d) and (e), are generally hard to acquire, so we develop a highly-scalable, self-supervised framework for training such networks. Best viewed in color.

Depth sensing is fundamental in a variety of robotic tasks, including obstacle avoidance, 3D mapping [1, 2], and localization [3]. , given its high accuracy and long sensing range, has been integrated into a large number of robots and autonomous vehicles. However, existing 3D have a limited number of horizontal scan lines, and thus provide only sparse measurements, especially for distant objects (, the 64-line Velodyne scan in fig:RGBd (a)). Furthermore, increasing the density of 3D measurements is cost prohibitive222Currently, the 16- and 64-line Velodyne cost around $4k and $75k, respectively. Consequently, estimating dense depth from sparse measurements (, depth completion) is valuable for both academic research and large-scale industrial deployment.

Depth completion from measurements is challenging for several reasons. Firstly, the measurements are highly sparse and also irregularly spaced in the image space. Secondly, it is a non-trivial task to improve prediction accuracy using the corresponding color image, if available, since depth and color are different sensor modalities. Thirdly, dense ground truth depth is generally not available, and obtaining pixel-level annotations can be both labor-intensive and non-scalable.

In this work, we address all these challenges with two contributions: (1) We develop a network architecture that is able to learn a direct mapping from the sparse depth (and color images, if available) to dense depth. This architecture achieves state-of-the-art accuracy on the KITTI Depth Completion Benchmark [4] and is currently the leading method. (2) We propose a self-supervised framework for training depth completion networks. Our framework assumes a simple sensor setup with a sparse 3D and a monocular color camera. The self-supervised framework trains a network without the need for dense labels, and outperforms some existing methods that are trained with semi-dense annotations. Our software333https://github.com/fangchangma/self-supervised-depth-completion and demonstration video444https://youtu.be/bGXfvF261pc will be made publicly available.

2 Related Work

Depth completion.

Depth completion is an umbrella term that covers a collection of related problems with a variety of different input modalities (, relatively dense depth input [5, 6, 7] vs. sparse depth measurements [8, 9]; with color images for guidance [6, 10] vs. without [4]). The problems and solutions are usually sensor-dependent, and as a result they face vastly different levels of algorithmic challenges.

For instance, depth completion for structured light sensor (, Microsoft Kinect) [11] is sometimes also referred to as depth inpainting [12], or depth enhancement [5, 6, 7] when noise is taken into account. The task is to fill in small missing holes in the relatively dense depth images. This problem is relatively easy, since most pixels (typically over 80%) are observed. Consequently, even simple filtering-based methods [5] can provide good results. As a side note, the inpainting problem also finds close connection to depth denoising [13] and

depth super-resolution

 [14, 15, 16, 17, 18, 19].

However, the completion problem becomes much more challenging when the input depth image has much lower density, because the inverse problem is ill-posed. For instance, Ma et al. [8, 9] addressed depth reconstruction from only hundreds of depth measurements, by assuming a strong a priori of piecewise linearity in depth signals. Another example is autonomous driving with 3D , where the projected depth measurements on the camera image space account for roughly 4% pixels [4]. This problem has attracted a significant amount of recent interest. Specifically, Ma and Karaman [10] proposed an end-to-end deep regression model for depth completion. Ku et al. [20]

developed a simple and fast interpolation-based algorithm that runs on CPUs.

Uhrig et al. [4] proposed sparse convolution

, a variant of regular convolution operations with input normalizations, to address data sparsity in neural networks.

Eldesokey et al. [21] improved the normalized convolution for confidence propagation. Chodosh et al. [22]

incorporated the traditional dictionary learning with deep learning into a single framework for depth completion. Compared with all these prior work, our method achieves significantly higher accuracy.

Depth prediction.

Depth completion is closely related to depth prediction from a monocular color image. Research in depth prediction dates further back to early work by Saxena et al. [23]. Since then, depth prediction has evolved from simple handcrafted feature representations [23] to the deep learning based approaches [24, 25, 26, 27] (see the reference therein). Most learning-based work relied on pixel-level ground truth depth training. However, ground truth depth is generally not available and cannot be manually annotated. To address such difficulties, recent focus has shifted towards seeking other supervision signals for training. For instance, Zhou et al. [28]

developed an unsupervised learning framework for simultaneous estimation of depth and ego-motion from a monocular camera, using photometric loss as a supervision. However, the depth estimation is only up-to-scale.

Mahjourian et al. [29] improved the accuracy by using 3D geometric constraints, and Yin and Shi [30] extended the framework for optical flow estimation. Li et al. [31] recovered the absolute scale by using stereo image pairs. In contrast, in this work we propose the first self-supervised framework that is designed specifically for depth completion. We utilize the sensor data and the well-studied, traditional model-based methods for pose estimation, in order to provide absolute-scale depth supervision.

3 Network Architecture

We formulate the depth completion problem as a deep regression learning problem. For ease of notation, we use for sparse depth input (pixels without measured depth are set to zero), for color images (or grayscale images), and for depth prediction.

The proposed network follows an encoder-decoder paradigm [32], as displayed in fig:arch. The encoder consists of a sequence of convolutions with increasing filter banks to downsample the feature spatial resolutions. The decoder, on the other hand, has a reversed structure with transposed convolutions to upsample the spatial resolutions.

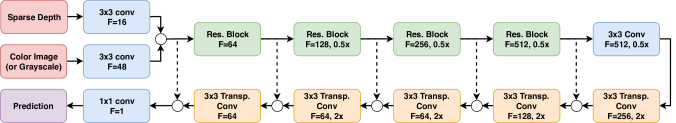

Figure 2: Our deep regression network for depth completion, with both sparse depth and RGB as input. Skip connections are denoted by dashed lines and circles represent concatenation of channels.

The input sparse depth and the color image, when available, are separately processed by their initial convolutions. The convolved outputs are concatenated into a single tensor, which acts as input to the residual blocks of ResNet-34

[33]

. Output from each of the encoding layers is passed to, via skip connections, the corresponding decoding layers. A final 1x1 convolution filter produces a single prediction image with the same resolution as network input. All convolutions are followed by batch normalization

[34]

and ReLU, with the exception at the last layer. At inference time, predictions below a user-defined threshold

are clipped to . We empirically set , the minimal valid sensing distance for .

In the absence of color images, we simply remove the RGB branch and adopt a slightly different set of hyper parameters: the number of filters is reduced to half (, the first residual block has 32 channels, instead of 64).

4 Self-supervised Training Framework

Existing work on depth completion relies on densely annotated ground truth for training. However, dense ground truth generally does not exist, and even the acquisition of semi-dense labels can be technically challenging. For instance, Uhrig et al. [4] created an annotated depth dataset by aggregating consecutive data frames using GPS, stereo vision, and additional manual inspection. However, this method is not easily scalable. Furthermore, it produces only semi-dense annotations (% pixels) within the bottom half of the image.

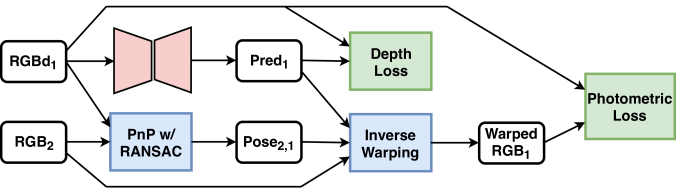

Figure 3:

An illustration of the self-supervised training framework, which requires only a sequence of color images and sparse depth images. White rectangles are variables, red is the depth network to be trained, blue are deterministic computational blocks (without learnable parameters), and green are loss functions.

In this section, we propose a model-based self-supervised training framework for depth completion. This framework requires only a synchronized sequence of color/intensity images from a monocular camera and sparse depth images from . Consequently, the self-supervised framework does not rely on any additional sensors, manual labeling work, or other learning-based algorithms as building blocks. Furthermore, this framework does not depend on any particular choice of neural network architectures. The self-supervised framework is illustrated in fig:graph. During training, the current data frame and a nearby data frame are both used to provide supervision signals. However, at inference time, only the current frame is needed as input to produce a depth prediction .

Sparse Depth Supervision

The sparse depth input itself can be used as a supervision signal. Specifically, we penalize the differences between network input and output on the set of pixels with known sparse depth, and thus encouraging an identity mapping on this set. This loss leads to higher accuracy, improved stability and faster convergence for training. The depth loss is defined as

(1)

Note that a denser ground truth (, the 30% dense annotation from the KITTI depth completion benchmark [4]), if available, can also be used in place of the sparse input .

Model-based Pose Estimation

As an intermediate step towards the photometric loss, the relative pose between the current frame and the nearby frame needs to be computed. Prior work assumes either known transformations (, stereo [31]) or the use of another learned neural network for pose estimation (, [28]). In contrast, in this framework, we adopt a model-based approach for pose estimation, utilizing both and .

Specifically, we solve the Perspective-n-Point (PnP) problem [35] to estimate the relative transformation between the current frame 1 and the nearby frame 2, using matched feature correspondences extracted from and respectively. Random sample consensus (RANSAC) [36]

is also adopted in conjunction with PnP to improve robustness to outliers in feature matching. Compared to -based estimation

[28] which is up-to-scale, our estimation is scale-accurate and failure-aware (flag returned if no estimation is found).

Photometric Loss as Depth Supervision

Given the relative transformation and the current depth prediction , the nearby color image can be inversely warped to the current frame. Specifically, given the camera intrinsic matrix , any pixel in the current frame 1 has the corresponding projection in frame 2 as . Consequently, we can create a synthetic color image using bilinear interpolation around the 4 immediate neighbors of . In other words, for all pixels :

(2)

warped is similar to the current when the environment is static and there’s limited occlusion due to change of view point. Note that this photometric loss is made differentiable by the bilinear interpolation. Minimizing the photometric error reduces the depth prediction error, only when the depth prediction is close enough to the ground truth (, when the projected point differs from the true correspondence by no more than 1 pixel). Therefore, a multi-scale strategy is applied to ensure on at least one scale . In additional, to avoid conflicts with the depth loss, the photometric loss is evaluated only on pixels without direct depth supervision. The final photometric loss is

(3)

where is the set of all scaling factors, and represents image resizing (with average pooling) by a factor of . Losses at lower resolutions are weighted down by .

Smoothness Loss

The photometric loss only measures the sum of all individual errors (, color differences computed on each pixel independently) without any neighboring constraints. Consequently, minimizing the photometric loss alone usually results in an undesirable local optimum, where the depth pixels have incorrect values (despite having a low photometric error) and high discontinuity. To alleviate this issue, we add a third term to the loss functions in order to encourage smoothness of the depth predictions. Inspired by [9, 8, 28], we penalize , the loss of the second-order derivatives of the depth predictions, to encourage piecewise-linear depth signal.

In summary, the final loss function for the entire self-supervised framework consists of 3 terms:

(4)

where are relative weightings. Empirically we set and .

5 Implementation

For the sake of benchmarking against state-of-the-art methods, we use the KITTI depth completion dataset [4] for both training and testing. The dataset is created by aggregating scans from 11 consecutive frames into one, producing a semi-dense ground truth with roughly 30% annotated pixels. The dataset consists of 85,898 training data, 1,000 selected validation data, and 1,000 test data without ground truth.

For the PnP pose estimation, we dialate the sparse depth images with a

kernel, since the extracted features points might not have spot-on depth measurements. In each epoch, we iterate through the entire training dataset for the current frame 1, and choose a neighbor frame 2 randomly from the 6 nearest frames in time (excluding the current frame itself). In presence of PnP pose estimation failure,

is set to be an identity matrix and the neighbor

image is overwritten by the current . Consequently, the photometric loss is made to be 0, and does not affect the training.

The training framework is implemented in PyTorch

[37]. Zero-mean Gaussian random initialization is used for the network weights. We use a batch size of 8 for the -network, and 16 for the simpler -network. Adam with a starting learning rate of is used for network optimization. The learning rate is reduced to half every 5 epochs. We use 8 Tesla V100 GPUs with 16G of RAM for training, and 12 epochs takes roughly 12 hours for the -network and 4 hours for the -network.

6 Results

In this section, we present experimental results to demonstrate the performance of our approach. We first compare our network architecture, trained in a purely supervised fashion, against state-of-the-art published methods. Secondly, we conduct an ablation study on the proposed network architecture to gain insight into which components contribute to the prediction accuracy. Lastly, we showcase training results using our self-supervised framework, and present an empirical study on how the algorithm performs under different level of sparsity in the input depth signals.

6.1 Comparison with State-of-the-art Methods

In this section, we train our best network in a purely supervised fashion to benchmark against other published results. We use the official error metrics for the KITTI depth completion benchmark [4], including , , , and . Specifically, and stand for the root-mean-square error and the mean absolute error, respectively; and stand for the root-mean-square error and the mean absolute error in the inverse depth representation. The results are listed in tab:sota and visualized in fig:sota.

Method Input  [mm]  [mm]  [1/km]  [1/km]
NadarayaW [4] 1852.60 416.77 6.34 1.84
SparseConvs [4] 1601.33 481.27 4.94 1.78
ADNN [22] 1325.37 439.48 59.39 3.19
IP-Basic [20] 1288.46 302.60 3.78 1.29
NConv-CNN [21] 1268.22 360.28 4.67 1.52
NN+CNN2 [4] 1208.87 317.76 12.80 1.43
Ours- 954.36 288.64 3.21 1.35
SGDU [18] 2312.57 605.47 7.38 2.05
Ours- 814.73 249.95 2.80 1.21
Table 1: Comparison against state-of-the-art algorithms on the test set.

Our -network leads prior work with a large margin in almost all metrics. The -network attains even higher accuracy, leading all submissions to the benchmark. Our predicted depth images also have cleaner and sharper object boundaries (, see trees, cars and road signs), which can be attributed to the fact that our network is quite deep (and thus might be able to learn more complex semantic representations) and has large skip connections (and thus preserves image details). Note that all these supervised methods produce poor predictions at the top of the image, because of 2 reasons: (a) the returns no measurements, and thus the input to the network is all zero at the top; (b) the 30% semi-dense annotations do not contain labels in these top regions.

(a) RGB (b) NConv-CNN [21] (c) NN+CNN2 [4] (d) Ours-
Figure 4: Comparision against other methods (best viewed in color). Our predictions have not only lower errors, but also cleaner and sharper boundaries.

6.2 Ablation Studies

To examine the impact of network components on performance, we conduct a systematic ablation study and list the results column-wise in tab:ablation.

image fusion
split loss ResNet
depth with
skip reduced
filters pre-
trained
pairs down-
sample dropout
& weight
decay
 [mm]
None - 34 Yes 2x () No 5 No No 991.35
1170.58
18 1003.78
No 1060.64
1x () 992.663
1x () Yes 1058.218
4x () 1015.204
4 996.024
3 1005.935
Yes 1045.062
Yes 1002.431
Gray 16/48 34 Yes 1x () No 5 No Yes 856.754
RGB 859.528
32/32 868.969
18 875.477
No 1070.789
8/24 2x () 887.472
4 857.154
3 857.448
Yes 859.528
Table 2: Ablation study of the network architecture for depth input. Empty cells indicate the same value as the first row of each section. See sec:ablation for detailed discussion.

The most effective components in improving final accuracy includes using for input and loss for training. This is in contrary to the findings that is more effective [10, 38]

, implying that the optimal loss functions might be dataset- and architecture-dependent. Adding skip connections, training from scratch (without ImageNet-pretraining), and not using max pooling also result in substantial improvement. Increasing network depth (from 18 to 34) and encoders-decoders pairs (from 3 to 5), as well as a proper split of filters allocated to the and the branches (16/48 split), also create small positive impact on the results. However, additional regularization, including dropout combined with a weight decay, leads to degraded performance.

It is worth noting that alternative encoding of the input depth image (such as the nearest neighbor interpolation or the bilinear interpolation of the sparse depth measurements) does not improve the prediction accuracy. This implies that the proposed network is able to deal with highly sparse input image.

6.3 Evaluation of the Self-supervised Framework

In this section, we evaluate the self-supervised training framework described in sec:self-supervision on the KITTI validation dataset. We compare 3 different training methods: using only photometric loss without sparse depth supervision, the complete self-supervised framework (, photometric loss with sparse depth supervision), and the pure supervised method using the semi-dense annotations. The quantitative results are listed in tab:self-supervision. The self-supervised result produces , which already outperforms some of the prior methods that were trained with semi-dense annotations, such as SparseConvs [4].

Training Method  [mm]  [mm]  [1/km]  [1/km]
Photometric Loss Only 1901.16 658.13 5.85 2.62
Self-Supervised 1384.85 358.92 4.32 1.60
Supervised Learning 878.56 260.90 3.25 1.34
Table 3: Evaluation of the self-supervised framework on the validation set

However, note that the true quality of depth predictions trained in a self-supervised fashion is probably underestimated by such evaluation metrics, since the “ground truth” itself is biased. Specifically, the evaluation ground truth is characterized by the same limitations as the training annotations: low-density, as well as absence at the top region. As a result, predictions at the top, where the self-supervised framework provides supervision but semi-dense annotations do not, are not reflected in the error metrics, as illustrated in fig:self-supervision.

The self-supervised framework is effective for not only 64-line lidar measurements, but also lower-resolution lidars and more sparse depth input. In fig:s2d(b), we show the validation errors of the networks trained with the self-supervised framework with different levels of sparsity in the depth. When the number of input measurements is too small, the validation error is high. This is expected due to failure in PnP pose estimation. However, with sufficiently many measurements (, at least 4 scanlines, or the equivalent number of samples to at least 2 scanlines when input is uniformaly sampled), the validation error starts to decrease as a power function of the input, similar to training with semi-dense annotations.

(a)RGB (b)Photometric Only (c)Self-supervised (d)Supervised
Figure 5: Comparision between different training methods (best viewed in color). The photometric loss provides supervision at the top, where the semi-dense annotation does not contain labels.

6.4 On Input Sparsity

In many robotic applications, engineers need to address the following question: what’s the resolution (which translates to financial cost) required to achieve certain performance? In this section, we try to answer this question by evaluating the accuracy of our depth completion technique under different input sparsity and spatial patterns. To this end, we provide an empirical analysis on the depth completion accuracy for different depth input with varying levels of sparsity and spatial patterns. In particular, we downsample the raw input in two different manners: reducing the number of laser scans (to simulate a with fewer scan lines), and uniformly sub-sampling from all measurements available. The results are illustrated in fig:s2d, for both of these spatial patterns and both input modalities of d and RGBd.

(a) trained with semi-dense annotations (b) self-supervised

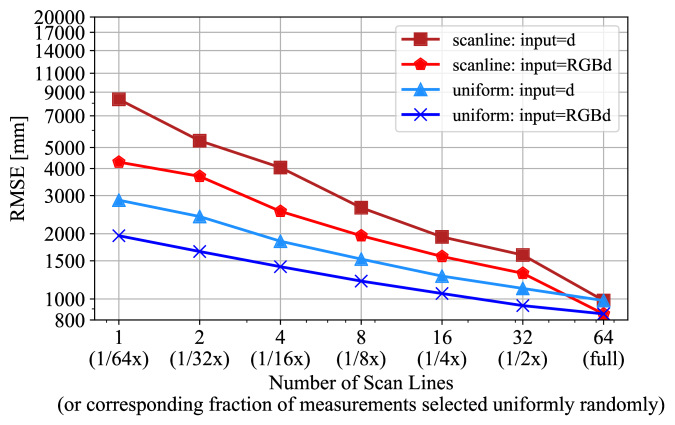

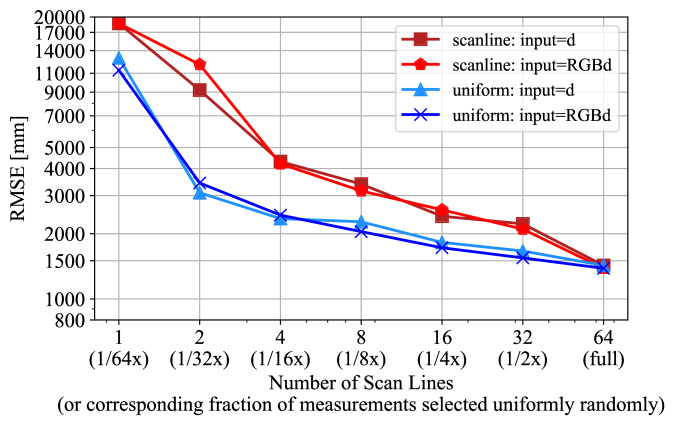

Figure 6: Prediction error against number of input depth samples, for both spatial patterns (uniform random sub-sampling and scan lines). (a) When trained with semi-dense ground truth, the depth completion error decreases as a power function of the number of input depth measurements, for some . (b) The self-supervised framework is effective with sufficiently many measurements (at least 4 scanlines, or the equivalent number of samples to 2 scanlines when input is uniformaly sampled).

In fig:s2d(a) we show the validation errors when trained with semi-dense annotations. The errors form a straight line in the log-log plot, implying that the depth completion error decreases as a power function of the number of input depth measurements, for some positive and negative . This also implies diminishing returns on increasing resolutions. Comparing the two spatial patterns, uniform random sub-sampling produces significantly higher accuracy than having a reduced number of scan lines, since the input depth samples are more disperse in the pixel space with uniform random sampling. Furthermore, using substantially reduces prediction error, compared to using only , when trained with semi-dense annotations. The performance gap is especially significant when the number of depth measurements is low. Note that there is a significant drop of RMSE from 32-line to 64-line . This accuracy gain may be attributed to the fact that our network architecture is optimized for 64-line .

In fig:s2d(b), we show results when trained with our self-supervised framework. As has been discussed in sec:exp-self, the validation error starts to decrease steadily as a power function, similar to training with semi-dense annotations, when there are sufficiently many input measurements. However, with the self-supervised framework, using both RGB and sparse depth yields the same level of accuracy as using sparse depth only, which is different from training with semi-dense annotations. The underlying cause of this difference remains to be further investigated555In the self-supervised framework, the training process is more iterative than training with semi-dense annotations. In particular, it takes many more iterations for the predictions to converge to the correct value. Consequently, the network weights for the RGB input, which has substantially lower correlation with the depth prediction than the sparse depth input, might have dropped to negligible levels during early iterations, resulting in similar performance for using d and RGBd as input. However, this conjecture remains to be verified..

7 Conclusions

In this paper, we have developed a deep regression model for depth completion of sparse measurements. Our model achieves state-of-the-art performance on the KITTI depth completion benchmark, and outperforms existing published work by a significant margin at the time of submission. We also propose a highly scalable, model-based self-supervised training framework for depth completion networks. This framework requires only sequences of RGB and sparse depth images, and outperforms a number of existing solutions trained with semi-dense annotations. Additionally, we present empirical results demonstrating that depth completion errors decrease as a power function with the number of input depth measurements. In the future, we will investigate techniques for improving the self-supervised framework, including better loss functions and taking dynamic objects into account.

This work was supported in part by the Office of Naval Research (ONR) grant N00014-17-1-2670 and the NVIDIA Corporation. In particular, we gratefully acknowledge the support of NVIDIA Corporation with the donation of the DGX-1 used for this research. Finally, we thank Jonas Uhrig and Nick Schneider for providing information on how data is generated for the KITTI dataset [4].
