Self-supervised Representation Learning for Ultrasound Video

02/28/2020
by   Jianbo Jiao, et al.
0

Recent advances in deep learning have achieved promising performance for medical image analysis, while in most cases ground-truth annotations from human experts are necessary to train the deep model. In practice, such annotations are expensive to collect and can be scarce for medical imaging applications. Therefore, there is significant interest in learning representations from unlabelled raw data. In this paper, we propose a self-supervised learning approach to learn meaningful and transferable representations from medical imaging video without any type of human annotation. We assume that in order to learn such a representation, the model should identify anatomical structures from the unlabelled data. Therefore we force the model to address anatomy-aware tasks with free supervision from the data itself. Specifically, the model is designed to correct the order of a reshuffled video clip and at the same time predict the geometric transformation applied to the video clip. Experiments on fetal ultrasound video show that the proposed approach can effectively learn meaningful and strong representations, which transfer well to downstream tasks like standard plane detection and saliency prediction.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 2

page 3

page 4

08/14/2020

Self-supervised Contrastive Video-Speech Representation Learning for Ultrasound

In medical imaging, manual annotations can be expensive to acquire and s...
07/15/2020

Self-Supervised Representation Learning for Detection of ACL Tear Injury in Knee MRI

The success and efficiency of Deep Learning based models for computer vi...
09/29/2021

Self-Supervised Learning for 3D Medical Image Analysis using 3D SimCLR and Monte Carlo Dropout

Self-supervised learning methods can be used to learn meaningful represe...
12/11/2019

Multimodal Self-Supervised Learning for Medical Image Analysis

In this paper, we propose a self-supervised learning approach that lever...
03/06/2021

Imbalance-Aware Self-Supervised Learning for 3D Radiomic Representations

Radiomic representations can quantify properties of regions of interest ...
02/21/2021

Transferable Visual Words: Exploiting the Semantics of Anatomical Patterns for Self-supervised Learning

This paper introduces a new concept called "transferable visual words" (...
10/04/2021

How You Move Your Head Tells What You Do: Self-supervised Video Representation Learning with Egocentric Cameras and IMU Sensors

Understanding users' activities from head-mounted cameras is a fundament...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Machine learning, especially deep learning techniques, have witnessed great success in medical image analysis in recent years. Several learning-based approaches have demonstrated superior performance over human experts [1, 2]. Most of these methods extensively rely on ground-truth labeled data annotated by human experts, to train the deep model. However, data annotation is expensive to scale, and in addition, the “ground-truth” label of medical images might be inaccessible. Therefore, in this paper, we are interested in the question: Is it possible to learn meaningful representations directly from raw data, without any human annotations?

Here we explore this question through self-supervised representation learning, in which “self-supervised” indicates that the learning process is supervised purely based on the data itself (also termed unsupervised in some literature). In our work, we define representation learning as capturing anatomy-aware knowledge, which plays a crucial role in medical image interpretation. Specifically, we showcase the effectiveness of the proposed representation learning approach with application to automated fetal ultrasound (US) scan interpretation.

Visual representation learning has been recently explored for natural images. For instance, Zhang et al[3] propose to learn representations by colourising a grayscale image to its color version equivalent. However, such a colourisation strategy does not apply to US images (and other medical images) due to its monotone nature and absence of true colour. Wang and Gupta [4] learn visual representations from video data by using off-the-shelf tracking algorithms. Whereas its learning ability is restricted by the performance of the used tracker and visual tracking in US is a difficult task itself. On the other hand, for US and even medical images in general, self-supervised representation learning is under-explored. Given that medical annotation is expensive and infeasible in many cases, it is crucial to learn representations from medical images without annotation.

In the field of fetal US image analysis, recent works on standard plane detection and visual saliency prediction show promising performance with deep learning. Baumgartner et al[5]

proposed a convolutional neural network (CNN) to detect 2D fetal standard views. Cai

et al[6] augment the standard plane detection with a visual saliency prediction task and show that it helps the detection task. Inspired by the saliency prediction task, a recent work [7] shows that transferable representations can be learned by modelling sonographer visual attention. To our knowledge, this is the only US representation learning method in the literature. However, it fully relies on gaze-tracking data as a ground-truth label for supervision, limiting its generalisability as an approach.

Different from the abovementioned prior works, in this paper we propose a new self-supervised representation learning approach tailored for characteristics of fetal US video. Specifically, based on the assumption that distinctive strong representations should be anatomy-aware for US data, we design a joint reasoning task to force the model to identify anatomical structures during the self-supervised learning process: correct the reshuffled video frames and identify the specific transformation applied to the video clip simultaneously. To the best of our knowledge, this is the first attempt to learn representations from US video without any type of external annotation. The learned representations are evaluated on two US tasks – standard plane detection and saliency prediction. The weights learned by the proposed approach are fine-tuned on the above two tasks with limited training samples, to demonstrate the transferability of our method. Extensive experimental results show that the proposed self-supervised learning approach is able to capture meaningful and strong representations that transfer well to downstream tasks, with a small margin towards the performance of supervised methods.

The main contributions of our work are: 1) We present, to our knowledge, the first attempt towards self-supervised representation learning for fetal US video, without any external annotations; 2) We propose a joint reasoning approach to implicitly force the model to learn anatomy-aware representations; 3) Even with only the raw data itself, our approach is demonstrated to be effective in learning transferable representations, by evaluations on various downstream tasks.

2 Methods

In this section, we describe the proposed self-supervised representation learning approach in detail. The main idea is that if the learned representation is strong and with good transferability, the corresponding deep model should be capable of identifying the anatomical structures in the data. In this paper, we demonstrate the idea with fetal US video data. The specially designed tasks are described as follows.

2.1 Temporal Order Correction

Suppose is a video frame in the video data set , where and represent the height, width and number of frames in a video clip . Here we first explore representation learning by designing the task of temporal order correction. We argue that if a model can correct a randomly shuffled video clip, it should be aware of the underlying anatomical representations. A video clip is pre-processed by reshuffling the frame order and taken as input to a CNN model . The model is trained to correct the random order and reconstruct the original video clip. An example is illustrated in Fig. 1.

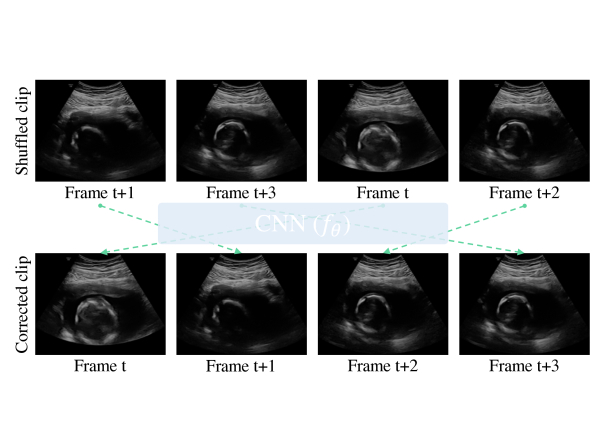

Figure 1: Illustration of the temporal order correction. Randomly shuffled video frames are fed into the CNN model to correct the frame order.

Taking as an example, the index of the reshuffled video clip {1,3,0,2} (or {2,0,3,1}) is corrected by the model to {0,1,2,3}. To capture high-level context information, here we model the order correction task as a classification problem. Specifically, the model takes a reshuffled video clip as input and predict the correct order index of this clip. For the correction space is with size of , i.e., a 12-way classification problem.

2.2 Spatio-temporal Transform Prediction

In addition to the temporal representation, we also take spatial information into consideration. Here the spatial representation is learned through a task of predicting the parameters of the affine transformation (i.e., translation, scale, rotation, and shear) that is applied to a video clip. We design this task based on the assumption that the model should identify distinctive structures in order to correctly predict the specific transformation. Given a video clip and a spatio-temporal transformation where is a transformation set, the video clip is transformed by and sent to a CNN model together with the original clip . Then the model is trained to predict the applied transformation . Although various transformations can be included into set , for simplicity we use the affine transform in this paper. An example is illustrated in Fig. 2.

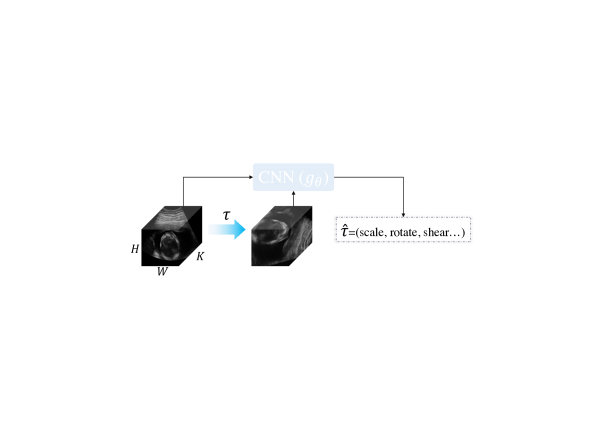

Figure 2: Illustration of the spatio-temporal transform prediction. The model is learned to predict the transformation applied to the video clip.

Affine transformations of scale, rotate, shear, etc. are applied to the original video clip. Based on sufficient training data and random transformations, the model learns to predict the transformation parameters accordingly.

2.3 Joint Anatomy-Aware Reasoning

Based on the abovementioned tasks, we propose a joint reasoning approach that leverages the learning ability from both order correction and geometric transformation prediction for anatomy-aware representation learning. Here we explore two strategies to combine these tasks: a partially Siamese network, or disentangling a joint objective. Specifically, the first strategy is performing the two tasks in parallel while using a Siamese network that partially shares weights; the latter solution is to apply both the frame reshuffling and transformation onto the same video clip, and let a single model predict and disentangle these two features. The network architectures of these solutions are shown in Fig. 3.

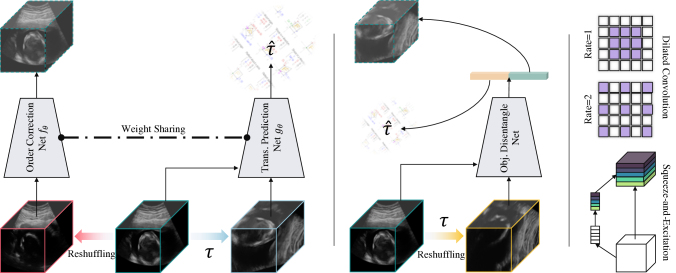

Figure 3: The proposed joint reasoning frameworks. Left to right: partially Siamese network; objective disentangle network; More details [8] for the network components.
