1. Introduction

With the proliferation of information collected on the Internet, besides topological structure, vertices in a graph are often associated with content information, i.e., node attributes, on the top of a plain graph. This type of system is modeled by attributed graph (Lin and Kang, 2021)

. It poses a new challenge: how to learn a holistic representation for attributed graph? Since deep learning methods can effectively extract useful representation of data, graph neural networks have been applied on a wide range of disciplines, including social network

(Qiu et al., 2018), chemistry and biology (Duvenaud et al., 2015; Rhee et al., 2018), traffic prediction (Cui et al., 2019; Rahimi et al., 2018), text classification (Hamilton et al., 2017; Defferrard et al., 2016)

, and knowledge graph

(Hamaguchi et al., 2017; Wang et al., 2018b). As a representative method in graph neural networks, GCN (Kipf and Welling, 2017)

has shown impressive performance for semi-supervised classification task because it propagates feature information over the graph topology, providing a new fusion strategy for topological structure and node features. By contrast, some models, like multi-layer perceptron (MLP)

(Pal and Mitra, 1992), rely exclusively on node features.

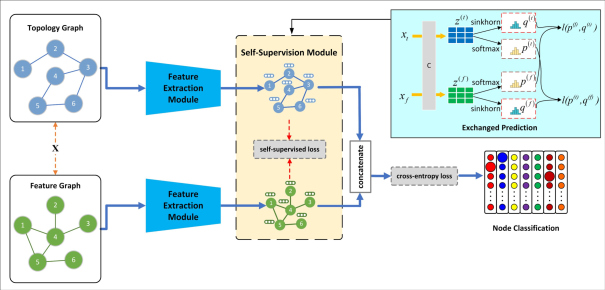

Figure 1.

The framework of SCRL model. SCRL consists of two parts: feature extraction module and self-supervision module. First, we use node features to construct feature graph. Then, in feature extraction module, we adopt two independent GCNs to extract the latent features of nodes in two graphs, respectively. Consensus representation is learnt in the self-supervision module by solving the ”exchanged prediction” problem. We use cross-entropy loss to penalize the difference between prediction and the ground-truth label.

Some recent studies theoretically analyze the weakness of the fusion mechanism in GCN. Li et al. (Li et al., 2018) indicate that the graph convolution of the GCN model is actually a special form of Laplacian smoothing on node features. However, repeatedly applying Laplacian smoothing may mix the features of vertices from different clusters and make them indistinguishable, which has a negative impact on downstream tasks (Ma et al., 2020). (Nt and Maehara, 2019) and (Wu et al., 2019b)

show that GCN only performs low-pass filtering on feature vectors of nodes and graph structure only provides a way to denoise the data. To further prove that the fusion capability of current GCN

(Kipf and Welling, 2017) is not optimal, Wang et al. (Wang et al., 2020) set up a series of experiments and demonstrate that MLP (Pal and Mitra, 1992) and DeepWalk (Perozzi et al., 2014) can easily perform better than GCN even under some simple situations that the correlation between node labels and features or topology structure is very obvious. The situation becomes more complex in reality. For example, in a social network, the relationship between people is very complicated, while most of current GCN-based methods mainly consider the relationship between connected individuals and ignore other implicit information. In a citation network where nodes represent papers and there is an edge between two papers if they share the same author, if we conduct information aggregation based on the original topology structure, it will ignore the situation that an author may write papers belonging to different categories or similar papers are actually written by different authors, hence we may mistakenly aggregate different types of papers together.

Towards a better fusion strategy integrating both node features and topology structure, attention mechanism is also introduced. Graph attention network (GAT) (Veličković et al., 2018) assigns attention weights to every edge, which measures the local similarities among features of neighbors. Wang et al. (Wang et al., 2020) propose an adaptive multi-channel GCN (AMGCN) that learns suitable weights for fusing feature and topology information. However, these attention-based approaches need to compute weights for every node, which is inefficient for large-scale graphs. These issues motivate us to design a new framework which can improve the capability of fusing topology structure and node features and, at the same time, enhance the computational efficiency.

In fact, there are correlations between graph structure and node features and the underlying information from these two aspects could supervise each other (Kang et al., 2020a). For example, a blogger may tend to follow another one who has similar interests listed on his/her homepage. Hence, we mine the common information between node features and graph structure with an efficient self-supervised mechanism.

Specifically, we argue that the shared information could boost the performance of downstream tasks. As shown in Fig.1

, firstly a kNN graph is generated from the node features as the feature graph. Secondly, with the feature graph and topology graph, we use different convolution modula to extract node embeddings in feature space and topology space. Finally, in order to learn a consensus representation, we propose a self-supervised module that uses the node embedding in one graph to predict the classification result of the same node in the other graph.

Our main contributions are summarized as follows:

  • We propose a novel self-supervised framework to learn a consensus representation for attributed graph. To the best of our knowledge, we are the first to explore the role of self-supervised mechanism in fusing the topology information and node feature information of graph.

  • We develop an efficient graph representation learning algorithm which takes less time in training compared with other approaches.

  • We conduct extensive experiments on a series of datasets. It shows that our approach outperforms many state-of-the-art methods on semi-supervised node classification task. Even with very small amounts of labeled data, our SCRL is still superior to main competitors.

2. Related Works

Graph-based Semi-supervised Learning

Large numbers of approaches for semi-supervised learning on graphs have been proposed in the past two decades. Some early studies use graph Laplacian regularization and graph embedding (Kang et al., 2021; Kang et al., 2020b) to learn graph representation. Inspired by the Skip-gram model (Mikolov et al., 2013)

for natural language processing, Perozzi

et al. propose DeepWalk (Perozzi et al., 2014) that learns latent representation from sampled truncated random walks via the prediction of local neighborhood of nodes. Subsequently, some varients are proposed to improve DeepWalk, prominent examples include Line (Tang et al., 2015) and node2vec (Grover and Leskovec, 2016).

Recently, thanks to the breakthroughs in deep learning, attention has turned to various types of graph neural networks. Bruna et al. (Bruna et al., 2014) propose a general graph convolution framework based on graph Laplacian. (Defferrard et al., 2016) then optimizes it utilizing Chebyshev polynomial approximation to improve efficiency. Besides, GCN (Kipf and Welling, 2017) uses a localized first-order approximation to simplify the convolution operation. GAT (Veličković et al., 2018) gives different attention weights to different nodes in a neighborhood to aggregate node features. Demo-Net (Wu et al., 2019a) builds a degree-specific graph neural network for both node and graph classification. MixHop (Abu-El-Haija et al., 2019) utilizes multiple powers of adjacency matrix to learn general mixing of neighborhood information. However, these methods only use a single topology graph for node aggregation, which may cause graph structure to be emphatically considered and fails to make full use of rich feature information. AMGCN (Wang et al., 2020) utilizes attention mechanism to merge embeddings extracted from topology graph and feature graph. However, attention-based methods always require high time and space complexity.

Self-supervised Learning

Self-supervised learning aims to learn representative features without label information, which is able to reduce human cost for annotating data. Self-supervised learning has found many successful applications ranging from language modeling (Conneau and Lample, 2019)

to computer vision

(Pathak et al., 2016; Lv et al., 2021). As a category of self-supervised learning, contrastive learning trains the network by comparing the representations learnt from augmented samples. For example, MoCo (He et al., 2020) and SimCLR (Chen et al., 2020) construct negative pairs and positive pairs via data augmentation techniques and then compare them. However, it becomes computationally expensive for large datasets. Another class is cluster-based approaches. For instance, Caron et al. (Caron et al., 2020) present a simplified training pipeline by mapping features to cluster prototypes.

Recently, there are a few works focusing on self-supervised learning in the domain of graph. M3S (Sun et al., 2020) utilizes self-supervised learning approach to improve the generalization performance of GCN. Deep Graph Infomax (DGI) (Veličković et al., 2019) drives local network embeddings to capture global structural information by maximizing local mutual information. Deep graph contrastive representation learning (GRACE) (Zhu et al., 2020) is a graph contrastive representation learning framework by maximizing agreement at the node level. Most graph contrastive learning approaches conduct random corruption on nodes and edges, which may bring noise into original graph data and degrade the learnt representation. Nevertheless, whether self-supervised mechanism can improve the capability of GCN in fusing topological structure and node features still remains unexplored.

3. The proposed methodology

3.1. Notation

An attributed graph can be represented as , where is the adjacency matrix of nodes and is the node feature matrix wherein every node is described by a vector with dimensions. Each node belongs to one out of M classes. As for , represents that there is an edge between node and node while indicates that node and node are not connected. In our study, we derivate the corresponding feature graph , which shares the same with , but has a different adjacency matrix. Therefore, topology graph and feature graph refer to and respectively.

3.2. The Framework of SCRL

As shown in Fig.1, we use topology graph and feature graph to capture the underlying information in topology space and feature space. Our model mainly contains two components: the feature abstraction module that uses GCN to extract features from graph, the self-supervision module that measures the consistency between the representations learned from the topology graph and feature graph.

Feature Graph

Merely propagating feature information over topology graph may hinder the fusion capability of GCN under some circumstances (Wang et al., 2020). A natural idea would be to complement topology graph by fully making use of the information inside node features. Therefore we introduce feature graph into our work.

To represent the structure of nodes in the feature space, we build a kNN graph based on the feature matrix . To be precise, a similarity matrix

is computed using the cosine similarity formula:


where is the similarity between node feature and node feature . Then for each node we choose the top k nearest neighbors and establish edges. In this way, we construct feature graph.

Feature Extraction Module

To extract meaningful features from graphs, we adopt GCN that is comprised of multiple graph convolutional layers. With the input graph G, the -th layer’s output can be represented as:



is the Relu activation function (

), is the degree matrix of , is a layer-specific trainable weight matrix, is the activation matrix in the -th layer and . In our study we use two GCNs to exploit the information in topology and feature space. The output is donated by and , respectively.

Self-Supervision Module

An important component of our framework is self-supervision module that is used to fuse the representations learnt by feature extraction modules. To convert the learnt representations into vectors of class scores, the representations of the i-th node and are followed by a prototype head C: . refers to the dimension of and . refers to the number of prototypes. In prototype head C, we store a set of prototype vectors: . Every prototype vector projects the node feature to a prototype/cluster. By computing the dot product between and , we can get the class score of node corresponding to prototype in topology graph. Specifically,


C is a linear layer. Prototypes are initialized randomly and are learnt along with the training process.

Then we compute the probability of assigning prototype

to node representation by taking the softmax of its projection:


where is a temperature parameter. We use and to denote the probabilities of the -th node belonging to different prototypes in topology graph and feature graph.

A key question in our self-supervision module is to find a ‘target’ for the projection of prototype vectors. Inspired by previous works (asano2019self), we utilize pseudo label in this module. We cast pseudo label assignment problem as an optimal transport problem and compute the soft labels using the iterative Sinkhorn algorithm (Cuturi, 2013). The outputs are denoted by and for and respectively.

With , and , , we set up the ”exchanged prediction” problem. We assume that both topology graph and feature graph should produce the same label. Therefore the pseudo labels obtained from one graph are predicted using the other graph. To be precise, for every node, it is our goal to minimize the cross entropy of two pairs of probabilities: , and ,

. The loss function of exchanged prediction can be defined as:


Summing this loss over all nodes leads to the following loss function for the ”exchanged prediction” problem.


This loss function is jointly minimized with respect to prototypes C and the parameters of the GCN encoders that produce representations and .

Node Classification

Ideally, and should be close to each other. To preserve the information from feature graph and topology graph, and are concatenated as the consensus representation . Then we use

for semi-supervised classification with a linear transformation and a softmax function.

is the prediction result and is the probability of node belonging to class . and are weights and bias of the linear layer, respectively.


Suppose there are nodes with labels in the training set. We adopt cross-entropy to measure the difference between prediction label and ground truth label :


Finally, by combining and , overall loss function of our SCRL model can be represented as:


The parameters of the whole framework are updated via backpropagation. The consensus representation of the attributed graph can be learnt at the same time. The detailed description of our algorithm is provided in Algorithm


Input: Node feature matrix ; adjacency matrix ; node label matrix ; maximum number of iterations ; temperature parameter
1 Compute the feature graph according to by running kNN algorithm. for  to  do
2        /* Consensus representation learning */
3        = GCN() // embeddings of two graphs
4        = GCN() = prototype() = prototype() = softmax( / ) = softmax( / ) = sinkhorn() = sinkhorn() Calculate the overall loss with Equation(13) Update all parameters of framework according to the overall loss
5 end for
Predict the labels of unlabeled nodes based on the trained framework. Output: Classification results
Algorithm 1 The proposed algorithm SCRL
Datasets Nodes Edges Dimensions Classes
Citeseer 3327 4732 3703 6
PubMed 19717 44338 500 3
ACM 3025 13128 1870 3
BlogCatalog 5196 171743 8189 6
UAI2010 3067 28311 4973 19
Flickr 7575 239738 12047 9
Table 1. The statistics of datasets.
Dataset ACM BlogCatalog
L/C 20 40 60 20 40 60
Label Rate 1.98% 3.97% 5.95% 2.31% 4.62% 6.93%
DeepWalk (Perozzi et al., 2014) 62.69 62.11 63.00 61.88 67.03 66.99 38.67 34.96 50.80 48.61 55.02 53.36
LINE (Tang et al., 2015) 41.28 40.12 45.83 45.79 50.41 49.92 58.75 57.75 61.12 60.72 64.53 63.81
ChebNet (Defferrard et al., 2016) 75.24 74.86 81.64 81.26 85.43 85.26 38.08 33.39 56.28 53.86 70.06 68.37
GCN (Kipf and Welling, 2017) 87.80 87.82 89.06 89.00 90.54 90.49 69.84 68.73 71.28 70.71 72.66 71.80
kNN-GCN (Wang et al., 2020) 78.52 78.14 81.66 81.53 82.00 81.95 75.49 72.53 80.84 80.16 82.46 81.90
GAT (Veličković et al., 2018) 87.36 87.44 88.60 88.55 90.40 90.39 64.08 63.38 67.40 66.39 69.95 69.08
Demo-Net (Wu et al., 2019a) 84.48 84.16 85.70 84.83 86.55 84.05 54.19 52.79 63.47 63.09 76.81 76.73
MixHop (Abu-El-Haija et al., 2019) 81.08 81.40 82.34 81.13 83.09 82.24 65.46 64.89 71.66 70.84 77.44 76.38
GRACE (Zhu et al., 2020) 89.04 89.00 89.46 89.36 91.08 91.03 76.56 75.56 76.66 75.88 77.66 77.08
AMGCN (Wang et al., 2020) 90.40 90.43 90.76 90.66 91.42 91.36 81.89 81.36 84.94 84.32 87.30 86.94
SCRL 91.82 91.79 92.06 92.04 92.82 92.80 90.22 89.89 90.26 89.90 91.58 90.76
Dataset Flickr UAI2010
L/C 20 40 60 20 40 60
Label Rate 2.38% 4.75% 7.13% 12.39% 24.78% 37.17%
DeepWalk (Perozzi et al., 2014) 24.33 21.33 28.79 26.90 30.10 27.28 42.02 32.92 51.26 46.01 54.37 44.43
LINE (Tang et al., 2015) 33.25 31.19 37.67 37.12 38.54 37.77 43.47 37.01 45.37 39.62 51.05 43.76
ChebNet (Defferrard et al., 2016) 23.26 21.27 35.10 33.53 41.70 40.17 50.02 33.65 58.18 38.80 59.82 40.60
GCN (Kipf and Welling, 2017) 41.42 39.95 45.48 43.27 47.96 46.58 49.88 32.86 51.80 33.80 54.40 32.14
kNN-GCN (Wang et al., 2020) 69.28 70.33 75.08 75.40 77.94 77.97 66.06 52.43 68.74 54.45 71.64 54.78
GAT (Veličković et al., 2018) 38.52 37.00 38.44 36.94 38.96 37.35 56.92 39.61 63.74 45.08 68.44 48.97
Demo-Net (Wu et al., 2019a) 34.89 33.53 46.57 45.23 57.30 56.49 23.45 16.82 30.29 26.36 34.11 29.03
MixHop (Abu-El-Haija et al., 2019) 39.56 40.13 55.19 56.25 64.96 65.73 61.56 49.19 65.05 53.86 67.66 56.31
GRACE (Zhu et al., 2020) 49.42 48.18 53.64 52.61 55.67 54.61 65.54 48.38 66.67 49.50 68.68 51.51
AMGCN (Wang et al., 2020) 75.26 74.63 80.06 79.36 82.10 81.81 70.10 55.61 73.14 64.88 74.40 65.99
SCRL 79.52 78.89 84.23 84.03 84.54 84.51 72.90 57.80 74.58 67.40 74.90 67.54
Dataset Citeseer PubMed
L/C 20 40 60 20 40 60
Label Rate 3.61% 7.21% 10.82% 0.30% 0.61% 0.91%
DeepWalk (Perozzi et al., 2014) 43.47 38.09 45.15 43.18 48.86 48.01 - - - - - -
LINE (Tang et al., 2015) 32.71 31.75 33.32 32.42 35.39 34.37 - - - - - -
ChebNet (Defferrard et al., 2016) 69.80 65.92 71.64 68.31 73.26 70.31 74.20 73.51 76.00 74.92 76.51 75.83
GCN (Kipf and Welling, 2017) 70.30 67.50 73.10 69.70 74.48 71.24 79.00 78.45 79.98 79.17 80.06 79.65
kNN-GCN (Wang et al., 2020) 61.35 58.86 61.54 59.33 62.38 60.07 71.62 71.92 74.02 74.09 74.66 75.18
GAT (Veličković et al., 2018) 72.50 68.14 73.04 69.58 74.76 71.60 - - - - - -
Demo-Net (Wu et al., 2019a) 69.50 67.84 70.44 66.97 71.86 68.22 - - - - - -
MixHop (Abu-El-Haija et al., 2019) 71.40 66.96 71.48 67.40 72.16 69.31 - - - - - -
GRACE (Zhu et al., 2020) 71.70 68.14 72.38 68.74 74.20 70.73 79.50 79.33 80.32 79.64 80.24 80.33
AMGCN (Wang et al., 2020) 73.10 68.42 74.70 69.81 75.56 70.92 76.18 76.86 77.14 77.04 77.74 77.09
SCRL 73.62 69.78 75.08 70.68 75.96 72.84 79.62 78.88 80.74 80.24 81.03 80.55
Table 2. Node classification results(). L/C refers to the number of labeled nodes per class.

ACM Epoch 0

(b) ACM Epoch 10
(c) ACM Epoch 20
(d) Flickr Epoch 0
(e) Flickr Epoch 30
(f) Flickr Epoch 60
Figure 2. The t-SNE demonstration of node representations of ACM and Flickr during training.

4. Experiment

In this section, we conduct extensive experiments to evaluate the effectiveness of the self-supervised consensus representation learning framework for attributed graph.

4.1. Datasets

For the graph dataset, we select four commonly used citation networks (Citeseer (Kipf and Welling, 2017), PubMed (Sen et al., 2008), UAI2010 (Wang et al., 2018a), ACM (Wang et al., 2019)) and two social networks (BlogCatalog (Meng et al., 2019), Flickr (Meng et al., 2019)).

Specifically, Citeseer consists of 3327 scientific publications extracted from the CiteSeer digital library classified into one of six classes. PubMed consists of 19717 scientific publications from PubMed database pertaining to diabetes classified into one of three classess. ACM network is extracted from ACM database where publications are represented by nodes and those with the same author are connected by edges. UAI2010 contains 3067 nodes in 19 classes and it has been tested in GCN for community detection. BlogCatalog is a social blog directory containing links between 5196 blogs. Flickr is widely used by photo researchers and bloggers to host images that they embed in blogs and social media. Flickr is composed of 7575 users and they are classified into nine groups. The statistical information of datasets is summarized in Table


4.2. Baselines

We thoroughly verify the performance of our proposed SCRL with representative baselines.

DeepWalk (Perozzi et al., 2014) is a graph embedding approach that merely takes into account the structure of the graph. LINE (Tang et al., 2015) is a graph embedding method for very large graph that utilizes both first-order and second-order proximity of the network. ChebNet (Defferrard et al., 2016) is a spectral-based GCN that uses Chebyshev polynomials to reduce computational complexity. GCN (Kipf and Welling, 2017) further solves the efficiency problem by introducing first-order approximation of ChebNet. For comparison, we use the sparse k-nearest neighbor graph calculated from feature matrix as the input graph of GCN and name it kNN-GCN. GAT (Veličković et al., 2018) adopts attention mechanism to learn the relative weights between two connected nodes. Demo-Net (Wu et al., 2019a) is a degree-specific graph neural network for node classification. MixHop (Abu-El-Haija et al., 2019) is a GCN-based method that concatenates embeddings aggregated using the transition matrices of k-hop random walks before each layer. DGI (Veličković et al., 2019) leverages local mutual information maximization across the graph’s patch representations. M3S (Sun et al., 2020) is a self-supervised framework that utilizes DeepCluster (Caron et al., 2018) to choose nodes with precise pseudo labels. GRACE (Zhu et al., 2020) is a recently proposed graph contrastive learning framework. It generates two graph views by corruption and learns node representations by maximizing the agreement of node representations in these two views. AMGCN (Wang et al., 2020) extracts embeddings from node features, topological structure, and uses the attention mechanism to learn the adaptive importance weights of embeddings.

4.3. Experimental Setup

The experiments are run on the PyTorch platform using an Intel(R) Core(TM) i7-8700 CPU, 64G RAM and GeForce GTX 1080 Ti 11G GPU. Technically two layer GCN are built and we train our model by utilizing the Adam

(Kingma and Ba, 2015) optimizer with learning rate ranging from 0.0001 to 0.0005. In order to prevent over-fitting, we set the dropout rate to 0.5. In addition, we set weight decay and k for the kNN graphs. Two popular metrics are applied to quantitatively evaluate the semi-supervised node classification performance: Accuracy (ACC) and F1-Score (F1). For fairness, we follow Wang et al. (Wang et al., 2020) and Yang et al. (Yang et al., 2016) and select 20, 40, 60 nodes per class for training and 1000 nodes for testing. For example, there are 19 types of nodes in UAI2010, therefore we train our model on training set with 380/760/1140 nodes, corresponding to label rate of 12.39%, 24.78%, 37.17%, respectively. The selection of labeled nodes on each dataset is identical for all compared baselines. We repeatedly train and test our model for 5 times with the same partition of dataset and then report the average of ACC and F1.

(a) GCN
(d) SCRL
Figure 3. Visualization of learnt representations of different methods on BlogCatalog dataset.

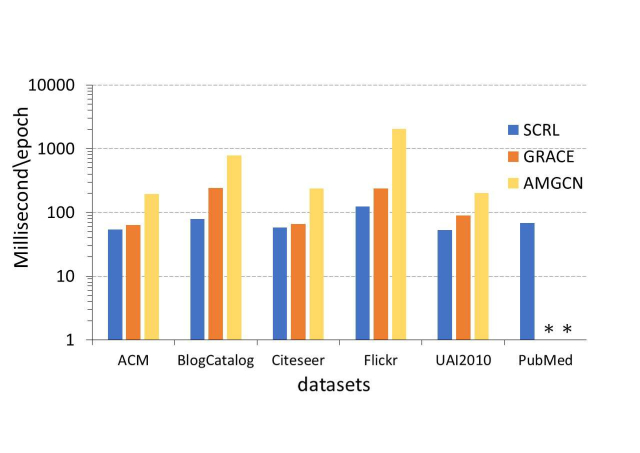

Figure 4. Averaged time cost per epoch of AMGCN, GRACE and SCRL for six datasets. (*) indicates out-of-memory error and vertical axis is in log-scale.

Time per epoch

4.4. Node Classification Results

The results of experiments are summarized in Table 2, where the best performance is highlighted in bold. Some results are directly taken from (Wang et al., 2020). We have following findings:

  • It can be seen that our proposed method boosts the performance of the listed baselines across most evaluation metrics on six datasets, which proves its effectiveness. Particularly, compared with AMGCN, SCRL achieves a maximum improvement of

    for ACC and for F1 on BlogCatalog. Additionally, on Flickr our method can exceed AMGCN by and for ACC and F1, respectively. This is mainly attributed to the self-supervision component.

  • Our SCRL achieves better performances than GRACE on most of the metrics, especially when the label rate is relatively low. This could be explained by the fact that GRACE performs corruption by randomly adding/deleting edges to generate views for graphs that may damage the original graph topology, hence degrading performance of classification.

  • On some occasions, feature graph produces better result than topology graph. For example, on BlogCatalog, Flickr, and UAI2010, kNN-CGN easily outperforms GCN. This confirms the necessity of incorporating the feature graph into our framework. On all datasets, SCRL achieves impressive improvement compared with both GCN and kNN-GCN, which indicates that the consensus representation of two graphs provides more holistic information than a single graph.

For a more intuitive understanding, we use t-SNE to visualize the evolution of the representation learnt by our SCRL in the training process. As shown in Fig.2, at the beginning the representation of ACM is chaotic and scattered. At apoch 10, compact clusters begin to form. By epoch 20, a well learnt representation is established that makes it easier to separate data points into different groups. The representation of Flickr has a similar evolution process in the training. To further show the advantage of our proposed method, we also visualize the embedding results of BlogCatalog generated by GCN, GRACE, AMGCN and SCRL, which are shown in Fig.3. It can be observed that the embedding generated by our proposed SCRL exhibits clearer cluster structure compared to other three methods.

To verify the efficiency of SCRL, we report the averaged training time per epoch when training SCRL, GRACE and AMGCN in Fig.4. Experiments are conducted with a GeForce GTX 1080 Ti 11G GPU. It can be seen that SCRL always costs much less time to train than others. For instance, for Flickr our proposed SCRL costs 65.9ms per epoch but AMGCN and GRACE need 237.7ms and 122.8ms, respectively. For BlogCatalog, SCRL needs 78.2ms per epoch while AMGCN needs 784.5ms and SCRL needs 243.8ms. What’s more, for larger datasets like PubMed, AMGCN and GRACE are subject to out-of-memory error. As mentioned above, AMGCN introduces attention mechanism and computes attention weights for every node. GRACE divides node in two views into positive pairs, inter-view negative pairs and intra-view negative pairs, and then makes pair-wise comparisons in the contrastive loss. Therefore, both AMGCN and GRACE become computationally inefficient and resource-consuming during training.

Datasets Citeseer PubMed
L/C 3 6 12 18 2 3 7
Label Rate 0.5% 1% 2% 3% 0.03% 0.05% 0.10%
ChebNet (Defferrard et al., 2016) 19.7 59.3 62.1 66.8 55.9 62.5 69.5
GCN (Kipf and Welling, 2017) 33.4 46.5 62.6 66.9 61.8 68.8 71.9
GAT (Veličković et al., 2018) 45.7 64.7 69.0 69.3 65.7 69.9 72.4
DGI (Veličković et al., 2019) 60.7 66.9 68.1 69.8 60.2 68.4 70.7
M3S (Sun et al., 2020) 56.1 62.1 66.4 70.3 59.2 64.4 70.5
GRACE (Zhu et al., 2020) 55.4 59.3 63.4 67.8 64.4 67.5 72.3
AMGCN (Wang et al., 2020) 60.2 65.7 68.5 70.2 60.5 62.4 70.8
SCRL 62.4 67.3 69.8 73.3 67.9 71.9 73.4
Table 3. Classification accuracy on Citeseer and PubMed with low label rates.

4.5. Few Labeled Classification

To further investigate the capability of our proposed SCRL in dealing with scarce supervision data, we conduct experiments when the number of labeled examples is extremely small. Taking Citeseer and PubMed for example, we strictly follow Li et al. (Li et al., 2018) and select a small set of labeled examples for model training. Specifically, for Citeseer, we select 3, 6, 12, 18 nodes per class, corresponding to four label rates: , , and . For PubMed, we select 2, 3, 7 nodes per class, corresponding to three label rates: , and . To make a fair comparison, we report mean classification accuracy of 10 runs.

We report the result in Table 3. We can observe that SCRL outperforms all state-of-the-art approaches. It can be seen that the accuracy of GCN, ChebNet, and GAT decline severely when the label rate is very low, especially on Citeseer, due to insufficient propagation of label information. By contrast, self-supervised/contrastive approaches, i.e., DGI, M3S, GRACE, are obviously much better because they additionally exploit supervisory signals with data themselves. Different from them, SCRL explores supervisory signals in feature graph, which is ignored by other self-supervised methods. Specifically, SCRL improves DGI, M3S, GRACE by , , and on average, respectively.

(a) ACM
(b) BlogCatalog
(c) Citeseer
(d) UAI2010
Figure 5. The influence of iteration number in Sinkhorn algorithm.
(a) ACM
(b) BlogCatalog
Figure 6. The influence of parameter k in feature graph.

4.6. Parameter Analysis

In this section, we analyze the sensitivity of parameters of our method on ACM, BlogCatalog, Citeseer, and UAI2020.

Number of prototypes 9(M) 27(3M) 45(5M) 90(10M)
20 L/C 78.54 79.52 78.82 78.75
40 L/C 83.82 84.15 84.23 83.90
60 L/C 84.03 84.54 84.48 84.42
Table 4. The influence of prototype number on Flickr.

Number of prototypes

In Table 4, we evaluate the influence of prototype number on Flickr via varying the value of . We can observe that when is bigger than 27, increasing prototype number may not improve the performance substantially. This suggests that has little influence as long as there are ”enough” prototypes. In fact, using too many prototypes increases computation time. Throughout this paper, we set in the range of to when we train SCRL.

Number of iterations p

We investigate the impact of normalization steps performed during Sinkhorn algorithm (Cuturi, 2013). We test it by setting p to 5 values: 3, 5, 10, 15, 30. The results are shown in Fig.5. As the number of iterations increases, the accuracy normally raises first and then holds steady. We observe that 5 iterations are usually good enough for the model to reach an ideal accuracy.

Parameter k

Finally, we study the impact of parameter k in the kNN feature graph with various k ranging from 2 to 9. We conduct experiments on ACM and BlogCatalog and fix the iteration number p to 5. For every k, we repeat experiments 10 times and record ACC to further calculate its average and standard deviation, which are displayed in Fig.

6. For ACM, with the increasing of k, the performance usually becomes better as well. It is because a larger k can provide more information about the relationship between nodes in feature space. Generally, BlogCatalog has a similar trend. However, with 60 labeled nodes per class, SCRL achieves the best performance when k is 7. That is perhaps because too many neighbor nodes in feature graph may introduce some noisy edges.

5. Ablation Study

As mentioned above, our proposed SCRL model employs self-supervised loss to learn a consensus representation from topological structure and node features. To elucidate the contribution of self-supervision module, we report the classification results of SCRL when this component is removed on three datasets: Citeseer, ACM, and Flickr. For fairness, the split of data is identical with the experimental setting in Section 4. We adopt ”SCRL(w/o SSL)” to represent the simplified model when self-supervised loss (SSL) is removed. The comparison is shown in Table 5. Apparently, ACC and F1 decrease when the aforementioned component is dropped from the framework. It reveals that our proposed self-supervision module is able to improve the performance on semi-supervised learning task substantially. For example, the accuracy can be boosted by over in some cases due to the introduction of self-supervised loss. In addition, the improvement of SCRL(sw/o SSL) over GCN verifies the importance of feature graph.

Dataset Metrics L/C SCRL
(w/o SSL)
Flickr ACC 20 79.52 76.28
40 84.23 79.10
60 84.54 83.58
F1 20 78.89 74.70
40 84.03 78.37
60 84.51 83.12
ACM ACC 20 91.82 90.24
40 92.06 90.32
60 92.82 91.50
F1 20 91.79 90.20
40 92.04 90.28
60 92.80 91.45
Citeseer ACC 20 73.50 71.82
40 75.08 74.48
60 75.96 74.30
F1 20 69.91 68.26
40 70.41 69.35
60 72.81 70.74
Table 5. The influence of self-supervised module.

6. Conclusion

In this paper, we propose a self-supervised consensus representation learning framework for semi-supervised classification on attributed graph. We make the first attempt to introduce the idea of self-supervised learning to integrate the correlated information from the topology structure and node features. Specifically, we require that the embeddings of feature graph and topology graph should be consistent and generate the same labels. It is realized by the ”exchanged prediction” in the self-supervised module. Extensive experiments well demonstrate its superior performance over the state-of-the-art models on real world datasets. For example, our SCRL improves AMGCN by and for ACC and F1 on average across all datasets; SCRL improves GRACE by and for ACC and F1.

This paper was in part supported by Grants from the Natural Science Foundation of China (Nos. 61806045,U19A2059).


  • (1)
  • Abu-El-Haija et al. (2019) Sami Abu-El-Haija, Bryan Perozzi, Amol Kapoor, Nazanin Alipourfard, Kristina Lerman, Hrayr Harutyunyan, Greg Ver Steeg, and Aram Galstyan. 2019. Mixhop: Higher-order graph convolutional architectures via sparsified neighborhood mixing. In

    international conference on machine learning

    . PMLR, 21–29.
  • Bruna et al. (2014) Joan Bruna, Wojciech Zaremba, Arthur Szlam, and Yann LeCun. 2014. Spectral Networks and Locally Connected Networks on Graphs. In 2nd International Conference on Learning Representations, ICLR 2014.
  • Caron et al. (2018) Mathilde Caron, Piotr Bojanowski, Armand Joulin, and Matthijs Douze. 2018.

    Deep clustering for unsupervised learning of visual features. In

    Proceedings of the European Conference on Computer Vision (ECCV). 132–149.
  • Caron et al. (2020) Mathilde Caron, Ishan Misra, Julien Mairal, Priya Goyal, Piotr Bojanowski, and Armand Joulin. 2020. Unsupervised Learning of Visual Features by Contrasting Cluster Assignments. (2020).
  • Chen et al. (2020) Ting Chen, Simon Kornblith, Mohammad Norouzi, and Geoffrey E. Hinton. 2020. A Simple Framework for Contrastive Learning of Visual Representations. In Proceedings of the 37th International Conference on Machine Learning, ICML, Vol. 119. 1597–1607.
  • Conneau and Lample (2019) Alexis Conneau and Guillaume Lample. 2019. Cross-lingual language model pretraining. Advances in Neural Information Processing Systems 32, 7059–7069.
  • Cui et al. (2019) Zhiyong Cui, Kristian Henrickson, Ruimin Ke, and Yinhai Wang. 2019.

    Traffic graph convolutional recurrent neural network: A deep learning framework for network-scale traffic learning and forecasting.

    IEEE Transactions on Intelligent Transportation Systems 21, 11 (2019), 4883–4894.
  • Cuturi (2013) Marco Cuturi. 2013. Sinkhorn distances: Lightspeed computation of optimal transport. Advances in neural information processing systems 26 (2013), 2292–2300.
  • Defferrard et al. (2016) Michaël Defferrard, Xavier Bresson, and Pierre Vandergheynst. 2016. Convolutional neural networks on graphs with fast localized spectral filtering. Advances in neural information processing systems 29 (2016), 3844–3852.
  • Duvenaud et al. (2015) David K Duvenaud, Dougal Maclaurin, Jorge Iparraguirre, Rafael Bombarell, Timothy Hirzel, Alan Aspuru-Guzik, and Ryan P Adams. 2015. In Advances in Neural Information Processing Systems, Vol. 28.
  • Grover and Leskovec (2016) Aditya Grover and Jure Leskovec. 2016. node2vec: Scalable feature learning for networks. In Proceedings of the 22nd ACM SIGKDD international conference on Knowledge discovery and data mining. 855–864.
  • Hamaguchi et al. (2017) Takuo Hamaguchi, Hidekazu Oiwa, Masashi Shimbo, and Yuji Matsumoto. 2017. Knowledge Transfer for Out-of-Knowledge-Base Entities : A Graph Neural Network Approach. In

    Proceedings of the Twenty-Sixth International Joint Conference on Artificial Intelligence, IJCAI-17

    . 1802–1808.
  • Hamilton et al. (2017) William L Hamilton, Rex Ying, and Jure Leskovec. 2017. Inductive representation learning on large graphs. In Proceedings of the 31st International Conference on Neural Information Processing Systems. 1025–1035.
  • He et al. (2020) Kaiming He, Haoqi Fan, Yuxin Wu, Saining Xie, and Ross Girshick. 2020. Momentum contrast for unsupervised visual representation learning. In

    Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition

    . 9729–9738.
  • Kang et al. (2020a) Zhao Kang, Xiao Lu, Jian Liang, Kun Bai, and Zenglin Xu. 2020a. Relation-guided representation learning. Neural Networks 131 (2020), 93–102.
  • Kang et al. (2020b) Zhao Kang, Haiqi Pan, Steven C.H. Hoi, and Zenglin Xu. 2020b. Robust Graph Learning From Noisy Data. IEEE Transactions on Cybernetics 50, 5 (2020), 1833–1843.
  • Kang et al. (2021) Zhao Kang, Chong Peng, Qiang Cheng, Xinwang Liu, Xi Peng, Zenglin Xu, and Ling Tian. 2021. Structured Graph Learning for Clustering and Semi-supervised Classification. Pattern Recognition 110 (2021), 107627.
  • Kingma and Ba (2015) Diederik P. Kingma and Jimmy Ba. 2015. Adam: A Method for Stochastic Optimization. In 3rd International Conference on Learning Representations, ICLR 2015, San Diego, CA, USA, May 7-9, 2015.
  • Kipf and Welling (2017) Thomas N. Kipf and Max Welling. 2017. Semi-Supervised Classification with Graph Convolutional Networks. In International Conference on Learning Representations (ICLR).
  • Li et al. (2018) Qimai Li, Zhichao Han, and Xiao-Ming Wu. 2018. Deeper insights into graph convolutional networks for semi-supervised learning. In Thirty-Second AAAI conference on artificial intelligence.
  • Lin and Kang (2021) Zhiping Lin and Zhao Kang. 2021. Graph Filter-based Multi-view Attributed Graph Clustering. In Proceedings of the 30th International Joint Conference on Artificial Intelligence, IJCAI 2021, August 19-26, 2021.
  • Lv et al. (2021) Juncheng Lv, Zhao Kang, Xiao Lu, and Zenglin Xu. 2021. Pseudo-supervised Deep Subspace Clustering. IEEE Transactions on Image Processing 30 (2021), 5252–5263.
  • Ma et al. (2020) Zhengrui Ma, Zhao Kang, Guangchun Luo, Ling Tian, and Wenyu Chen. 2020. Towards Clustering-friendly Representations: Subspace Clustering via Graph Filtering. In Proceedings of the 28th ACM International Conference on Multimedia. 3081–3089.
  • Meng et al. (2019) Zaiqiao Meng, Shangsong Liang, Hongyan Bao, and Xiangliang Zhang. 2019. Co-embedding attributed networks. In Proceedings of the twelfth ACM international conference on web search and data mining. 393–401.
  • Mikolov et al. (2013) Tomas Mikolov, Ilya Sutskever, Kai Chen, Greg S Corrado, and Jeff Dean. 2013. Distributed representations of words and phrases and their compositionality. In Advances in neural information processing systems. 3111–3119.
  • Nt and Maehara (2019) Hoang Nt and Takanori Maehara. 2019. Revisiting graph neural networks: All we have is low-pass filters. arXiv preprint arXiv:1905.09550 (2019).
  • Pal and Mitra (1992) Sankar K Pal and Sushmita Mitra. 1992. Multilayer perceptron, fuzzy sets, classifiaction. (1992).
  • Pathak et al. (2016) Deepak Pathak, Philipp Krahenbuhl, Jeff Donahue, Trevor Darrell, and Alexei A Efros. 2016. Context encoders: Feature learning by inpainting. In Proceedings of the IEEE conference on computer vision and pattern recognition. 2536–2544.
  • Perozzi et al. (2014) Bryan Perozzi, Rami Al-Rfou, and Steven Skiena. 2014. Deepwalk: Online learning of social representations. In Proceedings of the 20th ACM SIGKDD international conference on Knowledge discovery and data mining. 701–710.
  • Qiu et al. (2018) Jiezhong Qiu, Jian Tang, Hao Ma, Yuxiao Dong, Kuansan Wang, and Jie Tang. 2018. Deepinf: Social influence prediction with deep learning. In Proceedings of the 24th ACM SIGKDD International Conference on Knowledge Discovery & Data Mining. 2110–2119.
  • Rahimi et al. (2018) Afshin Rahimi, Trevor Cohn, and Timothy Baldwin. 2018. Semi-supervised User Geolocation via Graph Convolutional Networks. In Proceedings of the 56th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers). 2009–2019.
  • Rhee et al. (2018) Sungmin Rhee, Seokjun Seo, and Sun Kim. 2018. Hybrid Approach of Relation Network and Localized Graph Convolutional Filtering for Breast Cancer Subtype Classification. In Proceedings of the Twenty-Seventh International Joint Conference on Artificial Intelligence, IJCAI-18. 3527–3534.
  • Sen et al. (2008) Prithviraj Sen, Galileo Namata, Mustafa Bilgic, Lise Getoor, Brian Galligher, and Tina Eliassi-Rad. 2008. Collective classification in network data. AI magazine 29, 3 (2008), 93–93.
  • Sun et al. (2020) Ke Sun, Zhouchen Lin, and Zhanxing Zhu. 2020. Multi-stage self-supervised learning for graph convolutional networks on graphs with few labeled nodes. In Proceedings of the AAAI Conference on Artificial Intelligence, Vol. 34. 5892–5899.
  • Tang et al. (2015) Jian Tang, Meng Qu, Mingzhe Wang, Ming Zhang, Jun Yan, and Qiaozhu Mei. 2015. LINE: Large-Scale Information Network Embedding. In Proceedings of the 24th International Conference on World Wide Web. 1067–1077.
  • Veličković et al. (2018) Petar Veličković, Guillem Cucurull, Arantxa Casanova, Adriana Romero, Pietro Liò, and Yoshua Bengio. 2018. Graph Attention Networks. International Conference on Learning Representations.
  • Veličković et al. (2019) Petar Veličković, William Fedus, William L. Hamilton, Pietro Liò, Yoshua Bengio, and R Devon Hjelm. 2019. Deep Graph Infomax. In International Conference on Learning Representations.
  • Wang et al. (2018a) Wenjun Wang, Xiao Liu, Pengfei Jiao, Xue Chen, and Di Jin. 2018a. A Unified Weakly Supervised Framework for Community Detection and Semantic Matching. In Pacific-Asia Conference on Knowledge Discovery and Data Mining. Springer, 218–230.
  • Wang et al. (2019) Xiao Wang, Houye Ji, Chuan Shi, Bai Wang, Yanfang Ye, Peng Cui, and Philip S. Yu. 2019. Heterogeneous Graph Attention Network. In The World Wide Web Conference, WWW 2019, San Francisco, CA, USA, May 13-17, 2019. ACM, 2022–2032.
  • Wang et al. (2020) Xiao Wang, Meiqi Zhu, Deyu Bo, Peng Cui, Chuan Shi, and Jian Pei. 2020. AM-GCN: Adaptive Multi-channel Graph Convolutional Networks. In KDD ’20: The 26th ACM SIGKDD Conference on Knowledge Discovery and Data Mining, Virtual Event, CA, USA, August 23-27, 2020. ACM, 1243–1253.
  • Wang et al. (2018b) Zhichun Wang, Qingsong Lv, Xiaohan Lan, and Yu Zhang. 2018b. Cross-lingual Knowledge Graph Alignment via Graph Convolutional Networks. In Proceedings of the 2018 Conference on Empirical Methods in Natural Language Processing. Association for Computational Linguistics, 349–357.
  • Wu et al. (2019b) Felix Wu, Amauri Souza, Tianyi Zhang, Christopher Fifty, Tao Yu, and Kilian Weinberger. 2019b. Simplifying graph convolutional networks. In International conference on machine learning. 6861–6871.
  • Wu et al. (2019a) Jun Wu, Jingrui He, and Jiejun Xu. 2019a. Net: Degree-specific graph neural networks for node and graph classification. In Proceedings of the 25th ACM SIGKDD International Conference on Knowledge Discovery & Data Mining. 406–415.
  • Yang et al. (2016) Zhilin Yang, William Cohen, and Ruslan Salakhudinov. 2016. Revisiting semi-supervised learning with graph embeddings. In International conference on machine learning. PMLR, 40–48.
  • Zhu et al. (2020) Yanqiao Zhu, Yichen Xu, Feng Yu, Qiang Liu, Shu Wu, and Liang Wang. 2020. Deep Graph Contrastive Representation Learning. In ICML Workshop on Graph Representation Learning and Beyond.
