1. Introduction

Intelligent control of physics simulation is an increasingly popular approach for synthesizing physically-plausible animations for simulated characters. This requires a method that outputs, for each timestep, simulation actuation parameters such as joint torques such that the character performs some desired movement. This poses a continuous control problem with high state and control dimensionality, where the environment is governed by complex physical interactions. Physically-based animation has applications in games, simulation, and robotics (Geijtenbeek and Pronost, 2012).

Current approaches for solving physically-based animation can be divided into two categories: 1) planning and search, and 2) reinforcement learning. Planning and search methods use the interleaved mechanism of iterative generation and evaluation of candidate solutions until finding a sufficiently good one (Jain et al., 2009). On the other hand, reinforcement learning (RL) methods learn how to act through interaction with the environment (Berseth et al., 2018).

Although RL methods have shown great potential in learning complex skills (Schulman et al., 2017), they often fail in producing smooth and believable motions111See, for example, https://www.youtube.com/watch?v=faDKMMwOS2Q&. This has recently been solved by a framework called DeepMimic, by showing that in the presence of high-quality pre-recorded animations, RL methods are able to learn a wide range of skills with near-optimal motion quality (Peng et al., 2018a). The immediate extention to this approach, called SFV, is designed to work with videos, as an alternative resource for automated extraction of reference animations (Peng et al., 2018b).

Despite the impressive results produced by DeepMimic and SFV, their dependency on high-quality movement recordings limits the types of characters or behaviors they can support. For example, providing motion capture animations or video recordings for characters with ad hoc rigs is almost impossible, and producing hand-designed animations for such character is expensive and time-consuming. Plus, using real-life videos for producing reference motions is not very suitable for games, where exaggeration in movements is frequently used to encourage the feeling of empowerment for the players (Granqvist et al., 2018). Last but not least, such data-driven approaches can only be used for synthesizing movements whose reference motion is available; so they cannot be used for producing novel movements. This calls for more general approaches that can work with ad hoc characters and movements.

In this paper, we propose a self-imitation learning approach for enabling rapid learning of stable locomotion controllers. Essentially, our approach combines FDI-MCTS (Rajamäki and Hämäläinen, 2018) and DeepMimic (Peng et al., 2018a), two recent methods for continuous control. FDI-MCTS is an online tree search method that is able to produce high-quality locomotion movements in just a few minutes (Rajamäki and Hämäläinen, 2018). We are motivated to mitigate the main limitations of both methods, namely the high run-time cost of FDI-MCTS and the data-dependency of DeepMimic.

We begin by using FDI-MCTS to generate a cyclic locomotion movement as the reference motion (examples of synthesized motions are shown in Fig. 1). Then we employ a training mechanism similar to DeepMimic, to find a neural network controller that imitates the reference motion. We also propose Termination Curriculum (TC), a novel curriculum learning approach for accelerating the imitation learning. Our experiments show that our approach is able to learn robust locomotion skills for a broad set of 3D characters. All controllers are trained in less than four hours of CPU time, which is significantly faster than DeepMimic and SFV.

The rest of this paper is organized as follows. Section 2 overviews the previous approaches for synthesizing physically-based animations. In Section 3, the basic preliminary concepts of online optimization and policy optimization are introduced. After that, our proposed approach is explained in detail in Section 4. Section 5 covers the setup and results of our experiments. Finally, at Section 6, we overview the limitations and future work to our approach.

2. Related Work

Our work aims at producing locomotion movements for physically-based characters. There has been a large body of research on this problem, especially after remarkable breakthroughs in Deep Reinforcement Learning (DRL) (Mnih et al., 2015; Silver et al., 2016; Silver et al., 2017). Proposed approaches can be divided into two categories: planning and search (Section 2.1), and reinforcement learning (Section 2.2). Some approaches also employ reference animations to produce believable movements. We refer to this technique as motion imitation (Section 2.3).

2.1. Planning and Search

Planning and search approaches use the classic-style search for optimizing movements. The main pipeline behind these approaches includes the following three steps: 1) A number of random trajectories are generated, 2) Each trajectory is evaluated by forward simulation and computing a cost function, and 3) The trajectory with minimum cost is picked as the solution. This has resulted in a flexible and powerful mechanism for solving optimization problems for a long time.

Evolutionary Strategies (ES) are a family of black-box optimization methods that are also very easy to use in parallel (Salimans et al., 2017). One of the most common ES methods is Covariance Matrix Adaptation Evolution Strategy (CMA-ES) (Hansen, 2006). CMA-ES has been used in an offline manner to learn the parameters for controller of physically-simulated characters (Geijtenbeek et al., 2013). Another study has used CMA-ES as an offline low-level controller for synthesizing humanoid wall climbing movements (Naderi et al., 2017). It has been shown that rolling horizon version of CMA-ES can be used in different real-time scenarios (Samothrakis et al., 2014; Liu et al., 2016b). Recent studies have used CMA-ES for synthesizing sports movements in a two-player martial arts interface (Babadi et al., 2018) and single-agent basketball (Liu and Hodgins, 2018).

Monte Carlo methods have received considerable interest in domains where the search budget is limited. Sequential Monte Carlo (SMC) has been shown to be effective for online synthesize of physically-based animations (Hämäläinen et al., 2014). It has also been used for replicating motion capture data by breaking the problem into a sequence of control fragments (Liu et al., 2016a). Another Monte Carlo method, called Monte Carlo Tree Search (MCTS) (Browne et al., 2012), has shown great performance in real-time applications and games (Sironi et al., 2018). MCTS has been used in Alpha Go Zero for improving the policy using self-play (Silver et al., 2017). Fixed Depth Informed MCTS (FDI-MCTS) is a continuous version of MCTS used in a physically-based control. FDI-MCTS uses a policy network trained with supervised learning to reduce the movement noise produced by the sampling-based controller (Rajamäki and Hämäläinen, 2018).

2.2. Reinforcement Learning

Reinforcement Learning (RL) is a learning process, conducted through interaction between an agent and an environment, where the goal is to maximize the reward by optimizing the agent’s actions (Sutton and Barto, 2018). RL methods have become significantly more powerful in the recent years, mainly after the Deep Reinforcement Learning (DRL) success in Atari games (Mnih et al., 2015) and the game of Go (Silver et al., 2016; Silver et al., 2017). Recently, this approach was also used in AlphaZero, a system with superhuman performance in the games of go, chess, and shogi (Silver et al., 2018).

It has been shown that when the motion is guided by a finite state machine, actor-critic methods can be used for learning train-adaptive locomotion skills (Peng et al., 2015, 2016). Actor-critic methods have also been successfully used in hierarchical controllers (Peng et al., 2017). Deep Deterministic Policy Gradient (DDPG) (Lillicrap et al., 2015) has been recently used for learning arm control policies for basketball dribbling (Liu and Hodgins, 2018).

Two of the most common RL algorithms are called Trust Region Policy Optimization (TRPO) (Schulman et al., 2015a) and Proximal Policy Optimization (PPO) (Schulman et al., 2017)

. The key element in these methods is a surrogate objective function that allows for more than one gradient update per data sample. PPO has shown to have tendency of prematurely shrinking the exploration variance, which makes it prone to getting stuck in local optima

(Hämäläinen et al., 2018). However, studies have shown that PPO outperforms TRPO in most cases, which makes it the dominant algorithm used in continuous control (Yu et al., 2018; Peng et al., 2018a). In this paper, we use PPO as the base RL algorithm for learning locomotion movements.

Curriculum learning is the process of learning a series of tasks in increasing order of complexity (Bengio et al., 2009). It is a powerful technique for improving learning performance in terms of both convergence speed and output quality. This technique has been used for learning humanoid climbing movements, where the agent learns 1-, 2-, 3-, and 4-limb movements in order (a limb can be either one of agent’s hands or feet) (Naderi et al., 2018). A recent study proposed a continuous curriculum learning method for providing physical assistance to help the character in locomotion movements (Yu et al., 2018). Our work uses a similar curriculum learning mechanism for imitating a reference animation.

2.3. Motion Imitation

One of the main approaches for synthesizing animations is to guide the process using available animation data, which is usually designed manually or recorded using motion capture. A recent study proposed a method for training physically-based character controllers using motion capture animations (Liu et al., 2016a). In the context of kinematic-based control, another study has introduced a neural network architecture whose weights can be computed using cyclic functions with respect to a dataset of pre-recorded animations (Holden et al., 2017). A generalization of this architecture has been successfully used for synthesizing robust quadruped movements (Zhang et al., 2018).

Another popular data-driven approach for solving physically-based control is to learn through imitation. The first method in this category was called DeepLoco, a system that trains high-level and low-level controllers such that the low-level controller is encouraged to imitate a reference animation (Peng et al., 2017). A descendant of this method, called DeepMimic, has been able to produce a wide set of high-quality and robust movements by imitating a large motion capture dataset (Peng et al., 2018a). The most recent variant of this method is able to extract reference animations directly from videos, which makes the training pipeline significantly cheaper (Peng et al., 2018b). The imitation learning process employed in our work differs from the one used in DeepMimic as in our work the reference animations are automatically synthesized without using any animation or video. That is the reason we use the term self-imitation learning for this process.

3. Preliminaries

This section covers the basics of online optimization and policy optimization methods. We follow the same notation used in relevant previous works, especially the notation introduced in (Peng et al., 2018a).

3.1. Online Optimization

Online optimization is one of the main approaches for generating physically-based animations (Geijtenbeek and Pronost, 2012). The idea is to generate a set of candidate solutions (i.e., action sequences), and find the most cost-efficient solution by evaluating them. This is usually done using forward simulation until some time horizon and computing some cost function . If the character’s current state is , forward simulating a sequence of actions leads to a trajectory (the superscript stands for Online optimization). Then, the problem will be to find the action sequence that minimizes the accumulative cost, i.e.,

where and are functions for computing the state and action costs, respectively. usually encodes some information about the target movement. In the walking task for example, the character should keep its center of mass above its feet and its mean velocity close to some desired walking velocity. usually penalizes the amount of torque applied to each body joint in order to avoid extreme movements (Rajamäki and Hämäläinen, 2017).

We use a recent open-source222https://github.com/JooseRajamaeki/TVCG18 online optimization method called Fixed-Depth Informed Monte Carlo Tree Search (FDI-MCTS) (Rajamäki and Hämäläinen, 2018) to produce a cyclic locomotion movement as the reference motion. FDI-MCTS synthesizes movements using an interleaved process of tree search and supervised learning, as illustrated in Fig. 2. The supervised learning component is trained using the best controls found during the tree search in order to reduce the noise in produced movements. This results in emergence of stable locomotion gaits for different types of characters in less than a minute of CPU time, allowing rapid cost function design iteration. Movement is initially noisy, but running the algorithm for a few more minutes removes the noise. Next, we briefly explain how the tree search and supervised learning components work in FDI-MCTS. More details about this method along with its implementation details can be found in (Rajamäki and Hämäläinen, 2018).

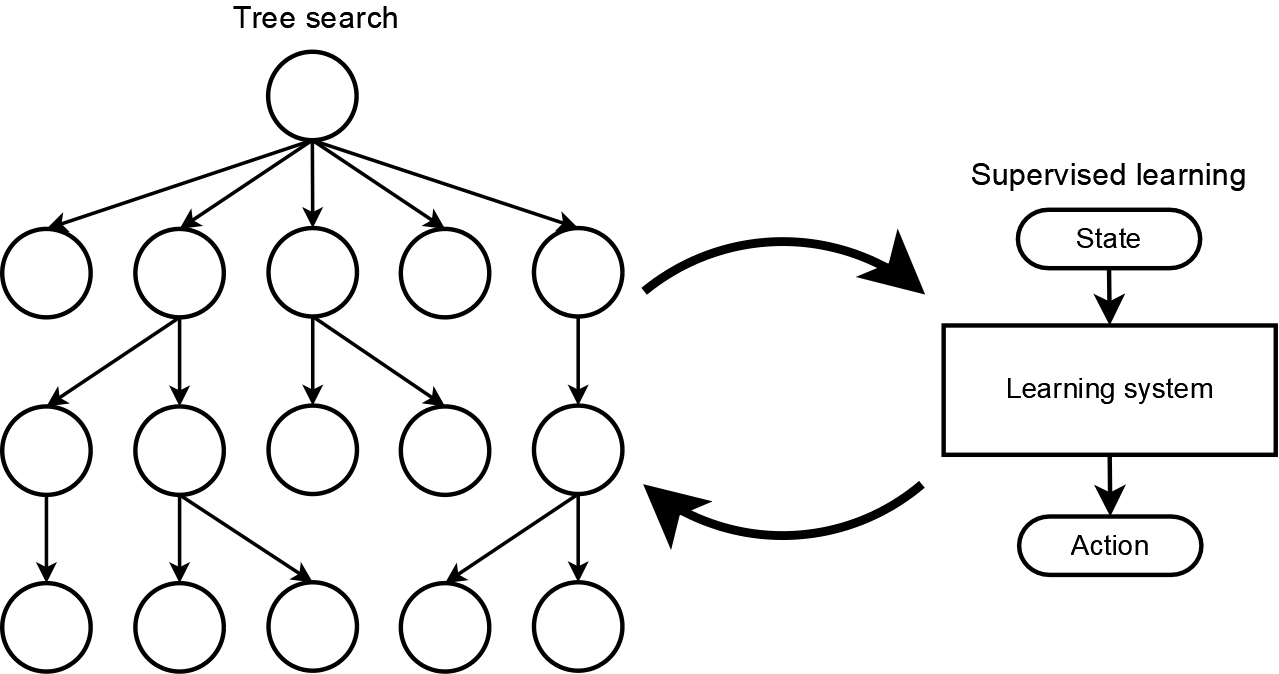

Figure 2. FDI-MCTS uses receding horizon Monte Carlo tree search informed by several supervised learning systems (Rajamäki and Hämäläinen, 2018).

FDI-MCTS uses a variant of Monte Carlo tree search (MCTS) by sampling random control trajectories (i.e., a series of target angles) for timesteps. At each timestep, it prunes the trajectories whose costs are more than some adaptive threshold, and replaces them with duplicates of the trajectories low cost. After forward simulation of all trajectories for timesteps, the best found trajectory is chosen as the solution and its first is returned as the agent’s next action.

When the tree search at timestep is over, the state-action pair is fed to the supervised learning component. In this part, a combination of neural network and density forest is used to remember the best control point at the current state. In the next timesteps, this information is used to shape the distribution of random control trajectories sampled during the tree search.

3.2. Policy Optimization

The basic definition of reinforcement learning includes an agent that has interactions with some environment, and its goal is to maximize the accumulated rewards over time. Policy optimization refers to a family of reinforcement learning methods, in which the goal is to optimize the agent’s policy with respect to the expected return. The policy is usually modeled using a neural network, parameterized by , and defines a mapping from a state to a distribution over actions .

In each timestep, the agent observes the current state and samples its next action from the distribution . After that, the environment is updated and the agent observes a scalar reward along with the new state . The goal is to find the optimal parameters that maximizes the expected return, defined as follows:

where is a trajectory generated by starting from (drawn from an initial state distribution) and following the policy afterwards (the superscript stands for Policy optimization). A discount factor is used to ensure that the expected return is finite even if is infinite.

In this paper, we use an open-source333https://github.com/openai/baselines implementation of Proximal Policy Optimization (PPO) (Schulman et al., 2017)

. PPO uses stochastic gradient ascent by estimating the gradient of the expected return with respect to the policy parameters

, i.e., . It does that using a so-called clipped surrogate objective function, that penalizes large policy updates, as follows:

where

is the probability ratio of the policy, after and before an update, and

is a hyperparameter used for avoiding large policy updates.

is an estimation to the so-called advantage function at timestep . At each timestep, the advantage function is positive if the chosen action leads to a better reward than expected, and negative otherwise. PPO uses Generalized Advantage Estimation (GAE) (Schulman et al., 2015b), a simple and popular estimator for the advantage function. More information about the PPO algorithm can be found in (Schulman et al., 2017).

4. Method

4.1. Reference Motion Generation

The first step of our approach includes automatic generation of a reference motion. For this purpose, we use FDI-MCTS (Rajamäki and Hämäläinen, 2018), a recent sampling-based model-predictive algorithm for continuous control. The cost function used by FDI-MCTS uses four quadratic terms for penalizing the followings: 1) amount of torques applied to joints, 2) deviation from the default pose (shown in Fig. 4), 3) planar deviation of the center of mass from the feet mean point, and 4) the difference between the current and the target velocity of the character. We extract an approximate cycle out of the synthesized motion sequence using the method explained below.

Given a trajectory of stable locomotion movements, the cycle extraction process starts by storing the key information at every timestep. Stored information include orientation of each joint , angular velocity of each bone , position and linear velocity of each end-effector (e.g., hands and feet for humanoid characters), and the character’s center of mass . At each timestep, in order to detect the end of the cycle, positions and linear velocities of all end-effectors are compared with their corresponding values at the initial timestep of the cycle. The cycle is completed if the end-effectors have almost the same positions as in the initial timestep and their corresponding linear velocities have acute angles between them, i.e., their dot product is positive. We set the minimum length of a cycle to timesteps to avoid detecting empty cycles. This gives us an easy-to-implement and computationally cheap method for extracting cycles from synthesized movements.

4.2. Self-Imitation Learning

After synthesizing a cyclic movement, we use the PPO algorithm to find a policy for performing locomotion while imitating the reference motion. In this part, we use a training mechanism similar to DeepMimic (Peng et al., 2018a). When starting a new episode, the so-called Reference State Initialization (RSI) is used, i.e., the initial state is uniformly picked from the reference motion. An episode is terminated if a bone other that the feet is in contact with the ground, or episode length exceeds some pre-defined limit. To accelerate the training process, we employ a different Early Termination (ET) mechanism, which is explained in Section 4.4.

4.3. Reward Function

Our reward definition is almost identical to DeepMimic (Peng et al., 2018a). The instantaneous reward at timestep is defined as follows:

where (weighted by ) and (weighted by ) define the imitation and task rewards at timestep , respectively. This encourages the character to satisfy the task objective while imitating the reference motion. All quantities on the right side of the equation are between and , and , leading to a simple reward . This reward is also informative for humans in the sense that means that the character’s performance is ideal and means that the character is failing in collecting any imitation or task reward.

4.3.1. Imitation Reward

The imitation reward encourages the character to imitate the reference motion, and it is computed as a weighted sum of four terms as follows:

The terms , , , and are computed exactly the same as in (Peng et al., 2018a).

4.3.2. Task Reward

In this paper, we only consider the locomotion tasks. So the task reward encourages the character to walk in the desired direction with the desired speed, and it is defined as follows:

where is the desired velocity and is the mean velocity of character’s bones, projected on the xy-plane.

4.4. Termination Curriculum

(a) Fixed state initialization
(b) Reference state initialization
(c) Reference state initialization with a high reward threshold in the beginning of training
(d) Reference state initialization with a high reward threshold in the middle of training
Figure 3.

Using a toy problem to compare different episode initialization and termination strategies, regarding to visited regions of the state space. This didactic example demonstrates the movement of an agent along the vertical axis over time (the horizontal axis). The underlying Markov decision process (MDP) has 2D states

, 1D actions , and a deterministic state transition model , where is the environment timestep. The reward landscape is shown using a light-to-dark heatmap, i.e., the optimal state trajectory is the dark sine curve. The solid black lines are the observed trajectories, whose initial states are shown by white circles. Fixed state initialization can slow down the training process since a slight deviation from the optimal trajectory can easily prevent the agent from visiting promising regions of the state space (a). (Peng et al., 2018a) has shown that in the presence of reference motion, Reference State Initialization (RSI) is an effective strategy for mitigating this issue (b). We propose termination curriculum (TC), an early termination strategy, by putting a threshold (shown by the red dashed lines) on the amount of instantaneous reward at each timestep (c). Using this strategy, at early stages of the training the agent will end up observing a lot of short trajectories since the policy is very likely to deviate from the optimal trajectory. However, as the training goes on, the agent will learn to stay in proximity of the optimal trajectory for a longer time, making it possible to reduce the reward threshold (d). This poses a continuous curriculum learning mechanism for preventing the agent from wasting the simulation budget during the training.

When using RL algorithms, a common challenge appears in the initial stages of the training, where the policy can easily lead the agent to the fruitless regions of the state space. Plus, it has been recently shown that PPO is prone to getting stuck in local optima (Hämäläinen et al., 2018). These can cause a huge waste of simulation budget during the training. We use a didactic example, shown in Fig. 3 to demonstrate this problem and how we propose to solve it.

Fig. (b)b, shows how the simulation budget can be wasted even when Reference State Initialization (RSI) is used without any termination mechanisms. The figure shows a 2D state space, in which the optimal state trajectory (i.e., the reference motion) is shown in dark gray. The light-to-dark heatmap shows the state-dependent reward distribution and each solid black line resembles a random trajectory (i.e., episode) in the state space. As it can be seen in the figure, RSI forces the episodes to fork the optimal state trajectory in the beginning. However, a non-optimal policy leads to the regions of the state space that should not be visited using an optimal policy.

To mitigate the problem shown in Fig. (b)b, we propose Termination Curriculum (TC), a continuous curriculum learning mechanism by limiting the minimum allowed amount of instantaneous reward in each timestep, and lowering the limit during training. This simple mechanism can lead to a significant increase of performance in terms of both reward and training speed. Next we explain how TC works in detail.

Let denote the threshold for the instantaneous reward at timestep . We add an extra termination condition to the underlying MDP such that an episode is terminated if . This forces the agent to only visit the regions of the state space in which , except in the last timestep of each episode. By lowering the threshold during the training process, the agent is gradually allowed to visit other regions of the state space as well. In other words, the character performs in a restricted state space, which in the beginning is significantly smaller than the original space. By gradually relaxing the restrictions, the state space becomes larger, allowing the character to learn how to act in the new states.

Fig. (c)c demonstrates how termination curriculum mechanism helps the agent to cover the states that are in proximity to the optimal state trajectory. In this case, the trajectories are shorter. However, when used along with RSI, most of the simulation budget is spent for revising the policy in proximity of the optimal state trajectory. Furthermore, lowering the reward threshold allows the agent to visit more challenging regions of the state space, extending the policy to act in longer episodes.

The main challenge when applying termination curriculum is how to choose the right range for . As explained in Section 4.3, our DeepMimic-style reward function is human-understandable enough, and it is always between and . Our tests show that starting with and linearly decreasing it to produces good results for a wide range of characters.

5. Evaluations

5.1. Implementation Details

We now explain the implementation details for producing the reported results. The source code is available on GitHub444([ToDo] Code will be open-sourced along with the paper’s camera-ready version.), and examples of synthesized motions can be seen in the supplemental video 555https://youtu.be/3l6RAynQnCs.

Physical Simulations: We used Open Dynamics Engine (ODE)(Smith, 2001) for physical simulations. Simulations were done in parallel threads in order to accelerate the optimization and training processes.

State Features: At each timestep

, the state features contain position and orientation of the root bone, angular velocity of each bone, and finally, all the joint angles. These values are concatenated into a vector and used as the feature vector

.

Action Parameterization: Action parameters are defined as the reference angles

for each degree of freedom. A P-controller then converts these values to reference angular velocities, i.e.,

, where is the P-controller’s multiplier and is the current angle.

Training:

We used Tensorflow

(Abadi et al., 2015) for training the agent using the PPO algorithm (Schulman et al., 2017). Policy and value functions were modeled using fully-connected networks with two hidden layers of size with activation function. Our tests showed that it is better to use

in the final layer of the policy network and then interpolate the policy’s output using the minimum and maximum angle for each degree of freedom.

Training Parameters: The parameters used for PPO training are shown in Table 1.

Parameter Value
3.5 Clipping coefficient

Number of epochs per iteration

Learning rate*
Training iterations
Iteration simulation budget
Batch size
Discount factor
GAE parameter

* Learning rate decay was used throughout the training.

Table 1. Parameters used in the PPO training

5.2. Experiments Setup

5.2.1. Characters

In order to show the flexibility of our approach, we used a variety of game characters in our simulations666All 3D models are royalty-free assets purchased from Unity Asset Store.. The character’s physical skeletons were modeled using 3D capsules connected via 3-DOF ball-and-socket or 1-DOF hinge joints. Finally, characters were rendered using Unity 3D game engine777https://www.unity3d.com/. Fig. 4 shows all characters used in our work along with their skeletons. The details of these characters in the physical simulations are shown in Table 2.

(a) Wolf
(b) Orc
(c) Mech
Figure 4. Simulated 3D characters and their physical skeletons in the default pose. Some of the parts such as the orc’s mace and shield were not modeled in the physical simulations to avoid unnecessary complications. Since our method does not require any hand-designed or mocap animations, it can be applied to a wide range of character anatomies with minimum cost.
Property Wolf Orc Mech
3.5 Height (m)
Mass (kg)
Bones
Joints
State Dimensions
Action Dimensions (DoF)
Table 2. Setup details of the simulated characters

5.2.2. Experiments

We used all characters shown in Fig. 4 for solving the locomotion task, i.e., moving in the forward direction with the target speed of .

Reference motions: The walking cycles produced in the reference motion generation stage had usually between to frames (depending on the character). Thus, the maximum episode length during the training was set to to ensure that each episode gives the characters enough time for repeating the reference motion at least twice.

Reward validation: In order to show the effectiveness of the reward function defined in Section 4.3, at first we trained the agents directly using the FDI-MCTS cost function converted to reward as:

where is a constant used to map the cost values into the range . Note that the reward function gradient is proportional to FDI-MCTS objective function, thereby preserving the online optimization landscape.

Termination curriculum: In order to show the effectiveness of the termination curriculum mechanism, we tested five different termination strategies as follows (all versions use reference state initialization):

  1. No termination: This version does not use any termination strategies (similar to Fig. (b)b).

  2. Termination curriculum: In this version, the training begins by setting the threshold (introduced in Section 4.4) to and then linearly decaying it to throughout the training. The next three versions are solely introduced to demonstrate the effectiveness of decaying the threshold and thus use constant values for the threshold .

  3. Tight threshold: This version uses the constant threshold for episode termination. This tight threshold only allows the agent to visit the states that are ”almost perfect” (similar to Fig. (c)c).

  4. Medium threshold: In this version, the constant threshold is used to limit the visible states to those with a fairly good reward value (similar to Fig. (d)d).

  5. Loose threshold: Finally, a version with the constant threshold was defined. This threshold does not allow the agent to visit states with very bad rewards, but does not guarantee to keep it in good states.

5.3. Results

Each one of the five versions introduced in Section 5.2.2

was tested in five independent runs, and the mean and standard deviation of average cost and reward were recorded. In each run, a new walking cycle was generated using FDI-MCTS and then trained using PPO algorithm for

iterations. All experiments were performed by an Intel Core i7-4930K 3.40GHz CPU processor and 16GB of RAM. Examples of synthesized locomotion movements can be seen in the supplemental video 888https://youtu.be/3l6RAynQnCs.

5.3.1. FDI-MCTS is efficient in producing reference motions

Three example cycles produced in the reference motion generation stage are shown in Fig. 1 (due to lack of space, five frames of each cycle are shown). As it can be seen in Fig. 1, the initial and final frames of the cycles are pretty similar, although not exactly the same. However, slight differences are not a problem since in the self-imitation learning stage, the agent tries to imitate the reference cycle as much as possible. It causes the agent to compensate the gap between initial and final frames of the cycle, resulting in a motion that resembles the reference cycle as much as possible. All reference motions were produced in less than five minutes of CPU time.

5.3.2. The combination of FDI-MCTS and PPO is better than PPO alone

Fig. 5 plots the FDI-MCTS cost when using PPO with DeepMimic-style reward function , explained in Section 4.3, as opposed to the reward function , which directly optimizes the FDI-MCTS objective function , while at the same time avoiding very large and small rewards, which is required for PPO’s value function predictor network training. As it can be seen in the figure, the DeepMimic-style reward acts as a good proxy for optimizing the FDI-MCTS cost. On the other hand, trying to directly apply PPO to the locomotion problem without the FDI-MCTS imitation reward leads to clearly inferior results.

Wolf
(a) Wolf
(b) Orc
(c) Mech
Figure 5. Comparing the performance, in terms of FDI-MCTS cost function, when using the DeepMimic-style reward function explained in Section 4.3 instead of directly using FDI-MCTS cost function as reward.

5.3.3. Termination Curriculum improves training

The plots in Fig. 6 show how different termination strategies work in terms of average reward. Compared to other versions, the termination curriculum shows superior performance for all characters except the wolf, where its performance is similar to the tight threshold strategy. The reason is that the wolf character, unlike orc and mech, is a quadruped and in the case of quadrupeds, a wide range of policies (including the random policies) can easily avoid the character from falling down. This results in receiving high rewards in Fig. (a)a, and the curriculum has less effect. However, as it can be seen for the orc (Fig. (b)b) and mech (Fig. (c)c) characters, the tight threshold strategy shows instabilities since it uses a very optimistic reward threshold, which makes it fragile to small noise in the environment. On the other hand, the termination curriculum is producing stable results over all five runs for the three characters.

Wolf
(a) Wolf
(b) Orc
(c) Mech
Figure 6. Evaluating different termination strategies. As it can be seen, termination curriculum significantly accelerates the training, allowing to train characters with various anatomies in only a few hours of CPU time.

Another observation in Fig. 6 is how the termination curriculum significantly decreases the sample complexity when compared to the naive version with no termination. This, together with multi-threading, enabled us to successfully train the agents in only a few hours of CPU time (including the reference motion generation stage). This is very promising since it can used as an easy-to-use and cheap animation production pipeline for game developers and animators.

6. Discussion and Conclusions

We proposed an approach for constructing a policy network for synthesizing stable locomotion movements for an arbitrary given character anatomy. Our approach starts by running an online optimization method (FDI-MCTS (Rajamäki and Hämäläinen, 2018)) to generate a stable locomotion gait. It then extracts a cyclic motion out of the generated movement as the reference motion. In the next stage, inspired by DeepMimic (Peng et al., 2018a), proximal policy optimization (PPO) (Schulman et al., 2017) is used such that the character is able to accomplish the locomotion task while imitating the reference motion. In this stage, we propose Termination Curriculum (TC), a simple continuous curriculum learning mechanism to enable rapid training of the final policy. The core idea of this mechanism is to terminate the episode if the instantaneous reward becomes lower than some threshold . Decreasing this threshold during the training results in a continuous curriculum which limits the state space regions that are visible to the agent during training.

In summary, our experiments show that the proposed FDI-MCTS to PPO pipeline combines the best aspects of both algorithms. FDI-MCTS allows rapid discovery and visualization of behaviors, enabling fast reward function design iteration. FDI-MCTS also provides more flexibility in the reward design, as one can simply use quadratic cost terms without worrying about excessive reward magnitude. Once a suitable gait has been found, PPO with DeepMimic reward function can produce a stable and computationally efficient neural network policy. In contrast, using FDI-MCTS alone incurs orders of magnitude higher runtime cost due to the forward simulation, and PPO alone prevents the fast reward design iteration. In absence of the FDI-MCTS -generated reference motion, PPO also failed in optimizing our locomotion reward function.

Although our approach improves the sample complexity of DeepMimic-style learning, it still has a high sample complexity. In future work, this could be improved by using more recent state-of-the-art reinforcement learning algorithms, such as Maximum a Posteriori Policy Optimisation (MPO) (Abdolmaleki et al., 2018) and Soft Actor-Critic (SAC) (Haarnoja et al., 2018). However, even with a more advanced RL algorithm, our proposed approach of using a trajectory optimization method for reference movement generation will probably offer faster reward function and movement style design iteration, as opposed to using RL alone.

Acknowledgements.
([ToDo] Acknowledgments will be added here.)
