1 Introduction
In many natural language processing tasks, graphbased representations have proven useful tools to enable models to deal with highly structured knowledge. Lattices are a common instance of graphbased representations that allows capturing a large number of alternative sequences in a compact form (Figure 1). Example applications include speech recognition lattices that represent alternative decoding choices Saleem et al. (2004); Zhang et al. (2005); Matusov et al. (2008), word segmentation lattices that capture ambiguous decisions on word boundaries or morphological alternatives Dyer et al. (2008), word class lattices Navigli and Velardi (2010), and lattices for alternative video descriptions Senina et al. (2014).
Prior work has made it possible to handle these through the use of recurrent neural network (RNN) lattice representations Ladhak et al. (2016); Su et al. (2017); Sperber et al. (2017), inspired by earlier works that extended RNNs to tree structures Socher et al. (2013); Tai et al. (2015); Zhu et al. (2015). Unfortunately, these models are computationally expensive, because the extension of the already slow RNNs to treestructured inputs prevents convenient use of batched computation. An alternative model, graph convolutional networks (GCN) Duvenaud et al. (2015); Defferrard et al. (2016); Kearnes et al. (2016); Kipf and Welling (2017), is much faster but considers only local context and therefore requires combination with slower RNN layers for typical natural language processing tasks Bastings et al. (2017); Cetoli et al. (2017); Vashishth et al. (2018).
For linear sequence modeling, selfattention Cheng et al. (2016); Parikh et al. (2016); Lin et al. (2017); Vaswani et al. (2017) now provides an alternative to RNNs. Selfattention encodes sequences by relating sequence items to one another through computation of pairwise similarity, with addition of positional encoding to model positions of words in a linear sequence. Selfattention has gained popularity thanks to strong empirical results and computational efficiency afforded by parallelizable computations across sequence positions.
In this paper, we extend the previously purely sequential selfattentional models to lattice inputs. Our primary goal is to obtain additional modeling flexibility while avoiding the increased cost of previous latticeRNNbased methods. Our technical contributions are twofold: First, we incorporate the global lattice structure into the model through reachability masks that mimic the pairwise conditioning structure of previous recurrent approaches. These masks can account for lattice scores if available. Second, we propose the use of lattice positional embeddings to model positioning and ordering of lattice nodes.
We evaluate our method on two standard speech translation benchmarks, replacing the encoder component of an attentional encoderdecoder model with our proposed lattice selfattentional encoder. Results show that the proposed model outperforms all tested baselines, including LSTMbased and selfattentional sequential encoders, a LatticeLSTM encoder, and a recently proposed selfattentional model that is able to handle graphs but only considers local context, similar to GCNs. The proposed model performs well without support from RNNs and offers computational advantages in both training and inference settings.
2 Background
2.1 Masked SelfAttention
We start by introducing selfattentional models for sequential inputs, which we will extend to latticestructured inputs in § 4.
Attentional models in general can be described using the terminology of queries, keys, and values. The input is a sequence of values, along with a key corresponding to each value. For some given query, the model computes how closely each key matches the query. Here, we assume values, keys, and queries , for some dimensionality and sequence indices . Using the computed similarity scores , attention computes a weighted average of the values to obtain a fixedsize representation of the whole sequence conditioned on this query. In the selfattentional case, the sequence items themselves are used as queries, yielding a new sequence of same length as output in which each of the original input elements has been enriched by the respectively relevant global context.
The following equations formalize this idea. We are given a sequence of input vectors
. For every query index , we compute an output vector as:(1)
(2)
(3)
Here, unnormalized pairwise similarities are computed through the similarity function , and then normalized as for computation of a weighted sum of value vectors. denote parametrized transformations (e.g. affine) of the inputs into queries, keys, and values.
Equation 1 also adds an attention masking term that allows adjusting or disabling the influence of context at key position on the output representation at query position . Masks have, for example, been used to restrict selfattention to ignore future decoder context Vaswani et al. (2017) by setting for all . We will use this concept in § 4.1 to model reachability structure.
2.2 Lattices
We aim to design models for lattice inputs that store a large number of sequences in a compact data structure, as illustrated in Figure 1. We define lattices as directed acyclic graphs (DAGs) with the additional property that there is exactly one start node (S) and one end node (E). We call the sequences contained in the lattice complete paths, running from the start node to the end node. Each node is labeled with a word token.^{1}^{1}1Edgelabeled lattices can be easily converted to nodelabeled lattices using the linegraph algorithm Hemminger and Beineke (1978).
To make matters precise, let be a DAG with nodes and edges . For , let denote all successors (reachable nodes) of node , and let denote the neighborhood, defined as the set of all adjacent successor nodes. are defined analogously for predecessors. indicates that node is a successor of node .
For arbitrary nodes , let
be the probability that a complete path in
contains as a successor of , given that is contained in the path. Note that implies . The probability structure of the whole lattice can be represented through transition probabilities for . We drop the subscript when clear from context.3 Baseline Model
Our proposed model builds on established architectures from prior work, described in this section.
3.1 LatticeBiased Attentional Decoder
The common attentional encoderdecoder model Bahdanau et al. (2015) serves as our starting point. The encoder will be described in § 4. As crossattention mechanism, we use the latticebiased variant Sperber et al. (2017), which adjusts the attention scores between encoder position and decoder position according to marginal lattice scores (§ 4.1.2 describes how to compute these) as follows:^{2}^{2}2We have removed the trainable peakiness coefficient from the original formulation for simplicity and because gains of this additional parameter were unclear according to Sperber2017.
(4)
Here, is the unnormalized attention score.
In the decoder, we use long shortterm memory (LSTM) networks, although it is straightforward to use alternative decoders in future work, such as the selfattentional decoder proposed by Vaswani2017. We further use input feeding
Luong et al. (2015), variational dropout in the decoder LSTM Gal and Ghahramani (2016), and label smoothing Szegedy et al. (2016).3.2 MultiHead Transformer Layers
To design our selfattentional encoder, we use Vaswani2017’s Transformer layers that combine selfattention with positionwise feedforward connections, layer norm Ba et al. (2016)
, and residual connections
He et al. (2016) to form deeper models. Selfattention is modeled with multiple heads, computing independent selfattentional representations for several separately parametrized attention heads, before concatenating the results to a single representation. This increases model expressiveness and allows using different masks (Equation 1) between different attention heads, a feature that we will exploit in § 4.1. Transformer layers are computed as follows:(5)
(6)
(7)
(8)
(9)
Here, denote inputs and their query, key, and value transformations for attention heads with index , sequence length , and hidden dimension . is an attention mask to be defined in § 4.1. Similarity between keys and queries is measured via the dot product. The inputs are word embeddings in the first layer, or the output of the previous layer in the case of stacked layers. denotes the final output of the Transformer layer. are parameter matrices. is a positionwise feedforward network intended to introduce additional depth and nonlinearities, defined as . LN denotes layer norm. Note that dropout regularization Srivastava et al. (2014) is added in three places.
Up to now, the model is completely agnostic of sequence positions. However, position information is crucial in natural language, so a mechanism to represent such information in the model is needed. A common approach is to add positional encodings to the word embeddings used as inputs to the first layer. We opt to use learned positional embeddings Gehring et al. (2017), and obtain the following after applying dropout:
(10)
Here, a position embedding of equal dimension with sequence item at position is added to the input.
4 SelfAttentional Lattice Encoders
A simple way to realize selfattentional modeling for lattice inputs would be to linearize the lattice in topological order and then apply the above model. However, such a strategy would ignore the lattice structure and relate queries to keys that cannot possibly appear together according to the lattice. We find empirically that this naive approach performs poorly (§ 5.4). As a remedy, we introduce a masking scheme to incorporate lattice structure into the model (§ 4.1), before addressing positional encoding for lattices (§ 4.2).
4.1 Lattice Reachability Masks
We draw inspiration from prior works such as the TreeLSTM Tai et al. (2015)
and related works. Consider how the recurrent conditioning of hidden representations in these models is informed by the graph structure of the inputs: Each node is conditioned on its direct predecessors in the graph, and via recurrent modeling on all its predecessor nodes up to the root or leaf nodes.
4.1.1 Binary Masks
We propose a masking strategy that results in the same conditioning among tokens based on the lattice structure, preventing the selfattentional model from attending to lattice nodes that are not reachable from some given query node . Figure 2 illustrates the concept of such reachability masks. Formally, we obtain masks in forward and backward direction as follows:

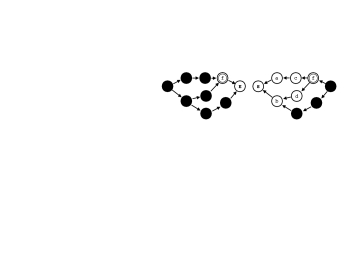

The resulting conditioning structure is analogous to the conditioning in lattice RNNs Ladhak et al. (2016) in the backward and forward directions, respectively. These masks can be obtained using standard graph traversal algorithms.
4.1.2 Probabilistic Masks
S  a  b  c  d  e  E

S  1  0.4  0.6  0.48  0.12  0.88  1
a  0  1  0  1  0  1  1
b  0  0  1  0.8  0.2  0.8  1
c  0  0  0  1  0  1  1
d  0  0  0  0  1  0  1
e  0  0  0  0  0  1  1
E  0  0  0  0  0  0  1
S  a  b  c  d  e  E

S  1  0  0  0  0  0  0
a  1  1  0  0  0  0  0
b  1  0  1  0  0  0  0
c  1  0  0  1  0  0  0
d  1  0  1  0  1  0  0
e  1  0.45  0.55  0.55  0  1  0
E  1  0.4  0.6  0.48  0.12  0.88  1
Binary masks capture the graph structure of the inputs, but do not account for potentially available lattice scores that associate lattice nodes with a probability of being correct. Prior work has found it critical to exploit lattice scores, especially for noisy inputs such as speech recognition lattices Sperber et al. (2017). In fact, the previous binary masks place equal weight on all nodes, which will cause the influence of lowconfidence regions (i.e., dense regions with many alternative nodes) on computed representations to be greater than the influence of highconfidence regions (sparse regions with few alternative nodes).
It is therefore desirable to make the selfattentional lattice model aware of these scores, so that it can place higher emphasis on confident context and lower emphasis on context with low confidence. The probabilistic masks below generalize binary masks according to this intuition:

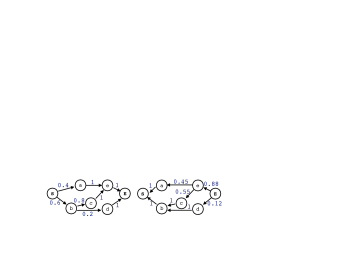

Here, we set . Figure 3 illustrates the resulting pairwise probability matrix for a given lattice and its reverse, prior to applying the logarithm. Note that the first row in the forward matrix and the last row in the backward matrix are the globally normalized scores of Equation 4.
Per our convention regarding , the entries in the mask will occur at exactly the same places as with the binary reachability mask, because the traversal probability is 0 for unreachable nodes. For reachable nodes, the probabilistic mask causes the computed similarity for lowconfident nodes (keys) to be decreased, thus increasing the impact of confident nodes on the computed hidden representations. The proposed probabilistic masks are further justified by observing that the resulting model is invariant to path duplication (see Appendix A), unlike the model with binary masks.
The introduced probabilistic masks can be computed in from the given transition probabilities by using the dynamic programming approach described in Algorithm 1. The backwarddirected probabilistic mask can be obtained by applying the same algorithm on the reversed graph.
4.1.3 Directional and NonDirectional Masks
The above masks are designed to be plugged into each Transformer layer via the masking term in Equation 6. However, note that we have defined two different masks, and . To employ both we can follow two strategies: (1) Merge both into a single, nondirectional mask by using . (2) Use half of the attention heads in each multihead Transformer layer (§ 3.2) with forward masks, the other half with backward masks, for a directional strategy.
Note that when the input is a sequence (i.e., a lattice with only one complete path), the nondirectional strategy reduces to unmasked sequential selfattention. The second strategy, in contrast, reduces to the directional masks proposed by Shen2018 for sequence modeling.
4.2 Lattice Positional Encoding
Encoding positional information in the inputs is a crucial component in selfattentional architectures as explained in § 3.2. To devise a strategy to encode positions of lattice nodes in a suitable fashion, we state a number of desiderata: (1) Positions should be integers, so that positional embeddings (§ 3.2) can be used. (2) Every possible lattice path should be assigned strictly monotonically increasing positions, so that relative ordering can be inferred from positions. (3) For a compact representation, unnecessary jumps should be avoided. In particular, for at least one complete path the positions should increase by exactly 1 across all adjacent succeeding lattice nodes.
A naive strategy would be to use a topological order of the nodes to encode positions, but this clearly violates the compactness desideratum. Dyer2008 used shortestpath distances between lattice nodes to account for distortion, but this violates monotonicity. Instead, we propose using the longestpath distance () from the start node, replacing Equation 10 with:
This strategy fulfills all three desiderata, as illustrated in Figure 4. Longestpath distances from the start node to all other nodes can be computed in using e.g. Dijkstra’s shortestpath algorithm with edge weights set to .
4.3 Computational Complexity
The computational complexity in the selfattentional encoder is dominated by generating the masks (), or by the computation of pairwise similarities () if we assume that masks are precomputed prior to training. Our main baseline model, the LatticeLSTM, can be computed in , where . Nevertheless, constant factors and the effect of batched operations lead to considerably faster computations for the selfattentional approach in practice (§ 5.3).
5 Experiments
We examine the effectiveness of our method on a speech translation task, in which we directly translate decoding lattices from a speech recognizer into a foreign language.
5.1 Settings
We conduct experiments on the Fisher–Callhome Spanish–English Speech Translation corpus Post et al. (2013). This corpus contains translated telephone conversations, along with speech recognition transcripts and lattices. The Fisher portion (138k training sentences) contains conversations between strangers, and the smaller Callhome portion (15k sentences) contains conversations between family members. Both and especially the latter are acoustically challenging, indicated by speech recognition word error rates of 36.4% and 65.3% on respective test sets for the transcripts contained in the corpus. The included lattices have oracle word error rates of 16.1% and 37.9%.
We use XNMT Neubig et al. (2018) which is based on DyNet Neubig et al. (2017a), with the provided selfattention example as a starting point.^{3}^{3}3Our code is available: http://msperber.com/research/acllatticeselfatt/ Hidden dimensions are set to 512 unless otherwise noted. We use a singlelayer LSTMbased decoder with dropout rate 0.5. All selfattentional encoders use three layers with hidden dimension of the operation set to 2048, and dropout rate set to 0.1. LSTMbased encoders use 2 layers. We follow Sperber2017 to tokenize and lowercase data, remove punctuation, and replace singletons with a special unk token. Beam size is set to 8.
For training, we find it important to pretrain on sequential data and finetune on lattice data (§ 5.6). This is in line with prior work Sperber et al. (2017) and likely owed to the fact that the lattices in this dataset are rather noisy, hampering training especially during the early stages. We use Adam for training Kingma and Ba (2014)
. For sequential pretraining, we follow the learning schedule with warmup and decay of Vaswani2017. Finetuning was sometimes unstable, so we finetune both using the warmup/decay strategy and using a fixed learning rate of 0.0001 and report the better result. We use largebatch training with minibatch size of 1024 sentences, accumulated over 16 batched computations of 64 sentences each, due to memory constraints. Early stopping is applied when the BLEU score on a heldout validation set does not improve over 15 epochs, and the model with the highest validation BLEU score is kept.
5.2 Main Results
Encoder model  Inputs  Fisher  Callh.
LSTM^{4}^{4}4BLEU scores taken from Sperber2017.  1best  35.9  11.8
Seq. SA  1best  35.71  12.36
Seq. SA (directional)  1best  37.42  13.00
Graph attention  lattice  35.71  11.87
LatticeLSTM^{4}  lattice  38.0  14.1
Lattice SA (proposed)  lattice  38.73  14.74
Table 1 compares our model against several baselines. Lattice models tested on Callhome are pretrained on Fisher and finetuned on Callhome lattices (Fisher+Callhome setting), while lattice models tested on Fisher use a Fisher+Fisher training setting. All sequential baselines are trained on the reference transcripts of Fisher. The first set of baselines operates on 1best (sequential) inputs and includes a bidirectional LSTM, an unmasked selfattentional encoder (SA) of otherwise identical architecture with our proposed model, and a variant with directional masks Shen et al. (2018). Next, we include a graphattentional model that masks all but adjacent lattice nodes Veličković et al. (2018) but is otherwise identical to the proposed model, and a LatticeLSTM. Note that these lattice models both use the crossattention latticescore bias (§ 3.1).
Results show that our proposed model outperforms all examined baselines. Compared to the sequential selfattentional model, our models improves by 1.31–1.74 BLEU points. Compared to the LatticeLSTM, our model improves results by 0.64–0.73 BLEU points, while at the same time being more computationally efficient (§ 5.3). Graph attention is not able to improve over the sequential baselines on our task due to its restriction to local context.
5.3 Computation Speed
Training  Inference
Encoder  Batching  Speed  Batching  Speed
Sequential encoder models
LSTM  M  4629  –  715
SA  M  5021  –  796
LatticeLSTM and lattice SA encoders
LSTM  –  178  –  391
LSTM  A  710  A  538
SA  M  2963  –  687
SA  A  748  A  718
The selfattentional lattice model was motivated not only by promising model accuracy (as confirmed above), but also by potential speed gains. We therefore test computation speed for training and inference, comparing against LSTM and LatticeLSTMbased models. For fair comparison, we use a reimplementation of the LatticeLSTM so that all models are run with the exact same toolkits and identical decoder architectures. Again, LSTMbased models have two encoder layers, while selfattentional models have three layers. LatticeLSTMs are difficult to speed up through manually implemented batched computations, but similar models have been reported to strongly benefit from autobatching Neubig et al. (2017b)
which automatically finds operations that can be grouped after the computation graph has been defined. Autobatching is implemented in DyNet but not available in many other deep learning toolkits, so we test both with and without autobatching. Training computations are manually or automatically batched across 64 parallel sentences, while inference speed is tested for single sentences with forced decoding of gold translations and without beam search. We test with DyNet commit
8260090 on an Nvidia Titan Xp GPU and average results over three runs.Table 2 shows the results. For sequential inputs, the selfattentional model is slightly faster than the LSTMbased model. The difference is perhaps smaller than expected, which can be explained by the larger number of layers in the selfattentional model, and the relatively short sentences of the Fisher corpus that reduce the positive effect of parallel computation across sequence positions. For latticebased inputs, we can see a large speedup of the selfattentional approach when no autobatching is used. Replacing manual batching with autobatching during training for the selfattentional model yields no benefits. Enabling autobatching at inference time provides some speedup for both models. Overall, the speed advantage of the selfattentional approach is still very visible even with autobatching available.
5.4 Feature Ablation

dir.  prob.

Fisher  Callh.
38.73  14.74
38.25  12.45
37.52  14.37
35.49  12.83
30.58  9.41
We next conduct a feature ablation to examine the individual effect of the improvements introduced in § 4. Table 3 shows that longestpath position encoding outperforms topological positions, the probabilistic approach outperforms binary reachability masks, and modeling forward and reversed lattices with separate attention heads outperforms the nondirectional approach. Consistently with the findings by Sperber2017, lattice scores are more effectively exploited on Fisher than on Callhome as a result of the poor lattice quality for the latter. The experiment in the last row demonstrates the effect of keeping the lattice contents but removing all structural information, by rearranging nodes in linear, arbitrary topological order, and applying the best sequential model. Results are poor and structural information clearly beneficial.
5.5 Behavior At Test Time
Lattice oracle  1best  Lattice

Fisher
Sequential SA  47.84  37.42  –
Lattice SA  47.69  37.56  38.73
Callhome
Sequential SA  17.94  13.00  –
Lattice SA  18.54  13.90  14.74
To obtain a better understanding of the proposed model, we compare accuracies to the sequential selfattentional model when translating either lattice oracle paths, 1best transcripts, or lattices. The lattice model translates sequences by treating them as lattices with only a single complete path and all transition probabilities set to 1. Table 4 shows the results for the Fisher+Fisher model evaluated on Fisher test data, and for the Fisher+Callhome model evaluated on Callhome test data. We can see that the lattice model outperforms the sequential model even when translating sequential 1best transcripts, indicating benefits perhaps due to more robustness or increased training data size for the lattice model. However, the largest gains stem from using lattices at test time, indicating that our model is able to exploit the actual testtime lattices. Note that there is still a considerable gap to the translation of lattice oracles which form a topline to our experiments.
5.6 Effect of Pretraining and Finetuning
Finally, we analyze the importance of our strategy of pretraining on clean sequential data before finetuning on lattice data. Table 5 shows the results for several combinations of pretraining and finetuning data. The first thing to notice is that pretraining is critical for good results. Skipping pretraining performs extremely poorly, while pretraining on the much smaller Callhome data yields results no better than the sequential baselines (§ 5.2). We conjecture that pretraining is beneficial mainly due to the rather noisy lattice training data, while for tasks with cleaner training lattices pretraining may play a less critical role.
The second observation is that for the finetuning stage, domain appears more important than data size: Finetuning on Fisher works best when testing on Fisher, while finetuning on Callhome works best when testing on Callhome, despite the Callhome finetuning data being an order of magnitude smaller. This is encouraging, because the collection of large amounts of training lattices can be difficult in practice.
Sequential data  Lattice data  Fisher  Callh.

–  Fisher  1.45  1.78
Callhome  Fisher  34.52  13.04
Fisher  Callhome  35.47  14.74
Fisher  Fisher  38.73  14.59
6 Related Work
The translation of lattices rather than sequences has been investigated with traditional machine translation models Ney (1999); Casacuberta et al. (2004); Saleem et al. (2004); Zhang et al. (2005); Matusov et al. (2008); Dyer et al. (2008), but these approaches rely on independence assumptions in the decoding process that no longer hold for neural encoderdecoder models. Neural latticetosequence models were proposed by Su2017,Sperber2017, with promising results but slow computation speeds. Other related work includes gated graph neural networks Li et al. (2016); Beck et al. (2018). As an alternative to these RNNbased models, GCNs have been investigated Duvenaud et al. (2015); Defferrard et al. (2016); Kearnes et al. (2016); Kipf and Welling (2017), and used for devising treetosequence models Bastings et al. (2017); Marcheggiani et al. (2018). We are not aware of any application of GCNs to lattice modeling. Unlike our approach, GCNs consider only local context, must be combined with slower LSTM layers for good performance, and lack support for lattice scores.
Our model builds on previous works on selfattentional models Cheng et al. (2016); Parikh et al. (2016); Lin et al. (2017); Vaswani et al. (2017). The idea of masking has been used for various purposes, including occlusion of future information during training Vaswani et al. (2017), introducing directionality Shen et al. (2018) with good results for machine translation confirmed by Song2018, and soft masking Im and Cho (2017); Sperber et al. (2018). The only extension of selfattention beyond sequence modeling we are aware of is graph attention Veličković et al. (2018) which uses only local context and is outperformed by our model.
7 Conclusion
This work extended existing sequential selfattentional models to lattice inputs, which have been useful for various purposes in the past. We achieve this by introducing probabilistic reachability masks and lattice positional encodings. Experiments in a speech translation task show that our method outperforms previous approaches and is much faster than RNNbased alternatives in both training and inference settings. Promising future work includes extension to treestructured inputs and application to other tasks.
