Security Evaluation for Block Scrambling-Based Image Encryption Including JPEG Distortion against Jigsaw Puzzle Solver Attacks

08/07/2018
by   Tatsuya Chuman, et al.
0

Encryption-then-Compression (EtC) systems have been considered for the user-controllable privacy protection of social media like Twitter. The aim of this paper is to evaluate the security of block scrambling-based encryption schemes, which have been proposed to construct EtC systems. Even though this scheme has enough key spaces against brute-force attacks, each block in encrypted images has almost the same correlation as that of original images. Therefore, it is required to consider the security from different viewpoints from number theory-based encryption methods with provable security such as RSA and AES. In this paper, we evaluate the security of encrypted images including JPEG distortion by using automatic jigsaw puzzle solvers.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 4

11/01/2018

Encryption-then-Compression Systems using Grayscale-based Image Encryption for JPEG Images

A block scrambling-based encryption scheme is presented to enhance the s...
02/01/2022

Security Evaluation of Block-based Image Encryption for Vision Transformer against Jigsaw Puzzle Solver Attack

The aim of this paper is to evaluate the security of a block-based image...
01/10/2022

Enhancing Selective Encryption for H.264/AVC Using Advanced Encryption Standard

Multimedia information availability has increased dramatically with the ...
10/13/2020

SafetyPin: Encrypted Backups with Human-Memorable Secrets

We present the design and implementation of SafetyPin, a system for encr...
09/25/2017

3D Textured Model Encryption via 3D Lu Chaotic Mapping

In the coming Virtual/Augmented Reality (VR/AR) era, 3D contents will be...
10/04/2018

Image Manipulation Specifications on Social Networking Services for Encryption-then-Compression Systems

Encryption-then-Compression (EtC) systems have been proposed to securely...
06/11/2021

A survey on Functional Encryption

Functional Encryption (FE) expands traditional public-key encryption in ...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

The use of images and video sequences has greatly increased because of the rapid growth of the Internet and widespread use of multimedia systems. While many studies on secure, efficient, and flexible communications have been reported[1, 2], full encryption with provable security (like RSA and AES) is the most secure option for securing multimedia data. However, there is a trade-off between security and other requirements such as low processing demand, bitstream compliance, and signal processing in the encrypted domain. Several perceptual encryption schemes have been developed to achieve this trade-off[3, 4].

In this paper, we focus on block scrambling-based image encryption schemes, which have been proposed for Encryption-then-Compression (EtC) systems with the assumption of international compression standards to consider the safety[5, 6, 7]. So far, the safety has been evaluated based on its key space assuming the brute-force attacks, so that the schemes have enough key spaces for protecting the attacks. However, each block in encrypted images has almost the same correlation as that of original images. Several efficient attacks on the permutation-only encryption have been studied[8], but they are not available for the block scrambling-based encryption.

On the other hand, recently, jigsaw puzzle solvers, that utilize the correlation between pieces, have succeeded in solving puzzles with a large number of pieces[9, 10, 11, 12]. Furthermore, regarding the blocks of an encrypted image as pieces of a jigsaw puzzle, the new types of jigsaw puzzle solvers for the attacks have been proposed[13, 14, 15]. However, these methods do not consider encrypted images including JPEG distortion made through Social Networking Services (SNS) providers. In this paper, we utilize these puzzle solvers to evaluate the safety of the encrypted images including JPEG distortion.

Finally, we evaluate the safety of the encryption by applying the jigsaw puzzle solvers to encrypted images with JPEG artifact on the assumption that JPEG standard was used for EtC systems. It is shown that some solvers can assemble encrypted images partly even when the key space is large enough. On the other hand, it is also confirmed that JPEG distortion makes the decryption of encrypted images more difficult than images with no distortion.

2 Preparation

2.1 Block Scrambling-based Image Encryption

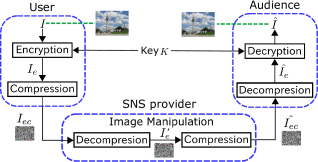

Figure 1: Encryption-then-Compression system
