Secrecy Outage Probability Analysis for RIS-Assisted NOMA Systems

07/31/2020 ∙ by Liang Yang, et al. ∙ 0

In this paper, the physical layer security (PLS) for a novel reconfigurable intelligent surface (RIS)-assisted non-orthogonal multiple access (NOMA) system in a multi-user scenario is investigated, where we consider the worst case that the eavesdropper also utilizes the advantage of the RISs. More specifically, we derive analytical results for the secrecy outage probability (SOP). From the numerical results, we observe that the use of RISs can improve the secrecy performance compared to traditional NOMA systems. However, for the worst case that the received signals at the eavesdropper comes from the RISs and source, increasing the number of intelligent elements on the RIS has a negative impact on the secrecy performance. At high SNRs, the system's SOP tends to a constant. Finally, the secrecy performance can be improved through the group selection.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

page 5

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

5G has been commercialized in 2020, and non-orthogonal multiple access (NOMA) plays a key role in this. NOMA has been used for many scenarios to solve the problems caused by the explosive growth of the number of mobile terminals [1]. Unlike the traditional orthogonal multiple access (OMA) system structure, power-domain NOMA serves more users at the same time and frequency based on the power allocation of the transmitted signals. Consequently, NOMA can enhance the communication quality of users in poor channel conditions [2]. Recently, a multiple-input and multiple-output (MIMO)-NOMA system which uses max-min transmit antenna selection strategy was proposed in [3]. In [4], the authors proposed a new hybrid decode-and-forward (DF) and amplify-and-forward (AF) transmission mode for a multiple-relay NOMA system. A NOMA system under Rician fading channels was studied in [5] and expressions of the average achievable rate were derived.

In wireless communication systems, the signals are broadcast so that physical layer security (PLS) has become a hot issue. The analysis of secrecy performance in various wireless systems is studied in the literature, such as dual-hop RF/free-space optical (FSO) systems [6] and transmit antenna selection (TAS)/maximal ratio combining (MRC) systems [7]. Recently, many works about PLS for NOMA systems have been considered. For instance, in [8], PLS for cognitive radio inspired NOMA networks was investigated. PLS in a multiuser visible light communication (VLC) system with NOMA was considered in [9]. In [10], PLS for cooperative NOMA systems was investigated, where both AF and DF were considered.

Recently, a new material called reconfigurable intelligent surfaces (RIS) has been proposed. RISs have a large number of application scenarios in wireless communication, and even change the traditional communication structure [11]. So far, there are many works based on RISs have been reported in [12-22]. For example, a mixed dual-hop FSO-RF system through the RIS was proposed in [12]. An RIS-assisted dual-hop UAV communication system was proposed in [13]. The authors in [14] quantitatively analyzed the coverage for an RIS-aided communication system. An RIS-aided downlink multi-user communication system was investigated in [15]. The authors in [16] proposed a deep learning method for deploying RISs in an indoor environment. Moreover, an important application of RISs is to combine with NOMA to further improve communication quality. For instance, the authors in [17] proposed an RIS-empowered NOMA network to introduce desirable channel gain differences by adjusting the phase shifts at the RISs. In [18], the authors conceived a system for serving paired power-domain multiple NOMA users by designing the passive beamforming weights at the RISs. The authors in [19] proved that NOMA can achieve the capacity region when the channels are quasi-degraded by using the RISs. In [20], the authors proposed a theoretical performance comparison between NOMA and OMA in the RIS-assisted downlink communication. The authors in [21] derived the bit error rate (BER) performance of the RIS-assisted power domain NOMA system. In [22], the authors studied both downlink and uplink RIS-aided NOMA and OMA networks. However, considering the PLS for the RIS-aided NOMA system is still not reported in the literature. Therefore, this is the main innovation of this work.

In this paper, we propose an RIS-assisted multi-user NOMA system. In particular, we assume that an eavesdropper in the considered network can receive signals from the RISs and source to affect the legitimate users. Based on this assumption, we intend to investigate whether the RIS always improves the secrecy performance. In particular, we derive analytical expressions for the secrecy outage probability (SOP). Also, the asymptotic SOP analysis at high signal-to-noise ratio (SNR) condition is provided. Finally, some numerical results are presented to verify our analysis and investigate the effects of the number of reflecting surfaces in the RIS on the system secrecy performance.

2 System and channel models

As shown in Figure 1, consider an RIS-assisted NOMA system which includes a source (S), RISs, groups of NOMA users, and an eavesdropper (E), where near users are close to S, while far users have a long distance from S. Therefore, similar to [22] and [23], we utilize RISs to increase the signal coverage to improve the far users’ communication quality, while the near users directly communicate with S. We assume that RISs have the same reflecting elements. Furthermore, we assume the worst case that E can utilize the advantage of the RIS. Finally, we suppose that the channels in this system suffer from Rayleigh fading independently.

Figure 1: System diagram of considered system.

According to the NOMA protocol, we need to distribute the total transmit power to the NOMA users concurrently, but it is not preferable to group all the users in a NOMA system in practice [24]. Therefore, we choose one near user and one far user to constitute a NOMA group, and then in every group we use one RIS to improve the far user’s received SNR. Thus, users are divided into groups and only one group can be selected to communicate according to the criterion described later.

In particular, we assume that the far user with poor channel gains is defined as the weak user and the near user with good channel gains is defined as the strong user (). In order to enhance ’s communication quality, we set that , and let them satisfy [10], where is the power distribution coefficient (). First, the mixed signal, , is broadcast from S to the th RIS () and the near user, where is the unit signal needed by user . Then, passively reflects the signals to . Thus, the received signal by the far user can be written as

(1)

where and are the channel gains for the S- and - links. In (1), is the adjustable phase produced by the th reflecting element of (). Let and , where and are the distances for the S- and - links, denotes the path loss coefficient, and denote the channels’ amplitudes, and are the phases of the fading channels. Similar to [11], we assume that has perfect knowledge of the channels phases of and .

For the near users, they receive mixed signals from S directly. Thus, the received signals by the near user can be written as

(2)

where is the distance of the S- link and is the average transmitted energy per symbol. In (1) and (2), and are the additive white Gaussian noise (AWGN) samples.

Since E receives the same signals from and S, the received signal at E can be expressed as

(3)

where , and denote the distance for the -E and S-E links, and are the amplitude and phase of the fading channel, and

is the AWGN sample with variance

.

According to [25], in NOMA systems, we can use successive interference cancellation (SIC) technology to decode the signals of different users. For the weak user , it has poor channel gains. normally decodes its own signal, but it has no power to remove the signal of from the mixed signals. Thus, suffers from slight extra interference from . Hence, the instantaneous signal-to-interference-noise ratio (SINR) for can be expressed as

(4)

where .

For the legal far users, we assume that their channel state information (CSI) is known to the RIS. Like [11], the can use the phase shifting to maximize when . Therefore, the maximized can be written as

(5)

where .

According to the center limit theorem (CLT),

is a Gaussian distributed random variable i.e.,

. Therefore,

is a non-central chi-square random variable with one degree of freedom [11]. From [26], the probability density function (PDF) of

can be written as

(6)

where is the first order modified Bessel function, , and .

On the other hand, the strong user also receives the mixed signal, and it has bigger channel gain than so that it can get more energy. Therefore, can decode the signal of first, and then use the complete mixed signal to reduce the interference signal of . Through this process, it can get a clean signal of its own and then decode it. Therefore, we have

(7)

For the eavesdropper, we assume that the CSI of E is not known and can not maximize the eavesdropper’s SNR to protect the communication of legitimate users. Similar to [25], we assume that E has the multiuser detection ability, and it can use the parallel interference cancellation (PIC) technology to intercept the different users’ signal. Then, the received SNR at E is

(8)

where and

follows the exponential distribution with parameter

[27] and its PDF can be written as

(9)

where , and are the average SNRs.

Finally, the secrecy rates of the group for two paired users can be expressed as

(10)
(11)

where .

To obtain the best secrecy performance, it is optimal to select the group with the maximum achievable secrecy rate as the intended pairing mechanism. For arbitrary group , when either or is lower than the legal users’ target rate, system outage appears. Therefore, the group selection policy is given by

(12)

3 Secrecy Performance Analysis

In this section, we present the calculation of the SOP. To get more insights, an asymptotic SOP analysis is also presented.

3.1 SOP analysis

For paired groups, we assume that different groups are allocated with orthogonal bandwidth resources and have independent and identical distributions. With the group selection introduced in (12), the system achieves the best secrecy performance. Then, the system SOP in a multi-user scenario can be evaluated by

(13)

Therefore, we need first to calculate . For the paired casual group , when either or is less than the legal users’ target rate, this group outage appears. Thus, the SOP of arbitrary group can be calculated as

(14)

where . From (4), (7), (14), it is very difficult to obtain the exact analysis. Consequently, for tractable analysis, we consider a high SNR case and get the upper bound . Later in numerical results, we can see this upper bound is very tight to the exact simulation results. Then, can be expressed as

(15)

where is the average SNR.

For notation simplicity, let , , and . Note that must be greater than zero, otherwise, . Since , we can obtain . Finally, can be further expressed as

(16)

Therefore, with (14)-(16), the SOP for the group can be given by

(17)

Finally, with (13) and (17), the SOP of the whole system can be written as

(18)

3.2 Asymptotic SOP analysis

The above analytical result is related to , , and

, which can not provide an explicit insight. Thus, we provide an asymptotic analysis. In particular,

and become zero when . Then, the SOP of the group can be asymptotically written as

(19)

With (13) and (19), the system SOP in a multi-user scenario can be asymptotically expressed as

(20)

Above expression indicates that the asymptotic SOP is only related to and , and it tends to a constant when . Thus, at high SNRs, the secrecy performance is only related to the quality of eavesdropping link and . Interestingly, increasing results in poor secrecy performance, but increasing results in better secrecy performance.

4 Numerical results

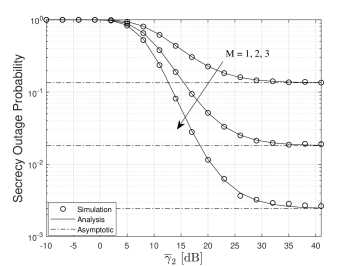

Figure 2: SOP for different numbers of intelligent surfaces. = 0.05 bit per channel use (BPCU), , = 2, .

In this section, some numerical results are provided to illustrate the secrecy performance of our proposed NOMA system. Meanwhile, Monte-Carlo simulation results are provided to verify our analysis. Without loss of generality, we assume that = and = = for all .

In Fig.2, we plot the SOP curves for different when . We can see that our theoretical calculation and simulation are consistent. From Fig.2, it is shown that has a great impact on the system performance. The SOP becomes higher when increases. The reason is that although the RIS does not adjust the phase for the RIS-E channel to maximize , E still receives copies of the signals from the RIS. Thus, E also enjoys the advantage induced by the RIS. For large , from Eq.(4), we can see that is a constant. Thus, large results in a large and in turn results in a higher SOP since .

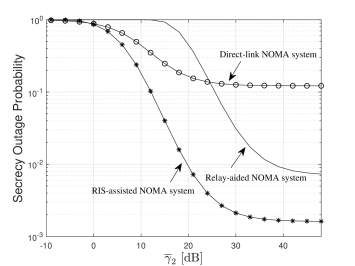

Figure 3: SOP for different NOMA schemes. = 5, = 2, .

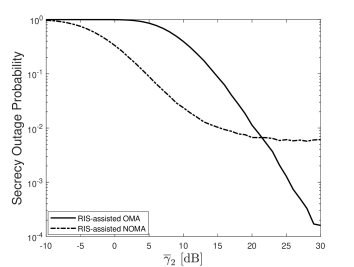

Figure 4: SOP comparison between RIS-assisted NOMA systems and RIS-assisted OMA systems. = 0.3 BPCU, = 5, = 2, .

In Fig.3, we present a SOP comparison between different NOMA schemes. It is clearly observed that the system performance by using RISs is significantly improved compared to the direct-link NOMA system and the relay-aided NOMA system. In Fig.4, we plot a SOP comparison between the RIS-assisted NOMA system and the RIS-assisted OMA system. At low SNRs, the RIS-aided NOMA system has a better system performance than the RIS-aided OMA system. At high SNRs, the interference in NOMA users become dominant, which affects the system performance. However, OMA system has no interference between users, which in turn results in a good performance at high SNRs.

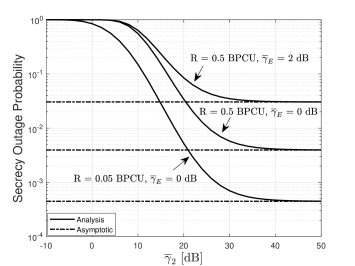

Figure 5: SOP for different values of and target rates. = 4, = 2.

In Fig.5, we plot the SOP curves versus for different average SNRs of the wiretap link and target rates. In Fig.6, we plot the SOP curves for different . From Fig.5 and Fig.6, it is demonstrated that the SOP tends to a constant for large , which verifies our asymptotic analysis in Section 3.2. Also, we can see that large can improve the system performance.

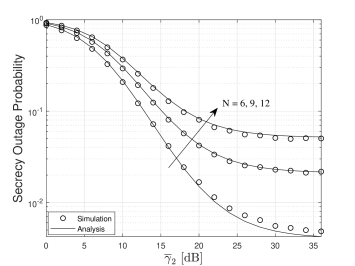

Figure 6: SOP for different numbers of paired groups . = 0.3 BPCU, = 7, .

5 Conclusions

In this paper, we analyzed the SOP of RIS-assisted NOMA systems. Results reveal that SOP tends to a constant at high SNRs. Moreover, increasing the number of intelligent elements has a negative impact on the system secrecy performance since E also takes advantages of the RIS. However, the secrecy performance can be improved by using the group selection.
