Second order scattering descriptors predict fMRI activity due to visual textures

08/10/2013 ∙ by Michael Eickenberg, et al. ∙ Inria 0

Second layer scattering descriptors are known to provide good classification performance on natural quasi-stationary processes such as visual textures due to their sensitivity to higher order moments and continuity with respect to small deformations. In a functional Magnetic Resonance Imaging (fMRI) experiment we present visual textures to subjects and evaluate the predictive power of these descriptors with respect to the predictive power of simple contour energy - the first scattering layer. We are able to conclude not only that invariant second layer scattering coefficients better encode voxel activity, but also that well predicted voxels need not necessarily lie in known retinotopic regions.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Advances in vision research using fMRI have shown that the Blood Oxygen-Level Dependent (BOLD) fMRI response to natural images is well explained as a general linear model of the energies of a Gabor filter pyramid at well chosen scales, orientations and locations. Apart from reflecting general retinotopy due to the local nature of the filter shape, it has been shown that the energy in local edges contributes significantly to the signal. This finding is expected in the sense that, at least in the earliest cortical visual area, V1, a large number of neurons is known to actually perform the task of edge detection, be it in a phase dependent (simple cells) or independent (complex cells) manner. The discovery of this kind of tuning in primary visual neurons dates back to Hubel and Wiesel

[1]. In effect, the brain regions, of which the BOLD signal is best modeled using a Gabor energy model, can be found in V1.

Moving away from V1, this model becomes less and less plausible as an explanation of neural activity. While edge detectors still may be present in higher level visual areas, other, more complex functionalities are added, and one might wish to model these more accurately. In an attempt to introduce more complex features, the authors of [2] modelled the voxel responses using a windowed scattering transform, which, in addition to a first layer of Gabor moduli and smoothing, provides a second layer of wavelet transforms on the initial moduli, followed again by the nonlinear complex modulus and smoothing. This result was further examined in a subsequent work [3] by the finding that filter choice plays an important role.

Zero-sum Morlet wavelets improve the fit of first order descriptors to an extent that they compete with second order features in some regions, but are outperformed in others: As can be seen in Fig. 1, there exist spatially contiguous regions largely outside commonly mapped retinotopic areas, in which adding second layer scattering coefficients is beneficial to the model.

Fig. 1: Difference of predictive scores between two models shown on mean fMRI image of the dataset in [4]: Blue means better fit using a simple Gabor pyramid: scattering level 1. Red shows regions where scattering level 2 adds predictive power. These regions are outside the primary visual areas. Top: oblique coronal; Middle: oblique axial; Bottom: sagittal

Simple but effective object recognition mechanisms employ histograms of oriented gradients (HOG [5]

) at several scales followed by a classifier, such as SVM. The fact that this type of setup works shows the importance of contours in the processing of general natural images. HOG is similar to DAISY

[6] which corresponds to the first layer of the scattering transform.

However, the performance of this simple contour detection setup in the classification of textures is poorer. Natural textures can be seen as (mostly non-Gaussian) stationary processes in which features capturing higher order moments have been shown to be important for establishing a generative model: In [7], multiplicative interactions between first order descriptors are used among other features. In [8], [9] and [10], second level scattering coefficients capture similar interactions. It turns out that certain 4th order moments carry important information about the visual aspect of natural textures and the mentioned higher order features correlate with some of them. Indeed, a rotation invariant version of the scattering transform [10] linearises stationary textures to a degree that a K-flats type classifier [11]

, a Gaussian mixture model or linear one-vs-rest classifiers perform well in distinguishing between classes, indicating that the semantic information texture class” has been made linearly separable.

The difficulty of capturing the statistics of visual textures in image processing led us to the question of how the brain may accomplish this task. We devised an experimental paradigm, where BOLD fMRI activity is recorded while subjects view images of natural textures and propose to analyse it using an encoding model [12] based on the translation invariant version of the scattering transform.

Ii Methods

The fMRI BOLD response to visual stimuli was acquired during a visual comparison task, where subjects were asked to distinguish between images of six different texture classes.

Ii-a The experimental task

Fig. 2: Sample stimuli used in the experiment: Extracts from the UIUC dataset [13]

Subjects were asked to compare two texture instances from the same class, presented one after the other, while fixating a central cross. One experimental block took 12 seconds: At second 0, the first image was presented for one second, flashed three times in an on-off-on-off-on sequence of 200ms duration each. At second 4 the second image was presented in the same manner. At second 8, a smaller image, centered around the fixation point was presented, containing an extract of either the first, the second, or an unrelated image. The subject was asked to press a left-hand button if the first image had been repeated, the right-hand button if the second image had been repeated and no button if the image was unrelated.

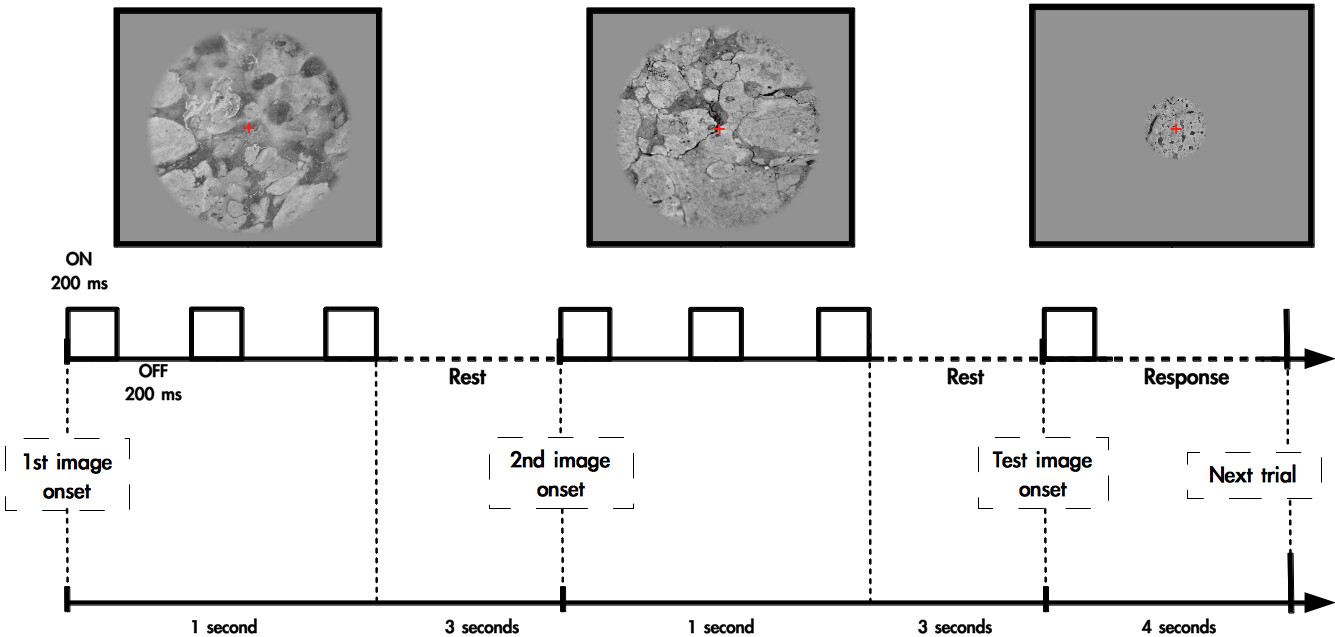

Fig. 3: Visualisation of one 12 second block presenting 2 full images and one task related image extract.
