SDM: Sequential Deep Matching Model for Online Large-scale Recommender System

09/01/2019 ∙ by Fuyu Lv, et al. ∙ The Hong Kong University of Science and Technology 0

Capturing users' precise preferences is a fundamental problem in large-scale recommender system. Currently, item-based Collaborative Filtering (CF) methods are common matching approaches in industry. However, they are not effective to model dynamic and evolving preferences of users. In this paper, we propose a new sequential deep matching (SDM) model to capture users' dynamic preferences by combining short-term sessions and long-term behaviors. Compared with existing sequence-aware recommendation methods, we tackle the following two inherent problems in real-world applications: (1) there could exist multiple interest tendencies in one session. (2) long-term preferences may not be effectively fused with current session interests. Long-term behaviors are various and complex, hence those highly related to the short-term session should be kept for fusion. We propose to encode behavior sequences with two corresponding components: multi-head self-attention module to capture multiple types of interests and long-short term gated fusion module to incorporate long-term preferences. Successive items are recommended after matching between sequential user behavior vector and item embedding vectors. Offline experiments on real-world datasets show the superior performance of the proposed SDM. Moreover, SDM has been successfully deployed on online large-scale recommender system at Taobao and achieves improvements in terms of a range of commercial metrics.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 9

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1. Introduction

Large-scale recommender systems in industry are required to have both accurate prediction of users’ preferences and quick response to their current need. Taobao111https://www.taobao.com/, the largest e-commerce website in China, which supports billions of items and users, firstly retrieves a candidate set of items for a user and then applies a ranking module to generate final recommendations. In the process, the quality of candidates retrieved in the so-called matching module plays a key role in the whole system. Currently, online deployed matching models at Taobao are mainly based on item-based Collaborative Filtering (CF) methods Linden et al. (2003); Sarwar et al. (2001). However, they model static user-item interactions and do not well capture dynamic transformation in users’ whole behavior sequences. Such methods usually lead to homogeneous recommendation. To accurately understand interests and preferences of users, sequential order information should be incorporated into the matching module.

In this paper, we consider the dynamic evolution of users’ interests by introducing deep sequential recommendation model instead of item-based CF in matching stage. When people begin to use online shopping services at Taobao, their behaviors accumulate to relatively long sequences. The sequences are composed of sessions. A session is a list of user behaviors that occur within a given time frame. A user usually has a clear unique shopping demand in one session (Quadrana et al., 2017) while his/her interest can change sharply when he/she starts a new session. Directly modeling the sequences while overlooking such the intrinsic structure would hurt the performance (Feng et al., 2019). So we refer to the latest interaction sessions of users as short-term behaviors, other previous as long-term ones. The two parts are modeled separately to encode their inherent information which could be used to represent users’ different levels of interests. Our goal is to recall top items after the user sequences as matching candidates.

When it comes to short-term sessions modeling, methods based on recurrent neural networks (RNNs) have shown effective performance in session-based recommendation

(Hidasi et al., 2015). On top of that, Li et al. (Li et al., 2017) and Liu et al. (Liu et al., 2018)

further propose attention models to emphasize the main purpose and the effects of the last clicks respectively in a short-term session so that the models can avoid interest shift caused by users’ random actions. However, they ignore that users’ points of interest are multiple in a session. We observe that customers care about multiple aspects of items such as categories, brand, color, style and shop reputation, etc. Before making the final decision for the most preferred item, users compare many items repeatedly. Thus using single dot-product attention representations fails to reflect diverse interests happening in different time of purchasing. Instead, multi-head attention

(Vaswani et al., 2017), firstly proposed for machine translation tasks, allows models to jointly attend to multiple different information of different positions. The multi-head structure could naturally solve the issue of multiple interests by representing preferences from different views. So we propose our multi-interest module to augment the RNN-based sequential recommender using multi-head attention. At the same time, equipped with such self-attention, our module can represent accurate users’ preferences by filtering out the causal clicks.

Users’ general preferences from long time always influence the decisions at present (Ying et al., 2018a; Li et al., 2018; Zhao et al., 2018; Dong et al., 2018; Bai et al., 2019). Intuitively, if a user is a NBA basketball fan, he may view/click abundant items related to NBA stars. When he chooses to buy shoes now, sneakers of famous stars would attract him more than ordinary ones. Hence it is crucial to consider both long-term preferences and short-term behaviors. Ying et al. (Ying et al., 2018a) and Li et al. (Li et al., 2018) both take customers’ long-term preferences into account by simple combination with the current session. However, in real-world applications, customers have various and abundant shopping demands and their long-time behaviors are also complex and diverse. Stuffs related with NBA stars only take up a pretty small number of long-term behaviors. The long-term user preference, which is related to current short-term session, can not be significantly revealed in the overall long-term behavior representations. If we simply concatenate long- and short-term representations or sum them up over weighted attention, it is not an effective way to fuse. Information related to current short-term session in the long-term vectors should be kept.

In our matching model, we design a gated fusion module to merge global (long-term) and local (short-term) preference features. The input to the gated fusion module is user profile embedding, long-term and short-term representation vectors. Then a gate vector is learned to control the fusion behaviors like different gates in LSTM so that the model could precisely capture interest correlation as well as users’ attention to long/short-term interests. On the one hand, the most relevant information in the long-term vectors is fused with short-term vectors. On the other hand, users could have more accurate attention to long/short term interests. Unlike the scalar weights of attention-like models, the gate vector has more powerful representation ability for decision in our super complex neural networks.

The main contributions of this paper are summarized below:

  • We develop a novel sequential deep matching (SDM) model for large-scale recommender system in real-world applications by considering both short- and long-term behaviors. These two parts are modeled separately, which represent different levels of user interests.

  • We propose to model short-term session behaviors by multi-head self-attention module to encode and capture multiple interest tendencies. A gated fusion module is used to effectively combine long-term preferences and current shopping demands, which incorporates their correlation information rather than simple combinations.

  • Our SDM model is evaluated on two offline datasets in the real world and outperforms the other state-of-the-art methods. To demonstrate its scalability in industrial applications, we successfully deployed it on production environment of recommender system at Taobao. The SDM model has been running online effectively since December 2018 and achieves significant improvements compared to previous online system.

2. Related Work

2.1. Deep Matching in Industry

To develop more effective matching models in industrial recommender system, many researchers adopt deep neural networks which have the powerful representation ability. Models based on Matrix Factorization (MF) (Koren et al., 2009) try to decompose pairwise user-item implicit feedback into user and item vectors. YouTube (Covington et al., 2016) uses deep neural network to learn both embeddings of users and items. The two kinds of embeddings are generated from their corresponding features separately. The prediction is made as equivalent to search the nearest neighbors of users’ vectors among all the items. Besides, Zhu et al. (Zhu et al., 2018) proposes a novel tree-based large-scale recommender system, which can provide novel items and overcome the calculation barrier of vector search. Recently, graph embedding based methods are applied in many industrial applications to complement or replace traditional methods. Wang et al. (Wang et al., 2018) proposes to construct an item graph from users’ behavior history and then applies the state-of-the-art graph embedding methods to learn the embedding of each item. To address the cold start and sparsity problem, they incorporate side information of items to enhance the embedding procedure. Ying et al. (Ying et al., 2018b) develops and deploys an effective and efficient graph convolutional network at Pinterest222https://www.pinterest.com/ to generate embeddings of nodes (items) that incorporates both graph structure as well as node feature information. But these models can’t well take the dynamic and evolving of users’ preferences into consideration. In this work, we consider this in matching stage by introducing sequential recommendation.

2.2. Sequence-aware Recommendation

Sequential recommendation aims at modeling users’ preferences and predicting users’ future actions such as next clicks or purchases from observed actions in a sequence manner. Previously, FPMC (Rendle et al., 2010) and HRM (Wang et al., 2015)

model the local sequential behaviors between adjacent items in a sequence by combining Matrix Factorization and Markov Chains. Recently, deep neural networks bring powerful representation and generalization ability for recommender system.

Hidasi et al. (Hidasi et al., 2015)

firstly applies gated recurrent unit (GRU) to make recommendations based on users’ current short sessions. Afterwards,

Li et al. (Li et al., 2017) leverages attention mechanism to extract users’ main purpose especially for longer sessions and achieves better results. Liu et al. (Liu et al., 2018) subsequently creates a novel short-term attention priority model instead of RNNs and then points out the importance of the last click in a session. Besides RNNs, Tang and Wang (Tang and Wang, 2018) and Yuan et al. (Yuan et al., 2019) propose convolutional sequence embedding recommendation models as a solution. Kang and McAuley (Kang and McAuley, 2018) and Zhang et al. (Zhang et al., 2018) use self-attention only architecture to encode user’s action history. Tang et al. (Tang et al., 2019) builds a M3 model that can combine different methods above by a gating mechanism. But these methods overlook the multiple interests in one session.

Chen et al. (Chen et al., 2018) introduces the memory mechanism to sequential recommender systems, which designs a user memory-augmented neural network (MANN) to express feature-level interests. As for more fine-grained user preference, Huang et al. Huang et al. (2018, 2019) use knowledge base information to enhance the semantic representation of key-value memory network called knowledge enhanced sequential recommender. However, the extra storage, manual feature design and computation of memory network of these methods cannot be accepted in industry on account of the large-scale users and items.

It’s also crucial to take customers’ long-term stable preferences into consideration. Li et al. (Li et al., 2018) proposes BINN model by concatenating users’ session behavior representations and stable preferences of historical purchasing behaviors. Ying et al. (Ying et al., 2018a) comes up with a novel two-layer hierarchical attention network to recommend the next item that one user might be interested in. Bai et al. (Bai et al., 2019) uses multi-time scales to characterize long-short time demands and incorporate them into a hierarchical architecture. Another instance of unifying general and sequential interests is Recurrent Collaborative Filtering (Dong et al., 2018), which combines RNN sequence model and matrix factorization method in a multi-task learning framework. And Zhao et al. (Zhao et al., 2018) does the same combination by adversarial training. Simple combinations are not effective enough to fuse short/long preferences, while multi-task and adversarial methods are not applicable in industrial applications. In this paper, we propose multi-head self-attention to capture multiple user interests in short-term session behaviors and use gating mechanism to incorporate long-term preferences effectively and efficiently in a real-world application.

3. The Proposed Approach

3.1. Problem Formulation

We first formulate the sequential matching problem and our solution as well as mathematical notations for variables in the deep model. Let denote a set of users and denote a set of items. Our model considers whether a user would interact with an item at time . For user , we can get his/her latest sessions by sorting the interacted items in the ascending order of time. Inspired by session-based recommendation Hidasi et al. (2015); Li et al. (2017), we reformulate the new session generation rules:

  • Interactions with the same session ID recorded by the backend system belong to the same one.

  • Adjacent interactions with time difference less than 10 minutes (or longer depending on the specific scenario) are also merged into one session.

  • Maximum length of a session is set to 50, which means a new session will begin when the session length exceeds 50.

Each latest session of user is regarded as the short-term behavior, namely , where is the length of the sequence. The long-term behaviors of that happened before in past 7 days are denoted by . Based on these preliminaries, we can define our recommendation task. Given the short-term behaviors and long-term behaviors of user , we would like to recommend items for him/her.

The general network structure is illustrated in Figure 1. Our model takes current session and as input. and are respectively encoded into short-term session representation at time and long-term behaviors representation

. The two kinds of representations are combined through a gated neural network. We name this module as

user prediction network that predicts user behavior vector from and . Let denote item embedding vectors of where is the number of all items and is the embedding size of each vector. Our goal is to predict top item candidates at time based on the scores of inner product between and each column vector in

(1)

where is the th item’s embedding vector.

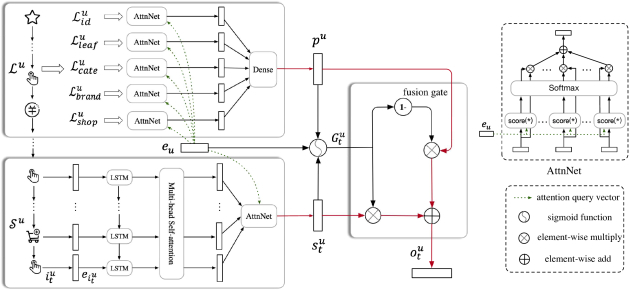

Figure 1. The general network structure of our SDM model. The user prediction network takes user’s short-term session and long-term behavior as input. The target of the network is the next interacted item . and denote short-term and long-term representations respectively. is the predicted user behavior vector. is the item embedding vectors.
Figure 2. Each is embedded into a vector . Short-term representation is encoded by LSTM and attention mechanism. We describe long-term behaviors from various side information, i.e., item ID (), first level category (), leaf category (), brand () and shop (). Long-term representation is encoded through attention and dense fully-connected networks. and are fused into user behavior vector through a gate vector . is user profile embedding.

3.2. Training and Online Serving

During training process, the positive label at time is the next interacted item . Negative labels are sampled from excluding

by the log-uniform sampler considering the large amount of items in a real-world application. Then the prediction class probabilities are made by a softmax layer. This is called sampled-softmax

(Jean et al., 2014)

and we apply cross-entropy as loss function

(2)

where is the sampled subset of including positive and negative labels, is the inner product scores between and each (),

is the prediction probability distribution over each sampled item, and

is the truly probability distribution of item .

We deploy the model on our online recommender system. The item embedding vectors are imported into an efficient

-Nearest-Neighborhood (KNN) similarity search system

(Johnson et al., 2017)

. Meanwhile, the user prediction network is deployed on a high-performance real-time inference system of machine learning. This kind of architecture follows the YouTube for video recommendation

(Covington et al., 2016). When customers use our online service, they will interact with lots of items and their feedback about the items will be recorded by the backend system. These information will be processed and then stored in database as users’ behavior logs. Useful information from massive logs are extracted to be constructed into structured data that our model requires. At time , customer’s historical behaviors ( and ) are fed into the inference system. Then the user behavior vector is predicted. The KNN search system retrieves the most similar items with according to their inner products. Top items are then recommended. Now we elaborate on how and are encoded in the network and how the two representations are fused as illustrated in Figure 2.

3.3. Input Embedding with Side Information

In Taobao’s recommendation scenario, customers not only focus on a specific item itself, but also concern about the brand, shop and price, etc. For example, some people tend to buy items of the specific brand, and the others would like to buy items from shops that they trust in. Furthermore, due to the sparsity caused by the large-scale online items in industry, encoding items only by item ID feature level is far from satisfaction. So, we describe an item from different feature scales, i.e., item ID, leaf category, first level category, brand and shop, which are denoted as side information set . Each input item, , is represented as a dense vector transformed by the embedding layer so that they can be fed into the deep neural network directly

(3)

where is item ’s input embedding of feature with embedding size . is the feature ’s transformation matrix and is a one-hot vector.

Similarly, user profile could describe user from different feature scales, such as age, gender, and life stage. Input of user ’s profile information is represented as a dense vector

(4)

where is profile features set and is embedding of feature .

3.4. Recurrent Layer

Given the embedded short-term sequence of

, to capture and characterize the global temporal dependency in the short-term sequence data, we apply Long Short Term Memory (LSTM) network as the recurrent cell following session-based recommendation

Hidasi et al. (2015); Li et al. (2017, 2018). The LSTM can be described as

(5)

where , , represent the input, forget and output gates respectively. The LSTM encodes the short-term interaction sequence of into a hidden output vector at time , which we call sequential preference representation. is the cell state vector carrying information from and flows between cells. We pass to the attention network to get higher order representation.

3.5. Attention Mechanism

Under online shopping scenario, customers usually browse some unrelated items alternatively, which are called causal clicks. Unrelated actions would somehow influence the representation of in the sequence. We use a self-attention network to decrease the effect of those unrelated actions. Attention network Bahdanau et al. (2014); Luong et al. (2015); Wu et al. (2016) can aggregate various vectors into an overall presentation by assigning different weight scores to each component.

3.5.1. Multi-head Self-Attention

Self-attention is a special case of attention mechanism, which takes the sequence itself as query, key and value vectors of -dimension. , the output vector after self-attention, can be aggregated from previous hidden outputs of LSTM, .

Users may have multiple points of interest. For instance, when is browsing a skirt, both the color and novel style would be the key factors of making decisions. Single attention network would naturally be not enough to capture multiple aspect representations. Multi-head attention allows the model to jointly attend to information from different representation subspaces at different positions (Vaswani et al., 2017) and could model user preference from multiple views of interest. So we import it in our attention mechanism. The output matrix, , is calculated as

(6)

where

denotes the weight matrix of output linear transformation,

represents the amount of heads and .

In detail, each represents a single latent interest

(7)

where denote linear transformation weight matrices of query, key and value respectively. Let , and . The attention score matrix is defined as follows

(8)

Finally, by weighted sum pooling, we get

(9)

3.5.2. User Attention

For different users, they usually show various preferences even to similar item sets. Therefore, on top of self-attention network, we add a user attention module to mine more fine-grained personalized information, where is used as the query vector attending to . The short-term behavior representation at time is calculated as

(10)

3.6. Long-term Behaviors Fusion

From long-term view, users generally accumulate interests of different level in various dimensions. A user may often visit a group of similar shops and buy items that belong to the same category repeatedly. Therefore, we also encode long-term behaviors from different feature scales. consists of multiple subsets: (item ID), (leaf category), (first level category), (shop) and (brand) as illustrated in Figure 2. For example, contains shops that has interacted in past one week. Entries in each subset are embedded and aggregated into an overall vector through an attention-based pooling considering the quick response under online environment.

Each is transformed to a dense vector by as in section 3.3. Then we use user profile embedding as the query vector to calculate the attention scores and acquire the representation of as

(11)

are concatenated and fed into a fully-connected neural network

(12)

where is the long-term behavior representation.

To combine with the short-term behaviors, we elaborately design a gated neural network that takes , and as inputs also shown in Figure 2. A gate vector is used to decide contribution percentages of short- and long-term at time

(13)

The final output, i.e., user behavior vector , is computed by

(14)

where is element-wise multiplication.

4. Experiment Setup

Dataset Data Type Data Split #Users #Items #Records #Sessions S.len L.size Time Interval
JD offline train 802,479 154,568 9,653,777 2,666,189 3.3 20 15/Mar/2018 - 8/Apr/2018
test 10,366 74,564 498,492 15,069 8.6 20 9/Apr/2018 - 15/Apr/2018
Taobao offline train 498,633 2,053,798 45,157,298 7,011,385 6.1 20 15/Dec/2018 - 21/Dec/2018
test 13,237 588,306 1,170,401 13,237 9.2 20 22/Dec/2018
online train 7.1 50 Dec/2018
test / / 8.1 50 Dec/2018

# means the number of. S.len is the average length of short-term behaviors. L.size is the maximum size of each subset in long-term behaviors.

Table 1. Statistics of offline and online datasets.

4.1. Datasets

We construct an offline-online train/validation/test framework to develop our model. Models are evaluated on two offline real-world e-commerce datasets. One is a large dataset sampled from daily logs of online system on Mobile Taobao App. The other is from JD333https://www.jd.com/. Our code and offline datasets are available at https://github.com/alicogintel/SDM.

Offline Dataset of Taobao. We randomly select active users who interacted more than 40 items within 8 consecutive days in December 2018. In addition, we filter users whose interactions are more than 1000 items, which we believe are spam users. Then we collect their historical interaction data, in which the first 7 days for training and the 8th day for testing. We filter out items that appear less than 5 times in the dataset. Session segmentation follows the rules in section 3.1 and we limit the maximum size of each to 20. During training process, we remove sessions whose length are less than 2. In the test stage, we select approximately 10 thousands active users in the 8th day for quick evaluation. Their first 25% short-term sessions on the 8th day are fed into models and the remaining interactions are ground truth. Besides this, customers may browse some items more than once in a day and repeating recommendation should not be encouraged, so we remain these items only once in the test data for a user.

Offline Dataset of JD. Because this dataset is relatively sparser and smaller, we select user-item interaction logs of three weeks for training and one week for testing. Other data construction and cleaning process are the same as Taobao. Statistic details of the two offline datasets are listed in Table 1.

Online Dataset. We select the most effective offline models to deploy on Taobao’s production environment. The training data is from the user-item interaction logs of Mobile Taobao App from past 7 days without sampling. The same data cleaning process is applied as offline training datasets. Scales of online users and items expand to hundred million, which can cover the most active products at Taobao, and more long-term behaviors are used. Details can also be found in Table 1. The online model is updated daily as well as the corresponding item and user features.

4.2. Evaluation Metrics

4.2.1. Offline Evaluation

To evaluate the offline effectiveness of different methods, we use HitRate@K, Precision@K, Recall@K and F1@K metrics, which are also widely used in other related works in section 2.

HitRate@K represents the proportion of test cases () which has the correctly recommended items in a top K position in a ranking list, defined as

where denotes the number of test data. In our experiment, and are used for the tests.

Derive the recalled set of items for a user as () and the user’s ground truth set as . Precision@K reflects how many interested items for a user in the candidates. It is calculated as

Recall@K represents the ability of coverage in the user’s ground truth. It’s calculation is

To combine precision and recall, F1@K is derived as

4.2.2. Online Evaluation

We consider the most important online metrics: pCTR, pGMV and discovery.

pCTR is the Click-Through-Rate per page view where each page can recommend 20 items for a user

pGMV is the Gross Merchandise Volume per 1,000 page views. Its calculation is in same way

Besides the amount of online traffic and incomes, we also consider user shopping experience. Define discovery to measure how many novel items the recommender system can provide for a user

where the denominator is the number of all categories that a user clicks per day and the numerator is the number of new ones in past 15 days. We take the average of all users.

4.3. Comparison Methods

Models Taobao JD
HitRate@100 Recall@100 Precision@100 F1@100 HitRate@20 Recall@20 Precision@20 F1@20
Item-based CF 60.27% 3.24% 2.00% 2.43% 67.50% 9.08% 9.41% 8.99%
DNN 60.88% 2.85% 1.83% 2.18% 68.43% 8.93% 9.65% 8.98%
GRU4REC 65.60% 3.66% 2.30% 2.77% 69.44% 9.33% 9.83% 9.29%
NARM 66.97% 3.57% 2.25% 2.70% 70.33% 9.07% 9.58% 9.04%
SHAN 67.30% 3.71% 2.33% 2.80% 70.54% 9.42% 10.02% 9.41%
BINN 67.55% 3.49% 2.20% 2.64% 72.19% 9.38% 9.93% 9.36%
SDMMA 68.24% 3.68% 2.32% 2.79% 70.41% 9.21% 9.72% 9.18%
PSDMMA 69.43% 3.75% 2.37% 2.84% 71.21% 9.21% 9.78% 9.20%
PSDMMAL 70.72% 3.86% 2.44% 2.93% 73.25% 9.47% 10.13% 9.48%
PSDMMAL-N 73.13% 3.83% 2.45% 2.92% 74.33% 9.68% 10.42% 9.72%
PSDMMAL-NoS 65.41% 3.38% 2.14% 2.56% 70.07% 9.05% 9.60% 9.03%
Table 2. Comparisons of different models on offline datasets of Taobao and JD.

We use the following methods to compare with our model on two offline datasets. We also include five variants of our model for ablation study.

  • Item-based CF (Linden et al., 2003). It’s one of the major candidate generation approaches in industry. Collaborative Filtering method generates item-item similarity matrix for recommending.

  • DNN (Covington et al., 2016)

    . A deep neural network based recommendation approach proposed by YouTube. Vectors of videos and users are concatenated and fed into a multi-layer feed forward neural network.

  • GRU4REC (Hidasi et al., 2015). Hidasi et al. firstly applies recurrent neural network to solve session-based recommendation, which outperforms traditional methods significantly.

  • NARM (Li et al., 2017). It is an improved version of GRU4REC with global and local attention-based structure. A hybrid encoder with an attention mechanism to model the user’s sequential behavior is explored.

  • SHAN (Ying et al., 2018a). It incorporates both users’ historical stable preferences and recent shopping demands with a hierarchical attention network.

  • BINN (Li et al., 2018). BINN applies RNN-based methods to encode present consumption motivations and historical purchase behaviors. It generates the unified representation by concatenation operation.

  • SDMMA. Sequential Deep Matching with Multi-head Atte-ntion is our multi-head self-attention enhanced model.

  • PSDMMA. Personalized SDMMA adds user attention module to mine fine-grained personalized information.

  • PSDMMAL. PSDMMA combines representations of short-term sessions and Long-term behaviors.

  • PSDMMAL-N. Based on PSDMMAL, during training, we take the following items as target classes as Tang and Wang (Tang and Wang, 2018) does at the current time step. in this experiment.

  • PSDMMAL-NoS. PSDMMAL does Not contain the embeddings of Side information in short-term sessions and long-term behaviors except for the ID feature of item and user.

4.4. Implementation Details

We implement these deep learning models by distributed Tensorflow

444https://www.tensorflow.org/

. To be fair, all of these models share the same training and testing datasets, as well as input features of items and users and other training hyper-parameters. For training, we use 5 parameter severs (PSs) and 6 GPU (Tesla P100-PCIE-16GB) workers with average 30 global steps/s on offline experiment and we use 20 PSs and 100 GPU workers with average 450 global steps/s on online experiment. Adam optimizer with learning rate 0.001 is used to update parameters and gradient clipping is adopted by scaling gradients when the norm exceeded a threshold of 5. Besides this, we use a mini-batch size of 256 and sequences with similar length are organized to be a batch. Any input feature embedding and model parameters are learned from scratch without pre-training. The learnable parameters are initialized by orthogonal initializer. For the recurrent neural network, we use LSTM of multiple layers with dropout (probability 0.2) and residual network

(Merity et al., 2017) between vertical LSTM stacks. The hidden unit size of LSTM is set to 64 and 128 on offline and online experiments. Different parameter settings are set respectively, because we need to evaluate model performance efficiently on offline experiment. As for the multi-head attention structure, we set the number of heads to 4 and 8 on offline and online experiments respectively. We also use layer normalization and residual adding operation as Vaswani et al. (Vaswani et al., 2017) does. The unit size of item embedding vectors, short/long-term behavior vector and user behavior vector keep the same with the one in LSTM. During online serving, our model only costs about 15 milliseconds for each matching process with top 300 items retrieved.

5. Empirical Analysis

Figure 3. Online performances of our models compared with baseline in 7 days during December 2018.

5.1. Offline Results

Results on offline datasets of different models are shown in Table 2

. We select the best results from all the training epochs of these models. In general, deep learning based methods outperform traditional item-based CF dramatically except for YouTube-DNN. Average pooling over item sequences neglects the inherit correlation among items causing hurts on recommending quality (Recall, Precision) severely. GRU4REC and NARM consider the evolution of short-term behaviors. They perform better than original DNN models. The reason why SHAN and BINN can beat GRU4Rec in almost all metrics is that they incorporate more personalized information including long-term behaviors and user profile representation.

Our proposed SDMMA makes use of the multi-head attention structure and has overwhelming superiority over NARM. We conduct a detailed case study in section 5.3 to further explain how multi-head attention could well capture multiple interests. By introducing user profile representation, PSDMMA strengthens the model because users of different types focus on different aspects of items. It make sense that the more accurate the short-term representation is, the more customers can find their interested items in the candidate list. But it’s difficult to recommend potentially novel items for a user. More precise preferences should be inferred by considering long-term behaviors.

PSDMMAL can beat all of the models above remarkably by taking long-term preferences into account. Different from SHAN and BINN, it applies a fusion gate to combine short- and long-term behavior representations. The gate has more powerful representation ability for decision than a hierarchical attention structure. SHAN simply applies user profile representation as query vector to decide attention weights of long-term and short-term preference representations. Our proposed PSDMMAL models the specific correlation between them. An interesting case that properly explains the design of fusion gate is shown in section 5.4. PSDMMAL-N is our best variant that takes next 5 items as target classes during training process. It can recall more diversified items that meet requirements of broader users and be more suitable for matching task of recommender system. The results of PSDMMAL-NoS show our model’s performances would dramatically decrease without side information.

5.2. Online A/B Test

Currently, online matching algorithm in Taobao is a two-staged method. We define trigger items

as the latest interacted items of a user. Item-based CF firstly generates item-item similarity matrix. The trigger items recall similar items by the similarity matrix. Then these recalled items are re-ranked as matching candidates by a gradient boosting tree according to users’ click and purchase logs. Such method is our online baseline and we only replace it with our model as a standard A/B test.

We deploy PSDMMAL-N, our best sequential deep matching model, as well as the version without long-term behaviors on production environment on Mobile Taobao App. Compared with the baseline model, the quality of recommended items inferred from customers’ sequence behaviors is much better than the similar ite-ms generated by item-based CF. Especially for customers who often casually browse online, our model would recommend novel items to them and attract more eyeballs to encourage potential ordering rates. Figure 3 shows the online results in 7 successive days during December 2018. Two sequential deep models outperformed the baseline with a large margin, where PSDMMAL-N has an overall average improvements of 7.04%, 4.50% and 24.37% with respect to pCTR, pGMV and discovery. Incorporating with long-term behaviors brings much more improvements. Long-term behaviors always indicate personal preferences that can affect customers’ current shopping decisions. Note that our sequential matching model has been working well online since December 2018.

5.3. The Effect of Multi-head Attention

#heads HitRate@K Recall@K Precision@K F1@k
1 70.00% 3.82% 2.40% 2.88%
2 70.64% 3.83% 2.41% 2.89%
4 70.72% 3.86% 2.44% 2.93%
8 70.21% 3.77% 2.37% 2.85%
Table 3. Results of various number of heads. ()

We explore the influence of various number of heads in our matching model. Intuitively, representation of the short-term session will get more accurate with the number of heads increasing. Table 3 reports the results on offline Taobao dataset. In this experiment, only the number of heads is different in PSDMMAL and the dimension of model hidden units is set to 64.

We can observe that changes caused by the head number keep consistent in terms of the four metrics. When the number of heads is less than 4, the effects present positive relationship with the amount of heads. While the number of heads is greater than 4, the results become worse dramatically. We can conclude more heads are not necessarily positive because would get smaller causing worse representation. In our settings, four heads can get the best results and we visualize the attention weights of the different heads over the short-term session of a user sampled from offline Taobao test dataset in Figure 4. We choose the last hidden output of LSTM as the query vector in multi-head attention to get the weights attending to . The weight vector is also the th row vector of in Equation 8. and mainly concentrate on the first several items in the session, which are white down jackets. captures the dress interest and gives more attention to the jeans.

fusion HitRate@K Recall@K Precision@K F1@K
multiply 67.09% 3.42% 2.16% 2.59%
concat 69.74% 3.70% 2.34% 2.80%
add 70.24% 3.75% 2.37% 2.84%
gated 70.72% 3.86% 2.44% 2.93%
Table 4. Comparisons of different fusion methods. ()

5.4. The Fusion Gate

Element-wise multiplication, concatenation and addition operation all directly work on unfiltered long-term preference representations and ignore that a small number of preferences in long-term have strong correlation with the current short-term session. These simple combination methods take all the information from long-term preferences and naturally hurt the fusion performance shown in Figure 4 tested on the Taobao offline dataset. In contrast, our proposed gated fusion network accurately captures multi-level user preferences and achieves the best results. Information highly related to current session in the long-term preference can be fused with current short-term vector.

For better explanation of the gated fusion, we use a real-world case of a sampled user at Taobao to interpret the function of gate. As shown in Figure 5, contains items recommended by our model, which are clicked by the user simultaneously. We can see the user is browsing kinds of glasses including read wine and champion glasses. Our model can directly recommend champion glasses because they are related to the last clicks in his short-term session . It means he is more probably interested in champion glasses at present and the gate allows this information remain. Meanwhile, our gated fusion could capture the most relevant items red wine among his massive long-term behaviors , which aslo includes many irrelevant clicks such as beer, paring knife and small plate, and combine with the short-term session items red wine glasses to generate the recommended item red wine decanter. The case shows our gate module has effective and accurate fusion ability.

Figure 4. Visualization of attention weights (the last hidden output of LSTM as query vector to get the weights) from to over a short-term session sampled from offline test dataset of Taobao.

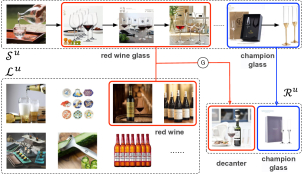

Figure 5. A short-term session and long-term behaviors from a sampled user on our online system. is the set of items recommended by our model, which are also clicked by the user.

6. Conclusions

In this paper, we propose a sequential deep matching model to capture users’ dynamic preferences by combining short-term sessions and long-term behaviors. We employ multi-head self-attention to capture multiple interests in short-term sessions and long-short term gated fusion network to incorporate long-term preferences. Extensive offline experiments show the effectiveness of our model. The matching model is successfully deployed on Taobao’s recommender system with improvements in term of important commercial metrics.

References

  • D. Bahdanau, K. Cho, and Y. Bengio (2014) Neural machine translation by jointly learning to align and translate. arXiv preprint arXiv:1409.0473. Cited by: §3.5.
  • T. Bai, P. Du, W. X. Zhao, J. Wen, and J. Nie (2019) A long-short demands-aware model for next-item recommendation. arXiv preprint arXiv:1903.00066. Cited by: §1, §2.2.
  • X. Chen, H. Xu, Y. Zhang, J. Tang, Y. Cao, Z. Qin, and H. Zha (2018) Sequential recommendation with user memory networks. In WSDM, pp. 108–116. Cited by: §2.2.
  • P. Covington, J. Adams, and E. Sargin (2016) Deep neural networks for youtube recommendations. In RecSys, pp. 191–198. Cited by: §2.1, §3.2, 2nd item.
  • D. Dong, X. Zheng, R. Zhang, and Y. Wang (2018) Recurrent collaborative filtering for unifying general and sequential recommender. In IJCAI, pp. 3350–3356. Cited by: §1, §2.2.
  • Y. Feng, F. Lv, W. Shen, M. Wang, F. Sun, Y. Zhu, and K. Yang (2019) Deep session interest network for click-through rate prediction. In IJCAI, pp. 2301–2307. Cited by: §1.
  • B. Hidasi, A. Karatzoglou, L. Baltrunas, and D. Tikk (2015) Session-based recommendations with recurrent neural networks. arXiv preprint arXiv:1511.06939. Cited by: §1, §2.2, §3.1, §3.4, 3rd item.
  • J. Huang, Z. Ren, W. X. Zhao, G. He, J. Wen, and D. Dong (2019) Taxonomy-aware multi-hop reasoning networks for sequential recommendation. In WSDM, pp. 573–581. Cited by: §2.2.
  • J. Huang, W. X. Zhao, H. Dou, J. Wen, and E. Y. Chang (2018) Improving sequential recommendation with knowledge-enhanced memory networks. In SIGIR, pp. 505–514. Cited by: §2.2.
  • S. Jean, K. Cho, R. Memisevic, and Y. Bengio (2014) On using very large target vocabulary for neural machine translation. arXiv preprint arXiv:1412.2007. Cited by: §3.2.
  • J. Johnson, M. Douze, and H. Jégou (2017) Billion-scale similarity search with gpus. arXiv preprint arXiv:1702.08734. Cited by: §3.2.
  • W. Kang and J. McAuley (2018) Self-attentive sequential recommendation. In ICDE, pp. 197–206. Cited by: §2.2.
  • Y. Koren, R. Bell, and C. Volinsky (2009) Matrix factorization techniques for recommender systems. Computer (8), pp. 30–37. Cited by: §2.1.
  • J. Li, P. Ren, Z. Chen, Z. Ren, T. Lian, and J. Ma (2017) Neural attentive session-based recommendation. In CIKM, pp. 1419–1428. Cited by: §1, §2.2, §3.1, §3.4, 4th item.
  • Z. Li, H. Zhao, Q. Liu, Z. Huang, T. Mei, and E. Chen (2018) Learning from history and present: next-item recommendation via discriminatively exploiting user behaviors. In KDD, pp. 1734–1743. Cited by: §1, §2.2, §3.4, 6th item.
  • G. Linden, B. Smith, and J. York (2003) Amazon. com recommendations: item-to-item collaborative filtering. IEEE Internet computing (1), pp. 76–80. Cited by: §1, 1st item.
  • Q. Liu, Y. Zeng, R. Mokhosi, and H. Zhang (2018) STAMP: short-term attention/memory priority model for session-based recommendation. In KDD, pp. 1831–1839. Cited by: §1, §2.2.
  • M. Luong, H. Pham, and C. D. Manning (2015) Effective approaches to attention-based neural machine translation. arXiv preprint arXiv:1508.04025. Cited by: §3.5.
  • S. Merity, N. S. Keskar, and R. Socher (2017) Regularizing and optimizing lstm language models. arXiv preprint arXiv:1708.02182. Cited by: §4.4.
  • M. Quadrana, A. Karatzoglou, B. Hidasi, and P. Cremonesi (2017) Personalizing session-based recommendations with hierarchical recurrent neural networks. In RecSys, pp. 130–137. Cited by: §1.
  • S. Rendle, C. Freudenthaler, and L. Schmidt-Thieme (2010) Factorizing personalized markov chains for next-basket recommendation. In WWW, pp. 811–820. Cited by: §2.2.
  • B. Sarwar, G. Karypis, J. Konstan, and J. Riedl (2001) Item-based collaborative filtering recommendation algorithms. In WWW, pp. 285–295. Cited by: §1.
  • J. Tang, F. Belletti, S. Jain, M. Chen, A. Beutel, C. Xu, and E. H. Chi (2019) Towards neural mixture recommender for long range dependent user sequences. arXiv preprint arXiv:1902.08588. Cited by: §2.2.
  • J. Tang and K. Wang (2018) Personalized top-n sequential recommendation via convolutional sequence embedding. In WSDM, pp. 565–573. Cited by: §2.2, 10th item.
  • A. Vaswani, N. Shazeer, N. Parmar, J. Uszkoreit, L. Jones, A. N. Gomez, Ł. Kaiser, and I. Polosukhin (2017) Attention is all you need. In NIPS, pp. 5998–6008. Cited by: §1, §3.5.1, §4.4.
  • J. Wang, P. Huang, H. Zhao, Z. Zhang, B. Zhao, and D. L. Lee (2018) Billion-scale commodity embedding for e-commerce recommendation in alibaba. arXiv preprint arXiv:1803.02349. Cited by: §2.1.
  • P. Wang, J. Guo, Y. Lan, J. Xu, S. Wan, and X. Cheng (2015) Learning hierarchical representation model for nextbasket recommendation. In SIGIR, pp. 403–412. Cited by: §2.2.
  • Y. Wu, M. Schuster, Z. Chen, Q. V. Le, M. Norouzi, W. Macherey, M. Krikun, Y. Cao, Q. Gao, K. Macherey, et al. (2016) Google’s neural machine translation system: bridging the gap between human and machine translation. arXiv preprint arXiv:1609.08144. Cited by: §3.5.
  • H. Ying, F. Zhuang, F. Zhang, Y. Liu, G. Xu, X. Xie, H. Xiong, and J. Wu (2018a) Sequential recommender system based on hierarchical attention networks. In IJCAI, Cited by: §1, §2.2, 5th item.
  • R. Ying, R. He, K. Chen, P. Eksombatchai, W. L. Hamilton, and J. Leskovec (2018b)

    Graph convolutional neural networks for web-scale recommender systems

    .
    arXiv preprint arXiv:1806.01973. Cited by: §2.1.
  • F. Yuan, A. Karatzoglou, I. Arapakis, J. M. Jose, and X. He (2019) A simple convolutional generative network for next item recommendation. In WSDM, pp. 582–590. Cited by: §2.2.
  • S. Zhang, Y. Tay, L. Yao, and A. Sun (2018) Next item recommendation with self-attention. arXiv preprint arXiv:1808.06414. Cited by: §2.2.
  • W. Zhao, B. Wang, J. Ye, Y. Gao, M. Yang, and X. Chen (2018) PLASTIC: prioritize long and short-term information in top-n recommendation using adversarial training. In IJCAI, pp. 3676–3682. Cited by: §1, §2.2.
  • H. Zhu, X. Li, P. Zhang, G. Li, J. He, H. Li, and K. Gai (2018) Learning tree-based deep model for recommender systems. In KDD, pp. 1079–1088. Cited by: §2.1.
