Scopeformer: n-CNN-ViT Hybrid Model for Intracranial Hemorrhage Classification

07/07/2021
by   Yassine Barhoumi, et al.
Rowan University
0

We propose a feature generator backbone composed of an ensemble of convolutional neuralnetworks (CNNs) to improve the recently emerging Vision Transformer (ViT) models. We tackled the RSNA intracranial hemorrhage classification problem, i.e., identifying various hemorrhage types from computed tomography (CT) slices. We show that by gradually stacking several feature maps extracted using multiple Xception CNNs, we can develop a feature-rich input for the ViT model. Our approach allowed the ViT model to pay attention to relevant features at multiple levels. Moreover, pretraining the n CNNs using various paradigms leads to a diverse feature set and further improves the performance of the proposed n-CNN-ViT. We achieved a test accuracy of 98.04 architecture is modular and scalable in both the number of CNNs used for feature extraction and the size of the ViT.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

03/19/2020

Ensemble learning in CNN augmented with fully connected subnetworks

Convolutional Neural Networks (CNNs) have shown remarkable performance i...
05/10/2021

Examining convolutional feature extraction using Maximum Entropy (ME) and Signal-to-Noise Ratio (SNR) for image classification

Convolutional Neural Networks (CNNs) specialize in feature extraction ra...
01/14/2020

The problems with using STNs to align CNN feature maps

Spatial transformer networks (STNs) were designed to enable CNNs to lear...
12/20/2020

Fusion of CNNs and statistical indicators to improve image classification

Convolutional Networks have dominated the field of computer vision for t...
07/20/2018

Ensemble of Deep Learned Features for Melanoma Classification

The aim of this work is to propose an ensemble of descriptors for Melano...
08/01/2017

Image Denoising via CNNs: An Adversarial Approach

Is it possible to recover an image from its noisy version using convolut...
06/28/2020

Reinforcement Learning Based Handwritten Digit Recognition with Two-State Q-Learning

We present a simple yet efficient Hybrid Classifier based on Deep Learni...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Motivated by the recently emerging vision transformer model [vit-paper]

, we propose a hybrid architecture composed of multiple CNNs for feature extraction and a vision transformer designated for intracranial hemorrhage classification. In our work, we hypothesize that utilizing feature maps extracted from highly crafted CNNs can improve the information content the ViT is processing and the resolution input it attends to. Furthermore, we hypothesize that generating features from the same input image using multiple CNNs leads to a richer feature content with higher resolution. To this end, we used multiple Xception CNN feature extractors, pretrained on separate paradigms using two distinguished datasets. The first CNN model used the ImageNet dataset for pretraining, which was then fine-tuned on the RSNA dataset. The second CNN model was priorly pretrained on the ImageNet dataset and then further pretrained on data generated from ImageNet using a Generative adversarial network (GAN)

[gan-paper] applied on several brain computed tomography images. The idea behind generating the dataset using GAN was motivated by the dissimilarities of ImageNet natural images and the 2D medical images. We reduce these dissimilarities by further pretraining on the generated GAN images to approach a better inductive bias for our target computed tomography dataset.

2 Methodology

The Scopeformer model, presented in figure 1

, is an extension of the vision transformer (ViT) architecture. It is applied either directly to raw images or to a given ”n” number of feature maps extracted from the latest Xception Add layers and concatenated to a single feature map. We adopted the base ViT variant with 12 encoder layers and a latent vector dimension of 1456. In our experiments, we used the RSNA intracranial hemorrhage dataset

[RSNA] by generating 2242243 images from the DICOM files [loss]. The input image to each feature extractor is 2242243, and the output dimension is 771024. For multiple CNNs, the size of the input vector will be 77(n1024). A smaller version of n-CNN-ViT models was introduced to reduce the computational complexity of the ViT input, where we use a 11 CNN filter after the Xception Add layer to reduce the dimension from 1024 to 128.

Figure 1: Overview of the proposed n-CNN-ViT architecture. The model is composed of two main stages; Feature map generation and global attention encoding for the MLP head classification.

3 Results and discusion

The performances of our models are evaluated by the multi-label weighted mean logarithmic loss [gan-paper]. Figure 2 shows the classification accuracy of our models against the number of CNNs in the feature extractor backbone for different pretraining paradigm settings. We observe that the classification accuracy is directly proportional to the number of Xception models. Moreover, using the same pretrained weights for the 2-CNN-ViT model results in lower accuracies compared to using diverse backbones. Table 1, summarizes best models within each variant. Applying the ViT encoder directly on the raw intracranial hemorrhage images shows that the proposed ViT model by [vit-paper] cannot overcome models without including CNNs as claimed. In fact, The more we add features with a more diverse CNN pretraining paradigms, the richer the feature content will be and the better the ViT attends to the input to extract global attention among patches. The n-CNN-ViT model uses a base ViT variant and relatively small Xception CNN feature maps. Furthermore, we show comparable results for the smaller version of the 2-CNN-ViT compared to larger ViT inputs. This implies the degree of modularity and scalability of the proposed model.

Model ViT input dimension Validation accuracy Loss
ViT 2562563 94.33% 0.1822
1-CNN-ViT (GAN) 771024 96.95% 0.08272
2-CNN-ViT (ImageNet/GAN) 772048 97.46% 0.07754
3-CNN-ViT (ImageNet/ImageNet/GAN) 773072 98.04% 0.07050
2-CNN-ViT (ImageNet/GAN) 7x7x256 97.58% 0.07903
Table 1: Classification performance of ViT based models on the RSNA validation dataset

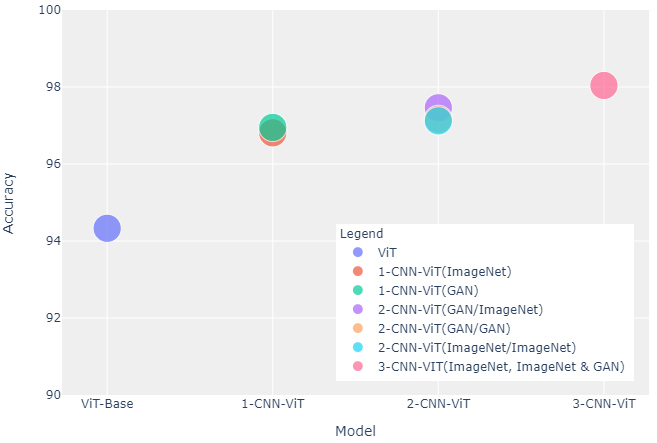

Figure 2: Performance versus n-CNN-ViT variants; Pure ViT, 1-CNN-ViT, 2-CNN-ViT and 3-CNN-ViT, and pretraining modes; ImageNet and data generated using GAN. Models with multiple CNNs and different pretraining modes perform better.
