1 Introduction

Researchers use figures to explain complex concepts or show critical results. In scholarly articles, figure captions are critical to get the message across effectively. Ones that are too generic (e.g., “Results of Experiment A.”) or poorly written (e.g., “Relations between X and Y.”) represent missed opportunities to explain scientific narratives to readers. Unfortunately, such low-quality captions still occur in published scientific articles. This paper aims to develop automatic figure-captioning models that generate high-quality captions for figures and charts in scientific papers (Figure 1).

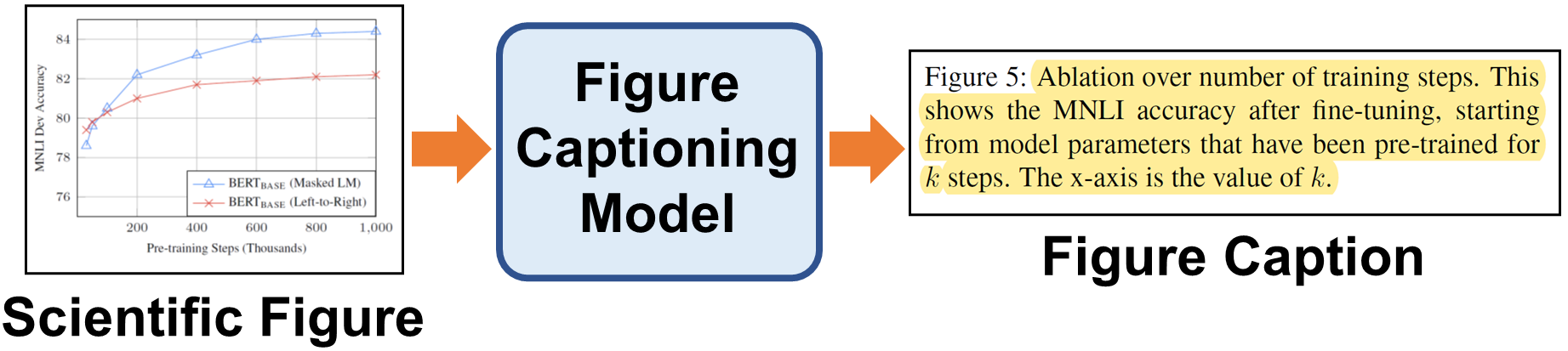

Figure 1: The figure captioning model takes a scientific figure (e.g., a graph plot) as input and generate captions that describes the figure.

Our motivation is two-fold. First, we aim to help researchers write better captions for the figures and charts in their papers. Automatic caption models trained on informative, high-quality captions can suggest better captions. Second, the proposed technology can make scientific charts and figures more accessible to blind or visually impaired readers. Researchers have developed technologies to assist the blind to navigate graphical content, such as data visualization charts

Swaminathan et al. (2014), printed physical maps Swaminathan et al. (2016), 3D chemical diagrams Bernareggi et al. (2019), and images on social media Wu et al. (2017); Salisbury et al. (2017)

. However, only a few prior works focused on scientific figures. An image-captioning model specialized for scientific figures can improve the narration of scientific articles for the blind even when the original caption is unhelpful.

To this end, we introduce , a large-scale image-captioning dataset that contains real-world scientific figures and captions. was constructed using computer science papers collected and released by arXiv. With pre-processing complete – including figure-type classification, sub-figure identification, text normalization, and caption text selection – contained more than two million figures extracted from over 290,000 papers. We then established baseline models that caption graph plots, the dominant (19.2%) figure type. The experimental results showed both exciting opportunities and steep challenges of generating captions for scientific figures.

2 Related Work

One of the few prior works attempting to caption scientific figures was by Chen et al. Chen et al. (2019a, b, 2020). They created FigCAP, a caption-figure pair corpus where the figures are synthesized, and used an LSTM model with an attention mechanism to produce captions. FigCAP was built on research that aimed to analyze figure content automatically, including Figure-Seer Siegel et al. (2016), FigureQA Kahou et al. (2017), and DVQA Kafle et al. (2018). DVQA and FigureQA were both made using synthetic figures; FigureSeer contained over 60,000 figures across seven figure types extracted from research papers. Meanwhile, Qian et al. Qian et al. (2020) proposed a set of “caption units” (such as Title, Label Name, Min/Max, etc.) that are important to include in a caption of scientific figures; they created a model, FigJAM, to produce such units Qian et al. (2021). Also relevant is the “data-to-caption” work, which takes a chart’s source data table and metadata as input to generate a caption Obeid and Hoque (2020); Spreafico and Carenini (2020). These models generate captions based on data tables, not the figures.

Differences Between Synthetic and Real-World Captions.

Most prior work has tried to generate captions for scientific figures using synthetic images and texts Chen et al. (2019a, b, 2020); Kahou et al. (2017). However, synthetic captions tend to be generic and describe features without conveying higher-level insights, for example, “This is a line plot. It contains 6 categories. Dark Magenta has the lowest value. Lawn Green has the highest value.” (example from FigCAP.) Human-written captions, on the other hand, tend to highlight the meaningful parts of the figure and bring more context, for example: “Train loss curve with respect to optimization steps. With prior coarse-tuning on NLI data, convergence becomes much faster and easier.” [example from Jin et al. (2020)].

3 Constructing Dataset

This section describes the process that massages real-world figure-caption data into an appropriate easy-to-use format for the NLP community. This data-processing procedure was developed iteratively and empirically.

Step 1: Data Acquisition and Pre-processing.

Data acquisition is a fundamental challenge for constructing a public scientific figure-caption dataset. Although there is a vast number of scientific papers, they are not all easy to access. is based on the arXiv dataset Clement et al. (2019).222arXiv Dataset on Kaggle: https://www.kaggle.com/Cornell-University/arxiv The arXiv dataset is licensed under CC-0, which grants remake and republish rights. It contains a repository of 1.7 million articles with relevant features, such as article titles, authors, categories, abstracts, full-text PDFs, and more.

We first downloaded all the scholarly articles from the arXiv dataset and froze the date on Dec 22, 2020 (a total of 1,921,287 papers). does not include any papers published after this date. We further narrowed our dataset to papers published between 2010 and 2020 in computer science (cs.) and machine learning (stat.ML) topics, which numbered 295,028 papers. We did not use these papers’ “source files,” which might contain the original LaTeX and figure files. Not all papers come with source files; some source files have complex dependencies that are hard to parse.

Step 2: Figure-Caption Pair Extraction.

We then used PDFFigures 2.0 Clark and Divvala (2016) to extract the figures from papers in our paper collection. PDFFigures 2.0 is a Scala-based tool created to extract figures, captions, tables, and section titles from scholarly documents, with a focus on the computer science domain. In addition to the figures’ images and captions, the tool also extracted all the text snippets inside the figures, such as legends, X-Y labels, and titles. The extracted information can be used to boost the performance of image-captioning models. This step resulted in 295,028 papers and 2,170,719 figures.

Step 3: Figure Type Classification.

Given the high diversity in the figure types included in scientific articles, we did not aim to create a single captioning model for all types of figures. Instead, we aimed to create captioning models specialized for one particular figure type. We used an automatic figure type classifier

Siegel et al. (2016) to classify figure type in . This pre-trained classifier can identify seven types of figures: graph plots, flowcharts (also called node diagrams), equations (also called algorithms), bar plots, scatter plots, tables, and “other.” Its reported accuracy is 86% over 60,000 samples Siegel et al. (2016).

According to the classifier’s prediction, out of 2,170,719 figures, 19.2% (416,804) are graph plots, 23.6% (511,984) are tables,333In this work, tables are not considered to be figures due to drastically different visual features and contents. 5.9% (127,197) are equations (including algorithms and pseudo codes), 8.5% (185,398) are flowcharts, 2.0% (44,052) are scatter plots, 4.7% (101,146) are bar charts, and 36.1% (784,138) are “other.” In , we only focus on graph plots, which have the highest classification performance Siegel et al. (2016) and are also the most common figure type.

Step 4: Removing Figures with Subfigures.

Many scientific figures contain subfigures. For example, in our pilot study (Section 3.1), 35.72% of overall scientific figures had subfigures. focuses on generating captions for single figures, so we removed figures with subfigures from the dataset. We first used handcrafted rules to identify captions that explicitly mention or refer to subfigures [for example, (a), a), (b), b), (1), 1), (2), 2) … etc.]. Furthermore, we also used FigureSeparator Tsutsui and Crandall (2017) to filter figures with subfigures out of our collection. FigureSeparator is a CNN-based model that separates compound figures in the ImageCLEF Medical dataset with 85.9% accuracy.

Of 416,804 graph plots identified in Step 3, the rule-based approach yielded 352,719 graph plots, and the FigureSeparator further narrowed the collection down to 133,543 figures. An estimated 32.04% of the graph plots did not have subfigures.

Step 5: Text Normalization.

We used NLTK Loper and Bird (2002) for tokenization and converted all the text to lowercase. We also removed the figure numbers, such as “Figure 1:” or “Fig. 1:”, and only kept the main caption text. The following two text normalization strategies were then applied:

  • Basic Normalization: We replaced all the numbers (e.g., 0, -0.2, 3.44%, 1,000,000) with [NUM].

  • Advanced Normalization: We created regular expressions to identify equations in captions and replaced them with [EQUATION]. We also replaced all the text spans enclosed by any types of bracket pairs, including {}, [], and (), with [BRACKET].

Step 6: Target Caption Text Selection.

provides three different data collections, each sampled using different strategies:

  • First Sentence (133,543 Figures): This collection includes all the figures. For each figure included, this collection only includes the first sentence of the caption.

  • Single-Sentence Caption (94,110 Figures): This collection includes the complete caption of only the figures with a one-sentence caption. Of the graph plots, 70.47% had a one-sentence caption.

  • Caption with No More than 100 Words (131,319 Figures): This collection includes the complete caption of only the figures whose captions contained no more than one hundred tokens (punctuation marks included). In this collection, a caption contains 1.66 sentences on average (SD=1.07).

On average, with advanced normalization (Step 4), a sentence in the “First Sentence” collection contains 23.19 tokens (SD=20.86); a sentence in the “Single-Sentence Caption” collection contains 14.05 tokens (SD=8.15); and a sentence in the “Caption with No More Than 100 Words” collection contains 22.04 tokens (SD=17.44).

Note that we first created the 80/10/10 train/val/test data split for the entire corpus and then proceeded with the caption selection step. This procedure ensured that we used the identical set of figures to construct each collection’s test set; the same applied to their training and validation sets.

Figure Type Classification (Class = Graph Plot)
Approach P R F Acc
Siegel et al. (2016) .90 .83 .87 .95
Non-Subfigure Figure Classification
(For figures labeled as graph plots in Step 3.)
Approach P R F Acc
Rule-Based .54 .95 .69 .59
FigureSeparator .98 .66 .79 .83
Rule-Based+FigureSeparator .98 .62 .76 .81
Table 1: The tools used to construct evaluated on 1,926 labeled images. For figure type classification, the overall performance over graph plots was reliable. Regarding identifying the graph plots (as labeled automatically in Step 3) that do not contain subfigures, FigureSeparator achieved an exceptionally high precision.

3.1 Data Analysis and Quality Measurement

To evaluate the quality of our data cleaning and processing pipeline, we randomly sampled 2,000 figures from the original arXiv dataset, and one author manually labelled each figure’s figure type and whether it contained subfigures (Yes/No).444To validate the label quality, we had three graduate students label 100 figures, respectively. On average, they agreed with 97% of our subfigure labels. For the figures without subfigures, they agreed with our figure type labels 82.17% of the time. For the figures with subfigures, they agreed with at least one of our type labels 86.56% of the time. Of these 2,000 figures, 1,926 figures had no extraction errors, and were included in our follow-up calculation. As for types, 20.35% of the figures were graph plots, 4.1% were bar charts, and 3.11% were scatter plots.555A figure might contain subfigures of different types (e.g., a bar chart accompanied by a graph plot.) For each figure, we took a multi-class labeling strategy that exhaustively labels all distinct types of its subfigures. In terms of subfigures, 237 out of 1,926 figures (35.72%) contained subfigures: 33.14% of these figures contained graph plots as subfigures, 5.81% contained bar charts, and 6.83% contained scatter plots.

We used these 1,926 labeled images to evaluate the tools we employed in constructing . Table 1 shows the results. For the figure type classification, the overall performance over graph plots were reliable. Regarding identifying the graph plots (as labeled automatically in Step 3) that do not contain subfigures, FigureSeparator had an exceptionally high precision.

4 Experimental Results

First Sentence
Subfig Filter Norm.
Rule FigSep B. A. #Fig. Vocab Size BLEU-4
416,804 30,776 .0259
352,719 24,355 .0236
12,666 .0224
133,543 11,946 .0219
Single-Sentence Caption Only
Subfig Filter Norm.
Rule FigSep B. A. #Fig. Vocab Size BLEU-4
247,649 21,765 .0291
218,655 17,685 .0228
9,760 .0234
92,021 9,232 .0207
Caption with <= 100 Words
Subfig Filter Norm.
Rule FigSep B. A. #Fig. Vocab Size BLEU-4
395,024 37,885 .0231
341,350 30,316 .0098
15,642 .0173
132,120 14,974 .0172
Table 2: The baseline model’s performance on , using Vision-Only features. Models trained on the Single-Sentence Caption collection performed the best. The low BLEU-4 scores indicate that more research is needed to reliably generate captions for scientific figures. (The vocabulary sizes were calculated after dropping words with a frequency below 5.)
Data Collection Feature BLEU-4
First Sentence Vision Only .0219
Vision+Text .0205
Text Only .0213
Single-Sent Caption Vision Only .0207
Vision+Text .0202
Text Only .0212
Caption w/ <=100 words Vision Only .0172
Vision+Text .0168
Text Only .0165
Table 3: The experimental results of models using Vision-Only, Text-Only, and Vision+Text features. Vision-Only and Text-Only features yielded similar performance. (All the subfigure-filtering and text-normalization steps were applied.)

To examine the feasibility and challenges of creating an image-captioning model for scientific figures, we established several baselines and tested them using . The caption quality was measured by BLEU-4 Papineni et al. (2002), using the test set of the corresponding data collection as a reference. Figure 2 shows some example outputs.

Baseline Model.

We used a classical image-captioning model, CNN+LSTM architecture, as our baseline Xu et al. (2015). The pre-trained ResNet-101 He et al. (2016)

was used as the image encoder to represent a figure as a 2048-dimension vector. This image vector was then fed into a dense layer to fit the dimension of the word-embedding and the LSTM decoder where the word-embedding and LSTM hidden layer size were all 512. A global attention mechanism was added to the LSTM decoder to better model the context

Luong et al. (2015). The LSTM decoder took the image vector as the initial state and generate captions.

We designed three variations of the baseline models, Vision-only, Vision+Text, and Text-only. The text information was the titles, legends, and X-Y labels extracted from the figures (Step 2 in Section 3). Another LSTM was used as a text encoder to encode text information into a vector. For the Vision+Text variation, we concatenated the image vector and the text vector together and fed it into the LSTM decoder for caption generation. The Text-only variation only took the text vector as the feature for the LSTM decoder.

Figure 2: Example outputs of the baseline models trained and tested on the Single-Sentence Caption Only collection. Intensive research will be needed to create models that can caption scientific figures reliably. [Figure sources: (1) Zhang et al. (2020), (2) Baswana et al. (2017), and (3) Brubaker et al. (2015).]

Experimental Setups.

We trained the baseline models using an 80/10/10 train/val/test data split. The models were trained by minimizing a cross-entropy loss with a doubly stochastic regularization Xu et al. (2015) using Adam Kingma and Ba (2014). The weights of the pretrained ResNet-101 image encoder were partially frozen so that only convolutional blocks 2 through 4 were fine-tuned throughout the training process Yosinski et al. (2014)

. We empirically set the hyper-parameters by observing the performance gain on the validation set. Hyper-parameters ended up being used were a dropout rate of 0.5; a batch size of 16/32; a learning rate of 4e-4 with a decay factor of 0.8 when there was no improvement for 8 epochs. The models were trained until there was no improvement for 20 epochs. We kept the model with the highest BLEU-4 score on the validation set for testing.

Results.

We trained the models on each data collection with varying levels of data filtering and text normalization. Table 2 shows the results. Among the three data collections, the models trained on the single-sentence captions performed the best. This might be because the Single-Sentence Caption collection, which is a subset of the First Sentence collection, had the smallest vocabulary size.

Effects of Text Normalization.

Our experiments did not show the clear benefits of normalizing text to the resulting BLEU-4 scores. We will explore other methods to normalize text, for example, using advanced techniques to identify equations in text Mali et al. (2020); Mansouri et al. (2020).

Effects of Text and Vision Features.

We also used Vision-Only, Text-Only, and Text+Vision features to develop models (Table 3). Vision-Only and Text-Only features yielded similar performance. Furthermore, the models performed slightly worse when training on combined features.

5 Conclusion and Future Work

This paper introduces , a large-scale image-captioning dataset that contains real-world scientific figures and captions. was constructed using more than two million images from over 290,000 papers collected and released by arXiv. We also established several image-captioning baselines, showing the feasibility and challenges of generating captions for scientific figures. In the future, we will explore approaches to improve caption quality, such as taking advantage of large pre-trained language models

Beltagy et al. (2019), or using information in paper’s full text to boost performance.

Ethical Considerations

Data Licensing.

The arXiv dataset uses the CC0 1.0 Universal (CC0 1.0) Public Domain Dedication license,666CC 1.0: https://creativecommons.org/publicdomain/zero/1.0/ which grants permission to remix, remake, annotate, and publish the data.

Potential Biases of Language Technologies.

We are aware that language technologies trained on a “standard” or mainstream variety of a language (in our case, English) favor the popular variety and harms people using varieties with fewer speakers. For example, standard automatic speech recognition trained on Dutch speeches results in 10-15% higher error rates on Flemish Dutch than on “standard” Dutch

Feng et al. (2021).

Acknowledgments

We thank Chieh-Yang Huang, Hua Shen, and Chacha Chen for helping with the data annotation. We thank Chieh-Yang Huang for the feedback and strong technical support. We also thank the anonymous reviewers for their constructive feedback. This research was partially supported by the Seed Grant (2020) from the College of Information Sciences and Technology (IST), Pennsylvania State University.
