1. Introduction

Since December 2019, a coronavirus disease (COVID-19) has been spreading in China and now emerging as a global pandemic. In response to the COVID-19 crisis, many countries have ordered unprecedented non-pharmaceutical interventions (NPIs), including travel restriction, mask wearing, lockdown, social distancing, school closure, and centralized quarantine (such as cabin hospitals), all aiming to reduce the population contact rates and thus mitigate the virus transmission. On the other hand, prolonged NPIs have a large downside impact on the overall economic and social well-being, which may cause major concerns including increased unemployment rates and bankruptcy of firms. Therefore, it is of the utmost importance to investigate which interventions and to what extend have substantial impact on controlling the epidemiological dynamics, and how to choose the appropriate measures to fit country-specific socioeconomic circumstance. Understanding the impact of various NPIs on a global scale can provide insights for each country to choose the most cost-effective NPIs in a timely manner to contain and mitigate the virus spread.

A number of recent works studied the government intervention effects. [31] applied the Bass Susceptible-Infected-Recovered (Bass-SIR) model to study the lockdown and social distancing effects for province-specific epidemiological parameters in China. [19] used only the observed death data and proposed a (non-SIR based) Bayesian model to study several intervention effects on 11 European countries. [18] modified an individual-based simulation model to study the consequence of NPIs to reduce the COVID-19 mortality and healthcare demand in the UK and the U.S. [45] developed a Susceptible-Exposed-Infectious-Removed (SEIR) model to evaluated the impact of NPIs on the epidemic in Wuhan, China. [32] built a travel network-based SEIR model to study the impact of different NPIs in China. [7] proposed a time-dependent SIR model to account the impact of the Wuhan city lockdown and predicted the future trend of the COVID-19 transmission.

During the COVID-19 transmission process across the globe, several countries experienced an epidemic outbreak in 2020 at different timelines. The first COVID-19 epidemic outbreak started in Wuhan, China in late January. In early to mid-February, Singapore was near the top list of total confirmed cases outside China, and South Korea began to see rising numbers of total cases. A few days after the outbreak in South Korea in mid-February, outbreaks in Iran and Italy began in late February. In early March, the number of cases in many European countries sharply increased, shifting the epicenter from Asia to Europe. As of April 4th, European countries with the most confirmed cases include Italy, Spain, France, Germany, and the UK. While China and South Korea managed to control the virus spread and European countries are experiencing the outbreak, the U.S. quickly emerged as the biggest epicenter in the world, with the total cases surpassed China and Italy in late March, becoming the country with the most confirmed cases currently.

While countries experienced different timelines of the COVID-19 epidemic outbreaks, the non-pharmaceutical interventions each government imposed also varied accordingly. China implemented very strict NPIs right after the outbreak occurred in Wuhan, including travel restriction [24], lockdown [41], school closure [23], social distancing [26], wearing masks [25], and later on centralized quarantine [22]. South Korea imposed travel restriction [35], school closure [40], social distancing [43], wearing masks [2], and centralized quarantine [8], however it did not call a national lockdown. Singapore implemented travel restriction [37], social distancing [30], and centralized quarantine [34], without emphasis on mask wearing, school closure and a national lockdown. European countries have very similar government policies (at different time points) including travel restrictions, social distancing, school closure, and lockdown [28, 10, 44, 6, 20, 14, 3, 17, 11, 12, 15, 9, 4, 13, 16, 42, 39, 36, 5, 21] but not imposing policies on wearing masks and centralized quarantine. The U.S. has closer policies relative to Europe [48, 47, 46], except that it did not call a national lockdown yet (as of April 4th, 2020).

Due to the time-varying and heterogeneous nature of the outbreaks and the associated different NPIs across countries in the COVID-19 pandemic, it is important to borrow information from the panel data collected worldwide to help understand the impacts of different NPIs and to improve the prediction of the epidemiological developments for countries at later stages. To the best of our knowledge, there is no up-to-date analysis based on integrated infection, recovery and death data from different countries with significant variations in their NPIs and timelines on the global scale. In this paper, we perform a scenario analysis of NPIs on the COVID-19 transmission through a dynamic SIR model tailored to a panel study with data from 9 countries in three continents, which were or are currently the epicenters: Italy, Spain, Germany, France, the UK, Singapore, South Korea, China, and the United States.

2. Methodology

2.1. SIR model with time-varying parameters

The SIR model is a fundamental compartmental model in epidemiology [27]

. The dynamic hypothesis behind the SIR model is the Kermack-McKendrick theory that predicts the number of cases of an infectious disease as it is transmitted through a population over time. In this paper, we consider a time-varying SIR model described by the following system of (non-linear) ordinary differential equations (ODEs):

where is the disease transmission rate at time and is the recovery rate at time . Here denote the subpopulation sizes of susceptible, infected, and recovered at time , respectively. In the absence of vaccine, we assume that the whole population size is constant over time. Similar time-varying SEIR model (with an extra exposure state) was considered in [33]. The time-varying reproduction number is defined as

(1)

In particular for , is the basic reproduction number and is the effective reproductive number. If , then will first increase to its maximum and then decrease to zero, which is often referred as an epidemic outbreak. If , then is monotonically decreasing and there would be no epidemic outbreak.

2.2. Dynamic panel SIR model

Suppose we have collected a panel dataset (i.e., longitudinal data) from countries of population size , and the data points are observed on evenly spaced time intervals such as daily data. Let be the subpopulation sizes of susceptible, infected, recovered in country at time , respectively. Given initial data , the Euler method with the unit time interval gives the discretized version of the following dynamic panel SIR (DP-SIR) model determined by the system of equations: for ,

where and are the rates of disease transmission and recovery in country at time , respectively. Denote and . Then we may rewrite the discrete DP-SIR model as

subject to the constraint . For simplicity, we treat as constant functions, i.e., . To model the intervention effect on , our basic intuition is that each intervention has the same effect on the disease transmission rate (thus the reproduction numbers since is constant) across countries and over time. Specifically, to borrow information cross countries, the coefficients have a panel data structure:

(2)

where is the -th NPI in country at time , is the country-level fixed (non-random) effect, and is the -th NPI effect which does not depend on and .

2.3. Construction of the NPIs

We now construct the NPIs from their intervention times. Let be the time span for observing data from the DP-SIR model and be the intervention time by the -th NPI in country . Then is modeled as following:

(3)

where is a user-specified scale parameter controlling the time-lag effect of interventions. Specifically, for smaller , is closer to the indicator function ; for larger , decays to zero more slowly, which reflects the time-lag to see the intervention effect. Thus in (3) is a smooth approximation of interventions with incorporated time-lag effect.

2.4. Estimation

Suppose the data and are observed at time points with equal spacing. With the panel structure (2) and the NPI parametrization (3

), our goal is to estimate the parameter of interest

from the observed data. For shorthand notation, we write for , and similarly for and . Denote .

We use the ordinary least-squares (OLS) to estimate

. The squared loss function of the DP-SIR model is given by

Then the OLS estimate for is given by

Based on the OLS estimate, we can also test for which intervention is statistically significant.

3. Scenario analysis on COVID-19 panel data

3.1. Data description

We collected COVID-19 data on the number of infections, recoveries and deaths of 9 countries between 1/22/2020 and 4/3/2020, including Italy, Spain, Germany, France, the UK, Singapore, South Korea, China, and the United States. The dataset is made publicly available by the Center for Systems Science and Engineering (CSSE) at John Hopkins University and it can be downloaded at [29]. In total, there are 73 days in this time span and the daily active cases (i.e., number of current infections) are plotted in Figure 1.

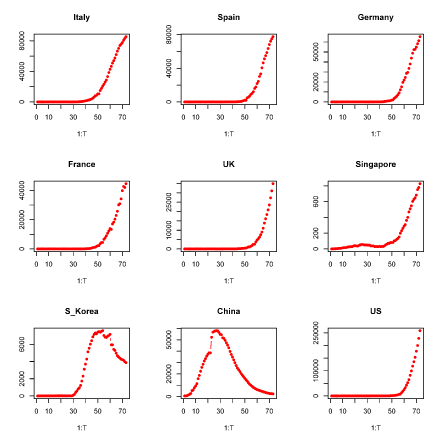

Figure 1. Observed data for the number of active cases from 9 countries between 1/22/20 and 4/3/20. There are data points in each plot.

In addition, we reviewed the NPIs each country imposed, and we considered the following NPIs in our initial DP-SIR model: travel restriction (TR), mask wearing (MW), lockdown (LD), social distancing (SD), school closure (SC), and centralized quarantine (CQ). The intervention times and descriptions of the NPIs imposed in each country were collected from local government websites, official public health authorities, and major newspapers [24, 41, 26, 23, 25, 22, 35, 40, 43, 2, 8, 37, 30, 34, 28, 10, 44, 6, 20, 14, 3, 17, 11, 12, 15, 9, 16, 4, 13, 16, 42, 39, 36, 5, 21, 48, 47, 46]. Summary of each country’s NPIs with their intervention times are shown in Table 1. We choose the scale parameter in (3) to control the time-lag effect of interventions for the COVID-19 study as a proxy for the incubation period (typically 2-14 days [1]).

3.2. Estimation of NPI impact

We first include all 6 NPIs from Table 1

into the DP-SIR model. The estimated coefficients with 95% confidence intervals in this full model are shown in Table

2.

County / NPI TR MW LD SD SC CQ
Italy 1/31/20 N/A 3/8/20 3/8/20 3/5/20 N/A
Spain 3/16/20 N/A 3/14/20 3/14/20 3/12/20 N/A
Germany 3/15/20 N/A 3/22/20 3/12/20 3/13/20 N/A
France 3/17/20 N/A 3.17/20 3/15/20 3/16/20 N/A
UK 3/17/20 N/A 3/23/20 3/16/20 3/20/20 N/A
Singapore 1/23/20 N/A N/A 3/27/20 N/A 1/23/20 footnotemark:
South Korea 2/4/20 2/2/20 footnotemark: N/A 3/20/20 2/24/20 3/2/20
China 1/23/20 2/2/20 footnotemark: 1/23/20 1/23/20 1/23/20 2/3/20
U.S. 2/2/20 N/A N/A 3/16/20 3/16/20 N/A
Table 1. NPIs used in our model. TR: travel restrictions; MW: mask wearing; LD: lockdown; SD: social distancing; SC: school closure; CQ: centralized quarantine. N/A means that an intervention is not implemented up to 4/3/20.
NPI estimated coefficient 95% CI
travel restriction (TR) -0.343 [-0.786, 0.100]
mask wearing (MW) 0.651 [0.009, 1.294]
lockdown (LD) 1.063 [0.427, 1.699]
social distancing (SD) -0.279 [-0.986, 0.427]
school closure (SC) 0.972 [0.339, 1.604]
centralized quarantine (CQ) 2.042 [1.493, 2.592]
Table 2. Estimated NPI impact.

Note that TR and SD are not statistically significant at the 95% confidence level. First, while many countries imposed travel restrictions for passengers coming directly from China, they did not ban travels from other international destinations, which may not be an effective policy as people who were infected could still come across the border by connecting to a third country. Second, given that SD intervention came very close to SC and LD interventions, we may view SD as a weaker intervention than LD, while it is stronger than SC. Hence the inclusion of SC and LD would be a strong proxy for SD. In addition, the coefficients for MW, LD, SC, CQ are all positive, which implies that these interventions are effective in reducing COVID-19 transmission rate. Table 2 also indicates that CQ is the most effective NPI to mitigate the COVID-19 transmission, while LD, SC and MW also play an important role. In our subsequent scenario analyses, we primarily focus on the 4 NPIs with statistically significant positive coefficients (i.e., MW, LD, SC, CQ).

While NPIs have different impacts on mitigating virus transmission, they are also associated with different degrees of costs to the overall economy. Policies such as lockdown may hurt the economy significantly by forcing non-essential businesses to close for a certain period of time, which may cause firms to go bankruptcy and employees to lose jobs. Other policy such as mask wearing is the most cost-efficient due to the low cost of production and easy implementation. Understanding the benefits of different combinations of NPIs in reducing the transmission rates as well as the costs to the economy are essential for countries to choose the most appropriate combination of NPIs to balance the control of virus transmission as well as the economy performance.

In the next section, we predict the COVID-19 transmission dynamics under various policy scenarios with different combinations of NPIs.

3.3. Scenario analysis

To begin with, we look at the predicted active cases of the 9 countries using the strongest combination MW+LD+SC+CQ, which also has the biggest negative impact on the economy. Predicted active cases of the 9 countries for MW+LD+SC+CQ over time up to 8/9/20 (i.e., ) is shown in Figure 2. Predicted time point and height of the epidemic peak, as well as the number of total infected cases on 8/9/20 for MW+LD+SC+CQ are shown in Table 3.

NPIs Peak location Peak value Total # cases by 8/9/20 Total population
Italy 4/10/20 102,938 194,473 60,461,826
Spain 4/7/20 87,049 175,802 46,754,778
Germany 4/7/20 70,389 124,911 83,783,942
France 4/7/20 47,219 88,022 65,273,511
UK 4/11/20 43,067 67,644 67,886,011
Singapore 4/15/20 1,136 2,846 5,850,342
South Korea 3/16/20 7577 11,013 51,269,185
China 2/18/20 58,108 83,073 1,439,323,776
U.S. 4/15/20 429,641 677,801 331,002,651
Table 3. Predicted time point and height of the epidemic peak, as well as the number of total infected cases at (i.e., 8/9/20) for MW+LD+SC+CQ.
NPIs Peak location Peak value Total # cases by 8/9/20 Total population
Italy 4/11/20 113,933 233,740 60,461,826
Spain 4/8/20 95,805 203,657 46,754,778
Germany 4/8/20 75,893 144,758 83,783,942
France 4/8/20 50,414 98,814 65,273,511
UK 4/13/20 47,938 86,516 67,886,011
Singapore 4/18/20 1,201 3,647 5,850,342
South Korea 3/16/20 7,577 11,894 51,269,185
China 2/18/20 58,108 83,126 1,439,323,776
U.S. 4/19/20 389,914 774,269 331,002,651
Table 4. Predicted time point and height of the epidemic peak, as well as the number of total infected cases at (i.e., 8/9/20) for MW+SC+CQ.

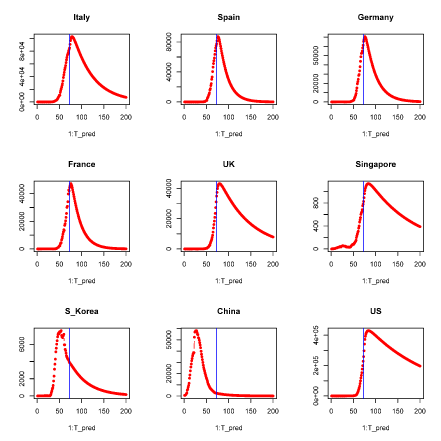

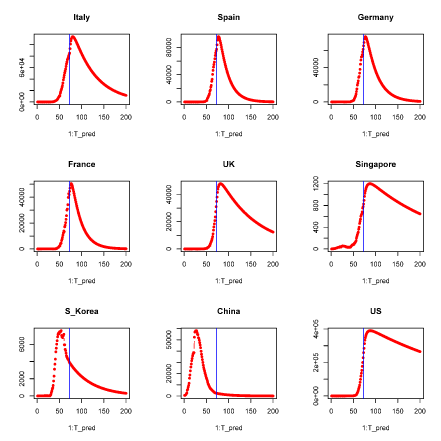

Figure 2. Predicted active cases of the 9 countries using MW+LD+SC+CQ. Date of the blue vertical line is 4/3/20. Observed number of active cases between 1/22/20 and 4/3/20 are on the left side of the blue vertical line and predicted number of active cases between 4/4/20 and 8/9/20 are on the right side of the blue vertical line.

From Figure 2, we see that by imposing the strongest combination MW+LD+SC+CQ of NPIs, each country can reach the turning point the soonest, with Spain, Germany and France having the peak day on April 7th, Italy on April 10th, UK on April 11th, U.S. and Singapore on April 15th. After passing the peak days, the numbers of actively infected cases will drop faster for France, Spain and Germany than for Italy, UK, U.S. and Singapore. The NPIs would not impact China and South Korea significantly given that they both have passed the peak and especially China’s active cases are approaching to zero.

We notice that the MW+LD+SC+CQ scenario was indeed China’s selection of NPIs during its outbreak. China took a strict implementation of all four policies, which succeeded in significantly reducing the reproduction rate in a timely manner (cf. Figure 3). Although it is the most economically costly method in the short run, by getting the best infection control outcome in the shortest period of time, China can quickly reach a very low reproduction rate and recover the economy by releasing those strict policies sooner. Our finding is consistent with what China is doing right now: China lifts all those restrictions nationally, with Wuhan being the last city and planning to remove those policies on April 8th.

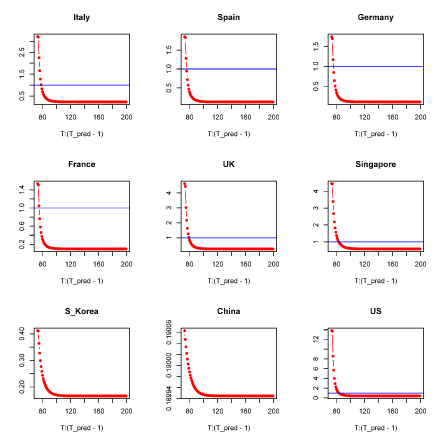

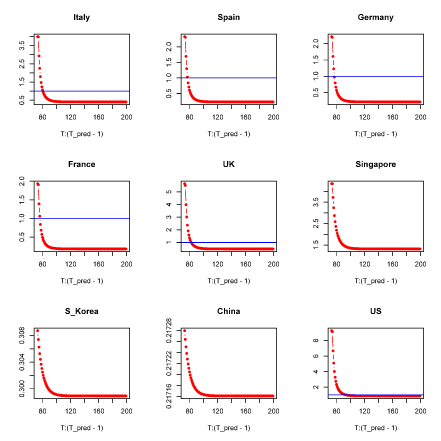

Figure 3. Effective reproduction numbers of the 9 countries using MW+LD+SC+CQ between 4/3/20 and 8/9/20. Blue horizontal line corresponds to .

While having most strict NPIs can help each country which are experiencing outbreak to control virus transmission in the fastest way, the economy costs associated with such scenario are also the highest. Given the lockdown policy is in particular harmful to the economy, we then construct a weaker NPI combination by relaxing the lockdown policy while still imposing the other three: mask wearing, school closure, and centralized quarantine. Such NPI combination MW+SC+CQ can be economically affordable given it does not require closing businesses for all industries except for schools. The prediction is shown in Figure 4.

By comparing the results of MW+SC+CQ in Figure 4 with MW+LD+SC+CQ in Figure 3, we find that the predicted infection outcomes are very similar, which implies that lifting the lockdown policy may not substantially impact the infection outcome, provided that: (i) schools still remain closed, (ii) everyone is required to wear masks, and (iii) there is a centralized quarantine system to isolate all confirmed cases from their households. By excluding lockdown policy, the peak time is postponed for 1 day for Italy (April 11th), Spain, Germany and France (April 8th), 2 days for the UK (April 13th), 3 days for Singapore (April 18th) and 4 days for the U.S. (April 19th). Considering the significant economy harm of lockdown, this set of NPIs may be more feasible for many countries given it does not require to suspend the majority of economic activities on a national scale.

South Korea indeed took this approach MW+SC+CQ (without a national lockdown). By choosing this combination of NPIs, South Korea reached its turning point fairly quickly and successfully managed to control the COVID-19 transmission in an economically efficient way. Although it may control the virus spread slower and may require lifting those imposed policies later than what China did, it does provide a solution to keep the entire economy running even during the outbreak. This finding may provide insights for European countries, which are experiencing the negative economic consequences caused by the national lockdown, to consider imposing mask wearing and centralized quarantine so they can lift the lockdown policy.

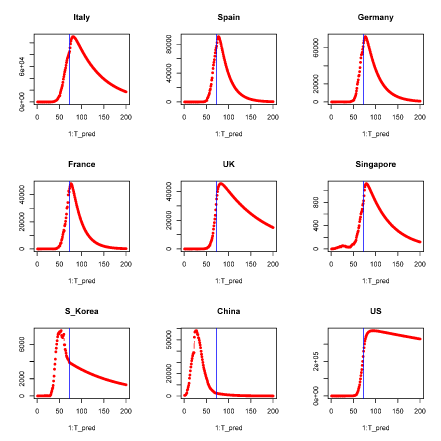

Figure 4. Predicted active cases of the 9 countries using MW+SC+CQ. Date of the blue vertical line is 4/3/20. Observed number of active cases between 1/22/20 and 4/3/20 are on the left side of the blue vertical line and predicted number of active cases between 4/4/20 and 8/9/20 are on the right side of the blue vertical line.

To proceed further, we remove one more NPI from MW+SC+CQ to see whether or not any combination of two NPIs can achieve as efficient outcomes as imposing all the three, which may be more economically efficient. While imposing two NPIs generally work for majority of the European countries (see the complete data in Appendix), we find that it may not work effectively for Singapore and the U.S. In particular, we find that by imposing only SC+CQ or MW+CQ, Singapore cannot even reach the turning points by August 9th, which implies that the transmission rate will not be below 1 and the outbreak cannot be controlled. For the U.S., although imposing two NPIs can still enable the country to reach the turning points in late April (April 25th for SC+CQ, April 25th for MW+SC, and April 22nd for MW+CQ), but after passing the turning point, the transmission rates drop very slowly, with the curve for active cases remain relative flat. It suggests that both Singapore and the U.S. may need to impose stricter NPIs relative to other countries in order to enable reaching a turning point and/or faster dropping transmission rates.

To summarize, our scenario analysis provides useful insights for countries to choose the most appropriate combination of NPIs which can balance the benefits on infection controls and the costs to the overall economy. Taking into consideration the heterogeneity across countries, each country should customize its own choices of NPIs to reach its desired goal in both infection and economy measures. As of April 4th, Singapore and the U.S. may need to impose stricter NPIs, while European countries which are about to reach the turning points in the next few days can cautiously consider to gradually lift some policy such as national lockdown. The estimation and scenario analysis results provide an empirical evidence for countries to impose mask wearing and centralized quarantines instead of a national lockdown, which can provide similar disease transmission-control outcomes and meanwhile minimize the damage to the overall economy. Our findings can also provide useful insights for other countries which have not yet and however may experience an epidemic outbreak in a future time.

4. Discussion

This paper proposes a dynamic SIR model to estimate the impact of various NPIs on the COVID-19 transmission using panel data from 9 countries across the globe. Data from these countries show significant variations in their selections and timelines of the NPIs. Our findings suggest that centralized quarantine is the most effective NPI measure, followed by lockdown, school closure and wearing masks. The scenario analysis shows that lockdown might be cautiously lifted if the country using the other three NPIs simultaneously (school closure, wearing masks and centralized quarantine).

Our findings provide feasible solutions for countries to use economically affordable NPIs such as mask wearing and centralized quarantine to replace the highly economically costly NPIs such as national lockdown, without significantly heightening the epidemic peak and can substantially flatten the curve of the active COVID-19 cases to reach a non-epidemic regime. This paper also suggests each country should customize its choice of NPIs by considering specific socioeconomic situations within the country. In particular, our empirical findings suggest that, as of April 4th, Singapore and the U.S. might consider imposing stricter NPIs, while European countries may cautiously consider to gradually lift the policies after reaching the turning points in a few days.

We are aware that there are likely undetected cases in the population, for instance because the testing capacity is limited and individual has no symptoms, which may cause potential issues such as the second-wave of the epidemic after the control policy is lifted. It is possible to calibrate such effect by ongoing random testing of the population in the SIR framework [38].

To conclude, the DP-SIR model used with panel data can provide useful insights for countries to choose the most appropriate NPIs in a timely manner to balance the desired goals between the economy performance and health consequence.

References

Appendix A Additional prediction results

This appendix presents additional prediction results.

NPIs Peak location Peak value Total number of cases by 8/9/20
SC+CQ 4/12/20 115,495 259,519
MW+CQ 4/12/20 153,948 287,300
MW+SC 4/12/20 110,310 258,353
MW+SC+CQ 4/11/20 113,933 233,740
MW+LD+SC+CQ 4/10/20 102,938 194,473
Table 5. Predicted time point and height of the epidemic peak, as well as the number of total infected cases at (i.e., 8/9/20) in Italy. Total population size of Italy is 60,461,826.
NPIs Peak location Peak value Total number of cases by 8/9/20
SC+CQ 4/9/20 95,918 214,319
MW+CQ 4/10/20 145,736 290,562
MW+SC 4/8/20 90,480 205,233
MW+SC+CQ 4/8/20 95,805 203,657
MW+LD+SC+CQ 4/7/20 87,049 175,802
Table 6. Predicted time point and height of the epidemic peak, as well as the number of total infected cases at (i.e., 8/9/20) in Spain. Total population size of Spain is 46,754,778.
NPIs Peak location Peak value Total number of cases by 8/9/20
SC+CQ 4/8/20 75,799 151,653
MW+CQ 4/10/20 110,708 205,406
MW+SC 4/8/20 72,260 145,375
MW+SC+CQ 4/8/20 75,893 144,758
MW+LD+SC+CQ 4/7/20 70,389 124,911
Table 7. Predicted time point and height of the epidemic peak, as well as the number of total infected cases at (i.e., 8/9/20) in Germany. Total population size of Germany is 83,783,942.
NPIs Peak location Peak value Total number of cases by 8/9/20
SC+CQ 4/8/20 50,338 102,452
MW+CQ 4/10/20 74,161 141,862
MW+SC 4/7/20 48,061 97,952
MW+SC+CQ 4/8/20 50,414 98,814
MW+LD+SC+CQ 4/7/20 47,219 88,022
Table 8. Predicted time point and height of the epidemic peak, as well as the number of total infected cases at (i.e., 8/9/20) in France. Total population size of France is 65,273,511.
NPIs Peak location Peak value Total number of cases by 8/9/20
SC+CQ 4/14/20 48,627 97,341
MW+CQ 4/15/20 77,132 146,285
MW+SC 4/14/20 45,537 91,453
MW+SC+CQ 4/13/20 47,938 86,516
MW+LD+SC+CQ 4/11/20 43,067 67,644
Table 9. Predicted time point and height of the epidemic peak, as well as the number of total infected cases at (i.e., 8/9/20) in the UK. Total population size of the UK is 67,886,011.
NPIs Peak location Peak value Total number of cases by 8/9/20
SC+CQ N/A 3,239 9,587
MW+CQ N/A 10,290 22,792
MW+SC 4/10/20 1,121 1,861
MW+SC+CQ 4/18/20 1,201 3,647
MW+LD+SC+CQ 4/15/20 1,136 2,846
Table 10. Predicted time point and height of the epidemic peak, as well as the number of total infected cases at (i.e., 8/9/20) in Singapore. N/A means peak is not achieved by 8/9/20. Total population size of Singapore is 5,850,342.
NPIs Peak location Peak value Total number of cases by 8/9/20
SC+CQ 4/25/20 404,489 922,658
MW+CQ 4/22/20 641,340 1,315,976
MW+SC 4/25/20 378,099 874,759
MW+SC+CQ 4/19/20 389,914 774,269
MW+LD+SC+CQ 4/15/20 429,641 677,801
Table 11. Predicted time point and height of the epidemic peak, as well as the number of total infected cases at (i.e., 8/9/20) in the U.S. Total population size of the U.S. is 331,002,651.
Figure 5. Predicted active cases of the 9 countries using MW+SC. Date of the blue vertical line is 4/3/20. Observed number of active cases between 1/22/20 and 4/3/20 are on the left side of the blue vertical line and predicted number of active cases between 4/4/20 and 8/9/20 are on the right side of the blue vertical line.

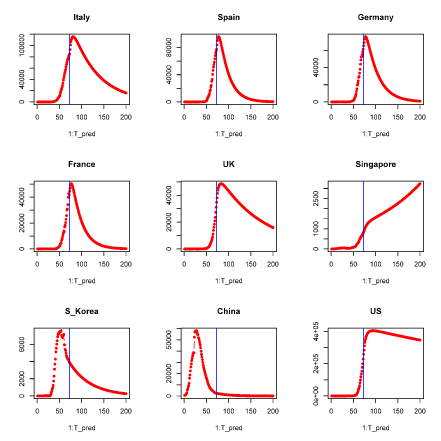

Figure 6. Predicted active cases of the 9 countries using MW+CQ. Date of the blue vertical line is 4/3/20. Observed number of active cases between 1/22/20 and 4/3/20 are on the left side of the blue vertical line and predicted number of active cases between 4/4/20 and 8/9/20 are on the right side of the blue vertical line.

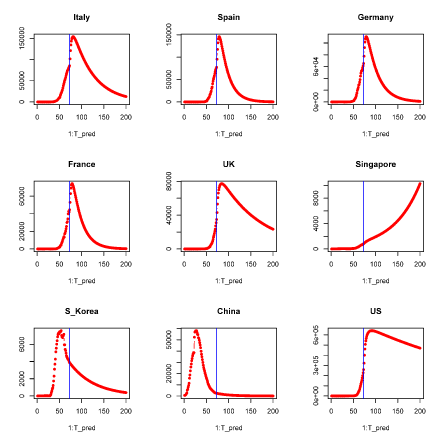

Figure 7. Predicted active cases of the 9 countries using SC+CQ. Date of the blue vertical line is 4/3/20. Observed number of active cases between 1/22/20 and 4/3/20 are on the left side of the blue vertical line and predicted number of active cases between 4/4/20 and 8/9/20 are on the right side of the blue vertical line.
Figure 8. Effective reproduction numbers of the 9 countries using MW+SC+CQ between 4/3/20 and 8/9/20. Blue horizontal line corresponds to .

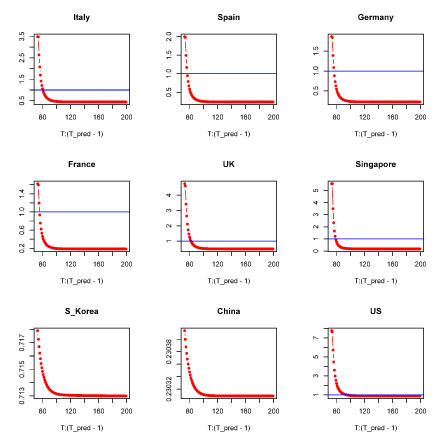

Figure 9. Effective reproduction numbers of the 9 countries using MW+SC between 4/3/20 and 8/9/20. Blue horizontal line corresponds to .

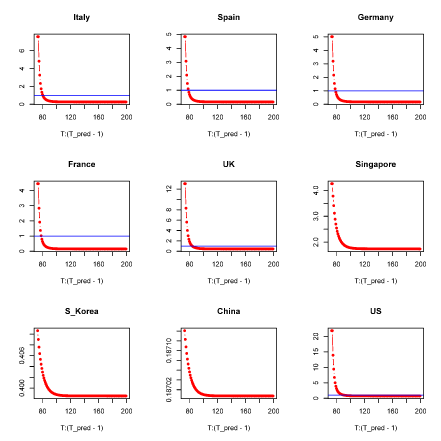

Figure 10. Effective reproduction numbers of the 9 countries using MW+CQ between 4/3/20 and 8/9/20. Blue horizontal line corresponds to .
Figure 11. Effective reproduction numbers of the 9 countries using SC+CQ between 4/3/20 and 8/9/20. Blue horizontal line corresponds to .
