I Introduction

Cloud computing has been on the rise over the last years. This technology allows organizations to outsource their infrastructure and its management to a third party, and to focus on other tasks.

However, by outsourcing the infrastructure, cloud customers are required to trust the cloud provider not to violate the confidentiality or integrity of their data. A malicious provider is trivially able to obtain critical information from its customers, or even to manipulate data and processes. This is one of the reasons for the deployment of multiple TEE.

A TEE is an isolated environment which aims to protect executions within its environment against high privileged adversaries. While software TEE solely rely on software mechanisms for protection, hardware TEE make use of additional hardware mechanisms to protect the confidentiality and integrity of code and data within the environment. The approach of hardware TEE minimizes the entities the cloud customer has to trust to a single one: the hardware vendor.

Most TEE provide the possibility to attest the integrity of their components at load time [anati2013innovative]. Before the TEE is loaded, all required components can be measured, for example by hashing them. Those measurements can be compared with previous measurements, which are known to reflect a trustworthy state of the components. If all hashes are equal to previous measurements, it can be concluded that the TEE was loaded by using only trustworthy components, and was therefore in a trustworthy state at load time.

However, TEE lack mechanisms to verify the runtime integrity of the environment. Once the TEE - or any other application - is running, its memory is subject to change, for example by allocating memory, or by changing variables. At runtime, the state of the application is therefore different from its state at load time. Runtime integrity verification is required to determine if this new state is still trustworthy, or if it has been maliciously modified.

Work exists that discusses how the runtime integrity of applications [haldar2004semantic, davi2009dynamic] and system components [kil2009remote] can be verified. Unfortunately, those evaluation mechanisms themselves are not protected against a higher privileged adversary. We eliminate this threat by running the evaluation mechanisms in a TEE.

In this work, we present Scanclave, an architecture which allows us to achieve the following goals:

  1. Trustworthiness of the verifier
    Scanclave needs to be trustworthy. This trustworthiness can not be affected by an adversary, even if he has high privileges on the system.

  2. Minimal trusted software stack
    The code that needs to be trusted should be reduced to a minimum. This will reduce the attack surface and simplify examination of the code.

  3. Accessing an application’s memory from a TEE
    Scanclave needs to be able to access an application’s memory at runtime. This is necessary to perform the runtime integrity measurements.

Ii Attacker Model

In this section, we introduce our attacker model and its capabilities. The goal of the attacker is to modify an application at runtime without being detected.

We consider an attacker who is able to gain control over an application after it has been correctly loaded, for example by making use of a vulnerability. Having gained control over the application, he is able to perform arbitrary modifications to it, such as modifying return statements or changing code.

We also consider an attacker who is in control of the high privileged software hosting the TEE, such as the OS. The attacker is able to observe the TEE with any methods available to the OS, for example by influencing its scheduling or by monitoring its network traffic. He can also read and modify all memory regions and processes that are not protected by the TEE. However, the attacker is not able to break any cryptographic primitives or to perform any zero-day attacks on the TEE. The TEE is therefore the only component on the system that can be trusted.

Iii Design

Scanclave allows a remote party to verify the runtime integrity of applications, even in the presence of a high privileged adversary. In this section, we start with explaining how we achieve our goals. Afterwards, we describe the design of Scanclave and discuss which steps have to be taken by a remote verifier to perform runtime integrity verification of an application.

To achieve our first goal, trustworthiness, we embed Scanclave in a TEE. This will protect Scanclave against higher privileged adversaries.

To achieve our second goal, a minimal trusted software stack, we use enclaves as TEE for the implementation of Scanclave. An example for such an enclave is Intel SGX [costan2016intel]. The goal of enclaves is to allow an application in user space to create an area which is protected against software running on higher privilege levels. This protected area is called the enclave.

The enclave application is split up in the untrusted HA and the trusted enclave. The HA can call functions in the enclave by using specified entry points. Also the enclave can call functions in the HA, for example to perform network communication. Other than using the specified entry points, the HA and high privileged software have no possibility to access or modify an enclave’s memory. This will protect the enclave even against a high privileged adversary.

The trusted software stack of enclaves only consists of the code running directly in one particular enclave. We move only the code required for verification and attestation into the enclave. All operations that can be performed by untrusted code, such as network communication, are placed outside of the TEE. Those operations have to make use of protection mechanisms such as encryption to ensure their confidentiality and integrity.

While the HA has no possibility to access the enclave’s memory, the enclave is able to access the memory of its HA. When the application to be verified, the TA, is running within the HA, the enclave will be able to access the TA’s memory, and to verify its runtime integrity. This allows us to achieve the goal of accessing an application’s memory from a TEE.

Once we enabled Scanclave to verify the integrity of the TA, we can apply a number of verification methods. Work on verification methods that ensure runtime integrity of applications already exists [haldar2004semantic, davi2009dynamic, abadi2009control], and will therefore not be discussed in this work. Instead, we will focus on the technical difficulties when trying to verify the TA from an enclave.

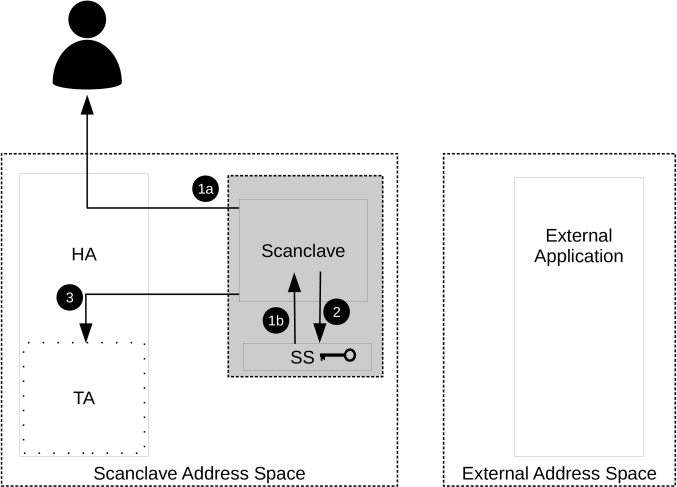

Fig. 1: The HA is used to launch the TA. This causes Scanclave and the TA to share the same address space, and allows Scanclave to access the TA’s memory.

Figure 1 shows an overview of Scanclave’s architecture and its setup. The shaded area is protected by the enclave. First, the HA will hand over control to Scanclave for initialization. In this step, the Scanclave instance creates a unique private key, which will be used to sign verification reports.

The private key can not be shipped with Scanclave, as high privileged software is able to inspect all components required to launch the enclave [costan2016intel]. While the integrity of the components can be guaranteed by remote attestation protocols, their confidentiality can be violated by a high privileged adversary [anati2013innovative]. Secrets like private keys will only be protected within the running enclave, or in a secure storage only accessible to the enclave.

Once the key has been created, its matching public key will be sent to the remote verifier (1a). As noted previously, Scanclave does not include functionality to perform network communication. It therefore has to rely on the HA and the underlying OS for communication with the remote verifier. This communication might be monitored and modified by an attacker. Therefore, communication between Scanclave and the remote verifier needs to be encrypted and its integrity has to be protected. It also must be ensured that the secure connection is only terminated within the enclave, and not in the HA.

The public key of the remote verifier can be shipped with Scanclave to help establishing a secure communication channel. Compared to the private key, the public key can be shipped with Scanclave, as only its integrity needs to be ensured. Knauth et al. [knauth2018integrating] show how attestation of the enclave can be combined with the establishment of a secure channel.

After having created the private key and sending the public key to the remote verifier, Scanclave will save the private key in a secure storage only accessible to the particular Scanclave instance (2). At future launches, the private key can be retrieved from the secure storage (1b). Using a secure storage ensures that the key will never leave the protected area. We leave it up to the enclave implementation how the secure storage is implemented, and only require guarantees that only the enclave can access the storage. If the enclave implementation does not provide a secure storage, a new private key can be created each time Scanclave is launched.

After the initialization phase, Scanclave will hand control back to the HA, which will launch the TA (3). This step does not require any modification of the TA. As the TA is launched by the HA, they will share the same address space together with Scanclave. Still, the security mechanisms of the enclave ensure that the memory of Scanclave can not be accessed from the untrusted TA or HA.

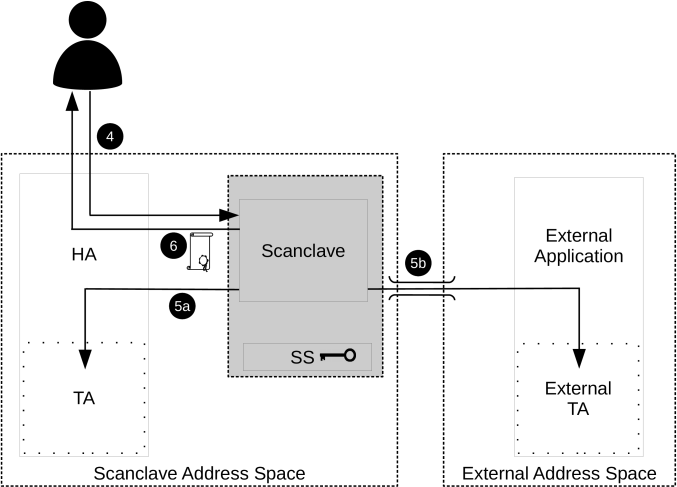

Fig. 2: A remote verifier can now request Scanclave to verify the runtime integrity of the TA. This can be either done by accessing the TA directly, or by using a debug bridge. The results of the verification will be signed and sent to the verifier.

Figure 2 shows the verification process with Scanclave. Whenever verification of the TA is required, the remote verifier sends a nonce to Scanclave (4). Scanclave will then scan the TA’s address space and perform all checks required to verify the integrity of the TA (5a).

On systems which allow applications to access the memory of other applications, Scanclave might also be used to verify an external TA. To access an external TA’s memory, Scanclave can attach itself to the external application by creating a debug bridge (5b). Such a bridge can be created for example by using ptrace [haardt1993ptrace] on Linux or the ReadProcessMemory [microsoft2019read] function on Windows.

We use Scanclave only to verify the TA, but not the HA. Verification of the HA is not required, as it is only used to host Scanclave and to launch the TA.

After gathering the verification results and creating a verification report, the report is signed with the unique private key of the Scanclave instance. The signed report will be sent to the remote verifier (6). This allows the remote verifier in possession of the public key to verify that the report was created by the correct Scanclave instance. To defend against replay attacks, the nonce sent in Step (4) is included in the report. Steps (4) to (6) can be repeated whenever verification is desired.

If the verification report shows that the TA is not in a trustworthy state, the remote verifier can restore the trustworthy state of the TA with the help of Scanclave. One approach would be to try to determine all modifications to the TA, and to restore its original state. However, it can be challenging to restore all malicious modifications to the TA. Instead, Scanclave instructs the HA to terminate the TA, and to launch it again in a clean state.

An alternative approach to our design would be to run the whole TA in the enclave. In this scenario, an attacker compromising the TA would imply a compromise of the enclave. Software running in the enclave could therefore not be trusted anymore. This violation would be impossible to detect with standard attestation techniques for TEE, as they only verify load time integrity. By using Scanclave, an attacker gaining control over the TA can be detected by runtime integrity verification. The confidentiality and the integrity of Scanclave are protected against a higher privileged attacker, and the confidentiality of the TA is assured by Scanclave.

Iv Discussion

This section discusses how an adversary might try to influence the different steps of Scanclave’s verification process.

When transferring the public key to the remote verifier after initialization in Step (1a), an adversary might try to impersonate Scanclave, or to exchange Scanclave’s public key with its own. This would allow the adversary to create arbitrary verification reports in the name of Scanclave. It is therefore important to ensure the remote verifier is communicating with a valid Scanclave instance, and to ensure the integrity of the communication.

To avoid an adversary impersonating a Scanclave instance, the remote verifier uses a remote attestation protocol to ensure he is communicating with a valid Scanclave instance [anati2013innovative]. This also allows to detect a high privileged adversary that prevents Scanclave from launching. To ensure that an adversary is not able to modify the public key sent to the remote verifier, the secure communication channel is only terminated within the enclave [knauth2018integrating]. The same mechanisms also ensure the integrity of the nonce sent to Scanclave in Step (4). The verification report sent in Step (6) is additionally signed with Scanclave’s private key.

Steps (1b) and (2), reading and writing the private key from and to the secure storage, are performed within the protected area. We do rely on the enclave implementation to protect accesses from the enclave to the secure storage against adversaries.

In Step (3), the HA launches the TA. An adversary could try to prevent the launch, or to launch a modified version of the TA. If the TA is not launched, it will be detected by Scanclave as it will not be able to find the TA in its address space. For external TA, Scanclave will detect that it is not able to build a debug bridge to the TA. If the TA has been modified, this will be detected by the verification mechanisms of Scanclave.

Before the verification process in Steps (5a) and (5b), an adversary might try to read or modify the TA’s memory, or try to manipulate the runtime verification performed by Scanclave. Reading the TA’s memory will be possible, as our design does not provide the TA with confidentiality. In case confidentiality is required for the TA, a second enclave for handling confidential data can be hosted. Unlike reading the TA’s memory, modification of the TA will be detected by the runtime verification. An attacker might therefore try to avoid detection through the verification process. For doing so, an attacker has two possibilities:

Causing undetectable changes. Our approach provides a general design for performing runtime verification. An attacker trying to avoid being detected by the verification process could try to only apply modifications to the TA that can not be detected. It is therefore important to choose a verification method that is able to detect different kinds of modifications, or to combine multiple methods. We leave it up to future work to analyze and compare existing verification methods.

Restoring integrity before verification.

Another method to avoid detection by Scanclave would be to restore the original state of the TA before runtime integrity verification is performed. To find out when the verification is performed, the attacker could analyze the enclave’s behavior, such as its memory access patterns or network traffic. Having determined the moment of the verification, the attacker could momentarily restore the TA’s integrity to ensure a successful verification.

It is also important to keep in mind that accesses from the enclave to the TA’s memory are not protected as they are performed on untrusted memory regions. An attacker could try to redirect Scanclave’s verification memory accesses to other memory regions, in which an unmodified copy of the TA is stored.

To avoid an adversary finding out the moment of the verification, it is important not to leak any information of the enclave’s behavior, such as memory or cache access patterns. Previous work covers how software can protect itself against such leakage [stefanov2013path, shih2017tsgx, seo2017sgx, awad2017obfusmem, dong2018shielding].

An adversary might also monitor the network traffic and wait for the remote verifier to send the nonce in Step (4). He could then conclude that Step (5), the verification, will start shortly. To avoid that the timing of Step (5) can be determined by observing Step (4), Scanclave performs the verification independently of Step (4). Instead, Step (4) is performed within a regular interval, which is regularly changed to avoid predictability. If verification has been performed and a new nonce was received, the current verification report is sent to the remote verifier, using the new nonce.

To sum up, all steps in our process are protected against an adversary monitoring the network traffic as well as against adversaries trying to modify the HA, TA, or Scanclave.

V Implementation considerations

In this section, we discuss the state of the art in enclave implementations in the industry and in academia. We analyze their suitability for our approach as well as their limitations.

Among all enclave TEE, Intel SGX is probably the most widely known. One reason for this is that it was also one of the first TEE, proposed in 2015. Additionally, the fact that it is the only enclave TEE available on the x86 architecture helps the publicity of SGX. Meanwhile, even the first cloud providers allow customers to use SGX

[azure2017sgx, ibm2017sgx]. Still, the spread of SGX is limited by various factors. One of them is that the underlying BIOS needs to support SGX [intel2017detecting]. Until recently, to make use of an SGX implementation with all available security guarantees, a business relationship with Intel was required. This step was necessary to make use of the attestation process required to launch enclaves [anati2013innovative]. After this requirement has received criticism in the past [costan2016intel], Intel recently announced to allow attestation also for third parties [scarlate2018supporting].

Various attacks on SGX have been made public. While some analyze the memory access pattern of the enclave to extract secrets [xu2015controlled, van2017telling], others are able to reconstruct secrets via a caching side-channel [brasser2017software, gotzfried2017cache, van2018foreshadow].

To develop an enclave that is protected against side-channel attacks, Costan et al. propose Sanctum [costan2016sanctum]. The basic architectures of SGX and Sanctum are very comparable. By isolating an enclave’s cache within the system’s cache hierarchy, Sanctum additionally protects against the caching side-channel. It also protects against attacks that analyze an enclave’s memory access pattern by deploying a page-coloring-based cache partitioning scheme.

Sanctum was designed as an extension to the RISC-V architecture and is open source. Open sourcing the security mechanisms allows to investigate the mechanisms which ensure the trustworthiness of the enclave. The main limitation of Sanctum is that it is making use of a non-standard hardware extension.

For this reason, the Keystone enclave was introduced in 2018. Similar to Sanctum, Keystone is also built on the RISC-V architecture and open source. Additionally, one of its main goals is to enforce memory isolation only by using standard RISC-V primitives. This reduces the barriers when adopting Keystone. Keystone also has the advantage that it can be run in a VM, which allows to evaluate and develop enclaves without needing specific hardware.

SGX Sanctum Keystone
Architecture x86 RISC-V RISC-V
Open source No Yes Yes
Attestation infrastructure required Yes No No
Available in cloud Yes No No
Memory access pattern protection No Yes In Progress
Caching side-channels protection No Yes In Progress
Hardware extensions required No Yes No
TABLE I: Comparison of SGX, Sanctum and Keystone

In Table I, we give an overview of the differences between SGX, Sanctum and Keystone. Considering the limitations of SGX, and the hardware requirements of Sanctum, we expect that an implementation of Scanclave on Keystone would be the most promising.

Vi Related Work

To the best of our knowledge, we are not aware of any work that covers application runtime integrity verification from enclaves. We will therefore start with discussing work that also makes use of the possibility to access the HA’s memory from the enclave. We will continue with work that was designed to verify system integrity with the help of TEE.

Schwarz et al. [schwarz2019practical] presented malware running in an SGX enclave. As an enclave is able to access the memory of its HA, they built a malicious enclave which impersonates its HA. First, they use a technique based on Intel TSX[intel2015tsx] to look for code fragments in the HA’s memory that can be used to perform ROP attacks [shacham2007geometry]. Having discovered interesting code fragments, they use a technique dubbed SGX-ROP to execute arbitrary code in the HA.

Their attacker model greatly differs from ours, as they assume a malicious enclave, and a benign HA as well as benign high privileged software. In contrast, Scanclave is designed to protect a benign TA against malicious high privileged software with the help of a trusted enclave. Still, their work is relevant for the implementation of verification mechanisms in Scanclave as it for example discusses techniques to scan a HA’s address space from an enclave.

ARM TZ [arm2019trustzone] splits the whole system in a secure and a normal world. While the normal world is not able to access the secure world, the secure world is given full control over the normal world. Xinyang and Jaeger [xinyang2014sprobes], and Azab et al. [azab2014hypervision] make use of this property and add methods to the secure world to protect the integrity of a kernel running in the normal world.

TZ was designed with a focus on embedded systems. It is difficult to apply it in our scenario as it only provides one secure world on each system. Different users would all have to run their verification mechanisms in the same secure world. This would require to trust the code of other users. With enclaves, each Scanclave instance is provided with its own TEE, isolated from other Scanclave instances. Additionally, code in the secure world receives excessive privileges. A cloud provider will want to avoid granting those privileges to a customer. With enclaves, the user’s verification software is running with lower privileges, protecting the system against a possible malicious cloud user.

Zhang et al. [zhang2002secure] proposed to make use of a secure coprocessor for integrity verification. Such a coprocessor is running independently from the processor on the system, and is therefore unaffected by a compromise of the system. Petroni et al. [petroni2004copilot] implemented a system which makes use of a secure coprocessor, and used it to monitor the integrity of the host kernel.

Those mechanisms were designed for a different use case, namely for administrators to verify their systems. This differs from our approach, which is designed for users wanting to protect their applications against a high privileged adversary. Therefore, they have the same limitations in our use case as TZ: only one TEE exists, and the software in the TEE receives extensive privileges.

The TPM [tcg2011tpm] is an industry standard for a micro controller designed to help detecting modifications of a system. By creating a hash of every component in the boot chain and storing the hash in the TPM, changes to the boot chain can be detected [microsoft2012secured]. However, this approach suffers from the problem that the hashes change each time a component in the boot chain is updated. Secure boot [arbaugh1996secure] tries to avoid this problem by verifying the signature of components instead of their hashes.

Both methods are designed to verify the boot process rather than applications. Infrastructure also exists to extend the boot chain to the application layer [sailer2004ima]. However, this infrastructure only measures the load time integrity of applications, and requires a benign OS, which we do not assume in our design.

The TPM can also be used to establish a dynamic root of trust, which allows to perform attestation after the system was booted. To perform such an attestation, Flickr [mccune2007execution] makes use of Intel TXT [greene2012txt] or AMD SVM [amd2005svm] technology. Flickr calculates hashes of critical system components and stores them in the TPM, where they can be used for attestation with an external entity.

This approach requires cooperation of high privileged software to execute the CPU instructions required to perform the dynamic attestation. During the attestation phase, actions that could interfere with this process, such as debugging and interrupts, are disabled. This might affect other computations, which is critical in cloud environments. Additionally, most systems are equipped with only one TPM. To store hashes for different users, multiple TPM or virtualization would be required. For those reasons, TXT in cloud environments is mostly used to verify the integrity of system components such as the BIOS or the HV [intel2013txt]. Our design enables a user to perform application verification without requiring high privileged software, and without affecting other computations on the system.

Vii Conclusion and future work

In this work, we presented the design of Scanclave. Our design achieves three main goals: Trustworthiness of the verifier, a minimal trusted software stack and the ability to access an application’s memory from a TEE. Achieving all three goals, we are able to provide integrity in environments in which higher privileged software can not be trusted, such as cloud environments.

Based on our design, we showed which steps are necessary for a remote verifier to perform application runtime integrity verification. Additionally, we discussed how we protect Scanclave against different adversaries in every step of the process. Our contribution is completed with a comparison of enclave implementations that could be used for the implementation of Scanclave.

In future work, we plan to use the Scanclave architecture to develop new and effective verification techniques that can determine the runtime integrity of various types of applications. One possible scenario would be to use a VM as TA. Scanclave would then be able to measure the integrity of the VM’s kernel, as for example as described in [kil2009remote].
