Event extraction is a key enabling technique for many natural language processing (NLP) tasks. The goal of event extraction is to detect, from the text, the occurrence of events with specific types, and to extract arguments (i.e. typed participants or attributes) that are associated with an event. Current event extractor systems are typically built through applying supervised learning to learn over labelled datasets. This means that the performance of the learned model is bound by the quality and coverage of the training datasets.

To generate training data for event extraction, existing approaches all require manually identifying – if an event occurs and of what type – by examining the event trigger111A trigger is the word or phrase that clearly expresses the occurrence of an event. E.g., ex in ex-husband triggers a divorce event. and arguments from each individual training instance. This process requires the involvement of linguists to design annotation templates and rules for a set of predefined event types, and the employment of annotators to manually label if an individual instance belongs to a predefined event type.

To determine an event type, existing approaches all require explicitly identifying event triggers from text and assign them with predefined types, thus relies on human to annotate training data. This makes the quality and the number of the generated instances dependent on the skill and available time of the annotators [Aguilar et al.2014, Song et al.2015]. To scale up event extractor training, we therefore must take human annotators out from the loop of data labeling.

This work develops a novel approach to automatically label training instances for event extraction. Our key insight was that while event triggers are useful, they do not always need to be explicitly captured. Structured knowledge bases (KBs) such as Freebase already provide rich information of event arguments, organizing as structured tables, to enable us to automatically infer the event type. For example, sentence “In 2002, WorldCom made its filing for Chapter 11 in New York.” describes a bankruptcy event; but this event does not have to be identified through a bankrupt trigger (and in fact such a trigger is missing in this sentence) – in this case, several key arguments together also imply such an event.

If we can find ways to exploit structured tables or lists, a single entry can then be used to label many instances without human annotations. Such an approach is known as distant supervision (DS). Recent studies [Mintz et al.2009, Zeng et al.2015] have demonstrated its effectiveness in various NLP tasks. The central idea of DS is to use the knowledge extracted from a known KB to distantly supervise the process of training data generation.

We observe that the structured tables of Freebase and Wikipedia can be useful for inferring event types. We then design heuristics to identify what are the most important properties, or

key arguments, of a table entry in determining the occurrence of an event. We show that it is possible to completely forgo explicit trigger information and entirely rely on key arguments to determine event types. Using key arguments, we can now develop an automatic approach to generate training data for event extraction. Under this new DS paradigm, we further propose a novel event extractor architecture based on neural networks and linear integer programming. One of the key innovations of our approach is that the model does not rely on explicit triggers. Instead, it uses a set of key arguments to characterize an event type. As a result, it eliminates the need to explicitly identify event triggers, a process that requires heavy human involvement.

We evaluate our approach by applying it to sentence-level event extraction. We have conducted intensive experiments on multiple datasets generated using various knowledge resources. Our experimental results confirm that key arguments are often sufficient enough for infering event types. Using the structured tables from FreeBase and Wikipedia, we are able to automatically generate a large number of training instances – resulting in a training dataset that is 14x greater than the widely used ACE Challenge dataset[Doddington et al.2004], and our dataset was automatically constructed within hours instead of costing years of linguists and annotators’ time. We show that the quality of the automatically generated data is comparable to ones that would be manually constructed by human experts. Using the larger volume of training data, in combination of our novel event extractor architecture, we can not only learn a highly effective event extraction system, but also unlock the potential of multiple typed event detection – a feature that few of the existing event extraction methods supports, but is much needed.


id company_ acquired acquiring_ company date divisions_ formed
m.07bh4j7 Remedy Corp BMC  Software 2004 Service Management Business Unit
Figure 1: The event type of the sentence shown in (a) can be automatically inferred using the structured table given by Freebase in (b).

As a motivation example, consider the sentence in Figure 1(a). To detect the event, traditional approaches require first identifying the trigger word, sold, then assigning it with a type of business.acquisition.

For this particular sentence, we argue that identifying the trigger is not necessary for determining the event type. Figure 1 (b) shows a Compound Value Type (CVT) entry from Freebase (FB[Bollacker et al.2008]. Here, a CVT organizes complex structured data with multiple properties in a table222Therefore, we also use the term “argument” to refer to a CVT property for the rest of paper.. Using this CVT schema, one can easily map the three arguments of sentence S1, Remedy Corp, BMC Software, and 2004, respectively to their properties, company_acquired, acquiring_company, and date. Here each property essentially describes the role of an argument in the sentence; and in combination, they define a business.acquisition event.

This example shows that CVT information can be used to infer event type without explicit trigger information. If we can utilize such CVT information, we can then label sentences without needing to explicitly identifying any triggers. As a result, we can free annotators from the labour-intensive manual process. In this work, we develop a simple, yet effective technique to automatically generate training data by exploiting the prior CVT knowledge.

Training Data Generation

Our approach exploits structural information like FB CVT tables to automatically annotate event mentions333An event mention is a phrase or sentence within which an event is described, including its type and arguments., and generate training data to learn an event extractor. We use the arguments of a CVT table entry to infer what event a sentence is likely to express. A CVT table entry can have multiple arguments, but not all of them are useful in determining the occurrence of an event. For instance, the divisions_formed argument in Figure 1(b) is not as important as the other three arguments when determining if a sentence expresses a business.acquisition event.

Our first step for training data generation is to identify the key arguments from a CVT table entry. A key argument is an argument that plays an important role in one event, which helps to distinguish with other events. If a sentence contains all key arguments of an entry in an event table (e.g. a CVT table), it is likely to express the event presented by the table entry. If a sentence is labelled as an event mention of a CVT event, we also record the words or phrases that match the entry’s properties as the involved arguments, with the roles specified by their corresponding property names.

Determining Key Arguments

We use the following formula to calculate the importance score, , of an argument arg (e.g., date) to its event type cvt (e.g., business.acquisition):


where is the number of instances of type within a CVT table, is the number of times appearing in all CVT types within a CVT table, and is the number of instances that contain across all CVT tables.

Our strategy for selecting key arguments of a given event type is described as follows:


For a CVT table with arguments, we first calculate the importance score of each argument. We then consider the top half (rounding up) arguments that have the highest importance scores as key arguments.


We find that time-related arguments are useful in determining the event type, so we always include a time-related argument444If there are multiple time-related arguments, we select the one with highest importance score. (such as date) in the key argument set.


We also remove sentences from the generated dataset in which the dependency distances between any two key arguments are greater than 2. The distance between two arguments is the minimal number of hops it takes from one argument to the other on the dependency parse tree (see also Figure 2).

Using this strategy, the first three arguments of the CVT entry are considered to be key arguments for event type business.acquisition.

Selection Criteria:

To determine how many arguments should be chosen in P1, we have conducted a series of evaluations on the quantity and quality of the datasets using different policies. We found that choosing the top half arguments gives the best accuracy for event labeling.

We use the following three example sentences from Wikipedia to explain P2 and P3 described above.

S2: Microsoft spent $6.3 billion buying online display advertising company aQuantive in 2007.

S3: Microsoft hopes aQuantive’s Brian McAndrews can outfox Google.

S4: On April 29th, Elizabeth II and Prince Philip witnessed the marriage of Prince William.

id company_ acquired acquiring_ company date divisions_formed
m.05nb3y7 aQuantive Microsoft 2007 N/A
Table 1: A business.acquisition CVT entry in FB.

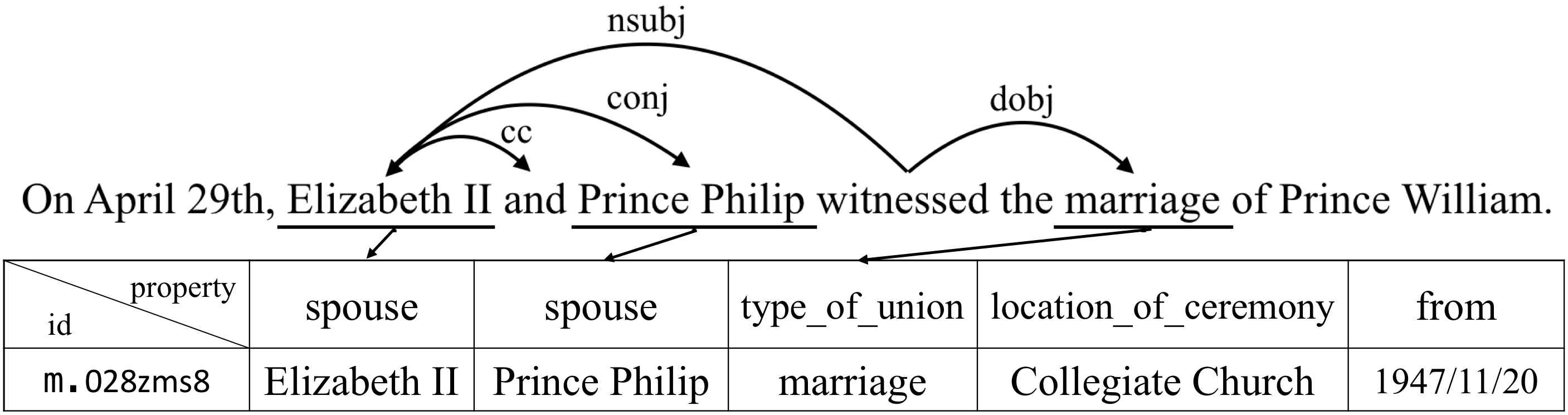

Figure 2: The dependency tree of S4, which partially matches a CVT entry of people.marriage in FB.

Although time-related arguments are often missing in the currently imperfect KBs, they are crucial to identify the actual occurrence of an event. As an example, suppose we want to use the CVT entry shown in Table 1 to determine whether sentences S2 and S3 are business.acquistion events. While this strategy works for S2, it gives a false prediction for S3. If we add the time-related argument (i.e., date: 2007), we can then correctly label both sentences. Therefore, we always consider the most important time-related argument as key arguments (P2) when they are available.

Finally, P3 is based on our intuitions that two arguments involved in the same event mention are likely to be closer within the syntactic structure. As shown in Figure 2, although both Prince Philip and marriage can be matched as key arguments in a people.marriage entry, but with a distance of 3 (i.e., far from each other under our criterion) on the dependency tree, thus S4 will be labeled as negative.

Data Generation

To generate training data, we follow a number of steps.

Our approach takes in existing structured tables or lists that are organized in a way similar to the FB CVT tables. The structured tables can be obtained from an existing knowledge base, created by experts, or generated through a combination of both approaches. For each event type, we determine the key arguments for each entry within that type used the key argument selection strategy described above. This step produces a set of rules to be used for data labeling, where each rule contains the event type, key arguments and non-key arguments given by a structured table entry. We also use alias information (such as Wikipedia redirect) to match two arguments that have different literal names but refer to the same entity (e.g. Microsoft and MS).

Next, we label each individual sentence from the target dataset. The labeling process is straightforward. We enumerate all rules from the generate rule set, and check if the target sentence contains all the key arguments specified by a rule. We regard a sentence as a positive sample if it contains all the key arguments of a rule, or negative otherwise. For instances, S1 in Figure 1(a) and S2 (with its arguments in italics and underlined) are positive examples, while S3 and S4 are negative.

Because 68% of arguments in our dataset consist of more than one word, we formulate the training in a sequence labeling paradigm rather than word-level classifications. We tag each word of the sentence using the standard begin-inside-outside (BIO) scheme, where each token is labeled as B-role if it is the beginning of an event argument with its role role, or I-role if it is inside a role, or O otherwise. We call this a labeling sequence.


Our approach relies on structured tables or lists to automatically label text. The table can be obtained from an existing KB or hand-crafted by experts. We stress that providing a table incurs much less overhead than manually tagging each training sentence, as a single table entry can be automatically applied to an unbounded number of sentences.

Our implementation may benefit from pronoun resolution and entity coreference, which is complementary to our method, and may improve our recall. While this work targets the sentence level, we believe it is generally applicable. There are methods like event coreference resolution[Liao and Grishman2010, Berant et al.2014], can be used to extend our approach to document-level event extraction.

Event Extraction

Unlike prior works, our approach does not rely on explicit trigger identification. Instead, it uses key arguments to detect the occurrence of an event. We solve the problem in a 2-stage pipeline, depicted in Figure 3, which takes raw text as input and outputs labeling sequence(s) and event type(s)– if any event is detected.

The first stage identifies the key arguments in a sentence. If a sentence contains all key arguments of a specific event type, it will be considered to imply an event mention of this specified type. Since at this stage we do not concern non-key arguments, all non-key argument tokens are tagged as O. Furthermore, multiple labeling sequences may be produced by this stage, each corresponds to an event type. The second stage takes in the outputs of the first stage, and detects all the non-key arguments.

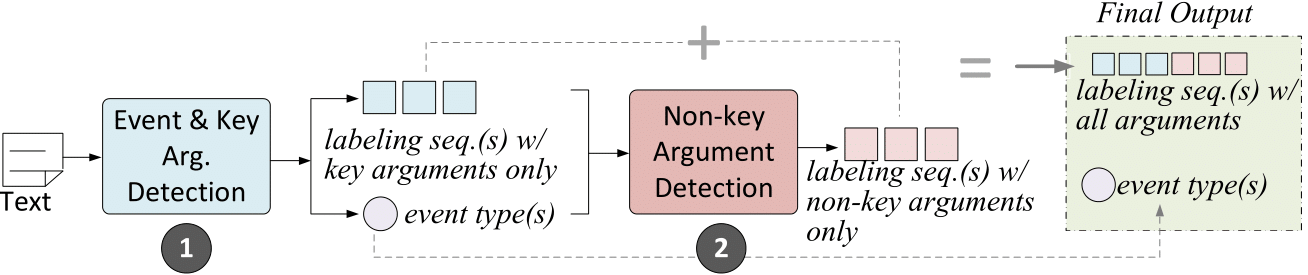

Figure 3: Our 2-stage event extraction pipeline.

Stage 1: Key Argument and Event Detection

The model used in stage 1 consists of a Bidirectional Long Short-Term Memory (BLSTM) network with a conditional random field

[Lafferty, McCallum, and Pereira2001]

(CRF) layer and an Integer Linear Programming (ILP) based post inference. The BLSTM-CRF layer finds the optimal labeling sequence which will then be post-processed by an ILP solver. Using the labeling sequence, an event detector then checks if the sentence mentions a specific event.


At each time , a forward LSTM layer takes

as input and computes the output vector

of the past context, while a backward LSTM layer reads the same sentence in reverse and outputs

given the future context. We concatenate these two vectors to form the output vector of a BLSTM, which is fed into a softmax layer to estimate a probability distribution over all possible labels.


Choosing the best label for each word individually according to the BLSTM ignores the dependencies between labels, thus cannot guarantee the best sequence. Therefore, we introduce a CRF layer over the BLSTM output.

We consider P to be a matrix of confidence scores output by BLSTM, and the element of the matrix denotes the probability of the label for the -th word in a sentence. The CRF layer takes a transition matrix A as parameter, where represents the score of a transition from label to label . The score of a sentence along with a path of labels is measured by the sum of BLSTM outputs and transition scores:


During test, given a sentence , we adopt the Viterbi algorithm [Rabiner1989] to find the optimal label sequence with the maximum score among all possible label sequences.

ILP-based Post Inference

The output sequences of BLSTM-CRF do not necessarily satisfy the structural constraints of event extraction. We thus propose to apply ILP to further globally optimize the BLSTM-CRF output to produce the best label sequence. Formally, let be the set of possible argument labels. For each word in the sentence and a pair of labels

, we create a binary variable

, denoting whether or not the -th word is tagged as label and its following word is tagged as label at the same time. The objective of ILP is to maximize the overall score of the variables as:

where we consider the following four constraints:

C1: Each word should be and only be annotated with one label, i.e.:


C2: If the value of is , then there has to be a label that will make equal to , i.e.:


C3: If the current label is I-arg, then its previous label must be B-arg or I-arg, i.e.:


C4: For a specific event type, all its key arguments should co-occur in the sentence, or none of them appears in the resulting sequence. For any pair of key arguments and with respect to the same event type, the variables related to them are subject to:


where is the length of the sentence.

Event Detection

This step simply checks if the input sentence contains all the key arguments of a specific event type by examining the labeling sequence.

Multiple Typed Events

There are scenarios where one sentence expresses multiple events which share some key arguments, but most current event extractors only map a sentence to one event. For example, in S5, Kevin Spacey is the actor of a film_performance event and a tv_appearance event triggered by the same word stared.

S5: Kevin Spacey stared as Frank Underwood in the Netflix series House of Cards, and later as Tom Brand in Nine Lives.

One of the advantages of our approach is that it can be easily extended to support multiple typed events. To do so, we allow our ILP solver to output multiple optimal sequences. Specifically, after our model outputs the best sequence at time , we remove the previously best solutions from the solution space, and re-run our solver to obtain the next optimal sequences . We repeat the optimization procedure until the difference between the scores of and is greater than a threshold , and consider all solutions as the optimal label sequences. We use Gurobi [Gurobi Optimization2016] as our ILP solver and set , which averagely produce 1.07 optimal sequences for each sentence.

Stage 2: Non-key Argument Detection

After event detection, a sentence will be classified into one or more event types, and labeled with the corresponding key arguments. We next adopt the same BLSTM-CRF architecture to detect the remaining non-key arguments, where we encode the key-argument label (from the first stage) of each word into a key-argument feature vector through a look-up table, and concatenate it with the original word embedding as the input to a new BLSTM-CRF. Note that we do not need post inference here, because there is no structural constraints between non-key arguments.


Our experiments are designed to answer: (1) whether it is possible to automatically collect training data for event extraction, (2) whether extractors trained on such data can detect events of interest and identify their corresponding arguments, and (3) whether our solution can work with other knowledge resources for more types of event.

Dataset Evaluation

We start by comparing key argument selection strategies: (1) ALL: uses all arguments as key arguments; (2) IMP: uses the top half arguments with highest importance scores as key arguments; (3) IMP&TIME: includes a time-related argument together with the arguments selected by IMP; and (4) DIS: eliminate sentences where the dependency distances between any two key arguments are greater than 2. We use the above methods to collect datasets using Freebase and the English Wikipedia dump of 2016-11-20, by randomly selecting 100 sentences from each dataset, and ask two annotators to decide if each sentence implies a given event type.

As shown in Table 2, it is not surprising that ALL, as the most strict, guarantees the quality of the collected data, but only contributes 203 sentences covering 9 event types, which is far from sufficient for further applications. IMP relaxes ALL by allowing the absence of non-key arguments, which expands the resulting dataset, but introduces more noise. We can also see that the dependency constraint (DIS) improves the data quality (IMP+DIS). Compared with IMP, the significant quality improvement by IMP&TIME proves that time-related arguments within CVT schemas are critical to imply an event occurrence. Among all strategies, the dataset by IMP&TIME+DIS achieves the best quality, while still accounting for 46735 sentences with 50109 events, almost 10 times more than the ACE dataset, showing that it is feasible to automatically collect quality training data for event extraction without either human-designed event schemas or extra human annotations.

Our final dataset, FBWiki, using IMP&TIME+DIS , contains 46,735 positive sentences and 79,536 negative ones555Besides trivial negative samples that have no matched arguments, we randomly sample 34,837 negative instances that contain only part of key arguments, and 21,866 sentences whose key arguments violate the dependency constraint. a random split of 101,019 for training and 25,252 for testing. There are on average 4.8 arguments per event, and in total, 5.5% instances labeled with more than two types of events.

Strategy Sentences Type Positive Percentage (%)
ALL 203 9 98%
IMP 318K 24 22%
IMP+DIS 170K 24 37%
IMP&TIME 112K 24 83%
IMP&TIME+DIS 46K 24 91%
Table 2: Statistics of the datasets built with different strategies. Type the number of different CVT types found.

Trigger Inference: To further explore the relationship between key arguments and triggers, we regard the least common ancestor of all key arguments in the dependency tree as a trigger candidate. As listed in Table 3, these candidates share similar meanings and are highly informative to the underlying event types, showing that our key arguments with necessary constraints can play the same role with explicit triggers in identifying an event.

Event types Trigger candidates Percentage
film_performance play, appear, star, cast, portray 0.72
award_honor win, receive, award, share, earn 0.91
education graduate, receive, attend, obtain, study 0.83
acquisition acquire, purchase, buy, merge, sell 0.81
employ.tenure be, join, become, serve, appoint 0.79
Table 3: Top 5 most frequent trigger candidates and their proportions over all positive instances within each type.

On ACE: We also test our strategy on the ACE dataset. We first collect all annotated events, without triggers, as the knowledge base to compute the importance values for all arguments, and select the key arguments for each ACE event type accordingly. We follow IMP&TIME+DIS to examine every sentence whether it can be selected as an annotated instance within the ACE event types. Eventually, we correctly obtain 3,448 sentences as positive instances, covering 64.7% of the original ACE dataset. We find that the main reason for the missing 35.3% is that many arguments in the ACE dataset are pronouns, where our strategy is currently unable to treat pronouns as key arguments. However, if a high-precision coreference resolution tool is available to preprocess the document, our solution would be able to automatically label more instances.

Extraction Setup

Next, we evaluate our event extractor on FBWiki with precision (P), recall (R), and F-measure (F) for each subtask. These metrics are computed according to the following standards of correctness. For event classification, an event is correctly classified if its reference sentence contains all key arguments of this event type. For key argument detection, an event is correctly detected if its type and all of its key arguments match a reference event within the same sentence. For all argument detection, an event is correctly extracted if its type and all of its arguments match a reference event within the same sentence.

Training: All hyper-parameters are tuned on a development split in the training set. During event detection, we set the size of word embeddings to 200, the size of LSTM layer to 100. In argument detection, we use the same size of word embedding, while the size of LSTM layer is 150, and the size of key argument embedding is 50. Word embeddings are pre-trained using skip-gram word2vec [Mikolov et al.2013] on English Wikipedia and fine tuned during training. We apply dropout (0.5) on both input and output layers.

Baselines: We compare our proposed model with three baselines. The first is a BLSTM model that takes word embeddings as input, and outputs the label for each word with the maximum probability. For feature-based methods, we apply CRF (using the CRF++ toolkit [Kudo2005] ) and Maximum Entropy [Berger, Pietra, and Pietra1996] (Le Zhang’s MaxEnt toolkit) to explore a variety of elaborate features, according to the state-of-art feature-based ACE event extractors [Li, Ji, and Huang2013]. Note that after key argument detection, we add the resulting label of each word as a supplementary feature to detect non-key arguments.

Compare with Automatic Annotations

Firstly, we compare the model output against the automatically obtained event annotations. As shown in Table 4, feature-based models perform worst in both event classification and argument detection. One of the main reasons is the absence of explicit trigger annotations in our dataset, which makes it impossible to include trigger-related features, e.g., trigger-related dependency and position features. Although traditional models can achieve higher precisions, they only identify a limited number of events, resulting in low recalls. Neural-network methods perform much better than feature-based models, especially in recall, since they can make better use of word semantic features. Specifically, BLSTM can capture longer dependencies and richer contextual information, instead of neighbouring word features only. The CRF layer brings an averagely 2% improvement in all metrics, and by adding the ILP-based post inference, our full model, BLSTM-CRF-ILP, achieves the best performance among all models.

Model Event Type Key Argument Detection All Argument Detection
CRF 88.9 11.0 19.6 36.1 4.47 7.96 19.9 3.06 5.30
MaxEnt 95.2 12.4 21.9 41.6 5.40 9.56 22.5 3.40 5.91
BLSTM 89.8 63.0 74.1 64.9 45.5 53.5 42.9 27.7 33.7
BLSTM-CRF 86.4 67.4 75.7 63.6 49.6 55.8 44.4 31.0 36.5
BLSTM-CRF-ILP 84.4 74.1 78.9 62.3 53.8 57.3 42.7 33.8 37.7
BLSTM-CRF-ILP 85.3 79.9 82.5 60.4 55.3 57.7 41.9 34.6 37.9
Table 4: System performance when compared against automatic annotations (%).

It is not surprising that every model with a CRF layer over its BLSTM layer is superior to the one with a BLSTM layer only. Compared with vanilla BLSTM, BLSTM-CRF achieves higher precisions and recalls in all subtasks by significantly reducing the invalid labelling sequences (e.g.,

I-arg appears right after O). During prediction, instead of tagging each token independently, BLSTM-CRF takes into account the constraints between neighbouring labels, and potentially increases the co-occurrences of key arguments regarding the same event type.

As shown in Table 4, the ILP-based post inference considerably improves the overall performance, especially in event type classification. With the help of constraint C4, dubious key arguments can be correctly inferred through other key arguments from their context. Compared with BLSTM-CRF, BLSTM-CRF-ILP produces an F1 gain of 3.2% in event type classification, 1.5% in key argument detection, and 1.2% in all argument detection.

Multiple Type Events: Among all methods, BLSTM-CRF-ILP is the only model that can deal with multiple type event mentions. The proposed strategy ILP helps detect more event mentions for a sentence, contributing to the increase of recalls, and F1 scores with a little drop of precisions. BLSTM-CRF-ILP can correctly identify 132 sentences with multiple type events, with an accuracy of 95.6%, and for each involved event, our model maintains a high performance in identifying its arguments, achieving 45.5%, and 29.1% in F1 for key argument detection and all argument detection, respectively.

Manual Evaluation

To provide a deep investigation about our dataset and models, we randomly sample 150 sentences from the test set. Two annotators are asked to annotate each sentence following two steps. First, determine if a given sentence is positive or negative, and assign all possible event types to positive ones. Next, label all related arguments and their roles according to the event types for all positive instances. Two annotators will independently annotate each sentence, and discuss to reach an agreement. The inter-annotator agreement is 87% for event types and 79% for arguments.

By comparing the automatic and manual annotations on the 150 sentences, we find that the main issue for the automatic annotation is that some automatically labeled sentences do not imply any event while still matching all key properties of certain CVT entries in Freebase. We find 16 such instances that are mistakenly labeled as positive. For example in Figure 4, although the phrase the car in S6 matches a film name, it does not refer to a film. This is because that we currently do not have a strong entity linker to verify those entities, which we leave for future work. However, during manual investigation, BLSTM-CRF-ILP can correctly identify these 6 instances as negative.

On this manually annotated dataset, we can observe similar trends with Table 4, and BLSTM-CRF-ILP remains the best performing model, achieving 80.7%, 56.4% and 36.3% in F1 scores for event type, key argument detection and all argument detection, respectively.

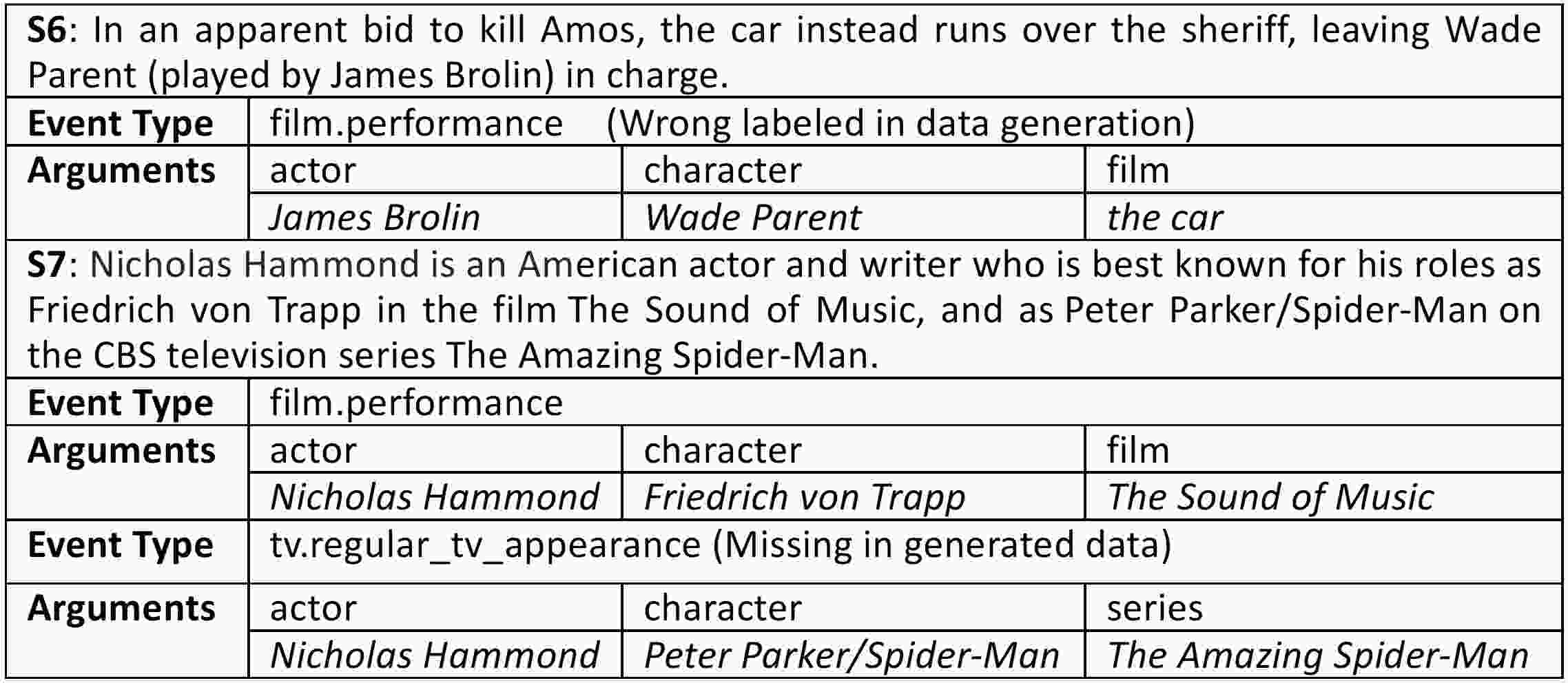

Figure 4: Example outputs of BLSTM-CRF-ILP.

Remarkably, our BLSTM-CRF-ILP model can find more CVT instances that are currently not referenced in Freebase. Our model detects two events in S7, while the arguments of the tv.tv_appearance event do not match any existing CVT instances in Freebase, which do not receive any credit during automatic evaluation, but should be populated into Freebase. This suggests that by learning from distant supervision provided by Freebase, our model can be used to populate or update Freebase instances in return.

On BBC News: We further apply our event extractor, trained on FBWiki, to 397 BBC News articles (2017/04/18 – 2017/05/18 in Politics, Business and TV sections), and manually examine the extraction results. We find that our model is able to correctly identify 117 events, and 53 events, almost half of which are not covered in the currently used Freebase.

Tables as Indirect Supervision

To investigate the applicability of our approach to other structured knowledge/tables besides Freebase CVT tables, we automatically build a new dataset, TBWiki, with the supervision provided by Wikipedia tables, which characterize events about business acquisition, winning of the Olympics games, and awards winning in entertainment (Table 5).

Event type Entries Positive EC KAD AAD
Acquisition 690 414 87.0% 72.0% 69.6%
Olympics 2503 1460 77.2% 64.5% 38.6%
Awards 3039 2217 95.0% 82.8% 58.6%
Table 5: Statistics of the TBWiki dataset and the performance (in F1) of our model on TBWiki. EC, KAD and AAD denote event type classification, key argument detection and all key argument detection, respectively.

We train our BLSTM-CRF-ILP on this dataset and evaluate it on 100 manually annotated sentences. We can see that without extra human annotations, our model can learn to extract events from the training data weakly supervised by Wikipedia tables. Given a specific event type, as long as we can acquire tables implying events of such type, it is possible to automatically collect training data from such tables, and learn to extract structured event representations of that type.

Related Work

Most event extraction works are within the tasks defined by several evaluation frameworks (e.g., MUC [Grishman and Sundheim1996], ACE [Doddington et al.2004], ERE [Song et al.2015] and TAC-KBP [Mitamura et al.2015]), all of which can be considered as a template-filling-based extraction task. These frameworks focus on limited number of event types, which are designed and annotated by human experts and hard to generalize to other domains. Furthermore, existing extraction systems, which usually adopt a supervised learning paradigm, have to rely on those high-quality training data within those frameworks, thus hard to move to more domains in practice, regardless of feature-based [Gupta and Ji2009, Hong et al.2011, Li, Ji, and Huang2013] or neural-network-based methods [Chen et al.2015, Nguyen, Cho, and Grishman2016].

Besides the works focusing on small human-labeled corpora, Huang et al. huang2016liberal and Chen et al.chen2017automatically leverage various linguistic resources (e.g., FrameNet, VerbNet, etc.) to automatically collect trigger annotations with more training instances to improve existing event extractors. In contrast, we propose to exploit various structured knowledge bases to automatically discover types of events as well as their corresponding argument settings, without expert annotations, and further automatically construct training data, with the help of DS.

Distant supervision (DS) has been widely used in binary relation extraction, where the key assumption is that sentences containing both the subject and object of a , , triple can be seen as its support, and further used to train a classifier to identify the relation . However, this assumption does not fit to our event extraction scenario, where an event usually involves several arguments and it is hard to collect enough training sentences with all arguments appearing in, as indicated by the low coverage of ALL. We therefore investigate different generation strategies for event extraction within the DS paradigm and propose to utilize time and syntactic clues to refine the DS assumption for better data quality. We further relieve the reliance on explicit trigger annotations required by previous event extractors, and define a novel event extraction paradigm with key arguments to characterize an event type.


This paper has presented a novel, fast approach to automatically construct training data for event extraction with little human involvement, which in turn allows effective event extraction modeling. To generate training data, our approach first extracts, from existing structured knowledge bases, which of the arguments best describe an event; then, it uses the key arguments to automatically infer the occurrence of an event without explicit trigger identification. To perform event extraction, we develop a novel architecture based on neural networks and post inference, which does not require explicit trigger information. We apply our approach to label Wikipedia articles using knowledge extracted from various knowledge bases. We show that the quality of the automatically generated training data is comparable to those that were manually labeled by human experts. We demonstrate that this large volume of high-quality training data, combining with our novel event extraction architecture, not only leads to a highly effective event extractor, but also enables multiple typed event detection.


This work is supported by National High Technology R&D Program of China (Grant No.2015AA015403), Natural Science Foundation of China (Grant No. 61672057, 61672058, 71403257); the UK Engineering and Physical Sciences Research Council under grants EP/M01567X/1 (SANDeRs) and EP/M015793/1 (DIVIDEND); and the Royal Society International Collaboration Grant (IE161012). For any correspondence, please contact Yansong Feng.


  • [Aguilar et al.2014] Aguilar, J.; Beller, C.; McNamee, P.; Van Durme, B.; Strassel, S.; Song, Z.; and Ellis, J. 2014. A comparison of the events and relations across ace, ere, tac-kbp, and framenet annotation standards. In Proceedings of the Second Workshop on EVENTS: Definition, Detection, Coreference, and Representation, 45–53.
  • [Berant et al.2014] Berant, J.; Srikumar, V.; Chen, P.-C.; Vander Linden, A.; Harding, B.; Huang, B.; Clark, P.; and Manning, C. D. 2014. Modeling biological processes for reading comprehension. In EMNLP.
  • [Berger, Pietra, and Pietra1996] Berger, A. L.; Pietra, V. J. D.; and Pietra, S. A. D. 1996. A maximum entropy approach to natural language processing. Computational linguistics 22(1):39–71.
  • [Bollacker et al.2008] Bollacker, K.; Evans, C.; Paritosh, P.; Sturge, T.; and Taylor, J. 2008. Freebase: a collaboratively created graph database for structuring human knowledge. In SIGMOD 2008, 1247–1250. ACM.
  • [Chen et al.2015] Chen, Y.; Xu, L.; Liu, K.; Zeng, D.; and Zhao, J. 2015.

    Event extraction via dynamic multi-pooling convolutional neural networks.

    In ACL 2015, volume 1, 167–176.
  • [Chen et al.2017] Chen, Y.; Liu, S.; Zhang, X.; Liu, K.; and Zhao, J. 2017. Automatically labeled data generation for large scale event extraction. In Proceedings of the 55th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), volume 1, 409–419.
  • [Doddington et al.2004] Doddington, G. R.; Mitchell, A.; Przybocki, M. A.; Ramshaw, L. A.; Strassel, S.; and Weischedel, R. M. 2004. The automatic content extraction (ace) program-tasks, data, and evaluation. In LREC 2004, volume 2,  1.
  • [Grishman and Sundheim1996] Grishman, R., and Sundheim, B. 1996. Message understanding conference-6: A brief history. In COLING 1996, volume 96, 466–471.
  • [Gupta and Ji2009] Gupta, P., and Ji, H. 2009. Predicting unknown time arguments based on cross-event propagation. In ACL-IJCNLP 2009, 369–372. Association for Computational Linguistics.
  • [Gurobi Optimization2016] Gurobi Optimization, I. 2016. Gurobi optimizer reference manual.
  • [Hong et al.2011] Hong, Y.; Zhang, J.; Ma, B.; Yao, J.; Zhou, G.; and Zhu, Q. 2011. Using cross-entity inference to improve event extraction. In ACL 2011, 1127–1136. Association for Computational Linguistics.
  • [Huang et al.2016] Huang, L.; Cassidy, T.; Feng, X.; Ji, H.; Voss, C.; Han, J.; and Sil, A. 2016. Liberal event extraction and event schema induction. In ACL 2016.
  • [Kudo2005] Kudo, T. 2005. Crf++: Yet another crf toolkit. Software available at http://crfpp. sourceforge. net.
  • [Lafferty, McCallum, and Pereira2001] Lafferty, J.; McCallum, A.; and Pereira, F. 2001. Conditional random fields: Probabilistic models for segmenting and labeling sequence data. In ICML 2001, volume 1, 282–289.
  • [Li, Ji, and Huang2013] Li, Q.; Ji, H.; and Huang, L. 2013. Joint event extraction via structured prediction with global features. In ACL 2013, 73–82.
  • [Liao and Grishman2010] Liao, S., and Grishman, R. 2010. Using document level cross-event inference to improve event extraction. In Proceedings of the 48th Annual Meeting of the Association for Computational Linguistics, 789–797. Association for Computational Linguistics.
  • [Mikolov et al.2013] Mikolov, T.; Sutskever, I.; Chen, K.; Corrado, G. S.; and Dean, J. 2013. Distributed representations of words and phrases and their compositionality. In NIPS 2013, 3111–3119.
  • [Mintz et al.2009] Mintz, M.; Bills, S.; Snow, R.; and Jurafsky, D. 2009. Distant supervision for relation extraction without labeled data. In ACL-IJCNLP 2009, 1003–1011. Association for Computational Linguistics.
  • [Mitamura et al.2015] Mitamura, T.; Yamakawa, Y.; Holm, S.; Song, Z.; Bies, A.; Kulick, S.; and Strassel, S. 2015. Event nugget annotation: Processes and issues. In Proc. of the Workshop on EVENTS at the NAACL-HLT, 66–76.
  • [Nguyen, Cho, and Grishman2016] Nguyen, T. H.; Cho, K.; and Grishman, R. 2016.

    Joint event extraction via recurrent neural networks.

    In NAACL-HLT 2016, 300–309.
  • [Rabiner1989] Rabiner, L. R. 1989.

    A tutorial on hidden markov models and selected applications in speech recognition.

    Proc. of the IEEE 77(2):257–286.
  • [Song et al.2015] Song, Z.; Bies, A.; Strassel, S.; Riese, T.; Mott, J.; Ellis, J.; Wright, J.; Kulick, S.; Ryant, N.; and Ma, X. 2015. From light to rich ere: annotation of entities, relations, and events. In Proc. of the Workshop on EVENTS at the NAACL-HLT, 89–98.
  • [Zeng et al.2015] Zeng, D.; Liu, K.; Chen, Y.; and Zhao, J. 2015. Distant supervision for relation extraction via piecewise convolutional neural networks. In EMNLP 2015, 1753–1762.
