1 Introduction
Many attractive applications of modern machinelearning techniques involve training models using highly sensitive data. For example, models trained on people’s personal messages or detailed medical information can offer invaluable insights into realworld language usage or the diagnoses and treatment of human diseases (McMahan et al., 2017; Liu et al., 2017). A key challenge in such applications is to prevent models from revealing inappropriate details of the sensitive data—a nontrivial task, since models are known to implicitly memorize such details during training and also to inadvertently reveal them during inference (Zhang et al., 2017; Shokri et al., 2017).
Recently, two promising, new modeltraining approaches have offered the hope that practical, highutility machine learning may be compatible with strong privacyprotection guarantees for sensitive training data (Abadi et al., 2017). This paper revisits one of these approaches, Private Aggregation of Teacher Ensembles, or PATE (Papernot et al., 2017)
, and develops techniques that improve its scalability and practical applicability. PATE has the advantage of being able to learn from the aggregated consensus of separate “teacher” models trained on disjoint data, in a manner that both provides intuitive privacy guarantees and is agnostic to the underlying machinelearning techniques (cf. the approach of differentiallyprivate stochastic gradient descent
(Abadi et al., 2016)). In the PATE approach multiple teachers are trained on disjoint sensitive data (e.g., different users’ data), and uses the teachers’ aggregate consensus answers in a blackbox fashion to supervise the training of a “student” model. By publishing only the student model (keeping the teachers private) and by adding carefullycalibrated Laplacian noise to the aggregate answers used to train the student, the original PATE work showed how to establish rigorous differentialprivacy guarantees (Papernot et al., 2017)—a gold standard of privacy (Dwork et al., 2006). However, to date, PATE has been applied to only simple tasks, like MNIST, without any realistic, largerscale evaluation.The techniques presented in this paper allow PATE to be applied on a larger scale to build more accurate models, in a manner that improves both on PATE’s intuitive privacyprotection due to the teachers’ independent consensus as well as its differentialprivacy guarantees. As shown in our experiments, the result is a gain in privacy, utility, and practicality—an uncommon joint improvement.
The primary technical contributions of this paper are new mechanisms for aggregating teachers’ answers that are more selective and add less noise. On all measures, our techniques improve on the original PATE mechanism when evaluated on the same tasks using the same datasets, as described in Section 5. Furthermore, we evaluate both variants of PATE on a new, largescale character recognition task with 150 output classes, inspired by MNIST. The results show that PATE can be successfully utilized even to uncurated datasets—with significant class imbalance as well as erroneous class labels—and that our new aggregation mechanisms improve both privacy and model accuracy.
To be more selective, our new mechanisms leverage some pleasant synergies between privacy and utility in PATE aggregation. For example, when teachers disagree, and there is no real consensus, the privacy cost is much higher; however, since such disagreement also suggest that the teachers may not give a correct answer, the answer may simply be omitted. Similarly, teachers may avoid giving an answer where the student already is confidently predicting the right answer. Additionally, we ensure that these selection steps are themselves done in a private manner.
To add less noise, our new PATE aggregation mechanisms sample Gaussian noise, since the tails of that distribution diminish far more rapidly than those of the Laplacian noise used in the original PATE work. This reduction greatly increases the chance that the noisy aggregation of teachers’ votes results in the correct consensus answer, which is especially important when PATE is scaled to learning tasks with large numbers of output classes. However, changing the sampled noise requires redoing the entire PATE privacy analysis from scratch (see Section 4 and details in Appendix A).
Finally, of independent interest are the details of our evaluation extending that of the original PATE work. In particular, we find that the virtual adversarial training (VAT) technique of Miyato et al. (2017)
is a good basis for semisupervised learning on tasks with many classes, outperforming the improved GANs by
Salimans et al. (2016) used in the original PATE work. Furthermore, we explain how to tune the PATE approach to achieve very strong privacy () along with high utility, for our realworld character recognition learning task.This paper is structured as follows: Section 2 is the related work section; Section 3 gives a background on PATE and an overview of our work; Section 4 describes our improved aggregation mechanisms; Section 5 details our experimental evaluation; Section 6 offers conclusions; and proofs are deferred to the Appendices.
2 Related Work
Differential privacy is by now the gold standard of privacy. It offers a rigorous framework whose threat model makes few assumptions about the adversary’s capabilities, allowing differentially private algorithms to effectively cope against strong adversaries. This is not the case of all privacy definitions, as demonstrated by successful attacks against anonymization techniques (Aggarwal, 2005; Narayanan & Shmatikov, 2008; Bindschaedler et al., 2017).
The first learning algorithms adapted to provide differential privacy with respect to their training data were often linear and convex (Pathak et al., 2010; Chaudhuri et al., 2011; Song et al., 2013; Bassily et al., 2014; Hamm et al., 2016)
. More recently, successful developments in deep learning called for differentially private stochastic gradient descent algorithms
(Abadi et al., 2016), some of which have been tailored to learn in federated (McMahan et al., 2017) settings.Differentially private selection mechanisms like GNMax (Section 4.1) are commonly used in hypothesis testing, frequent itemset mining, and as building blocks of more complicated private mechanisms. The most commonly used differentially private selection mechanisms are exponential mechanism (McSherry & Talwar, 2007) and LNMax (Bhaskar et al., 2010). Recent works offer lower bounds on sample complexity of such problem (Steinke & Ullman, 2017; Bafna & Ullman, 2017).
The Confident and Interactive Aggregator proposed in our work (Section 4.2 and Section 4.3
resp.) use the intuition that selecting samples under certain constraints could result in better training than using samples uniformly at random. In Machine Learning Theory, active learning
(Cohn et al., 1994) has been shown to allow learning from fewer labeled examples than the passive case (see e.g. Hanneke (2014)). Similarly, in model stealing (Tramèr et al., 2016), a goal is to learn a model from limited access to a teacher network. There is previous work in differential privacy literature (Hardt & Rothblum, 2010; Roth & Roughgarden, 2010) where the mechanism first decideswhether or not to answer a query, and then privately answers the queries it chooses to answer using a traditional noiseaddition mechanism. In these cases, the sparse vector technique
(Dwork & Roth, 2014, Chapter 3.6) helps bound the privacy cost in terms of the number of answered queries. This is in contrast to our work where a constant fraction of queries get answered and the sparse vector technique does not seem to help reduce the privacy cost. Closer to our work, Bun et al. (2017) consider a setting where the answer to a query of interest is often either very large or very small. They show that a sparse vectorlike analysis applies in this case, where one pays only for queries that are in the middle.3 Background and Overview
We introduce essential components of our approach towards a generic and flexible framework for machine learning with provable privacy guarantees for training data.
3.1 The PATE Framework
Here, we provide an overview of the PATE framework. To protect the privacy of training data during learning, PATE transfers knowledge from an ensemble of teacher models trained on partitions of the data to a student model. Privacy guarantees may be understood intuitively and expressed rigorously in terms of differential privacy.

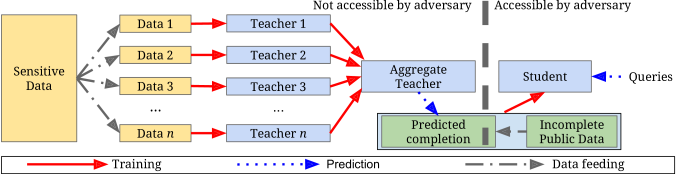

Illustrated in Figure 2, the PATE framework consists of three key parts: (1) an ensemble of teacher models, (2) an aggregation mechanism and (3) a student model.
Teacher models: Each teacher is a model trained independently on a subset of the data whose privacy one wishes to protect. The data is partitioned to ensure no pair of teachers will have trained on overlapping data. Any learning technique suitable for the data can be used for any teacher. Training each teacher on a partition of the sensitive data produces different models solving the same task. At inference, teachers independently predict labels.
Aggregation mechanism: When there is a strong consensus among teachers, the label they almost all agree on does not depend on the model learned by any given teacher. Hence, this collective decision is intuitively private with respect to any given training point—because such a point could have been included only in one of the teachers’ training set. To provide rigorous guarantees of differential privacy, the aggregation mechanism of the original PATE framework counts votes assigned to each class, adds carefully calibrated Laplacian noise to the resulting vote histogram, and outputs the class with the most noisy votes as the ensemble’s prediction. This mechanism is referred to as the maxofLaplacian mechanism, or LNMax, going forward.
For samples and classes , let denote the th teacher model’s prediction and denote the vote count for the th class (i.e., ). The output of the mechanism is . Through a rigorous analysis of this mechanism, the PATE framework provides a differentially private API: the privacy cost of each aggregated prediction made by the teacher ensemble is known.
Student model: PATE’s final step involves the training of a student model by knowledge transfer from the teacher ensemble using access to public—but unlabeled—data. To limit the privacy cost of labeling them, queries are only made to the aggregation mechanism for a subset of public data to train the student in a semisupervised way using a fixed number of queries. The authors note that every additional ensemble prediction increases the privacy cost spent and thus cannot work with unbounded queries. Fixed queries fixes privacy costs as well as diminishes the value of attacks analyzing model parameters to recover training data (Zhang et al., 2017). The student only sees public data and privacypreserving labels.
3.2 Differential Privacy
Differential privacy (Dwork et al., 2006) requires that the sensitivity of the distribution of an algorithm’s output to small perturbations of its input be limited. The following variant of the definition captures this intuition formally:
Definition .
A randomized mechanism with domain and range satisfies differential privacy if for any two adjacent inputs and for any subset of outputs it holds that:
(1)
For our application of differential privacy to ML, adjacent inputs are defined as two datasets that only differ by one training example and the randomized mechanism would be the model training algorithm. The privacy parameters have the following natural interpretation: is an upper bound on the loss of privacy, and
is the probability with which this guarantee may not hold. Composition theorems
(Dwork & Roth, 2014) allow us to keep track of the privacy cost when we run a sequence of mechanisms.3.3 Rényi Differential Privacy
Papernot et al. (2017) note that the natural approach to bounding PATE’s privacy loss—by bounding the privacy cost of each label queried and using strong composition (Dwork et al., 2010) to derive the total cost—yields loose privacy guarantees. Instead, their approach uses datadependent privacy analysis. This takes advantage of the fact that when the consensus among the teachers is very strong, the plurality outcome has overwhelming likelihood leading to a very small privacy cost whenever the consensus occurs. To capture this effect quantitatively, Papernot et al. (2017) rely on the moments accountant, introduced by Abadi et al. (2016) and building on previous work (Bun & Steinke, 2016; Dwork & Rothblum, 2016).
In this section, we recall the language of Rényi Differential Privacy or RDP (Mironov, 2017). RDP generalizes pure differential privacy () and is closely related to the moments accountant. We choose to use RDP as a more natural analysis framework when dealing with our mechanisms that use Gaussian noise. Defined below, the RDP of a mechanism is stated in terms of the Rényi divergence.
Definition (Rényi Divergence).
The Rényi divergence of order between two distributions and is defined as:
Definition (Rényi Differential Privacy (RDP)).
A randomized mechanism is said to guarantee RDP with if for any neighboring datasets and ,
RDP generalizes pure differential privacy in the sense that differential privacy is equivalent to RDP. Mironov (2017) proves the following key facts that allow easy composition of RDP guarantees and their conversion to differential privacy bounds.
Theorem 1 (Composition).
If a mechanism consists of a sequence of adaptive mechanisms such that for any , guarantees RDP, then guarantees RDP.
Theorem 2 (From RDP to DP).
If a mechanism guarantees RDP, then guarantees differential privacy for any .
While both differential privacy and RDP are relaxations of pure differential privacy, the two main advantages of RDP are as follows. First, it composes nicely; second, it captures the privacy guarantee of Gaussian noise in a much cleaner manner compared to differential privacy. This lets us do a careful privacy analysis of the GNMax mechanism as stated in Theorem 3. While the analysis of Papernot et al. (2017) leverages the first aspect of such frameworks with the Laplace noise (LNMax mechanism), our analysis of the GNMax mechanism relies on both.
3.4 PATE Aggregation Mechanisms
The aggregation step is a crucial component of PATE. It enables knowledge transfer from the teachers to the student while enforcing privacy. We improve the LNMax mechanism used by Papernot et al. (2017) which adds Laplace noise to teacher votes and outputs the class with the highest votes.
First, we add Gaussian noise with an accompanying privacy analysis in the RDP framework. This modification effectively reduces the noise needed to achieve the same privacy cost per student query.
Second, the aggregation mechanism is now selective: teacher votes are analyzed to decide which student queries are worth
answering. This takes into account both the privacy cost of each query and its payout in improving the student’s utility. Surprisingly, our analysis shows that these two metrics are not at odds and in fact align with each other: the privacy cost is the smallest when teachers agree, and when teachers agree, the label is more likely to be correct thus being more useful to the student.
Third, we propose and study an interactive mechanism that takes into account not only teacher votes on a queried example but possible student predictions on that query. Now, queries worth answering are those where the teachers agree on a class but the student is not confident in its prediction on that class. This third modification aligns the two metrics discussed above even further: queries where the student already agrees with the consensus of teachers are not worth expending our privacy budget on, but queries where the student is less confident are useful and answered at a small privacy cost.
3.5 Datadependent Privacy in PATE
A direct privacy analysis of the aggregation mechanism, for reasonable values of the noise parameter, allows answering only few queries before the privacy cost becomes prohibitive. The original PATE proposal used a datadependent analysis, exploiting the fact that when the teachers have large agreement, the privacy cost is usually much smaller than the dataindependent bound would suggest.
In our work, we perform a datadependent privacy analysis of the aggregation mechanism with Gaussian noise. This change of noise distribution turns out be technically much more challenging than the Laplace noise case and we defer the details to Appendix A. This increased complexity of the analysis however does not make the algorithm any more complicated and thus allows us to improve the privacyutility tradeoff.
Sanitizing the privacy cost via smooth sensitivity analysis.
An additional challenge with datadependent privacy analyses arises from the fact that the privacy cost itself is now a function of the private data. Further, the datadependent bound on the privacy cost has large global sensitivity (a metric used in differential privacy to calibrate the noise injected) and is therefore difficult to sanitize. To remedy this, we use the smooth sensitivity framework proposed by Nissim et al. (2007).
Appendix B describes how we add noise to the computed privacy cost using this framework to publish a sanitized version of the privacy cost. Section B.1 defines smooth sensitivity and outlines algorithms 3–5 that compute it. The rest of Appendix B
argues the correctness of these algorithms. The final analysis shows that the incremental cost of sanitizing our privacy estimates is modest—less than 50% of the raw estimates—thus enabling us to use precise datadependent privacy analysis while taking into account its privacy implications.
4 Improved Aggregation Mechanisms for PATE
The privacy guarantees provided by PATE stem from the design and analysis of the aggregation step. Here, we detail our improvements to the mechanism used by Papernot et al. (2017). As outlined in Section 3.4
, we first replace the Laplace noise added to teacher votes with Gaussian noise, adapting the datadependent privacy analysis. Next, we describe the Confident and Interactive Aggregators that select queries worth answering in a privacypreserving way: the privacy budget is shared between the query selection and answer computation. The aggregators use different heuristics to select queries: the former does not take into account student predictions, while the latter does.
4.1 The GNMax Aggregator and Its Privacy Guarantee
This section uses the following notation. For a sample and classes to , let denote the th teacher model’s prediction on and denote the vote count for the th class (i.e., ). We define a Gaussian NoisyMax (GNMax) aggregation mechanism as:
where
is the Gaussian distribution with mean 0 and variance
. The aggregator outputs the class with noisy plurality after adding Gaussian noise to each vote count. In what follow, plurality more generally refers to the highest number of teacher votes assigned among the classes.The Gaussian distribution is more concentrated than the Laplace distribution used by Papernot et al. (2017). This concentration directly improves the aggregation’s utility when the number of classes is large. The GNMax mechanism satisfies RDP, which holds for all inputs and all (precise statements and proofs of claims in this section are deferred to Appendix A). A straightforward application of composition theorems leads to loose privacy bounds. As an example, the standard advanced composition theorem applied to experiments in the last two rows of Table 1 would give us and resp. at for the Glyph dataset.
To refine these, we work out a careful datadependent analysis that yields values of smaller than for the same . The following theorem translates dataindependent RDP guarantees for higher orders into a datadependent RDP guarantee for a smaller order . We use it in conjunction with Section 4.1 to bound the privacy cost of each query to the GNMax algorithm as a function of , the probability that the most common answer will not be output by the mechanism.
Theorem 3 (informal).
Let be a randomized algorithm with RDP and RDP guarantees and suppose that given a dataset , there exists a likely outcome such that . Then the datadependent Rényi differential privacy for of order at is bounded by a function of , , , , , which approaches 0 as .
The new bound improves on the dataindependent privacy for as long as the distribution of the algorithm’s output on that input has a strong peak (i.e., ). Values of close to could result in a looser bound. Therefore, in practice we take the minimum between this bound and (the dataindependent one). The theorem generalizes Theorem 3 from Papernot et al. (2017), where it was shown for a mechanism satisfying differential privacy (i.e., and ).
The final step in our analysis uses the following lemma to bound the probability when corresponds to the class with the true plurality of teacher votes.
Proposition .
For any , we have where is the complementary error function.
In Appendix A, we detail how these results translate to privacy bounds. In short, for each query to the GNMax aggregator, given teacher votes and the class with maximal support, Section 4.1 gives us the value of to use in Theorem 3. We optimize over and to get a datadependent RDP guarantee for any order . Finally, we use composition properties of RDP to analyze a sequence of queries, and translate the RDP bound back to an DP bound.
Expensive queries.
This datadependent privacy analysis leads us to the concept of an expensive query in terms of its privacy cost. When teacher votes largely disagree, some values may be small leading to a large value for : i.e., the lack of consensus amongst teachers indicates that the aggregator is likely to output a wrong label. Thus expensive queries from a privacy perspective are often bad for training too. Conversely, queries with strong consensus enable tight privacy bounds. This synergy motivates the aggregation mechanisms discussed in the following sections: they evaluate the strength of the consensus before answering a query.
4.2 The ConfidentGNMax Aggregator
In this section, we propose a refinement of the GNMax aggregator that enables us to filter out queries for which teachers do not have a sufficiently strong consensus. This filtering enables the teachers to avoid answering expensive queries. We also take note to do this selection step itself in a private manner.
The proposed Confident Aggregator is described in Algorithm 1. To select queries with overwhelming consensus, the algorithm checks if the plurality vote crosses a threshold . To enforce privacy in this step, the comparison is done after adding Gaussian noise with variance . Then, for queries that pass this noisy threshold check, the aggregator proceeds with the usual GNMax mechanism with a smaller variance . For queries that do not pass the noisy threshold check, the aggregator simply returns and the student discards this example in its training.
In practice, we often choose significantly higher values for compared to . This is because we pay the cost of the noisy threshold check always, and without the benefit of knowing that the consensus is strong. We pick so that queries where the plurality gets less than half the votes (often very expensive) are unlikely to pass the threshold after adding noise, but we still have a high enough yield amongst the queries with a strong consensus. This tradeoff leads us to look for ’s between to the number of teachers.
The privacy cost of this aggregator is intuitive: we pay for the threshold check for every query, and for the GNMax step only for queries that pass the check. In the work of Papernot et al. (2017), the mechanism paid a privacy cost for every query, expensive or otherwise. In comparison, the Confident Aggregator expends a much smaller privacy cost to check against the threshold, and by answering a significantly smaller fraction of expensive queries, it expends a lower privacy cost overall.
4.3 The InteractiveGNMax Aggregator
While the Confident Aggregator excludes expensive queries, it ignores the possibility that the student might receive labels that contribute little to learning, and in turn to its utility. By incorporating the student’s current predictions for its public training data, we design an Interactive Aggregator that discards queries where the student already confidently predicts the same label as the teachers.
Given a set of queries, the Interactive Aggregator (Algorithm 2) selects those answered by comparing student predictions to teacher votes for each class. Similar to Step 1 in the Confident Aggregator, queries where the plurality of these noised differences crosses a threshold are answered with GNMax. This noisy threshold suffices to enforce privacy of the first step because student predictions can be considered public information (the student is trained in a differentially private manner).
For queries that fail this check, the mechanism reinforces the predicted student label if the student is confident enough and does this without looking at teacher votes again. This limited form of supervision comes at a small privacy cost. Moreover, the order of the checks ensures that a student falsely confident in its predictions on a query is not accidentally reinforced if it disagrees with the teacher consensus. The privacy accounting is identical to the Confident Aggregator except in considering the difference between teachers and the student instead of only the teachers votes.
In practice, the Confident Aggregator can be used to start training a student when it can make no meaningful predictions and training can be finished off with the Interactive Aggregator after the student gains some proficiency.
5 Experimental Evaluation
Our goal is first to show that the improved aggregators introduced in Section 4 enable the application of PATE to uncurated data, thus departing from previous results on tasks with balanced and wellseparated classes. We experiment with the Glyph dataset described below to address two aspects left open by Papernot et al. (2017): (a) the performance of PATE on a task with a larger number of classes (the framework was only evaluated on datasets with at most 10 classes) and (b) the privacyutility tradeoffs offered by PATE on data that is class imbalanced and partly mislabeled. In Section 5.2, we evaluate the improvements given by the GNMax aggregator over its Laplace counterpart (LNMax) and demonstrate the necessity of the Gaussian mechanism for uncurated tasks.
In Section 5.3, we then evaluate the performance of PATE with both the Confident and Interactive Aggregators on all datasets used to benchmark the original PATE framework, in addition to Glyph. With the right teacher and student training, the two mechanisms from Section 4 achieve high accuracy with very tight privacy bounds. Not answering queries for which teacher consensus is too low (ConfidentGNMax) or the student’s predictions already agree with teacher votes (InteractiveGNMax) better aligns utility and privacy: queries are answered at a significantly reduced cost.
5.1 Experimental Setup
MNIST, SVHN, and the UCI Adult databases.
We evaluate with two computer vision tasks (MNIST and Street View House Numbers
(Netzer et al., 2011)) and census data from the UCI Adult dataset (Kohavi, 1996). This enables a comparative analysis of the utilityprivacy tradeoff achieved with our ConfidentGNMax aggregator and the LNMax originally used in PATE. We replicate the experimental setup and results found in Papernot et al. (2017) with code and teacher votes made available online. The source code for the privacy analysis in this paper as well as supporting data required to run this analysis is available on Github.^{1}^{1}1https://github.com/tensorflow/models/tree/master/research/differential_privacyA detailed description of the experimental setup can be found in Papernot et al. (2017)
; we provide here only a brief overview. For MNIST and SVHN, teachers are convolutional networks trained on partitions of the training set. For UCI Adult, each teacher is a random forest. The test set is split in two halves: the first is used as unlabeled inputs to simulate the student’s public data and the second is used as a hold out to evaluate test performance. The MNIST and SVHN students are convolutional networks trained using semisupervised learning with GANs à la
Salimans et al. (2016). The student for the Adult dataset are fully supervised random forests.Glyph.
This optical character recognition task has an order of magnitude more classes than all previous applications of PATE. The Glyph dataset also possesses many characteristics shared by realworld tasks: e.g., it is imbalanced and some inputs are mislabeled. Each input is a grayscale image containing a single glyph generated synthetically from a collection of over 500K computer fonts.^{2}^{2}2Glyph data is not public but similar data is available publicly as part of the notMNIST dataset. Samples representative of the difficulties raised by the data are depicted in Figure 3
. The task is to classify inputs as one of the
Unicode symbols used to generate them.This set of 150 classes results from preprocessing efforts. We discarded additional classes that had few samples; some classes had at least 50 times fewer inputs than the most popular classes, and these were almost exclusively incorrectly labeled inputs. We also merged classes that were too ambiguous for even a human to differentiate them. Nevertheless, a manual inspection of samples grouped by classes—favorably to the human observer—led to the conservative estimate that some classes remain 5 times more frequent, and mislabeled inputs represent at least of the data.
To simulate the availability of private and public data (see Section 3.1), we split data originally marked as the training set (about 65M points) into partitions given to the teachers. Each teacher is a ResNet (He et al., 2016)
made of 32 leaky ReLU layers. We train on batches of 100 inputs for 40K steps using SGD with momentum. The learning rate, initially set to
, is decayed after 10K steps to and again after 20K steps to . These parameters were found with a grid search.We split holdout data in two subsets of 100K and 400K samples: the first acts as public data to train the student and the second as its testing data. The student architecture is a convolutional network learnt in a semisupervised fashion with virtual adversarial training (VAT) from Miyato et al. (2017). Using unlabeled data, we show how VAT can regularize the student by making predictions constant in adversarial^{3}^{3}3In this context, the adversarial component refers to the phenomenon commonly referred to as adversarial examples (Biggio et al., 2013; Szegedy et al., 2014) and not to the adversarial training approach taken in GANs.
directions. Indeed, we found that GANs did not yield as much utility for Glyph as for MNIST or SVHN. We train with Adam for 400 epochs and a learning rate of
.5.2 Comparing the LNMax and GNMax Mechanisms
Section 4.1 introduces the GNMax mechanism and the accompanying privacy analysis. With a Gaussian distribution, whose tail diminishes more rapidly than the Laplace distribution, we expect better utility when using the new mechanism (albeit with a more involved privacy analysis).
To study the tradeoff between privacy and accuracy with the two mechanisms, we run experiments training several ensembles of teachers for on the Glyph data. Recall that 65 million training inputs are partitioned and distributed among the teachers with each teacher receiving between 650K and 13K inputs for the values of above. The test data is used to query the teacher ensemble and the resulting labels (after the LNMax and GNMax mechanisms) are compared with the ground truth labels provided in the dataset. This predictive performance of the teachers is essential to good student training with accurate labels and is a useful proxy for utility.
For each mechanism, we compute differential privacy guarantees. As is common in literature, for a dataset on the order of samples, we choose and denote the corresponding as the privacy cost. The total is calculated on a subset of 4,000 queries, which is representative of the number of labels needed by a student for accurate training (see Section 5.3). We visualize in Figure 4 the effect of the noise distribution (left) and the number of teachers (right) on the tradeoff between privacy costs and label accuracy.
Queries  Privacy  Accuracy
Dataset  Aggregator  answered  bound  Student  Baseline
MNIST  LNMax (Papernot et al., 2017)  100  2.04  98.0%  99.2%
LNMax (Papernot et al., 2017)  1,000  8.03  98.1%
ConfidentGNMax ()  286  1.97  98.5%
SVHN  LNMax (Papernot et al., 2017)  500  5.04  82.7%  92.8%
LNMax (Papernot et al., 2017)  1,000  8.19  90.7%
ConfidentGNMax ()  3,098  4.96  91.6%
Adult  LNMax (Papernot et al., 2017)  500  2.66  83.0%  85.0%
ConfidentGNMax ()  524  1.90  83.7%
Glyph  LNMax  4,000  4.3  72.4%  82.2%
ConfidentGNMax ()  10,762  2.03  75.5%
InteractiveGNMax, two rounds  4,341  0.837  73.2%
Observations.

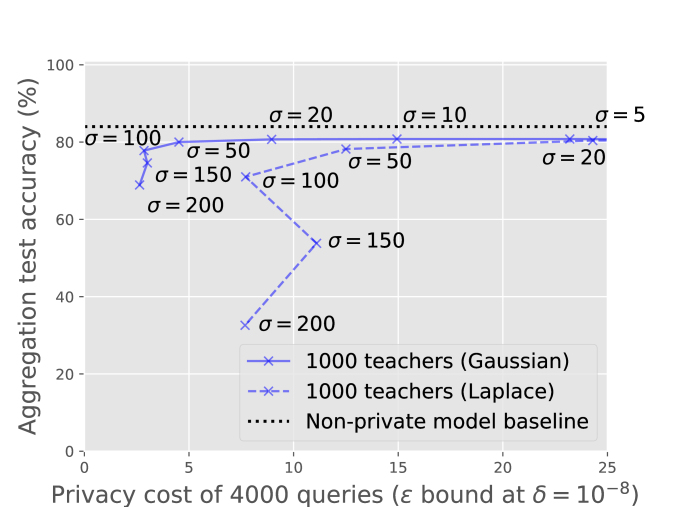

On the left of Figure 1, we compare our GNMax aggregator to the LNMax aggregator used by the original PATE proposal, on an ensemble of teachers and for varying noise scales . At fixed test accuracy, the GNMax algorithm consistently outperforms the LNMax mechanism in terms of privacy cost. To explain this improved performance, recall notation from Section 4.1. For both mechanisms, the data dependent privacy cost scales linearly with —the likelihood of an answer other than the true plurality. The value of falls of as for GNMax and for LNMax, where is the ratio . Thus, when is (say) , LNMax would have , whereas GNMax would have , thereby leading to a much higher likelihood of returning the true plurality. Moreover, this reduced translates to a smaller privacy cost for a given leading to a better utilityprivacy tradeoff.

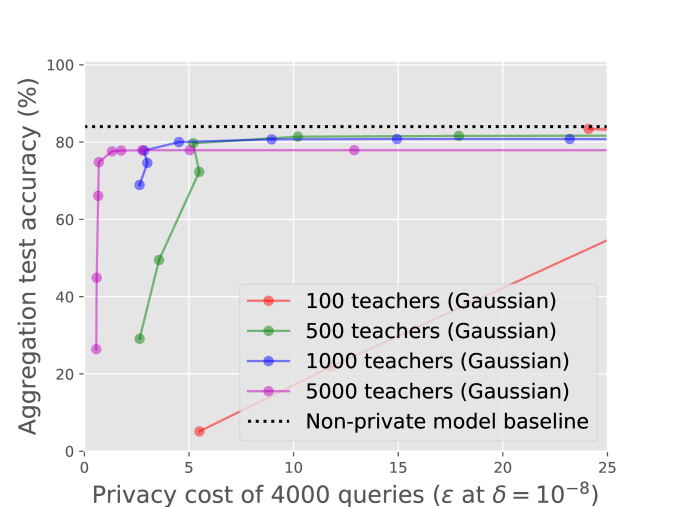

As long as each teacher has sufficient data to learn a goodenough model, increasing the number of teachers improves the tradeoff—as illustrated on the right of Figure 4 with GNMax. The larger ensembles lower the privacy cost of answering queries by tolerating larger ’s. Combining the two observations made in this Figure, for a fixed label accuracy, we lower privacy costs by switching to the GNMax aggregator and training a larger number of teachers.
5.3 Student Training with the GNMax Aggregation Mechanisms
As outlined in Section 3, we train a student on public data labeled by the aggregation mechanisms. We take advantage of PATE’s flexibility and apply the technique that performs best on each dataset: semisupervised learning with Generative Adversarial Networks (Salimans et al., 2016) for MNIST and SVHN, Virtual Adversarial Training (Miyato et al., 2017) for Glyph, and fullysupervised random forests for UCI Adult. In addition to evaluating the total privacy cost associated with training the student model, we compare its utility to a nonprivate baseline obtained by training on the sensitive data (used to train teachers in PATE): we use the baselines of , , and reported by Papernot et al. (2017) respectively for MNIST, SVHN, and UCI Adult, and we measure a baseline of for Glyph. We compute privacy bounds and denote the privacy cost as the value at a value of set accordingly to number of training samples.
ConfidentGNMax Aggregator.
Given a pool of 500 to 12,000 samples to learn from (depending on the dataset), the student submits queries to the teacher ensemble running the ConfidentGNMax aggregator from Section 4.2. A grid search over a range of plausible values for parameters , and yielded the values reported in Table 1, illustrating the tradeoff between utility and privacy achieved. We additionally measure the number of queries selected by the teachers to be answered and compare student utility to a nonprivate baseline.

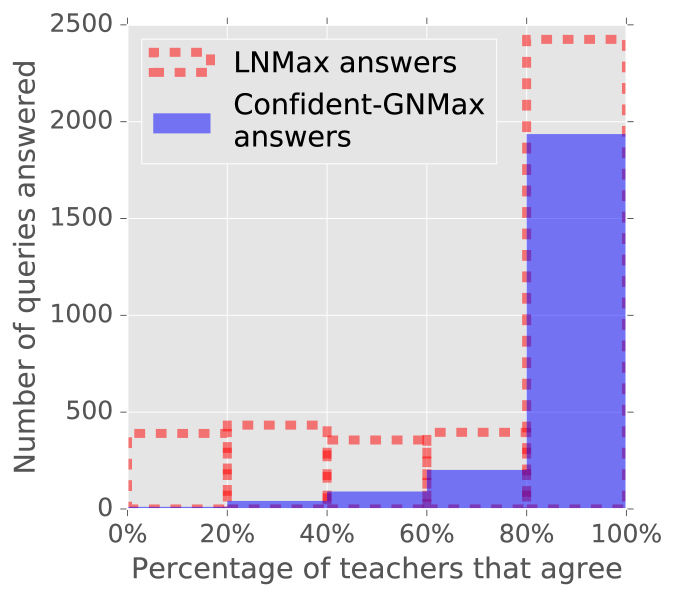

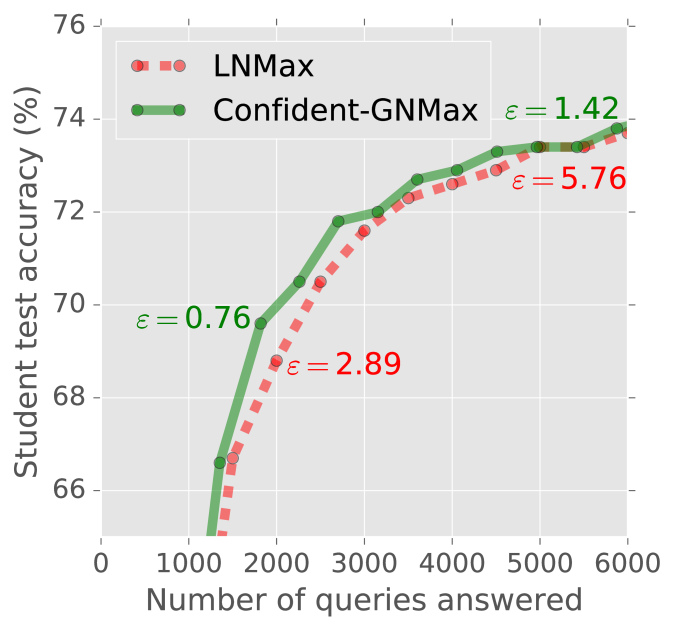

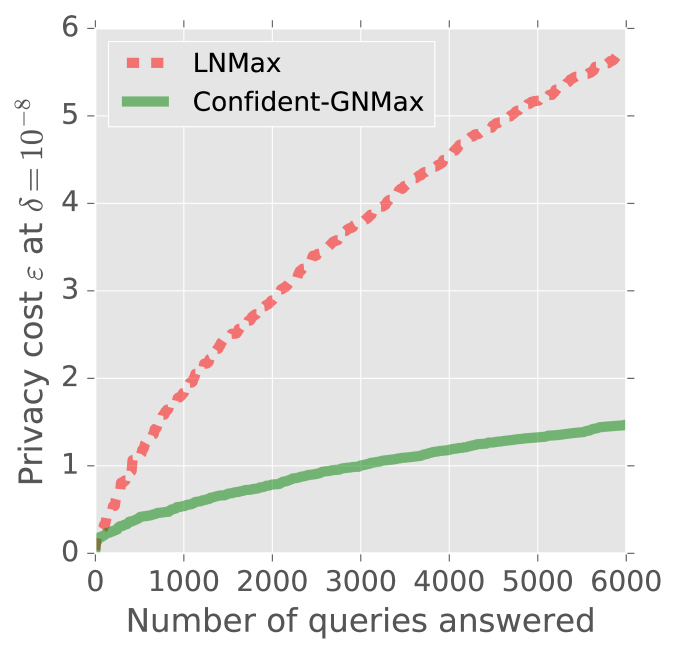

The ConfidentGNMax aggregator outperforms LNMax for the four datasets considered in the original PATE proposal: it reduces the privacy cost , increases student accuracy, or both simultaneously. On the uncurated Glyph data, despite the imbalance of classes and mislabeled data (as evidenced by the 82.2% baseline), the Confident Aggregator achieves 73.5% accuracy with a privacy cost of just . Roughly 1,300 out of 12,000 queries made are not answered, indicating that several expensive queries were successfully avoided. This selectivity is analyzed in more details in Section 5.4.
InteractiveGNMax Aggregator.
On Glyph, we evaluate the utility and privacy of an interactive training routine that proceeds in two rounds. Round one runs student training with a Confident Aggregator. A grid search targeting the best privacy for roughly 3,400 answered queries (out of 6,000)—sufficient to bootstrap a student—led us to setting and a privacy cost of .
In round two, this student was then trained with 10,000 more queries made with the InteractiveGNMax Aggregator . We computed the resulting (total) privacy cost and utility at an exemplar data point through another grid search of plausible parameter values. The result appears in the last row of Table 1. With just over 10,422 answered queries in total at a privacy cost of , the trained student was able to achieve 73.2% accuracy. Note that this students required fewer answered queries compared to the Confident Aggregator. The best overall cost of student training occurred when the privacy costs for the first and second rounds of training were roughly the same. (The total is less than due to better composition—via Theorems 1 and 2.)
Comparison with Baseline.
Note that the Glyph student’s accuracy remains seven percentage points below the nonprivate model’s accuracy achieved by training on the 65M sensitive inputs. We hypothesize that this is due to the uncurated nature of the data considered. Indeed, the class imbalance naturally requires more queries to return labels from the less represented classes. For instance, a model trained on 200K queries is only 77% accurate on test data. In addition, the large fraction of mislabeled inputs are likely to have a large privacy cost: these inputs are sensitive because they are outliers of the distribution, which is reflected by the weak consensus among teachers on these inputs.
5.4 Noisy Threshold Checks and Privacy Costs
Sections 4.1 and 4.2 motivated the need for a noisy threshold checking step before having the teachers answer queries: it prevents most of the privacy budget being consumed by few queries that are expensive and also likely to be incorrectly answered. In Figure 5, we compare the privacy cost of answering all queries to only answering confident queries for a fixed number of queries.

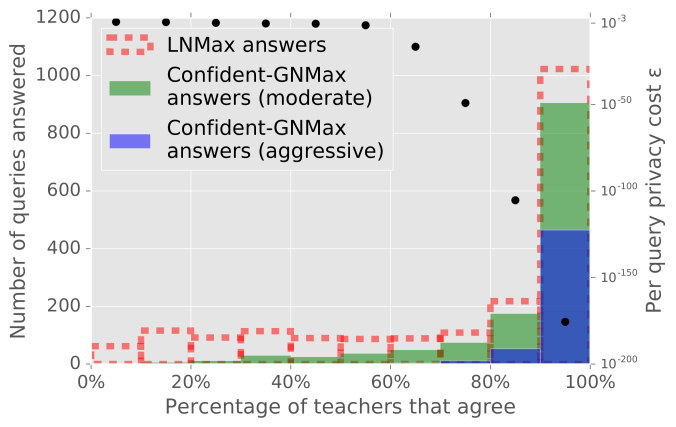

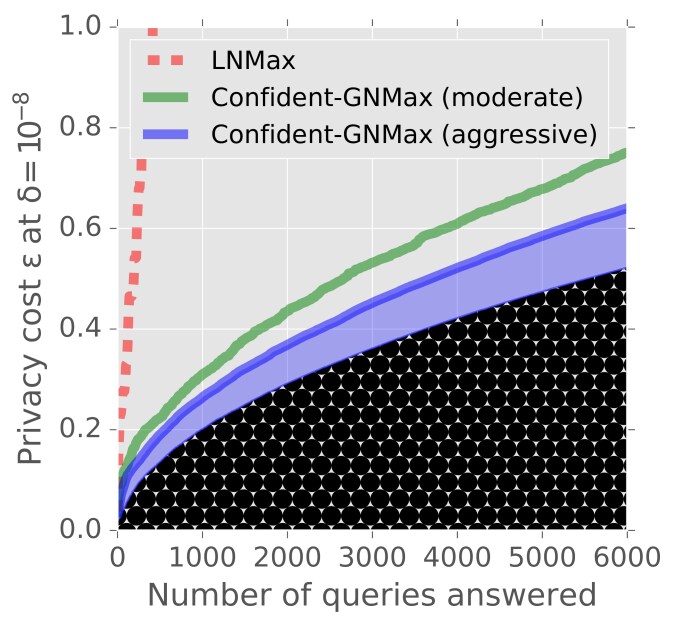

We run additional experiments to support the evaluation from Section 5.3. With the votes of 5,000 teachers on the Glyph dataset, we plot in Figure 5 the histogram of the plurality vote counts ( in the notation of Section 4.1) across 25,000 student queries. We compare these values to the vote counts of queries that passed the noisy threshold check for two sets of parameters and in Algorithm 1. Smaller values imply weaker teacher agreements and consequently more expensive queries.
When we capture a significant fraction of queries where teachers have a strong consensus (roughly votes) while managing to filter out many queries with poor consensus. This moderate check ensures that although many queries with plurality votes between 2,500 and 3,500 are answered (i.e., only 50–70% of teachers agree on a label) the expensive ones are most likely discarded. For , queries with poor consensus are completely culled out. This selectivity comes at the expense of a noticeable drop for queries that might have had a strong consensus and littletono privacy cost. Thus, this aggressive check answer fewer queries with very strong privacy guarantees. We reiterate that this threshold checking step itself is done in a private manner. Empirically, in our Interactive Aggregator experiments, we expend about a third to a half of our privacy budget on this step, which still yields a very small cost per query across 6,000 queries.
6 Conclusions
The key insight motivating the addition of a noisy thresholding step to the two aggregation mechanisms proposed in our work is that there is a form of synergy between the privacy and accuracy of labels output by the aggregation: labels that come at a small privacy cost also happen to be more likely to be correct. As a consequence, we are able to provide more quality supervision to the student by choosing not to output labels when the consensus among teachers is too low to provide an aggregated prediction at a small cost in privacy. This observation was further confirmed in some of our experiments where we observed that if we trained the student on either private or nonprivate labels, the former almost always gave better performance than the latter—for a fixed number of labels.
Complementary with these aggregation mechanisms is the use of a Gaussian (rather than Laplace) distribution to perturb teacher votes. In our experiments with Glyph data, these changes proved essential to preserve the accuracy of the aggregated labels—because of the large number of classes. The analysis presented in Section 4 details the delicate but necessary adaptation of analogous results for the Laplace NoisyMax.
As was the case for the original PATE proposal, semisupervised learning was instrumental to ensure the student achieves strong utility given a limited set of labels from the aggregation mechanism. However, we found that virtual adversarial training outperforms the approach from Salimans et al. (2016) in our experiments with Glyph data. These results establish lower bounds on the performance that a student can achieve when supervised with our aggregation mechanisms; future work may continue to investigate virtual adversarial training, semisupervised generative adversarial networks and other techniques for learning the student in these particular settings with restricted supervision.
