Satellite image classification and segmentation using non-additive entropy

by   Lucas Assirati, et al.
Universidade de São Paulo

Here we compare the Boltzmann-Gibbs-Shannon (standard) with the Tsallis entropy on the pattern recognition and segmentation of coloured images obtained by satellites, via "Google Earth". By segmentation we mean split an image to locate regions of interest. Here, we discriminate and define an image partition classes according to a training basis. This training basis consists of three pattern classes: aquatic, urban and vegetation regions. Our numerical experiments demonstrate that the Tsallis entropy, used as a feature vector composed of distinct entropic indexes q outperforms the standard entropy. There are several applications of our proposed methodology, once satellite images can be used to monitor migration form rural to urban regions, agricultural activities, oil spreading on the ocean etc.


page 2

page 3


Multi-q Analysis of Image Patterns

This paper studies the use of the Tsallis Entropy versus the classic Bol...

SAR Image Segmentation using Vector Quantization Technique on Entropy Images

The development and application of various remote sensing platforms resu...

Deep-learning coupled with novel classification method to classify the urban environment of the developing world

Rapid globalization and the interdependence of humanity that engender tr...

Effects of GIMP Retinex Filtering Evaluated by the Image Entropy

A GIMP Retinex filtering can be used for enhancing images, with good res...

SatImNet: Structured and Harmonised Training Data for Enhanced Satellite Imagery Classification

Automatic supervised classification of satellite images with complex mod...

Entropy of Sharp Restart

Restart has the potential of expediting or impeding the completion times...

Identification of Seed Cells in Multispectral Images for GrowCut Segmentation

The segmentation of satellite images is a necessary step to perform obje...

I Introduction

Image pattern recognition is a common issue in medicine, biology, geography etc, in short, in domains that produce huge data in images format. Entropy, in its origins is interpreted as a disorder measure. Nevertheless, nowadays it is interpreted as the lack of information. Thus, it has been used as a methodology to measure the information content of a signal or an image. In image analysis, the greater the entropy is, the more irregular and patternless a given image is. The additive property of the standard entropy allows its use in several situations just by summing up image characteristics. Among the non-additive entropies, we study the Tsallis entropy, which has been proposed to extent the scope of application of classical statistical physics. Here, we compare the additive Boltzmann-Gibbs-Shannon (standard) Shannon (1948) and non-additive Tsallis entropy Tsallis (1988) when dealing with colored satellite images.

We start defining the standard entropy for black and white images and we simply extend its use to coloured images, justified by its additive property. Next, we consider the Tsallis entropy for black and white images and extend it to coloured images. Due to non-additiveness, we call attention to some characteristics that help to qualify these images more efficiently that the standard entropy.

Ii Non-additive entropy

Firstly, consider an black and white image with pixels. The integers and run along the and directions, respectively. Let the integer represent the image gray levels intensity of pixel . The histograms of a gray levels image are obtained by counting the number of pixels with a given intensity .

Figure 1 shows an gray scale image and the histogram produced from this image:

Figure 1: Image in gray levels and histogram

To properly use the entropic indexes, one must consider normalized quantities: , so that normalization condition is satisfied. The standard entropy of this image is: .

Images with low details, produce empty histograms and generate a low entropy value while images with high details produce a better filled histogram, generating high entropy values. Figure 2 illustrates the comparison:

Figure 2: Comparison between images with low and high entropy

For colored images, a given pixel has three components: red (), green () and blue (), and the integer intensity concerning each one of these colours are written as , so that . This leads to different histograms for each color: , and hence different entropies for each color: , with .

For two images and , for a given color, the entropy of the composed image, is the entropy of one image plus the other . This is the additivity property of the standard entropy, which leads to:


Secondly, consider an black and white image mentioned before. The Tsallis entropy is for it generalizes the standard entropyTsallis (2011): , where the generalized logarithmic function is , so that, as , one retrieves the standard logarithm, consequently the standard entropy.

To build a feature vector, one simply uses different entropic values: , so that and , one retrieves the standard entropy image qualifier. Notice the richness introduced by this qualifier. If , we have already an infinity range of entropy indexes to address. This richness is amplified for , considering instances of : , and  Barbieri et al. (2011).

Since , see Ref. Borges (2004), is non-additive leading to interesting results when composing two images and . The entropy of the composed image is , which, for is not simply summation of two entropic values. This property leads to different entropic values depending on how one partitions a given image. The final image entropy is not simply to summation of the entropy of all its partitions, but it depends on the sizes of these partitions.

For colored images, we proceed as before, we calculate the entropy of each color component, in principle with different entropy indices values: , and . For sake of simplicity, we consider the same entropic index for all the color components. For color the entropy is:


so that so that retrieves Eq. (1), for .

Iii Methodology

Considering pattern recognition in images, the main objective is to classify a given sample according to a set of classes from a database. In supervised learning, the classes are predetermined. These classes can be conceived of as a finite set, previously arrived by a human. In practice, a certain segment of data is labelled with these classifications. The classifier task is search for patterns and classify a sample as one of the database classes.

To perform this classification, classifiers usually uses a feature vector that comes from a method of data extraction. Here, we use the multi- analyses method Fabbri et al. (2012) Fabbri et al. (2013) that composes a feature vector using certain -entropy values: .

The reason to use the multi- analysis is that a feature vector gives us more and richer information than a single value of entropy. The correct choice of indexes emphasize characteristics and provide better classifications.

The following steps describe image treatment, training and validation:

  • Using Google Earth software, capture images from several locations (Figure 3);

  • each image must be segmented in pixels partitions;

  • for each partition the colors Red, Green and Blue are written in a tridimensional array;

  • for each array and for each color, histograms are built and the Tsallis entropies (Eq. 2) are calculated, for in steps of 1/10;

  • the feature vector is created and the classifiers

    -nearest neighbors (KNN), Support Vector Machine (SVM) and Best-First Decision Tree (BFTree) are applied;

  • an output image are delivered with the segmented partitions highlighted (aquatic region = yellow, urban region = cyan, vegetation regions = magenta) according with the classification of KNN classifier.

Figure 3: Images obtained from Google Earth, from different regions. (a) Urban, (b) Aquatic, (c) Vegetation

Figure 4 outlines the steps of the methodology presented:

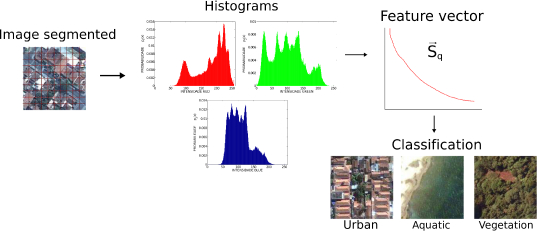

Figure 4: schematic drawing of the methodology

Table 1 presents the hit rate percentage of each classifier evaluated for the 3 methods: multi- analysis, multi-

analysis with attribute selection and standard entropy analysis. Since the use of a feature vector gives us more information than a single entropy value it also gives some redundant information. In this context, the feature selection is important to eliminates those redundancies.

ClassifierMethod Multi- (60) Multi- * (8) BGS (3)
SVM 69.60 68.96 65.60
KNN (1 neighbour) 70.80 69.76 63.04
KNN (3 neighbours) 72.32 72.96 64.00
KNN (5 neighbours) 72.80 73.28 64.16
KNN (7 neighbours) 74.88 72.96 68.48
BFTree 72.16 72.80 67.36
Table 1: Several classifiers are used (SVM, KNN and BFTree) to compare the performance of the generalised entropy with respect to the standard one in pattern recognition. The number of features of each method is indicated in parenthesis.
*attribute selection

Figure 5 depicts image highlights produced by KNN method, evaluated in a region that contains the three types of pattern classes: aquatic, urban and vegetation regions.

(a) Original Image
(b) KNN with 1 neigbour classifier
(c) KNN with 3 neigbour classifier
Figure 5: Segmentation obtained by Multi-q method and highlights provided by KNN classifier. The yellow color indicates an aquatic region, the cyan color indicates an urban region and the magenta color indicates a vegetation region.

Iv Conclusion

Our study indicates that the Tsallis non-additive entropy can be successfully used in the construction of a feature vector, concerning coloured satellite images. This entropy generalizes the Boltzmann-Gibbs one, which can be retrieved with . For

, the image retrieval success is better that the standard case (

), once the entropic parameter allows thorougher image exploration.


Lucas Assirati acknowledges the Confederation of Associations in the Private Employment Sector (CAPES) Grant . Odemir M. Bruno are grateful for São Paulo Research Foundation, grant No.: 2011/23112-3. Bruno also acknowledges the National Council for Scientific and Technological Development (CNPq), grant Nos. 308449/2010-0 and 473893/2010-0.
