I Introduction

The current design approach in multicore or many-core computer systems presents application programmers with a great deal of challenges due to their ever-increasing complexity [1]. Unlike frequency-scaling where performance is increased equally across the board, core-scaling pushes the burden of harnessing this additional processing power on the application or software programmer [2]. To make optimal use of the system components, programmers must first learn about system parameters and how to best leverage them for a given application. This approach requires time, effort, and often leads to suboptimal application performance in terms of execution time or power. Furthermore, it has become evident that better data processing capabilities are needed to extract meaningful insights from large-scale data [1]. Exhaustive or deterministic executions of these extreme-scale applications are increasingly too expensive under current systems in terms of power and execution time. Figure 1 depicts the desired trade-off choices to adequately target new emerging applications.

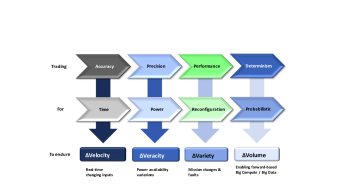

Fig. 1: Salient desired adaptation range in new computing systems.

Ii Related Work

Acknowledging the difficulty of managing the complexity of future computing systems, Kephart et al. [1] suggested that one of the viable approaches to solving the problem lies in the design and development of self-adaptive computing systems. Among others, Albonesi et al. [3] showed how adaptive processing can improve microprocessor energy efficiency by dynamically tuning major microprocessor resources, e.g., caches, hardware queues, during execution to better match varying application needs. They further highlighted that adaptive systems require few additional transistors. Recently, Hoffmann et al. [4] presented the Self-aware Computing (SEEC) model where application goals could be implemented to help guide the runtime system execution. The proposed architecture framework builds on these research efforts and insights.

Iii Self-Aware Polymorphic Architecture (SAPA) Design

For a computing system to automatically and dynamically adapt to program execution constraints, goals and phases, it needs to sense hardware states (a way to gather runtime system information), monitor program execution phases, and make complex decisions based on built-in execution rules. SAPA extends the conventional multicore/many-core architecture three-layer design approach, consisting of processing elements, memory subsystems and the on-chip data communication logic with a fourth layer, i.e., the intelligence fabric (IF) or nervous system (NS) layer. This new distributed introspection and reconfiguration architectural layer is the central conceptual innovation of the SAPA design methodology and enables continuously autonomous adaptation for performance, reliability, and energy efficiency. Figure 2 illustrates the SAPA computing architecture stack. It has a fast hardware-level migration capability at the cores, self-organizing memory structures and hierarchies, an adaptive and quality-of-service aware network-on-chip, and the built-in NS layer for dynamic, autonomous resource management.

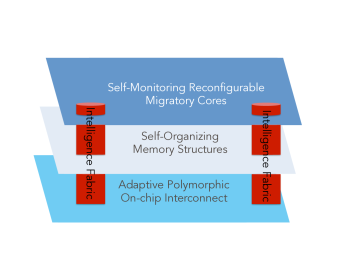

Fig. 2: Illustrative architectural stack of self-Aware Polymorphic Architectures (SAPA).

The new set of architectural layers for the SAPA stack are:

  • Self-Aware Polymorphic Execution Cores (SAPEC): processing elements (PEs) that dynamically adapt and optimize their execution behavior according to a set of high-level program goals.

  • Approximation-Aware Memory Organization Models (AMOM)

    : smart, self-adjusting distributed memory structures that use hardware counters for online execution pattern learning and correctness estimation.

  • Resilient Adaptive Intelligent Network-on-Chip (RAIN): routers that address runtime network traffic load imbalances and reliability problems in network-on-chip design in the presence of faults.

  • Dynamic Approximation Execution Manager (DAEM): distributed execution control software-hardware modules, which collect runtime system and application information and apply machine learning algorithms to achieve desired performance and resource utilization through adaptation and approximation.

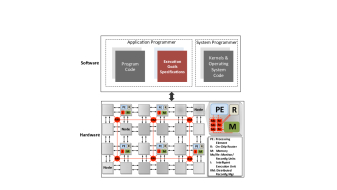

Fig. 3: Self-Aware Polymorphic Architecture (SAPA) system.

Figure 3 shows a concrete implementation overview of the architecture: 1) processing elements, 2) a distributed memory subsystem, 3) an interconnection network, and 4) sensing, monitoring, and reconfiguration hardware components (the intelligent sensing and monitoring components are indicated in red). The novel intelligence layer, the nervous system (NS), is composed of the distributed intelligent execution unit (I) and reconfiguration manager (RM).

Given a program, its decomposition, and its performance targets (e.g., power, latency), the system dynamically allocates computational resources (PEs) depending on the amount of parallelism in the program, memory footprint, and data communication routing overhead. The dynamic mapping of the program can take different shapes depending on the number of processing elements (or maximum allowed simultaneously active processing elements due to power budget) on the architecture, current local network congestion, and data dependencies between tasks over time. The on-chip network of active processing elements expands and contracts dynamically during runtime depending on the program execution needs and performance-power targets. Other novel features of the architecture include (1) the use of neighbor cores for rehearsal of decisions, (2) having non-global cache coherence for scalability and adaptability, and (3) creating a framework for parent-child model of data replication.

The following steps demonstrate program execution on the designed SAPA system. Sample execution scenario:

  1. The program and user constraint specifications, in the form of pragmas, are compiled;

  2. The compiler partitions the program and maps it to hardware resources;

  3. Program codes are generated alongside monitoring codes with customized reconfiguration rules;

  4. New system libraries are added to the linkage, loading and image stages;

  5. Images are loaded to main memories and execution starts;

  6. Monitoring counters begin capturing processing element, memory and network events;

  7. Violation of one or more constraints triggers an adaptation interrupt;

  8. The distributed reconfiguration manager applies analysis and reconfiguration rules including resource re-allocations, task rehearsal and task migrations;

  9. Execution resumes.

Figure 4 is a static depiction of a dynamic SAPA execution. The Interpreters synthesize hardware instructions from program goals specifications. The Analyzers collect sensing information and perform system state analyses. The Reconfiguration Manager (RM)

applies techniques from artificial intelligence to make decisions concerning reconfigurations. These decisions are communicated to the distributed

intelligent execution unit (I) within the nodes to reconfigure the PE, router and local memory. Self-awareness, in the context of this work, refers to the computer system’s ability to monitor, collect and analyze data about its own state of execution.

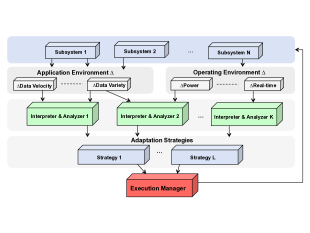

Fig. 4: Conceptual view of the autonomous adaptive execution model.

Iv Evaluations

To evaluate the proposed SAPA design, we hand-annotated Betke et al. [5] Fast Object Recognition in Noisy Images Using Simulated Annealing algorithm and ran it using the Heracles [6] design tool with some architectural changes. Figure 5 shows how these types of iterative algorithms lend themselves well to user-defined or context-aware execution time to accuracy or power to accuracy trade-offs. For this application, moving from 85% to 98% matching confidence level triples the power consumption and the compute time. While in some cases a 98% matching confidence level may be required, the extra compute cost may not be justifiable under other operating circumstances.

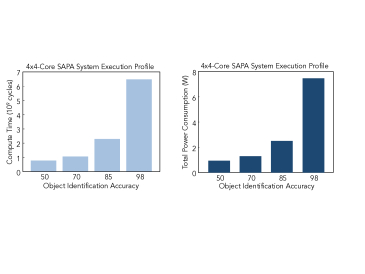

Fig. 5: Fast object recognition application execution.
