Sampling Good Latent Variables via CPP-VAEs: VAEs with Condition Posterior as Prior

12/18/2019 ∙ by Sadegh Aliakbarian, et al. ∙ 0

In practice, conditional variational autoencoders (CVAEs) perform conditioning by combining two sources of information which are computed completely independently; CVAEs first compute the condition, then sample the latent variable, and finally concatenate these two sources of information. However, these two processes should be tied together such that the model samples a latent variable given the conditioning signal. In this paper, we directly address this by conditioning the sampling of the latent variable on the CVAE condition, thus encouraging it to carry relevant information. We study this specifically for tasks that leverage with strong conditioning signals and where the generative models have highly expressive decoders able to generate a sample based on the information contained in the condition solely. In particular, we experiments with the two challenging tasks of diverse human motion generation and diverse image captioning, for which our results suggest that unifying latent variable sampling and conditioning not only yields samples of higher quality, but also helps the model to avoid the posterior collapse, a known problem of VAEs with expressive decoders.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 34

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Deep generative models offer promising results in generating diverse, realistic samples, such as images, text, motion, and sound, from purely unlabeled data. One example of such successful generative models are variational autoencoders [17] (VAEs), the stochastic variant of autoencoders, which, thanks to strong and expressive decoders, can generate high-quality samples.

VAEs are a family of generative models that utilize neural networks to learn the distribution of the data. To this end, VAEs first learn to generate a latent variable

given the data , i.e., approximate the posterior distribution , where

are the parameters of a neural network, the encoder, whose goal is to model the variation of the data. From this latent random variable

, VAEs then generate a sample by learning , where denotes the parameters of another neural network, the decoder, whose goal is to maximize the log likelihood of the data.

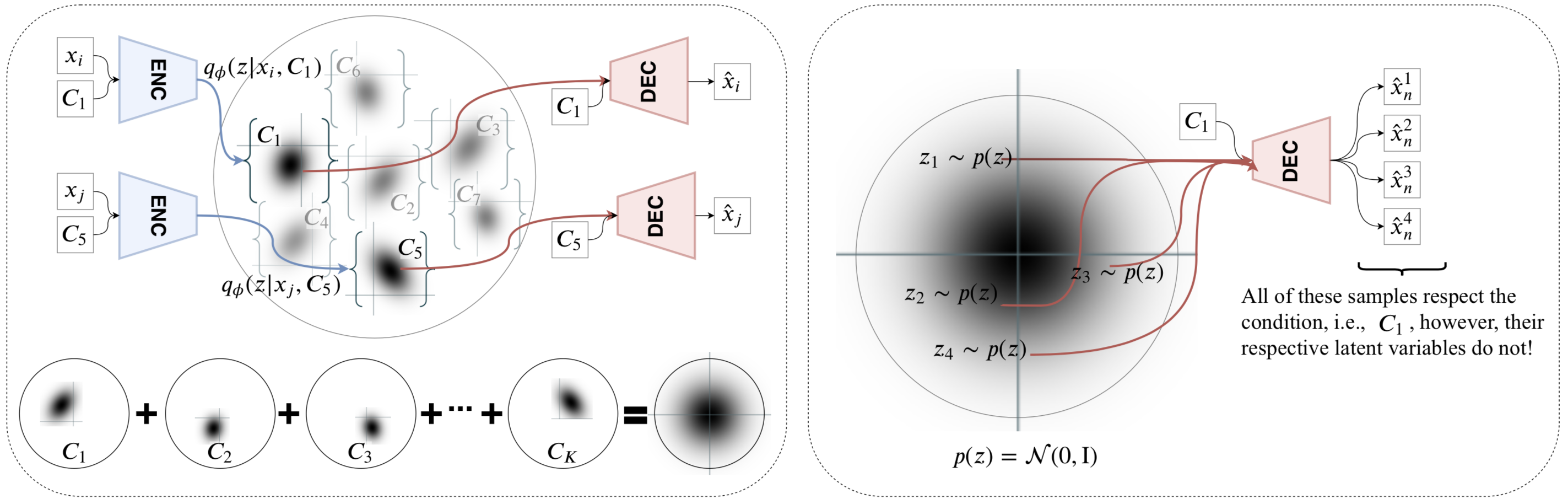

Figure 1: Training and inference for a standard CVAE. (Left) During the training phase, the encoder takes as input the concatenation of the data and the corresponding condition and compresses it into the latent space. The decoder then samples a latent variable from the approximate posterior computed by the encoder, concatenates the latent variable with the conditioning signal, and reconstructs the data. The approximate posterior distribution of all training samples, i.e., for all conditioning signals, is encouraged to match the prior distribution. (Right) During inference, the decoder samples different latent variables from the prior distribution, concatenates them with the condition, and generates samples that all respect the conditioning signal. However, there is no guarantee that the latent variable is sampled from the region of the prior that corresponds to the condition.

These two networks, i.e., the encoder () and the decoder (

), are trained jointly, using a prior over the latent variable. This prior is usually the standard Normal distribution,

. Note that VAEs use a variational approximation of the posterior, i.e., , rather than the true posterior. This enables the model to maximize the variational lower bound of the log likelihood with respect to the parameters and , given by

(1)

where the second term encodes the KL divergence between the posterior and the prior distributions. In practice, the posterior distribution is approximated by a Gaussian , whose parameters are output by the encoder. Note,

is a vector and we define

as a vector whose elements are the squared elements of . To facilitate optimization, the reparameterization trick [17] is used. That is, the latent variable is computed as

(2)

where is a vector sampled from the standard Normal distribution . As an extension to VAEs, CVAEs use auxiliary information, i.e., the conditioning variable or observation, to generate the data . In the standard setting, both the encoder and the decoder are conditioned on the conditioning variable . That is, the encoder is denoted as and the decoder as . Then, the objective of the model becomes

(3)

As illustrated in Fig. 1, in practice, conditioning is typically done by concatenation; the input of the encoder is the concatenation of the data and the condition , i.e., , and that of the decoder the concatenation of the latent variable and the condition , i.e., . Thus, the prior distribution is still , and the latent variable is sampled independently of the conditioning one. However, given Eq. 3, one should use . This means that it is then left to the decoder to combine the information from the latent and conditioning variables to generate a data sample. We see this as a major limitation when using CVAEs in practice, and, to the best of our knowledge, this problem has never been studied nor addressed in the literature.

In this paper, we introduce an approach to overcome this limitation by explicitly making the sampling of the latent variable depend on the condition, In other words, instead of using as prior distribution, we truly use . This not only respects the theory behind the design of CVAEs, but, as we empirically evidence, it leads to generating samples of higher quality, that preserve the context of the conditioning signal. To achieve this, we develop a CVAE architecture that learns a distribution not only of the latent variable but also of the conditioning one. We then use this distribution as a prior over the latent variable, making its sampling explicitly dependent on the condition. As such, we name our method CPP-VAE, for Condition Posterior as Prior.

We empirically show the effectiveness of our approach for problems that are stochastic in nature. In particular, we focus on scenarios where the training dataset is deterministic, i.e., one condition per data sample, and the conditioning signal is strong enough for an expressive decoder to generate a plausible output from it. Thus, the model does not need to see an informative latent variable to generate a sample of high quality. We also show that, by unifying latent variable sampling and conditioning, we can mitigate posterior collapse problem, a known problem of VAEs with expressive decoders. This is mainly due to the fact that the decoder no longer receives two separate sources of information, i.e., the latent variable and the condition, thus, the model is prevented from identifying the latent variable and then ignore it [2].

As a stochastic problem, we evaluate our approach on diverse human motion prediction, that is, forecasting future 3D poses given a sequence of observed ones. In this context, existing methods typically fail to model the stochastic nature of human motion, either because they learn a deterministic mapping from the observations to the output, or because the stochastic latent variables they combine with the observations can be ignored by the model. As an alternative application, we also evaluate our approach on image captioning, i.e., generating diverse and plausible captions describing an image. Our empirical results show that not only does our approach yield a much wider variety of plausible samples than concatenation-based stochastic methods, but it also preserves the semantic information of the condition, such as the type of action performed by the person in motion prediction or visual image elements in captioning, without explicitly exploiting this information.

Remark: Relation to the posterior collapse problem.

Training conditional generative latent variable models is challenging due to posterior collapse, typically occurring in scenarios when the conditioning signal is strong and the decoder is expressive enough to generate a plausible sample given only the condition. This phenomenon of posterior collapse is even more severe when training on a deterministic dataset, i.e., having one sample per condition. Posterior collapse manifests itself by the KL divergence term becoming zero, which means that, regardless of the input, the approximate posterior distribution is equal to the prior distribution. In other words, there is no semantic connection between the encoder and the decoder, and thus the latent variable drawn from the approximate posterior does not convey any useful information to obtain an input-dependent reconstruction. In this case, the decoder generates samples that approximate the mean of the whole training set, minimizing the reconstruction loss. We found that one of the major reasons behind posterior collapse in the case of conditional VAEs with strong conditioning signals and expressive decoders is rooted in the conventional way of conditioning, i.e., through concatenation of the latent variable and the condition. Concatenation allows the decoder to decouple the latent variable from the deterministic condition, thus allowing the decoder to optimize its reconstruction loss given only the condition.

2 Unifying Sampling Latent Variable and Conditioning

In this section, we introduce our approach as a general framework with a new conditioning scheme for CVAEs that is capable of generating diverse and plausible samples where the latent variables are sampled from an appropriate region of the prior distribution. In essence, our framework consists of two autoencoders, one acting on the conditioning signal and the other on the samples we wish to learn the distribution of. The latent representation of the condition then serves as conditioning variable to generate the desired samples.

As discussed above, we are interested in problems that are stochastic in nature; given one condition, multiple plausible and natural samples are likely. However our training data is insufficiently sampled, in that for any given condition, the dataset contains only a single observed sample, in effect making the data appear deterministic. Moreover, in these cases, the condition provides the core signal to generate a good sample, even in a deterministic model. Therefore, it is highly likely that a CVAE trained for this task learns to ignore the latent variable and rely only on the condition to produce its output (related to the posterior collapse problem in strongly conditioned VAEs [2]). Below, we address this by forcing the sampling of the random latent variable to depend on the conditioning one. By making this dependency explicit, we (1) sample an informative latent variable given the condition, and thus generate a sample of higher quality, and (2) prevent the network from ignoring the latent variable in the presence of a strong condition, thus enabling it to generate diverse outputs.

Note that conditioning the VAE encoder via standard strategies, e.g., concatenation, is perfectly fine, since the two inputs to the encoder are deterministic and useful to compress the sample into the latent space. However, conditioning the VAE decoder requires special care that we focus on below.

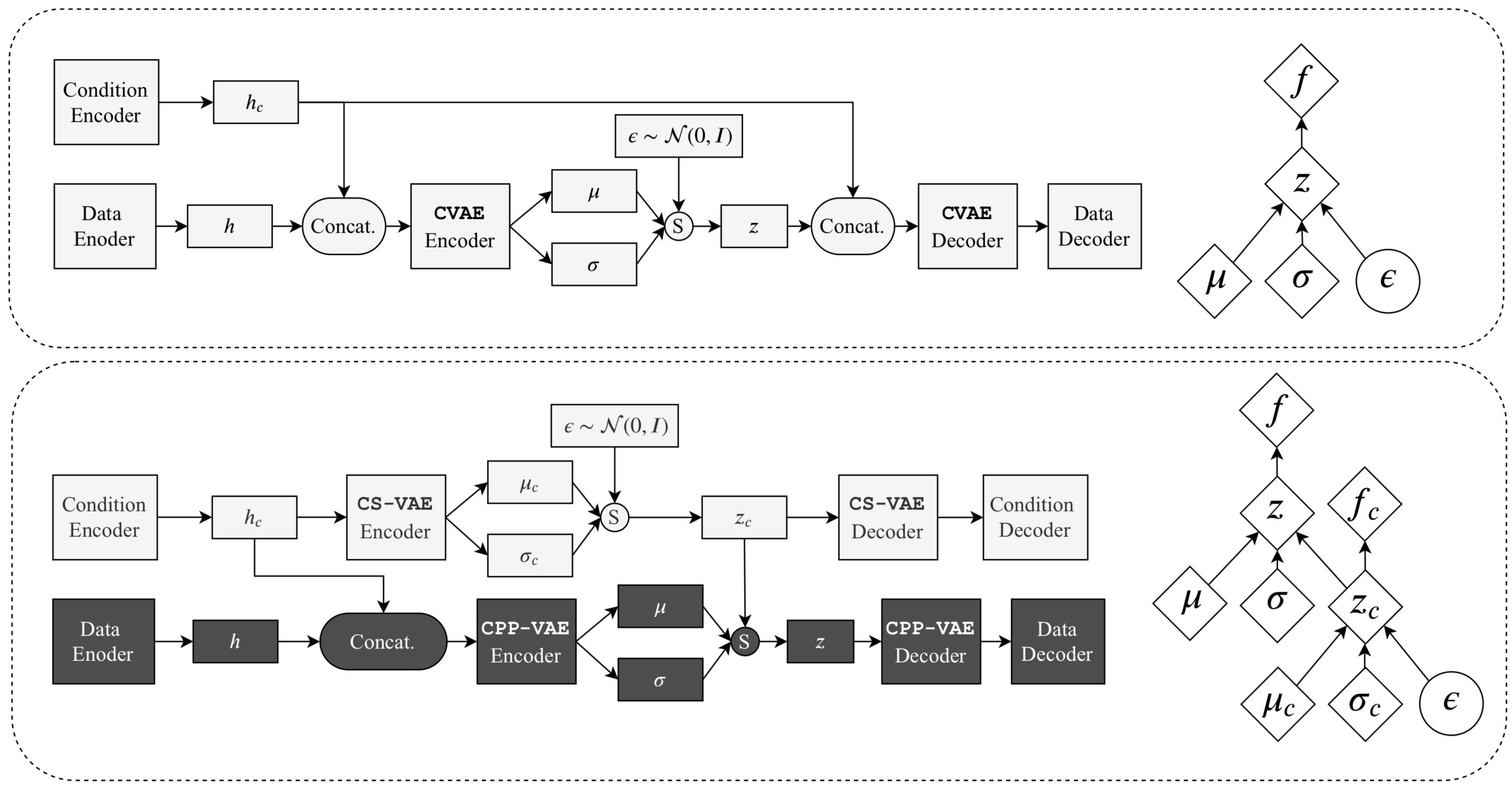

Figure 2: Illustration of a CVAE architecture and a CPP-VAE architecture. (Top) On the left, there is the architecture of a standard CVAE where the representation of the conditioning signal is concatenated to the input of the CVAE encoder and decoder. On the right, there is the illustration of the reparameterization trick to sample a latent variable from the approximate posterior. Note the approximate posterior is normally distributed. (Bottom) On the left, there is the architecture of a CPP-VAE where the model not only learns the distribution of the data, but also that of the conditioning signal. The posterior distribution of the condition then acts as the prior to the data posterior. On the right, there is the illustration of our extended reparameterization trick to sample a latent variable from the new approximate posterior. As shown, the latent variable is sampled given the condition, i.e., . Note the approximate posterior is not normally distributed anymore.

2.1 Stochastically Conditioning the Decoder

We propose to make the sampling of the latent variable from the prior/posterior distribution explicitly depend on the condition instead of treating these two variables as independent. To this end, we first learn the distribution of the condition via a simple VAE, which we refer to as CS-VAE because this VAE acts on the conditioning signal. The goal of CS-VAE is to reconstruct the condition given its latent representation. We take the prior of CS-VAE as a standard Normal distribution . Following [17], this allows us to approximate the CS-VAE posterior with another sample from a Normal distribution . That is, we write

(4)

where and are the parameters of the posterior distribution generated by the VAE encoder.

Following the same strategy for the VAE on the data, called CPP-VAE, translates to treating the conditioning and the data latent variables independently, which we want to avoid. Therefore, as illustrated in Fig. 2 (Right), we instead define the CPP-VAE posterior as not directly normally distributed, but conditioned on the posterior of CS-VAE. To this end, we extend the standard reparameterization as

(5)

where comes from Eq. 4. In fact, in Eq. 4 is a sample from the scaled and translated version of given and , and in Eq. 5 is a sample from the scaled and translated version of given and . Since we have access to the observations during both training and testing, we always sample from the condition posterior. As is sampled given , one expects the latent variable to carry information about the strong condition, and thus a sample generated from to correspond to a plausible sample given the condition. This extended reparameterization trick allows us to avoid conditioning the CPP-VAE decoder by concatenating the latent variable with a deterministic representation of the condition, thus mitigating posterior collapse. However, it changes the variational family of the CPP-VAE posterior. In fact, the posterior is no longer

, but a Gaussian distribution with mean

and covariance matrix . This will be accounted for when designing the KL divergence loss discussed below.

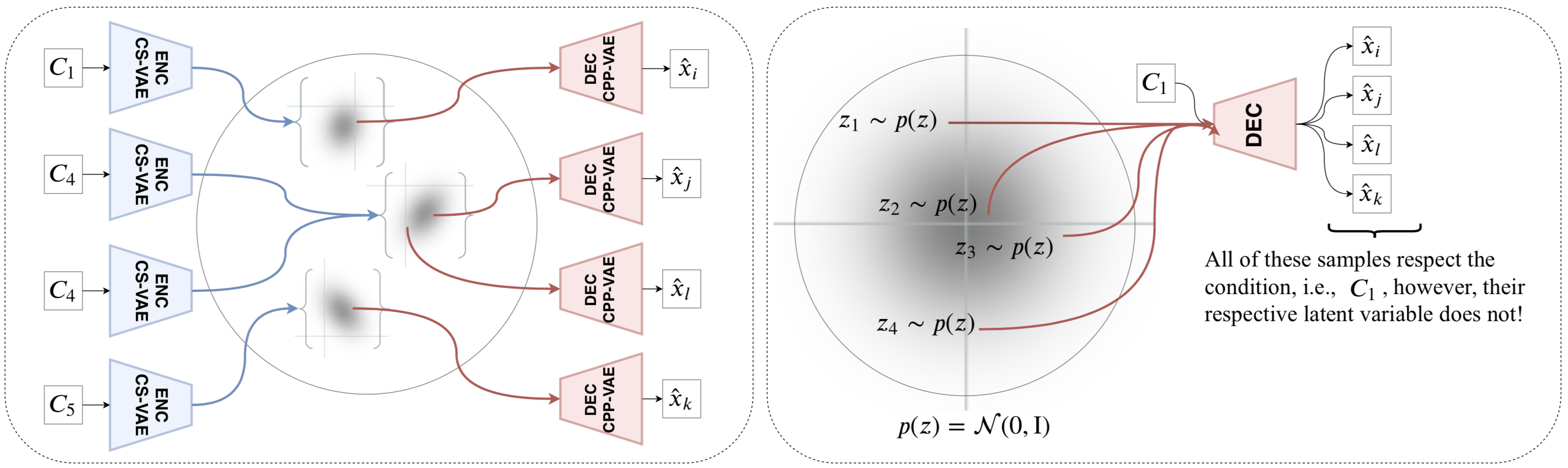

Figure 3: Inference procedure in a CVAE and a CPP-VAE. (Left) Inference of a CPP-VAE: At inference time, since we have access to the conditioning signal, we can use CS-VAE’s encoder to approximate the posterior of each condition. In order to generate a sample given a condition, the CPP-VAE’s decoder then samples a latent variable from the posterior of its condition (rather than a general prior distribution as in CVAEs) and generate a sample. For instance, and are conditioned on and their corresponding latent variables are sampled from a very similar region. However, is generated by a latent variable sampled from a completely different region, i.e., the region corresponds to the approximate posterior of .

2.2 Learning

To learn the parameters of our model, we rely on the availability of a dataset containing training samples . Each training sample is a pair of condition and desired sample. For CS-VAE, that learns the distribution of the condition, we define the loss as the KL divergence between its posterior and the standard Gaussian prior, that is,

(6)

By contrast, for CPP-VAE, we define the loss as the KL divergence between the posterior of CPP-VAE and the posterior of the CS-VAE, i.e., of the condition. To this end, we freeze the weights of CS-VAE before computing the KL divergence, since we do not want to move the posterior of the condition but that of the data. The KL divergence is then computed as the divergence between two multivariate Normal distributions, encoded by their mean vectors and covariance matrices, as

(7)

Let , , be the dimensionality of the latent space and the trace of a square matrix, the loss in Eq. (7) can be written as111See Appendix 0.B for more details on the KL divergence between two multivariate Gaussians and the derivation of Eq. 8.

(8)

After computing the loss in Eq. 8, we unfreeze CS-VAE and update it with its previous gradient. Trying to match the posterior of CPP-VAE to that of CS-VAE allows us to effectively use our extended reparameterization trick in Eq. 5. Furthermore, we use the standard reconstruction loss for both CS-VAE and CPP-VAE, minimizing the negative log-likelihood (NLL) or the mean squared error (MSE) of the condition and the corresponding data, given the task. We refer to the reconstruction losses as and for CS-VAE and CPP-VAE. Thus, our complete loss is

(9)

In practice, since our VAE appears within a recurrent model, we weigh the KL divergence terms by a function corresponding to the KL annealing weight of [5]. We start from , forcing the model to encode as much information in as possible, and gradually increase it to during training, following a logistic curve. We then continue training with .

In short, our method can be interpreted as a simple yet effective framework (designed for CVAEs) for altering the variational family of the posterior such that (1) a latent variable from this posterior distribution is explicitly sampled given the condition, both during training and inference time, and (2) the model is being prevented from posterior collapse by making sure that there is a positive mismatch between the two distributions in the KL loss of Eq. 8.

3 Experiments

In this paper, we mainly focus on stochastic human motion prediction, where given partial observation, the task is to generate diverse and plausible continuations. Additionally, to show that our CPP-VAE generalizes to other domains, we tackle the problem of stochastic image captioning, where given an image representation, the task is to generate diverse yet related captions.

3.1 Diverse Human Motion Prediction

Dataset.

To evaluate the effectiveness of our approach on the task of stochastic human motion prediction, we use the Human3.6M dataset [15], the largest publicly-available motion capture (mocap) dataset. Human3.6M comprises more than 800 long indoor motion sequences performed by 11 subjects, leading to 3.6M frames. Each frame contains a person annotated with 3D joint positions and rotation matrices for all 32 joints. In our experiments, for our approach and the replicated VAE-based baselines, we represent each joint in 4D quaternion space. We follow the standard preprocessing and evaluation settings used in [27, 11, 29, 16]. We also evaluate our approach on a real-world dataset, Penn Action [38], which contains 2326 sequences of 15 different actions, where for each person, 13 joints are annotated in 2D space. The results on Penn Action are provided in Appendix 0.F.

Evaluation Metrics.

To quantitatively evaluate our approach and other stochastic motion prediction baselines [35, 4, 33, 2]

, we report the estimated upper bound on the reconstruction error as ELBO, along with the KL-divergence on the held-out test set. Additionally, we also use quality

[2] and diversity [36, 2, 37] metrics (which should be considered together), a context metric, and the training KL at convergence. To measure the diversity of the motions generated by a stochastic model, we make use of the average distance between all pairs of the

motions generated from the same observation. To measure quality, we train a binary classifier to discriminate real (ground-truth) samples from fake (generated) ones. The accuracy of this classifier on the test set is inversely proportional to the quality of the generated motions. Context is measured by the performance of a good action classifier

[22] trained on ground-truth motions. The classifier is then tested on each of the motions generated from each observation. For observations and

continuations per observation, the accuracy is measured by computing the argmax over each prediction’s probability vector, and we report context as the mean class accuracy on the

motions. For all metrics, we use motions per test observation. We also provide qualitative results in Appendix 0.L. For all experiments related to motion prediction, we use 16 frames (i.e., 640ms) as observation to generate the next 60 frames (i.e., 2.4sec).

Evaluating Stochasticity.

In Table 1, we compare our approach (with the architecture described in Appendix 0.H) with the state-of-the-art stochastic motion prediction models [35, 2, 33, 4]. Note that one should consider the reported metrics jointly to truly evaluate a stochastic model. For instance, while MT-VAE [35] and HP-GAN [4] generate high-quality motions, they are not diverse. Conversely, while Pose-Knows [33] generates diverse motions, they are of low quality. On the other hand, our approach generates both high quality and diverse motions. This is also the case of Mix-and-Match [2], which, however, preserves much less context. In fact, none of the baseline can effectively convey the context of the observation to the generated motions properly. As shown in Table 2, the upper bound for the context on Human3.6M is 0.60 (i.e., the classifier [22] performance given the ground-truth motions). Our approach yields a context of 0.54 when given only about 20% of the data. Altogether, our approach yields diverse, high-quality and context-preserving predictions. This is further evidenced by the t-SNE [25] plots of Fig. 5, where different samples of various actions are better separated for our approach than for, e.g., MT-VAE [35]. We refer the reader to the human motion prediction related work section in Appendix 0.C for a brief overview of the baselines. We also encourage reading Appendix 0.D

for further discussion of the aforementioned baselines and a deeper insight of their behavior under different evaluation metrics.

Figure 4: Qualitative evaluation of the diversity in human motion. The first row illustrates the ground-truth motion. The first six poses of each row depict the observation (the condition) and the rest are sampled from our model. Each row is a randomly sampled motion (not cherry picked). As can be seen, all sampled motions are natural, with a smooth transition from the observed to the generated ones. The diversity increases as we increase the sequence length.
ELBO (KL) Diversity Quality Context Training KL
Method (Reconstructed) (Sampled) (Sampled) (Sampled) (Reconstructed)
MT-VAE [35] 0.51 (0.06) 0.26 0.45 0.42 0.08
Pose-Knows [33] 2.08 (N/A) 1.70 0.13 0.08 N/A
HP-GAN [4] 0.61 (N/A) 0.48 0.47 0.35 N/A
Mix-and-Match [2] 0.55 (2.03) 3.52 0.42 0.37 1.98
CPP-VAE 0.41 (8.07) 3.12 0.48 0.54 6.93
Table 1: Comparison of CPP-VAE with the stochastic motion prediction baselines on Human3.6M.
MT-VAE [35] CPP-VAE () CPP-VAE ()
Figure 5: t-SNE plots of the posterior mean for 3750 test motions. With MT-VAE [35], all classes are mixed, suggesting that the latent variable carries little information about the input. By contrast, our condition-dependent sampling allows CPP-VAE to better preserve context. Note that some actions, such as discussion and directions, are very hard to identify and are thus spread over other actions. Others, such as walking, walking with dog, and walking together or sitting and sitting down overlap due to their similarity.
Setting Obs. Future Motion Context
Lower bound GT Zero velocity 0.38
Upper bound (GT poses as future motion) GT GT 0.60
Ours (sampled motions as future motion) GT Sampled from CPP-VAE 0.54
Table 2: Comparison of the generated motions with the ground-truth future motion in terms of context. The gap between the performance of the state-of-the-art pose-based action classifier [22] with and without true future motions is 0.22. Using our predictions, this gap decreases to 0.06, showing that our predictions reflect the class label.
Walking Eating
Method 80 160 320 400 560 1000 80 160 320 400 560 1000
MT-VAE [35] 0.73 0.79 0.90 0.93 0.95 1.05 0.68 0.74 0.95 1.00 1.03 1.38
HP-GAN [4] 0.61 0.62 0.71 0.79 0.83 1.07 0.53 0.67 0.79 0.88 0.97 1.12
Pose-Knows [33] 0.56 0.66 0.98 1.05 1.28 1.60 0.44 0.60 0.71 0.84 1.05 1.54
Mix&Match [2] 0.33 0.48 0.56 0.58 0.64 0.68 0.23 0.34 0.41 0.50 0.61 0.91
CPP-VAE 0.22 0.36 0.47 0.52 0.58 0.69 0.19 0.28 0.40 0.51 0.58 0.90
Smoking Discussion
Method 80 160 320 400 560 1000 80 160 320 400 560 1000
MT-VAE [35] 1.00 1.14 1.43 1.44 1.68 1.99 0.80 1.01 1.22 1.35 1.56 1.69
HP-GAN [4] 0.64 0.78 1.05 1.12 1.64 1.84 0.79 1.00 1.12 1.29 1.43 1.71
Pose-Knows [33] 0.59 0.83 1.25 1.36 1.67 2.03 0.73 1.10 1.33 1.34 1.45 1.85
Mix&Match [2] 0.23 0.42 0.79 0.77 0.82 1.25 0.25 0.60 0.83 0.89 1.12 1.30
CPP-VAE 0.23 0.43 0.77 0.75 0.78 1.23 0.21 0.52 0.81 0.84 1.04 1.28
Table 3: Comparison with the state-of-the-art stochastic motion prediction models for 4 actions of Human3.6M (all methods use the best of sampled motions).
Walking Eating
Method 80 160 320 400 560 1000 80 160 320 400 560 1000
Zero Velocity 0.39 0.86 0.99 1.15 1.35 1.32 0.27 0.48 0.73 0.86 1.04 1.38
LSTM-3LR [9] 1.18 1.50 1.67 1.76 1.81 2.20 1.36 1.79 2.29 2.42 2.49 2.82
SRNN [16] 1.08 1.34 1.60 1.80 1.90 2.13 1.35 1.71 2.12 2.21 2.28 2.58
DAE-LSTM [10] 1.00 1.11 1.39 1.48 1.55 1.39 1.31 1.49 1.86 1.89 1.76 2.01
GRU [27] 0.28 0.49 0.72 0.81 0.93 1.03 0.23 0.39 0.62 0.76 0.95 1.08
AGED [11] 0.22 0.36 0.55 0.67 0.78 0.91 0.17 0.28 0.51 0.64 0.86 0.93
DCT-GCN [26] 0.18 0.31 0.49 0.56 0.65 0.67 0.16 0.29 0.50 0.62 0.76 1.12
CPP-VAE () 0.20 0.34 0.48 0.53 0.57 0.71 0.20 0.26 0.44 0.52 0.61 0.92
Smoking Discussion
Method 80 160 320 400 560 1000 80 160 320 400 560 1000
Zero Velocity 0.26 0.48 0.97 0.95 1.02 1.69 0.31 0.67 0.94 1.04 1.41 1.96
LSTM-3LR [9] 2.05 2.34 3.10 3.18 3.24 3.42 2.25 2.33 2.45 2.46 2.48 2.93
SRNN [16] 1.90 2.30 2.90 3.10 3.21 3.23 1.67 2.03 2.20 2.31 2.39 2.43
DAE-LSTM [10] 0.92 1.03 1.15 1.25 1.38 1.77 1.11 1.20 1.38 1.42 1.53 1.73
GRU [27] 0.33 0.61 1.05 1.15 1.25 1.50 0.31 0.68 1.01 1.09 1.43 1.69
AGED [11] 0.27 0.43 0.82 0.84 1.06 1.21 0.27 0.56 0.76 0.83 1.25 1.30
DCT-GCN [26] 0.22 0.41 0.86 0.80 0.87 1.57 0.20 0.51 0.77 0.85 1.33 1.70
CPP-VAE () 0.21 0.43 0.79 0.79 0.77 1.15 0.22 0.55 0.79 0.81 1.05 1.28
Table 4: Comparison with the state-of-the-art deterministic models for 4 actions of Human3.6M.

Evaluating Sampling Quality.

To further evaluate the sampling quality, we evaluate stochastic baselines using the standard mean angle error (MAE) metric in Euler space. To this end, we use the best of the generated motions for each observation (aka S-MSE [35]). A model that generates more diverse motions has more chances of generating a motion close to the ground-truth one. As shown in Table 3, this is the case with our approach and Mix-and-Match [2], which both yield higher diversity. However, our approach performs better thanks to its context-preserving latent representation and its higher quality of the generated motions.

In Table 4, we compare our approach with the state-of-the-art deterministic motion prediction models [27, 16, 12, 9, 11] using the MAE metric in Euler space. To have a fair comparison, we generate one motion per observation by setting the latent variable to the distribution mode, i.e.,

. This allows us to generate a plausible motion without having access to the ground-truth. To compare against the deterministic baselines, we follow the standard setting, and thus use 50 frames (i.e., 2sec) as observation to generate the next 25 frames (i.e., 1sec). Surprisingly, despite having a very simple motion decoder architecture (one-layer GRU network) with a very simple reconstruction loss function (MSE), this motion-from-mode strategy yields results that are competitive with those of the baselines that use sophisticated architectures and advanced loss functions. We argue that learning a good, context-preserving latent representation of human motion is the contributing factor to the success of our approach. This, however, could be used in conjunction with sophisticated motion decoders and reconstruction losses, which we leave for future research.

In Appendix 0.E, we study alternative designs to condition the VAE encoder and decoder.

Figure 6: Qualitative evaluation of the diversity in generated captions. While captions generated by our approach are diverse, they all describe the image properly. The caption from mode also usually achieves a good descriptive caption.
Model ELBO (KL) Perplexity Quality Diversity Context Training KL
(Reconstructed) (Reconstructed) (Sampled) (Sampled) (Sampled) (Reconstructed)
Autoregressive 3.01 (N/A) 20.29 0.40 N/A 0.46 N/A
Conditional VAE 2.86 (0.00) 17.46 0.39 0.00 0.44 0.00
CPP-VAE 0.21 (3.28) 1.23 0.40 0.53 0.43 3.11
Table 5: Quantitative evaluation of stochastic image captioning on the MSCOCO Captioning dataset.

3.2 Diverse Image Captioning

For the task of conditional text generation, we focus on stochastic image captioning. To demonstrate the effectiveness of our approach, we report results on the MSCOCO

[23] captioning task with the original train/test splits of 83K and 41K images, respectively. The MSCOCO dataset has five captions per image. However, we make it deterministic by removing four captions per image, yielding a Deterministic-MSCOCO captioning dataset. Note that the goal of this experiment is not to advance the state of the art in image captioning, but rather to explore the effectiveness of our approach on a different task, where we have strong conditioning signal and an expressive decoder in the presence of a deterministic dataset.

A brief review of the recent work on diverse text generation is given in Appendix 0.J.

We compare CPP-VAE (with the architecture described in Appendix 0.I) with a standard CVAE and with its autoregressive, non-variational counterpart222Note that CPP-VAE is agnostic to the choice of data encoder/decoder architecture. Thus, one could use more sophisticated architectures, which we leave for future research.. For quantitative evaluation, we report the ELBO (the negative log-likelihood), along with the KL-divergence and the Perplexity of the reconstructed captions on the held-out test set. We also quantitatively measure the diversity, the quality, and the context of sampled captions. To measure the context, we rely on the BLEU1 score, making sure that the sampled captions represent elements that appear in the image. For CVAE and CPP-VAE, we compute the average BLEU1 score for captions sampled per image and report the mean over the images. To measure the diversity, we measure the BLEU4 score between every pair of sampled captions per image. The smaller the BLEU4 is, the more diverse the captions are. The diversity metric is then 1-BLEU4, i.e., the higher the better. To measure the quality, we use a metric similar to that in our human motion prediction experiments, obtained by training a binary classifier to discriminate real (ground-truth) captions from fake (generated) ones. The accuracy of this classifier on the test set is inversely proportional to the quality of the generated captions. We expect a good stochastic model to have high quality and high diversity at the same time, while capturing the context of the given image. We provide qualitative examples for all the methods in Appendix 0.M. As shown in Table 5, a CVAE learns to ignore the latent variable as it can minimize the caption reconstruction loss given solely the image representation. By doing so, all the generated captions at test time are identical, despite sampling multiple latent variables. This can be further seen in the ELBO and Perplexity of the reconstructed captions. We expect a model that gets as input the captions and the image to have a much lower reconstruction loss compared to the autoregressive baseline (which gets only the image as input). However, this is not the case with CVAE, indicating that the connection between the encoder and the decoder, i.e., the latent variable, does not carry essential information about the input caption. However, the quality of the generated sample is reasonably good. This is also illustrated in the qualitative evaluations in Appendix 0.M. CPP-VAE, on the other hand, is able to effectively handle this situation by unifying the sampling of the latent variable and the conditioning, leading to diverse but high quality captions, as reflected by the ELBO of our approach in Table 5 and the qualitative results in Appendix 0.M. Additional quantitative evaluations and ablation studies for image captioning are provided in Appendix 0.K.

4 Conclusion

In this paper, we have studied the problem of conditionally generating diverse sequences with a focus on scenarios where the conditioning signal is strong enough such that an expressive decoder can generate plausible samples from it only. In standard CVAEs, the sampling of latent variables is completely independent of the conditioning signal. However, these two variables should be tied together such that the latent variable is sampled given the condition. We have addressed this problem by forcing the sampling of the latent variable to depend on the conditioning one. By making this dependency explicit, the model receives a latent variable that carries information about the condition during both training and the test time. This further prevents the network from ignoring the latent variable in the presence of a strong condition, thus enabling it to generate diverse outputs. To demonstrate the effectiveness of our approach, we have investigated two application domains: Stochastic human motion prediction and diverse image captioning. In both cases, our CPP-VAE

model was able to generate diverse and plausible samples, as well as to retain contextual information, leading to semantically-meaningful predictions. In the future, we will apply our approach to other problems that rely on strong conditions, such as image inpainting and super-resolution, for which only deterministic datasets are available.
