1. Introduction

Timely investigation of system intrusions remains a notoriously difficult challenge (Xu et al., 2009; Yuan et al., 2012; Mace et al., 2015). While security monitoring tools provide an initial notification of foul play  (Bass, 2000; Gu et al., 2008; Sadighian et al., [n. d.]; Valeur et al., 2004; Yen et al., 2013; Zaharia et al., 2012), these indicators are rarely sufficient in and of themselves. Instead, crafting an appropriate response to a security incident often requires scouring terabytes of audit logs to determine an adversary’s method of entry, how their reach spread through the system, and their ultimate mission objective. Such investigations not only require a human-in-the-loop, but are excruciatingly slow, at times requiring months of investigation and thousands of employee hours (Kurtz, 2010). This delay between an event’s occurrence and its diagnosis represents a tremendous window of opportunity for attackers – as they continue to exploit the system, defenders are still just getting their bearings.

Digital provenance (or provenance for short) refers to the data being used in a variety of ways to address the challenges of forensic audits. By parsing individual records into causal relationship graphs that describe a system’s execution, provenance enables defenders to leverage the full historical context of a system and to reason about the interrelationships between different events and objects. With provenance, forensic investigations can trace back a given security indicator (e.g., a port scan) to the attacker’s point of entry (e.g., a malicious email attachment) (King and Chen, 2003) and then trace forward from the entry point to determine what other actions the attacker has taken on the system.

Unfortunately, provenance-based auditing’s growing popularity has uncovered significant limitations in its performance and scalability. Early efforts to integrate provenance querying into production systems indicated that, even for modestly small organisations (e.g., 150 workstations), forensic queries can take on the order of hours or days to complete (Liu et al., 2018). In an actual attack scenario, where a timely incident response could make the difference between victory and defeat, such delays are unacceptable. Moreover, to date, provenance-aware systems have supported causal reasoning only as an after-the-fact forensic activity (Ko et al., 2011); this is unfortunate, because provenance is also invaluable to a variety of runtime security tasks such as access control (Park et al., 2012; Nguyen et al., 2013), integrity measurement (Wang et al., 2017), and regulatory compliance (Aldeco-Perez and Moreau, 2009; Bates et al., 2013a; Moreau and Ali, 2014; Pasquier et al., 2017b). To date, the design of low latency mechanisms for realtime provenance analysis has not been given adequate consideration in the literature.

The goal of this work is to bridge the gap between runtime security monitoring and post-hoc forensic analysis. In support of this goal, we consider methods for the deep integration of provenance capture and analysis within the operating system. We introduce CamQuery, a framework that supports runtime analysis of provenance and thus enables its practical use for a variety of security applications. CamQuery pairs a runtime kernel-layer reference monitor – expanding and modifying CamFlow (Pasquier et al., 2017a) – with a novel query module mechanism that enables runtime provenance analysis and even mediation of system events. CamQuery modules present a familiar vertex-centric API, as popularised by modern graph processing systems such as GraphChi (Kyrola et al., 2012) and GraphX (Gonzalez et al., 2014). In these vertex-centric platforms, full-graph analysis routines are expressed in terms of a small program that runs in parallel on every vertex (node) in the system. The graph-structured nature of provenance data makes this model a good fit and permits use of a familiar API. While these applications run directly over the live provenance stream, provenance can be simultaneously persisted to facilitate additional post-mortem and/or forensic analysis.

To demonstrate the generality of CamQuery, we consider several exemplar query applications in § 5. 1) a data loss prevention scheme (Bates et al., 2015b) popular in provenance-security based community; 2) a provenance based intrusion detection scheme; 3) a mechanism to apply constraints on information flow; and 4) a provenance signature scheme. These case studies illustrate the rich space of design possibilities that are enabled through runtime provenance analysis. The source code for CamQuery, along with associated applications and datasets, is available at http://camflow.org.

This paper makes the following contributions:
CamQuery: We present the design and implementation of CamQuery, an analysis framework over a live provenance stream.
Whole-system provenance modelling: our work is the first to provide automated modelling of whole-system provenance through static analysis of the Linux kernel source code.
Exemplar Applications: We demonstrate CamQuery’s efficacy in security-related applications, such as preventing loss of sensitive data or assuring log integrity.
Performance Evaluation: We rigorously evaluate the performance of CamQuery to demonstrate its effectiveness in realistic operating environments.
Availability: We released an open-source implementation of CamQuery. Based on the Linux Security Modules framework, CamQuery is immediately deployable on millions of systems worldwide.

2. Background

To provide context for the rest of the paper, we first introduce the concept of whole-system provenance and then outline some shortcomings of existing systems.

2.1. Whole-System Provenance

Figure 1. A simple provenance DAG: two processes ( and ) exchange packets ( and ) through their respective sockets ( and ).

The W3C (Belhajjame et al., 2013) defines provenance as a directed acyclic graph (DAG) where vertices represent entities (data), activities (transformations of data) and agents (persons or organisations), and edges represent relationships between those elements. Fig. 1 presents a simple example. In our context, entities are kernel objects, such as inodes, messages, and network packets; activities are tasks; and agents are users and groups.

In practice, it is impossible to represent a mutable process or file as a single vertex while simultaneously ensuring that the graph remains acyclic (Braun et al., 2006). For example, in a naive representation, a process that both reads and writes a file immediately creates a cycle, because the process depends on the file (due to the read), and the file depends on the process (due to the write). Cycles are problematic. Edges in the provenance graph represent dependencies between the states of different objects and express causal relationships. Therefore, an object must depend only on the past (i.e., the state of an object cannot depend on a future state). The most commonly used cycle avoidance technique is to create multiple vertices per entity or activity (Muniswamy-Reddy et al., 2006), each representing a version or state of the corresponding object. We can see in Fig. 1 that new versions of the process and sockets and are created as information flows through these objects.

Using provenance graphs, we can detect and provide attribution for malicious behaviour (Han et al., 2017) or actively prevent attacks using provenance-based access control (Nguyen et al., 2013). However, using provenance to prevent actions requires that provenance is “complete and faithful to actual events” (Pohly et al., 2012). Missing events could sever connections, resulting in failure to reveal an important information flow; errant provenance could falsely implicate a benign process. Pohly et al. (Pohly et al., 2012) demonstrated that it was possible to satisfy such requirements by building provenance capture around the reference monitor concept (Anderson, 1972b) to mediate all events that should appear in the provenance graph. They called this approach whole-system provenance, which records events from system initialisation to shutdown.

2.2. Issues With Provenance Architectures

Existing provenance capture architectures were not designed with realtime support for security applications in mind. Therefore, unsurprisingly, they have some fundamental limitations. The traditional whole-system provenance capture stack, as first implemented in PASSv1 (Muniswamy-Reddy et al., 2006), is built of the following five layers:

  • the capture layer records system events;

  • the collection layer transports provenance information to where it may be used (e.g., using messaging middleware such as Kafka (kaf, oday) or Flume (flu, oday));

  • the storage layer transforms system events into a provenance graph and persists it;

  • the query layer extracts provenance through queries relevant for a particular analysis;

  • the analysis layer interprets the provenance in the context of an application.

The use of whole-system provenance for runtime security applications is a relatively recent phenomenon. Bates et al. (Bates et al., 2015b) demonstrate provenance-based techniques to prevent loss of sensitive data in an enterprise, while Han et al. (Han et al., 2017) use provenance to detect errant or malicious processes in a cloud environment. Both of their systems were built on top of the conventional stack described above. We argue that such an approach is suboptimal for provenance-based security applications, incurring latency penalties arising from the need to store data before querying or analysing it. Specifically, when the goal of provenance analysis is mediation, delaying that analysis until after the data has been stored is impractical. Therefore, while existing architectures may be appropriate for post-mortem forensic investigations, they are not ideal for runtime security applications. The goal of our work is to enable such applications through the introduction of vertex-centric, real-time analysis of streaming provenance.

3. Runtime analysis framework

In the previous section, we made the case for realtime analysis over the provenance data stream. We now present the design of CamQuery, a framework for enabling such analysis to support runtime provenance-based security applications.

Figure 2. A demonstration of how path queries can be calculated through label propagation. The red (shaded) boxes indicate those vertices (with versions in subscripts) to which the “confidential” label is propagated. Confidential information flows from file to socket , through process , file , and process . , , and stand for read, version, and write, respectively. The subscripts represent event ordering.

3.1. Threat Model & Assumptions

We design CamQuery with consideration for an adversary that has gained remote access to a host. Once the adversary has gained access to the machine, they may engage in typical attacker behaviour such as installing malware, escalating their privilege level, or engaging in anti-forensic activities to hide evidence of their misdeeds. However, we make the common assumption that the adversary does not have physical access to the machine. Broadly, the goal of CamQuery is to securely facilitate the provenance-based analysis of the adversary’s actions in real time.

Trusted Computing Base (TCB): The TCB of CamQuery includes a capture mechanism to generate a provenance graph from system events and a query mechanism to process the provenance at runtime, which we discuss at greater length in the remainder of this section. Because any loaded kernel module is granted unrestricted access to kernel memory, we assume that the entire kernel is distributed and installed in a trusted state, which is a typical assumption in kernel-layer security mechanisms. This assumption is made more reasonable through the use of integrity measurement techniques such as remote attestation and module signatures. Protecting the capture mechanism from attackers who are able to alter kernel behaviour is an important but orthogonal issue that we discuss in § 7.

Secure Provenance Store: If we wish to store provenance for post-mortem forensic analysis, an adversary must not be able to corrupt it. We assume the availability of secure provenance storage, which can be achieved through a variety of known techniques. For example, Hasan et al. (Hasan et al., 2009) present a hash-chain-based method for protecting provenance, while Bates et al. (Bates et al., 2015b) secure provenance storage and transmission through the use of type enforcement. By layering these systems, it becomes possible to ensure full-stack trustworthy provenance.

Checkpointing: We assume that CamQuery is deployed on a host that does not leverage checkpointing. Checkpointing systems pose a challenge for all provenance systems, because restoring a checkpoint effectively moves a system backwards in time. As a demonstrative example of this problem, consider a policy to prevent conflicts of interest (Brewer and Nash, 1989), e.g., a policy to prevent a user who has read the Coca-Cola recipe from also reading the Pepsi recipe. If checkpointing could be used to rollback the system to a state before the Coca-Cola recipe was read, an adversary could easily violate the policy.

3.2. Motivating Example

To identify the operational requirements of CamQuery, we ground our discussion in a prior example of provenance-based runtime security applications. Bates et al. (Bates et al., 2015b) present a loss prevention scheme (LPS) that disallows confidential information to be sent to an external IP address by issuing provenance ancestry queries on all network transmissions. Because this application was implemented on a conventional provenance capture stack, query latency rapidly became the bottleneck – even when the user queried a relatively small graph stored in an in-memory database, the responses took upward of 21ms. Worse, because response latency grew linearly with the size of the graph, one would expect this application to quickly grow unusable under realistic conditions.

In contrast to ancestry queries, an alternative method of implementing LPS would be to propagate security labels along the provenance graph in realtime, as demonstrated in Fig. 2. Because each object will be associated with the correct security label at the enforcement point, graph traversal is no longer necessary and an authorization decision can be made in constant time. Note that while this approach is akin to taint tracking, a provenance-based approach allows for the expression of more complex queries than is possible in a conventional taint-tracking system. With a provenance-based approach, we can express subtle propagation constraints based on properties of the graph (we demonstrate this in Example #1 in § 5). For example, Bates et al.’s LPS system propagates labels only along certain edge types, which is not possible in a data-centric taint-analysis system.

This approach to performing LPS can be generalized to a variety of other runtime security applications.111We return to the subject of example provenance-based security applications in § 5. For example, in access control (Park et al., 2012; Nguyen et al., 2013), stream-based analysis can be used to express constraints on the properties of paths in the graph in a manner similar to computation tree logic (e.g., all paths from an external socket must not lead to disk until they have gone through an anti-virus process) (Emerson and Halpern, 1982). Such constraints can be evaluated by building primitives above a value propagation algorithm. This allows, for example, policies such as declassification and path disjointedness to be built to enforce conflict-of-interest constraints (Brewer and Nash, 1989). With this in mind, the goal of CamQuery is to facilitate runtime security applications such as those considered above. In addition, as we show in § 5

, the framework is sufficiently rich to be used, for example, to generate feature vectors in an intrusion detection setting.

3.3. Overview

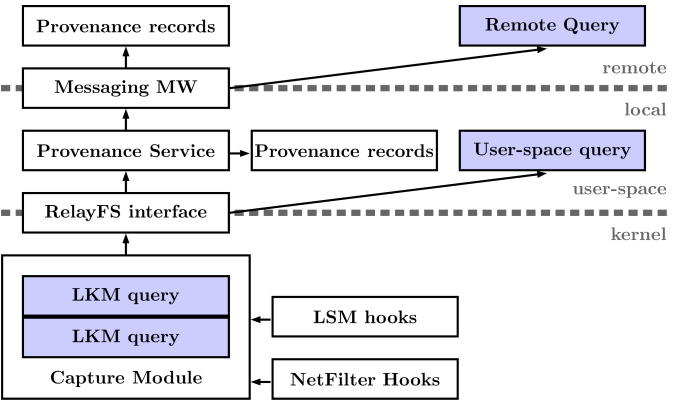

Figure 3. An overview of the CamQuery framework.

Fig. 3 presents an overview of the CamQuery framework. CamQuery captures system events using LSM and NetFilter hooks; those events are transformed into a provenance graph within the capture module (i.e., CamFlow). The capture module feeds graph elements (i.e., edges and vertices) to stacked CamQuery queries, which are either built directly into the kernel or implemented as a loadable kernel module. The kernel transfers these graph elements to user space for 1) consumption by user space queries; 2) recording for post-hoc analysis; or 3) transmission to a remote machine. CamQuery embodies the design goal of ensuring a standard query implementation mechanism, independent of the three deployment options, discussed in § 4.

3.4. Provenance Monitor

Like prior kernel-layer provenance capture systems (e.g., LPM (Bates et al., 2015b), HiFi (Pohly et al., 2012)), CamFlow introduces a provenance monitor in the kernel. A provenance monitor is a provenance capture mechanism that satisfies the reference monitor concept (Anderson, 1972a), possessing the properties of complete mediation, tamperproofness, and verifiability. The relevance of these guarantees in the context of provenance capture is that they ensure that the provenance history is complete and accurate, even in the presence of an active attacker. While past provenance monitors generally only denied system accesses if they were unable to generate a new record of the access (e.g., out of memory), CamQuery exposes a general mechanism for system mediation, allowing security applications to authorize or deny new access based on the provenance history of the concerned principals. Further details are in § 4.2.

3.5. CamQuery Api

CamQuery provides an API, inspired by graph-processing frameworks such as GraphChi (Kyrola et al., 2012) and GraphX (Gonzalez et al., 2014), enabling straightforward implementation of value propagation applications. A query application consists of three functions:

  1. init: called upon query initiation to initialise the query’s variables;

  2. out_edge(v, e): called on every outgoing edge of vertex ;

  3. in_edge(e, v): called on every incoming edge of vertex .

CamQuery invokes out_edge and in_edge in a manner guaranteeing that edges are processed according to the partial order implied in paths in the graph and in topological order of the vertices.

CamQuery calls the developer-defined out_edge and in_edge functions with two parameters containing edge and node data structures. These structures expose attributes of the underlying kernel objects they represent (e.g., inode, process, shared memory), allowing the developer to reference or modify the objects associated with the new system event. For example, the data structure representing a process vertex contains information such as UID, GID, namespaces, security context, system and user time, memory consumption, etc.; in turn, the edge data structure contains information such as offset, flags, mode, etc.. There are around two dozen vertex types, e.g., path, network addresses, network packet, and shared memory states (complete list online (cam, odayd)). Similarly, there are over three dozen different edge types covering families of system calls (complete list online (cam, odayc)). By specifying conditional constraints on the processing of vertex/edge labels and values, developers can express specific, complex queries.

1#define KERNEL_QUERY
2#include ”include/camquery.h”
3
4static label_t confidential;
5
6static void init( void ){
7  confidential = get_label(”confidential”);
8}
9
10static int out_edge(union prov_msg* node, union prov_msg* edge){
11  switch (edge_type(edge)){
12    case RL_WRITE:
13    case RL_READ:
14    case RL_SND:
15    case RL_RCV:
16    case RL_VERSION:
17    case RL_VERSION_PROCESS:
18    case RL_CLONE:
19      if ( has_label(node, confidential) )
20        add_label(edge, confidential);
21  }
22  return 0;
23}
24
25static int in_edge(union prov_msg* edge, union prov_msg* node){
26  if ( has_label(edge, confidential) ) {
27    add_label(node, confidential);
28    if( node_type(node) == ENT_INODE_SOCKET )
29      return PROVENANCE_RAISE_WARNING;
30  }
31  return 0;
32}
33
34QUERY_NAME(”My Example Query”);
35QUERY_DESCRIPTION(”An example query”);
36QUERY_AUTHOR(”John Doe”);
37QUERY_VERSION(”0.1”);
38QUERY_LICSENSE(”GPL”);
39register_query(init, in_edge, out_edge);
Listing 1: CamQuery query in C.

In addition to the manipulation of the provenance objects and existing kernel objects, CamQuery also provides functions that allow developers to associate new labels or values with edges and vertices (e.g., add_label, add_ptr). Listing 1 shows a query that implements a loss-prevention scheme, which we describe at greater length in § 5. Associating labels with graph elements allows developers to easily implement, in a few lines of code, mechanisms such as taint tracking, information flow control, or access control. Futhermore, using data structure association it is possible to build more complex graph analytics. For example, we show in § 5 how to associate complex data structures with kernel objects and perform inlined computation while traversing the graph. From that, we can compute, at runtime, feature vectors used to perform intrusion detection.

CamQuery explicitly decouples the graph analysis implementation from the underlying kernel infrastructure. The goal is to allow development of new provenance modules with a minimum of engineering effort. For example, traditional taint tracking or information flow control implementations require extensive engineering effort (Krohn et al., 2007; Roy et al., 2009), while it is possible to implement these applications in CamQuery using only a few dozen lines of code.

4. Implementation

We have implemented CamQuery for Linux 4.14.15 and validated its use on Fedora 27. The work presented here is fully implemented, used in multiple research projects, and is available online on GitHub (https://github.com/CamFlow) under a GPL v2 license.

4.1. Capture Mechanism

We built CamQuery on top of the CamFlow provenance capture system (Pasquier et al., 2015; Pasquier et al., 2017a; cam, odaya), our actively-maintained provenance monitor built as a stackable Linux Security Module (LSM) (Morris et al., 2002). Compared to other existing capture techniques (Muniswamy-Reddy et al., 2006; Gehani and Tariq, 2012), an LSM-based approach ensures that CamFlow can observe and mediate all information flows between processes and kernel objects (Edwards et al., 2002; Jaeger et al., 2004; Ganapathy et al., 2005; Georget et al., 2017b) (see § 4.2 for further discussion).

Recording exact interactions between shared states (e.g., mmap files, shmem, etc.) is challenging. CamFlow records those interactions by conservatively assuming that information always flows between processes and shared states. We represent shared states as entities. In the provenance graph, we add a relation from a process to the associated shared states when it receives information (e.g., reading a file), and a relation from the associated shared states to the process when it sends information (e.g., writing a file). We track shared memory by parsing through the memory data structure (mm_struct) associated with each task. Additionally, we extended CamFlow to track provenance at the thread level rather than the process level. Note that CamFlow is the first whole-system provenance capture mechanism to do so. Process memory is represented as a shared state between threads in the provenance graph. We made these changes on top of the original design of CamFlow to obtain more accurate provenance and consequently more accurate results in security applications such as intrusion backtracking (King and Chen, 2003). However, conservatively assuming the existence of information flows can lead to false positives. We discuss this limitation and its potential solutions in § 7.

To support runtime analysis, further changes to CamFlow were necessary. Existing provenance capture mechanisms, including past versions of CamFlow, do not directly generate graph elements in the kernel but instead generate logs of events that are processed in user space as part of the storage layer (Muniswamy-Reddy et al., 2006, 2009; Gehani and Tariq, 2012; Pohly et al., 2012; Bates et al., 2015b). We extended CamFlow to generate the graph directly at the point of capture for two reasons: 1) event ordering is easier, as opposed to previous systems’ complex computations to reconstruct kernel states and event orderings in user space; 2) more importantly, event ordering is made a precondition of the graph analysis in kernel space.

We modified the capture mechanism to embed limited provenance metadata alongside kernel objects to perform cycle avoidance in the kernel (Muniswamy-Reddy et al., 2006, 2009). The cycle avoidance algorithm is entirely based on local properties of a node (i.e., information about incoming and outgoing information flows) and does not require maintenance of any global state. Fundamentally, we create a new version any time an object that sent information receives new information. This guideline guarantees global acyclicity and avoids the creation of a new state of an object that depends on the future.

Finally, we modified CamFlow to publish graph components (i.e., edges and vertices) as the system executes, while providing the following two partial ordering properties: 1) all incoming edges to a vertex are published before any outgoing ones; 2) edges and vertices along a path are published in order. CamQuery processes edges and vertices as they are published.

4.2. Ensuring Completeness and Accuracy

The design and implementation of CamQuery extend the guarantees of past provenance monitors to support runtime provenance analysis. The introduction of a query mechanism, which is described below, can be used to further restrict system access. The standard mechanisms used to secure the deployment of past provenance monitors are applicable to our system. It naturally follows that CamQuery possesses the same security properties as do past provenance monitors, Therefore, we omit a complete security analysis, and instead refer interested readers to the work of Bates et al. (Bates et al., 2015b) for a detailed analysis of the security properties of provenance monitors.

Past provenance monitor implementations (e.g., Hi-Fi (Pohly et al., 2012) and LPM (Bates et al., 2015b)) derive security properties from the guarantees provided by the formal verification of LSM placement (Edwards et al., 2002; Zhang et al., 2002; Jaeger et al., 2004; Ganapathy et al., 2005), ensuring that they capture all interactions between kernel objects. We extend this prior assessment of provenance completeness and accuracy:

Completeness: We want to ensure that all flows of information between kernel objects are properly recorded. The LSM framework (Morris et al., 2002) was originally implemented to support Mandatory Access Control (MAC) schemes but not information flow tracking. Recent work by Georget et al. (Georget et al., 2017b, a) demonstrated, through static analysis of the kernel code base, that the LSM framework is applicable to information flow tracking, and that by adding a small number of LSM hooks, it was possible to properly intercept all information flows between kernel objects. Building on their work, we maintain a patch (tho, oday) to the LSM framework that allows CamFlow, and by extension CamQuery, to provide stronger guarantees than do previous whole-system provenance capture mechanisms.

Figure 4. Provenance model for the inode_post_setxattr hook.

Accuracy: We also provide accuracy guarantees for the recorded provenance. We automatically analyse kernel source code to model the provenance generated by any CamFlow-supported LSM hook (see Fig. 4 and Fig. 5 for an example of such a model). We then manually verify that all models meet our expectations.222Unfortunately, manual verification currently requires significant knowledge of the Linux kernel. Finally, through static analysis, we identify the LSM hooks associated with each system call and generate the associated provenance model, which we again manually verify. This process is embedded in our continuous integration testing, with results automatically updated in our Git repository (cam, odayb) so that as the capture mechanism and the underlying kernel evolve, we ensure the accuracy of our provenance capture. We welcome meaningful scrutiny by third parties. We believe this work is the first attempt towards formalisation of whole-system provenance.

We continue work on automated and formal analysis of whole-system provenance capture. Our future plans include combining static analysis techniques with dynamic provenance model benchmarking, as described in e.g., Chan et al. (Chan et al., 2017). Although we currently just assume a correct implementation of the ordering properties described in § 4.1, our goal is to formalise these as well.

Figure 5. A whole-system provenance subgraph representing a valid instance of the model shown in Fig. 4.

4.3. CamQuery Query Configurations

Depending on the security and performance requirements of a deployment, it may not always be practical to embed analysis applications in the kernel. For example, computationally expensive analysis may affect system stability, or a proprietary analysis tool may need to be run on a separate host from the capture point. Therefore, our implementation supports a variety of different configuration options that enable built-in kernel level analysis, loadable kernel module analysis, local user-level analysis, and remote user-level analysis on a machine subscribed to the provenance stream. While all of the deployment options run the same code, only the in-kernel implementations can prevent policy violations; like previous systems, the user space and remote implementations can only detect violations after the fact.

Kernel-Based Configurations: CamQuery implements in-kernel queries using either Loadable Kernel Modules (LKMs) or directly linked objects. LKMs are dynamically loaded object files that run in kernel space and have access to a subset of the kernel API. Directly linked objects allow for shipping queries as part of the kernel.

Loading a query LKM invokes the register_query function, which in turn invokes the init function. After registration, the kernel invokes out_edge and in_edge whenever CamFlow records a new event. Given the partial ordering property of our collection, a vertex will receive all values propagated through an in-edge before out_edge runs on its outgoing edges. If several queries are loaded, they execute sequentially in their load order. These functions are actually executed before the actions they describe, because they are executed from LSM framework hooks designed to implement Mandatory Access Control schemes. This enables CamQuery to prevent policy violations rather than merely detecting them.

CamQuery maintains approximately 20 bytes of provenance state for kernel objects, e.g., inode, cred. By associating provenance with the kernel objects themselves, queries have access to the kernel objects, granting them visibility into kernel states. Provenance for long-lived kernel states, such as inodes, persists across reboots through the use of extended attributes.

While the focus of this paper is enabling runtime query and analysis, we observe that our framework creates opportunities at other layers of the provenance stack as well. For example, we were able to rewrite CamFlow’s optional selective capture mechanism (Pasquier et al., 2017a) using CamQuery to reflect the modular nature of this component. This mechanism makes it possible to limit provenance captured to a process, an object, or characteristics of the provenance graph, e.g., recording the actions of only those processes belonging to a specific SELinux context e.g., to track the actions of an httpd server.

User space Configurations: The user space implementations of CamQuery operate similarly to the kernel one. Rather than producing an LKM, user-level queries produce a service that reads provenance records from either relayfs or a messaging middleware. Queries process the stream by placing records into a sorted in-memory edge list and a persistent vertex map.

The CamQuery capture mechanism writes records to per-core relayfs files that are read in per-core batches, producing a collection of partially-ordered edge lists that are not necessarily totally ordered. To facilitate ordered processing of edges, a user space utility performs a merge of the per-core lists as follows – for an out-edge received at time , all in-edges must have been received by , where is the QoS threshold. At regular time intervals, the query processes all the edges satisfying .

Rather than using timestamps to order edges, we use edge IDs; the capture mechanism guarantees that edge ID ordering respects the ordering properties described in § 4.1. In a similar manner, we use provenance DAG causality relationships on network packets to produce a partial order across machines. We then merge the per-core edge lists and the network packets to produce a sorted edge list. The query processes each edge sequentially by invoking the in_edge and out_edge functions.

In addition to maintaining a list of edges, a user space query maintains a map of vertices. We discard an edge after it is processed; we discard a vertex either after processing an edge referencing a new version of the vertex or after terminating events specific to the object (e.g., a network packet will not be referenced after it has been received or a process will not be referenced after it has been terminated). We show in § 6 that, in practice, this represents a small memory footprint.

Vertex garbage collection relies on the semantics of system events. We therefore record events relating to the life cycle of long-lived objects (e.g., representing in the graph process kernel data structures being freed). These events are not necessarily pertinent to the tracking of information flows, but greatly help with garbage collection. If the framework were to be applied to other types of provenance (e.g., Spark provenance (Interlandi et al., 2015)), the garbage collection algorithm would require different domain knowledge.

Converting the code in Listing 1 to its user space equivalent is trivial. We modify Line 1 to reflect the proper target, currently one of MW_QUERY or RELAY_QUERY, indicating from where the service will obtain data (a middleware-provided data stream or relayfs, respectively). We add two more query attributes after line 39. QUERY_MSG specifies the messaging middleware broker address and topic. Note that although the kernel transmits information to relayfs before executing the action corresponding to the query, as we do not control when user processes are scheduled, we cannot guarantee that the query service has an opportunity to process the provenance before the corresponding action is taken. As such, the user level implementation, and by extension the distributed one, can guarantee only violation detection, not prevention.

Discussion: The different guarantees available from different CamQuery configurations provide a rich set of trade-offs. While in-kernel queries have access to the underlying kernel data structures and can prevent events from occurring, they incur overhead on every system call. § 6 illustrates this power/performance trade-off. On the other hand, user space queries can perform runtime monitoring only, raising alerts relatively quickly, but not quickly enough to prevent events from occurring. However, such queries can build on existing libraries to e.g., perform log analysis (Pasquier et al., 2017a). Additionally, the scheduler is responsible for scheduling user space queries, so it can more easily adjust to system workload as shown in § 6.

5. Example Applications

We designed CamQuery to enable development of important security and compliance applications, such as intrusion detection (Han et al., 2017; Han et al., 2018), enforcement of software licenses, and compliance with data regulation (Pasquier and Eyers, 2016; Pasquier et al., 2017b). During development, we implemented several algorithms inspired by the literature to validate the suitability of the framework. In this way, we ensured that we could implement meaningful provenance analysis at runtime in widely different use cases. We provide the examples below to illustrate the range of applications that can be implemented with CamQuery.

Figure 6. Calculating vertices’ structural identity (Depth=1).
1:function out_edge(vertex, edge)
2:     Calculate DTW between its own and parent
3:     Publish feature vector
4:     Write to the edge its own
5:function in_edge(edge, vertex)
6:     Increment vertex in-degree counter
7:     Read and save parent
8:     Merge parent to build own
Algorithm 1 Encoding Structure Identity (pseudo code).

Example #1: Data Loss Prevention. We first demonstrate how the framework works with a relatively simple graph processing algorithm implementing the loss prevention scheme of Bates et al. (Bates et al., 2015b), which prevents sensitive data from leaving a system (as discussed in § 3.2 and shown in Fig. 2).

Listing 1 shows the implementation of this application. The query contains four main components: the init function (lines 6–8), the out_edge function (lines 10–23), the in_edge function (lines 25–32), and a set of query attribute statements (lines 34–39). Before query registration, CamQuery executes the query attribute statements to set the query’s properties exactly once. Then, during registration, it calls the init function exactly once. Subsequently, CamQuery invokes in_edge and out_edge for every edge in every active query.

The LPS scheme considers only certain flows of information as meaningful in the context of the policy. Therefore, it propagates labels (lines 19–20) only over the relevant flows (line 11–18), raising a warning if the label ever reaches a socket (lines 26–29). In more complex scenarios, developers can maintain global states within a query or associate more complex data structures with edges or vertices. Notably, we emphasise that Listing 1 contains all of the required runtime logic for a label-based loss-prevention system, demonstrating the efficiency with which security applications can be expressed in CamQuery. Outside of this application, our LPS scheme assumes only: 1) a labelling state that tags sensitive information sources with the confidential label, 2) that correctness requires handling explicit information flow only, not side channels, and 3) that sensitive information that reaches a system exit point (e.g., a socket) raises a warning.

We can design more complex algorithms around programmable label propagation. An example extension uses label propagation to detect abnormal behaviour in a system. For example, one can easily use CamQuery to track the origin of executables and sensitive data as previously labelled. An indicative abnormal system behaviour might be an executable that did not originate from a trusted repository manipulating sensitive data. Once a potentially harmful pattern is detected, techniques such as intrusion backtracking (King and Chen, 2003) can be used to manually assess the situation. Other more sophisticated, automated techniques are also available; we refer interested readers to the work by Eshete et al. (Eshete et al., 2016), which describes, in more depth, use cases of provenance for label-based intrusion detection techniques.

Example #2: Intrusion Detection. Recent work explores how to improve the efficacy of Intrusion Detection Systems (IDS) using provenance (Han et al., 2017)

. With this work as inspiration, we show how to implement anomaly detection using

CamQuery. Provenance-based intrusion detection is still a nascent field that has not yet been demonstrated to be robust against a realistic active adversary; we use it merely as a demonstration of CamQuery’s ability to allow for the construction of complex feature vectors.

Our proposed approach to provenance-based intrusion detection is based on unsupervised learning techniques. Our goal is to learn how the system normally behaves, build a model of such behaviour, and detect large deviations from the model. We generate provenance graphs from the executions of our system in a controlled environment under normal conditions. As in previous work

(Han et al., 2017; Han et al., 2018), we capture provenance data during multiple runs of a cloud application under a representative workload and build a model of normal behaviour.

Our example IDS uses a replicator neural network

(Hawkins et al., 2002)

(RNN, also known as an autoencoder) to detect anomalies in a graph. An RNN consists of an encoder and a decoder. The encoder performs compression of the feature vector. The decoder then reconstructs the input feature vector from the compressed vector. The objective of training is to minimise the distance between the input of the encoder and the output of the decoder. RNNs are often used for outlier detection, as they often have difficulty reconstructing feature vectors that diverge significantly from the training dataset. In our case, we leverage this behavior to detect abnormal structures in the provenance graph. Using

CamQuery, we construct a feature vector for every vertex, which is composed of the following three parts: 1) vertex attributes (e.g., vertex type, security context, UID, namespace, etc.); 2) changes of some attributes over time (e.g., UID, memory or CPU usage for processes, etc.); and 3) the structural identity (Ribeiro et al., 2017) of the vertex, which represents the graph structure surrounding the vertex.

Structural identity is a vectorisation of the graph neighborhood, which represents the context in which a vertex exists, and is critical for anomaly identification in outlier detection (Ienco et al., 2017) and intrusion detection (Chandola et al., 2009). We define a neighborhood as the of a vertex, because descendants are unknown when we generate feature vectors at runtime. The structural identity is built from ancestor in-degrees. For each vertex, we maintain a list, , of length . Let be the 0-based index of each element of this list. is the in-degree of the vertex itself and is an in-degree sequence, a list consisting of the in-degrees of the generation ancestors. Thus, a vertex with two parents, each of which has no ancestors, is associated with the following list: ; Fig. 6 shows a concrete example.

Following Ribeiro et al. (Ribeiro et al., 2017), we use Dynamic Time Warping (DTW), a technique for calculating the similarity between two temporal sequences (Berndt and Clifford, 1994), to calculate the distance between two in-degree sequences. We then populate the feature vector of a vertex with each of the DTW distances between a vertex and its ancestry. This set of distance is the structural identity of the vertex.

CamQuery propagates in-degree sequences along each path of a provenance graph. Using the out_edge function, each vertex passes its in-degree sequence to its descendants. A child vertex receives sequences from all of its parent vertices and updates its own sequences using the in_edge function. Algorithm 1 illustrates this. When the out_edge function runs, the vertex contains enough information to calculate its structural identity.

Vulnerability ID Detection rate False positive
MariaDB race condition exploit (Golunski, 2016a) 100% 0%
MySQL root privilege escalation (Golunski, 2016b) 50% 0%
Nagios core root privilege escalation (Golunski, 2016c) 90% 0%
Table 1. Preliminary results for our CamQuery IDS mecahnism.

Table 1 shows some preliminary results of the intrusion detection scheme. We generate training data by executing unexploited instances of each vulnerable application. We then test the IDS by running a collection of normal and abnormal application executions. While a full-fledged evaluation of our IDS mechanism is beyond the scope of this paper, we measure the computational cost of feature vector generation in § 6.

) path existence

;

) existence of a vertex on all paths between two vertices

AND ;

) absence of a vertex on all paths between two vertices

;

) path disjointedness

;

) constraints on properties and types in a path

, if = T then (), for a specified property P and type T.

Figure 7. CamQuery can be used to query a variety of information flow properties. Here, we denote a path from vertex to vertex as .

Example #3: Information Flow. CamQuery can execute single-pass algorithms that rely on value propagation along paths in the graph. For example, we implemented the simple primitives summarised in Figure 7. Each implementation required just a few dozen lines of C code. The data loss prevention scheme introduced in Example #1, for example, tests for path existence ().

Using these queries, CamQuery can aid in the enforcment or auditing of regulatory compliance. The Sarbanes-Oxley act (SOX) applies to publicly held US corporations. The intent of the law is to establish security controls and accountability of personnel to protect against data tampering to hide fraud. While the law itself does not specifically address computing systems, every major corporation today relies heavily on computers to process financial data and report to the Securities and Exchange Commission (SEC). Specifically, Sections 302 and 404 detail the required safeguards for data to ensure accuracy in financial reporting and required disclosures. To be SOX compliant, an organization must carefully consider and have policies for data creation, publishing, retention, access, distribution, and lifecycle.

We consider here just three of the cases mentioned above. The first control is data access (Section 302.4.B), which requires that companies have controls in place to track accesses to data and ensure that company officers are aware of all relevant data. The provenance records kept as forensic evidence ensure full compliance with the requirement to track data access. A report detailing all the data entities appearing in the captured provenance could inform company officers of the “relevant” data. Additionally, corporations could instantiate policies to detect accesses that do not comply with the act.

The second control we consider is data creation and the ability for a reporting officer to attest that the reported information is valid. This requires that data must not be tampered with before reports are created and filed with the SEC. We can write CamQuery policies that restrict data access to only those users and activities involved in report generation. There are multiple ways to express this, one of which would be to label activities that are known to be acceptable, then write policies that verify that all activities between data generation and the SEC filing are labelled as such. This is a query of type . An alternative is to label all unacceptable techniques, e.g., using a text editor on the data, and check that no such activities appear in the path between the data and SEC filing. This is a type of query.

Sarbanes-Oxley Title V deals with analyst conflicts of interest. It requires financial analysts to disclose conflicts of interest, ensuring that investors are not being misled by the biases of a financial analyst. These conflicts of interest can be avoided using separation of concerns policies (Brewer and Nash, 1989) that create information barriers preventing the exchange of information that would produce a conflict of interest. As a specific example, consider a financial analyst who is working with one company (Company A) as part of a hostile takeover of another company (Company B). Information concerning the takeover must not be transmitted to the brokerage department that could use the information to alter customer investments to increase profits for the financial company. This is a type of query.

Example #4: Graph Integrity. To ensure the integrity of our provenance graph, we implemented the directed acyclic graph signature scheme proposed by Aldeco-Pérez et al. (Aldeco-Pérez and Moreau, 2010). This technique is often cited in the literature as a solution to provenance integrity.

Figure 8. CamQuery can be used to assure integrity by generating a signed provenance graph.

The system generates a chain of hashes according to the graph structure, as shown in Fig. 8. The capture mechanism then signs these hashes. The analysis engine can re-calculate the hashes for a graph to verify that they correspond to the signed value. An advantage of this scheme is efficient verification, as it is not necessary to verify the entire graph to verify vertex .

We leverage a kernel keyring infrastructure for key management (we took inspiration from eCryptfs (Halcrow, 2005)) and the cryptographic API to perform related operations. The resulting solution is a heavyweight, in-kernel query in the evaluation in § 6. While it was easy to implement graph signing in CamQuery, unsurprisingly, creating signatures on every system call incurs significant overhead, even when the cryptographic algorithm itself is relatively lightweight. Our measurements suggest that the provenance graph signature scheme (Aldeco-Pérez and Moreau, 2010) is impractical at scale and inadequate when whole-system provenance capture is considered. It also serves as a cautionary tale: while it is easy to implement a variety of applications using CamQuery, not all such applications will exhibit acceptable performance. Creating provenance integrity schemes that are practical at scale is an important open problem beyond the scope of this paper.

6. Experimental Evaluation

Figure 9. Normalised overhead of queries (LPM capture overhead as reported in (Bates et al., 2015b) is given when available).

We evaluate both the in-kernel and local user-space implementations to determine how much overhead CamQuery introduces and how that overhead is split between provenance capture and query support.

We use workloads derived from those found in the whole-system provenance literature to provide meaningful points of comparison. We run the benchmarks on a bare metal Fedora 27 machine, with Linux kernel 4.14.15 and CamFlow 0.3.10 with an Intel i7-7700 2.8 GHz CPU and 32 GiB of RAM. Due to space constraints, we present only a subset of our results. Instructions on obtaining our code and reproducing all our results are available online (http://camflow.org) following recommendations by Collberg et al. (Collberg and Proebsting, 2016). Throughout the evaluation, we refer to the following setup:

vanilla: unmodified Linux 4.14.15 kernel;

capture: whole-system provenance capture;

nil: nil in-kernel query (in_edge and out_edge simply return zero);

lps: the loss prevention scheme in-kernel query described in § 5 Example #1;

sign: the provenance signature in-kernel query described in § 5 Example #4;

ids: the user-space query building feature vectors for the IDS described in § 5 Example #2.

6.1. In-kernel Queries

Test Type vanilla capture nil lps sign
Process tests, times in , smaller is better
stat 1.20 2.44 2.48 2.46 3.24
read 0.22 0.35 0.35 0.36 1.05
write 0.15 0.31 0.32 0.31 1.01
open/close file 2.04 3.21 3.24 3.28 4.00
fork+exit 87.6 85.5 86.6 85.7 89.8
fork+shell 862 860 866 855 861
Latencies in , smaller is better
pipe 3.47 3.92 4.05 3.88 4.91
UNIX socket 3.70 6.44 6.61 6.47 7.28
Table 2. LMbench measurements.

Micro-benchmark: We used LMbench (McVoy et al., 1996) to illustrate the impact of the provenance capture and query on system call performance. Table 2 and Fig. 9 present a subset of LMbench results. Our provenance capture overhead is comparable to that reported for other systems (Pohly et al., 2012; Bates et al., 2015b). This is as expected and provides a sanity check. More interesting is that the addition of online querying introduces relatively little overhead.

Indeed, execution time of a single system call is equal to , where is the execution time of the system call on a vanilla kernel. is the number of edges in the graph corresponding to the system call (e.g., a socket send event contains at least 2 edges, one from the process to the socket, and the other from the socket to the packet, and potentially edges corresponding to kernel object versions). is the number of vertices in the graph corresponding to the system call . is the cost of capture and is the cost of the query. The relative overhead is higher when is small, as C and Q are independent of the underlying system call execution time. The overhead of LPM (Bates et al., 2015b) (and of other previous provenance capture systems e.g., (Pohly et al., 2012; Muniswamy-Reddy et al., 2006)) is  where is the cost of capturing the event corresponding to , as LPM records system events rather than directly producing the graph structure (see § 4.1).

One of the advantages CamQuery provides over prior work is a drastic reduction in the time between an attack and its detection. Bates et al. (Bates et al., 2015b) reported that it took their system 21ms to evaluate the same policy and further noted that “these results are highly dependent on the size of the graph. [Their] test graph, while large [6.5 million vertices, and 6.8 million edges], would inevitably be dwarfed by the size of the provenance on long-lived systems” (Bates et al., 2015b). The authors suggested that the performance could be further improved by using deduplication (Xie et al., 2013) and pre-pruning techniques (Bates et al., 2015a; Pasquier et al., 2017a). However, they did not evaluate the performance impact of such improvements. They did, however, report that graph size can be reduced by up to 89% through pre-pruning techniques (Bates et al., 2015a; Bates et al., 2017). Even if we assume that the reduction produces a proportional improvement in query time, the resulting 2.31ms per query is several orders of magnitude larger than the overhead imposed by CamQuery for a similar application (lps in Table 2).

Figure 10. Benchmark results (unpack in green/top, build in red/middle and postmark in blue/bottom) as a function of the number of active queries (we run 0 to 200 concurrent lps queries). Note the difference in the axes for the different benchmarks.
Test Type vanilla capture nil lps sign PASS LPM
Execution time in seconds, smaller is better
unpack 14.98 15.48 (3%) 15.63 (4%) 15.76 (5%) 16.68 (11%) NA NA
build 402 411 (2%) 416 (3%) 417 (3%) 448 (11%) 15.6% 2.7%
4kB to 1MB file, 10 subdirectories,
4k5 simultaneous transactions, 1M5 transactions
postmark 127 145 (14%) 144 (13%) 146 (15%) 226 (78%) 11.5% 7.5%
Table 3. Macro-benchmark results. PASS (Muniswamy-Reddy et al., 2009) and LPM (Bates et al., 2015b) overhead as reported by the authors.

Macro-benchmark: We contextualise the significance of the overhead measured in the micro-benchmarks using the Phoronix test suite (Larabel and Tippett, [n. d.]). We select benchmarks commonly used in the system provenance literature. Consistent with the micro-benchmark results, the macro-benchmark results (Table 3) show that provenance capture introduces negligible overhead for the kernel build benchmark and up to 15% overhead for Postmark. For reference, we also include reported overheads for prior systems (PASS and LPM). As the Linux kernel versions (2.6.x for the two mentioned systems vs 4.14.15 for CamQuery) and the underlying hardware vary greatly across these evaluations, the results simply provide context and suggest that CamQuery exhibits capture overhead comparable to prior systems. The overhead is higher for benchmarks where the number of system calls per unit of time is larger, as the overhead is only incurred on interactions between a process and the system call interface.

Query stacking: The prior results show that a single query introduces acceptable overhead; next we assess the impact of an increasing number of queries executing concurrently. We run the macro-benchmarks from Table 3 with a varying number of active queries and show the results in Fig. 10. On the positive side, overhead increases linearly with the number of queries. On the negative side, the Postmark overhead is particularly high, because it is a system-intensive workload, and system calls trigger query evaluation. While build and unpack spend approximately 10% and 18% of their time, respectively, in the kernel, Postmark spends 85% of its time in the kernel, making 253,000 system calls per second (over twice the rate of the other benchmarks). It should be noted that production systems running hundreds of queries is unrealistic. Further, we plan to explore the possibility of merging a set of queries into a single module, with the goal of reducing the number of redundant operations. This is a non-trivial task left for future work.

Figure 11. Percentage of CPU usage per core (each colour represents one of the eight cores) used by the ids (top) and nil (bottom) queries during a kernel compilation.

6.2. User space queries

Test Type vanilla in-kernel overhead userspace overhead
(over capture) (over capture)
Execution time in seconds, smaller is better
unpack 14.98 15.76 5% 15.91 6%
build 402 417 4% 427 6%
4kB to 1MB file, 10 subdirectories,
4k5 simultaneous transactions, 1M5 transactions
postmark 127 146 15% 147 15%
Table 4. Overhead of the lps query when compiling the Linux kernel.

Next, we want to evaluate the performance impact of running queries in user space. We compare the overhead of the vanilla and lps in-kernel configurations from the previous section to that of the lps user space configuration, where the query is run as a systemd managed service running on the same machine as the workload, reading provenance from relayfs. Table 4 shows the results for the Linux kernel unpack and build benchmark and Postmark. Note that the user space overhead is only minimally larger than the in-kernel overhead.

We next investigate how user space queries impact system workload by running the nil query and the complex ids query. The ids

query generates feature vectors used by a machine learning algorithm to perform intrusion detection. We run the kernel

build benchmark as our system workload, as it generates a relatively large and complex graph (just over 25 million edges were processed by each query) when compared with the other two benchmarks. At regular intervals, we record the memory and per-core CPU consumption of the two queries.

Figure 12. Memory used by the ids (blue/square) and nil (red/triangle) queries during a kernel compilation.

In contrast to kernel queries, the user space query runs at regular intervals, processing all the newly arrived edges. Relayfs creates a ring buffer mapped to a pseudofile per CPU core to transmit data to the query service. The service runs one reader thread per core, reading the data from its relayfs file and populating the edge list and the vertex map. Another thread, the processing thread, sorts the edge list and performs the query at regular time intervals. As shown in Table 4, the core running the processing thread reaches about 9% utilisation for the ids query and 4% for the nil query, while the other cores, which are running reader threads, have a CPU utilisation between 0% and 2%. The user space query competes with other workloads on the system for CPU time, which may degrade application performance. The multi-coloured nature of the lines in Table 4 shows that the processing thread moves among the cores.

Fig. 12 illustrates the memory consumption for the same queries. The memory used by the user space query corresponds to the list of edges and vertices (which includes the propagated values). The memory usage stabilises, as vertices are garbage collected, to around 305 MB for the ids query and 125 MB for the nil query.

7. Challenges & discussion

CamQuery has limitations and raises interesting questions that go beyond the particular framework presented here.

Query Language: CamQuery uses a programmable graph processing framework to express policies, rather than the seemingly more user-friendly DSL approach. A DSL would undoubtedly need to be designed with a particular application in mind (e.g., compliance enforcement, access control, etc.) and it would be challenging to make it amenable to queries such as the intrusion detection feature vector computation. We believe that such languages are important but are part of individual applications rather than a general framework. We plan to explore the design and development of a DSL for the provenance-based access-control scenario. We note also that, concurrent to this study, Gao et al. introduced SAQL (Gao et al., 2018b) and AIQL (Gao et al., 2018a) which both introduce a domain-specific query language to aid in forensic investigation. They are implemented over data streams and persistent storages respectively. We plan to explore how a similar language could be expressed through our vertex-centric query API.

Distributed Systems: A challenge for CamQuery is the ability to reason about computations that occur in a distributed system. The user space implementation can be extended to support these systems with relative ease, but doing so eliminates the possibility of performing policy enforcement (see § 4.3). Supporting enforcement in a distributed system requires that the query be partitioned into per-machine segments combined into a kernel enforcement mechanism. This partitioning necessitates the ability for the system to validate that the other machines in the system will accurately enforce the policy, i.e., they are high-integrity and have the necessary enforcement mechanisms and provenance policies loaded. Once a machine validates the integrity and suitability of a system, it must generate a “proof” that the policy has been enforced.

The ability to perform policy enforcement would open up new opportunities for CamQuery in distributed settings, but also new challenges. For example, it enables CamQuery to function as the building block for a secure distributed taint propagation system with the potential to allow sophisticated logic using complex labels. To implement such a system, however, two important considerations must be taken into account, among others. First, we must ensure that CamQuery is: minimally invasive, fully integrated into the existing network stack; and is compatible with non-provenance-aware hosts, especially if we hope to insert arbitrarily complex taint information in network packets. Second, transmission must be authenticated and tamperproof to e.g., man-in-the-middle attack. The latter might be addressed by existing secure network protocols such as IPSec, but technical challenges remain.

Trust: The ability for a system to prove statements about its integrity and processing state is best suited to trusted computing, e.g., trusted hardware and remote attestation. In the above distributed system setting, there is a need for systems to generate “proofs” of their current state. These proofs need to account for several system characteristics, including 1) the current integrity state of the system (hardware, firmware, software, etc.); 2) the currently loaded policies and; 3) the current state of the data being processed. To prove the current integrity state of the system and the currently loaded policies, we can turn to techniques such as the Linux Integrity Measurement Architecture (IMA) (Sailer et al., 2004). IMA measures the load-time integrity of user space applications and files read by root. These measurements are stored in the Trusted Platform Module (TPM) to support remote attestation, i.e., generating an unforgeable proof of the measurements stored in the TPM. The TPM is an inexpensive trusted hardware component that provides a small amount of protected storage for measurements and cryptographic keys. These measurements can be signed by a key loaded into the TPM to support remote attestation, proving the current integrity state of the loaded system. IMA will measure the policies being loaded as an LKM as long as the policy loading is done by root since the default policy measures all files read by root. The remote attestation allows a remote verifier to determine the current state of the kernel and user-space applications. What is still needed are mechanisms that enable a remote verifier to validate that the currently loaded policies are correctly enforced.

Storage: The issue of storing provenance is orthogonal to the topic of this paper. However, we believe that the work presented here represents a paradigm shift in provenance systems. Whole-system provenance implementations have been faced with the issue of building a back-end that can ingest high throughput (Moyer and Gadepally, 2016), provide integrity and non-repudiability (Balakrishnan et al., 2017), and handle large volumes of data while providing low latency queries. Decoupling query performance from storage overhead introduces myriad new architectures for such systems.

False positives from flow tracking: A well-understood limitation of the proposed approach is the potential for false positives when information flows are inferred. For example, if a task reads from a file and writes to another, whole-system provenance capture systems conservatively assume that information was transferred, even though it is not necessarily always the case. Conservatively inferring information flow via shared memory is another major source of false positives. Similar issues also arise in most system-level information flow control or taint tracking systems. A potential solution to reduce the number of false inferences is to capture information flow within applications, using techniques such as bitcode transformation (Tariq et al., 2012), binary rewriting (Cheng et al., 2006; Lee et al., 2013a), or static analysis (Myers, 1999). Such techniques are related to provenance layering (Muniswamy-Reddy et al., 2009), the capture of internal application provenance alongside system level provenance to improve the accuracy of provenance records. While the capture of such provenance is a well-understood problem, its analysis and scalability remain relatively unexplored.

8. Related work

We place this work both in the context of prior work on whole-system provenance capture and more general information flow tracking approaches, as techniques such as Information Flow Control and Taint Tracking share many characteristics with provenance collection systems.

Provenance Systems. There have been several provenance capture mechanisms implemented in the Linux kernel (Muniswamy-Reddy et al., 2006; Pohly et al., 2012; Bates et al., 2015b; Ma et al., 2016). LPM (Bates et al., 2015b) uses provenance DAGs to enforce information flow constraints by querying graphs at sink points (e.g., at the network interface). The authors verify that paths from a source A to a sink B respect some well-defined properties expressed in the query. However, their approach requires performing database queries where query latency is a function of the graph size, which increases linearly over time. Therefore, it suffers from a lack of scalability, slowing down over time as provenance accumulates. CamQuery addresses this issue by executing queries at runtime over the provenance stream, introducing bounded overhead independent from the graph size as shown in § 6.

Provenance Reduction. Recently, the issue of provenance storage and query performance has received considerable attention in the literature. LogGC performs garbage collection on redundant events that have no forensic value (Lee et al., 2013b), while BEEP (Lee et al., 2013a) and MPI (Ma et al., 2017) improve post-mortem analysis by solving the problem of dependency explosion. PrioTracker (Liu et al., 2018) accelerates forensic queries by prioritising the traversal of rare events in large provenance graphs. These systems primarily exist at either the storage and query layer of the provenance stack; in tackling the issue of log reduction through taint tracking, ProTracer employs a similar approach to CamQuery by merging the capture and storage layers (Ma et al., 2016). While this work has led to dramatic improvement in the efficiency of provenance, CamQuery achieves the orthogonal but interrelated goal of improving provenance performance through deep integration of analysis routines with the underlying capture framework. An interesting avenue for future research would be considering how the above reduction techniques could be incorporated into the flattened provenance stack that CamQuery envisions.

Provenance Applications. Provenance has been leveraged in the service of a variety of security applications. Because provenance can be used to generate a model of known good executions of a system, recent work has considered using provenance data to perform anomaly detection (Han et al., 2017; Hassan et al., 2018). Han et al. (Han et al., 2017) use machine learning (ML) algorithms to detect outlier graph structures. Hassan et al. (Hassan et al., 2018) use a graph grammar to build deterministic finite state automata and verify that the graph can be parsed. Unlike the example shown in § 5, where we generate data as the graph is being produced, they accumulate provenance to generate “windows” that are then analysed. We have shown in § 5 that it was possible to generate feature vectors for the ML-based approach. It should also be possible to implement the graph parsing stage (i.e., detection stage) of Bates et al.’s work using the CamQuery framework.

Park et al. (Park et al., 2012) formalise the notion of provenance-based access control (PBAC) systems along three dimensions: 1) the type of data used to make decisions (observed vs. disclosed provenance (Braun et al., 2006)); 2) object dependencies (information flow between objects) vs. user dependencies (information flow between users); and 3) whether policies are available to the system or learnt through the traversal of provenance graphs; CamQuery, like most PBAC systems in the literature ( (Bates et al., 2013b; Sze and Sekar, 2015)), uses observed provenance, although it could be augmented by disclosed provenance. Layering of provenance systems (Muniswamy-Reddy et al., 2009) could enable such a capability, although we are not aware of any layered PBAC enforcement model. We plan to explore this approach in future work, with both application level (Muniswamy-Reddy et al., 2009) and network level provenance (Zhou et al., 2011).

Information Flow Control Systems. Previous work on information flow control enforcement at the OS level, such as HiStar (Zeldovich et al., 2006), Flume (Krohn et al., 2007), and Weir (Nadkarni et al., 2016), uses labels to define security and integrity contexts that constrain information flows between kernel objects. Labels map to kernel objects, and a process requires decentralised management capabilities to modify its labels. Point-to-point access control decisions are made to evaluate the validity of an information flow. Through transitivity, it is possible to express constraints on a workflow (e.g., collected user information can only be shared with third parties as an aggregate). SELinux (Smalley et al., 2001) provides a similar information flow control mechanism but without decentralised management. A typical way of representing and thinking about information flow in a system is through a directed graph. However, current object labelling abstractions do not take advantage of this representation, and it is difficult to reason about when defining policies. CamQuery differs from these systems in that it allows the implementation of such mechanisms directly on the graph abstraction.

Taint Tracking Systems. Techniques such as “colouring” (Hwang and Li, 2010) or tainting (Muthukumaran et al., 2015) of data and resources have been proposed as a means to detect data misuse. TaintDroid (Enck et al., 2014) implements such an approach in the Android OS to detect applications disclosing personal information to an unexpected third party (e.g., disclosing the owner’s contact list to advertisers). CamQuery can be used to achieve similar results as taint tracking systems but provides more control through its expressive query mechanism on how taints are propagated within the system. Furthermore, the provenance records, kept as forensic evidence, provide a rich resource that can be mined to identify, understand, and explain the source of a disclosure.

Security Monitoring. In today’s enterprise environments, security incidents occur when a primary indicator of compromise is triggered from security monitoring software such as an anti-virus detection alert or a blacklisted URL in the organisation’s network logs (Lyle et al., 2010). In current security products, such indicators report only limited context as to the circumstances under which the alert occurred, e.g., process ID or packet header information, but do not report the historical chain of events that led to the suspicious activity. Past work has attempted to compensate for this lack of lineage through the fusion (Bass, 2000; Gu et al., 2008) or correlation (Sadighian et al., [n. d.]; Valeur et al., 2004; Yen et al., 2013; Zaharia et al., 2012) of multiple indicators of the compromise. However, it does not address the fundamental limitation that security monitoring tools lack the ability to reason over the entire context of a system execution. Thus, attack reconstruction has typically been relegated to (offline) forensic analysis (King and Chen, 2003; Ma et al., 2015; Lee et al., 2013b; Ma et al., 2017; Ma et al., 2016; Porras et al., 2002; Jiang et al., 2006; Zhao et al., 2014; Zhao et al., 2016). In contrast, CamQuery provides a mechanism to build runtime security monitoring based on the entire history of system execution, thus representing a significant step forward compared to the state-of-the-art.

9. Conclusion

More than a decade ago, PASS (Muniswamy-Reddy et al., 2006) represented a paradigm shift in how we think about provenance capture, moving from application-specific capture, to a system-wide holistic mechanism. In this paper, CamQuery rethinks how we envision provenance applications, severing the always-present, implicit link to database back-ends. We make the distinction between runtime detection applications which should be built above live streams of provenance data to identify policy violations or anomalies, and forensic applications that run post-mortem, leveraging database support to provide explanations. By drastically rethinking the conventional provenance architecture, we are able to reduce the time between an event (such as an attack, data leakage, non-compliance with regulation, etc.) and its detection, by several orders of magnitude, while simultaneously storing the data for post-mortem forensic investigation. We continue to actively develop CamFlow and CamQuery as we investigate provenance applications. The work is entirely open-source and we invite others to build upon it.

Availability

The work presented in this paper is open-source and available for download at http://camflow.org/ under a GPL v2 license.

Acknowledgments

This work was supported by the US National Science Foundation under grants SSI-1450277 End-to-End Provenance, CNS-1750024 CAREER and CNS-1657534 Transparent Capture and Aggregation of Secure Data Provenance for Smart Devices. Early versions of CamFlow open source software were supported by UK Engineering and Physical Sciences Research Council grant EP/K011510 CloudSafetyNet.

References

  • (1)
  • flu (oday) Accessed August 24, 2019. Apache Flume. https://flume.apache.org/.
  • kaf (oday) Accessed August 24, 2019. Apache Kafka. https://kafka.apache.org/.
  • cam (odaya) Accessed August 24, 2019a. CamFlow. http://camflow.org/.
  • cam (odayb) Accessed August 24, 2019b. CamFlow automated reports. https://github.com/CamFlow/camflow-dev/tree/master/docs.
  • tho (oday) Accessed August 24, 2019. CamFlow information flow patch. https://github.com/CamFlow/information-flow-patch.
  • cam (odayc) Accessed August 24, 2019c. CamFlow relations list. https://github.com/CamFlow/camflow-dev/blob/master/docs/RELATIONS.md.
  • cam (odayd) Accessed August 24, 2019d. CamFlow vertices list. https://github.com/CamFlow/camflow-dev/blob/master/docs/VERTICES.md.
  • Aldeco-Perez and Moreau (2009) Rocio Aldeco-Perez and Luc Moreau. 2009. Information Accountability supported by a Provenance-based Compliance Framework. (December 2009). http://eprints.soton.ac.uk/268305/ Event Dates: Monday 7th – Wednesday 9th December 2009.
  • Aldeco-Pérez and Moreau (2010) Rocío Aldeco-Pérez and Luc Moreau. 2010. Securing provenance-based audits. In International Provenance and Annotation Workshop. Springer, 148–164.
  • Anderson (1972a) J. P. Anderson. 1972a. Computer Security Technology Planning Study. Technical Report ESD-TR-73-51. ESD/AFSC, Hanscom AFB, Bedford, MA.
  • Anderson (1972b) James P Anderson. 1972b. Computer Security Technology Planning Study. Volume 2. Technical Report. Anderson (James P) and Co Fort Washington PA.
  • Balakrishnan et al. (2017) Nikilesh Balakrishnan, Lucian Carata, Thomas Bytheway, Ripduman Sohan, and Andy Hopper. 2017. Non-repudiable disk I/O in untrusted kernels. In Asia-Pacific Workshop on Systems. 24:1–24:6.
  • Bass (2000) Tim Bass. 2000. Intrusion Detection Systems and Multisensor Data Fusion. Commun. ACM 43, 4 (2000), 99–105.
  • Bates et al. (2015a) Adam Bates, KR Butler, and Thomas Moyer. 2015a. Take only what you need: leveraging mandatory access control policy to reduce provenance storage costs. In Workshop on Theory and Practice of Provenance (TaPP’15). USENIX, 7–7.
  • Bates et al. (2013a) Adam Bates, Ben Mood, Masoud Valafar, and Kevin Butler. 2013a. Towards Secure Provenance-based Access Control in Cloud Environments. In Proceedings of the Third ACM Conference on Data and Application Security and Privacy (CODASPY ’13). ACM, New York, NY, USA, 277–284. https://doi.org/10.1145/2435349.2435389
  • Bates et al. (2013b) Adam Bates, Ben Mood, Masoud Valafar, and Kevin Butler. 2013b. Towards secure provenance-based access control in cloud environments. In Conference on Data and Application Security and Privacy. ACM, 277–284.
  • Bates et al. (2017) Adam Bates, Dave Jing Tian, Grant Hernandez, Thomas Moyer, Kevin RB Butler, and Trent Jaeger. 2017. Taming the Costs of Trustworthy Provenance through Policy Reduction. Transactions on Internet Technology 17, 4 (2017), 34.
  • Bates et al. (2015b) Adam M Bates, Dave Tian, Kevin RB Butler, and Thomas Moyer. 2015b. Trustworthy Whole-System Provenance for the Linux Kernel. In USENIX Security. 319–334.
  • Belhajjame et al. (2013) Khalid Belhajjame, Reza B’Far, James Cheney, Sam Coppens, Stephen Cresswell, Yolanda Gil, Paul Groth, Graham Klyne, Timothy Lebo, Jim McCusker, Simon Miles, James Myers, Satya Sahoo, Luc Moreau, and Paolo et al. Missier. 2013. Prov-DM: The PROV Data Model. Technical Report. World Wide Web Consortium (W3C). https://www.w3.org/TR/prov-dm/.
  • Berndt and Clifford (1994) Donald J Berndt and James Clifford. 1994. Using dynamic time warping to find patterns in time series. In KDD workshop, Vol. 10. Seattle, WA, 359–370.
  • Braun et al. (2006) Uri Braun, Simson Garfinkel, David A Holland, Kiran-Kumar Muniswamy-Reddy, and Margo I Seltzer. 2006. Issues in automatic provenance collection. In Provenance and annotation of data. Springer, 171–183.
  • Brewer and Nash (1989) David FC Brewer and Michael J Nash. 1989. The Chinese Wall security policy. In Symposium on Security and Privacy. IEEE, 206–214.
  • Chan et al. (2017) Sheung Chi Chan, Ashish Gehani, James Cheney, Ripduman Sohan, and Hassaan Irshad. 2017. Expressiveness Benchmarking for System-Level Provenance. In Workshop on the Theory and Practice of Provenance (TaPP’17). USENIX.
  • Chandola et al. (2009) Varun Chandola, Arindam Banerjee, and Vipin Kumar. 2009. Anomaly detection: A survey. ACM computing surveys (CSUR) 41, 3 (2009), 15.
  • Cheng et al. (2006) Winnie Cheng, Qin Zhao, Bei Yu, and Scott Hiroshige. 2006. Tainttrace: Efficient flow tracing with dynamic binary rewriting. In Computers and Communications, 2006. ISCC’06. Proceedings. 11th IEEE Symposium on. IEEE, 749–754.
  • Collberg and Proebsting (2016) Christian Collberg and Todd A Proebsting. 2016. Repeatability in computer systems research. Commun. ACM 59, 3 (2016), 62–69.
  • Edwards et al. (2002) Antony Edwards, Trent Jaeger, and Xiaolan Zhang. 2002. Runtime verification of authorization hook placement for the Linux security modules framework. In Conference on Computer and Communications Security (CCS’02). ACM, 225–234.
  • Emerson and Halpern (1982) E Allen Emerson and Joseph Y Halpern. 1982. Decision procedures and expressiveness in the temporal logic of branching time. In

    Symposium on Theory of Computing

    . ACM, 169–180.
  • Enck et al. (2014) William Enck, Peter Gilbert, Seungyeop Han, Vasant Tendulkar, Byung-Gon Chun, Landon P Cox, Jaeyeon Jung, Patrick McDaniel, and Anmol N Sheth. 2014. TaintDroid: an information-flow tracking system for realtime privacy monitoring on smartphones. ACM Transactions on Computer Systems (TOCS) 32, 2 (2014), 5.
  • Eshete et al. (2016) Birhanu Eshete, Rigel Gjomemo, Md Nahid Hossain, Sadegh Momeni, R Sekar, Scott Stoller, VN Venkatakrishnan, and Junao Wang. 2016. Attack Analysis Results for Adversarial Engagement 1 of the DARPA Transparent Computing Program. arXiv preprint arXiv:1610.06936 (2016).
  • Ganapathy et al. (2005) Vinod Ganapathy, Trent Jaeger, and Somesh Jha. 2005. Automatic placement of authorization hooks in the Linux security modules framework. In Conference on Computer and Communications Security (CCS’05). ACM, 330–339.
  • Gao et al. (2018b) Peng Gao, Xusheng Xiao, Din Li, Zhichun Li, Kangkook Jee, Zhenyu Wu, Chung Whan Kim, Sanjeev R. Kulkarni, and Prateek Mittal. 2018b. SAQL: A Stream-based Query System for Real-Time Abnormal System Behavior Detection. In Proceedings of the 27th USENIX Security Symposium (Security’18). Baltimore, MD, USA.
  • Gao et al. (2018a) Peng Gao, Xusheng Xiao, Zhichun Li, Kangkook Jee, Fengyuan Xu, Sanjeev R Kulkarni, and Prateek Mittal. 2018a. AIQL: Enabling Efficient Attack Investigation from System Monitoring Data. USENIX Annual Technical Conference (ATC’18) (2018).
  • Gehani and Tariq (2012) Ashish Gehani and Dawood Tariq. 2012. SPADE: support for provenance auditing in distributed environments. In International Middleware Conference. ACM/IFIP/USENIX, 101–120.
  • Georget et al. (2017a) Laurent Georget, Mathieu Jaume, Guillaume Piolle, Frédéric Tronel, and Valérie Viet Triem Tong. 2017a. Information Flow Tracking for Linux Handling Concurrent System Calls and Shared Memory. In International Conference on Software Engineering and Formal Methods. Springer, 1–16.
  • Georget et al. (2017b) Laurent Georget, Mathieu Jaume, Frédéric Tronel, Guillaume Piolle, and Valérie Viet Triem Tong. 2017b. Verifying the reliability of operating system-level information flow control systems in Linux. In International Workshop on Formal Methods in Software Engineering (FormaliSE’17). IEEE/ACM, 10–16.
  • Golunski (2016a) Dawid Golunski. 2016a. CVE-2016-6663: MySQL / MariaDB / PerconaDB 5.5.x/5.6.x/5.7.x - ’mysql’ System User Privilege Escalation / Race Condition. https://www.exploit-db.com/exploits/40678/.
  • Golunski (2016b) Dawid Golunski. 2016b. CVE-2016-6664: MySQL / MariaDB / PerconaDB 5.5.x/5.6.x/5.7.x - ’root’ System User Privilege Escalation. https://www.exploit-db.com/exploits/40679/.
  • Golunski (2016c) Dawid Golunski. 2016c. CVE-2016-9566: Nagios ¡ 4.2.4 - Privilege Escalation. https://www.exploit-db.com/exploits/40921/.
  • Gonzalez et al. (2014) Joseph E Gonzalez, Reynold S Xin, Ankur Dave, Daniel Crankshaw, Michael J Franklin, and Ion Stoica. 2014. GraphX: Graph Processing in a Distributed Dataflow Framework. In Conference on Operating Systems Design and Implementation (OSDI’14), Vol. 14. 599–613.
  • Gu et al. (2008) Guofei Gu, Alvaro A. Cárdenas, and Wenke Lee. 2008. Principled Reasoning and Practical Applications of Alert Fusion in Intrusion Detection Systems. In Symposium on Information, Computer and Communications Security (ASIACCS’17). ACM, 136–147.
  • Halcrow (2005) Michael Austin Halcrow. 2005. eCryptfs: An enterprise-class encrypted filesystem for Linux. In Proceedings of the 2005 Linux Symposium, Vol. 1. 201–218.
  • Han et al. (2017) Xueyuan Han, Thomas Pasquier, Tanvi Ranjan, Mark Goldstein, and Margo Seltzer. 2017. FRAPpuccino: Fault-detection through Runtime Analysis of Provenance. In Workshop on Hot Topics in Cloud Computing (HotCloud’17). USENIX.
  • Han et al. (2018) Xueyuan Han, Thomas Pasquier, and Margo Seltzer. 2018. Provenance-based Intrusion Detection: Opportunities and Challenges. In Workshop on Theory and Practice of Provenance (TaPP’18). ACM.
  • Hasan et al. (2009) Ragib Hasan, Radu Sion, and Marianne Winslett. 2009. The Case of the Fake Picasso: Preventing History Forgery with Secure Provenance. In Conference on File and Storage Technologies (FAST 09). USENIX.
  • Hassan et al. (2018) Wajih Ul Hassan, Mark Lemay, Nuraini Aguse, Adam Bates, and Thomas Moyer. 2018. Towards Scalable Cluster Auditing through Grammatical Inference over Provenance Graphs. In Network and Distributed Systems Security Symposium. Internet Society.
  • Hawkins et al. (2002) Simon Hawkins, Hongxing He, Graham Williams, and Rohan Baxter. 2002. Outlier detection using replicator neural networks. In International Conference on Data Warehousing and Knowledge Discovery. Springer, 170–180.
  • Hwang and Li (2010) Kai Hwang and Deyi Li. 2010. Trusted cloud computing with secure resources and data coloring. Internet Computing, IEEE 14, 5 (2010), 14–22.
  • Ienco et al. (2017) Dino Ienco, Ruggero G Pensa, and Rosa Meo. 2017. A semisupervised approach to the detection and characterization of outliers in categorical data. IEEE Transactions on Neural Networks and Learning Systems 28, 5 (2017), 1017–1029.
  • Interlandi et al. (2015) Matteo Interlandi, Kshitij Shah, Sai Deep Tetali, Muhammad Ali Gulzar, Seunghyun Yoo, Miryung Kim, Todd Millstein, and Tyson Condie. 2015. Titian: Data provenance support in Spark. Proceedings of the VLDB Endowment 9, 3 (2015), 216–227.
  • Jaeger et al. (2004) Trent Jaeger, Antony Edwards, and Xiaolan Zhang. 2004. Consistency analysis of authorization hook placement in the Linux security modules framework. ACM Transactions on Information and System Security (TISSEC) 7, 2 (2004), 175–205.
  • Jiang et al. (2006) Xuxian Jiang, A. Walters, Dongyan Xu, E.H. Spafford, F. Buchholz, and Yi-Min Wang. 2006. Provenance-Aware Tracing of Worm Break-in and Contaminations: A Process Coloring Approach. In International Conference on Distributed Computing Systems (ICDCS’06). IEEE, 38–38.
  • King and Chen (2003) Samuel T King and Peter M Chen. 2003. Backtracking intrusions. ACM SIGOPS Operating Systems Review 37, 5 (2003), 223–236.
  • Ko et al. (2011) Ryan KL Ko, Markus Kirchberg, and Bu Sung Lee. 2011. From system-centric to data-centric logging-accountability, trust & security in cloud computing. In Defense Science Research Conference and Expo (DSR), 2011. IEEE, 1–4.
  • Krohn et al. (2007) Maxwell Krohn, Alexander Yip, Micah Brodsky, Natan Cliffer, M Frans Kaashoek, Eddie Kohler, and Robert Morris. 2007. Information flow control for standard OS abstractions. In ACM SIGOPS Operating Systems Review, Vol. 41. ACM, 321–334.
  • Kurtz (2010) George Kurtz. 2010. Operation Aurora Hit Google, Others. Available at http://securityinnovator.com/index.php?articleID=42948&sectionID=25.
  • Kyrola et al. (2012) Aapo Kyrola, Guy E Blelloch, Carlos Guestrin, et al. 2012. GraphChi: Large-Scale Graph Computation on Just a PC. In Conference on Operating Systems Design and Implementation (OSDI’12), Vol. 12. 31–46.
  • Larabel and Tippett ([n. d.]) Michael Larabel and Matthew Tippett. [n. d.]. Phoronix test suite. http://www.phoronix-test-suite.com.
  • Lee et al. (2013a) Kyu Hyung Lee, Xiangyu Zhang, and Dongyan Xu. 2013a. High Accuracy Attack Provenance via Binary-based Execution Partition. In Proceedings of NDSS ’13.
  • Lee et al. (2013b) Kyu Hyung Lee, Xiangyu Zhang, and Dongyan Xu. 2013b. LogGC: Garbage Collecting Audit Log. In Conference on Computer and Communications Security (CCS’13). ACM, 1005–1016.
  • Liu et al. (2018) Yushan Liu, Mu Zhang, Ding Li, Kangkook Jee, Zhichun Li, Zhenyu Wu, Junghwan Rhee, and Prateek Mittal. 2018. Towards a Timely Causality Analysisfor Enterprise Security. In Proceedings of the 25th ISOC Network and Distributed System Security Symposium (NDSS’18). San Diego, CA, USA.
  • Lyle et al. (2010) John Lyle, Andrew P Martin, et al. 2010. Trusted Computing and Provenance: Better Together. In Workshop on Theory and Practice of Provenance (TaPP’10). USENIX.
  • Ma et al. (2015) Shiqing Ma, Kyu Hyung Lee, Chung Hwan Kim, Junghwan Rhee, Xiangyu Zhang, and Dongyan Xu. 2015. Accurate, Low Cost and Instrumentation-Free Security Audit Logging for Windows. In Annual Computer Security Applications Conference. ACM, 401–410.
  • Ma et al. (2017) Shiqing Ma, Juan Zhai, Fei Wang, Kyu Hyung Lee, Xiangyu Zhang, and Dongyan Xu. 2017. MPI: Multiple Perspective Attack Investigation with Semantic Aware Execution Partitioning. In USENIX Security Symposium.
  • Ma et al. (2016) Shiqing Ma, Xiangyu Zhang, and Dongyan Xu. 2016. ProTracer: Towards Practical Provenance Tracing by Alternating Between Logging and Tainting. In Network and Distributed System Security Symposium (NDSS’16). Internet Society.
  • Mace et al. (2015) Jonathan Mace, Ryan Roelke, and Rodrigo Fonseca. 2015. Pivot tracing: Dynamic causal monitoring for distributed systems. In Symposium on Operating Systems Principles (SOSP’15). ACM, 378–393.
  • McVoy et al. (1996) Larry W McVoy, Carl Staelin, et al. 1996. lmbench: Portable Tools for Performance Analysis. In USENIX Annual Technical Conference (ATC’96). 279–294.
  • Moreau and Ali (2014) Luc Moreau and Mufajjul Ali. 2014. A provenance-based policy control framework for cloud services. (May 2014). http://eprints.soton.ac.uk/364997/
  • Morris et al. (2002) James Morris, Stephen Smalley, and Greg Kroah-Hartman. 2002. Linux security modules: General security support for the Linux kernel. In USENIX Security Symposium.
  • Moyer and Gadepally (2016) Thomas Moyer and Vijay Gadepally. 2016. High-throughput ingest of data provenance records into Accumulo. In High Performance Extreme Computing Conference (HPEC’16). IEEE, 1–6.
  • Muniswamy-Reddy et al. (2009) Kiran-Kumar Muniswamy-Reddy, Uri Braun, David A Holland, Peter Macko, Diana L MacLean, Daniel W Margo, Margo I Seltzer, and Robin Smogor. 2009. Layering in Provenance Systems. In USENIX Annual Technical Conference (ATC’09).
  • Muniswamy-Reddy et al. (2006) Kiran-Kumar Muniswamy-Reddy, David A Holland, Uri Braun, and Margo I Seltzer. 2006. Provenance-aware storage systems. In USENIX Annual Technical Conference (ATC’06). 43–56.
  • Muthukumaran et al. (2015) Divya Muthukumaran, Dan O’Keeffe, Christian Priebe, David Eyers, Brian Shand, and Peter Pietzuch. 2015. FlowWatcher: Defending against Data Disclosure Vulnerabilities in Web Applications. In Conference on Computer and Communications Security (CCS’15). ACM, 603–615.
  • Myers (1999) Andrew C Myers. 1999. JFlow: Practical mostly-static information flow control. In Proceedings of the 26th ACM SIGPLAN-SIGACT symposium on Principles of programming languages. ACM, 228–241.
  • Nadkarni et al. (2016) Adwait Nadkarni, Benjamin Andow, William Enck, and Somesh Jha. 2016. Practical DIFC enforcement on Android. In USENIX Security Symposium. 1119–1136.
  • Nguyen et al. (2013) Dang Nguyen, Jaehong Park, and Ravi Sandhu. 2013. A provenance-based access control model for dynamic separation of duties. In International Conference on Privacy, Security and Trust (PST’13). IEEE, 247–256.
  • Park et al. (2012) Jaehong Park, Dang Nguyen, and Ravi Sandhu. 2012. A provenance-based access control model. In International Conference on Privacy, Security and Trust (PST’13). IEEE, 137–144.
  • Pasquier and Eyers (2016) Thomas Pasquier and David Eyers. 2016. Information Flow Audit for Transparency and Compliance in the Handling of Personal Data. In Workshop on Legal and Technical Issues in Cloud Computing and the Internet of Things (CLAW’16). IEEE.
  • Pasquier et al. (2017a) Thomas Pasquier, Xueyuan Han, Mark Goldstein, Thomas Moyer, David Eyers, Margo Seltzer, and Jean Bacon. 2017a. Practical Whole-System Provenance Capture. In Symposium on Cloud Computing (SoCC’17). ACM, ACM.
  • Pasquier et al. (2015) Thomas Pasquier, Jatinder Singh, David Eyers, and Jean Bacon. 2015. CamFlow: Managed Data-Sharing for Cloud Services. IEEE Transactions on Cloud Computing (2015).
  • Pasquier et al. (2017b) Thomas Pasquier, Jatinder Singh, Julia Powles, David Eyers, Margo Seltzer, and Jean Bacon. 2017b. Data provenance to audit compliance with privacy policy in the Internet of Things. Springer Personal and Ubiquitous Computing (2017).
  • Pohly et al. (2012) Devin J Pohly, Stephen McLaughlin, Patrick McDaniel, and Kevin Butler. 2012. Hi-Fi: collecting high-fidelity whole-system provenance. In Annual Computer Security Applications Conference. ACM, 259–268.
  • Porras et al. (2002) Phillip A. Porras, Martin W. Fong, and Alfonso Valdes. 2002. A Mission-Impact-Based Approach to INFOSEC Alarm Correlation. In International Symposium on Recent Advances in Intrusion Detection. Springer, 95–114.
  • Ribeiro et al. (2017) Leonardo FR Ribeiro, Pedro HP Saverese, and Daniel R Figueiredo. 2017. struc2vec: Learning Node Representations from Structural Identity. In International Conference on Knowledge Discovery and Data Mining. ACM, 385–394.
  • Roy et al. (2009) Indrajit Roy, Donald E Porter, Michael D Bond, Kathryn S McKinley, and Emmett Witchel. 2009. Laminar: Practical fine-grained decentralized information flow control. In Conference on Programming Language Design and Implementation, Vol. 44. ACM.
  • Sadighian et al. ([n. d.]) Alireza Sadighian, José M. Fernandez, Antoine Lemay, and Saman T Zargar. [n. d.]. ONTIDS: A Highly Flexible Context-Aware and Ontology-Based Alert Correlation Framework. In International Symposium on Foundations and Practice of Security. Springer, 161–177.
  • Sailer et al. (2004) Reiner Sailer, Xiaolan Zhang, Trent Jaeger, and Leendert Van Doorn. 2004. Design and Implementation of a TCG-based Integrity Measurement Architecture. In USENIX Security Symposium, Vol. 13. 223–238.
  • Smalley et al. (2001) Stephen Smalley, Chris Vance, and Wayne Salamon. 2001. Implementing SELinux as a Linux security module. NAI Labs Report 1, 43 (2001), 139.
  • Sze and Sekar (2015) Wai Kit Sze and R Sekar. 2015. Provenance-based Integrity Protection for Windows. In Annual Computer Security Applications Conference. ACM, 211–220.
  • Tariq et al. (2012) Dawood Tariq, Maisem Ali, and Ashish Gehani. 2012. Towards Automated Collection of Application-Level Data Provenance.. In Workshop on Theory and Practice of Provenance (TaPP’12).
  • Valeur et al. (2004) F. Valeur, G. Vigna, C. Kruegel, and R. A. Kemmerer. 2004. Comprehensive approach to intrusion detection alert correlation. IEEE Transactions on Dependable and Secure Computing 1, 3 (2004), 146–169.
  • Wang et al. (2017) Frank Wang, Yuna Joung, and James Mickens. 2017. Cobweb: Practical Remote Attestation Using Contextual Graphs. In Workshop on System Software for Trusted Execution (SysTEX’17). ACM.
  • Xie et al. (2013) Yulai Xie, Kiran-Kumar Muniswamy-Reddy, Dan Feng, Yan Li, and Darrell DE Long. 2013. Evaluation of a hybrid approach for efficient provenance storage. ACM Transactions on Storage (TOS) 9, 4 (2013), 14.
  • Xu et al. (2009) Wei Xu, Ling Huang, Armando Fox, David Patterson, and Michael I Jordan. 2009. Detecting large-scale system problems by mining console logs. In Symposium on Operating Systems Principles (SOSP’09). ACM, 117–132.
  • Yen et al. (2013) Ting-Fang Yen, Alina Oprea, Kaan Onarlioglu, Todd Leetham, William Robertson, Ari Juels, and Engin Kirda. 2013. Beehive: Large-scale Log Analysis for Detecting Suspicious Activity in Enterprise Networks. In Annual Computer Security Applications Conference. ACM, 199–208.
  • Yuan et al. (2012) Ding Yuan, Jing Zheng, Soyeon Park, Yuanyuan Zhou, and Stefan Savage. 2012. Improving software diagnosability via log enhancement. ACM Transactions on Computer Systems (TOCS) 30, 1 (2012), 4.
  • Zaharia et al. (2012) Matei Zaharia, Mosharaf Chowdhury, Tathagata Das, Ankur Dave, Justin Ma, Murphy McCauley, Michael J. Franklin, Scott Shenker, and Ion Stoica. 2012. Resilient Distributed Datasets: A Fault-tolerant Abstraction for In-memory Cluster Computing. In Conference on Networked Systems Design and Implementation (NSDI’12). USENIX.
  • Zeldovich et al. (2006) Nickolai Zeldovich, Silas Boyd-Wickizer, Eddie Kohler, and David Mazières. 2006. Making information flow explicit in HiStar. In Symposium on Operating Systems Design and Implementation (OSDI’06). USENIX Association, 263–278.
  • Zhang et al. (2002) Xiaolan Zhang, Antony Edwards, and Trent Jaeger. 2002. Using CQUAL for Static Analysis of Authorization Hook Placement. In Proceedings of the 11th USENIX Security Symposium.
  • Zhao et al. (2016) Xu Zhao, Kirk Rodrigues, Yu Luo, Ding Yuan, and Michael Stumm. 2016. Non-Intrusive Performance Profiling for Entire Software Stacks Based on the Flow Reconstruction Principle. In Symposium on Operating Systems Design and Implementation (OSDI’16). USENIX, 603–618.
  • Zhao et al. (2014) Xu Zhao, Yongle Zhang, David Lion, Muhammad Faizan Ullah, Yu Luo, Ding Yuan, and Michael Stumm. 2014. Lprof: A Non-intrusive Request Flow Profiler for Distributed Systems. In Conference on Operating Systems Design and Implementation (OSDI’14). USENIX, Berkeley, CA, USA, 629–644.
  • Zhou et al. (2011) Wenchao Zhou, Qiong Fei, Arjun Narayan, Andreas Haeberlen, Boon Thau Loo, and Micah Sherr. 2011. Secure network provenance. In Symposium on Operating Systems Principles (SOSP’11). ACM, 295–310.
