1 Introduction
Reinforcement Learning (RL) [Sutton and Barto1998]
is a significant subfield of Machine Learning and Artificial Intelligence along with the supervised and unsupervised subfields with numerous applications ranging from trading to robotics and medicine. It has already achieved high levels of performance on Atari games
[Mnih et al.2015], board games [Silver et al.2016] and 3D navigation tasks [Mnih et al.2016, Jaderberg et al.2016].All of above tasks have one feature in common  there is always some welldefined reward function, for example, game score, which can be optimized to produce the required behaviour. Nevertheless, there are are many other tasks and environments, for which it is still unclear what is the “correct” reward function to optimize. And it is even a harder problem, when we talk about continuous control tasks, such as physicsbased environments [Todorov, Erez, and Tassa2012] and robotics [Gu et al.2017].
Yet, recently a substantial interest is directed to research employing physicsbased based environment. These environments are significantly more interesting, challenging and realistic than the well defined games; at the same time they are still simpler than real conditions with physical agents, while being cheap and more accessible. One of the interesting researches is the work of schulman2015high where a simulated robot learned to run and get up off the ground [Schulman et al.2015b]. Another paper is by heess2017emergence where the authors trained several simulated bodies on a diverse set of challenging terrains and obstacles, using a simple reward function based on forward progress [Heess et al.2017].
To solve the problem of continuous control in simulation environments it has become generally accepted to adapt the reward signal for specific environment. Still it can lead to unexpected results when the reward function is modified even slightly, and for more advanced behaviors the appropriate reward function is often nonobvious. To address this problem, the community came up with several environmentindependent approaches such as unsupervised auxiliary tasks [Jaderberg et al.2016] and unsupervised exploration rewards [Pathak et al.2017]. All these suggestions are trying to solve the main challenge of reinforcement learning: how an agent can learn for itself, directly from a limited reward signal, to achieve best performance.
Besides the difficulty in defining the reward function, physically realistic environments usually have a lot of stochasticity, are computationally very expensive, and have highdimensional action spaces. To support learning in such settings it is necessary to have a reliable, scalable and sampleefficient reinforcement learning algorithm. In this paper we evaluate several existing approaches and then improve upon the best performing approach for a physical simulator setting. We present the approach that we have used to solve the “Learning to run” – NIPS 2017 competition challenge^{1}^{1}1https://www.crowdai.org/challenges/nips2017learningtorun with an objective to learn to control a physiologicallybased human model and make it run as quickly as possible. The model that we present here has won the third place at the challenge: https://www.crowdai.org/challenges/nips2017learningtorun/leaderboards.
This paper proceeds as follows: first we review the basics of reinforcement learning, then we describe environment used in challenge and models used in our experiment, after that we present results of our experiments and finally we discuss the results and conclude the work.
2 Background
We approach the problem in a basic RL setup of an agent interacting with an environment. The “Learning to run” environment is fully observable and thus can be modeled as a Markov Decision Process (MDP)
[Bellman1957]. MDP is defined as a set of states (), a set of actions (), a distribution over initial states , a reward function, transition probabilities
, time horizon , and a discount factor . A policy parametrized by is denoted with . The policy can be either deterministic, or stochastic. The agent’s goal is to maximize the expected discounted return , where denotes a trajectory with , , and .3 Environment

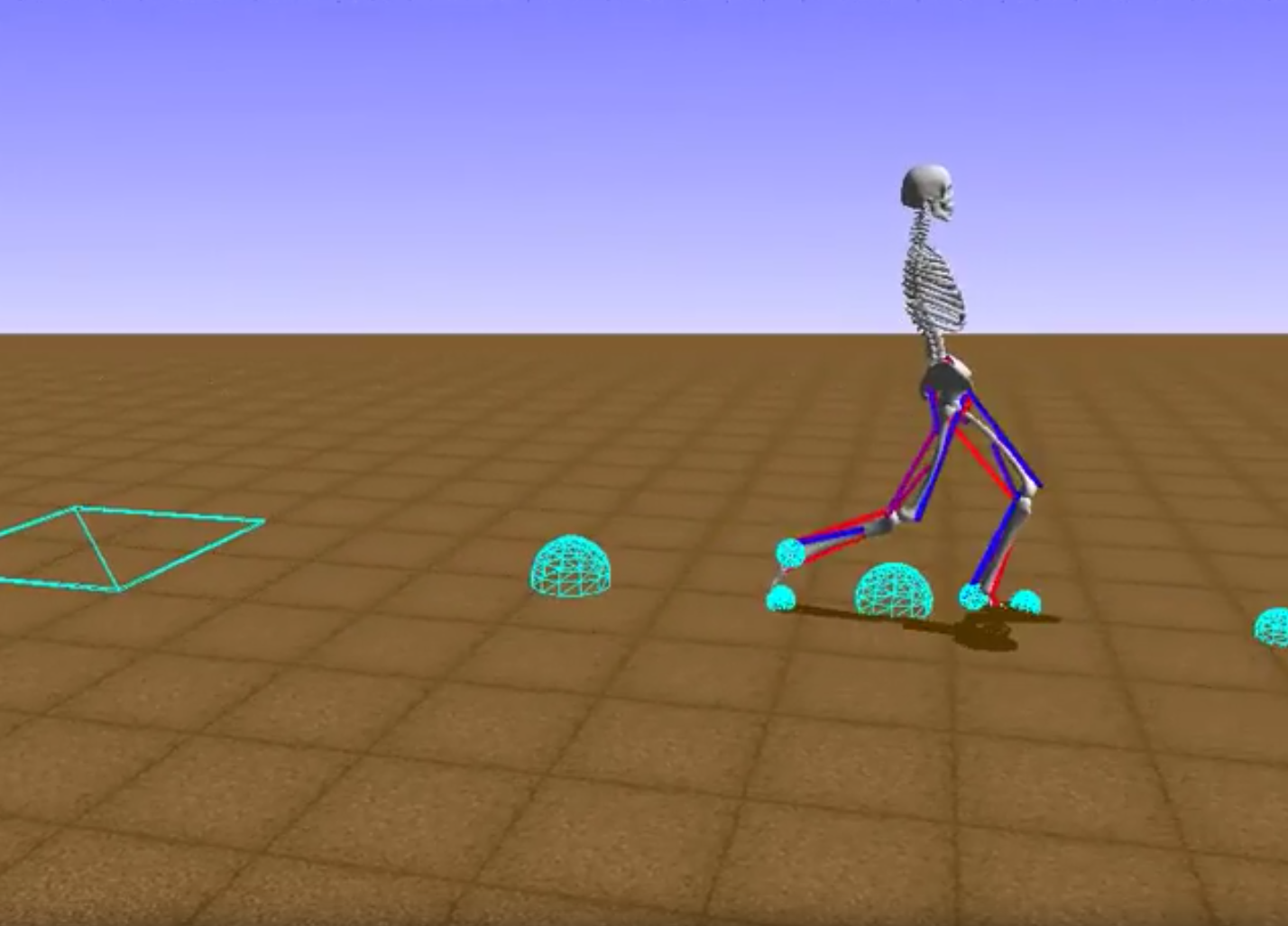

The environment is a musculoskeletal model that includes body segments for each leg, a pelvis segment, and a single segment to represent the upper half of the body (trunk, head, arms). See Figure 1 for a clarifying screenshot. The segments are connected with joints (e.g., knee and hip) and the motion of these joints is controlled by the excitation of muscles. The muscles in the model have complex paths (e.g., muscles can cross more than one joint and there are redundant muscles). The muscle actuators themselves are also highly nonlinear.
The purpose is to navigate a complex obstacle course as quickly as possible. The agent operates in a 2D world. The obstacles are balls randomly located along the agent’s way. Simulation is done using OpenSim [Delp et al.2007] library which relies on the Simbody [Sherman, Seth, and Delp2011] physics engine. The environment is described in Table 1. More detailed description of environment can be found on competition github page.^{2}^{2}2https://github.com/stanfordnmbl/osimrl
Due to a complex physics engine the environment is quite slow compared to standard locomotion environments [Todorov, Erez, and Tassa2012, OpenAI Roboschool2017]. Some steps in environment could take seconds. Yet, the other environments can be as fast as three orders of magnitudes faster.^{3}^{3}3https://github.com/stanfordnmbl/osimrl/issues/78 So it is crucial to train agent using the most sampleefficient method.
parameters  description
state  , coordinates and velocities of various body parts and obstacle locations. All coordinates are absolute. To improve generalization of our controller and use data more efficiently, we modified the original version of environment making all coordinates relative to the coordinate of pelvis.
action  , muscles activations, 9 per leg, each in range.
reward  , change in coordinate of pelvis plus a small penalty for using ligament forces.
terminal state  agent falls (pelvis ) or 1000 steps in environment
stochasticity  random strength of the psoas muscles random location and size of obstacles
4 Methods
In this section we briefly describe the models we have evaluated in the task of the “Learning to run” challenge. We also describe our improvements to the model best performing in the competition: Deep Deterministic Policy Gradient (DDPG) [Lillicrap et al.2015].
4.1 Onpolicy methods
Onpolicy RL methods can only update agent’s behavior with data generated by the current policy. We consider two popular onpolicy algorithms, namely Trust Region Policy Optimization (TRPO) [Schulman et al.2015a] and Proximal Policy Optimization (PPO) [Schulman et al.2017] as the baseline algorithms for environment solving.
Trust Region Policy Optimization
(TRPO) is one of the notable stateoftheart RL algorithms, developed by schulman2015trust, that has theoretical monotonic improvement guarantee. As a basis, TRPO [Schulman et al.2015a] using REINFORCE [Williams1992]
algorithm, that estimates the gradient of expected return
via likelihood ratio:(1)
where is the number of episodes, is the number of steps per episode, is the cumulative reward and
is a variance reducing baseline
[Duan et al.2016]. After that, an ascent step is taken along the estimated gradient. TRPO improves upon REINFORCE by computing an ascent direction that ensures a small change in the policy distribution. As the baseline TRPO we have used the agent described in [Schulman et al.2015a].Proximal Policy Optimization
(PPO) as TRPO tries to estimate an ascent direction of gradient of expected return that restricts the changes in policy to small values. We used clipped surrogate objective variant of proximal policy optimization [Schulman et al.2017]. This modification of PPO is trying to compute an update at each step that minimizes following cost function:
(2)
where is a probability ratio (the new divided by the old policy),
is empirical return minus the baseline. This cost function is very easy to implement and allows multiple epochs of minibatch updates.
4.2 Offpolicy methods
In contrast to onpolicy algorithms, offpolicy methods allow learning based on all data from arbitrary policies. It significantly increases sampleefficiency of such algorithms relative to onpolicy based methods. Due to simulation speed litimations of the environment, we will only consider Deep Deterministic Policy Gradient (DDPG) [Lillicrap et al.2015].
Deep Deterministic Policy Gradient
(DDPG) consists of actor and critic networks. Critic is trained using Bellman equation and offpolicy data:
(3)
where is the actor policy. The actor is trained to maximize the critic’s estimated Qvalues by backpropagating through critic and actor networks. As in original article we used replay buffer and the target network to stabilize training and more efficiently use samples from environment.
DDPG improvements
Here we present our improvements to the DDPG method. We used some standard reinforcement learning techniques: action repeat (the agent selects action every 5th state and selected action is repeated on skipped steps) and reward scaling. After several attempts, we choose a scale factor of 10 (i.e. multiply reward by ten) for our experiments. For exploration we used OrnsteinUhlenbeck (OU) process [Uhlenbeck and Ornstein1930] to generate temporally correlated noise for efficient exploration in physical environments. Our DDPG implementation was parallelized as follows: processes collected samples with fixed weights all of which were processed by the learning process at the end of an episode, which updated their weights. Since DDPG is an offpolicy method, the stale weights of the samples only improved the performance providing each sampling process with its own weights and thus improving exploration.
Parameter noise
Another improvement is the recently proposed parameters noise [Plappert et al.2017]
that perturbs network weights encouraging state dependent exploration. We used parameter noise only for the actor network. Standard deviation
for the Gaussian noise is chosen according to the original work [Plappert et al.2017] so that measure :(4)
where is the policy with noise, equals to in OU. For each training episode we switched between the action noise and the parameter noise choosing them with 0.7 and 0.3 probability respectively.
Layer norm
henderson2017deep showed that layer normalization [Ba, Kiros, and Hinton2016] stabilizes the learning process in a wide range of reward scaling. We have investigated this claim in our settings. Additionally, layer normalization allowed us to use same perturbation scale across all layers despite the use of parameters noise [Plappert et al.2017]
. We normalized the output of each layer except the last for critic and actor by standardizing the activations of each sample. We also give each neuron its own adaptive bias and gain. We applied layer normalization before the nonlinearity.
Actions and states reflection symmetry
The model has bilateral body symmetry. State components and actions can be reflected to increase sample size by factor of 2. We sampled transitions from replay memory, reflected states and actions and used original states and actions as well as reflected as batch in training step. This procedure improves stability of learned policy. If we don’t use this step our model learned suboptimal policies, when for example muscles for only one leg are active and other leg just follows first leg.
5 Results
It this section we presents our experiments and setup. For all experiments we used environment with 3 obstacles and random strengths of the psoas muscles. We tested models on setups running 8 and 20 threads. For comparing different PPO, TRPO and DDPG settings we used 20 threads per model configuration. We have compared various combinations of improvements of DDPG in two identical settings that only differed in the number of threads used per configuration: 8 and 20. The goal was to determine whether the model rankings are consistent when the number of threads changes. For threads (where is either 8 or 20) we used
threads for sampling transitions, 1 thread for training, and 1 thread for testing. For all models we used identical architecture of actor and critic networks. All hyperparameters are listed in Table
2. Our code used for competition and described experiments can be found in a github repo.^{4}^{4}4Theano: https://github.com/fgvbrt/nips_rland PyTorch:
https://github.com/Scitator/RunSkeletonRun Experimental evaluation is based on the undiscounted return .parameters  Value
Actor network architecture  , elu activation
Critic network architecture  , tanh activation
Actor learning rate  linear decay from to in steps with Adam optimizer
Critic learning rate  linear decay from to in steps with Adam optimizer
Batch size  200
0.9
replay buffer size
rewards scaling  10
parameter noise probability  0.3
OU exploration parameters  , , , , , annealing per thread
5.1 Benchmarking different models
Comparison of our winning model with the baseline approaches is presented in Figure 2. Among all methods the DDPG significantly outperformed PPO and TRPO. The environment is time expensive and method should utilized experience as effectively as possible. DDPG due to experience replay (re)uses each sample from environment many times making it the most effective method for this environment.
5.2 Testing improvements of DDPG
To evaluate each component we used an ablation study as it was done in the rainbow article [Hessel et al.2017]. In each ablation, we removed one component from the full combination. Results of experiments are presented in Figure (a)a and Figure (b)b for 8 and 20 threads respectively. The figures demonstrate that each modification leads to a statistically significant performance increase. The model containing all modifications scores the highest reward. Note, the substantially lower reward in the case, when parameter noise was employed without the layer norm. One of the reasons is our use of the same perturbation scale across all layers, which does not work that well without normalization. Also note, the behavior is quite stable across number of threads, as well as the model ranking. As expected, increasing the number of threads improves the result.
Maximal rewards achieved in the given time for 8 and 20 threads cases for each of the combinations of the modifications is summarized in Table 3. The main things to observe is a substantial improvement effect of the number of threads, and stability in the best and worst model rankings, although the models in the middle are ready to trade places.
agent# threads  8  20
DDPG + noise + flip  0.39  23.58
DDPG + LN + flip  25.29  31.91
DDPG + LN + noise  25.57  30.90
DDPG + LN + noise + flip  31.25  38.46
6 Conclusions
Our results in OpenSim experiments indicate that in a computationally expensive stochastic environments that have highdimensional continuous action space the best performing method is offpolicy DDPG. We have tested 3 modifications to DDPG and each turned out to be important for learning. Action states reflection doubles the size of the training data and improves stability of learning and encourages the agent to learn to use left and right muscles equally well. With this approach the agent truly learns to run. Examples of the learned policies with and without the reflection are present at this URL https://tinyurl.com/ycvfq8cv. Parameter and Layer noise additionally improves stability of learning due to introduction of state dependent exploration. In general, we believe that investigation of humanbased agents in physically realistic environments is a promising direction for future research.
References
 [Ba, Kiros, and Hinton2016] Ba, J. L.; Kiros, J. R.; and Hinton, G. E. 2016. Layer normalization. arXiv preprint arXiv:1607.06450.
 [Bellman1957] Bellman, R. 1957. A markovian decision process. Journal of Mathematics and Mechanics 679–684.
 [Delp et al.2007] Delp, S. L.; Anderson, F. C.; Arnold, A. S.; Loan, P.; Habib, A.; John, C. T.; Guendelman, E.; and Thelen, D. G. 2007. Opensim: opensource software to create and analyze dynamic simulations of movement. IEEE transactions on biomedical engineering 54(11):1940–1950.
 [Duan et al.2016] Duan, Y.; Chen, X.; Houthooft, R.; Schulman, J.; and Abbeel, P. 2016. Benchmarking deep reinforcement learning for continuous control. In International Conference on Machine Learning, 1329–1338.
 [Gu et al.2017] Gu, S.; Holly, E.; Lillicrap, T.; and Levine, S. 2017. Deep reinforcement learning for robotic manipulation with asynchronous offpolicy updates. In Robotics and Automation (ICRA), 2017 IEEE International Conference on, 3389–3396. IEEE.
 [Heess et al.2017] Heess, N.; Sriram, S.; Lemmon, J.; Merel, J.; Wayne, G.; Tassa, Y.; Erez, T.; Wang, Z.; Eslami, A.; Riedmiller, M.; et al. 2017. Emergence of locomotion behaviours in rich environments. arXiv preprint arXiv:1707.02286.
 [Henderson et al.2017] Henderson, P.; Islam, R.; Bachman, P.; Pineau, J.; Precup, D.; and Meger, D. 2017. Deep reinforcement learning that matters. arXiv preprint arXiv:1709.06560.
 [Hessel et al.2017] Hessel, M.; Modayil, J.; Van Hasselt, H.; Schaul, T.; Ostrovski, G.; Dabney, W.; Horgan, D.; Piot, B.; Azar, M.; and Silver, D. 2017. Rainbow: Combining improvements in deep reinforcement learning. arXiv preprint arXiv:1710.02298.
 [Jaderberg et al.2016] Jaderberg, M.; Mnih, V.; Czarnecki, W. M.; Schaul, T.; Leibo, J. Z.; Silver, D.; and Kavukcuoglu, K. 2016. Reinforcement learning with unsupervised auxiliary tasks. arXiv preprint arXiv:1611.05397.
 [Lillicrap et al.2015] Lillicrap, T. P.; Hunt, J. J.; Pritzel, A.; Heess, N.; Erez, T.; Tassa, Y.; Silver, D.; and Wierstra, D. 2015. Continuous control with deep reinforcement learning. arXiv preprint arXiv:1509.02971.
 [Mnih et al.2015] Mnih, V.; Kavukcuoglu, K.; Silver, D.; Rusu, A. A.; Veness, J.; Bellemare, M. G.; Graves, A.; Riedmiller, M.; Fidjeland, A. K.; Ostrovski, G.; et al. 2015. Humanlevel control through deep reinforcement learning. Nature 518(7540):529–533.
 [Mnih et al.2016] Mnih, V.; Badia, A. P.; Mirza, M.; Graves, A.; Lillicrap, T.; Harley, T.; Silver, D.; and Kavukcuoglu, K. 2016. Asynchronous methods for deep reinforcement learning. In International Conference on Machine Learning, 1928–1937.
 [OpenAI Roboschool2017] OpenAI Roboschool. 2017. OpenAI Roboschool (https://github.com/openai/roboschool).
 [Pathak et al.2017] Pathak, D.; Agrawal, P.; Efros, A. A.; and Darrell, T. 2017. Curiositydriven exploration by selfsupervised prediction. arXiv preprint arXiv:1705.05363.
 [Plappert et al.2017] Plappert, M.; Houthooft, R.; Dhariwal, P.; Sidor, S.; Chen, R. Y.; Chen, X.; Asfour, T.; Abbeel, P.; and Andrychowicz, M. 2017. Parameter space noise for exploration. arXiv preprint arXiv:1706.01905.
 [Schulman et al.2015a] Schulman, J.; Levine, S.; Abbeel, P.; Jordan, M.; and Moritz, P. 2015a. Trust region policy optimization. In Proceedings of the 32nd International Conference on Machine Learning (ICML15), 1889–1897.
 [Schulman et al.2015b] Schulman, J.; Moritz, P.; Levine, S.; Jordan, M.; and Abbeel, P. 2015b. Highdimensional continuous control using generalized advantage estimation. arXiv preprint arXiv:1506.02438.
 [Schulman et al.2017] Schulman, J.; Wolski, F.; Dhariwal, P.; Radford, A.; and Klimov, O. 2017. Proximal policy optimization algorithms. arXiv preprint arXiv:1707.06347.
 [Sherman, Seth, and Delp2011] Sherman, M. A.; Seth, A.; and Delp, S. L. 2011. Simbody: multibody dynamics for biomedical research. Procedia Iutam 2:241–261.

[Silver et al.2016]
Silver, D.; Huang, A.; Maddison, C. J.; Guez, A.; Sifre, L.; Van Den Driessche,
G.; Schrittwieser, J.; Antonoglou, I.; Panneershelvam, V.; Lanctot, M.;
et al.
2016.
Mastering the game of Go with deep neural networks and tree search.
Nature 529(7587):484–489.  [Sutton and Barto1998] Sutton, R. S., and Barto, A. G. 1998. Reinforcement learning: An introduction, volume 1. MIT press Cambridge.
 [Todorov, Erez, and Tassa2012] Todorov, E.; Erez, T.; and Tassa, Y. 2012. Mujoco: A physics engine for modelbased control. In Intelligent Robots and Systems (IROS), 2012 IEEE/RSJ International Conference on, 5026–5033. IEEE.
 [Uhlenbeck and Ornstein1930] Uhlenbeck, G. E., and Ornstein, L. S. 1930. On the theory of the brownian motion. Physical review 36(5):823.
 [Williams1992] Williams, R. J. 1992. Simple statistical gradientfollowing algorithms for connectionist reinforcement learning. Machine learning 8(34):229–256.
