I Modelling of Multi-Rotor Uav

The rigid body dynamics of the multi-rotor are given by

(1)

where is the mass of the multi-rotor, is the position in the earth fixed frame,

is the three-dimensional translational force vector generated by the multi-rotor,

is the rotation matrix from the body frame to earth fixed frame, is an attitude of the multi-rotor in the earth fixed frame, is the thrust force vector in the body frame, is the magnitude of the total thrust, and is a gravity vector. The parameter is the moment of inertia (MOI) of the multi-rotor, is an angular velocity vector defined in the body frame, and is an attitude control torque vector. For attitude dynamics, simplified dynamics of

(2)

is commonly used, taking into account the small operation range of roll and pitch angle of multi-rotor and negligible Coriolis term [2, 5, 11].

Ii Translational Force/acceleration Control

In order to control the translational force/acceleration of the multi-rotor, we need to convert the target acceleration into the target attitude and the target thrust . Throughout this paper, notation denotes the desired value of the variable . Also, we assume that the yaw of always remains zero through a well-behaved independent controller to simplify the discussion. Now, we define as a set of states that needs to be controlled for generating the desired translational acceleration of the multi-rotor.

Once we choose as a set of state variables to control the translational force/acceleration of multi-rotor, our next task should be finding a way to convert the desired acceleration to . To figure out how to convert the signal, let us first investigate the relationship between and .

Ii-a Relationship between and

In Equation (1), we have discussed the dynamics of the translational motion of multi-rotor. Going into detail, the corresponding translational dynamics are expressed as

(3)

where is the yaw rotation matrix. Now, let us define a vector of state variables named the pseudo-acceleration vector as

(4)

Applying Equation (4) to (3), we obtain the following relationship between and :

(5)

Ii-B Calculation of from considering dynamics

From Equation (5), we begin a discussion on how to calculate based on . First, Equation (5) yields the following expression on :

(6)

Equation (6) represents the required states to generate such translational acceleration. From this, one might try to find the input to the controller to create the desired acceleration by replacing and with and , respectively, as follows.

(7)
(8)
(9)

However, this method can severely degrade control performance when multi-rotor is larger than a certain size as we discuss below.

Fig. 2: A block diagram of the relationship between and , where , and .

Fig. 2 shows the internal structure between and . In this figure, we can see that and are realized to and through attitude controller, rotor dynamics, and attitude dynamics. In contrast, only passes through the rotor dynamics to become . Here, we treat , where , since rotor dynamics are mostly negligible. Assuming that the attitude controller is properly designed, we can model the relationship between and as the following equation:

(10)

Here, are time-varying non-negative delay factors. Applying Equation (10) into (5), we have

(11)

In Equation (11), the desired attitude and total thrust are realized asynchronously due to and . Applying Equation (9) to Equation (11), the result is follows.

(12)

In the equation of Equation (12), the parenthesized part can continuously change if and are too large to be ignored. This indicates that -directional control performance can be significantly reduced if the delay between the desired and actual attitude signals becomes large, for example in situations when the MOI of the multi-rotor increases, such as large multi-rotor or multi-rotor with large cargo. When the Z-directional control performance degrades, a high-level controller (e.g., position controller) or the operator may need to constantly modify the value to correct the poor Z-directional control performance. As a result, this degrades the X and Y direction control performance because the values in parentheses of the and equations in (12) also constantly change. The decline in control performance due to this control scheme will be shown in Fig. 3.

To address this issue, we next consider two candidate solutions.

Ii-B1 Solution candidate 1

The first candidate is to time-synchronize the attitude and total thrust output by adding an artificial time delay to in Equation (9) as

(13)

Here, is a delay element deliberately applied to . Applying Equation (13) to Equation (11), the equation of motion is changed from Equation (12) to

(14)

Through Equations (7), (8) and (10), and can be described as

(15)

Let us assume that and have the same value of since most multi-rotors have nearly the same roll and pitch behavior due to the symmetrical mechanical structure. Then, Equation (14) with Equations (10) and (15) becomes as

(16)

Now, we can solve the problem in Equation (12) by setting equal to . However, this method is not easily applicable in a real-world situation because it is difficult to determine the value of that changes continuously during the flight. Therefore, the control method through Equation (13) cannot be a practical method.

Ii-B2 Solution candidate 2

Alternatively, we can find a reasonable solution that is applicable in the real world by selectively delaying and in Equation (13) by and , but keeping at zero. As we can see from Equation (10), the values of and delayed by and seconds are and . Applying this idea to Equation (13), we can obtain as

(17)

where the values and can be measured from the built-in inertial measurement unit (IMU) sensor. Then, by setting to zero, we can determine the input/output relationship of the translational accelerations dynamics of the multi-rotor as

(18)

where we assume . This assumption is valid in most cases, except in situations where the change in target vertical acceleration is abnormally large and rapid.

Through the control techniques of solution candidate 2 (Equations (7), (8) and (17)), we obtained a three-dimensional translational acceleration control method applicable to actual multi-rotor control. In order to compare the performance of multi-rotor control using Equations (9) and (17), a brief simulation is conducted as shown in Fig. 3.

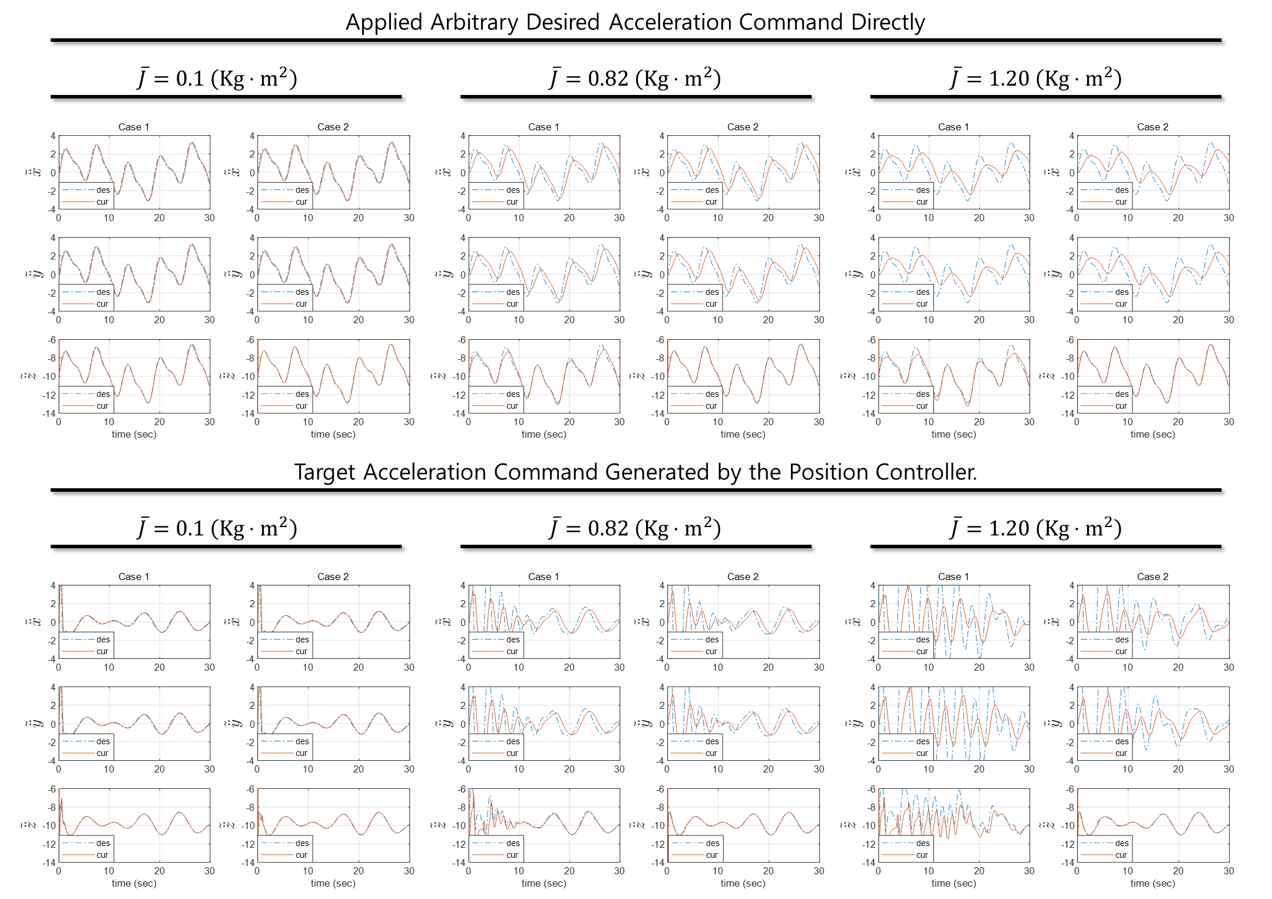

Fig. 3: [Simulation] A comparison of cases where acceleration command is converted into a target attitude and a thrust signal using Equations (7), (8) and (9) (Case 1), and using Equations (7), (8) and (17) (Case 2) for multi-rotors with different MOI. Acceleration motions are simulated for two scenarios : in the first scenario, an arbitrary target acceleration command is applied (top), and the target acceleration is generated via a position controller that tracks the predefined desired trajectory in the second scenario (bottom).

The simulation shows the comparison of the target acceleration tracking performance of Case 1 with Equations (7), (8), (9) and Case 2 with Equations (7), (8), (17). The upper set of figures show the acceleration tracking performance of Cases 1 and 2 with arbitrary acceleration command. Here, we can see that there are no differences in performance between Cases 1 and 2 when MOI of the multi-rotor has small value of 0.1. On the other hand, when the MOI of the multi-rotor increases, both Cases 1 and 2 show delayed responses in the X and Y direction acceleration tracking as expected. However, we can observe that the Z-directional performance of the Case 2 remains the same regardless of the magnitude of the MOI, unlike Case 1 where the performance degradation is observed. The effect of the decline in Z-directional control performance on the system is evident when controlling the position of the multi-rotor. The bottom set of figures is the situation where the high-level position controller generates the desired acceleration command to track the predefined trajectory. In Case 1, we can observe a decrease in acceleration tracking performance in both the X and Y directions as well as the Z direction as the MOI increases. On the other hand, in Case 2, the Z-directional control performance remains constant regardless of the MOI of the platform, stabilizing the X and Y-directional control performance faster than Case 1.

This phenomenon can be understood in other ways by considering the role of the denominator term of the equation in Equation (6), which is to compensate for the reduction of the vertical thrust component in the sense of inertial coordinates when the multi-rotor is tilted. When is calculated based on the desired attitude as Equation (9), the situation is similar to compensating for the future event after seconds. Instead, it is intuitive to use the current attitude as in Equation (17) to correct the vertical thrust reduction. From the flight results using Equation (17) in Fig. 3, we can confirm that the control performance in all directions is satisfactory.

Iii Disturbance Observer

Fig. 4: Overall system diagram with DOB structure. : Outer-loop controller, : Desired translational force vector, : Sum of and disturbance cancellation signal , : to translator (eq. (7), (8), (17)), : Plant dynamics (Fig. 2, Eq. (1)), : to translator (Eq. (4), (5)), : Force vector generated by the multi-rotor, : Sum of and actual disturbance , : Nominal model of , : -filters for DOB.

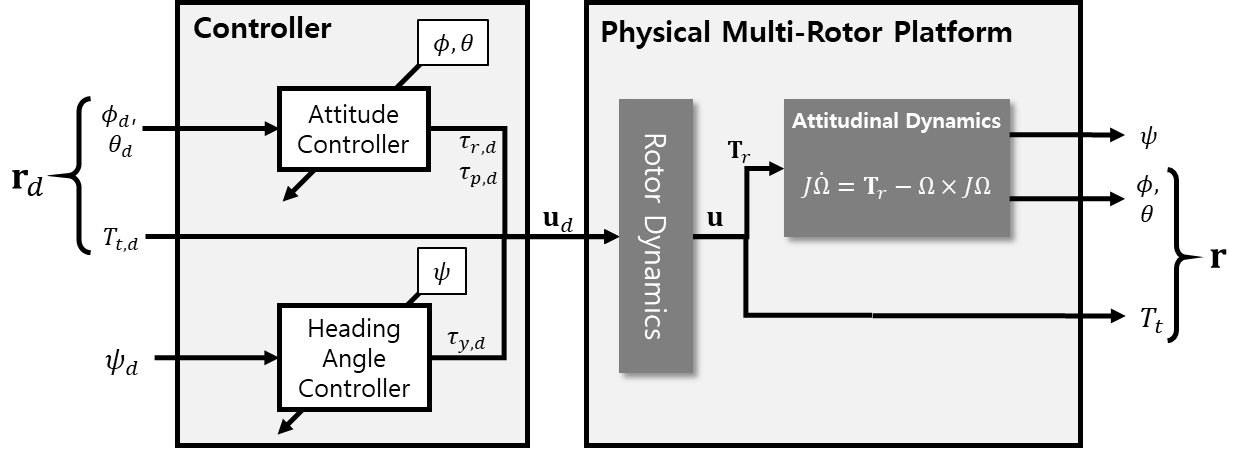

Fig. 5: Configuration of . The block is composed of the opposite order of , where is the nominal model of .

External disturbances applied to multi-rotor act not only in the form of translational disturbances but also in the form of rotational torques. However, given that a number of solutions for overcoming the rotational torque disturbances [18][10] have already been proposed, this section concerns only translational disturbances applied to the system for straightforward discussion and analysis.

Iii-a An overview of the disturbance-merged overall system

Fig. 4 shows the overall configuration of the system. First, the position controller generates the target acceleration input . This signal is then transformed into the target force input through the following force-acceleration relationship:

(19)

Then, signal passes through block to transform the signal into the (refer Equation (4)). The signal then passes through the block, which converts the target acceleration to , the input to the multi-rotor controller, based on Equations (7), (8) and (17). Once passes through the dynamics described in Fig. 2 and outputs , it passes through block to produce (refer Equation (4) and (5)). Right after is generated, the external disturbance force immediately compromises the thrust and results in and .

Iii-B Disturbance observer

In Fig. 4, the translational force disturbance is combined with to become . However, canceling is only possible by adding an appropriate disturbance cancellation term to the signal. Therefore, it is preferable to assume that there is an equivalent input disturbance that has the same effect on the system as [21]. Then is replaced by , making . As we can see in Fig. 4, the signal is merged into , which is the translational acceleration control input with disturbance cancellation signal. Now, let us construct the DOB based on the above settings.

Iii-B1 estimation algorithm

For the estimation of , we first estimate the sum of and by

(20)

We can easily achieve the signal from Equation (19) where is measured by the IMU sensor. The transfer function is the nominal model of , and is the representation of the estimation of signal throughout this paper. Once we estimate , we then obtain by

(21)

The signal passes through the block, which is basically a low pass filter, to overcome both the causality violation issue due to the improperness of and the potential instability issue caused by the non-minimum phase characteristic of . The filter is used to match the phase with signal. In the end, we generate a disturbance-compensating control input by

(22)

This makes become

(23)

The most important factor in the estimation process is the proper design of and . Of these, is deeply related to the stability of the system and will be discussed in more detail in the next section. In the remainder of this section, we first discuss the design of the nominal model and then explain the structure of the -filter.

Iii-B2 Nominal model

The internal structure of is described as in Fig. 5, all of which are simple conversion blocks except for the block. The block is the relationship between and depicted in Fig. 2. The is constructed from two parts: attitude and thrust dynamics. We denote these as and respectively.

As we see from Fig. 2, is constructed with attitude controller, rotor dynamics and attitudinal dynamics. Since rotor dynamics can be ignored, we only need to find the transfer function of the attitudinal dynamics and attitude controller. For attitude dynamics, let us refer to Equation (2) and express it as

(24)

where represent , , axis, respectively. For attitude control, PD control in the following form is used.

(25)

The parameters , represent control gains in each attitude component. Then, the overall transfer function between desired and current attitude becomes

(26)

In the case of , the only dynamics involved is rotor dynamics, which we decided to neglect. Thus, it can be expressed as

(27)

Now, we can construct the transfer matrix for using Equations (26) and (27) as

(28)

Equation (28) is a detailed representation of the relationship between and , which was introduced in Equation (10). On the other hand, , which defines the nominal relationship between and (or and ), was introduced in Equation (18) (refer Equation (4) for the relationship between and ). Here, we can see that both Equations (10) and (18) have the same input/output characteristics with time delay of for the first and second channels and no time delay for the third channel. Therefore, we can conclude that in Equation (28) is also the transfer function between and as well as between and , which is

(29)

Iii-B3 -filter design

In -filter design, we choose to make , which is now identical to , a proper function with relative degree of 1. Since is composed of three channels in , and directions, we need to design three separate -filters. As shown in Equation (26), () and () among the three transfer functions of are systems with a relative degree of 1. The thrust transfer function () has a relative degree of 0, as can be seen from Equation (27). Therefore, the -filters for making with a relative degree of 1 are designed as

(30)
(31)
(32)

where and are -filters corresponding to the horizontal () and vertical () models respectively. The symbol is the time constant and is the damping ratio of the filter. The filter is designed to have a gain of 1 when [8]. The filter is set to , to easily achieve the purpose of phase matching.

Iv Stability Analysis

The design of -filter in the DOB structure should be based on rigorous stability analysis to ensure the overall stability. In particular, we note that there is always a difference between the nominal model and the actual model , due to various uncertainties and applied assumptions.

Although the small-gain theorem (SGT) [13]

can still be a tool for stability analysis, the SGT analysis based on the largest singular value among uncertainties is likely to yield overly conservative results especially if multiple uncertain elements are involved. Instead, we use structured singular value analysis, or

-analysis [7, 20, 9], to reflect the combined effects of uncertainties.

Iv-a Modeling of considering uncertainties

The multi-rotor’s actual transfer function between and in Fig. 4 is

(33)

Here, , and represent the input/output translational force relationship in the , , and directions, respectively. This research considers a small but nonzero DC-gain error, parametric error and phase shift error between and . Then each can be expressed as the following equation:

(34)

where represent , , axis. The symbols represent the uncertain variable gain and time delay parameters, respectively. The nominal transfer function can be replaced by based on Equation (29). The portion containing only the parametric uncertainty is denoted by , and the time delay uncertainty is denoted by .

In Equation (34), each contains three uncertain variables, which are , and . In the case of , we define as

(35)

where is the error value of . In the case of , determining the actual value of is difficult compared to other physical quantities. We also define in the same manner as for the convenience of analysis as

(36)

where are the nominal and error values of . Because the term containing is of an irrational form that is not suitable for analysis, we use an analytic approximation of the uncertain time-delay to a rational function with unmodeled dynamic uncertainty [9]. First, we change the representation of the model to a multiplicative uncertainty form that combines parametric uncertainties and unmodeled time-delay uncertainty as follows:

(37)

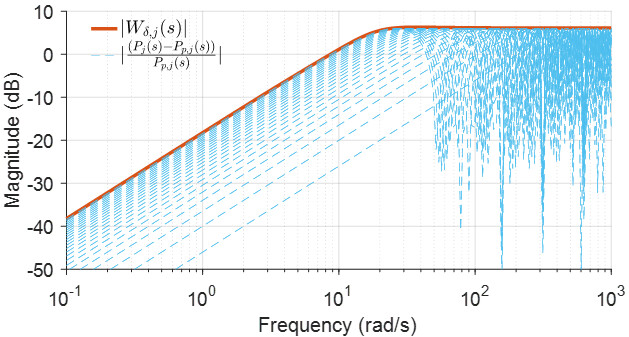

Fig. 6: Bode magnitude plots of expressed by varying from to (blue dashed line), maximum uncertainty (red solid line).

A complex unstructured uncertainty corresponds to unknown time delay , and is the maximum uncertainty that can be caused by . Here, we can obtain using Equation (34) as

(38)

The maximum value of for each can be found using Euler’s formula as

(39)

where

(40)

As a result of analyzing a large amount of actual experimental data, we confirmed that the time delay between () and does not exceed 0.1 second in all three channels. We put 20 percent margin so that . Fig. 6 is multiple Bode magnitude plots of generated by varying from to . From Fig. 6, we can extract

(41)

for all , which is the upper boundary of sets represented by the red solid line.

The uncertainties of and can also be modeled in the same manner as in Equation (37) as

(42)

where . The transfer function is basically the same as , except that in Equation (26) is replaced to the nominal MOI value . The transfer functions and are

(43)

Iv-B -determination through -analysis

Iv-B1 -robust stability analysis

In [6], the structured singular value is defined as

(44)

where is a complex structured block-diagonal unmodeled uncertainty block which gathers all model uncertainties [26]. Following the common notation, the symbol represents a set of all stable transfer matrices with the same structure (full, block-diagonal, or scalar blocks) and nature (real or complex) as . The is the maximum singular value of uncertainty block . The matrices and are defined by collapsing the simplified overall system to upper LFT uncertainty description as

(45)

where is the known part of the system, is a reference input and is an output of the overall system. In the theory of the -analysis, it is well-known that the system is robustly stable if satisfies the following conditions

(46)

[7][6].

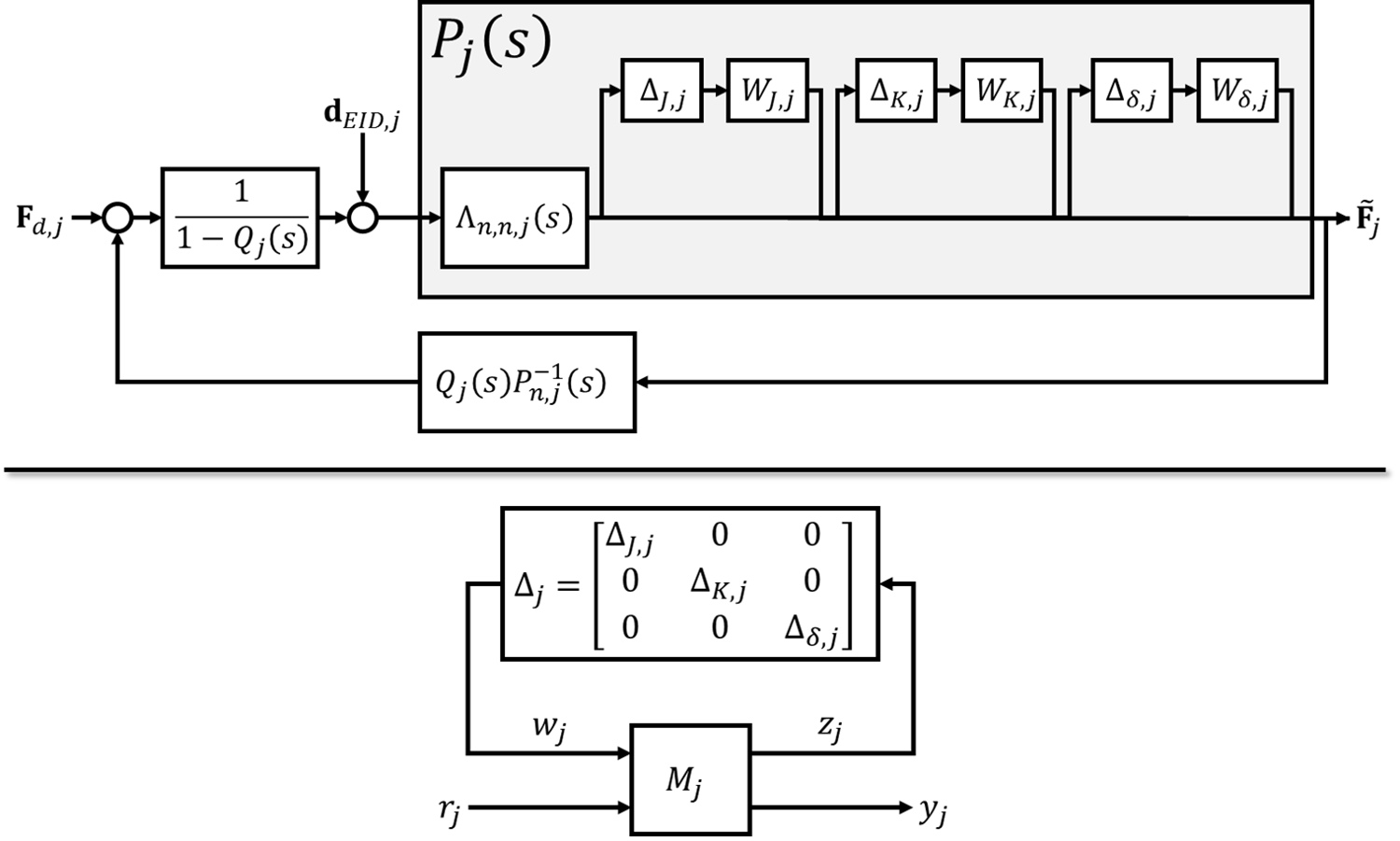

Fig. 7: Compressed block digram of the DOB-included transfer function from to , whose original form was shown in Fig. 4 (top), further collapsed form expressed as a nominal closed-loop system and a complex unstructured uncertainty block as in Equation (47) (bottom).

The -analysis is performed separately for each channel of , , thanks to the structure of the platform described by Equation (28), but since and channels are composed of the same structure, they share the identical analysis result. As we can see from Fig. 7, the system is collapsed in the form of Equation (45) by using MATLAB’s Robust Control Toolbox, where and in our case. As a reminder, subscript refers to each channel of , , and . Also, structured uncertainty is constructed as

(47)

which includes unmodeled MOI uncertainty, time and gain uncertainty in our system.

Iv-B2 Results of analysis

Name Value Name Value
3 Mass 3.24
1 0.82
Limit 1.49
0.707
TABLE I: PHYSICAL QUANTITIES AND CONTROLLER GAINS.

Table I shows the multi-rotor’s physical quantities and controller gains used both in the simulation and the experiment. The gains and are predefined values set during the primary gain-tuning process to obtain the ability to control the attitude of the platform. The translational acceleration limit is set to prevent flight failure due to excessive acceleration control inputs and is set at to have a roll and pitch limit of approximately in level flight condition. As previously mentioned, the unmodeled time delay is set to 0.1, and the gain error is assumed to be a maximum error of 10 percent. For MOIs that are difficult to estimate, we assumed a wider 30 percent uncertainty. The damping ratio of the second order filter is set to 0.707, which is the critical damping ratio, to balance the overshoot and late response. Fig. 8 shows the results of -analysis. From the analysis, we can see that the system is stable when and .

Fig. 8: -analysis results for , channel (left), and channel (right).

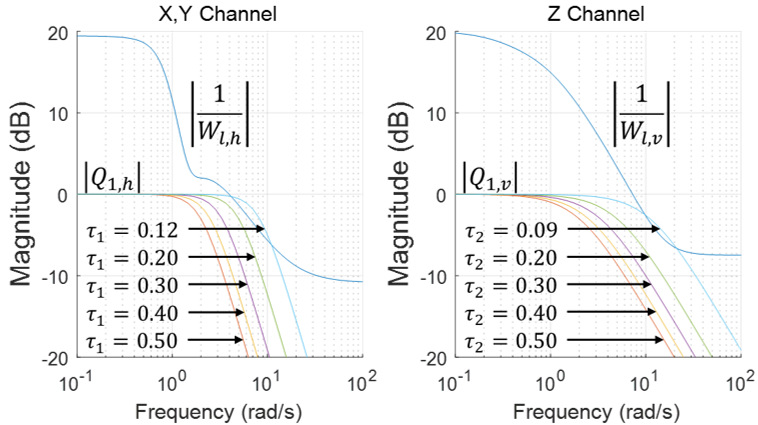

Fig. 9: SGT-based analysis results for , channel (left), and channel (right).

Fig. 9 shows the results of the SGT-based stability analysis, performed in the same manner as [13]. The analysis is based on the following model:

(48)

where all uncertainties due to , and are lumped using the functions and , whose magnitude increases over frequency as shown in blue curves of Fig. 9. The stability condition of the SGT-based analysis in this case is

(49)

[13, 7, 22]. In the SGT-based analysis, the bode plots of the -filter with and indicate that system with those values could be unstable. However, through the -analysis, those values are still in the stable region. From this, we can confirm that the -analysis provides more rigorous boundary values than SGT-based analysis.

V Simulation and Experimental Result

This section reports simulation and experimental results to validate the performance of our three-dimensional force controller and the disturbance cancellation performance of the DOB technique. The comparison of the acceleration tracking performance of the force control methods according to the MOI variation is already shown in the simulation of Fig. 3. Therefore, in this section, we provide

  1. experimental result to demonstrate the performance of the proposed force control technique for the actual plant, and

  2. simulation and experimental results to demonstrate the capability of the DOB in overcoming the translational force disturbance.

Based on the results from the previous section, the cutoff frequencies of the -filter are set to and in both simulation and actual experiment with additional margins to ensure additional stability.

V-a Validation of acceleration tracking performance

In the experiment, arbitrary desired acceleration commands for and directions are given by the operator-controlled radio controller. Fig. 10 shows the multi-rotor accurately following the target acceleration. From this result, we can confirm that our three-dimensional translational acceleration control technique functions effectively even in the actual flight.

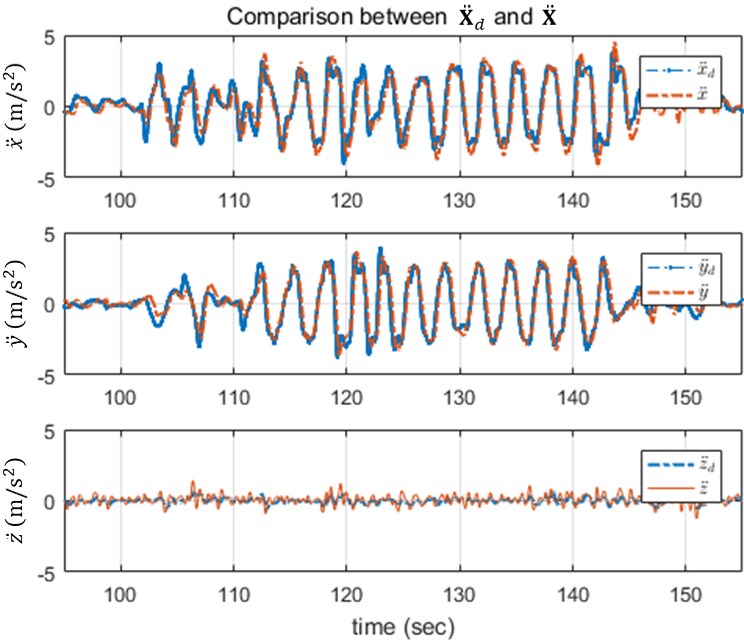

Fig. 10: [Experiment] Desired 3-D acceleration generated by the operator through the R/C controller (blue), and the actual acceleration (red dash) generated by multi-rotor.

V-B Validation of DOB performance

V-B1 Simulation result

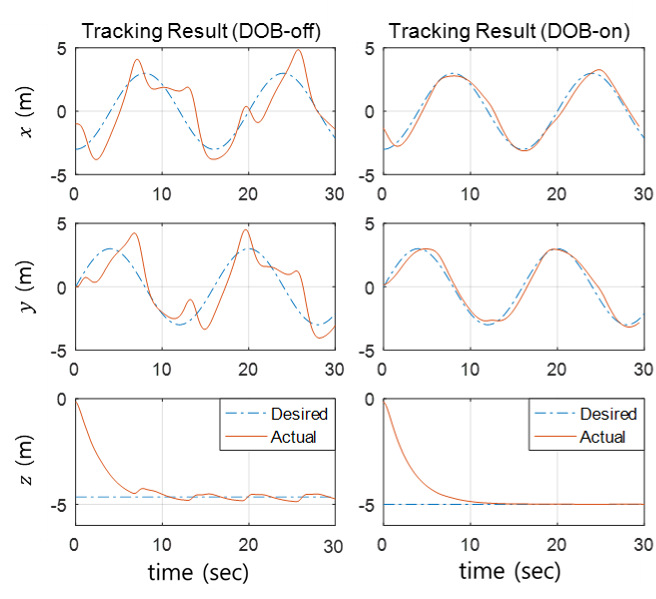

Fig. 11: [Simulation] Comparison of trajectory tracking performance before (left) and after (right) applying the DOB algorithm.

In the simulation, the multi-rotor follows a circular trajectory with radius of 3 and height of 5 . Meanwhile, the multi-rotor is exposed to periodic disturbances with accelerations up to 5.5 in each axis. Fig. 11 compares the multi-rotor’s position tracking performance before and after applying DOB. On the left graphs of Fig. 11, the target trajectory tracking results are not smooth due to the unexpected disturbances, whereas the trajectory deviation is drastically reduced in the right graphs where the DOB algorithm is applied.

V-B2 Experimental Result

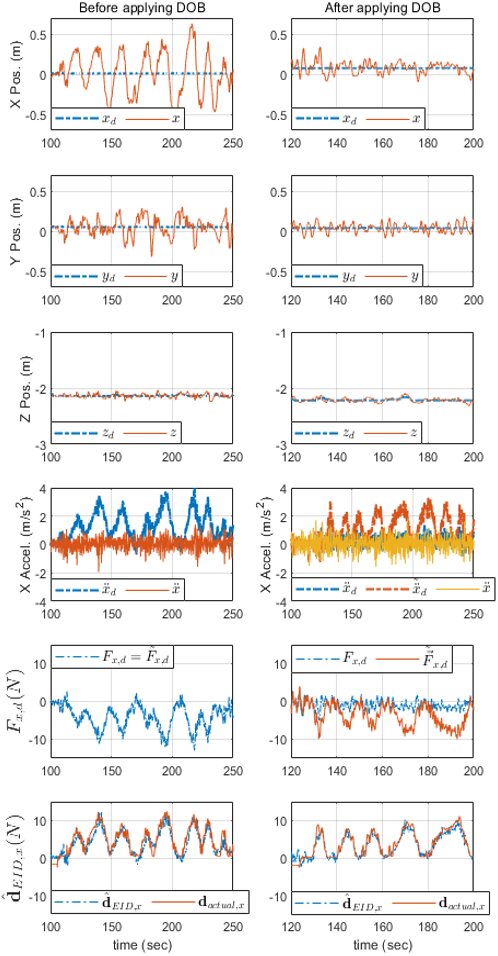

Fig. 12: Comparison of the target position tracking performance before (left) and after (right) the DOB algorithm is applied.

In the experiment, the multi-rotor is commanded to hover at a specific point in three-dimensional space but connected to the translational force measurement sensor via the tether to measure the applied disturbance force. As we can see in Fig. 13, the operator aligns the force sensor in the -axis and pulls and releases the force sensor periodically to apply a disturbance to the multi-rotor.

Fig. 12 is a comparison of hovering performance before (left) and after (right) applying the DOB algorithm. The graphs in the left column are the case when the DOB is not applied, which has a larger directional position shift than other axes. Unlike the DOB-off case, the DOB-on case shows a significant reduction in position error.

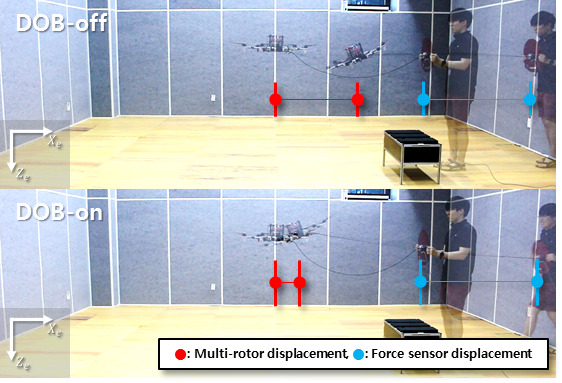

Fig. 13: Experiment for DOB performance validation with disturbance using a tether. A force sensor is attached to the tether only to check the disturbance estimation performance.
Fig. 14: Comparison of the target position tracking performance in wind blast environment using an industrial fan.

Two graphs at the forth row shows the acceleration tracking results. When DOB is not applied, an acceleration signal is generated by the position error, but we can see that the target acceleration cannot be followed due to the disturbance. Meanwhile, we can see that the acceleration of the platform (yellow solid line) well tracks the target acceleration (blue dash-single dotted line). This is because the well-behaved DOB algorithm generated control input including the disturbance compensation signal (orange dash-single dotted line) and applied to the platform. The effect of the DOB can be confirmed by significantly reduced position error. Four graphs at the bottom of the figure show the difference between the signal and (fifth row), and the comparison between measured by force sensor and estimated by DOB algorithm (sixth row). When DOB is not applied, estimation process is working internally but the signal is not merged into signal, making and have the same value. On the other hand, we can see the difference between the and the signal when DOB is applied, because the signal is merged into the signal. Two graphs in the last row show the comparison between the measured disturbance and the estimated disturbance, and we can confirm that the estimates are fairly accurate in both cases.

An extra flight experiment is conducted under wind disturbance to validate the DOB performance in a more realistic environment. As we can see in Fig. 14, the target location of the multi-rotor is set on the centerline of a strong wind generator that generates wind speed of 7 . The performance of DOB is visualized by comparing the position difference between DOB-on and DOB-off situations. the multi-rotor has a position error of about 1 in the DOB-off case and about 0.3 in the DOB-on case. Through the experiment, we can confirm that the proposed DOB algorithm works effectively even against a wind disturbance.

Vi Conclusion

In this paper, we introduced 1) a new method of converting the target acceleration command to the desired attitude and total thrust, and 2) a DOB method for overcoming the disturbance that obstructs the translational motion, to more accurately control the translational acceleration of the multi-rotor UAV. In the control input conversion process, we reflect the different dynamic characteristics of attitude and thrust, so that more precise control is possible than the existing methods. Then, by using the DOB-based robust control algorithm based on the nominal translational force system, the magnitude of the disturbance force applied to the fuselage is estimated and compensated. For the robust stability guarantee, the -filter of the DOB is designed based on the -stability analysis. The validity of the proposed method is confirmed through simulation and actual experiments.

The proposed technique is useful in various applications such as aerial parcel delivery service or drone-based industrial operations where precise acceleration control is required. For example, in a multi-rotor-based parcel delivery service, the proposed DOB algorithm can maintain the nominal flight performance by considering the additional force due to the weight of the cargo attached to the multi-rotor as a disturbance to be estimated. Also, the proposed algorithm is suitable for situations that require precise trajectory tracking performance even in windy conditions such as maritime operations or human-rescue missions. For industrial applications involving collaborative flight of multiple multi-rotors, the proposed algorithm can be used to estimate and stabilize internal forces caused in between physically-coupled multi-rotors.
