I Introduction

Hypernasality refers to the perception of excessive nasal resonance in speech, caused by velopharyngeal dysfunction (VPD), an inability to achieve proper closure of the velum, the soft palate regulating airflow between the oral and nasal cavities. It is a common symptom in motor-speech disorders such as Parkinson’s Disease (PD), Huntington’s Disease (HD), amyotrophic lateral sclerosis (ALS), and cerebellar ataxia, as rapid movement of the velum requires very precise motor control [55], [62], [69], [13]. Additionally, it is a characteristic result of cleft palate [32]. Hypernasal speech is characterized perceptually by resonance in the lower frequencies for voiced sounds [36] and imprecise articulation due to insufficient closure of the velopharyngeal port for unvoiced sounds [72]. In cases of cleft lip/palate, surgical intervention is required for remediation, but in the other cases, speech therapy can help [42]. Reliable detection of hypernasality is useful for both rehabilitative (e.g. tracking progress in speech therapy) and diagnostic (e.g. early detection of neurological diseases) settings [6], [61].

Clinician perceptual assessment is the gold-standard method for assessing hypernasality [14]. However, this method has been shown to be susceptible to a wide variety of error sources, including type of stimuli, phonetic context, vocal quality, patterns of articulation, and previous listener experience and expectations [27]. Additionally, these perceptual metrics have been shown to erroneously overestimate severity on high vowels when compared with low vowels [33], and vary based on broader phonetic context [37]. Although these difficulties may be mitigated by averaging multiple clinician ratings, this further drives up costs associated with hypernasality assessment and makes its use as a trackable metric over time less feasible.

Automated hypernasality assessment systems have been proposed as an objective alternative to perceptual assessment. Instrumentation-based direct assessment techniques visualize the velopharyngeal closing mechanism using videofluoroscopy [22] or magnetic resonance imaging (MRI) [24] and provide information about velopharyngeal port size and shape [2]. These methods are invasive and may cause pain and discomfort to the patients. As an alternative, nasometry seeks to measure nasalence, the modulation of the velopharyngeal opening area, by estimating the acoustic energy from the nasal cavity relative to the oral cavity. This is done by measuring the acoustic energy from two microphones separated by a plate that isolates the mouth from the nose [49]. In some cases, nasalance scores yield a modest correlation with perceptual judgment of hypernasality [3, 70], however there is considerable evidence that this relationship depends on the person and the reading passages used during assessment [70], [57]. Because of this, the clinician’s perception of hypernasality is often the de-facto gold-standard in clinical practice [8]. Furthermore, properly administering the evaluation requires significant training and it cannot be used to evaluate hypernasality from existing speech recordings.

An appealing alternative to instrumentation-based techniques is the estimation of hypernasality from recorded speech samples. This family of methods aims to measure the atypical acoustic resonance resulting from VPD as an objective proxy for hypernasal speech. Previous work in this area can be categorized broadly in two groups: engineered features based on statistical signal processing [51] and supervised methods based on machine learning [21]. The simple acoustic features fail to capture the complex manifestation of hypernasality in speech, as there is a great deal of person-to-person variability [38]. The more complex machine learning-based metrics are prone to overfitting to the necessarily small disease-specific speech datasets on which they are trained, making it difficult to evaluate how effectively they generalize.

In this paper, we propose an approach that falls between these two extremes. We know that for voiced sounds hypernasal speech results in additional resonances at the lower frequencies. The acoustic manifestation of the additional resonance is difficult to characterize with simple features as it is dependent on several factors including the physio-anatomy of the speaker, the context, etc. For unvoiced sounds, we know that hypernasal speech results in imprecise consonant production resulting from air escaping through the nasal cavity. Our approach captures these complementary dimensions of speech by designing features for detecting nasal resonance in voiced phonemes and articulatory imprecision in unvoiced phonemes. The features are based on two acoustic models trained on a large corpus of healthy speech and result in a comprehensive set of interpretable features. In contrast to other approaches that rely on machine learning, the features do not rely on any clinical data for training. We show that these features can be combined using simple linear regression to develop a robust estimator of hyperanasality that generalizes across different dysarthria corpora, outperforming both neural network-based and engineered feature-based approaches.

I-a Related work

Spectral analysis of speech is a potentially effective method to analyze hypernasality. Acoustic cues based on formant F1 and F2 amplitudes, bandwiths, and pole/zero pairs [74], [30], [26], [19], [15], [65], [60], [64] and changes in the voice low tone/high tone ratio [35] [34] have been proposed to detect or evaluate hypernasal speech. These spectral modifications in hypernasal speech will have an impact on articulatory dynamics, thereby affecting speech intelligibility. Statistical signal processing methods that seek to reverse these cues, such as suppressing the nasal formant peaks and then performing peak-valley enhancement, have demonstrated improvement in the perceptual qualities of cleft palate and lip-caused hypernasal speech [68], further demonstrating the connection between these cues and intelligibility. The large variability of speech degradation patterns across neurological disease or injury challenges simple features that are based on domain expertise [46]. Overall, these simple features are not robust to the complicated acoustic patterns that emerge in hypernasality, and are prone to high false positive and negative error rates in out-of-domain test cases.

In response, more advanced representations of hypernasality that combine more elemental speech features and supervised learning have been proposed. Mel-frequency cepstral coefficients (MFCCs) and other spectral transformations

[52], [20], [46], [53], [44], [10], [11], [1], [25], glottal source related features (jitter and shimmer) [7], [12], difference between the low-pass and bandpass profile of the Teager Energy Operator (TEO) [5], [39], and non-linear features [45], [47]

have all been proposed as model input features. Gaussian Mixture Models (GMM), support vector machines, and deep neural networks have been used in conjunction with these features for hypernasality evaluation from word and sentence level data

[43], [16], [4], [67]. Recently, end-to-end neural networks taking MFCC frames as input and producing hypernasality assessments as output have also been proposed [66].

These methods rely on supervised learning and are trained on small data sets. For our application they run the risk of overfitting to the data by focusing on associated disease-specific symptoms rather than the perceptual acoustic cues of hypernasality itself.

Features based on automatic speech recognition (ASR) acoustic models targeting articulatory precision have been used in nasality assessment systems

[39]. The nasal cognate distinctiveness measure uses a similar approach but assesses the degree to which specific stops sound like their co-located nasal sonorants [56].

I-B Contributions

We propose the Nasalization-Articulation Precision (NAP) features, addressing the limitations of the current methods with a hybrid approach that brings together domain expertise and machine learning. Our approach relies on a combination of two minimally-supervised acoustic models trained using only healthy speech data, with dysarthric speech data only used for training simple linear classifiers on top of the features. The first acoustic model learns a distribution of acoustic patterns associated with nasalization of voiced phonemes and the second acoustic model learns a distribution of acoustic patterns of precise articulation for unvoiced phonemes. For a dysarthric sample, the model produces phoneme-specific measures of nasalization and precise articulation. As a result, the features are intuitive and interpretable, and focus on hypernasality rather than other co-modulating factors.

To evaluate the efficacy of this new feature set, we train and validate a linear model that predicts hypernasality scores across different neurological diseases to ensure that it is focusing on hypernasality and not other disease-specific dysarthria symptoms. We show that this representation correlates strongly with clinical perception of hypernasality across several different neurological disorders, even when trained on one disorder and evaluated on a different disorder. Such assessment has a potential advantage as an inexpensive, non-invasive and simple-to-administer method, scalable to large and diverse populations [54] [50].

The remainder of this paper is organized as follows: Section 2 describes the data used in the analysis and the proposed approach for predicting hypernasality scores. Section 3 lists comparative results and highlights the strengths and limitations of our proposed system. Conclusions and scope for future work are discussed in Section 4.

Ii Methods

Fig. 1: A high-level diagram of the NAP method. The leftmost pre-proccessing segment depicts the forced alignment of transcript to audio as well as the aligned word-phoneme-nasal class segmentation of the speech signal and spectrogram.

The proposed hypernasality evaluation algorithm is based on the intuition that as the severity of hypernasality increases, two broad perceptible changes take place: the unvoiced phonemes become less precise and the voiced phonemes become nasalized. To that end, we propose to model these perceptual changes at the phone level. In Fig. 1, we provide a high-level overview of the proposed hypernasality score estimation scheme.

After forced alignment and preprocessing, the input speech is analyzed phoneme-by-phoneme using two models. The first model analyzes voiced phonemes, yielding an objective estimate of acoustic nasalization based on a likelihood ratio. The second model captures the production quality of unvoiced phonemes, objectively estimating articulatory precision as a likelihood ratio. Both the acoustic nasalization model and the articulatory precision model are trained using healthy speech from the LibriSpeech Dataset [48]. The features from these models are averaged by phoneme, and then used as input to a simple linear model to predict clinician-assessed hypernasality ratings across several different neurological disorders. We describe the data and each of these processing steps in detail below.

Ii-a Data

Ii-A1 Healthy speech corpus

LibriSpeech is a public domain corpus of transcript-labelled healthy English utterances. It contains roughly 1000 hours of speech sampled at 16kHz. The speech consists of 1,128 female and 1,210 male speakers reading book passages aloud. It contains “clean” samples, which have been carefully segmented and aligned, as well as “other” samples which are more challenging to use [48]. It is freely available for download at We use this corpus to train both acoustic models shown in Fig. 1.

Ii-A2 Dysarthric speech corpus

The database consists of speech recordings from 75 speakers (40 male and 35 female) of varying levels of hypernasality. The corpus contains data from speakers diagnosed with several different neurological disorders: 38 patients have Parkinson’s disease (PD), 6 patients have Huntington’s disease (HD), 16 patients have cerebellar Ataxia (A), and 15 patients have amyotrophic lateral sclerosis (ALS).

All individuals spoke the same set of five sentences, capturing a range of phonemes. The perceptual evaluation of hypernasality from recorded samples was carried out by 14 different speech language pathologists on a scale of 1 to 7. The average hypernasality score for each speaker was used as the ground truth. The inter-rater reliability of the SLPs was moderate, with a Pearson Correlation Coefficient of 0.66 and an average inter-clinician mean absolute error of 1.44 on the 7-point scale. The sentences spoken were:

  1. The supermarket chain shut down because of poor management.

  2. Much more money must be donated to make this department succeed.

  3. In this famous coffee shop they serve the best doughnuts in town.

  4. The chairman decided to pave over the shopping center garden.

  5. The standards committee met this afternoon in an open meeting.

The speech recordings were carried out in sound treated room using a microphone. Table I

shows the breakdown of clinical characteristics of the subjects and the statistics of the nasality score (NS) subsets. S.D. denotes standard deviation.

Disease Male Female Mean Age S.D. Age Mean NS S.D. NS
PD 20 18 71.06 9.62 2.55 0.75
A 6 10 62.47 14.05 3.58 0.68
ALS 8 7 59.54 13.23 4.41 0.85
HD 6 0 58.40 13.20 3.31 0.59
Total 40 35 65.80 12.67 3.20 1.04
TABLE I: Clinical characteristics and nasality scores of the subjects.

Ii-B Data pre-processing

In this section, we formalize the notation to be used in the ensuing analysis. Consider an utterance with sampling rate and a corresponding transcript of phonemes , . We analyze with a frame length and overlap. For a frame indexed by , , we extract a set of features, . The utterance is force-aligned using the Montreal Forced Aligner [40] at the phoneme level. We denote the data feature matrix for all frames that are aligned to phoneme by .

After alignment, we use different features for the acoustic nasalization model than for the articulatory precision model. For the nasalization model we use perceptual linear prediction (PLP) features because they better preserve acoustic cues that have been previously used to model hypernasality, including formant frequencies, bandwidths, and spectral tilt [23]. For the articulatory precision model for unvoiced phonemes, we use mel-frequency cepstral coefficients (MFCCs), a common representation for automatic speech recognition applications [41]. We also use a lower sampling rate for the voiced nasalization model (8kHz) compared to the unvoiced articulatory precision model (16kHz). This is motivated by the difference in spectral energy distribution between voiced and unvoiced sounds.

Ii-C Nasalization model

Our acoustic nasalization model is trained using healthy speech data from the LibriSpeech dataset. We model the distributions of two classes of voiced phonemes. The “oral” non-nasal () class consists of all voiced oral consonants and all vowels from syllables where nasal consonants are not present. Similarly, we define the “nasal” class () to contain the nasal consonants as well as half of adjacent vowels surrounding them. These rules were implemented after alignment; an illustrative example of the two classes is shown in the third tier of the aligned example in Fig. 1.

For this task, we use 100 hours of clean-labeled speech from the LibriSpeech dataset [48]. We first perform forced phone-alignment to the transcript as shown in Figure 1. We partition all phonemes into the and classes. For each frame in each phoneme, we extract 13 PLP coefficients, giving two feature matrices, and

, containing all frames of nasal PLPs in one, and non-nasal PLPs in the other. To model the probability density functions, we use a 16-mixture Gaussian Mixture Model (GMM). The weight, mean, and covariance matrix for each of the GMM components is learned using the expectation maximization (EM) algorithm. The GMM for the nasal class is represented by

, . Here, , and represent the mean, covariance matrix and weight of the Gaussian, respectively. Similarly, for the non-nasal class the GMM components are given by , .

After training on healthy speech, we provide a segmented dysarthric utterance to evaluate the likelihood from each of the two learned probability density functions. For an out-of-sample input, we estimate the likelihood, voiced phoneme by voiced phoneme. That is, for data feature matrix , the likelihood that this phoneme is nasalized is


where the notation is shorthand notation for all frames aligned to phoneme . Similarly for the class, we have


We use the log-likelihood ratio test statistic as a continuous measure of nasalization. In particular, we define


where represents the number of acoustic frames aligned to phoneme . This statistic is calculated for every voiced, non-nasal phoneme in the input utterance. Thus, for a given speaker, a nasalization ratio is computed containing the log-likelihood ratios of nasalization of the voiced phonemes, (AA, AE, AH, AO, AW, AY, B, D, DH, EH, ER, EY, G, IY, JH, V, Z).

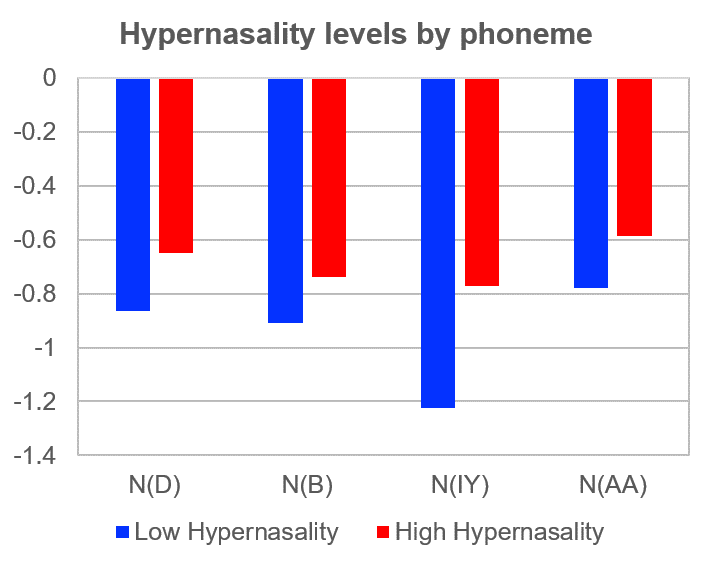

Fig. 2: Bar chart of the nasality feature for D, B, IY, and AA for low hypernasality and high hypernasality speakers.

For non-nasalized speech, we expect the value of to be low, whereas for nasalized speech, we expect it to be high. Figure 2 shows a comparison of the value of the nasalization likelihood feature between a group of high hypernasality ( perceptual rating) and a group of low hypernasality ( Perceptual rating). We average the hypernasality scores for the 4 most relevant phonemes for predicting hypernasality (see Section III-B for details). As expected, there is an increase in the nasality feature value for an increase in severity of hypernasality.

Ii-D Articulation model

The articulation model is an implementation of the goodness of pronunciation algorithm [71] based on an acoustic model trained using Kaldi as specified in [63]

. For our implementation we used a triphone model trained with a Gaussian Mixture Model-Hidden Markov Model on 960 hours of healthy native English speech data from the LibriSpeech corpus

[48]. The input features to the ASR model are a

-dimensional second order Mel-Frequency Cepstral Coefficient (MFCC) with utterance-level cepstral mean variance normalization and Linear Discriminant Analysis transformation. We use the Kaldi toolkit training scripts for training the model. In contrast to the nasalization model, here we use a sampling rate of 16 kHz to capture the wideband nature of unvoiced phonemes. The nasalization model required a much smaller training set (100 hours) since there were only two classes modeled by the GMM.

After training, the acoustic model can be queried using the Viterbi decoding algorithm for the posterior probability

of a given set of acoustic feature frames representing a realization of some phoneme . For a “well-articulated” phoneme, no phoneme apart from the one intended by the speaker should maximize this posterior.

We use the acoustic model to assess articulatory precision as follows. Considering the set of phonemes in the language, we assess the log-likelihood ratio of the frames from a given phoneme , to the maximum log-likelihood across all phonemes,


where represents the number of acoustic frames aligned to phoneme .

This processing is performed after forced alignment to the transcript labels, and assessed for each unvoiced phoneme to permit by-phoneme analysis of precise articulation.

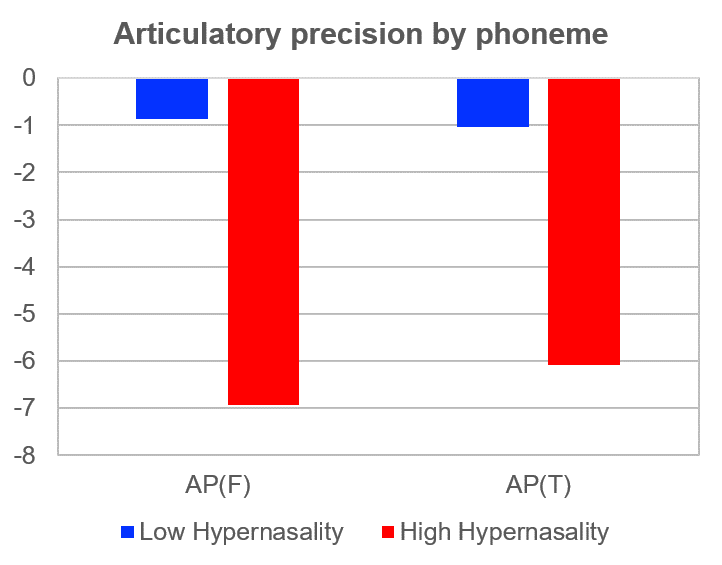

Fig. 3: Bar chart of articulatory precision for F and T for low hypernasality and high hypernasality speakers.

For speakers who exhibit little hypernasality, we expect the value of for unvoiced phonemes to be high, whereas for hypernasal speakers, we expect it to be lower. Figure 3 shows a comparison of the average value of the articulation precision feature between a group of high hypernasality ( perceptual rating) subjects and a group of low hypernasality ( Perceptual rating) subjects. We average the articulation scores for the most relevant phonemes for predicting hypernasality (see Section III-B). As expected, there is a decrease in the articulation precision feature value for an increase in severity of hypernasality. Furthermore, we expect hypernasality to exhibit unique patterns in terms of affected and unaffected unvoiced phonemes, that are not general to dysarthria [56], making phoneme-level AP classification a valuable signal in quantifying hypernasality.

Ii-E Linear regression model

In the interest of generalization and clinical interpretability, simple linear ridge regression models are used to estimate the nasality score using the phoneme-averaged nasalization and articulatory precision features as input.

Two different cross-validation strategies are used to evaluate model performance and the quality of the input features. First, we use leave-one-speaker-out (LOSO) cross-validation, as is typically done. To evaluate the generalization across out-of-domain diseases, we also perform leave-one-disease-out (LODO) cross-validation. In LODO, data for three of the neurological conditions is used for training and the fourth is used for testing.

Train on Ataxia, HD, PD, ALS HD, PD, ALS Ataxia, PD, ALS Ataxia, HD, ALS Ataxia, PD, HD
Test on Left-out speaker Ataxia HD PD ALS
FF-Linear 0.871 0.180 0.823 0.042 0.666 -0.751 1.316 0.351 1.426 -0.425
FF-Additive 0.789 0.435 0.730 -0.123 0.693 -0.557 1.334 0.277 1.260 0.429


0.754 0.481 0.781 0.333 0.567 0.381 1.218 0.402 1.227 -0.039
MFCC-NN 0.884 0.458 0.904 -0.120 0.429 0.568 0.800 0.457 1.233 0.315
NAP-Linear ours 0.587 0.722 0.546 0.750 0.559 0.737 0.509 0.697 0.597 0.527
TABLE II: Comparative evaluation of state of the art formant features (FF-Linear, Additive, KNN) and neural network-based (MFCC-NN) approaches against our NAP features for predicting clinician hypernasality score, conducted using leave-one-speaker-out (LOSO) and using leave-one-disease-out (LODO) cross validation. We report mean absolute error (MAE) on the 7-point scale and Pearson correlation coefficient (PCC).

Iii Results

We evaluate the efficacy of the features in two ways: by analyzing the correlation between individual per-feature averages and speaker hypernasality rating, and by observing the performance of a simple linear regression model directly calculating the hypernasality score for a speaker from their features. For the hypernasality score computation task, we evaluate the performance of a model against two baselines. Models are compared using mean average error (MAE) and Pearson correlation coefficient (PCC) between the clinical perceptual hypernasality score and the predicted hypernasality scores.

Iii-a Hypernasality evaluation

Fig. 4: Leave one speaker out (LOSO) results from predicting the hypernasality score for the simple feature baseline with (a) the KNN classifier and simple formant features (FF-KNN), (b) the neural network baseline (MFCC-NN), and (c) the NAP features with simple linear regression (NAP-Linear)

In Table II, we show the results of the evaluations (LOSO - leave one speaker out and LODO - leave one disease out for the four diseases) for five different models. We evaluated our NAP features against two comparison models representing the state of the art in engineered features and in supervised learning. The most predictive acoustic features for hypernasality presented in [59] were extracted using Praat source code provided by the authors [58]. These formant features (FF) included formant amplitude, nasality peak amplitude, and normalized and raw difference [9]. All features were extracted for each vowel and used in a linear and non-linear model to estimate the clinician-assessed hypernasality labels. The linear model is based on simple multiple regression whereas the non-linear models are based on additive regression and -nearest neighbor regression. The results of this model are labeled FF-Linear, FF-Additive, and FF-KNN in Table II. In addition, we implemented the neural network proposed in [66], consisting of three feed-forward layers with sigmoid activations. The inputs to the networks are 39-dimensional Mel Frequency Cepstral Coefficients (MFCC) computed with a 20 ms window length and no overlap. The hidden layer is of size 100, and the output layer of size 1. The output value is averaged across all frames to provide a single nasality score estimation per speaker. The model is trained using L1 loss and the Adam optimizer [28]

for 50 epochs with a learning rate of 0.001. This model’s results are reported in Table II as MFCC-NN.

The results show that the linear model based on NAP features consistently outperforms the other two models, especially under the LODO conditions. The differences are also apparent when we analyze the individual LOSO correlation plots in Fig. 4. These scatter plots relate the estimated hypernasality score for each speaker against the actual hypernasality score. As is clear from the figures, the correlation of the baseline methods is largely driven by the samples with very high nasality scores. The NAP model exhibits a linear trend between the predicted and actual values throughout the hypernasality range.

Iii-B Individual feature contributions

Fig. 5: Plots of the two most prominent articulatory precision features (AP(T) and AP(F)) as well as four of the most prominent nasalization features (N(D), N(B), N(IY), and N(AA)) against clinician-assessed nasality score.

We use a simple forward selection algorithm for the LOSO model to identify the most predictive NAP features. The algorithm identifies the subset of features that minimizes the cross-validation mean square error between the predicted hypernasality rating and the clinical hypernasality rating. Features are iteratively added until the cross-validation loss is no longer decreased. This procedure results in 6 non-redundant features selected for prediction. This includes the articulatory precision for T and F and the nasalization for D, B, IY, and AA. We plot the top features against the clinical perceptual nasality ratings in Fig.

5; Fig. 6 depicts the marginal improvement in LOSO correlation as features are added in by decreasing feature prominence.

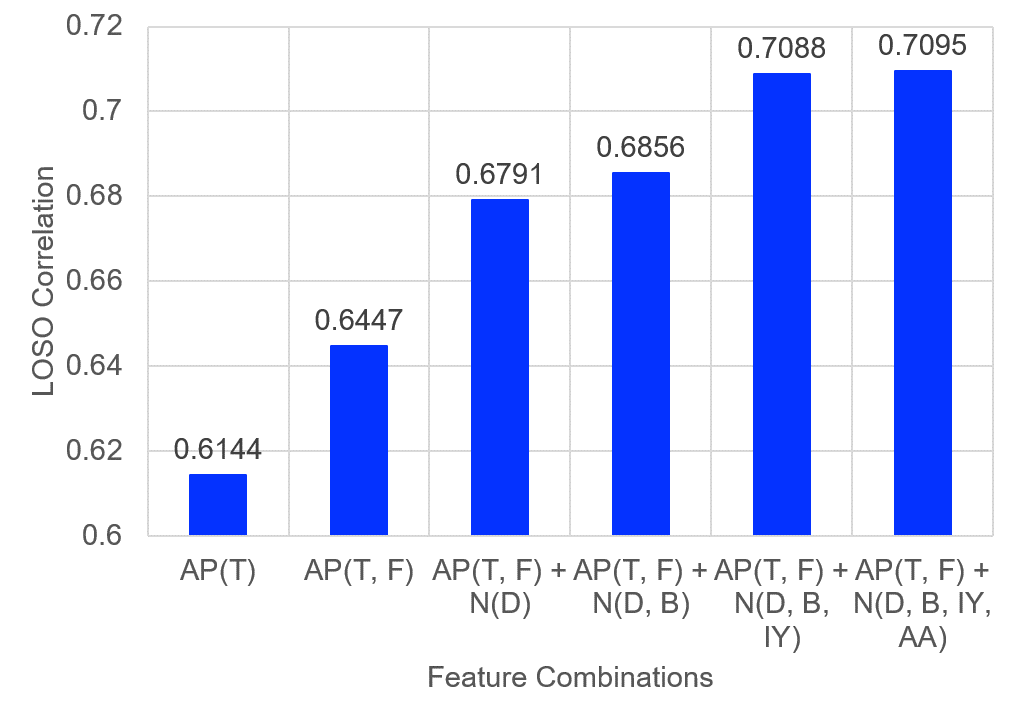

Fig. 6: Cumulative marginal improvement plot of leave one speaker out correlation with the addition of the most optimal articulatory precision and nasalization features.

Iii-C Relationship between articulatory precision and hypernasality

Articulatory precision and hypernasality are tightly linked. Hypernasal speech results in impaired articulatory precision. However, articulatory impairments can occur in motor-speech disorders for a variety of reasons. The neurological conditions we study herein impact several aspects of speech production including, respiration, voicing, resonance, and articulation. This brings up two important questions:

  • Do our features capture changes related to hypernasality that go beyond changes in articulatory precision?

  • Are our features sensitive to changes in articulatory precision that result from only hypernasality (and not other articulatory impairments resulting from dysarthria)?

In an attempt to decouple articulatory precision from hypernasality, we collect clinical articulatory precision ratings (in addition to the hypernasality ratings) from the same clinicians. The inter-rater reliability of the ratings was robust, with a Pearson correlation coefficient of 0.75 and a mean absolute error of 1.01 on a 7-point scale.

To answer the first question above, and demonstrate that our features capture information beyond changes in articulatory precision, we use a multiple linear regression model with clinician-rated articulatory precision alongside our six most predictive features (N(AA), N(IY), N(B), N(D), AP(T), AP(F)) as independent variables. The dependent variable is the clinical hypernasality rating. The results are shown in Table III. As expected, the subjective AP rating is most predictive as there is significant overlap with hypernasality. However the model also indicates that the nasalization features N(AA) and N(IY) are predictive with . The features related to nasalization of vowels provide additional predictive information not directly captured by the clinical rating.

AP(F) 0.026 0.897 0.373
AP(T) 0.05 -1.587 0.117
NAS(AA) 0.193 2.17 0.034
NAS(B) 0.23 -0.838 0.405
NAS(D) 0.333 1.383 0.171
NAS(IY) 0.128 2.211 0.03
clinician AP 0.065 8.104
N 75
R 0.786
TABLE III: Multivariate regression results relating clinical articulatory precision, the six most prominent acoustic features and the clinical rating of hypernasality.

To answer the second question, and demonstrate that our features are sensitive to hypernasality alone, we evaluate a linear model trained on our full dataset of dysarthric speech using the six most predictive features predicting hypernasality scores for 18 speech samples from individuals with cleft lip and palate (CLP). These CLP speakers are otherwise healthy and exhibit no other co-modulating symptoms such as imprecise articulation resulting from other motor impairments. This corpus consists of 6 child and 12 adult CLP speakers with different levels of hypernasality severity, and they span the hypernasality range (from normal to extreme) in equal intervals [31]. The linear hypernasality model trained on our dysarthric speech corpus achieves a PCC of 0.89 for predicting the adult hypernasality severity, and 0.82 for predicting the hypernasality level of the children. This provides additional evidence that our features capture the perceptual quality of hypernasality and not other co-modulating symptoms.

Iii-D Effectiveness of forced alignment

The features we have proposed herein rely on force aligning known transcripts to dysarthric speech [73]. This can be problematic as coarticulation, blending, missed targets, distorted vowels, and poor articulation present in severely disordered speech [17] may interfere with the appropriate matching of dictionary phoneme-word pairs to the realized sounds [29].

We directly evaluate the prevalence of alignment errors generated by our forced alignment methodology using manually aligned transcripts. Two annotators produced word- and syllable-level aligned transcripts using the same spelling and phoneme-word conventions employed in the acoustic model dictionary for all utterances in the dataset. For each speaker in the dataset, we count word- and phone-level alignment errors based on the position of the center point of a word or phoneme as assessed by the forced aligner and the beginning and end of the corresponding word or syllable, , as assessed by the human transcriber. For each word or phoneme, the error is counted as . This error measure returns 0 if the center of the phoneme falls within the syllable; otherwise it returns the maximum error between the center of the automatically aligned phoneme and the start and end of the manually-aligned syllable. In Figure 7 we show the alignment error (in sec.) against the hypernasality rating to show how alignment error rates progress as hypernasality increases. The results clearly show that for all but the most severely hypernasal speakers forced alignment works effectively.

These results also indicate that our objective hypernasality ratings for the most imprecise speakers are not reliable. While this is a limitation of the approach, it is not severely limiting. In most cases, clinicians are more concerned with evaluating speakers in the mild-moderate end of the scale where they can monitor disease progress early or evaluate the effects of an intervention. This is less common for later stages of disease.

It is interesting to note that, while the alignment is poor, the model still yields high hypernasality scores for imprecise speakers. Precise alignment for speakers in this range is simply not possible, manually or otherwise. It’s likely that the poor hypernasality ratings predicted by the model is driven by the poor alignment itself [18].

Fig. 7: Plot of average alignment errors per speaker (s) against clinician-rated articulatory precision at the phone level. Dashed line indicates an average alignment error of 25 ms.

Iii-E Discussion

The model based on NAP features outperforms both baselines, across all settings. In the LOSO condition the MFCC-NN approach outperforms the simpler formant features in PCC, while the formant feature model does achieve a lower MAE it seems to be a result of largely predicting the mean, with only a very modest upsloping trend in Figure 4(a) as opposed to Figures 4(b) and 4(c) which clearly show upward-sloping trends.

In the LODO conditions, the formant features and MFCC-NN models perform unpredictably. On some disease classes, MFCC-NN outperforms FF, while the opposite is true for others. By comparison, the NAP achieves consistent performance across all LODO classes. This suggests that these features are a robust measure of hypernasality, relatively invariant to the disease-specific co-modulating variables that hinder the performance of the baselines on the same task. The nasalization features in the NAP, by virtue of being trained on a large corpus of healthy speech, and targeting a specific perceptual quality are simultaneously more robust to both the disease-specific overfitting expected from NN methods such as [66] and speaker-to-speaker variances discussed in the design of the formant-based A1P0 and related features in [59], [9]. Articulatory precision features are robust in a similar way.

One of the added benefits of the proposed approach over the baseline methods is the direct interpretability of the individual NAP features. While it is not immediately clear how MFCC features or formant-based features are expected to change with different hypernasality levels, the proposed features are easy to interpret.

The feature-level analyses of the nasalization and articulatory precision features behave as expected, with the nasalization log likelihood of the phonemes increasing as hypernasality increases, while the articulatory precision decreases as hypernasality increases (Figure 5). Analysis of Eqns (3) and (4) shows that this makes sense. As hypernasality increases, the voiced phonemes become more and more like the class in the acoustic model in Section II. Similarly, as hypernasality increases, the acoustics of the unvoiced phonemes become less and less like the intended target, therefore the ratio in Eqn (4) decreases.

During the feature selection analysis in Section III-B, certain consonants appeared prominently. In particular, the nasalization feature for phonemes D, and B, as well as the articulatory precision of T and F were prominent. T, B, and D are referred to as a “nasal cognates” in [56], as the bilabial consonant B shares a place of articulation with the bilabial nasal M, the lingua-alveolar consonants T and D share a place of articulation with the lingua-alveolar nasal N. Leakage through the nasal cavity will interfere with the production of all of these phonemes, and in the voiced case, they will sound like their corresponding nasal phonemes. It is not surprising that the nasalization model is most sensitive to these phonemes since that model is trained on healthy speech, where the class consists mostly of instances in M and N and surrounding vowels.

Through the same analysis, the most prominent vowels selected were AA and IY. AA is the most open and back vowel in English, whereas IY is the most closed and fronted. It may be the case that these extreme ends of the vowel chart exhibit more noticeable patterns of nasalization, either on a perceptual level or just in their PLP-nasalization feature realization.

In spite of its robustness the NAP model has limitations. Most limiting is its reliance on aligned transcripts to perform the estimation. The results shown in this paper were based on forced alignment. This is always possible when the ground truth transcript is known but is not feasible for spontaneous speech. The robustness of the model comes from the fact that it is trained on a large corpus of healthy speech; however, this training also induces a bias in the model. As the feature selection results show, the model is adept at detecting hypernasal speech from phonemes that look similar to nasals in healthy speech; however it is impossible to capture nasalization acoustic patterns for unvoiced speech since these sounds never occur in healthy speech (and hence cannot be captured in our model). As a result, we use articulatory precision as a proxy for nasalization for these sounds. Increased hypernasality typically implies reduced articulatory precision, but the converse is not necessarily true. As such, it is possible for speakers to exhibit reduced precision for other reasons than hypernasality. As we showed with the CLP speech experiments, when the reduction in articulatory precision is due to hypernasality, the model generalizes out-of-disease quite well.

Iv Conclusion

We have presented and demonstrated the Nasalization-Articulation Precision features for objective estimation of hypernasality. This method leverages a data-driven approach to learning expert-designed features on healthy speech that capture perceptible elements in hypernasal speech. We demonstrated that these features, when evaluated on disordered speech, track the expected trends in perceptual hypernasality ratings, and can be used with ridge regression to estimate a clinician-rated hypernasality score more accurately than several representative baseline methods. Additionally, we demonstrated that the NAP algorithm predictions for hypernasality rating generalize across diseases with significantly less loss in accuracy than existing approaches. This implies that the NAP features are a robust method for estimating hypernasality in dysarthria.

We plan to expand on this work by collecting a larger dataset of nasality-scored dysarthric speech, representing more diseases, and designing stimuli better tailored for this task.
