1 Introduction

We consider the problem of function approximation with artificial neural networks (ANNs). This generic task has many applications in science and engineering, such as signal processing, pattern recognition, and control. The goal is to model an unknown nonlinear function based on observed input-output pairs. ANNs are universal function approximators

[19], and usually they deliver good performance in applications.

Error-free data are rarely provided in applications. First, the data are usually contaminated by noise, which reflects inaccuracies in observations and stochastic nature of the underlying process. ANNs and other function approximators deal with such noise quite efficiently, by minimising the sum of squared differences between the observed and predicted values, or a more sophisticated fitting criterion, such as Huber-type functions, which are the basis of M-estimators in statistics

[20].

The second type of data contamination has to do with either gross observation errors (e.g., equipment malfunction, or notorious replacing missing values with zeroes, wrong decimal points and other blunders), or the data reflecting a mixture of different phenomena. These data, which usually take aberrant values, are called outliers. It has been noted that typically the occurrence of outliers in routine data ranges from 1% to 10%. When fitting a model to the data, outliers need to be identified and eliminated, or, alternatively, examined closely, as they may be of the main interest themselves. Notable examples are intrusion and cyberattack detection, detection of harmful chemicals and cancerous cells.

The methods of function approximation based on the least squares (or, more generally, maximum likelihood principle) are not robust against outliers. In fact just one aberrant value can make the model’s bias infinite (it is said that the method breaks down). This phenomenon is well known in linear regression [47, 30], where a number of robust high-breakdown methods have been developed. The popular methods of least median of squares (LMS) and least trimmed squares (LTS) [46] discard half of the data as potential outliers and fit a model to the remaining half. These methods determine numerically which half of the data should be discarded in order to obtain the smallest value of the respective objectives. That way, up to half of the data can be outliers but they do not break down the method. It is said that their (asymptotic) breakdown point is . The outliers themselves can be identified by their large residuals, something that cannot be achieved when using the least squares estimators, or maximum likelihood estimators (called M-estimators), because of the masking effect (i.e., the outliers affect the fitted model so much that their residuals do not stand out).

Much less work has been devoted to non-linear high-breakdown regression. There are very few papers dealing with the LTS method applied to ANNs, see for example, [57]. More recently, Liano [26] used M-estimators to study the mechanism by which outliers affect the resulting ANNs. Chen and et. al [8] also used M-estimators as a robust estimator in the presence of outliers. The Least Trimmed Squares estimator was discussed in [23, 49, 50]

. A robust LTS backpropagation algorithm based on simulated annealing was considered in

[50].

It is known that fitting the LTS or LMS criterion is an NP-hard problem even in linear regression. The objective has a large number of local minima and is non-smooth. The problem becomes even more complicated for ANNs, because

  • the dimensionality of the problem increases even further with the number of hidden neurons used, and

  • the ANN training is an NP-hard problem even when using the traditional least squares criterion.

Training ANNs with LTS or LMS criterion is very challenging because of a much higher number of local minima as well as non-applicability of the traditional fast backpropagation algorithm because of non-smoothness of the objective.

In this article we advance the methods for robust fitting of ANNs using LTS and related fitting criteria. Our first contribution is to design a hybrid algorithm, which combines a derivative free optimisation method for initial training of ANN, removal of the detected outliers, and then fine tuning of ANN weights using clean data and backpropagation. The second contribution is the design of an improved fitting criterion, called Penalised CLTS (PCLTS), which prevents unnecessary removal of valid data. The LTS and LMS criteria have this undesirable effect, illustrated in our experiments. The PCLTS criterion prevents unnecessary removals by imposing a penalty on removal of every datum.

This article is structured as follows. In Section 2, we introduce the problem of robust regression, recall the definitions and the main features of several existing high-breakdown estimators, and discuss the associated optimization problem. In Section 3 we introduce the PCLTS criterion for ANN fitting. In Section 4, we outline the existing approaches to solution of the related optimization problem and present three new methods we use in this study. Section 5 is devoted to a comparative numerical study of the optimization methods using several data sets. Section 6 concludes the article.

2 High-breakdown robust estimators

In this section, we briefly introduce a statistical problem which is in the origin of the non-smooth global optimization problem treated in this paper. We start the discussion with high-breakdown linear regression, which will be followed by nonlinear regression.

2.1 Robust linear regression

Consider the standard multiple linear regression model

(1)

where for regression with an intercept term. Here is the matrix of explanatory variables of full column rank, and is a

-vector of independent and identically distributed random errors with zero mean and (unknown) variance

. The goal is to determine the vector of unknown parameters . The goodness of fit is expressed in terms of the residuals , namely the sum

for the ordinary least squares (OLS) and

for the least absolute deviations (LAD) methods.

As we mentioned in the introduction, the OLS and LAD are very sensitive to large outliers in the data. Just one grossly atypical datum can affect the model. A breakdown point of a regression estimator is the smallest proportion of contaminated data that can make the estimator’s bias arbitrarily large (see [16], [47], p.10). The breakdown point of the OLS and LAD methods tends to zero as with the increasing sample size , and is said to be 0%.

To overcome the lack of robustness of OLS and LAD estimators, Rousseeuw [46] introduced the least median of squares and least trimmed squares estimators. The methods of the least trimmed absolute deviations (LTA) and the maximum trimmed likelihood (MTL) were advocated in [56, 17, 14]. These methods are robust to leverage points, and allow up to a half of the data to be contaminated without affecting the regression model. Atypical data are then detected by their large residuals. For recent accounts of the state-of-the-art in high-breakdown robust regression, see [47, 30].

Essentially, the LTS, LTA and MTL methods work in the following way. Half of the sample is discarded, and a regression model is built using the other half. The sum of the residuals is then evaluated. The objective is to find the optimal partition of the data into two halves, so that the sum of the (squared or absolute) residuals is the smallest. This is a combinatorial formulation of the problem. Evidently the solution is feasible only for small data sets.

The same problem can be formulated as a continuous non-smooth optimization problem:

(2)

where the residuals are ordered in the increasing order , and , where is the floor function. The variables in this model are the regression coefficients

. For small to moderate dimension but large data sets this model offers significant numerical advantages. It is the basis of fast heuristic algorithms in high-breakdown regression

[48]. Several recent methods based on this formulation, including evolutionary and semidefinite programming, were presented in [35, 34, 7, 51, 3].

The four methods mentioned above achieve the highest attainable asymptotic breakdown point of , which means that up to a half of the data can be contaminated without affecting the estimator. Consequently, the outliers can be easily detected by their large residuals, and either eliminated, or alternatively, examined more closely in the cases where the outliers themselves are of the main interest.

It is shown in [5] that computation of the high-breakdown estimators is an NP-hard problem. Indeed, the objective in the methods mentioned above has multiple local minima. Consider, for instance, the LTS estimator. The problem (2) can be written as

where is a permutation of the vector . Subsequently we write it as

The inner optimization problem is convex, and has a unique minimum (potentially, multiple minimizers). Then problem (2) will potentially have as many as local minima (the number of permutations which result in distinct sums for any fixed ).

In addition to determining the breakdown point of an estimator, it is also essential to ivestigate its efficiency. It is customary to evaluate the efficiency by comparing it to that of the OLS estimator. A fully efficient estimator should deliver the same accuracy as the maximum likelihood based estimator (which is OLS when the noise is Gaussian) when the data set contains no outliers. The relative efficiency of the LMS, LTS and LTA methods for normally distributed data is low

[30, 47]. However, fully efficient high-breakdown estimators exist. The reweighted least squares estimator (REWLSE) is one such estimator presented in [13].

To improve the efficiency, while preserving the breakdown point, Gervini and Yohai [13] use a two-step process: an initial high-breakdown estimator (like LMS, or LTS) provides a robust estimate of scale used to re-weigh the data. The weights are given by the formula

(3)

where is the adaptive cutoff value beyond which the sample proportion of absolute residuals exceeds the theoretical proportion. The weights given by (3) effectively remove all outliers. The adaptive estimate REWLSE is then computed as a weighted OLS: with .

The two-step process in REWLSE computes fully efficient estimators when the data are normally distributed, as no data are unnecessarily removed. REWLSE inherits the breakdown point of the initial estimator and combines it with full efficiency of the final LS estimator.

2.2 Nonlinear robust regression

We now consider a nonlinear regression model

(4)

where is an arbitrary (nonlinear) function, is a set of parameters (it may vary depending on the particular specification of a class of regression models), are the fixed data points or inputs and are the outputs. Regression neural networks give us examples of such functions. For instance, each neural network with one hidden layer and one output defines a function of the form

where (and ) are the hidden (respectively, input) layer weights, is the size of the hidden layer, is the number of inputs plus one (the bias term), and is a transfer function. Altogether, has parameters represented by .

For regression ANNs, the OLS fitting criterion is typically used, i.e., the weights are found by minimising

(5)

with the residuals . Backpropagation is usually the algorithm of choice for minimising , although Levenberg Marquardt is also used [15, 31]. In both cases, a randomly chosen initial weighting vector is needed, and often both methods are combined with random start heuristic, because has multiple local minima. The number of local minima of grows exponentially with the length of .

As in the case of linear regression, the OLS criterion is not robust against outliers. This can be clearly demonstrated by replacing one or more data with very large or very small values, see examples in Section 5. Unlike in the case of linear regression, where the whole regression model is shifted towards the abnormal value, models provided by regression ANNs exhibit wild oscillations at the abnormal datum, which significantly affect the rest of the data.

There have been attempts to use more robust Huber-type criterion (which is used in M-estimators) [8, 26]. Here the squared residuals in (5) are replaced with , where is an non-negative monotone increasing function with , whose growth decreases with the size of the argument. This way very large residuals have a limited effect on the objective . The objective itself becomes more complex, as even in linear regression, when depend on linearly, is the sum of quasi-convex terms, which is not quasi-convex itself. Huber-type functions also have another problem. The scale of their argument has to be either determined a priori, or be data-dependent. In the former case the estimator is not scale invariant, whereas in the latter case a robust estimation of the scale parameter is needed. When estimation of the scale is not robust (for example, taking as the mean of the absolute residuals and evaluating ), the M-estimator will not be robust.

The LTS criterion (2) was also used in ANN training [49]. It allows one to discard up to half of the data as potential outliers, and therefore make ANN model robust against largely abnormal data. Unlike in the case of linear regression, however, the LTS criterion may also discard good data together with the outliers. When there are no outliers in the data, it treats good data as outliers, and builds wrong regression models. We illustrate this on several examples in Section 5.

3 A new high-breakdown criterion for ANNs

In this section, we introduce a new fitting criterion, which has allowed us to overcome the deficiencies of the M-type and LTS criteria mentioned in the previous section. We propose this new criterion, called Penalised CLTS (PCLTS), with the following aims in mind

  • We need to discard data with unusually large residuals as outliers.

  • We need to penalise unnecessary removal of data.

  • We need to keep all data with residuals which are comparatively small.

  • For the purposes of optimising the criterion, we need it to be based on a Lipschitz-continuous function.

PCLTS is based on the CLTS criterion [3], in which the data are discarded if their absolute residuals are times larger than the median residual. The choice of corresponds to the LTS criterion, but values of larger than one lead to better efficiency of the estimator compared to OLS in the absence of outliers.

We propose the following objective, which addresses the aims (A1) to (A4) indicated above:

(6)

where , is the median of absolute residuals , and

(7)

where is a constant factor, is a small positive number, and is a parameter controlling the penalty for removal of data with large residuals. Since

is a linear interpolation between the points

and , it is clear that the function is Lipschitz-continuous. When , and , we obtain a function which coincides with the LTS criterion almost everywhere. When , we obtain a Huber-type function, which is properly scaled, because the median is a robust estimator of the scale of the residuals (i.e., it is not affected by very large residuals).

We will discuss the consequences of one or another choice of the parameters and when we discuss numerical experiments in Section 5. Before that, we address the issue of numerical minimisation of (6).

4 Optimization methods

First, we will make a few general observations about the objective in (6). This function is non-convex and non-smooth, although it is Lipschitz-continuous. Compared to the LTS criterion (2), it has equally complex structure, although our experiments with the CLTS criterion in linear regression [3] indicated that the landscape of CLTS is less rugged compared to that of LTS. While the OLS criterion leads to a complex objective when training the standard ANNs (multiple local minima), backpropagation seems to be quite efficient in locating local minima of the OLS (5). Neither backpropagation nor Levenberg Marquardt will work with the new objective (6) directly. Therefore we studied several alternative minimisation methods.

Specifically, we focused on the following derivative free optimisation methods, which have shown good potential when applied to robust linear regression [3].

  • NEWUOA method of [40], combined with random start.

  • derivative free bundle method (DFBM) [1, 4], combined with random start.

  • a derivative free method based on dynamical systems (DSO) [29, 28].

Powell’s NEWUOA is a derivative free method for smooth functions, based on quadratic model of the objective, obtained by interpolation of function values at a subset of previous trial points. While our objective is non-smooth (although it is piecewise smooth), we applied NEWUOA because this method is faster than proper non-smooth optimisation [27] methods like DFBM. Multiple local minima of the objective mean that we have to make several starts of the algorithm from different starting points, where speed becomes an issue. DSO was chosen because in previous studies [29, 28, 59] it delivered good performance when the objectives had a large number of variables. We also tried other derivative free methods (Nelder-Mead simplex method, pattern search APPSPACK [33, 44, 32]), but they were not competitive and were discarded in favour of those mentioned above.

All mentioned methods could detect the outliers effectively, but they were not numerically efficient nor sufficiently accurate when building regression models. We explain this by a relatively large number of variables – the weights of the ANN. Therefore we decided to design a hybrid method by combining detection and removal of outliers by using PCLTS objective, and subsequent training by backpropagation using cleaned data. This approach is in line with Gervini and Yohai’s REWLSE method for linear regression [13], in which an initial high-breakdown estimator is improved by fully efficient OLS on cleaned data. This proved to deliver accurate predictions for all data sets we have considered.

Thus our ANN training algorithm has the following steps.

  1. Use one of the mentioned oprimisation methods with PCLTS objective (6).

  2. Clean the data by removing the data with the residuals larger than .

  3. Use standard backpropagation with the OLS objective to train ANN on clean data.

The most time consuming step here is Step I. It requires multiple evaluations of the objective at a large number of points (typically of order of in our experiments). Step III is standard in ANN training, and it was executed using standard ANN training library with default parameters (in our studies we used nnet package in R software [45]). It took negligible CPU time compared to Step I. Step II is trivial.

We used implementations of NEWUOA, DFBM and DSO in C++ language (DFBM and DSO taken form GANSO library [4], and a translation of NEWUOA from Fortran to C). All methods have few overheads, and the main complexity was in evaluating the objective. In order to achieve competitive CPU time, we parallelised calculation of the objective and offloaded it to a graphics processing unit (GPU), NVIDIA’s Tesla C2050 [37, 36]. General Purpose GPUs have recently become a valuable alternative to traditional CPUs and CPU clusters. Tesla C2050 has 448 GPU cores and 3 GB of RAM, and can execute thousands of threads at a time. GPUs have limitations too, in particular it is Single Instruction Multiple Threads (SIMT) paradigm, which means that instructions in different threads (of the same thread block) need to be almost identical. For parallel calculation of the residuals this is not an issue, as this task is trivially parallel, and is executed using for_all primitive [18, 52]. Calculation of the median is done in parallel using either GPU parallel sorting [54, 6], or a specific GPU selection algorithm [2]. Summation is performed in parallel using GPU reduction [18, 52, 38].

5 Numerical experiments

5.1 Data sets

We generated several artificial data sets using test functions considered in several previous papers on robust ANNs, and also used several real world data sets to which we introduced outliers. The artificial data sets are described below in Data Sets 1 through to 10. In all of these examples, the independent variables were considered in , where the dimension took on the values . The values of were chosen uniformly at random in the segment indicated below in describing each data set of the corresponding example. The target variable was determined using the formula

(8)

where . In all data sets, the noise level adopted the values . The sizes of the samples in each data set were taken as . Then we replaced a proportion of the points with five subsets of outliers. The outliers were divided into 5 subsets of equal size. Each subset was centered at a point with the first coordinates chosen uniformly at random in the same segment as the explanatory variables, and with the last coordinate equal to 10,000 + N(0,0.01). For Data Sets 1 to 10 indicated below, we examined all combinations of the dimension , proportion of outliers , and noise level .

Data Set 1 uses the model (8) with the function given by the equation

(9)

where stands for the Euclidean norm of and where the explanatory variables are again chosen uniformly at random in the segment . Earlier, the robustness of ANN for this function and data with outliers was investigated in [9], [53] and [12] in the case where and .

Data Set 2 deals with the model (8) using the function given by the equation

(10)

where the explanatory variables are again chosen uniformly at random in the segment . This function was earlier considered in [12].

Data Set 3 is defined by the model (8) using the function given by the formula

(11)

where the explanatory variables are again chosen uniformly at random in the segment . The function (11) was considered in numerous articles. For example, it was investigated in [8], [9] and [55].

Data Set 4 uses the model (8) with the function given by equation

(12)

where and is the sample size. Earlier, the robustness of ANN for this function was investigated in [10] and [11].

Data Set 5 is given by the model (8) with the following function

(13)

where the explanatory variables are uniformly chosen in the segment . This function was investigated in [11], [24] and [39].

Data Set 6 deals with the model (8) given by the following function

(14)

where the explanatory variables are uniformly chosen in the segment . This function was investigated in [24] and [11].

Data Set 7 is defined by the model (8) with the function given by the formula

(15)

where . Earlier, this function was considered in [11], for only one value of .

Data Set 8 is given by the model (8) with the function defined by the equation

(16)

where . Earlier, this function was investigated in [11].

Data Set 9 uses the function for the model (8) defined by the equation

(17)

where .

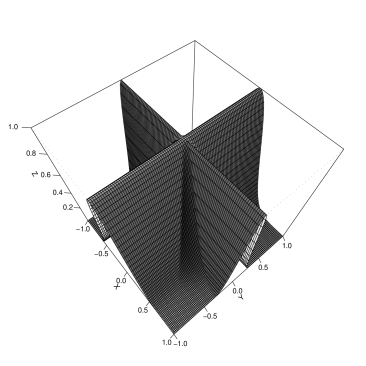

This function has an interesting surface plot in two variables, illustrated in Figure 1.

Figure 1: Plot of the surface of the function used in Data set 9.

Data Set 10 is defined by the model (8) with the following function

(18)

where . It was considered in [25].

Data Set 11 is a real world data set from the standardized benchmark collection for neural networks Proben 1 publicly available from [43]. Proben 1 was considered in many articles, for example, [21, 22, 41, 42, 58]. The Data Set 11 is the set ‘building’ with 4208 instances, where the value of hourly electricity consumption is regarded as a function of 14 input variables and has to be predicted. Outliers have been introduced by replacing several values of the dependent variable with very large values (10,000).

Data Set 12 is also a real world data set from Proben 1. It uses the values of output variable ‘cold water consumption’ viewed as a function of 14 input variables, see [43, 41].

Data Set 13 is a real world data set from Proben 1 using the values of output variable ‘hot water consumption’ viewed as a function of 14 input variables, see [43, 41].

Data Set 14 is a real world data set ‘hearta’ from Proben 1, see [43, 41].

5.2 Parameters of the algorithms

We varied two parameters of the PCLTS objective: and . We took . The value (with ) corresponds to the LTS criterion, and it was interesting to observe the difference larger values of made. The value of the second parameter were chosen in . Here we studied the influence of the penalty for removing the data when cleaning the data set.

As far as the parameters of optimisation algorithms are concerned, we fixed them in order to give each method approximately the same CPU budget as the others. We fixed the number of random starts of NEWUOA and DFBM at 200. DFBM ran with the maximum number of iterations set to 1000.

We used nnet package in R to perform the final stage of ANN training with cleaned data with default parameters.

5.3 Benchmarking criteria

As it is customary in data analysis literature, we used the Root Mean Squared Error (RMSE) to measure the quality of approximation. The data were split into training and test subsets. The training subset contained noisy data with or without outliers. The test subset contained noiseless data, i.e. the accurate values of the test functions

at uniformly distributed data within the domain of each function we considered. The size of each test sample was equal to that of the corresponding training sample. The test data set was generated separately and was not provided to the training algorithm. We report the RMSE on the test data set, which is the most important characteristic, reflecting ANN’s generalisation ability.

We also report the average CPU time taken by the PCLTS and the nnet procedures. The CPU time did not depend much on the test function, nor the Gaussian noise level or proportion of outliers, but rather on the dimension of the problem. Therefore we averaged the CPU time over different experiments.

5.4 Results and discussion

In the Appendix we presented detailed results for each of the test function we considered. In Tables 110 we compare RMSE values for PCLTS and standard backpropagation (nnet). The values in bold indicate the cases the method broke down.

Two facts are apparent from these tables. First, it is the failure of the traditional ANN training to predict the test data sets. This can be viewed in Figure 2, top row, where the predictions are not even close to the majority of the train data, nor the test data. Similar pictures were obtained for other data sets, e.g. Figure 10,c). This is reflected in very large RMSE in the tables, which is consistent across the tables. Second, it is the ability of our method based on the PCLTS objective to filter out the outliers. We note that the RMSE are practically the same as RMSE of backpropagation in the absence of outliers (the values in nnet column not in boldface). This indicates that all outliers were filtered out, and only few, if any, good data were removed. So our method achieves the same accuracy when using contaminated data, as nnet when using only clean data, as if the outliers were not there. This is repeated across all data sets we used.

Furthermore, when there are no outliers in the data, our method delivers the same RMSE as backpropagation, which means that no (or almost no) data were unnecessarily removed.

Table 15 show the CPU time of PCLTS and backpropagation. We see that PCLTS takes 1,000-10,000 times longer to train the ANN, compared to backpropagation. We do not observe a clear pattern of rising CPU cost with the increased size of the data set. This can be explained, on one hand, by a smaller number of iterations of the optimisation algorithm for larger data, as the objective becomes less rough, and by the use of GPU to offload calculation of the residuals. We have used 448 cores for these calculations, and for 5000 data GPU calculations did not reach the saturation point. While as expected, PCLTS takes much longer, this time is compensated by the quality of the result. On the other hand, the CPU appears not to be excessive.

Tables 1114 contain RMSE and CPU time for the real world data sets we considered. Again, we observe that standard backpropagation breaks down, while our method based on PCLTS objective provides a very good fit, comparable to backpropagation in the absence of outliers. CPU times are consistent with those reached in the examples with artificial data sets.

Let us now look at the figures. As we mentioned, Figures 2 illustrate the inability of the standard ANNs to predict the correct model, and the ability of the robust training based on LTS and PCLTS to remove the outliers. Figures 3 and 5 (see also Figures 11 and12) illustrate the difference between the LTS and PCLTS criteria. Note that using LTS (top row), the cusp of the graph of the model function near the origin is lost. The reason is that LTS criterion treated the data near the cusp as outliers. This is of course undesirable. The modified criterion PCLTS (bottom row) gave a much better (in fact, nearly perfect) prediction. Hence PCLTS achieved its aim to block unnecessary removal of data, by imposing a penalty for every removal. In Figures 11,12 the same effect is visible at both ends of the domain of the data. Thus we conclude that the addition of the penalty term in PCLTS criterion was justified.

As far as the optimisation methods are concerned, we noticed that the method DSO reliably detected the outliers, and its CPU was significantly smaller than that of the other two methods. CPU of random start with NEWUOA was on average six times higher, and CPU of random start with DFBM was twelve to fifteen times higher than that of DSO. On a few occasions random start with NEWUOA or DFBM have failed to deliver a model that identified the outliers correctly. Therefore we concluded that for our objective, DSO was the most suitable method among the alternatives we studied, and we concentrated on studying this method in greater detail. The tables in the Appendix give CPU and RMSE for the DSO method.

6 Conclusion

In this paper we investigated robust training of ANNs and detection of outliers in the data from two perspectives. First, we illustrated the inability of the classical least squares criterion to produce regression models not sensitive to outliers in the data. We investigated the use of the least trimmed criterion and found that it delivered robust regression models. We benchmarked various derivative free optimisation algorithms for optimising the LTS criterion and found that the method based on dynamical systems optimisation (DSO) was superior to several alternative methods. A contributing factor here is relatively large number of variables, which ranged from ten to one hundred. We produced a hybrid algorithm, combining detection of outliers by optimising the LTS criterion, their removal and subsequent fine tuning of the ANN by backpropagation.

Second, we investigated an undesirable feature of the LTS criterion, unjustified removal of valid data, and subsequent loss of accuracy. We introduced a new criterion, called Penalised CLTS, which imposes a penalty for removing the data. By optimising PCLTS criterion, we achieved a high degree of accuracy of the resulting regression model. Our method pinpoints and filters out the outliers reliably, and its computational cost is reasonable.

References

  • [1] A. Bagirov. A method for minimization of quasidifferentiable functions. Optimization Methods and Software, 17:31–60, 2002.
  • [2] G. Beliakov. Parallel calculation of the median and order statistics on GPUs with application to robust regression. Technical report, arxiv :1104.2732, 2011.
  • [3] G. Beliakov and A. Kelarev. Global non-smooth optimization in robust multivariate regression. Optimization Methods and Software, page to appear, 2012.
  • [4] G. Beliakov and J. Ugon. Implementation of novel methods of global and non-smooth optimization: GANSO programming library. Optimization, 56:543–546, 2007.
  • [5] T. Bernholt. Robust estimators are hard to compute. Technical Report http://www.statistik.tu-dortmund.de/fileadmin/user_upload/ Lehrstuehle/MSind/SFB_475/2005/tr52-05.pdf, University of Dortmund, 2005.
  • [6] D. Cederman and P. Tsigas.

    GPU-Quicksort: A practical quicksort algorithm for graphics processors.

    ACM Journal of Experimental Algorithmics, 14:1.4.1–1.4.24, 2009.
  • [7] A. Cerioli. Multivariate outlier detection with high-breakdown estimators. Journal of the American Statistical Association, 105:147–156, 2010.
  • [8] D.S. Chen and R.C. Jain. A robust back-propagation learning algorithm for function approximation. IEEE Trans. Neural Networks, 5:467–479, 1994.
  • [9] C.-C. Chuang, J.-T. Jeng, and P.-T. Lin.

    Annealing robust radial basis function networks for function approximation with outliers.

    Neurocomputing, 56:123–139, 2004.
  • [10] C.C. Chuang, S.F. Su, and C.C. Hsiao. The annealing robust backpropagation (ARBP) learning algorithm. IEEE Trans. Neural Networks, 11:1067–1077, 2000.
  • [11] C.C. Chuong and J.T. Jeng. CPBUM neural network for modeling with outliers and noise. Applied Soft Computing, 7:957–967, 2007.
  • [12] M. El-Melegy, M. Essai, and A. Ali. Robust training of artificial feedforward neural networks. In A. Hassanien, A. Abraham, A. Vasilakos, and W. Pedrycz, editors, Foundations of Computational Intelligence, volume 201 of Studies in Computational Intelligence, pages 217–242. Springer Berlin / Heidelberg, 2009.
  • [13] D. Gervini and V.J. Yohai. A class of robust and fully efficient regression estimators. Ann. Statist., 30:583–616, 2002.
  • [14] A.S. Hadi and A. Luceño. Maximum trimmed likelihood estimators: a unified approach, examples, and algorithms. Computational Statistics and Data Analysis, 25:251–272, 1997.
  • [15] M.T. Hagan and M.B. Menhaj. Training feedforward networks with the Marquardt algorithm. IEEE Trans. on Neural Networks, 5:989–993, 1994.
  • [16] F.R. Hampel. A general qualitative definition of robustness. Annals of Math. Statistics, 42:1887–1896, 1971.
  • [17] D.M. Hawkins and D.J. Olive. Applications and algorithms for least trimmed sum of absolute deviations regression. Computational Statistics and Data Analysis, 32:119–134, 1999.
  • [18] J. Hoberock and N. Bell. Thrust: A parallel template library, http://www.meganewtons.com/, 2010.
  • [19] K. Hornik, M. Stinchcombe, and H. White. Multilayer feedforward networks are universal approximators. Neural Networks, 2:359–366, 1989.
  • [20] P.J. Huber. Robust Statistics. Wiley, New York, 2003.
  • [21] C. Igel and M. Hüsken. Empirical evaluation of the improved Rprop learning algorithms. Neurocomputing, 50:105–123, 2003.
  • [22] J. Ilonen, J.-K. Kamarainen, and J. Lampinen.

    Differential evolution training algorithm for Feed-Forward Neural Networks.

    Neural Processing Letters, 17:93–105, 2003.
  • [23] J.-T. Jeng, C-T. Chuang, and C.-C. Chuang. Least trimmed squares based CPBUM neural networks. In International Conference on System Science and Engineering, pages 187–192. IEEE, 2011.
  • [24] J.T. Jeng and T.T. Lee. Control of magnetic bearing systems via the Chebyshev polunomial-based unified model (CPBUM) neural network. IEEE Trans. Man Cybernetics, Part B: Cybernet., 30:85–92, 2000.
  • [25] C.-C. Lee, P.-C. Chung, J.-R. Tsai, and C.-I. Chang. Robust radial basis function neural networks. IEEE Trans. Systems, Man, Cybernetics. Part B: Cybernetics, 29:674–685, 1999.
  • [26] K. Liano. Robust error measure for supervised neural network learning with outliers. IEEE Trans. on Neural Networks, 7:246–250, 1996.
  • [27] M.M. Makela and P. Neittaanmaki. Nonsmooth Optimization: Analysis and Algorithms With Applications to Optimal Control. World Scientific, River Edge, NJ, 1992.
  • [28] M. Mammadov, A. Rubinov, and J. Yearwood. The study of drug-reaction relationships using global optimization techniques. Optimization Methods and Software, 22:99–126, 2007.
  • [29] M.A. Mammadov, A. Rubinov, and J. Yearwood. Dynamical systems described by relational elasticities with applications to global optimization. In A. Rubinov and V. Jeyakumar, editors, Continuous Optimisation: Current Trends and Modern Applications, pages 365–385. Springer, New York, 2005.
  • [30] R. Maronna, R. Martin, and V. Yohai. Robust Statistics: Theory and Methods. Wiley, New York, 2006.
  • [31] T. Masters. Advanced algorithms for neural networks: a C++ sourcebook. Wiley, New York, 1995.
  • [32] J.J Moré and S.M. Wild. Benchmarking derivative-free optimization algorithms. SIAM J. Optim., 20:172–191, 2009.
  • [33] J. A. Nelder and R. Mead. A simplex method for function minimization. Computer Journal, 7:308–313, 1965.
  • [34] T.D. Nguyen and R. Welsch. Outlier detection and least trimmed squares approximation using semi-definite programming. Computational Statistics and Data Analysis, 12:3212–3226, 2010.
  • [35] R. Nunkesser and O. Morell.

    An evolutionary algorithm for robust regression.

    Computational Statistics and Data Analysis, 54:3242–3248, 2010.
  • [36] NVIDIA. http://developer.nvidia.com/object/cuda_4_0_rc_downloads.html, accessed 20 March, 2011.
  • [37] NVIDIA. Tesla datasheet, http://www.nvidia.com/docs/io/43395/ nv_ds_tesla_psc_us_nov08_lowres.pdf, accessed 1 December, 2010, accessed 1 July 2011.
  • [38] NVIDIA. http://developer.download.nvidia.com/compute/cuda/1_1/website/data-parallel_algorithms.html, accessed 1 june, 2010, accessed 1 June 2011.
  • [39] Y.C. Pati and P.S. Krishnaprasad. Analysis and synthesis of feedforward neural networks using discrete affine wavelet transformations. IEEE Trans. Neural Networks, 4:72–85, 1993.
  • [40] M.J.D. Powell. The NEWUOA software for unconstrained optimization without derivatives. In Large-Scale Nonlinear Optimization, Nonconvex Optimization and Its Applications, pages 255–297. Springer US, 2006.
  • [41] L. Prechelt. PROBEN 1 - a set of benchmarks and benchmarking rules for neural network training algorithms. Technical report, Technical Report 21/94, Universität Karlsruhe, D-76128 Jarlsruhem Germany, September 1994, http://digbib.ubka.uni-karlsruhe.de/eva/ira/1994/21, 1994.
  • [42] L. Prechelt. Automatic early stopping using cross validation: quantifying the criteria. Neural Networks, 11:761–767, 1998.
  • [43] L. Prechelt. PROBEN 1 – a standardized benchmark collection for neural network algorithms, 1994, available from ftp://ftp.ira.uka.de/pub/neuron/proben1.tar.gz, 2010.
  • [44] A.H. Press, S.A. Teukolsky, W.T. Vetterling, and B.P. Flannery. Numerical Recipes in C: The Art of Scientific Computing. Cambridge University Press, New York, 2002.
  • [45] R software. http://www.r-project.org/, 2012.
  • [46] P.J. Rousseeuw. Least median of squares regression. J. Amer. Statist. Assoc, 79:871–880, 1984.
  • [47] P.J. Rousseeuw and A.M. Leroy. Robust Regression and Outlier Detection. Wiley, New York, 2003.
  • [48] P.J. Rousseeuw and K. Van Driessen. Computing LTS regression for large data sets. Data Mining and Knowledge Discovery, 12:29–45, 2006.
  • [49] A. Rusiecki. Robust LTS backpropagation learning algorithm. In F. Sandoval, A. Prieto, J. Cabestany, and M. Graã a, editors, Computational and Ambient Intelligence, volume 4507 of Lecture Notes in Computer Science, pages 102–109. Springer Berlin / Heidelberg, 2007.
  • [50] A. Rusiecki. Robust MCD-based backpropagation learning algorithm. In L. Rutkowski, R. Tadeusiewicz, L. Zadeh, and J. Zurada, editors, Artificial Intelligence and Soft Computing, ICAISC 2008, volume 5097 of Lecture Notes in Computer Science, pages 154–163. Springer Berlin / Heidelberg, 2008.
  • [51] M. Schyns, G. Haesbroeck, and F. Critchley. RelaxMCD: Smooth optimisation for the minimum covariance determinant estimator. Comput. Stat. Data Anal., 54:843–857, 2010.
  • [52] S. Sengupta, M. Harris, Y. Zhang, and J. D. Owens. Scan primitives for GPU computing. Graphics Hardware, pages 97–106, 2007.
  • [53] H.-L. Shieh, Y.-K. Yang, P.-L. Chang, and J.-T. Jeng. Robust neural-fuzzy method for function approximation. Expert Systems with Applications, 36:6903–6913, 2009.
  • [54] E. Sintorn and U. Assarsson. Fast parallel GPU-sorting using a hybrid algorithm. J. of Parallel and Distributed Computing, 68:1381–1388, 2008.
  • [55] A.J. Smola and B. Schölkopf. From regularzation operators to support vector kernels. Neural Inf. Process. Syst., 10:343–349, 1998.
  • [56] A.J. Stromberg, O. Hossjer, and D.M. Hawkins. The least trimmed differences regression estimator and alternatives. J. Amer. Statist. Assoc, 95:853–864, 2000.
  • [57] A.J. Stromberg and D. Ruppert. Breakdown in nonlinear regression. J. of the American Statistical Association, 87:991–997, 1992.
  • [58] D. Tomandl and A. Schober. A Modified General Regression Neural Network (MGRNN) with new, efficient training algorithms as a robust black box-tool for data analysis. Neural Networks, 14:1023–1034, 2001.
  • [59] M. Zukerman, M. Mammadov, L. Tan, I. Ouveysi, and Lachlan A.L. To be fair or efficient or a bit of both. Computers and Operations Research, 35:3787–3806, 2008.

Appendix

Input Proportion Size of the Noise level =0 Noise level=0.1 Noise level=0.2
dimension of outliers data set pclts nnet pclts nnet pclts nnet
1 0 100 0.021 0.020 0.035 0.035 0.071 0.071
1 0 500 0.011 0.011 0.016 0.016 0.042 0.042
1 0 5000 0.006 0.006 0.008 0.008 0.010 0.009
1 0.2 100 0.013 1109.050 0.035 2151.400 0.076 2221.849
1 0.2 500 0.012 1626.452 0.018 1447.013 0.044 1018.946
1 0.2 5000 0.007 1020.319 0.419 1742.355 0.014 1545.335
1 0.4 100 0.027 3246.146 0.067 3041.953 0.110 2585.175
1 0.4 500 0.013 2937.150 0.022 2982.020 0.028 2406.259
1 0.4 5000 0.007 1203.257 0.013 2622.065 0.015 1243.061
1 0.5 100 0.029 4843.302 0.073 2844.756 0.102 4410.803
1 0.5 500 0.015 3671.261 0.029 2880.355 0.044 1776.429
1 0.5 5000 0.008 4831.715 0.009 3736.112 0.017 3299.489
2 0 100 0.024 0.024 0.136 0.139 0.208 0.234
2 0 500 0.020 0.019 0.036 0.040 0.072 0.067
2 0 5000 0.019 0.019 0.023 0.026 0.028 0.029
2 0.2 100 0.023 2992.371 0.109 3760.125 0.270 2715.137
2 0.2 500 0.025 1474.736 0.046 1845.146 0.080 2013.107
2 0.2 5000 0.021 1785.524 0.024 2207.706 0.032 1555.451
2 0.4 100 0.029 4212.044 0.086 3437.521 0.240 5209.511
2 0.4 500 0.029 1983.814 0.042 3162.076 0.094 2498.807
2 0.4 5000 0.018 3016.362 0.024 2795.595 0.037 2039.607
2 0.5 100 0.047 3479.871 0.272 4305.459 0.215 4167.711
2 0.5 500 0.025 3865.850 0.054 2350.706 0.092 2995.097
2 0.5 5000 0.018 2628.596 0.025 2670.277 0.034 3380.372
3 0 100 0.070 0.095 0.171 0.133 0.284 0.269
3 0 500 0.027 0.026 0.052 0.051 0.073 0.078
3 0 5000 0.024 0.035 0.031 0.028 0.037 0.036
3 0.2 100 0.063 3424.539 0.163 3456.296 0.461 2754.772
3 0.2 500 0.025 1876.883 0.055 2126.971 0.101 2288.269
3 0.2 5000 0.024 437.679 0.027 2458.412 0.048 913.914
3 0.4 100 0.096 3626.761 0.278 3593.988 0.437 4328.172
3 0.4 500 0.026 3051.583 0.060 2778.413 0.123 3218.664
3 0.4 5000 0.026 1952.740 0.039 2583.106 0.046 3696.025
3 0.5 100 0.127 3307.094 0.382 3786.831 0.591 3711.280
3 0.5 500 0.037 3240.812 0.061 2787.930 0.125 3445.775
3 0.5 5000 0.029 3042.017 0.034 2916.196 0.048 1602.479
5 0 100 0.081 0.078 0.260 0.147 0.499 0.401
5 0 500 0.057 0.052 0.079 0.080 0.110 0.119
5 0 5000 0.041 0.041 0.045 0.043 0.051 0.050
5 0.2 100 0.094 3891.054 0.308 3232.645 0.469 3732.648
5 0.2 500 0.050 2265.408 0.092 2270.477 0.150 2258.718
5 0.2 5000 0.040 1692.358 0.043 307.011 0.057 2128.485
5 0.4 100 0.171 3787.225 0.294 4359.977 0.534 3681.744
5 0.4 500 0.054 2397.568 0.096 1838.333 0.155 2902.272
5 0.4 5000 0.040 1614.782 0.046 1545.807 0.273 1990.707
5 0.5 100 0.280 4795.451 0.275 3706.393 0.421 4067.282
5 0.5 500 0.069 2573.188 0.098 2675.592 0.179 2648.058
5 0.5 5000 0.042 2844.733 0.046 2809.447 0.063 2857.316
10 0 100 0.306 0.299 0.270 0.314 0.329 0.361
10 0 500 0.159 0.115 0.254 0.178 0.296 0.290
10 0 5000 0.109 0.108 0.132 0.135 0.137 0.121
10 0.2 100 0.277 3236.948 0.315 4121.937 0.326 2894.181
10 0.2 500 0.113 1617.721 0.184 1895.575 0.278 2504.313
10 0.2 5000 0.231 1265.473 0.084 1572.269 0.231 1780.300
10 0.4 100 0.289 4101.092 0.308 4113.396 0.382 4037.487
10 0.4 500 0.260 1507.686 0.251 1854.632 0.345 2078.722
10 0.4 5000 0.082 1918.855 0.231 1971.229 0.231 2159.798
10 0.5 100 0.290 4977.258 0.264 3979.261 0.352 3930.745
10 0.5 500 0.274 3068.391 0.296 3154.727 0.427 2949.967
10 0.5 5000 0.135 1899.810 0.116 2224.139 0.127 1190.993
Table 1: Data Set 1, RMSE scores for test function . Values in bold indicate breakdown of the method.
Input Proportion Size of the Noise level =0 Noise level=0.1 Noise level=0.2
dimension of outliers data set pclts nnet pclts nnet pclts nnet
1 0 100 0.013 0.012 0.048 0.034 0.061 0.061
1 0 500 0.001 0.002 0.016 0.014 0.030 0.030
1 0 5000 0.000 0.000 0.005 0.005 0.011 0.010
1 0.2 100 0.010 2148.754 0.033 2.417 0.080 2400.194
1 0.2 500 0.001 2602.706 0.020 2604.085 0.031 2276.562
1 0.2 5000 0.000 2334.587 0.006 2887.469 0.013 2337.995
1 0.4 100 0.011 2596.561 0.042 1599.617 0.123 2828.158
1 0.4 500 0.001 3578.435 0.005 2605.814 0.042 2673.687
1 0.4 5000 0.000 2687.385 0.005 2832.465 0.007 2847.874
1 0.5 100 0.011 5176.776 0.049 2482.051 0.166 4171.906
1 0.5 500 0.001 2380.363 0.029 2499.944 0.033 4288.795
1 0.5 5000 0.000 3951.128 0.006 3039.429 0.017 2806.767
2 0 100 0.009 0.009 0.069 0.059 0.253 0.134
2 0 500 0.006 0.006 0.035 0.033 0.060 0.062
2 0 5000 0.005 0.003 0.011 0.011 0.018 0.020
2 0.2 100 0.011 2668.408 0.129 3288.958 0.241 2467.441
2 0.2 500 0.005 1914.969 0.034 1589.997 0.071 2400.486
2 0.2 5000 0.007 2234.668 0.010 2160.805 0.019 1422.155
2 0.4 100 0.040 2864.933 0.262 3479.801 0.280 4933.606
2 0.4 500 0.006 3074.300 0.033 2467.063 0.081 2423.949
2 0.4 5000 0.005 3090.935 0.013 2469.559 0.026 1853.020
2 0.5 100 0.069 7185.250 0.154 2.134 0.360 5569.739
2 0.5 500 0.007 4942.917 0.041 2364.485 0.113 4999.988
2 0.5 5000 0.004 2479.056 0.015 3596.367 0.031 3080.130
3 0 100 0.044 0.037 0.227 0.098 0.268 0.226
3 0 500 0.031 0.032 0.056 0.047 0.104 0.083
3 0 5000 0.023 0.028 0.029 0.027 0.037 0.030
3 0.2 100 0.063 2626.567 0.177 1834.107 0.309 3995.105
3 0.2 500 0.033 1661.228 0.060 1446.461 0.141 2012.120
3 0.2 5000 0.024 1703.977 0.027 1352.354 0.040 1199.587
3 0.4 100 0.084 3809.952 0.199 2427.211 0.343 3210.537
3 0.4 500 0.031 2513.025 0.068 3769.689 0.116 3696.497
3 0.4 5000 0.027 1294.315 0.031 1629.493 0.041 2063.066
3 0.5 100 0.177 4845.271 0.365 3040.607 0.654 3017.996
3 0.5 500 0.034 2605.272 0.083 1065.010 0.132 1689.498
3 0.5 5000 0.030 2077.777 0.031 1191.266 0.045 3005.893
5 0 100 0.031 0.030 0.205 0.085 0.305 0.354
5 0 500 0.018 0.018 0.060 0.054 0.118 0.125
5 0 5000 0.018 0.019 0.025 0.025 0.038 0.040
5 0.2 100 0.064 3564.496 0.212 1673.425 0.567 2573.004
5 0.2 500 0.026 1820.677 0.072 2316.268 0.122 2358.980
5 0.2 5000 0.019 1929.773 0.029 955.324 0.042 1275.134
5 0.4 100 0.029 4086.133 0.243 2086.533 0.718 3580.618
5 0.4 500 0.025 2382.771 0.075 1338.828 0.173 3114.589
5 0.4 5000 0.020 2748.883 0.033 770.710 0.052 1182.186
5 0.5 100 0.086 3790.846 0.293 1010.225 0.369 4958.779
5 0.5 500 0.027 2907.051 0.077 1990.227 0.196 3573.141
5 0.5 5000 0.019 2045.978 0.031 1345.384 0.056 2574.422
10 0 100 0.001 0.000 0.179 0.096 0.341 0.314
10 0 500 0.002 0.002 0.072 0.065 0.178 0.163
10 0 5000 0.001 0.001 0.025 0.025 0.057 0.056
10 0.2 100 0.001 3768.071 0.124 1333.593 0.235 3366.499
10 0.2 500 0.001 1593.702 0.097 1391.395 0.197 1733.066
10 0.2 5000 0.002 1023.063 0.027 468.724 0.062 1024.444
10 0.4 100 0.001 5155.331 0.151 1383.604 0.258 4460.762
10 0.4 500 0.002 2485.255 0.121 957.925 0.252 1898.246
10 0.4 5000 0.001 1958.776 0.034 1480.955 0.067 2200.060
10 0.5 100 0.001 4896.077 0.108 1447.494 0.247 4022.098
10 0.5 500 0.001 2489.607 0.133 748.545 0.235 2685.403
10 0.5 5000 0.001 1657.014 0.037 1481.272 0.069 1545.069
Table 2: Data Set 2, RMSE scores for test function . Values in bold indicate breakdown of the method.
Input Proportion Size of the Noise level =0 Noise level=0.1 Noise level=0.2
dimension of outliers data set pclts nnet pclts nnet pclts nnet
1 0 100 0.004 0.004 0.024 0.024 0.087 0.087
1 0 500 0.002 0.002 0.019 0.021 0.041 0.042
1 0 5000 0.002 0.002 0.007 0.007 0.011 0.011
1 0.2 100 0.005 2350.122 0.049 2621.706 0.147 3816.212
1 0.2 500 0.003 2331.880 0.019 2326.221 0.044 1604.963
1 0.2 5000 0.002 2341.197 0.007 1742.731 0.012 1800.171
1 0.4 100 0.005 3597.764 0.037 3944.581 0.128 4194.846
1 0.4 500 0.003 4163.724 0.021 2782.759 0.074 3177.079
1 0.4 5000 0.002 3098.375 0.007 3013.109 0.014 2580.344
1 0.5 100 0.006 3529.499 0.057 4373.620 0.105 4765.754
1 0.5 500 0.003 4624.554 0.020 4061.011 0.043 3433.221
1 0.5 5000 0.002 3929.220 0.007 3459.508 0.022 2633.235
2 0 100 0.213 0.235 0.194 0.192 0.306 0.299
2 0 500 0.113 0.124 0.137 0.111 0.155 0.156
2 0 5000 0.137 0.120 0.125 0.106 0.116 0.126
2 0.2 100 0.153 2228.151 0.182 2832.608 0.251 2789.265
2 0.2 500 0.129 2642.140 0.121 2600.507 0.149 2240.002
2 0.2 5000 0.101 1893.284 0.104 1739.531 0.103 1105.706
2 0.4 100 0.242 4119.934 0.153 2703.814 0.526 2607.311
2 0.4 500 0.104 3329.441 0.157 1819.683 0.147 3477.685
2 0.4 5000 0.124 1929.861 0.124 2637.915 0.124 2188.142
2 0.5 100 0.374 5241.557 0.586 4483.093 0.686 5173.547
2 0.5 500 0.121 4163.781 0.140 4309.859 0.248 3575.090
2 0.5 5000 0.102 3816.314 0.117 3355.438 0.123 3505.115
3 0 100 0.141 0.157 0.226 0.252 0.373 0.308
3 0 500 0.090 0.097 0.122 0.118 0.144 0.152
3 0 5000 0.097 0.098 0.097 0.096 0.101 0.100
3 0.2 100 0.165 2639.393 0.253 3277.018 0.278 3293.440
3 0.2 500 0.096 2203.427 0.118 2349.472 0.145 2490.728
3 0.2 5000 0.099 2014.125 0.096 1175.255 0.102 2337.995
3 0.4 100 0.191 3651.088 0.316 5745.046 0.890 5678.132
3 0.4 500 0.138 3493.979 0.136 4131.168 0.165 3744.782
3 0.4 5000 0.095 3160.637 0.103 2465.031 0.109 2335.938
3 0.5 100 0.249 4320.711 0.463 5487.510 0.393 4463.659
3 0.5 500 0.204 4163.605 0.155 3222.509 0.185 3841.434
3 0.5 5000 0.097 2823.495 0.099 2639.243 0.106 2852.204
5 0 100 0.170 0.190 0.199 0.253 0.283 0.374
5 0 500 0.071 0.067 0.096 0.094 0.136 0.129
5 0 5000 0.062 0.062 0.065 0.066 0.071 0.072
5 0.2 100 0.158 3729.847 0.188 4256.721 0.427 3468.235
5 0.2 500 0.076 2454.542 0.104 2685.809 0.163 2798.478
5 0.2 5000 0.063 2249.592 0.067 1812.338 0.076 2452.946
5 0.4 100 0.272 4857.011 0.271 4332.243 0.447 4287.117
5 0.4 500 0.079 3119.092 0.113 3492.228 0.215 3114.469
5 0.4 5000 0.063 2598.163 0.068 2194.720 0.078 2898.332
5 0.5 100 0.128 6815.194 0.197 5605.187 0.350 4941.879
5 0.5 500 0.076 3687.907 0.144 3850.660 0.190 3004.257
5 0.5 5000 0.065 2154.409 0.068 2644.636 0.082 2407.882
10 0 100 0.087 0.090 0.171 0.153 0.223 0.251
10 0 500 0.055 0.055 0.098 0.102 0.184 0.182
10 0 5000 0.042 0.042 0.049 0.051 0.066 0.069
10 0.2 100 0.067 3501.659 0.132 2868.290 0.253 4808.624
10 0.2 500 0.059 2483.304 0.106 2536.081 0.176 2663.667
10 0.2 5000 0.042 2165.896 0.052 2108.236 0.072 2317.155
10 0.4 100 0.072 4120.702 0.105 4050.738 0.180 4108.175
10 0.4 500 0.066 3529.293 0.111 3495.990 0.211 3028.767
10 0.4 5000 0.042 2087.143 0.056 2467.652 0.078 3474.176
10 0.5 100 0.074 4311.713 0.123 5123.136 0.194 5716.768
10 0.5 500 0.070 3970.424 0.144 4147.082 0.216 3956.990
10 0.5 5000 0.043 3940.671 0.057 3887.353 0.091 3131.611
Table 3: Data Set 3, RMSE scores for test function . Values in bold indicate breakdown of the method.
Input Proportion Size of the Noise level =0 Noise level=0.1 Noise level=0.2
dimension of outliers data set pclts nnet pclts nnet pclts nnet
1 0 100 0.018 0.018 0.039 0.039 0.051 0.051
1 0 500 0.009 0.010 0.021 0.020 0.040 0.043
1 0 5000 0.004 0.004 0.005 0.005 0.007 0.007
1 0.2 100 0.029 2536.255 0.051 2281.526 0.102 2113.818
1 0.2 500 0.011 2349.493 0.022 2460.206 0.023 2480.789
1 0.2 5000 0.005 2392.121 0.008 2311.305 0.015 2314.949
1 0.4 100 0.030 4239.727 0.064 4106.509 0.126 4000.216
1 0.4 500 0.018 3530.495 0.032 3052.685 0.044 3297.092
1 0.4 5000 0.006 3176.655 0.010 3735.902 0.014 3269.429
1 0.5 100 0.028 4263.198 0.054 5049.940 0.092 4746.733
1 0.5 500 0.016 2580.103 0.032 2569.031 0.042 2647.607
1 0.5 5000 0.006 3551.199 0.011 4125.981 0.012 4018.541
2 0 100 0.034 0.012 0.106 0.068 0.277 0.126
2 0 500 0.021 0.004 0.027 0.028 0.077 0.062
2 0 5000 0.007 0.004 0.020 0.009 0.050 0.015
2 0.2 100 0.026 2079.406 0.106 2766.112 0.305 1647.538
2 0.2 500 0.013 2392.766 0.036 2230.080 0.078 2035.472
2 0.2 5000 0.004 1516.034 0.011 2012.758 0.019 2222.601
2 0.4 100 0.217 3776.502 0.166 3623.230 0.218 3357.269
2 0.4 500 0.013 3487.636 0.038 3904.750 0.077 3819.065
2 0.4 5000 0.011 3875.903 0.013 3236.840 0.026 3041.187
2 0.5 100 0.032 4903.982 0.177 4857.142 0.392 4316.709
2 0.5 500 0.025 3163.898 0.042 4069.601 0.106 3667.355
2 0.5 5000 0.004 3237.522 0.011 2907.177 0.023 2974.508
3 0 100 0.342 0.010 0.374 0.104 0.352 0.326
3 0 500 0.090 0.010 0.122 0.044 0.113 0.065
3 0 5000 0.033 0.002 0.030 0.010 0.040 0.023
3 0.2 100 0.012 3067.202 0.114 3447.140 0.212 2831.374
3 0.2 500 0.009 2400.870 0.049 2364.360 0.101 2842.156
3 0.2 5000 0.001 1758.720 0.025 1789.520 0.031 955.202
3 0.4 100 0.068 3865.061 0.328 3973.309 0.586 4215.913
3 0.4 500 0.004 1357.572 0.048 2916.741 0.115 2578.019
3 0.4 5000 0.002 2789.135 0.020 2175.677 0.031 3921.980
3 0.5 100 0.135 4766.508 0.336 4434.943 0.673 5798.994
3 0.5 500 0.014 4538.512 0.051 2313.418 0.148 2139.502
3 0.5 5000 0.002 5000.027 0.017 3813.185 0.033 1967.654
5 0 100 0.012 0.012 0.194 0.219 0.540 0.376
5 0 500 0.046 0.020 0.091 0.075 0.131 0.115
5 0 5000 0.013 0.001 0.029 0.013 0.051 0.027
5 0.2 100 0.108 3277.295 0.267 2904.899 0.683 3171.092
5 0.2 500 0.021 2495.375 0.061 2276.714 0.176 2815.507
5 0.2 5000 0.001 1205.789 0.015 1280.940 0.032 1291.738
5 0.4 100 0.080 4332.911 0.374 4125.551 0.483 3805.763
5 0.4 500 0.014 2790.017 0.106 2868.925 0.208 2844.327
5 0.4 5000 0.002 3515.828 0.018 3309.866 0.037 3484.278
5 0.5 100 0.281 2816.417 0.382 4602.732 0.460 4259.719
5 0.5 500 0.015 2104.453 0.083 3811.765 0.191 3906.009
5 0.5 5000 0.003 2894.022 0.020 3040.731 0.045 4454.273
10 0 100 0.076 0.073 0.163 0.190 0.282 0.382
10 0 500 0.006 0.005 0.092 0.090 0.175 0.177
10 0 5000 0.008 0.002 0.064 0.021 0.062 0.045
10 0.2 100 0.096 2479.386 0.247 3074.441 0.333 2769.212
10 0.2 500 0.032 2149.944 0.111 2020.406 0.275 1628.117
10 0.2 5000 0.018 1188.203 0.050 1418.530 0.064 1124.796
10 0.4 100 0.142 4294.269 0.320 4584.641 0.380 5419.008
10 0.4 500 0.008 2687.737 0.128 2747.985 0.233 2280.057
10 0.4 5000 0.012 1435.511 0.032 1796.314 0.053 1084.804
10 0.5 100 0.131 5618.802 0.218 5878.293 0.352 3522.455
10 0.5 500 0.011 2305.005 0.146 1813.095 0.309 2832.694
10 0.5 5000 0.005 2462.356 0.034 1895.321 0.064 3647.127
Table 4: Data Set 4, RMSE scores for test function . Values in bold indicate breakdown of the method.
Input Proportion Size of the Noise level =0 Noise level=0.1 Noise level=0.2
dimension of outliers data set pclts nnet pclts nnet pclts nnet
1 0 100 0.114 0.109 0.075 0.056 0.148 0.146
1 0 500 0.012 0.012 0.014 0.027 0.040 0.037
1 0 5000 0.007 0.007 0.008 0.012 0.011 0.011
1 0.2 100 0.129 2324.811 0.133 2504.451 0.178 1986.435
1 0.2 500 0.015 2376.646 0.027 2306.402 0.042 2510.584
1 0.2 5000 0.007 2139.114 0.008 2391.442 0.017 2139.109
1 0.4 100 0.152 3651.923 0.100 3999.753 0.768 3853.757
1 0.4 500 0.057 3999.893 0.026 3777.028 0.027 3850.540
1 0.4 5000 0.007 3924.929 0.014 3758.631 0.019 4042.885
1 0.5 100 0.990 4999.880 0.990 4940.837 0.159 4692.107
1 0.5 500 0.024 4800.461 0.020 4715.383 0.062 4999.829
1 0.5 5000 0.007 4394.916 0.014 4781.846 0.014 4444.855
2 0 100 0.512 0.545 0.503 0.461 0.546 0.492
2 0 500 0.382 0.273 0.271 0.313 0.482 0.272
2 0 5000 0.360 0.237 0.433 0.430 0.262 0.286
2 0.2 100 1.035 2550.246 0.867 3749.684 0.702 3782.985
2 0.2 500 0.278 2299.506 0.343 2517.519 0.274 2756.165
2 0.2 5000 0.369 2000.004 0.287 1999.960 0.257 1999.971
2 0.4 100 1.026 3999.961 0.492 5108.289 0.985 4009.890
2 0.4 500 0.367 3410.284 0.399 3419.954 0.245 4137.776
2 0.4 5000 0.187 3999.981 0.245 3999.979 0.314 3999.975
2 0.5 100 1.107 4939.112 1.019 5352.378 1.198 4672.057
2 0.5 500 0.467 5000.044 0.321 4806.901 0.377 4625.523
2 0.5 5000 0.427 4592.563 0.239 5000.005 0.327 4172.253
3 0 100 0.923 0.899 0.914 0.896 0.836 0.872
3 0 500 0.537 0.538 0.621 0.532 0.576 0.508
3 0 5000 0.532 0.569 0.618 0.606 0.518 0.571
3 0.2 100 1.112 3685.097 1.078 3289.962 0.948 3511.934
3 0.2 500 0.610 2670.319 0.813 2151.187 0.604 2310.767
3 0.2 5000 0.619 2444.609 0.594 2401.731 0.968 2407.185
3 0.4 100 1.879 3616.500 2.217 3999.951 1.818 4000.008
3 0.4 500 0.688 3804.583 0.705 4073.334 0.647 3611.136
3 0.4 5000 0.536 3632.560 0.588 3018.323 0.544 3355.282
3 0.5 100 1.397 4549.170 1.960 5318.391 2.206 4640.306
3 0.5 500 0.969 5000.056 0.712 4149.362 0.733 4883.820
3 0.5 5000 0.627 3770.222 0.553 5000.095 0.542 4101.688
5 0 100 2.937 1.470 2.353 1.346 1.302 1.587
5 0 500 0.843 0.895 0.877 0.759 0.799 0.758
5 0 5000 0.756 0.680 0.726 0.625 0.657 0.708
5 0.2 100 1.553 3379.579 1.388 2908.166 1.797 2591.612
5 0.2 500 0.820 2614.763 1.079 2503.772 0.839 2289.500
5 0.2 5000 0.738 2364.317 0.655 2321.339 0.785 2069.539
5 0.4 100 3.402 3592.035 3.272 4186.407 2.596 3999.992
5 0.4 500 1.008 2898.579 0.868 3530.747 0.895 3552.943
5 0.4 5000 0.617 2111.821 0.745 2664.957 0.684 3646.537
5 0.5 100 1.737 4921.612 1.433 3565.847 1.640 4081.125
5 0.5 500 0.881 4999.977 1.007 4295.574 0.941 4055.324
5 0.5 5000 0.672 5000.007 0.680 4999.978 0.691 2703.705
10 0 100 2.166 2.433 2.290 2.257 1.891 1.990
10 0 500 1.024 1.005 1.162 0.963 1.157 1.646
10 0 5000 0.794 0.749 0.739 0.752 0.748 0.732
10 0.2 100 1.539 2894.798 1.579 2000.302 1.588 3023.632
10 0.2 500 1.066 2033.224 1.079 2447.593 1.061 2386.692
10 0.2 5000 0.737 1684.153 0.766 1899.151 0.705 2151.272
10 0.4 100 1.661 4012.751 1.607 3727.007 1.646 3553.068
10 0.4 500 1.225 4000.000 1.615 4000.019 1.066 4000.013
10 0.4 5000 0.846 3271.505 0.763 4000.034 0.773 2552.102
10 0.5 100 1.989 4120.718 2.008 4003.421 1.865 5000.024
10 0.5 500 1.387 4999.992 1.631 3008.089 1.395 2166.410
10 0.5 5000 0.825 5000.025 0.800 3568.897 0.801 3801.738
Table 5: Data Set 5, RMSE scores for test function . Values in bold indicate breakdown of the method.
Input Proportion Size of the Noise level =0 Noise level=0.1 Noise level=0.2
dimension of outliers data set pclts nnet pclts nnet pclts nnet
1 0 100 0.011 0.011 0.032 0.031 0.116 0.129
1 0 500 0.033 0.004 0.047 0.013 0.032 0.029
1 0 5000 0.012 0.001 0.049 0.005 0.016 0.013
1 0.2 100 0.086 1428.515 0.205 1244.780 0.139 2210.010
1 0.2 500 0.004 2050.179 0.020 2343.837 0.041 2274.445
1 0.2 5000 0.001 2131.853 0.007 1964.621 0.011 1938.302
1 0.4 100 0.006 3071.073 0.055 2601.291 0.112 2573.349
1 0.4 500 0.005 3175.624 0.016 3928.369 0.039 2944.073
1 0.4 5000 0.001 3518.383 0.006 2769.465 0.022 4001.567
1 0.5 100 0.010 4480.236 0.067 3453.947 0.094 4059.283
1 0.5 500 0.005 3400.442 0.019 3038.613 0.045 2985.368
1 0.5 5000 0.002 3771.652 0.007 4254.330 0.019 3896.209
2 0 100 0.041 0.032 0.063 0.069 0.185 0.207
2 0 500 0.019 0.013 0.034 0.031 0.069 0.066
2 0 5000 0.008 0.006 0.010 0.010 0.014 0.016
2 0.2 100 0.036 2727.134 0.115 3232.341 0.341 3343.561
2 0.2 500 0.013 2347.874 0.040 2106.149 0.070 1871.573
2 0.2 5000 0.006 1733.387 0.013 1684.584 0.021 1835.099
2 0.4 100 0.065 4100.837 0.280 3534.314 0.304 2983.691
2 0.4 500 0.022 1424.309 0.047 2387.109 0.093 2216.498
2 0.4 5000 0.009 1962.566 0.014 2761.497 0.027 2200.297
2 0.5 100 0.060 4457.908 0.167 4871.504 0.521 4488.219
2 0.5 500 0.023 3960.387 0.046 3739.904 0.130 3238.984
2 0.5 5000 0.009 2236.145 0.015 2715.766 0.029 3676.229
3 0 100 0.485 0.055 0.423 0.164 1.025 0.253
3 0 500 0.220 0.025 0.249 0.052 0.264 0.077
3 0 5000 0.123 0.010 0.140 0.022 0.240 0.026
3 0.2 100 1.129 3717.613 1.395 2779.470 2.981 2989.171
3 0.2 500 0.036 2028.797 0.091 1600.051 0.115 2268.236
3 0.2 5000 0.028 1058.039 0.024 1527.461 0.035 1587.201
3 0.4 100 0.314 4793.372 0.363 4047.600 0.532 4194.754
3 0.4 500 0.097 3610.365 0.141 2508.087 0.131 3132.982
3 0.4 5000 0.020 2033.151 0.053 1966.833 0.041 2651.994
3 0.5 100 2.137 4825.086 1.099 4296.795 0.831 5327.959
3 0.5 500 0.028 3375.964 0.065 3420.456 0.176 3534.288
3 0.5 5000 0.012 2710.242 0.023 2105.679 0.037 2188.200
5 0 100 1.408 0.839 4.929 4.684 4.230 1.005
5 0 500 0.363 0.195 0.536 0.296 0.625 0.238
5 0 5000 0.156 0.078 0.214 0.104 0.207 2.488
5 0.2 100 3.461 2913.071 4.988 3044.410 5.467 2610.414
5 0.2 500 0.365 2134.386 0.256 2426.132 0.274 1557.945
5 0.2 5000 0.302 916.923 0.448 1953.074 0.282 1825.487
5 0.4 100 7.364 4303.066 2.038 4712.548 3.855 3613.974
5 0.4 500 0.201 2389.376 0.243 1608.493 0.297 2897.463
5 0.4 5000 2.472 1535.051 0.409 982.122 0.186 2710.593
5 0.5 100 2.620 5777.409 2.659 3981.915 3.004 4552.276
5 0.5 500 0.334 2959.721 0.386 3587.578 0.387 3820.604
5 0.5 5000 0.083 1486.899 0.339 1860.152 0.110 3650.581
10 0 100 7.693 18.996 14.509 14.780 9.206 19.782
10 0 500 3.459 3.393 3.518 1.502 1.458 2.586
10 0 5000 1.454 3.134 1.342 1.166 1.853 0.877
10 0.2 100 11.088 4958.813 11.139 3430.718 12.938 3779.233
10 0.2 500 7.437 2102.617 5.793 2146.722 8.225 1560.623
10 0.2 5000 1.361 914.675 1.373 1440.426 1.529 1741.527
10 0.4 100 9.915 3334.080 9.532 5060.621 10.702 3418.132
10 0.4 500 9.291 2923.122 11.039 2665.132 12.791 2930.661
10 0.4 5000 1.348 1230.987 3.820 1214.258 3.818 2165.092
10 0.5 100 10.992 4883.367 10.502 5012.351 11.335 4846.822
10 0.5 500 4.795 2404.714 8.024 3607.545 10.387 2444.654
10 0.5 5000 2.268 2333.182 3.807 2318.265 1.090 1417.052
Table 6: Data Set 6, RMSE scores for . Values in bold indicate breakdown of the method.
Input Proportion Size of the Noise level =0 Noise level=0.1 Noise level=0.2
dimension of outliers data set pclts nnet pclts nnet pclts nnet
1 0 100 0.009 0.009 0.054 0.054 0.106 0.113
1 0 500 0.002 0.002 0.016 0.016 0.049 0.047
1 0 5000 0.000 0.000 0.005 0.005 0.013 0.013
1 0.2 100 0.008 1765.182 0.050 1758.972 0.055 2102.820
1 0.2 500 0.002 2188.202 0.016 2113.608 0.042 2097.431
1 0.2 5000 0.001 1826.183 0.004 1980.115 0.010 2050.203
1 0.4 100 0.010 3364.341 0.063 4039.035 0.089 3449.219
1 0.4 500 0.003 2817.924 0.018 3713.575 0.046 3421.399
1 0.4 5000 0.001 1480.301 0.010 2625.622 0.009 1438.434
1 0.5 100 0.014 2993.168 0.062 5208.375 0.238 4399.353
1 0.5 500 0.003 3157.996 0.027 3659.850 0.052 3452.964
1 0.5 5000 0.001 3970.096 0.005 1666.382 0.020 2975.661
2 0 100 0.028 0.022 0.100 0.094 0.188 0.219
2 0 500 0.011 0.012 0.033 0.032 0.078 0.072
2 0 5000 0.011 0.026 0.015 0.039 0.042 0.021
2 0.2 100 0.023 2420.006 0.134 2812.395 0.246 2563.617
2 0.2 500 0.011 2279.412 0.036 1869.458 0.074 2704.868
2 0.2 5000 0.008 2101.774 0.017 1884.560 0.040 1319.015
2 0.4 100 0.037 4207.650 0.192 4193.981 0.602 3981.419
2 0.4 500 0.012 2908.053 0.057 2746.133 0.110 2929.497
2 0.4 5000 0.011 1270.255 0.015 1463.656 0.023 1338.211
2 0.5 100 0.101 5677.245 0.159 3707.418 0.435 4976.179
2 0.5 500 0.014 3565.570 0.038 5092.360 0.143 4226.929
2 0.5 5000 0.030 2515.610 0.017 2195.271 0.047 3655.635
3 0 100 0.400 0.034 0.201 0.193 0.303 0.360
3 0 500 0.029 0.038 0.069 0.067 0.108 0.135
3 0 5000 0.023 0.022 0.033 0.029 0.050 0.036
3 0.2 100 0.113 3211.998 0.214 3061.432 0.293 3109.383
3 0.2 500 0.037 2442.978 0.047 2294.771 0.117 2199.221
3 0.2 5000 0.022 2015.321 0.045 2229.473 0.044 1978.711
3 0.4 100 0.078 4477.740 0.367 3743.564 0.600 5265.777
3 0.4 500 0.049 3725.876 0.069 3263.236 0.158 2967.931
3 0.4 5000 0.037 2042.914 0.030 1572.561 0.051 948.232
3 0.5 100 0.164 5217.680 0.438 4772.684 0.772 4567.295
3 0.5 500 0.033 3214.542 0.070 3286.198 0.149 3396.359
3 0.5 5000 0.037 997.293 0.029 4078.636 0.052 1340.076
5 0 100 0.359 0.471 0.553 0.352 0.394 0.439
5 0 500 0.137 0.082 0.163 0.139 0.201 0.161
5 0 5000 0.075 0.080 0.069 0.104 0.115 0.092
5 0.2 100 0.411 3425.099 0.448 3407.395 0.623 4213.772
5 0.2 500 0.217 2268.813 0.169 1844.163 0.246 2005.357
5 0.2 5000 0.077 1159.222 0.083 1698.785 0.133 1493.518
5 0.4 100 0.472 4529.235 0.527 2493.730 0.784 3896.168
5 0.4 500 0.161 3279.181 0.215 3656.944 0.287 3632.136
5 0.4 5000 0.081 2594.180 0.094 2558.796 0.105 2527.323
5 0.5 100 0.463 4272.932 0.593 4192.088 0.531 4263.360
5 0.5 500 0.170 3430.565 0.326 3359.898 0.355 3421.224
5 0.5 5000 0.091 2877.599 0.084 2401.704 0.154 3382.486
10 0 100 0.215 0.299 0.258 0.306 0.354 0.359
10 0 500 0.238 0.249 0.227 0.246 0.279 0.289
10 0 5000 0.099 0.103 0.185 0.117 0.173 0.142
10 0.2 100 0.260 3753.222 0.293 3359.206 0.392 3168.373
10 0.2 500 0.241 2233.665 0.266 2590.100 0.283 2683.247
10 0.2 5000 0.103 2213.302 0.132 2205.644 0.136 966.199
10 0.4 100 0.250 4099.838 0.268 4691.776 0.276 4583.842
10 0.4 500 0.228 3347.419 0.293 3198.435 0.327 3662.368
10 0.4 5000 0.102 1783.281 0.139 2331.094 0.173 1012.611
10 0.5 100 0.357 5374.843 0.325 4782.975 0.355 5266.989
10 0.5 500 0.274 3648.297 0.349 3722.761 0.374 3047.895
10 0.5 5000 0.163 1609.686 0.142 1109.243 0.177 2243.199
Table 7: Data Set 7, RMSE scores for test function . Values in bold indicate breakdown of the method.
Input Proportion Size of the Noise level =0 Noise level=0.1 Noise level=0.2
dimension of outliers data set pclts nnet pclts nnet pclts nnet
1 0 100 0.041 0.012 0.095 0.042 0.057 0.048
1 0 500 0.004 0.004 0.013 0.013 0.038 0.038
1 0 5000 0.001 0.001 0.007 0.004 0.012 0.012
1 0.2 100 0.014 3128.316 0.044 3952.802 0.076 3533.059
1 0.2 500 0.009 2259.867 0.031 2258.475 0.070 2098.067
1 0.2 5000 0.001 2187.879 0.006 2303.391 0.017 2237.420
1 0.4 100 0.036 4001.311 0.049 4302.778 0.084 3703.276
1 0.4 500 0.009 3075.499 0.016 2973.959 0.040 4080.353
1 0.4 5000 0.002 2638.407 0.008 2706.752 0.019 3233.509
1 0.5 100 0.136 4452.552 0.139 4693.292 0.188 4552.690
1 0.5 500 0.008 3955.118 0.020 4754.951 0.046 3402.606
1 0.5 5000 0.002 4194.380 0.011 4864.122 0.018 4988.893
2 0 100 0.603 1.005 0.737 0.789 0.906 0.860
2 0 500 0.504 0.410 0.489 0.513 0.503 0.437
2 0 5000 0.478 0.351 0.406 0.426 0.322 0.283
2 0.2 100 0.625 2105.492 0.678 2485.237 0.628 2928.959
2 0.2 500 0.477 2454.516 0.337 1793.007 0.448 2225.536
2 0.2 5000 0.412 1938.913 0.314 2026.322 0.410 1772.382
2 0.4 100 0.722 4325.889 1.444 3492.209 1.239 3540.848
2 0.4 500 0.491 1937.007 0.491 3197.496 0.509 2796.427
2 0.4 5000 0.359 3034.412 0.274 3670.032 0.300 3345.920
2 0.5 100 1.310 4471.116 1.417 2965.294 0.868 4842.782
2 0.5 500 0.511 3877.878 0.269 3574.512 0.535 2647.934
2 0.5 5000 0.321 3563.717 0.397 3365.565 0.268 2555.748
3 0 100 1.816 1.678 1.430 1.432 1.119 1.068
3 0 500 0.876 0.855 0.860 0.795 0.857 0.851
3 0 5000 0.742 0.742 0.741 0.743 0.734 0.740
3 0.2 100 1.147 2903.258 1.260 3268.886 1.558 3084.920
3 0.2 500 0.875 2247.053 0.803 2008.515 0.840 2367.498
3 0.2 5000 0.740 1806.993 0.741 1865.464 0.750 1755.061
3 0.4 100 2.094 3715.733 1.491 4618.206 4.317 5149.712
3 0.4 500 0.931 2745.697 0.965 3138.338 0.869 3148.451
3 0.4 5000 0.754 1517.785 0.764 4049.413 0.746 3902.094
3 0.5 100 1.905 4156.388 2.119 3726.369 1.672 4457.779
3 0.5 500 0.900 3291.714 0.945 3235.183 0.900 3233.359
3 0.5 5000 0.752 3167.287 0.782 2556.040 0.757 2625.226
5 0 100 2.327 4.354 2.229 2.903 2.498 2.362
5 0 500 1.256 1.092 1.350 1.259 1.263 1.123
5 0 5000 1.158 0.934 1.020 0.925 1.125 1.034
5 0.2 100 2.508 3370.282 4.402 3272.868 3.352 3293.710
5 0.2 500 1.576 2624.077 1.879 2287.972 1.523 2005.299
5 0.2 5000 0.985 1363.233 1.069 1700.153 1.104 1500.418
5 0.4 100 2.609 2376.302 2.722 4719.392 2.998 4296.714
5 0.4 500 1.600 3298.061 1.950 2755.280 1.552 2734.976
