Right Answer for the Wrong Reason: Discovery and Mitigation

04/20/2018 ∙ by Shi Feng, et al. ∙ University of Massachusetts Amherst University of Maryland Ursinus College 0

Exposing the weaknesses of neural models is crucial for improving their performance and robustness in real-world applications. One common approach is to examine how input perturbations affect the output. Our analysis takes this to an extreme on natural language processing tasks by removing as many words as possible from the input without changing the model prediction. For question answering and natural language inference, this of- ten reduces the inputs to just one or two words, while model confidence remains largely unchanged. This is an undesireable behavior: the model gets the Right Answer for the Wrong Reason (RAWR). We introduce a simple training technique that mitigates this problem while maintaining performance on regular examples.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 13

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

SQuAD
Context In 1899, John Jacob Astor IV invested $100,000 for Tesla to further develop and produce a new lighting system. Instead, Tesla used the money to fund his

Colorado Springs experiments
.
Original What did Tesla spend Astor’s money on ?
Reduced did
Confidence 0.78 0.91
Figure 1: SQuAD example from the validation set. Given the original Context, the model makes the same correct prediction (“Colorado Springs experiments”) on the Reduced question as the Original, with even higher confidence. For humans, the reduced question, “did”, is nonsensical.

Many interpretation methods for neural networks explain the model’s prediction as a counterfactual: how does the prediction change when the input is modified? Adversarial examples

Szegedy et al. (2014); Goodfellow et al. (2015) highlight the instability of neural network predictions by showing how small perturbations to the input dramatically change the output.

A common, non-adversarial form of model interpretation is feature attribution: features that are crucial for predictions are highlighted in a heatmap. One can measure a feature’s importance by input perturbation. Given an input for text classification, a word’s importance can be measured by the difference in model confidence before and after that word is removed from the input—the word is important if confidence decreases significantly. This is the leave-one-out method Li et al. (2016b). Gradients can also measure feature importance; for example, a feature is influential to the prediction if its gradient is a large positive value. Both perturbation and gradient-based methods can generate heatmaps, implying that the model’s prediction is highly influenced by the highlighted, important words.

Instead, we study how the model’s prediction is influenced by the unimportant words. We use input reduction, a process that iteratively removes the unimportant words from the input while maintaining the model’s prediction. Intuitively, the words remaining after input reduction should be important for prediction. Moreover, the words should match the leave-one-out method’s selections, which closely align with human perception Li et al. (2016b); Murdoch et al. (2018). However, rather than providing explanations of the original prediction, our reduced examples more closely resemble adversarial examples. In Figure 1, the reduced input is meaningless to a human but retains the same model prediction with high confidence. Gradient-based input reduction exposes pathological model behaviors that contradict what one expects based on existing interpretation methods.

In Section 2, we construct more of these counterintuitive examples by augmenting input reduction with beam search and experiment with three tasks: SQuAD Rajpurkar et al. (2016) for reading comprehension, SNLI Bowman et al. (2015) for textual entailment, and VQA Antol et al. (2015) for visual question answering. Input reduction with beam search consistently reduces the input sentence to very short lengths—often only one or two words—without lowering model confidence on its original prediction. The reduced examples appear nonsensical to humans, which we verify with crowdsourced experiments. In Section 3, we draw connections to adversarial examples and confidence calibration; we explain why the observed pathologies are a consequence of the overconfidence of neural models. This elucidates limitations of interpretation methods that rely on model confidence. In Section 4, we encourage high model uncertainty on reduced examples with entropy regularization. The pathological model behavior under input reduction is mitigated, leading to more reasonable reduced examples.

2 Input Reduction

To explain model predictions using a set of important words, we must first define importance. After defining input perturbation and gradient-based approximation, we describe input reduction with these importance metrics. Input reduction drastically shortens inputs without causing the model to change its prediction or significantly decrease its confidence. Crowdsourced experiments confirm that reduced examples appear nonsensical to humans: input reduction uncovers pathological model behaviors.

2.1 Importance from Input Gradient

Ribeiro et al. (2016) and Li et al. (2016b) define importance by seeing how confidence changes when a feature is removed; a natural approximation is to use the gradient Baehrens et al. (2010); Simonyan et al. (2014). We formally define these importance metrics in natural language contexts and introduce the efficient gradient-based approximation. For each word in an input sentence, we measure its importance by the change in the confidence of the original prediction when we remove that word from the sentence. We switch the sign so that when the confidence decreases, the importance value is positive.

Formally, let denote the input sentence,

the predicted probability of label

, and the original predicted label. The importance is then

(1)

To calculate the importance of each word in a sentence with words, we need forward passes of the model, each time with one of the words left out. This is highly inefficient, especially for longer sentences. Instead, we approximate the importance value with the input gradient. For each word in the sentence, we calculate the dot product of its word embedding and the gradient of the output with respect to the embedding. The importance of words can thus be computed with a single forward-backward pass. This gradient approximation has been used for various interpretation methods for natural language classification models Li et al. (2016a); Arras et al. (2016); see Ebrahimi et al. (2017) for further details on the derivation. We use this approximation in all our experiments as it selects the same words for removal as an exhaustive search (no approximation).

2.2 Removing Unimportant Words

Instead of looking at the words with high importance values—what interpretation methods commonly do—we take a complementary approach and study how the model behaves when the supposedly unimportant words are removed. Intuitively, the important words should remain after the unimportant ones are removed.

Our input reduction process iteratively removes the unimportant words. At each step, we remove the word with the lowest importance value until the model changes its prediction. We experiment with three popular datasets: SQuAD Rajpurkar et al. (2016) for reading comprehension, SNLI Bowman et al. (2015) for textual entailment, and VQA Antol et al. (2015) for visual question answering. We describe each of these tasks and the model we use below, providing full details in the Supplement.

In SQuAD, each example is a context paragraph and a question. The task is to predict a span in the paragraph as the answer. We reduce only the question while keeping the context paragraph unchanged. The model we use is the DrQA Document Reader Chen et al. (2017).

In SNLI, each example consists of two sentences: a premise and a hypothesis. The task is to predict one of three relationships: entailment, neutral, or contradiction. We reduce only the hypothesis while keeping the premise unchanged. The model we use is Bilateral Multi-Perspective Matching (BiMPMWang et al. (2017).

In VQA, each example consists of an image and a natural language question. We reduce only the question while keeping the image unchanged. The model we use is Show, Ask, Attend, and Answer Kazemi and Elqursh (2017).

During the iterative reduction process, we ensure that the prediction does not change (exact same span for SQuAD); consequently, the model accuracy on the reduced examples is identical to the original. The predicted label is used for input reduction and the ground-truth is never revealed. We use the validation set for all three tasks.

SNLI
Premise Well dressed man and woman dancing in the street
Original Two man is dancing on the street
Reduced dancing
Answer Contradiction
Confidence 0.977 0.706

VQA
Original What color is the flower ?
Reduced flower ?
Answer yellow
Confidence 0.827 0.819
Figure 2: Examples of original and reduced inputs where the models predict the same Answer. Reduced shows the input after reduction. We remove words from the hypothesis for SNLI, questions for SQuAD and VQA. Given the nonsensical reduced inputs, humans would not be able to provide the answer with high confidence, yet, the neural models do.

Most reduced inputs are nonsensical to humans (Figure 2) as they lack information for any reasonable human prediction. However, models make confident predictions, at times even more confident than the original.

To find the shortest possible reduced inputs (potentially the most meaningless), we relax the requirement of removing only the least important word and augment input reduction with beam search. We limit the removal to the   least important words, where is the beam size, and decrease the beam size as the remaining input is shortened.111We set beam size to where is maximum beam size and is the current length of the input sentence. We empirically select beam size five as it produces comparable results to larger beam sizes with reasonable computation cost. The requirement of maintaining model prediction is unchanged.

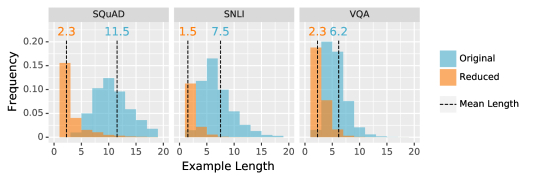

Figure 3: Distribution of input sentence length before and after reduction. For all three tasks, the input is often reduced to one or two words without changing the model’s prediction.

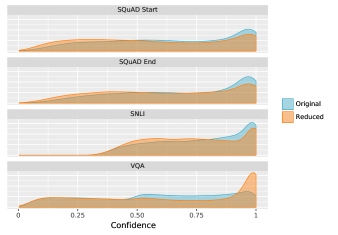

Figure 4: Density distribution of model confidence on reduced inputs is similar to the original confidence. In SQuAD, we predict the beginning and the end of the answer span, so we show the confidence for both.

With beam search, input reduction finds extremely short reduced examples with little to no decrease in the model’s confidence on its original predictions. Figure 3 compares the length of input sentences before and after the reduction. For all three tasks, we can often reduce the sentence to only one word. Figure 4 compares the model’s confidence on original and reduced inputs. On SQuAD and SNLI the confidence decreases slightly, and on VQA the confidence even increases.

Dataset Original Reduced vs. Random
SQuAD 80.58 31.72 53.70
SNLI-E 76.40 27.66 42.31
SNLI-N 55.40 52.66 50.64
SNLI-C 76.20 60.60 49.87
VQA 76.11 40.60 61.60
Table 1: Human accuracy on Reduced examples drops significantly compared to the Original examples, however, model predictions are identical. The reduced examples also appear random to humans—they do not prefer them over random inputs (vs. Random). For SQuAD, accuracy is reported using F1 scores, other numbers are percentages. For SNLI, we report results on the three classes separately: entailment (-E), neutral (-N), and contradiction (-C).

2.3 Humans Confused by Reduced Inputs

On the reduced examples, the models retain their original predictions despite short input lengths. The following experiments examine whether these predictions are justified or pathological, based on how humans react to the reduced inputs.

For each task, we sample 200 examples that are correctly classified by the model and generate their reduced examples. In the first setting, we compare the human accuracy on original and reduced examples. We recruit two groups of crowd workers and task them with textual entailment, reading comprehension, or visual question answering. We show one group the original inputs and the other the reduced. Humans are no longer able to give the correct answer, showing a significant accuracy loss on all three tasks (compare

Original and Reduced in Table 1).

The second setting examines how random the reduced examples appear to humans. For each of the original examples, we generate a version where words are randomly removed until the length matches the one generated by input reduction. We present the original example along with the two reduced examples and ask crowd workers their preference between the two reduced ones. The workers’ choice is almost fifty-fifty (the vs. Random in Table 1): the reduced examples appear almost random to humans.

These results leave us with two puzzles: why are the models highly confident on the nonsensical reduced examples? And why, when the leave-one-out method selects important words that appear reasonable to humans, the input reduction process selects ones that are nonsensical?

3 Making Sense of Reduced Inputs

Having established the incongruity of our definition of importance vis-à-vis human judgements, we now investigate possible explanations for these results. We explain why model confidence can empower methods such as leave-one-out to generate reasonable interpretations but also lead to pathologies under input reduction. We attribute these results to two issues of neural models.

3.1 Model Overconfidence

Neural models are overconfident in their predictions Guo et al. (2017). One explanation for overconfidence is overfitting: the model overfits the negative log-likelihood loss during training by learning to output low-entropy distributions over classes. Neural models are also overconfident on examples outside the training data distribution. As Goodfellow et al. (2015) observe for image classification, samples from pure noise can sometimes trigger highly confident predictions. These so-called rubbish examples are degenerate inputs that a human would trivially classify as not belonging to any class but for which the model predicts with high confidence. Goodfellow et al. (2015)

argue that the rubbish examples exist for the same reason that adversarial examples do: the surprising linear nature of neural models. In short, the confidence of a neural model is not a robust estimate of its prediction uncertainty.

Our reduced inputs satisfy the definition of rubbish examples: humans have a hard time making predictions based on the reduced inputs (Table 1), but models make predictions with high confidence (Figure 4). Starting from a valid example, input reduction transforms it into a rubbish example.

The nonsensical, almost random results are best explained by looking at a complete reduction path (Figure 5). In this example, the transition from valid to rubbish happens immediately after the first step: following the removal of “Broncos”, humans can no longer determine which team the question is asking about, but model confidence remains high. Not being able to lower its confidence on rubbish examples—as it is not trained to do so—the model neglects “Broncos” and eventually the process generates nonsensical results.

In this example, the leave-one-out method will not highlight “Broncos”. However, this is not a failure of the interpretation method but of the model itself. The model assigns a low importance to “Broncos” in the first step, causing it to be removed—leave-one-out would be able to expose this particular issue by not highlighting “Broncos”. However, in cases where a similar issue only appear after a few unimportant words are removed, the leave-one-out method would fail to expose the unreasonable model behavior.

Input reduction can expose deeper issues of model overconfidence and stress test a model’s uncertainty estimation and interpretability.

SQuAD
Context: The Panthers used the San Jose State practice facility and stayed at the San Jose Marriott. The Broncos practiced at

Stanford University
and stayed at the Santa Clara Marriott.
Question:
(0.90, 0.89) Where did the Broncos practice for the Super Bowl ?
(0.92, 0.88) Where did the practice for the Super Bowl ?
(0.91, 0.88) Where did practice for the Super Bowl ?
(0.92, 0.89) Where did practice the Super Bowl ?
(0.94, 0.90) Where did practice the Super ?
(0.93, 0.90) Where did practice Super ?
(0.40, 0.50) did practice Super ?
Figure 5: A reduction path for a SQuAD validation example. The model prediction is always correct and its confidence stays high (shown on the left in parentheses) throughout the reduction. Each line shows the input at that step with an underline indicating the word to remove next. The question becomes unanswerable immediately after “Broncos” is removed in the first step. However, in the context of the original question, “Broncos” is the least important word according to the input gradient.

3.2 Second-order Sensitivity

SQuAD
Context: QuickBooks sponsored a “Small Business Big Game” contest, in which Death Wish Coffee had a 30-second commercial aired free of charge courtesy of QuickBooks.

Death Wish Coffee
beat out nine other contenders from across the United States for the free advertisement.
Question:

What

company

won

free

advertisement

due

to

QuickBooks

contest

?

What

company

won

free

advertisement

due

to

QuickBooks

?

What

company

won

free

advertisement

due

to

?

What

company

won

free

due

to

?

What

won

free

due

to

?

What

won

due

to

?

What

won

due

to

What

won

due

What

won

What
Figure 6: Heatmap generated with leave-one-out shifts drastically despite only removing the least important word (underlined) at each step. For instance, “advertisement”, is the most important word in step two but becomes the least important in step three.

So far, we have seen that the output of a neural model is sensitive to small changes in its input. We call this first-order sensitivity, because interpretation based on input gradient is a first-order Taylor expansion of the model near the input Simonyan et al. (2014). However, the interpretation also shifts drastically with small input changes (Figure 6). We call this second-order sensitivity.

The shifting heatmap suggests a mismatch between the model’s first- and second-order sensitivities. The heatmap shifts when, with respect to the removed word, the model has low first-order sensitivity but high second-order sensitivity.

Similar issues complicate comparable interpretation methods for image classification models. For example, Ghorbani et al. (2017) modify image inputs so the highlighted features in the interpretation change while maintaining the same prediction. To achieve this, they iteratively modify the input to maximize changes in the distribution of feature importance. In contrast, the shifting heatmap we observe occurs by only removing the least impactful features without a targeted optimization. They also speculate that the steepest gradient direction for the first- and second-order sensitivity values are generally orthogonal. Loosely speaking, the shifting heatmap suggests that the direction of the smallest gradient value can sometimes align with very steep changes in second-order sensitivity.

When explaining individual model predictions, the heatmap suggests that the prediction is made based on a weighted combination of words, as in a linear model, which is not true unless the model is indeed taking a weighted sum such as in a dan Iyyer et al. (2015). When the model composes representations by a non-linear combination of words, a linear interpretation oblivious to second-order sensitivity can be misleading.

4 Mitigating Model Pathologies

The previous section explains the observed pathologies from the perspective of overconfidence: models are too certain on rubbish examples when they should not make any prediction. Human experiments in Section 2.3 confirm that the reduced examples fit the definition of rubbish examples. Hence, a natural way to mitigate the pathologies is to maximize model uncertainty on the reduced examples.

4.1 Regularization on Reduced Inputs

To maximize model uncertainty on reduced examples, we use the entropy of the output distribution as an objective. Given a model trained on a dataset , we generate reduced examples using input reduction for all training examples . Beam search often yields multiple reduced versions with the same minimum length for each input , and we collect all of these versions together to form as the “negative” example set.

Let denote the entropy and denote the probability of the model predicting given . We fine-tune the existing model to simultaneously maximize the log-likelihood on regular examples and the entropy on reduced examples:

(2)

where hyperparameter

controls the trade-off between the two terms. Similar entropy regularization is used by Pereyra et al. (2017), but not in combination with input reduction; their entropy term is calculated on regular examples rather than reduced examples.

4.2 Regularization Mitigates Pathologies

On regular examples, entropy regularization does no harm to model accuracy, with a slight increase for SQuAD (Accuracy in Table 2).

After entropy regularization, input reduction produces more reasonable reduced inputs (Figure 7). In the SQuAD example from Figure 1, the reduced question changed from “did” to “spend Astor money on ?” after fine-tuning. The average length of reduced examples also increases across all tasks (Reduced length in Table 2). To verify that model overconfidence is indeed mitigated—that the reduced examples are less “rubbish” compared to before fine-tuning—we repeat the human experiments from Section 2.3.

Human accuracy increases across all three tasks (Table 3). We also repeat the vs. Random experiment: we re-generate the random examples to match the lengths of the new reduced examples from input reduction, and find humans now prefer the reduced examples to random ones. The increase in both human performance and preference suggests that the reduced examples are more reasonable; model pathologies have been mitigated.

While these results are promising, it is not clear whether our input reduction method is necessary to achieve them. To provide a baseline, we fine-tune models using inputs randomly reduced to the same lengths as the ones generated by input reduction. This baseline improves neither the model accuracy on regular examples nor interpretability under input reduction (judged by lengths of reduced examples). Input reduction is effective in generating negative examples to counter model overconfidence.

SQuAD
Context In 1899, John Jacob Astor IV invested $100,000 for Tesla to further develop and produce a new lighting system. Instead, Tesla used the money to fund his

Colorado Springs experiments
.
Original What did Tesla spend Astor’s money on ?
Answer Colorado Springs experiments
Before did
After spend Astor money on ?
Confidence 0.78 0.91 0.52

SNLI
Premise Well dressed man and woman dancing in the street
Original Two man is dancing on the street
Answer Contradiction
Before dancing
After two man dancing
Confidence 0.977 0.706 0.717

VQA
Original What color is the flower ?
Answer yellow
Before flower ?
After What color is flower ?
Confidence 0.847 0.918 0.745
Figure 7: SQuAD example from Figure 1, SNLI and VQA (image omitted) examples from Figure 2. We apply input reduction to models both Before and After entropy regularization. The models still predict the same Answer, but the reduced examples after fine-tuning appear more reasonable to humans.
Accuracy Reduced length
Before After Before After
SQuAD 77.41 78.03 2.27 4.97
SNLI 85.71 85.72 1.50 2.20
VQA 61.61 61.54 2.30 2.87
Table 2: Model Accuracy on regular validation examples remains largely unchanged after fine-tuning. However, the length of the reduced examples (Reduced length) increases on all three tasks, making them less likely to appear nonsensical to humans.
Accuracy vs. Random
Before After Before After
SQuAD 31.72 51.61 53.70 62.75
SNLI-E 27.66 32.37 42.31 50.62
SNLI-N 52.66 50.50 50.64 58.94
SNLI-C 60.60 63.90 49.87 56.92
VQA 40.60 51.85 61.60 61.88
Table 3: Human Accuracy increases after fine-tuning the models. Humans also prefer gradient-based reduced examples over randomly reduced ones, indicating that the reduced examples are more meaningful to humans after regularization.

5 Discussion

Rubbish examples have been studied in the image domain Goodfellow et al. (2015); Nguyen et al. (2015), but to our knowledge not for nlp. Our input reduction process gradually transforms a valid input into a rubbish example. We can often determine which word’s removal causes the transition to occur—for example, removing “Broncos” in Figure 5. These rubbish examples are particularly interesting, as they are also adversarial: the difference from a valid example is small, unlike image rubbish examples generated from pure noise which are far outside the training data distribution.

The robustness of nlp models has been studied extensively Papernot et al. (2016); Jia and Liang (2017); Iyyer et al. (2018); Ribeiro et al. (2018), and most studies define adversarial examples similar to the image domain: small perturbations to the input lead to large changes in the output. HotFlip Ebrahimi et al. (2017) uses a gradient-based approach, similar to image adversarial examples, to flip the model prediction by perturbing a few characters or words. Our work and Belinkov and Bisk (2018)

both identify cases where noisy user inputs become adversarial by accident: common misspellings break neural machine translation models; we show that incomplete user input can lead to unreasonably high model confidence.

Other failures of interpretation methods have been explored in the image domain. The sensitivity issue of gradient-based interpretation methods, similar to our shifting heatmaps, are observed by Ghorbani et al. (2017) and Kindermans et al. (2017). They show that various forms of input perturbation—from adversarial changes to simple constant shifts in the image input—cause significant changes in the interpretation. Ghorbani et al. (2017) make a similar observation about second-order sensitivity, that “the fragility of interpretation is orthogonal to fragility of the prediction”.

Previous work studies biases in the annotation process that lead to datasets easier than desired or expected which eventually induce pathological models. We attribute our observed pathologies primarily to the lack of accurate uncertainty estimates in neural models trained with maximum likelihood. SNLI hypotheses contain artifacts that allow training a model without the premises Gururangan et al. (2018); we apply input reduction at test time to the hypothesis. Similarly, VQA images are surprisingly unimportant for training a model; we reduce the question. The recent SQuAD 2.0 Rajpurkar et al. (2018) augments the original reading comprehension task with an uncertainty modeling requirement, the goal being to make the task more realistic and challenging.

Section 3.1 explains the pathologies from the overconfidence perspective. One explanation for overconfidence is overfitting: Guo et al. (2017) show that, late in maximum likelihood training, the model learns to minimize loss by outputting low-entropy distributions without improving validation accuracy. To examine if overfitting can explain the input reduction results, we run input reduction using DrQA

model checkpoints from every training epoch. Input reduction still achieves similar results on earlier checkpoints, suggesting that better convergence in maximum likelihood training cannot fix the issues by itself—we need new training objectives with uncertainty estimation in mind.

5.1 Methods for Mitigating Pathologies

We use the reduced examples generated by input reduction to regularize the model and improve its interpretability. This resembles adversarial training Goodfellow et al. (2015), where adversarial examples are added to the training set to improve model robustness. The objectives are different: entropy regularization encourages high uncertainty on rubbish examples, while adversarial training makes the model less sensitive to adversarial perturbations.

Pereyra et al. (2017) apply entropy regularization on regular examples from the start of training to improve model generalization. A similar method is label smoothing Szegedy et al. (2016). In comparison, we fine-tune a model with entropy regularization on the reduced examples for better uncertainty estimates and interpretations.

To mitigate overconfidence, Guo et al. (2017) propose post-hoc fine-tuning a model’s confidence with Platt scaling. This method adjusts the softmax function’s temperature parameter using a small held-out dataset to align confidence with accuracy. However, because the output is calibrated using the entire confidence distribution, not individual values, this does not reduce overconfidence on specific inputs, such as the reduced examples.

5.2 Generalizability of Findings

To highlight the erratic model predictions on short examples and provide a more intuitive demonstration, we present paired-input tasks. On these tasks, the short lengths of reduced questions and hypotheses obviously contradict the necessary number of words for a human prediction (further supported by our human studies). We also apply input reduction to single-input tasks including sentiment analysis

Maas et al. (2011) and Quizbowl Boyd-Graber et al. (2012), achieving similar results.

Interestingly, the reduced examples transfer to other architectures. In particular, when we feed fifty reduced SNLI inputs from each class—generated with the BiMPM model Wang et al. (2017)

—through the Decomposable Attention Model

Parikh et al. (2016),222http://demo.allennlp.org/textual-entailment the same prediction is triggered 81.3% of the time.

6 Conclusion

We introduce input reduction, a process that iteratively removes unimportant words from an input while maintaining a model’s prediction. Combined with gradient-based importance estimates often used for interpretations, we expose pathological behaviors of neural models. Without lowering model confidence on its original prediction, an input sentence can be reduced to the point where it appears nonsensical, often consisting of one or two words. Human accuracy degrades when shown the reduced examples instead of the original, in contrast to neural models which maintain their original predictions.

We explain these pathologies with known issues of neural models: overconfidence and sensitivity to small input changes. The nonsensical reduced examples are caused by inaccurate uncertainty estimates—the model is not able to lower its confidence on inputs that do not belong to any label. The second-order sensitivity is another issue why gradient-based interpretation methods may fail to align with human perception: a small change in the input can cause, at the same time, a minor change in the prediction but a large change in the interpretation. Input reduction perturbs the input multiple times and can expose deeper issues of model overconfidence and oversensitivity that other methods cannot. Therefore, it can be used to stress test the interpretability of a model.

Finally, we fine-tune the models by maximizing entropy on reduced examples to mitigate the deficiencies. This improves interpretability without sacrificing model accuracy on regular examples.

To properly interpret neural models, it is important to understand their fundamental characteristics: the nature of their decision surfaces, robustness against adversaries, and limitations of their training objectives. We explain fundamental difficulties of interpretation due to pathologies in neural models trained with maximum likelihood. Our work suggests several future directions to improve interpretability: more thorough evaluation of interpretation methods, better uncertainty and confidence estimates, and interpretation beyond bag-of-word heatmap.

Acknowledgments

Feng was supported under subcontract to Raytheon BBN Technologies by DARPA award HR0011-15-C-0113. JBG is supported by NSF Grant IIS1652666. Any opinions, findings, conclusions, or recommendations expressed here are those of the authors and do not necessarily reflect the view of the sponsor. The authors would like to thank Hal Daumé III, Alexander M. Rush, Nicolas Papernot, members of the CLIP lab at the University of Maryland, and the anonymous reviewers for their feedback.

References

  • Antol et al. (2015) Stanislaw Antol, Aishwarya Agrawal, Jiasen Lu, Margaret Mitchell, Dhruv Batra, C. Lawrence Zitnick, and Devi Parikh. 2015. VQA: Visual question answering. In

    International Conference on Computer Vision

    .
  • Arras et al. (2016) Leila Arras, Franziska Horn, Grégoire Montavon, Klaus-Robert Müller, and Wojciech Samek. 2016. Explaining predictions of non-linear classifiers in NLP. In Workshop on Representation Learning for NLP.
  • Baehrens et al. (2010) David Baehrens, Timon Schroeter, Stefan Harmeling, Motoaki Kawanabe, Katja Hansen, and Klaus-Robert Müller. 2010. How to explain individual classification decisions.

    Journal of Machine Learning Research

    .
  • Belinkov and Bisk (2018) Yonatan Belinkov and Yonatan Bisk. 2018. Synthetic and natural noise both break neural machine translation. In Proceedings of the International Conference on Learning Representations.
  • Bowman et al. (2015) Samuel R. Bowman, Gabor Angeli, Christopher Potts, and Christopher D. Manning. 2015. A large annotated corpus for learning natural language inference. In Proceedings of Empirical Methods in Natural Language Processing.
  • Boyd-Graber et al. (2012) Jordan L. Boyd-Graber, Brianna Satinoff, He He, and Hal Daumé III. 2012. Besting the quiz master: Crowdsourcing incremental classification games. In Proceedings of Empirical Methods in Natural Language Processing.
  • Chen et al. (2017) Danqi Chen, Adam Fisch, Jason Weston, and Antoine Bordes. 2017. Reading wikipedia to answer open-domain questions. In Proceedings of the Association for Computational Linguistics.
  • Ebrahimi et al. (2017) Javid Ebrahimi, Anyi Rao, Daniel Lowd, and Dejing Dou. 2017. HotFlip: White-box adversarial examples for text classification. In Proceedings of the Association for Computational Linguistics.
  • Ghorbani et al. (2017) Amirata Ghorbani, Abubakar Abid, and James Y. Zou. 2017. Interpretation of neural networks is fragile. arXiv preprint arXiv: 1710.10547.
  • Goodfellow et al. (2015) Ian J. Goodfellow, Jonathon Shlens, and Christian Szegedy. 2015. Explaining and harnessing adversarial examples. In Proceedings of the International Conference on Learning Representations.
  • Guo et al. (2017) Chuan Guo, Geoff Pleiss, Yu Sun, and Kilian Q. Weinberger. 2017. On calibration of modern neural networks. In Proceedings of the International Conference of Machine Learning.
  • Gururangan et al. (2018) Suchin Gururangan, Swabha Swayamdipta, Omer Levy, Roy Schwartz, Samuel R. Bowman, and Noah A. Smith. 2018. Annotation artifacts in natural language inference data. In Conference of the North American Chapter of the Association for Computational Linguistics.
  • Iyyer et al. (2015) Mohit Iyyer, Varun Manjunatha, Jordan Boyd-Graber, and Hal Daumé III. 2015. Deep unordered composition rivals syntactic methods for text classification. In Proceedings of the Association for Computational Linguistics.
  • Iyyer et al. (2018) Mohit Iyyer, John Wieting, Kevin Gimpel, and Luke S. Zettlemoyer. 2018. Adversarial example generation with syntactically controlled paraphrase networks. In Conference of the North American Chapter of the Association for Computational Linguistics.
  • Jia and Liang (2017) Robin Jia and Percy Liang. 2017. Adversarial examples for evaluating reading comprehension systems. In Proceedings of Empirical Methods in Natural Language Processing.
  • Kazemi and Elqursh (2017) Vahid Kazemi and Ali Elqursh. 2017. Show, ask, attend, and answer: A strong baseline for visual question answering. arXiv preprint arXiv: 1704.03162.
  • Kindermans et al. (2017) Pieter-Jan Kindermans, Sara Hooker, Julius Adebayo, Maximilian Alber, Kristof T. Schütt, Sven Dähne, Dumitru Erhan, and Been Kim. 2017. The (un)reliability of saliency methods. arXiv preprint arXiv: 1711.00867.
  • Li et al. (2016a) Jiwei Li, Xinlei Chen, Eduard H. Hovy, and Daniel Jurafsky. 2016a. Visualizing and understanding neural models in NLP. In Conference of the North American Chapter of the Association for Computational Linguistics.
  • Li et al. (2016b) Jiwei Li, Will Monroe, and Daniel Jurafsky. 2016b. Understanding neural networks through representation erasure. arXiv preprint arXiv: 1612.08220.
  • Maas et al. (2011) Andrew Maas, Raymond Daly, Peter Pham, Dan Huang, Andrew Ng, and Christopher Potts. 2011.

    Learning word vectors for sentiment analysis.

    In Proceedings of the Association for Computational Linguistics.
  • Murdoch et al. (2018) W. James Murdoch, Peter J. Liu, and Bin Yu. 2018. Beyond word importance: Contextual decomposition to extract interactions from lstms. In Proceedings of the International Conference on Learning Representations.
  • Nguyen et al. (2015) Anh Mai Nguyen, Jason Yosinski, and Jeff Clune. 2015. Deep neural networks are easily fooled: High confidence predictions for unrecognizable images. In

    Computer Vision and Pattern Recognition

    .
  • Papernot et al. (2016) Nicolas Papernot, Patrick D. McDaniel, Ananthram Swami, and Richard E. Harang. 2016.

    Crafting adversarial input sequences for recurrent neural networks.

    IEEE Military Communications Conference.
  • Parikh et al. (2016) Ankur P. Parikh, Oscar Täckström, Dipanjan Das, and Jakob Uszkoreit. 2016. A decomposable attention model for natural language inference. In Proceedings of Empirical Methods in Natural Language Processing.
  • Pereyra et al. (2017) Gabriel Pereyra, George Tucker, Jan Chorowski, Lukasz Kaiser, and Geoffrey E. Hinton. 2017. Regularizing neural networks by penalizing confident output distributions. In Proceedings of the International Conference on Learning Representations.
  • Rajpurkar et al. (2018) Pranav Rajpurkar, Robin Jia, and Percy Liang. 2018. Know what you don’t know: Unanswerable questions for squad. In Proceedings of the Association for Computational Linguistics.
  • Rajpurkar et al. (2016) Pranav Rajpurkar, Jian Zhang, Konstantin Lopyrev, and Percy Liang. 2016. SQuAD: 100, 000+ questions for machine comprehension of text. In Proceedings of Empirical Methods in Natural Language Processing.
  • Ribeiro et al. (2016) Marco Túlio Ribeiro, Sameer Singh, and Carlos Guestrin. 2016. Why should i trust you?”: Explaining the predictions of any classifier. In Knowledge Discovery and Data Mining.
  • Ribeiro et al. (2018) Marco Tulio Ribeiro, Sameer Singh, and Carlos Guestrin. 2018. Semantically equivalent adversarial rules for debugging nlp models. In Proceedings of the Association for Computational Linguistics.
  • Simonyan et al. (2014) Karen Simonyan, Andrea Vedaldi, and Andrew Zisserman. 2014. Deep inside convolutional networks: Visualising image classification models and saliency maps. In Proceedings of the International Conference on Learning Representations.
  • Szegedy et al. (2016) Christian Szegedy, Vincent Vanhoucke, Sergey Ioffe, Jon Shlens, and Zbigniew Wojna. 2016. Rethinking the inception architecture for computer vision. In Computer Vision and Pattern Recognition.
  • Szegedy et al. (2014) Christian Szegedy, Wojciech Zaremba, Ilya Sutskever, Joan Bruna, Dumitru Erhan, Ian J. Goodfellow, and Rob Fergus. 2014. Intriguing properties of neural networks. In Proceedings of the International Conference on Learning Representations.
  • Wang et al. (2017) Zhiguo Wang, Wael Hamza, and Radu Florian. 2017. Bilateral multi-perspective matching for natural language sentences. In International Joint Conference on Artificial Intelligence.

Appendix A Model and Training Details

SQuAD: Reading Comprehension

The model we use for SQuAD is the Document Reader of DrQA Chen et al. (2017). We use the open source implementation from https://github.com/hitvoice/DrQA. The model represents the words of the paragraph as the concatenation of: GloVe embeddings pennington2014glove, other word-level features, and attention scores between the words in the paragraph and the question. The model runs a BiLSTM over the sequence and takes the resulting hidden states at each time step as a word’s final vector representation. Two classifiers then predict the beginning and end of the answer span independently. The span with the highest product of beginning and end probabilities is selected as the answer. In input reduction, we keep the exact same span.

Snli: Textual Entailment

The model we use for SNLI is the Bilateral Multi-Perspective Matching Model (BiMPMWang et al. (2017). We use the open source implementation from https://github.com/galsang/BIMPM-pytorch. The model runs a BiLSTM over the GloVe word embeddings of both the premise and hypothesis. It then computes “matches” between the two sentences at multiple perspectives, aggregates the results using another BiLSTM, and feeds the resulting representation through fully-connected layers for classification.

Vqa: Visual Question Answering

The model we use for VQA is Show, Ask, Attend and Answer Kazemi and Elqursh (2017). We use the open source implementation from https://github.com/Cyanogenoid/pytorch-vqa. The model uses a ResNet-152 he2016resnet to represent the image and an LSTM to represent the natural language question. The model then computes attention regions based on the two representations. All representations are finally combined to predict the answer.

Entropy Regularized Fine-Tuning

To optimize the objective of Equation  2, we alternate updates on the two terms. We update the model on two batches of regular examples for the first term (maximum likelihood), followed by two batches of reduced examples for the second term (maximum entropy). The batches of reduced examples are randomly sampled from the collection of reduced inputs. We use two separate Adam kingma2015adam optimizers for the two terms. For SQuAD and SNLI, we use a learning rate of and of . For VQA, we use a learning rate of and of .

Appendix B More Examples

This section provides more examples of input reduction. We show the original and reduced examples, which are generated on the models both Before and After fine-tuning with the entropy regularization from Section 4. All examples are correctly classified by the model.

SQuAD
Context In 1899, John Jacob Astor IV invested $ 100,000 for Tesla to further develop and produce a new lighting system. Instead, Tesla used the money to fund his

Colorado Springs experiments
.
Original What did Tesla spend Astor’s money on ? (0.78)
Before did
After spend Astor money on ?
Context The Colorado experiments had prepared Tesla for the establishment of the

trans-Atlantic wireless telecommunications facility
known as Wardenclyffe near Shoreham, Long Island.
Original What did Tesla establish following his Colorado experiments ?
Before experiments ?
After What Tesla establish experiments ?
Context The Broncos defeated the Pittsburgh Steelers in the divisional round, 23–16, by scoring 11 points in the final three minutes of the game. They then beat the defending Super Bowl XLIX champion

New England Patriots
in the AFC Championship Game, 20–18, by intercepting a pass on New England’s 2-point conversion attempt with 17 seconds left on the clock. Despite Manning’s problems with interceptions during the season, he didn’t throw any in their two playoff games.
Original Who did the Broncos defeat in the AFC Championship game ?
Before Who the defeat the
After Who Broncos defeat AFC Championship game
Context In 2014, economists with the Standard & Poor’s rating agency concluded that the widening disparity between the U.S.’s wealthiest citizens and the rest of the nation had slowed its recovery from the 2008-2009 recession and made it more prone to

boom-and-bust cycles
. To partially remedy the wealth gap and the resulting slow growth, S&P recommended increasing access to education. It estimated that if the average United States worker had completed just one more year of school, it would add an additional $105 billion in growth to the country’s economy over five years.
Original What is the United States at risk for because of the recession of 2008 ?
Before is the risk the
After What risk because of the 2008
Context The Central Region, consisting of present-day Hebei, Shandong, Shanxi, the south-eastern part of present-day Inner Mongolia and the Henan areas to the north of the Yellow River, was considered the most important region of the dynasty and directly governed by the Central Secretariat (or Zhongshu Sheng) at

Khanbaliq
(modern Beijing); similarly, another top-level administrative department called the Bureau of Buddhist and Tibetan Affairs (or Xuanzheng Yuan) held administrative rule over the whole of modern-day Tibet and a part of Sichuan, Qinghai and Kashmir.
Original Where was the Central Secretariat based ?
Before the based
After was Central Secretariat based
Context It became clear that managing the Apollo program would exceed the capabilities of Robert R. Gilruth’s Space Task Group, which had been directing the nation’s manned space program from NASA’s Langley Research Center. So Gilruth was given authority to grow his organization into a new NASA center, the Manned Spacecraft Center (MSC). A site was chosen in

Houston, Texas
, on land donated by Rice University, and Administrator Webb announced the conversion on September 19, 1961. It was also clear NASA would soon outgrow its practice of controlling missions from its Cape Canaveral Air Force Station launch facilities in Florida, so a new Mission Control Center would be included in the MSC.
Original Where was the Manned Spacecraft Center located ?
Before Where
After Where was Manned Center located
SNLI
Premise a man in a black shirt is playing a guitar .
Original the man is wearing a blue shirt .
Answer contradiction
Before blue
After man blue shirt
Premise two female basketball teams watch suspenseful as the basketball nears the basket .
Original two teams are following the movement of a basketball .
Answer entailment
Before .
After movement
Premise trucks racing
Original there are vehicles .
Answer entailment
Before are
After vehicles
Premise a woman , whose face can only be seen in a mirror , is applying eyeliner in a dimly lit room .
Original a man is playing softball .
Answer contradiction
Before man playing
After a man
Premise a tan dog jumping over a red and blue toy
Original a dog playing
Answer entailment
Before dog
After playing
Premise a man in a white shirt has his mouth open and is adjusting dials .
Original a man is sleeping .
Answer contradiction
Before sleeping
After man sleeping
VQA
Original what color is the flower Original what letter is on the lanyard
Answer yellow Answer g
Before flower Before letter is on lanyard
After what color is flower After what letter is the lanyard
Original are the cars lights on Original if the man steps forward, will he fall onto the track
Answer yes Answer no
Before cars Before if the fall the
After lights After if the steps forward, fall onto the
Original do this take batteries Original are there any clouds in the sky
Answer yes Answer yes
Before batteries Before are clouds
After batteries After there clouds sky
Original what is the man riding Original what color is the skiers backpack
Answer elephant Answer black
Before man riding Before color
After what riding After what color is the skiers
Original what kind of pants is the girl wearing Original are the giants playing
Answer jeans Answer yes
Before kind of pants wearing Before are
After what kind of pants After giants playing
