1 Introduction

Human visual system (HVS) has an astonishing ability to quickly select visually important regions in its visual field. This cognitive process enables humans to easily interpret complex scenes in real time. Over the last few decades, several computational models have been proposed for imitating attentional mechanisms of HVS during static scene viewing. Significant advances have been achieved recently with the rapid spread of deep learning techniques and the availability of large-scale static gaze datasets (

e.g., SALICON [31]). In stark contrast, predicting observers’ fixations during dynamic scene free-viewing has less been explored. This task, referred to as dynamic fixation prediction or video saliency detection is very useful for understanding human attentional behaviors and has several practical real-word applications (e.g., video captioning, compression, question answering, object segmentation, etc). It is thus highly desired to have a standard, high-quality dataset composed of diverse and representative video stimuli. Exiting datasets are severely limited in their coverage and scalability, and they only include special scenarios such as limited human activities in constrained situations. None of them includes general, representative, and diverse instances in unconstrained, task-independent scenarios. As a consequence, existing datasets often fail to offer a rich set of fixations for learning video saliency and to assess models. Moreover, the existing datasets did not provide an evaluation server with standalone held out test set to avoid potential dataset over-fitting, which hinders further development on this topic.

While saliency benchmarks (e.g., MIT300 [32] and LSUN [68]) have been very instrumental in progressing the static saliency field, such standard widespread benchmarks are missing for video saliency modeling. We believe such benchmarks are highly needed to move the field forward. To this end, we propose a new benchmark “DHF1K (Dynamic Human Fixation 1K)” with a public server for reporting evaluation results on a preserved test set. Our benchmark contains a dataset that is unique in terms of generality, diversity and difficulty. It includes 1K videos with more than 600K frames and per-frame fixation annotations from 17 observers. The sequences have been carefully collected to include diverse scenes, motion patterns, object categories, and activities. DHF1K is accompanied with a comprehensive evaluation of several state-of-the-art approaches [16, 52, 50, 23, 13, 20, 37, 30, 2, 28, 18, 24, 57, 47]. Moreover, each video is annotated with a main category label (e.g., daily activities, animals) and rich attributes (e.g., camera/content movement, scene lighting, presence of humans), which would enable a deeper understanding of gaze guidance in free viewing of dynamic scenes.

Further, we propose a novel CNN-LSTM architecture [12, 46] based video saliency model with a supervised attention mechanism. CNN layers are utilized for extracting static features within input frames, while convolutional LSTM (convLSTM) [66] is utilized for sequential fixation prediction over successive frames. An attention module, learned from existing large-scale image saliency datasets, is used to enhance spatially informative features of the CNN. Such a design helps disentangle underlying spatial and temporal factors of dynamic attention and allows convLSTM to learn temporal saliency representations efficiently.

Our contributions are three-fold. First, we introduce a standard benchmark of 1K videos covering a wide range of scenes, motions, activities, etc. To the best of our knowledge, the proposed dataset is the largest eye-tracking dataset for dynamic, free-viewing fixation prediction. Second, we present a novel attentive CNN-LSTM architecture for predicting human gaze in dynamic scenes, which explicitly encodes static attention into dynamic saliency representation learning by leveraging both static and dynamic fixation data. Third, we present a comprehensive analysis of video saliency models (the first one, to the best of our knowledge) on existing datasets (Hollywood-2, UCF sports), and our new DHF1K dataset. Results show that our model significantly outperforms previous methods.

2 Related Work

2.1 Video Eye-Tracking Datasets

There exist several datasets [43, 44, 25, 17] for dynamic visual saliency prediction, but they are limited and often lack variety, generality and scalability of instances. Some statistics of these datasets are summarized in Table 1.

The Hollywood-2 dataset [43] comprises all the videos from Hollywood-2 action recognition dataset [42]. The videos are collected from Hollywood movies with action categories, such as eating, kissing and running. The human fixation data were tracked from observers belonging to groups for free viewing ( observers), action recognition ( observers), and context recognition ( observers). Although this dataset is large, its content is limited to human actions and movie scenes. It mainly focuses on task-driven viewing mode, rather than free viewing. With frames randomly sampled from Hollywood-2, we found % fixations are located around the faces.

The UCF sports fixation dataset [43] contains videos taken from the UCF sports action dataset [49]. The videos cover common sports action classes, such as diving, swinging and walking. Similar to Hollywood-2, the viewers have been biased towards task-aware observation by being instructed to “identify the actions occurring in the video sequence”. From the statistics of frames randomly selected from UCF sports, we found % fixations fall inside the human body area.

The DIEM dataset [44] is a public video eye-tracking dataset that has videos collected from publicly accessible video resources (e.g., advertisements, documentaries, sport events, and movie trailers, etc). For each video, free-viewing fixations of around observers were collected. This dataset is mainly limited in its coverage and scale.

Other datasets are either limited in terms of variety and scale of video stimuli [25, 17], or collected for a special purpose (e.g., salient objects in videos [59]). More importantly, none of the aforementioned datasets includes a preserved test set for avoiding potential data overfitting, which has seriously hampered the research process.



Dataset Year Videos Resolution Duration(s) Viewers Task
CRCNS [25] 2004 50 6-94 15 task-goal
Hollywood-2 [43] 2012 1,707 2-120 19 task-goal
UCF sports [43] 2012 150 2-14 19 task-goal
DIEM [44] 2011 84 27-217 50 free-view
SFU [17] 2012 12 3-10 15 free-view
DHF1K(Ours) 2017 1,000 17-42 17 free-view
Table 1: Statistics of typical dynamic eye-tracking datasets.

2.2 Computational Models for Fixation Prediction

The study of human gaze patterns in static scenes has received significant interests, which can be dated back to [28, 27]. Early static saliency models [36, 69, 15, 7, 18, 22, 33, 63] are mostly based on the contrast assumption that conspicuous visual features “pop-out” and involuntarily capture attention (see [5, 6] for review). Computational models compute multiple visual features such as color, edge, and orientation at multiple spatial scales to produce a “saliency map”: an image distribution predicting the conspicuity of specific locations and their likelihood in attracting attention [27, 44]. The locations with more distinct feature responses over surroundings usually gain higher saliency values. Deep learning based static saliency models [54, 35, 24, 39, 47, 29, 56, 57]

have achieved astonishing improvements, relying on the powerful end-to-end learning ability of neural network and the availability of large-scale static saliency datasets

[31].

Previous investigations of dynamic human fixation [14, 16, 41, 50, 52, 23, 13, 20, 37] leveraged both static stimulus features and temporal information (e.g., optical flow, difference-over-time, etc). Some of those studies [14, 41, 52] can be viewed as extensions of exiting static saliency models with additional motion features. Those models are mainly bound to significant feature engineering and limited representation ability of hand-crafted features. To date, only a few deep learning based video saliency models [2, 30] exist in this field. They are mainly based on two-stream network architecture [2] that accounts for color images and motion fields separately, or two-layer LSTM with object information [30]. These works show a better performance and demonstrate the potential advantages in applying neural networks to this problem. However, they do not 1) consider attentive mechanisms; 2) utilize existing large-scale static fixation datasets; and 3) exhaustively assess their performance over large amount of data.

There are some salient object detection models [40, 1, 11, 61, 58, 60, 4, 62, 21] that attempt to uniformly highlight salient object regions in images or videos. Those models are often task-driven and focus on inferring the main object, instead of investigating the behavior of the HVS during scene free viewing.

2.3 Attention Mechanisms in Neural Networks

Recently, incorporating attention mechanisms into network architectures has shown great success in several computer vision

[67, 9, 55]

and natural language processing tasks

[51, 48]. In such studies, attention is learned in an automatic, top-down, and task-specific manner, allowing the network to focus on the most relevant parts in images or sentences. In this paper, we use attention for enhancing intra-frame salient features, thus allowing the LSTM to model dynamic representations more easily. In contrast to previous models learning attentions implicitly, our attention module encodes strong static saliency information and can be learned from existing static saliency dataset in a supervised manner. This design leads to improved generality and prediction performance. It is the first attempt to incorporate a supervised attention mechanism into the network structure to achieve state-of-art results in dynamic fixation prediction.

3 DHF1K Dataset


(a) (b) (c)

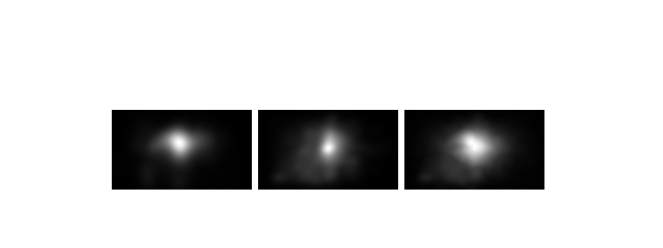

Figure 1: Average annotation maps of three datasets used in benchmarking: (a) Hollywood-2, (b) UCF sports, (c) DHF1K.
Figure 2: Example frames from DHF1K  with fixations (red dots) and corresponding categories.



DHF1K Human Animal Artifact Scenery
Daily ac. Sports Social ac. Art
#sub-classes* 20 29 13 10 36 21 21
#videos 134 185 116 101 192 162 110
  • Number of sub-classes in each category is reported. For example,
    Sports has sub-classes like swimming, jumping, etc.

Table 2: Statistics for video categories in DHF1K dataset.

We introduce DHF1K, a large-scale dataset of gaze in free-viewing of videos. Our dataset includes 1K videos with diverse content and length, with eye-tracking annotations from observers. Fig. 1 shows the center bias of DHF1K, compared to Hollywood-2, and UCF sports datasets.

Stimuli. The collection of dynamic stimuli mainly follows the following 4 principles.

 Large scale and high quality. Both scale and quality are necessary to ensure the content diversity of a dataset and is crucial to guarantee a longer lifespan for a benchmark. To this end, we searched the Youtube engine with about 200 key terms (e.g., dog, walking, car, etc) and carefully selected video sequences from the retrieval results. All videos were converted from their original sources to a 30 fps Xvid MPEG-4 video file in an AVI container and were resized uniformly into spatial resolution. Thus, DHF1K comprises a total video sequences with frames with total duration of seconds.



DHF1K Content motion Camera motion #Objects
stable slow fast stable slow fast 0 1 2 3
#videos 126 505 369 343 386 271 56 335 254 355
Table 3: Statistics regarding motion patterns and number of main objects in DHF1K dataset.



DHF1K Scene illumination #People
day night indoor 0 1 2 3
#videos 577 37 386 345 307 236 112
Table 4: Statistics regarding scene illumination and number of people in DHF1K dataset.

 Diverse content. Stimulus diversity is essential for avoiding overfitting and to delay performance saturation. It offers evenly distributed exogenous control for studying person-external stimulus factors during scene free-viewing. In DHF1K, each video is manually annotated with a category label (totally

classes). Those labels are further classified into

main categories (see Table 2). Those semantic annotations would enable a deeper understanding of the high-level stimuli factors guiding human gaze in dynamic scenes and be indicative for potential research. In Fig. 2, we show example frames from each category.

 Varied motion patterns. Previous investigations [26, 14, 44] suggested that motion is one of the key factors that directs attention allocation in dynamic viewing. For this, DHF1K  is designed to span varied motion patterns (stable-/slow-/fast-motion of content and camera). Please see Table 3 for the information regarding motion patterns.

 Various objects. Previous studies [65, 38, 3] in cognitive and computer vision confirmed that object information is indicative to human fixations. The objects in the dataset vary in their type (e.g., human, animal, in Table 2) and frequency (see Table 3). For each video, five subjects were instructed to count the number of the main objects. The majority vote of their counts was considered as the final count.

For completeness, in Table 4, we offer the information of the scene illumination and the amount of humans in the dataset. As demonstrated in [45], luminance is an important exogenous factor for attentive selection. Further, human beings are important high-level stimuli [10, 8] in free-viewing.

Apparatus and technical specifications. Participants’ eye movements were monitored binocularly using a Senso Motoric Instruments (SMI) RED 250 system at a sampling rate of 250 Hz. The dynamic stimuli were displayed on a 19” display (resolution ). A headrest was used to help participants’ heads still at a distance of around cm, as advised by the product manual.

Participants. participants ( males and females, aging between and ) who passed the calibration of the eye tracker and had less than % fixation dropping rate, were quantified for our eye tracking experiment. All participants had normal or corrected-to-normal vision. All subjects had not seen the stimuli in DHF1K before. All provided informed consent and were naïve to the underlying purposes of the experiment.

Data capturing. The stimuli were equally partitioned into 10 non-overlapping sessions. Participants were required to freeview 10 sessions of videos in random order. In each session, the videos were also displayed at random. Before the experiments, every participant was calibrated using the standard routine in product manual with recommended settings for the best results. To avoid eye fatigue, each video presentation was followed by a 5-second waiting interval with black screen. After undergoing a session of videos, the participant can take a rest until she was ready for viewing the next session. Finally, fixations were recorded from 17 subjects on videos.

Training/testing split. We split dynamic stimuli into separate training, validation and test sets. Following random selection, we arrive at a unique split consisting of training and validation videos with publicly available fixation records, as well as test videos with annotations held-out for benchmarking purpose.

4 Our Approach

Overview. Fig. 3 presents the overall architecture of our video saliency model. It is based on a CNN-LSTM architecture that combines convolutional network and recurrent model to exploit both spatial and temporal information for predicting video saliency. The CNN-LSTM network is extended with a supervised attention mechanism, which explicitly captures static saliency information and allows the LSTM to focus on learning dynamic information. The attention module is trained from rich static eye-tracking data. Thus our model is able to produce accurate, spatiotemporal saliency with improved generalization ability. Next, we explain each component of our model in detail.

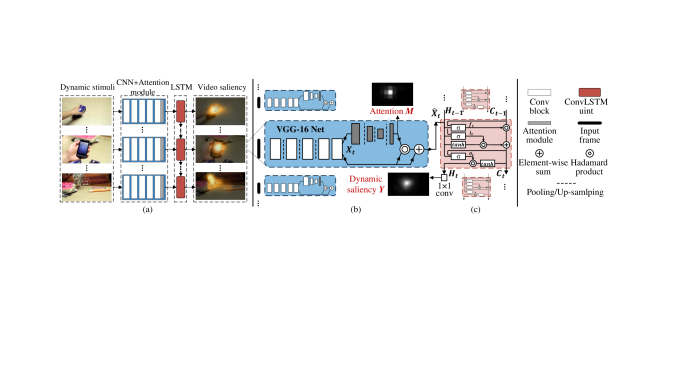

Figure 3: Network architecture of the proposed video saliency model. (a) Attentive CNN-LSTM architecture. (b) CNN layers with attention module are used for learning intra-frame static features, where the attention module is learned with the supervision from static saliency data. (c) ConvLSTM used for learning sequential saliency representations.

CNN-LSTM architecture. Formally, given an input video , we first obtain a sequence of convolutional features from CNN. Then the features are fed into a convLSTM [66] as input. Here, the convLSTM is used for modeling the temporal dynamic nature of this sequential problem, which is achieved by incorporating memory units with gated operations. Additionally, through replacing dot products with convolutional operations, the convLSTM is able to preserve spatial information, which is essential for making spatially-variant pixel-level prediction.

More specifically, the convLSTM utilizes three convolution gates (input, output and forget) to control the flow of signal within the cell. With the input feature at time step , the convLSTM outputs a hidden state and maintains a memory cell for controlling state update and output:

(1)
(2)
(3)
(4)
(5)

, , are the gates. and

are the activation functions of logistic sigmoid and hyperbolic tangent, respectively. ‘

’ denotes the convolution operator and ‘’ represents Hadamard product. The dynamic fixation map can be obtained via convolving the hidden states with a kernel (see Fig. 3 (c)).

In our implementation, the first five conv blocks of VGG-16 [53] are used. For preserving more spatial details, we remove pool4 and pool5 layers, which results in instead of downsampling. At time step , with an input frame with 224224 resolution, we have and a 2828 dynamic saliency map from the convLSTM. The kernel size of the conv layer in convLSTM is set as 3.

Attention module. We extend above CNN-LSTM architecture with an attention mechanism, which is learned from existing static fixation data in a supervised manner. Such design is mainly driven by the following three motivations:

 Previous studies [26, 64] shown that human attention is guided by both static and dynamic factors. Through the additional attention module, the CNN is enforced to generate a more explicit spatial saliency representation. This helps disentangle underlying spatial and temporal factors of dynamic attention, and allows convLSTM better capture temporal dynamics.

 CNN-LSTM architecture introduces a large number of parameters for modeling spatial and temporal patterns. However, for sequential data such as videos, obtaining labelled data is costly. Even though there are large-scale datasets like DHF1K that have 1K videos, the amount of training data is still insufficient, considering the high correlation among frames within same video. The supervised attentive module is able to leverage existing rich static fixation data to improve the generalization power of our model.

 In VGG-16, we remove the last two pooling layers to obtain a large feature map. This dramatically decreases the receptive field (), which cannot cover the whole frame (). To remedy this, we insert a set of down- and up-sampling operations into the attention module, which would enhance the intra-frame saliency information with an enlarged receptive field. By this, our model is able to make more accurate predictions from a global view.

As demonstrated in Fig. 3 (b), our attentive module is built upon the conv5-3 layer, as an additional branch of several conv layers interleaved with pooling, and upsampling operations. Given the input feature , with pooling layers, the attention module generates a downsampled attention map (77) with an enlarged receptive field (260260). Then the small attention map is upsampled as the same spatial dimensions of . Let be the upsampled attention map, the feature from conv5-3 layer can be further enhanced by:

(6)

where is the index of the channel. Here, the attention module work as a feature selector to enhance the feature representation.

The above attention module may lose useful information for learning a dynamic saliency representation, as the attention module only considers static saliency information in still video frames. For this, inspired by the recent advances of attention mechanism and residual connection

[19, 55], we improve Eq. 6 in residual form:

(7)

With the residual connection, both the original CNN features and the enhanced features are combined and fed to the LSTM model. In §5.2 and §5.4, more detailed explorations for the attention module are offered.

Different from previous attention mechanisms that learn task-related attention in an implicit way, our attention module can learn from existing large-scale static fixation data in an explicit and supervised manner (detailed in next part).

Loss function.

We use the following loss function

[24]

that considers three different saliency evaluation metrics instead of one. The rationale here is that no single metric can fully capture how satisfactory a saliency map is.

We denote the predicted saliency map as , the map of fixation locations as and the continuous saliency map (distribution) as . Here the fixation map is discrete, that records whether a pixel receives human fixation. The continuous saliency map is obtained via blurring each fixation location with a small Gaussian kernel. Our loss functions is defined as follows:

(8)

where , and are the Kullback-Leibler (KL) divergence, the Linear Correlation Coefficient (CC), and the Normalized Scanpath Saliency (NSS), respectively, which are derived from commonly used metrics to evaluate saliency prediction models. s are balance parameters and are empirically set to .

is widely adopted for training saliency models and is chosen as the primary loss in our work:

(9)

measures the linear relationship between and :

(10)

where is the covariance of and , and

stands for standard deviation.

is derived from NSS metric:

(11)

where and . It is calculated by taking the mean of scores from the normalized saliency map (with zero mean and unit standard deviation) at human eye fixations . Since and are similarity metrics, their negatives are adopted for minimization.

Training protocol. Our model is iteratively trained with sequential fixation and image data. In training, a video training batch is cascaded with an image training batch. More specifically, in a video training batch, we apply a loss defined over the final dynamic saliency prediction from LSTM. Let , , and denote the dynamic saliency predictions, the dynamic fixation sequence and the continuous ground-truth saliency maps, we minimize the following loss:

(12)

In this process, the attention module is trained in an implicit way, since we do not have the groundtruth fixation of each frame in static scene.

In an image training batch, we only train our attention module via minimizing:

(13)

where the , , indicate the attention map for our static attention module, the ground-truth static fixation map, and the ground-truth static saliency map. In this process, the training of attention module is supervised by the ground-truth static fixation. Note that, in image training batch, we do not train our LSTM module, as it is used for learning the dynamic representation.

For each video training batch, 20 consecutive frames from the same video are used. Both the video and the start frame are randomly selected. For each image training batch, we set the batch size as 20, and the images are randomly sampled from existing static fixation dataset. More implementation details can be found in § 5.1.

5 Experiments

5.1 Experimental Setup



[height=2.80em,width=7.2em,trim=l] MethodDataset DHF1K Hollywood-2 UCF sports
AUC-J  SIM s-AUC   CC  NSS AUC-J  SIM s-AUC   CC  NSS AUC-J  SIM s-AUC   CC  NSS
PQFT [16] 0.699 0.139 0.562 0.137 0.749 0.723 0.201 0.621 0.153 0.755 0.825 0.250 0.722 0.338 1.780
Seo et al. [52] 0.635 0.142 0.499 0.070 0.334 0.652 0.155 0.530 0.076 0.346 0.831 0.308 0.666 0.336 1.690
Dynamic Rudoy et al. [50] 0.769 0.214 0.501 0.285 1.498 0.783 0.315 0.536 0.302 1.570 0.763 0.271 0.637 0.344 1.619
models Hou et al. [23] 0.726 0.167 0.545 0.150 0.847 0.731 0.202 0.580 0.146 0.684 0.819 0.276 0.674 0.292 1.399
Fang et al. [13] 0.819 0.198 0.537 0.273 1.539 0.859 0.272 0.659 0.358 1.667 0.845 0.307 0.674 0.395 1.787
OBDL [20] 0.638 0.171 0.500 0.117 0.495 0.640 0.170 0.541 0.106 0.462 0.759 0.193 0.634 0.234 1.382
AWS-D [37] 0.703 0.157 0.513 0.174 0.940 0.694 0.175 0.637 0.146 0.742 0.823 0.228 0.750 0.306 1.631
OM-CNN [30] 0.856 0.256 0.583 0.344 1.911 0.887 0.356 0.693 0.446 2.313 0.870 0.321 0.691 0.405 2.089
Two-stream [2] 0.834 0.197 0.581 0.325 1.632 0.863 0.276 0.710 0.382 1.748 0.832 0.264 0.685 0.343 1.753
ITTI [28] 0.774 0.162 0.553 0.233 1.207 0.788 0.221 0.607 0.257 1.076 0.847 0.251 0.725 0.356 1.640
GBVS [18] 0.828 0.186 0.554 0.283 1.474 0.837 0.257 0.633 0.308 1.336 0.859 0.274 0.697 0.396 1.818
Static SALICON [24] 0.857 0.232 0.590 0.327 1.901 0.856 0.321 0.711 0.425 2.013 0.848 0.304 0.738 0.375 1.838
models Shallow-Net [47] 0.833 0.182 0.529 0.295 1.509 0.851 0.276 0.694 0.423 1.680 0.846 0.276 0.691 0.382 1.789
Deep-Net [47] 0.855 0.201 0.592 0.331 1.775 0.884 0.300 0.736 0.451 2.066 0.861 0.282 0.719 0.414 1.903
DVA [57] 0.860 0.262 0.595 0.358 2.013 0.886 0.372 0.727 0.482 2.459 0.872 0.339 0.725 0.439 2.311
Training Ours 0.885 0.311 0.553 0.415 2.259 0.905 0.471 0.757 0.577 2.517 0.894 0.403 0.742 0.517 2.559
setting (i) Attention module 0.854 0.251 0.545 0.332 1.755 0.880 0.415 0.748 0.529 2.283 0.853 0.333 0.719 0.435 1.946
Training Ours 0.878 0.297 0.543 0.388 2.125 0.912 0.519 0.754 0.609 3.049 0.874 0.364 0.727 0.452 2.186
setting (ii) Attention module 0.855 0.250 0.541 0.318 1.703 0.885 0.416 0.690 0.490 2.113 0.860 0.322 0.656 0.367 1.667
Training Ours 0.866 0.277 0.596 0.362 1.951 0.884 0.449 0.749 0.534 2.647 0.905 0.496 0.767 0.603 3.200
setting (iii) Attention module 0.852 0.260 0.582 0.350 1.945 0.898 0.429 0.763 0.543 2.409 0.884 0.354 0.743 0.500 2.339
Training Ours 0.890 0.315 0.601 0.434 2.354 0.913 0.542 0.757 0.623 3.086 0.897 0.406 0.744 0.510 2.567
setting (iv) Attention module 0.870 0.273 0.577 0.380 2.077 0.878 0.479 0.686 0.478 2.060 0.877 0.379 0.685 0.411 1.899
  • Non-deep learning model.

Table 5: Quantitative results on DHF1K, Hollywood2, and UCF sports datasets. The best scores are marked in bold. Training settings (§5.1) for video saliency datasets: (i) DHF1K, (ii) Hollywood-2, (iii) UCF sports, and (iv) DHF1K+Hollywood-2+UCF sports.

Training/testing protocols. We use the static stimuli ( images) from the training set of SALICON [31] dataset for training our attention module. For dynamic stimuli, we consider 4 settings: using the training set(s) from (i) DHF1K, (ii) Hollywood-2, (iii) UCF sports, and (iv) DHF1K+Hollywood-2+UCF sports. For DHF1K, we use the original training/validation/testing splitting (). For Hollywood-2, following [42], videos for training and videos for testing. For UCF sports, the training and testing sets include and videos, respectively, as suggested by [49]. We randomly sample 10% videos from the training sets of Hollywood-2, and UCF sports as their validation sets. We evaluate our model on the testing sets of DHF1K, Hollywood-2, and UCF sports dataset, in total video sequences with more than frames.

Implementation details.

Our model is implemented in Python on Keras, and trained with the Adam optimizer

[34]. During the training phase, the learning rate was set to

and was decreased by a factor of 10 every 2 epochs. The network was trained for 10 epochs. We perform early-stopping on the validation set.

Competitors. We compare our model with nine dynamic saliency models: PQFT [16], Seo et al. [52], Rudoy et al. [50], Hou et al. [23], Fang et al. [13], OBDL [20], AWS-D [37], OM-CNN [30], and Two-stream [2]111We re-implemented [2] since the official codes cannot run correctly.

. For the sake of complementary, we further compare with six state-of-the-art static attention models: ITTI

[28], GBVS [18], SALICON [24], DVA [57], Shallow-Net [47], and Deep-Net [47]. OM-CNN, Two-stream, SALICON, DVA, Shallow-Net, and Deep-Net are deep learning models, and others are classical saliency models. Those models are selected due to: 1) their representability of the diversity of the state-of-the-art; or 2) publicly available implementations.

Baselines. We further derive baselines. For each training setting, we derive two baselines: Our and Attention module, refer to our final dynamic saliency prediction and the intermediate output of our attention module, respectively.

Evaluation metrics. Here, we employ five classic metrics, namely Normalized Scanpath Saliency (NSS), Similarity Metric (SIM), Linear Correlation Coefficient (CC), AUC-Judd (AUC-J), and shuffled AUC (s-AUC). Please refer to [5, 57] for detailed descriptions of these metrics.

Computation load. The whole model is trained in an end-to-end manner. The entire training procedure takes about hours with a single NVIDIA TITAN X GPU and a 4.0GHz Intel processor (in training setting (iv)). Since our model does not need any pre- or post-processing, it takes only about s to process an frame image of size .

5.2 Performance comparison

Performance on DHF1K. Table 5 reports the comparative results with the aforementioned saliency models, on the testing set ( video sequences) of DHF1K dataset. In can be observed that the proposed model consistently and significantly outperforms other competitors, across all the metrics. This can be contributed to our specially designed attention module, which makes our model explicitly learn static and dynamic saliency representations in CNN and LSTM separately. Our model even does not use any optical flow algorithm (different with Fang et al. [13], Two-stream [2]). This significantly improves the applicability of our model and demonstrates the effectiveness of our training protocol that leveraging both static and dynamic stimuli.


DHF1K Hollywood-2 UCF sports

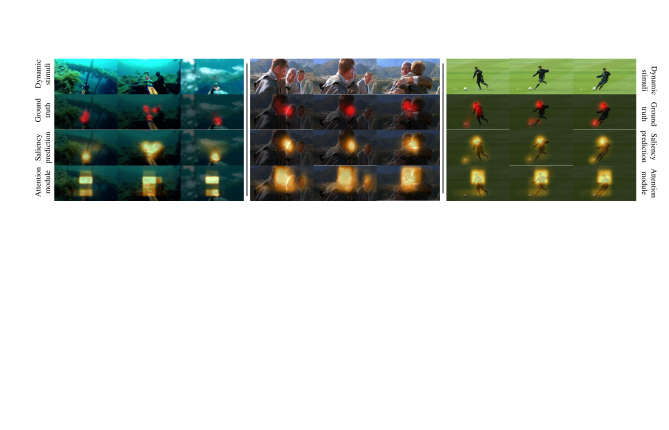

Figure 4: Qualitative results of our video saliency model on three datasets. Best viewed in color.

Performance on Hollywood-2. We further test our model on Hollywood-2 dataset, where the testing sets comprises video sequences. The results are summarized in Table 5. Again, our model consistently significantly higher than other methods across various metrics. Besides, when we go insight into the performance with training settings, the performance would increase with increasing amount of training data. This suggests that the large-scale training data volume is important for the performance of neural network.

Performance on UCF sports. With the test set ( video sequences) of UCF sports dataset, we again observe the proposed model provides consistently good results, compared to related state-of-the-art (see Table 5). Interestingly, we find that, with small amount of training data (training setting (iii), video stimuli from UCF sports dataset), the proposed model achieves a very high performance, even better than the model (Our, training setting (iv)) trained with large-scale data (1.5K video stimuli). This could be explained by lack of diversity in the video training data, as the videos in UCF sports dataset are highly related (with similar scenes and actors) and small scale. This is also consistent with our research for UCF sports which shows that % fixations are located on the human body area (see § 2.1).

5.3 Analysis

Based on our extensive experiments, we provide more detailed analyses, which would give deeper insights of previous studies and suggest some hints for future research.

Dynamic saliency models: deep vs non-deep learning. In dynamic scenes, previous deep learning based dynamic saliency models (i.e., OM-CNN, Two-stream) show significant improvements over classic dynamic models (e.g., PQFT, Seo et al. et al., Rudoy et al., Hou et al., Fang et al.). This demonstrates the strong learning ability of neural network and the promise of developing neural network in this challenging area.

Non-deep learning models: static vs dynamic. An interesting finding is classic dynamic methods (i.e., PQFT, Seo et al., Rudoy et al., Hou et al., Fang et al

.) did not perform better than their static counterparts: ITTI, GBVS. This is probably due to two reasons. First, the perceptual cues and underlying mechanisms of visual attention allocation during dynamic viewing are more complex and still not clear. Second, previous studies are more focused on computational models of static saliency, while less efforts were paid for modeling dynamic saliency.

Deep learning models: static vs dynamic. Compared with state-of-the-art deep learning based static models (i.e., DVA, Deep-Net), previous deep learning based dynamic models (i.e., OM-CNN, Two-stream) only obtain slightly better performance (or only competitive). Although strong motion information (i.e., optical flow, motion network) have been encoded into OM-CNN and Two-stream, their performance are still limited. We attribute this into the inherent difficulties of video saliency prediction and previous models’ neglect of utilizing existing rich static saliency data.

5.4 Ablation study

In this section, we offer a more detailed exploration of our proposed approach in several aspects with DHF1K dataset. We verify the effectiveness of the proposed mechanism, and examine the influence of different training protocols. The results are summarized in Table 6.



Aspects Variants AUC-J  SIM s-AUC   CC  NSS
Baseline
training setting (iv)
(1.5K videos+10K images)
0.890 0.315 0.601 0.434 2.354
Attention
w/o attention
(1.5K videos)
0.847 0.236 0.579 0.306 1.685
module
w/o residual connection
(1.5K videos+10K images)
0.874 0.303 0.594 0.401 2.174
w/o downsampling
(1.5K videos+10K images)
0.870 0.298 0.583 0.389 2.085
Training
reduced training samples
(1.5K videos+5K images)
0.877 0.297 0.588 0.372 2.098
convLSTM
w/o convLSTM
(1.5K videos+10K images)
0.867 0.269 0.573 0.382 2.034
Table 6: Ablation study on DHF1K. See §5.4 for details.

Effect of attention mechanism. By disabling the attention module, and only training with video stimuli we observe a performance drop (e.g., AUC-J: ), verifying the effectiveness of attention module and showing that the leverage of static stimuli indeed improves the predication accuracy in dynamic scenes. For exploring the effect of the residual connection in attention module (Eq. 8), we train the model based on Eq. 5 (without residual connection). We observe a minor decrease; showing that employing residual connection could avoid distorting spatial features in frames. In our attention module, we apply down-sampling for enlarging the receptive field. We also study the influence of such design. We find that the attention module with enlarged receptive field would gain better performance, since the model could make prediction in global view.

Training. We assess different training protocols. By reducing the amount of static training stimuli from 10K to 5K, we observe a performance drop (e.g., AUC-J: ). The baseline (w/o attention) can also be viewed as the model without any static training stimuli, which gains worse performance (e.g., AUC-J: ).

Effect of convLSTM. To study the influence of convLSTM, we re-train our model without convLSTM (using training setting (iv)) and get a baseline: w/o convLSTM. We observe a drop of performance; showing that the dynamic information learnt in convLSTM could boost the performance.

6 Discussion and Conclusion

In this work, we presented “Dynamic Human Fixation (DHF1K)”, a large-scale carefully designed and systematically collected benchmark dataset to facilitate research in video saliency modeling. To the best of our knowledge, our work is the most comprehensive performance evaluation of video saliency models. DHF1K contains 1K videos, which capture representative instances, diverse contents and various motions, with human eye-tracking annotations.

Further, we proposed a novel deep learning based video saliency model, which encodes a supervised attention mechanism to explicitly capture static saliency information and help LSTM better capture dynamic saliency representations over successive frames. We performed extensive experiments on DHF1K, Hollywood-2, and UCF-sports datasets, and analyzed the performance of our model compared to previous attention models in dynamic scenes. Our experimental results demonstrate that our proposed model outperforms other competitors and is quite efficient.

References

  • [1] R. Achanta, S. Hemami, F. Estrada, and S. Susstrunk. Frequency-tuned salient region detection. In CVPR, 2009.
  • [2] C. Bak, A. Kocak, E. Erdem, and A. Erdem. Spatio-temporal saliency networks for dynamic saliency prediction. IEEE TMM, 2017.
  • [3] A. Borji. What is a salient object? A dataset and a baseline model for salient object detection. IEEE TIP, 24(2):742–756, 2015.
  • [4] A. Borji, M.-M. Cheng, H. Jiang, and J. Li. Salient object detection: A benchmark. IEEE TIP, 24(12):5706–5722, 2015.
  • [5] A. Borji and L. Itti. State-of-the-art in visual attention modeling. IEEE TPAMI, 35(1):185–207, 2013.
  • [6] A. Borji, D. N. Sihite, and L. Itti. Quantitative analysis of human-model agreement in visual saliency modeling: A comparative study. IEEE TIP, 22(1):55–69, 2013.
  • [7] N. Bruce and J. Tsotsos. Saliency based on information maximization. In NIPS, 2006.
  • [8] Z. Bylinskii, A. Recasens, A. Borji, A. Oliva, A. Torralba, and F. Durand. Where should saliency models look next? In ECCV, 2016.
  • [9] C. Cao, X. Liu, Y. Yang, Y. Yu, J. Wang, Z. Wang, Y. Huang, L. Wang, C. Huang, W. Xu, et al.

    Look and think twice: Capturing top-down visual attention with feedback convolutional neural networks.

    In ICCV, 2015.
  • [10] M. Cerf, J. Harel, W. Einhäuser, and C. Koch.

    Predicting human gaze using low-level saliency combined with face detection.

    In NIPS, 2008.
  • [11] M.-M. Cheng, N. J. Mitra, X. Huang, P. H. S. Torr, and S.-M. Hu. Global contrast based salient region detection. IEEE TPAMI, 37(3):569–582, 2015.
  • [12] J. Donahue, L. Anne Hendricks, S. Guadarrama, M. Rohrbach, S. Venugopalan, K. Saenko, and T. Darrell. Long-term recurrent convolutional networks for visual recognition and description. In CVPR, 2015.
  • [13] Y. Fang, Z. Wang, W. Lin, and Z. Fang. Video saliency incorporating spatiotemporal cues and uncertainty weighting. IEEE TIP, 23(9):3910–3921, 2014.
  • [14] D. Gao, V. Mahadevan, and N. Vasconcelos. The discriminant center-surround hypothesis for bottom-up saliency. In NIPS, 2008.
  • [15] D. Gao and N. Vasconcelos. Discriminant saliency for visual recognition from cluttered scenes. In NIPS, 2005.
  • [16] C. Guo and L. Zhang. A novel multiresolution spatiotemporal saliency detection model and its applications in image and video compression. IEEE TIP, 19(1):185–198, 2010.
  • [17] H. Hadizadeh, M. J. Enriquez, and I. V. Bajic. Eye-tracking database for a set of standard video sequences. IEEE TIP, 21(2):898–903, 2012.
  • [18] J. Harel, C. Koch, and P. Perona. Graph-based visual saliency. In NIPS, 2007.
  • [19] K. He, X. Zhang, S. Ren, and J. Sun. Deep residual learning for image recognition. In CVPR, 2016.
  • [20] S. Hossein Khatoonabadi, N. Vasconcelos, I. V. Bajic, and Y. Shan. How many bits does it take for a stimulus to be salient? In CVPR, 2015.
  • [21] Q. Hou, M.-M. Cheng, X. Hu, Z. Tu, and A. Borji. Deeply supervised salient object detection with short connections. In CVPR, 2017.
  • [22] X. Hou and L. Zhang. Saliency detection: A spectral residual approach. In CVPR, 2007.
  • [23] X. Hou and L. Zhang. Dynamic visual attention: Searching for coding length increments. In NIPS, 2008.
  • [24] X. Huang, C. Shen, X. Boix, and Q. Zhao. SALICON: Reducing the semantic gap in saliency prediction by adapting deep neural networks. In ICCV, 2015.
  • [25] L. Itti. Automatic foveation for video compression using a neurobiological model of visual attention. IEEE TIP, 13(10):1304–1318, 2004.
  • [26] L. Itti. Quantifying the contribution of low-level saliency to human eye movements in dynamic scenes. Visual Cognition, 12(6):1093–1123, 2005.
  • [27] L. Itti and C. Koch. Computational modelling of visual attention. Nature reviews neuroscience, 2(3):194–203, 2001.
  • [28] L. Itti, C. Koch, and E. Niebur. A model of saliency-based visual attention for rapid scene analysis. IEEE TPAMI, 20(11):1254–1259, 1998.
  • [29] S. Jetley, N. Murray, and E. Vig.

    End-to-end saliency mapping via probability distribution prediction.

    In CVPR, 2016.
  • [30] L. Jiang, M. Xu, and Z. Wang. Predicting video saliency with object-to-motion CNN and two-layer convolutional LSTM. arXiv preprint arXiv:1709.06316, 2017.
  • [31] M. Jiang, S. Huang, J. Duan, and Q. Zhao. SALICON: Saliency in context. In CVPR, 2015.
  • [32] T. Judd, F. Durand, and A. Torralba. A benchmark of computational models of saliency to predict human fixations. In MIT Technical Report, 2012.
  • [33] T. Judd, K. Ehinger, F. Durand, and A. Torralba. Learning to predict where humans look. In ICCV, 2009.
  • [34] D. Kingma and J. Ba. Adam: A method for stochastic optimization. In ICLR, 2015.
  • [35] S. S. Kruthiventi, K. Ayush, and R. V. Babu. Deepfix: A fully convolutional neural network for predicting human eye fixations. IEEE TIP, 2017.
  • [36] O. Le Meur, P. Le Callet, D. Barba, and D. Thoreau. A coherent computational approach to model bottom-up visual attention. IEEE TPAMI, 28(5):802–817, 2006.
  • [37] V. Leboran, A. Garcia-Diaz, X. R. Fdez-Vidal, and X. M. Pardo. Dynamic whitening saliency. IEEE TPAMI, 39(5):893–907, 2017.
  • [38] Y. Li, X. Hou, C. Koch, J. M. Rehg, and A. L. Yuille. The secrets of salient object segmentation. In CVPR, 2014.
  • [39] N. Liu, J. Han, T. Liu, and X. Li. Learning to predict eye fixations via multiresolution convolutional neural networks. IEEE TNNLS, 2016.
  • [40] T. Liu, J. Sun, N.-N. Zheng, X. Tang, and H.-Y. Shum. Learning to detect a salient object. In CVPR, 2007.
  • [41] V. Mahadevan and N. Vasconcelos. Spatiotemporal saliency in dynamic scenes. IEEE TPAMI, 32(1):171–177, 2010.
  • [42] M. Marszalek, I. Laptev, and C. Schmid. Actions in context. In CVPR, 2009.
  • [43] S. Mathe and C. Sminchisescu. Actions in the eye: dynamic gaze datasets and learnt saliency models for visual recognition. IEEE TPAMI, 37(7):1408–1424, 2015.
  • [44] P. K. Mital, T. J. Smith, R. L. Hill, and J. M. Henderson. Clustering of gaze during dynamic scene viewing is predicted by motion. Cognitive Computation, 3(1):5–24, 2011.
  • [45] B. C. Motter. Neural correlates of attentive selection for color or luminance in extrastriate area V4. Journal of Neuroscience, 14(4):2178–2189, 1994.
  • [46] H. Noh, P. Hongsuck Seo, and B. Han. Image question answering using convolutional neural network with dynamic parameter prediction. In CVPR, 2016.
  • [47] J. Pan, E. Sayrol, X. Giro-i Nieto, K. McGuinness, and N. E. O’Connor. Shallow and deep convolutional networks for saliency prediction. In CVPR, 2016.
  • [48] A. P. Parikh, O. Täckström, D. Das, and J. Uszkoreit. A decomposable attention model for natural language inference. In EMNLP, 2016.
  • [49] M. D. Rodriguez, J. Ahmed, and M. Shah. Action mach a spatio-temporal maximum average correlation height filter for action recognition. In CVPR, 2008.
  • [50] D. Rudoy, D. B. Goldman, E. Shechtman, and L. Zelnik-Manor. Learning video saliency from human gaze using candidate selection. In CVPR, 2013.
  • [51] A. M. Rush, S. Chopra, and J. Weston. A neural attention model for abstractive sentence summarization. In EMNLP, 2015.
  • [52] H. J. Seo and P. Milanfar. Static and space-time visual saliency detection by self-resemblance. Journal of vision, 9(12):15–15, 2009.
  • [53] K. Simonyan and A. Zisserman. Very deep convolutional networks for large-scale image recognition. In ICLR, 2015.
  • [54] E. Vig, M. Dorr, and D. Cox. Large-scale optimization of hierarchical features for saliency prediction in natural images. In CVPR, 2014.
  • [55] F. Wang, M. Jiang, C. Qian, S. Yang, C. Li, H. Zhang, X. Wang, and X. Tang. Residual attention network for image classification. In CVPR, 2017.
  • [56] W. Wang and J. Shen. Deep cropping via attention box prediction and aesthetics assessment. In ICCV, 2017.
  • [57] W. Wang and J. Shen. Deep visual attention prediction. IEEE TIP, 27(5):2368–2378, 2018.
  • [58] W. Wang, J. Shen, and F. Porikli. Saliency-aware geodesic video object segmentation. In CVPR, 2015.
  • [59] W. Wang, J. Shen, and L. Shao. Consistent video saliency using local gradient flow optimization and global refinement. IEEE TIP, 24(11):4185–4196, 2015.
  • [60] W. Wang, J. Shen, and L. Shao. Video salient object detection via fully convolutional networks. IEEE TIP, 2018.
  • [61] W. Wang, J. Shen, L. Shao, and F. Porikli. Correspondence driven saliency transfer. IEEE TIP, 25(11):5025–5034, 2016.
  • [62] W. Wang, J. Shen, R. Yang, and F. Porikli. Saliency-aware video object segmentation. IEEE TPAMI, 40(1):20–33, 2018.
  • [63] W. Wang, J. Shen, Y. Yu, and K.-L. Ma. Stereoscopic thumbnail creation via efficient stereo saliency detection. IEEE TVCG, 23(8):2014–2027, 2017.
  • [64] M. Wischnewski, A. Belardinelli, W. X. Schneider, and J. J. Steil. Where to look next? Combining static and dynamic proto-objects in a tva-based model of visual attention. Cognitive Computation, 2(4):326–343, 2010.
  • [65] J. M. Wolfe. Guided search 4.0. Integrated models of cognitive systems, pages 99–119, 2007.
  • [66] S. Xingjian, Z. Chen, H. Wang, D.-Y. Yeung, W.-K. Wong, and W.-C. Woo.

    Convolutional LSTM network: A machine learning approach for precipitation nowcasting.

    In NIPS, 2015.
  • [67] Z. Yang, X. He, J. Gao, L. Deng, and A. Smola. Stacked attention networks for image question answering. In CVPR, 2016.
  • [68] F. Yu, Y. Zhang, S. Song, A. Seff, and J. Xiao. LSUN: Construction of a large-scale image dataset using deep learning with humans in the loop. arXiv preprint arXiv:1506.03365, 2015.
  • [69] L. Zhang, M. H. Tong, T. K. Marks, H. Shan, and G. W. Cottrell. SUN: A bayesian framework for saliency using natural statistics. Journal of Vision, 8(7):32–32, 2008.
