1 Introduction
In recent years, the calibration of deep learning models used for predictive discrimination tasks has become very important, especially in the domains of healthcare
(Esteva et al., 2017; Dusenberry et al., 2020), selfdriving vehicles (Bojarski et al., 2016), and more generally, AI safety (Amodei et al., 2016). Estimating the epistemic uncertainty is especially valuable, as it captures the model’s lack of knowledge about data. Recent work in the field has dealt with three different paradigms of measuring predictive uncertainty, namely (1) indistribution calibration of models measured on an i.i.d. test set, (2) robustness under dataset shift, and (3) anomaly/outofdistribution (OOD) detection, which measures the ability of models to assign low confidence predictions on inputs far away from the training data. Unfortunately, it has been recognized that vanilla predictive models fail to provide accurate quantification of predictive uncertainty (Guo et al., 2017; Hein et al., 2019). In recent years, many methods have been proposed to tackle this, including deep ensembles (Lakshminarayanan et al., 2017), Bayesian methods (MacKay, 1992; Neal, 2012; Blundell et al., 2015), and postprocessing methods such as temperature scaling (Guo et al., 2017), ODIN (Liang et al., 2017), and Mahalanobis distance (Lee et al., 2018). However, the best performing methods under dataset shift either require additional memory and time complexity, or are hard to scale up for large datasets and architectures (Snoek et al., 2019).In this work, we first study the contribution of the loss function used during training to the quality of predictive uncertainty of models. Specifically, we show why the parametrization of the probabilities underlying softmax crossentropy loss are illsuited for uncertainty estimation. We then propose two simple replacements to the parametrization of the probability distribution: (1) a onevsall normalization scheme that does not force all points in the input space to map to one of the classes, thereby naturally capturing the notion of “none of the above”, and (2) a distancebased logit representation to encode uncertainty as a function of distance to the training manifold.
2 Choice of parametrization of probabilities
In a supervised learning setting, we assume we have access to training data
drawn from a training distribution , wheredenotes the feature vector and
denotes the class label. We train a model to make predictions on unlabeled testing data by parametrizing the embeddings of a neural network model into a predictive probability distribution , and minimizing the empirical loss function calculated over a minibatch.In the traditional discriminative setting, the logit outputs of a neural network are calculated from the latent space embeddings through an affine transformation . The probability distribution is then calculated through the softmax normalization,
(1)
The parameters are learned by minimizing crossentropy loss, which corresponds to maximizing the loglikelihood:
(2)
This parametrization of the probabilities that are output by the model has been shown to result in misleadingly highconfidence predictions under dataset shift, and on OOD data (Guo et al., 2017; Hendrycks & Gimpel, 2016). Firstly, generating the class logits through an affine transformation of the embedding space has been shown to result in a confidence landscape that is invariant to the distance from the indistribution embeddings in the model’s latent space (Hein et al., 2019). Secondly, the softmax normalization function explicitly maps the class logits into a dimensional simplex, for a class problem, and this closedworld assumption of the input space results in highly confident, yet misclassified predictions on entirely OOD points.
2.1 Distancebased logits
A natural way of mitigating the first issue is to explicitly encode a notion of distance in the formulation of the class logits from the learnt embeddings of a predictive model. This can be achieved by scaling the logits to be proportional to a function of distance of a point from the training manifold, and there has been previous work that enforces this parametrization in different ways (Zadeh et al., 2018; Xing et al., 2019). A particularly simple approach is one suggested by Macêdo et al. (2019) for OOD detection, where the logits are defined as the negative Euclidean distance between the embeddings and the weights of the last dense layer, . The probability distribution is calculated similarly with a softmax distribution, given as
(3)
and the loss function, called Distinction Maximization (DM) or Isotropic Maximization loss is calculated by maximizing the loglikelihood, given as
(4)
According to Macêdo et al. (2019), the weights of the last layer end up approximately learning the class prototypes of the th class during optimization in a minibatch setting.
In practice, DM loss achieves better performance on OOD detection compared to the baseline of softmax crossentropy. However, we observe that for indistribution calibration and under dataset shift, a distancebased loss function that uses the softmax normalization performs worse, due to either a systematic underconfidence issue (which is very apparent on the CIFAR10 dataset in particular, see Figure S2), or due to the underlying assumption of the softmax normalization that maps the domain to one of the classes. Due to the relative normalization of the softmax function, even small differences in the distance of a point between class centers are highly exacerbated due to the exponentiation of the logits, resulting in points far away from the training manifold being predicted with a uniform confidence. In summary, the softmax normalization undoes the distance constraint imposed in this specific formulation, and we demonstrate this pathology in Figure 1 for a 2dimensional toy example.
2.2 Revisiting Neural OnevsAll Classifiers
In order to avoid imposing the closedworld assumption of the softmax normalization, we explore an alternate formulation of the predictive discrimination task, where the class problem is split into independent binary tasks, each parametrized by a sigmoid normalization. More concretely, for affinetransformed logits , instead of a softmax normalization, we take independent sigmoids, so that
(5)
whereas for a distancebased logit given by , we have
(6)
The factor of 2 here is a technical implementation detail that allows us to map the logits in a distancebased formulation from the domain to the
domain. Since the logits are defined as the negative of the Euclidean distances, they are constrained to be in the negative domain, and the maxima of the sigmoid function in this range is 0.5 (at a value of 0), which corresponds to a distance of 0 to the learned class center. The factor of 2 therefore maps a distance of 0 to the learned class center to a confidence of 1.
In both cases, the loss function for a single example is then given by a sum over the independent binary probabilities, maximizing the binary loglikelihood for the positive class and minimizing it for the negative classes
(7)
Onevsall formulations of loss functions have been studied before, especially in the context of multiclass classification (Duan et al., 2003; Rifkin & Klautau, 2004)
and for Support Vector Machines (SVMs)
(Liu & Zheng, 2005; Anthony et al., 2007; Mathur & Foody, 2008). More recently, onevsall formulations have been used to train classifiers for openset recognition (Shu et al., 2017), due to their ability to encode a "none of the above" class naturally. The predictive uncertainty of onevsall classifiers were very recently explored by Franchi et al. (2020), where individual deep ensemble members were trained to specialize in independent onevsall tasks for a multiclass problem.Formulating the loss function as in Equation (7) offers a few benefits, however. Firstly, by replacing the softmax normalization by independent sigmoids, models are able to predict a higher confidence centered on the training manifold for each specific class versus the rest of the training manifold (see Figure 1). Secondly, by minimizing a linear combination of the binary loglikelihoods, we can train a single deterministic model to learn to optimize over the K binary tasks jointly, avoiding additional overhead during training or evaluation. Thirdly, a distancebased onevsall formulation learns more meaningful classcenters in a minibatch fashion, compared to DM loss with a softmax normalization. We demonstrate this behavior for the 2dimensional toy example in Figure S1, where it can be seen that softmax DM loss does not learn good representations of the centers of embeddings. Instead, due to the relative nature of the softmax normalization, it is more likely to learn a pivot point in embedding space, where if all points of a class are closest to their pivot point instead of the others, they will still get correctly classified. Onevsall DM loss does not suffer from this issue, as the formulation in Equation 6 maps a distance of 0 to a class center in the embedding space, to a confidence score of exactly 1, whereas this is not strictly true for a softmaxbased formulation.
3 Experimental Results
We report the performance of our proposed methods on a variety of different tasks that measure indistribution calibration, robustness under covariate shift, and performance on OOD data. The quality of uncertainty for a predictive distribution is calculated using Expected Calibration Error (ECE) (Guo et al., 2017), which is a binned measure of the difference between the accuracy of a model and its predicted confidence, where the confidence is defined as the maximum predicted class probability for that example. For points with binned confidences , if we define as the accuracy and as the confidence, the ECE is then defined as . We use bins to calculate ECE for our experiments.
3.1 Image Classification Tasks
To evaluate the behavior of discriminative models trained under our proposed loss functions, we benchmark the methods using the methodology first proposed in (Snoek et al., 2019) on the CIFAR10C and CIFAR100C datasets. These image datasets contain corrupted versions of the original test datasets, with 19 types of corruption applied with 5 levels of intensity each (Hendrycks & Dietterich, 2019b). In our experiments, models are trained with identical architectures and optimization setups, and for loss functions with a distancebased formulation, the last layer of the model is replaced with a distancebased layer, as defined in Equation (3) and Equation (6). For CIFAR10, we train a ResNet 20 model using the different loss functions (further implementation details are given in Appendix E.2), where the distancebased layer weights are initialized by zeros as specified in (Macêdo et al., 2019)
, though we notice no difference if they are initialized using the standard random initialization in TensorFlow
(Abadi et al., 2016). From Figure 2, we can see that onevsall methods consistently perform better under covariate shift while maintaining predictive accuracy compared to the baseline of softmax crossentropy, with a distancebased onevsall formulation performing the best amongst the methods. A distancebased softmax formulation suffers from consistently underconfident predictions, resulting in ECE improving as prediction accuracy drops at higher levels of shift, and this behavior is further discussed in Appendix B.Expected Calibration Error and Accuracy under dataset shift for CIFAR10C. The box plots show the median, quartiles, minimum, and maximum performance per method. Onevsall classifiers maintain similar predictive accuracy under covariate shift as the softmax crossentropy baseline, while consistently achieving better calibration under covariate shift, especially as shift increases, and adding a distancebased logit representation further improves ECE performance. Data at
this url.We also report results on the CIFAR100 dataset using a Wide ResNet 2810 model (Zagoruyko & Komodakis, 2016), with further implementation details in Appendix E.3. The results in Figure 3 show that onevsall methods consistently improve uncertainty while maintaining predictive accuracy compared to their softmaxbased counterparts, with a distancebased formulation performing the best, especially at high levels of shift.
3.2 OOD Performance with Accuracy as a Function of Confidence
In order to evaluate the performance of onevsall methods in situations where it is preferable for discriminative models to avoid incorrect yet overconfident predictions, we consider plotting accuracy vs. confidence plots (Lakshminarayanan et al., 2017), where the trained models are evaluated on cases where the confidence estimates are above a userspecified threshold. In Figure 4, we plot confidence vs accuracy curves for a Wide ResNet model trained on CIFAR100, and evaluated on a test set containing both CIFAR100 and an OOD dataset (SVHN (Netzer et al., 2011), CIFAR10). Test examples higher than a confidence threshold are filtered and their accuracy is calculated. From these curves, we would expect a wellcalibrated model to have a monotonically increasing curve, with higher accuracies for higher confidence predictions, and we can see that onevsall methods consistently result in more robust accuracies across a larger range of confidence thresholds. In Appendix D, we also report more traditional OOD detection metrics such as AUROC and AUPRC, and show how onevsall DM loss performs poorly due to a high overlap between incorrectly classified indistribution points and OOD points, especially at lower confidences.
4 Conclusions
In order to improve the predictive uncertainty of discriminative models, we analyze the different failure modes of softmax crossentropy, and show that the softmax function contributes significantly to overconfident predictions under covariate shift and on OOD data. We propose a onevsall formulation instead that improves the performance of neural networks on image classification tasks. We also show how the linear transformations of the embeddings that result in the logits also contribute to miscalibration, and demonstrate how distancebased logits followed by a softmax normalization do not mitigate this issue. However, combining a distancebased formulation with a onevsall scheme results in even better performance on certain image datasets, and on a language intent classification task (Appendix
C.2). However, onevsall distancebased losses suffer from a few setbacks; we observe that training from scratch is challenging for datasets with a large value ofsuch as Imagenet (Appendix
C.1), and further exploration is required to scale these losses to such large datasets, and to nonimage domains. However, we believe that decomposing a multiclass problem into binary tasks using onevsall formulations allows for further exploration into binary losses that have been extensively studied for calibration tasks (Gneiting & Raftery, 2007; Reid & Williamson, 2010; Mukhoti et al., 2020), which would make for an interesting avenue of further research.References
 (1) TensorFlow Datasets, a collection of readytouse datasets. https://www.tensorflow.org/datasets.
 Abadi et al. (2016) Abadi, M., Barham, P., Chen, J., Chen, Z., Davis, A., Dean, J., Devin, M., Ghemawat, S., Irving, G., Isard, M., et al. Tensorflow: A system for largescale machine learning. In 12th USENIX Symposium on Operating Systems Design and Implementation (OSDI 16), pp. 265–283, 2016.
 Amodei et al. (2016) Amodei, D., Olah, C., Steinhardt, J., Christiano, P., Schulman, J., and Mané, D. Concrete problems in AI safety. arXiv preprint arXiv:1606.06565, 2016.
 Anthony et al. (2007) Anthony, G., Gregg, H., and Tshilidzi, M. Image classification using svms: oneagainstone vs oneagainstall. arXiv preprint arXiv:0711.2914, 2007.
 Blundell et al. (2015) Blundell, C., Cornebise, J., Kavukcuoglu, K., and Wierstra, D. Weight uncertainty in neural networks. arXiv preprint arXiv:1505.05424, 2015.
 Bojarski et al. (2016) Bojarski, M., Del Testa, D., Dworakowski, D., Firner, B., Flepp, B., Goyal, P., Jackel, L. D., Monfort, M., Muller, U., Zhang, J., et al. End to end learning for selfdriving cars. arXiv preprint arXiv:1604.07316, 2016.
 DeGroot & Fienberg (1983) DeGroot, M. H. and Fienberg, S. E. The comparison and evaluation of forecasters. Journal of the Royal Statistical Society: Series D (The Statistician), 32(12):12–22, 1983.
 Devlin et al. (2018) Devlin, J., Chang, M.W., Lee, K., and Toutanova, K. BERT: Pretraining of deep bidirectional transformers for language understanding. arXiv preprint arXiv:1810.04805, 2018.
 Duan et al. (2003) Duan, K., Keerthi, S. S., Chu, W., Shevade, S. K., and Poo, A. N. Multicategory classification by softmax combination of binary classifiers. In International Workshop on Multiple Classifier Systems, pp. 125–134. Springer, 2003.
 Dusenberry et al. (2020) Dusenberry, M. W., Tran, D., Choi, E., Kemp, J., Nixon, J., Jerfel, G., Heller, K., and Dai, A. M. Analyzing the role of model uncertainty for electronic health records. In Proceedings of the ACM Conference on Health, Inference, and Learning, pp. 204–213, 2020.
 Esteva et al. (2017) Esteva, A., Kuprel, B., Novoa, R. A., Ko, J., Swetter, S. M., Blau, H. M., and Thrun, S. Dermatologistlevel classification of skin cancer with deep neural networks. Nature, 542(7639):115–118, 2017.
 Franchi et al. (2020) Franchi, G., Bursuc, A., Aldea, E., Dubuisson, S., and Bloch, I. One versus all for deep neural network incertitude (ovnni) quantification. arXiv preprint arXiv:2006.00954, 2020.
 Gneiting & Raftery (2007) Gneiting, T. and Raftery, A. E. Strictly proper scoring rules, prediction, and estimation. Journal of the American statistical Association, 102(477):359–378, 2007.
 Guo et al. (2017) Guo, C., Pleiss, G., Sun, Y., and Weinberger, K. Q. On calibration of modern neural networks. In Proceedings of the 34th International Conference on Machine LearningVolume 70, pp. 1321–1330. JMLR. org, 2017.

He et al. (2016)
He, K., Zhang, X., Ren, S., and Sun, J.
Deep residual learning for image recognition.
In
Proceedings of the IEEE conference on computer vision and pattern recognition
, pp. 770–778, 2016.
Hein et al. (2019)
Hein, M., Andriushchenko, M., and Bitterwolf, J.
Why ReLU networks yield highconfidence predictions far away from the training data and how to mitigate the problem.
In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 41–50, 2019.  Hendrycks & Dietterich (2019a) Hendrycks, D. and Dietterich, T. Benchmarking neural network robustness to common corruptions and perturbations. In International Conference on Learning Representations, 2019a. URL https://openreview.net/forum?id=HJz6tiCqYm.
 Hendrycks & Dietterich (2019b) Hendrycks, D. and Dietterich, T. Benchmarking neural network robustness to common corruptions and perturbations. arXiv preprint arXiv:1903.12261, 2019b.
 Hendrycks & Gimpel (2016) Hendrycks, D. and Gimpel, K. A baseline for detecting misclassified and outofdistribution examples in neural networks. arXiv preprint arXiv:1610.02136, 2016.
 Krizhevsky (2009) Krizhevsky, A. Learning multiple layers of features from tiny images. Technical report, 2009.
 Lakshminarayanan et al. (2017) Lakshminarayanan, B., Pritzel, A., and Blundell, C. Simple and scalable predictive uncertainty estimation using deep ensembles. In Advances in neural information processing systems, pp. 6402–6413, 2017.
 Larson et al. (2019) Larson, S., Mahendran, A., Peper, J. J., Clarke, C., Lee, A., Hill, P., Kummerfeld, J. K., Leach, K., Laurenzano, M. A., Tang, L., et al. An evaluation dataset for intent classification and outofscope prediction. arXiv preprint arXiv:1909.02027, 2019.
 Lee et al. (2018) Lee, K., Lee, K., Lee, H., and Shin, J. A simple unified framework for detecting outofdistribution samples and adversarial attacks. In Advances in Neural Information Processing Systems, pp. 7167–7177, 2018.
 Liang et al. (2017) Liang, S., Li, Y., and Srikant, R. Enhancing the reliability of outofdistribution image detection in neural networks. arXiv preprint arXiv:1706.02690, 2017.
 Liu & Zheng (2005) Liu, Y. and Zheng, Y. F. Oneagainstall multiclass svm classification using reliability measures. In Proceedings. 2005 IEEE International Joint Conference on Neural Networks, 2005., volume 2, pp. 849–854. IEEE, 2005.
 Macêdo et al. (2019) Macêdo, D., Ren, T. I., Zanchettin, C., Oliveira, A. L., Tapp, A., and Ludermir, T. Isotropic maximization loss and entropic score: Fast, accurate, scalable, unexposed, turnkey, and native neural networks outofdistribution detection. arXiv 1908.05569, 2019.
 MacKay (1992) MacKay, D. J. Bayesian methods for adaptive models. PhD thesis, California Institute of Technology, 1992.
 Mathur & Foody (2008) Mathur, A. and Foody, G. M. Multiclass and binary svm classification: Implications for training and classification users. IEEE Geoscience and remote sensing letters, 5(2):241–245, 2008.
 Mukhoti et al. (2020) Mukhoti, J., Kulharia, V., Sanyal, A., Golodetz, S., Torr, P., and Dokania, P. The intriguing effects of focal loss on the calibration of deep neural networks, 2020. URL https://openreview.net/forum?id=SJxTZeHFPH.
 Neal (2012) Neal, R. M. Bayesian learning for neural networks, volume 118. Springer Science & Business Media, 2012.
 Netzer et al. (2011) Netzer, Y., Wang, T., Coates, A., Bissacco, A., Wu, B., and Ng, A. Y. Reading digits in natural images with unsupervised feature learning. 2011.
 NiculescuMizil & Caruana (2005) NiculescuMizil, A. and Caruana, R. Predicting good probabilities with supervised learning. In Proceedings of the 22nd international conference on Machine learning, pp. 625–632, 2005.
 Reid & Williamson (2010) Reid, M. D. and Williamson, R. C. Composite binary losses. Journal of Machine Learning Research, 11(Sep):2387–2422, 2010.
 Rifkin & Klautau (2004) Rifkin, R. and Klautau, A. In defense of onevsall classification. Journal of machine learning research, 5(Jan):101–141, 2004.
 Russakovsky et al. (2015a) Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S., Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bernstein, M., Berg, A. C., and FeiFei, L. ImageNet Large Scale Visual Recognition Challenge. International Journal of Computer Vision (IJCV), 115(3):211–252, 2015a. doi: 10.1007/s112630150816y.
 Russakovsky et al. (2015b) Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S., Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bernstein, M., et al. ImageNet large scale visual recognition challenge. International journal of computer vision, 115(3):211–252, 2015b.
 Shorten & Khoshgoftaar (2019) Shorten, C. and Khoshgoftaar, T. M. A survey on image data augmentation for deep learning. Journal of Big Data, 6(1):60, 2019.
 Shu et al. (2017) Shu, L., Xu, H., and Liu, B. DOC: Deep open classification of text documents. arXiv preprint arXiv:1709.08716, 2017.
 Snoek et al. (2019) Snoek, J., Ovadia, Y., Fertig, E., Lakshminarayanan, B., Nowozin, S., Sculley, D., Dillon, J., Ren, J., and Nado, Z. Can you trust your model’s uncertainty? Evaluating predictive uncertainty under dataset shift. In Advances in Neural Information Processing Systems, pp. 13969–13980, 2019.
 Tran et al. (2018) Tran, D., Hoffman, M. D., Moore, D., Suter, C., Vasudevan, S., Radul, A., Johnson, M., and Saurous, R. A. Simple, distributed, and accelerated probabilistic programming. In Neural Information Processing Systems, 2018.
 Tsai et al. (2019) Tsai, H., Riesa, J., Johnson, M., Arivazhagan, N., Li, X., and Archer, A. Small and practical bert models for sequence labeling. arXiv preprint arXiv:1909.00100, 2019.
 Xing et al. (2019) Xing, C., Arik, S., Zhang, Z., and Pfister, T. Distancebased learning from errors for confidence calibration. arXiv preprint arXiv:1912.01730, 2019.
 You et al. (2017) You, Y., Gitman, I., and Ginsburg, B. Large batch training of convolutional networks. arXiv preprint arXiv:1708.03888, 2017.
 Zadeh et al. (2018) Zadeh, P. H., Hosseini, R., and Sra, S. DeepRBF networks revisited: Robust classification with rejection. arXiv preprint arXiv:1812.03190, 2018.
 Zagoruyko & Komodakis (2016) Zagoruyko, S. and Komodakis, N. Wide residual networks. arXiv preprint arXiv:1605.07146, 2016.
Appendix A Comparison of learned class centers
In order to better portray the optimization issues introduced by the softmax normalization in learning meaningful class centers using a DM Loss formulation, we train models on a 2D toy dataset using distancebased logits, but with differing normalization schemes. In both cases, the learnt embedding space is 16dimensional, and the weight matrix of the last layer is given by , where the th column corresponds to the learned class center for the th class. In order to plot the learned class centers in Figure S1, the 16dimensional hidden embedding space obtained from a forward pass of the training data is projected onto a 2dimensional PCA subspace, along with the columns of the weight matrix of the last layer.
Appendix B Reliability Diagrams
To further understand the interplay of behaviors between onevsall normalizations and distancebased logits, we plot reliability diagrams (DeGroot & Fienberg, 1983; NiculescuMizil & Caruana, 2005) which show accuracy as a function of confidence in the form of binned histograms of confidences over the indistribution test set. We plot reliability diagrams for models trained on CIFAR10 in Figure S2 and CIFAR100 in Figure S3. From these plots, we can see that softmax crossentropy tends to result in models that have very high confidences on the test set, often with lower accuracies than expected. Onevsall methods tend to give better calibrated predictions, especially for points with lower accuracy corresponding to lower confidence predictions. Interestingly, we see somewhat anomalous behavior of DM loss on the CIFAR10 dataset, which has been shown before in Macêdo et al. (2019), where all confidences for points in the indistribution test set are lower than a certain threshold. One hypothesis for this behavior is the fact that it is easy to obtain high accuracy on the training data without necessarily learning to cluster points close to their class centers, as long as all points of a class are closest to the corresponding weight in the last layer, and this sort of behavior is observed even in the 2D toy example in Appendix A. This anomalous histogram of confidences also explains the decreasing trend of ECE seen under dataset shift in Figure 2, as under higher intensity of shift, models would tend to get less accurate, while the predictions made by a model trained with the DM loss are consistently underconfident. We do not see this behavior for CIFAR100 however.
Appendix C Additional Results
c.1 ImageNet
We report the performance of the proposed loss functions on the ImageNet dataset (Russakovsky et al., 2015b), using a ResNet50 model (He et al., 2016) trained using the setup described in Appendix E.4. From Figure S4, we see that a onevsall formulation with affinetransformed logits has similar predictive accuracy to softmax crossentropy, and performs more robustly under dataset shift, especially at higher intensities of shift. The distancebased onevsall formulation however has difficulty matching the predictive performance of softmax crossentropy, while still having lower ECE under dataset shift. We hypothesize that the large number of classes in ImageNet make a distancebased formulation difficult to scale, especially since the gradients to learn class centers are calculated in a minibatch setting, and even with a batch size of 4096, the number of points per class can be heavily imbalanced, resulting in poor gradients for optimization.
c.2 CLINC Intent Classification Dataset

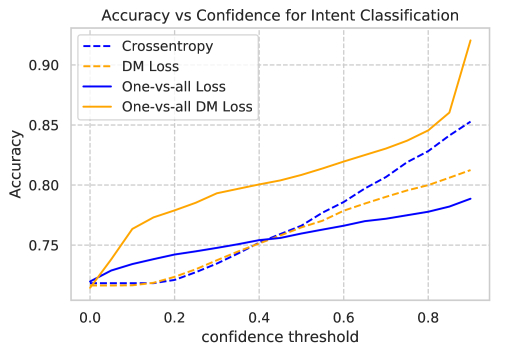

We also evaluate the performance of onevsall methods on outofdistribution data on modalities beyond common image tasks, namely a language understanding task using the CLINC outofscope intent detection benchmark dataset (Larson et al., 2019). The benchmark dataset contains 150 types of indomain services and 1500 outofdomain sentences, and it is important for realworld, goaloriented dialog systems to be able to distinguish between indomain and outofdomain sentences. For this task, we train a BERTMini model (Devlin et al., 2018; Tsai et al., 2019) on the indomain data from scratch (with further details in Appendix E.5), and report both the indistribution ECE, and performance on outofdistribution data. From Table S1, we see that onevsall formulations are competitive with the predictive accuracy achieved by softmax crossentropy, while improving indistribution calibration. Simultaneously, we can see from Figure S5 that onevsall DM Loss performs more robustly at different confidence thresholds, however regular onevsall loss struggles at higher confidences to distinguish indistribution sentences from OOD sentences.
Loss function  Test Accuracy  Test ECE

Crossentropy  90.16  0.079
DM Loss  89.89  0.083
Onevsall Loss  90.67  0.078
Onevsall DM Loss  88.89  0.052
Appendix D On OOD detection metrics: AUROC versus ConfidenceAccuracy curves
In this section, we report the Area Under the Receiver Operating Characteristic curve (AUROC) and Area under the PrecisionRecall curve (AUPRC) for OOD tasks in the image domain. Both the AUROC and AUPRC are calculated for the binary task of classifying indistribution test points from OOD test points. From Tables
S2 and S3, we can see that onevsall DM loss performs poorly compared to the other methods for a scalar metric such as AUROC and AUPRC. However, from the confidence versus accuracy plots in Section 3.2, we can see that onevsall DM loss is more sensitive to OOD inputs, especially at lower confidence values. In order to explain this apparent disparity, we plot the histograms of the predicted confidence for three sets of points:
[itemsep=0ex]

correctly classified indistribution test points,

incorrectly classified indistribution test points, and

OOD test points.
The disparity above can be explained by the fact that confidence versus accuracy curves measure the ability of a method to separate set 1 from sets 2+3, whereas AUROC and AUPRC measure the ability of a method to separate sets 1+2 (indistribution) from set 3 (OOD). Specifically, the confidence versus accuracy curve measures accuracy only on the unrejected inputs, hence it does not penalize a method for assigning the same low confidence to incorrectly classified indistribution test points and OOD test inputs. On the other hand, AUROC measures the ability to separate indistribution from OOD inputs, so it does not penalize a method for assigning the same confidence to correctly and incorrectly classified indistribution inputs.
From Figure S7, we can see that onevsall DM loss outputs much lower confidences for incorrectly classified indistribution test points, while also outputting low confidences for OOD test points. Due to the overlap in the confidence histograms for these two subsets of data, a scalar metric such as AUROC and AUPRC will report lower performance, due to difficulty in distinguishing between the two at low confidences.
Loss function  AUROC / AUPRC

= CIFAR100  = SVHN
CIFAR10  Crossentropy  0.7334 / 0.6789  0.7026 / 0.8058
DM Loss  0.7478 / 0.7104  0.8264 / 0.8940
Onevsall Loss  0.8449 / 0.8037  0.8934 / 0.9248
Onevsall DM Loss  0.6805 / 0.6486  0.6191 / 0.7725
Loss function  AUROC / AUPRC

= CIFAR10  = SVHN
CIFAR100  Crossentropy  0.8003 / 0.7587  0.6420 / 0.7779
DM Loss  0.7862 / 0.7488  0.6744 / 0.8047
Onevsall Loss  0.8019 / 0.7601  0.6700 / 0.8028
Onevsall DM Loss  0.7669 / 0.7274  0.5966 / 0.7948
Appendix E Implementation Details
e.1 2D Toy Dataset
The synthetic 2dimensional toy dataset is generated by drawing 1000 points per class from a 2dimensional normal distribution, where the points for the
th class are given by . For training, we use a fullyconnected neural network with 2 hidden layers containing 16 units each, trained on a batch size of 128 using SGD for 10000 steps. For all examples, the trained models achieve a training accuracy of 100%.e.2 Cifar10
We use the Tensorflow Datasets (TFD, ) implementations of both the CIFAR10 (Krizhevsky, 2009) and CIFAR10C (Hendrycks & Dietterich, 2019a)
datasets. For training, the CIFAR10 dataset is augmented by padding with zeros, followed by random cropping, random flipping, and rescaling to
. We train the Resnet20 v1 architecture on a batch size of 512 using the Adam optimizer with a learning rate schedule, and tune the following hyperparameters using random search with 100 trials within ranges specified as follows: learning rate (
to ), momentum ( to ), and Adam’s ( to ).e.3 Cifar100
We use the Tensorflow Datasets implementation of CIFAR100 (Krizhevsky, 2009) and generate the CIFAR100C dataset by calculating the 17 types of corruptions (with the exception of motion_blur and snow) over 5 levels of intensity as defined in Hendrycks & Dietterich (2019a). The CIFAR100 dataset is augmented in a similar manner as CIFAR10 during training, and we use a Wide ResNet 2810 architecture with L2 regularization (Zagoruyko & Komodakis, 2016)
trained on a batch size of 512 for 200 epochs using SGD with Nesterov momentum
(Tran et al., 2018). We tune the following hyperparameters using random search with 50 trials with ranges specified as follows: learning rate (, ) and L2 weighing factor (, ).e.4 ImageNet
We use the Tensorflow Datasets implementation of the ImageNet (Russakovsky et al., 2015a) and ImageNetC (Hendrycks & Dietterich, 2019a) datasets. During training, the ImageNet dataset is preprocessed using the data augmentation pipeline commonly used by the Inception architecture (Shorten & Khoshgoftaar, 2019). We use a ResNet50 "v1.5" architecture ^{1}^{1}1The v1.5 architecture differs slightly from the v1 architecture more commonly defined in He et al. (2016). For further details, please see http://torch.ch/blog/2016/02/04/resnets.html. with L2 regularization trained on a batch size of 4096 for 90 epochs using SGD with Nesterov momentum and a warmup learning rate schedule (You et al., 2017). We tune the following hyperparameters using random search with 50 trials with ranges specified as follows: learning rate (, ) and L2 weighing factor (, ).
e.5 Intent Classification
We use the CLINC outofscope (OOS) intent classification data as defined in Larson et al. (2019), where the BERT tokenizer is used to pretokenize sentences with a maximum sequence length of 32. For training, we use the BERTMini architecture (Devlin et al., 2018; Tsai et al., 2019), which is a 4 layer transformer with 256 hidden units per layer and 4 attention heads, trained on a batch size of 256 for 1000 epochs using the Adam optimizer, where the learning rate is tuned for 30 trials sampled uniformly between (, ).
