1 Introduction

Action recognition has been well studied in the computer vision literature

Herath2017

because it is an important and challenging task. Deep learning approaches have been proposed recently

Simonyan2014 ; Feichtenhofer2016 ; Wang2016 , however still a hand-crafted feature, improved Dense Trajectory (iDT) DT ; iDT , is comparable in performance. Moreover, top performances of deep learning approaches are obtained by combining the iDT feature Feichtenhofer2016 ; Tran2015 ; Wang2015 .

In this paper, we propose a novel hand-crafted feature for action recognition, called Trajectory-Set (TS), that encodes trajectories in a local region of a video 111This work has been published in part as Matsui2017 . The contribution of this paper is summarized as follows. We propose another hand-crafted feature that can be combined with deep learning approaches. Hand-crafted features are complement to deep learning approaches, however a little effort has been done in this direction after iDT. Second, the proposed TS feature focuses on the better handling of motions in the scene. The iDT feature uses trajectories of densely samples interest points in a simple way, while we explore here the way to extract a rich information from trajectories. The proposed TS feature is complement to appearance information such as HOG and objects in the scene, which can be computed separately and combined afterward in a late fusion fashion.

There are two relate works relevant to our work. One is trajectons Matikainen2009 that uses a global dictionary of trajectories in a video to cluster representative trajectories as snippets. Our TS feature is computed locally, not globally, inspired by the success of local image descriptors HOG . The other is the two-stream CNN Simonyan2014

that uses a single frame and a optical flow stack. In their paper stacking trajectories was also reported but did not perform well, probably the sparseness of trajectories does not fit to CNN architectures. In contrast, we take a hand-crafted approach that can be fused later with CNN outputs.

2 Dense Trajectory

Here we briefly summarize the improved dense trajectory (iDT) iDT on which we base for the proposed method. First, the image pyramid for a particular frame at time in a video is constructed, and interest points are densely sampled at each level of the pyramid. Next, interest points are tracked in the following frames ( by default). Then, the iDT is computed by using local features such as HOG (Histogram of Oriented Gradient) HOG , HOF (Histogram of Optical Flow), and MBH (Motion Boundary Histograms) MBH along the trajectory tube; a stack of patches centered at the trajectory in the frames.

For example, between two points in time and , a trajectory has points in frames . In fact,

is a vector of displacement between frames rather than point coordinates, that is,

where . Local features such as are computed with a patch centered at in frame at time .

To improve the performance, the global motion is removed by computing homography, and background trajectories are removed by using a people detector. The Fisher vector encoding FisherVector is used to compute an iDT feature of a video.

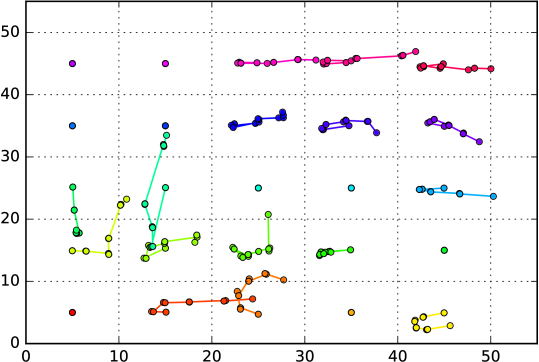

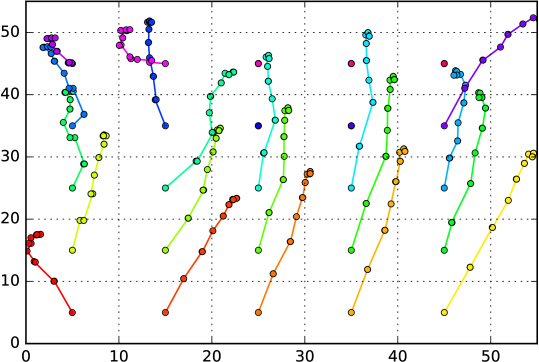

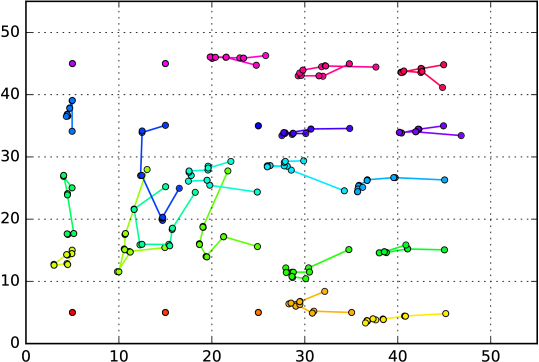

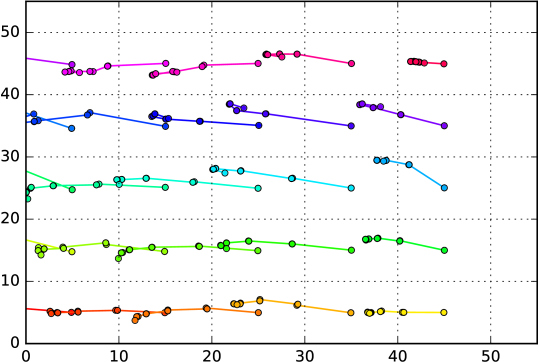

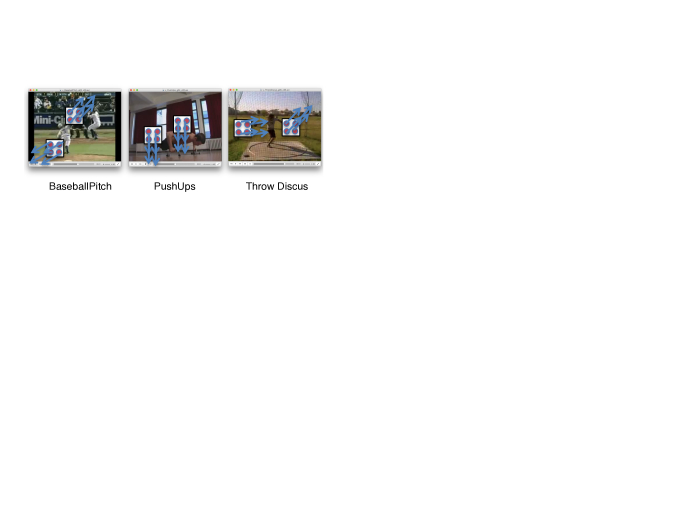

Figure 1: Different actions in UCF50 UCF50 have different trajectory information.
(a) (b)

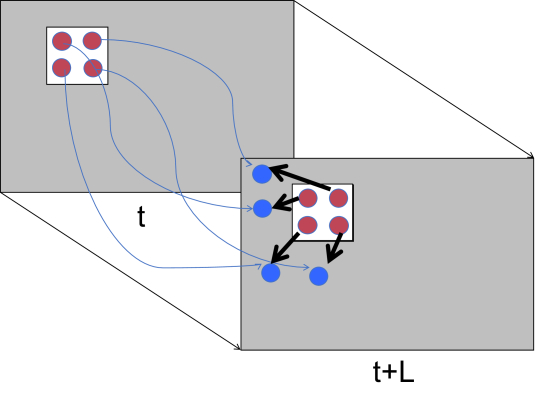

Figure 2: (a) A block and cells in the starting frame. Starting points of trajectories in each cell are shown in black circles with motion vector arrows. Cells with no starting points are filled with 0. If there are multiple trajectories starting from the same cell, the average trajectory is used for the cell (the averaged starting point is shown in red in this figure). (b) A Trajectory-Set feature consists of trajectories (shown as blue curves) starting from the same block in the starting frame and wander across the successive frames. Magenta circles are the starting points of trajectories, and blue circles are corresponding end points. The displacement vectors between starting and end points are shown as black arrows.

3 Proposed Trajectory-Set feature

We think that extracted trajectories might have rich information discriminative enough for classifying different actions, even although trajectories have no appearance information. As shown in Figure

1, different actions are expected to have different trajectories, regardless of appearance, texture, or shape of the video frame contents. However a single trajectory may be severely affected by inaccurate tracking results and an irregular motion in the frame.

We instead propose to aggregate nearby trajectories to form a Trajectory-Set (TS) feature. First, a frame is divided into non-overlapping cells of pixels as shown in Figure 2(a). Next, cells form a block222Note that we borrow the terms from HOG HOG .. This results in overlapping blocks of pixels with spacing of pixels.

The key concept of the TS feature is to collect trajectories that start in a local region (or block) in the starting frame (see Figure 2(a)). In each cell of a block in the starting frame, we find a trajectory starting from the cell. (If there are multiple trajectories starting from the cell, the average trajectory is used. If no trajectory starts from the cell, we use a zero vector as the trajectory of the cell.) By repeating this procedure for all cells in the block, we have a set of trajectories starting from the block. We concatenate the trajectories to form a TS feature of dimension for the block. As shown in Figure 2(b), the TS feature consists of trajectories that start in the same block in the starting frame and wander across frames. Note that the end points of the trajectories are not necessary close to each other. This implies that we enforce the locality of trajectories only in the starting frame.

In our default setting, , , and , then the TS feature is a 750 dimensional vector. Figure 3 shows examples of TS features for different categories. We can see different motion patterns appear in each of TS features.

Here we can propose some variations. Instead of using a trajectory as a series of displacements , we can simply a series of coordinates like as , but in local coordinate systems instead of the global coordinate system. For further reducing computation cost, we can skip every two frames by summing successive two displacement vectors (that is, by skipping one frame in to generate ), resulting in feature vectors of dimension 400. We call these processes ”skip2” in the results.

(a) (b) (c)

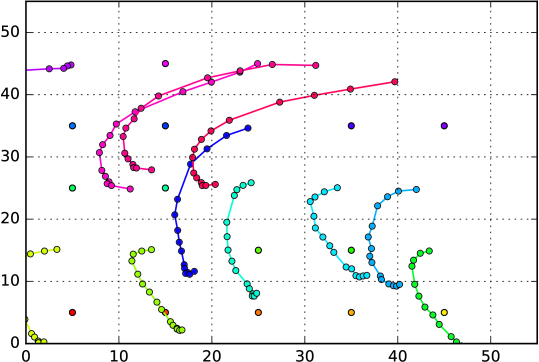

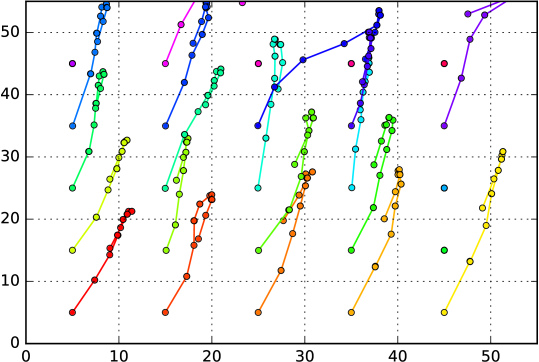

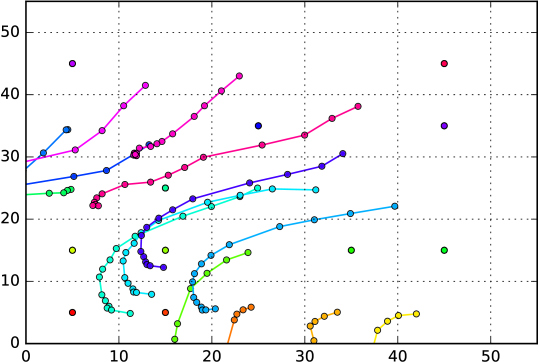

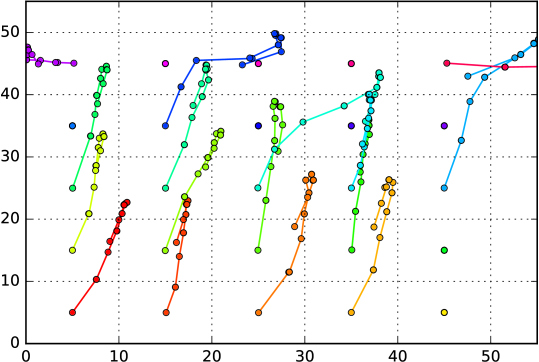

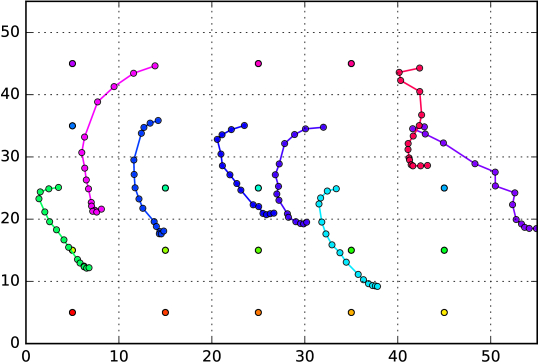

Figure 3: Examples of TS features of (a) BaseballPich, (b) PushUps, and (c) ThrowDiscus in the UCF50. Each row shows different TS features obtained from different blocks and different sets of 15 frames. Each plot shows 25 trajectories (in different colors) starting from each of cells in a block. Trajectories are shown with 16 points (some points are overlapped) connected with lines. The block and cell sizes are and pixels, respectively.

4 Experimental results and discussion

Here we describe experimental results of the proposed method. We used UCF50 UCF50 . It has 50 action categories. Videos in each category are divided into 25 groups, and we evaluate the accuracy with the leave-one-group-out cross validation. The resolution of videos are @ 30fps, and the durations are between 1 and 6 seconds. For TS feature construction, we use pixels, , and

, and randomly sample 1% of TS features for encoding with the Fisher vector with 64 Gaussians. A multi-layer perceptron (MLP) of three layers, with a middle hidden layer of 100 nodes, was are trained.

Results are shown in Table 1. We compare the proposed TS feature with the original iDT feature and other recent methods. Skip 2 version of TS feature doesn’t perform well, showing that we need to take care about parameter tuning for a better performance. Exploring the effects of parameters (skipping, , and ) is an important part of our future work.

By comparing with other recent methods, our TS feature outperforms the original iDT, and is better than most of other methods, even without any appearance information of the scene. We are now planning to validate how the proposed TS feature can be combined with other methods, including deep learning approaches, for improving the performance.

accuracy
Wang+2013 (DT) Wang2013 83.6
Kataoka+2015 Kataoka2015 84.5
Beaudry+2016 Beaudry2016 88.3
TS skip2 (ours) 89.4
Li+2016 Li2016 90.3
Wang&Schmid 2013 (iDT) iDT 91.7
Peng+2016 Peng2016 92.3
Yang+2017 Yang2017 92.4
Lan+2015 Lan2015b 93.8
Lan+2015 Lan2015 94.4
Xu+2017 Xu2017 94.8
TS (ours) 95.0
Duta+2017 Duta2017a 97.8
Table 1: Comparison of results on UFC50.

Recent work of action recognition uses more larger datasets, such as UCF101 Soomro2012 and HMDB51 Kuehne2011 . Tables 2 and 3 show results. For UCF101, the proposed TS feature is better than other methods before 2017, but the recent methods presented in 2017 benefit clearly from the recent progress on deep learning. For HMDB, however, our method outperforms all the deep learning-based methods by a clear margin, which is more than 5%. This is very surprising because our shallow method uses only the training sets provided, while the recent method Carreira2017 uses more larger datasets for training deep models with the help of feature transfer.

This results may indicate that CNN models used for recent activity recognition works might not be as good as for image recognition. Features generated by CNN layers are completely different from the TS features presented in this paper. A potential future work is to seek a deep model to compute features from a batch of trajectory, not from pixel values or flows.

accuracy
Somroo+ 2012 Soomro2012 43.9
Wang & Schmid 2013 iDT 85.9
Wang+ 2015 Wang2015 88.0
Simonyan+ 2014 Simonyan2014 88.0
TS (ours) 88.6
Kar+ 2017 Kar2017 93.2
Duta+ 2017 Duta2017a 94.3
Wang+ 2017 Wang2016 94.6
Feichtenhofer+ 2017 Feichtenhofer2017 94.9
Lan+ 2017 Lan2017 95.3
Carreira & Zisserman 2017 Carreira2017 97.9
Table 2: Comparison of results on UFC101.
accuracy
Simonyan+ 2014 Simonyan2014 59.4
Wang & Schmid 2013 (iDT) iDT 61.7
Kar+ 2017 Kar2017 66.9
Wang+ 2017 Wang2017 68.9
Wang+ 2016 Wang2016 69.4
Feichtenhofer+ 2016 Feichtenhofer2016 70.3
Feichtenhofer+ 2017 Feichtenhofer2017 72.2
Duta+ 2017 Duta2017b 73.1
Lan+ 2017 Lan2017 75.0
Carreira & Zisserman 2017 Carreira2017 80.2
TS (ours) 85.4
Table 3: Comparison of results on HMDB51.
