2.1 Testing Protocol

To make a fair comparison between algorithms, it is very important to test them under the same protocol. First, the training, validation, and test data that are used to evaluate these algorithms must be consistent. As its name suggests, the purpose of a training set

is to train the classifier (i.e. to optimize the parameters of the classifier (e.g. weights in neural networks)). The

validation set

, which is optional, is comprised of data distinct from those in the training set. It is used to make adjustments on the selected model such that the algorithm can perform well on both the training and the validation set. A validation set often is used to find the most optimal hyperparameters (e.g. number of hidden units, length of training, training rate in neural networks) for the model. The model that performs the best on the training and validation sets is finally assessed using the

test set to measure the performance of the overall system [31]

. Separating a dataset into three disjoint sets (training, validation, and testing) allows researchers to tune their system and estimate the error simultaneously.


Second, the method of splitting a dataset into training, validation, and test must be uniform. There are three general ways to divide a set [31]: (i) using a pre-defined split, (ii) through -fold cross-validation, and (iii) through leave-one-out cross-validation. The pre-defined split separates the dataset into two (or three) uneven components: training and testing (and validation), which is specified by the authors of the dataset. The -fold cross-validation divides the dataset into mutually exclusive equal-sized folds. Videos in folds, which is approximately videos of the entire set, are used for training, and the remaining fold, approximately videos, is used for testing. This process is repeated times such that all clips are used once for testing. The average error rate of each fold is the estimated error rate of the classifier. The leave-one-out cross-validation is a special instance of cross-validation, where each removed sequence is compared to the remaining sequences. Leave-one-out is computationally expensive, but it determines the most accurate estimate of a classifier’s error rate.

Third, a single quantitative measure should be used for comparison. To evaluate how an action recognition algorithm performs with respect to each action class, an interpolated

average precision (AP) can be used. AP is defined as:

(2.1)

for test class , where is the total number of videos, is the precision at cutoff of the list, and is an indicator function which equals 1 if the video ranked is a true positive and 0 otherwise. The denominator in (2.1) represents the total number of true positives in the list. The overall performance of the system can be evaluated using the mean average precision (mAP) measure, which is defined as:

(2.2)

where is the total number of test classes (i.e. for UCF101). To determine whether the prediction should be considered a true or false positive for a detection algorithm, a threshold value can be associated with the intersection-over-union (IoU) to accept or reject a detected result. That is, if denotes IoU between the predicted location, , and the ground truth location, , then can be written mathematically as:

(2.3)

and is considered correct if for some constant .

2.2 Static Camera with Clean Background

One of the earliest goals in action recognition was to classify the action of a single individual in a video given a set of actions. Thus, a benchmark dataset containing a heterogeneous set of actions with systematic variations of parameters was in great demand. The KTH and Weizmann datasets met these requirements and became two of the earliest standard datasets of which to test action recognition algorithms. These datasets share a common characteristic of actors performing the actions in front of a simple background recorded with a static camera. Here, KTH, Weizmann, and the more recent MPII Cooking Activities datasets will be surveyed.

2.2.1 The KTH Dataset

The efforts to create a non-trivial and publicly available dataset for action recognition was initiated at the KTH Royal Institute of Technology in 2004. The KTH dataset [148] is one of the most standard datasets, which contains six actions: walk, jog, run, box, hand-wave, and hand clap (see Figure 2.1). To account for performance nuance, each action is performed by 25 different individuals, and the setting is systematically altered for each action per actor. Setting variations include: outdoor (s1), outdoor with scale variation (s2), outdoor with different clothes (s3), and indoor (s4). These variations test the ability of each algorithm to identify actions independent of the background, appearance of the actors, and the scale of the actors.

The KTH dataset contains 6 actions performed by 25 individuals in 4 different settings (6 actions 25 actors 4 settings) resulting in a total of 600 clips111A clip of person 13 performing hand clap in the outdoor with different clothes (s3) setting is missing in the KTH dataset resulting in a total of 599 clips instead of 600.. Each clip contains multiple instances of a single action and is recorded on a static camera with a frame rate of 25 frames per second (fps). The videos were down-sampled to have a spatial resolution of 160120 pixels and each clip ranges from 8 seconds (204 frames) to 59 seconds (1492 frames) averaging 18.9 seconds. The test protocol of the KTH dataset divides the videos into training, validation, and test sets, which contains 8, 8, and 9 actors, respectively. The dataset is useful for the task of recognition and temporal detection, as the ground truth indicates when specific actions occur but not where (the location).

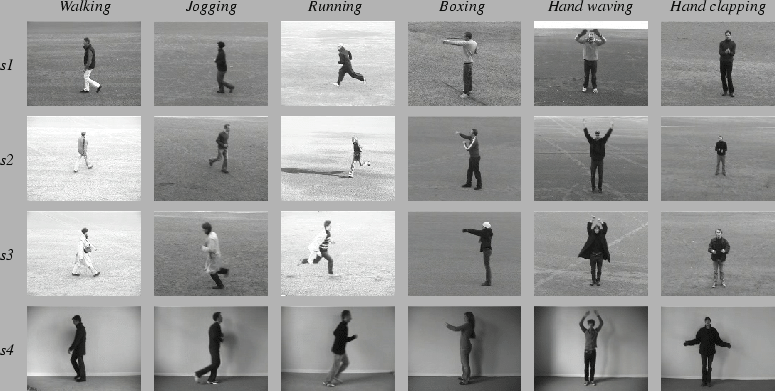

Figure 2.1: The KTH Dataset. The KTH dataset contains six different actions (left-to-right): walk, jog, run, box, hand-wave, and hand clap; taken at four different settings (top-to-bottom): outdoor (s1), outdoor with scale variation (s2), outdoor with different clothes (s3), and indoor (s4). Redrawn from [148].

2.2.2 The Weizmann Dataset

The following year after the KTH dataset was released, the Weizmann Actions as Space-Time Shapes dataset (or the Weizmann dataset [14]) at the Weizmann Institute of Science in the Department of Computer Science and Applied Mathematics in Israel also became available in the field of action recognition. The Weizmann dataset contains more actions than the KTH (bend, wave one hand, wave two hands, jumping jack, jump in place on two legs, jump forward on two legs, walk, run, skip, and gallop sideways (see Figure 2.2)), but each action is performed by fewer individuals. Nevertheless, performance by nine individuals is enough to take into consideration the nuance between individuals. The actors repeat most actions, namely skip, jump, run, gallop sideways, walk, in opposite directions to account for the asymmetry of these actions. Like the KTH dataset, the videos in this dataset are recorded using a static camera on a uniform background. The actors move horizontally across the frame, maintaining the consistency in the size of the actor as they perform each action.

The Weizmann dataset contains 10 actions performed by 9 individuals (10 actions 9 actors) resulting in a total of 90 clips222Select actions (run, skip, and walk) by one of the individuals, Lena, are split into two clips resulting in 10 clips per action instead of 9. Thus, there are a total of 93 clips instead of 90.. Each clip contains multiple instances of a single action. Each clip was recorded on a static camera with 50 fps, but has been deinterlaced to 25 fps. The videos have a spatial resolution of 180144 pixels and each clip ranges from 1 second (36 frames) to 5 seconds (125 frames) averaging 3.66 seconds. The recommended testing protocol for using the Weizmann dataset is to perform a leave-one-out procedure. Although the intended use of the dataset is for action recognition, it is also useful for the task of detection, as the ground truth are silhouette masks, which can be applied to extract both spatial and temporal information of the action.

Figure 2.2: The Weizmann Dataset. The Weizmann dataset contains ten actions (left-to-right, top-to-bottom): bend, jump in place on two legs (P-jump), wave two hands (wave2), run, jump forward on two legs (jump), jumping jack (jacks), walk, wave one hand (wave1), skip, and gallop sideways (side). Redrawn from [14].

2.2.3 MPII Cooking Activities Dataset

A group from the Max Planck Institute for Informatics (MPII) compiled the MPII Cooking Activities [141] and its extension MPII Cooking 2 [142] datasets, which consist of actions related to cooking. The goal of these datasets is to distinguish between fine-actions, which is a very challenging task since there is high intra-class variation (e.g. peeling a carrot vs. peeling a pineapple) and low inter-class variation (e.g. mixing vs. stirring or dicing vs. slicing). Participants, whose cooking skills range from beginner to amateur chefs, were instructed to cook one to six of pre-defined dishes (e.g. fruit salad) for the MPII Cooking dataset. The individuals were not given a specific recipe to follow. As a result, each individual used different ingredients to prepare each dish and very dissimilar videos were obtained. For each cooking video, actions (e.g. cut, peel) were annotated. A list of the 14 (and 59 additional) pre-defined dishes and the annotated 65 (and 67) actions for the MPII Cooking Activities (and MPII Cooking 2) dataset are listed in Table 2.2 (and 2.2).

The MPII Cooking Activity dataset contains 12 subjects, where 7 of the subjects are used to perform leave-one-out cross-validation. That is, one of the subjects are removed from training, and the other 11 are used and this process is repeated 7 times. The MPII Cooking 2 dataset contains 30 subjects in 273 videos. The dataset is split into 201 training, 17 validation, and 42 testing with no overlap between the subjects. The training, validation, and test splits do not sum to the full dataset because for all composite actions in the testing set, the authors ensured that there were at least 3 training and validation videos from the same actor. Since some subjects had less than 3 training or validation videos, some test subjects were not used. Each video was recorded on a mounted camera attached to the ceiling, recording the actor working at the counter from the frontal view. The videos in both datasets have a spatial resolution of with a frame rate of 29.4 fps, and the duration of the videos in the MPII Cooking 2 dataset ranges from 2 minutes and 44 seconds to 24 minutes and 34 seconds for a total of 8 hours and 19 minutes. Both datasets are useful for the task of action recognition as well as detection. Average precision (AP) is computed to compare per class results and mean average precision is used to report the overall performance of the algorithm on the datasets. The mid-point criterion is used to decide the correctness of the detection. That is, if the mid-point of the detection is within the ground truth, then it is considered correct.

Dishes sandwich, salad, fried potatoes, potato pancake, omelet, soup, pizza, casserole, mashed potato, snack plate, cake, fruit salad, cold drink, and hot drink
Actions background activity, change temperature, cut apart, cut dice, cut in, cut off ends, cut out inside, cut slices, cut stripes, dry, fill water from tap, grate, put on lid, remove lid, mix, move from X to Y, open egg, open tin, open/close cupboard, open/close drawer, open/close fridge, open/close oven, package X, peel, plug in/out, pour, pull out, puree, put in bowl, put in pan/pot, put on bread/dough, put on cutting-board, put on plate, read, remove from package, rip open, scratch off, screw close, screw open, shake, smell, spice, spread, squeeze, stamp, stir, strew, take and put in cupboard, take and put in drawer, take and put in fridge, take and put in oven, take and put in spice holder, take ingredient apart, take out from cupboard, take out from drawer, take out from fridge, take out from oven, take out from spice holder, taste, throw in garbage, unroll dough, wash hands, wash objects, whisk, and wipe clean
Table 2.1: MPII Cooking Dataset [141]. 14 pre-defined dishes and 65 annotated actions are listed.
Dishes cooking pasta, juicing {lime, orange}, making {coffee, hot dog, tea}, pouring beer, preparing {asparagus, avocado, borad beans, broccoli and cauliflower, broccoli, carrot and potatoes, carrots, cauliflower, chilli, cucumber, figs, garlic, ginger, herbs, kiwi, leeks, mango, onion, orange, peach, peas, pepper, pineapple, plum, pomegranate, potatoes, scrambled eggs, spinach, spinach and leeks}, separating egg, sharpening knives, slicing loaf of bread, using {microplane grater, pestle and mortar, speed peeler, toaster, tongs}, zesting lemon
Actions add, arrange, change temperature, chop, clean, close, cut apart, cut dice, cut off ends, cut out inside, cut stripes, cut, dry, enter, fill, gather, grate, hang, mix, move, open close, open egg, open tin, open, package, peel, plug, pour, pull apart, pull up, pull, puree, purge, push down, put in, put lid, put on, read, remove from package, rip open, scratch off, screw close, screw open, shake, shape, slice, smell, spice, spread, squeeze, stamp, stir, strew, take apart, take lid, take out, tap, taste, test temperature, throw in garbage, turn off, turn on, turn over, unplug, wash, whip, wring out
Table 2.2: MPII Cooking 2 Dataset [142]. Additional 41 dishes that were added to the MPII Cooking 2 dataset and 67 annotated actions are listed. The dishes that were added are slightly shorter and simpler than the dishes in the MPII Cooking dataset.

2.2.4 Discussion

The KTH and Weizmann datasets set a good stepping stone for the field of action recognition through their heterogeneous selection of actions and systematic variations in its parameters. The controlled settings, such as absence of occlusion and clutter, limited variations in illumination and camera motion, allow these datasets to be ideal for standard testing. Unfortunately, good performance on the KTH and Weizmann datasets does not suffice to determine the algorithm’s proficiency in real-world videos due to the richness and complexity of the videos in the real-world. In fact, while state-of-the-art action recognition algorithms routinely achieve greater than 90% recognition accuracy on these datasets, they perform far less well on the more naturalistic datasets that are to be introduced in the remainder of this chapter. For this reason, strong performance on the KTH and Weizmann datasets is no longer of much interest in the field.

The MPII Cooking 2 dataset shifts the focus of recognizing full-body movements (e.g. run, jump) to classifying actions with small motions. This fine-grained categorization can assist in differentiating visually similar activities that frequently occur in daily living (e.g. hug vs. hold someone and throw in garbage vs. put in drawer). The MPII Cooking 2 dataset also provides data for the often neglected but more challenging and realistic temporal detection task.

2.3 Still Camera with Background Motion

To accommodate the lack of naturalistic settings in the KTH and Weizmann datasets, in particular the clean nature of the background, the next step was to test algorithms on videos with a dynamic background. In this section, the CMU Crowded Videos dataset and the MSR Action Dataset I, II, which contain videos with background motion and clutter will be examined. Dynamic background was obtained by recording videos in environments with moving cars and people.

2.3.1 The CMU Crowded Videos Dataset

A group from Carnegie Mellon University (CMU) was one of the first to assemble a dataset, called the CMU Crowded Videos Dataset [76], for the action recognition and detection tasks that contain background motion. The CMU Crowded Videos Dataset focuses on five actions: pick-up, one-hand wave, push button, jumping jack, and two-hand wave. As many of the actions in the CMU Crowded Video dataset overlap those in the KTH and Weizmann, it was also one of the first cross-datasets that appeared in the field. That is, one of the training videos that is supplied in this dataset is the exact same video as the two-hand wave in the KTH dataset.

The CMU Crowded Videos dataset contains 5 training videos for each action and 48 test videos. Each training video is performed by a single individual on a static background. The test videos contain three to six individuals different from those in the training set, and contains one to six instances of any three actions in no particular order (see Figure 2.3). All videos, training and testing, have been scaled such that the spatial resolution of each video is . All videos have a frame rate of 30 fps, except the two handed wave, which has a frame rate of 25 fps. The test videos range from 5 to 37 seconds (166 to 1115 frames). The authors provide spatial and temporal coordinates (x, y, height, width, start, and end frames) for specified actions as ground truth, giving researchers the option to evaluate the ability of an algorithm to recognize and detect actions of interest. The detected action is considered a true positive if there is greater than 50% overlap (in space and time) with the labelled action.

(a) Templates
(b) Test Videos
Figure 2.3: The CMU Clutter Dataset. The CMU Clutter dataset contains five actions (top-to-bottom): pick-up, one-hand wave, push button, jumping jack, and two-hand wave. Select frames of the (a) templates and (b) test/search set are shown. The pink silhouettes overlaid on the test sequences are the best matches obtained from the template action, and the white bounding boxes indicate the match location of the upper and lower body parts. Redrawn from [76].

2.3.2 The MSR Action Dataset I, II

The Microsoft Research Group (MSR) also created action recognition datasets, referred to as the MSR Action dataset I [219] and MSR Action dataset II [20], where II is a direct extension of I. These were made available in 2009 and 2010, respectively. Similar to the CMU Crowded dataset, the purpose of the MSR Action dataset construction was to obtain videos that contain cluttered and/or dynamic backgrounds [20, 219]. The datasets were assembled to detect 3 actions: clap, (two-)hand wave, and boxing. The MSR Action datasets are instances of a full cross-dataset333Cross-datasets allow researchers to develop general algorithms deviating from action- or dataset-specific recognition algorithms.. That is, to use the test videos in the MSR datasets, the actions must be trained using the videos in the KTH dataset. Each test sequence contains multiple actions, varies in the number of participants performing the action, the number of individuals in the video, and the number of actions that occur simultaneously. Some sequences contain actions performed by a single individual, some performed by different individuals at a time, and some performed by two individuals simultaneously.

The MSR Action dataset I contains 24 instances of box, 24 instances of a two-hand wave, and 14 instances of clap, tallying 62 instances in total for 16 video sequences. The MSR Action dataset II, on the other hand, contains 81, 71, and 51 instances of box, wave, and clap, respectively, to sum up to a total of 203 instances of the three actions in a set of 54 videos. All videos in the MSR Action dataset I have a frame rate of 15 fps, and ranges from 32 to 76 seconds (480 to 1149 frames). Videos in the MSR Action dataset II, on the other hand, have varying frame rates ranging from 14 to 15 fps, and are 21 to 85 seconds (321 to 1284 frames) long. All videos in both the MSR Action dataset I and II have a spatial resolution of , and are filmed using a static camera. As mentioned before, the videos from the KTH dataset that correspond to the three actions: box, wave, and clap are used for training, and the videos provided by MSR are used for testing. Both the spatial and temporal coordinates of each action instance are provided for ground truth allowing the dataset to be used for action detection, as well as recognition. Although the original documentation of the MSR datasets do not specify the evaluation criterion, many papers that have used the MSR dataset for spatiotemporal action detection [180] consider the localized result a true positive if the IoU (2.3) between the ground truth data and the detected result is greater than or equal to some constant , where [173] and [180].

Figure 2.4: KTH vs. MSR. Comparison between the KTH dataset (top row) and the MSR dataset (bottom row) for actions boxing, two-hand wave, and clap (left-to-right). Redrawn from [20].

2.4 Action Recognition in Activity Videos

Along with many other videos, there are also plentiful sports and performance videos online that require categorization for accessible browsing and organization. A group from UC Berkeley collected videos from various sources to gather clips that frequently appear in ballet, tennis, and soccer [34]. This marked the beginning stages of collecting videos from multiple angles and moving cameras. In the following section, four activity-related action recognition/detection datasets will be introduced: the UC Berkeley Sports Dataset, the UCF Sports dataset, the Olympic Dataset, and Sports-1M.

2.4.1 The UC Berkeley Dataset

The UC Berkeley dataset consists of videos from three types of activities: ballet, tennis, and soccer. The ballet videos were collected from instructional videos, which contain four professional ballet dancers (two ballerinas and two ballerinos) performing mostly standard ballet moves. 16 ballet actions (standard moves) were chosen for the task of action detection: second position plies, first position plies, releve, down from releve, point toe and step right, point toe and step left, arms first position to second position, rotate arms in second position, degage, arms first position forward and out to second position, arms circle, arms second to high fifth, arms high fifth to first, port de dras, right arm from high fifth to right, and port de bra flowy arms (refer to Figure 2.4(a) to view select frames of each action). Each action was choreographed and all videos were filmed with a stationary camera.

Two amateur tennis players playing tennis outdoors were recorded to gather videos for the tennis portion of the dataset. Videos were filmed on different days at different courts with slightly different camera positions to test variation in setting and perspective. Six actions were selected to complete the task of action recognition in tennis videos, which are: swing, move left, move right, move left and swing, move right and swing, and stand (refer to Figure 2.4(b) to see select frames from the tennis set).

The videos for the soccer component were gathered from footages of the World Cup games. Among many angles that were available, only wide-angle shots of the playing field were collected. This angle forces each human figure to span pixels on average, which is coarse for a video with a resolution of . Unlike the ballet and tennis videos, there is camera motion in the videos, a new challenge in the field of action recognition that has yet to have been introduced. The task is to differentiate between running and walking motions in specific directions. There are a total of eight categories for the soccer component: run left 45, run left, walk left, walk in/out, run in/out, walk right, run right, and run right 45.

Unfortunately, the UC Berkeley dataset is no longer available for use and cannot be accessed anywhere. Therefore, a quantitative summary of this dataset is omitted.

(a) The UC Berkeley Ballet Dataset. Select frames that represent the 16 ballet actions are shown (left to right): (i) second position plies, (ii) first position plies, (iii) releve, (iv) down from releve, (v) point toe and step right, (vi) point toe and step left, (vii) arms first position to second position, (viii) rotate arms in second position, (ix) degage, (x) arms first position forward and out to second position, (xi) arms circle, (xii) arms second to high fifth, (xiii) arms high fifth to first, (xiv) port de dras, (xv) right arm from high fifth to right, and (xvi) port de bra flowy arms.
(b) The UC Berkeley Tennis Dataset. Select frames of tennis player swing, move left and stand are illustrated amongst the 6 tennis actions: swing, move left, move right, move left and swing, move right and swing, stand in the UC Berkeley Tennis Dataset.
(c) The UC Berkeley Soccer Dataset. A frame from a wide-angle shot of the playing field (left). Illustration of a player walking to the left (centre) and running 45 to the right (right).
Figure 2.5: The UC Berkeley Dataset. The UC Berkeley dataset contains actions in ballet, tennis, and soccer. Redrawn from [34].

2.4.2 UCF Sports Dataset

The actions in the UCF Sports [140, 162] dataset were selected based on those that are typically featured in broadcast television channels, such as BBC and ESPN. The initial release of the dataset [140] consisted of nine actions: diving, golf swing, kicking, lifting, horseback riding, running, skateboarding, swinging a baseball bat, and pole vaulting (see Figure 2.5(a)). However, in the next release of the dataset [162], swinging a baseball bat and pole vaulting, had been removed and swinging on a pommel horse and floor, swinging on parallel bars, and walking have been added to the second (and final) release of the UCF Sports dataset (see Figure 2.5(b)). Similar to the soccer videos of the UC Berkeley Dataset, the videos in the UCF Sports dataset contain camera motion and complex backgrounds.

The UCF Sports dataset contains 150 clips ranging from 6 to 22 clips for the ten actions. Each clip has a frame rate of 10 fps. The spatial resolution of the videos range from to and are 2.20 to 14.40 seconds in duration, averaging 6.39 seconds. Two experimental setups for the task of action recognition (leave-one-out and five-fold cross-validation) and one for action detection (pre-defined split) are used with this dataset. The authors provide temporal, as well as spatial coordinates for each action for the ground truth allowing this dataset to be used for both action recognition and spatiotemporal detection tasks444Although there are 150 clips in the UCF Sports dataset, only 140 clips contain ground truth data..

(a) UCF Sports I. Select frames for eight of nine actions (left-to-right, then top-to-bottom): kicking, lifting, golf swing, horseback riding, baseball swing, skateboarding, pole vaulting, and running from the first version of the UCF Sports Dataset are displayed. Redrawn from [140].
(b) UCF Sports II. Select frames of ten actions (left-to-right, then top-to-bottom): diving, golf swing, kicking, lifting, horseback riding, running, skateboarding, swinging on a pommel horse, swinging on parallel bars, and walking from the latest version of the UCF Sports Dataset are illustrated. Redrawn from [163].
Figure 2.6: UCF Sports Datasets. Two versions of the UCF Sports Dataset are illustrated.

2.4.3 The Olympic Dataset

The Olympic Dataset [121] is a collection of Olympic sports videos extracted from YouTube. It contains 16 events that can be found in the Olympics: high jump, long jump, triple jump, pole vault, discus throw, hammer throw, javelin throw, shot put, basketball layup, bowling, tennis serve, platform (diving), springboard (diving), snatch (weightlifting), clean and jerk (weightlifting) and vault (gymnastics) (see Figure 2.7), where each event contains approximately 50 sequences on average. It is suggested that the videos are split into 40:10 training:testing sequences for each action class as an experimental setup. The specific splits for training and testing can be found on their website: http://vision.stanford.edu/Datasets/OlympicSports/. All sequences in this dataset are stored in .seq format, which requires special toolboxes to read. A summary of the file formats for these videos is omitted as the toolbox is difficult to use. Using the information obtained to split the data, this dataset is used to evaluate how accurately an algorithm can classify an action.

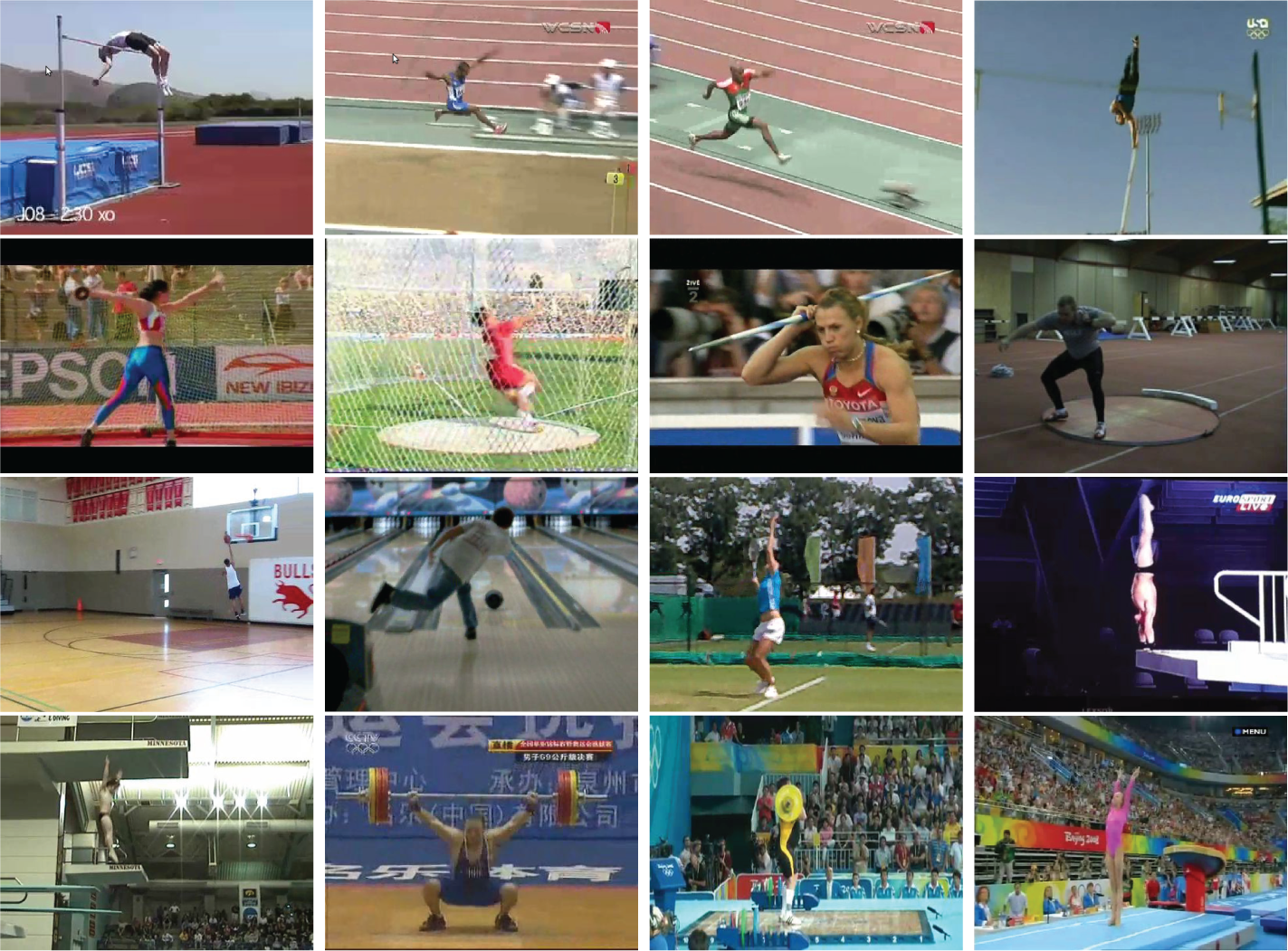

Figure 2.7: The Olympic Dataset. The Olympics Dataset contains 16 actions: high jump, long jump, triple jump, pole vault, discus throw, hammer throw, javelin throw, shot put, basketball layup, bowling, tennis serve, platform (diving), springboard (diving), snatch (weightlifting), clean and jerk (weightlifting), and vault (gymnastics) [121].

2.4.4 Sports-1M

The Sports-1M [73] consists of over a million videos from YouTube. The videos in the dataset can be obtained through the YouTube URL specified by the authors. Unfortunately, approximately 7% of the videos have been removed by the YouTube uploaders since the dataset was compiled [118]. This could change the training, validation, and/or testing set used in different experiments. However, there are still over a million videos in the dataset with 487 sports-related categories with to videos per category. The videos are automatically labelled with 487 sports classes using the YouTube Topics API [215] by analyzing the text metadata associated with the videos (e.g. tags, descriptions). While such large-scale dataset may be deemed useful to train CNN-based algorithms that are prone to overfitting on smaller datasets like UCF101 and HMDB51, the Sports-1M dataset must be used with caution. First, videos are gathered automatically and therefore labels are weak [41, 142]. Second, approximately 5% of the videos are annotated with more than one class [73, 118]. Thus, the training video may not portray discriminative features of specific actions. Third, since users can post duplicate videos on YouTube, the same video could appear in both the training and testing sets [73].

The spatial resolution of the videos range between and pixels with a duration of to frames. The Sports-1M dataset is split into 70% training, 10% validation, and 20% testing sets. It is suggested that the videos are tested using a 10-fold cross-validation. The specific splits for each set can be found on the author’s website: http://cs.stanford.edu/people/karpathy/deepvideo/.

2.4.5 Discussion

Although these activity datasets have shown to be more difficult due to the presence of camera motion, the actions presented in these sets have shown to be relatively easy to identify. That is, by either analyzing the scene independent of the action or a pose of the actor in a single frame, an algorithm is likely to identify the action correctly [185]. This holds true because sports are location-specific (i.e. swimming-related events always occur in water and skiing on snow) and particular poses are only valid in specific sports (e.g. clean and jerk is specific to weightlifting) [28, 83, 86, 162].

2.5 Action Recognition in Movies

In efforts to create a dataset that meets the demands of applications in the real-world for action recognition, videos unrestricted of camera motions, scene context, spatial segmentation, and viewpoints had to be collected. The advent of unrestricted video dataset began with the collection of individuals “drinking” in movies “Coffee and Cigarettes” as well as “Sea of Love” [89]. Similarly, videos from eight different movies were gathered to collect 92 samples of “kissing” and 112 samples of “hitting/slapping” [140]. The datasets extracted from movies gained popularity in the action recognition community when more actions were added to the datasets. The two most widely used datasets from movies are Hollywood1 [88] and Hollywood2 [107].

2.5.1 Hollywood1

The Hollywood1 dataset [88] contains eight actions: answer the phone (AnswerPhone), get out of car (GetOutCar), handshake (HandShake), hug person (HugPerson), kiss, sit down (SitDown), sit up (SitUp), and stand up (StandUp) (see Figure 2.7(a)), extracted from 32 movies. The Hollywood1 dataset is randomly split into two sets: training and testing with 12 and 20 non-overlapping movies per set, respectively. The training set is further partitioned into automatic and clean datasets. The automatic training

set contains 233 action samples with 239 labels collected via unsupervised learning of automated script classification. The

clean training

set, in contrast, contains 219 clips with 231 action labels and demonstrates supervised learning. That is, the clean training set has been manually selected to contain correct samples of the action classes retrieved from the text classification step. The

test set contains 211 clips with 217 action classes, which have been manually selected to discard false identifiers that arose from the script annotation step. Most clips in this dataset contain one action, and at most two actions per clip. The specific splits for training and test can be found on their website: http://www.irisa.fr/vista/actions. The videos in this dataset have a frame rate from 23 to 25 fps, spatial resolution from to , and are 1 (41 frames) to 4 minutes and 48 seconds (7216 frames) long. The AP (2.1) and mAP (2.2) scores are used to evaluate the performance of the system.

2.5.2 Hollywood2

In addition to the actions in the Hollywood1 dataset, four new actions (drive a car (DriveCar), eat, fight a person (FightPerson), and run) were added from 69 movies to the Hollywood2 dataset [107] (see Figure 2.7(b)). Furthermore, to determine if algorithms benefit from drawing correlations between scene context and actions, ten scene settings: house, road, bedroom, car, hotel, kitchen, living room, office, restaurant, and shop were also provided in the dataset. The scenes were further categorized into either exterior (EXT) or interior (INT) scenes. Similar to the Hollywood1 dataset, the Hollywood2 dataset is split into automatic training, clean training, and testing sets. Again, the pre-defined splits can be found on the author’s website: http://www.di.ens.fr/~laptev/actions/hollywood2/. The videos in this dataset have a frame rate of 23 to 29 fps, a spatial resolution of to , and a duration ranging from 2 seconds (59 frames) to 8 minutes and 5 seconds (12131 frames). All clips within the dataset are trimmed such that it contains one of twelve actions. Furthermore, the ground truth data only provide the action label for each clip. Thus, this dataset is useful for the task of action recognition and cannot be used for action detection.

(a) Hollywood1 Dataset. The Hollywood1 dataset contains eight actions (left-to-right): answer the phone (AnswerPhone), get out of car (GetOutCar), handshake (HandShake), hug person (HugPerson), kiss, sit down (SitDown), sit up (SitUp), and stand up (StandUp). Redrawn from [88].
(b) Hollwood2 Dataset. The Hollywood2 dataset contains twelve actions (left-to-right): get out of car (GetOutCar), run (Run), sit up (SitUp), drive a car (DriveCar), eat (Eat), kiss (Kiss), stand up (StandUp), answer the phone (AnswerPhone), shake hands (HandShake), fight (FightPerson), sit down (SitDown), and hug (HugPerson). Redrawn from [106].
Figure 2.8: Hollywood1 and Hollywood2 Datasets. Select frames of actions in (a) Hollywood1 and (b) Hollywood2 datasets are illustrated.

2.5.3 Discussion

Both datasets, Hollywood1 and Hollywood2, pose great challenges in the computer vision community as both databases contain diverse camera views, dynamic background, foreground clutter, frequent occlusions, and large intra-class variations. Although a plenitude parameter variations are considered, such as camera motion and clutter, all clips in these datasets are filmed by professional camera crew under controlled lighting conditions. These conditions are not very representative of the videos that we would encounter in the real-world. Furthermore, the parameter variations are not arranged in a systematic way, which brings difficulties in identifying the exact strengths and weaknesses of any action recognition approach.

2.6 Action Recognition in Home Videos

With over 600 hours of home videos that are uploaded per minute on video-sharing websites like YouTube [214], categorization of videos is in great demand. Automated action recognition could be of great assistance in resolving this issue. Home videos are typically recorded in unconstrained environments, therefore contain diverse variations, such as random camera motion, poor lighting conditions, foreground clutter, movement in background, changes in scale, appearance, view points, and limited focus on the action of interest [139]. Thus, to apply action recognition/detection algorithms in the real-world, scientists at the Centre for Research in Computer Vision at the University of Central Florida (UCF) collected videos from YouTube and other stock footage websites to construct a dataset that is more representative of real-world situations. Many datasets have been made publicly available by UCF to the computer vision community for non-commercial research purposes.

2.6.1 UCF11 (YouTube Action), UCF50, and UCF101

Each of the UCF11 (also known as UCF YouTube Action) [96], UCF50 [139], and UCF101 [163] is an extension of the previous dataset. The videos for each action are assorted into 25 groups, where each group contains of 4-7 action clips. The clips are grouped according to common features videos share, such as the person in the video, background setting, and/or viewpoint.

The original release of the UCF11 dataset contains videos with various spatial resolution, frame rate, and duration. In the latest release, the frame rate has been fixed to a constant rate of 29 fps, the spatial resolution ranges between to , and the videos are less than a second (22 frames) to 29 seconds (900 frames) in length. The UCF50 and UCF101 datasets contain a total of 555The official report of the UCF50 dataset [139] documents a total of 6676 videos in the UCF50 dataset. However, the downloadable UCF50 dataset contains 6681 videos.and videos, respectively, with at least 100 videos for each action class. All videos in both the UCF50 and UCF101 dataset have a spatial resolution of , and its frame rates are either 25 or 29 fps. The leave-one-out cross-validation scheme is employed for all UCF11, UCF50, and UCF101 datasets and an additional experimental setup of train/test split is recommended for the UCF101 dataset. Three specific train/test splits are suggested for the UCF101 dataset, in which each group is kept separate such that the clips from the same group are not shared in training and testing. Each test split has 7 different groups and their respective remaining 18 groups are used for training.

The UCF101 dataset is a compilation of videos with the following actions: Apply Eye Makeup, Apply Lipstick, Archery, Baby Crawling, Balance Beam, Band Marching, Baseball Pitch, Basketball Shooting, Basketball Dunk, Bench Press, Biking, Billiards Shot, Blow Dry Hair, Blowing Candles, Body Weight Squats, Bowling, Boxing Punching Bag, Boxing Speed Bag, Breaststroke, Brushing Teeth, Clean and Jerk, Cliff Diving, Cricket Bowling, Cricket Shot, Cutting In Kitchen, Diving, Drumming, Fencing, Field Hockey Penalty, Floor Gymnastics, Frisbee Catch, Front Crawl, Golf Swing, Haircut, Hammer Throw, Hammering, Handstand Push-ups, Handstand Walking, Head Massage, High Jump, Horse Race, Horse Riding, Hula Hoop, Ice Dancing, Javelin Throw, Juggling Balls, Jump Rope, Jumping Jack, Kayaking, Knitting, Long Jump, Lunges, Military Parade, Mixing Batter, Mopping Floor, Nunchucks, Parallel Bars, Pizza Tossing, Playing Guitar, Playing Piano, Playing Tabla, Playing Violin, Playing Cello, Playing Daf, Playing Dhol, Playing Flute, Playing Sitar, Pole Vault, Pommel Horse, Pull Ups, Punch, Push Ups, Rafting, Rock Climbing Indoor, Rope Climbing, Rowing, Salsa Spins, Shaving Beard, Shot put, Skate Boarding, Skiing, Skijet, Sky Diving, Soccer Juggling, Soccer Penalty, Still Rings, Sumo Wrestling, Surfing, Swing, Table Tennis Shot, Tai Chi, Tennis Swing, Throw Discus, Trampoline Jumping, Typing, Uneven Bars, Volleyball Spiking, Walking with a dog, Wall Push-ups, Writing On Board, Yo-Yo (see Figure 2.10). These actions are divided into five groups: human-object interaction, body-motion only, human-human interaction, playing musical instruments, and sports. The categorization of each action into the groups are summarized in Table 2.3. The actions comprised in the UCF11 and UCF50 are summarized in Figures 2.8(a) and 2.8(b).

(a) UCF11 Dataset
(b) UCF50 Dataset
Figure 2.9: UCF11 [96] and UCF50 [139]. (a) Actions in the UCF11 dataset include (top-to-bottom): basketball shooting (b_shooting), cycling, diving, golf swinging (t_swinging), horse back riding (r_riding), soccer juggling (s_juggling), swinging, tennis swinging (t_swinging), trampoline jumping (t_jumping), volleyball spiking (v_spiking), and walking with a dog (g_walking). Redrawn from [96]. (b) Actions in the UCF50 dataset include (left-to-right, then top-to-bottom): Baseball Pitch, Basketball Shooting, Bench Press, Biking, Billiards Shot, Breaststroke, Clean and Jerk, Diving, Drumming, Fencing, Golf Swing, High Jump, Horse Race, Horseback Riding, Hula Hoop, Javelin Throw, Juggling Balls, Jumping Jack, Jump Rope, Kayaking, Lunges, Military Parade, Mixing Batter, Nunchucks, Pizza Tossing, Playing Guitar, Playing Piano, Playing Tabla, Playing Violin, Pole Vault, Pommel Horse, Pull Ups, Punch, Push-Ups, Rock Climbing Indoors, Rope Climbing, Rowing, Salsa Spins, Skate Boarding, Skiing, Ski-jet, Soccer Juggling, Swing, TaiChi, Tennis Swing, Throwing a Discus, Trampoline Jumping, Volleyball Spiking, Walking with a dog, and Yo-Yo. Redrawn from [138].

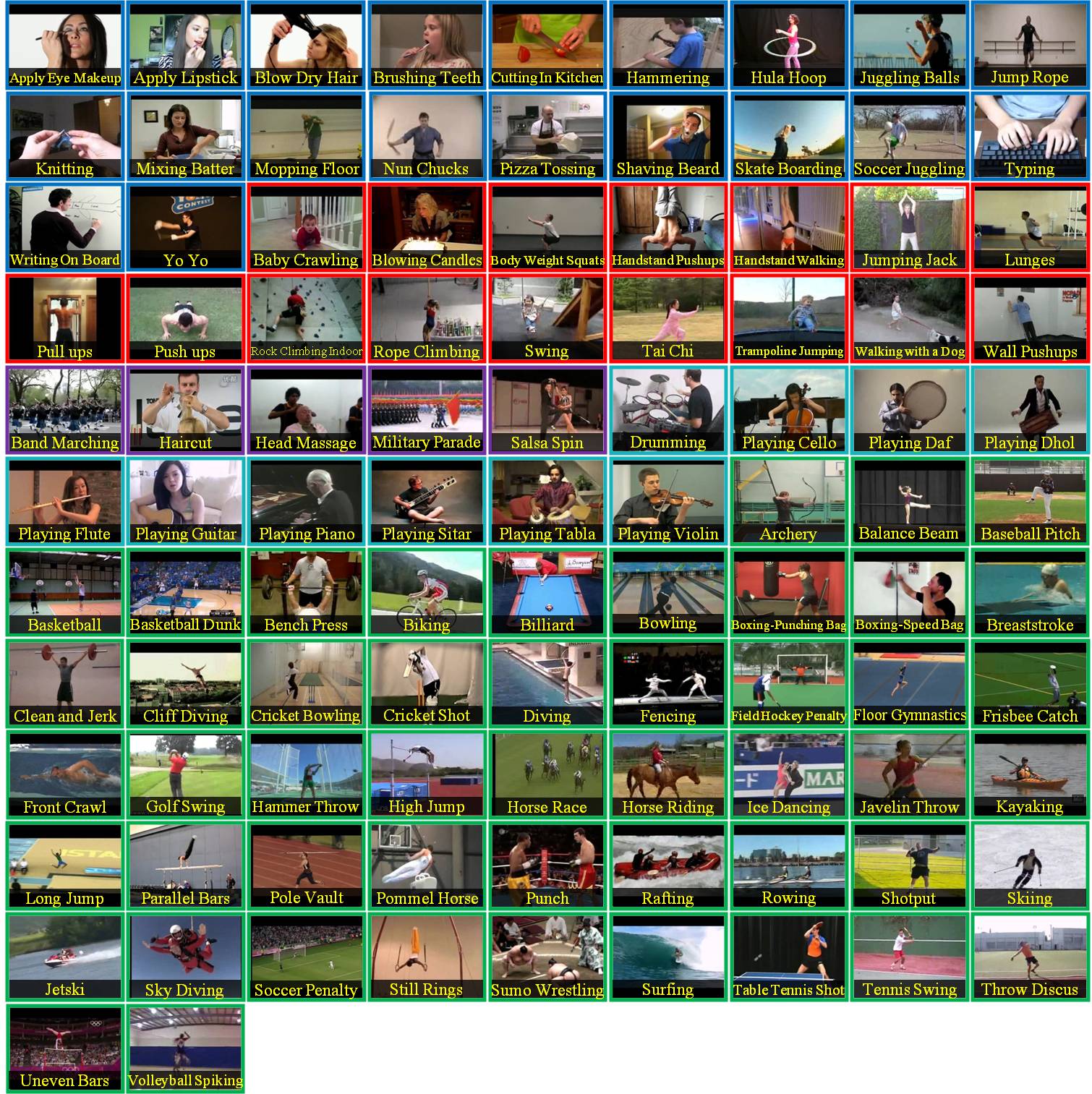

Figure 2.10: UCF101 Dataset [163]. Actions in the UCF101 dataset include (left-to-right then top-to-bottom): Apply Eye Makeup, Apply Lipstick, Blow Dry Hair, Brushing Teeth, Cutting In Kitchen, Hammering, Hula Hoop, Juggling Balls, Jump Rope, Knitting, Mixing Batter, Mopping Floor, Nun chucks, Pizza Tossing, Shaving Beard, Skate Boarding, Soccer Juggling, Typing, Writing On Board, Yo-Yo, Baby Crawling, Blowing Candles, Body Weight Squats, Handstand Pushups, Handstand Walking, Jumping Jack, Lunges, Pull Ups, Push-Ups, Rock Climbing Indoor, Rope Climbing, Swing, Tai Chi, Trampoline Jumping, Walking with a dog, Wall Push-ups, Band Marching, Haircut, Head Massage, Military Parade, Salsa Spins, Drumming, Playing Cello, Playing Daf, Playing Dhol, Playing Flute, Playing Guitar, Playing Piano, Playing Sitar, Playing Tabla, Playing Violin, Archery, Balance Beam, Baseball Pitch, Basketball Shooting, Basketball Dunk, Bench Press, Biking, Billiards Shot, Bowling, Boxing Punching Bag, Boxing Speed Bag, Breaststroke, Clean and Jerk, Cliff Diving, Cricket Bowling, Cricket Shot, Diving, Fencing, Field Hockey Penalty, Floor Gymnastics, Frisbee Catch, Front Crawl, Golf Swing, Hammer Throw, High Jump, Horse Race, Horse Riding, Ice Dancing, Javelin Throw, Kayaking,Long Jump, Parallel Bars, Pole Vault, Pommel Horse, Punch, Rafting, Rowing, Shot put, Skiing, Skijet, Sky Diving, Soccer Penalty, Still Rings, Sumo Wrestling, Surfing, Table Tennis Shot, Tennis Swing, Throw Discus, Uneven Bars, and Volleyball Spiking. Redrawn from [163].
Category Actions
1 Human-Object Interaction Apply eye makeup, apply lipstick, blow dry hair, brushing teeth, cutting in kitchen, hammering, hula hoop, juggling balls, jump rope, knitting, mixing batter, mopping floor, nun chucks, pizza tossing, shaving beard, skate boarding, soccer juggling, typing, writing on board, and yo-yo
2 Body-Motion Only baby crawling, blowing candles, body weight squats, handstand push-ups, handstand walking, jumping jack, lunges, pull ups, push ups, rock climbing indoor, rope climbing, swing, tight, trampoline jumping, walking with a dog, and wall push-ups
3 Human-Human Interaction band marching, haircut, head massage, military parade, and salsa spin
4 Playing musical instruments drumming, playing cello, playing dad, playing dhol, playing flute, playing guitar, playing piano, playing sitar, playing tabla, and playing violin
5 Sports Archery, balance beam, baseball pitch, basketball, basketball dunk, bench press, biking, billiard, bowling, boxing-punching bag, boxing-speed bag, breaststroke, clean and jerk, cliff diving, cricket bowling, cricket shot, diving, fencing, field hockey penalty, floor gymnastics, frisbee catch, front crawl, golf swing, hammer throw, high jump, horse race, horse riding, ice dancing, javelin throw, kayaking, long jump, parallel bars, pole vault, pommel horse, punch, rafting, rowing, shot-put, skiing, jets, sky diving, soccer penalty, still rings, sumo wrestling, surfing, table tennis shot, tennis swing, throw discus, uneven bars, and volleyball spiking
Table 2.3: UCF101 Dataset categorization [163].

2.6.2 ActivityNet

ActivityNet [51] is a large-scale video benchmark dataset for human activity understanding. Note, some instances of ‘activities’ in the ActivityNet dataset are ‘events’ by the definitions of this document as opposed to actions (see Chapter 1). Nevertheless, it covers a wide-range of complex human actions, with ample samples per class, that occur in our daily living. The classes are organized semantically according to social interactions and where the actions would generally take place (see Table LABEL:tab:ActivityNet for the ActivityNet semantic taxonomy). The actions are categorized in multiple levels. This hierarchical organization can be useful for (i) algorithms that are able to exploit hierarchy during model training, and (ii) precise analysis of actions that are more suited for certain algorithms over others. Two versions of the ActivityNet dataset have been released: ActivityNet 100 (release 1.2) and ActivityNet 200 (release 1.3). ActivityNet 100 contains 100 action classes, training videos with instances, validation videos with instances, and testing videos with the labels withheld for use in future challenges. ActivityNet 200 contains 203 action classes, training videos with instances, validation videos with instances, and testing videos with its labels withheld as well. The list of actions and the splits can be found on the author’s website: http://activity-net.org/index.html.

All videos in ActivityNet are obtained from video sharing sites, such as YouTube. The videos are downloaded at the best quality available, approximately half of which have HD resolution of . The majority of the videos in the dataset have a duration between 5 to 10 minutes with a frame rate of 30 fps. The dataset contains both temporally trimmed and untrimmed videos with an average of 1.41 trimmed video for each untrimmed video. This allows for classification of (i) trimmed action recognition, (ii) untrimmed action recognition, and (iii) temporal action detection. The trimmed action recognition set contains 203 classes of actions with an average of 193 samples per class, where each video contains a single instance of the action. Instances from a single video are forced to stay in the same training, validation, or test sets to avoid data contamination. The untrimmed action recognition set contains videos belonging to 203 action classes, where each video can contain more than one activity. The set is randomly divided into 50% training, 25% validation, and 25% test sets. The temporal action detection set contains 849 hours of video, where the detection algorithm should identify the start and end frames of all actions present in the untrimmed test video sequence. Like trimmed and untrimmed recognition sets, the set is randomly divided into 50% training, 25% validation, and 25% test sets. mAP (2.2) is used to measure the performance of all three tasks. A detection is considered a true positive if the IoU score (2.3) between a predicted temporal segment and the ground truth segment is greater than some constant . Authors report results on varying values of from to in increments of 0.1.

2.6.3 Discussion

The UCF101 dataset was one of the most challenging and largest datasets in action recognition and detection. Recently, the ActivityNet Dataset has taken the role and has become one of the most difficult for its large-scale and unconstrained characteristic of the videos. Both UCF101 and ActivityNet datasets contain videos that closely resemble videos that can be found in the real-world. Thus, algorithms that perform well in these datasets have great potential for use in real-life scenarios.

2.7 The Human Motion Databases

In efforts to collect videos that would capture the complexity of videos found in movies and videos online, the large Human Motion Database (HMDB51) [83] was created by collecting videos from various sources, such as movies, YouTube, and Google videos.

2.7.1 Hmdb51

A total of 51 actions were selected for the HMDB51 database, where the actions were broadly categorized into five groups: 1) general facial actions, 2) facial actions with object manipulation, 3) general body movements, 4) body movements with object interaction, and 5) body movements for human interaction (see Table 2.4 and Figure 2.11). There are a total of clips in the HMDB51 dataset with each action containing at least 102 clips. To test the strengths and weaknesses in context of various nuisance factors, each video is annotated with a meta tag, which provides information like camera viewpoint, presence/absence of camera motion, video quality, number of actors involved in the action, and visible body part (see Table 2.5). Three distinct training and testing splits are suggested for experimentation, where each split was generated to ensure that the clips from the same video did not appear in both the training and testing sets while there was an even distribution of meta tags across the sets. Each split contains 70 training and 30 testing videos with the excess videos excluded from the split. All the videos in the dataset have been normalized for a consistent height of 240 pixels and the widths have been scaled accordingly, ranging between 176 and 592 pixels, to maintain the original aspect ratio. All videos are trimmed to contain one of 51 actions, and the location of each action is not provided as a ground truth. Thus, this dataset is useful for testing classification.

Category Actions
1 General facial actions smile, laugh, chew, talk
2 Facial actions with object manipulation smoke, eat, drink
3 General body movements cartwheel, clap hands, climb, climb stairs, dive, fall on the floor, backhand flip, hand-stand, jump, pull up, push up, run, sit down, sit up, somersault, stand up, turn, walk, wave
4 Body movements with object interaction brush hair, catch, draw sword, dribble, golf, hit something, kick ball, pick, pour, push something, ride bike, ride horse, shoot ball, shoot bow, shoot gun, swing baseball bat, sword exercise, throw
5 Body movements for human interaction fencing, hug, kick someone, kiss, punch, shake hands, sword fight
Table 2.4: HMDB51 Dataset categorization [83].
Figure 2.11: HMDB51. Actions in the HMDB51 dataset include (left-to-right): brush hair, cartwheel, catch, chew, clap, climb, climb stairs, dive, draw sword, dribble, drink, eat, fall floor, fencing, flic flac, golf, hand stand, hit, hug, jump, kick, kick ball, kiss, laugh, pick, pour, pull-up, punch, push, push up, ride bike, ride horse, run, shake hands, shoot ball, shoot bow, shoot gun, sit, sit-up, smile, smoke, somersault, stand, swing baseball, sword exercise, sword, talk, throw, turn, walk, and wave. Redrawn from [83].
Property Labels
1 Visible Body Parts head, upper body, full body, lower body
2 Camera Motion motion, static
3 Camera Viewpoint front, back, left, right
4 Number of People involved in the Action single, two, three
5 Video Quality good, medium, ok
Table 2.5: HMDB51 Dataset Meta Tag Labels [83].

2.7.2 J-Hmdb

To better understand and analyze the limitations and identify components of algorithms for improvement on overall accuracy on the HMDB51 dataset, a joint-annotated HMDB (J-HMDB) dataset has been made available [66]. Among the 51 different human action categories that were collected for the HMDB51 dataset, categories that mainly contain facial expressions (e.g. smiling), interaction with others (e.g. shaking hands), and very specific actions (e.g. cartwheels) were excluded. As a result, 21 classes that involve a single individual performing the action has been chosen, which includes: brush hair, catch, clap, climb stairs, golf, jump, kick ball, pick, pour, pull-up, push, run, shoot ball, shoot bow, shoot gun, sit, stand, swing baseball, throw, walk, and wave.

There are 36 to 55 clips per action class with each clip containing about 15-40 frames, summing to a total of 928 clips in the dataset. Each clip is trimmed such that the first and last frames correspond to the beginning and end of an action. All clips have a spatial resolution of with a frame rate of 30 fps. The dataset is randomly split into three distinct sets for evaluation with the condition that the clips from the same video file are not used for both training and testing. For each action category, 70% of the videos are used for training, and 30% for testing with a relatively even distribution of the meta tags (e.g. camera position, video quality, motion, etc.). A 2D puppet model for annotation, which represents the human body with a set of 10 body parts connected by 13 joints (shoulders, elbows, wrists, hips, knees, ankles, and neck) and 2 landmarks (the face and the core) are provided to allow researchers to test their algorithms on both the spatiotemporal localization and recognition of the specified actions.

2.8 Action Recognition and Detection Challenges

In efforts to encourage researchers in the vision community to develop action recognition and detection algorithms that can be effectively and efficiently applied in natural settings, an international workshop called the THUMOS Challenge took place annually from 2013 to 2015 and ActivityNet Challenge in 2016 in conjunction with various major conferences in computer vision [70, 71, 48, 161]. Three THUMOS challenges: THUMOS’ 13, THUMOS’ 14, THUMOS’ 15, along with the ActivityNet challenge will be surveyed in this section.

2.8.1 Thumos’ 13

The very first THUMOS challenge, THUMOS’ 13, which took place in conjunction with the International Conference on Computer Vision (ICCV) in 2013, consisted of two tasks: the recognition task and the detection task. Both the recognition and the detection tasks were based on videos from the UCF101 dataset (see section 2.6.1). Three training and testing splits were randomly generated such that for each split, 18 of the 25 groups were used as training, and the rest as test data for each action. Each participating team had to submit results to all three training and testing splits that were provided to qualify for the competition. For evaluation, various low-level features (e.g. STIP [87], SIFT [98], and DT [186] features (see section 3.1.2)) with location information, action attributes for the action classes (see Table LABEL:tab:thumos13_classlevelattr), and bounding box annotations (for the detection task) were provided.

The objective of the recognition task was to predict which action amongst the 101 action classes were present in each test clip. Each team was allowed to submit multiple runs. 17 teams took part in the challenge, and a total of 30 runs were submitted. In this competition, 12 teams made use of low-level features (e.g. (improved) DT feature [186, 188], triangulation of SURF [119], 3D HOG [78] and HOF [88], and LPM [153]) (see section 3.1.2), and the rest used newly developed mid-level features (e.g. acton [230], online matrix factorization [19]). The most commonly used methods of encoding and pooling were bag-of-words [159] and/or FVs [62] with a few using spatial/region pooling (see section 3.2). The top 10 performing algorithms used VLAD [65] and/or FV encoding method along with (improved) DT features and an SVM classifier. All teams used either the non-linear or linear SVM for classification with one using neural networks (see section 4.2.2). Even though action attribute information were provided for all videos, there were no submissions that made use of the class-level attributes to recognize the test data. The baseline recognition result reported on the UCF101 data by November of 2012 was 43.9% [163], and the winner of the THUMOS 2013 challenge achieved an overall accuracy of 87.46% using VLAD+FV-encoded iDT features with a linear SVM [189], which is a significant improvement within a year.

The goal of the detection task was to localize the bounding boxes provided in the test videos and to identify the 24 pre-defined action classes. 10 of the 24 classes were selected from the UCF11 dataset, which include: basketball shooting, cycling, diving, golf swing, tennis swing, trampoline jumping, volleyball spiking, and walking the dog; and 14 additional classes: basketball dunk, cliff diving, cricket bowling, fencing, floor gymnastics, horseback riding, ice dancing, long jump, pole vault, rope climbing, salsa spin, skateboarding, skiing, ski-jet, soccer juggling, and surfing; were added to the challenge. A detected result was considered correct if the action class was classified correctly and the intersection-over-union (2.3) was greater than or equal to . Unfortunately, no team took part in the localization task of the THUMOS’ 13 challenge. It is worth noting here that although no team took part in the detection task of the THUMOS’ 13 challenge, there were algorithms that reported detection results on other datasets, such as the UCF Sports dataset and the MSR Action Dataset II [173].

2.8.2 Thumos’ 14

The second THUMOS challenge, THUMOS’ 14, took place the following year in conjunction with the 2014 European Conference on Computer Vision (ECCV). Similar to the previous THUMOS challenge, there were two main tasks in the THUMOS’ 14 challenge: the recognition task and the temporal action detection task. The goal of the recognition task remained the same as the previous year, which was to predict the presence/absence of an action class in a given sequence. The objective of the temporal action detection task, however, was to identify when which of the pre-defined 20 actions had occurred in the test clip without providing the spatial location. For both tasks, four types of data were provided: training, validation, background, and test. The training data were videos extracted from the UCF101 dataset, which were temporally trimmed such that each sequence contained one instance of the action and all irrelevant frames were removed. The other three parts (validation, background, and test data), on the other hand, were collections of untrimmed videos. As in the THUMOS’ 13 challenge, pre-computed low-level feature of the iDT features along with the spatiotemporal information were provided for all (training, validation, background, and test) datasets. Each team was granted at most five submissions of the results for each task, where the run with the best performance was used to rank across other results.

For the action recognition task, the entire UCF101 dataset of temporally trimmed videos was provided for training. The validation set contained 10 untrimmed videos for each class tallying videos in total to allow participants to fine-tune their algorithms and to use as further training data, if necessary. Each validation video contained a primary action with some containing one or more instances of other action classes. The background data, which contained clips, were videos relevant to each action, but did not contain an instance of any of the 101 action classes. For example, a clip of a basketball court without a basketball game taking place was provided as background data for “basketball dunk”. Background data provided verification of the absence of action classes. The test data consisted of temporally untrimmed test videos, which contained one or multiple instances of one, multiple, or none of the action classes were provided as test data. 11 teams took part in the challenge and 35 runs were submitted. 10 participants used DT features while 4 used CNNs. In addition, 9 teams used FVs in conjunction with iDT features (see section 3.1.2 and section 3.2.2). Beyond low-level features, participants used various mid-level features such as face, body and eye features, audio, saliency features, and shot boundary detection. 10 teams used SVM for classification and one team used extreme learning [57, 181]. Using (2.1) and (2.2), the winner of the THUMOS’ 14 action recognition challenge achieved an mAP score of by using iDT features with CNN and SVM as a classifier. The THUMOS’ 14 recognition task was deemed more challenging than the previous year’s as the test videos were temporally untrimmed, which meant that significant portion of some videos did not contain any of the 101 actions. Furthermore, variations of instances, where multiple or no instance of any actions were possibilities in test videos, was another factor that made the classification task more challenging than the previous year’s. These added features in the test videos were embedded to the competition to guide the next generation of action recognition algorithms to be more useful in practical settings.

From the task of spatial and temporal detection, the THUMOS’ 14 detection challenge had been mitigated to temporal detection. The task mitigation led to computational complexity and annotation alleviation. Instead of 24 action classes as in the previous year’s challenge, the detection task called for localization of 20 action classes (baseball pitch, basketball dunk, billiards, clean and jerk, cliff diving, cricket bowling, cricket shot, diving, frisbee catch, golf swing, hammer throw, high jump, javelin throw, long jump, pole vault, shot put, soccer penalty, tennis swing, throw discus, and volleyball spike). Similar to the recognition task, four datasets (training, validation, background, and test) were provided. The training data contained temporally trimmed videos from the UCF101 dataset of the 20 action classes, validation videos with temporal annotations (start and end time) of all instances of the 20 actions were provided in the validation set, the same set of background data as in the recognition task were provided for the 20 actions, and temporally untrimmed videos were provided as test data. As in the recognition task, interpolated AP and mAP metrics were used to measure performance of each action class and each run, respectively. A detection was considered correct if the IoU score (2.3) was greater than 0.5 for the predicted time range and ground truth time range. 3 teams took part in the challenge with 11 submissions in total. All three teams utilized the FV-encoded iDT with CNN features and used 1-vs-rest SVM over temporal windows. The variation amongst the three approaches depended on using either the early or late fusion of the features, system parameters (e.g. window size, step size, hard negatives), post-processing (re-scoring, thresholding), and/or combining with classification scores. The top performing approach, which attained a score of was distinguished in the following three ways [128]

. First, combining the window’s detection score with video’s classification score for the same action class. Second, using additional features such as SIFT, colour moments, CNN, and MFCC. Third, using ASR in their classification process.

2.8.3 Thumos’ 15

The third annual THUMOS challenge, THUMOS’ 15

, took place in conjunction with the 2015 Conference on Computer Vision and Pattern Recognition (CVPR). Identical to previous years’ THUMOS challenges, the THUMOS’ 15 challenge also comprised of two tasks: the

recognition task and the detection task. The objectives of the recognition and detection tasks remained the same as the THUMOS’ 14 tasks, to detect the presence/absence of an action in a given clip and to temporally localize and identify actions in a test video, respectively. Four datasets (training, validating, background, and testing) were provided, as before. The same temporally trimmed videos from the UCF101 dataset were provided for the recognition task and select videos for the chosen 20 actions of the localization task were provided in the training set. and temporally untrimmed validation videos were provided for the classification and detection tasks, respectively, the same background videos were provided for both tasks, and temporally untrimmed videos were provided for test in both tasks.

The same evaluation metrics, AP (

2.1) and mAP (2.2), as in the THUMOS’ 14 challenge, were employed to evaluate the results on each action class and to evaluate the performance of a single run, respectively. The intersection-over-union defined overlap as in the previous challenges (2.3) was used, where the detection was considered correct if the overlap was greater than

. A total of 11 teams participated in the recognition challenge and 52 runs were submitted. 10 of 11 teams used iDT features and ranked in the top 10 of the competition. Various other methods were employed such as deep networks, MFCC, and multi-granularity analysis (VGG, C3D, iDT, and MFCC). Use of enhanced iDT, multi-granularity analysis (VGG), CNN (LCD), along with MFCC and ASR features and a combination of SVM and a logistic regression fusion classifier allowed the winner of the recognition challenge to attain an mAP score of

[207]. Only one team took part in the temporal action detection challenge for which they utilized FV-encoded iDTs, performed multi-granular analysis using VGG and FV, embedded the shot boundary detection method, and used an SVM classifier to attain an mAP score of . With such low participation in the localization task, it is plausible that the datasets for the task had been too computationally demanding and not enough time had been granted for submission.

2.8.4 ActivityNet Challenge

In conjunction with CVPR 2016, the ActivityNet Large Scale Activity Recognition Challenge took place. Similar to the THUMOS challenges, the ActivityNet Challenge also comprised of two tasks: the classification task and the detection task. The objective of the classification challenge was to identify the label of the activities that were present in a given long untrimmed video. The detection challenge required an additional challenge of identifying the temporal extents of the activities that were present in the given video. Similar to the THUMOS challenges, pre-computed features were provided (e.g. ImageNetShuffle and MBH global features, C3D frame-based features, and agnostic temporal activity proposals).

To evaluate the performance of each algorithm, mAP (equation (2.2)) and top- classification accuracy metrics were used. The top-

metric, which measures the probability of the correct class attaining the top

confidence score for , provides additional information about the algorithm, but was not used to determine the winner of the challenge. A detection was considered correct if the IoU score (2.3) was greater than

. Only one submission was permitted per participant. A total of 24 participants took part in the classification challenge and 6 in the temporal detection challenge. Algorithms that achieved top 10 performance in the classification challenge either used handcrafted iDT features, deep-learned convolutional features, or its combination to achieve an mAP score greater than 82.5. The winner of the untrimmed video classification challenge achieved an mAP score of 93.2 by analyzing two complementary components of a video: visual and auditory information. The visual system takes an altered two-stream approach adopting the ResNet and Inception V3 architectures, which are aggregated via top-k pooling and attention weighted pooling. The audio system, on the other hand, combines the FV-encoded standard MFCC features trained on SVMs with audio-based CNNs. Many algorithms in the detection task temporally localized actions by either utilizing (i) the sliding temporal window approach or (ii) using LSTM-RNNs. The winner of the action detection challenge achieved an mAP score of 42.5 using VLAD-encoded IDT combined with C3D features on SVM classifiers.

2.8.5 Final Remarks on the Challenges

In this section, four action recognition and detection challenges that took place in conjunction with major conferences were examined. A quantitative summary of the THUMOS’ 13, 14, 15, as well as the ActivityNet challenges are provided in Table LABEL:tab:THUMOS_summary. In the upcoming challenge, it is projected that the task of action proposal, whose goal is to retrieve temporal (or spatiotemporal) regions that are likely to contain actions, will be added. Furthermore, the classification task will be based on a larger dataset containing approximately action classes with more than 500 samples per class and the detection task may be extended to the spatiotemporal domain.

2.9 Summary

In this chapter, numerous benchmark datasets have been introduced. Table LABEL:tab:summary summarizes the key features of the commonly used datasets.

Although significant progress has been made in collecting data to test various action recognition algorithms, current major datasets are deemed too unrealistic and/or disorderly. The availability of a systematic dataset that consists of naturalistic videos is crucial since the next plausible step in action recognition and detection would be to implement the next generation of algorithms into the real-world. Thus, in constructing the next benchmark dataset, a set of useful actions that make frequent appearance in security, robotics, entertainment, and health care should be considered. Furthermore, the parameters should vary in a systematic way to allow researchers to quickly examine the effect caused by changes in illumination, viewing direction, scale, clutter, recording setting, and performance nuance.

3.1 Feature Extraction

A raw input video is made of voxels, where each voxel contains photometric information, such as intensity or RGB values. This lattice of raw information must be transformed into some representational model such that it can be processed in its subsequent classification stage. To transform this raw data into informative features, useful information must first be extracted then represented in some form. In this section, various approaches to sampling input video data and subsequently extracting primitive feature descriptors will be examined.

3.1.1 Sampling Methods

Information from a video can be sampled in three ways: through (i) regular sampling, (ii) dense sampling, or (iii) sparse sampling (see Figure 3.2). In regular sampling, data is obtained at every voxels, where , and if then the entire data of the video is used. In dense sampling, a video is divided into either rectilinear patches or as more irregular supervoxels. In sparse sampling, salient regions within a video are localized by optimizing some saliency function. In the following, various types of dense and sparse sampling techniques that have appeared in the field of action recognition and detection will be studied111Further details on regular sampling are omitted for its simplicity and lack of variability in the field of action recognition..

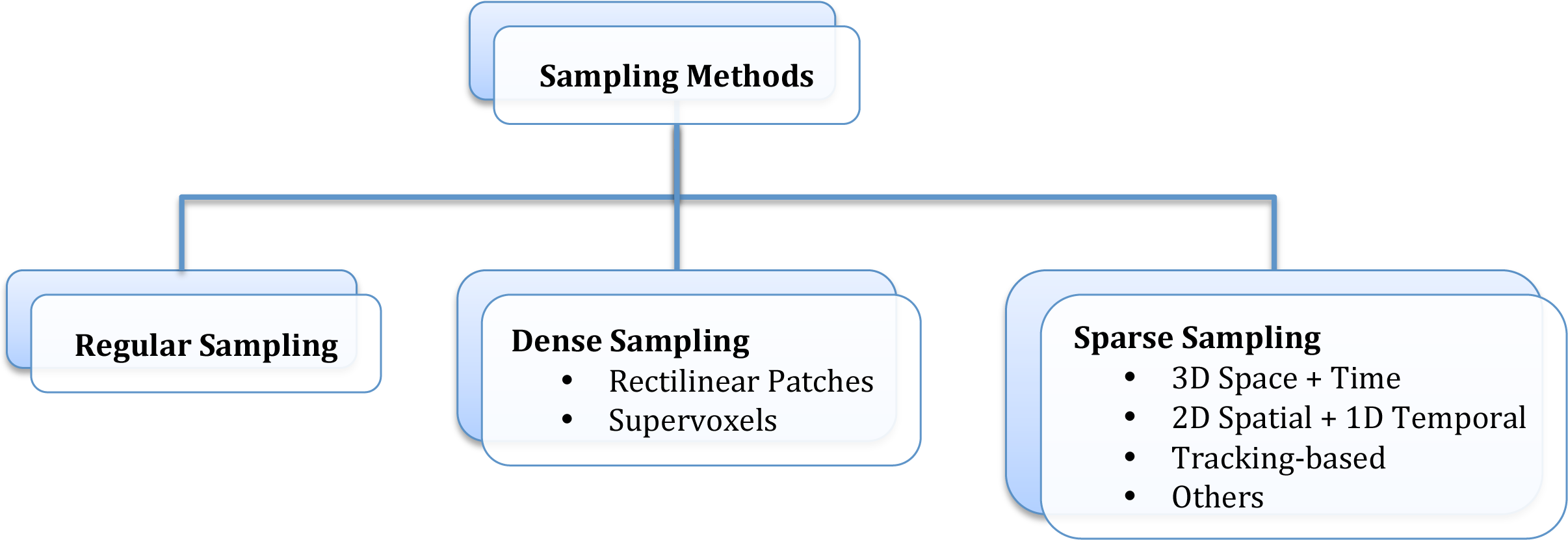

Figure 3.2: General breakdown of the sampling methods. Data can be sampled from videos through regular, dense, or sparse sampling methods. Although these sample methods are described as independent entities, regular sampling at every interval is equivalent to dense sampling the entire video as would setting the threshold to zero for any response function in sparse sampling.
Dense Sampling Methods

Videos can be partitioned into simple rectilinear patches or supervoxel segments according to proximity, similarity, and continuation [206]. Numerous supervoxel algorithms have appeared in computer vision and various methods have been used as a pre-processing step to solve action recognition problems, such as mean shift [76], streaming hierarchical supervoxel method [206], and SLIC [38]. Common to all, supervoxel region extractors is a critical parameter (or kernel bandwidth size) that determines the size of the objects to be segmented. A small bandwidth correctly segments small objects but tends to over-segment large objects into multiple parts. Conversely, a large bandwidth correctly segments large objects but incorrectly groups small objects together. Therefore, even though a rich set of supervoxel methods have appeared in the field of computer vision, its utilization in action recognition remains under-explored partly because it is expected that an entire object will not be segmented as a single region in a typical realistic video. Thus, use of supervoxels is perceived as groupings of video-based features for object and region labelling [206]. However, the borders created by the supervoxels can provide crude information on the boundaries between objects (see Figure 3.3) without relying on the unsolved background-subtraction problem [76]. Furthermore, supervoxels can be used as weighing functions to distinguish motion created by the actor, camera, and the background [23, 38].

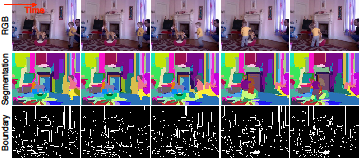

Figure 3.3: Example of an input video (top row), its corresponding supervoxel segmentation (middle row), and the boundaries of the supervoxel segmentation. Redrawn from [206].
Sparse Sampling Methods

Representing every voxel of a video can be computationally taxing especially for benchmark datasets that contain thousands of videos, like UCF101, HMDB51, and ActivityNet. Correspondingly, there has been extensive research to avoid the computational burden of processing entire videos in large datasets [130, 151, 190, 196]. A video can be sampled sparsely at regular grid points or by extracting interest points or regions. In images, interest points often refer to regions with corners, blobs, and junctions. Likewise, spatiotemporal interest points (STIPs) in videos can be considered as three-dimensional corners, blobs, and/or junctions, which can be detected by maximizing some response function. The construction of a three-dimensional response function for videos can be done by either generalizing a two-dimensional interest point detector in images to three-dimensions or by combining a two-dimensional interest point detector with a one-dimensional detector to compensate for the extra temporal domain in videos. In the following, various sparse sampling methods that extract STIP by (i) generalizing the two-dimensions in images to three-dimensions in videos, (ii) a combination of two-dimensional spatial domain with one-dimensional temporal domain, (iii) tracking two-dimensional interest points, and (iv) others, will be explored.

Direct Extensions of 2D Detectors

Sampling methods that have been successful at extracting interest points in images can be directly extended to the third-dimension by assuming that the temporal domain in videos is analogous to a third dimension of space. In order to detect multi-scale interest points in videos, a spatiotemporal scale-space representation of a video sequence must initially be defined. Then a saliency map can be constructed to extract spatiotemporal interest points [151]. An image sequence, , at point can be modelled in linear scale-space by taking the convolution of with a Gaussian kernel :

(3.1)

where and denote distinct spatial and temporal scales, respectively.

One of the most common 2D corner detector for images is the Harris detector, which can be generalized to Harris 3D detectors [87, 88] to detect 3D corners in videos by averaging the spacetime gradients with a Gaussian weighting function:

(3.2)

where , , and denote first-order partial derivatives of with respect to , , and , respectively. Spatiotemporal interest points are obtained by detecting the local positive maxima of the following function:

(3.3)

for some constant . The Harris 3D detector is suited to detect spatial corners that change motion direction, like start or stop of some local motion in a video [151].

Another common interest point detector that appears often in images is the Hessian detector. The Hessian detector [203] in images can be directly extended to videos by defining the Hessian matrix in 3D as:

(3.4)

Regions with a local maxima of the determinant of the 3D Hessian (i.e. ) for some particular position and scale correspond to a centre of a blob in a video [151].

2D (Spatial) Detector with a 1D (Temporal) Detector

Beyond varying the scale-space support in space and time separately via constants and , the temporal dimension can be managed by generating an even more distinct filter in the temporal domain. The temporal domain can be treated differently from the spatial domain by applying distinct filters for each domain [29, 122]. The cuboid detector [29] couples a Gaussian filter in the spatial domain and a Gabor filter in the temporal domain to create a response function that is applicable in the spatiotemporal domain. For a given video , the response function is defined as:

(3.5)

where is the 2D Gassian smoothing kernel applied along the spatial dimensions , and and are quadrature pair of 1D Gabor filters applied along the temporal domain . and correspond to spatial and temporal scales of the detector, respectively, and the centre frequency222The centre frequency for the Gabor function refers to the frequency in which the filter yields the greatest response. can be set to to reduce the number of parameters involved in equation (3.5) [29, 122].. It can be observed that the cuboid detector is best matched to an intensity pattern that oscillates sinusoidally along the temporal dimension and smoothed in the spatial dimension with a low-pass (Gaussian) filter. Conversely, the smallest response would be generated in regions that lack temporally distinguishing features. Hence, it is well suited to detect temporally varying patterns even while providing little response to those that remain static. In comparison to the aforementioned detectors, 3D Harris and Hessian, the cuboid detector extracts a denser set of features and is consequently computationally more expensive to follow-on processing [190].

Tracking-based Detectors

Determining good features to track is an alternative approach to obtaining a useful set of sample points. Since points found in structureless regions are impossible to track, it would be helpful to remove them from the sampling set. The decision to retain or remove a point can be made using the good-features to track criterion [154]

, which is determined by the eigenvalues of the auto-correlation matrix, a matrix intimately related to 2D Harris. This sampling technique is incorporated in the (improved) dense trajectory features

[186, 188], which has shown to be very effective as it is one of the strongest contemporary features in application to action recognition.

Other Sparse Sampling Methods

There are many other sparse sampling methods that were not mentioned in detail, such as the Harris-Laplace [111], Hessian-Laplace [112], Difference of Gaussian (DoG) [98] and maximally stable extremal region (MSER) [109] detectors. The Harris-Laplace, which uses the Harris and Laplacian functions to find and select points, respectively, is capable of detecting corners and other junctions, pairs and triplets of edge segments to represent contours invariant of scale and rotation changes [114]. The Hessian-Laplace localizes points in space and scale by taking the local maxima of the determinant of a Hessian and the Laplacian-of-Gaussian, respectively [113]. Since the shape of the Hessian kernel fits better to blob-like structures than corners, the Hessian-Laplace detector is used to extract various types of blobs [114]. The DoG detector, which is often used in accordance with a 3D histogram of gradient location and orientation and together referred to as SIFT, uses the difference of images of different scales convolved with a Gaussian function to identify the locations of edges and blob-like structures. MSER extracts blobs by expanding regions according to their intensity levels by gradually increasing some threshold value. The value that enforces the smallest rate of change is selected as the threshold to extract MSER and has shown to provide useful detection results [94, 114, 177].

The extracted features can be pruned using spatial, temporal, or motion statistical measures [96]

. Excessive amount of features can be judged by comparing the number of features extracted in a single frame to the average amount of features present per frame. Spatial outliers can be spotted using neighbourhood information. Lastly, PageRank

[115, 129] can be used to identify consistency of the extracted feature to others to classify them as inliers.

Discussion on Sampling Methods

Regular, dense, and sparse sampling methods have been described as independent entities in this section, but we must bear in mind that these methods are not disjoint. That is, regularly sampling at every interval would be equivalent to dense sampling the entire video, which is equivalent to setting the threshold to 0 for any response function in sparse sampling.

Videos that largely consist of static backgrounds that pose no useful information to recognize actions (e.g. videos in the KTH dataset) benefit from sparse sampling as features obtained through dense sampling provide no useful data [190]. Furthermore, extracting features sparsely across videos provide data compactness leading to computational efficiency. When coupled with appropriate descriptors and classifiers (to be described in more detail in the following section and chapter, respectively), these detectors extract sufficient data to acceptably differentiate between human actions. However, it was observed that sparse sampling methods fall behind the accuracy in recognition that dense (or regular) sampling methods are able to provide, especially in videos with contextual information (e.g. UCF Sports, Hollywood2) [190]. This result may be due to the fact that (i) the data extracted using these detectors tend to be too sparse and (ii) the contextual information, such as equipment or scene, can provide additional information to improve classification results. Furthermore, many saliency functions that are used to extract features assume that videos contain several instances of motion or appearance that are significantly different in either direction of motion or the boundary between the background and the actor. This assumption leads to failure in capturing smooth motions (as in Figure 3.3(a)) and generates spurious detects along object boundaries (see Figure 3.3(b)) [75].

The sparse motion detectors mentioned in this paper (e.g. cuboid detector, KLT tracker, DT) can be used in motion compensated or non-compensated videos. These detectors are expected to fire at the presence of motion whether it be camera motion or motion created by different body parts of an actor. Often in action recognition, it is understood that motion created by the object’s body provides useful information. Thus, the output results of these detectors must be used with caution as they may respond to some dominant motion due to camera movement or an actor occupying a large portion of the field of view, which may or may not be the desired information that one wishes to obtain for their recognition algorithm.

The choice of data extraction can affect the computational efficiency but can also influence the accuracy of the recognition step as sampling is the first step in the recognition procedure. Thus, the data extraction technique must be chosen with caution as it can heavily influence or deter the outcome of the results in following processing steps.

(a) Blue arrow indicates the direction of motion. Two motions are illustrated in this example: circular motion (left) and the figure ‘8’ motion (right). The 3D plots of motion through time are illustrated (bottom) with blue ellipsoids showing detected interest points. All detected interest points were non-informative, and were only detected due to the boundaries that formed as the arm moved with the edge of the frame.
(b) Spacetime interest points detected on regions affected by varying lighting conditions. STIP detectors are sensitive to lighting conditions, therefore are detected in regions with bright light or shadows.
Figure 3.4: Examples of commonly occurring motions that fail to produce useful interest points. Redrawn from [75].

3.1.2 Feature Descriptors

Once a sampling method has been selected, information that would characterize the structure of the region must be represented in some useful way as a descriptor before it enters the classification stage. In the following, the feature descriptors have been split into general primitive and specialized primitive features as illustrated in Figure 3.5. General primitive features refer to features that can be obtained directly from raw input videos, which then can be used directly in the classification module. Specialized primitive features refer to features that are extracted from raw input videos and require additional processing into auxiliary features before they enter the classification stage. In this section, some common primitive feature descriptors as well as its associated auxiliary feature descriptors that have appeared in the action recognition and detection literature will be studied.

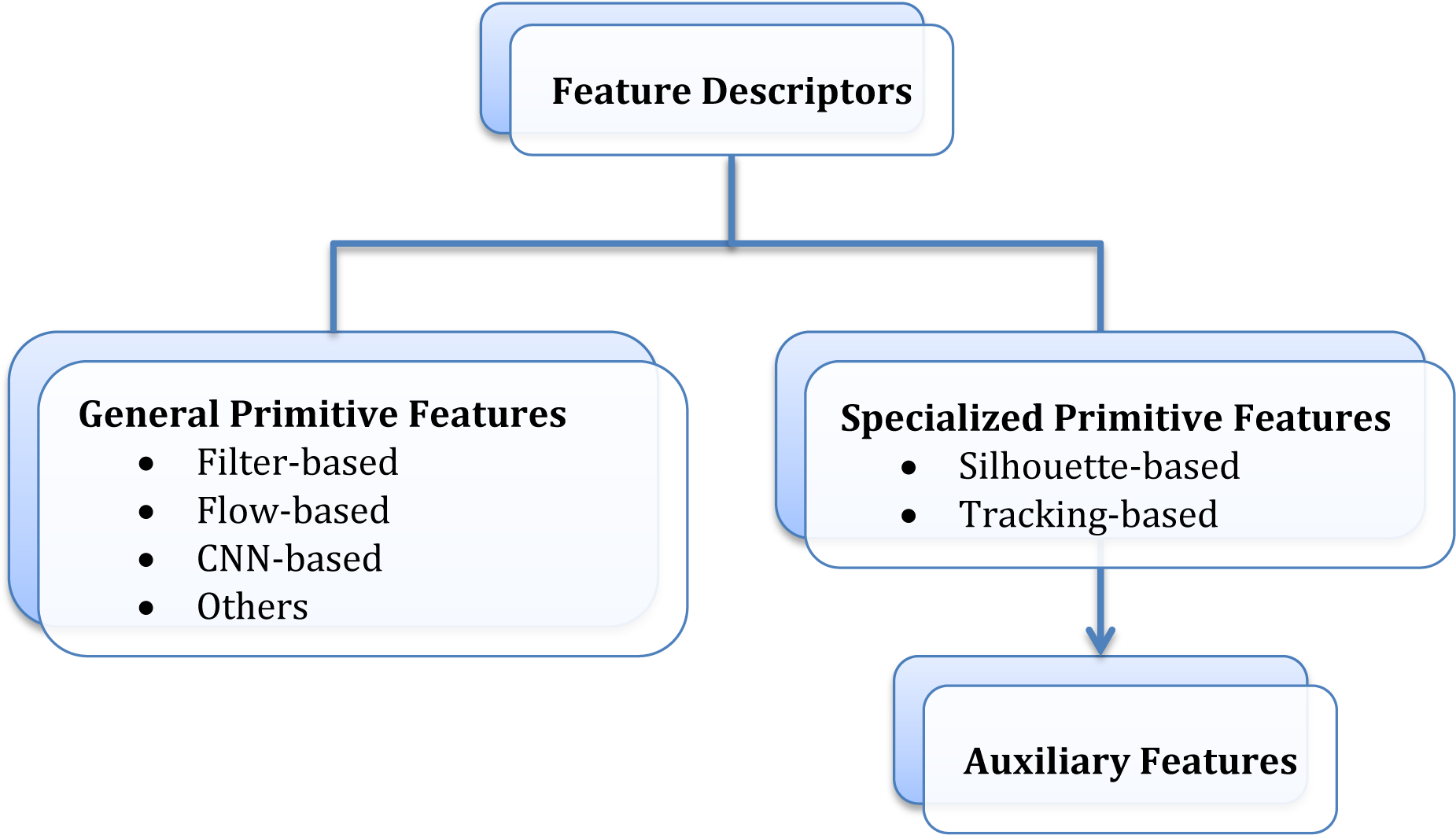

Figure 3.5: General breakdown of feature descriptors. Features can be obtained from raw videos by describing them using general primitive features or specialized primitive features. While general primitive features can be used to train and test data immediately, specialized primitive features must be further processed into auxiliary features before the features enter the classification stage.
General Primitive Features

General primitive features

refer to features that can be directly extracted from raw videos after some sampling method has been chosen (regular, dense, or sparse) and are transformed in a way such that it can be processed directly by some chosen classification method. General primitive features can be divided into four broad categories: filter-, flow-, convolutional neural network (CNN)-based, and others. Here, each of these categories will be examined.

Filter-based Descriptors

Filter-based approaches can be categorized into two types: (i) gradient-based and (ii) oriented bandpass filter-based descriptors. Gradient-based methods rely on the assumption that the local appearance and shapes of an object can be portrayed by their local intensity gradient or edge directions. Oriented bandpass filter-based approaches use oriented filters to decompose videos into basic components using local orientation and scale. Notably, gradient-based approaches are an example of (high-pass) oriented filters, which have received a particularly large research focus. Hence, they are dealt separately from the more general oriented bandpass filters in the following.

A rich set of gradient-based descriptors have appeared in the field of action recognition. Some descriptors that have made frequent appearance in the field include: histogram of oriented gradients (HOG) [25, 191], HOG3D [78], cuboid descriptor [29], scale-invariant feature transform (SIFT) [98], gradient location-orientation histogram (GLOH) [113], local trinary patterns (LTP) [211], and spatiotemporal (ST) patches [152]. HOGs store spatially oriented gradient to capture appearance information of the action. HOG3D extends HOG descriptors by storing spatiotemporal oriented gradients to store shape and motion information together. The cuboid descriptor [29] concatenates three gradient channels

into a single vector to form a single feature vector for each neighbourhood.

SIFT [98], which is coupled with a scale-invariant region detector, DoG, uses 3D histograms to represent the gradient locations and orientations. The 2D SIFT descriptor uses polar coordinates to obtain the gradient magnitudes and orientations, and the 3D SIFT descriptor [149] uses an additional angle to represent the direction of the gradient to incorporate temporal information. The location and orientation bins in 2D/3D SIFT are weighed by the gradient magnitudes. Instead of quantizing the location information on a Cartesian grid as in 2D/3D SIFT, GLOH quantizes them on a log-polar grid to increase robustness and distinctiveness [114]. LTPs compare intensities of the neighbouring pixels between preceding and succeeding frames to the current frame to determine the direction of motion [211, 79]. ST patches uses spatiotemporal gradients to estimate the motion of the sampled regions to obtain a rank of the ST patch. The constraint based on the rank provides information on motion without explicitly computing the optical flow and spatial information (e.g. uniform intensity, edge-, and corner-like features) [152].

Although many of these oriented gradient-based descriptors provide computational efficiency to gather crucial information, such as appearance and/or motion, they are very sensitive to illumination changes. Often, these descriptors do not provide sufficient information and must be used in parallel with other descriptors that possess distinguishing characteristics (e.g. HOG is often found with HOF) to overcome its limitation.

Spatiotemporal oriented bandpass filters can decompose an image sequence into basic components using the dimension of local orientation and scale (i.e. angular and radial frequencies). Consequently, various types of oriented filters have been applied to a range of dynamic image understanding tasks, such as action recognition and detection [123]. These representation models tend to be capable of characterizing image dynamics without explicitly requiring flow recovery nor segmentation of videos [24]. Two particular approaches of spatiotemporal oriented filtering have been commonly applied to actions: 3D Gabor filters [24, 123] and Gaussian derivative filters [67]. Both 3D Gabor and Gaussian derivative filters are typically applied in quadrature pairs and combined to produce some local energy measurement. Often subsequent processing is involved, such as normalization and/or combination of filter outputs. The normalization process provides robustness to photometric variations [24], while combining filter outputs (e.g. appearance marginalization [28]) attempt to gather information on image dynamics that is invariant to spatial appearance. The filter outputs can also be combined to yield explicit motion estimates or other measurements of image motion [49].

Representations based on spatiotemporal oriented bandpass filters tend to be robust to illumination changes, in-class variations, and occlusion. Many researchers choose to use Gaussian derivative filters for its separability and recursive components to keep the representation computationally efficient [24, 28]. However, some filter responses (e.g. bandpass filters) pose sensitivity to irrelevant appearance attributes. Furthermore, these filters tend to be sensitive to scale changes, which is problematic since the actor/action size is inconsistent between and within each video.

Optical Flow-based Descriptors

Optical flow-based algorithms have appeared frequently in various action recognition algorithms. Optical flow provides data that can be used in two ways: (i) to extract information on motion and (ii) for tracking purposes. Here, some common optical flow-based representation models that have appeared in the action recognition literature for each method will be explored.

Optical flow can be used to recognize actions by describing the motion of the actor. A standard optical flow algorithm can be applied to stabilized figure-centric volumes to capture motion created by different parts of the body (see Figure 3.6(b)) [34, 94]. By separating the optical flow into horizontal and vertical components (as in Figure 3.6(d)) then blurring them (via Gaussian as in Figure 3.6(e)), an artificial set of motion channels are created [34, 36]. Often, the Kanade-Lucas-Tomasi (KLT) tracker is used to estimate local motion in a hierarchical manner to obtain the initial flow for the next level [177].

Histograms of Optical Flow (HOF) captures local motion of the pattern by quantizing the orientation of the optical flow vectors. While such characterization of motion is sufficient in distinguishing highly distinct actions (e.g. “walk” vs. “wave” in the KTH dataset), it fails to distinguish fine differences in actions (e.g. “box” vs. “clap” in the KTH dataset). Thus, simple description of motion combined with information on appearance (e.g. HOG) can yield more accurate recognition results as has been observed in more complicated datasets, such as the Hollywood1 dataset [88].

The Motion Boundary Histogram (MBH) is a descriptor that uses derivatives of optical flow for each horizontal and vertical directions, and , respectively [26, 186]. By computing the spatial derivatives for each flow field, the local gradient orientations and magnitudes can be found to construct a local orientation histogram. Since MBH computes the gradient of optical flow, constant motion is suppressed and only the information regarding changes in the flow field are kept. Thus, MBH provides a simple way to suppress constant motion (e.g. camera motion) while preserving local relative motion of pixels (e.g. motion boundaries/foreground motion) (see Figure 3.8 right). This is an appealing feature, especially for recognizing actions in realistic videos, since they tend to contain severe camera motion [186]. Furthermore, the majority of the texture information from the static background is eliminated as the derivatives of the trajectories are considered.

With optical flow, physical properties of the flow pattern can be extracted via kinematic features

, such as divergence, vorticity (or curl), symmetric and antisymmetric optical flow field, second and third principal invariants of flow gradient and rate of strain tensor

[3, 63]. Kinematic features are perceived as independent forces that act on the object and capture information regarding motion only. For example, divergence captures information on the amount of axial motion, expansion, and scaling effects. Vorticity (or curl), on the other hand, highlights the circular motion created by the human body or part of the human body. Thus, motions of the hand toward the camera would be well captured by divergence; in contrast, rotary motions of the hand parallel to the image plane would be well characterized by a curl. The kinematic features collectively provide a unique spatiotemporal pattern description of the human action.

Dense trajectory (DT) features [186] were introduced as another form of descriptors that track the path of sampled motion (see Figure 3.5(b)), which have made frequent appearance in the field of action recognition and detection [186, 228]. DT features first require dense sampling of feature points at each frame, which are pruned using good-features to track. Then each of the sampled points are tracked using optical flow to obtain its trajectory. The trajectory descriptor is obtained by concatenating the normalized displacement vectors. These features are often combined with other features (e.g. HOG, HOF, MBH) aggregated along the trajectories. Various dense trajectory models that would enhance the original DT model [186] have been proposed [69, 188]. One approach was to cluster the dense trajectories to detect the dominant direction of motion and consider relative motion between the trajectories to gather object-background and object-object information [69]. Another approach was to explicitly estimate camera motion [188] by matching feature points between frames using SURF descriptors [9] and dense optical flow [154]. This particular camera motion compensated trajectory feature is referred to as the improved dense trajectory (iDT) feature and has appeared frequently in action recognition and detection literature [11].

(a) KLT Trajectories
(b) Dense Trajectories
Figure 3.6: Examples of KLT and dense trajectories of the “kiss” action from the Hollywood2 dataset. Redrawn from [188].

Optical flow has been successful in various applications (e.g. tracking). In fact, some approaches have benefited from using optical flow-based algorithms to track humans, body parts, and interest points yielding good action recognition results (see under Specialized Primitive Features - Tracking-based Models). However, the ability to estimate motion accurately and consistently has numerous challenges associated, such as motion discontinuities (e.g. occlusion), aperture problems, and large illumination variations (e.g. appearance changes).

(a) Original Frame.
(b) Optical Flow .
(c) The optical flow vector is split into horizontal ( (top)) and vertical ( (bottom)) components.
(d) Horizontal and vertical optical flows are half-wave rectified to produce (top left), (top right), (bottom left), and (bottom right).
(e) Half-wave rectified motions are blurred into (top left), (top right), (bottom left), and (bottom right).
Figure 3.7: The actor can be tracked to obtain a stabilized figure-centric volume. A standard optical flow algorithm applied on a stabilized volume captures the motion created by the local regions in the volume. Redrawn from [34].

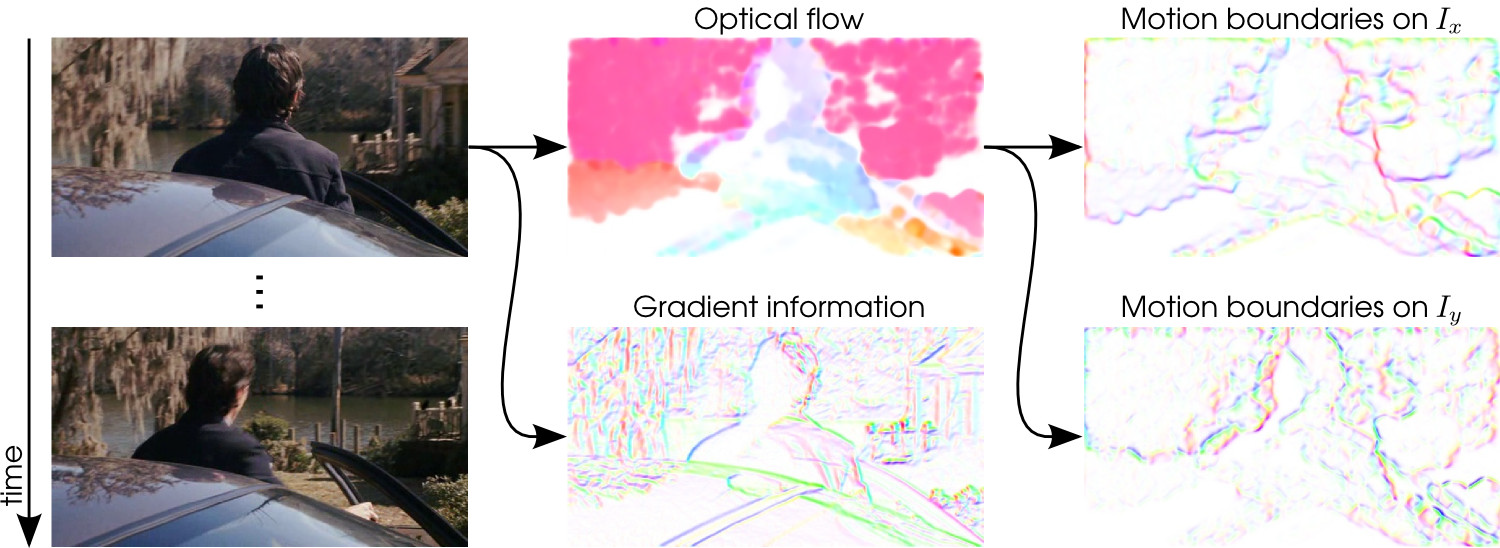

Figure 3.8: Illustration of HOF, HOG, and MBH interest point descriptors. The gradient information (HOG) (bottom-centre) and flow orientation (HOF) (top-centre) is calculated for each frame in a video (left). Using the and components of optical flow, the spatial derivatives are calculated for each direction to obtain the motion boundaries on and (right). The gradient directions are indicated by the hue and magnitude by the saturation. Redrawn from [186].
Convolutional Neural Network-based Descriptors

In recent years, there has been a surge of algorithms relying on Convolutional Neural Networks

(CNNs or ConvNets) in a wide variety of artificial intelligence-based problems, including action recognition. As its name suggests, CNNs are based on neural networks, which is a system that consists of a sequence of layers with a set of artificial “neurons” in each layer. The first layer of the network, the

input layer, usually consists of raw pixels of an image/videos [5, 11, 30, 39, 43, 68, 156, 195], but pre-processed data, such as optical flow displacement fields [30, 39, 68, 118, 156, 195], can also be used. The last layer of the network, the output layer, is typically interpreted as a softmax/logistic regression. Alternatively, the outcome of the output layer can be fed into a classifier (e.g. an SVM) to produce a class score or class rankings. The architecture of a CNN can be characterized by the local connections in the intermediate, hidden, layers. The hidden layers often alternate between convolution, rectification, and pooling operations, with an optional normalization layer. On occasion, pooling is neglected altogether [166]. In conjunction with deep-learning, the network weights are learned via back-propagation with shared weights within a layer. Prototypically, the learned weights only pertain to the numerical values of the taps in the convolution’s point-spread functions [44, 93]. While the theoretical understanding of these architectures are limited, it appears to successfully extract descriptors that are well-suited to the domains on which they are trained (e.g. object parts and assemblies thereof) [223]. Currently, CNNs dominate the empirical evaluations in many image-based recognition tasks, including action recognition [11, 195].

Motivated by state-of-the-art performance on various image classification tasks, CNNs have been utilized in various ways on video classification tasks as well. A method to incorporate the temporal domain or motion information onto the well-established 2D CNN architecture has been the main branching point of many algorithms in video classification. The most intuitive approach would be to replace 2D convolution and/or pooling operations with 3D ones to account for the additional (temporal) domain in videos [5, 68, 73, 155, 175]. Alternatively, the temporal information in videos can be summarized into a single RGB image such that standard 2D CNNs can be applied to recognize actions [11]

. Recurrent neural networks (RNN), which are capable of learning temporal dynamics by explicitly considering the sequences of CNN activations in a recurring manner, is another approach taken to account temporal dimension in videos

[5, 30, 104, 118, 157]

. To account for RNN’s inability to learn long-range temporal relationships, numerous algorithms suggest embedding long short-term memory (LSTM) units into the architecture to allow the network to learn to recognize and synthesize temporal dynamics

[5, 30, 104, 118]. Recent methods resort to CNNs to obtain feature vectors of images [59, 104, 105, 212] or iFV-encoded iDT features with HOG, HOF, and MBH feature descriptors [220] as inputs to LSTM-RNN. Processing images in a per frame basis keeps track of which features are occurring when, allowing temporal detection of actions to be possible [212].

Another route that has been explored is the two-stream model [156], inspired by biology [47], which decouples the appearance and motion components of a video [41, 157, 231]. The appearance stream takes framewise spatial input (e.g. RGB values) while the motion stream takes motion input (e.g. optical flow values [30, 41, 68, 118, 156, 195, 231], motion vectors [224]). The two streams can be fused at the final stage of their respective architectures [30, 41, 68, 118, 156, 195], or sooner via convolutional fusion to put the channel responses in two streams that occur at the same pixel location into correspondence [41]

. Alternatively, the two streams can be fused via introduction of residual connections between the paths

[40]. In the standard two-stream approach, computing the optical flow is expensive and the most timely step. Thus, rather than employ the most sophisticated dense optical flow techniques, some have relied on cruder block-based matching approaches, as employed for compression, which the authors refer to as “motion vectors” [224]. These approaches, however, exhibit coarser structure than optical flow and may contain noise and inaccurate movements.

One CNN-based algorithm takes a completely different approach by redefining “action” as a change that it brings to the environment (see Figure 3.9). Thus, features before the action (at the pre-conditioned state) and after the action (at the effect state) are aggregated using a Siamese network to represent an action [195].

Figure 3.9: One algorithm defines actions as transformations brought to the environment (i.e. pre-conditioned state action effect). Two transformations, kick (top row) and jump (bottom row), are illustrated with their respective pre-conditioned (left columns) and effect (right columns) states. Redrawn from [195].

The specificity of the features increases at higher layers of the network [166, 223]. Thus, reducing the number of layers and neurons in each layer could depreciate the overall performance of the system [73, 223]. Although the state-of-the-art performance in complex datasets are achieved using CNNs with many layers, it is done at a high computational cost [73]. To compensate for computational complexity, one approach applies PCA-whitening between layers on a stacked ISA network [92]. Alternatively, a network can be separated into two streams that processes each frame of a video with two different spatial resolutions: (i) downsampled frames at half the original spatial resolution, and (ii) a smaller spatial window at the original resolution (e.g. centre region if videos are obtained from video sharing services to take advantage of the camera bias shot by amateur recorders) [73]. Another obstacle that hinders the use of CNN-based methods is the amount of training data that is required to construct a reliable system [73, 156]. Two of the largest benchmark datasets available, UCF101 and HMDB51, are considered too small to train a CNN-based video classification program from scratch [156, 195]. Thus, Sports-1M [73]

, a dataset containing more than a million videos, is often used to train the system. Since datasets as large as Sports-1M are typically constructed with some degree of automaticity, it leads to corruption of data, accumulating even more challenges at the training and testing stages. Alternatively, the networks can be pre-trained on large static image recognition datasets (e.g. ImageNet

[27]). However, such pre-training may cause the final network to bias towards appearance information over motion, an undesirable trait for action recognition and detection in videos.

Other General Primitive Feature Descriptors

Not all descriptors that have appeared in the action recognition literature can be categorized as either filter-, flow-, or CNN-based representation models. Here, a select few other general primitive feature descriptors that do not fall under these categories that possess noteworthy characteristics are mentioned. They are: eSURF [9], MACH filter [140], and TCCA features [77].

The extended Speeded Up Robust Features (eSURF) is a descriptor based on Haar-wavelet responses along the three axes [203] based on SURF [9]. The feature vector is constructed by summing the weighed responses of the Haar-wavelets as sampled uniformly across each interest point . The Haar-wavelet responses are weighed with a Gaussian to account for geometric deformations and localization errors [9].

The maximum average correlation height (MACH) filter [140]

is one of few algorithms that considers condensing a collection of data into a single template. Intra-class variations of an action is generalized into a single template by optimizing four performance metrics: average correlation height (ACH), average correlation energy (ACE), average similarity measure (ASM), and output noise variance (ONV). It uses spatiotemporal regularity flow (SPREF) to obtain the direction that best represents the overall regularity of the volume (i.e. the direction in which the pixel intensities change the least) instead of other motion estimators to avoid challenges that occur due to motion discontinuities, aperture problems, and large illumination variations. The SPREF flow field volume of each example is converted using a Clifford Fourier Transform (CFT) for its efficiency, which is used to synthesize the MACH filter. The composite template video is obtained by combining the mean of the CFTs, the noise covariance matrix, the average power spectral density, and the average similarity matrix to minimize ACE, ASM, and ONV while maximizing the ACH.


Tensor canonical correlation analysis (TCCA) features [77] consider videos as third-order tensors with three modes (or axes). Third-order tensors can share any single or multiple modes. Thus, if a canonical transformation, a transformation that maximizes the correlation of two multi-dimensional arrays, is applied to the modes that are not shared, then two types of TCCA can be produced: the joint-shared mode and the single shared-mode. The joint-shared mode allows any two modes (or axes) (i.e. a plane or section in the video) to be shared and applies the canonical transformation to the remaining single mode. It is found that a single pair of canonical directions would maximize the inner product of the output tensors (or canonical objects) for the joint-shared modes. The single-shared mode, on the other hand, allows any single mode (i.e. a scan line of a video) to be shared and applies the transformation to the remaining two modes. Here, two pairs of free transformations maximize the inner product of the canonical objects for the single-shared modes. A single pairing of joint-shared mode TCCA preserves discriminative information, whereas the double pairing of single-shared mode TCCA preserves less original data resulting in more flexibility in its information. Thus, the joint-shared mode TCCA is used to filter inter-class differences (e.g. difference between actions) while the single-shared mode TCCA features are permissive to intra-class variations (e.g. difference in appearance).

Specialized Primitive Features and Auxiliary Features

Some algorithms require extraction of primitive features and further refinement into auxiliary features before they can be useful to a classifier, especially the methods that were proposed in the earlier years of action recognition. Some examples of specialized primitive features include silhouettes/contours and object tracks. Silhouette-/contour- and tracking-based features and the corresponding auxiliary features are described in the following.

Silhouette-/Contour-based Models

Numerous cognitive studies have shown that humans are capable of extracting various useful information from silhouettes, such as recognizing objects, labelling parts, and comparing similarities to other shapes [8, 10]. Thus, a video of silhouettes may provide sufficient information for recognition even while being robust to lighting conditions and invariant to the appearance of the person. Once the silhouettes of the actors are extracted, information can be described in various forms. Silhouettes can either be directly converted into 1D signals, converted into binary or scalar images then described using moments, or they can be stacked to form space-time volumes. A sample of each type of auxiliary silhouette features, which include Transforms, motion energy images, motion history images, motion history volumes, and spacetime volumes, will be described below as a sample of such approaches.

transforms are shape descriptors that convert silhouette images to 1D signals. By taking the squared sum of the Radon transform, commonly used to detect lines in images, over varying radii, a translation invariant Radon transform is defined allowing video alignment to match the position of the actor unnecessary. Furthermore, to resolve the scale sensitivity problem of Radon transforms, is normalized. This improved extension of the Radon transform, the transform, attracted attention to earlier action recognition algorithms that were silhouette-based (see [164, 198]).

Binary images of silhouettes called motion energy images (MEI) can be constructed by accumulating the difference between silhouettes in subsequent frames and a scale-valued image, referred to as motion history images (MHI) can be constructed to store the recency of motion that occurred at every pixel (see Figure 3.9(a)). MEIs and MHIs together provide information on the location and the temporal history of the motion, respectively. These images have been further described using Hu moments [55] to draw further comparisons with other actions [100]. Many silhouette-based algorithms have shown sensitivity to object’s displacement and orientation to the camera. This problem can be resolved by replacing the silhouette motion indicating function with a silhouette occupancy function to create motion history volumes (MHV) instead of MHIs (see Figure 3.9(b)) [201]. Although MHVs have this appealing feature of viewpoint invariance with the use of an occupancy function, it is a great challenge to obtain an accurate function that would precisely model -, -, -coordinates of where the object of interest is especially in videos gathered in uncontrolled settings, such as the web.

A sequence of silhouettes or its contours/boundaries can be concatenated along the temporal axis to create an image feature that captures the relationship between space and time of a person’s action called spacetime volumes (STV) (see Figure 3.9(c)). Information on the location of the general body parts (e.g. head, torso, and extremities) can be obtained by calculating the average time it takes for every point inside the STV to reach the contour via a random-walk process [14] or differential geometry [213]. The Poisson equation can be used to identify the motion saliency of moving parts and their orientations [14]. While MHVs and STVs appear similar, MHVs illustrate the recency function through its 3D reconstruction, while temporal information cannot be observed in STVs.

Although silhouettes/contours provide useful information, obtaining accurate segmentation of an actor is not guaranteed, especially in situations where the background is not static as background subtraction remains an unsolved problem in computer vision. Furthermore, the view angle can alter a person’s silhouette drastically and the features inside the boundary cannot be delineated since a person is represented as a single region.

(a) Examples of MEI (left) and MHI (right) of the sitting motion. Redrawn from [16].
(b) Examples of Motion History Volumes. Motion history volumes of actions (left-to-right): sit-down, walk, kick, and punch are illustrated using the colour spectrum, where blue indicates oldest motion and red indicates the most recent motion. Redrawn from [201].
(c) Examples of a spacetime volume (STV) for actors performing a jumping jack, walk, and run actions. Redrawn from [14].
(d) The solution to the Poisson equation reveal the shape of an actor. The values are encoded using the colour spectrum, where low values are encoded by blue and high values are encoded by red. Regions far from the core (the extremities and the head) have low values, therefore are encoded in blue.
Figure 3.10: Examples of various silhouette-based models in action recognition.
Tracking-based Models

As briefly mentioned in the optical flow section, tracking can be perceived as an extreme example of optical flow. Tracking algorithms can be utilized in action recognition by (i) tracing the trajectory of the entire actor in a video to segment the actor from the background (see Figure 3.10(a)) [17, 34, 59, 157] or (ii) by tracking body parts (see Figure 3.10(b)) [35, 50, 61, 135, 136, 208] or local interest regions [35, 60].

(a) A sequence of figure-centric frames that constitute a figure-centric volume of the actor. Redrawn from [34].
(b) Cardboard Person Model representing the major components of the human body: arm (blue), torso (black), thigh (yellow), calf (red), and foot (green). Redrawn from [72].
Figure 3.11: Utilizing tracking algorithms to extract the entire actor as a whole (left) and to track the movement of each body part (right).

Tracking-based methods are potentially robust to variations in appearance of each actor or local region and have been shown to yield impressive results on low-resolution videos [34]. Despite significant progress, however, tracking remains an unsolved problem in computer vision as initializing tracking can be difficult as can maintaining tracks over an extended period of time, especially in scenes with cluttered or dynamic backgrounds. Moreover, since feature trackers often assume constant appearance of image patches over time, this assumption can pose problems when the appearance of the object changes, especially when two objects merge (occlude) or split (deocclude) [87]. Furthermore, the output of a tracker tends to be noisy, susceptible to drifting and illumination changes, causing problems in its subsequent steps when representing the action.

Final Remarks on Feature Descriptors

In this section, a select number of popularly used feature descriptors for human actions were examined. Once the type of sampling method has been determined, primitive features can be obtained from raw videos. These primitive features can either be encoded directly or must be converted into auxiliary features before it is encoded to enter the classification stage. Historically, the field of action recognition approached the task of action recognition using specialized primitive features as it contained useful information. However, features that rely on these specialized primitive features were deemed unfavourable as background-subtraction and tracking remain unsolved problems in computer vision. A mixture of filter- and flow-based algorithms merged. Now, the state-of-the-art performance is achieved by CNN-based algorithms.

3.2 Encoding Methods

Primitive features extracted from videos are often selected in a generic way, which are not specific enough to directly serve the given task. Consequently, it can be beneficial to encode primitive features with a representation that is specifically designed to serve the assigned task through an encoding procedure. There are a variety of different encoding procedures to convert primitive features, , to a more effective encoded representations, , where is a -dimensional local descriptor extracted from a video at , and is a -dimensional encoding vector of 333From here on, and will be used in replacement of and , respectively, for brevity.[22]. In general, the descriptor space must initially be converted into a codespace via codebook generation. Second, the features must be encoded to correspond to the newly defined space through feature assignment. In some cases, the amount of encoded data needs to be reduced (pooled) and/or normalized such that the data type is consistent with other data. In this section, three key steps involved in encoding feature descriptors, codebook generation, feature assignment, and pooling and/or normalization, as illustrated in Figure 3.12, will be examined.

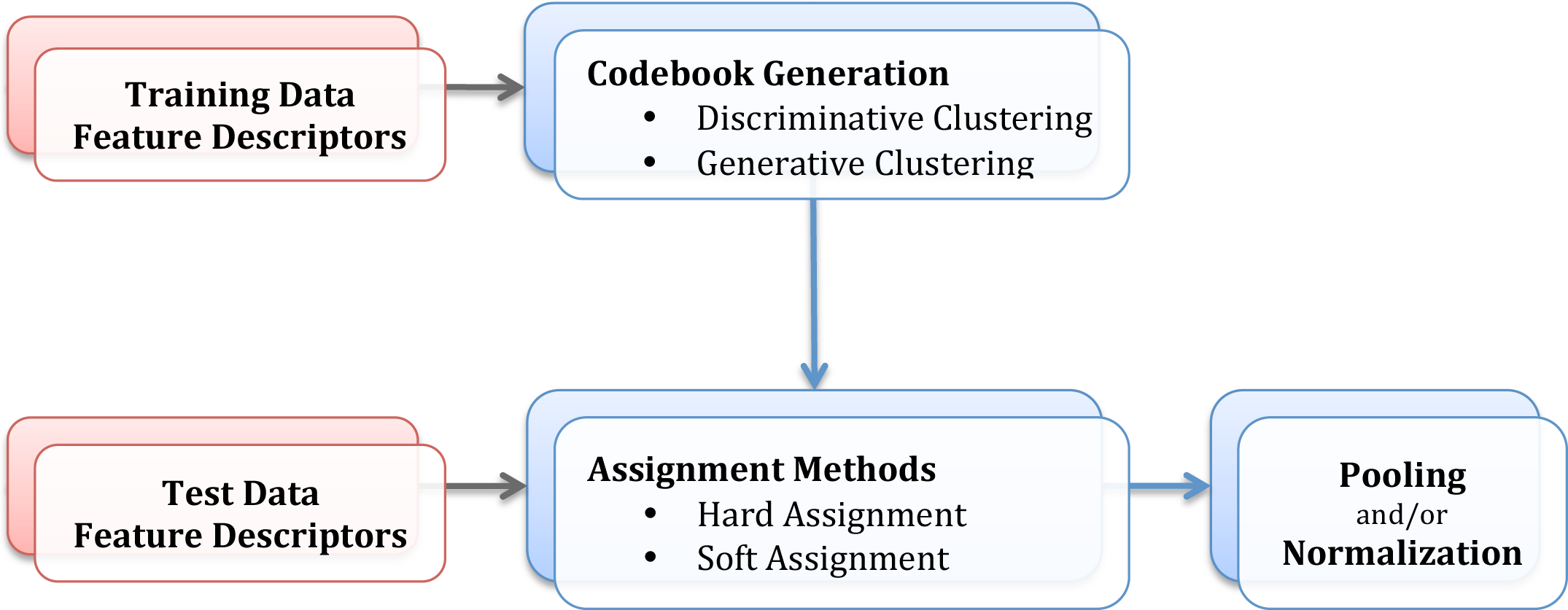

Figure 3.12: General framework of encoding feature descriptors. The stages that are involved in feature encoding are marked in blue and its prior steps are marked in red.

3.2.1 Codebook Generation

Feature space encoding begins with the generation of a codebook (also referred to as a dictionary) based on a set of training data. A codebook can be generated in two ways: (i) by partitioning the features into regions (or clusters) using a discriminative model

or (ii) by representing the space using a set of probability distributions using a

generative model [196]. In either case, the codebooks are constructed with respect to a set of training data. In the following, one or more common approaches to each codebook generation model will be examined.

Discriminative Clustering

A feature space can be divided into distinct regions (or clusters) to form codewords. Each cluster is comprised of objects that share similar characteristics to one another but different from objects in other clusters. Among many discriminative clustering algorithms that are available, -means clustering is one of the most widely used techniques in action recognition [42, 61, 88, 94, 135, 149, 191]. -means clustering divides a given set of features into clusters for , such that the total distance between each categorized feature and the centre of its cluster (centroid), which is referred to as a codeword, is minimized. -means clustering partitions the space into non-overlapping regions. As a result, each feature in the feature space is assigned to one specific cluster. -means clustering is implemented frequently in practice for its simplicity and performance.

Another discriminative clustering method that appears in the action recognition literature is agglomerative clustering [94, 114]. In agglomerative clustering, data points are clustered to their nearest cluster in a hierarchical manner to form a larger cluster. The results are usually presented as a dendrogram to record the sequences of merges [31]. A dendrogram exempts the need to select a specific number of clusters at the outset [31]. In fact, the optimal number of clusters can be determined using a scree plot of the dendrogram, where the optimal number of clusters is indicated by the high curvature in a scree plot. Despite this benefit, not too many recognition algorithms rely on agglomerative clustering due to its computational burden and its requirement on storage space [31].

Generative Clustering

A feature space can be represented using probability distributions such as the Gaussian Mixture Model

(GMM). Given a set of feature descriptors (from a training set), a weighted sum of Gaussian functions can be used to model the (training set) feature space. Typically, the parameters (i.e. the weight, mean vector and covariance matrix of individual Gaussian distribution) that would optimally represent the feature space are trained through maximum-likelihood (ML) estimation using the expectation-maximization (EM) algorithm. The learned parameters of the GMM (e.g. mean vectors and covariance matrices) provide information on the mean information of the codewords as well as the shape of their distributions

[196]. While first- and second-order statistical information provides information that would assist in improving the accuracy of the classification procedure, it is computationally expensive to obtain and store first- and second-order statistical information compared to discriminative models and not as compact.

Discussion on Codebook Generation

The size of the codebook (i.e. number of clusters or GMMs) is a crucial parameter in codebook generation as it affects the computational cost and classification accuracy. Up to a certain point, recognition performance has been empirically shown to improve with the growth of the codebook size (i.e. number of clusters or GMMs). Exceptions to this general point can be observed as the performance plateaus when the size of the codebook exceeds some threshold [130]. Moreover, an excessively large codebook size can harm the accuracy level due to over-fitting of the data or over-partition of the feature space. The thresholds to yield an optimal codebook is dependent on the dimension and sampling strategy of the feature descriptor [130].

Features with higher dimensions require more codewords to divide the feature space. Thus, a larger codebook size would be necessary for optimal performance. Sparsely sampled feature points tend to be more scattered in the feature space than densely sampled feature points. Thus, to avoid over-partitioning of the codebook (i.e. to ensure that every cluster is affiliated with a feature), the codebook size should be smaller in data obtained via sparse sampling as opposed to data obtained through dense sampling. Moreover, the distribution of densely sampled descriptors in the feature space would not provide useful high-order statistics (e.g. variance), which would affect the type of information that should be obtained in the subsequent assignment step. Thus, although generative models provide more information, discriminative clustering would be the preferred choice with densely sampled features as they provide a more compact clustering leading to computational efficiency.

While the codebook size is a key parameter, the optimal codebook size is dependent on many factors. Unfortunately, there is no theoretical solution that would find the optimal codebook size. Thus, readers should bear in mind that many algorithms that use -means clustering or GMMs often report best results based on that was obtained through trial-and-error.

3.2.2 Assignment Methods

With a codebook generated using a set of features from the training set, a new set of features can be quantized according to the clusters (or codewords) in the pre-defined codebook. Features can either be assigned to a single word through hard assignment or into multiple words through soft assignment. Here, some examples of these two types of quantization assignment methods are examined.

Hard Assignment

Hard assignment methods assign feature descriptors from videos to a single codeword in the codebook. The most common hard assignment quantization method that appears in action recognition algorithms is vector quantization (VQ), which assigns a feature descriptor to the nearest codeword in the codebook. Instead of assigning a binary value to the closest codeword as in VQ, a weight can be assigned to the nearest codeword to quantitatively indicate the similarity between the feature and a small subset of close codewords as in salient coding (SC) [58]. For its simplicity and efficiency, VQ is widely used in many action recognition algorithms [42, 61, 82, 107, 135, 148, 209]. Since hard assignments represent each feature by the nearest codeword, features that are nearly equidistant to multiple codewords are prone to change even when small adjustments are made at the codebook generation stage. This ambiguity causes hard assignment-based methods to be unstable, which can aggravate recognition accuracy rates [196].

Soft Assignment

To overcome the ambiguity that hard assignment quantization techniques pose, features can be assigned to multiple codewords instead of one through soft assignment. Soft assignment methods can be further broken down into two categories: combinatorial and contrasting. Combinatorial methods express features as a combination of the codewords while constrasting methods describe features by alluding to the differences between features and codewords. Here, some common approaches of each soft assignment methods that have appeared in the action recognition literature are considered.

Combinatorial

Features can be expressed as a combination of all or just a few codewords in the codebook. To naively encode a feature vector based on all codewords would yield an unreliable feature assignment to the codespace, especially the linkages that are made with distant codewords [97]. Thus, a select number of codewords in the codebook should be considered. The weight to assign the degree of membership of feature, , to codeword, , can be determined by solving the following optimization problem [130]:

(3.6)

where is a codebook with codewords for , and is a constant that controls the strength of the regularization term . Some examples of assignment methods that assign features, , to codewords, , using (3.6) include: orthogonal matching pursuit (OMP) [176], sparse coding (SpC) [210], local coordinate coding (LCC) [217], and locality-constrained linear coding (LLC) [192], which differ by their regularization term, . The regularization term enforces varying properties of .

The orthogonal matching pursuit (OMP) approximates by considering the number of nonzero elements of , the -norm of . Unfortunately, -norms are non-convex and to obtain a solution to (3.6) with

requires some heuristic strategy. Thus, to counter the non-convexity of the

-norm, the regularization term in (3.6) can be replaced with an -norm (i.e. ), which is referred to as sparse coding (SpC).

It was empirically observed that SpC is helpful when the codewords are local (i.e. when non-zero coefficients are assigned to codewords (or bases) near the feature vector (the data to be encoded)) [192, 217]. Since this locality is not guaranteed the way (3.6) is set up in SpC, the locality constraint of SpC can be explicitly enforced by modifying the regularization term as , such that as in local coordinate coding (LCC)444 in LCC and LLC denote , where is the Euclidean distance between and for .. Unfortunately, SpC and LCC require solving an -optimization problem, which is computationally expensive and problematic for large-scale problems. As a result, a practical assignment scheme called the locality-constrained linear coding (LLC) [192] was designed as a fast-implementation of LCC by defining the regularization term as , such that for , where ensures that similar patches have similar codes by assigning weights proportional to how similar each codeword is to the feature vector.

Among various soft combinatorial assignments that were introduced in this section (see Table 3.1 for a summary), LLC is the most popularly used for its fast implementation. Put simply, LLC assigns each feature as a linear combination of -nearest codewords in the codebook of size for . As a point of comparison, note that VQ and LLC base their assignments on the 1-nearest and -nearest codewords, respectively. However, the weighted sum of multiple codes allow LLCs to better capture the relationship between similar descriptors that share the same codewords than the hard assignment quantization methods [192]. Although LLC is faster than other combinatorial methods, the least square problem (3.6) that needs to be solved to find the nearest words remains a computational burden of the LLC combinatorial assignment method.

Unlike the combinatorial assignment methods that were introduced earlier, the localized soft-assignment [97] does not involve solving the least-squares problem (3.6), rather a normalized weight is assigned with respect to -nearest codewords for in a codebook of size . Although it has a computational advantage over LLC, and is the most computationally efficient combinatorial assignment approach, with a comparable accuracy rate, a constant value that determines the softness of the assignment is present as a free parameter.

Assignment Type Regularization Term
Orthogonal Matching Pursuit (OMP)
Sparse Coding (SpC)
Local Coordinate Coding (LCC) such that
Locality-Constrained Linear Coding (LLC) , where
Table 3.1: List of regularization terms for combinatorial soft assignment methods. The coefficients that determines the degree of membership between feature and codeword is determined by solving the least-squares problem: given a codebook . Assignment type varies with regularization . in LCC and LLC denotes , where is the Euclidean distance between and , and in LLC is a constant that controls the weight of for .
Contrasting

Alternate to analyzing direct affiliations between features and codewords, dissimilarities between descriptor mean and codewords can provide useful information. Some examples of this type of soft assignment encoding methods are Fisher vectors (FV) and vector of linearly aggregated descriptors (VLAD). Here, FV and VLAD will be examined in detail as well as their relationships.

Fisher vectors (FVs) [62] are soft assignment methods that are derived from Fisher kernels (FKs) [196]. FVs rely on a codebook defined using a generative model (e.g. GMMs) such that the set of training features can be described by the gradient of the log-likelihood. A Fisher kernel, which measures the similarity between two sets of data, training and test, is defined as the product of the gradient of the log-likelihood functions of the sets and the Fisher information matrix. Finally, the Fisher vectors are obtained by concatenating the derivatives of the Fisher vectors with respect to the mean and the covariance. The use of Fisher kernels allows use with any kernel-based classifiers, such as SVMs. Since Fisher vectors include information on deviation and covariance using GMMs, first- and second-order statistics of the feature descriptors are encoded providing generative information [188]. Like generative models, FKs are also capable of processing data of varying lengths (i.e. FK support addition or removal of data) and like discriminative methods, FKs have flexible criteria and yield better results. The number of Gaussians selected at the codebook generation step can affect the smoothness/sharpness of the histogram. As the number of Gaussians increase, there would be less descriptors assigned to a Gaussian with a significant probability. Noting that no descriptor assigned to some Gaussian yields a zero gradient vector, there would be more Gaussians that are not assigned to any descriptors. As a result, the histogram would be sharp around zero (cf. Figure 3.13 (a)-(c)). To reduce the sensitivity of FVs to the number of Gaussians, FVs can be improved into an improved FV (iFV) [131] by applying power-normalization to each element in FV. To ensure that the quantization is not affected by a free parameter, normalization is applied to iFV (to be discussed in greater detail in the normalization

section). That is, the dependency on a parameter that represents the object-to-background ratio, where small objects with a small parameter are not represented well, can be removed. The posterior probability calculation that is involved in FV and iFV slows down the computation, but is compensated through its use of small codebook.

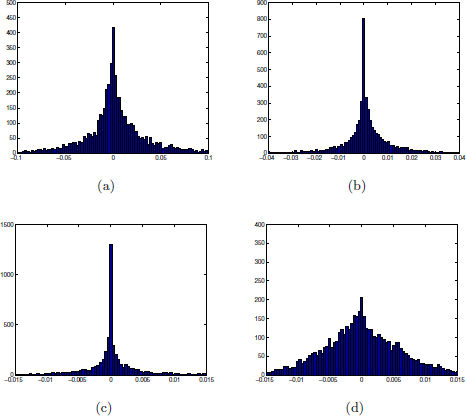

Figure 3.13: (a)-(c) Comparing L2-normalized Fisher vectors (FVs) with a different number of Gaussians: (a) 16, (b) 64, and (c) 256 Gaussians. (c)-(d) Comparing L2-normalization with power normalization: (c) L2-normalized FV, and (d) power-normalized FV. Redrawn from [131].

Vector of Linearly Aggregated Descriptors (VLAD) [65] is another quantization method based on dissimilarities between new features and codewords that appear in action recognition and detection algorithms [63]. VLAD encoding methods typically rely on a codebook generated using -means clustering, but GMMs can be used as well. The VLAD representation is obtained by summing, for each codeword, the differences between the feature vectors and the codeword, where each feature vector is associated with the nearest codeword in the codebook. That is, , where is the closest codeword to local feature . VLAD can be perceived as a simplified version of FV in that VLAD only keeps the first-order statistics (i.e. the mean) as opposed to first- and second-order statistics in FV. The additional second-order information in FVs typically lead to better performance than VLAD. However, VLAD can overcome the difference in the case that features appear more densely in the space of interest and thereby yield a more stable codebook [130]. Consequently, with a set of densely sampled features, it would be more beneficial to encode via VLAD rather than FV since the second-order statistics do not assist in obtaining higher accuracy, but adds computational cost.

Discussion on Assignment Methods

The high-order statistical information that the encoding methods retain (e.g. difference of means and variances in FV vs. difference of means in VLAD) allows soft assignment methods to better capture the distribution shape of the descriptors in the feature space than hard assignment methods [130]. However, storing more information comes at a cost of higher dimension. Notice that the final dimensions of VQ, LLC, FV, and VLAD, are , , , and , respectively, where is the dimension of the descriptor and is the codebook size (i.e. number of clusters if based on

-means clustering and number of mixture if based on the GMM). Thus, the computational cost of training FVs tend to be much larger than any other encoding method mentioned in this paper and often requires feature reduction in its subsequent steps.

3.2.3 Pooling and Normalization

Some algorithms face too much repeated data or inconsistent representations of the data. Thus, further processing is needed to reduce and stabilize the data through pooling and normalization. Here, some common pooling and normalization operations that appear at the encoding stage are examined. Their role and effects in various quantization methods will be discussed as well.

Pooling

Processing responses of all features can be expensive. Thus, the statistics of the features can be aggregated (or pooled) at various regions to yield a summary statistic (e.g. histogram). These summary statistics tend to be much lower in dimension and prevents over-fitting of the data. Furthermore, data with large variations can be condensed into a more compact representation by either removing or weighing the outliers less. Thus, an ideal pooling method must preserve important information and discard irrelevant materials while allowing invariance to small transformations of the input [18]. Typical pooling methods include: max-, sum-, and average-pooling. The feature with the largest response is chosen in max-pooling, and the responses are combined additively or averaged in sum-pooling and average-pooling, respectively. The appropriate pooling operation depends on the sampling method, features type, and codebook size [18]

. Max-pooling is the preferred method for sparsely sampled features

[18, 150].

Although max-, sum-, and average-pooling are simple ways to aggregate data, they have some obvious drawbacks. Responses that are slightly weaker than the strongest are discarded in max-pooling even though their weaker responses could provide additional useful information. Every response within a region is considered in sum- and average-pooling with equal importance, which would be undesirable since the responses with low magnitudes can down weight the responses with high magnitudes. Consequently, instead of considering one or all responses in a region, a probabilistic form of average-pooling and a weighted response can be considered during training and testing phases, respectively, as in stochastic pooling [222]. The probabilities and the weights in stochastic pooling are determined by the magnitude with respect to other responses within the region (see Figure 3.13(c)). Alternatively, other mixture of pooling methods (e.g. taking the max over the fraction of all available feature points) can sometimes yield more accurate results [18].

(a) General region
(b) A concrete example of
(c) Normalized
Figure 3.14: Illustration of pooling regions with (a) general responses, (b) an example of responses in region , and (c) a normalization of (b).
Pooling Method Equation for Pooling Region Pooled value from Max Sum Average Stochastic at training [222] with or with prob. of and , resp. Stochastic at testing [222] , where
Table 3.2: Summary of pooling methods. Refer to Figure 3.13(b) for an illustration of the example in the rightmost column.

The aforementioned pooling techniques aggregate data over some pre-defined region disregarding spatial layout and temporal order. At a global scale, spatial invariance can be beneficial since the location of an action within a video should not change the class of an action. However, the spatial layout at a local scale, such as shape and location of body parts with respect to each part, can provide crucial information [127]. Motivated by the fact that varying spatial scale retains the order of the features in locally orderless images (or histograms) [80], spatial pyramid pooling [91] employs a hierarchy of rectangular windows to preserve spatial orders. It partitions each frame of a video into increasingly finer spatial subregions and computes the histograms of local features from each sub-region to concatenate into a single final vector [192]. Reconsideration of spatial order have shown to strengthen the descriptive power of the features. Pyramid pooling can be extended to the spatiotemporal domain from the spatial domain by partitioning videos into increasingly finer spatiotemporal subregions instead of spatial subregions [88, 178, 187]. This variation would preserve both the spatial as well as temporal orders of the features for finer discrimination between actions with similar structure that vary in temporal sequence (e.g. fall down vs. get up).

Pooling regions can also be more meaningfully defined by identifying regions that are more likely to contain actions (or actionness [23]) (see Figure 3.15). In fact, it was confirmed that pooling from a ground truth pose mask improves the accuracy of action recognition algorithms [66]. There are many ways of explicitly decomposing videos. One intuitive way would be to split the video into foreground/background [178]. In a similar manner, action-, actor-, or object-specific detectors can be applied per frame of the video to detect actions, actors, or specific objects [178]. One canny approach restricts pooling regions to areas that the human observers look at by collecting the human eye movement using an eye tracker as they view a video [183]. Alternatively, features can be pooled from saliency regions555Here, saliency information is used to pool features rather than to sample them. That is, saliency information is used to select a few features that will be used to train or test the classifier after they have been extracted and represented as some feature vector.. Here, the premise is that saliency regions are likely to contain an actor. Various combinations and variants have appeared in literature to create a binary or real-valued saliency map (e.g. interest point detectors [6, 168], structure tensors [183], SOEs [38]). Features pooled from different salient regions but the same fixed grid segmentation (as in Figure 3.15) would have low similarities, especially if these features correspond to actions with spatial change over time. Thus, pooling from saliency regions allow features to undergo a more fair comparison as they are aggregated from similar regions. Furthermore, real-valued saliency maps [23, 38, 168] can be used as weights since the features pooled from these regions are that much likely to contain an action.

(a) Action changing in spatial location in a single video sequence highlighted in red.
(b) Fixed Grid Segmentation vs. Dynamic Segmentation
Figure 3.15: Comparing fixed grid segmentation and dynamic segmentation on a video that contains an action that has spatial variation. The action words (green histograms) fall in different cells (purple region followed by cyan region) of the fixed grid (left) as the action changes spatial location throughout the sequence. On the other hand, the action words remain in the same (red) region in a video that is segmented dynamically (right). Redrawn from [6].
Normalization

To ensure consistency amongst the collected data, a normalization procedure can be applied to a database of features. Some common normalization techniques include [130]: -, -, power-, and intra-normalization. As its name suggests, in - and -normalizations, the features are divided by the - and -norms, respectively, of the vectors. The power-normalization [131] computes the sign root of each element. That is, the power-norm of an encoded vector is defined as: , where , for . The operation of power has the tendency to reduce the difference between a large value and a small value in a histogram (cf. Figure 3.13 (c)-(d)), which results in a smoothing of a histogram [130, 131]. This smoothing effect can allow more frequently occurring codewords to have less impact, while a less frequently occurring codeword has more impact, which would be useful in data obtained through dense sampling especially if majority of the features correspond to the background. The power-normalization technique can be combined with - or -normalization techniques as in iFV.

Intra-normalization [4] is different from other normalization techniques in that it is specific to codebook-based methods. Each codeword (or the th Gaussian) is perceived as a block and - or -normalization is applied to each block. Intra-normalization is an effective way of balancing the weight of different codewords instead of being bias towards bursty features [4]. Burst of features can occur in features that contain repeated structures, which are prevalent in the background, as would be in the case of data obtained through dense sampling. Thus, intra-normalization has shown to be helpful in suppressing irrelevant information (e.g. background information) and putting greater emphasis on useful information especially in features obtained through dense sampling [130]. On the contrary, under the assumption that the data obtained through sparse sampling correspond to information that is a crucial component of an action, intra-normalization has shown to be decrease the discriminative power of action-related codewords degrading the final performance of the recognition algorithm [130].

3.2.4 Discussion on Encoding Methods

The order, choice, and combination of codebook generation, assignment, pooling, and normalization can all affect the final outcome of the classification problem. Even though the major stages of encoding were presented as: codebook generation, assignment, pooling and normalization, it does not suggest that the optimal performance will be attained by following this exact sequence of steps. In fact, pooling and/or normalization can appear at any stage of encoding, if either or both stages are deemed helpful at all.

It was mentioned in the codebook generation section that increasing the size of the codebook (i.e. the number of codewords) to a certain point improves the accuracy of the recognition. Furthermore, it was pointed out that soft contrasting assignment methods retain richer information between codewords and feature vectors (e.g. dissimilarities between features and codewords). Together, they allow soft contrasting assignment methods to allow for a smaller codebook than other assignment models to achieve a similar level of performance [130].

In the normalization section, it was briefly discussed that power-normalization has a smoothing effect on histograms. When power-normalization is combined with sum- or average-pooling, a very good result can be obtained since sum-pooling produces sharp and unbalanced histogram. Thus, the smoothening effect of power-normalization and the sharpening effect of sum-pooling pair well together to balance the smooth-sharp effects. Noting that FVs are based on a codebook constructed using GMMs, FVs implicitly perform an average pooling as it computes the first-order statistics to obtain the FV. As a result, FVs have been shown to perform well with average-pooling [39]. Consequently, power-normalization is the most well-suited normalization method with FVs [131].

A synergistic relationship can be observed between a well-chosen pair of assignment and pooling methods. For assignment models that pursue a sparse representation, the optimal pooling method is via max-pooling [150]. Max-pooling couples well with sparse data since the distance between the nearest codeword and the feature vector is significantly closer than with other codewords inducing a strong response. The strong response is preserved and weaker responses are discarded through max-pooling [58]. In fact, it was empirically confirmed that SpC, an assignment model that pursues a sparse representation, and LLC, an assignment method that eventually leads to sparsity through its locality constraint, is best pooled via max-pooling [192, 210].

Another factor that cannot be overlooked when choosing the type of encoding is the type of classifier in the subsequent step. That is, to use a linear SVM over non-linear SVMs for its efficiency and smaller memory requirement, -normalization would be the preferred normalization method since the inner product of any vector with itself is an identity in -normalization, which ensures that the vector compared to itself is the most similar. This trait warrants stability during training [130, 192]. Thus, although the sharp characteristic induced by -normalization on FVs can be resolved via -normalization, power-normalization is preferred since -normalization suggests the use of non-linear SVMs as opposed to linear SVMs in the succeeding classification step [131].

There is a plethora of choices for each step in the encoding framework. The selection of encoding can greatly impact the final classification performance [22]. Since each choice within the pipeline are highly inter-related, they should be chosen with care. Although many gaps have been filled to determine which combination would yield the most ideal encoding framework (e.g. FVs with sum-pooling, power- and -normalization for linear SVMs), extensive research is still in need to bridge the theoretical gap between all existing choices within each step.

3.3 Feature Post-processing

Extracted features tend to have high dimensionality, correlated, and/or vary in duration. High dimensionality makes training difficult and computationally expensive at the classification stage. Redundant information could add bias in the training data affecting the accuracy of the algorithm. Difference in temporal duration or action execution rate can cause incorrect comparison of the data (e.g. extending vs. contracting arm in boxing have opposing motions). Thus, although it is not necessary, many recognition algorithms can benefit from dimensionality reduction, removal of redundant information, and/or temporal alignment of the videos.

There has been extensive research in the area of dimensionality reduction [179]. One of the oldest and most widely used post-processing procedure in action recognition and detection is Principal Component Analysis (PCA) [29, 81, 201]

. PCAs use orthogonal transforms (via computing the eigenvalues and eigenvectors of the covariance matrix of the feature vectors) to capture the variation amongst the features using principal components. Original features can be represented by a linear combination of

principle components, which are a set of linearly uncorrelated variables. These principal components are computed in decreasing order of importance, where the first principal component accounts for majority of the variation in the original data. Thus, the number of used principle components is typically less than the number of original variables resulting in dimension reduction. The ability of PCA to uncorrelate the data saves computation cost by removing redundancy [196].

Features can be further processed such that they are more distinct while differing by the same amount. Variance between the data can be unified by rescaling the data. Using the eigenvalues obtained at the PCA stage, each feature, , can be rescaled by its respective eigenvalue, for , to ensure that each feature has a unit variance. This process of rescaling the feature is referred to as whitening (i.e. . It is important to keep in mind that some eigenvalues tend to be numerically close to zero, especially the latter few in a set of eigenvalues arranged in descending order. Thus, it is common practice to add a small constant, , to the eigenvalues before the features are rescaled (i.e. ) to prevent data inflation or numerical instability.

Within the same action, the temporal duration of the snippet containing the single action can vary due to variations in action execution rate or different frame rate of videos. Dynamic time warping (DTW) can be used to align sequences with variable durations [60, 94, 101, 182]. DTW aligns the two time series by warping the time axes to align the samples to the corresponding points. It simultaneously takes into account a pairwise distance between corresponding frames and the sequence alignment cost using dynamic programming. A low alignment cost results when the two sequences are segmented similarly in time and performed at similar rates.

Post-processing is not necessary for all methods and is seldom done on many encoding methods other than FV-based methods [130]. However, empirical evaluations show that applying PCA-whitening greatly improves algorithms that do not usually apply PCA-whitening, such as VQ and LLC-encoded methods [130].

3.4 Final Remarks

In this chapter, three major steps that are involved in representing images were examined: feature extraction, feature encoding, and feature post-processing. The feature extraction stage and the encoding stage can occur once or multiple times as needed before it enters the final classification stage [67, 123]. Furthermore, although dimensionality reduction may improve the accuracy and efficiency of an algorithm, it is not a necessary procedure and can occur before or after the encoding stage.

4.1 Comparison Metrics

Given a pair of samples, one must measure how similar (or dissimilar) two patterns are in order to cluster similar (or dissimilar) training samples together (or apart) or to associate (or dissociate) the query data with the same class as the training data. One way to compare sets of data would be to measure the distance between the two.

The -norm (or Minkowski metric), , is one of the most general classes of metric that measure dissimilarity between two -dimensional features , which is defined as:

(4.1)

where the value of determines the type of distance that is measured between and . measures the shortest distance between and , while measures the largest distance between the projected distances of and (see Figure 4.2). When is set to 2, -norm is the familiar Euclidean distance, which is used in various algorithms [29, 88, 94, 101, 191, 200, 213].

Figure 4.2: Illustration of the -norm with varying values of measuring the distance from the origin to point , a unit away on the coordinate axes. The -norm, illustrated in white, is the shortest distance from the origin to point while the -norm is the maximum distance between the projected distances of the origin and onto each of the -coordinate axes. Redrawn from [33].

While the Euclidean distance is a widely used comparison metric, it is only useful if the data are isotropic and distributed evenly along all directions in the feature space. A common way of standardizing data with different measurements is to apply some weight. A weighted Euclidean distance that uses the mean of the variables as its weight is referred to as the chi-square distance, , which is defined as:


Alternatively, correlated data with varying scales can be accommodated by considering the covariance as in the Mahalanobis distance, , which is defined as:

where is the covariance matrix corresponding to the typical distribution of interest points in the training data [87]. Thus, when the data is scattered in all directions around the centre of the cluster, the convariance matrix is a diagonal matrix, which is the normalized Euclidean distance and an identity covariance matrix would be the standard normalized Euclidean distance. The Mahalanobis distance provides a useful measure to calculate the amount of separation between two classes of features (e.g. Hu moments [16] or Fourier projections of MHVs [201]) by measuring the distance between their respective centres [31].

There are various comparison metrics that measure the difference (or similarity) of two probability distributions. The Kullback-Leibler (KL) distance, , which measures the difference between two probability distributions, is defined as:

The KL distance is nonzero and is equal to zero if and only if [33]. KL distance is used in various action recognition algorithms [96, 123]. KL distance lacks symmetry (i.e. ), which is undesirable in action recognition algorithms because two features should be equally similar or dissimilar to be (part of) an action regardless of the order of comparison (i.e. action is similar to action as much as action is similar to action ). Asymmetry can be overcome by redefining the KL distance as [123]. Alternatively, the KL distance can be modified into:

referred to as the Jeffreys divergence, which is numerically stable, symmetric, and robust to noise [134, 144].

The Bhattacharyya coefficient, , which measures the overlap between two probability distributions is defined as:

The Bhattacharyya coefficient, which is not to be confused with the Bhattacharyya distance, is bounded below by zero and above by one. Zero indicates no overlap and one indicates a perfect match between two normalized distributions

and . The bounded nature of the Bhattacharyya coefficient makes the measure robust to small outliers, which is favourable in action recognition application due to occlusion that could affect the overall distribution [28, 211].

The partial matches between two histograms in their corresponding bins can be modelled using a histogram intersection (HI) [172]. Histogram Intersection (HI) [172], , is defined as:

Interestingly, when the two histograms have the same size (i.e. ), then the histogram intersection of and is equivalent to the normalized -distance [172].

So far, all the measures that were mentioned in this section measured the similarity (or dissimilarity) between histograms bin-to-bin (i.e. compare and but never and for ). This forces the two histograms to have the same bin sizes, which could cause the histogram to lack the discriminating power due to coarse binning or grouping of similar features due to fine binning. Thus, the flexibility for histograms to have different sizes and the ability to compare them across bins could be more robust and more useful [144].

The Earth Mover’s distance (EMD) [143] is a cross-bin comparison metric that computes the minimal amount of work needed to transform one distribution to another. EMD can be broken down into a two-step process: (i) given two distributions, and , find the flow with the smallest overall cost of transferring the distributional masses from to (or from to ), then (ii) use the flow to determine the amount of work required to transfer the distribution masses. To find the optimal flow, , is to solve the following transportation problem:

(4.2)

where is the flow between and for , and is the “ground distance” between and , which can be any distance measure between single elements (e.g. -norm [144], -norm [144, 218]) depending on the features. Since (4.2) is a transportation problem (see Figure 4.3), the optimal flow,

, can be found using linear programming

[144]. Then the EMD between two histograms, and , is defined as the work normalized by the total flow:

where the normalization factor (total flow) is equivalent to the total weight of the smaller distribution, which prevents the measure from favouring the smaller distribution [144].

(a) Transportation Problem
(b) Solution to the Transportation Problem
Figure 4.3: Example of the Earth Mover’s Distance (EMD). To calculate the EMD of and , (a) convert and into a transportation problem, where the cost (or ground distance), between and for is pre-defined. (b) The optimal flow of the transportation problem is found through linear programming. The columns of optimal flow, , represents the amount of flow that is transferred from node to node . .

There are many cross-bin similarity measures [144], but only the Earth Mover’s distance is surveyed here. Other cross-bin measures are omitted since they are not as frequently used in the field of action recognition and detection. Comparison metrics of two histograms and that were described in this section are summarized in Table 4.1.

Metric Type Comparison Metric,
-norm ()
-distance ()
Mahalanobis distance ()
Kullback-Leibler distance ()
Jeffreys divergence ()
Bhattacharyya coefficient ()
Histogram Intersection ()
Earth Mover’s distance () , where is the optimal flow that minimizes the cost of , and is the ground distance between each element in and
Table 4.1: Histogram Comparison Metric Summary. All metrics, but the Earth Mover’s distance, described in this section measure similarity (or dissimilarity) between two histograms and bin-to-bin. Thus, . The Earth Mover’s distance compares the two histograms in a cross-bin manner. Thus, the sizes of the two histograms can vary (i.e. and for ).

4.2 Deterministic Models

Query data can be assigned to one action class or another without considering the probability distribution between classes of the training data in deterministic models. A set of training data can be learned in either a (i) lazy, or (ii) eager manner. Lazy learning classifiers makes generalizations only when query data appears. Eager learning classifiers, on the other hand, makes generalizations using the training data before it sees the query data. Thus, it takes more time to train eager learning algorithms, but less time to predict the class of the test data than lazy learning algorithms [31]. Here, some common lazy and eager learners that are used in various action recognition and detection algorithms will be studied.

4.2.1 Lazy Learners

Lazy-based learning classifiers defer data processing until they receive a request to classify an unlabelled test example [31]. The classifier waits for query data before it makes any generalizations about the data. One common lazy learning classifier used in action recognition is the

-nearest neighbour (kNN) classifier

[94, 124]. It determines the class of the test sample by growing a spherical region centred at the sample until the region contains training data. The test data is labelled by the class with the majority vote in the enclosed space (see Figure 4.4) [31]. Many earlier algorithms set , to find the nearest neighbour (i.e. template) to the query (i.e. test) vector [34, 94]

. The distance between the training set and the test data can be obtained via a comparison metric mentioned in the previous section. Thus, computing can be expensive with a large training set. When there are two classes in the training set, an odd

value is used to avoid ties between the classes. With more classes, larger values are used since they are more likely to break the ties [31]. Although the kNN classifier is simple to implement, it is prone to local noise. Furthermore, with an increase in the number of features, more training data is required leading to the case of curse of dimensionality. To avoid bias when there are an unbalanced amount of training data from different classes or to assign more weight on false negatives over false positives, the standard kNN algorithm can be modified to assign a particular class to the test data if at least of the nearest neighbours are in that class for [31].

Figure 4.4: -nearest neighbours with . A circular region (red) centred around the test sample (star) is expanded until samples (circles and triangles) are contained within the circular region. The test sample is labelled as the same class as triangle since there are more triangles (3) than circles (2) inside the bound region.

4.2.2 Eager Learners

Given a collection of training data, eager learning classifiers learn a model that would generalize the data as soon as it becomes available before the test data must be categorized. A model can be generated by partitioning the feature space of the data into a set of decision regions (see Figure 4.5) [31]

. These regions provide a guideline to classify the query feature into one of the classes. The decision regions are separated by decision boundaries, which can be described by a set of discriminant functions. Some eager learning algorithms that are commonly used in action recognition and detection algorithms include: support vector machines (SVMs), AdaBoost, and artificial neural networks (ANNs).


(a) Linearly separable data
(b) Non-linearly separable data
Figure 4.5: Decision Boundaries. Red lines indicate the decision boundary, which separates the samples of different classes (triangles and circles) into decision regions. (a) A linear decision boundary is the simplest decision boundary, which can be described by a linear (discriminant) function. (b) A non-linear decision boundary can be obtained with a set of complex polynomials.

A support vector machine (SVM) is one of the most common supervised classification tools used in action recognition and detection, e.g. [63, 67, 69, 82, 88, 103, 107, 137, 147, 170, 173, 190, 186, 188, 211, 226]

. An SVM is trained to find a hyperplane (or a decision boundary) that separates labelled data from two classes into its respective groups. The best hyperplane is the one that separates the two classes with the largest distance between the nearest point from each class to the hyperplane (see Figure

4.6). Since action recognition involves classifying videos into multiple actions (classes), a multi-class SVM must be employed, which can be done by applying the one-versus-all approach [88, 225]. The one-versus-all approach takes the training data from class labelled as positive and the rest as negative examples to train the th model. Kernels enable implicit operation in a higher dimensional feature space, where hyperplane separability may be possible. There are two types of kernels: (i) linear, and (ii) non-linear. To determine what would be an appropriate kernel for the algorithm, one should examine the ratio between the number of features and the training data. A linear kernel is preferred when the number of features is large (i.e. high dimensional feature space) (e.g. DT/iDT features) relative to the number of training samples to prevent over-fitting in the feature space. When there are a few features with a lot of samples, a non-linear kernel would be a better choice. Although non-linear kernels typically achieve a lower error rate, linear SVMs are less computationally expensive and require less storage than non-linear SVMs allowing real-time detections possible [26, 210]. By adding more features, a linear SVM can be used.

Figure 4.6: Support Vector Machine (SVM). Solid lines indicate the decision boundary separating the samples of different classes (triangles and circles). Dashed lines are lines parallel to the decision boundary closest to the data of one class. SVM seeks a line that would maximize the margin, the distance between the dashed and solid line (i.e. red line).

Adaptive Boosting (AdaBoost) is a learning algorithm that takes several weak classifiers, classifiers that are slightly better than random guessing, and constructs a meta-classifier. By assigning different weights to training samples, different classifiers would pay more attention to different samples. The weights of an individual classifier is assigned depending on its accuracy [23]. This approach has been applied with some success in various action recognition algorithms [36, 89, 96, 124].

Artificial neural networks (ANNs) are another widely used classification algorithm. The artificial neuron (perceptron, or more generally referred to as units) in each layer computes the weighted sum of its inputs. If the sum exceeds some specified threshold, the unit outputs a value [31]. A unit models a linear discriminant function partitioning the feature space using a decision boundary. Using a multilayer network, nonlinearly separable functions can be learned (see Figure 4.7

). The network is trained via backpropagation, which involves repeatedly presenting the training data to the network and adjusting the weights in the network to obtain a desired output

[31, 33]. The number of units in the hidden layers govern the expressive power of the network [33]. A small number of hidden units is sufficient for well-separated or linearly separable patterns, but highly interspersed patterns with complicated densities require more hidden units. While a large number of hidden units produces a discriminative network lessening the training error, training becomes extremely time-consuming. Furthermore, it can lead to overfitting of the data, causing random noise in the test data to be modelled and poor generalization to the test data [31]. An ANN with too few hidden units would not have enough parameters to fit the training data, yielding poor classification results on the test data. Thus, finding an intermediate number of hidden units is key to obtaining good classification results with such powerful classification tool.

ANNs and CNNs (mentioned in Section 3.1.2) have very similar architectures. Both networks output class scores of a feature vector by processing the components of a feature vector into a sequence of input, hidden, and output layers [33]. Each layer consists of a set of units, where each unit in the hidden layer receives some input, performs a dot product, and optionally follows it with a non-linearity. Based on an assumption that input signals from the domain of interest (e.g. images) are locally correlated (e.g. spatially neighbouring pixels), CNNs allow their receptive fields of the hidden units to have a relatively local support [93], while more general ANNs do not. This allows units in the hidden layers of a CNN to be connected to a local neighbourhood of the previous layer, while all units in every layer of a general ANN is allowed to be fully-connected. Fewer connections between units significantly reduces the number of parameters (weights) that must be learned [93]. Consequently, fewer weights reduces the number of training that is required to cover the space of possible variations. Furthermore, it reduces the amount of memory required to store the weights in the hardware [93]. Remark, the last layers of a typical CNN architecture can be fully-connected. This allows for an output of a class, a class probability, or features that can be fed into another classifier (e.g. SVM).

(a) Two-Layer Neural Network
(b) Linear Decision Boundary
(c) Multi-layer Neural Network
(d) Arbitrary Decision Boundaries
Figure 4.7: Artificial Neural Networks (ANNs) with different number of layers. While a two-layer neural network classifier (4.6(a)) is only capable of implementing linear decision boundaries (4.6(b)), a multi-layer neural network (4.6(c)) with an appropriate number of hidden units can implement arbitrary decision boundaries (4.6(d)), which do not necessarily have to be convex nor simply connected. Adapted from [33].

4.3 Probabilistic Models

Probabilistic models learn the probability distribution over the set of classes to determine the probability of the query data belonging to each action class. These probabilistic models can be broadly categorized into two types: general classifiers and temporal state-space classifiers. General classifiers categorize features without explicitly modelling variations in time while temporal state-space models use temporal order information of features. Here, we look at probabilistic models that fall under general or temporal state-space models.

4.3.1 General Classifiers

The relationship between features and their respective action class can be modelled using probabilities. Here, we examine some common general probabilistic models that have been implemented in the field of action recognition, such as the naive Bayes classifier, latent topic discovery models, relevance vector machines, and the Bayesian network.


The naive Bayes classifier is one of the simplest probabilistic models that assigns a feature, , to some action class by comparing the posterior probability [31]. Applying the Bayes’ rule, the conditional posterior probability can be written as:

(4.3)

where represents the probability of feature (e.g. filter bank [24]) belonging to class , and represent probabilities of observing class and feature , respectively. , , and can all be trained from observing the distributions within the training set. The naive Bayes classifier makes a naive assumption that the features are conditionally independent to one another given its class (i.e. ). Then the test feature can be assigned to the class with the maximum a posterior probability [33], which is formulated as

(4.4)

Through the naive Bayes independence assumption, which may not necessarily be true, naive Bayes classifier is a simple classifier that is a good candidate for implementation for its simplicity and efficiency.

Latent topic discovery models are statistical models that were originally popularized for the discovery of topics in a text. This approach can be extended to discover any latent classes in a collection of data, such as actions in videos. Two latent topic discovery models, probabilistic Latent Semantic Analysis (pLSA) [54] and Latent Dirichlet Allocation (LDA) [15], have commonly appeared in various action recognition algorithms [122, 191, 227] [122, 199]. pLSA and LDA model the distribution of classes in sets of videos, such that the model can be used to classify the latent topics (i.e. action classes) in the new videos. pLSA assumes that a video sequence,
