Retrieve, Read, Rerank: Towards End-to-End Multi-Document Reading Comprehension

06/11/2019 ∙ by Minghao Hu, et al. ∙ 0

This paper considers the reading comprehension task in which multiple documents are given as input. Prior work has shown that a pipeline of retriever, reader, and reranker can improve the overall performance. However, the pipeline system is inefficient since the input is re-encoded within each module, and is unable to leverage upstream components to help downstream training. In this work, we present RE^3QA, a unified question answering model that combines context retrieving, reading comprehension, and answer reranking to predict the final answer. Unlike previous pipelined approaches, RE^3QA shares contextualized text representation across different components, and is carefully designed to use high-quality upstream outputs (e.g., retrieved context or candidate answers) for directly supervising downstream modules (e.g., the reader or the reranker). As a result, the whole network can be trained end-to-end to avoid the context inconsistency problem. Experiments show that our model outperforms the pipelined baseline and achieves state-of-the-art results on two versions of TriviaQA and two variants of SQuAD.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Teaching machines to read and comprehend text is a long-term goal of natural language processing. Despite recent success in leveraging reading comprehension (RC) models to answer questions given a related paragraph

Wang et al. (2017); Hu et al. (2018); Yu et al. (2018), extracting answers from documents or even a large corpus of text (e.g., Wikipedia or the whole web) remains to be an open challenge. This paper considers the multi-document RC task Joshi et al. (2017), where the system needs to, given a question, identify the answer from multiple evidence documents. Unlike single-pargraph settings Rajpurkar et al. (2016), this task typically involves a retriever for selecting few relevant document content Chen et al. (2017), a reader for extracting answers from the retrieved context Clark and Gardner (2018), and even a reranker for rescoring multiple candidate answers Bogdanova and Foster (2016).

Previous approaches such as DS-QA Lin et al. (2018) and R Wang et al. (2018a) consist of separate retriever and reader models that are jointly trained. Wang et al. (2018d) further propose to rerank multiple candidates for verifying the final answer. Wang et al. (2018b) investigate the full retrieve-read-rerank process by constructing a pipeline system that combines an information retrieval (IR) engine, a neural reader, and two kinds of answer rerankers. Nevertheless, the pipeline system requires re-encoding inputs for each subtask, which is inefficient for large RC tasks. Moreover, as each model is trained independently, high-quality upstream outputs can not benefit downstream modules. For example, as the training proceeds, a neural retriever is able to provide more relevant context than an IR engine Htut et al. (2018). However, the reader is still trained on the initial context retrieved using IR techniques. As a result, the reader could face a context inconsistency problem once the neural retriever is used. Similar observation has been made by Wang et al. (2018c), where integrating both the reader and the reranker into a unified network is more benefical than a pipeline (see Table 1 for more details).

Model Retrieve Read Rerank Architecture
DS-QA Lin et al. (2018) Pipeline
R Wang et al. (2018a) Pipeline*
Extract-Select Wang et al. (2018d) Pipeline*
V-Net Wang et al. (2018c) Unified
Re-Ranker Wang et al. (2018b) Pipeline
REQA Unified
Table 1: Comparison of REQA with existing approaches. Our approach performs the full retrieve-read-rerank process with a unified network instead of a pipeline of separate models. *: R

and Extract-Select jointly train two models with reinforcement learning.

In this paper, we propose REQA, a neural question answering model that conducts the full retrieve-read-rerank process for multi-document RC tasks. Unlike previous pipelined approaches that contain separate models, we integrate an early-stopped retriever, a distantly-supervised reader, and a span-level answer reranker into a unified network. Specifically, we encode segments of text with pre-trained Transformer blocks Devlin et al. (2018), where earlier blocks are used to predict retrieving scores and later blocks are fed with few top-ranked segments to produce multiple candidate answers. Redundant candidates are pruned and the rest are reranked using their span representations extracted from the shared contextualized representation. The final answer is chosen according to three factors: the retrieving, reading, and reranking scores. The whole network is trained end-to-end so that the context inconsistency problem can be alleviated. Besides, we can avoid re-encoding input segments by sharing contextualized representations across different components, thus achieving better efficiency.

We evaluate our approach on four datasets. On TriviaQA-Wikipedia and TriviaQA-unfiltered datasets Joshi et al. (2017), we achieve 75.2 F1 and 71.2 F1 respectively, outperforming previous best approaches. On SQuAD-document and SQuAD-open datasets, both of which are modified versions of SQuAD Rajpurkar et al. (2016), we obtain 14.8 and 4.1 absolute gains on F1 score over prior state-of-the-art results. Moreover, our approach surpasses the pipelined baseline with faster inference speed on both TriviaQA-Wikipedia and SQuAD-document. Source code is released for future research exploration111https://github.com/huminghao16/RE3QA.

2 Related Work

Recently, several large datasets have been proposed to facilitate the research in document-level reading comprehension (RC) Clark and Gardner (2018) or even open-domain question answering Chen et al. (2017). TriviaQA Joshi et al. (2017) is a challenging dataset containing over 650K question-answer-document triples, in which the document are either Wikipedia articles or web pages. Quasar-T Dhingra et al. (2017) and SearchQA Dunn et al. (2017), however, pair each question-answer pair with a set of web page snippets that are more analogous to paragraphs. Since this paper considers the multi-document RC task, we therefore choose to work on TriviaQA and two variants of SQuAD Rajpurkar et al. (2016).

To tackle this task, previous approaches typically first retrieve relevant document content and then extract answers from the retrieved context. Choi et al. (2017) construct a coarse-to-fine framework that answers the question from a retrieved document summary. Wang et al. (2018a) jointly train a ranker and a reader with reinforcement learning Sutton and Barto (2011). Lin et al. (2018) propose a pipeline system consisting of a paragraph selector and a paragraph reader. Yang et al. (2019) combine BERT with an IR toolkit for open-domain question answering.

However, Jia and Liang (2017) show that the RC models are easily fooled by adversarial examples. By only extracting an answer without verifying it, the models may predict a wrong answer and are unable to recover from such mistakes Hu et al. (2019). In response, Wang et al. (2018d) present an extract-then-select framework that involves candidate extraction and answer selection. Wang et al. (2018c) introduce a unified network for cross-passage answer verification. Wang et al. (2018b) explore two kinds of answer rerankers in an existing retrieve-read pipeline system. There are some other works that handle this task in different perspectives, such as using hierarchical answer span representations Pang et al. (2019), modeling the interaction between the retriever and the reader Das et al. (2019), and so on.

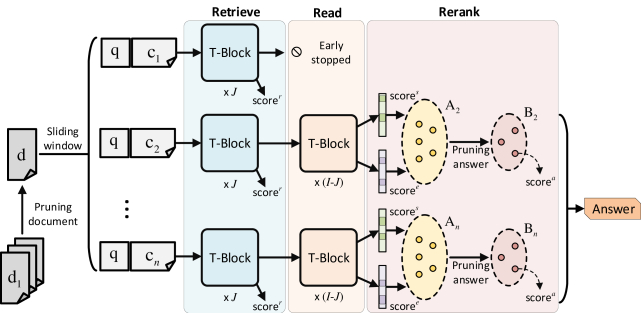

Figure 1: REQA architecture. The input documents are pruned and splitted into multiple segments of text, which are then fed into the model333blabla. Few top-ranked segments are retrieved and the rest are early stopped. Multiple candidate answers are proposed for each segment, which are later pruned and reranked. REQA has three outputs per candidate answer: the retrieving, reading, and reranking scores. The network is trained end-to-end with a multi-task objective. “T-Block” refers to pre-trained Transformer block Devlin et al. (2018).

Our model differs from these approaches in several ways: (a) we integrate the retriever, reader, and reranker components into a unified network instead of a pipeline of separate models, (b) we share contextualized representation across different components while pipelined approaches re-encode inputs for each model, and (c) we propose an end-to-end training strategy so that the context inconsistency problem can be alleviated.

A cascaded approach is recently proposed by Yan et al. (2019), which also combines several components such as the retriever and the reader while sharing several sets of parameters. Our approach is different in that we ignore the document retrieval step since a minimal context phenomenon has been observed by Min et al. (2018), and we additionally consider answer reranking.

3 ReQa

Figure 3 gives an overview of our multi-document reading comprehension approach. Formally, given a question and a set of documents, we first filter out irrelevant document content to narrow the search space (§3.1). We then split the remaining context into multiple overlapping, fixed-length text segments. Next, we encode these segments along with the question using pre-trained Transformer blocks Devlin et al. (2018)3.2). To maintain efficiency, the model computes a retrieving score based on shallow contextual representations with early summarization, and only returns a few top-ranked segments (§3.3). It then continues encoding these retrieved segments and outputs multiple candidate answers under the distant supervision setting (§3.4). Finally, redundant candidates are pruned and the rest are reranked using their span representations (§3.5). The final answer is chosen according to the retrieving, reading, and reranking scores. Our model is trained end-to-end444Note that “end-to-end training” only involves retrieving, reading, and reranking, but not the very first pruning step. by back-propagation (§3.6).

3.1 Document Pruning

The input to our model is a question and a set of documents . Since the documents could be retrieved by a search engine (e.g., up to 50 webpages in the unfiltered version of TriviaQA Joshi et al. (2017)) or Wikipedia articles could contain hundreds of paragraphs, we therefore first discard irrelevant document content at paragraph level. Following  Clark and Gardner (2018), we select the top- paragraphs that have smallest TF-IDF cosine distances with each question. These paragraphs are then sorted according to their positions in the documents and concatenated to form a new pruned document . As a result, a large amount of unrelated text can be filtered out while a high recall is guaranteed. For example, nearly 95% of context are discarded while the chance of selected paragraphs containing correct answers is 84.3% in TriviaQA-unfiltered.

3.2 Segment Encoding

Typically, existing approaches either read the retrieved document at the paragraph level Clark and Gardner (2018) or at the sentence level Min et al. (2018). Instead, following Hewlett et al. (2017), we slide a window of length

with a stride

over the pruned document and produce a set of text segments , where , and is the document length. Next, we encode these segments along with the question using pre-trained Transformer blocks Devlin et al. (2018), which is a highly parallel encoding scheme instead of recurrent approaches such as LSTMs.

The input to the network is a sequence of tokens with length . It is obtained by concatenating the question, segment, and several delimiters as , where [CLS] is a classification token and [SEP] is another token for differentiating sentences. We refer to this sequence as “segment” in the rest of this paper. For each token in , its input representation is the element-wise addition of word, type, and position embeddings. Then, we can obtain the input embeddings , where is hidden size.

Next, a series of

pre-trained Transformer blocks are used to project the input embeddings into a sequence of contextualized vectors as:

Here, we omit a detailed introduction on the block architecture and refer readers to Vaswani et al. (2017) for more details.

3.3 Early-Stopped Retriever

While we find the above parallel encoding scheme very appealing, there is a crucial computational inefficiency if all segments are fully encoded. For example, the average number of segments per instance in TriviaQA-unfiltered is 20 even after pruning, while the total number of Transformer blocks is 12 or 24. Therefore, we propose to rank all segments using early-summarized hidden representations as a mechanism for efficiently retrieving few top-ranked segments.

Specifically, let denote the hidden states in the -th block, where . We compute a by summarizing

into a fix-sized vector with a weighted self aligning layer followed by multi-layer perceptrons as:

where , , are parameters to be learned.

After obtaining the scores of all segments, we pass the top- ranked segments per instance to the subsequent blocks, and discard the rest. Here, is relatively small so that the model can focus on reading the most revelant context.

To train the retrieving component, we normalize and define the objective function as:

(1)

where is an one-hot label indicating whether current segment contains at least one exactly-matched ground truth answer text or not.

3.4 Distantly-Supervised Reader

Given the retrieved segments, the reading component aims to propose multiple candidate answers per segment. This is achieved by first element-wisely projecting the final hidden states into two sets of scores as follows:

where and are the scores for the start and end positions of answer spans, and , are trainable parameter vectors.

Next, let and denote the start and end indices of candidate answer . We compute a reading score, , and then propose top- candidates according to the descending order of the scores, yielding a set of preliminary candidate answers along with their scores .

Following previous work Clark and Gardner (2018), we label all text spans within a segment that match the gold answer as being correct, thus yielding two label vectors and . Since there is a chance that the segment does not contain any answer string, we then label the first element in both and as 1, and set the rest as 0. Finally, we define the objective function as:

(2)

3.5 Answer Reranker

The answer reranker aims to rerank the candidate answers proposed by the previous reader. We first introduce a span-level non-maximum suppression algorithm to prune redundant candidate spans, and then predict the reranking scores for remaining candidates using their span representations.

Span-level non-maximum suppression

So far, the reader has proposed multiple candidate spans. However, since there is no constraint to predict an unique span for an answer string, multiple candidates may refer to the same text. As a result, other than the first correct span, all other spans on the same text would be false positives. Figure 2 shows a qualitative example of this phenomenon.

Question: In the late 60s Owen Finlay MacLaren pioneered what useful item for parents of small chldren? Answer: baby buggy Candidates: baby buggy, collapsible baby buggy, buggy, folding buggy, folding chair …

Figure 2: An example from TriviaQA shows that multiple candidate answers refer to the same text.

Inspired by the non-maximum suppression (NMS) algorithm Rosenfeld and Thurston (1971) that is used to prune redundant bounding boxes in object detection Ren et al. (2015), we present a span-level NMS (Algorithm 1) to alleviate the problem. Specifically, span-level NMS starts with a set of candidate answers with scores . After selecting the answer that possesses the maximum score, we remove it from the set and add it to . We also delete any answer in that is overlapped with . We define that two candidates overlap with each other if they share at least one boundary position555We also experimented with the span-level F1 function, but found no performance improment.. This process is repeated for remaining answers in , until is empty or the size of reaches a maximum threshold.

Input: ; ;
     is the set of preliminary candidate answers
     is the corresponding confidence scores
     denotes the maximum size threshold

1:Initialize
2:while  and  do
3:
4:     }; };
5:     for  in  do
6:          if  then
7:               ;
8:return
Algorithm 1 Span-level NMS

Candidate answer reranking

Given the candidate answer in , we compute a reranking score based on its span representation, where the representation is a weighted self-aligned vector bounded by the span boundary of the answer, similar to Lee et al. (2017); He et al. (2018):

Here, , and is a shorthand for stacking a list of vectors ().

To train the reranker, we construct two kinds of labels for each candidate . First, we define a hard label as the maximum exact match score between and ground truth answers. Second, we also utilize a soft label , which is computed as the maximum F1 score between and gold answers, so that the partially correct prediction can still have a supervised signal. The above labels are annotated for each candidate in , yielding and . If there is no correct prediction in (all elements of are 0), then we replace the least confident candidate with a gold answer. Finally, we define the following reranking objective:

(3)
Dataset #Ins #Doc #Seg #Tok #Tok* Recall
TriviaQA-Wikipedia 7,993 1.8 17 10,256 2,103 14 8 94.8%
TriviaQA-unfiltered 11,313 11.7 20 52,635 2,542 14 8 84.3%
SQuAD-document 10,570 1 35 5,287 3,666 30 8 99.0%
SQuAD-open 10,570 5 42 38,159 5,103 30 8 64.9%
Table 2: Dataset statistics. ‘#Ins’ denotes the number of instances, while ‘#Doc’, ‘#Seg’, ‘#Tok’, and ‘#Tok*’ refer to the average number of documents, segments, and tokens before/after pruning, respectively. and are the number of retrieved paragraphs and segments. All statistics are calculated on the development set.

3.6 Training and Inference

Rather than separately training each component, we propose an end-to-end training strategy so that downstream components (e.g., the reader) can benefit from the high-quality upstream outputs (e.g., the retrieved segments) during training.

Specifically, we take a multi-task learning approach Caruna (1993); Ruder (2017), sharing the parameters of earlier blocks with a joint objective function defined as:

Algorithm 2

details the training process. Before each epoch, we compute

for all segments in the training set . Then, we retrieve top- segments per instance and construct a new training set , which only contains retrieved segments. For each instance, if all of its top-ranked segments are negative examples, then we replace the least confident one with a gold segment. During each epoch, we sample two sets of mini-batch from both the and the , where the first batch is used to calculate and the other one for computing and . Note that the contextualized vectors are shared across the reader and the reranker to avoid repeated computations. The batch size of is dynamically decided so that both of and can be traversed with the same number of steps.

During inference, we take the retrieving, reading, and reranking scores into account. We compare the scores across all segments from the same instance, and choose the final answer according to the weighted addition of these three scores.

Input: , where ; ;
     is the dataset containing instances
     is -th instance containing segments
     denotes the model with parameters
     is the maximum number of epoch

1:Initialize from pre-trained parameters
2:for  in  do
3:     Compute for all in
4:     Retrieve top- segments per instance
5:     Construct a new that includes retrieved
6:     for , in ,  do
7:          Compute using by Eq. 1
8:          Compute using by Eq. 3.4
9:          Reuse to compute by Eq. 3.5
10:          Update with graident
Algorithm 2 End-to-end training of REQA

4 Experimental Setup

Datasets

We experiment on four datasets: (a) TriviaQA-Wikipedia Joshi et al. (2017), a dataset of 77K trivia questions where each question is paired with one or multiple Wikipedia articles. (b) TriviaQA-unfiltered is a open-domain dataset that contains 99K question-answer tuples. The evidence documents are constructed by completing a web search given the question. (c) SQuAD-document, a variant of SQuAD dataset Rajpurkar et al. (2016) that pairs each question with a full Wikipedia article instead of a specific paragraph. (d) SQuAD-open Chen et al. (2017) is the open domain version of SQuAD where the evidence corpus is the entire Wikipedia domain. For fair comparision to other methods, we retrieve top-5 articles as our input documents. The detailed statistics of these datasets are shown in Table 2.

Data preprocessing

Following Clark and Gardner (2018), we merge small paragraphs into a single paragraph of up to a threshold length in TriviaQA and SQuAD-open. The threshold is set as 200 by default. We manually tune the number of retrieved paragraphs for each dataset, and set the number of retrieved segments as 8. Following  Devlin et al. (2018), we set the window length as so that is 384 and set the stride as 128, where is the question length. We also calculate the answer recall after document pruning, which indicates the performance upper bound.

Model settings

We initialize our model using two publicly available uncased versions of BERT666https://github.com/google-research/bert: BERT and BERT, and refer readers to Devlin et al. (2018)

for details on model sizes. We use Adam optimizer with a learning rate of 3e-5 and warmup over the first 10% steps to fine-tune the network for 2 epochs. The batch size is 32 and a dropout probability of 0.1 is used. The number of blocks

used for early-stopped retriever is 3 for base model and 6 for large model by default. The number of proposed answers is 20, while the threshold of NMS is 5. During inference, we tune the weights for retrieving, reading, and reranking, and set them as 1.4, 1, 1.4.

Evaluation metrics

We use mean average precision (MAP) and top- to evaluate the retrieving component. As for evaluating the performance of reading and reranking, we measure the exact match (EM) accuracy and F1 score calculated between the final prediction and gold answers.

Baselines

We construct two pipelined baselines (denoted as BERT and BERT*) to investigate the context inconsistency problem. Both systems contain exactly the same components (e.g., retriever, reader, and reranker) as ours, except that they are trained separately. For BERT, the reader is trained on the context retrieved by an IR engine. As for BERT*, the reading context is obtained using the trained neural retriever.

5 Evaluation

Model Full Verified
EM F1 EM F1
Baseline 40.3 45.9 44.9 50.7
M-Reader 46.9 52.9 54.5 59.5
Re-Ranker 50.2 55.5 58.7 63.2
DrQA 52.6 58.2 57.4 62.6
S-Norm 64.0 68.9 68.0 72.9
MemoReader 64.4 69.6 70.2 75.5
Reading Twice 64.6 69.9 72.8 77.4
SLQA 66.6 71.4 74.8 78.7
CAPE 67.3 72.4 75.7 79.3
REQA 68.4 72.6 76.7 79.9
REQA 71.0 75.2 80.3 83.0
Table 3: Results on the TriviaQA-Wikipedia test set: Joshi et al. (2017), Hu et al. (2018), Wang et al. (2018b), Chen et al. (2017), Clark and Gardner (2018), Back et al. (2018), Weissenborn et al. (2017), and Yan et al. (2019). indicates unpublished works.
Model EM F1
S-Norm Clark and Gardner (2018) 64.08 72.37
REQA 77.90 84.81
REQA 80.71 87.20
Table 4: Results on the SQuAD-document dev set.

5.1 Main Results

Table 3 summarizes the results on the test set of TriviaQA-Wikipedia dataset. As we can see, our best model achieves 71.0 EM and 75.2 F1, firmly outperforming previous methods. Besides,  Joshi et al. (2017) show that the evidence documents contain answers for only 79.7% of questions in the Wikipedia domain, suggesting that we are approaching the ceiling performance of this task. However, the score of 80.3 EM on the verified set implies that there is still room for improvement.

We also report the performance on document-level SQuAD in Table 4 to assess our approach in single-document setting. We find our approach adapts well: the best model achieves 87.2 F1. Note that the BERT model has obtained 90.9 F1 on the original SQuAD dataset (single-paragraph setting), which is only 3.7% ahead of us.

Finally, to validate our approach in open-domain scenarios, we run experiments on the TriviaQA-unfiltered and SQuAD-open datasets, as shown in Table 5. Again, REQA surpasses prior works by an evident margin: our best model achieves 71.2 F1 on TriviaQA-unfiltered, and outperforms a BERT baseline by 4 F1 on SQuAD-open, indicating that our approach is effective for the challenging multi-document RC task.

Model TriviaQA-unfiltered SQuAD-open
EM F1 EM F1
DrQA 32.3 38.3 27.1 -
R3 47.3 53.7 29.1 37.5
DS-QA 48.7 56.3 28.7 36.6
Re-Ranker 50.6 57.3 - -
MINIMAL - - 34.7 42.5
Multi-Step 51.9 61.7 31.9 39.2
S-Norm 61.3 67.2 - -
HAS-QA 63.6 68.9 - -
BERTserini - - 38.6 46.1
REQA 64.1 69.8 40.1 48.4
REQA 65.5 71.2 41.9 50.2
Table 5: Results on TriviaQA-unfiltered test set and SQuAD-open dev set: Chen et al. (2017), Wang et al. (2018a), Lin et al. (2018), Wang et al. (2018b), Min et al. (2018), Das et al. (2019), Clark and Gardner (2018), Pang et al. (2019) and Yang et al. (2019).
Model TriviaQA-Wikipedia SQuAD-document
F1 Speed F1 Speed
REQA 72.68 4.62 84.81 3.76
BERT 71.13 2.05 83.65 1.78
BERT* 71.59 2.08 84.04 1.82
Table 6: Comparison between our approach and the pipelined method. “Speed” denotes the number of instances processed per second during inference.

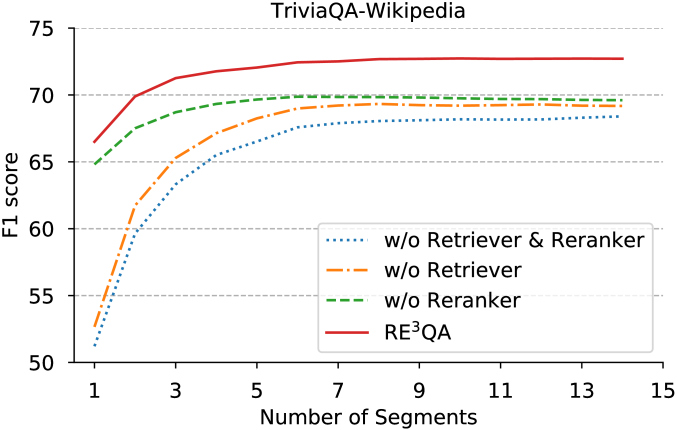

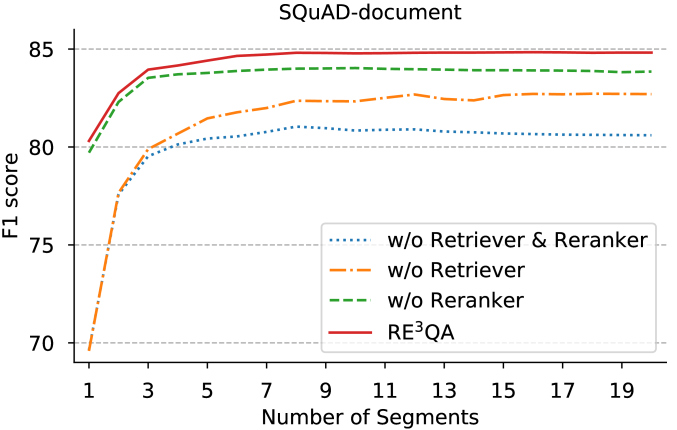

Figure 3: F1 score on TriviaQA-Wikipedia and SQuAD-document w.r.t different number of retrieved segments.
TriviaQA-Wikipedia SQuAD-document
MAP Top-3 Top-5 F1 Speed MAP Top-3 Top-5 F1 Speed
1 67.4 81.5 87.3 69.2 5.9 39.2 47.5 66.8 54.4 5.6
2 75.3 87.4 91.1 71.7 5.1 80.3 89.4 94.0 83.4 4.7
3 77.8 88.8 91.8 72.7 4.6 88.7 94.5 96.8 84.8 3.8
4 80.0 89.2 92.1 71.6 4.2 90.2 95.0 97.2 84.3 3.0
5 80.6 89.6 92.3 71.7 3.5 91.0 95.6 97.6 84.3 2.3
Table 7: Retrieving performance with different number of blocks used for the early-stopped retriever.

5.2 Model Analysis

In this section, we analyze our approach by answering the following questions777The BERT model is used by default in this section.: (a) Is end-to-end network superior to the pipeline system? (b) How does each component contribute to the performance? (c) Is early-stopped retriever sufficient for returning high-quality segments? (d) How does the reranking loss affect the answer reranker?

Comparison with pipelined method

First, we compare our approach with the pipelined baselines on TriviaQA-Wikipedia and SQuAD-document development sets in Table 6. Our approach outperforms BERT by 1.6/1.2 F1 on two datasets respectively, and is also 2.3/2.1 times faster during inference. Moreover, REQA also beats the BERT* baseline by 1.1/0.8 F1, even as the parameters of retriever and reader are trained sequentially in BERT*. The above results confirm that the end-to-end training can indeed mitigate the context inconsistency problem, perhaps due to multi-task learning and parameter sharing. Our approach can also obtain inference speedups because of the fact that it avoids re-encoding inputs by sharing contextualized representations.

Ablation study

To show the effect of each individual component, we plot the F1 curve with respect to different number of retrieved segments in Figure 3. We notice that all curves become stable as more text are used, implying that our approach is robust across different amounts of context. Next, to evaluate the reranker, we only consider the retrieving and reading scores, and the performance decreases by 2.8/0.8 F1 on two datasets after the reranker is removed. To ablate the retriever, we select segments based on the TF-IDF distance instead. The results show that the F1 score reduces by about 3.3 and 2.5 points on two datasets after the ablation. Removing both the retriever and the reranker performs the worst, which only achieves 68.1/81.0 F1 on two datasets at peak. The above results suggest that combining retriever, reader, and reranker is crucial for achieving promising performance.

Effect of early-stopped retriever

We assess whether the early-stopped retriever is sufficient for the segment retrieving task. Table 7 details the retrieving and reading results with different number of blocks being used. As we can see, the model performs worst but maintains a high speed when is 1. As becomes larger, the retrieving metrices such as MAP, Top-3 and Top-5 significantly increase on both datasets. On the other hand, the speed continues to decline since more computations have been done during retrieving. A of 6 eventually leads to an out-of-memory issue on both datasets. As for the F1 score, the model achieves the best result when reaches 3, and starts to degrade as continues rising. We experiment with the REQA model and observe similar results, where the best is 6. A likely reason for this observation may be that sharing high-level features with the retriever could disturb the reading prediction. Therefore, the above results demonstrate that an early-stopped retriever with a relatively small is able to reach a good trade-off between efficiency and effectiveness.

Effect of answer reranker

Model TriviaQA-Wikipedia SQuAD-document
EM F1 EM F1
REQA 68.51 72.68 77.90 84.81
w/o NMS 68.29 72.33 77.67 84.36
w/o 67.36 71.87 77.26 84.17
w/o 67.76 72.29 77.04 84.05
Table 8: Reranking performance with different ablations. and refer to the two labels used to train the reranker.

Finally, we run our model under different reranking ablations and report the results in Table 8. As we can see, removing the non-maximum suppression (NMS) algorithm has a negative impact on the performance, suggesting it is necessary to prune highly-overlapped candidate answers before reranking. Ablating the hard label leads to a drop of 0.81 and 0.64 F1 scores on two datasets respectively, while the F1 drops by 0.39 and 0.76 points after removing the soft label. This implies that the hard label has a larger impact than the soft label on the TriviaQA dataset, but vice versa on SQuAD.

6 Conclusion

We present REQA, a unified network that answers questions from multiple documents by conducting the retrieve-read-rerank process. We design three components for each subtask and show that an end-to-end training strategy can bring in additional benefits. REQA outperforms the pipelined baseline with faster inference speed and achieves state-of-the-art results on four challenging reading comprehension datasets. Future work will concentrate on designing a fast neural pruner to replace the IR-based pruning component, developing better end-to-end training strategies, and adapting our approach to other datasets such as Natural Questions Kwiatkowski et al. (2019).

Acknowledgments

We would like to thank Mandar Joshi for his help with TriviaQA submissions. We also thank anonymous reviewers for their thoughtful comments and helpful suggestions. This work was supported by the National Key Research and Development Program of China (2018YFB0204300).

References

  • Back et al. (2018) Seohyun Back, Seunghak Yu, Sathish Reddy Indurthi, Jihie Kim, and Jaegul Choo. 2018. Memoreader: Large-scale reading comprehension through neural memory controller. In Proceedings of EMNLP.
  • Bogdanova and Foster (2016) Dasha Bogdanova and Jennifer Foster. 2016. This is how we do it: Answer reranking for open-domain how questions with paragraph vectors and minimal feature engineering. In Proceedings of NAACL.
  • Caruna (1993) Rich Caruna. 1993. Multitask learning: A knowledge-based source of inductive bias. In Proceedings of ICML.
  • Chen et al. (2017) Danqi Chen, Adam Fisch, Jason Weston, and Antoine Bordes. 2017. Reading wikipedia to answer open-domain questions. In Proceedings of ACL.
  • Choi et al. (2017) Eunsol Choi, Daniel Hewlett, Jakob Uszkoreit, Illia Polosukhin, Alexandre Lacoste, and Jonathan Berant. 2017. Coarse-to-fine question answering for long documents. In Proceedings of ACL.
  • Clark and Gardner (2018) Christopher Clark and Matt Gardner. 2018. Simple and effective multi-paragraph reading comprehension. In Proceedings of ACL.
  • Das et al. (2019) Rajarshi Das, Shehzaad Dhuliawala, Manzil Zaheer, and Andrew McCallum. 2019. Multi-step retriever-reader interaction for scalable open-domain question answering. In Proceedings of ICLR.
  • Devlin et al. (2018) Jacob Devlin, Ming-Wei Chang, Kenton Lee, and Kristina Toutanova. 2018. Bert: Pre-training of deep bidirectional transformers for language understanding. arXiv preprint arXiv:1810.04805.
  • Dhingra et al. (2017) Bhuwan Dhingra, Kathryn Mazaitis, and William W Cohen. 2017. Quasar: Datasets for question answering by search and reading. arXiv preprint arXiv:1707.03904.
  • Dunn et al. (2017) Matthew Dunn, Levent Sagun, Mike Higgins, V Ugur Guney, Volkan Cirik, and Kyunghyun Cho. 2017. Searchqa: A new q&a dataset augmented with context from a search engine. arXiv preprint arXiv:1704.05179.
  • He et al. (2018) Luheng He, Kenton Lee, Omer Levy, and Luke Zettlemoyer. 2018. Jointly predicting predicates and arguments in neural semantic role labeling. arXiv preprint arXiv:1805.04787.
  • Hewlett et al. (2017) Daniel Hewlett, Llion Jones, Alexandre Lacoste, et al. 2017. Accurate supervised and semi-supervised machine reading for long documents. In Proceedings of EMNLP.
  • Htut et al. (2018) Phu Mon Htut, Samuel R Bowman, and Kyunghyun Cho. 2018. Training a ranking function for open-domain question answering. In Proceedings of NAACL.
  • Hu et al. (2018) Minghao Hu, Yuxing Peng, Zhen Huang, Xipeng Qiu, Furu Wei, and Ming Zhou. 2018. Reinforced mnemonic reader for machine reading comprehension. In Proceedings of IJCAI.
  • Hu et al. (2019) Minghao Hu, Yuxing Peng, Zhen Huang, Nan Yang, Ming Zhou, et al. 2019. Read+ verify: Machine reading comprehension with unanswerable questions. In Proceedings of AAAI.
  • Jia and Liang (2017) Robin Jia and Percy Liang. 2017. Adversarial examples for evaluating reading comprehension systems. In Proceedings of EMNLP.
  • Joshi et al. (2017) Mandar Joshi, Eunsol Choi, Daniel S Weld, and Luke Zettlemoyer. 2017. Triviaqa: A large scale distantly supervised challenge dataset for reading comprehension. In Proceedings of ACL.
  • Kwiatkowski et al. (2019) Tom Kwiatkowski, Jennimaria Palomaki, Olivia Redfield, Michael Collins, Ankur Parikh, Chris Alberti, Danielle Epstein, Illia Polosukhin, Matthew Kelcey, Jacob Devlin, Kenton Lee, Kristina N. Toutanova, Llion Jones, Ming-Wei Chang, Andrew Dai, Jakob Uszkoreit, Quoc Le, and Slav Petrov. 2019. Natural questions: a benchmark for question answering research. TACL.
  • Lee et al. (2017) Kenton Lee, Luheng He, Mike Lewis, and Luke Zettlemoyer. 2017. End-to-end neural coreference resolution. arXiv preprint arXiv:1707.07045.
  • Lin et al. (2018) Yankai Lin, Haozhe Ji, Zhiyuan Liu, and Maosong Sun. 2018. Denoising distantly supervised open-domain question answering. In Proceedings of ACL.
  • Min et al. (2018) Sewon Min, Victor Zhong, Richard Socher, and Caiming Xiong. 2018. Efficient and robust question answering from minimal context over documents. In Proceedings of ACL.
  • Pang et al. (2019) Liang Pang, Yanyan Lan, Jiafeng Guo, Jun Xu, Lixin Su, and Xueqi Cheng. 2019. Has-qa: Hierarchical answer spans model for open-domain question answering. In Proceedings of AAAI.
  • Rajpurkar et al. (2016) Pranav Rajpurkar, Jian Zhang, Konstantin Lopyrev, and Percy Liang. 2016. Squad: 100,000+ questions for machine comprehension of text. In Proceedings of EMNLP.
  • Ren et al. (2015) Shaoqing Ren, Kaiming He, Ross Girshick, and Jian Sun. 2015. Faster r-cnn: Towards real-time object detection with region proposal networks. In Proceedings of NIPS.
  • Rosenfeld and Thurston (1971) Azriel Rosenfeld and Mark Thurston. 1971. Edge and curve detection for visual scene analysis. IEEE Transactions on computers, (5):562–569.
  • Ruder (2017) Sebastian Ruder. 2017. An overview of multi-task learning in deep neural networks. arXiv preprint arXiv:1706.05098.
  • Sutton and Barto (2011) Richard S Sutton and Andrew G Barto. 2011. Reinforcement learning: An introduction.
  • Vaswani et al. (2017) Ashish Vaswani, Noam Shazeer, Niki Parmar, Jakob Uszkoreit, Llion Jones, Aidan N Gomez, Łukasz Kaiser, and Illia Polosukhin. 2017. Attention is all you need. In Proceedings of NIPS.
  • Wang et al. (2018a) Shuohang Wang, Mo Yu, Xiaoxiao Guo, Zhiguo Wang, Tim Klinger, Wei Zhang, Shiyu Chang, Gerald Tesauro, Bowen Zhou, and Jing Jiang. 2018a. R3: Reinforced ranker-reader for open-domain question answering. In Proceedings of AAAI.
  • Wang et al. (2018b) Shuohang Wang, Mo Yu, Jing Jiang, Wei Zhang, Xiaoxiao Guo, Shiyu Chang, Zhiguo Wang, Tim Klinger, Gerald Tesauro, and Murray Campbell. 2018b. Evidence aggregation for answer re-ranking in open-domain question answering. In Proceedings of ICLR.
  • Wang et al. (2017) Wenhui Wang, Nan Yang, Furu Wei, Baobao Chang, and Ming Zhou. 2017. Gated self-matching networks for reading comprehension and question answering. In Proceedings of ACL.
  • Wang et al. (2018c) Yizhong Wang, Kai Liu, Jing Liu, Wei He, Yajuan Lyu, Hua Wu, Sujian Li, and Haifeng Wang. 2018c. Multi-passage machine reading comprehension with cross-passage answer verification. In Proceedings of ACL.
  • Wang et al. (2018d) Zhen Wang, Jiachen Liu, Xinyan Xiao, Yajuan Lyu, and Tian Wu. 2018d. Joint training of candidate extraction and answer selection for reading comprehension. In Proceedings of ACL.
  • Weissenborn et al. (2017) Dirk Weissenborn, Tomáš Kočiskỳ, and Chris Dyer. 2017. Dynamic integration of background knowledge in neural nlu systems. arXiv preprint arXiv:1706.02596.
  • Yan et al. (2019) Ming Yan, Jiangnan Xia, Chen Wu, Bin Bi, Zhongzhou Zhao, Ji Zhang, Luo Si, Rui Wang, Wei Wang, and Haiqing Chen. 2019. A deep cascade model for multi-document reading comprehension. In Proceedings of AAAI.
  • Yang et al. (2019) Wei Yang, Yuqing Xie, Aileen Lin, Xingyu Li, Luchen Tan, Kun Xiong, Ming Li, and Jimmy Lin. 2019. End-to-end open-domain question answering with bertserini. arXiv preprint arXiv:1902.01718.
  • Yu et al. (2018) Adams Wei Yu, David Dohan, Minh-Thang Luong, Rui Zhao, Kai Chen, Mohammad Norouzi, and Quoc V Le. 2018. Qanet: Combining local convolution with global self-attention for reading comprehension. In Proceedings of ICLR.

Appendix A Case Study

To demonstrate how each component takes effect when predicting the final answer, we conduct some qualitative case studies sampled from the REQA model on the TriviaQA-Wikipedia development set. For each question, we list top-5 candidate answers along with their retrieving, reading, and reranking scores.

As shown in Table 9, we first notice that the top-ranked predictions have highly-relevant semantics and share the same linguistic pattern. As a result, the top-4 candidates contain very similar reading scores from 11.1 to 11.3, which matches the observations of Clark and Gardner (2018). A likely reason of this phenomenon is that reading comprehension models are easily fooled by confusing distractors (also referred as adversarial examples mentioned by Jia and Liang (2017)). Under such circumstance, it is crucial to perform additional answer verifications to identify the final answer. In this example, we can see that the retriever becomes the key factor when the reader and reranker are distracted by confusing candidates (e.g., the second and third predictions). By taking the weighted sum of the three scores, our model eventually predicts the correct answer since the first prediction has the largest retrieving score.

Similar observations can be made in Table 10. On the one hand, despite the confusing candidate “Kowloon” has the highest retrieving and reading scores, the reranker assigns a larger confidence on the candidate “Macau”. As a result, “Macau” is chosen as the final answer. On the other hand, we find that the reranking scores of some candidates (e.g., the third and fourth predictions) are zero. This is due to the span-level non-maximum suppression algorithm, where redundant spans such as “Macau, China” will be pruned before the reranking step. Therefore, the final weighted-sum scores of these candidates will be significantly lower than the top predictions, which is beneficial for filtering distractors out.
