RetinaTrack: Online Single Stage Joint Detection and Tracking

03/30/2020 ∙ by Zhichao Lu, et al. ∙ Google 13

Traditionally multi-object tracking and object detection are performed using separate systems with most prior works focusing exclusively on one of these aspects over the other. Tracking systems clearly benefit from having access to accurate detections, however and there is ample evidence in literature that detectors can benefit from tracking which, for example, can help to smooth predictions over time. In this paper we focus on the tracking-by-detection paradigm for autonomous driving where both tasks are mission critical. We propose a conceptually simple and efficient joint model of detection and tracking, called RetinaTrack, which modifies the popular single stage RetinaNet approach such that it is amenable to instance-level embedding training. We show, via evaluations on the Waymo Open Dataset, that we outperform a recent state of the art tracking algorithm while requiring significantly less computation. We believe that our simple yet effective approach can serve as a strong baseline for future work in this area.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 2

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

The tracking-by-detection paradigm today has become the dominant method for multi object tracking (MOT) and works by detecting objects in each frame independently and then performing data association across frames of a video. In recent years, both aspects of this approach (detection and data association) have seen significant technological advances due to the adoption of deep learning.

Despite the fact that these two tasks often go hand in hand and the fact that deep learning has made models easily amenable to multitask training, even today it is far more common to separate the two aspects than to train them jointly in one model, with most papers often focusing on detection metrics or tracking metrics and rarely both. This task separation has led to more complex models and less efficient approaches. It is telling that the flagship benchmark in this area (MOT Challenge [42]) assumes that models will make use of publicly available detections and that papers continue to claim the use of a real-time tracker while not measuring the time required to perform detection.

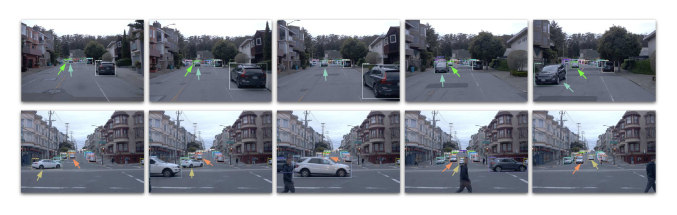

Figure 1: Example vehicle tracking results on the Waymo Open Dataset — tracks are color coded and for clarity we highlight two tracks in each sequence with arrows. Challenges in this dataset include small objects, frequent occlusions due to other traffic or pedestrians, changing scales and low illumination.

In this paper we are interested primarily in the autonomous driving domain where object detection and multi-object tracking are mission-critical technologies. If we cannot detect and track, we will not be able to predict where vehicles and pedestrians are going (and at what speed), and consequently we will not, e.g., know whether to yield to a pedestrian at the corner or whether to drive full speed down a street despite cars coming down an opposing lane.

We focus specifically on RGB inputs which, while typically not the only sensing modality used within a modern autonomous vehicle, play an important role; RGB cameras do not have the same range constraints as LIDAR, are considerably cheaper and are capable of detecting much smaller objects which are important particularly for highway driving where the faster driving speeds make it important to be able to react to distant vehicles or pedestrians.

In the setting of autonomous driving, speed and accuracy are both essential and therefore the choice of architecture is critical as one cannot simply take the heaviest/most performant model or the most lightweight but not as accurate model. We base our model on the RetinaNet detector [36] which is real-time while reaching state of art accuracy and is specifically designed to detect small objects well. To this base detector, we add instance-level embeddings for the purposes of data association. However the vanilla RetinaNet architecture is not suitable for these per-instance embeddings — we propose a simple but effective modification to RetinaNet’s post-FPN prediction subnetworks to address these issues. We show via ablations that our model, which we dub, RetinaTrack , benefits from joint training of the tracker and detector. It has small computational overhead compared to base RetinaNet and is therefore fast — due to its simplicity, it is also easy to train via Google TPUs.

To summarize, our main contributions are as follows:

  • We propose a jointly trained detection and tracking model - our method is simple, efficient and could be feasibly deployed in an autonomous vehicle.

  • We propose a simple modification to single shot detection architectures that allow for extracting instance level features; we use these features for tracking, but they could also be useful for other purposes.

  • We establish initial strong baselines for detection and tracking from 2d images on the Waymo Open dataset [2] (Figure 1) and show that our method achieves state of the art performance.

We hope our simple model will serve as a solid baseline and ease future research in joint detection and tracking.

2 Related Work

Traditionally multi-object tracking and detection have been treated in two separate literatures with trackers often using detectors as black box modules but not necessarily incorporating them deeply. In recent years both fields have begun to rely heavily on deep learning which makes it natural to model both tasks jointly. However with a few exceptions, joint training of detection and tracking remains the exception rather than the rule. And there are few papers that evaluate both tracking and detection with papers often focusing on one evaluation exclusively.

2.1 Object Detection in Images and Video

In recent years there has been an explosion of technological progress in the field of object detection driven largely by community benchmarks like the COCO challenge [37] and Open Images [31]. There have also been a number of advances in detection specific model architectures including anchor-based models, both single stage (e.g., SSD [39], RetinaNet [36], Yolo variants [44, 45]) and two-stage detectors (e.g., Fast/Faster R-CNN [19, 47, 24], R-FCN [13]), as well as the newer anchor-free models (e.g., CornerNet [32, 33], CenterNet [65], FCOS [55]).

Building on these single frame architectures are methods incorporating temporal context for better detection in video (specifically to combat motion blur, occlusion, rare poses of objects, etc). Approaches include the use of 3d convolutions (e.g., I3D, S3D) [8, 41, 62] or recurrent networks [38, 29] to extract better temporal features. There are also a number of works that use tracking-like concepts of some form in order to aggregate, but their main focus lies in detection and not tracking. For example, there are works exploiting flow (or flow-like quantities) to aggregate features [68, 67, 66, 6]. Recently there are also papers that propose object level attention-based aggregation methods [59, 51, 60, 14]

which effectively can be viewed at high level as methods to aggregate features along tracks. In many of these cases, simple heuristics to “smooth” predictions along time are also used, including tubelet smoothing

[20] or SeqNMS [22].

2.2 Tracking

Traditionally trackers have played several different roles. In the cases mentioned above, the role of the tracker has been to improve detection accuracy in videos (e.g. by smoothing predictions over time). In other cases, trackers have also been used to augment (traditionally much slower) detectors allowing for real-time updates based on intermittent detector updates (e.g. [7, 3]).

Finally in applications such as self-driving and sports analysis, track outputs are themselves of independent interest. For example typical behavior prediction modules take object trajectories as input in order to forecast future trajectories (and thereby react to) predicted behavior of a particular object (like a car or pedestrian) [56, 9, 54, 63, 64]. In this role, the tracking-by-detection paradigm has become the predominant approach taken for multi-object tracking, where detection is first run on each frame of an input sequence, then the results linked across frames (this second step is called data association).

In the pre-deep learning era, tracking-by-detection methods [21, 11, 61] tended to focus on using whatever visual features were available and finding a way to combat the combinatorial explosion of the various graph optimization problems [46, 12, 17] that have been formulated to determine optimal trajectories. In recent years, this trend has been reversed with authors using simple matching algorithms (e.g. Hungarian matching [43]) and focusing on learning features that are better for data association e.g, via deep metric learning [34, 52, 50, 58, 53, 48, 4]. For example [58]

proposed Deep Sort, a simple yet strong baseline that takes offline detections (produced by Faster RCNN) and links them using an offline trained deep ReID model and Kalman filter motion model. In this context, our work can be viewed as a simplified pipeline compared to Deep Sort, relying on a more lightweight detection network which is unified with a subnetwork tasked with performing ReID.

2.3 Detection meets Tracking

Strong detection is critical to strong tracking. This can be seen via the commonly used CLEAR MOT metric (MOTA, multiple object tracking accuracy) [42] which penalizes false positives, false negatives and identity switches (the first two terms of which are detection related). The recent Tracktor paper [4] pushes this observation to the limit achieving strong results using only a single frame Faster R-CNN detection model. Tracking itself is accomplished by exploiting the behavior of the second stage of Faster R-CNN that allows an imprecisely specified proposal (e.g. a detection from the previous frame) to be “snapped” onto the closest object in the image. With a few small modifications (including an offline trained ReID component), Tracktor is currently state of the art on the MOT17 Challenge and we compare against this strong baseline in our experiments.

To address the issue that detection can have such an outsized impact on tracking metrics, benchmarks such as the MOT Challenge have tried to make things “fair” by having multiple methods use exactly the same out-of-the-box provided detections. However this restriction unnecessarily ties ones hands as it assumes that the two will be done separately and consequently can preclude jointly trained models such as our own. One wonders whether the paucity of joint detection/tracking literature may be due in part to this emphasis on using black box detections.

Prior to our work, there have been several recent attempts to train joint tracking/detection models. Feichtenhofer et al. [16] run an R-FCN ([13]) base detection architecture and simultaneously compute correlation maps between high level feature maps of consecutive frames which are then passed to a secondary prediction tower in order to predict frame-to-frame instance motion. Like [16]

, we train for both tasks jointly. However where they focus exclusively on detection metrics for Imagenet Vid, motivated by autonomous driving needs, we evaluate both tracking and detection metrics. Our architecture is also considerably simpler, faster and based on a stronger single stage detector.

There are also several works that predict 3d tubelets [26, 18] directly using 3d inputs by using 2d anchor grids that are allowed to “wiggle” in time via a predicted temporal sequence of spatial offsets. However these methods are typically heavier and require a mechanism to associate tubelets amongst each other, often relying on simple heuristics combining single frame scores and IOU overlap. We directly learn to associate detections (and show that this is useful).

Finally the work most related to our approach is Wang et al. [57] which also combines an FPN based model (with YOLO v3) with an additional embedding layer. In contrast, we use a modification of RetinaNet which has stronger detection performance and we show that without our modifications to the FPN, performance suffers.

3 The RetinaTrack Architecture

(a)

(b)

(c)
Figure 2: Architecture diagrams. (fig:fpn) Feature Pyramid Network (FPN) and Post-FPN layers of (vanilla) (fig:retinanet) RetinaNet and (fig:tracktinanet) RetinaTrack . In order to capture instance level features RetinaTrack splits the computational pathways among different anchor shapes at an earlier stage in the Post-FPN subnetwork of RetinaNet. Yellow boxes represent feature maps produced by the FPN. In both models we share convolutional parameters across all FPN layers. At level of a single FPN layer, gray boxes represent convolutional layers that are unshared while colored boxes represent sharing relationships (boxes with the same color share parameters).

In this section we describe the design of a variant of RetinaNet that allows us to extract per-instance level features. Like other anchor based detectors, every detection produced by RetinaNet is associated with an anchor. In order to link a detection to those in another frame, we would like to be able to identify a feature vector associated with its corresponding anchor and pass it to an embedding network which will be trained with metric learning losses.

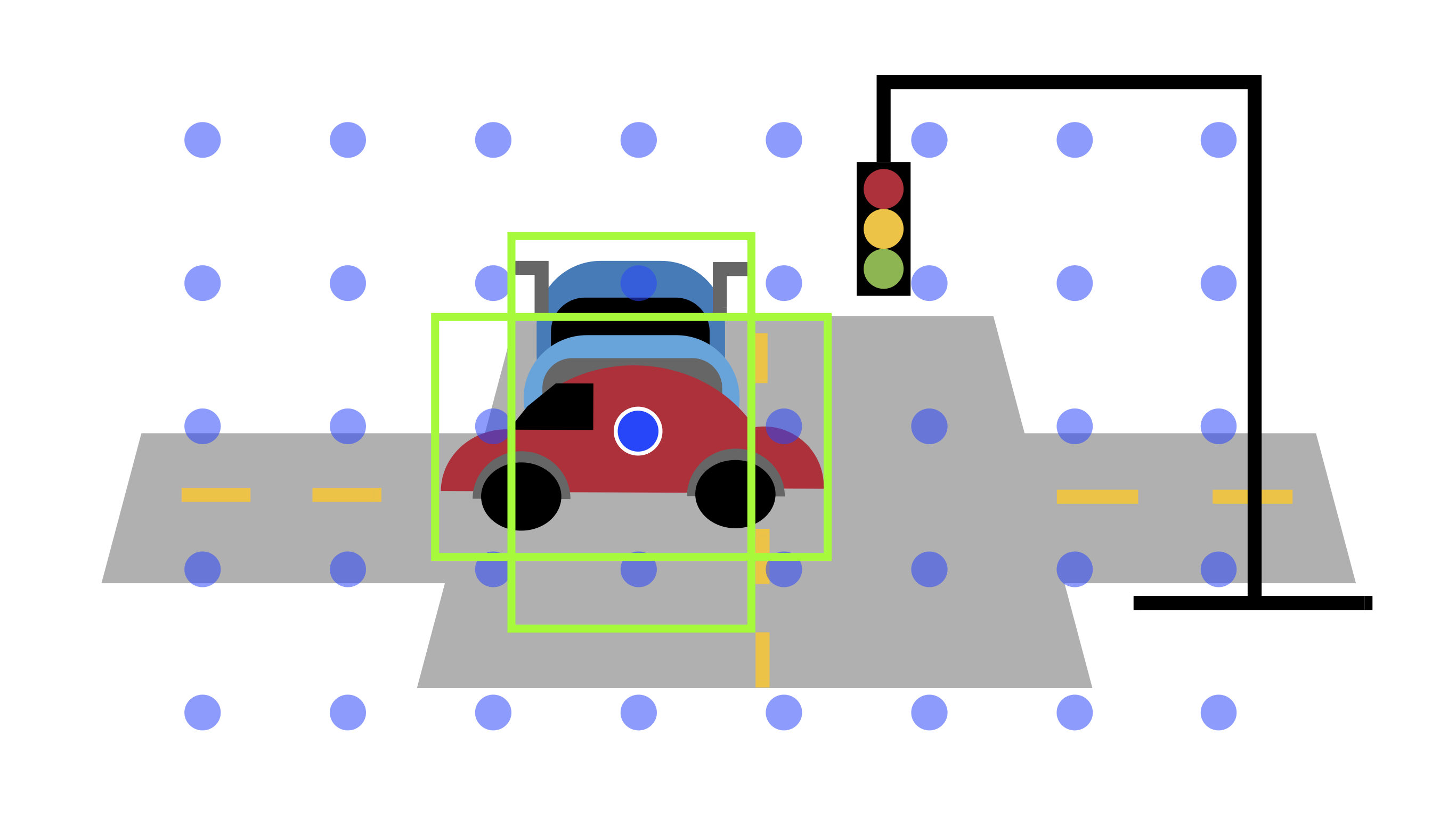

Figure 3: In order to track successfully through occlusions, we need to be able to model that objects that share the same anchor grid center have distinct tracking features. Here, green boxes represent two anchors centered at the same location which match the cars in the scene. Blue dots represent centers of the anchor grid.

3.1 RetinaNet

To begin, we review the popular RetinaNet architecture [36] and explain why the vanilla model is not suitable for instance level embeddings. Modern convolutional object detectors extract feature maps from sliding window positions arranged along a regular grid over the image. In anchor-based methods such as RetinaNet, we place anchor boxes

of different shapes (varying aspect ratios and sizes) on top of each grid point and ask the model to make predictions (e.g., classification logits, box regression offsets) relative to these anchors.

In the case of RetinaNet, we use an FPN-based (feature pyramid network) feature extractor [35] which produces multiple layers of feature maps with different spatial resolutions (Figure 1(a)). Each feature map is then passed to two post-FPN task-specific convolutional subnetworks predicting tensors (one for each possible anchor shape) each of shape representing -dimensional classification logits, as well as tensors of shape representing box regression offsets. (Figure 1(b)). Note that typically papers collapse these outputs to be a single combined tensor instead of tensors with one for each anchor shape — however for our purposes we separate these predictions for clarity (with the end result being equivalent).

More formally, we can write the RetinaNet classification and location prediction tensors as a function of each of the feature maps as follows:

(1)
(2)

where ) indexes into the anchors. We use to refer to 4 intermediate

convolution layers (which include batch norm and ReLu layers unless otherwise specified). The model parameters after the FPN are

, , and . Importantly, while the classification and box regression subnetworks have different parameters for a given FPN layer, the parameters are shared across FPN layers which allow us to treat feature vectors extracted from different layers as if they belonged to compatible embedding spaces.

3.2 Modifying task-prediction subnetworks to have anchor-level features

From Equations 1, 2 all convolutional parameters of RetinaNet are shared amongst all anchors until the final convolution for the classification and regression subnetworks. Therefore there is no clear way to extract per-instance features since if two detections match to anchors at the same location with different shapes, then the only point in the network at which they would be distinguished are at the final class and box regression predictions. This can be especially problematic when tracking through occlusions when objects are more likely to correspond to anchors which share the same location (Figure 3).

Our solution is to force the split among the anchors to occur earlier among the post-FPN prediction layers, allowing us to access intermediate level features that can still be uniquely associated with an anchor (and consequently a final detection). Our proposed modification is simple — we end up with a similar architecture to RetinaNet, but tie/untie weights in a different manner compared to the vanilla architecture. In our RetinaTrack model we predict via the following parameterization (c.f. Equations 1, 2):

(3)
(4)
(5)

Thus for each post-FPN layer , we first apply convolutional sequences (with layers) in parallel to predict the tensors, which we view as per-anchor instance-level features, since from this point on, there will be a unique associated with every detection produced by the RetinaNet architecture (Figure 1(c)). We will refer to this first segment of the model as the task-shared post-FPN layers which use separate parameters for each of the anchor shapes, but share across FPN layers (as well as the two tasks of classification and localization).

The are not task-specific features, but we next apply two parallel sequences of task-specific post-FPN layers to each . Each sequence consists of convolutions followed by a final convolution with output channels in the case of classification logits (where is the number of classes) and 4 output channels in the case of box regression offsets. For our two task specific subnetworks, we share parameters , , and across both the anchor shapes as well as all FPN layers so that after the task-shared layers, all features can be considered as belonging to compatible spaces.

3.3 Embedding architecture

Having the instance level features now in hand, we additionally apply a third sequence of task-specific layers consisting of convolution layers projecting the instance level features to a final track embedding space with each convolution layer mapping to 256 output channels:

(6)

We use batch norm [28] and ReLU nonlinearities after each convolution except at the final embedding layer and use the same shared parameters across all FPN layers and all anchor shapes (see again Figure 1(c)).

To summarize, RetinaTrack predicts per-anchor instance-level features . Given a detection , there is a unique anchor that generated — and the feature maps now give us a unique feature vector associated with . Where RetinaNet models run 4 convolutional layers for each of the two task-specific subnetworks, in RetinaTrack , each output tensor is the result of (or in the case of the track embeddings) convolutional layers where , and

are structural hyperparameters. We discuss ablations for these settings further in Section

4.

3.4 Training details

At training time we minimize an unweighted sum of the two standard RetinaNet losses (Sigmoid Focal Loss for classification, and Huber Loss for box regression) as well as an additional embedding loss which encourages detections corresponding to the same track to have similar embeddings. Specifically we train with triplet loss [49, 10] using the BatchHard strategy for sampling triplets [25].

(7)

where is the number of anchors that match to groundtruth boxes, is the track identity assigned to anchor , is the non-squared Euclidean distance between the embeddings of anchor and anchor and is the margin (set to in experiments). Thus triplets are produced by finding a hard positive and a hard negative for each anchor. In practice, we sample 64 triplets for computing the loss.

For detection losses we follow a target assignment convention similar to that described in [36]. Specifically, an anchor is assigned to a groundtruth box if it has intersection-over-union (IOU) overlap of 0.5 or higher and to background otherwise. Additionally, for each groundtruth box, we force the nearest anchor (with respect to IOU) to be a match even if this IOU is less than the threshold. For triplet losses, we follow a similar convention for assigning track identities to anchors, using a more stringent criterion of or higher for positive matches — finding that this more stringent criterion leads to improved tracking results. Only anchors that match to track identities are used to produce triplets. Further, triplets are always produced from within the same clip.

We train on Google TPUs (v3) [30]

using Momentum SGD with weight decay 0.0004 and momentum 0.9. We construct each batch using 128 clips, drawing two frames for each clip spaced 8 frames apart (Waymo sequences run at 10Hz, so this corresponds to a temporal stride of 0.8 seconds). Batches are placed on 32 TPU cores, colocating frames from the same clip, yielding a per-core batch size of 4 frame pairs. Unless otherwise specified, images are resized to

resolution, and in order to fit this resolution in TPU memory, we use mixed precision training with bfloat16 type in all our training runs [1].

We initialize the model using a RetinaTrack model (removing embedding projections) pretrained on the COCO dataset. Next (unless otherwise stated) we train using a linear learning rate warmup for the first 1000 steps increasing to a base learning rate of 0.001, then use a cosine annealed learning rate [40] for 9K steps. Following RetinaNet, we use random horizontal flip and random crop data augmentations. We also allow all batch norm layers to update independently during training and do not force them to be tied even if neighboring convolution layers are shared.

3.5 Inference and Tracking Logic

We use our embeddings within a simple single hypothesis tracking system based on greedy bipartite matching. At inference time we construct a track store holding stateful track information. For each track we save previous detections (including bounding boxes, class predictions and scores), embedding vectors and “track states” indicating whether a track is alive or dead (for simplicity, we do not consider tracks to ever be in a “tentative” state, c.f. [58]). We initialize the track store to be empty, then for each frame in a clip, we take the embedding vectors corresponding to the top scoring 100 detections from RetinaTrack .

These detections are filtered by score thresholding and then we compare the surviving embedding vectors against those in the track store via some specified similarity function and run greedy bipartite matching disallowing matches where the cosine distance is above a threshold . Based on this greedy matching, we then add a detection to an existing track in the track store or we use it to initialize a new track. In our experiments, our similarity function is always a uniformly weighted sum of IOU overlap (using a truncation threshold of 0.4) and a cosine distance between embeddings.

For each live track in the track store, we save up to of its most recent (detection, embedding vector, state) triplets thus allowing new detections to match to any of these most recent observations for all tracks. Tracks are kept alive for up to 40 frames for re-identification purposes. Conversely we mark a track as dead if it has not been re-identified in over 40 frames.

4 Experiments

Architecture Share task weights mAP Inference time (ms per frame)
RetinaNet No - - 6 36.17 45
RetinaNet Yes - - 6 35.35 40
RetinaNet No - - 1 31.45 37
RetinaNet Yes - - 1 30.71 30
RetinaTrack - 1 3 6 35.11 83
RetinaTrack - 2 2 6 35.55 75
RetinaTrack - 3 1 6 35.74 74
Figure 4: COCO17 ablations. Performance of vanilla RetinaNet and RetinaTrack (without tracking embedding layers) in terms of single image object detection performance on COCO17. denotes the number of task-shared post-FPN layers and denotes the number of task-specific post-FPN layers.

In our experiments we focus on the recently released Waymo Open dataset [2] v1 (Waymo for short). We also report results on the larger v1.1 release in Section 4.4. This dataset contains annotations on 200K frames collected at 10 Hz in Waymo vehicles and covers various geographies and weather conditions. Frames come from 5 camera positions (front and sides). For the purposes of this paper, we focus on 2d detection and tracking and more specifically only on the ‘vehicle’ class as the dataset has major class imbalance, which is not our main focus. In addition to Waymo, we report ablations on the COCO17 dataset [37].

Finally we evaluate both detection and tracking metrics as measured by standard mean AP [15, 37, 18] (mAP) as well as CLEAR MOT tracking metrics [5, 42], specifically using the COCO AP (averaging over IOU thresholds between 0.5 and 0.95) and the py-motmetrics library.111https://github.com/cheind/py-motmetrics We also benchmark using Nvidia V100 GPUs reporting inference time in milliseconds per frame. For all models we only benchmark the “deep learning part”, ignoring any bookkeeping logic required by the tracker which is typically very lightweight.

Evaluating a model simultaneously for detection and tracking requires some care. Detection mAP measures a model’s average ability to trade off between precision and recall without requiring a hard operating point — it’s therefore better to use a low or zero score threshold for detection mAP. However CLEAR MOT tracking metrics such as MOTA require selecting a single operating point as they directly reference true/false positives and in practice are fairly sensitive to these hyperparameter choices. It is often better to use a higher score threshold to report tracking metrics so as to not admit too many false positives. In our experiments we simple use separate thresholds for evaluation: we evaluate our model as a detector using a near-zero score threshold and as a tracker using a higher score threshold.

Architecture Share task weights MOTA mAP Inference time (ms per frame)
RetinaNet No - - - 6 - 38.19 34
RetinaNet No - - - 6 38.02 37.43 44
RetinaNet Yes - - - 6 - 37.95 30
RetinaNet Yes - - - 6 37.63 36.75 40
RetinaNet No - - 2 1 30.94 35.20 33
RetinaNet Yes - - 2 1 31.20 35.08 29
RetinaTrack - 1 3 2 6 38.71 37.96 88
RetinaTrack - 2 2 2 6 39.08 38.14 81
RetinaTrack - 3 1 2 6 39.12 38.24 70
Figure 5: Waymo ablations. Performance of vanilla RetinaNet and RetinaTrack (including tracking embedding layers) in terms of detection mAP and tracking MOTA on the Waymo Open Dataset. denotes the number of task-shared post-FPN layers, denotes the number of task-specific post-FPN layers, and denotes the number of embedding layers. RetinaNet is a vanilla RetinaNet model (with ) trained with tracking losses where instance embedding vectors are shared among “colliding anchors”.
# embedding layers MOTA mAP
0 38.52 37.93
2 39.19 38.24
4 38.85 38.24
Figure 6: Track embedding subnetwork depth ablation. We train versions of RetinaTrack with , , and projection layers.

4.1 Evaluating RetinaTrack as a detector

As a preliminary ablation (Table 4), we study the effect of our architectural modifications to RetinaNet on standard single image detection by evaluating on COCO17. In these experiments we drop the embedding layers of RetinaTrack since COCO is not a video dataset.

For these experiments only, we train with a slightly different setup compared to our later Waymo experiments. We use Resnet-50 as a base feature extractor (Imagenet initialized), and train at resolution with bfloat16 [1]

mixed precision. We train with batches of size 64 split across 8 TPU v3 cores, and performing per-core batch normalization. We use a linear learning rate warmup for the first 2K steps increasing to a base learning rate of 0.004, then use a cosine annealed learning rate

[40] for 23K steps. Note that we could use heavier feature extractors or higher image resolutions to improve performance, but the main objective of these ablations is to shed light on variations of the Post-FPN subnetworks of RetinaNet and RetinaTrack .

Recall that and refer to the number of convolutions for the task-shared and task-specific post-FPN subnetworks respectively. We set so as to be comparable to RetinaNet. is the number of anchor shapes per location which we set to 6 by default but to show that having multiple anchor shapes per location is important for detection, we also compare against a simplified RetinaNet which uses only 1 box per location. Finally we experiment with a version of vanilla RetinaNet where the task-specific subnetworks are forced to share their weights (the “Share task weights” column in Table 4) since this is closer to the task-shared post-FPN layers of RetinaTrack .

We note firstly that using anchors per location is very important to strong performance on COCO and that it is better to have separate task-specific subnetworks than it is to share, confirming observations by [36]. We also observe that by using RetinaTrack , we are able to extract per-instance features by design (which we will next use for tracking, but could be generally useful) while achieving similar detection performance on COCO. If one does not need per-instance level features, one can still get slightly better numbers with the original prediction head layout of RetinaNet (which is similar to that of SSD [39] and the RPN used by many papers, e.g., [47, 23]). Among the 3 settings of for RetinaTrack , we find that using 3 task-shared layers () followed a single task-specific layer (), has a slight edge over the other configurations.

We report running times (averaged over 500 COCO images) in Table 4. Our modifications increase running time over vanilla RetinaNet — this is unsurprising since the cost of the post-FPN subnetworks have now been multiplied by . Among the three variants of RetinaTrack , is again the fastest.

Model MOTA TP FP ID switches mAP Inference time (ms per frame)
Tracktor 35.30 106006 15617 16652 36.17 45
Tracktor++ 37.94 112801 15642 10370 36.17 2645
RetinaTrack 39.19 112025 11669 5712 38.24 70
Figure 7: We compare RetinaTrack to Tracktor/Tracktor++ [4] which are currently state of the art on the MOT17 Challenge.
Model MOTA mAP Inference
time (ms)
IOU baseline 35.36 38.53 70
RetinaTrack w/o triplet loss 37.92 38.58 70
RetinaTrack , w/R-50 ReID 37.39 38.58 80
RetinaTrack 39.19 38.24 70
Figure 8: Comparison of joint training (RetinaTrack ) with alternatives: (1) IOU based similarity tracker, (2) RetinaTrack w/o triplet loss, (3) RetinaTrack w/R-50 ReID,

4.2 Architectural ablations

For our remaining experiments we evaluate on Waymo, this time including the embedding network with triplet loss training and additionally evaluating tracking performance using the system described in Section 3.5.

We first ablate the depth of the embedding network (see Table 6) in which we train models using , 2 and 4 projection layers (fixing and as was shown to be best on the COCO ablation above), obtaining best performance for both detection and tracking with 2 layers.

Setting layers for the embedding subnetwork, we present our ablations on the Waymo dataset in Table 5, training via the method described in Section 3.4.

To demonstrate the value of RetinaTrack ’s anchor-level features for tracking, we evaluate two baseline versions of the vanilla RetinaNet architecture — (1) one where we use anchor shapes since in this case it is possible to extract per-instance feature vectors, and (2) the standard setting where during tracking we simply force embeddings for anchors that “collide” at the same spatial center to be the same (we refer to this baseline as RetinaNet).

As with the COCO ablations, we see that using multiple () anchor shapes is important to both detection and tracking metrics. Thus it is unsurprising that RetinaTrack significantly outperforms the RetinaNet based () tracking baseline likely mostly by virtue of being a stronger detector. However both RetinaNet rows exhibit lower MOTA and mAP results compared to their non-starred counterparts, suggesting that “abusing” vanilla RetinaNet to perform tracking by ignoring colliding anchors is harmful both for detection and tracking, thus underscoring the importance of RetinaTrack ’s per-anchor embeddings.

Our best RetinaTrack configuration reaches 39.12 MOTA and has a mAP of 38.24. In contrast to the COCO ablations where vanilla RetinaNet retains a slight edge over RetinaTrack , here we see that RetinaTrack outperforms RetinaNet as a detector, suggesting that by including tracking losses, we are able to boost detection performance.

Finally with a running time of 70ms per frame, we note that inference with RetinaTrack is faster than the sensor framerate (10 Hz) in the Waymo dataset. Compared to the COCO setting, RetinaTrack must run additional convolution layers for embeddings, but since COCO has 80 classes which makes the top of the network slightly heavier, the final running time is slightly lower in the Waymo setting.

4.3 Joint vs Independent training

To demonstrate the benefit of joint training with detection and tracking tasks, we now compare RetinaTrack against three natural baselines which use the same tracking system as RetinaTrack but change the underlying data association similarity function (Table 8):

  • An IOU baseline, where detection similarity is measured only by IOU overlap (with no embeddings),

  • RetinaTrack w/o triplet loss, in which we ignore the triplet loss (and thus do not train the model specifically for tracking) and measure embedding similarity via the per-instance feature vectors , and

  • RetinaTrack w/R-50 ReID, in which again we ignore triplet loss when training RetinaTrack and feed the detections to an offline-trained re-identification (ReID) model. For the ReID model, we train a Resnet-50 based TriNet model [25] to perform ReID on Waymo.

We observe that even the IOU-only tracker provides a reasonably strong baseline on Waymo, most likely by virtue of have a strong detection model — it is likely that this tracker is more accurate when the car is driving slowly (compared to, e.g., highway driving). However, using visual embeddings allows us to outperform this simple baseline in all cases, and RetinaTrack when trained with detection and metric learning losses jointly outperforms these baselines.

4.4 Comparison against state of the art

We finally compare (Table 7

) against the recent Tracktor and Tracktor++ algorithms which are currently state of the art on MOT Challenge. For these experiments we use our own Tensorflow reimplementations of Tracktor and Tracktor++ which adds a ReID component and camera motion compensation (CMC). Our implementation differs in some details from that described in the original paper in that it is based on the Tensorflow Object Detection API

[27] and does not use an FPN. We use the same ReID model as the one in Section 4.3, which matches the approach taken in the Tracktor paper. To verify that our reimplementations are competitive, we submitted results from our Resnet-101 based Tracktor models to the official MOT Challenge server, which achieve nearly identical MOTA numbers as the official submission which uses an FPN (53.4 vs. 53.5). We also submitted results from a Resnet-152 based Tracktor which currently outperforms all entries on the public leaderboard (with 56.7 MOTA).

On Waymo, we use a Resnet-50 based Tracktor running at resolution to be comparable to our model. If we compare the Tracktor (without CMC or ReID) MOTA score to the IOU tracking performance in Table 8, we see that the two approaches are roughly on par. We believe that IOU based tracking can achieve parity with Tracktor here due to (1) having highly accurate detections to begin with, and (2) significant camera motion which hurts Tracktor.

In fact we observe that Tracktor needs the ‘++‘ to significantly outperform the IOU based tracker. However it is far slower — in addition to running Faster R-CNN, it must run a second Resnet-50 model for ReID followed by CMC (which is time consuming).222 To benchmark the runtime of CMC on Waymo, we use the same function used by the authors of [4] (OpenCV’s findTransformECC function with ‘MOTION_EUCLIDEAN‘ option), and run on a workstation with 56 Intel(R) Xeon(R) E5-2690 v4 2.60GHz CPUs (w/14 cores/CPU).

RetinaTrack outperforms both variants on tracking and detection. It is able to achieve these improvements by significantly reducing the number of false positives and ID switches. And despite being slower than vanilla Tracktor (whose running time is dominated by Faster R-CNN), RetinaTrack is significantly faster than Tracktor++.

Evaluation on the Waymo v1.1 dataset.

As a baseline for future comparisons, we also reproduce our evaluations on the Waymo v1.1 release with K frames for training containing M annotated vehicles. For these evaluations, we train for 100K steps with a base learning rate of 0.004 (and all other hyperparameters fixed). Results are shown in Table 9, where we again see the same trends with RetinaTrack significantly outperforming a baseline IOU based tracker as well as outperforming Tracktor++ with a significantly faster running time.

Model MOTA mAP Inference
time (ms)
IOU baseline 38.25 45.78 70
Tracktor++ 42.62 42.41 2645
RetinaTrack 44.92 45.70 70
Figure 9: Evaluations on the Waymo v1.1 dataset (which has a larger training set than the v1 dataset).

5 Conclusion

In this paper we have presented a simple but effective model, RetinaTrack , which trains jointly on detection and tracking tasks and extends single stage detectors to handle instance-level attributes, which we note may be of independent interest for applications beyond tracking.

Additionally we have demonstrated the effectiveness of joint training over the prevailing approach of training independent detection and tracking models. This approach allows RetinaTrack to outperform the current state of the art in multi-object tracking while being significantly faster and able to track through long periods of object disappearance. Finally we hope that our work can serve as a strong baseline for future research in detection and tracking.

Acknowledgements

We are grateful to Sara Beery, Yuning Chai, Wayne Hung, Henrik Kretzschmar, David Ross, Tina Tian, and Jack Valmadre for valuable discussions.
