Rethinking the Ranks of Visual Channels

07/23/2021 ∙ by Caitlyn M. McColeman, et al. ∙ Brown University Northwestern University University of California, San Diego 0

Data can be visually represented using visual channels like position, length or luminance. An existing ranking of these visual channels is based on how accurately participants could report the ratio between two depicted values. There is an assumption that this ranking should hold for different tasks and for different numbers of marks. However, there is little existing work testing assumption, especially given that visually computing ratios is relatively unimportant in real-world visualizations, compared to seeing, remembering, and comparing trends and motifs, across displays that almost universally depict more than two values. We asked participants to immediately reproduce a set of values from memory. With a Bayesian multilevel modeling approach, we observed how the relevant rank positions of visual channels shift across different numbers of marks (2, 4 or 8) and for bias, precision, and error measures. The ranking did not hold, even for reproductions of only 2 marks, and the new ranking was highly inconsistent for reproductions of different numbers of marks. Other factors besides channel choice far more influence on performance, such as the number of values in the series (e.g. more marks led to larger errors), or the value of each mark (e.g. small values are systematically overestimated). Recall was worse for displays with 8 marks than 4, consistent with established limits on visual memory. These results show that we must move beyond two-value ratio judgments as a baseline for ranking the quality of a visual channel, including testing new tasks (detection of trends or motifs), timescales (immediate computation, or later comparison), and the number of values (from a handful, to thousands).

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 4

page 5

page 7

page 10

page 11

page 13

page 14

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Related work

Here we surveyed work in visual perception, information visualization, and visual working memory to gather considerations for factors that may impact visual reproduction performance.

1.1 Context and bias effects on visual judgements

While Cleveland and McGill [18] tested the precision of ratio judgements with only two relevant values for the judgment itself, they also showed decreased precision for displays where those values were crowded by adding other values in the display [17, 33]. More recent work [88, 77] identified similar impairments. In other reproduction tasks, like the one used in the present study, surrounding values in a display created memory biases, such that recollections of a single relevant value were repulsed from the 0, .5, and 1.0 proportion of a second larger reference bar [52]. Memory bias has been shown even for values presented alone, such that tall bars with a high height:width ratio were underestimated, and wide bars with a low height:width ratio were overestimated [14].

1.2 Evaluations beyond two-value ratio precision

After one study showed that correlation judgments follow a systematically measurable profile of perceptual precision for scatterplots using the position channel [69], a later study ranked the relative precision of correlation judgments across other visualizations, finding that position-based scatterplots offered the highest precision, but position-based line charts offered the lowest precision [31]. Angle, a channel with low precision on a two-value ratio task, showed the second-highest precision [31]. Though in this case, the correlation judgment may not have been perceptually extracted by angle per se, but emergent shapes created by the angles for high negative correlations.

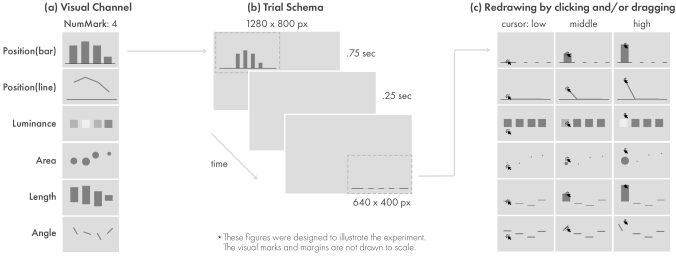

Figure 2: Visual channels and the reproduction task. (a) Examples of visual channels for 4 visual marks. (b) Each trial followed a “show-remove-reproduce” procedure to indicate their responses. (c) In reproduction, participants clicked on the screen or dragged the mouse to redraw the previously-seen marks. In all conditions, the visual channel changed as a linear function of the vertical position of the mouse cursor, such that even angle and area were changed by dragging the mouse up-and-down. For area channel, participants adjusted based on area not radius. More details are available in Appendix A.

With judgments of aggregate properties of mean, average, or spread, the typical ranking can reverse, such that typically low-ranked values like luminance (in this case, a ramp combining luminance and color saturation) can actually lead to the best performance in those tasks [1] (see [76] for review). Judgments of minimum, maximum, or range were still best for visualizations that used position channels. Another study asked participants to complete four tasks—read value, compare values, find maximum, and compare averages—across visualizations that relied on position, size, or color (similar to the luminance ramp used here). They found similar results, where extracting one value, or comparing two single values, was fast and accurate for position, but for aggregate properties like comparing averages, the color condition showed equal performance [44]. Another study, similar in spirit, tested the speed, accuracy, and preference for ten data visualization tasks across scatterplots, bar charts, pie charts, and line charts [72]

. They found, for example, advantages for bar charts in finding value clusters, or that scatterplots show advantages for anomaly detection, but not for cluster detection.

Others evaluated the visual channels for comparison (measured by staircasing threshold differences that could be detected in a limited time [86]) across two tasks, finding the maximum difference among two paired values in a display similar to the left bar chart in Fig. 1, or the stronger correlation between two such pairings of values. The study included bar, line, and donut charts, was focused on comparing value arrangements within each chart type (e.g., juxtaposed vs. interleaved values). Those charts—and their underlying channels—could in theory be compared in their effectiveness for supporting those comparison tasks, but differences in the methods between chart types make that comparison difficult [59].

Similar to the cited studies, the present study relies on a single task, but we regard reproduction as a starting point for more generalizable results, compared to two-value ratio precision or a single visual comparison task.

1.3 Visual memory

Working memory is the ability to hold information actively in mind, and to manipulate that information to perform a wide variety of cognitive tasks [3]. For visual memory in particular, when asked to remember visual information across eye movements (e.g., for comparisons) or across interruptions [35], studies typically claim a capacity limit of only ‘3-4 items’ (e.g., [19]). Even for fewer than 3-4 items, when participants recall the sizes, colors, or angles, of previously seen objects, they are notably less accurate in recalling 2 items than 1 item (e.g., [87, 5]).

Remembering more complex conjunctions of visual channels (e.g., both the color and orientation of a mark) is extremely difficult when more than 1-2 objects must be remembered [58, 29]. The performance cost of increasing memory load from just 1 item held in mind at once to 2 items is larger than the cost of increasing the load from 4 to 8 items (e.g., [73]). Thus, the profile of memory performance for tasks that involve only 1 or 2 items at a time may not predict the profile for more complex visual displays [11]. There are also strong contextual dependency effects where values are stored in compressed ways, as relative to other values  [10]. In a visualization, increasing the number of memorized values will lead to performance changes that are hard to predict. Since nearly all data visualizations include more than 1 or 2 marks, it is critical to study these cases directly rather than assume the lessons drawn from studies of 1 or 2 marks will generalize to these larger value sets.

In the present study, participants were asked to reproduce data displays that fall within (2 marks), at (4 marks), or beyond working memory capacity (8 marks) to gather data from qualitatively different memory loads. Participants in this task rely on reproduction of values, as opposed to semantic recall of the main message of a visualization [47] or whether they have encountered an entire image before [8]. This task is an analogy to typical visual working memory tasks, acting as a proxy for how one retains values of marks across eye movements and delays (as when reading the text associated with the visualization).

2 Methods

This section presents and justifies our design decisions, along with the description of the stimuli generation process, the experimental design and procedure, and the data collected.

2.1 Visual channels

As introduced above, we chose six visual channels (denoted by VisualChannel) to cover a wide range of the original ranks by Cleveland and McGill [18]: position (bar) (bar chart), position (line) (line chart), luminance (heatmap), area (bubble chart), length (misaligned bar chart), and angle (wind map). We show an example of each of the six visual channels in Fig. 2a.

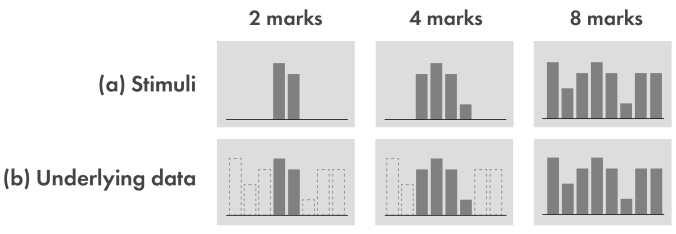

Figure 3: Different numbers of visual marks. We used the same pre-generated datasets across different NumMark and VisualChannel and removed the side values when showing 2 or 4 marks.

2.2 The number of marks

We tested three different numbers of marks (denoted by NumMark): 2, 4, and 8 (Fig. 3a). The 2-mark condition requires that the viewer extract the value of two data visualization marks, replicating the earlier studies based on two-value ratio judgments (e.g., [17, 33, 30, 77]). The difference in our task is the nature of that extraction, in that participants must redraw it rather than reporting a ratio value. The 4-mark condition aligns with the boundary of typical working memory capacity, and the 8-mark condition exceeds even the most optimistic estimates for human visual working memory. These three conditions have categorically different loads for working memory, allowing us to infer how the working memory limits affect reproduction.

2.3 Experimental design

We split the visual channels into two experiments based on whether the channel uses a common baseline. This split was decided to align participants’ mental models and to keep the experiment duration approximately 30 minutes to avoid severe fatigue effects. The first experiment tested position (bar), position (line), and luminance. The second experiment tested length, area, and angle. Each experiment tested all three numbers of marks {2, 4, 8}. Each participant did the task with 3 visual channels and all 3 numbers of marks, but with different channels for different experiments.

Each pair of VisualChannel NumMark was a block with a series of trials. The first experiment used 13 trials per block. The second experiment used 15 trials per block; this is because, in the pilot study, we found that the second experiment was more difficult: the mapping between the vertical mouse click and the visual change was challenging, and responses were noisier. Thus, we included the additional two trials to offset this additional noise. Within each of the two experiments, the order of visual channels was counterbalanced.

2.4 Generating stimuli

All the values were in the numeric range of [0.01, 1.0] and encoded to the visual channels as follows (see Appendix A for more details). The dimensions of marks were decided to maximize the varying range but to avoid overlapping. The background was set to rgb(.75,.75,.75) (light grey) to control visual contrast effects. As a result, position (bar) has the height of each bar ranging from 3.9 pixels to 390 pixels. Position (line) has the height of each line end ranging from 3.9 pixels to 390 pixels. Luminance has the color of each square ranging from rgb(.5,.5,.5) (grey) to rgb(1.0,1.0,1.0)(white) such that its middle point was the same as the background color. Area has the area of each circle ranging from to ; the 5 pixels offset was to ensure that all the circles were visible all the time. Length has the height of each bar ranging from 3.75 pixels to 375 pixels. Lastly, angle has each segment rotated counter-clockwise in the range of 1.8 to 180. For area, length, and angle, the vertical position of the marks were randomly generated in the range of the -axis, spanning .0 of its height (i.e., the bottom of the axis range) to .9 of its height.

All datasets were pre-generated, and the same datasets were repeated within the same experiment for different VisualChannel NumMark blocks. Each dataset consisted of 8 numeric values, and each value was randomly and uniformly sampled from the standardized values of {0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0}. When the NumMark was 8, participants saw all 8 values in a trial. When the number of marks was 2 (or 4), participants saw the middle two (or four) values; the remaining values were not displayed (Fig. 3b). Each participant viewed different datasets within a VisualChannel NumMark block, and repeated the same datasets across different blocks. The order of the datasets and the values within a dataset were otherwise randomized.

2.5 Procedure

The experimenter first collected informed consent from the participants and then shared an instruction presentation displaying the format, structure and response modality for all trial conditions. The experimenter was present for training and answered clarifying questions the participant had about how to make their response.

Trial   As discussed above, in each trial, participants performed a reproduction task. They first saw the stimuli visualization for .75 seconds. The stimuli were then replaced with a blank screen for .25 seconds. Immediately after this, participants were asked to reproduce each visual element (e.g., a bar) as they clicked and/or dragged the mouse to change the pre-marked visual elements on the screen (Fig. 2c). The stimuli visualization was randomly placed in one of the four quadrants (Fig. 2b) and redrawn in the diagonal quadrant. For example, if participants saw the stimuli in the upper left, they redraw the stimuli in the bottom right.

The short duration exposure, along with unlabeled axes, prevent participants from recoding stimuli into other forms [51] and suppress top-down effects like prior knowledge. The duration is adequate for testing visual working memory [51] and provides ample time for the vision system to encode information (e.g., comparing correlation in scatterplots [67], estimating two-value ratio in bar charts [52], etc.). The inclusion of a blank screen as a mask and a different redrawing location together eliminated visual aftereffects.

Participants   Thirty and twenty-nine participants were recruited for the two experiments, respectively. They were undergraduate students from the same institution, enrolled in introductory psychology classes, for which they earned partial credit in exchange for their time. Participants were between 18 and 23 years old ( 19.02 years, 0.96; 22 female, 34 male, 3 unspecified), all with normal, or corrected-to-normal vision. The same author and experimenter proctored all the experiment sessions and finished them before the COVID-19 pandemic.

Apparatus   The experimental system was implemented using Psychophysics Toolbox [12, 46] and MATLAB 2018a, running on a Mac Mini (OS 10.10.5). Stimuli were displayed on a 23” monitor with a resolution set to 1280 800 pixels and a 60 Hz refresh rate. Participants were sat approximately 18.5” from the display.

2.6 Response data

All the raw data from all the participants were considered for analysis with two exceptions. First, 3 and 7 participants from the two experiments, respectively, contributed to the pilot study or were unable to finish the experiment; they were excluded for the purpose of balancing learning and fatigue effects. Second, in the angle condition, when showing a maximum value 1.0 (180°) as the reference, 45.79% of the responses were the same default value of 0.001 (0°), resulting in a very large error (100% error). Because both 0°and 180°were a flat segment (see Fig. 2), we think, if not all, the majority of the participants misinterpreted 180° as 0°. To ensure the comparability of our results, we transferred the reference value (1.0) to 0.0 (180° to 0°) for angle.

We recorded the reproduced value of each mark, the order of visual marks, the reference values shown on the screen, the reaction time, VisualChannel, NumMark, and the trial index. We collected 6,129 trials 3 VisualChannels 3 NumMarks (13 trials 27 participants 15 trials 22 participants). Together we analyzed 28,602 responses 3 VisualChannels (2 4 8) marks (13 trials 27 participants 15 trials 22 participants).

3 Analyses

To analyze the response data, we first decided the measures to quantify the effects, followed by a description of the modeling approach and the model to support the inference.

3.1 Measures

We follow the literature on visual memory and used three statistical measures to compare participants’ responses: biasbias, precisionprecision, and individual response level errorerror [10] (see Fig. 4).

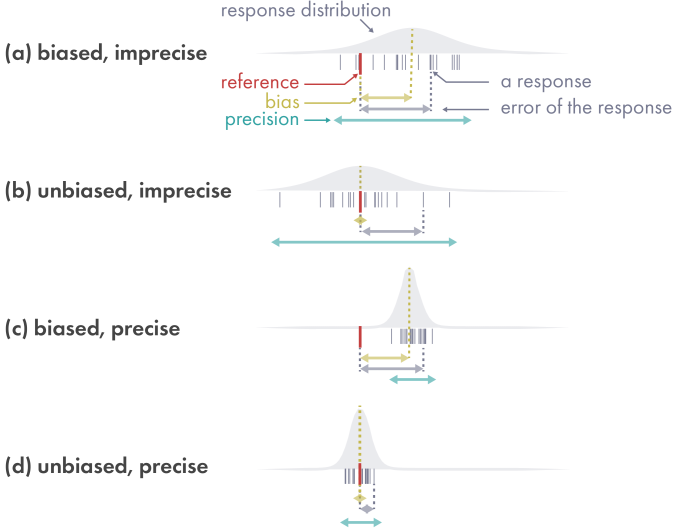

Figure 4: Bias, precision, and error. BiasBias and precisionprecision describe the average properties of a set of responses, while errorerror is a measure for a single response. In this work, errorerror is defined as the deviation from the reference, mean of errors is defined as biasbias

, and standard deviation of errors is defined as

precisionprecision.

Among these, biasbias is how the mean of the responses deviates from the actual value presented as the referencethe reference. Think of bias as systematic error or the tendency to make mistakes in a certain direction, such as exhibiting a bias to overestimate wide bars [14]. PrecisionPrecision is the consistency of participants’ responses; they may consistently report the same value, regardless of the referencethe reference value. BiasBias and precisionprecision are different facets for the same set of responses. Participants could be precise but consistently underestimate (or overestimate) the value [52, 17]. They could be imprecise but generally right on average. Alternatively, errorerror measures how each response deviates from the reference value. These three measures are different facets for the same distribution of the responses, capturing variations in visual error and reproduction performance through different lenses.

Here we used a student_t(,,) distribution for a more robust understanding. BiasBias, the mean of responses, is described by the location parameter ; and precisionprecision, the consistency of responses, is described by the dispersion parameter 111 Strictly, the parameter (standard deviation) describes imprecision. . The errorserrors of individual responses combine both bias ()bias () and precision ()precision () of the responses into one measure. If we fit the distribution with the response data collected, then knowing and , we are able to draw samples from the distribution and calculate errorerror of each draw.

It is important to note that biasbias and precisionprecision describe the average properties of a set of responses (e.g., responses from one or more experimental conditions, one or more participants). However, errorerror

is a measure for a single response, combining variance from

biasbias and precisionprecision; hence it is with more uncertainty than biasbias and precisionprecision.

Because each of the three measures is associated with a reference, in the remainder of this paper, we subtract the reference value from each response and transform all the raw responses to errorserrors (i.e., relative responses raw responses reference values).

3.2 Bayesian multilevel (hierarchical) modeling

We adopted a Bayesian modeling approach to estimate the error distribution. The mean and standard deviation parameters of this distribution, as described above, are considered bias and precision of the responses.

We followed a process of model expansion with regularization [53, 65]. It allowed us to understand how each predictor affects the model, to capture more variance in the data while reducing overfitting, and to explore the effects of secondary variables. We started with a minimal model

, which contained only experimental variables, and a list of potential predictors, ordered by their importance in our subjective beliefs. We then progressively added the predictors and evaluated each intermediate model by inspecting their posterior predictions and posterior distributions of the coefficients. We compared each intermediate model to the last model using WAIC (widely applicable information criterion) and LOO (Leave-One-Out Cross-Validation) for out-of-sample prediction accuracy, and examined their Akaike weights (the probabilities of the differences in these predictions)

[53, 49]. We also started with weakly informative priors and gradually regularized the priors as the model expanded [53]. We chose the final model which was the best at addressing our research questions, describing the current data, and predicting future observations.

We implemented the modeling processes using R packages brms [13], CmdStanR [24], bayesplot [23, 22], ggdist [41], and tidybayes [42]. We provide the analysis script and the resulting model files as supplementary materials (the analysis.Rmd|html and *.rds files).

3.3 Model specification

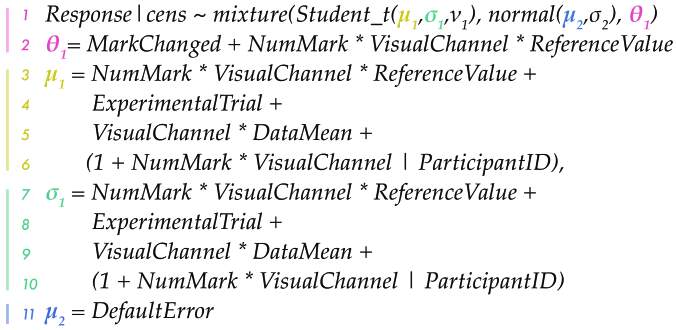

Formula   Using a syntax similar to brms’s [13] extended Wilkinson-Rogers-Pinheiro-Bates notation [64, 80], our final model is

Explanation

  • [leftmargin=10pt, itemsep =0pt, topsep = -2pt,label=]

  • line 1  We treat all the responses as arising from a mixture of two distributions: a student_t distribution for all the genuine reproduction responses, and a normal distribution for those made without an intention to reproduce a value, termed the ‘default’ distribution. This is because sometimes participants did not move the mouse to make a response, resulting in a cluster of likely irrelevant responses at a small (known) value. The mixture model separates these two sorts of responses; a mixture model like this is ubiquitous in the visual memory literature [87, 10] for modeling responses.

    In the model, the mixture parameter , the mean (; bias; bias), and standard deviation (; precision; precision) of the student_t distribution vary with the experimental variables. The mean () of the normal distribution captures the default responses (see line 11 below). We assumed that the parameter of the student_t distribution and the standard deviation () of the normal distribution do not vary. We also left censored the responses to reduce the impact of erroneous responses.

    line 2  This line describes the probability of a response coming from the genuine reproduction (cf. default) distribution. This probability could be affected by if the mark was changed (1 or 0), the number of marks, the visual channel used, and the reference value.

  • The mean (; bias; bias) of the reproduction distribution is a joint function of a set of linear predictors with varying intercepts and slopes:

    line 3  The experimental variables NumMark and VisualChannel are of the most importance. ReferenceValue acknowledges that perceptual errors are likely to be affected by the magnitude of stimuli (e.g., Weber-Fechner’s [32, 26], Stevens’s power [74], and Guilford’s laws [28]) without making a strong assumption about this relationship is the same for different numbers of marks and visual channels; this aligns with the observations that Weber’s law appears not to hold for extreme values [25] nor perception of area and angle [74] (see Appendix B for more discussion). The interaction between these variables further generalize this relationship.

    line 4ExperimentalTrial captures learning and fatigue effects over the course of the experiment such that we can later divest these effects by conditioning on the median trial.

    line 5DataMean is the average of the shown data in a trial. It approximates the context of a response. If the reference value is small but the data mean is large, it may indicate that this response was made in the presence of other large values, and vice versa. The interaction with VisualChannel is motivated by the speculation that participants may use perceptual proxies for mean [39, 60], and the proxies may be different for different visual channels [31].

    line 6  The group-level effects (“random intercepts and slopes”) capture the correlation within a participant and also allow each participant to vary for different experiments and experimental conditions.

  • lines 7-10  The same predictors were used for bias ()bias () and precision ()precision () to ensure compatibility.

  • line 11  The responses from the default distribution, when participants may not be trying to reproduce the value, are always near a small, known value (denoted by DefaultError), specified via the informative priors for the mean ( and standard deviation () .

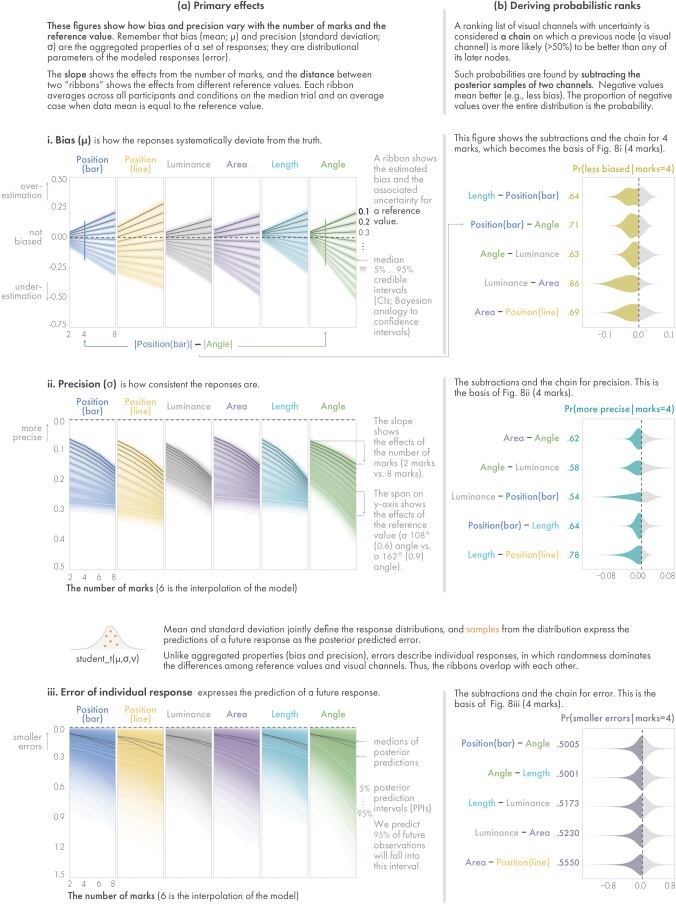

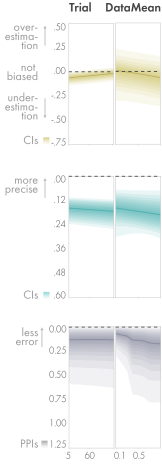

Figure 5: (a) The primary effects modeled from the experimental observations; and (b) how we compare two visual channels, calculate the probabilities of being better, and finally derive the probabilistic ranks.

4 Results

To understand the differences in visual channels for the reproduction task, we report various effects on each of the precision, bias, and error measures. We then derive ranks for the visual channels.

We base our inference on the first distribution of the mixture model and the posterior distributions (marginal, conditional, and predictive distributions). Marginal posterior distributions summarize all the known information for one parameter; conditional posterior distributions tell us the expected value of one parameter in a specific situation; and posterior predictive distributions provide unobserved data conditioning on the observed data and the fitted model.

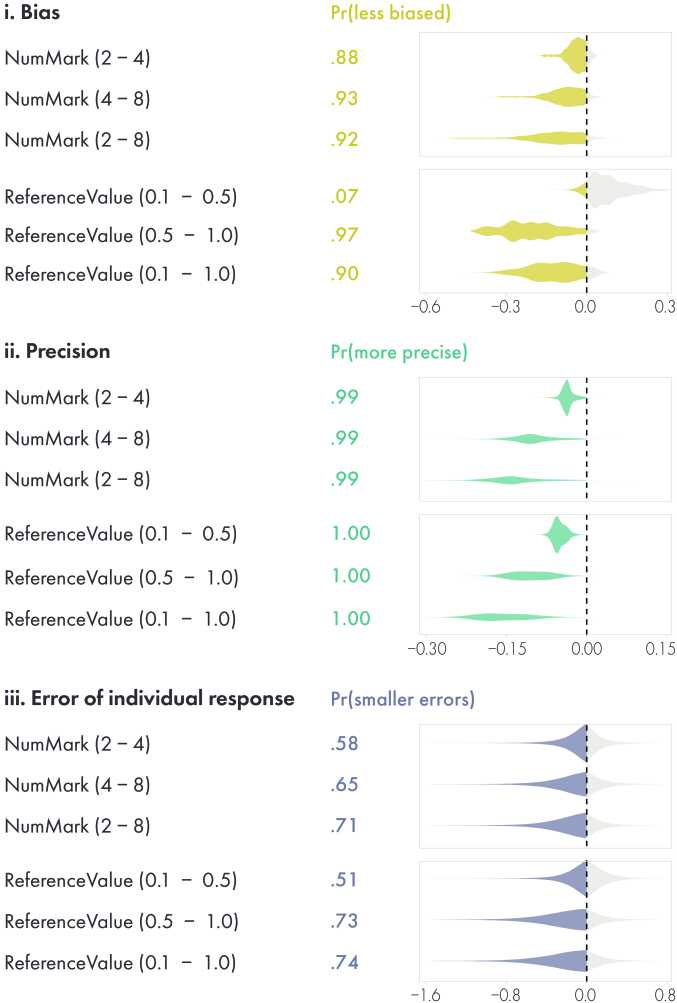

Figure 6: The exmaples of quantified primary effects of the number of marks and reference values. We take subtraction and calculate the marginal probabilities of being better (see Fig. 5b), averaging across visual channels and reference values (or different numbers of marks).

4.1 Primary effects

The model suggests that the two experimental variables—the number of marks (NumMark) and the reference value (ReferenceValue)—both have very strong effects on the reproduction responses across the three measures. To show these effects, we take an average participant (to eliminate individual differences), conditional on the median trial (to rid learning/fatigue effects) and on the case where data mean is equal to the reference value (to remove the effects of the other marks in the same trial).

Fig. 5a shows all of the modeled effects, including the tendencies and the interactions between variables. Fig. 6 provides examples of quantified primary effects by showing how likely an average participant’s responses are better (less biased/more precise/smaller errors).

i. Bias   (Figs. 5i and 6i)

Number of marks.Number of marks. The average participant is very likely to be less biased in the reproduction, when the number of marks is small. For an average visual channel and an average reference value, the estimated probability that the average participant is less biased in a chart with 2 marks than with 8 marks is .92.92. That is, for the same reference value, we expect 92% of responses with 2 marks to exhibit less bias than the responses with 8 marks.

Reference value.Reference value. The average participant is very likely to overestimate a small reference value and seriously underestimate a large reference value, and are least biased with a reference value around .4 or .5 (median). For an average visual channel and an average number of marks, the estimated probability that the participant is less biased in a chart with the median reference value (.5) than the minimum value (.1) is .93 (this is 1-.07). Similarly, the estimated probability that an average participant is less biased in a chart with the median reference value (.5) than the maximum value (1.0) is .97.97.

Interaction effects.Interaction effects. The effects of NumMark and ReferenceValue interact, and each interacts with VisualChannel. For most of the visual channels but position (line), response bias increases when the number of marks is large and a reference value deviates from the median further. Overall, angle is the visual channel where response bias is most sensitive to either a change in the number of marks or the reference value; position (line) is where bias is sensitive to the reference value, but robust to the number of marks for large reference values.

ii. Precision   (Figs. 5ii and 6ii)

Number of marks.Number of marks. The average participant is very likely to be more precise (more consistent) when the number of marks is small. For an average visual channel and an average reference value, the estimated probability that the participant is more precise with a chart of 2 marks than a chart of 8 marks is .99.99.

Reference value.Reference value. The average participant is more precise with reproducing a small reference value and much less precise with reproducing a large reference value. For an average visual channel and an average number of marks, the estimated probability that the participant is more precise with the minimum reference value (.1) than the median or maximum reference value (.5 or 1.0) is 1.001.00 (nearly deterministic).

Interaction effects.Interaction effects. The effects of these two variables on precision interact with each other and further with visual channels. Response precision is more affected by the number of marks when the reference value is smaller, except angle, where precision is more affected by the number of marks when the reference value is large. Similarly, precision is more affected by the reference value with fewer marks, except angle, where precision is more affected by the reference value with more marks. Overall, luminance is the visual channel where precision is least sensitive to the reference value, and position (line) is where precision is most sensitive to the reference value.

iii. Error of individual response   (Figs. 5iii and 6iii)

The samples drawn from the posterior distributions provide an estimation of errors in individual responses; for the convenience of comparison, we took the absolute values.

Number of marks.Number of marks. The average participant is likely to make smaller errors with fewer marks. For an average visual channel and an average reference value, the probability that a single future response exhibits a smaller error with 2 marks than with 8 marks is .71.71.

Reference value.Reference value. The average participant is likely to make smaller errors with a smaller reference value. The estimated probability that a single future response will have a smaller error for the minimum reference value (.1) than the maximum (1.0) is .74.74.

Interaction effects.Interaction effects. Reproduction error is likely affected by the number of marks slightly more in larger reference values for area and angle, less for position (bar) and position (line), and similarly across different reference values for luminance and length. These interactions effects are milder than those observed for bias and precision, owing in part to increased uncertainty in this measure relative to the aggregated properties described by bias and precision.

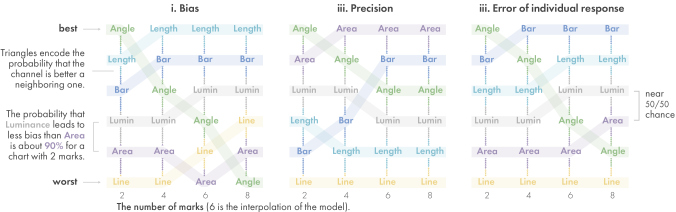

Figure 7: The probabilistic rankings of visual channels on the three measures, augmented with the probability of the associated channel being better (less biased/more precise/smaller errors) than another.

4.2 Secondary effects

The model also suggests several moderate effects. To show the learning/fatigue effect, we condition on the average case where both reference value and the associated data mean are at their median (.5, .55, respectively). To show the effect of data properties (e.g., the mean of all the data values in a trial), we condition on the average case where reference value is at its median (.5) in the median trial, and sampled all the possible values of data mean. We also marginalize out the number of marks and visual channels and use an average participant.

i. Bias   The participant appears to underestimate reference values at the beginning of the experiment. In later trials, the participant generally increases the reproduced values and becomes less biased. In reproducing an average value, the participant seems not affected by other small reference values, but is likely to underestimate the median value when other reference values are large.

ii. Precision   The participant appears to become slightly less precise as the experiment goes on, possibly due to the fatigue effect. In reproducing an average value, the average participant seems less precise when other larger values are present in the same trial; these larger values possibly distract the participant’s judgment and reproduction.

iii. Error of individual response   It appears that learning or fatigue effects do not strongly affect response error. In reproducing an average value, the participant is likely to make smaller errors when other reference values are small, and to make larger errors when other values are large. The error of a response seems to largely increase when data mean is above .25, half of the median.

4.3 Deriving probabilistic ranks

One primary goal of this work is to derive ranks for the visual channels based on the reproduction task and compare them to those from two-value ratio judgment tasks [18, 33, 30]. A ranking list may provide a summary of effects for others to digest the results (e.g., [31, 70]). However, a rank list may cause dichotomous thinking

(e.g., “A is always better than B.”), which belies the nuances in the ranking. In the spirit of rethinking the previous ranks and in the context of Bayesian statistics, we will derive probabilistic ranks that acknowledge the

uncertainty in the observations and the modeling processes.

A rank in the probabilistic domain may mean that one is more likely to be better than another. Hence we start by calculating these probabilities for visual channels. We marginalize all reference values and condition on the median trial with the median data mean. We subtract the absolute values of each measure; if A is better (less biased/more precise/smaller errors) than B, we expect negative values after subtraction (see Fig. 5b). The estimated probability of A being better than B is the proportion of the negative values over the entire subtracted distribution. When this probability is larger than 50% (larger than chance or other thresholds), we say A is more likely to be better than B, and A “wins.”

We derive the probabilistic rank lists by pairwise subtraction and then build a chain of visual channels where any previous node on this chain always “wins” any comparison to the later nodes for a given measure. This is essentially a constraint satisfaction problem [48, 55], and there are many methods to find a solution [48]

. For the scale of our problem, we can build the chain by hand or apply heuristics (e.g., sorting by how many times a visual channel “wins”). We construct a chain for each measure and visualize them in Fig.

7, augmented with the associated probabilities to convey uncertainty.

The ranking produced by the precision of two-value ratio judgments does not hold for each of the three measures nor any of the modeled numbers of marks. The ranks changes with different numbers of marks across different measures, which suggests that the previous channel rank is likely not generalize to other visual comparison tasks.

5 Discussion

The varying rankings and the effects of the number of marks and the reference values bring our discussion on the context of a visualization below, which further invites a discussion on the implications of this work, along with an acknowledgment of the known limitations.

5.1 The context of a visualization

We find that showing more marks adds substantial noise to memory representations, and has an order of magnitude more influence on performance than the choice of channel. Squeezing more data into one visualization may cause viewers to increasingly remember (and compare) data as statistics or rough global shapes [9, 16], rather than precise representations of individual values. As memory for each value likely also depends on its relation to the distribution of other values, as in work on neighborhood effects [88, 10, 4] and distractor effects [77].

We also indicate that the value of a mark (the reference value) has a more powerful effect on reproduction than the channel chosen: tall bars are more biased than small areas, even though position (bar) is one of the least biased channels overall. The context of the reference value also indicates strong bias (e.g., angle), similar to past work where participants tend to be more biased and less precise with a value further from the ends of the range [52, 34] (e.g., “edge effects”); it also aligns with psychophysical observations [26], where low and high ends of the data range can serve as perceptual anchors (e.g., “the angle is 10° from 90° is perceptually congruent). Alternatively, for a channel like position (bar), participants perform better around the median value. This is probable that they resort to near-mean estimations when their memory falters, also consistent with better performance around the mean of the possible range of values [37].

The mark-based reproduction task itself may also influence the context in the eye of the viewer. Line charts use the position channel but were always redrawn lower down than the reference values. They may be perceived as a single complex shape, or set of contrasting slopes, for the purposes of redrawing. Line charts indicate relative changes but may also create more bias in average value judgments for comparisons of lines with different baselines (consistent with [81]). This suggests that the reproduction task may undervalue visual channels that provide good relative, but poor absolute information about the values.

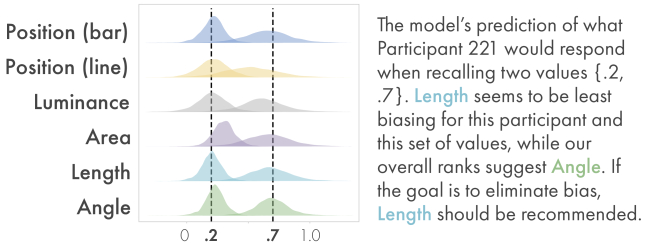

Figure 8: An example of how the model could support design decision making via predicting a viewer’s responses.

5.2 Implications and future directions

The previous channel ranking based on two-value ratio judgments appears to be attractive as a rule. That task feels like a visual comparison distilled down to an atomic unit, which may lead to an assumption that a ranking based on that task should extrapolate to new ones. However, the present study denies this assumption (Fig. 7), with a different ranking for the two-value condition in a reproduction task. As such, designers ought to be increasingly skeptical of the channel ranking produced by two-value ratio tasks [18], which may not serve as a generalizable guideline for their usage.

The present study also shows how the number of marks, the reference value, and other secondary factors such as data mean may strongly, progressively, and interactively affect reproduction. Like previous work that had identified data category [50] and distribution [44] as design factors, other factors beyond visual channels could be critical inputs for design recommendations.

Our rankings reveal the tendencies of the visual channels on different measures and the associated uncertainty, given the reproduction task. If a designer is pursuing the exact or a similar task, these rankings could be used as a reference. For example, length and position (bar) generally lead to less bias and smaller errors, likely desired in reducing bias. Area is surprisingly more precise but could lead to more bias and larger error, likely preferred in improving precision. Luminance is relevantly stable across different numbers of marks and measures, likely suitable when data size is varying. Angle seems sensitive to different numbers of marks and may be most useful for two marks. Position (line) seems ineffective in this reproduction task but may reduce bias for a larger dataset. Knowing one’s risk appetite for the misperception of bias or precision will inform the choice of visual channels. Moving forward, parameterizing the influence of data properties (number of marks, values) and the designers’ desire to optimize for lower bias, higher precision or lower error may help to inform visualization designers’ decisions.

Thinking of multiple factors may be difficult for designers, not to mention the possible conflicts and other specialized design considerations. Our analysis methods may shed light on resolving this complexity. We were inspired by the recent modeling work [31, 43, 75, 20, 40] and appealed to psychophysical laws [69, 31, 83, 52], entropy [68, 71, 70, 15], perceptual proxies [39, 58], serial-position and ordering effects [36], visual memory (e.g., [10, 3, 54]), neighborhood effects [88], and distractor effects [77]. The final model used, incorporating empirical knowledge, is capable of providing preliminary recommendations given the inputs (see Fig. 8). Thus, a modeling approach like ours may harmonize different factors and provide design candidates.

It would be premature to derive other firm guidelines based on the present study; additional studies will be needed or establish whether there exist broadly applicable guidelines. Our task relies on a purposely abstract reproduction task as a first step toward inspiring future work using more concrete comparison tasks. Those studies will need to expand how the visualization research community operationalizes different visualizations tasks (e.g., detecting trends and motifs, immediate or later comparison, and viewing a visualization with thousands of data points), and what ‘good performance’ means in a task (e.g., precision, bias, error, speed [72, 44], etc.). In addition, other factors such as top-down effects like prior knowledge [82] and expectations [63, 45] may impact reproduction task performance, and individual differences [62] and spatial ability [61] may affect strategies that subsequently impact task performance, which could be promising directions.

Figure 9: The moderate non-linearity and symmetry in responses for (b) luminance and (c) angle, compared to (a) position (bar).

5.3 Limitations

For the sake of comparability, we treated all visual channels equally in designing the experiment and analyzing the data. This makes the channels easier to compare, potentially at the cost of the usability for some. The redrawing method may add noise and bias to data, as it might not be equally intuitive for all the visual channels. For example, for angle, we mapped the -coordinate of the cursor to the degrees of the angle, which might be more difficult to draw than others (e.g., position (bar) that maps the cursor to the height of the bar). Similarly, always dragging up from the zero value might result in a bias towards smaller values for the two position channels, possibly explaining the underestimation in position (line) noted above. These response methods likely have an impact on the result, and a comparison of different response methods will be critical to generalization of these results. The model also always assumes linearity between errors of the responses and all the variables. While most of the data meet this assumption, visual channels like angle display moderate non-linearity across different reference values (Fig. 9), likely affecting the estimation of the model.

6 Conclusion

We revisited the ranking of visual channels [17] using a visual reproduction task as a proxy of various visual comparison tasks. We tested participants’ reproduction performance with six visual channels: position (bar), position (line), luminance, area, length, and angle across different numbers of marks and data values. With a Bayesian multilevel model, we show that both the number of marks and the reference value strongly affect the bias and precision in a set of responses, as well as errors of individual responses; the number of marks gradually dominates the differences in visual channels and reference values, reflecting a strong limit on working memory, that likely serves to limit most comparison tasks in data visualization. We further derive probabilistic rankings from the model for each measure and show that the previous ranking [18] does not hold. We demonstrate the limitations of the previous ranking [17], offer the preliminary new rankings based on a reproduction task, and present a Bayesian modeling approach to rank visual channels, all for future work to continue exploring this area.

Acknowledgements.
Thank you to Satoru Suzuki and members of the Visual Thinking Laboratory at Northwestern University for their suggestions during the experimental design. The authors also thank the anonymous reviewers for their feedback. This work was supported in part by grants BCS-1653457 and IIS-1901485 from the National Science Foundation.
