Restructuring Batch Normalization to Accelerate CNN Training

07/04/2018
by   Daejin Jung, et al.
Seoul National University
0

Because CNN models are compute-intensive, where billions of operations can be required just for an inference over a single input image, a variety of CNN accelerators have been proposed and developed. For the early CNN models, the research mostly focused on convolutional and fully-connected layers because the two layers consumed most of the computation cycles. For more recent CNN models, however, non-convolutional layers have become comparably important because of the popular use of newly designed non-convolutional layers and because of the reduction in the number and size of convolutional filters. Non-convolutional layers, including batch normalization (BN), typically have relatively lower computational intensity compared to the convolutional or fully-connected layers, and hence are often constrained by main-memory bandwidth. In this paper, we focus on accelerating the BN layers among the non-convolutional layers, as BN has become a core design block of modern CNNs. A typical modern CNN has a large number of BN layers. BN requires mean and variance calculations over each mini-batch during training. Therefore, the existing memory-access reduction techniques, such as fusing multiple CONV layers, are not effective for accelerating BN due to their inability to optimize mini-batch related calculations. To address this increasingly important problem, we propose to restructure BN layers by first splitting it into two sub-layers and then combining the first sub-layer with its preceding convolutional layer and the second sub-layer with the following activation and convolutional layers. The proposed solution can significantly reduce main-memory accesses while training the latest CNN models, and the experiments on a chip multiprocessor with our modified Caffe implementation show that the proposed BN restructuring can improve the performance of DenseNet with 121 convolutional layers by 28.4

READ FULL TEXT VIEW PDF

page 1

page 2

page 3

page 4

09/30/2018

Mini-batch Serialization: CNN Training with Inter-layer Data Reuse

Training convolutional neural networks (CNNs) requires intense computati...
02/26/2018

Yedrouj-Net: An efficient CNN for spatial steganalysis

For about 10 years, detecting the presence of a secret message hidden in...
10/30/2018

MPNA: A Massively-Parallel Neural Array Accelerator with Dataflow Optimization for Convolutional Neural Networks

The state-of-the-art accelerators for Convolutional Neural Networks (CNN...
02/24/2020

Breaking Batch Normalization for better explainability of Deep Neural Networks through Layer-wise Relevance Propagation

The lack of transparency of neural networks stays a major break for thei...
03/31/2022

Direction of Arrival Estimation of Sound Sources Using Icosahedral CNNs

In this paper, we present a new model for Direction of Arrival (DOA) est...
10/19/2018

CNN inference acceleration using dictionary of centroids

It is well known that multiplication operations in convolutional layers ...
08/08/2020

Learning CNN filters from user-drawn image markers for coconut-tree image classification

Identifying species of trees in aerial images is essential for land-use ...

1 Introduction

Deep Neural Networks (DNNs) have emerged as the key technique of artificial intelligence, and Convolutional Neural Networks (CNNs) are widely used for image classification and object detection tasks. Typical DNNs, which consist of multiple stacked layers and multiple channels (filters) per layer, require billions of operations

Canziani et al. (2016) for training and inference, and CNNs usually require larger amount of operations than other types of DNNs. As the first order of solution to the computational load problem, hardware accelerators such as GPGPUs Foley & Danskin (2017), FPGAs Alwani et al. (2016), ASICs Jouppi et al. (2017), and manycore processors Sodani et al. (2016) have been developed. Then, further optimizations have been performed specifically for CNNs. For the CNNs designed in the early days, convolutional (CONV) and fully-connected (FC) layers were the most time-consuming parts, and the CNN accelerator research has mainly focused on optimizing the two layer types. For example, loop blocking and reordering techniques were shown to be highly effective for maximizing data reuse of CONV/FC layers Yang et al. (2016); Chen et al. (2016b), and subsequently network compression or approximate computing methods were introduced to significantly reduce computation and memory access Han et al. (2016, 2015a, 2015b); Sriniva & Babu (2015). Previous works, however, paid almost no attention to the non-CONV layers as their influence on resource consumption was ignorable.111We address layers other than CONV/FC as non-CONV layers.

The latest CNN models such as ResNet He et al. (2016b) and DenseNet Huang et al. (2017), however, are actively adopting new structures and non-CONV layers to improve prediction performance. For instance, skip connection

has been utilized to stabilize backpropagation and to enable stacking hundreds of layers; and Batch Normalization (BN) has been developed with the original goal of addressing

internal covariate shift phenomenon Ioffe & Szegedy (2015). With the invention of the new layer types that enables more layers to be stacked, the relative portion of non-CONV layers in a CNN model has been increasing. On the contrary, the computation load of CONV layers has been declining due to a reduction in the size of the convolution filters. The early CNN models such as AlexNet Krizhevsky et al. (2012) and VGG Simonyan & Zisserman (2014) have used convolution filters with the size of 33, 55, and even 1111. But the recent designs (e.g., ResNet and DenseNet) apply 11 or 33 filters in most CONV layers and successfully reduce the computational overhead. Overall, the design trends of modern CNNs indicate that the importance of CONV/FC layers is decreasing whereas the importance of non-CONV layers is increasing.

While we expect many non-CONV layers to be developed and become a significant part of computational load, BN during the training is known as the most computationally intensive non-CONV layer as of today. One might think inference is much more important because training needs to be completed only once; but in reality, training needs to be performed repeatedly by trying different hyperparameters such as network depth, number of neurons, learning rate, regularizer, optimizer, and activation function

Bergstra & Bengio (2012); Snoek et al. (2012)

. Even after a training is deemed to be complete and the trained network is deployed for a real service, deep learning research is moving so fast that the developers are immediately forced to consider newly invented solutions to replace the deployed one. Therefore, both researchers and practitioners end up spending a significant portion of their computational resources on training, and improving the performance of training is as important as (or arguably even more important than) improving that of inference.

During training, a BN layer requires per-channel mean and variance of input elements to be evaluated over the entire mini-batch dataset. There are other layers and operations that require statistics to be calculated over the entire mini-batch dataset (e.g., covariance matrix for regularization Cogswell et al. (2015) and mutual information for disentangling GAN representations Chen et al. (2016a)), but BN has the largest impact on computational load as it is currently very popular and it can be included in multiple places within a deep learning network. As in Alwani et al. (2016) where intermediate data between layers was recognized as an opportunity to accelerate CNN inference, we recognize that the mini-batch calculation of BN is an opportunity as well. However, as opposed to Alwani et al. (2016), we focus on restructuring BN because BN during training imposes strict dependency across a large volume of mini-batch dataset which does not fit within on-chip buffers and hence fusing multiple convolutional layers is less attractive.

In this paper, we develop a BN restructuring solution for the latest CNN models with the following key contributions:

  • We explore the execution time breakdowns and show that non-CONV layers have become significantly more important for the latest CNN models. We show that BN is the most important among non-CONV layer types.

  • We propose a novel BN-layer restructuring solution where a BN layer is first divided into sub-layers (fission) and then merged with neighboring layers (fusion). This restructuring can significantly mitigate memory bottleneck problem by reducing memory traffic concentrated on BN layers.

  • We achieve 25.7% (16.1%) of performance enhancement on the latest chip multiprocessor (Intel’s Skylake Doweck et al. (2017)) on top of a highly-optimized CNN library Intel (2016) for DenseNet-121 (ResNet-50). Applying the BN restructuring to GPU with an open-source linear algebra library Kerr et al. (2017) also improves performance of DenseNet-121 and ResNet-50 by 17.5% and 7.8%, respectively.222Check our implementation at https://github.com/scale-snu/caffe-bn-restructuring and https://github.com/scale-snu/mkldnn-bn-restructuring.

2 Background and Motivation

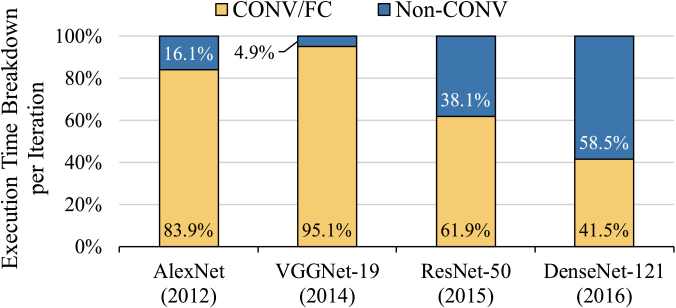

Figure 1: Execution time breakdown of popular CNN models over layer types. We categorize CONV and FC layers into a group (CONV/FC) and the remaining layers into the other (non-CONV). CONV/FC layers dominate the execution time for the early models, but non-CONV layers are also important for the later models that are much deeper.

2.1 Trends in CNN accelerator designs

Many CNN accelerator proposals and designs are mainly focused on convolutional (CONV) and fully-connected (FC) layers. This is because those layers take up most of the inference and training time of relatively shallow CNNs (up to few dozens of layers). For example, AlexNet Krizhevsky et al. (2012) consists of only 5 CONV layers and 3 FC layers, whereas VGGNet Simonyan & Zisserman (2014) has 13-16 CONV layers and 3 FC layers. On these early and shallow CNN models, the portion of execution time on CONV and FC layers is dominant, accounting for up to 95% of total execution time as shown in Figure 1 (we measured the training time from the system specified in Section 4).

Common optimization strategies implemented in the CNN accelerators for the two types of layers include: reducing memory bandwidth by maximizing the data reuse of weights, input feature maps, and output feature maps Du et al. (2015); Chen et al. (2016b), pruning redundant parameters (e.g., weights) and exploiting sparsity Albericio et al. (2016); Han et al. (2016), computing in an approximate manner Han et al. (2015a, b), and adopting new memory technologies Chi et al. (2016); Kim et al. (2016); Shafiee et al. (2016). However, there are relatively few studies Jain et al. (2018)

focusing on optimizing the layers other than CONV/FC layers (non-CONV), such as ReLU (Rectified Linear Unit), pooling, and batch normalization (BN) layers because

these non-CONV layers take up much less time compared to the CONV/FC layers on these shallow CNNs.

Recent deeper CNN models (e.g., ResNet He et al. (2016b) and DenseNet Huang et al. (2017)) spend a larger portion of time executing non-CONV layers as opposed to the conventional shallow CNNs. For example, DenseNet-121 (DenseNet with 120 CONV layers plus one FC layer) spends more than half of the execution time on the non-CONV layers (see Figure 1). For these CNN models, accelerating the non-CONV layers is becoming increasingly important.

Optimizing the non-CONV layers is more complicated when it comes to training compared to inference. Previous techniques to boost the inference process, such as approximate computing and compression, are not easily applicable to training as weights are updated in the course of training. Complex data dependencies during training also matter. A layer like BN needs only element-wise operations during inference, but it demands data of multiple intermediate output values from its previous layers during training, making the optimization a non-trivial task.

The training process matters in that it requires significant computing costs. ResNet-50 takes 29 hours to train with 8 Tesla P100 GPUs, as each epoch (training an entire dataset) consumes 16 minutes for the images of the the ImageNet Large Scale Visual Recognition Challenge dataset

Goyal et al. (2017). Google AlphaGo Silver et al. (2016) was trained for more than three weeks with 50 GPUs to beat a top-class professional Go player. If training is an one-time event, its cost would be well amortized. As DNN models evolve rapidly and more data are accumulated, however, frequent or even continuous training is needed. These all support the importance of optimizing the training process.

So far, however, relatively few studies have focused on training, especially the non-CONV layers. Although several DNN acceleration strategies have been studied to mitigate the computing cost of training Goyal et al. (2017); Rhu et al. (2016); Venkataramani et al. (2017), these are different from our work in that they did not focus on accelerating the non-CONV layers.

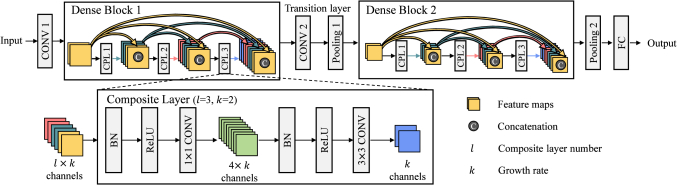

Figure 2: An exemplar DensetNet structure with two Dense Blocks, connected through a transition layer which changes the number and size of the input feature maps to a Dense Block. Each Dense Block has multiple Composite Layers (CPLs), each of which is connected to every other CPL within a Dense Block in a feed-forward fashion. A CPL consists of six layers (BN, ReLU, 11 CONV, BN, ReLU, and 33 CONV). The 11 CONV layer in a CPL, called bottleneck layer, limits the number of input feature maps to 4k while the second CONV outputs k channels that are concatenated to the input feature maps. Growth rate (k) is the variable for how many feature maps are concatenated per CPL; feature maps stack up as they go through CPLs.

2.2 Deep CNN models

Deep networks are known to have better expressivity and better optimization characteristics, and deep networks are widely used with convolutional layers. To train a deep CNN model, stable propagations of activations in the forward path and gradients in the backward path are crucial. Guaranteeing a stable training, however, is still an incompletely understood problem.

BN Ioffe & Szegedy (2015) was proposed in 2015 for stable learning, where it stabilizes the distribution of nonlinear inputs by normalizing the samples within a mini-batch. Specifically, BN first computes the mean and variance values for each channel of its input feature maps sweeping through the values over a mini-batch; then it performs a normalization with a scaling factor () and a shift factor (). While BN’s stabilizing and regularizing effects have been confirmed through numerous empirical studies that followed the original study, the reason why BN works well has been controversial. Recent works shed some light on the reason, where Santurkar et al. (2018) show that internal covariate shift has little to do with the success of BN but that BN makes the optimization landscape significantly smoother and Bjorck et al. (2018) demonstrate how large gradient updates can result in diverging loss and activations growing uncontrollably with network depth and how BN avoids these. The recent explanations are in line with the popular design of heavily utilizing BN in deep CNN models.

Residual learning is known to be helpful for training deep CNN networks, too. Residual learning uses skip connection where a layer can skip some layers and connect directly to a farther-away layer as well as its adjacent layer (through a layer called Split). ResNet, one of the state-of-the-art CNNs, adopted residual learning with identity mapping, which adds a layer to the far layer in an element-wise manner (through an element-wise sum (EWS) layer). This effectively shortens the distance between close-to-input layers and close-to-output layers, helping very deep networks with hundreds of layers to converge. Due to its record-breaking performance in image recognition, residual learning has been frequently adopted in the latest CNNs He et al. (2016b, a); Xie et al. (2016). DenseNet, which we mainly target for optimization in this work, is also a variant of the residual learning with a slight but important difference – it concatenates multiple feature maps rather than performing EWS, through a layer called Concat.

The importance of optimizing these non-CONV layers is growing as they continue to take a larger portion of the training time. Because smaller CONV filters are more frequently used on modern deeper CNNs, the amount of computation per CONV filter has been decreasing. For example, AlexNet utilizes 1111 and 55 filters, whereas more recent models such as DenseNet, ResNet, and Inception network Szegedy et al. (2016), adopt relatively small filters, mainly 33 and 11.

2.3 DenseNet: a state-of-the-art CNN model

DenseNet Huang et al. (2017) is an example of more recent CNN models that use both BN and residual learning to achieve high accuracy with deeper (possibly surpassing 100) layers and smaller CONV filters. It achieves classification accuracy comparable to ResNet, but with fewer learning parameters. A key feature of DenseNet lies in its dense connectivity. A DenseNet is a sequence of Dense Blocks (see Figure 2); two adjacent Dense Blocks are connected through transition layers (e.g., few CONV and pooling layers). Each Dense Block has multiple Composite Layers (CPLs). A CPL consists of a sequence of BN, ReLU, 11 CONV, BN, ReLU, and 33 CONV layers. The l’th CPL within a Dense Block receives lk input feature maps (channels). The first 11 CONV layer limits the number of feature maps to mk; when l m, the 11 CONV layer effectively reduces the computation cost of its following sequence of BN, ReLU, and CONV layers, and hence it is called a bottleneck layer. All CPLs within a Dense Block is fully connected utilizing Concat and Split layers in a feed-forward fashion (connections not forming a cycle). Feature map size grows within a Dense Block; because the output feature maps from the preceding CPLs are concatenated, a CPL located later (farther from input) in a Dense Block has more input feature maps (channel). A transition layer works similar to a bottleneck layer, limiting the number of channels.

Dense connectivity enables DenseNet to reduce computation cost from CONV layers. It embodies residual learning exploiting skip connection; however, as opposed to ResNet which performs EWS, DenseNet concatenates feature maps from preceding layers. CPL exploits the observation from empirical studies where placing the BN layer before ReLU and CONV layers provided better recognition performance Huang et al. (2017). Furthermore, DenseNet has shown that relatively small is sufficient for achieving a state-of-the-art accuracy on recognition, as information in feature maps is transferred through dense connectivity. The result is higher computation efficiency in these CONV layers. While non-CONV layers such as BN, ReLU, and Split have been gaining prominence not only in DenseNet but also in other modern CNNs He et al. (2016b); Howard et al. (2017); Szegedy et al. (2016), an improved degree of computation efficiency in CONV layers due to the aforementioned reasons makes optimizations for non-CONV layers even more important. In this work, we examine the characteristics of computational challenges in DenseNet and propose solutions to overcome these.

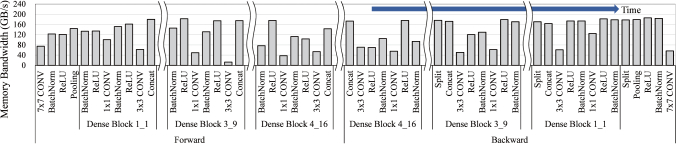

Figure 3: Memory bandwidth utilization of layers on the DenseNet-121 CNN model over time Huang et al. (2017). Each CONV layer is interleaved with other operation types, such as BN, ReLU, and Concat (concatenation), each exhibiting different degrees of bandwidth demand. Peak main-memory bandwidth of the evaluated system is 230.4GB/s (12 DDR4-2400 channels).

3 BN Restructuring

3.1 Analyzing DenseNet

In this section, we mainly focus on analyzing the memory access characteristics over time for training DenseNet-121. (ResNet is also considered for the final evaluation in Section 5.) For the analysis, we use the latest chip multiprocessor (Intel Skylake Doweck et al. (2017)) that can provide decent memory bandwidth and computing power with the capability to measure various architectural statistics (e.g., memory accesses and cache misses).

We observed the following key memory access characteristics when training DenseNet. First, similar to other CNN models, DenseNet exhibits repeating patterns in memory traffic because layers are processed sequentially and a set of layers with different computational characteristics are executed repeatedly. Second, memory bandwidth demands are different from layer to layer even for the same layer type. This is because each layer’s number of input feature maps (ifmaps), number of output feature maps (ofmaps), and filter size can be different for the purpose of recognition performance and efficient operation. For example, CONV layers with smaller filter sizes have relatively high memory access rates compared to the total amount of computation because the reuse rate of ifmaps within on-chip buffers is low, whereas layers with relatively large filter sizes can reduce the off-chip memory bandwidth demand due to the higher reuse rate of ifmaps. Actually, DenseNet has higher memory bandwidth demands compared to early CNN models as it uses 11 CONV and 33 CONV layers except the first 77 CONV layer (see Figure 3).

Memory bandwidth demand varies substantially between CONV layers and non-CONV layers due to the difference in computational characteristics. The non-CONV layers of DenseNet-121 are mostly bottlenecked by the peak main-memory bandwidth of the system we use (230.4GB/s), whereas the CONV layers underutilize the available bandwidth (only up to 120GB/s). This is because the non-CONV layers have less data locality and computation intensity, which makes loop blocking techniques less effective, leading to higher demand in memory bandwidth.

Figure 4: Comparing execution time of BN and ReLU layers with finite and infinite (hypothetical) memory bandwidth.

If a system has infinite memory bandwidth, the high memory bandwidth demand of the non-CONV layers would not be a problem as the execution time of them would be limited by computation power (peak FLOPS) of the system and the non-CONV layers are far less computationally intensive compared to the CONV layers. However, improving the performance (i.e., bandwidth and latency) of the main-memory systems has remained relatively challenging, as opposed to the rapid growth in computational power (i.e., FLOPS or OPS) per device. Modern data-parallel architectures used for CNN acceleration still provide around hundreds of GB/s of main-memory bandwidth (e.g., 732GB/s with Nvidia Tesla P100 Foley & Danskin (2017)) due to the power and signal integrity issues; even if the absolute data transfer rate is impressive, it is not high enough to completely satisfy the bandwidth demands from memory intensive (computationally less intensive) layers, especially BN and ReLU. The maximum computing power of Tesla P100 is 10.6TFLOPS (single-precision floating point), being translated to 14.5FLOP/B or 58 FLOPs per 32-bit data. Assuming that ReLU requires one clipping operation per 32-bit data, 58 more main-memory bandwidth is needed to match P100’s computing power.

We tested the BN and ReLU layers of DenseNet using a real machine (Intel Skylake) with a hypothetical model providing infinite memory bandwidth for the BN and ReLU layers (Figure 4). To simulate the hypothetical machine, we made BN and ReLU layers skip DRAM memory accesses by manipulating memory address offsets, thereby all data accesses can fit in L1 caches but the number of operations being executed remains unchanged. In this experiment, we exclude Concat and Split layers because such layers mainly perform memory copies that can be optimized by passing pointers instead of physical copies even if they demand high memory bandwidth in our reference implementation Yang (2017) using MKL-DNN Intel (2016). We observe that without the bandwidth limitation, the BN and ReLU layers enjoy 20 speedup. If computational power (peak FLOPS) is improved faster than main-memory bandwidth (peak GB/s) in future CNN accelerators, which is quite likely as computation is cheap and communication is expensive Han et al. (2016) in contemporary VLSI systems, these non-CONV layers could possess even larger portion of execution time in future. Therefore, it is important to reduce memory accesses on those layers.

Memory accesses in ReLU and BN layers mostly come from reading and writing ifmaps and ofmaps. At a given layer, the aggregate size of these feature maps across a mini-batch could be too large to fit in on-chip memory with MBs of capacity especially when the size of a mini-batch reaches or surpasses 100, which is preferred as larger mini-batch sizes typically lead to better hardware utilization.

To decrease the memory accesses in these layers, we can consider maximizing data reuse of the ifmaps and the ofmaps between and within the layers. However, because BN layers have strict data dependency, cross-layer data reuse is prohibited. In the forward pass of a BN layer, all pixels of ifmaps that belong to a mini-batch should be retrieved to get per-channel mean and variance values prior to normalizing individual pixels. Likewise, in backpropagation, calculating the partial derivatives on (scaling factors) and (shift factors) accompanies sweeping the partial derivatives on ofmaps; this should precede computing the partial derivatives on ifmaps. Because these dependencies make data reuse distance far in BN, it is difficult to apply the data reuse techniques that were previously proposed for CONV layers to these non-CONV layers.

A prior work Alwani et al. (2016) fuses multiple CONV layers to facilitate data reuse in-between; however, because BN layers are frequently inserted between CONV layers (e.g., each CONV layer within a CPL of DenseNet is paired with a BN layer) and BN imposes strict dependency, inter-CONV fusion is not attractive to the latest deeper CNNs. With this motivation, we suggest Fission-n-Fusion, a novel solution that copes with this strict data dependency in BN layers to minimize unnecessary data transfers.

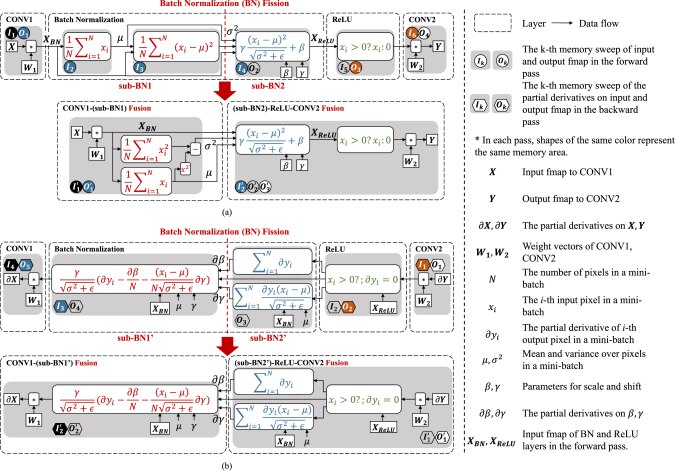

Figure 5: Illustration of BN Fission-n-Fusion on (a) the forward pass and (b) the backward pass. We present data dependency with arrows, memory sweeps (either reading or writing 100+ feature maps across an entire mini-batch per channel) as grey boxes, and multiple memory accesses to the same feature map with shapes of the same color. A BN layer is first divided into two sub-layers and then fused with the preceding CONV and the following CONV (+ReLU) layers, respectively.

3.2 Fission-n-Fusion

We first divide the BN layers within the CPLs of DenseNet into two sub-layers (Fission). Then, we combine the first sub-layer with its preceding CONV layer and the second sub-layer with both the ReLU layer and the following CONV layer (Fusion). Fusing multiple (sub-)layers can significantly reduce off-chip memory accesses of BN layers. Fission aids Fusion to be more effective by enabling the operations of a BN layer with the strict data dependency to be entirely fused to its preceding and following CONV layer, through which all memory accesses from the original BN layers can be removed. The resulting combination of the two ideas, BN Fission-n-Fusion (BNFF), can save a significant amount of memory access per training step, which is translated to substantial performance improvement.

Figure 5 illustrates how our proposed BNFF is applied to the reference DenseNet implementation Yang (2017) that is represented using computational graphs. A grey box is a computational node that accompanies sweeping (reading or writing) all ifmaps or ofmaps of a channel within a mini-batch; this sweeping cannot be filtered by on-chip buffers because the aggregate size of an ifmap and ofmap across a mini-batch of 100 or more images is too large to fit in on-chip buffers, as explained in Section 3.1. An arrow indicates data flow between the computational node, composing dependency. A dotted box represents a layer before and after BNFF. We also present multiple memory accesses to the same feature map with the shapes of the same color (e.g., O, I, I, and I in the forward pass).

During training, a BN layer of the reference implementation accesses the same ifmap and the partial derivatives on the ofmap multiple times due to data dependency on both forward and backward passes. On the forward pass, a BN layer reads ifmaps three times (I, I, I in the upper half of Figure 5(a)) and writes its results to ofmaps once (O). Here, the first and the second read of ifmaps are for computing the mean () and variance () of pixels through an entire mini-batch per channel, whereas the last read is for normalization. These multiple ifmap reads are due to the dependency between the computational nodes within a BN layer (i.e., computing variance needs mean, and normalization needs mean and variance). Similarly, on the backward pass, data dependency exists but in a reverse direction. The partial derivatives on the ofmap from the ReLU layer are read multiple times to compute the partial derivatives on and , which are needed for the partial derivatives on the ifmap.

We separate the normalization operations from mean and variance computation in a BN layer, calling the divided layers as sub-BN1 and sub-BN2, as depicted in the lower half of Figure 5(a). Fission enables both sub-BNx layers to be fused with its adjacent layers; sub-BN1 glues to CONV1 (the CONV layer that precedes the BN layer being split) whereas sub-BN2 glues to ReLU and CONV2 (the CONV layer that follows the BN layer in Figure 5). Fission provides an opportunity to handle operations of each sub-BNx during reading and writing ifmaps/ofmaps in BN’s preceding and following CONV layers without additional off-chip memory access. Without Fission, a BN layer can be fused with either CONV1 or ReLU-CONV2 only, which prevents the maximum reduction of memory accesses by Fusion.

For the two aforementioned dependencies within a BN layer (computing variance needs mean, and normalization needs mean and variance), Fission copes with the latter, but the former still exists, especially on the forward pass. We eliminate this dependency by exploiting a simple mathematical formula below:

That is, we can compute the per-channel variance of the pixels across a mini-batch of BN’s ifmaps by computing together with from a single memory sweep. This mean/variance fusion (MVF) enables the two memory sweeps (I, I) within sub-BN1 to be merged with O in CONV1 through Fusion. Computing the expectation of the square (

) is more susceptible to accuracy errors which are inherent in floating-point arithmetic compared to computing

. If it affects the accuracy of the network, we can use higher-precision representations (e.g., double-precision) to store intermediate data. Because BN is limited by main-memory bandwidth even after applying BNFF, using higher-precision representations and arithmetic does not impact training performance. During experiments, we observed that using single-precision floating-point arithmetic is good enough for calculating .

To fuse the first sub-BN1 layer with the CONV1 layer, we simultaneously perform both operations: convolution of CONV1 and accumulating and from all pixels of CONV1’s ofmaps over a mini-batch of BN on each channel. This ends up making one fused layer, CONV1-(sub-BN1), removing all memory accesses of sub-BN1. The second sub-BN2 layer is fused with both the ReLU layer and the CONV2 layer; the fused (sub-BN2)-ReLU-CONV2 layer perform normalization, ReLU, and convolution all together.

Because ReLU performs element-wise clipping, the recent CNN library we use Intel (2016) fuses a ReLU layer to its preceding CONV layer in the process of creating the ofmaps of the CONV layer. However, the latest CNN models might put ReLU layers in a different order. For example, in DenseNet, a ReLU layer is placed prior to the following CONV layer, and hence the aforementioned fusion implementation does not work. Our ReLU-CONV fusion (RCF) implementation executes the ReLU operation in the process of reading the ifmaps of the following CONV layer, removing memory access by the ReLU layer. Putting all the proposed solutions together, three memory sweeps (O, I, I) are reduced into one sweep (O’) at the first fused layer, and five (I, I, I, O, O) into two (I’, O’) at the second fused layer. A memory sweep (O’) is required as it is used once again during the BN operation in the backward pass.

In the backward pass (backpropagation), BN first calculates the partial derivatives on and , and then computes the partial derivatives on the ifmaps with them. This forms a strict data dependency. We separate operations that compute the partial derivatives on BN’s ifmaps from calculating the partial derivatives on and , calling the divided layers as sub-BN1’ and sub-BN2’, as depicted in Figure 5(b). Then, we combine the sub-BN1’ layer with the preceding CONV1 and combine the sub-BN2’ layer with both the ReLU layer and the following CONV2 layer. As opposed to the forward pass, the backward pass operations use not only the partial derivatives on ifmaps/ofmaps but also the ifmaps generated from the forward pass. Also, during the backward pass, CONV layers require twice as many computations and memory accesses as those of the forward pass to compute the partial derivatives on weight filters. This increases memory accesses that cannot be reduced by the proposed BNFF, making it less effective on the backward pass; but BNFF still removes five memory sweeps per BN layer.

BNFF can also be implemented across CPLs. This Inter-Composite-Layer Fusion (ICF) requires fusing the first sub-BN1 layer of a CPL after Fission with the corresponding Concat (or Split) layer, not the CONV layer. On the forward pass, because a Split layer is implemented as a pointer passing in our reference implementation, a sub-BN1 layer is fused with a Concat layer. On the backward pass, the sub-BN1’ layer is fused with the corresponding Split layer. This completely removes all memory accesses on BN layers within DenseNet’s CPLs. We implemented BNFF within CPLs and present experimental results measured from the latest chip processor in Section 5

. We estimate additional performance enhancement enabled by ICF, leaving implementation for future work.

4 Experimental Setup

We quantify the performance improvement of the proposed BN Fission-n-Fusion using DenseNet-121 and ResNet-50. We used Caffe Jia et al. (2014) (Intel Caffe 1.0.7, which was released December 2017 Intel (2017), for Intel processors) as a reference CNN framework. We mainly used Intel’s latest chip multiprocessor (Skylake-based Xeon Gold 6138 Doweck et al. (2017)) and GPU (Nvidia Pascal Titan X Foley & Danskin (2017)) for performance evaluation. The CPU system consists of 20 cores with 40 AVX-512 FMA (fused multiply-add) units per socket, achieving a peak performance of 3.34TFLOPS with two sockets. Two sockets have twelve memory channels, each with DDR4-2400 DRAM modules achieving up to 230.4GB/s. To observe performance trends with a higher FLOP/B ratio, we also controlled the data transfer rates of the memory channels.

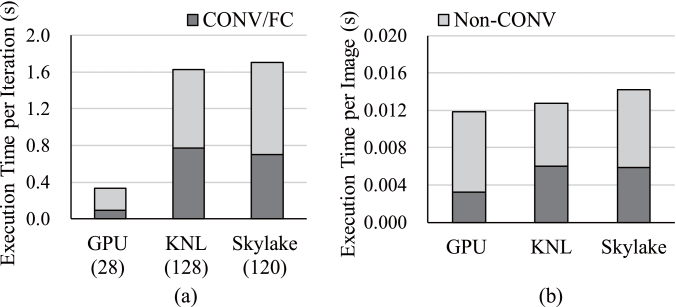

Figure 6: CONV/FC vs. non-CONV execution time of DenseNet-121 among data-parallel architectures: GPU, KNL (Knights Landing), and Skylake-based Xeon. (a) Execution time per iteration (the numbers in parentheses indicate mini-batch size), (b) Execution time per image (normalized by the mini-batch size.)

width= Main-memory Architectures TFLOPS BW (GB/s) Intel Xeon Skylake (2-socket) 3.34 230.4 Intel Xeon Phi Knights Landing 5.30 400.0 Nvidia GPU Pascal Titan X 10.0 480.0

Table 1: Peak single-precision floating point performance and peak memory bandwidth on the latest data-parallel architectures.

We used Intel’s Skylake-based Xeon processor because it supports a highly-optimized open-source CNN library (MKL-DNN v0.11 Intel (2016)) which can be modified for implementing BNFF. It supports extracting a variety of detailed hardware statistics, which can be helpful for analyzing BNFF benefits as well as for debugging. Figure 6 compares the execution time of DenseNet-121 over Pascal-based GPU (Titan X) using cuDNN, Knights Landing Xeon Phi (KNL) Sodani et al. (2016), and Skylake-based Xeon (see Table 1 for a summary of their peak performance). We set the mini-batch sizes of KNL and Skylake-based Xeon to 128 and 120, respectively. However, due to memory capacity limitation, we set the mini-batch size of the Pascal-based GPU to 28.

All three architectures spend more time on non-CONV layers compared to CONV layers, demonstrating the importance of optimizing these non-CONV layers (see Figure 6(a)). In Table 1, Skylake-based Xeon has 1.6 and 3.0 lower peak performance than KNL and GPU. However, execution time per image is similar to the others (see Figure 6(b)) because Skylake-based Xeon fully utilizes computing units on all CONV layers compared to the other architectures.

(a)
(b)
Figure 9: For DenseNet-121 and ResNet-50, (a) execution time and (b) the number of memory accesses per iteration by applying RCF (ReLU-CONV Fusion), RCF+MVF (Mean/Variance Fusion), BNFF (BN Fission-n-Fusion), and BNFF+ICF (Inter Composite-layer Fusion, DenseNet only). Mini-batch size is 120. *ICF improvement was estimated while the others were measured from Intel Xeon Skylake. **MVF is not applicable to backward pass.

5 Evaluation

We provide the evaluation results of applying BN Fission-n-Fusion on DenseNet-121 and ResNet-50 training. To understand the quantitative improvements in detail, we have chosen four different scenarios and have evaluated their execution time and the number of memory accesses. The four scenarios are RCF (ReLU-CONV Fusion), MVF (Mean/Variance Fusion) together with RCF, BNFF (BN Fission-n-Fusion) that includes both MVF and RCF, and BNFF with ICF (Inter Composite-layer Fusion, applicable only to DenseNet). While the performance improvement of RCF, MVF, and BNFF are from real-machine experiments, the improvement of ICF was estimated in line with BNFF improvement. The results are plotted in Figure 9. As a quick summary, the gain of BNFF over the baseline turns out to be 47.9% (30.8%) for the forward pass and 15.4% (9.0%) for the backward pass, and overall 25.7% (16.1%) for the training process of DenseNet-121 (ResNet-50) using the Xeon processor, respectively.

In the following, we discuss the results of the four different scenarios using the Xeon processor with DenseNet-121, unless mentioned otherwise. First, when only RCF is applied, the overall execution speed is increased by 9.2%. For the baseline, the number of memory accesses by ReLU layers takes up 16.8% of the total memory accesses. By merging a ReLU layer with its adjacent CONV layer, the merged layer ends up with much less computation and memory access time compared to the total time needed for ReLU and CONV. The gain is similar for the forward pass and the backward pass. Second, when MVF is applied on top of RCF, the overall execution speed is increased by an additional 1.7% compared to RCF. Because MVF can be applied only to the forward pass, the gain is entirely from 5.5% of improvement in the forward pass. Third, when BNFF is applied, where BNFF includes both MVF and RCF, the overall execution speed is improved by 25.7% compared to the baseline and 14.8% compared to the MVF+RCF. By applying BNFF, memory access is reduced by 19.1%. Besides the reduced main-memory accesses, fewer subroutine calls and lower cache miss rates due to an improved cache pollution environment by Fusion also contribute to the performance gains. Lastly, when ICF is applied on top of BNFF, the overall execution speed is estimated to be increased by 43.7% compared to the baseline. With ICF, all the BN layers, including the ones that are on the boundaries of composite layers, benefit from Fission-n-Fusion. Thus, an additional 18% of improvement over BNFF is expected with ICF.

BNFF divides a BN layer into sub-BN1 and sub-BN2 layers and then fuses them with the preceding and the following layers. Through this restructuring, the memory accesses of BN layers are entirely removed for the BN layers that do not cross the composite layer boundaries. As the result, the forward pass performance is improved by 47.9%. For the backward pass, however, the gain is only 15.4% because the CONV layers of backward pass need to perform twice as many computations and memory accesses compared to the forward pass. As CONV is heavier in computation for the backward pass, the relative portion of BN is smaller and the gain of BNFF is smaller, too. We also observed that a Split layer in the backward pass requires more frequent memory accesses compared to a Split layer in the forward pass. For the forward pass, only the pointer needs to be passed.

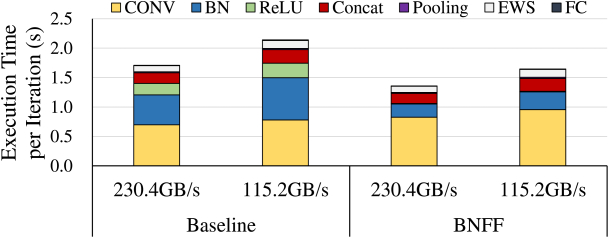

Figure 10: Execution time comparison of baseline and BNFF for 230.4GB/s and 115.2GB/s memory bandwidth using the Xeon processor with DenseNet-121.

BNFF is more effective when the gap between computational power and main-memory bandwidth becomes wider (i.e., higher FLOP/B). As an additional evaluation, we tried reducing the peak memory bandwidth to the half (115.2GB/s) of the original, and the evaluation results are shown in Figure 10. For the baseline, the portion of non-CONV layers in the total execution time increases from 58.9% to 63.0% as the peak memory bandwidth is reduced by half. This is because the non-CONV layers are relatively more sensitive to memory bandwidth, whereas the CONV layers are more compute-intensive. For BNFF, both non-CONV and CONV layers suffer from the reduced memory bandwidth. Because many of the BN layers were optimized by BNFF already, it turns out that the degradation level is comparable for both CONV and non-CONV layers. A large portion of the CONV layers in DenseNet-121 also demand high main-memory bandwidth because they have smaller weight matrices (mostly 11 and 33) and hence their performance is also influenced by the reduced main-memory bandwidth. The gain of BNFF turns out to be 30.1% for 115.2GB/s of peak main-memory bandwidth (c.f. 25.7% for 230.4GB/s).

We also evaluated BNFF on GPU using Caffe. We used Nvidia CUTLASS Kerr et al. (2017), an open-source linear algebra library which enables us to implement BNFF, because other highly-optimized but closed-source GPU libraries such as cuBLAS NVIDIA and cuDNN Chetlur et al. (2014) are difficult to modify.333Compared to the cuDNN implementation used in Section 4, the baseline CUTLASS implementation (with the mini-batch size of 16) is 3.6 slower. As for fusing convolution and mean-variance calculation for BN, when each GPU thread stores one output value during convolution, we store the output and its square value to shared memory, which is shared among a thread block. Prior to the end of the convolution operation, we perform per-thread-block reduction, followed by inter-thread-block reduction and normalization. Comparing the baseline with the CUTLASS library, the performance improvement by implementing RCF, MVF+RCF, and BNFF on DenseNet-121 (ResNet-50) is 0.7% (0.3%), 1.8% (0.9%), and 17.5% (7.8%), respectively.

6 Related Work

There has been a large body of previous approaches to reduce memory accesses through increasing data reuse. We categorized the approaches into several groups, according to their purposes.

Maximizing data reuse: To reduce memory access cost, many proposed hardware accelerators have tried to maximize data reuse. DianNao Chen et al. (2014a) optimized memory access to individual storage structures of weights and input/output feature maps, thereby alleviating inefficiencies in accessing off-chip memory. DaDianNao Chen et al. (2014b) also lowered off-chip memory accesses by putting all the weights on the on-chip memory. With regard to the on-chip data transfer, a dataflow scheme called row stationary enables near-optimal data reuse for the CONV layers Chen et al. (2016b). Most of these proposals are limited to the inference process.

Pruning and approximate computing: By eliminating redundant parameters in weights and feature maps, or reducing their precision, their data sizes could be greatly reduced, leading to reduction in memory accesses. Deep compression Han et al. (2015a) reduces the model size of VGG-16 up to 49 by applying network pruning and quantization. EIE Han et al. (2016) compresses the weights and the input feature maps. CirCNN Ding et al. (2017) uses circulant matrices to reduce computation and time complexity, with a minor accuracy drop. The aforementioned approaches mostly focused on the CONV/FC layers.

Fusing and blending layers: Jung et al. Jung et al. (2018) improves CNN inference performance by statistically spreading main-memory accesses through letting each compute unit operate asynchronously. Fused-layer Alwani et al. (2016)

is similar to our work as it fuses multiple CNN layers to exploit inter-layer data reusability. As opposed to Fused-layer, however, we target BN and training process, where tight dependency over a large volume of data makes fusing multiple CONV layers a daunting task. Many machine learning frameworks, such as Caffe and TensorFlow

Abadi et al. (2016), have already implemented fusing multiple layers (i.e., CONV/BN with ReLU layers), targeting to optimize inter-layer data reuse. However, those implementations have limited potentials in that they do not fully fuse BN with other layer types, not considering the complex data dependency.

Training acceleration: The optimization strategies above mainly target the inference process. Several studies accelerate the training process De Sa et al. (2017); Ding et al. (2017); Rhu et al. (2016); Venkataramani et al. (2017), but none of those focused on the non-CONV layers, taking a significant portion of training time of the latest CNN models. Gist Jain et al. (2018) optimizes both CONV and non-CONV layers, although it focuses on memory footprint reduction to enable using larger batch sizes.

7 Conclusion

The existing studies on CNN acceleration were mainly limited to convolutional (CONV) and fully-connected (FC) layers. CNN models, however, are continuously evolving and the latest models can have hundreds of layers consisting of a variety of layer types. Among the non-CONV layers of the latest CNN models, we have found that batch normalization (BN) layers consume a significant portion of the execution time during training. A further analysis on BN’s computation and memory access characteristics showed that the sequential and less computationally-intensive nature of the calculations with a strict dependency over a large dataset causes an excessive memory access demand and makes fusing multiple CONV layers a daunting task. To address the issue, we have proposed a new type of CNN acceleration called Fission-n-Fusion, where BN is restructured to reduce memory access. Experiments on a latest chip multiprocessor showed that the proposed BN restructuring can improve the training performance of DenseNet-121 by 47.9% for forward pass and by 15.4% for backward pass, leading to overall 25.7% improvement. Applying the BN restructuring to GPU with an open-source linear algebra library also showed 17.4% of performance improvement. The large improvement suggests that non-CONV layers are important candidates for acceleration and that future research should pay keen attention to how CNN models evolve.

Acknowledgements

This work was supported by Samsung Advanced Institute of Technology, the Engineering Research Center Program through the NRF of Korea funded by the Korean Government MSIT (NRF-2018R1A5A1059921), and another NRF grant (NRF-2017R1E1A1A03070560).
