1 Introduction

Reproducibility is a core aspect in machine learning (ML) and natural language processing (NLP). It requires that claims and results of previous work can independently be reproduced and is a prerequisite to trustworthiness. The last few years have seen vivid interest in the topic and many issues of non-reproducibility have been pointed out, leading to claims of a “reproducibility crisis” in science (Baker, 2016). In the field of evaluation metrics for natural language generation (NLG), the seminal work of Post (2018) has demonstrated how different preprocessing schemes can lead to substantially different results when using the dominant metric at the time, BLEU (Papineni et al., 2002). Thus, when researchers employ such different preprocessing steps (a seemingly innocuous decision), this can directly lead to reproducibility failures of conclusions and/or metric performances.

Even though BLEU and similar lexical-overlap metrics still appear to dominate the landscape of NLG (particular MT) evaluation (Marie et al., 2021), it is obvious that metrics which measure surface level overlap are unsuitable for evaluation, especially for modern text generation systems with better paraphrasing capabilities (Mathur et al., 2020). As a remedy, multiple higher-quality metrics based on BERT and its extensions have been proposed in the last few years (Zhang et al., 2019; Zhao et al., 2019). In this work, we investigate whether these more recent metrics have better reproducibility properties, thus filling a gap for the newer paradigm of metrics. We have good reason to suspect that reproducibility will be better: (i) as a response to the identified problems, recent years have seen many efforts in the NLP and ML communities to improve reproducibility, e.g., by requiring authors to fill out specific check lists.111E.g., https://aclrollingreview.org/responsibleNLPresearch/. (ii) Designers of novel evaluation metrics should be particularly aware of reproducibility issues, as reproducibility is a core concept of proper evaluation of NLP models (Gao et al., 2021).

Our results are disillusioning: out of four metrics we tested, three exhibit (severe) reproducibility issues. The problems relate to (i) heavy use of (undocumented) preprocessing, (ii) missing code, (iii) reporting lower results for competitors, and (iv) correlating with the wrong columns in the evaluation csv file. Motivated by the findings on the role of preprocessing and following Post (2018), we then study its impact more closely in the second part of the paper (for those metrics making use of it), finding that it can indeed lead to substantial performance differences also for BERT-based metrics. The code for this work is available at https://github.com/cyr19/Reproducibility.

2 Related Work

Relevant prior work to this work includes BERT-based evaluation metrics (Section 2.1) and reproducibility in NLP (Section 2.2).

2.1 BERT-based Evaluation Metrics

In recent years, many strong automatic evaluation metrics based on BERT (Devlin et al., 2018) or its variants have been proposed. It has been shown that those BERT-based evaluation metrics correlate much better with human judgements than traditional evaluation metrics such as BLEU (Papineni et al., 2002). Popular supervised BERT-based evaluation metrics include BLEURT (Sellam et al., 2020) and COMET (Rei et al., 2020), which are trained on segment-level human judgements such as DA scores in WMT datasets. Unsupervised BERT-based evaluation metrics such as BERTScore (Zhang et al., 2019), MoverScore (Zhao et al., 2019), BaryScore (Colombo et al., 2021) and XMoverScore (Zhao et al., 2020) do not use training signals, thus potentially may generalize better to unseen language pairs (Belouadi and Eger, 2022). MoverScore, BaryScore, and BERTScore are reference-based evaluation metrics. In contrast, reference-free evaluation metrics directly compare system outputs to source texts. For MT, popular such metrics are Yisi-2 (Lo, 2019), XMoverScore, and SentSim (Song et al., 2021).

2.2 Reproducibility in NLP

Cohen et al. (2018) define replicability as the ability to repeat the process of experiments and reproducibility as the ability to obtain the same results. They further categorize reproducibility along 3 dimensions: (1) reproducibility of a conclusion, (2) reproducibility of a finding, and (3) reproducibility of a value. In a more recent study, Belz et al. (2021) categorize reproduction studies according to the condition of the reproduction experiment: (1) reproduction under the same condition, i.e., re-using as close as possible resources and mimicking the authors’ experimental procedure as closely as possible; (2) reproduction under varied conditions, aiming to test whether the proposed methods can obtain similar results with some changes in the settings; (3) multi-test and multi-lab studies, i.e., reproducing multiple papers using uniform methods and multiple teams attempting to reproduce the same paper, respectively.

In the first part of this work, our reproductions follow the first type of reproduction experiment described by Belz et al. (2021), i.e., we adhere to the original experimental setup and re-use the resources provided by the authors whenever possible, aiming at exact reproduction. The second part falls into the second category of reproduction study described by Belz et al. (2021), i.e., to change some settings on purpose to see if comparable results can be obtained.

According to Fokkens et al. (2013) and Wieling et al. (2018), the main challenge is the unavailability of the source code and data. Dakota and Kübler (2017) study reproducibility for text mining. They show that 80% of the failed reproduction attempts were due to the lack of information about the datasets. To investigate the current situation about the availability of source data, Mieskes (2017) conducted quantitative analysis on the publications from five conferences. They show that though 40% of the papers reported having collected or changed existing data, only 65.2% of them provided the links to download the data; 18% of them were invalid. Similarly, Wieling et al. (2018) assessed the availability of both source code and data of the papers from two ACL conferences (2011 and 2016). When comparing 2016 to 2011, the availability of both data and code increased, suggesting a growing trend of sharing resources for reproduction. However, even using the same code and data, they could only recreate the identical values for one paper. This implies that a successful replication is far beyond using the same code and data. More recently, Belz et al. (2021) analyzed 34 reproduction studies under the same condition (re-using the original resources when possible) for NLP papers. They found that only a small portion (14.03%) of values could be exactly reproduced and the majority (59.2%) of the reproduced values lead to worse results. Moreover, 1/4 deviations are over 5%.

In NLG, Post (2018) attests to the non-comparability of BLEU (Papineni et al., 2002) scores across different papers. He argues that there are four causes. First

, BLEU is a parameterized approach. Its parameters include (1) the number of references, (2) the calculation of the length penalty for multiple reference settings, (3) the n-gram length, and (4) the smoothing applied to the 0-count n-gram. He shows that on WMT17

(Bojar et al., 2017), the BLEU score for English-Finnish increases by roughly 3% absolute Pearson correlation from using one to two references. The second issue, which is regarded as the most critical, is the use of different preprocessing schemes. Among these, tokenization of the references plays a key role. The third problem is that preprocessing details are hard to come by and often omitted in papers. The fourth problem is different versions of datasets, in his case a particular problem with the en-de language pair in WMT14.

3 Datasets & Metrics

In our reproduction experiments (Section 4), following Zhang et al. (2019), Zhao et al. (2019) and Colombo et al. (2021), we use WMT15-18 (Stanojević et al., 2015; Bojar et al., 2016, 2017; Ma et al., 2018) for MT evaluation. Besides, we follow Zhao et al. (2019) to use TAC2008222https://tac.nist.gov/2008/ and TAC2009333https://tac.nist.gov/2009/

for text summarization evaluation, MSCOCO

(Guo et al., 2018)

for image captioning evaluation, and BAGEL

(Wen et al., 2015) and SFHOTEL (Mairesse et al., 2010) for data-to-text generation (D2T) evaluation. For the reference-free metric SentSim, we will mainly report results on the MLQE-PE dataset (Fomicheva et al., 2020b). In further experiments (Section 5), we consider WMT19 (Ma et al., 2019) for MT as well. The datasets for each NLG task are described in detail in the appendix (Section A.1). For our reproduction attempts, we consider MoverScore, BERTScore, BaryScore, and SentSim.

MoverScore

measures semantic similarity between reference and hypothesis by aligning semantically similar words and computing the amount of traveling flow between these words using the Word Mover Distance (Kusner et al., 2015).

BERTScore

calculates the cosine similarity for each token in the reference sentence with each token in the hypothesis sentence, and uses greedy alignment to obtain the similarity scores between sentences. It has three variants: Recall, Precision, and F1.

BaryScore

computes the Wasserstein distance (i.e., Earth Mover Distance (Rubner et al., 2000)) between the barycentric distribution (Agueh and Carlier, 2011) of the contexual representations of reference and hypothesis to measure the dissimilarity between them.

SentSim

is a reference-free evaluation metrics. It combines sentence- (based on Reimers and Gurevych (2020)) and word-level models (extending a.o. BERTScore to the multilingual case) to score a pair of source text and hypothesis.

4 Reproduction Attempts

Our main focus will be to reproduce the results on MT reported in Zhang et al. (2019), Zhao et al. (2019), Colombo et al. (2021) and Song et al. (2021).

4.1 Reproduction on MT

MoverScore, BaryScore and BERTScore were originally evaluated on MT but with different WMT datasets (Stanojević et al., 2015; Bojar et al., 2016, 2017; Ma et al., 2018). Zhang et al. (2019) used WMT18 (Ma et al., 2018) as the main evaluation dataset. Zhao et al. (2019) reported the results on WMT17 (Bojar et al., 2017) for both MoverScore and BERTScore-F1. Colombo et al. (2021) compared their metric BaryScore with MoverScore and BERTScore-F1 on WMT15 (Stanojević et al., 2015) and WMT16 (Bojar et al., 2016). MoverScore claims to outperform BERTScore (which was published earlier on Arxiv), and BaryScore claims to outperform the earlier two.

We evaluate the three metrics with the same BERT model (BERT-base-uncased) on all MT datasets mentioned above, using the reproduction resources provided by the authors of each metric. We also evaluate MoverScore and BaryScore on a BERT model finetuned on NLI (Wang et al., 2018) (as in the original papers). The code and data for reproduction were released on their respective githubs.444BERTScore (WMT18): https://github.com/Tiiiger/bert_score/tree/master/reproduce; MoverScore (WMT17): https://github.com/AIPHES/emnlp19-moverscore/tree/master/examples; BaryScore (WMT15-16): https://github.com/PierreColombo/nlg_eval_via_simi_measures/tree/main/raw_score. In our reproduction experiments, we use the metrics with the configurations found in their evaluation scripts or papers. Although Zhao et al. (2019) also reported the results for BERTScore-F1, they did not provide information about the used parameter settings. Similarly, Colombo et al. (2021) evaluated the other two metrics on WMT15-16, but except for the model choice, all other settings are unclear. Moreover, except for Zhang et al. (2019), who explicitly state which results were obtained using IDF-weighting, the authors of the other two approaches did not mention this in their papers. For the unclear metric configurations, we keep them default. The configurations used here are given below:

  • [topsep=2pt,itemsep=-1pt,leftmargin=*]

  • BERTScore We report the reproduced results for BERTScore-F1 that uses BERT-base-uncased, with the default layer 9 of the BERT representation for this model, and IDF-weighting.

  • MoverScore We report the reproduced results for unigram MoverScore (MoverScore-1) using BERT-base-uncased or its finetuned version on MNLI, the last five layers from BERT aggregated by power means (Rücklé et al., 2018), IDF-weighting, punctuation removal and subwords removal (only keep the first subword in each word).

  • BaryScore We report the reproduced results for BaryScore555BaryScore outputs scores relying on Wasserstein distance and those relying on Sinkhorn distance (Cuturi, 2013) together. We report the results for Wasserstein distance, which are denoted as BaryScore-W or Bary-W. that makes use of BERT-base-uncased or its finetuned version on MNLI, the last five layers aggregated using Wasserstein Barycenter, and IDF-weighting.

The metrics with finetuned model are marked with in the following.

metric cs-en de-en et-en fi-en ru-en tr-en zh-en avg
Reproduced BaryScore-W 0.360 0.525 0.379 0.280 0.322 0.254 0.252 0.339
MoverScore-1 0.362 0.529 0.391 0.297 0.338 0.288 0.244 0.350
BERTScore-F1 0.376 0.538 0.393 0.295 0.341 0.290 0.244 0.354
Reported BERTScore-F1 0.375 0.535 0.393 0.294 0.339 0.289 0.243 0.353
Table 1: Reproduction: Segment-level Kendall’s on WMT18 to-English language pairs using the evaluation script provided by Zhang et al. (2019). Reported values are taken from Zhang et al. (2019). Values in green denote the reproduced results are better than the reported. Bold values refer to the best reproduced results with BERT-base-uncased model.
metric cs-en de-en fi-en lv-en ru-en tr-en zh-en avg
Reproduced BaryScore-W 0.651 0.651 0.816 0.693 0.695 0.746 0.718 0.710
MoverScore-1 0.660 0.690 0.806 0.685 0.736 0.732 0.720 0.718
BERTScore-F1 0.655 0.682 0.823* 0.713 0.725 0.718 0.712 0.718
MoverScore-1 0.670* 0.708* 0.821 0.717* 0.738* 0.762* 0.744* 0.737*
Reported MoverScore-1 0.670 0.708* 0.835* 0.746* 0.738* 0.762* 0.744* 0.743*
BERTScore-F1 0.670 0.686 0.820 0.710 0.729 0.714 0.704 0.719
Table 2: Reproduction: Segment-level Pearson’s on WMT17 to-English language pairs using evaluation script provided by Zhao et al. (2019). Reported results are cited from Zhao et al. (2019). refers to using the finetuned BERT-based-uncased model on MNLI. Values in green/red denote the reproduced results are better/worse than the reported. Bold values refer to the best results with BERT-base-uncased model. Values with * denote the best reproduced/reported results.
WMT15 WMT16
metric cs-en de-en fi-en ru-en avg cs-en de-en ru-en fi-en ro-en tr-en avg
BERT-F 0.750 0.733 0.752 0.745 0.745 0.747 0.640 0.672 0.661 0.723 0.688 0.689
Mover-1 0.734 0.731 0.743 0.731 0.735 0.740 0.633 0.676 0.655 0.714 0.693 0.685
Bary-W 0.751 0.731 0.769 0.740 0.748 0.735 0.672 0.659 0.673 0.715 0.709 0.694
Mover-1 0.745 0.755* 0.774 0.765* 0.760 0.765* 0.676 0.696* 0.707* 0.742* 0.736 0.720*
Reproduced Bary-W 0.753* 0.755 0.787* 0.763 0.764* 0.758 0.700* 0.677 0.706 0.732 0.744* 0.720
BERT-F 0.743 0.722 0.747 0.740 0.738 0.741 0.653 0.651 0.654 0.702 0.707 0.685
Mover 0.688 0.718 0.700 0.686 0.698 0.674 0.609 0.644 0.631 0.642 0.661 0.644
Bary 0.742 0.741 0.766 0.737 0.747 0.742 0.646 0.675 0.671 0.725 0.693 0.692
Mover 0.710 0.711 0.722 0.673 0.704 0.707 0.624 0.640 0.645 0.664 0.663 0.657
Reported Bary 0.759* 0.758* 0.799* 0.776* 0.773* 0.766* 0.685* 0.694* 0.702* 0.743* 0.738* 0.721*
Table 3: Reproduction: Segment-level Pearson’s r on WMT15-16 using evaluation script provided by Colombo et al. (2021). Reported values are cited from Colombo et al. (2021). represents using the fine-tuned BERT-base-uncased model on MNLI. Values in green/red denote the reproduced results are better/worse than the reported. Bold values refer to the best results with BERT-base-uncased model. Values with * denote the best reproduced/reported results.
Results

As Table 2 shows, we do not obtain identical results for BERTScore-F1 with Zhang et al. (2019) on WMT18 to-English language pairs. The maximal deviation between the reported and reproduced results can be seen on the evaluated data for de-en – around 0.003 absolute Pearson’s . Most of the deviations are about 0.001. This might be because of tiny differences in rounding strategies, framework versions, etc. Further, among the three evaluation metrics, BERTScore-F1 performs best, whereas BaryScore is worst.

Table 2 displays the reproduction results on WMT17 to-English language pairs, leveraging the resources from Zhao et al. (2019). As for MoverScore-1, 5 out of 7 values can be perfectly reproduced (excluding the average value). The unreproducible results on fi-en and lv-en are 0.012 and 0.031 lower than the reported, respectively. On personal communication, the authors told us that they changed the preprocessing for these settings, which is impossible to identify from the released paper or code. We obtain comparable average value for BERTScore-F1 with Zhao et al. (2019) (0.718 vs. 0.719), but the results on individual language pairs differ. Except for fi-en, MoverScore-1 correlates better with humans than BERTScore-F1, which is in line with the observation from Zhao et al. (2019). When applying the same BERT model, BaryScore performs slightly worse than the other two metrics, except for tr-en.

Table 3 shows the results of the reproduction attempts on WMT15-16 based on the code and data provided by Colombo et al. (2021). Colombo et al. (2021) reported Pearson, Spearman and Kendall correlation with human ratings; we relegate the reproduction results for Kendall and Spearman correlation, which are similar to those for Pearson correlation, to Section A.2. We are not able to reproduce identical values for any evaluation metric, even for BaryScore. However, the reproduced results for BaryScore and BaryScore are comparable with the reported – around 0.001 Pearson off the reported average values in 3 out of 4 cases. For BERTScore-F1, the reproduced average values are around 0.005 Pearson better than the reported, while for MoverScore/MoverScore, they are about 0.05 Pearson better. Colombo et al. (2021) observed that BaryScore performs best on all language pairs in WMT15-16, which is inconsistent with our observation: MoverScore-1 outperforms BaryScore on half the language pairs in these two datasets. With BERT-base-uncased, BaryScore performs best among the three evaluation metrics on these two datasets, however — it achieves the highest correlation on 6 out of 10 language pairs.

Summary

We can rarely reconstruct identical values but obtained comparable results for the three discussed metrics, even when some of the metric configurations are missing. However, we can overall not reproduce the conclusions for three main reasons: (i) authors report lower scores for competitor metrics; (ii) authors selectively evaluate on specific datasets (maybe omitting those for which their metrics do not perform well?); (iii) unlike the authors of BERTScore, the authors of BaryScore and MoverScore do not provide a unique hash, making reproduction of the original values more difficult; (iv) undocumented preprocessing involved.

Following the three reproduction attempts, we cannot conclude that the newer approaches are better than the prior ones (BertScore), as Zhao et al. (2019) and Colombo et al. (2021) claim. We also point out that the three metrics perform very similar when using the same underlying BERT model; using a BERT model fine-tuned on NLI seems to have a bigger impact. This casts some doubt on whether the more complicated word alignments (as used in BaryScore and MoverScore) really have a critical effect.

SentSim

For reference-free evaluation, Song et al. (2021) use MLQE-PE as their primary evaluation dataset. They compare SentSim to so-called glass-box metrics which actively incorporate the MT system under test into the scoring process (Fomicheva et al., 2020a).

Using the original model configuration, we were able to exactly reproduce the reported scores for all SentSim variants on MLQE-PE. However, we noticed that the provided code for loading the dataset does not retrieve human judgments but averaged log-likelihoods of the NMT model used to generate the hypotheses. Since computing correlations with model log-likelihoods is not meaningful and the z-standardized means of the human judgments that should have been used instead are in an adjacent column of the dataset, we assume that this is an off-by-one error. On average, SentSim’s performance drops noticeably when fixing this problem, below the baselines. Technical details and exact score differences can be found in Appendix A.4.

4.2 Reproduction for other tasks

In Section A.3, we reproduce results for other tasks, especially summarization, image captioning and data-to-text generation, with a focus on MoverScore. We find that we can only reproduce the reported results for summarization, and our results are on average 0.1 Pearson’s (-12.8%) down for IC and 0.06 Spearman’s (-27.8%) down for D2T generation. A reason is that the authors of MoverScore did not release their evaluation script and we can only speculate as to their employed preprocessing steps. As long as these are not reported in the original papers or released code, claim regarding performance of the metrics are hard to verify.666We cannot rule out the possibility that we made mistakes in our reproduction attempts (e.g., incorrect evaluation scripts or use of datasets), but the unavailability of the resources makes the detection of potential errors difficult.

5 Sensitivity Analysis

In the previous section, we have seen that preprocessing may play a vital role for obtaining state-of-the-art results (at least for some of the metrics). Similar to the case of BLEU Post (2018), we now examine this aspect in more detail.

According to the papers and evaluation scripts, MoverScore uses the following main preprocessing steps (besides those handled by BERT, given in Section A.5): (i) Subwords Removal: discard BERT representations of all subwords except the first. (ii) Punctuation Removal: discard BERT representations of punctuations. (iii) Stopwords Removal: discard BERT representations of stopwords (only for summarization).777In Section A.6, we describe subword removal and stopword and punctuation removal used in MoverScore. The preprocessing steps for BERTScore and BaryScore are only related to lowercasing and tokenization, both of which are handled by BERT.

We observe that (i) MoverScore uses much more preprocessing than Colombo et al. (2021) BERTScore and BaryScore on WMT datasets; (ii) authors may take different preprocessing steps for different tasks, e.g., Zhao et al. (2019) remove stopwords for summarization but not for MT.

IDF-weighting

Besides preprocessing (in a proper sense), all three considered evaluation metrics use parameters. This makes them more flexible, but also complicates reproduction: the difference in one parameter setting can lead to reproduction failure. We study the impact of the parameters related to IDF-weighting measures how critical a word is to a corpus; thus, it is corpus-dependent. The choice of corpus may lead to deviations of metric scores.

MoverScore is the main experiment object in the remainder. Compared to the other metrics, its authors took more preprocessing steps to achieve the results in the paper, suggesting that it is more likely to obtain uncomparable scores across different users when using MoverScore. We will also investigate the sensitivity of BERTScore to the factors discussed above; we omit BaryScore and SentSim from further consideration. Importantly, we move beyond English-only evaluation, as reported in the original MoverScore paper.

This will estimate how much uncertainty there is from preprocessing when a user applies MoverScore to a non-English language pair, which requires new IDF corpora, new stopword lists and may have higher morphological complexity (which is related to choice of subwords).

We use two statistics to quantify the sensitivity of the evaluation metrics. When there are only two compared values , we compute Relative Difference (RD) to reflect the relative performance variation regarding a certain parameter. When there are more than two compared values, we compute Coefficient of Variation (CV) to reflect the extent of variability of the metric performance:

where is the standard devation and is the mean and is the reference value. Larger absolute values of the statistics indicate higher sensitivity of the evaluation metrics.

We only consider MT and summarization evaluation in this part. In each experiment, we only adjust the settings of the tested factors and keep the others default (given in Section A.7). In addition to English (“to-English”), we consider MT evaluation for other 6 languages (“from-English”), for which we use multilingual BERT: Chinese (zh), Turkish (tr), Finnish (fi), Czech (cs), German (de), and Russian (ru).

5.1 Stopwords Removal

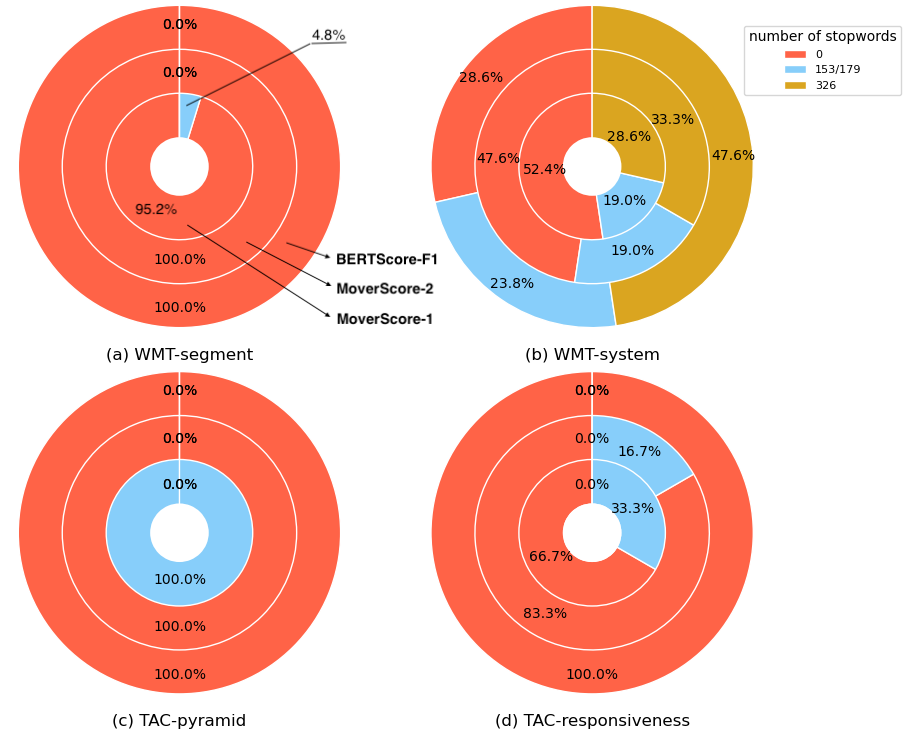

In this experiment, we consider 4 stopword settings including disabling stopwords removal and applying 3 different stopword lists for the examined languages. We obtain the stopword lists from the resources listed in Section A.8. We inspect the sensitivity of MoverScore-1, MoverScore-2 (MoverScore using bigrams) and BERTScore-F1 to stopword settings, despite that BERTScore does originally not employ stopwords.

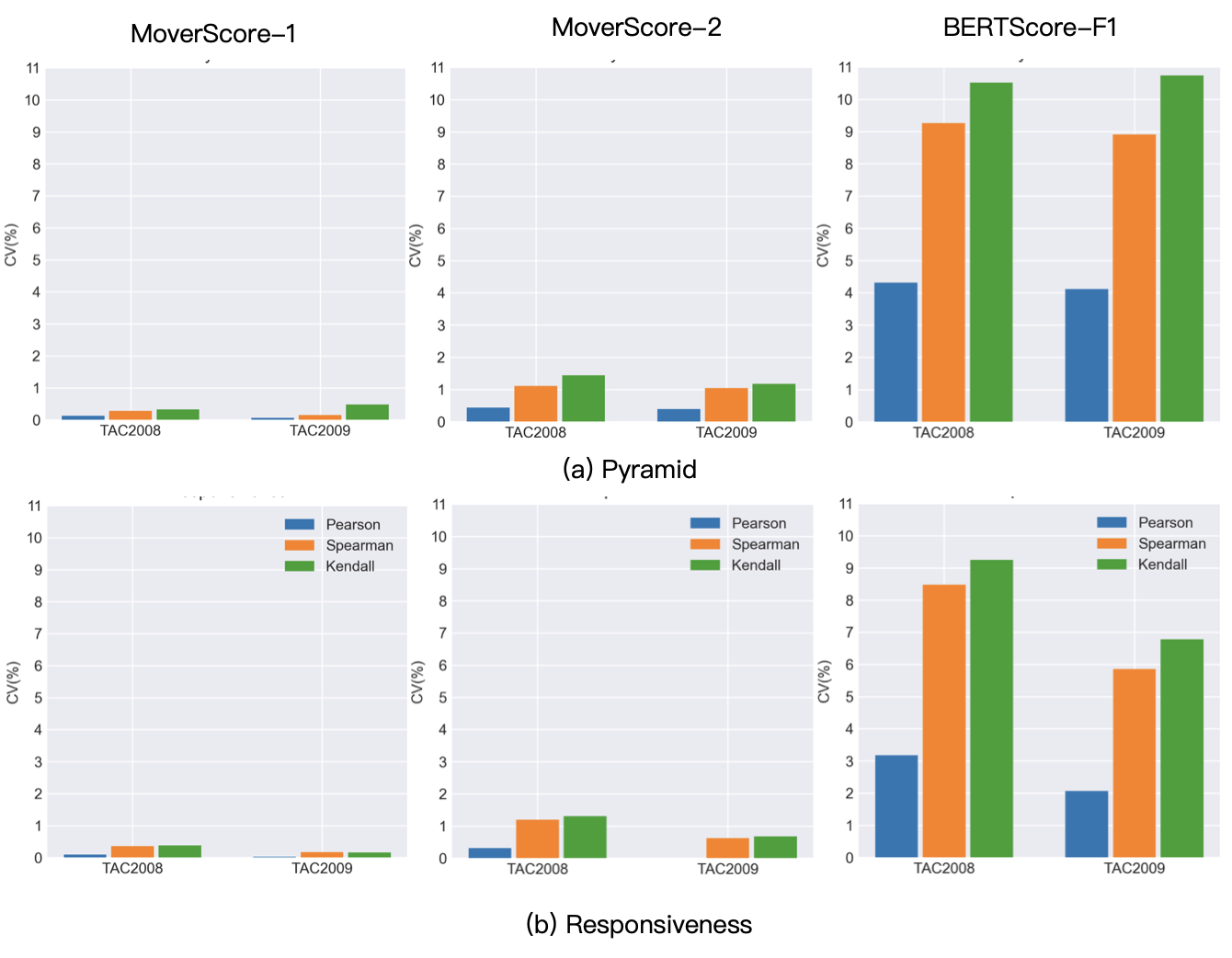

For English MT, we calculate CV of the correlations with humans over the 4 stopword settings for each language pair in the datasets, then average CVs over the language pairs in each dataset to obtain the average CV per dataset. For summarization, we calculate CV of the correlations over the 4 stopword settings for each criterion on each dataset.

Results

On segment-level MT, as Figure LABEL:fig:stopwords (top) shows, the sensitivity changes with varying datasets and languages. Most of the CV

are in range of 2-4%. This leads to 6-11% absolute variation of the metric performance when the average correlation is, for example, 0.7 (95% confidence interval). For some datasets and languages this is even more pronounced: for example, for Russian on WMT17, the

CV is above 10%.

Among the examined metrics, MoverScore-2 behaves slightly more sensitively than MoverScore-1, whereas BERTScore-F1 is much more sensitive than MoverScore-1 on Chinese and English. Compared to other tasks, stopwords removal has the largest (but negative) impact in segment-level MT evaluation (cf. Section A.9).

5.2 IDF-weighting

In this test, we first disable IDF-weighting for the evaluation metrics (idf), and compare the metric performance to that when applying original IDF-weighting888The original IDF weights for MoverScore are extracted from the reference and hypothesis corpus. And those for BERTScore are computed using the reference corpus. (idf) by calculating the RD between them. We denote this statistic as RD(dis,ori); negative values indicate idf works better and vice versa. Next, to inspect the sensitivity to varying IDF-weighting corpora, we apply IDF-weighting from four randomly generated corpora to the evaluation metrics additionally (idf): each corpus consists of 2k English segments randomly selected from the concatenated corpus of all tested datasets. The corresponding variability of the metric performance is quantified by the CV of the correlations with humans over the 5 IDF-weighting corpus selections (idf + 4 idf), marked with CV. We examine the sensitivity regarding IDF-weighting of MoverScore-1, MoverScore-2, and BERTScore-F1. Subsequently, we test the IDF-weighting from large-scale corpora (idf). These corpora are obtained from Hugging Face Datasets.999https://huggingface.co/datasets They are listed in Section A.10.

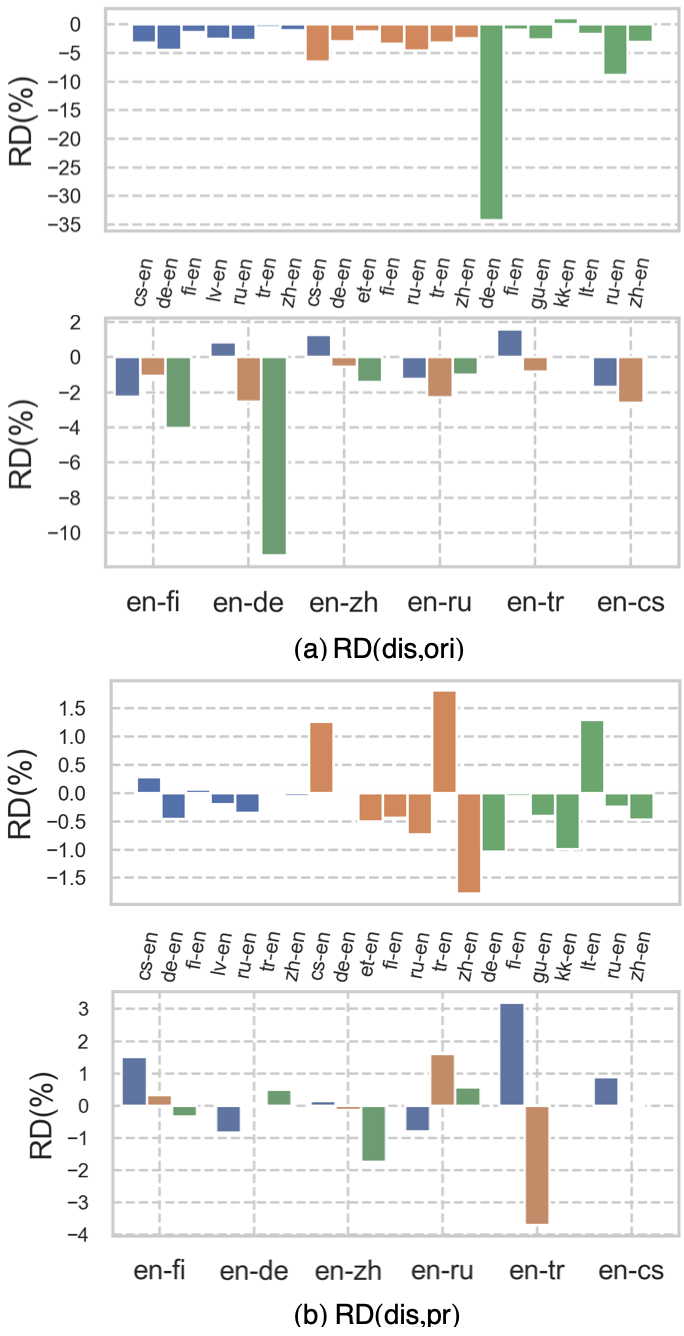

Figure 2: RD(dis,ori), RD(dis,pr). WMT17-19, segment-level evaluation, MoverScore-1.
Results

As seen in Figure 2(a), RD(dis,ori) is positive on only one to-English language pair (WMT19 kk-en), but on three from-English language pairs (WMT17 en-de, en-zh, and en-tr). Overall, IDF-weighting is thus beneficial. The maximal performance drops are on WMT19 de-en (over 35%) and de-en (over 10%), respectively. Most RD(dis,ori) have absolute values smaller than 5%. This means, suppose the correlation is 0.7, the performance can fall by around 0.035 because of disabling IDF-weighting.

Next, CV for segment-level MT is presented in Figure LABEL:fig:stopwords (middle). In English evaluation, the maximal variation is also caused by the result for de-en in WMT19, where idf yields considerably better result than idf (0.22 vs. 0.17 Kendall’s ). While en-de has CV values above 4.5%, most CV are smaller than 1%.

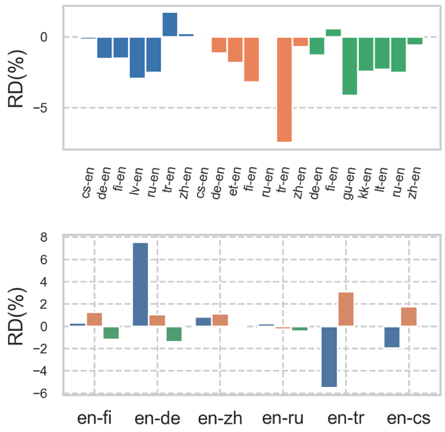

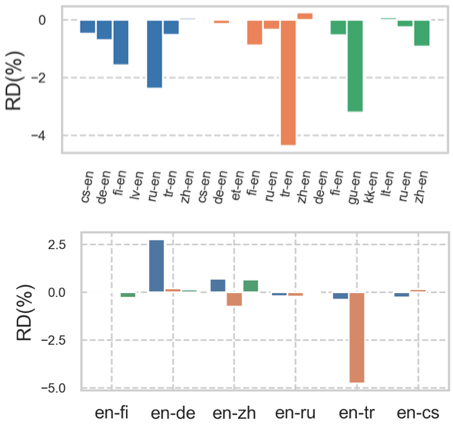

BERTScore-F1 is less sensitive to IDF-weighting than both MoverScore variants. Among the evaluation tasks, the metrics are again most sensitive on segment-level MT, where for English, idf works best for MoverScore (even idf cannot improve its performance), while idf and idf are almost equally effective for BERTScore-F1 (cf. Section A.11).

5.3 Subwords & Punctuation

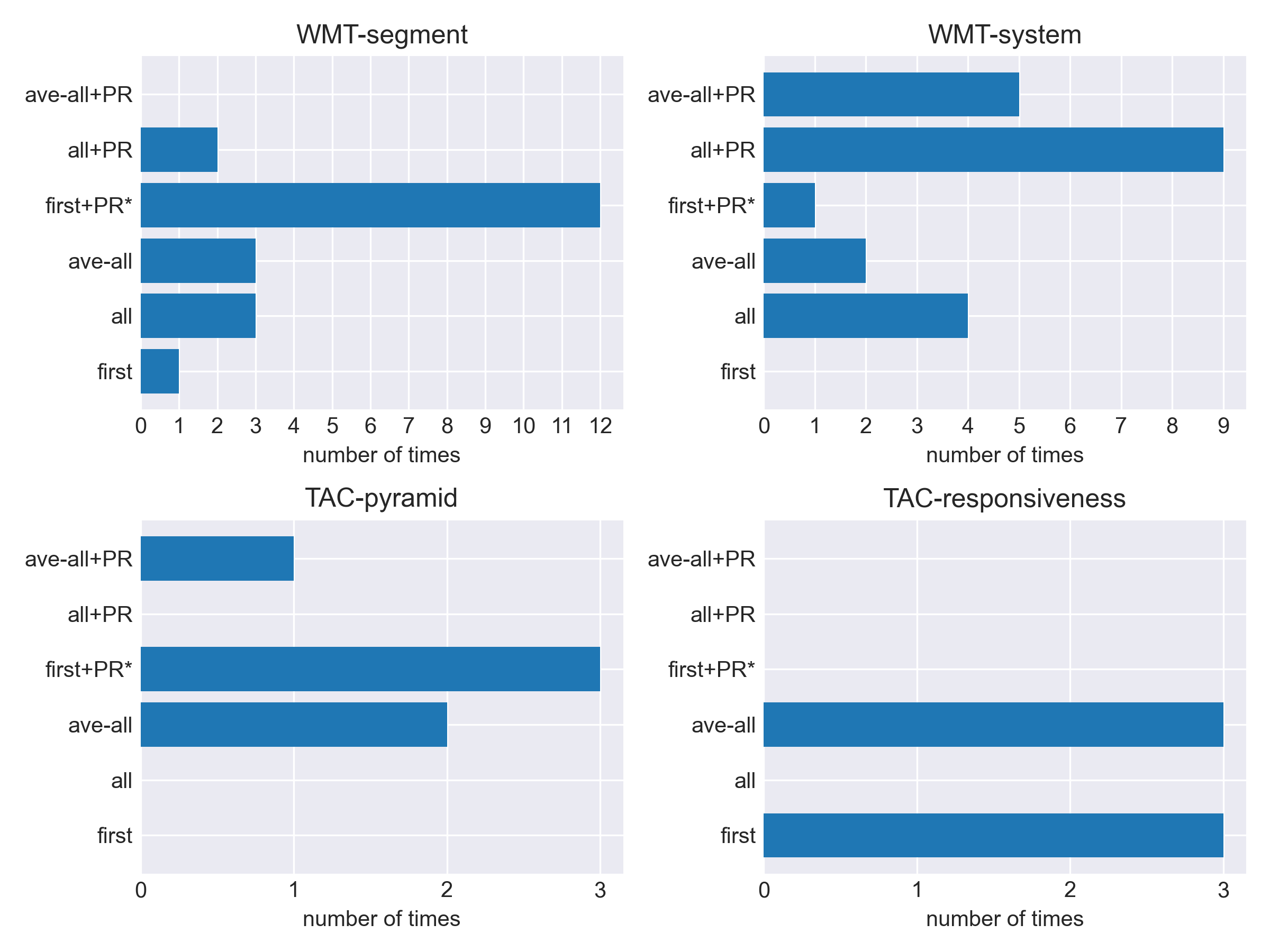

In this experiment, we evaluate the sensitivity to different subword selection and punctuation removal (PR). We measure the performance change from using to disabling PR by calculating the RD between them, which we denote as RD(dis,pr); negative values indicate MoverScore with PR performs better and vice versa. In addition to the original two selections of subwords (keeping the first subword and keeping all subwords), we also average the embeddings of the subwords in a word to get the word-level BERT representations. To quantify the sensitivity to subword selection, we calculate CV of the correlations with humans over the 3 subword selections, denoted as CV. We inspect the corresponding sensitivity of MoverScore-1.

Results

Figure 2(b) shows that most RD(dis,pr) have absolute values smaller than 1%, while both values for en-tr are over 3%. Further, the CV for segment-level MT is presented in Figure LABEL:fig:stopwords (bottom). The average CV over all datasets for most languages are smaller than 2%, whereas highly inflectional languages such as Turkish and Russian are considerably more sensitive, with average values over 4%.

Similar as for stopwords and IDF weighting, MoverScore-1 behaves most sensitively on segment-level MT, where the default configuration of PR and subwords, which uses the first subword and removes punctuations, works best for English. However, for other languages, only in 2 out of 16 cases is it best to select the default configuration (cf. Section A.12). As the authors of MoverScore only reported the results on English data, they may thus select an optimal preprocessing strategy only for that case.

5.4 Discussion

We summarize the findings from the previous experiments along 4 dimensions.

Evaluation Tasks: Among the considered NLG tasks, BERT-based evaluation metrics are more likely to generate inconsistent scores in segment-level MT evaluation. Their sensitivity is less pronounced in system-level MT and summarization. In the latter two cases, average scores are considered, over the translations within one system or over the multiple references. Thus, some of the variation in metric scores will cancel out, leading to a less fluctuating metric performance from varying preprocessing schemes. Evaluation metrics: Among the two variants of MoverScore, MoverScore-2 are more sensitive to parameter settings. BERTScore-F1 behaves less sensitively to IDF-weighting than MoverScore while it behaves much more sensitively to stopwords in the evaluation of Chinese and English compared with MoverScore-1. Languages

: Overall, the considered evaluation metrics have different sensitivities in different languages. Furthermore, highly inflectional languages such as Turkish and Russian as well as German often become “outliers” or obtain extrema in our experiments.

Importance of factors: Stopwords removal has the largest but mostly negative impact. IDF-weighting positively impacts evaluation metrics in English evaluation but its contribution is much less stable in the evaluation of other languages. MoverScore benefits from subwords and punctuation removal in segment-level MT evaluation for English, but on other tasks or for other languages, no configuration of PR and subword selection consistently performs best.

6 Conclusion

We investigated reproducibility for BERT-based evaluation metrics, finding several problematic aspects, including using heavy undocumented preprocessing, reporting lower scores for competitors, selective evaluation on datasets, and copying correlation scores from wrong indices. Our findings cast some doubts on previously reported results and findings, i.e., whether more the complex alignment schemes are really more effective than the greedy alignment of BERTScore. In terms of preprocessing, we found that it can have a large effect depending (a.o.) on the languages and tasks involved. To better compare the effect of aggregation schemes on top of BERT, we recommend to minimize its role in the future, and employ uniform preprocessing across metrics. On the positive side, as authors are nowadays much more willing to publish their resources, it is considerably easier to spot such problems, which may also be one reason why critique papers such as ours have become more popular in the last few years (Beese et al., 2022). In a wider context, our paper contributes to addressing the “cracked foundations” of evaluation for text generation (Gehrmann et al., 2022) and to better understanding their limitations (Leiter et al., 2022).

In the future, we would like to reproduce more recent BERT-based metrics (e.g., with other aggregation mechanisms (Chen et al., 2020; Rony et al., 2022), normalization schemes (Zhao et al., 2021) or different design choices (Yuan et al., 2021)) to obtain a broader assessment of reproducibility issues in this context. We would also like to quantify, at a larger scale, the bias in research induced from overestimating one’s own model vis-à-vis competitor models.
