1 Introduction

In the last decade, we witness increasing interests for remote monitoring technologies in health care. Remote monitoring captures the activity and other anthropometric data from the subjects. It can perform online analysis of these data, provide health-care feedback to the subjects monitored, and also represent the data to the doctor for further analysis. One typical application is in the physical therapy, especially for the elderly subjects, the doctors need to monitor the subjects’ physical performance at home during the training sessions and provide further treatments based on the subjects’ performance.

Human performance capture systems have been widely studied and applied in many applications. However, traditional motion capture systems require particular system setup and markers attached to the subjects monitored which make it impractical for recording motion data at home. Other motion sensors, like the inertia sensors are sensitive to the noise make them also not suitable for motion capture in human daily activities. The emerging accessible and affordable sensing technologies, e.g. the depth sensor, such as Microsoft Kinect, make it possible to capture the human’s motion data at home [1].

Recently, we built an interactive exercise coaching system based on Microsoft Kinect [2] intended to encourage elderly adults to perform physical therapy at home. Since this type of sensors were not designed for medical purpose, the acquired motion data are usually noisy with low fidelity for the motion analysis. For example, the joint position data from Microsoft Kinect usually exhibits significant jitters caused by low depth accuracy, occlusions, ambiguity, and loss of tracking. The body segment lengths are also vary during the motion. In order to perform online analysis of subjects’ performance and feedback to the subjects, we further studied the motion data accuracy from Microsoft Kinect. We also studied the kinematic parameter extraction from the motion data captured by Kinect.

This paper is organized as following: Section 2 introduces the interactive system we have built for the remote physical therapy; Section 3 introduces the work we have done on motion data accuracy evaluation of Microsoft Kinect; Section 4 describes our work on the human kinematic parameters extraction from Kinect motion data; Conclusions are summarized in Section 5.

2 Interactive Exercise Coaching System

This system is built for automated exercise coaching of elderly users that would motivate them and track their physical performance when they perform physical therapy at home. The system contain four main modules: data acquisition, data processing, performance evaluation, and feedback. The pipeline of this system is shown in Fig. 1.

In the data acquisition module, we use the Microsoft Kinect camera to record the subjects’ motion. Microsoft Kinect capture both the texture and depth information of the scene and provide real-time human skeletal joint data [zhengyou zhang]. Based on the skeletal data estimated by Microsoft Kinect SDK, the data processing module remove the outlier data caused by loss tracking with the joint Gaussian and uniform distribution model introduced in Section 3. It further extracts the kinematic parameters from the skeletal motion data. The performance evaluation module does real-time motion analysis, including repetition counting, most moving joints, reachable range, and moving time, which can be further used to measure the flexibilities, endurance, strength, and balance of the subjects. The feedback module can illustrate the evaluation results in the user interface on the screen and also provide both the system automatically generated suggestions and doctors’ suggestion to the subject. Moreover, the system store the subjects’ motion data in the database for the further reference in the future.

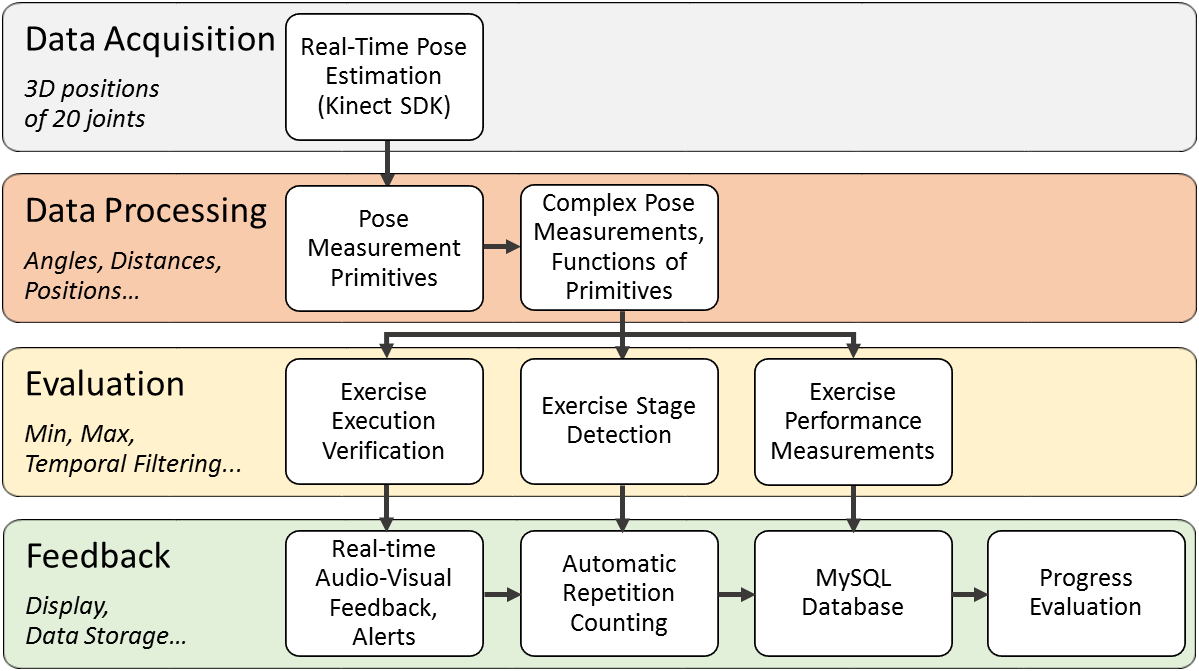

Figure 1: Architecture of our interactive health coaching system.

3 Kinect Data Accuracy Evaluation

3.1 Data accuracy evaluation

In order to quantify the fidelity of the motion data captured by Microsoft Kinect, we evaluated its pose tracking with respect to the motion capture system [5]. In this study, we evaluate both the first and second generations of Microsoft Kinect which are called Kinect 1 and Kinect 2, respectively, in the following of this section. The motion capture system we use in this evaluation is the PhaseSpace optical motion capture system which can provide high precision motion capture data at 120 Hz. The Kinect 1 and Kinect 2 capture the motion data at 20 Hz. During the evaluation, all these three systems capture the human’s motion simultaneously. The motion data from these three devices are temporally synchronized using Network Time Protocol (NTP). The skeletal joint data from Kinect 1 and Kinect 2 are extracted based on the latest SDK of them. The skeletal joint data from motion capture system are obtained by the Recap2 software. We picked 20 common joints and 14 common segments among the three systems. The joints and segments picked in the evaluation are demonstrated in Fig. 2.

During the evaluation, we perform 12 different exercises that six of them are in the sitting pose which are designed by the physical therapist for the elderly people with physical problems. The other six are in the standing pose which is the most common motion that people may perform in their daily live. Each exercise are performed by the subjects for five times and captured in three different view angles, including the frontal view, right side view with 30 degree and 60 degree. The degree here means the angle between the subjects’ frontal direction and the optical axis of the Kinect cameras.

For the joint position, we evaluate the offset and variance of the joint positions obtained by Kinect 1 and Kinect 2 with respect to the corresponding joint position captured by motion capture system. All the joint positions from these three systems are transformed into a unified coordinate system by the camera calibration performed before the motion capture.

Tables 1 and 2 shows the average joint offset and variance of the offset in the sitting and standing exercise, respectively.

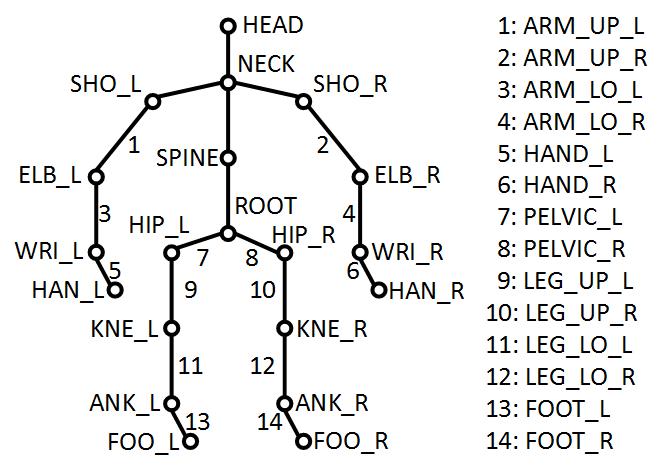

Figure 2: Diagram of the 20-joint skeleton with labeled joint and bone segments that are used in the analysis (L-left, R-right, UP-upper, LO-lower).
Kinect 1 Kinect 2
Mean (mm) SD (mm) Mean (mm) SD (mm)
0 30 60 0 30 60 0 30 60 0 30 60
ROOT 256 262 263 25 20 25 100 102 106 17 18 16
SPINE 91 97 100 24 20 21 110 117 126 13 14 11
NECK 79 65 62 25 21 23 84 78 73 14 16 14
HEAD 74 70 67 26 21 21 50 51 50 13 15 12
SHO_L 90 89 97 26 24 33 76 76 82 16 24 29
ELB_L 81 86 98 27 29 35 87 103 114 17 28 25
WRI_L 76 90 118 33 48 55 59 84 115 25 53 44
HAN_L 85 106 134 41 60 68 64 95 125 31 60 53
SHO_R 78 74 69 28 24 23 80 83 78 17 20 17
ELB_R 95 93 89 28 38 34 88 77 70 21 25 19
WRI_R 64 93 110 30 53 65 61 64 71 25 28 24
HAN_R 83 113 130 35 65 80 74 71 75 24 28 26
HIP_L 188 200 215 25 20 22 115 122 139 16 17 15
KNE_L 96 95 93 24 24 27 76 95 114 16 18 25
ANK_L 54 77 81 17 25 32 93 103 113 16 18 29
FOO_L 66 74 86 19 26 38 93 105 119 18 25 39
HIP_R 207 210 211 25 21 24 133 128 132 15 18 16
KNE_R 123 118 128 23 23 34 120 117 119 15 17 24
ANK_R 67 75 91 17 21 27 112 122 132 15 19 27
FOO_R 67 74 84 17 20 26 126 134 139 19 20 28
Table 1: Joint position offsets in sitting exercises.
Kinect 1 Kinect 2
Mean (mm) SD (mm) Mean (mm) SD (mm)
0 30 60 0 30 60 0 30 60 0 30 60
ROOT 245 256 267 23 25 25 76 81 93 24 19 18
SPINE 79 89 102 22 22 24 112 129 144 17 16 17
NECK 82 91 102 23 24 23 113 129 143 18 16 16
HEAD 89 84 87 30 29 26 79 82 90 26 22 20
SHO_L 76 76 80 33 36 38 68 72 78 29 31 31
ELB_L 98 112 134 46 52 66 112 137 159 37 41 57
WRI_L 85 93 110 56 57 71 66 84 111 47 52 73
HAN_L 85 96 114 62 65 80 77 94 121 49 55 80
SHO_R 76 76 74 30 30 26 96 106 109 26 24 22
ELB_R 98 89 80 38 39 34 96 91 80 33 32 31
WRI_R 80 82 80 43 43 38 78 88 87 33 32 31
HAN_R 85 83 77 46 49 44 81 79 74 33 34 32
HIP_L 186 205 228 28 27 27 106 125 150 23 19 21
KNE_L 101 111 124 33 38 52 107 129 148 26 34 51
ANK_L 119 144 135 43 61 58 135 168 174 33 51 58
FOO_L 115 135 122 42 60 59 130 170 180 33 56 63
HIP_R 188 195 207 25 24 23 103 104 109 25 17 17
KNE_R 105 102 101 31 29 26 115 119 118 26 25 27
ANK_R 111 113 108 38 39 28 146 158 157 32 33 35
FOO_R 97 93 86 36 37 29 146 157 150 32 33 38
Table 2: Joint position offsets in standing exercises.

We also evaluate the segment length based on the motion data. Tables 3 and 4 demonstrate the average segment length error and variance of the segment length in the sitting and standing exercises.

Kinect 1 Kinect 2
Mean (mm) SD (mm) Mean (mm) SD (mm)
0 30 60 0 30 60 0 30 60 0 30 60
ARM_UP_L -76 -74 -81 17 18 21 -67 -62 -68 14 17 20
ARM_LO_L -46 -40 -32 17 22 27 -39 -30 -24 14 19 23
HAND_L -3 -4 -3 22 19 20 -20 -17 -17 20 24 25
ARM_UP_R -68 -70 -69 17 17 18 -67 -67 -69 15 14 13
ARM_LO_R -37 -30 -29 17 20 21 -35 -28 -30 13 15 16
HAND_R 2 3 3 21 24 24 -15 -13 -9 20 19 17
PELVIC_L -28 -28 -36 6 5 8 -54 -62 -75 3 3 4
LEG_UP_L 49 38 38 30 32 34 9 5 5 16 18 18
LEG_LO_L -90 -100 -81 23 28 31 -80 -79 -75 17 18 21
FOOT_L -13 -4 1 8 10 13 36 38 32 12 14 19
PELVIC_R -29 -33 -41 6 5 7 -52 -47 -49 3 3 4
LEG_UP_R 44 46 53 31 28 31 1 9 18 16 18 18
LEG_LO_R -86 -88 -95 25 26 31 -76 -82 -74 17 19 23
FOOT_R -8 -2 8 7 9 11 41 44 40 12 11 12
Table 3: Mean and SD of the bone length difference, sitting pose
Kinect 1 Kinect 2
Mean (mm) SD (mm) Mean (mm) SD (mm)
0 30 60 0 30 60 0 30 60 0 30 60
ARM_UP_L -60 -62 -65 19 22 23 -54 -54 -51 15 18 20
ARM_LO_L -30 -31 -34 16 18 20 -34 -33 -32 17 17 18
HAND_L -7 -5 0 21 21 23 -32 -32 -27 20 21 23
ARM_UP_R -53 -58 -59 21 19 18 -59 -66 -66 17 14 14
ARM_LO_R -22 -22 -22 17 18 20 -30 -27 -25 18 18 17
HAND_R -1 4 6 23 21 19 -21 -16 -14 19 18 18
PELVIC_L -27 -30 -37 9 7 8 -52 -63 -75 5 5 5
LEG_UP_L 113 119 137 28 33 39 -13 -10 4 19 21 25
LEG_LO_L -64 -66 -65 29 29 31 -79 -85 -86 21 23 25
FOOT_L -6 -1 2 9 12 12 43 42 34 9 12 14
PELVIC_R -28 -34 -41 7 6 8 -47 -44 -44 7 4 5
LEG_UP_R 103 115 128 29 27 29 -25 -18 -6 18 18 20
LEG_LO_R -61 -57 -58 26 25 25 -79 -79 -77 20 20 20
FOOT_R -2 1 4 8 9 10 48 45 32 9 11 16
Table 4: Mean and SD of the bone length difference, standing pose

The results shows that overall Microsoft Kinect 2 generates more stable skeletal joint tracking with less offset and variance as compared to Microsoft Kinect 1. The variance of the joint position and segment length are both increasing with the view angle increasing. Some joints usually have larger offset and variance than the other joints, e.g. the hip and knee joints in Kinect 1, the ankle and foot joints in Kinect 2.

3.2 Outlier data removal

The joint position offsets and variance in general depend on various sources of error, such as systematic errors, noise from depth quantization, occlusions, and ambiguity, etc. Compared to the multi-view motion capture system, the Kinect camera captures the motion data from a single view-point [7]. The occlusions and ambiguity from a single view-point will cause loss of tracking. Although the Kinect can infer the joint position based on the related body part [3], it is not reasonable to perform motion data analysis based on the inferred motion data due to tracking loss. Therefore, we analyze the error distribution to discriminate between the random errors and the errors due to tracking loss.

Generally, the random systematic errors follow the Gaussian distribution while the errors due to tracking loss can be treated as outliers belonging to a uniform distribution. Therefore, we use a mixture model of a Gaussian distribution and a uniform distribution to approximate the distribution of the joint position offsets, as defined in equation

1.

(1)

In equation 1, denote the mixture distribution of joint position, , and denote the Gaussian and uniform distribution, respectively, denotes the weighting parameter. Fig. 3 demonstrates the distribution fitting results for the right elbow in the exercise. The results show the mixture model of the Gaussian and uniform distributions overlaid on the data histograms.

By applying the mixture model and maximal likelihood estimation, we can remove the outlier data which satisfy the uniform distribution and make cleaner data for the further analysis. Table I demonstrates the joint offset of both standing and sitting exercises without the outlier data.

Kinect 1 Kinect 2
Figure 3: Mixture model fitting into the distribution of joint position offsets for the right elbow (viewpoint: 60).
Mean (%) SD (%)
0 30 60 0 30 60
Kinect 1 Sitting 5 8 6 35 38 35
Standing 8 7 8 39 36 33
Kinect 2 Sitting 2 5 3 23 36 23
Standing 8 5 6 49 46 43
Table 5: Average joint position offsets without outliers.

4 Kinematic parameter estimation

The kinematic parameters, such as the segment length, joint quaternion, and positions are widely used in human motion analysis and human robotic interaction. For the high fidelity motion data, the kinematic parameters can be directly estimated from the skeletal joint position. However, generating the kinematic parameters from the noisy motion data captured by Kinect will propagate the noise into the following processing and analysis steps. In order to reduce the noise in the derived kinematic parameters from the Kinect noise motion data, we propose a kinematic filtering approach in this section.

4.1 Kinematic model

In motion analysis, the human’s skeleton can be represented as a series joints which are connected by bones. Therefore, the each joint position can be derived by its parent joint position, the corresponding segment orientation and length. The human’s skeleton can thus be represented as a kinematic chain. In this paper, we treat the root joint as the root of each kinematic chain. Based on the skeletal structure shown in Fig. 2, the SPINE, NECK, SHO_L, SHO_R, HIP_L, and HIP_R are modeled as the 3-DoF joints and their parent joints are ROOT, SPINE, NECK, NECK, ROOT, ROOT, respectively; The ELB_L, ELB_R, KNE_L, KNE_R are treated as the 1-DoF joints whose parent joints are SHO_L, SHO_R, HIP_L, HIP_R, respectively; The WRI_L, WRI_R, ANK_L, and ANK_R are the 2-DoF joints that their parent joints are ELB_L, ELB_R, KNE_L, KNE_R, respectively. For each joint, its position can be derived by its parent joint position, , the segment length of its corresponding segment, , the relative rotation matrix of its corresponding segment, , with respect to its parent segment, the rotation matrix of its parent segment, , as the following function :

(2)

4.2 Kinematic filtering

With the kinematic model presented in the last section, we propose a kinematic filtering algorithm based on Kalman filtering to generate the kinematic parameter from the Kinect motion data [6]

. The input state vector is constituted by the root joint position, the segment length, and the segment rotation quaternion. The observation vector is constituted by the rest joint positions. The state transition is modeled by a random-walk process. The observation measuring function is a set of the kinematic model function as defined by equation

2. Since the state transition and the observation measuring functions are nonlinear, we apply the Unscented Kalman Filter (UKF) [4] for the filtering. Since the segment lengths for a certain person are constants, we propose a four-pass UKF to meet with this constraints. In the first forward pass, the UKF is defined by the following functions

(3)
(4)

In equations 3 and 4, the and denote the state vector at time and , respectively, denote the random term in the random walk process, denote the observation vector, denotes the observation noise. In the first backward pass, the observation measuring function is the same as equation 4. The state transition function is defined as

(5)

After the first two pass, the length of each segment are assigned as a constant in the following forward and backward passes. The covariance and the random terms in the random walk process of the segment lengths are all set to zeros.

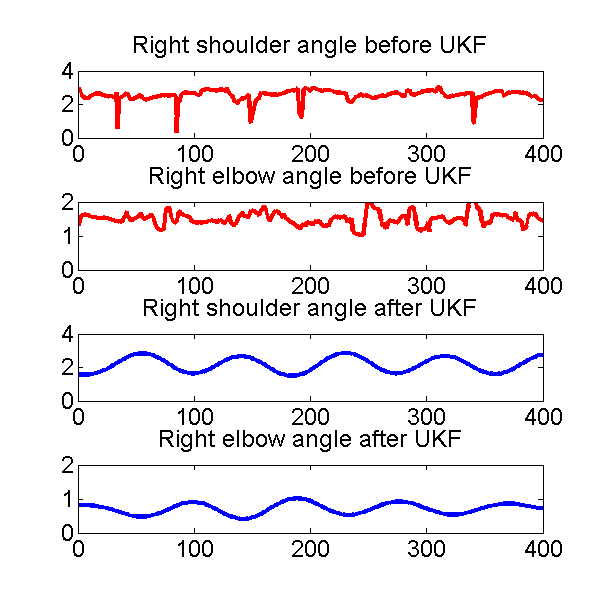

Figure 4: Joint angles of the shoulder and elbow calculated by the input raw motion data and the output kinematic parameters, respectively, horizontal axes represent the frame count, vertical axes represent the joint angle.

Fig. 4 demonstrates the filtering results of UKF for the motion data from Kinect 1. The segment quaternion curves after filtering are much smoother than the input noisy data and also demonstrate strong periodic pattern which is in accordance to the input motion. Therefore, the UKF based on the kinematic model is a practical solution to extract kinematic parameters.

5 Conclusions

This paper summarize the recent progress in the motion analysis for physical therapy with the affordable and accessible device like Microsoft Kinect. Based on preliminary studies, our remote health coaching system receive positive feedback from the users for its accessibility and interaction. Since the motion data captured by Microsoft Kinect is noisy, we further studied the data fidelity of each joint position and segment length. We also propose a mixture model to distinguish the outlier data caused by loss of tracking. It can helps to reduce the noise in the further motion data analysis. Finally, the kinematic filtering based on UKF provide a solution to extract smooth kinematic parameters from the noisy motion data.
