1 Introduction

In the last decade, increasingly complex deep learning models have dominated machine learning and have helped us solve, with remarkable accuracy, a multitude of tasks across a wide array of domains. Due to the size and flexibility of these models it has been challenging to study and understand exactly how they solve the tasks we use them on. A helpful framework for thinking about these models is that of representation learning, where we view artificial neural networks (ANNs) as learning increasingly complex internal representations as we go deeper through their layers. In practice, it is often of interest to analyze and compare the representations of multiple ANNs. However, the typical high dimensionality of ANN internal representation spaces makes this a fundamentally difficult task.

To address this problem, the machine learning community has tried finding meaningful ways to compare ANN internal representations and various representation (dis)similarity measures have been proposed (Li et al., 2015; Wang et al., 2018; Raghu et al., 2017; Morcos et al., 2018). Recently, Centered Kernel Alignment (CKA) (Kornblith et al., 2019)

was proposed and shown to be able to reliably identify correspondences between representations in architecturally similar networks trained on the same dataset but from different initializations, unlike past methods such as linear regression or CCA based methods

(Raghu et al., 2017; Morcos et al., 2018). While CKA can capture different notions of similarity between points in representation space by using different kernel functions, it was empirically shown in the original work that there are no real benefits to using CKA with a nonlinear kernel over its linear counterpart. As a result, linear CKA has been the preferred representation similarity measure of the machine learning community in recent years and other similarity measures (including nonlinear CKA) are seldomly used. CKA has been utilized in a number of works to make conclusions regarding the similarity between different models and their behaviours such as wide versus deep ANNs (Nguyen et al., 2021) and transformer versus CNN based ANNs (Raghu et al., 2021)

. They have also been used to draw conclusions about transfer learning

(Neyshabur et al., 2020) and catastrophic forgetting (Ramasesh et al., 2021). Due to this widespread use, it is important to understand how reliable the CKA similarity measure is and in what cases it fails to provide meaningful results. In this paper, we study CKA sensitivity to a class of simple transformations and show how CKA similarity values can be directly manipulated without noticeable changes in the model final output behaviour. In particular our contributions are as follows:

In Sec. 3 and with Thm. 1 we characterize CKA sensitivity to a large class of simple transformations, which can naturally occur in ANNs. With Cor. 3 and 4 we extend our theoretical results to cover CKA sensitivity to outliers, which has been empirically observed in previous work (Nguyen et al., 2021; Ding et al., 2021; Nguyen et al., 2022), and to transformations preserving linear separability of data, an important characteristic for generalization. Concretely, our theoretical contributions show how the CKA value between two copies of the same set of representations can be significantly decreased through simple, functionality preserving transformations of one of the two copies. In Sec. 4 we empirically analyze CKA’s reliability, illustrating our theoretical results and subsequently presenting a general optimization procedure that allows the CKA value to be heavily manipulated to be either high or low without significant changes to the functional behaviour of the underlying ANNs. We use this to revisit previous findings (Nguyen et al., 2021; Kornblith et al., 2019).

2 Background on CKA and Related Work

Comparing representations

Let denote a set of ANN internal representations, i.e., the neural activations of a specific layer with neurons in a network, in response to input examples. Let be another set of such representations generated by the same input examples but possibly at a different layer of the same, or different, deep learning model. It is standard practice to center these representations column-wise (feature or “neuron” wise) before analyzing them. We are interested in representation similarity measures, which try to capture a certain notion of similarity between and .

Quantifying similarity

Li et al. (2015) have considered one-to-one, many-to-one and many-to-many mappings between neurons from different neural networks, found through activation correlation maximization. Wang et al. (2018) extended that work by providing a rigorous theory of neuron activation subspace match and algorithms to compute such matches between neurons. Alternatively, Raghu et al. (2017)

introduced SVCCA where singular value decomposition is used to identify the most important directions in activation space. Canonical correlation analysis (CCA) is then applied to find maximally correlated singular vectors from the two sets of representations and the mean of the correlation coefficients is used as a similarity measure. In order to give less importance to directions corresponding to noise,

Morcos et al. (2018)

introduced projection weighted CCA (PWCCA). The PWCCA similarity measure corresponds to the weighted sum of the correlation coefficients, assigning more importance to directions in representation space contributing more to the output of the layer. Many other representation similarity measures have been proposed based on linear classifying probes

(Alain & Bengio, 2016; Davari et al., 2022)

, fixed points topology of internal dynamics in recurrent neural networks

(Sussillo & Barak, 2013; Maheswaranathan et al., 2019), solving the orthogonal Procrustes problem between sets of representations (Ding et al., 2021; Williams et al., 2021) and many more (Laakso & Cottrell, 2000; Lenc & Vedaldi, 2018; Arora et al., 2017). We also note that a large body of neuroscience research has focused on comparing neural activation patterns in biological neural networks (Edelman, 1998; Kriegeskorte et al., 2008; Williams et al., 2021; Low et al., 2021).

Cka

Centered Kernel Alignment (CKA) (Kornblith et al., 2019) is another such similarity measure based on the Hilbert-Schmidt Independence Criterion (HSIC) (Gretton et al., 2005)

that was presented as a means to evaluate independence between random variables in a non-parametric way. For

and where are kernels and for the centering matrix, HSIC can be written as: . CKA can then be computed as:

(1)

In the linear case and are both the inner product so , and we use the notation . Intuitively, HSIC computes the similarity structures of and , as measured by the kernel matrices and , and then compares these similarity structures (after centering) by computing their alignment through the trace of .

Recent CKA results

CKA has been used in recent years to make many claims about neural network representations. Nguyen et al. (2021)

used CKA to establish that parameter initialization drastically impact feature similarity and that the last layers of overparameterized (very wide or deep) models learn representations that are very similar, characterized by a visible “block structure” in the networks CKA heatmap. CKA has also been used to compare vision transformers with convolutional neural networks and to find striking differences between the representations learned by the two architectures, such as vision transformers having more uniform representations across all layers

(Raghu et al., 2021). Ramasesh et al. (2021) have used CKA to find that deeper layers are especially responsible for forgetting in transfer learning settings.

Most closely related to our work, Ding et al. (2021) demonstrated that CKA lacks sensitivity

to the removal of low variance principal components from the analyzed representations even when this removal significantly decreases probing accuracy. Also,

Nguyen et al. (2022) found that the previously observed high CKA similarity between representations of later layers in large capacity models (so-called block structure) is actually caused by a few dominant data points that share similar characteristics. Williams et al. (2021) discussed how CKA does not respect the triangle inequality, which makes it problematic to use CKA values as a similarity measure in downstream analysis tasks. We distinguish ourselves from these papers by providing theoretical justifications to CKA sensitivity to outliers and to directions of high variance which were only empirically observed in Ding et al. (2021); Nguyen et al. (2021). Secondly, we do not only present situations in which CKA gives unexpected results but we also show how CKA values can be manipulated to take on arbitrary values.

Nonlinear CKA  The original CKA paper (Kornblith et al., 2019) stated that, in practice, CKA with a nonlinear kernel gave similar results as linear CKA across the considered experiments. Potentially as a result of this, all subsequent papers which used CKA as a neural representation similarity measure have used linear CKA (Maheswaranathan et al., 2019; Neyshabur et al., 2020; Nguyen et al., 2021; Raghu et al., 2021; Ramasesh et al., 2021; Ding et al., 2021; Williams et al., 2021; Kornblith et al., 2021), and to our knowledge, no published work besides Kornblith et al. (2019); Nguyen et al. (2022) has used CKA with a nonlinear kernel. Consequently, we largely focus our analysis on linear CKA which is the most popular method and the one actually used in practice. However, our empirical results suggest that many of the observed problems hold for CKA with an RBF kernel and we discuss a possible way of extending our theoretical results to the nonlinear case.

3 CKA sensitivity to subset translation

Invariances and sensitivities are important theoretical characteristics of representation similarity measures since they indicate what kind of transformations respectively maintain or change the value of the similarity measure. In other words they indicate what transformations “preserve” or “destroy” the similarity between representations as defined by the specific measure used. Kornblith et al. (2019)

argued that representation similarity measures should not be invariant to invertible linear transformations. They showed that measures which are invariant to such transformations give the same result for any set of representations of width (i.e. number of dimensions/neurons) greater than or equal to the dataset size. They instead introduced the CKA method, which satisfies weaker conditions of invariance, specifically it is invariant to orthogonal transformations such as permutations, rotations and reflections and to isotropic scaling. Alternatively, transformations to which representation similarity measures are sensitive have not been studied despite being highly informative as to what notion of “similarity” is captured by a given measure. For example, a measure that is highly sensitive to a transformation

is clearly measuring a notion of similarity that is destroyed by . In this section, we theoretically characterize CKA sensitivity to a wide class of simple transformations, namely the translation of a subset of the representations. We also justify why this class of transformations and the special cases it contains are important in the context of predictive tasks that are solved using neural networks.

Theorem 1.

Consider a set of internal representations in dimensions that have been centered column-wise, let such that and such that . We define . Then we have:

(2)

where , and

the dimensionality estimate provided by the participation ratio of eigenvalues

of the covariance of .

Corollary 2.

Thm. 1 holds even if is taken such that .

Our main theoretical result is presented in Thm. 1 and Cor. 2, whose proofs are provided in the appendix along with additional details. These show that any set of internal neural representations (e.g., from hidden layers of a network) can be manipulated with simple transformations (translations of a subset, see Fig. 1.a) to significantly reduce the CKA between the original and manipulated set. We note that our theoretical results are entirely class and direction agnostic (except for Cor. 4 which isn’t direction agnostic), see the last paragraph of Sec. 4.2 for more details on this point.

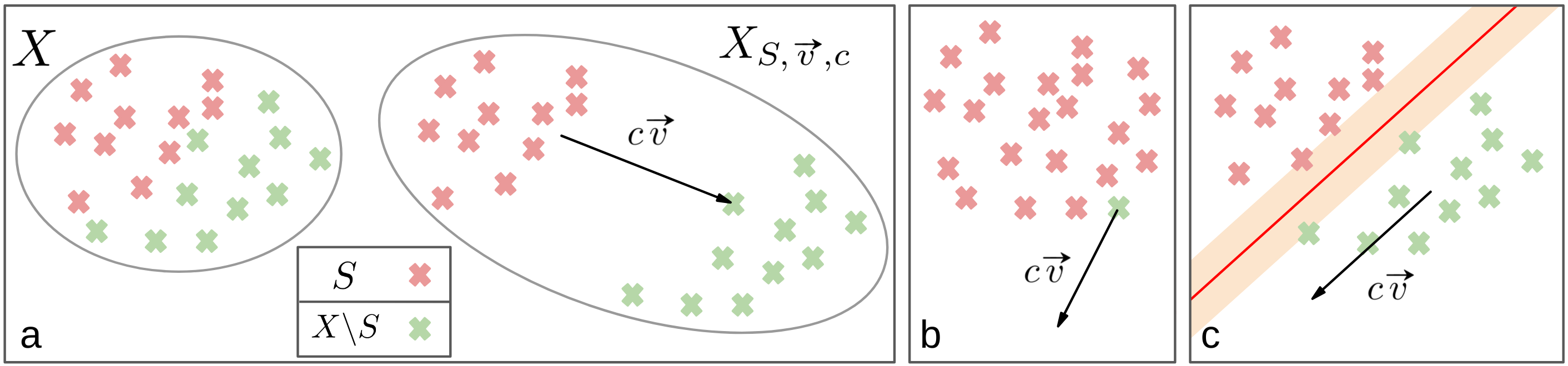

Figure 1: Visual representations of the transformations considered in the theoretical results. a) Thm. 1: The original set of neural representations contains subsets (red) and (green). We can then build as a copy of , where the points in are translated a distance in direction . The linear CKA value between and is then computed. b) Cor. 3: and differ by a single point, which has been translated by in . c) Cor. 4: and are linearly separable (red line with orange margins), the transformation made to obtain preserves the linear separability of the data as well as the margins.

Specifically, we consider a copy of to which we apply a transformation where the representations of a subset of the data is moved a distance along direction , resulting in the modified representation set . A closed form solution is found for the limit of the linear CKA value between and as tends to infinity. We note that up to orthogonal transformations (which CKA is invariant to) the transformation is not difficult to implement when transforming representations between hidden layers in neural networks. More importantly, it is also easy to eliminate or ignore in a single layer transformation, as long as the weight vectors associated with the neurons in the subsequent layer are orthogonal to . Therefore, our results show that from a theoretical perspective, CKA can easily provide misleading information by capturing representation differences introduced by a shift of the form (especially with high magnitude ), which would have no impact on network operations or their effective task-oriented data processing.

The terms in Eq. 2 can each be analyzed individually. depends entirely on , the proportion of points in that have not been translated i.e. that are exactly at the same place as in . Its value is between 0 and 1 and it tends towards 0 for small sizes of . The participation ratio, with values in , is used as an effective dimensionality estimate for internal representations (Mingzhou Ding & Dennis Glanzman, 2011; Mazzucato et al., 2016; Litwin-Kumar et al., 2017). It has long been observed that the effective dimensionality of internal representations in neural networks is far smaller than the actual number of dimensions of the representation space (Farrell et al., 2019; Horoi et al., 2020). and are respectively the average squared norms of all representations in and the squared norm of the mean of , the subset of representations that are not being translated. Since most neural networks are trained using weight decay, the network parameters, and hence the resulting representations as well as these two quantities are biased towards small values in practice.

CKA sensitivity to outliers

As mentioned in Sec. 2, it was recently found that the block structure in CKA heatmaps of high capacity models was caused by a few dominant data points that share similar characteristics (Nguyen et al., 2022). Other work has empirically highlighted CKA’s sensitivity to directions of high variance, failing to detect important, function altering changes that occur in all but the top principal components (Ding et al., 2021). Cor. 3 provides a concrete explanation to these phenomena by treating the special case of Thm. 1 where only a single point, is moved and thus has a different position in with respect to , see Fig.  1.b for an illustration. We note that the term ”subset translation” was coined by us and wasn’t used in past work. However, all the papers referenced in this paragraph and later in this section present naturally occurring examples of subset translations in a set of representations relative to another, comparable set.

Corollary 3.

Thm. 1 holds in the special case where is a single point, i.e. an outlier.

Cor. 3 exposes a key weakness of linear CKA: its sensitivity to outliers. Consider two sets of representations that are identical in all aspects except for the fact that one of them contains an outlier, i.e. a representation further away from the others. Cor. 3 then states that as the difference between the outlier’s position in the two sets of representations becomes large the CKA value between the two sets drops dramatically, indicating high dissimilarity. Indeed, as previously noted, will be of relatively small value in practice so the whole expression in Eq. 2 will be dominated by . In the outlier case which will be extremely small since for most modern deep learning datasets the number of examples in both the training and test sets is in the tens of thousands or more. This will drastically lower the CKA value between the two considered representations despite their obvious similarity.

CKA sensitivity to transformations preserving linear separability

Classical machine learning theory highlights the importance of data separability and of margin size for predictive models generalization (Lee et al., 1995; Bartlett & Shawe-Taylor, 1999)

. Large margins, i.e. regions surrounding the separating hyperplane containing no data points, are associated with less overfitting, better generalization and greater robustness to outliers and to noise. The same concepts naturally arise in the study of ANNs with past work establishing that internal representations become almost perfectly linearly separable by the network’s last layer

(Zeiler & Fergus, 2014a; Oyallon, 2017; Jacobsen et al., 2018; Belilovsky et al., 2019). Furthermore, the quality of the separability, the margin size and the decision boundary smoothness have all been linked to generalization in neural networks (Verma et al., 2019). Given the theoretical and practical importance of these concepts and their natural prevalence in deep learning models it is reasonable to assume that a meaningful way in which two sets of representations can be “similar” is if they are linearly separable by the same hyperplanes in representation space and if their margins are equally as large. This would suggest that the exact same linear classifier could accurately classify both sets of representations. Cor. 4 treats this exact scenario as a special case of Thm. 1, see Fig. 1.c for an illustration. If contains two linear separable subsets, and , we can create by translating one of the subsets in a direction that preserves the linear separability of the representations and the size of the margins while simultaneously decreasing the CKA between the original and the transformed representations, counterintuitively indicating a low similarity between representations.

Corollary 4.

Assume and are linearly separably i.e. , the separating hyperplane’s normal vector, and such that for every representation we have: and . We can then pick such that and are linearly separable by the exact same hyperplane and with the exact same margins as and for any value of and Thm. 1 still holds.

Extensions to nonlinear CKA

As previously noted in Sec. 2, given the popularity of linear CKA, it is outside the scope of our work to theoretically analyze nonlinear kernel CKA. However one can consider extending our theoretical results to the nonlinear CKA case with symmetric, positive definite kernels. Indeed we know from reproducing kernel Hilbert space (RKHS) theory that we can write such a kernel as an inner product in an implicit Hilbert space. While directly translating points in the representations space would likely not drive CKA values down as in the linear case, it would suffice to find/learn which transformations in representations space correspond to translations in the implicit Hilbert space. Our results should hold if we apply the found transformations, instead of translations, to a subset of the representations. Although practically harder to implement than simple translations, we hypothesize that it would be possible to learn such transformations.

4 Experiments and Results

In this section we will demonstrate several counterintuitive results, which illustrate cases where similarity measured by CKA is inconsistent with expectations (Sec 4.1) or can be manipulated without noticeably changing the functional behaviour of a model (Sec. 4.2 and 4.3). We emphasize that only Sec. 4.2 is directly tied to the theoretical results presented in the previous section. On the other hand, sections 4.1 and 4.3 discuss empirical results which are not explicitly related to the theoretical analysis.

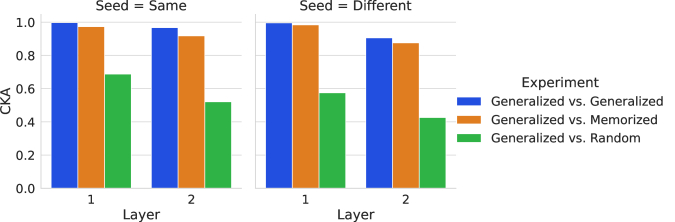

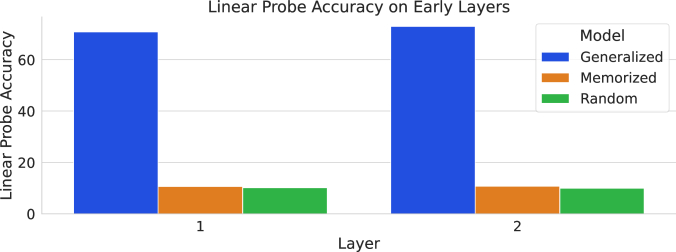

4.1 CKA Early Layer Results

CKA values are often treated as a surrogate metric to measure the usefulness and similarity of a network’s learned features when compared to another network (Ramasesh et al., 2021). In order to analyze this common assumption, we compare the features of: (1) a network trained to generalize on the CIFAR10 image classification task (Krizhevsky et al., 2009), (2) a network trained to “memorize” the CIFAR10 images (i.e. target labels are random), and (3) an untrained randomly initialized network (for network architecture and training details see the Appendix). As show in Fig. 2, early layers of these networks should have very similar representations given the high CKA values. Under the previously presented assumption, one should therefore conclude that the learned features at these layers are relatively similar and equally valuable. However this is not the case, we can see in Fig. 3 that the convolution filters are drastically different across the three networks. Moreover, Fig. 3 elucidates that considerably high CKA similarity values for early layers, does not necessarily translate to more useful, or similar, captured features.

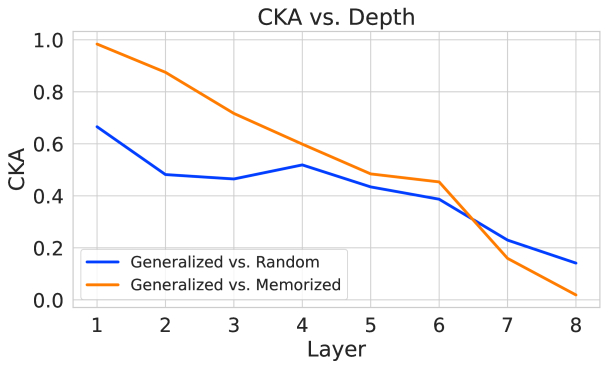

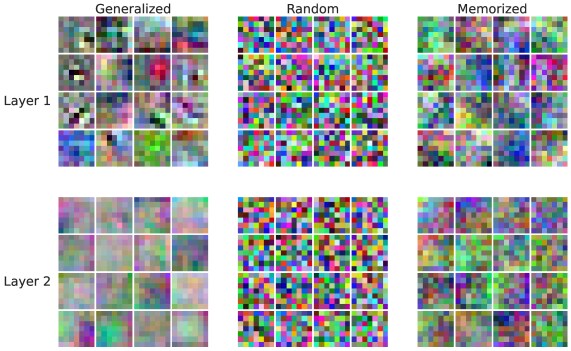

Figure 2: A layer-wise comparison based on the value of the CKA between a generalized, memorized, and randomly populated network. This comparison reveals that early layers of these networks achieve relatively high CKA values. Figure 3: The convolution filters within the first two layers of a generalized, memorized, and a randomly initialized network elucidates that the features are (1) drastically different, and (2) not equally useful despite the CKA results in Fig. 2

4.2 Practical implications of theoretical results

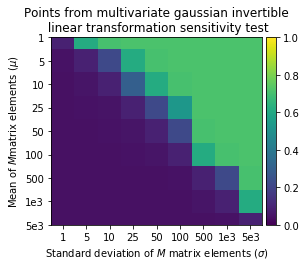

Here we empirically test the behaviour of linear and RBF CKA in situations inspired by our theoretical analysis, first in an artificial setting, then in a more realistic one. We begin with artificially generated representations to which we apply subset translations to obtain , similar to what is described in Thm. 1. We generate by sampling 10K points uniformly from the 1K-dimensional unit cube centered at the origin and 10K points from a similar cube centered at , so the points from the two cubes are linearly separable along the first dimension. We translate the representations from the second cube in a random direction sampled from the -dimensional ball and we plot the CKA values between and as a function of the translation distance in Fig. 4a. This transformation entirely preserves the topological structure of the representations as well as their local geometry since the points sampled from each cube have not moved with respect to the other points sampled from the same cube and the two cubes are still separated, only the distance between them has been changed. Despite these multiple notions of “similarity” between and being preserved, the CKA values quickly drop below 0.2 for both linear and RBF CKA. While our theoretical results (Thm. 1) predicted this drop for linear CKA, it seems that RBF CKA is also highly sensitive to translations of a subset of the representations. Furthermore, it is surprising to see that the drop in CKA value occurs even for relatively small translation distances. We note that RBF CKA with equal to 0.2 times the median distance between examples is unperturbed by the considered transformation. However, as we observe ourselves (RBF CKA experiments in the supplement) and as was found in the original CKA paper (see Table 2 of Kornblith et al. (2019)), RBF CKA with is significantly less informative than RBF CKA with higher values of . With small values of , RBF CKA only captures very local, possibly trivial, relationships.

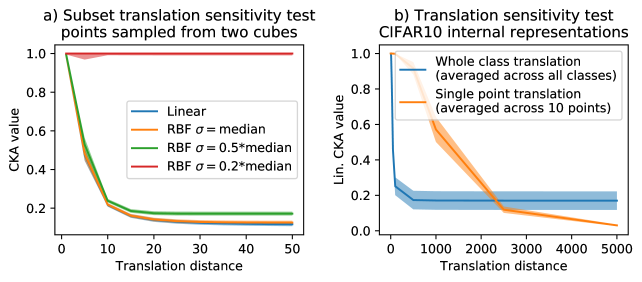

Figure 4: a) Linear and RBF CKA values between the artificial representations and the subset translated version as a function of the translation distance. b) CKA value between a CNN’s internal representations of the CIFAR10 training set and modified versions where either a class or a single point is translated as functions of the translation distance.

In a more realistic setting we test the practical implications of linear CKA sensitivity to outliers (see Cor. 3) and to transformations that preserve the linear separability of the data as well as the margins (see Cor. 4). We consider the 9 layers CNN presented in Sec. 6.1 of Kornblith et al. (2019) trained on CIFAR10. As argued in Sec. 2, when trained on classification tasks, ANNs tend to learn increasingly complex representations of the input data that can be almost perfectly linearly separated into classes by the last layer of the network. Therefore a meaningful way in which two sets of representations can be “similar” in practice is if they are linearly separable by the same hyperplanes in parameter space, with the same margins. Given , the network’s internal representations of 10k training images at the last layer before the output we can use an SVM classifier to extract the hyperplanes in parameter space which best separate the data (with approx. 91% success rate). We then create by translating a subset of the representations in a direction which won’t cross these hyperplanes, and won’t affect the linear separability of the representations. We plot the CKA values between and according to the translation distance in Fig. 4b. The CKA values quickly drop to , despite the existence of a linear classifier that can classify both sets of representations into the correct classes with accuracy. In Fig. 4b we also examine linear CKA’s sensitivity to outliers. Plotted are the CKA values between the set of training image representations and the same representations but with a single point being translated from its original location. While the translation distance needed to achieve low CKA values is relatively high, the fact that the position of a single point out of tens of thousands can so drastically influence the CKA value raises doubts about CKA’s reliability as a similarity metric.

We note that our main theoretical results, namely Th. 1, Cor. 2 and Cor. 3

are entirely class and direction agnostic. The empirical results presented in this section are simply examples that we deemed particularly important in the context of ML but the same results would hold with any subset of the representations and translation direction, even randomly chosen ones. This is important since the application of CKA is not restricted to cases where labels are available, for example it can also be used in unsupervised learning settings

(Grigg et al., 2021). Furthermore, the subset translations presented here were added manually to be able to run the experiments in a controlled fashion but these transformations can naturally occur in ANNs, as discussed in Sec. 3, and one wouldn’t necessarily know that they have occurred. We also run experiments to evaluate CKA sensitivity to invertible linear transformations, see the Appendix for justification and results.

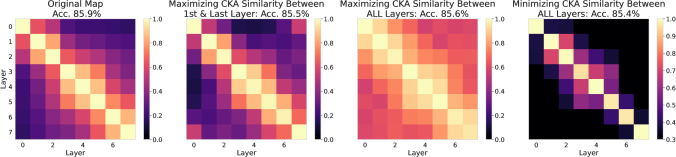

Figure 5: Original Map is the CKA map of a network trained on CIFAR10. We manipulate this network to produce CKA maps which: (1) maximizes the CKA similarity between the and last layer, (2) maximizes the CKA similarity between all layers, and (3) minimizes the CKA similarity between all layers. In cases (1) and (2), the network experiences only a slight loss in performance, which counters previous findings by achieving a strong CKA similarity between early and late layers. We find similar results in the kernel CKA case.
Figure 6: The comical target CKA maps (first row) are used as the objective for the CKA map loss in Eq. 3, while prioritizing network performance (small tolerance for changes in accuracy ). The second row shows the CKA map produced by the network.

4.3 Explicitly Optimizing the CKA Map

The CKA map, commonly used to analyze network architectures (Kornblith et al., 2019) and their inter-layers similarities, is a matrix , where is the CKA value between the activations of layers , and of a network. In many works (Nguyen et al., 2021; Raghu et al., 2021; Nguyen et al., 2022) these maps are used explicitly to obtain insights on how different models behave, compared to one another. However, as seen in our analysis so far it is possible to manipulate the CKA similarity value, decreasing and increasing it without changing the behaviour of the model on a target task. In this section we set to directly manipulate the CKA map of a trained network , by adding the desired CKA map, , to its optimization objective, while maintaining its original outputs via distillation loss (Hinton et al., 2015). The goal is to determine if the CKA map can be changed while keeping the model performance the same, suggesting the behaviour of the network can be maintained while changing the CKA measurements. To accomplish this we optimize over the training set (note however that the results are shown on the test set) via the following objective:

(3)

where . The multiplier in Eq 3 is the weight that balances the two losses. Making large will favour the agreements between the target and network CKA maps over preservation of the network outputs. In our experiments is allowed to change dynamically at every optimization step. Using the validation set accuracy as a surrogate metric for how well the network’s representations are preserved, is then modulated to learn maps. If the difference between the original accuracy of the network and the current validation accuracy is above a certain threshold () we scale down to emphasize the alignment of the network output with the outputs of , otherwise we scale it up to encourage finer agreement between the target and network CKA maps (see Appendix for the pseudo code).

Fig. 5 shows the CKA map of along with the CKA map of three scenarios we investigated: (1) maximizing the CKA similarity between the and last layer, (2) maximizing the CKA similarity between all layers, and (3) minimizing the CKA similarity between all layers (for network architecture and training details see Appendix). In cases (1) and (2), the network performance is barely hindered by the manipulations of its CKA map. This is surprising and contradictory to the previous findings (Kornblith et al., 2019; Raghu et al., 2021) as it suggests that it is possible to achieve a strong CKA similarity between early and later layers of a well-trained network without noticeably changing the model behaviour. Similarly we observe that for the RBF kernel based CKA (Kornblith et al., 2019) we can obtain manipulated results using the same procedure. The bandwidth for the RBF kernel CKA is set to 0.8 of the median Euclidean distance between representations (Kornblith et al., 2019). In the Appendix we also show similar analysis on other values.

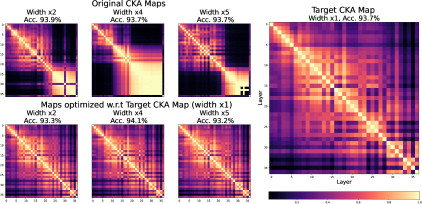

Figure 7: ResNet-34 networks of different widths and their corresponding CKA Maps are modified to produce CKA maps of thin networks. Top row Original shows the unaltered CKA map of the networks derived from “normal" training. Optimized shows the CKA map of the networks after their map is optimized to mimic the thin net target CKA map. See Appendix for more networks.

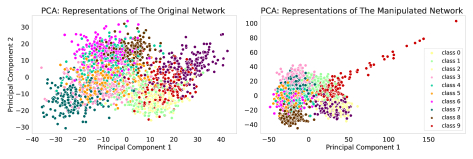

Figure 8: PCA of the networks presented in Fig. 5 before (left) and after (right) being optimized to manipulate the CKA map with Eq 3. Noticeably to achieve the objective the optimization displaces a subset of a single class.

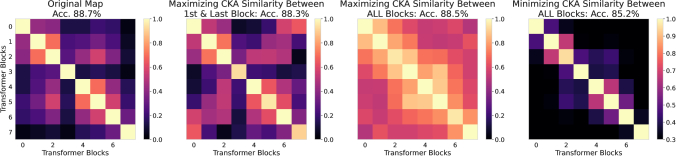

We further experiment with manipulating the CKA map of to produce a series of comical CKA maps (Fig. 6) while maintaining similar model accuracy. Although the network CKA maps seen in Fig. 6 closely resemble their respective targets, it should be noted that we prioritized maintaining the network outputs, and ultimately its accuracy by choosing small . Higher thresholds of accuracy result in stronger agreements between the target and network CKA maps at the cost of performance.

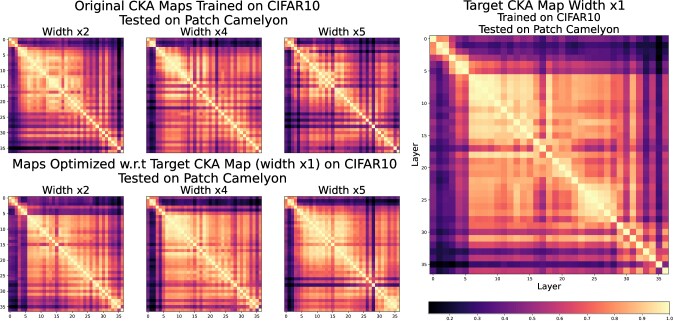

Wider networks

Nguyen et al. (2021) and Nguyen et al. (2022) studied the behaviour of wider and deeper networks using CKA maps, obtaining a block structure, which was subsequently used to obtain insights. We revisit these results and investigate whether the CKA map corresponding to a wider network can be mapped to a thin network. Our results for the CIFAR10 dataset and ResNet-34 (He et al., 2016) are shown in Fig. 7 (for details on the architecture and training procedure see Appendix). We observe that the specific structures associated with wider network can be completely removed and the map can be nearly identical to the thinner model without changing the performance substantially. Results with vision transformers yield similar results (see Fig. 14 of the appendix).

Analysis of Modified Representations

Our focus in Sec 4.3 has been to use optimization to achieve a desired target CKA manipulations without any explicit specification of how to perform this manipulation. We perform an analysis to obtain insights on how representations are changed by optimizing Eq 3 in Fig. 8. Here using the modified network from case (2) of Fig. 5 we compute the PCA of the test set

’s last hidden representation (whose CKA compared to the first layer is increased). We observe that a a single class has a very noticeable set of points that are translated in a particular direction, away from the general set of classes. This mechanism of manipulating the CKA aligns with our theoretical analysis. We emphasize, that in this case it is a completely emergent behavior.

5 Discussion and Conclusion

Given the recent popularity of linear CKA as a similarity measure in deep learning, it is essential to better study its reliability and sensitivity. In this work we have presented a formal characterization of CKA’s sensitivity to translations of a subset of the representations, a simple yet large class of transformations that is highly meaningful in the context of deep learning. This characterization has provided a theoretical explanation to phenomena observed in practice, namely CKA sensitivity to outliers and to directions of high variance. Our theoretical analysis also show how the CKA value between two sets of representations can diminish even if they share local structure and are linearly separable by the same hyperplanes, with the same margins. This meaningful way in which two sets of representations can be similar, as justified by classical machine learning theory and seminal deep learning results, is therefore not captured by linear CKA. We further empirically showed that CKA attributes low similarity to sets of representations that are directly linked by simple affine transformations that preserve important functional characteristics and it attributes high similarity to representations from unalike networks. Furthermore, we showed that we can manipulate CKA in networks to result in arbitrarily low/high values while preserving functional behaviour, which we use to revisit previous findings (Nguyen et al., 2021; Kornblith et al., 2019).

It is not our intention to cast doubts over linear CKA as a representation similarity measure in deep learning, or over recent work using this method. Indeed, some of the problematic transformations we identify are not necessarily encountered in many applications. However, given the popularity of this method and the exclusive way it has been applied to compare representations in recent years, we believe it is necessary to better understand its sensitivities and the ways in which it can be manipulated. Our results call for caution when leveraging linear CKA, as well as other representations similarity measures, and especially when the procedure used to produce the model is not known, consistent, or controlled. An example of such a scenario is the increasingly popular use of open-sourced pre-trained models. Such measures are trying to condense a large amount of rich geometrical information from many high-dimensional representations into a single scalar

. Significant work is still required to understand these methods in the context of deep learning representation comparison, what notion of similarity each of them concretely measures, to what transformations each of them are sensitive or invariant and how this all relates to the functional behaviour of the models being analyzed.

In the meantime, as an alternative to using solely linear CKA, we deem it prudent to utilize multiple similarity measures when comparing neural representations and to try relating the results to the specific notion of “similarity” each measure is trying to quantify. Comparison methods that are straightforward to interpret or which are linked to well understood and simple theoretical properties such as solving the orthogonal Procrustes problem (Ding et al., 2021; Williams et al., 2021) or comparing the sparsity of neural activations (Kornblith et al., 2021)

can be a powerful addition to any similarity analysis. Further, data visualizations methods can potentially help to better understand the structure of neural representations in certain scenarios (e.g.

Nguyen et al. (2019); Gigante et al. (2019); Horoi et al. (2020); Recanatesi et al. (2021)).

Acknowledgements

This work was partially funded by OpenPhilanthropy [M.D., E.B.]; NSERC CGS D, FRQNT B1X & UdeM A scholarships [S.H.]; NSERC Discovery Grant RGPIN-2018-04821 & Samsung Research Support [G.L.]; and Canada CIFAR AI Chairs [G.L., G.W.]. This work is also supported by resources from Compute Canada and Calcul Quebec. The content is solely the responsibility of the authors and does not necessarily represent the views of the funding agencies.
