1 Introduction

Predicting molecular properties is of the central importance to applications such as drug discovery or material design. Without accurate prediction of properties such as toxicity, a promising drug candidate is likely to fail clinical trials (Chan et al., 2019; Bender and Cortés-Ciriano, 2021)

. Many molecular properties cannot be feasibly computed (simulated) from first principles and instead have to be extrapolated, from an often small experimental dataset. The prevailing approach is to train a machine learning model such a random forest

(Korotcov et al., 2017)

or a graph neural network

(Gilmer et al., 2017) from scratch to predict the desired property for a new molecule.

Machine learning is moving away from training models from scratch. In natural language processing (NLP), advances in large-scale pretraining

(Devlin et al., 2018; Howard and Ruder, 2018) and the development of the Transformer (Vaswani et al., 2017) have culminated in large gains in data efficiency across multiple tasks (Wang et al., 2019a). Instead of training models purely from scratch, the models in NLP are commonly first pretrained on large unsupervised corpora. The chemistry domain might be at the brink of an analogous revolution, which could be transformative due to the high cost of obtaining large experimental datasets. A recent work has proposed Molecule Attention Transformer (MAT), a Transformer-based architecture adapted to processing molecular data (Maziarka et al., 2020) and pretrained using self-supervised learning for graphs (Hu et al., 2020). Several works have since shown further gains by improving network architecture or the pretraining tasks (Chithrananda et al., 2020; Fabian et al., 2020; Rong et al., 2020).

However, pretraining has not yet led to such transformative data-efficiency gains in molecular property prediction. For instance, non-pretrained models with extensive handcrafted featurization tend to achieve very competitive results (Yang et al., 2019a). We reason that architecture might be a key bottleneck. In particular, most Transformers for molecules do not encode the three dimensional structure of the molecule (Chithrananda et al., 2020; Rong et al., 2020), which is a key factor determining many molecular properties. On the other hand, performance has been significantly boosted by enriching the Transformer architecture with proper inductive biases (Dosovitskiy et al., 2021; Shaw et al., 2018; Dai et al., 2019; Ingraham et al., 2021; Huang et al., 2020; Romero and Cordonnier, 2021; Khan et al., 2021; Ke et al., 2021). Motivated by this perspective, we methodologically explore the design space of the self-attention layer, a key computational primitive of the Transformer architecture, for molecular property prediction. In particular, we explore variants of relative self-attention, which has been shown to be effective in various domains such as protein design and NLP (Shaw et al., 2018; Ingraham et al., 2021)

Our main contribution is a new design of the self-attention formula for molecular graphs that carefully handles various input features to obtain increased accuracy and robustness in numerous chemical domains. We tackle the aforementioned issues with Relative Molecule Attention Transformer (R-MAT), our pre-trained transformer-based model, shown in Figure 1. We propose Relative Molecule Self-Attention, a novel variant of relative self-attention, which allows us to effectively fuse distance and graph neighbourhood information (see Figure 2). Our model achieves state-of-the-art or very competitive performance across a wide range of tasks. Satisfyingly, R-MAT outperforms more specialized models without using extensive handcrafted featurization or adapting the architecture specifically to perform well on quantum prediction benchmarks. The importance of representing effectively distance and other relationships in the attention layer is evidence by large performance gains compared to MAT.

An important inspiration behind this work was to unlock the potential of large pretrained models for the field, as they offer unique long-term benefits such as simplifying machine learning pipelines. We show that R-MAT can be trained to state-of-the-art performance with only tuning the learning rate. We also open-source weights and code as part of the HuggingMolecules package

(Gaiński et al., 2021).

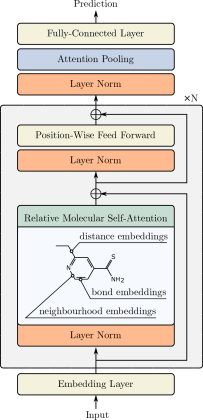

Figure 1: Relative Molecule Attention Transformer uses a novel relative self-attention block tailored to molecule property prediction. It fuses three types of features: distance embedding, bond embedding and neighbourhood embedding.

2 Related work

Pretraining coupled with the efficient Transformer architecture unlocked state-of-the-art performance in molecule property prediction (Maziarka et al., 2020; Chithrananda et al., 2020; Fabian et al., 2020; Rong et al., 2020; Wang et al., 2019b; Honda et al., 2019)

. First applications of deep learning did not offer large improvements over more standard methods such as random forests

(Wu et al., 2018; Jiang et al., 2021; Robinson et al., 2020). Consistent improvements were enabled by more efficient architectures adapted to this domain (Mayr et al., 2018; Yang et al., 2019a; Klicpera et al., 2020). In this spirit, our goal is to further advance modeling for any chemical task by redesigning self-attention for molecular data.

Encoding efficiently the relation between tokens in self-attention has been shown to substantially boost performance of Transformers in vision, language, music and biology (Shaw et al., 2018; Dai et al., 2019; Ingraham et al., 2021; Huang et al., 2020; Romero and Cordonnier, 2021; Khan et al., 2021; Ke et al., 2021). The vanilla self-attention includes absolute encoding of position, which can hinder learning when the absolute position in the sentence is not informative.111This arises for example when input is an arbitrary chunks of the text (Huang et al., 2020) (e.g. in the next sentence prediction task used in BERT pretraining). Relative positional encoding featurizes the relative distance between each pair of tokens, which led to substantial gains in the language and music domains (Shang et al., 2018; Huang et al., 2020). However, most Transformers for the chemical domain predominantly used no positional encoding in the self-attention layer (Chithrananda et al., 2020; Fabian et al., 2020; Rong et al., 2020; Wang et al., 2019b; Honda et al., 2019; Schwaller et al., 2019), which gives rise to similar issues with representing relations between atoms. We directly compare to (Maziarka et al., 2020), who introduced first self-attention module tailored to molecular data, and show large improvements across different tasks. Our work is also closely related to (Ingraham et al., 2021) that used relative self-attention fusing three dimensional structure with positional and graph based embedding, in the context of protein design.

(a) neighbors
(b) bonds
(c) distances
Figure 2:

The Relative Molecule Self-Attention layer is based on the following features: (a) neighbourhood embedding one-hot encodes graph distances (neighbourhood order) from the source node marked with an arrow; (b) bond embedding one-hot encodes the bond order (numbers next to the graph edges) and other bond features for neighbouring nodes; (c) distance embedding uses radial basis functions to encode pairwise distances in the 3D space. These features are fused according to Equation (

4).

3 Relative Molecule Self-Attention

3.1 Molecular self-attentions

We first give a short background on how prior work have applied self-attention to molecules and point out their shortcomings.

Text Transformers

Multiple works have applied directly the Transformer to molecules encoded as text using the SMILES representation (Chithrananda et al., 2020; Fabian et al., 2020; Wang et al., 2019b; Honda et al., 2019; Schwaller et al., 2019). SMILES is a linear encoding of a molecule into a string of characters according to a deterministic ordering algorithm (Weininger, 1988; Jastrzębski et al., 2016). For example, the SMILES encoding of carbon dioxide is C(=O)=O.

Adding a single atom can completely change the ordering of atoms in the SMILES encoding. Hence, the relative positions of individual characters are not easily related to their proximity in the graph or space. This is in contrast to natural language processing, where the distance between two words in the sentence can be highly informative (Shaw et al., 2018; Huang et al., 2020; Ke et al., 2021). We suspect this makes the use of self-attention in SMILES models less effective. Another readily visible shortcoming is that the graph structure and distances between atoms of the molecule are either completely encoded or entirely thrown out.

Graph Transformers

Several works have proposed Transformers that operate directly on a graph (Maziarka et al., 2020; Rong et al., 2020; Nguyen et al., 2019). The GROVER and the U2GNN models take as input a molecule encoded as a graph (Rong et al., 2020; Nguyen et al., 2019). In both of them, the self-attention layer does not have a direct access to the information about the graph. Instead, the information about the relations between atoms (existence of a bond or distance in the graph) is indirectly encoded by a graph convolutional layer that is run in GROVER within each layer, and in U2GNN only at the beginning. Similarly to Text Transformers, Graph Transformers also do not take into account the distances between atoms.

Structured Transformer introduced in (Ingraham et al., 2021) uses relative self-attention that operates on amino-acids in the task of protein design. Self-attention proposed by (Ingraham et al., 2021), similarly to our work, provides the model with information about the three dimensional structure of the molecule. As R-MAT encodes the relative distances between pairs of atoms, Structured Transformer also uses relative distances between modeled amino-acids. However, it encodes them in a slightly different way. We incorporate their ideas, and extend them to enable processing of molecular data.

Molecule Attention Transformer

Our work is closely related to Molecule Attention Transformer (MAT), a transformer-based model with self-attention tailored to processing molecular data (Maziarka et al., 2020). In contrast to aforementioned approaches, MAT incorporates the distance information in its self-attention module. MAT stacks Molecule Self-Attention blocks followed by a mean pooling and a prediction layer. For a -dimensional state , the standard, vanilla self-attention operation is defined as

(1)

where , , and . Molecule Self-Attention extends Equation (1) to include additional information about bonds and distances between atoms in the molecule as

(2)

where , , are the weights given to individual parts of the attention module, is a function given by either a softmax, or an element-wise , is the adjacency matrix (with if there exists a bond between atoms and and otherwise) and is the distance matrix, where represents the distance between the atoms and in the 3D space.

Self-attention can relate input elements in a highly flexible manner. In contrast, there is little flexibility in how Molecule Self-Attention can use the information about the distance between two atoms. The strength of the attention between two atoms depends monotonically on their relative distance. However, molecular properties can depend in a highly nonlinear way on the distance between atoms. This has motivated works such as (Klicpera et al., 2020) to explicitly model the interactions between atoms, using higher-order terms.

3.2 Relative positional encoding

In natural language processing, a vanilla self-attention layer does not take into account the positional information of the input tokens (i.e. if we permute the layer input, the output will stay the same). In order to add the positional information into the input data, a vanilla transformer enriches it with encoding of the absolute position. On the other hand, relative positional encoding (Shaw et al., 2018) adds the relative distance between each pair of tokens, which leads to substantial gains in the learned task. In our work, we use relative self-attention to encode the information about the relative neighbourhood, distances and physicochemical features between all pairs of atoms in the input molecule (See Figure 2).

3.3 Atom relation embedding

Our core idea to improve Molecule Self-Attention is to add flexibility in how it processes graph and distance information. Specifically, we adapt positional relative encoding to processing molecules (Shaw et al., 2018; Dai et al., 2019; Huang et al., 2020; Ke et al., 2021), which we note was already hinted at in (Shaw et al., 2018) as a high-level future direction. The key idea in these works is to enrich the self-attention block to efficiently represent information about relative positions of items in the input sequence.

What reflects the relative position of two atoms in a molecule? Similarly to MAT, we delineate three inter-related factors: (1) their relative distance, (2) their distance in the molecular graph, and (3) their physiochemical relationship (e.g. are they within the same aromatic ring).

In the next step, we depart from Molecule Self-Attention (Maziarka et al., 2020)

and introduce new factors to the relation embedding. Given two atoms, represented by vectors

, we encode their relation using an atom relation embedding . This embedding will then be used in the self-attention module after a projection layer. Next, we describe three components that are concatenated to form the embedding .

Neighbourhood embeddings

First, we encode the neighbourhood order between two atoms as a  dimensional one hot encoding, with information about how many other vertices are between nodes and in the original molecular graph (see Figure 2 and Table 4 from Appendix A).

Distance embeddings

As we discussed earlier, we hypothesize that a much more flexible representation of the distance information should be facilitated in MAT. To achieve this, we use a radial basis distance encoding proposed by (Klicpera et al., 2020):

where is the distance between two atoms, is the predefined cutoff distance, and N is the total number of radial basis functions that we use. Then obtained numbers are passed to the polynomial envelope function , with , in order to get the final distance embedding.

Bond embeddings

Finally, we featurize each bond to reflect the physical relation between pairs of atoms that might arise from, for example, being part of the same aromatic structure in the molecule. Molecular bonds are embedded in as a  dimensional vector following (Coley et al., 2017) (see Table 5 from Appendix A). When the two atoms are not connected by a true molecular bond, all dimensions are set to zeros. We note that while these features can be easily learned in pretraining, we hypothesize that this featurization might be highly useful for training R-MAT on smaller datasets.

3.4 Relative Molecule Self-Attention

Equipped with the embedding for each pair of atoms in the molecule, we now use it to define a novel self-attention layer that we refer to as Relative Molecule Self-Attention.

First, mirroring the key-query-value design in the vanilla self-attention (c.f. Equation (1)), we transform into a key and value specific vectors using two neural networks and . Each neural network consists of two layers. A hidden layer, shared between all attention heads and output layer, that create a separate relative embedding for different attention heads.

Consider Equation (1) in index notation:

where the unnormalized attention is . By analogy, in Relative Molecule Self-Attention, we compute as

(3)

where are trainable vectors. We then define Relative Molecule Self-Attention operation:

(4)

In other words, we enrich the self-attention layer with atom relations embedding. In the phase of attention weights calculation, we add content-dependent positional bias, global context bias and global positional bias (Dai et al., 2019; Huang et al., 2020) (that are calculated based on ) to the layer. Then, during calculation of the attention weighted average, we also include the information about the other embedding .

3.5 Relative Molecule Attention Transformer

Finally, we use Relative Molecule Self-Attention to construct Relative Molecule Attention Transformer (R-MAT). The key changes compared to MAT are: (1) the use of Relative Molecule Self-Attention, (2) extended atom featurization, and (3) extended pretraining procedure. Figure 1 illustrates the R-MAT architecture.

The input is embedded as a matrix of size  where each atom of the input is embedded following (Coley et al., 2017; Pocha et al., 2020), see Table 6 of Appendix A. We process the input using stacked Relative Molecule Self-Attention attention layers. Each attention layer is followed by position-wise feed-forward Network (similar as in the classical transformer model (Vaswani et al., 2017)), which consists of

linear layers with a leaky-ReLU nonlinearity between them.

After processing the input using attention layers, we pool the representation into a constant-sized vector. We replace simple mean pooling with an attention-based pooling layer. After applying self-attention layers, we use the following self-attention pooling (Lin et al., 2017) in order to get the graph-level embedding of the molecule:

where is the hidden state obtained from self-attention layers, and are pooling attention weights, with P equal to the pooling hidden dimension and S equal to the number of pooling attention heads. Finally, the graph embedding is then passed to the two layer MLP, with leaky-ReLU activation in order to make the prediction.

Pretraining

We used two-step pretraining procedure. In the first step, network is trained with the contextual property prediction task proposed by (Rong et al., 2020), where we mask not only selected atoms, but also their neighbours. The goal of the task is to predict the whole atom context. This task is much more demanding for the network than the classical masking approach presented by (Maziarka et al., 2020) since the network has to encode more specific information about the masked atom neighbourhood. Furthermore, the size of the context vocabulary is much bigger than the size of the atoms vocabulary in the MAT pretraining approach. The second task is a graph-level prediction proposed by (Fabian et al., 2020) in which the goal is to predict a set of real-valued descriptors of physicochemical properties. For more detailed information about the pretraining procedure and ablations, see Appendix B.

Other details

Similarly to (Maziarka et al., 2020), we add an artificial dummy node to the input molecule. The distance of the dummy node to any other atom in the molecule is set to the maximal cutoff distance, and the edge connecting the dummy node with any other atom has its unique index (see index in Table 4 of Appendix A). Moreover, the dummy node has its own index in the input atom embedding. We calculate distance information in the similar manner as (Maziarka et al., 2020). The 3D molecular conformations that are used to obtain distance matrices are calculated using UFFOptimizeMolecule function from the RDKit package (Landrum, 2016) with the default parameters. Finally, we consider a variant of the model extended with 200 rdkit features as in (Rong et al., 2020). The features are concatenated to the final embedding and processed using a prediction MLP.

4 Experiments

4.1 Small hyperparameter budget

The industrial drug discovery pipelines focus on fast iterations of compound screenings and adjusting the models to new data incoming from the laboratory. We start by comparing in this setting R-MAT to DMPNN (Yang et al., 2019a), MAT (Maziarka et al., 2020) and GROVER (Rong et al., 2020), representative state-of-the-art models on popular molecular property prediction tasks. We followed the evaluation in (Maziarka et al., 2020)

, where the only changeable hyperparameter is the learning rate, which was checked with

different values.

The BBBP and Estrogen- datasets use scaffold splits, while all the other datasets use random splits. For every dataset we calculate scores based on 6 different splits, we report the mean test score based on the hyperparameters that obtained the best validation score. In this and the next experiments, we denote models extended with additional rdkit features (see Section 3.5) as GROVER and R-MAT . More information about the models and datasets used in this benchmark are given in Appendix C.4.

Table 1 shows that R-MAT outperforms other methods in 4 out of 6 tasks. For comparison, we also cite representative results of other methods from (Maziarka et al., 2020). Satisfyingly, we observe a marked improvement on the solubility prediction tasks (ESOL and FreeSolv). Understanding solubility depends to a large degree on a detailed understanding of spatial relationships between atoms. This suggests that the improvement in performance might be related to better utilization of the distance or graph information.

ESOL FreeSolv BBBP Estrogen- MetStablow MetStabhigh
MAT
GROVER
GROVER
R-MAT
R-MAT
SVM
RF
GCN
DMPNN
Table 1: Results on molecule property prediction benchmark from (Maziarka et al., 2020). We only tune the learning rate for models in the first group. First two datasets are regression tasks (lower is better), other datasets are classification tasks (higher is better). For reference, we include results for non-pretrained baselines (SVM, RF, GCN (Duvenaud et al., 2015), and DMPNN (Yang et al., 2019a)) from (Maziarka et al., 2020). Rank-plot for these experiments is in Appendix D.1.

4.2 Large hyperparameter budget

In contrast to the previous setting, we test R-MAT against a similar set of models but using a large-scale hyperparameter search (300 different hyperparameter combinations). This setting has been proposed in (Rong et al., 2020). For comparison, we include results under small (7 different learning rates) hyperparameter budget. All datasets use a scaffold split. Scores are calculated based on 3 different data splits. While the ESOL dataset is the same as in the previous paragraph, here it uses a scaffold split and labels are not normalized (unlike in the previous paragraph). Additional information about the models and datasets used in this benchmark are given in Appendix D.2.

Table 2 summmarizes the experiment. Results show that R-MAT outperforms other methods in 3 out of 4 tasks in large grid mode as well as in only tuning the learning rate mode.

ESOL Lipo QM7 BACE
GraphConv
Weave
DMPNN
GROVER
R-MAT
MAT
GROVER
GROVER
R-MAT
R-MAT
Table 2: Results on the benchmark from (Rong et al., 2020). Models are fine-tuned under a large hyperparameters budget. Additionally, models fine-tuned with only tuning the learning rate are presented in the last group. The last dataset is classification task (higher is better), the remaining datasets are regression tasks (lower is better). For reference, we include results for non-pretrained baselines (GraphConv (Kipf and Welling, 2016), Weave (Kearnes et al., 2016) and DMPNN (Yang et al., 2019a)) from (Rong et al., 2020). Rank-plot for these experiments is in Appendix D.2. We bold the best scores over all models and underline the best scores for learning rate tuned models only.

4.3 Large-scale experiments

Finally, to better understand how R-MAT performs in a setting where pretraining is likely to less influence results, we include results on QM9 dataset (Ramakrishnan et al., 2014). QM9 is a quantum mechanics benchmark that encompasses prediction of 12 simulated properties across around 130k small molecules with at most 9 heavy (non-hydrogen) atoms. The molecules are provided with their atomic 3D positions for which the quantum properties were initially calculated. For these experiments, we used learning rate equal to 0.015 (we selected this learning rate value as it returned the best results for dataset among different learning rates that we tested: {0.005,0.01,0.015,0.02}). Additional information about the dataset and models used in this benchmark are given in Appendix C.6

Figure 3 compares R-MAT performance with various models. More detailed results could be find in Table 8 from Appendix D.3. R-MAT achieves highly competitive results, with state-of-the-art performance on 4 out of the 12 tasks. We attribute higher variability of performance to the limited small hyperparameter search we performed. These results highlight versatility of the model, as tasks in QM9 have very different characteristic than the datasets considered in previous sections. Most importantly, targets in QM9 are calculated using quantum simulation software, rather than experimentally measured.

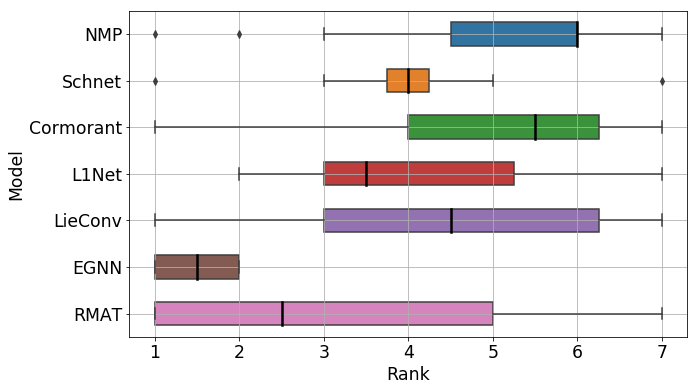

Figure 3: Rank plot of scores obtained on the QM9 benchmark, which consists of 12 different quantum property prediction tasks.

4.4 Exploring the design space of self-attention layer

Achieving strong empirical results hinged on a methodologically exploration the design space of different variants of the self-attention layer. We document here this exploration and relevant ablations. Due to space limitations, we defer most results to the Appendix E. We perform all experiments on the ESOL, FreeSolv and BBBP datasets with different scaffold splits. We did not use any pretraining for these experiments. We follow the same fine-tuning methodology as in Section 4.1.

Importance of different sources of information in self-attention

The self-attention module in R-MAT incorporates three auxiliary sources of information: (1) distance information, (2) graph information (encoded using neighbourhood order), and (3) bond features. In Table 3 (Left), we show the effect on performance of ablating each of this elements. Importantly, we find that each component is important to R-MAT performance, including the distance matrix.

BBBP ESOL FreeSolv
R-MAT
distance
neighbourhood
bond features
(a) Test set performances of R-MAT for different relative attention features.
BBBP ESOL FreeSolv
R-MAT
Max order = 1
Max order = 2
Max order = 3
(b) Test set performances of R-MAT for different choices of maximum neighbourhood order.
Table 3: Ablations of Relative Molecule Self-Attention; other ablations are included in the Appendix.

Maximum neighbourhood order

We take a closer look at how we encode the molecular graph. (Maziarka et al., 2020) used a simple binary adjacency matrix to encode the edges. We enriched this representation by adding one-hot encoding of the neighbourhood order. For example, the order of 3 for a pair of atoms means that there are two other vertices on the shortest path between this pair of atoms. In R-MAT we used 4 as the maximum order of neighbourhood distance. That is, we encoded as separate features if two atoms are 1, 2, 3 or 4 hops away in the molecular graph. In Table 3 (Right) we ablate this choice. The result suggests that R-MAT performance benefits from including separate feature for all the considered orders.

Closer comparison to Molecule Attention Transformer

(a) Molecule
(b) Relative Molecule Attention Transformer
(c) Molecule Attention Transformer
Figure 4: Visualization of the learned self-attention for each of the first 3 attention heads in the second layer of pretrained R-MAT (middle) and the first 4 attention heads in pretrained MAT (bottom), for a molecule from the ESOL dataset. The top Figure visualizes the molecule and its adjacency and distance matrices. The self-attention pattern in MAT is dominated by the adjacency and distance matrix, while R-MAT seems capable of learning more complex attention patterns.

Our main motivation for improving self-attention in MAT was to make it easier to represent attention patterns that depend in a more complex way on the distance and graph information. We qualitatively explore here whether R-MAT achieves this goal, comparing its attention patterns to that of MAT. From the Figure 4 one can see that indeed R-MAT seems capable of learning more complex attention patterns than MAT. We add a more detailed comparison, with more visualised attention heads in Appendix D.4.

5 Conclusions

Transformer has been successfuly adapted to various domain by incorporating into its architecture a minimal set of inductive biases. In a similar spirit, we methodologically explored the design space of the self-attention layer, and identified a highly effective Relative Molecule Self-Attention.

Relative Molecule Attention Transformer, a model based on Relative Molecule Self-Attention, achieves state-of-the-art or very competitive results across a wide range of molecular property prediction tasks. R-MAT is a highly versatile model, showing state-of-the-art results in both quantum property prediction tasks, as well as on biological datasets. We also show that R-MAT is easy to train and requires tuning only the learning rate to achieve competitive results, which together with open-sourced weight and code, makes it is highly accessible.

Relative Molecule Self-Attention encodes an inductive bias to consider relationships between atoms that are commonly relevant to a chemist, but on the other hand leaves flexibility to unlearn them if needed. Relatedly, Vision Transformers learn global processing in early layers despite being equipped with a locality inductive bias (Dosovitskiy et al., 2021). Our empirical results show in a new context that picking the right set of inductive biases is key for self-supervised learning to work well.

Learning useful representations for molecular property prediction is far from solved. Achieving state-of-the-art results, while less dependent on them, still relied on using certain large sets of handcrafted features both in fine-tuning and pretraining. At the same time, these features are beyond doubt learnable from data. Developing methods that will push representation learning towards discovering these and better features automatically from data is an exciting challenge for the future.
