Relationships from Entity Stream

09/07/2019 ∙ by Martin Andrews, et al. ∙ 0

Relational reasoning is a central component of intelligent behavior, but has proven difficult for neural networks to learn. The Relation Network (RN) module was recently proposed by DeepMind to solve such problems, and demonstrated state-of-the-art results on a number of datasets. However, the RN module scales quadratically in the size of the input, since it calculates relationship factors between every patch in the visual field, including those that do not correspond to entities. In this paper, we describe an architecture that enables relationships to be determined from a stream of entities obtained by an attention mechanism over the input field. The model is trained end-to-end, and demonstrates equivalent performance with greater interpretability while requiring only a fraction of the model parameters of the original RN module.



There are no comments yet.


page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

The ability to reason about the relations between entities and their properties is central to intelligent behavior (Kemp and Tenenbaum (2008); Johnson et al. (2017)).

Our work shows how a deep learning architecture equipped with attention, sequencing and selection mechanisms can learn to identify relevant entities in visual field, and then reason about the relationships between them as part of a stream.

One appealing feature of this approach is that the Entity Stream it creates can be thought of as a grounded (Harnad (1990)) internal representation that is then manipulated on a more symbolic level in order to answer questions about the scene.

2 Related Work

Recently, Santoro et al. (2017) highlighted the problem of grounding visual symbols so that relationships between the entities could be determined. However, the Relation Network technique introduced there requires that every potential entity in the visual scene to be ‘related’ to every other entity. Moreover, even blank spaces were treated as entities : No actual grounding is being done.

As also pointed out in Perez et al. (2017) (which established new state-of-the-art results on the CLEVR dataset using repeated applications of affine transformations to focus on parts of the source image), the RN method is quadratic in spatial resolution, which, in part, was a key motivation for the present work.

The approach of Hu et al. (2017) is closer to treating entities symbolically, by creating an environment that includes primitives such as searching, sorting and filtering (i.e. much ‘heavier machinery’ than used here). In Bansal et al. (2017), entities are stored in a collection of memory elements, and relationships are sought amongst them there.

3 Relationships from Entity Streams

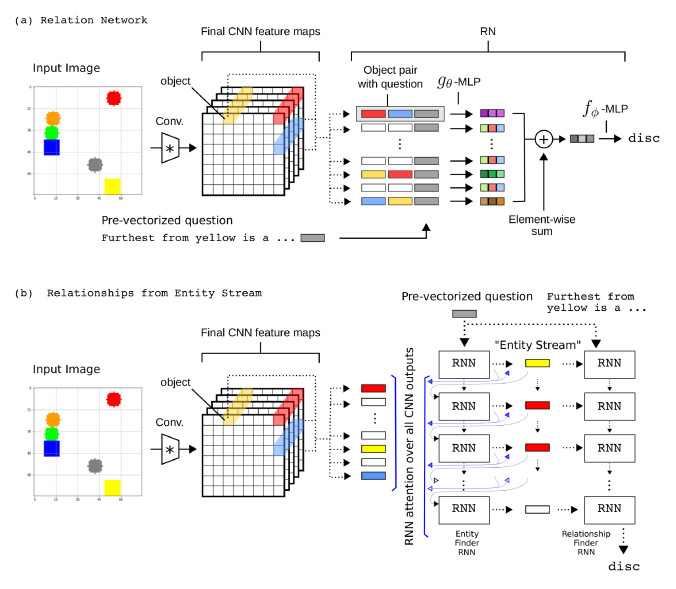

Figure 1: Model architectures. (a) The original Relation Network diagram, updated to show how all patches in the input image are being compared to each other; (b) Relationships from Entity Stream, in which the same preprocessing occurs, but the entities are selected through an attention mechanism by the left-hand column of recurrent units, resulting in an "Entity Stream". The right-hand column of recurrent units then interprets the Entity Stream to answer the question.

3.1 Architecture

In order to evaluate architectures on an equal footing, the image preprocessing layers were the same as in Santoro et al. (2017), where the Sort-of-CLEVR image passes through CNN layers to create a field of patches, each position of which obtains a

dimensional vector as a representation.

This vector field is then split arbitrarily into key and value portions, of length and respectively. Similar to the RN paper, coordinate-related elements are also appended, so that the model can reason about geometry in later stages. As shown in diagram (b) of Figure 1, the data passes through two different RNN columns. Both of these (the ‘entity finder’ EF, and the ‘relationship finder’ RF) consist of two-layer stacked GRUs, and their initial hidden states are fed with the question vector (which is of length

), padded with trainable parameters to the GRU hidden dimension size.

The output hidden state of the EF RNN is used as the query for attention over the patches, as described in Vaswani et al. (2017). The per-patch weights then undergo a operation (with optional hardening, see below) to then weight the patch values. The attention-weighted sequence of values retrieved by the EF RNN is (reasonably) denoted the "Entity Stream". The entity value found at a given timestep is also used as input to the EF RNN on the next timestep, so that it can produce a coherent sequence of values for the Entity Stream.

The Entity Stream is then used as the input sequence for the RF RNN and the model is trained end-to-end given the input image, vectorized questions, and vectorized answers (which are matched using categorical-cross-entropy against the RF RNN’s final hidden state).

3.2 Soft vs Hard attention

The proposed architecture allows for flexibility in construction of the ‘entities’ for the Entity Stream, which are the value portion of the CNN output from the visual scene, and so will typically be a mix of colour, shape and location information.

For the RFS model, the weights derived from the attention mechanism are simply passed through a function, so that it is possible for the Entity Stream to contain ‘entities’ that are averages of the information from several patches in the image. While simple to implement, this behaviour enables the network to ‘cheat’ for counting questions, since it can (for instance) simply attend to all square objects, and measure the variety of the response in order to count in one operation/timestep.

To eliminate this effect, we also propose the RFSH (the Hard attention version of RFS), where the weights from the attention mechanism have Gumbel random variables added to them, and a hard

weight is used, as described in Jang et al. (2016). This causes the Entity Stream to be ‘pure’, without having to train the model using REINFORCE-style learning.

4 Experiments : Sort-of-CLEVR

The experimental set-up used here is the Sort-of-CLEVR data, as first described in Santoro et al. (2017). Examples of the input images, and question/answer pairs are illustrated in Figure 2.

Because the dataset is visually simple, which reduces complexities involved in image processing, and the questions and answers have pre-defined vector representations, the Sort-of-CLEVR dataset is ideal for rapid experimentation, with the training / testing over 50-100 epochs typically taking less than 2 hours on a typical GPU.

The code for the 4 different models (and dataset generation) can be found at

5 Results

A comparison of the final performance of the different methodologies is given in Table 1. While the performance of the 3 purpose-built methods (RN, RFS and RFSH) are basically equivalent, it is the qualitative differences that separate them.

5.1 Attention Maps

As illustrated in Figure 2

, the RFSH model learns to answer relationship questions about shapes in the input image by creating a useful attention model; choosing elements to put into its Entity Stream; and then determining the answer to each question from the Entity Stream itself.

The attention map visualization indicates that the RFSH model has learned something about the structure of the problem. This is qualitatively different approach than the more standard methods of combining images features and a representation of the question to map to an answer vector.

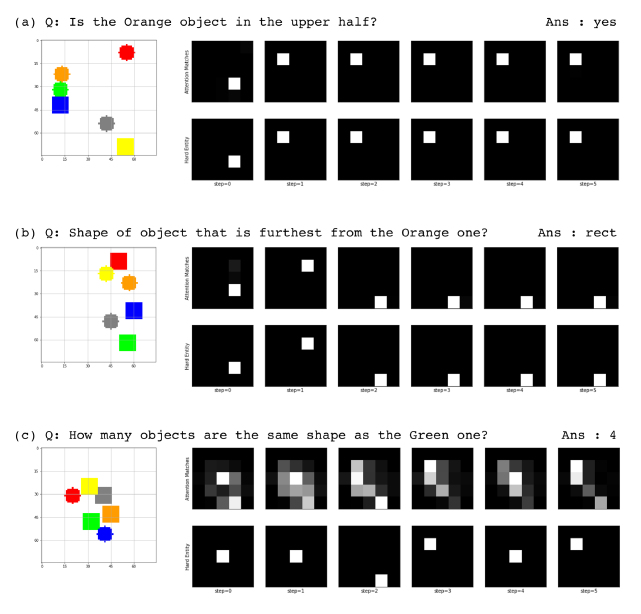

Figure 2: Sample attention maps for RFSH model. For each of the 3 questions, the diagram shows the input image, as well as the attention match heatmap (the degree by which each patch in the image responds to the ‘entity finder’ RNN at each timestep) in the upper row, and the ‘hard entity’ chosen of the Entity Stream in the lower row, For cases (a) and (b), the model has learned to simply match the entities that it needs (so the match heatmap is almost one-hot already). As there is no benefit for getting early results, the model seems to sample the first timestep ‘carelessly’. For case (c), the question involves counting, and the entities are closely spaced, so the model is more clearly conflicted about which to pick.
Model NonRel
fraction correct BiRel
fraction correct hidden_dim Size in bytes
RN 99% 93% - 1,463,513
CNN 98% 63% - 970,874
RFS 99% 95% 32 166,380
RFSH 99% 93% 64 408,364
Table 1: Network performance summary

6 Further Work

It would be interesting to explore whether several Entity Streams could be used compositionally - since that is where the Relationships from Entity Stream approach clearly differentiates itself from methods that are more tied to the structure of the input space.

One other interesting line of enquiry is to use sampling methods like Self-critical Sequence Training Rennie et al. (2016) to learn more difficult cases (where the rewards are both delayed, and non-differentiable).


The authors are proponents of research results being verifiable through the release of working code. Fortunately, the RN paper was quickly followed up with a release of an independent open source implementation by Kim Heecheol, on GitHub : kimhc6028/relational-networks.
