1. Introduction
Combinatorial optimization (Wolsey and Nemhauser, 2014) aims to find the optimal solution with the minimum cost from a finite set of candidates to discrete problems such as the bin packing problem, the traveling salesman problem, or integer programming. Combinatorial optimization has seen broad applicability in fields ranging from telecommunications network design, to task scheduling, to transportation systems planning. As many of these combinatorial optimization problems are NPcomplete, optimal solutions cannot be tractably found (Ausiello et al., 2012).
Heuristic algorithms such as simulated annealing (SA) (Rutenbar, 1989; Aarts and Korst, 1988; Van Laarhoven and Aarts, 1987) are designed to search for the optimal solution by randomly perturbing candidate solutions and accepting those that satisfy some greedy criterion such as MetropolisHastings. Heuristics are widely used in combinatorial optimization problems such as Concorde for the traveling salesman problem, or METIS for graph partitioning (Applegate et al., 2006; Karypis and Kumar, 1999). Some heuristic algorithms like SA are theoretically guaranteed to find the optimal solution to a problem given a low enough temperature and enough perturbations (Ingber, 1993).
However, the framework for heuristic algorithms begins the solution search from a randomly initialized candidate solution. For example, in the bin packing problem, the initial solution fed into SA would be a random assignment of objects to bins, which would then be repeatedly perturbed until convergence. Starting hill climbing from a cold start is timeconsuming and limits the applicability of heuristic algorithms on practical problems.
Reinforcement learning (RL) has been proposed as a technique to yield efficient solutions to combinatorial optimization problems by first learning a policy, and then using it to generate a solution to the problem. RL has seen interesting applications in real world combinatorial optimization problems (Zoph and Le, 2016; Mirhoseini et al., 2017). However, RL lacks the theoretical guarantees of algorithms like SA, which use a hillclimbing approach and are less susceptible to problems like policy collapse. By setting the greedy criterion to only accept better solutions, SA can achieve monotonically better performance, whereas RL cannot.
Thus, it is best to generate an initial solution using RL and continuously improve this solution using heuristic algorithms like SA. Furthermore, it is advantageous for RL to learn how to provide an optimal initialization to SA to maximize the performance of both techniques in tandem.
In this paper, we address these two points by introducing the Reinforcement Learning Driven Heuristic Optimization Framework (RLHO), shown in Figure 1. There are two components in this framework: the RL agent and the heuristic optimizer (HO). The RL agent generates solutions that act as initialization for HO, and HO searches for better solutions starting from the solution generated by RL. After HO finishes executing (upon convergence or after a set number of search steps), it returns the found solution and the reward to the RL agent. Our learning process is an alternating loop of (1) generating initial solutions with RL and then (2) searching for better solutions with HO. To the RL agent, HO is part of the environment.
We apply RLHO to the bin packing problem where the RL agent is modeled using Proximal Policy Optimization (PPO) (Schulman et al., 2017) and HO is simulated annealing (SA). We demonstrate that not only does combining PPO and SA yield superior performance to PPO alone, but also that PPO is actually able to learn to generate better initialization for SA. By observing the end performance of SA on a problem, PPO can generate inputs to SA that improve the performance of SA itself.
In summary, our contributions in this paper are as follows:

We demonstrate a novel approach to combinatorial optimization where reinforcement learning and heuristic algorithms are combined to yield superior results to reinforcement learning alone on a combinatorial optimization problem.

We demonstrate that we can train reinforcement learning to enable heuristic algorithms to achieve superior performance than when they are decoupled on a combinatorial optimization problem.
1.1. Related Work
Reinforcement learning and evolutionary algorithms achieve competitive performance on MuJoCo tasks and Atari games
(Salimans et al., 2017). The idea of applying evolutionary algorithms to reinforcement learning (Moriarty et al., 1999) has been widely studied. (Khadka and Tumer, 2018) proposes a framework to apply evolutionary strategies to selectively mutate a population of reinforcement learning policies. (Maheswaranathan et al., 2018; Pourchot and Sigaud, 2018) use a gradient method to enhance evolution.Our work is different from the above as we apply deep reinforcement learning to generate better initializations for heuristic algorithms. The heuristic part in the RLHO framework only changes the solution, rather than the parameters of the policy. To our knowledge, our work is the first that does this.
2. Combining PPO and SA
2.1. Preliminary Discussion
What is the best way to combine an RL agent and a heuristic algorithm? A first approach is to allow an RL agent to generate an initial solution to a combinatorial optimization problem, then execute a heuristic algorithm to refine this initial solution until convergence, and then train the RL policy with the rewards obtained from the performance of the heuristic algorithm. This would delineate one episode. However, on large problems, heuristics take a long time to converge. Thus, in our approach, we allow the heuristic algorithm to run for a only limited number of steps in one episode.
We now introduce the RLHO algorithm.
2.2. The RLHO Algorithm
Our approach is a twostage process as detailed in Algorithm 1: at the start of each episode, first run RL for steps to generate an initial solution . Then, run pure HO for steps starting from . Finally we update RL with the cost of the final solution. We repeat this process with a fresh start every time.
Our action space is designed as perturbing the currently available solution. In our bin packing problem discussed in more detail in Section 3, the agent is first presented with a randomly initialized assignment of items to bins. The environment around the bin packing problem will then present the agent with an item . The agent then needs to decide which other item to swap locations with item based on the current state.
For the design of the reward function, we define the intermediate reward as the difference between the cost of the previous solution and the cost of the current solution, as the goal is to minimize cost.
When the agent’s action space consists of perturbations, the MDP for the combinatorial optimization problem results in an infinite horizon. We are not privileged with that would normally denote the terminal state of the MDP. The agent is free to continue perturbing the state forever, and thus, is undefined. However, our agents are trained with a finite number of steps , so
would normally need to be estimated with a baseline such as a value function. The value function is a poor estimator because it does not accurately estimate the additional expected performance of the agent in the limit of time, because we simply don’t possess such data.
To address this, a novelty in our approach is to obtain a better estimate for using the performance of HO. The additional optimization provided by HO gives us an additional training signal to RL as to how RL actions contribute to the future return provided by HO. Therefore, RL can be trained by two signals in RLHO: (1) the intermediate reward at each RL step, and (2) the discounted future reward provided by HO conditioned on the initialization provided by RL. This approach provides RL with a training signal to generate better initialization for HO.
(1)
As shown in Equation (1), we can replace the infinite horizon term with a stationary, tractable value . We obtain by running pure HO for y steps starting from , and then taking the difference between the cost of and the cost of the final solution as an estimate for the value of .
3. Performance Evaluation
We validate our methods on the bin packing problem. In this section we first introduce the bin packing problem, and then discuss the performance gain obtained when combining the RL part (PPO) and the heuristic optimizer (SA) in our RLHO framework. The details of SA are shown in Algorithm 2.
3.1. The Bin Packing Problem
Bin packing is a classical combinatorial optimization problem where the objective is to use the minimum number of bins to pack items of different sizes, with the constraint that the sum of sizes of items in one bin is bounded by the size of the bin. Let denote the number of bins and the number of items, and
denote the vector representing the of sizes of all items. Let
be the 0/1 matrix that represents one assignment of items to bins (a packing), i.e., means the item is put in the bin . Given a packing , let denote the cost, the number of bins used in this solution, i.e., .3.2. Learning to Generate Better Initializations
We evaluate the ability of RLHO to generate better initializations for heuristic algorithms. In this set of experiments, during training, we allow RLHO to generate an initialization using RL for timesteps, and then run HO using timesteps. After training episodes, we take the initialization generated by the RL step of RLHO and use it to initialize a HO that will run until convergence.
Table 1 and Table 2 count the average number of used bins of the best solution during training with and respectively, over 5 independent trials. We also report results where random perturbations (Random) are used instead of RL to generate the initial solutions as a baseline. We collect results for 10000 iterations of running RLHO and Random until convergence.
Our results show that RLHO does learn better initializations for HO than Random, and the performance gap increases with larger problem sizes. The training signal provided by the HO performance used to augment the value function indeed does help RLHO allow heuristic algorithms to perform better. Most interestingly, when the RL part of RLHO is trained using signal from SA that is run for 5000 steps, the initialization it generates is still effective for SA that runs until convergence, e.g. millions of timesteps.
RLHO  Random, then HO

100  59  69
200  128.4  141
500  347  361
1000  714  734
RLHO  Random, then HO

100  59  69
200  127  141
500  344.4  359
1000  711  731
3.3. Having RL and HO Work Together
Now we extend our experimental evaluation to answer the following question: can HO help RL train better? Can running HO after an RL training step help RL explore better states?
We adjust RLHO to perform alternating optimization on a combinatorial optimization problem. RL will generate a solution, which will then be optimized by HO. RL will then be trained with additional signal from HO. The same solution will then be passed back to RL for continuous optimization. This differs from our previous approach because we do not reset the solution on each episode. The greedy nature of HO will perform hill climbing, allowing RL to see more optimal states throughout training.
RL  RLHO

50  22  22
100  50  50
200  102  101
500  283  266
1000  613  601
RL  RLHO

50  22  22
100  50  50
200  102  101
500  283  265
1000  613  572
We run the two algorithms sidebyside to evaluate our approach. Table 3 and Table 4 show the average number of used bins of the best solution (over 5 independent runs) searched by both algorithms during training. For RL, we simply keep running PPO without any SA. In RLHO, PPO learns from SA. We choose to set , and the initial temperature of SA to be . We compare the performance of two algorithms in terms of the number of steps the RL policy performs, with the hyperparameters of the RL part of both approaches kept constant. We also evaluate our approaches on different sizes of the bin packing problem. We report the results until 2000 iterations run for the alternating optimization.

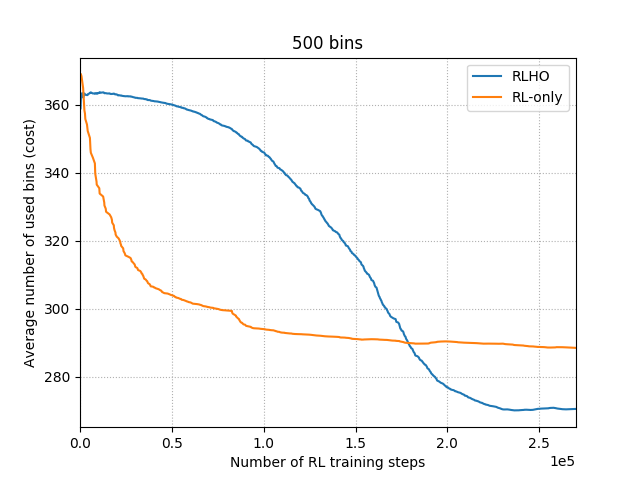

The convergence curves of all approaches are shown in Figure 2. We conclude that the pure RL algorithm is more sample efficient but performs worse as the RL algorithm has no additional outlet for exploration. RLHO achieves better performance because it adopts the HO to perform better exploration.
4. Conclusion
In this paper, we propose a novel Reinforcement Learning Driven Heuristic Optimization framework that applies reinforcement learning to learn better initialization for heuristic optimization algorithms. We present the RLHO learning algorithm which builds upon Proximal Policy Optimization and Simulated Annealing. Experimental results on the bin packing problem show that the RLHO learning algorithm does indeed learn better initialization for heuristic optimization, outperforming pure reinforcement learning algorithms. Our approach can be applied towards combinatorial optimization problems that have real world applications.
We hope to further evaluate our methodology on a broad range of other combinatorial optimization problems such as TSP, graph partitioning, and integer programming, with other heuristic algorithms such as evolutionary strategies to demonstrate the power of our approach. We also plan on providing a better and theoretically motivated estimator of heuristic performance to the reinforcement learning agent.
References
 (1)

Aarts and Korst (1988)
Emile Aarts and Jan
Korst. 1988.
Simulated annealing and Boltzmann machines.
(1988).  Applegate et al. (2006) David Applegate, Ribert Bixby, Vasek Chvatal, and William Cook. 2006. Concorde TSP Solver. (2006).
 Ausiello et al. (2012) Giorgio Ausiello, Pierluigi Crescenzi, Giorgio Gambosi, Viggo Kann, Alberto MarchettiSpaccamela, and Marco Protasi. 2012. Complexity and approximation: Combinatorial optimization problems and their approximability properties. Springer Science & Business Media.
 Ingber (1993) L. Ingber. 1993. Simulated Annealing: Practice Versus Theory. Math. Comput. Model. 18, 11 (Dec. 1993), 29–57. https://doi.org/10.1016/08957177(93)90204C
 Karypis and Kumar (1999) George Karypis and Vipin Kumar. 1999. A fast and high quality multilevel scheme for partitioning irregular graphs. SIAM Journal on Scientific Computing 20, 1 (1999), 359–392.
 Khadka and Tumer (2018) Shauharda Khadka and Kagan Tumer. 2018. EvolutionGuided Policy Gradient in Reinforcement Learning. In Advances in Neural Information Processing Systems. 1188–1200.
 Maheswaranathan et al. (2018) Niru Maheswaranathan, Luke Metz, George Tucker, and Jascha SohlDickstein. 2018. Guided evolutionary strategies: escaping the curse of dimensionality in random search. arXiv preprint arXiv:1806.10230 (2018).
 Mirhoseini et al. (2017) Azalia Mirhoseini, Hieu Pham, Quoc V. Le, Benoit Steiner, Rasmus Larsen, Yuefeng Zhou, Naveen Kumar, Mohammad Norouzi, Samy Bengio, and Jeff Dean. 2017. Device Placement Optimization with Reinforcement Learning. CoRR abs/1706.04972 (2017). arXiv:1706.04972 http://arxiv.org/abs/1706.04972

Moriarty
et al. (1999)
David E Moriarty, Alan C
Schultz, and John J Grefenstette.
1999.
Evolutionary algorithms for reinforcement
learning.
Journal of Artificial Intelligence Research
11 (1999), 241–276.  Pourchot and Sigaud (2018) Aloïs Pourchot and Olivier Sigaud. 2018. CEMRL: Combining evolutionary and gradientbased methods for policy search. arXiv preprint arXiv:1810.01222 (2018).
 Rutenbar (1989) Rob A Rutenbar. 1989. Simulated annealing algorithms: An overview. IEEE Circuits and Devices magazine 5, 1 (1989), 19–26.
 Salimans et al. (2017) Tim Salimans, Jonathan Ho, Xi Chen, Szymon Sidor, and Ilya Sutskever. 2017. Evolution strategies as a scalable alternative to reinforcement learning. arXiv preprint arXiv:1703.03864 (2017).
 Schulman et al. (2017) John Schulman, Filip Wolski, Prafulla Dhariwal, Alec Radford, and Oleg Klimov. 2017. Proximal policy optimization algorithms. arXiv preprint arXiv:1707.06347 (2017).
 Van Laarhoven and Aarts (1987) Peter JM Van Laarhoven and Emile HL Aarts. 1987. Simulated annealing. In Simulated annealing: Theory and applications. Springer, 7–15.
 Wolsey and Nemhauser (2014) Laurence A Wolsey and George L Nemhauser. 2014. Integer and combinatorial optimization. John Wiley & Sons.
 Zoph and Le (2016) Barret Zoph and Quoc V. Le. 2016. Neural Architecture Search with Reinforcement Learning. CoRR abs/1611.01578 (2016). arXiv:1611.01578 http://arxiv.org/abs/1611.01578
