1 Introduction

Semantic segmentation is a fundamental problem in computer vision, and its goal is to assign semantic labels to every pixel in an image. Recently, much progress has been made with powerful convolutional neural networks (

e.g., VGGNet 2014_VGGNet , ResNet 2016_ResNet , Xception 2017_Xception ) and fancy segmentation models (e.g., FCN 2015_CVPR_FCN , PSPNet 2017_CVPR_PSPNet , SDN 2017_SDN , DeepLab chenDeepLabv2 ; chenDeepLabv3 ; chenDeepLabv3plus , ExFuse 2018_ExFuse , EncNet 2018_CVPR_EncNet ). These segmentation approaches treat semantic segmentation as a pixel-wise classification problem and solve it by minimizing the average pixel-wise classification loss over the image. The most commonly used pixel-wise loss for semantic segmentation is the softmax cross entropy loss:

(1)

where is the ground truth label,

is the estimated probability,

denotes the number of pixels, and represents the number of object classes. Minimizing the cross entropy between and is equivalent to minimizing their relative entropy, i.e., Kullback-Leibler (KL) divergence 2016_deeplearning .

As Eq. (1) shows, the softmax cross entropy loss is calculated pixel by pixel. It ignores the relationship between pixels. However, there are strong dependencies existed among pixels in an image and these dependencies carry important information about the structure of the objects 2004_SSIM . Consequently, models trained with a pixel-wise loss may struggle to identify the pixel when its visual evidence is weak or when it belongs to objects with small spatial structures 2018_ECCV_AAF , and the performance of the model may be limited.

Several ways to model the relationship between pixels have been investigated, e.g., Conditional Random Field (CRF) based methods chenDeepLabv2 ; 2011_Efficient_CRF ; 2017_CVPR_Shen ; 2018_Ziwei ; 2015_ICCV_Zheng and pixel affinity based methods 2018_ECCV_AAF ; 2017_NIPS_Liu ; 2016_CVPR_Affinity_CNN . Nevertheless, CRF usually has time-consuming iterative inference routines and is sensitive to visual appearance changes 2018_ECCV_AAF

, while pixel affinity based methods require extra model branches to extract the pixel affinity from images or additional memories to hold the large pixel affinity matrix. Due to these factors, the top-performing models

2017_SDN ; 2017_CVPR_PSPNet ; chenDeepLabv3 ; chenDeepLabv3plus ; 2018_ExFuse ; 2018_CVPR_EncNet do not adopt these methods.

In this paper, we develop a region mutual information (RMI) loss for semantic segmentation to model the relationship between pixels more simply and efficiently. Our work is inspired by the region mutual information for medical image registration 2004_ECCV_RMI . The idea of RMI is intuitive, as shown in Fig. 1, given a pixel, if we use this pixel and its 8-neighbours to represent this pixel, we get a 9-dimensional (9-D) point. For an image, we can get many 9-D points, and the image is cast into a multi-dimensional (multivariate) distribution of these 9-D points. Each 9-D point also represents a small 33 region, and the relationship between pixels is encoded in these 9-D points.

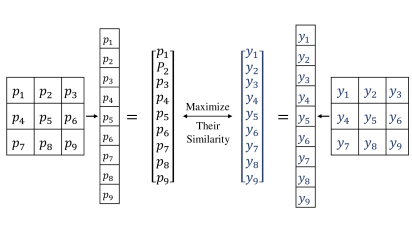

Figure 1: An image region and its corresponding multi-dimensional point. Following the same strategy, an image can be cast into a multi-dimensional distribution of many high dimensional points, which encode the relationship between pixels.

After we get the two multi-dimensional distributions of the ground truth and the prediction given by the segmentation model, our purpose is to maximize their similarity. The mutual information (MI) is a natural information-theoretic measure of the independence of random variables

2000_ICA . It is also widely used as a similarity measure in the field of medical image registration 1994_IJCV_Viola ; 1997_MI_Maes ; 2003_MI_Pluim ; 2004_ECCV_RMI ; 2016_survey_ir . Thus the prediction and ground truth can achieve higher order consistency through maximizing the MI between their multi-dimensional distributions than only using a pixel-wise loss. However, the pixels in an image are dependent, which makes the multi-dimensional distribution of the image hard to analysis. This means calculating the actual value of the MI between such two undetermined distributions becomes infeasible. So we derive a lower bound of the MI, then we can maximize this lower bound to maximize the real value of the MI between two distributions.

We adopt a downsampling strategy before constructing the multi-dimensional distributions of the prediction and ground truth. The goal is to reduce memory consumption, thus RMI only requires a few additional computational resources during training. In this way, it can be effortlessly incorporated into any existing segmentation frameworks without any changes to the base model. RMI also has no extra inference steps during testing.

Experimental results demonstrate that the RMI loss can achieve substantial and consistent improvements in performance on PASCAL VOC 2012 2010_PASCAL and CamVid 2008_camvid datasets. We also empirically compare our method with some existing pixel relationship modeling techniques 2011_Efficient_CRF ; 2018_Lin_ECCV on these two datasets, where RMI outperforms the others.

2 Entropy and mutual information

Let

be a discrete random variable with alphabet

, its probability mass function (PMF) is . For convenience, we denote and refer to two different random variables, and they are actually two different PMFs, and respectively. The entropy of is defined as 2006_info :

(2)

The entropy is a measure of the uncertainty of a random variable 2006_info . Then the joint entropy and conditional entropy of a pair of discrete random variables

with a joint distribution

and a conditional distribution are defined as:

(3)
(4)

Indeed, the entropy of a pair of random variables is the entropy of one plus the conditional entropy of the other 2006_info :

(5)

We now introduce mutual information, which is a measure of the amount of information that and contain about each other 2006_info . It is defined as:

(6)

The equation (6) suggests that is a very natural measure for dependence 2000_ICA . It can also be considered as the reduction in the uncertainty of due to the knowledge of , and vice versa:

(7)

Similar definitions of continuous random variables can be found in

(2006_info, , Chap.8).

3 Methodology

As shown in Fig. 1, we can get two multivariate random variables, and , where is the predicted probability, denotes the ground truth, is in , and is 0 or 1. If the square region size in Fig. 1 is , then

. The probability density functions (PDF) of

and are and respectively, their joint PDF is . The distribution of can also be considered as the joint distribution of , and it means = . The mutual information is defined as 2006_info :

(8)

where and are the support sets of and respectively. Our purpose is to maximize to achieve high order consistency between and .

To get the mutual information, one straightforward way is to find out the above PDFs. However, the random variables are dependent as pixels in an image are dependent. This makes their joint density function hard to analyze. In 2004_ECCV_RMI , Russakoff et al.demonstrated that, for grayscale images, and

are normally distributed when

is large enough, and it is well supported by the -dependence variable concept proposed by Hoeffding et al1948_Hoeffding . Nevertheless, in our situation, we find that when and are normally distributed, the side length becomes very large, e.g., . Then the dimensions is larger than 900, and memory consumption becomes extremely large. Thus the implementation of this method is unrealistic. Due to these factors, we derive a lower bound of and maxmize the lower bound to maximize the actual value of .

3.1 A lower bound of mutual information

From Eq. (7), we have . At the same time, we know that a normal distribution maximizes the entropy over all distributions with the same covariace (2006_info, , Theorem 8.6.5). And the entropy of a normal distribution with a covariance matrix is , where is the determinant of the matrix. We can thus get a lower bound of the mutual information :

(9)

where is the posterior covariance matrix of , given . It is a symmetric positive semidefinite matrix. This lower bound is also discussed in 2010_lower_bound . Following the commonly used cross entropy loss (Eq. (1)), we ignore the constant terms which are not related to the parameters in the model. Then we get a simplified lower bound to maximize:

(10)

3.2 An approximation of posterior variance

At this point, the key problem turns out to find out the posterior covariance matrix . However, we cannot get the exact because we do not know PDFs of and or their dependence. Fortunately, Triantafyllopoulos et al2008_posterior_variance

have already given an approximation of the posterior variance under a certain assumption in Bayesian inference.

Suppose we need to estimate , given .

is the mean vector of

(also ), is the variance matrix of (also ), and is the covariance matrix of and . Triantafyllopoulos et al2008_posterior_variance denote the notation to indicate that and are second order independent, i.e., and , for any value of . The second order independence is a weaker constraint than strict mutual independence. Furthermore, the regression matrix of on is introduced, which is well known as . It is easy to find that and are uncorrelated by calculating their linear correlation coefficient. To obtain the approxiamation of the posterior covariance matrix , Triantafyllopoulos et al2008_posterior_variance assume that

(11)

This assumption means that does not depend on the value of . Following the property of covariance matrix and the definition of the second order independence, we can get:

(12)
Theorem 3.1.

Consider random vectors and as above. Under quadratic loss, is the Bayes linear estimator if and only if .

The assumption Eq. (11) is supported by theorem 3.1 (2008_posterior_variance, , Theorem 1). The theorem suggests that if one accepts the assumptions of Bayes linear optimality, the assumption (11) must be employed. Under the assumption  (11), we can get the linear minimum mean squared error (MMSE) estimator. This also demonstrates that the difference between the approximation of posterior variance (Eq. (12)) and the real posterior variance is restricted in a certain range. Otherwise, cannot be the linear MMSE estimator. Theoretic proof of theorem 3.1 and some examples are given in 2008_posterior_variance . Now, we can get an approximation of Eq. (10):

(13)

For brevity, we set , where and it is a positive semidefinite matrix cause it is a covariance matrix of .

4 Implementation details

In this section, we will discuss some devil details about implementing RMI in practice.

Downsampling

As shown in Fig. 1, we choose pixels in a square region of size to construct a multi-dimensional distribution. If

, this leads to 9 times memory consumption. For a float tensor with shape

, its original memory usage is about 0.33GB, and this usage turns to be about 9 0.33 2.97GB with RMI. This also means more floating-point operations. We cannot afford such a large computational resource cost, so we downsample the ground truth and predicted probability to save resources with little sacrifice of the performance.

Normalization

From the Eq. (13), we can get , where

is the eigenvalues of

. It is easy to see that the magnitude of the is very likely related to the number of eigenvalues of . To normalize the value of , we divide it by :

(14)
Underflow issue

The magnitude of the probabilities given by softmax or sigmoid operations may be very small. Meanwhile, the number of points may be very large, e.g., there are about 263 000 points in a label map with size . Therefore, when we use the formula to calculate the covariance matrix, some entries in the matrix will have extremely small values, and we may encounter underflow issues when calculating the determinant of the covariance matrix in Eq. (14). So we rewrite the Eq. (14) as (2012_matrix, , Page59):

(15)

where is the trace of a matrix. Furthermore, is a symmetric positive semidefinite matrix. In practice, we add a small positve constant to the diagnoal entries of , then we get , where to be in practice. This has little effect on the optima of the system, but we can accelerate the computation of Eq. (15) by performing Cholesky decomposition of , as

a symmetric positive definite matrix now. This is already supported by PyTorch

2017_PyTorch

and Tensorflow

2016_tensorflow . Moreover, double-precision floating-point numbers are used to ensure computational accuracy when calculating the value of RMI. It is also worth noting that is concave when is positive definite 2004_Boyd , which makes RMI easy to optimize.

Overall objective function

The overall objective function used for training the model is:

(16)

where is a weight factor, is the normal cross entropy loss between and , denotes the number of images in a mini-batch, and the maximization of RMI is cast as a minimization problem. The role of the normal cross entropy loss is a measure of the similarity between the pixel intensity of two images, and RMI can be considered as a measure of the structural similarity between two images. Following the structural similarity (SSIM) index 2004_SSIM , the importance of pixel similarity and structural similarity is considered equally, so we simply set .

We adopt the sigmoid operation rather than softmax operation to get predicted probabilities. This is because RMI is calculated channel-wise, we do not want to introduce interference between channels. Experimental results demonstrate the performance of models trained with softmax and sigmoid cross entropy losses is roughly the same.

5 Experiments

5.1 Experimental setup

Base model. We choose the DeepLabv3 chenDeepLabv3 and DeepLabv3+ chenDeepLabv3plus as our base models. DeepLabv3+ model adds a decoder module to DeepLabv3 model to refine the segmentation results. The backbone network is ResNet-101 2016_ResNet , and the fisrt one 77 convolutional layer is replaced with three 33 convolutional layers chenDeepLabv3 ; chenDeepLabv3plus ; 2018_bags_of_tricks . The backbone network is only

pretrained on ImageNet

ImageNet 111https://github.com/zhanghang1989/PyTorch-Encoding/blob/master/encoding/models/model_zoo.py.

Datasets. We evaluate our method on two dataset, PASCAL VOC 2012 2010_PASCAL and CamVid 2008_camvid datasets. PASCAL VOC 2012 dataset contains 1 464 (train), 1 449 (val), and 1 456 (test) images. It contains 20 foreground object classes and one background class. CamVid dataset is a street scene dataset, which contains 367 for training, 101 for validation, and 233 for testing. We use the resized version of CamVid dataset provided by SegNet 2017_SegNet . It contains 11 object classes and an unlabelled class, and the image size is 480360.

Learning rate and training steps. The warm up learning rate strategy introduced in 2018_bags_of_tricks and the poly learning rate policy are adopted. If the initial learning rate is and the current iteration step is , for the first slow_iters steps, the learning rate is , and for the rest of the steps, the learning rate is with . Here max_iter is the maximum training steps. For PASCAL VOC 2012 dataset, the model is trained on the trainaug 2011_PASCALAUG set which contains 10 582 images, max_iter is about , , and . For CamVid dataset, we train the model on the train and validation sets, max_iter is about , , and .

Crop size and output stride.

During training, the batch size is always 16. The crop size is 513 and 479 for PASCAL VOC 2012 and CamVid datasets respectively. The output stride, which is the ratio of input image spatial resolution to final output resolution, is always

16

during training and inference. When calculating the loss, we upscale the logits (output of the model before softmax or sigmoid operations) back to the input image resolution rather than downsampling it

chenDeepLabv3 .

Data augmentation. We apply data augmentation by randomly scaling the input images and randomly left-right flipping during training. The random scale is in on PASCAL VOC 2012 dataset and on CamVid dataset. Then we standardly normalized the data so that they will have zero mean and one variance.

Inference strategy and evaluation metric. During inference, we use the original image as the input of the model, and no special inference strategy

is applied. The evaluation metric is the mean intersection-over-union (mIoU) score. The rest settings are the same as DeepLabv3+

chenDeepLabv3plus .

5.2 Methods of comparison

We compare RMI with CRF 2011_Efficient_CRF and the affinity field loss 2018_ECCV_AAF experimentally. Both two methods also try to model the relationship between pixels in an image to get better segmentation results.

CRF. CRF 2011_Efficient_CRF tries to model the relationship between pixels and enforce the predictions of pixels which have similar visual appearances to be more consistent. Following DeepLabv2 chenDeepLabv2 , we use it as a post-processing step. The negative logarithm of the predicted probability is used as unary potential. We reproduce the CRF according to its offical code222http://www.philkr.net/2011/12/01/nips/ and python wrapper333https://github.com/lucasb-eyer/pydensecrf. Some important parameters , , and in (2011_Efficient_CRF, , Eq.(3)) are set to be 30, 13, and 3 respectively as recommended. Other settings are the default. As CRF has time-consuming inference steps, it is unacceptable in some situations, e.g., a real-time application scenario.

Affinity field loss. The affinity field loss 2018_ECCV_AAF exploits the relationship between pairs of pixels. For paired neighbour pixels which belong to the same class, the loss imposes a grouping force on the pixel pairs to make their predictions more consistent. As for the paired neighbour pixels which belong to different classes, affinity field loss imposes a separating force on them to make their predictions more inconsistent. The affinity field loss adopts an 8-neighbour strategy, so it requires a large memory to hold ground truth label and predicted probabilities when calculating its value. To overcome this problem, Ke et al2018_ECCV_AAF downsample the label when calculating the loss. However, this may hurt the performance of the model chenDeepLabv3 . We reproduce the loss according to its official implementation444https://github.com/twke18/Adaptive_Affinity_Fields. When choosing the neighbour pixels in a square region, we set the region size to be as suggested.

Method Inf. Time mIoU (%)
DeepLabv3 CE chenDeepLabv3 unknown 77.21
CE 0.12 s 77.14
BCE 0.12 s 77.09
CE & CRF-1 0.39 s 78.32
CE & CRF-5 0.71 s 78.40
CE & CRF-10 1.11 s 78.28
Affinty 0.12 s 76.24
RMI 0.12 s 78.71
(a) ResNet101-DeepLabv3
Method mIoU (%)
DeepLabv3+ CE chenDeepLabv3plus 78.85
CE 78.17
BCE 77.41
CE & CRF-1 78.90
CE & CRF-5 78.75
CE & CRF-10 78.60
Affinty 77.09
RMI 79.66
(b) ResNet101-DeepLabv3+
Table 1: Evaluation of RMI on PASCAL VOC 2012 val set. The CE and BCE are softmax and sigmoid cross entropy loss respectively. The data of method CE is the experimental data with similar settings (output stride = 16, only ImageNet pretraining, and no special inference strategies) to ours reported in chenDeepLabv3 ; chenDeepLabv3plus . CRF-X means that we do inference with X iteration steps when employing CRF. The Inf. Time is the average inference time per image during testing. As CRF is used as a post-processing step, the additional time with various base models is the same. Here we apply RMI after downsampling the prediction and ground truth through average pooling, whose kernel size is and stride is 4. The square region size is , which means the dimension of the multi-dimensional points is .
Method backg. aero. bike bird boat bottle bus car cat chair cow d.table dog horse mbike person p.plant sheep sofa train tv mIoU (%)
DeepLabv3 CE 94.10 79.58 41.16 84.67 67.68 75.09 87.69 87.40 92.07 39.66 83.39 69.68 86.67 87.10 86.92 84.39 65.69 86.66 57.39 75.28 75.94 76.58
CRF-5 94.60 84.28 41.83 88.00 68.81 76.56 87.69 87.90 93.79 40.35 84.92 70.26 88.84 89.22 87.39 85.73 67.45 87.95 58.80 75.31 77.38 77.96
RMI 94.57 84.77 41.67 89.99 69.11 77.86 90.02 90.17 93.14 42.97 85.70 64.74 87.45 86.63 88.25 87.04 68.78 90.42 59.13 79.67 78.05 78.58
DeepLabv3+ CE 94.37 90.03 42.40 82.07 70.46 75.77 93.36 88.07 90.70 36.50 86.50 67.17 86.04 90.18 87.23 85.02 68.36 88.46 57.34 84.13 78.62 78.23
CRF-1 94.57 92.13 42.48 83.25 71.07 76.61 93.47 87.96 91.45 36.82 87.04 67.21 87.28 90.87 87.63 85.86 69.22 89.23 58.04 84.43 79.46 78.86
RMI 94.97 91.57 42.93 93.72 74.84 76.23 93.68 89.09 93.59 41.99 87.63 68.79 88.23 91.33 87.12 88.62 70.24 92.00 57.77 82.53 76.60 80.16
Table 2: Per-class results on PASCAL VOC 2012 test set.

5.3 Results on PASCAL VOC 2012 dataset

5.3.1 Effectiveness of RMI

RMI is first evaluated on PASCAL VOC 2012 val set to demonstrated its effectiveness. The results on val set are shown in Tab. 1, With DeepLabv3 and DeepLabv3+ as base models, the RMI can improve the mIoU score by 1.57% and 1.49% on the val set respectively. From Tab. 1, we can also see that the reproduced models with RMI outperform the official models with similar settings to ours, and the DeepLabv3 model with RMI can catch the performance of the DeepLabv3+ model without RMI. RMI can also achieve consistent improvements with different models, while the improvements of CRF decrease when the base model is more powerful.

In Tab. 1, RMI outperforms the CRF and affinity field loss, while it has no extra inference steps. Since we downsample the ground truth and probability before we construct the multi-dimensional distributions, RMI only requires a few additional memory. Roughly saying, if we use double-precision floating-point numbers, it needs times memory than the original memory usage. For a ground truth map with shape , theoretically, the additional memory is only about 0.37GB. This is less than the memory that affinity field loss consumed.

We evaluate some models in Tab. 1 on PASCAL VOC 2012 test set and the per-class results are shown in Tab. 2. With DeepLabv3 and DeepLabv3+, the improvements are 2.00% and 1.93% respectively. Models trained with RMI show better generalization ability on test set than on val set.

Some selected qualitative results on val set are shown in Fig. 2. Segmentation results of DeepLabv3+&RMI have more accurate boundaries and richer details than results of DeepLabv3+&CE. This demonstrates that RMI can definitely capture the relationship between pixels in an image. Thus predictions of the model with RMI have better visual qualities.

5.3.2 Ablation study

In this section, we study the influence of downsampling manner, downsampling factor (, the image size after downsampling is the original image size divided by ), and square region size () on PASCAL VOC 2012 val set. The results are shown in Tab. 3.

In Tab. 3(a)

, RMI with average pooling gets the best performance, this may because the average pooling reserves most information after downsampling. Max pooling and nearest interpolation both abandon some points in an image during downsampling. When

increase, the performance of RMI with the same region size is likely to be hurt due to the lack of image details. The larger the , the smaller the downsampled image size, and the more image details are lost. However, semantic segmentation is a fine-grained classification task, so a large is not a good choice.

In Tab. 3(b), we show the influence of the square region size , which is also the dimension of the point in the multi-dimension distribution. Here RMI with a large and a small is more likely to get better performance. The smaller the downsampling factor and the larger the side length , the greater the computational resource consumption. The table 3(b) also shows that RMI with gets better result than RMI with . This further demonstrates that RMI benefits from the relationship between pixels in an image.

There is a trade-off between the performance of RMI and its cost, i.e., GPU memory and floating-point operations. The performance of RMI can be further improved when computational resources are sufficient, e.g., DeepLabv3 with RMI (, ) in Tab. 3(a) achieve 79.23% on PASCAL VOC 2012 val set, which outperforms the 78.85% of improved DeepLabv3+ model reported in chenDeepLabv3plus with simlilar experimental settings. Limited by our GPU memory, we did not test RMI without downsampling.

Method mIoU (%)
DeepLabv3 RMI - Int. 4 3 77.58
RMI - Max. 4 3 78.62
RMI - Avg. 4 3 78.71
RMI - Avg. 2 3 79.23
RMI - Avg. 3 3 79.01
RMI - Avg. 4 3 78.71
RMI - Avg. 5 3 78.50
RMI - Avg. 6 3 78.28
(a) Downsampling manner and factor
Method mIoU (%)
DeepLabv3 RMI - Avg. 4 1 78.25
RMI - Avg. 4 2 78.52
RMI - Avg. 4 3 78.71
RMI - Avg. 4 4 78.65
RMI - Avg. 6 2 78.06
RMI - Avg. 6 3 78.28
RMI - Avg. 6 4 78.33
RMI - Avg. 6 5 78.26
(b) Square region size
Table 3: Influence of different components in RMI. The table 3(a) shows the effect of the downsampling manner and factor. Avg. is average pooling, Max. is max pooling, and Int. is interpolation. Here we use nearest interpolation for ground truth label and bilinear interpolation for predicted probabilities. The table 3(b) shows impact of the square region size .

5.4 Results on CamVid dataset

In this section, we evaluate RMI on CamVid dataset to further demonstrate its general applicability. The results are shown in Tab. 4. With DeepLabv3 and DeepLabv3+ as base models, RMI can improve the mIoU score by 2.61% and 2.24% on CamVid test set respectively.

From the Tab. 4, we can see that affinity field loss works better on CamVid dataset than on PASCAL VOC 2012 dataset, while CRF behaves oppositely. This suggests that these two methods may not be widely applicable enough. On the contrary, RMI achieves substantial improvement on CamVid dataset as well as PASCAL VOC 2012 dataset. This verifies the broad applicability of the RMI loss.

Method sky building pole road pavement tree sign symbol fence car pedestrian bicyclist mIoU (%)
DeepLabv3 CE 88.06 79.03 10.12 91.32 73.21 72.65 41.04 39.52 79.35 42.43 54.51 58.50
CE & CRF 90.64 80.48 4.70 91.49 73.64 74.35 39.93 41.98 80.45 40.50 54.20 58.59
Affinity 88.23 78.85 11.54 92.77 76.50 71.96 45.41 39.27 82.65 43.26 54.14 59.60
RMI 89.29 79.89 11.64 92.04 75.62 73.39 48.02 43.25 82.01 46.74 59.67 61.11
DeepLabv3+ CE 90.86 80.28 27.62 93.60 78.57 74.35 44.51 38.86 84.35 51.80 57.09 62.82
CE & CRF 91.88 80.92 15.98 93.20 78.14 74.89 42.14 39.72 84.50 40.74 56.04 61.68
Affinity 90.23 81.03 29.83 93.93 80.86 74.75 47.21 41.50 85.12 54.97 60.92 64.42
RMI 90.91 80.50 28.68 94.16 81.28 73.77 52.08 42.72 83.22 57.75 62.57 65.06
Table 4: Per-class results on CamVid test set. When applying RMI, we employ and . We choose the best mIoU score from results of CRF with steps 1, 5, and 10.

6 Conclusion

In this work, we develop a region mutual information (RMI) loss to model the relationship between pixels in an image. RMI uses one pixel and its neighbour pixels to represent this pixel. In this case, we get a multi-dimensional point constructed by a small region in an image, and the image is cast into a multi-dimensional distribution of these high-dimensional points. Then the prediction of the segmentation model and ground truth can achieve high order consistency through maximizing the mutual information (MI) between their multi-dimensional distributions. However, it is hard to calculate the value of the MI directly, so we derive a lower bound of the MI and maximize the lower bound to maximize the actual value of the MI. The idea of RMI is intuitive, and it is also easy to use since it only requires a few additional memory during the training stage. Meanwhile, it needs no changes to the base segmentation model. We experimentally demonstrate that RMI can achieve substantial and consistent improvements in performance on standard benchmark datasets.

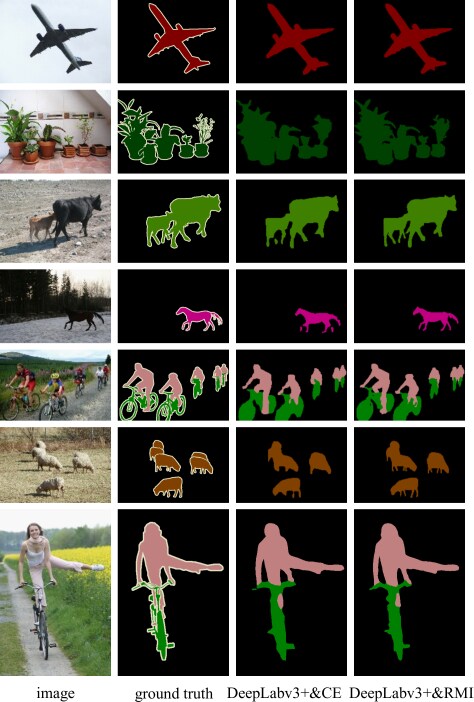

Figure 2: Some selected qualitative results on PASCAL VOC 2012 val set. Here we use the DeepLab3+ models in Tab. 1. Segmentation results of DeepLabv3+&RMI have richer details than DeepLabv3+&CE, e.g., small bumps of the airplane wing, branches of plants, limbs of cows and sheep, and so on. Best view in color with 300% zoom.

Acknowledgments

This work was supported in part by The National Key Research and Development Program of China (Grant Nos: 2018AAA0101400), in part by The National Nature Science Foundation of China (Grant Nos: 61936006).

References

  • [1] Martín Abadi, Paul Barham, Jianmin Chen, Zhifeng Chen, Andy Davis, Jeffrey Dean, Matthieu Devin, Sanjay Ghemawat, Geoffrey Irving, Michael Isard, Manjunath Kudlur, Josh Levenberg, Rajat Monga, Sherry Moore, Derek G. Murray, Benoit Steiner, Paul Tucker, Vijay Vasudevan, Pete Warden, Martin Wicke, Yuan Yu, and Xiaoqiang Zheng.

    Tensorflow: A system for large-scale machine learning.

    In OSDI, 2016.
  • [2] Vijay Badrinarayanan, Alex Kendall, and Roberto Cipolla. Segnet: A deep convolutional encoder-decoder architecture for image segmentation. PAMI, 2017.
  • [3] Stephen Boyd and Lieven Vandenberghe. Convex Optimization. Cambridge University Press, 2004.
  • [4] Gabriel J. Brostow, Julien Fauqueur, and Roberto Cipolla. Semantic object classes in video: A high-definition ground truth database. Pattern Recognition Letters, 2008.
  • [5] Liang-Chieh Chen, George Papandreou, Iasonas Kokkinos, Kevin Murphy, and Alan L. Yuille. Deeplab: Semantic image segmentation with deep convolutional nets, atrous convolution, and fully connected crfs. PAMI, 2018.
  • [6] Liang-Chieh Chen, George Papandreou, Florian Schroff, and Hartwig Adam. Rethinking atrous convolution for semantic image segmentation. CoRR, abs/1706.05587, 2017.
  • [7] Liang-Chieh Chen, Yukun Zhu, George Papandreou, Florian Schroff, and Hartwig Adam. Encoder-decoder with atrous separable convolution for semantic image segmentation. In ECCV, 2018.
  • [8] Francois Chollet.

    Xception: Deep learning with depthwise separable convolutions.

    In CVPR, 2017.
  • [9] Thomas M. Cover and Joy A. Thomas. Elements of information theory (2. ed.). Wiley, 2006.
  • [10] Mark Everingham, Luc J. Van Gool, Christopher K. I. Williams, John M. Winn, and Andrew Zisserman. The pascal visual object classes (VOC) challenge. IJCV, 2010.
  • [11] Jun Fu, Jing Liu, Yuhang Wang, and Hanqing Lu. Stacked deconvolutional network for semantic segmentation. CoRR, abs/1708.04943, 2017.
  • [12] Ian Goodfellow, Yoshua Bengio, and Aaron Courville. Deep Learning. MIT Press, 2016.
  • [13] Bharath Hariharan, Pablo Arbelaez, Lubomir Bourdev, Subhransu Maji, and Jitendra Malik. Semantic contours from inverse detectors. In ICCV, 2011.
  • [14] Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In CVPR, 2016.
  • [15] Tong He, Zhi Zhang, Hang Zhang, Zhongyue Zhang, Junyuan Xie, and Mu Li. Bag of tricks for image classification with convolutional neural networks. CoRR, abs/1812.01187, 2018.
  • [16] Wassily Hoeffding and Herbert Robbins.

    The central limit theorem for dependent random variables.

    Duke Mathematical Journal, 1948.
  • [17] Aapo Hyvärinen and Erkki Oja. Independent component analysis: algorithms and applications. Neural Networks, 2000.
  • [18] Tsung-Wei Ke, Jyh-Jing Hwang, Ziwei Liu, and Stella X. Yu. Adaptive affinity fields for semantic segmentation. In ECCV, 2018.
  • [19] Philipp Krähenbühl and Vladlen Koltun. Efficient inference in fully connected crfs with gaussian edge potentials. In NeurIPS, 2011.
  • [20] Di Lin, Yuanfeng Ji, Dani Lischinski, Daniel Cohen-Or, and Hui Huang. Multi-scale context intertwining for semantic segmentation. In ECCV, 2018.
  • [21] Sifei Liu, Shalini De Mello, Jinwei Gu, Guangyu Zhong, Ming-Hsuan Yang, and Jan Kautz. Learning affinity via spatial propagation networks. In NeurIPS, 2017.
  • [22] Ziwei Liu, Xiaoxiao Li, Ping Luo, Chen Change Loy, and Xiaoou Tang. Deep learning markov random field for semantic segmentation. PAMI, 2018.
  • [23] Jonathan Long, Evan Shelhamer, and Trevor Darrell. Fully convolutional networks for semantic segmentation. In CVPR, 2015.
  • [24] Frederik Maes, André Collignon, Dirk Vandermeulen, Guy Marchal, and Paul Suetens. Multimodality image registration by maximization of mutual information. IEEE Trans. Med. Imaging, 1997.
  • [25] Michael Maire, Takuya Narihira, and Stella X. Yu. Affinity CNN: learning pixel-centric pairwise relations for figure/ground embedding. In CVPR, 2016.
  • [26] Adam Paszke, Sam Gross, Soumith Chintala, Gregory Chanan, Edward Yang, Zachary DeVito, Zeming Lin, Alban Desmaison, Luca Antiga, and Adam Lerer. Automatic differentiation in pytorch. In NeurIPS-W, 2017.
  • [27] K. B. Petersen and M. S. Pedersen. The matrix cookbook, nov 2012. Version 20121115.
  • [28] Josien P. W. Pluim, J. B. Antoine Maintz, and Max A. Viergever. Mutual information based registration of medical images: A survey. IEEE Trans. Med. Imaging, 2003.
  • [29] Sudhakar Prasad. Certain relations between mutual information and fidelity of statistical estimation. CoRR, abs/1010.1508, 2010.
  • [30] Daniel B. Russakoff, Carlo Tomasi, Torsten Rohlfing, and Calvin R. Maurer Jr. Image similarity using mutual information of regions. In ECCV, 2004.
  • [31] Olga Russakovsky, Jia Deng, Hao Su, Jonathan Krause, Sanjeev Satheesh, Sean Ma, Zhiheng Huang, Andrej Karpathy, Aditya Khosla, Michael S. Bernstein, Alexander C. Berg, and Fei-Fei Li. Imagenet large scale visual recognition challenge. IJCV, 2015.
  • [32] Falong Shen, Rui Gan, Shuicheng Yan, and Gang Zeng. Semantic segmentation via structured patch prediction, context crf and guidance crf. In CVPR, 2017.
  • [33] Karen Simonyan and Andrew Zisserman. Very deep convolutional networks for large-scale image recognition. CoRR, abs/1409.1556, 2014.
  • [34] K. Triantafyllopoulos and P.J. Harrison. Posterior mean and variance approximation for regression and time series problems. Statistics, 2008.
  • [35] Max A. Viergever, J. B. Antoine Maintz, Stefan Klein, Keelin Murphy, Marius Staring, and Josien P. W. Pluim. A survey of medical image registration - under review. Medical Image Analysis, 2016.
  • [36] Paul A. Viola and William M. Wells III. Alignment by maximization of mutual information. IJCV, 1997.
  • [37] Zhou Wang, A. C. Bovik, H. R. Sheikh, and E. P. Simoncelli. Image quality assessment: from error visibility to structural similarity. TIP, 2004.
  • [38] Hang Zhang, Kristin Dana, Jianping Shi, Zhongyue Zhang, Xiaogang Wang, Ambrish Tyagi, and Amit Agrawal. Context encoding for semantic segmentation. In CVPR, 2018.
  • [39] Zhenli Zhang, Xiangyu Zhang, Chao Peng, Xiangyang Xue, and Jian Sun. Exfuse: Enhancing feature fusion for semantic segmentation. In ECCV, 2018.
  • [40] Hengshuang Zhao, Jianping Shi, Xiaojuan Qi, Xiaogang Wang, and Jiaya Jia. Pyramid scene parsing network. In CVPR, 2017.
  • [41] Shuai Zheng, Sadeep Jayasumana, Bernardino Romera-Paredes, Vibhav Vineet, Zhizhong Su, Dalong Du, Chang Huang, and Philip H. S. Torr.

    Conditional random fields as recurrent neural networks.

    In ICCV, 2015.
